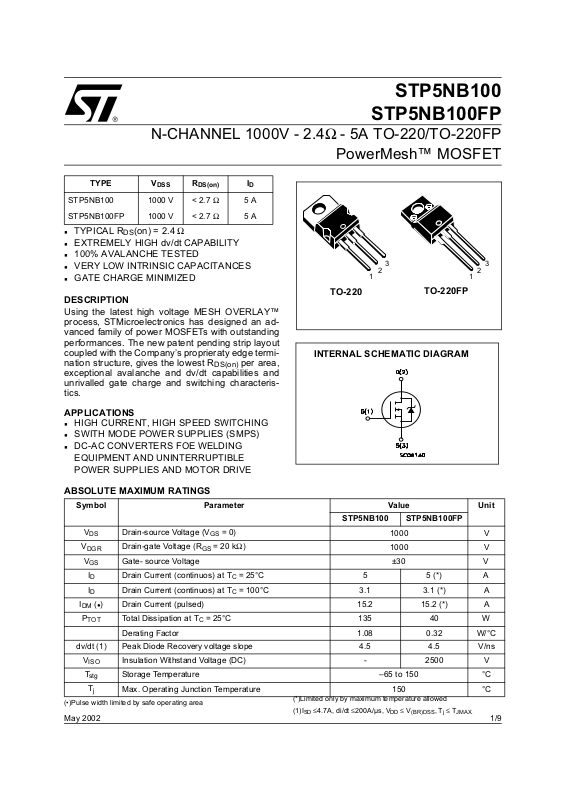

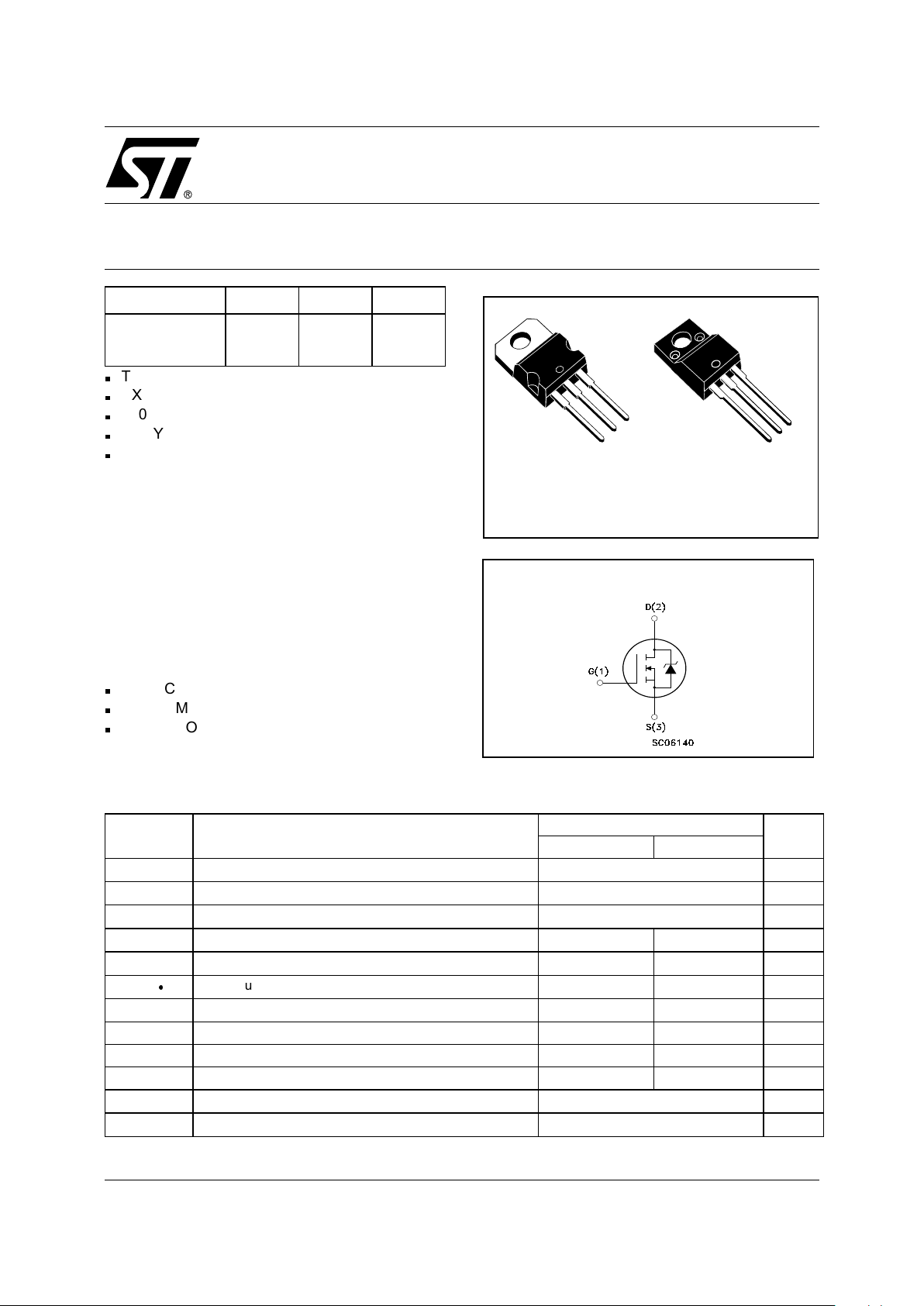

STP5NB100
STP5NB100FP
N-CHANNEL 1000V - 2.4Ω - 5A TO-220/TO-220FP
PowerMesh™ MOSFET
(*)Limited only by maximum temperature allowed
(1)I
SD
≤4.7A, di/dt ≤200A/µs, VDD≤ V
(BR)DSS
, Tj≤ T
JMAX.
INTERNAL SCHEMATIC DIAGRAM
TYPICAL RDS(on) = 2.4 Ω
EXTREMELY HIGH dv/dt CAPABILITY
100% AVALANCHE TESTED
VERY LOW INTRINSIC CAPACITANCES
GATE CHARGE MINIMIZED
DESCRIPTION
Using the latest high voltage MESH OVERLAY™
process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding
performances. The new patent pending strip layout
coupled with the Company’s proprieraty edge termination structure, gives the lowest R
DS(on)
per area,
exceptional avalanche and dv/dt capabilities and
unrivalled gate charge and switching characteristics.
APPLICATIONS
HIGH CURRENT, HIGH SPEED SWITCHING
SWITH MODE POWER SUPPLIES (SMPS)
DC-AC CONVERTERS FOE WELDING
EQUIPMENT AND UNINTERRUPTIBLE
POWER SUPPLIES AND MOTOR DRIVE
ABSOLUTE MAXIMUM RATINGS
(•)Pulse width limited by safe operating area
TYPE V
DSS
R
DS(on)
I
D
STP5NB100 1000 V < 2.7 Ω 5 A
STP5NB100FP 1000 V < 2.7 Ω 5 A
Symbol Parameter Value Unit
STP5NB100 STP5NB100FP
V
DS
Drain-source Voltage (VGS = 0)
1000 V
V
DGR
Drain-gate Voltage (RGS = 20 kΩ)
1000 V
V
GS
Gate- source Voltage ±30 V
I
D
Drain Current (continuos) at TC = 25°C
5 5 (*) A
I
D
Drain Current (continuos) at TC = 100°C
3.1 3.1 (*) A
I
DM
(!)
Drain Current (pulsed) 15.2 15.2 (*) A
P
TOT
Total Dissipation at TC = 25°C
135 40 W
Derating Factor 1.08 0.32 W/°C
dv/dt (1) Peak Diode Recovery voltage slope 4.5 4.5 V/ns
V
ISO
Insulation Withstand Voltage (DC) - 2500 V
T
stg
Storage Temperature –65 to 150 °C
T
j
Max. Operating Junction Temperature 150 °C
1
2
3
1
2
3
TO-220
TO-220FP
Page 2
STP5NB100 - STP5NB100FP
2/9
THERMAL DATA
AVALANCHE CHARACTERISTICS
ELECTRICAL CHARACTERISTICS (TCASE = 25 °C UNLESS OTHERWISE SPECIFIED)
OFF
ON
(1)
DYNAMIC
TO-220 TO-220FP
Rthj-case Thermal Resistance Junction-case Max 0.93 3.12 °C/W
Rthj-amb Thermal Resistance Junction-ambient Max 62.5 °C/W
T
l
Maximum Lead Temperature For Soldering Purpose 300 °C
Symbol Parameter Max Value Unit
I
AR
Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T
j
max)
5 A
E
AS
Single Pulse Avalanche Energy
(starting T
j
= 25 °C, ID = IAR, VDD = 50 V)
220 mJ
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
(BR)DSS
Drain-source
Breakdown Voltage
I
D
= 250 µA, VGS = 0 1000 V
I
DSS
Zero Gate Voltage
Drain Current (V
GS
= 0)
V
DS
= Max Rating
1 µA
V
DS
= Max Rating, TC = 125 °C
50 µA
I
GSS
Gate-body Leakage
Current (V
DS
= 0)
V
GS
= ±30V ±100 nA
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
GS(th)
Gate Threshold Voltage
V
DS
= VGS, ID = 250 µA
3 4 5 V
R
DS(on)
Static Drain-source On
Resistance
VGS = 10V, ID = 2.5 A
2.4 2.7 Ω
Symbol Parameter Test Conditions Min. Typ. Max. Unit
g
fs
(1) Forward Transconductance VDS > I
D(on)
x R
DS(on)max,
ID= 2.5 A
1.5 S
C
iss
Input Capacitance
V
DS
= 25V, f = 1 MHz, VGS = 0
1500 pF
C
oss
Output Capacitance 150 pF
C
rss
Reverse Transfer
Capacitance
17 pF
Page 3
3/9
STP5NB100 - STP5NB100FP

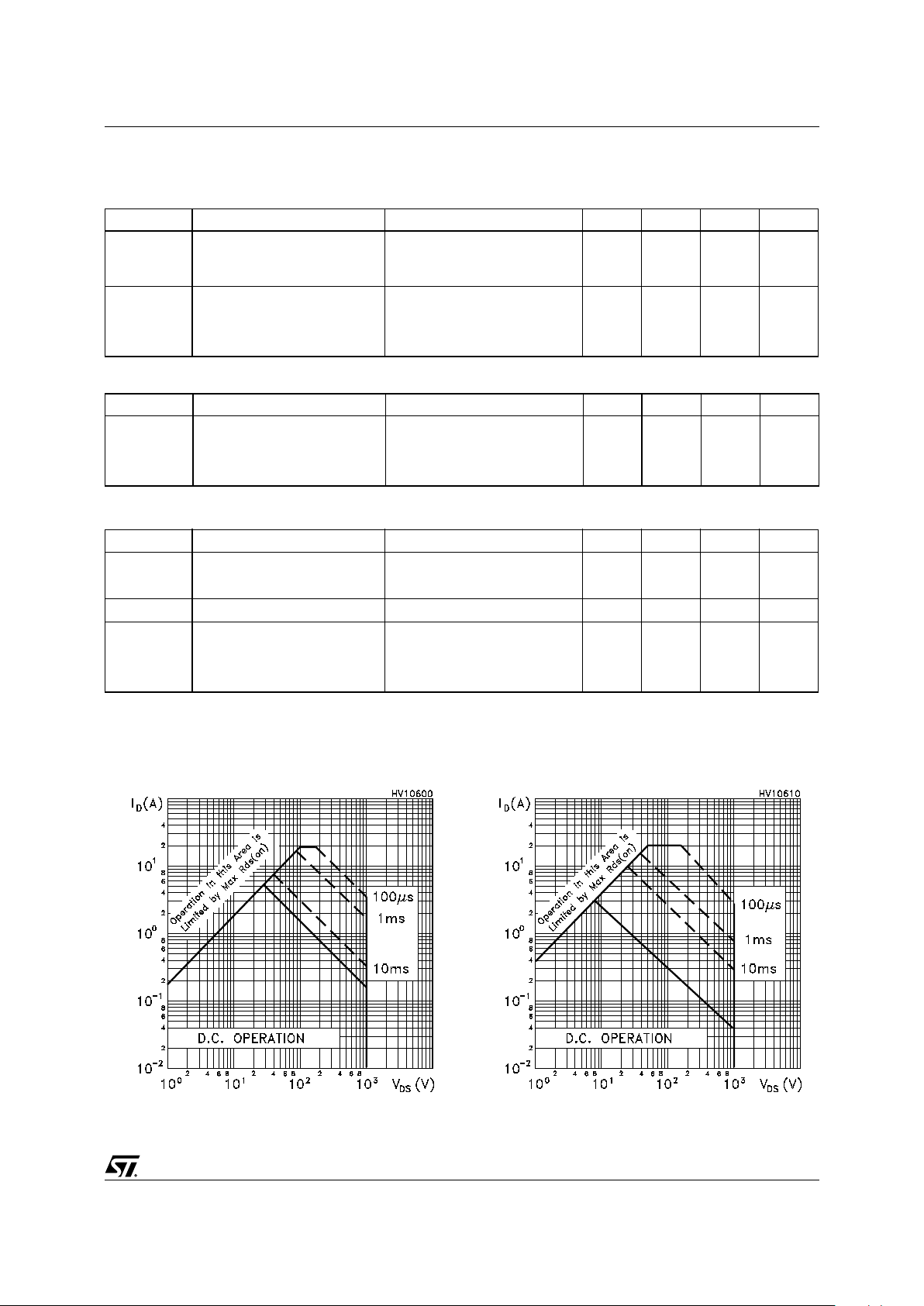

Safe Operating Area for TO-220FP
ELECTRICAL CHARACTERISTICS (CONTINUED)
SWITCHING ON
SWITCHING OFF
SOURCE DRAIN DIODE
Note: 1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %.
2. Pulse width limited by safe operating area.
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
d(on)
t
r
Turn-on Delay Time
Rise Time
VDD = 500 V, ID = 2.5 A
R
G
= 4.7Ω VGS = 10 V
(see test circuit, Figure 3)
24
11
ns
ns
Q
g
Total Gate Charge
V
DD
= 800V, ID = 5 A,
V
GS
= 10V
39 51 nC
Q
gs
Gate-Source Charge 9.6 nC
Q
gd
Gate-Drain Charge 19.2 nC
Symbol Parameter Test Conditions Min. Typ. Max. Unit
t
r(Voff)
Off-voltage Rise Time
V
DD
= 800V, ID = 5 A,
R
G
= 4.7Ω, V
GS
= 10V
(see test circuit, Figure 5)
20 ns
t
f
Fall Time 22 ns
t
c
Cross-over Time 26 ns
Symbol Parameter Test Conditions Min. Typ. Max. Unit
I
SD
Source-drain Current 5 A
I
SDM
(1)
Source-drain Current (pulsed) 20 A
V
SD
(2)
Forward On Voltage
ISD = 5 A, VGS = 0
1.6 V
t
rr
Reverse Recovery Time
I
SD
= 5 A, di/dt = 100A/µs,
V
DD
= 100V, Tj = 150°C
(see test circuit, Figure 5)
780 ns
Q
rr
Reverse Recovery Charge 5.5 µC
I
RRM
Reverse Recovery Current 14 A
Safe Operating Area for TO-220
Page 4
STP5NB100 - STP5NB100FP
4/9

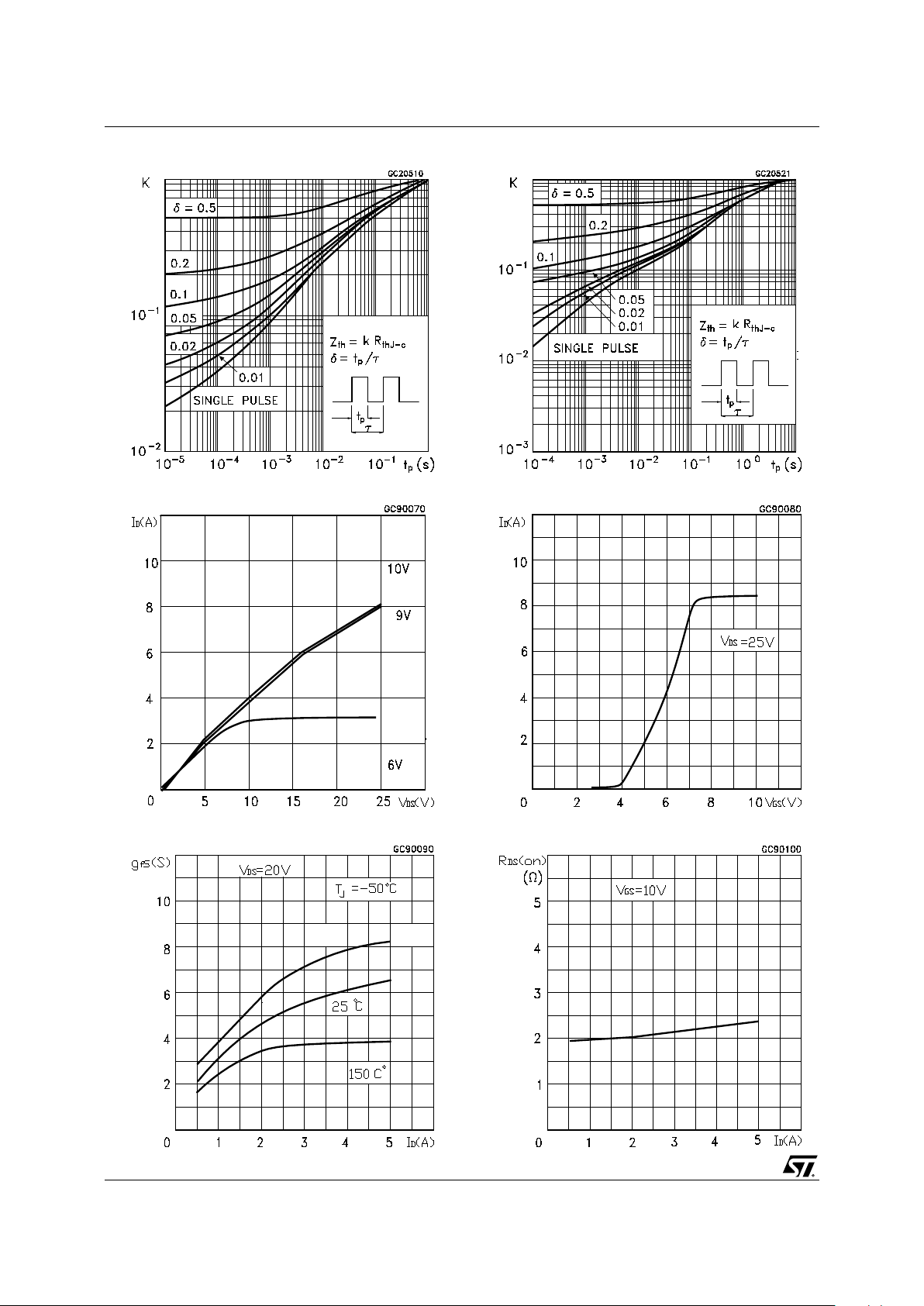

Thermal Impedence for TO-220
Transconductance Static Drain-source On Resistance
Transfer CharacteristicsOutput Characteristics
Thermal Impedence for TO-220FP
Page 5
STP5NB100 - STP5NB100FP
5/9

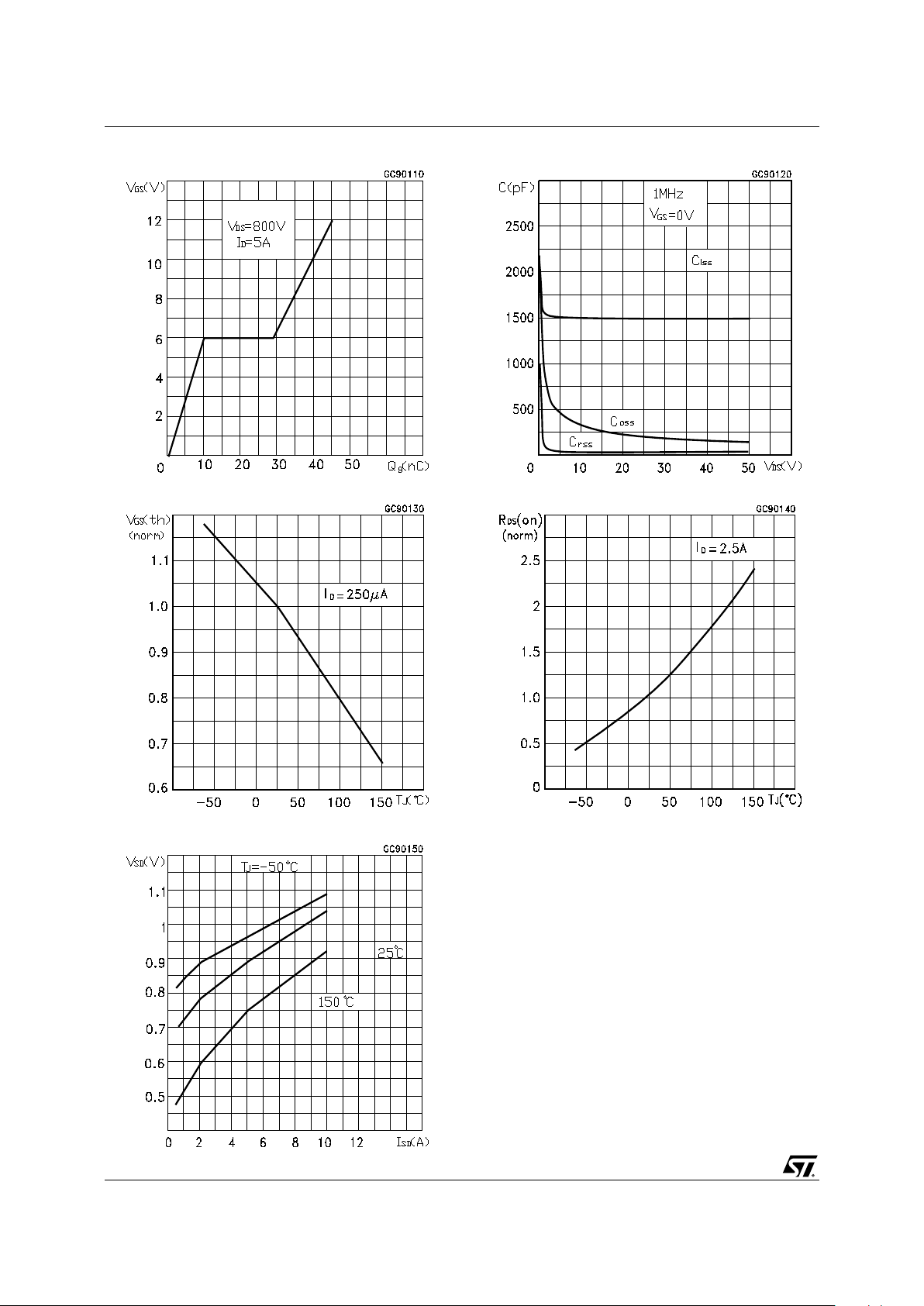

Source-drain Diode Forward Characteristics
Normalized Gate Thereshold Voltage vs Temp. Normalized On Resistance vs Temperature
Capacitance VariationsGate Charge vs Gate-source Voltage
Page 6
STP5NB100 - STP5NB100FP
6/9

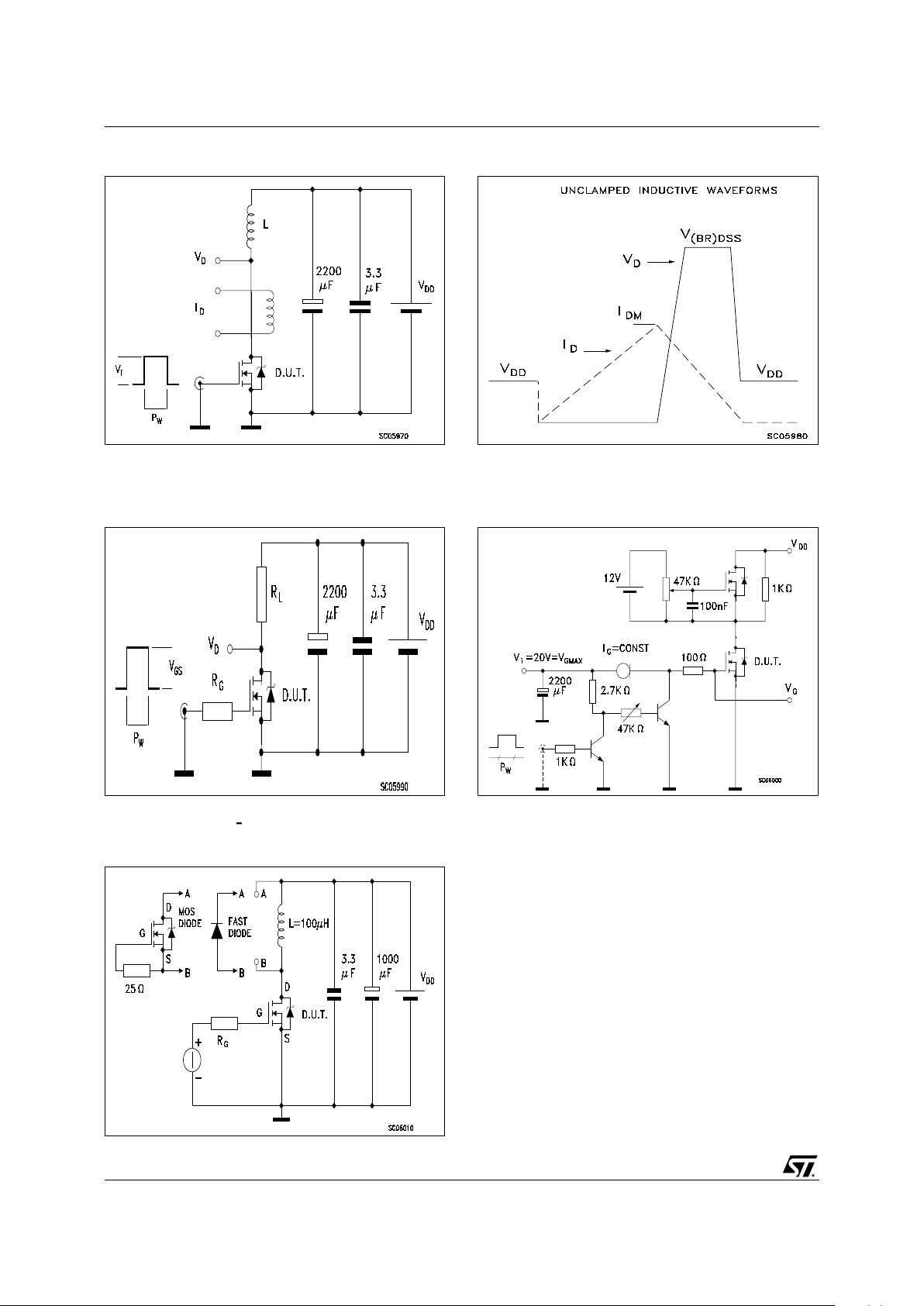

Fig. 5: Test Circuit For Inductive Load Switching
And Diode Recovery Times
Fig. 4: Gate Charge test Circuit
Fig. 2: Unclamped Inductive WaveformFig. 1: Unclamped Inductive Load Test Circuit
Fig. 3: Switching Times Test Circuit For
Resistive Load
Page 7
STP5NB100 - STP5NB100FP
7/9
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 4.40 4.60 0.173 0.181
C 1.23 1.32 0.048 0.051
D 2.40 2.72 0.094 0.107
D1 1.27 0.050
E 0.49 0.70 0.019 0.027
F 0.61 0.88 0.024 0.034
F1 1.14 1.70 0.044 0.067
F2 1.14 1.70 0.044 0.067
G 4.95 5.15 0.194 0.203
G1 2.4 2.7 0.094 0.106
H2 10.0 10.40 0.393 0.409
L2 16.4 0.645
L4 13.0 14.0 0.511 0.551
L5 2.65 2.95 0.104 0.116
L6 15.25 15.75 0.600 0.620
L7 6.2 6.6 0.244 0.260
L9 3.5 3.93 0.137 0.154
DIA. 3.75 3.85 0.147 0.151
L6
A
C
D
E
D1
F
G
L7
L2
Dia.
F1
L5
L4
H2
L9
F2
G1

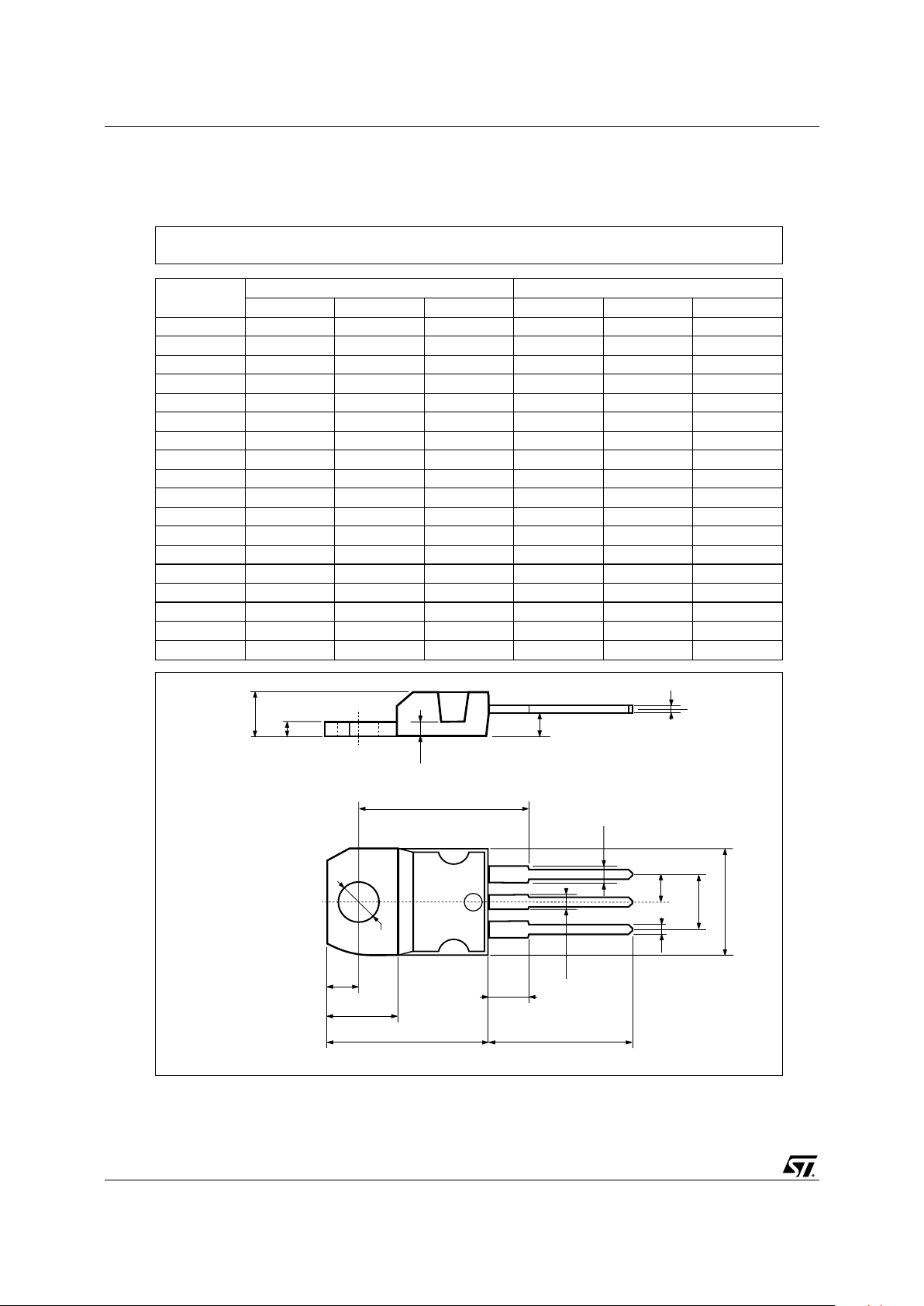

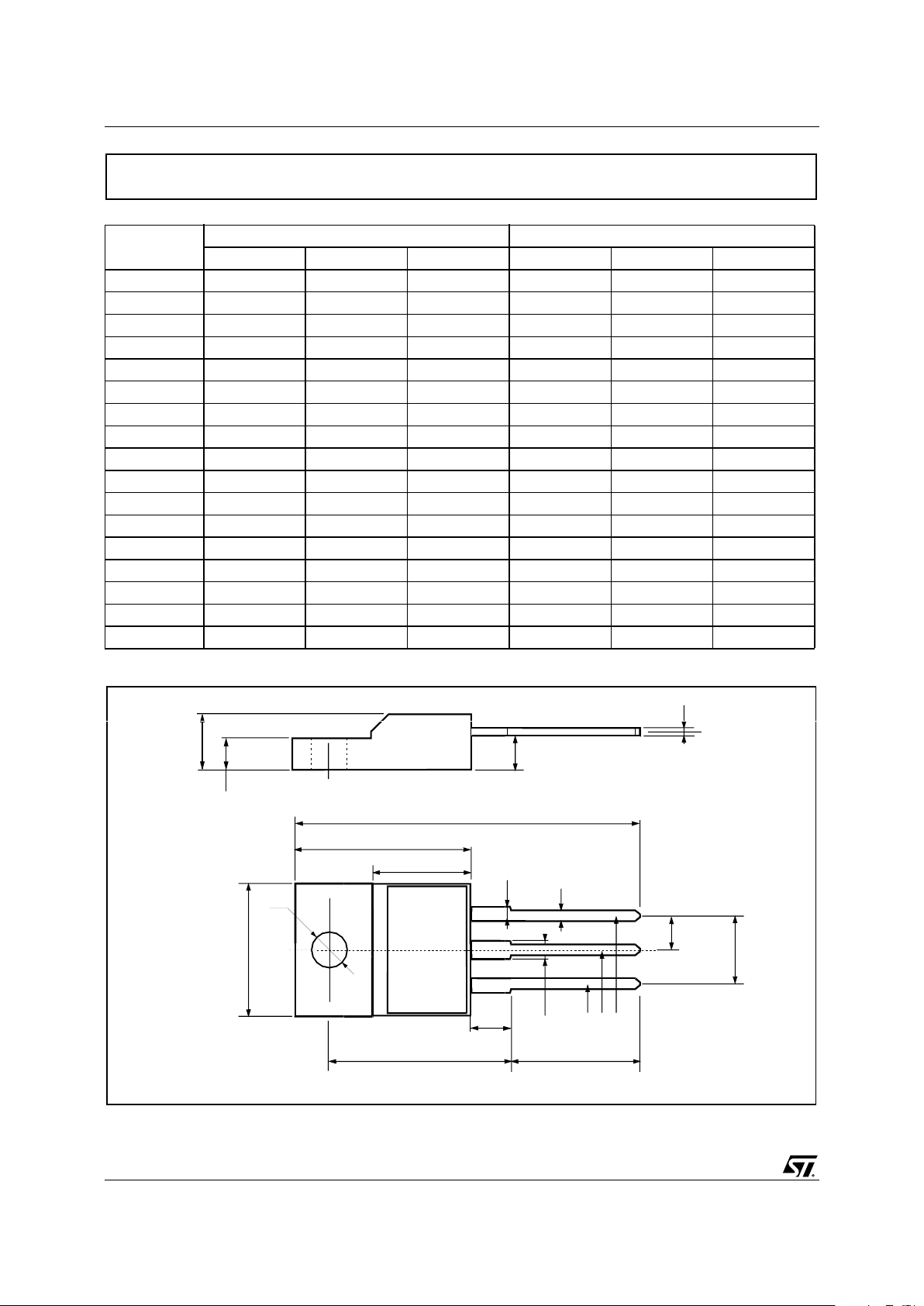

TO-220 MECHANICAL DATA
P011C
Page 8
STP5NB100 - STP5NB100FP
8/9
L2
A
B
D
E
H
G
L6
F
L3
G1
1 2 3
F2
F1
L7
L4
L5
DIM.
mm. inch
MIN. TYP MAX. MIN. TYP. MAX.
A 4.4 4.6 0.173 0.181
B 2.5 2.7 0.098 0.106
D 2.5 2.75 0.098 0.108
E 0.45 0.7 0.017 0.027
F 0.75 1 0.030 0.039
F1 1.15 1.5 0.045 0.067
F2 1.15 1.5 0.045 0.067
G 4.95 5.2 0.195 0.204
G1 2.4 2.7 0.094 0.106
H 10 10.4 0.393 0.409
L2 16 0.630
L3 28.6 30.6 1.126 1.204
L4 9.8 10.6 .0385 0.417
L5 2.9 3.6 0.114 0.141
L6 15.9 16.4 0.626 0.645
L7 9 9.3 0.354 0.366
Ø 3 3.2 0.118 0.126
TO-220FP MECHANICAL DATA
Page 9
9/9
STP5NB100 - STP5NB100FP
Information fu rnished is believed to be accurate and reliable. H owever, STMicroelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject t o change w ithout notice. Th is p ublication su persedes and replaces all information
previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics.
© The ST logo is a registered trademark of STMicroelectronics
© 2002 STMicroelectronics - Printed in Italy - All Rights Reserved
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco
Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.
© http://www.st.com
