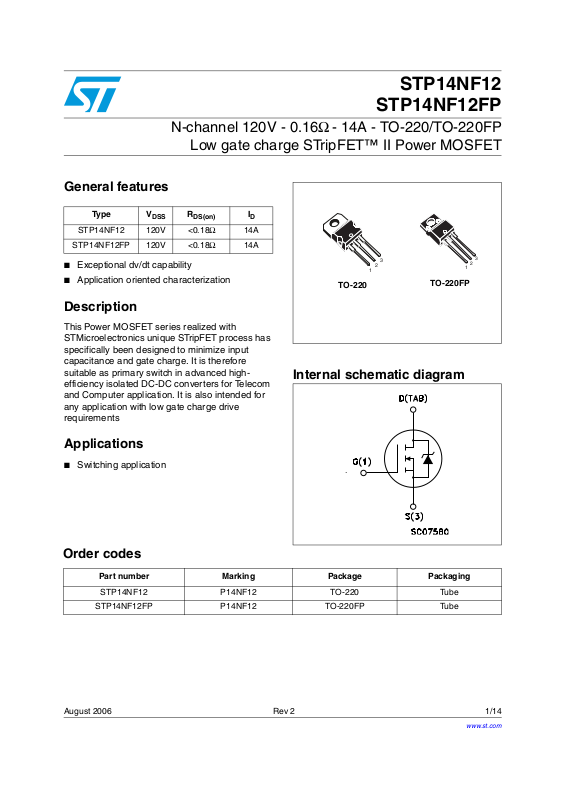

Datasheet stp14nf12,stp14nf12fp Datasheet

N-channel 120V - 0.16Ω - 14A - TO-220/TO-220FP

3

Low gate charge STripFET™ II Power MOSFET

General features

Typ e V

STP14NF12 120V <0.18Ω 14A

STP14NF12FP 120V <0.18Ω 14A

■ Exceptional dv/dt capability

■ Application oriented characterization

DSS

Description

This Power MOSFET series realized with
STMicroelectronics unique STripFET process has
specifically been designed to minimize input
capacitance and gate charge. It is therefore
suitable as primary switch in advanced high­efficiency isolated DC-DC converters for Telecom
and Computer application. It is also intended for
any application with low gate charge drive
requirements

R

DS(on)

I

D

STP14NF12

STP14NF12FP

3

2

1

TO-220

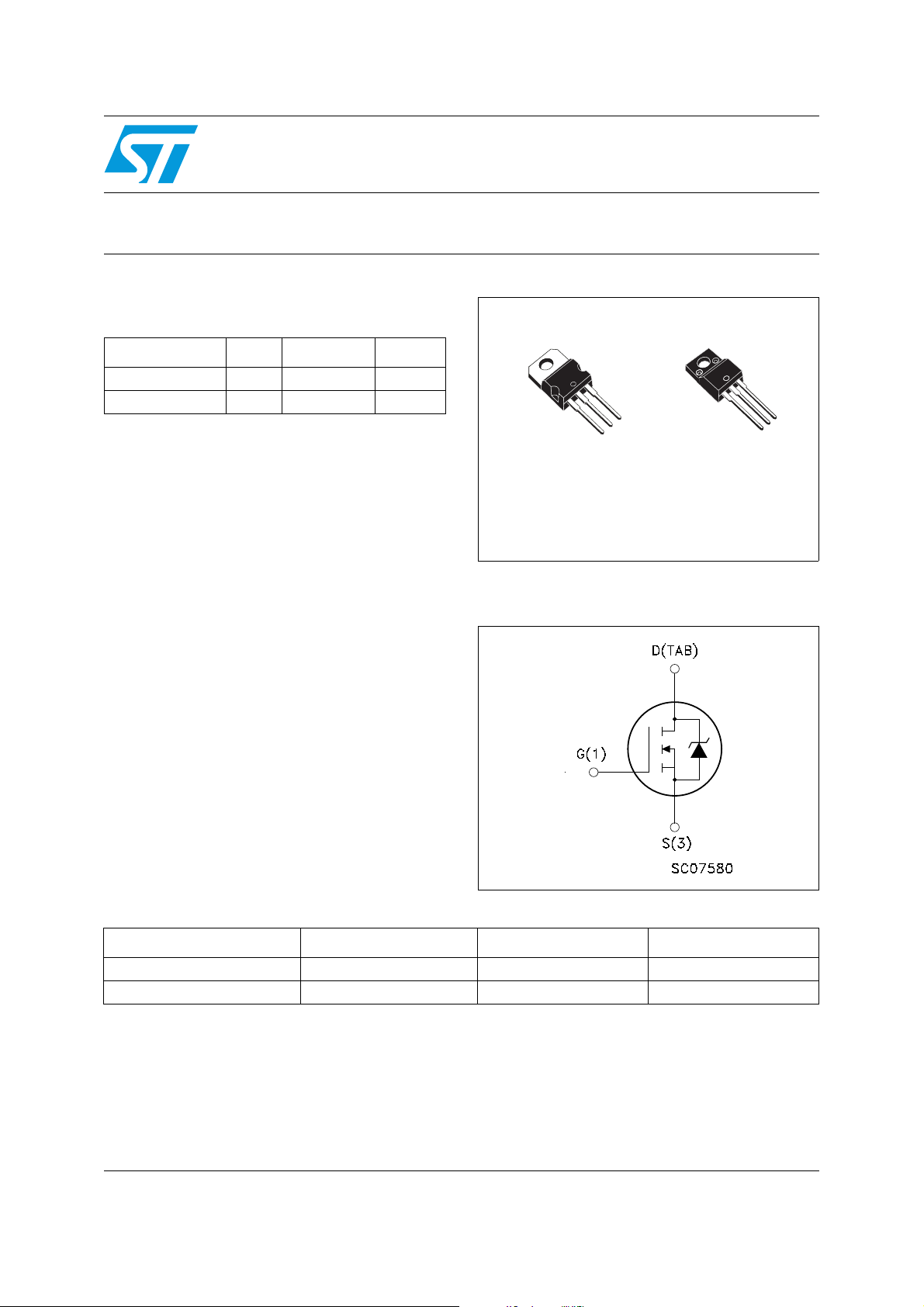

Internal schematic diagram

TO-220FP

2

1

Applications

■ Switching application

Order codes

Part number Marking Package Packaging

STP14NF12 P14NF12 TO-220 Tube

STP14NF12FP P14NF12 TO-220FP Tube

August 2006 Rev 2 1/14

www.st.com

14

Contents STP14NF12 - STP14NF12FP

Contents

1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2/14

STP14NF12 - STP14NF12FP Electrical ratings

1 Electrical ratings

Table 1. Absolute maximum ratings

Symbol Parameter Value Unit

TO-220 TO-220FP

V

I

V

DGR

V

DM

P

I

I

DS

GS

D

D

(1)

tot

Drain-source voltage (VGS = 0) 120 V

Drain-gate voltage (RGS = 20 kΩ)120V

Gate- source voltage ± 20 V

Drain current (continuous) at TC = 25°C 14 8.5 A

Drain current (continuous) at TC = 100°C 9 6 A

Drain current (pulsed) 56 34 A

Total dissipation at TC = 25°C 60 25 W

Derating Factor 0.4 0.17 W/°C

(2)

dv/dt

E

AS

V

ISO

T

stg

T

j

1. Pulse width limited by safe operating area.

2. ISD ≤ 14A, di/dt ≤ 300A/µs, VDD ≤ V

3. Starting Tj = 25 °C, ID = 14A, VDD = 50V

Peak diode recovery voltage slope 9 V/ns

(3)

Single pulse avalanche energy 60 mJ

Insulation withstand voltage (DC) -- 2500 V

Storage temperature

Max. operating junction temperature

(BR)DSS

Table 2. Thermal data

, Tj ≤ T

-55 to 175 °C

JMAX

TO-220 TO-220FP

Rthj-case Thermal resistance junction-case max 2.5 6 °C/W

Rthj-amb Thermal resistance junction-ambient max 62.5 °C/W

T

Maximum lead temperature for soldering purpose 300 °C

J

3/14

Electrical characteristics STP14NF12 - STP14NF12FP

2 Electrical characteristics

(T

=25°C unless otherwise specified)

CASE

Table 3. On/off states

Symbol Parameter Test conditions Min. Typ. Max. Unit

V

(BR)DSS

I

DSS

I

GSS

V

GS(th)

R

DS(on)

Drain-source
breakdown voltage

Zero gate voltage
drain current (V

GS

Gate-body leakage
current (V

DS

= 0)

= 0)

ID = 250µA, VGS =0 120 V

V

= max ratings

DS

VDS = max ratings,

= 125°C

T

C

1

10

VGS = ± 20V ±100 nA

Gate threshold voltage VDS = VGS, ID = 250µA 2 3 4 V

Static drain-source on
resistance

V

= 10V, ID = 7A 0.16 0.18 Ω

GS

Table 4. Dynamic

Symbol Parameter Test conditions Min. Typ. Max. Unit

Forward

(1)

g

fs

C
C

oss

C

t

d(on)

t

t

d(off)

t

Q

Q

Q

1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %.

transconductance

Input capacitance

iss

Output capacitance
Reverse transfer

rss

capacitance

Turn-on delay time
Rise time

r

Turn-off delay time
Fall time

f

Total gate charge

g

Gate-source charge

gs

Gate-drain charge

gd

= 15V, ID=7A 4 S

V

DS

= 25V, f = 1MHz,

V

DS

= 0

V

GS

= 50V, ID = 7A

V

DD

RG=4.7Ω VGS = 10V
(see Figure 15)

VDD = 80V, ID = 14A,
VGS = 10V
(see Figure 16)

460

70
30

16
25
32

8

15.5

3.7

4.7

21 nC

µA
µA

pF
pF
pF

ns
ns
ns
ns

nC
nC

4/14

STP14NF12 - STP14NF12FP Electrical characteristics

Table 5. Source drain diode

Symbol Parameter Test conditions Min. Typ. Max. Unit

I

SD

I

SDM

V

SD

t

Q

I

RRM

1. Pulse width limited by safe operating area.

2. Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %

Source-drain current
Source-drain current

(1)

(pulsed)

(2)

Forward on voltage ISD = 14A, VGS = 0 1.5 V

Reverse recovery time

rr

Reverse recovery charge

rr

Reverse recovery current

ISD = 14A,
di/dt = 100A/µs,

= 50V, Tj = 150°C

V

DD

(see Figure 17)

92

230

5

14
56

A
A

ns

nC

A

5/14

Electrical characteristics STP14NF12 - STP14NF12FP

2.1 Electrical characteristics (curves)

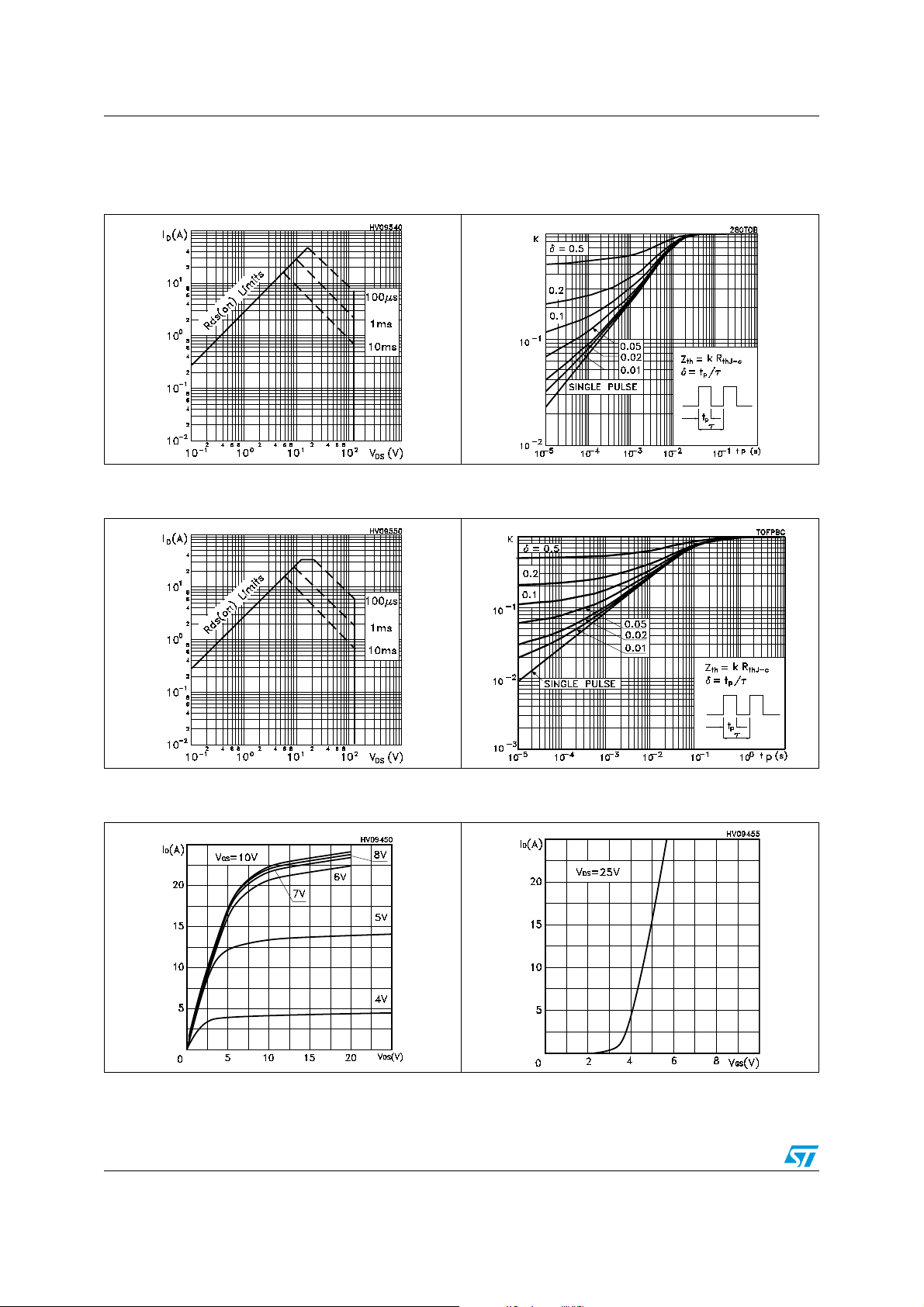

Figure 1. Safe operating area for TO-220 Figure 2. Thermal impedance for TO-220

Figure 3. Safe operating area for TO-220FP Figure 4. Thermal impedance for TO-220FP

Figure 5. Output characterisics Figure 6. Transfer characteristics

6/14

STP14NF12 - STP14NF12FP Electrical characteristics

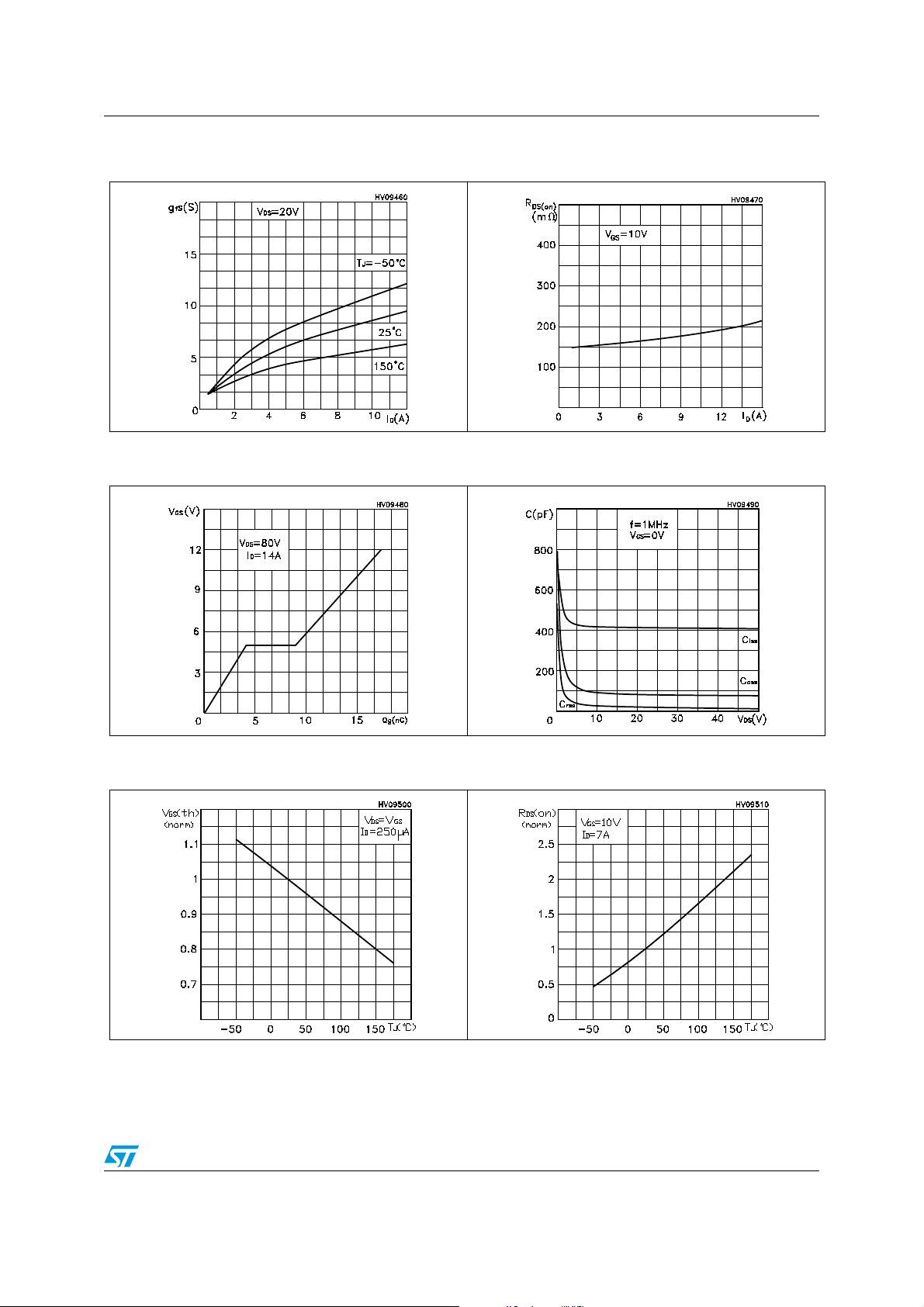

Figure 7. Transconductance Figure 8. Static drain-source on resistance

Figure 9. Gate charge vs gate-source voltage Figure 10. Capacitance variations

Figure 11. Normalized gate threshold voltage

vs temperature

Figure 12. Normalized on resistance vs

temperature

7/14

Electrical characteristics STP14NF12 - STP14NF12FP

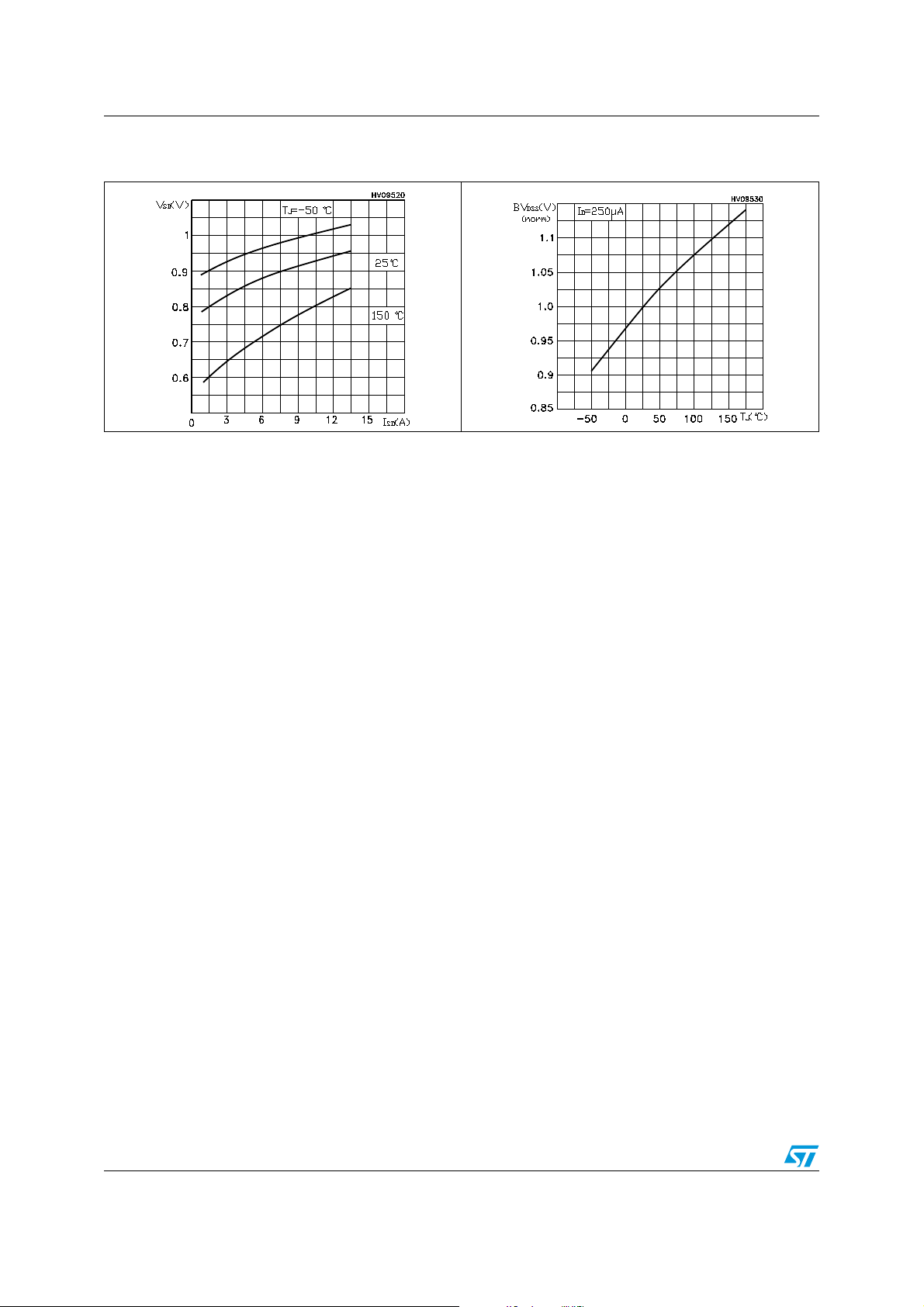

Figure 13. Source-drain diode forward

characteristics

Figure 14. Normalized B

vs temperature

VDSS

8/14

STP14NF12 - STP14NF12FP Test circuit

3 Test circuit

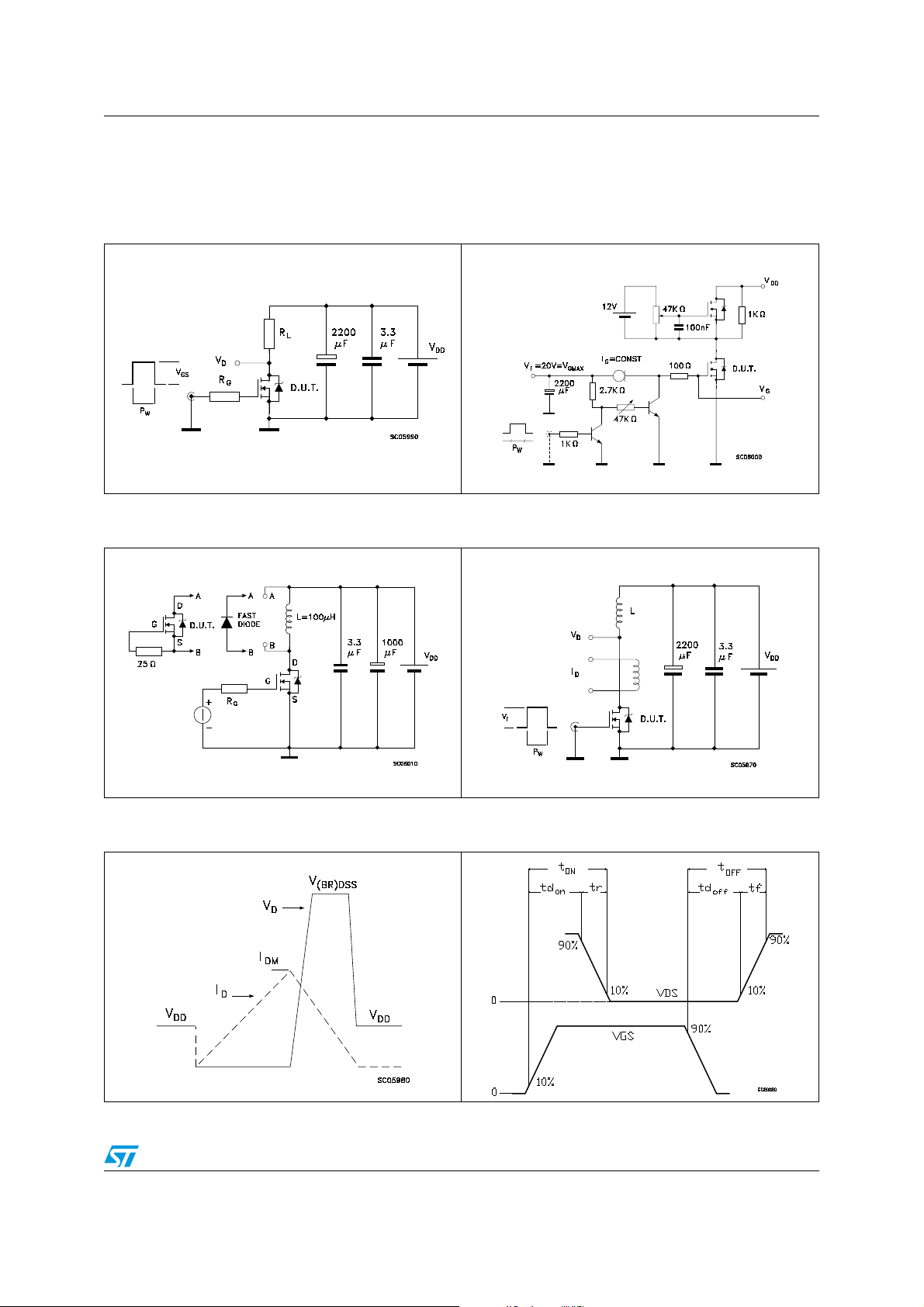

Figure 15. Switching times test circuit for

resistive load

Figure 17. Test circuit for inductive load

switching and diode recovery times

Figure 16. Gate charge test circuit

Figure 18. Unclamped Inductive load test

circuit

Figure 19. Unclamped inductive waveform Figure 20. Switching time waveform

9/14

Package mechanical data STP14NF12 - STP14NF12FP

4 Package mechanical data

In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect . The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com

10/14

STP14NF12 - STP14NF12FP Package mechanical data

L2

A

B

D

E

H

G

L6

F

L3

G1

123

F2

F1

L7

L4

L5

DIM.

mm. inch

MIN. TYP MAX. MIN. TYP. MAX.

A 4.4 4.6 0.173 0.181

B 2.5 2.7 0.098 0.106

D 2.5 2.75 0.098 0.108

E 0.45 0.7 0.017 0.027

F 0.75 1 0.030 0.0 39

F1 1.15 1.7 0.045 0.067

F2 1.15 1.7 0.045 0.067

G 4.95 5.2 0.195 0.204

G1 2.4 2.7 0.094 0.106

H 10 10.4 0.393 0.409

L2 16 0.630

L3 28.6 30.6 1.126 1.204

L4 9. 8 10.6 .038 5 0.417

L5 2. 9 3.6 0.114 0.141

L6 15.9 16.4 0.626 0.645

L7 9 9.3 0.354 0.366

Ø 3 3.2 0.118 0.126

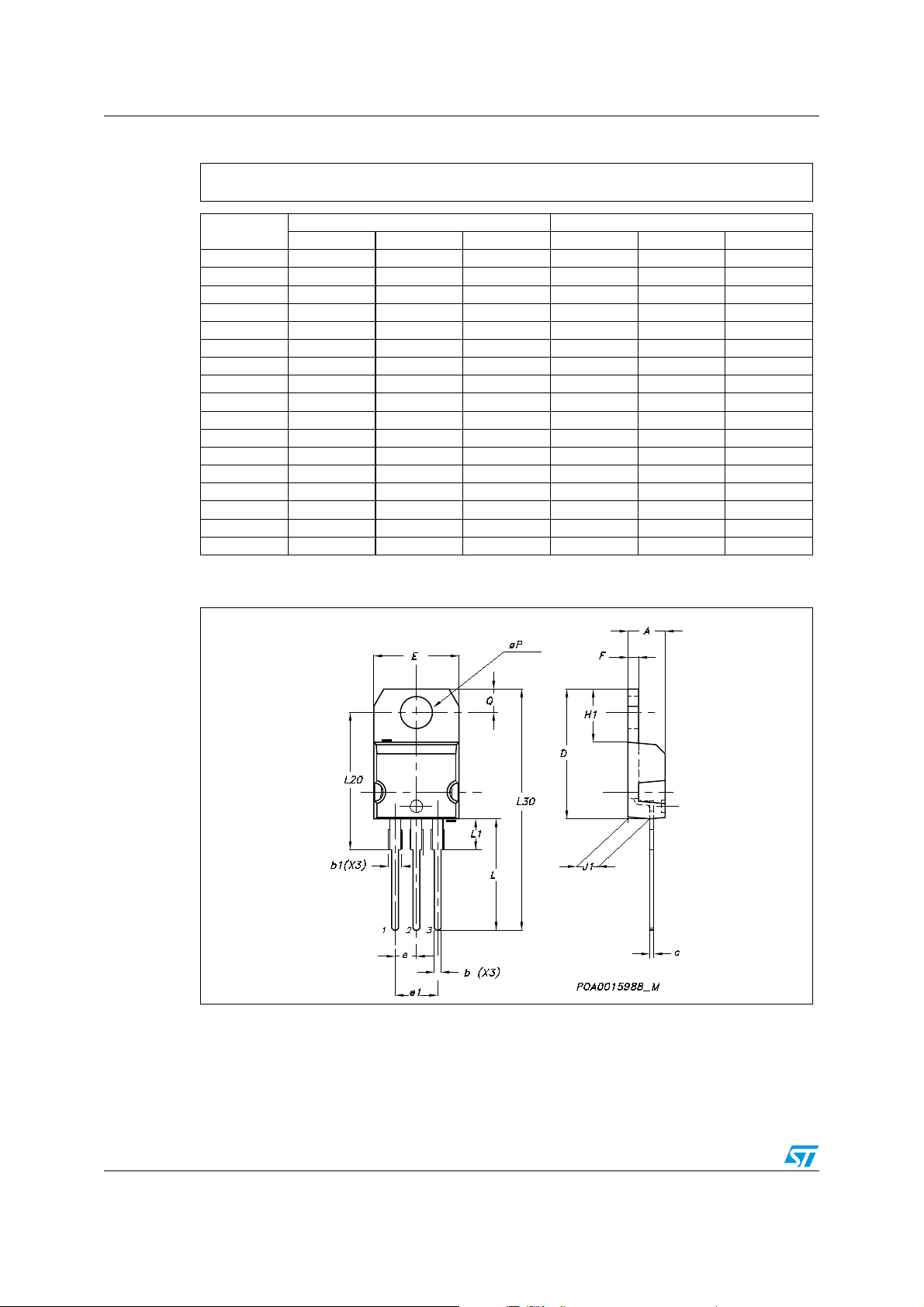

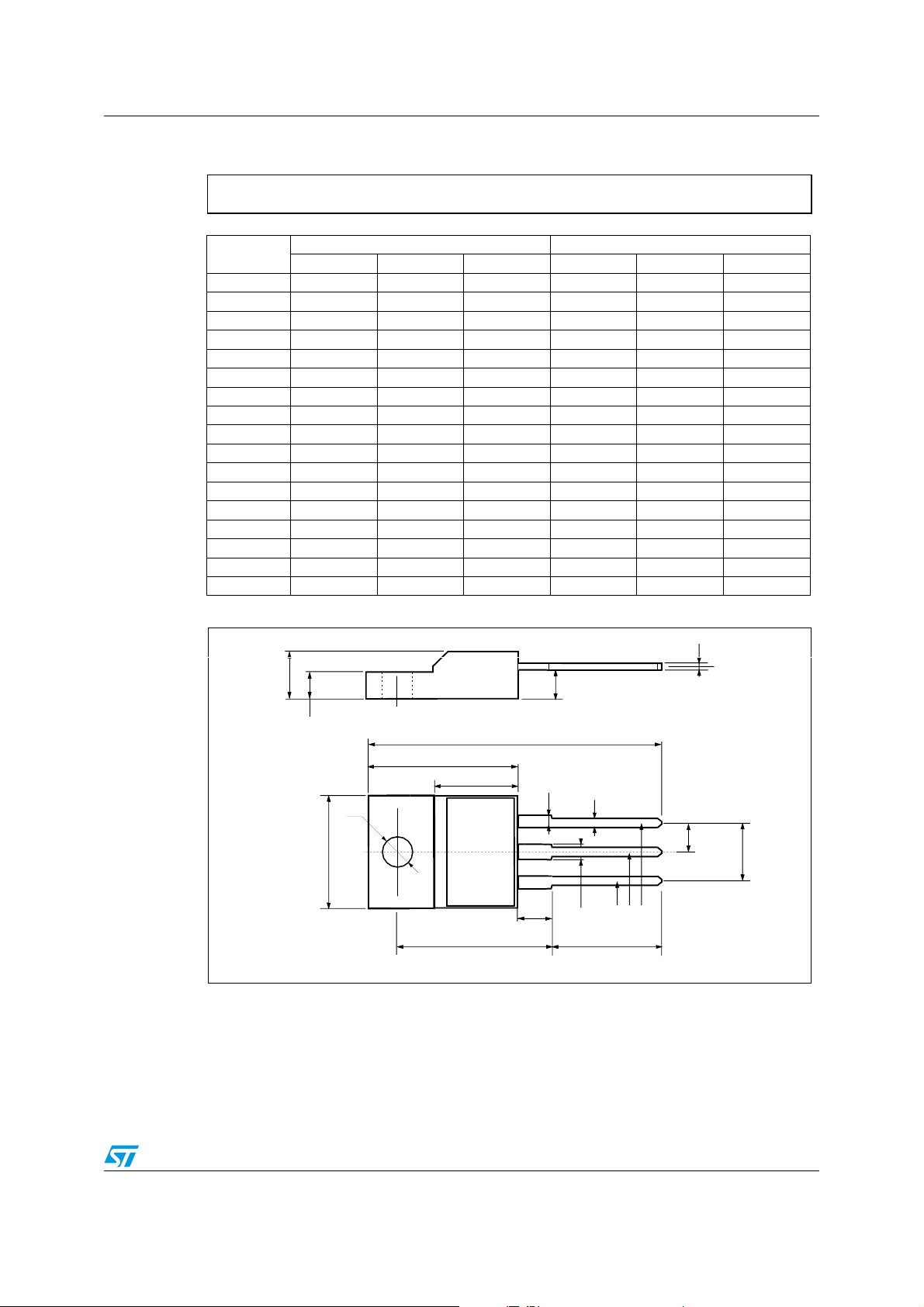

TO-220FP MECHANICAL DATA

11/14

Package mechanical data STP14NF12 - STP14NF12FP

TO-220 MECHANICAL DATA

DIM.

A 4.40 4 .60 0.173 0.181

b 0 .61 0.88 0.024 0.034

b1 1.15 1.70 0.045 0.066

c 0.49 0.70 0.019 0.027

D 15.25 15.75 0.60 0.620

E 10 10.40 0.393 0.409

e 2 .40 2.70 0.094 0.106

e1 4.95 5.15 0.194 0.202

F 1.23 1.32 0.048 0.052

H1 6.20 6.60 0.244 0 .256

J1 2.40 2.72 0.094 0 .107

L 13 14 0.511 0.551

L1 3.50 3.93 0.137 0.154

L20 16.40 0.645

L30 28.90 1.137

øP

Q 2.65 2.95 0.104 0.116

MIN. TYP MAX. MIN. TYP. MAX.

3.75 3.85 0.147 0.151

mm. inch

12/14

STP14NF12 - STP14NF12FP Revision history

5 Revision history

Table 6. Revision history

Date Revision Changes

09-Sep-2004 1 Complete version

09-Aug-2006 2 New template, no content change

13/14

STP14NF12 - STP14NF12FP
