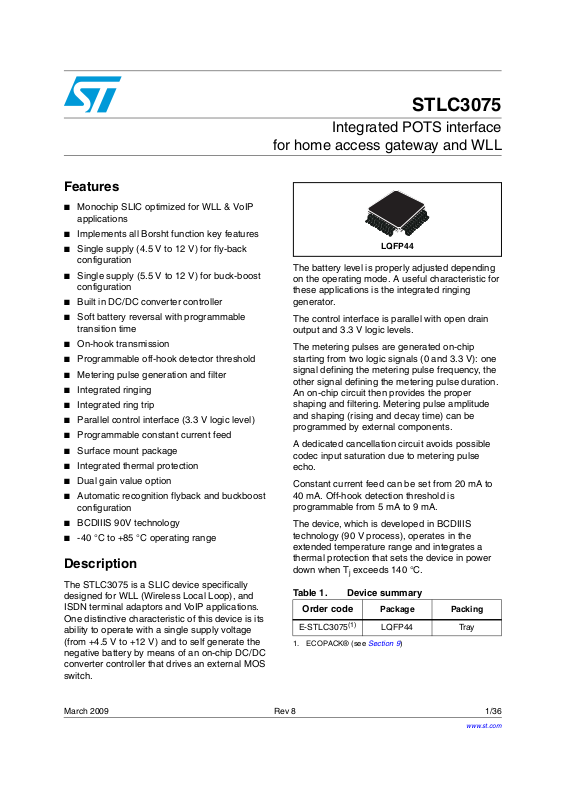

Datasheet STLC3075 Datasheet (ST)

Features

■ Monochip SLIC optimized for WLL & VoIP

applications

■ Implements all Borsht function key features

■ Single supply (4.5 V to 12 V) for fly-back

configuration

■ Single supply (5.5 V to 12 V) for buck-boost

configuration

■ Built in DC/DC converter controller

■ Soft battery reversal with programmable

transition time

■ On-hook transmission

■ Programmable off-hook detector threshold

■ Metering pulse generation and filter

■ Integrated ringing

■ Integrated ring trip

■ Parallel control interface (3.3 V logic level)

■ Programmable constant current feed

■ Surface mount package

■ Integrated thermal protection

■ Dual gain value option

■ Automatic recognition flyback and buckboost

configuration

■ BCDIIIS 90V technology

■ -40 °C to +85 °C operating range

Description

The STLC3075 is a SLIC device specifically
designed for WLL (Wireless Local Loop), and
ISDN terminal adaptors and VoIP applications.
One distinctive characteristic of this device is its
ability to operate with a single supply voltage
(from +4.5 V to +12 V) and to self generate the
negative battery by means of an on-chip DC/DC
converter controller that drives an external MOS
switch.

STLC3075

Integrated POTS interface

for home access gateway and WLL

LQFP44

The battery level is properly adjusted depending
on the operating mode. A useful characteristic for
these applications is the integrated ringing
generator.

The control interface is parallel with open drain
output and 3.3 V logic levels.

The metering pulses are generated on-chip
starting from two logic signals (0 and 3.3 V): one
signal defining the metering pulse frequency, the
other signal defining the metering pulse duration.
An on-chip circuit then provides the proper
shaping and filtering. Metering pulse amplitude
and shaping (rising and decay time) can be
programmed by external components.

A dedicated cancellation circuit avoids possible
codec input saturation due to metering pulse
echo.

Constant current feed can be set from 20 mA to
40 mA. Off-hook detection threshold is
programmable from 5 mA to 9 mA.

The device, which is developed in BCDIIIS
technology (90 V process), operates in the
extended temperature range and integrates a
thermal protection that sets the device in power
down when T

Table 1. Device summary

Order code

E-STLC3075

1. ECOPACK® (see Section 9)

exceeds 140 °C.

j

Package Packing

(1)

LQFP44 Tray

March 2009 Rev 8 1/36

www.st.com

1

Contents STLC3075

Contents

1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Electrical specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1 Absolute maximum rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2 Operating range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4 Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.1 DC/DC converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.2 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.2.1 Power down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.2.2 High impedance feeding (HI-Z) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4.2.3 Active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2.4 Ringing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5 Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.1 Layout recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.2 External components list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.1 Test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7 Over voltage protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8 Typical state diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

9 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2/36

STLC3075 List of tables

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Table 3. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 4. Operating range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 5. Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 6. SLIC operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 7. Gain set in active mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 8. SLIC states in active mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 9. CREST factor values @ 20 and 25Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 10. External components for buckboost configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 11. VBAT values in RING and ACTIVE modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 12. External components for flyback configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 13. Coilcraft type FA2469-AL electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 14. Coilcraft type FA2470-AL electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 15. External components @gain set = 0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 16. External components @gain set = 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 17. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 18. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3/36

List of figures STLC3075

List of figures

Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 2. Pin connection (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 3. DC characteristics in HI-Z mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 4. DC characteristics in active mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 5. TIP/RING typical transition from direct to reverse polarity . . . . . . . . . . . . . . . . . . . . . . . . . 12

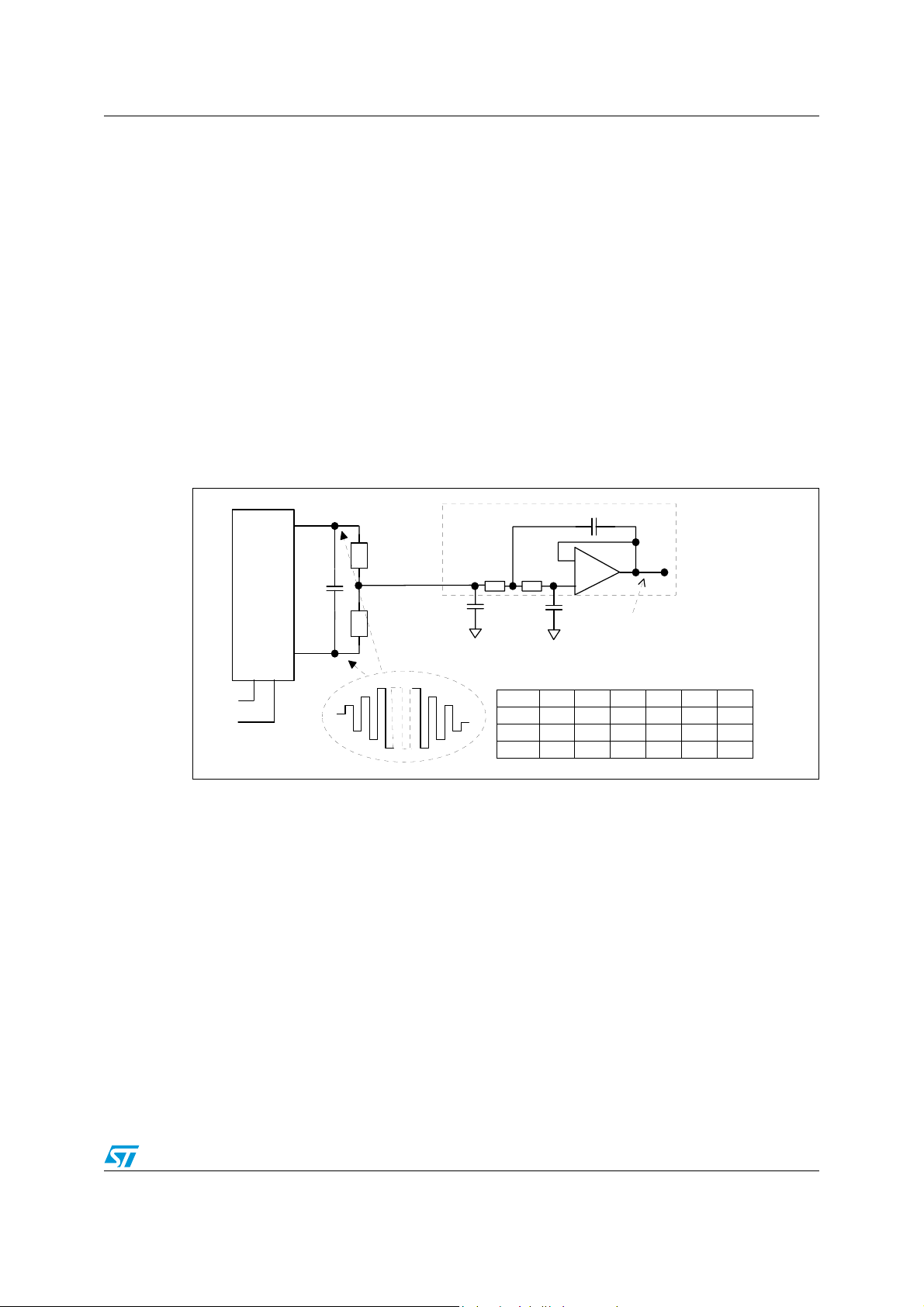

Figure 6. Metering pulse generation circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 7. TIP/RING typical ringing waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

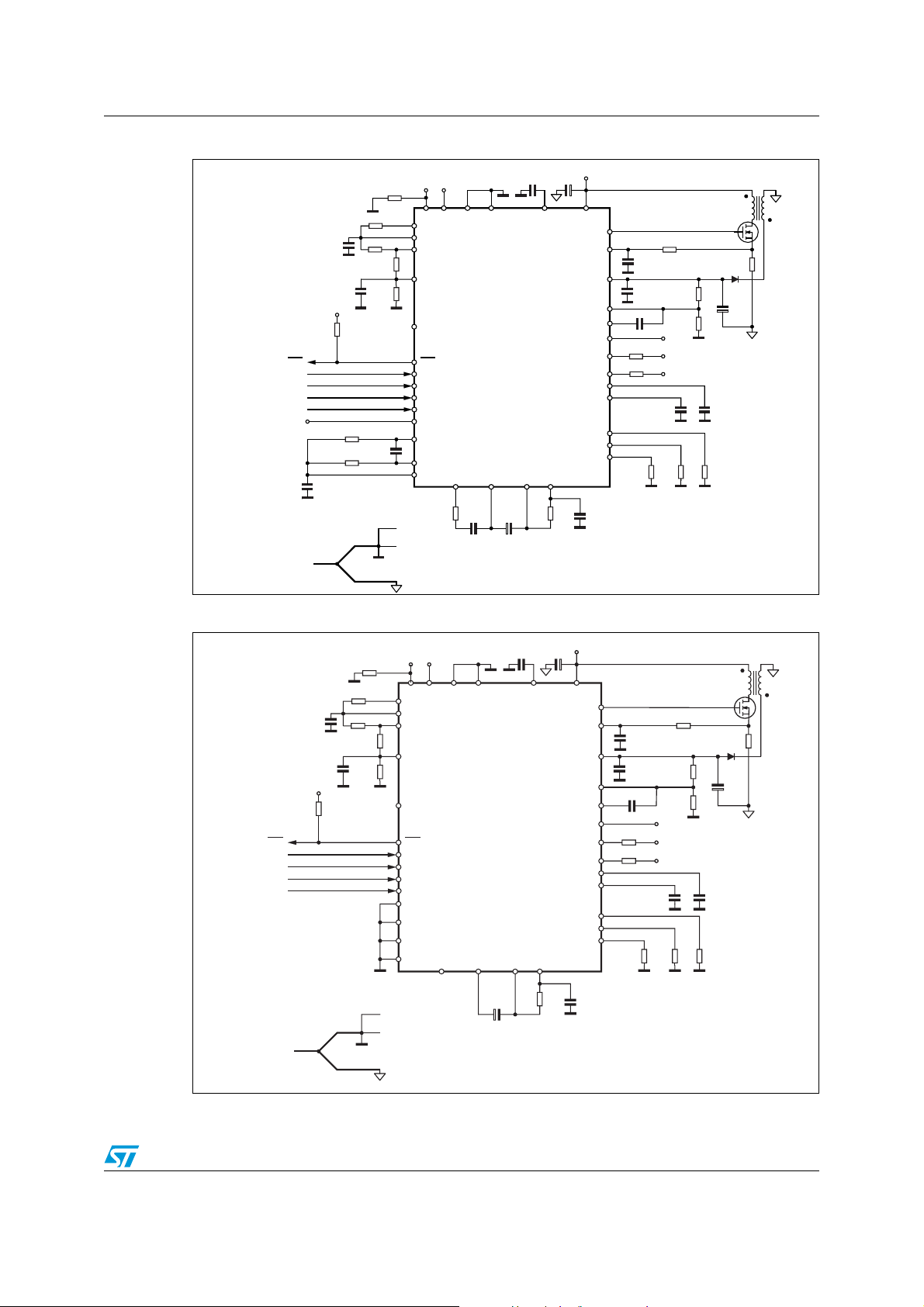

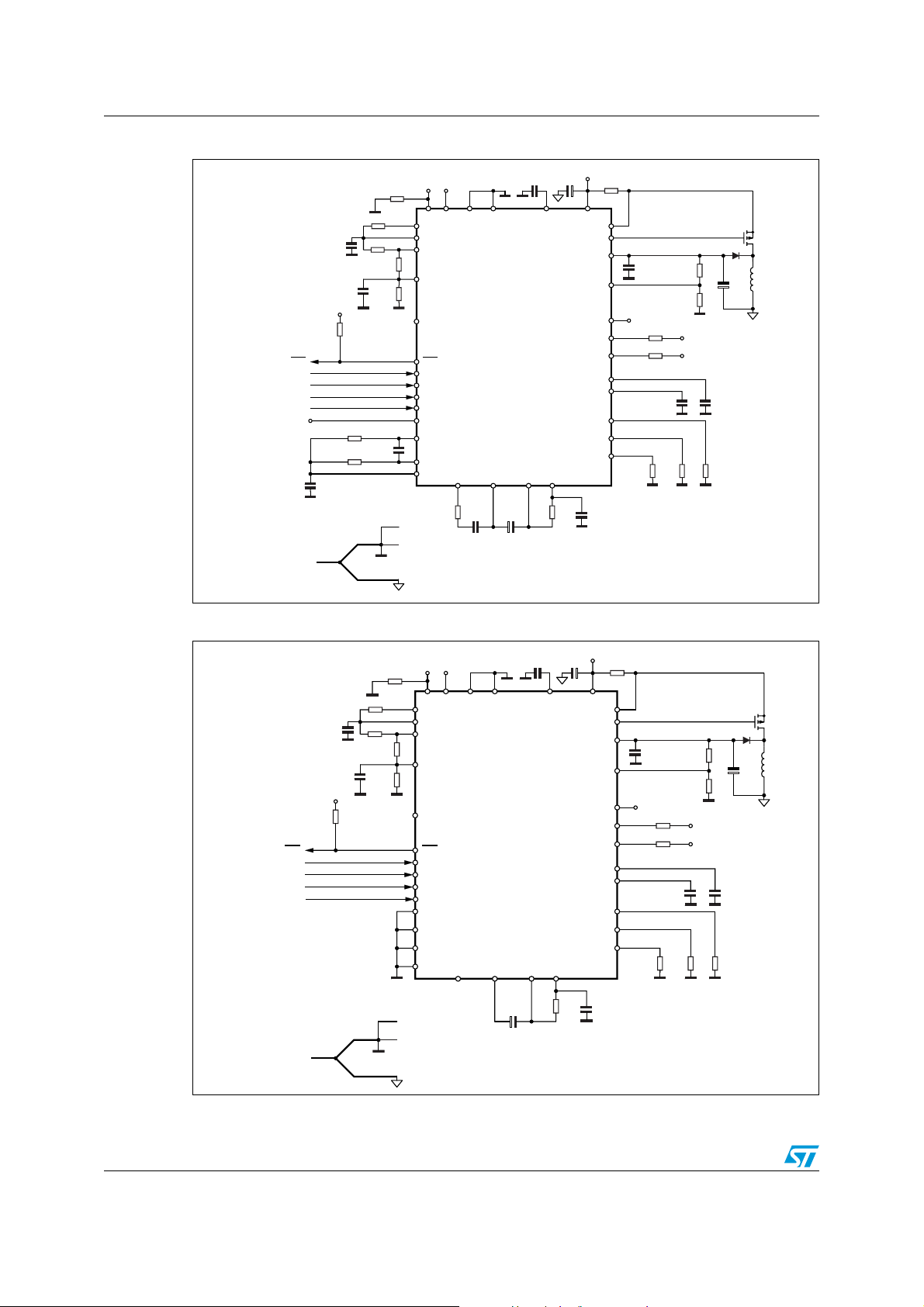

Figure 8. Application diagram with N-channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 9. Application diagram without metering pulse generation with N-channel. . . . . . . . . . . . . . . 23

Figure 10. Application diagram with P-channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 11. Application diagram without metering pulse generation . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 12. 2W return loss 2WRL = 20Log(|Zref + Zs|/|Zref-Zs|) = 20Log(E/2Vs) . . . . . . . . . . . . . . . . 28

Figure 13. THL trans hybrid loss THL = 20Log|Vrx/Vtx/ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 14. G24 transmit gain G24 = 20Log|2Vtx/E| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 15. G42 receive gain G42 = 20Log|VI/Vrx| . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 16. PSRRC power supply rejection VPOS to 2W port PSSRC = 20Log|Vn/Vl| . . . . . . . . . . . . 30

Figure 17. L/T longitudinal to transversal conversion L/T = 20Log|Vcm/Vl| . . . . . . . . . . . . . . . . . . . . . 30

Figure 18. T/L transversal to longitudinal conversion T/L = 20Log|Vrx/Vcm|. . . . . . . . . . . . . . . . . . . . 30

Figure 19. VTTX metering pulse level on line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 20. V2Wp and W4Wp: Idle channel sophometric noise at line and TX.

V2Wp = 20Log|Vl/0.774l|; V4Wp = 20Log|Vtx/0.774l| . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

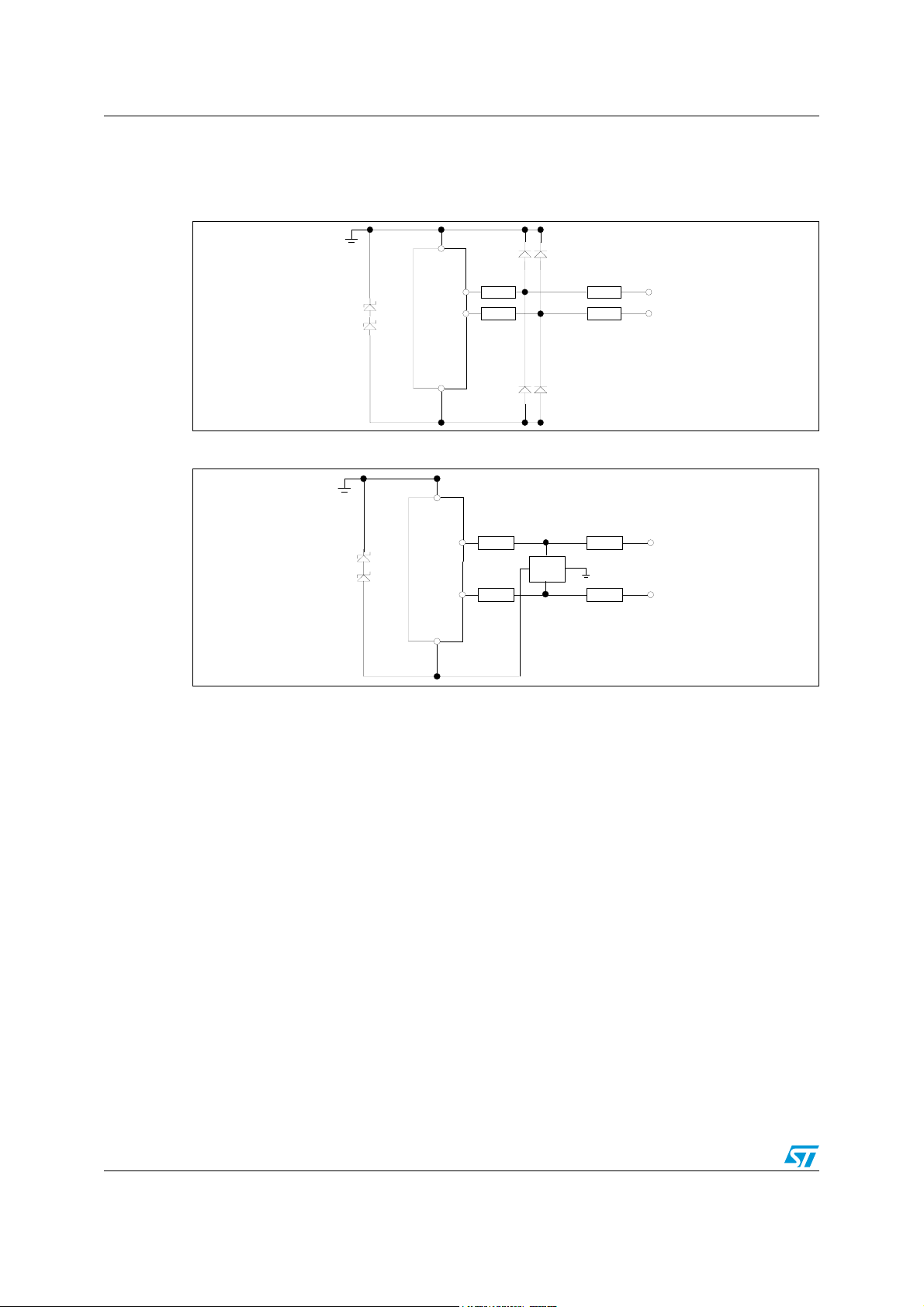

Figure 21. Simplified configuration for indoor over voltage protection . . . . . . . . . . . . . . . . . . . . . . . . . 32

Figure 22. Standard over voltage protection configuration for K20 compliance . . . . . . . . . . . . . . . . . 32

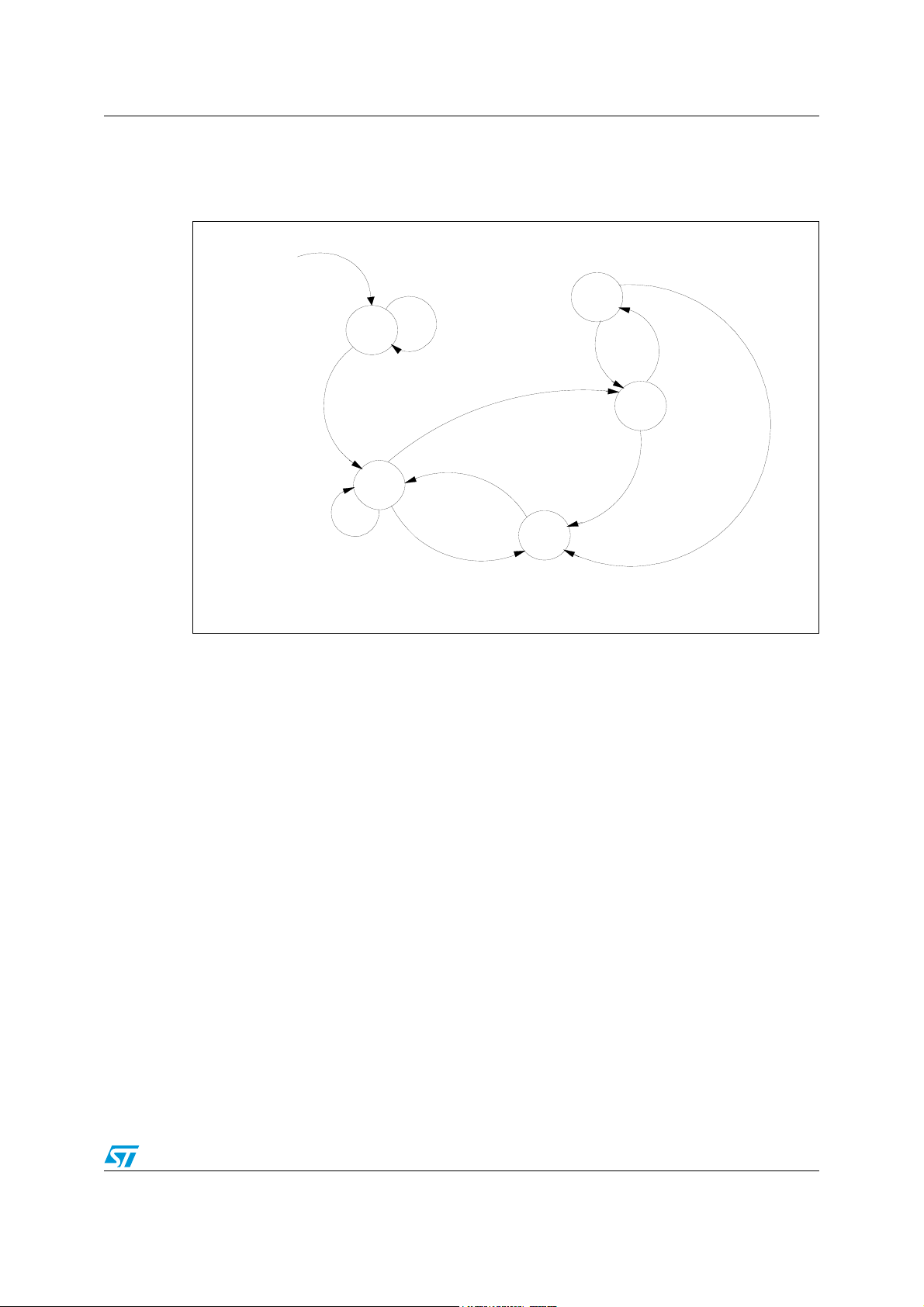

Figure 23. Typical state diagram for STLC3075 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

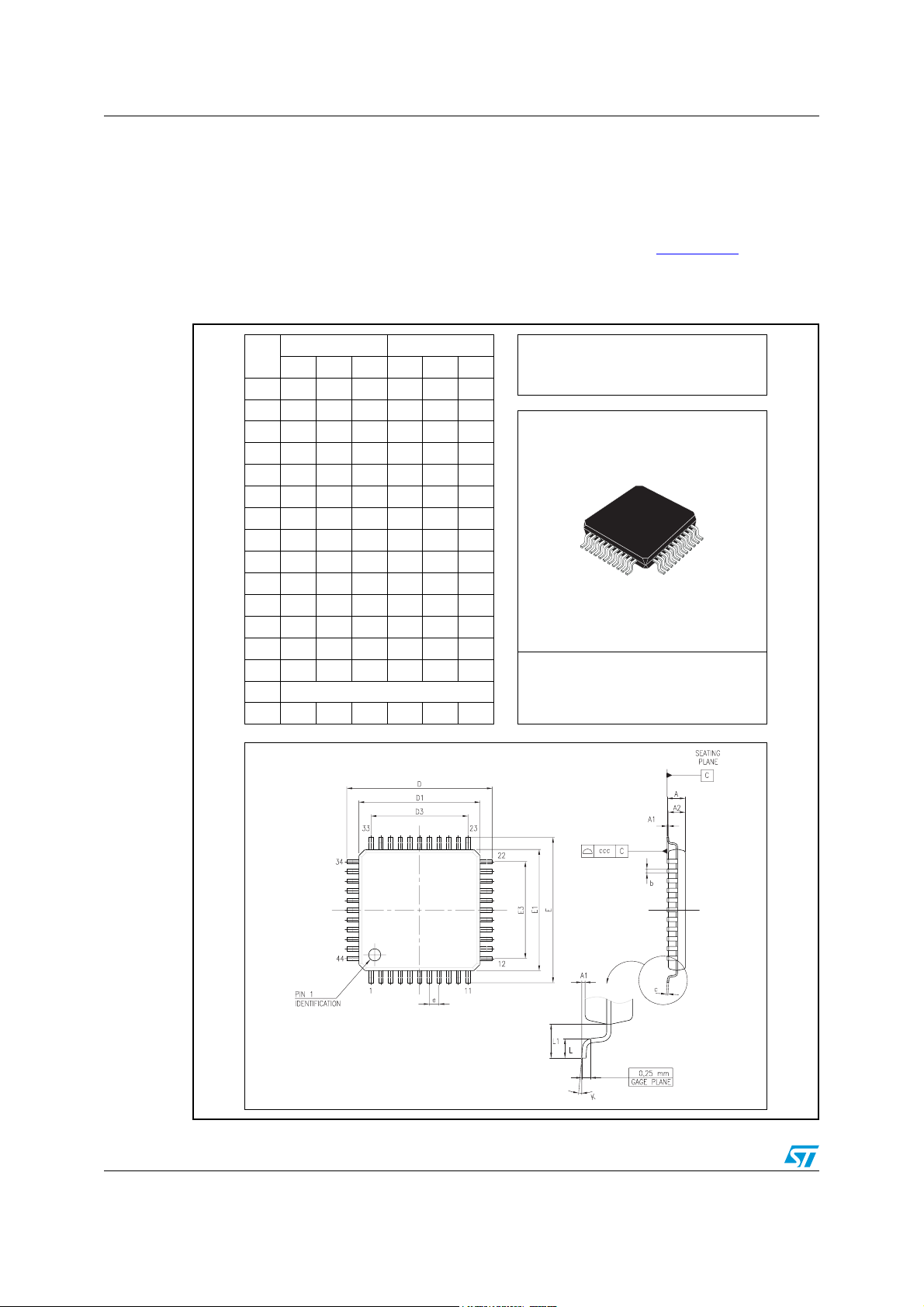

Figure 24. LQFP44 (10 x 10 x 1.4 mm) mechanical data and package dimensions . . . . . . . . . . . . . . 34

4/36

STLC3075 Block diagram

1 Block diagram

Figure 1. Block diagram

PD D0 D1 D2 DET

GAIN
SETTING

TX

RX

ZAC1

ZAC

RS

ZB

CKTTX

CTTX1

CTTX2

FTTX

INPUT LOGIC AND DECODER

Status and functions

SUPERVISION

AC PROC

TTX PROC

RTTX CAC ILTF RD IREF RLIM RTH

REFERENCE

OUTPUT LOGIC

LINE

DRIVER

DC PROC

Vcc

Vss

Agnd

OUTPUT

STAGE

DC/DC

CONV.

VOLT.

REG.

AGND

BGND

TIP

RING

CREV

CSVR

CLK
RSENSE
GATE

VF

CZ

CVCC

VPOS

VBAT

Vbat

5/36

Pin description STLC3075

2 Pin description

Figure 2. Pin connection (top view)

VBAT1

CREV

N.C.

TIP

N.C.

N.C.

GAIN SET

N.C.

DET

CKTTX

CTTX1

CTTX2

RTTX

RING

N.C.

44 43 42 413940 38 37 36 35 34

1

D0

2

D1

3

D2

4

PD

5

6

7

8

9

10

12 13 14 15 16

RX

FTTX

ZAC1

171118 19 20 21 22

ZB

RS

ZAC

CAC

TXCZVF

VBAT

BGND

CSVR

N.C.

33

32

31

30

29

28

27

26

25

24

23

ILTF

RD

RTH

IREF

RLIM

AGND

CVCC

VPOS

RSENSE

GATE

CLK

D00TL488

Table 2. Pin description

N° Pin Function

1 D0 Control interface: input bit 0

2 D1 Control interface: input bit 1

3 D2 Control interface: input bit 2

4 PD Power down input. Normally connected to CVCC (or to logic level high)

5 Gain SET

6, 22, 38,

39, 40, 42

Control gain interface: 0 Level R

NC Not connected

1 Level R

xgain

xgain

= 0dB T
= +6dB T

xgain

xgain

= -12dB

= -12dB

7 DET Logic interface output of the supervision detector (active low)

8 CKTTX Metering pulse clock input (12 kHz or 16 kHz square wave)

9 CTTX1 Metering burst shaping external capacitor

10 CTTX2 Metering burst shaping external capacitor

11 RTTX

12 FTTX

Metering pulse cancellation buffer output. TTX filter network should be connected to
this point. If not used, should be left open.

Metering pulse buffer input this signal is sent to the line and used to perform TTX
filtering

4 wires input port (RX input). A 100 kΩ external resistor must be connected to AGND

13 RX

via the bias input stage. This signal refers to AGND. If connected to single supply
CODEC output it must be DC decoupled with proper capacitor.

14 ZAC1 RX buffer output (the AC impedance is connected from this node to ZAC)

15 ZAC AC impedance synthesis

6/36

STLC3075 Pin description

Table 2. Pin description (continued)

N° Pin Function

16 RS Protection resistors image (the image resistor is connected from this node to ZAC)

17 ZB

Balance network for 2 to 4 wire conversion (the balance impedance ZB is connected
from this node to AGND. ZA impedance is connected from this node to ZAC1).

18 CAC AC feedback input, AC/DC split capacitor (CAC)

19 TX

4 wire output port (TX output). The signal is referred to AGND. If connected to single
supply CODEC input it must be DC decoupled with proper capacitor.

20 CZ Flyback compensation

21 VF Feedback input for DC/DC converter controller

Power switch controller clock (typ. 125 kHz). This pin can also be connected to CVCC

23 CLK

or AGND. When the CLK pin is connected to CVCC an internal auto-oscillation is
internally generated and it is used instead of the external clock. When the CLK pin is
connected to AGND, the GATE output is disabled.

24 GATE

25 R

SENSE

Driver for external power MOS transistor (P-channel in buckboost configuration, N­channel in flyback configuration).

Voltage input for current sensing. R
pin and V

pin (Buckboost) or GND (Flyback). The PCB layout should minimize the

POS

resistor should be connected close to this

SENSE

extra resistance introduced by the copper tracks.

26 V

POS

Positive supply input

27 CVCC Internal positive voltage supply filter

28 AGND Analog ground. Must be shorted with BGND.

29 RLIM

30 IREF

Constant current feed programming pin (via RLIM). RLIM should be connected close
to this pin and AGND pin to avoid noise injection.

Internal bias current setting pin. RREF should be connected close to this pin and
AGND pin to avoid noise injection.

31 RTH

32 RD

Off-hook threshold programming pin (via RTH). RTH should be connected close to this
pin and AGND pin to avoid noise injection.

DC feedback and ring trip input. RD should be connected close to this pin and AGND
pin to avoid noise injection.

33 ILTF Transversal line current image output

34 CSVR Battery supply filter capacitor

35 BGND Battery ground, must be shorted with AGND

36 VBAT

Regulated battery voltage self generated by the device via DC/DC converter. Must be
shorted to VBAT1.

37 RING 2 wire ports; RING wire (Ib is the current sunk into this pin)

41 TIP 2 wire ports; TIP wire (Ia is the current sourced from this pin)

Reverse polarity transition time control. A proper capacitor connected between this pin

43 CREV

and AGND is setting the reverse polarity transition time. This is the same transition
time used to shape the ’trapezoidal ringing’ during ringing injection.

44 VBAT1 Frame connection. Must be shorted to VBAT

7/36

Electrical specification STLC3075

3 Electrical specification

3.1 Absolute maximum rating

Table 3. Absolute maximum ratings

Symbol Parameter Value Unit

V

POS

Positive supply voltage -0.4 to +13 V

A/BGND AGND to BGND -1 to +1 V

V

dig

T

j

(1)

V

btot

Pin D0, D1, D2, DET, CKTTX -0.4 to 5.5 V

Max. junction temperature 150 °C

Vbtot=|V
device supply pins).

Human body model ±1750 V

ESD rating

Charged device model ±500 V

1. Vbat is self generated by the on-chip DC/DC converter and can be programmed via RF1 and RF2. RF1
and RF2 must be selected in order to fulfil the a.m. limits (see components tables).

3.2 Operating range

Table 4. Operating range

Symbol Parameter Value Unit

V

POS

A/BGND AGND to BGND -100 to +100 mV

V

dig

T

op

(1)

V

bat

1. Vbat is self generated by the on-chip DC/DC converter and can be programmed via RF1 and RF2. RF1
and RF2 must be selected in order to fulfil the a.m. limits (see Table 10: External components for

buckboost configuration)

Positive supply voltage 4.5 to +12 V

Pin D0, D1, D2, DET, CKTTX, PD -0.25 to 5.25 V

Ambient operating temperature range -40 to +85 °C

Self generated battery voltage -74 max. V

|+|Vbat|. (Total voltage applied to the

POS

90 V

3.3 Thermal data

Table 5. Thermal data

Symbol Parameter Value Unit

R

th j-amb

8/36

Thermal resistance junction to ambient typical. 60 °C/W

STLC3075 Functional description

4 Functional description

The STLC3075 is a device specifically developed for WLL VoIP and ISDN-TA applications. It
is based on a SLIC core, on purpose optimized for these applications, with the addition of a
DC/DC converter controller to meet the WLL and ISDN-TA design requirements.

The SLIC performs the standard feeding, signalling and transmission functions.

STLC3075 can be set in three different operating modes via the D0, D1, D2 pins of the
control logic interface (0 to 3.3 V logic levels). The loop status is carried out on the DET
(active low).

pin

The DET

pin is an open drain output to allow easy interfacing with both 3.3 V and 5 V logic

levels.

The four possible SLIC’s operating modes are:

– Power down
– High impedance feeding (HI-Z)
– Active
– Ringing

Ta bl e 6 shows how to set the different SLIC operating modes.

Table 6. SLIC operating modes

PD D0 D1 D2 Operating mode

000XPower down

1 0 0 X H.I. feeding (HI-Z)

1 0 1 0 Active normal polarity

1011Active reverse polarity

1 1 1 0 Active TTX injection (N.P.)

1 1 1 1 Active TTX injection (R.P.)

1 1 0 0/1 Ring (D2 bit toggles @ fring)

4.1 DC/DC converter

The DC/DC converter controller drives an external power MOS transistor N-Ch plus
transformer (Flyback configuration) or P-Ch plus inductor (Buckboost configuration), in order
to generate the negative battery voltage needed for the device operation.

The DC/DC converter controller is synchronized with an external CLK (125 kHz typ.) or with
an internal clock generated when the pin CLK is connected to CVCC. One R
to PGND supply (Flyback) or to V
input peak current.

This feature is implemented in order to avoid overload on V
transient (ex. ring trip detection). The 110 mΩ typical value guarantees an average current
consumption from V
guarantees an average current consumption from V

POS

in series

supply (Buckboost) allows to fix the maximum allowed

POS

supply in case of line

POS

SENSE

< 700 mA for buckboost configuration. The 220 mΩ typical value

< 800 mA for flyback configuration.

POS

9/36

Functional description STLC3075

The self generated battery voltage is set to a predefined value in on-hook state.

The typical value of -50 V can be adjusted via one external resistor (RF1). When RING
mode is selected this typical value is increased to -70 V.

Once the line goes in off-hook condition, the DC/DC converter automatically adjusts the
generated battery voltage in order to feed the line with a fixed DC current (programmable via
RLIM) optimizing the power dissipation.

4.2 Operating modes

4.2.1 Power down

When this mode is selected the SLIC is switched off and the TIP and RING pins are in high
impedance. The line detectors are also disabled therefore the off-hook condition cannot be
detected.

The power down mode can be selected in emergency condition when it is necessary to cut
any current delivered to the line.

The power down mode is also forced by STLC3075 in case of thermal overload
(T

> 140 °C). In this case the device goes back to the previous status as soon as the

j

junction temperature decrease under the hysteresis threshold.

No AC transmission is possible.

4.2.2 High impedance feeding (HI-Z)

This operating mode is normally selected when the telephone is in on-hook in order to
monitor the line status keeping the power consumption at the minimum.

The output voltage in on-hook condition is equal to the self generated battery voltage (-50 V
typical).

When off-hook occurs the DET

The off-hook threshold value in HI-Z mode is the same as the programmed value in ACTIVE
mode.

The DC characteristics in HI-Z mode are equal to the self generated battery with
2x(1600 Ω+Rp) in series (see Figure 3), where Rp is the external protection resistance.

No AC transmission is possible.

Figure 3. DC characteristics in HI-Z mode.

becomes active (low logic level).

IL

Vbat

2x(R1+Rp)

Slope: 2x(R1+Rp)

(R1=1600ohm)

10/36

VL

Vbat (-50V)

STLC3075 Functional description

4.2.3 Active

DC characteristics & supervision

When this mode is selected the STLC3075 provides both DC feeding and AC transmission.

The STLC3075 feeds the line with a constant current fixed by RLIM (20 mA to 40 mA
range). The on-hook voltage is typically 40 V allowing on-hook transmission; the self
generated Vbat is -50 V typical.

If the loop resistance is very high and the line current cannot reach the programmed
constant current feed value, the STLC3075 behaves like a 40 V voltage source with a series
impedance equal to the protection resistors 2xRp (typ. 2x50 Ω). Figure 4. shows the typical
DC characteristics in active mode.

The line status (on/off hook) is monitored by the SLIC’S supervision circuit. The off-hook
threshold can be programmed via the external resistor RTH in the range from 5mA to 9mA.

Independently on the programmed constant current value, the TIP and RING buffers have a
current source capability limited to 80mA typical.

Figure 4. DC characteristics in active mode

IL

Ilim

(20 to

40mA)

2Rp

VL

10V

Vbat (-50V)

Moreover the power available at Vbat is controlled by the DC/DC converter that limits the
peak current drawn from the V
R

SENSE

resistor.

supply. The maximum allowed current peak is set by

POS

11/36

Functional description STLC3075

AC characteristics

The SLIC provides the standard SLIC transmission functions.

Once in active mode the SLIC can operate with two different Tx, Rx gains set by the gain set
control bit (See Ta b le 7 below).

Table 7. Gain set in active mode

Gain set 4 to 2 wires gain 2 to 4 wires gain Impedance synthesis scale factor

0 0 dB -6 dB x 50

1 +6 dB -12 dB x 25

● Input impedance synthesis: can be real or complex and is set by a scaled (x 50 or

x 25) external ZAC impedance

● Transmit and receive: The AC signal present on the 2W port (TIP and RING pins) is

transferred to the Tx output with a -6 dB or -12 dB gain and from the Rx input to the 2W
port with a 0 dB or +6 dB gain

● 2 to 4 wires conversion: The balance impedance can be real or complex, the proper

cancellation is obtained by means of two external impedances ZA and ZB

Once in active mode (D1=1) the SLIC can operate in different states setting properly D0 and
D2 control bits (see also Ta bl e 8 ).

Table 8. SLIC states in active mode

D0 D1 D2 Operating mode

0 1 0 Active normal polarity

0 1 1 Active reverse polarity

1 1 0 Active TTX injection (normal polarity.)

1 1 1 Active TTX injection (reverse polarity.)

Polarity reversal

The D2 bit controls the line polarity, the transition between the two polarities is performed in
a ’soft’ way. This means that the TIP and RING wires exchange their polarities following a
ramp transition (see Figure 5). The transition time is controlled by an external capacitor
CREV. This capacitor also sets the shape of the ringing trapezoidal waveform. When the
control pins set the battery reversal, the line polarity is reversed with a proper transition time
set via an external capacitor (CREV).

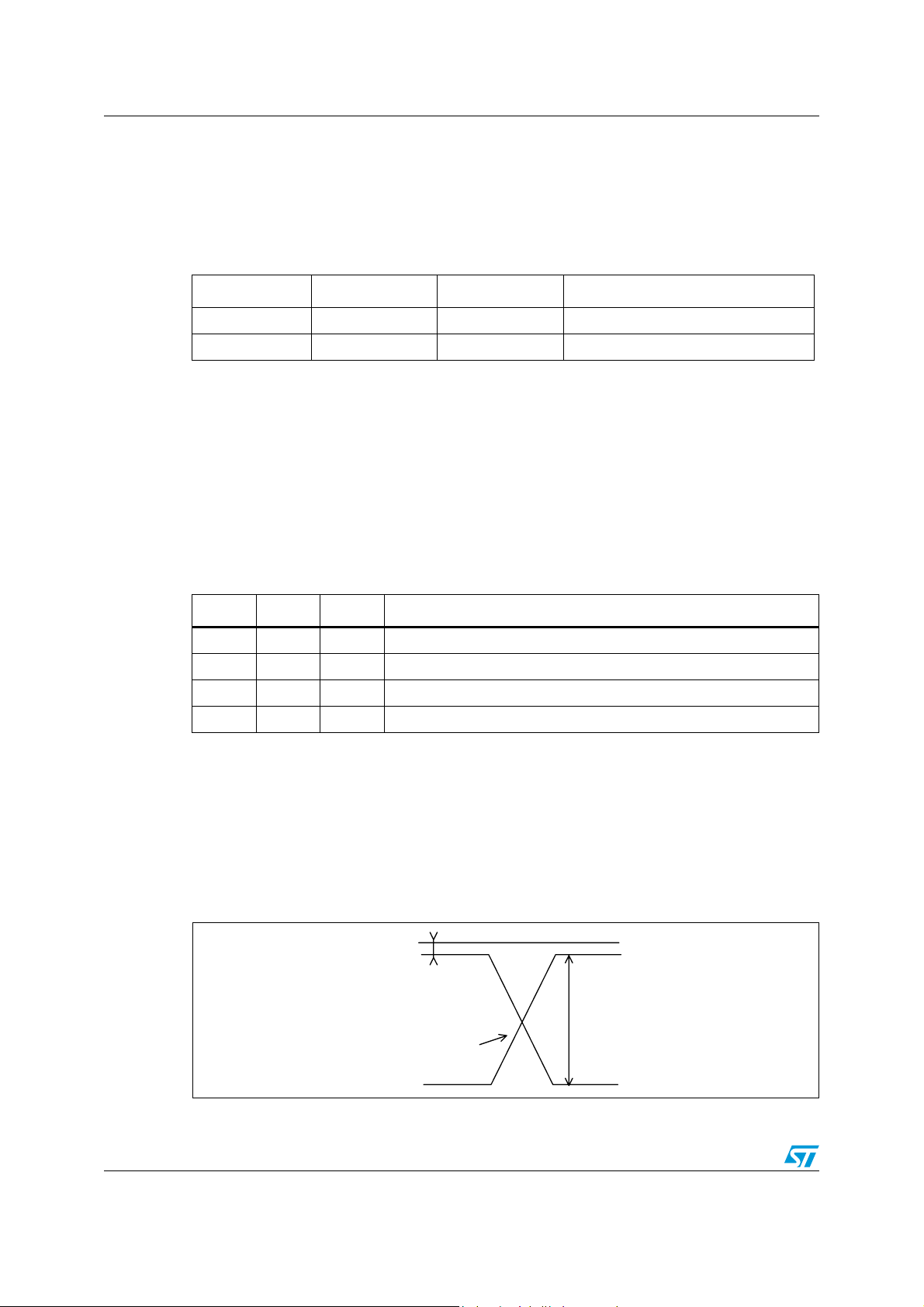

Figure 5. TIP/RING typical transition from direct to reverse polarity

GND

TIP

4V typ.

40V typ
ON-HOOK

dV/dT set
by CREV

RING

12/36

STLC3075 Functional description

Metering pulse injection (TTX)

The metering pulses circuit consists of a burst shaping generator that generates a square
shaped wave and a low pass filter to reduce the harmonic distortion of the output signal.

The metering pulse is obtained from two logic signals:

● CKTTX: is a square wave at the TTX frequency (12 or 16KHz) that must be

permanently applied to the CKTTX pin or at least for all the duration of the TTX pulse
(including rising and decay phases).

● D0: enables the TTX generation circuit and defines the TTX pulse duration.

These two signals are processed by a dedicated circuitry integrated on chip that generates
the metering pulse as an amplitude modulated shaped square wave (SQTTX) (see

Figure 6).

Both the amplitude and the envelope of the square wave (SQTTX) can be programmed by
means of external components. In particular the amplitude is set by the two RLV resistors
while the shaping is set by the CS capacitor.

Figure 6. Metering pulse generation circuit

Low Pass Filter

CTTX1

C1

BURST

SHAPING

GENERATOR

D0

CKTTX

Square wave pulse metering

CS

CTTX2

RLV

SQTTX

RLV

FTTX

­OP1

+

C2

Sinusoidal wave
pulse metering

R2

R1

CFL

Required external components vs. filter order.

Order CFL R1 C1 R2 C2 THD

1X 13%

2 XXXX6%

3 XXXXX3%

RTTX

The waveform so generated is then filtered and injected on the line.

The low pass filter is obtained by using the integrated buffer OP1 connected between pin
FTTX (OP1 non inverting input) and RTTX (OP1 output) (see Figure 6) and by implementing
a “Sallen and Key” configuration. Depending on the external components count it is possible
to build an optimized application depending on the distortion level required. In particular
harmonic distortion levels equal to 13 %, 6 % and 3 % can be obtained respectively with
first, second and third order filters (see Figure 6).

The circuit showed in the “Application diagram” is related to the simple first order filter.

Once the shaped and filtered signal is obtained at RTTX buffer output it is injected on the
TIP/RING pins with a +6 dB gain or +12 dB gain.

It should be noted that this is the nominal condition obtained in presence of ideal TTX echo
cancellation (obtained via proper setting of RTTX and CTTX).

In addition the effective level obtained on the line will depend on the line impedance and the
protection resistors value. In typical applications (TTX line impedance =200 Ω, RP = 50 Ω,

13/36

Functional description STLC3075

and ideal TTX echo cancellation), the metering pulse level on the line equals 1.33 or 2.66
times the level applied to the RTTX pin.

As already mentioned the metering pulse echo cancellation is obtained by means of two
external components (RTTX and CTTX) that should match the line impedance at the TTX
frequency. This simple network has a double effect:

● it synthesizes a low output impedance at the TIP/RING pins at the TTX frequency

● it cuts the eventual TTX echo that would have been transferred from the line to the TX

output

4.2.4 Ringing

When this mode is selected, the STLC3075 self generates a higher negative battery
(-70 V typ.) in order to allow a balanced ringing signal of typically 65 V peak.

In this condition both the DC and AC feedback loops are disabled and the SLIC line drivers
operate as voltage buffers. The ring waveform is obtained by toggling the D2 control bit at
the desired ring frequency. This bit in fact controls the line polarity (0=direct; 1= reverse). As
in the active mode the line voltage transition is performed with a ramp transition, obtaining in
this way a trapezoidal balanced ring waveform (see Figure 7). The shaping is defined by the
CREV external capacitor.

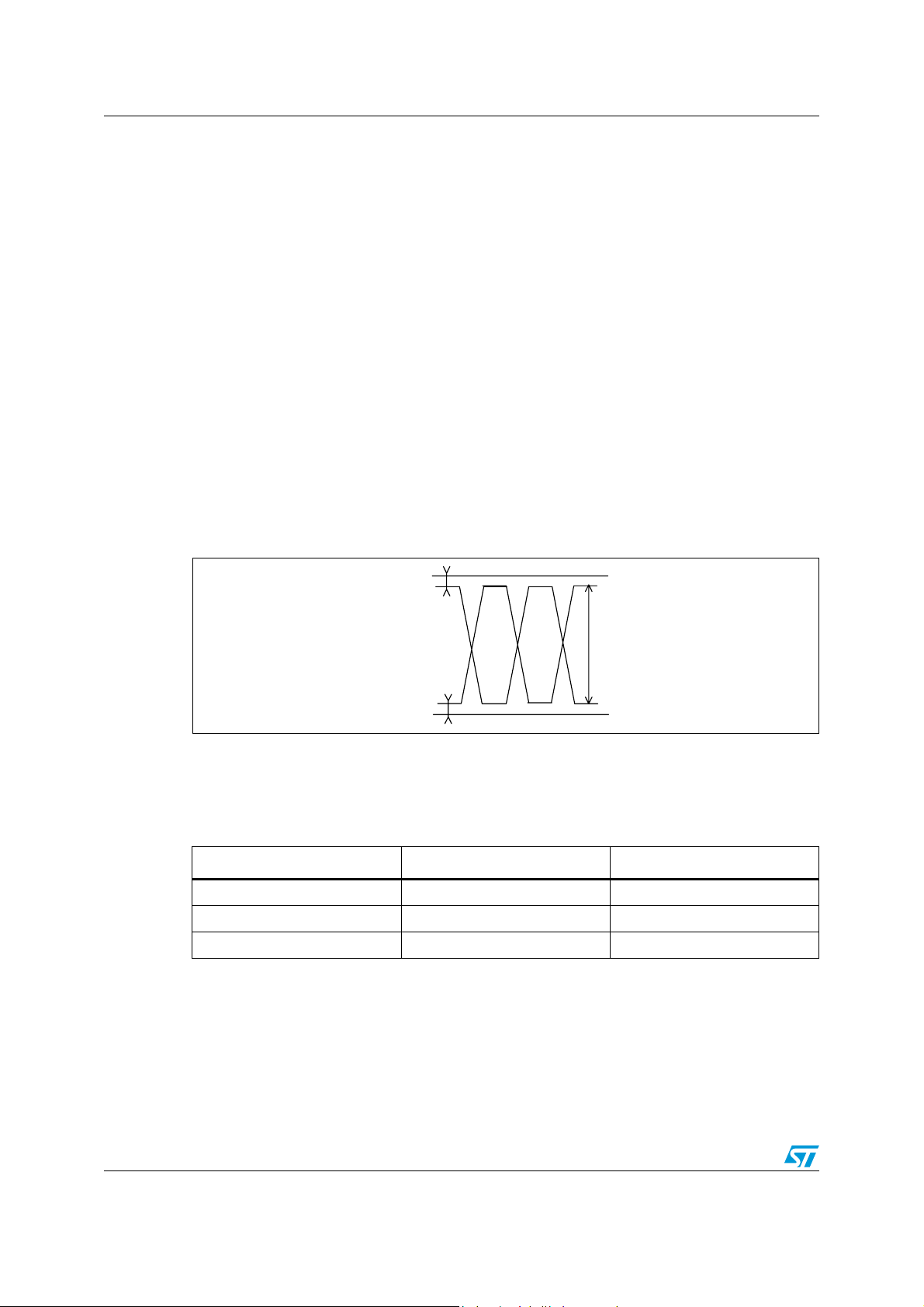

Figure 7. TIP/RING typical ringing waveform

GND

TIP

RING

VBAT

2.5V typ.

dV/dT set
by CREV

2.5V typ.

65V
typ.

Selecting the proper capacitor value it is possible to get different crest factor values.

The following table shows the crest factor values obtained with a 20 Hz and 25 Hz ring
frequency and with 1REN. These value are valid either with European or USA specification:

Table 9. CREST factor values @ 20 and 25Hz

CREV CREST factor @20Hz CREST factor @25Hz

22 nF 1.2 1.26

27 nF 1.25 1.32

(1)

33 nF 1.33 Not significant

1. Distortion already less than 10%

The ring trip detection is performed by sensing the variation of the AC line impedance from
on-hook (relatively high) to off-hook (low). This particular ring trip method allows to operate
without DC offset superimposed on the ring signal and therefore obtaining the maximum
possible ring level on the load starting from a given negative battery.

It should be noted that such a method is optimized for operation on short loop applications
and may not operate properly in the case of long loop applications (> 500 Ω).

14/36

STLC3075 Functional description

Once the ring trip is detected, the DET output is activated (logic level low). At this point the
card controller or a simple logic circuit stops the D2 toggling in order to effectively
disconnect the ring signal and then set the STLC3075 in the proper operating mode
(normally active).

Ring level in presence of more telephones in parallel

As already mentioned in the previous section, the maximum current that can be drawn from
the V
available at the self generated negative battery.

If for any reason the ringer load is too low, the self generated battery drops in order to keep
the power consumption to the fixed limit and consequently the ring voltage level is also
reduced.

supply is controlled and limited via the external R

POS

. This also limits the power

SENSE

In the typical buckboost configuration with R

= 110 mΩ the peak current from V

SENSE

POS

is
limited to around 900 mApk, which correspond to an average current of 700 mA max. In this
condition the STLC3075 can drive up to 3REN with a ring frequency fr=25 Hz
(1REN = 1800 Ω + 1.0 µF, European standard).

In order to drive up to 5REN (1REN= 6930 Ω + 8 µF, US standard) it is necessary to modify
the external components as follows:

CREV = 15nF; RD = 2.2 kΩ; R

In flyback configuration the value of R

SENSE

= 100 mΩ.

SENSE

= 220 mΩ guarantees to match both European
and USA standards. In order to drive 5REN (US standard) it is necessary to modify the
external component: R

= 2.2 kΩ.

D

15/36

Application information STLC3075

5 Application information

5.1 Layout recommendation

A properly designed PCB layout is a basic issue to guarantee a correct behavior and good
noise performance.

Particular care must be taken on the ground connection. Using the configurations shown on

Figure 10 and Figure 11 permits to avoid possible problems.

The ground of the power supply (V

POS

as SYSTEM-GND. This point should show a resistance as low as possible, that means it
should be a ground plane.

In particular to avoid noise problems the layout should prevent any coupling between the
DC/DC converter components and analog pins that are referred to AGND (ex: RD, IREF,
RTH, RLIM, VF). As a first recommendation the components CV, L, T1, D1, CV
should be kept as close as possible to each other and isolated from the other components.

Additional improvements can be obtained

– by decoupling the center of the star from the analog ground of STLC3075 using

small chokes

– by adding a capacitor in the range of 100 nF between V

filter the switch frequency on V

5.2 External components list

In order to properly define the external components value the following system parameters
have to be defined:

● the AC input impedance shown by the SLIC at the line terminals Zs to which the return

loss measurement is referred. It can be real (typ. 600 Ω) or complex.

● the AC balance impedance, it is the equivalent impedance of the line ‘Zl’ used for

evaluation of the trans-hybrid loss performances (2/4 wire conversion). It is usually a
complex impedance.

● the value of the two protection resistors Rp in series with the line termination.

● the line impedance at the TTX frequency Zlttx

● the metering pulse level amplitude measured at line termination V

order filtering, V
component (typ. 12 or 16 kHz)

● the pulse metering envelope rise and decay time constant τ

● the slope of the ringing waveform ΔV

● the value of the constant current limit current ’Ilim’

● the value of the off-hook current threshold I

● the value of the ring trip rectified average threshold current I

● the value of the required self generated negative battery V

is 70V). This value can be obtained from the desired ring peak level + 5V.

● the value of the maximum current peak drawn from V

represents the amplitude (Vrms) of the fundamental frequency

LOTTX

) has to be connected to the center of the star, named

, R

POS

SENSE

and AGND in order to

POS

POS

. In case of low

LOTTX

TR/ΔT

TH

RTH

in ring mode (max value

BATR

’IPK’.

POS

16/36

STLC3075 Application information

Table 10. External components for buckboost configuration

Name Function Formula Typ. value

RRX Rx input bias resistor 100 kΩ 5%

RREF Bias setting current

CSVR Negative battery filter

RD

Ring trip threshold setting
resistor

RREF = 1.3/Ibias
Ibias = 50 μA

CSVR = 1/(2π ⋅ fp ⋅ 1.8 MΩ)
fp = 50 Hz

RD = 100/I

RTH

2kΩ < RD < 5 kΩ

26 kΩ 1%

1.5 nF 10%
100 V

4.12 kΩ 1%@ IRTH = 24 mA

CAC AC/DC split capacitance 22 µF 20% 15 V @ RD = 4.12 kΩ

RP Line protection resistor Rp > 30Ω 50 Ω 1%

RLIM Current limiting programming

RTH

CREV

Off-hook threshold
programming (Active mode)

Reverse polarity transition
time programming

RLIM = 1300/Ilim

32.5 kΩ < RLIM < 65 kΩ

RTH = 290/I

TH

27 kΩ < RTH < 52 kΩ

CREV = ((1/3750) · ΔT/ΔV

52.3 kΩ 1% @ Ilim = 25 mA

32.4 kΩ 1% @ I

) 22 nF 10% 10V @ 12 V/ms

TR

= 9 mA

TH

RDD Pull up resistors 100 kΩ

CVCC

Internally supply filter
capacitor

100 nF 20% 10 V

CV

POS

Positive supply filter capacitor
with low impedance for switch

100 µF

(1)

mode power supply

Battery supply filter capacitor

CV

with low impedance for switch

100 µF 20% 100V

mode power supply

CVB High frequency noise filter 470 nF 20% 100 V

(3)

CRD

Q1

D1 DC/DC converter series diode V

R

SENSE

RF1

RF2

L DC/DC converter inductor DC resistance ≤ 0.1 Ω

High frequency noise filter 100 nF 10% 15 V

DC/DC converter switch P ch.
MOS transistor

DC/DC converter peak current
limiting

Negative battery programming
level

Negative battery programming
level

RDS(ON)≤1.2 Ω, VDS = -100 V
Total gate charge= 20 nC max.
with VGS=4.5 V and VDS=1 V
ID>500 mA

> 100 V, tRR ≤ 50 ns

r

= 100mV/I

R

SENSE

250KΩ < RF1 < 300KΩ

PK

(4)

(5)

Possible choices:

IRF9510 or IRF9520 or

IRF9120 or equivalent

SMBYW01-200

or equivalent

110 mΩ @ IPK = 900 mA

300 kΩ 1% @ V

BATR

9.1 kΩ 1%

L=100 µH

= -70 V

SUMIDA CDRH125 or equivalent

(2)

17/36

Application information STLC3075

1. CV

should be defined depending on the power supply current capability and maximum allowable ripple

POS

2. For low ripple application use 2x47m F in parallel.

3. Can be saved if proper PCB layout avoid noise coupling on RD pin (high impedance input).

4. RF1 sets the self generated battery voltage in RING and ACTIVE(Il=0) mode as shown in Table 11.
VBATR should be defined considering the ring peak level required (Vringpeak=VBATR - 6 V typ.). This relation is valid
providing that the V
requested by the particular ringer load configuration

power supply current capability and the R

POS

programming allow to source all the current

SENSE

5. For high efficiency in HI-Z mode coil resistance @125kHz must be < 3Ω.

Table 11. VBAT values in RING and ACTIVE modes

267kΩ 280kΩ 294kΩ 300kΩ

VBAT (ACTIVE) -46V -48V -49V -50V

VBATR (RING) -62V -65V -68V -70V

18/36

STLC3075 Application information

Table 12. External components for flyback configuration

Name Function Formula Typ. value

RRX Rx input bias resistor 100 kΩ 5%

RREF Bias setting current RREF = 1.3/Ibias; Ibias = 50 µA 26 kΩ 1%

CSVR Negative battery filter

RD

Ring trip threshold setting
resistor

CSVR = 1/(2π ⋅ fp ⋅ 1.8 MΩ)
fp = 50 Hz

RD = 100/I

RTH

2kΩ < RD < 5 kΩ

1.5 nF 10 % 100 V

4.12 kΩ 1% @ IRTH = 24 mA

CAC AC/DC split capacitance 22 µF 20% 15 V @ RD = 4.12 kΩ

RP Line protection resistor Rp > 30 Ω 50 Ω 1%

RLIM Current limiting programming

RTH

CREV

Off-hook threshold
programming (Active mode)

Reverse polarity transition
time programming

RLIM = 1300/Ilim

32.5 kΩ < RLIM < 65 kΩ

RTH = 290/I

TH

27 kΩ < RTH < 52 kΩ

CREV = ((1/3750)· ΔT/ΔV

52.3 kΩ 1% @ Ilim = 25 mA

32.4 kΩ 1% @ I

) 22 nF 10% 10 V @ 12 V/ms

TR

= 9 mA

TH

RDD Pull up resistors 100 kΩ

CVCC

CV

Internally supply filter
capacitor

Positive supply filter capacitor
with low impedance for switch

POS

100 nF 20 % 10 V

(1)

100 µF

mode power supply

Battery supply filter capacitor

CV

with low impedance for switch

100 µF 20 % 100 V

mode power supply

CVB High frequency noise filter 470 nF 20% 100 V

(3)

High frequency noise filter 100 nF 10% 15 V

CRD

(2)

CZ

Flyback compensation
capacitor

2.2 nF, 20 %

CSF Sense filter capacitor 120 pF, 20 %

RSF Sense filter resistor 1 kΩ

R

SENSE

DC/DC converter peak
current limiting

R

SENSE

= 375 mV/I

PK

220 mΩ @ IPK = 1.7 A

RDS(ON)≤0.05 Ω,

Q1

DC/DC converter switch N
channel MOS transistor

VDSS = 30 V
VDG=30 V, ID = 6.5 A

STN4NF03L or equivalent

Low threshold drive

D1

DC/DC converter series
diode

T1 DC/DC converter transformer

> 350 V, tRR ≤ 80 ns SMBYTW01-400 or equivalent

V

r

Flyback transformer 4W, turns ratio
1:16 for V

range from 4.5 V to

POS

8.5 V

Tyco COEV MAGNETICS

MGPWG-00007

or Coilcraft FA2469-AL

19/36

(4)

Application information STLC3075

Table 12. External components for flyback configuration

Name Function Formula Typ. value

Flyback transformer 4W, turns ratio

T1 DC/DC converter transformer

1:8 for V

range from 8.5 V to

POS

12 V

RF1

RF2

1. CV

2. For low ripple application use 2x47m F in parallel.

3. Can be saved if proper PCB layout avoid noise coupling on RD pin (high impedance input).

4. Coilcraft type FA2469-AL, Flyback transformer 4W, 1:16 with a V
specified. Also check Table 13 for further electrical specifications

5. Coilcraft type FA2470-AL, Flyback transformer 4W, 1:8 with a V
specified. Also check Table 14 for further electrical specifications

6. RF1 sets the self generated battery voltage in RING and ACTIVE(Il=0) mode as as shown in Table 11.
V

BATR

providing that the V
requested by the particular ringer load configuration.

Negative battery
programming level

250 kΩ <RF1<300kΩ

Negative battery
programming level

should be defined depending on the power supply current capability and maximum allowable ripple.

POS

should be defined considering the ring peak level required (Vringpeak=V

Table 13. Coilcraft type FA2469-AL electrical specifications

power supply current capability and the R

POS

(6)

range from 4.5V to 8.5V @ +20°C unless otherwise

POS

range from 8.5V to 12V @ +20°C unless otherwise

POS

BATR

programming allow to source all the current

SENSE

Tyco COEV MAGNETICS

MGPWG-00008

or Coilcraft FA2470-AL

300 kΩ 1% @ V

- 6 V typ.). This relation is valid

Test description Limit Unit Tol. Notes

Inductance 0.0205 mH Max 1-3, 10KHz, 100 mVmrs

Leakage inductance 0.414 uH Max

1-3, 100KHz, 100 mVmrs
Short pins 4,6

BATR

9.1 kΩ 1%

(5)

= -70 V

DC resistance 0.036 ohm Max 1-3

DC resistance 16.50 ohm Max 4-6

Turns ratio 16:1 - +/-4% (4-6):(1-3), 10KHz, 100mVAC

VDC to be applied for 1 second

HI POT 1.500 VAC

from pins 1,3 to pins 4,6.
500μA max leakage current

Table 14. Coilcraft type FA2470-AL electrical specifications

Test description Limit Unit Tol. Notes

Inductance 0.0205 mH Max 1-3, 10 kHz, 100 mVmrs

Leakage inductance 0.40 uH Max

1-3, 100 kHz, 100 mVmrs
Short pins 4,6

DC resistance 0.036 ohm Max 1-3

DC resistance 7.92 ohm Max 4-6

Turns ratio 8:1 - +/-3.3% (4-6):(1-3), 10 kHz, 100 mVAC

VDC to be applied for 1 second

HI POT 1.500 VAC

from pins 1,3 to pins 4,6.
500 µA max leakage current

20/36

STLC3075 Application information

Table 15. External components @gain set = 0

Name Function Formula Typ. value

RS Protection resistance image RS = 50 ⋅ (2Rp) 5 kΩ @ Rp = 50 Ω

ZAC Two wire AC impedance ZAC = 50 ⋅ (Zs - 2Rp) 25 kΩ 1% @ Zs = 600 Ω

(1)

ZA

(1)

ZB

CCOMP

CH

SLIC impedance balancing
network

Line impedance balancing
network

AC feedback loop
compensation

Trans-hybrid Loss frequency
compensation

ZA = 50 ⋅ Zs

ZB = 50 ⋅ Zl

fo = 250 kHz
CCOMP = 1/(2π⋅fo⋅100⋅(RP))

CH = CCOMP 120 pF 10 % 10 V

30 kΩ 1%

@ Zs = 600 Ω

30 kΩ 1%

@ Zl = 600 Ω

120 pF 10 % 10 V

@ Rp = 50 Ω

Pulse metering cancellation

(2)

RTTX

CTTX

resistor

Pulse metering cancellation

(2)

capacitor

RLV Pulse metering level resistor

CS

Pulse metering shaping
capacitor

CFL Pulse metering filter capacitor CFL = 2/(2π⋅fttx⋅RLV)

1. In case Zs=Zl, ZA and ZB can be replaced by two resistors of same value: RA=RB=|Zs|.

2. Defining ZTTX as the impedance of RTTX in series with CTTX, RTTX and CTTX can also be calculated from the following
formula: ZTTX=50*(Zlttx+2Rp).

3. In this case CTTX is just operating as a DC decoupling capacitor (fp=100 Hz).

RTTX = 50Re (Zlttx+2Rp)

CTTX = 1/{50 ⋅ 2π⋅ fttx [-lm(Zlttx)]}

3·

RLV = 63.3·10

·α·V

LOTTX

α = (|Zlttx + 2Rp|/|Zlttx|)

CS = τ/(2⋅RLV)

@ V

@ τ = 3.2 ms, RLV = 16.2 kΩ

@fttx = 12 kHz RLV = 16.2 kΩ

15 kΩ

@ Zlttx = 200 Ω real

100 nF 10% 10 V

(3)

@ Zlttx = 200 Ω real

16.2 kΩ
= 170 mVrms

LOTTX

100 nF 10 % 10 V

1.5 nF 10 % 10 V

21/36

Application information STLC3075

Table 16. External components @gain set = 1

Name Function Formula Typ. value

RS Protection resistance image RS = 50 ⋅ (2Rp) 5 kΩ @ Rp = 50 Ω

ZAC Two wire AC impedance ZAC = 50 ⋅ (Zs - 2Rp) 25 kΩ 1% @ Zs = 600Ω

ZA

ZB

CCOMP

CH

RTTX

CTTX

network

Line impedance balancing

(1)

network

AC feedback loop
compensation

Trans-hybrid Loss frequency
compensation

Pulse metering cancellation

(2)

resistor

Pulse metering cancellation

(2)

capacitor

RLV Pulse metering level resistor

CS

Pulse metering shaping
capacitor

CFL Pulse metering filter capacitor CFL = 2/(2π⋅fttx⋅RLV)

1. In case Zs=Zl, ZA and ZB can be replaced by two resistors of same value: RA=RB=|Zs|.

2. Defining ZTTX as the impedance of RTTX in series with CTTX, RTTX and CTTX can also be calculated from the following
formula: ZTTX=50*(Zlttx+2Rp).

3. In this case CTTX is just operating as a DC decoupling capacitor (fp=100 Hz).

ZA = 50 ⋅ Zs

ZB = 50 ⋅ Zl

fo = 250 kHz
CCOMP = 1/(2π⋅fo⋅100⋅(RP))

CH = CCOMP 120 pF 10 % 10 V

RTTX = 50Re (Zlttx+2Rp)

CTTX = 1/{50 ⋅ 2π⋅ fttx [-lm(Zlttx)]}

RLV = 63.3·10

3·

·α·V

LOTTX

α = (|Zlttx + 2Rp|/|Zlttx|)

CS = τ/(2⋅RLV)

@ τ = 3.2 ms, RLV = 16.2 kΩ

@fttx = 12 kHz RLV = 16.2 kΩ

SLIC impedance balancing

(1)

30 kΩ 1%

@ Zs = 600 Ω

30 kΩ 1%

@ Zl = 600 Ω

120 pF 10 % 10 V

@ Rp = 50 Ω

15 kΩ

@ Zlttx = 200 Ω real

100 nF 10 % 10 V

@ Zlttx = 200 Ω real

16.2 kΩ

@ V

= 170 mVrms

LOTTX

100 nF 10 % 10 V

1.5 nF 10 % 10 V

(3)

22/36

STLC3075 Application information

Figure 8. Application diagram with N-channel

CVCC

RD

CVPOS

RD

VPOS

VPOS

GATE

RSENSE

VBAT

CLK

RING

CSVR

CREV

RTH

RLIM

IREF

CRD

T1

Q1

D04TL625A

RF1

RF2

CSVR

RTH

N-ch

R

SENSE

D1

CV

RSF

CSF

CVB

VF

CZ

TIP

RP

RP

RREF

CZ

CLK

TIP

RING

CREV

RLIM

CCOMP

DET

CONTROL

INTERFACE

SUGGESTED GROUND LAY-OUT

TTX CLOCK

D0

D1

D2

PD

SYSTEM GND

CFL

VDD

CH

RDD

RLV

RLV

ZAC

BGND

STLC3075

CAC

CAC

CVCC

ILTF

TX

RX

RRX

AGND

RX

AGND

BGND

PGND

RS

ZAC

ZAC1

ZB

GAIN SET

DET

D0

D1

D2

PD

CKTTX

CTTX1

CTTX2

FTTX

RTTX

TX

RTTX

CTTX

RS

ZA

ZB

CS

Figure 9. Application diagram without metering pulse generation with N-channel

CVCC

RD

CVPOS

RD

VPOS

VPOS

GATE

RSENSE

VBAT

CLK

RING

CSVR

CREV

RTH

RLIM

IREF

CRD

T1

Q1

N-ch

RSF

D04TL626

RF1

RF2

CSVR

RTH

R

SENSE

D1

CV

CSF

CVB

VF

CZ

TIP

RP

RP

RREF

CZ

CLK

TIP

RING

CREV

RLIM

CCOMP

CONTROL

INTERFACE

SUGGESTED GROUND LAY-OUT

DET

D0

D1

D2

PD

SYSTEM GND

VDD

CH

RDD

ZAC

TX

RX

RRX

AGND

TX

RS

RX

RS

ZAC

ZAC1

ZA

ZB

ZB

GAIN SET

CVCC

BGND

STLC3075

DET

D0

D1

D2

PD

8RES

9RES

10RES

AGND

BGND

PGND

12RES

11RES

CAC

ILTF

CAC

23/36

Application information STLC3075

Figure 10. Application diagram with P-channel

CVCC

VPOS

CVPOS

RSENSE

VPOS

RSENSE

GATE

VBAT

CLK

RING

CSVR

CREV

RTH

RLIM

IREF

RD

CVB

VF

CLK

RREF

RP

RP

CREV

RLIM

TIP

TIP

RING

RF1

RF2

CSVR

RTH

Q1

P-ch

D1

L

CV

CONTROL

INTERFACE

TTX CLOCK

DET

BGND

STLC3075

CAC

CVCC

ILTF

TX

RX

RRX

AGND

TX

RS

CCOMP

D0

D1

D2

PD

CFL

ZAC

CH

VDD

RDD

RLV

RLV

RX

RS

ZAC

ZAC1

ZA

ZB

ZB

GAIN SET

DET

D0

D1

D2

PD

CKTTX

CTTX1

CS

CTTX2

FTTX

RTTX

SYSTEM GND

SUGGESTED GROUND LAY-OUT

AGND

BGND

PGND

RTTX

CTTX

CAC

RD

CRD

Figure 11. Application diagram without metering pulse generation

CVCC

RD

CVPOS

VPOS

VPOS

RSENSE

GATE

VBAT

CLK

RING

CSVR

CREV

RTH

RLIM

IREF

RSENSE

VF

TIP

CLK

RREF

CVB

RP

RP

CREV

RLIM

CONTROL

INTERFACE

DET

CVCC

BGND

CCOMP

VDD

CH

RDD

ZAC

TX

RX

RRX

AGND

TX

RS

RX

RS

ZAC

ZAC1

ZA

ZB

ZB

GAIN SET

STLC3075

D0

D1

D2

PD

DET

D0

D1

D2

PD

CKTTX

CTTX1

CTTX2

FTTX

RTTX

CAC

ILTF

D01TL493B

TIP

RING

RF1

RF2

RTH

CSVR

Q1

P-ch

D1

L

CV

AGND

SYSTEM GND

SUGGESTED GROUND LAY-OUT

BGND

PGND

(*) Buckboost configuration.

24/36

CAC

RD

CRD

D01TL494B

STLC3075 Electrical characteristics

6 Electrical characteristics

Test conditions: V

= 6.0V, AGND = BGND, normal polarity, T

POS

= 25°C.

amb

External components as listed in the ’typical values’ column of the above external
components tables.

Note: Testing of all parameters is performed at 25°C. Characterization as well as design rules

used allow correlation of tested performances at other temperatures. All parameters listed
here are met in the operating range of: -40 to +85°C.

Table 17. Electrical characteristics

Symbol Parameter Test condition Min. Typ. Max. Unit

DC characteristics

V

lohi

V

lohi

V

loa

V

loa

Ilim Lim. current programming range Active mode 20 40 mA

Ilima Lim. current accuracy

Rfeed HI Feeding resistance HI-Z (High Impedance feeding) 2.4 3.6 kΩ

Line voltage

Line voltage

Line voltage

Line voltage

Il = 0
HI-Z (High impedance feeding)

= 0°C to 85 °C

T

amb

Il = 0
HI-Z (High impedance feeding)
T

= -40 °C to 85 °C

amb

Il = 0,
Active mode,

= 0 °C to 85 °C

T

amb

Il = 0, active mode, T

= -40 °C to

amb

85 °C

Active mode
Rel. to programmed value
20 mA to 40mA

44 50 V

42 48 V

33 40 V

31 37 V

-10 10 %

AC characteristics

L/T

T/L

T/L

Long. to transv.
(see appendix for test circuit)

Transv. to long.
(see appendix for test circuit)

Transv. to long.
(see appendix for test circuit)

2WRL 2W return loss

Rp = 50 Ω, 1% tolerance
Active N. P., R

= 600 Ω (*)

L

f = 300 to 3400 Hz

Rp = 50 Ω, 1 % tolerance
Active N. P., RL = 600 Ω (*)
f = 300 to 3400 Hz

Rp = 50 Ω, 1% tolerance
Active N. P., R

= 600 Ω (*)

L

f = 1 kHz

300 to 3400 Hz
Active N. P., RL = 600 Ω (*)

25/36

50 58 dB

40 45 dB

48 53 dB

22 26 dB

Electrical characteristics STLC3075

Table 17. Electrical characteristics (continued)

Symbol Parameter Test condition Min. Typ. Max. Unit

300 to 3400 Hz

THL Trans-hybrid loss

Ovl 2W overload level

TXoff TX output offset Active N. P., R

G24 Transmit gain abs.

G42 Receive gain abs.

20Log|VRX/VTX|
Active N. P., R

= 600 Ω (*)

L

At line terminals on ref. imped.
Active N. P., R

= 600 Ω (*)

L

= 600 Ω (*) -250 250 mV

L

0 dBm @ 1020 Hz
Active N. P., R

= 600 Ω (*)

L

0 dBm @ 1020 Hz
Active N. P., R

= 600Ω (*)

L

Rel. 1020 Hz; 0 dBm

G24f TX gain variation vs. frequency

300 to 3400 Hz
Active N. P., RL = 600 Ω (*)

Rel. 1020 Hz; 0dBm

G24f RX gain variation vs. freq.

300 to 3400 Hz
Active N. P., RL = 600 Ω (*)

V2Wp

V2Wp

V4Wp

V4Wp

Idle channel noise at line 0dB gain
set

Idle channel noise at line 0dB gain
set

Idle channel noise at line 0dB gain
set

Idle channel noise at line 0dB gain
set

Thd Total harmonic distortion Active N. P., R

VTTX Metering pulse level on line

Psophometric filtered
Active N. P., R
T

= 0 to +85 °C

amb

= 600 Ω (*)

L

Psophometric filtered
Active N. P., R

= -40 to +85 °C

T

amb

= 600 Ω (*)

L

Psophometric filtered
Active N. P., R

= 0 to +85 °C

T

amb

= 600 Ω (*)

L

Psophometric filtered
Active N. P., R
T

= -40 to +85 °C

amb

= 600 Ω (*)

L

= 600 Ω (*) -44 dB

L

Active - TTX; Gain Set = 1
Zl = 200 Ω fttx = 12 kHz

CLKfreq CLK operating range -10% 125 10% kHz

30 dB

3.2 dBm

-6.4 -5.6 dB

-0.4 0.4 dB

-0.12 0.12 dB

-0.12 0.12 dB

-73 -68 dBmp

-68 dBmp

-75 -70 dBmp

-75 dBmp

260 340

mVr

ms

(*) RL: Line resistance

Ring

RING D2 toggling @ fr = 25 Hz
Load = 3REN

Vring Line voltage

Crest Factor = 1.25
1REN = 1800 Ω + 1.0 µF

= 0 to +85 °C

T

amb

26/36

45 49 Vrms

STLC3075 Electrical characteristics

Table 17. Electrical characteristics (continued)

Symbol Parameter Test condition Min. Typ. Max. Unit

RING D2 toggling @ fr = 25 Hz
Load = 3REN

Vring Line voltage

Detectors

Crest Factor = 1.25
1REN = 1800 Ω + 1.0 µF

= -40 to +85 °C

T

amb

44 48 Vrms

IOFFTHA Off/hook current threshold

ROFTHA Off/hook loop resistance threshold

IONTHA On/hook current threshold

RONTHA On/hook loop resistance threshold

IOFFTHI Off/hook current threshold

ROFFTHI Off/hook loop resistance threshold

IONTHI On/hook current threshold

RONTHI On/hook loop resistance threshold

Active mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

Active mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

Active mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

Active mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

Hi Z mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

Hi Z mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

Hi Z mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

Hi Z mode, RTH = 32.4 kΩ
1% (Prog. ITH = 9 mA)

10.5 mA

3.4 kΩ

6mA

8kΩ

10.5 mA

800 Ω

6mA

8kΩ

Irt Ring trip detector threshold range Ring 20 50 mA

Irta

Ring trip detector threshold
accuracy

Ring -15 15 %

Trtd Ring trip detection time Ring 60 ms

Td Dialling distortion Active mode -1 1 ms

(1)

Rlrt

Loop resistance 500 Ω

ThAl Tj for th. alarm activation 160 °C

(1) Rlrt = Maximum loop resistance (incl. telephone) for correct ring trip detection.

Digital interface

Inputs: D0, D1, D2, PD, CLK
Outputs: DET

Vih In put high voltage 2 V

Vil Input low voltage 0.8 V

Iih Input high current -10 10 μA

Iil Input low current -10 10 μA

Vol Output low voltage Iol = 1mA 0.45 V

27/36

Electrical characteristics STLC3075

Table 17. Electrical characteristics (continued)

Symbol Parameter Test condition Min. Typ. Max. Unit

PSRR and power consumption

PSERRC

Ivpos V

Ipk

1. Buck-Boost configuration

Power supply rejection V
2W port

supply current @ II = 0

POS

(1)

Peak current limiting accuracy

6.1 Test circuits

Referring to the application diagram as shown on Figure 10: Application diagram with P-

channel and using the typical values from Table 10: External components for buckboost
configuration and Table 15: External components @gain set = 0 find below the proper

configuration for each measurement.

All measurements requiring DC current termination should be performed using ’Wandel &
Glittering’ DC Loop Holding Circuit GH-1’ or equivalent.

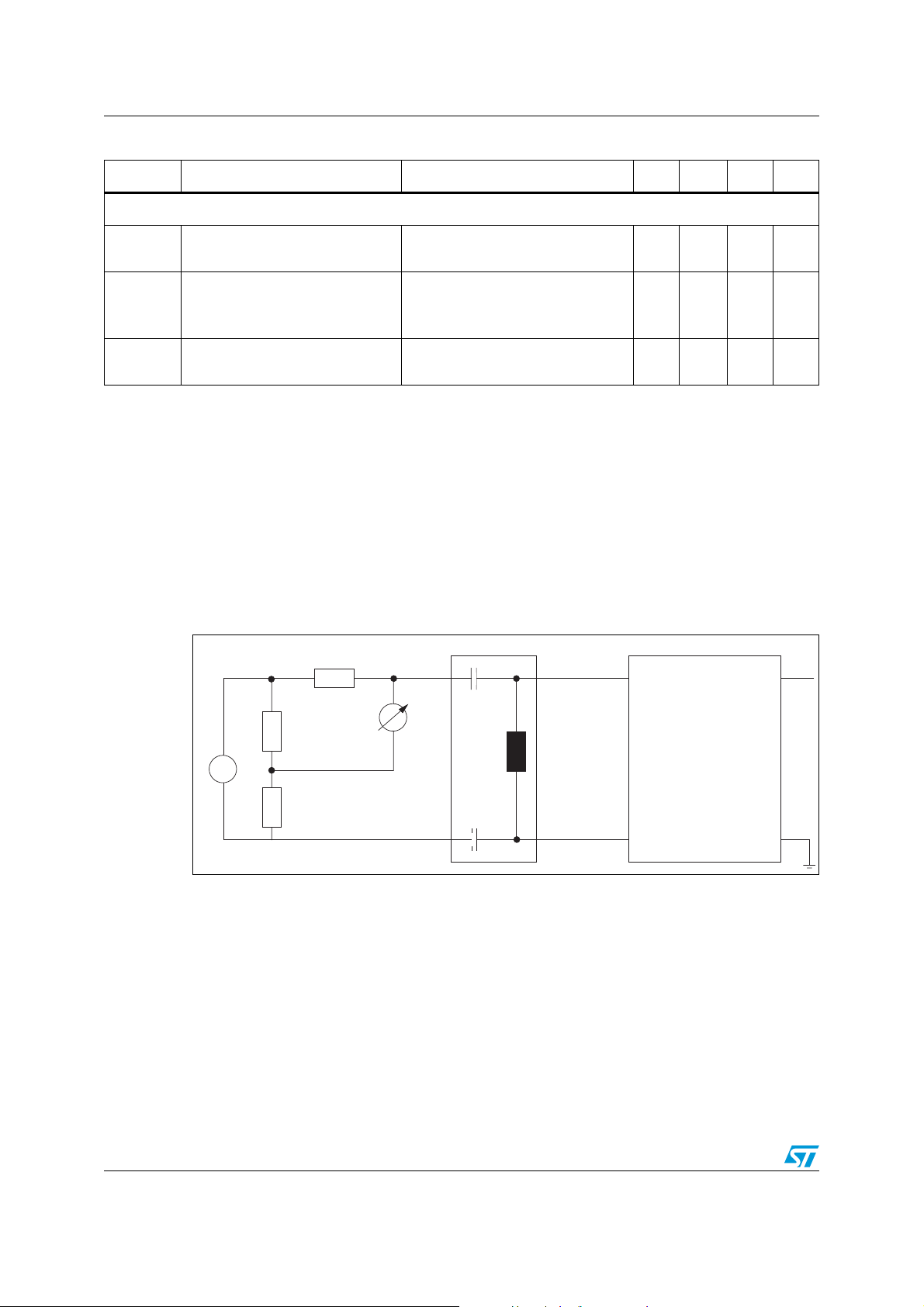

Figure 12. 2W return loss 2WRL = 20Log(|Zref + Zs|/|Zref-Zs|) = 20Log(E/2Vs)

1Kohm

E

1Kohm

POS

Zref

600ohm

Vripple = 100 mVrms

to

50 to 4000 Hz

HI-Z on-hook
Active on-hook
RING (line open)

RING off-hook
R

SENSE

Vs

= 110 mΩ

W&G GH1

100µF

100mA

DC mac

Zin = 100K

200 to 6kHz

100µF

26 36 dB

13

25

mA

50

80

mA

55

90

mA

-20% 900 +20% mApk

TIP

RING

STLC3075

application circuit

TX

RX

28/36

STLC3075 Electrical characteristics

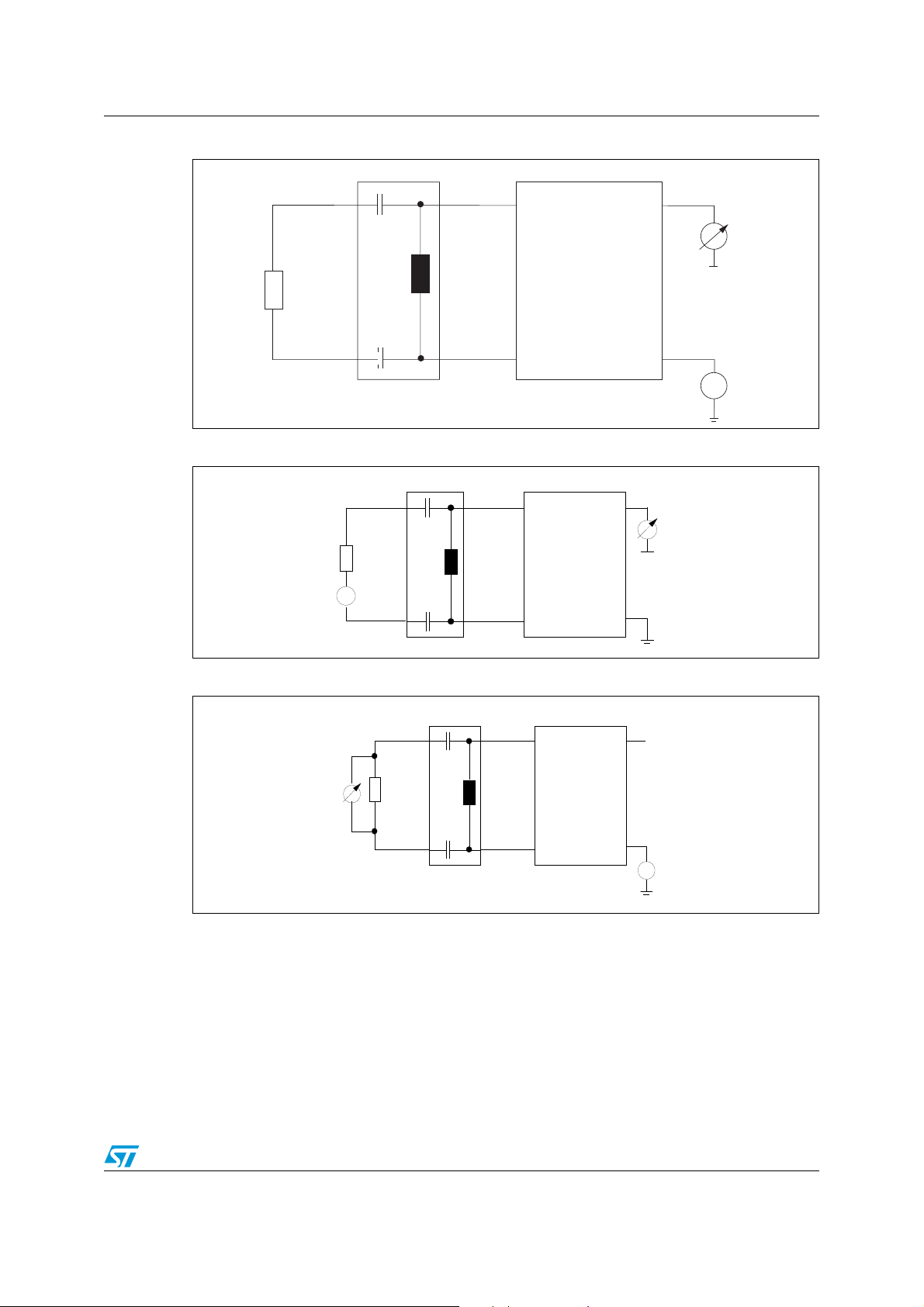

Figure 13. THL trans hybrid loss THL = 20Log|Vrx/Vtx/

W&G GH1

TIP

100µF

100mA

600ohm

DC mac

Zin = 100K

200 to 6kHz

100µF

RING

Figure 14. G24 transmit gain G24 = 20Log|2Vtx/E|

W&G GH1

TIP

100μF

STLC3075
application

RING

600ohm

E

100mA
DC max

Zin = 100K
200 to 6kHz

100μF

STLC3075

application circuit

TX

circuit

RX

TX

Vtx

RX

Vrx

Vtx

Figure 15. G42 receive gain G42 = 20Log|VI/Vrx|

W&G GH1

TIP

100μF

Vl

600ohm

100mA
DC max

Zin = 100K
200 to 6kHz

100μF

RING

TX

STLC3075
application

circuit

RX

Vrx

29/36

Electrical characteristics STLC3075

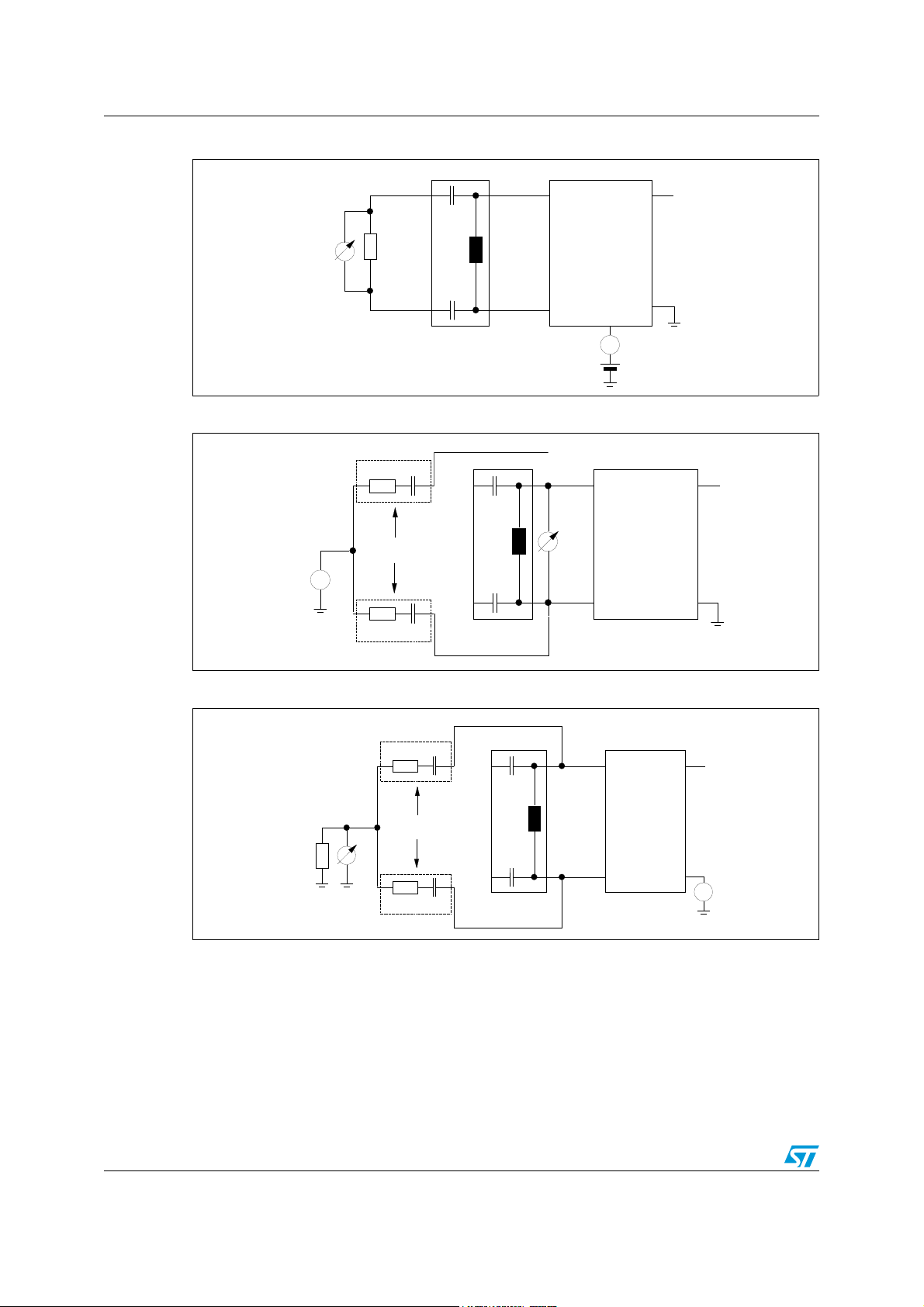

Figure 16. PSRRC power supply rejection V

W&G GH1

100μF

Vl

600ohm

100mA
DC max

Zin = 100K
200 to 6kHz

100μF

to 2W port PSSRC = 20Log|Vn/Vl|

POS

TIP

TX

STLC3075
application

circuit

VPOS

~

RX

Vn

RING

Figure 17. L/T longitudinal to transversal conversion L/T = 20Log|Vcm/Vl|

W&G GH1

100μF

100mA
DC max

Zin = 100K
200 to 6kHz

100μF

TIP

TX

STLC3075

Vl

application

circuit

RING

RX

Vcm

300ohm

100μF

Impedance matching
better than 0.1%

300ohm

100μF

Figure 18. T/L transversal to longitudinal conversion T/L = 20Log|Vrx/Vcm|

W&G GH1

100μF

100mA
DC max

Zin = 100K
200 to 6kHz

100μF

TIP

STLC3075
application

circuit

RING

TX

RX

Vrx

600ohm

Vcm

100μF

300ohm

Impedance matching
better than 0.1%

300ohm

100μF

30/36

STLC3075 Electrical characteristics

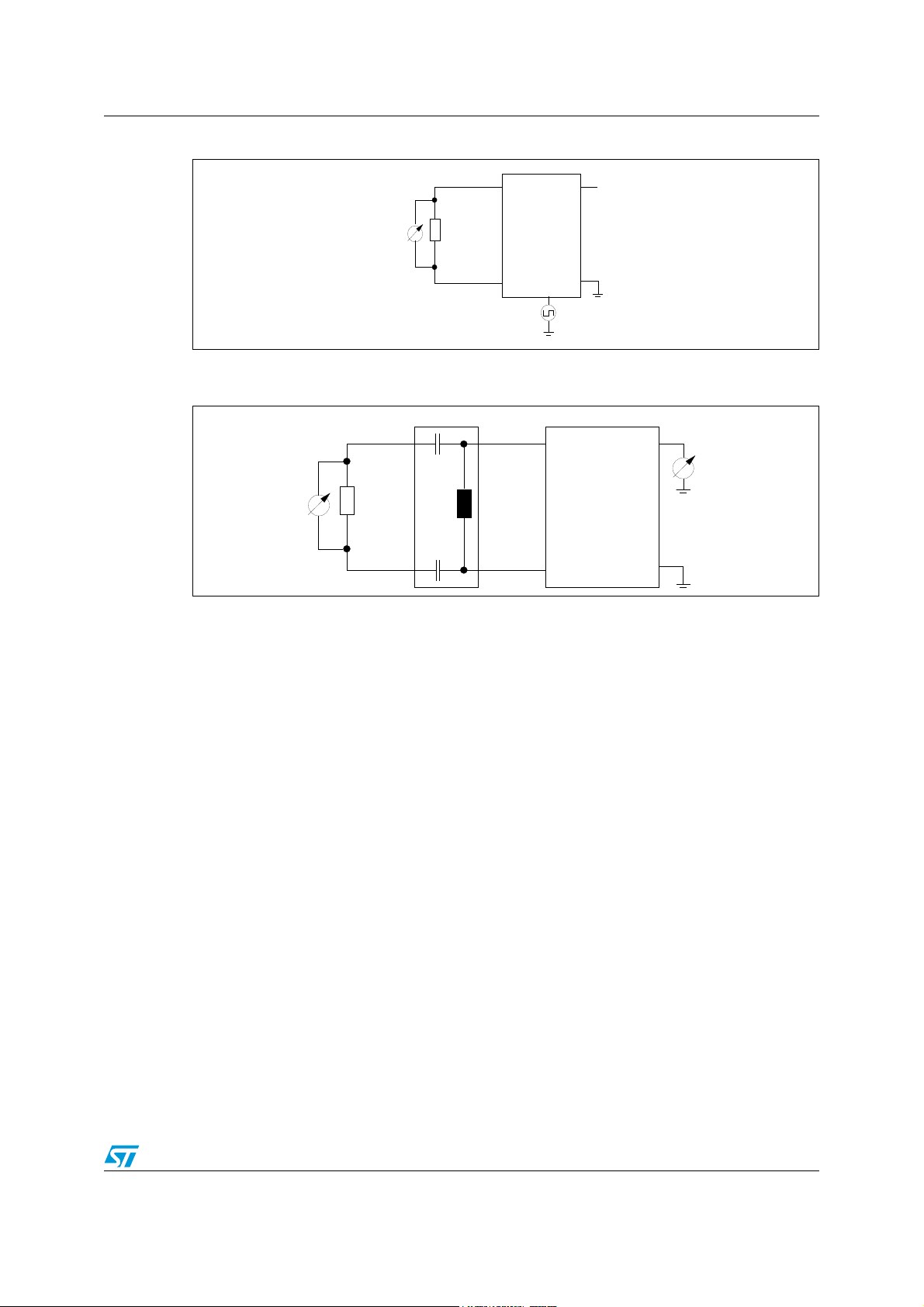

Figure 19. VTTX metering pulse level on line

Vlttx

200ohm

TIP

STLC3075
application

TX

circuit

CKTTX

RX

fttx (12 or 16kHz)

RING

Figure 20. V2Wp and W4Wp: Idle channel sophometric noise at line and TX.

V2Wp = 20Log|Vl/0.774l|; V4Wp = 20Log|Vtx/0.774l|

W&G GH1

Vl

psophometric

filtered

600ohm

100μF

100mA
DC max

Zin = 100K
200 to 6kHz

100μF

TIP

STLC3075
application

circuit

RING

TX

Vtx

psophometric

filtered

RX

31/36

Over voltage protection STLC3075

7 Over voltage protection

Figure 21. Simplified configuration for indoor over voltage protection

BGND

STLC3075

2 x

SM6T39A

RING

VBAT

RP1

TIP

RP1

STPR120A

RP2

RP2

STPR120A

RP1 = 30ohm:
RP2 =Fuse or PTC > 18ohm

TIP

RING

Figure 22. Standard over voltage protection configuration for K20 compliance

BGND

STLC3075

RP1

TIP

RP1

LCP1521S

RP1 = 30ohm:
RP2 =Fuse or PTC > 18ohm

2 x

SM6T39A

RING

VBAT

RP2

RP2

TIP

RING

32/36

STLC3075 Typical state diagram

8 Typical state diagram

Figure 23. Typical state diagram for STLC3075 operation

Normally used for
On Hook Transmission

Tj>Tth

PD=1,
D0=D1=0

On Hook Condition

Power
Down

HI-Z

Feeding

PD=0, D0=D1=0

Ring Burst

D0=1, D1=0,
D2=0/1

On Hook Detection for T>Tref

Active
Off Hook

Active
On Hook

Ring Burst

Ring Pause
D0=0, D1=1,
D2=0

Ringing

Ring Trip

Detection

Off Hook Detection

Note: all state transitions are under the microprocessor control.

D0=0, D1=1,
D2=0

Off Hook Detection

33/36

Package information STLC3075

9 Package information

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK

®

specifications, grade definitions and product status are available at: www.st.com.

ECOPACK

®

is an ST trademark.

Figure 24. LQFP44 (10 x 10 x 1.4 mm) mechanical data and package dimensions

DIM.

A 1.60 0.063

A1 0.05 0.15 0.002 0.006

A2 1.35 1.40 1.45 0.053 0.055 0.057

B 0.30 0.37 0.45 0.012 0.015 0.018

C 0.09 0.20 0.004 0.008

D 11.80 12.00 12.20 0.464 0.472 0.480

D1 9.80 10.00 10.20 0.386 0.394 0.401

D3 8.00 0.315

E 11.80 12.00 12.20 0.464 0.472 0.480

E1 9.80 10.00 10.20 0.386 0.394 0.401

E3 8.00 0.315

e0.80 0.031

L 0.45 0.60 0.75 0.018 0.024 0.030

L1 1.00 0.039

k 0˚(min.), 3.5˚(typ.), 7˚(max.)

ccc 0.10 0.0039

mm inch

MIN. TYP. MAX. MIN. TYP. MAX.

OUTLINE AND

MECHANICAL DATA

LQFP44 (10 x 10 x 1.4mm)

34/36

0076922 E

STLC3075 Revision history

10 Revision history

Table 18. Document revision history

Date Revision Changes

04-Oct-2004 1 Initial release

Removed all max. values of the ‘Line voltage’ parameter on page

04-Nov-2004 2

09-Feb-2005 3

22-Apr-2005 4 Changed figures 9 and 10.

14-Jul-2005 5 Changed VTTX value.

07-Feb-2007 6

16/26.
Changed the unit from mA to% of the ‘Ilima’ parameter on page

16/26.

Added pin 4 PD in applications and block diagram.
Added Table 2 ‘ESD rating’.

Added RRX resistance in the Figure 9 and Figure 10.
Updated Section 4.1 and Section 4.2.4.
Updated R

value and Ipk maximum value in Tab le 1 5 .

SENSE

Updated Figure 22.
Added Coilcraft references (FA2469-AL and FA2470-AL) to T1

parameter inTa bl e 1 2.
Moved Tab l e 3, Ta b le 4 and Ta bl e 5 to Chapter 9: Package

information.

09-Mar-2007 7

10-Mar-2009 8

Added precision on single supply voltage range for fly-back and buck
boost configurations on page 1.

Document reformatted.
Updated Section 9: Package information on page 34

35/36

STLC3075

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2009 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

36/36
