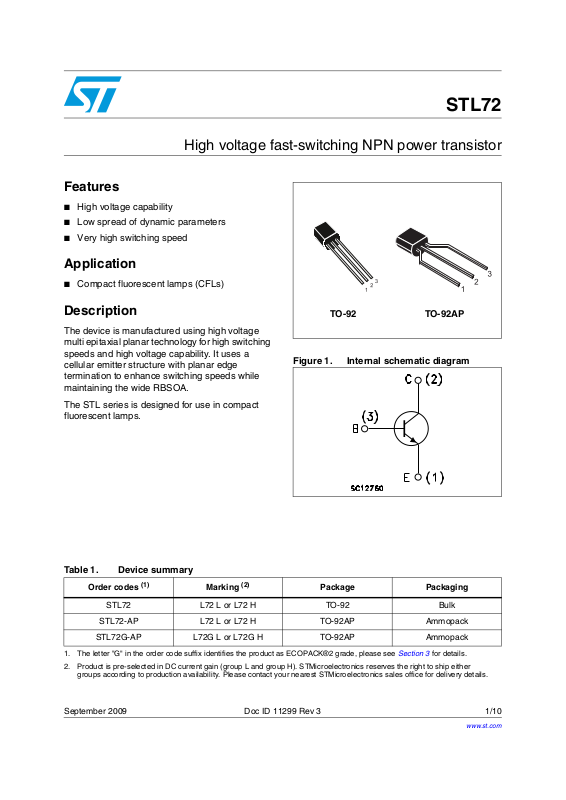

Datasheet stl72 Datasheet

High voltage fast-switching NPN power transistor

Features

■ High voltage capability

■ Low spread of dynamic parameters

■ Very high switching speed

Application

■ Compact fluorescent lamps (CFLs)

STL72

Description

The device is manufactured using high voltage
multi epitaxial planar technology for high switching
speeds and high voltage capability. It uses a
cellular emitter structure with planar edge
termination to enhance switching speeds while
maintaining the wide RBSOA.

The STL series is designed for use in compact
fluorescent lamps.

Table 1. Device summary

Order codes

(1)

Marking

(2)

TO-92 TO-92AP

Figure 1. Internal schematic diagram

Package Packaging

STL72 L72 L or L72 H TO-92 Bulk

STL72-AP L72 L or L72 H TO-92AP Ammopack

STL72G-AP L72G L or L72G H TO-92AP Ammopack

1. The letter "G" in the order code suffix identifies the product as ECOPACK®2 grade, please see Section 3 for details.

2. Product is pre-selected in DC current gain (group L and group H). STMicroelectronics reserves the right to ship either
groups according to production availability. Please contact your nearest STMicroelectronics sales office for delivery details.

September 2009 Doc ID 11299 Rev 3 1/10

www.st.com

10

Electrical ratings STL72

1 Electrical ratings

Table 2. Absolute maximum ratings

Symbol Parameter Value Unit

V

V

V

P

CES

CEO

EBO

I

I

CM

I

I

BM

TOT

T

T

Collector-emitter voltage (VBE = 0) 700 V

Collector-emitter voltage (IB = 0) 400 V

Emitter-base voltage (IC = 0) 9 V

Collector current 1 A

C

Collector peak current (tP < 5 ms) 2 A

Base current 0.5 A

B

Base peak current (tP < 5 ms) 1 A

Total dissipation at Tc = 25 °C 1 W

Storage temperature -65 to 150

stg

Max. operating junction temperature 150

J

Table 3. Thermal data

Symbol Parameter Value Unit

R

thJC

Thermal resistance junction-case__________max 125 °C/W

°C

2/10 Doc ID 11299 Rev 3

STL72 Electrical characteristics

2 Electrical characteristics

TC = 25 °C; unless otherwise specified

Table 4. Electrical characteristics

Symbol Parameter Test conditions Min. Typ. Max. Unit

I

CES

I

EBO

V

CEO(sus)

V

CE(sat)

V

BE(sat)

h

FE

Collector cut-off current

= 0)

(V

BE

Emitter cut-off current

= 0)

(I

C

Collector-emitter sustaining

(1)

voltage (IB = 0)

Collector-emitter saturation

(1)

voltage

Base-emitter saturation

(1)

voltage

(2)

DC current gain

Inductive Load
Fall time

t

f

V

= 700 V

CE

= 700 V TC = 125 °C

V

CE

V

= 9 V 1 mA

EB

I

= 1 mA 400 V

C

= 0.2 A IB = 40 mA

I

C

IC = 0.4 A IB = 80 mA

I

= 0.4 A IB = 80 mA 0.95 1.1 V

C

I

= 0.4 A V

C

CE

= 5 V
Group L
Group H

= 1 A V

I

C

IC = 0.25 A _ V

= -I

I

B1

= 50 mA

B2

CE

clamp

= 10 V

= 300 V

0.15

0.25

10

15

5

15mA

0.4

0.5VV

16

23

15

0.3 µs

L = 3 mH Figure 9

1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %

2. Product is pre-selected in DC current gain (group L and group H). STMicroelectronics reserves the right to
ship either groups according to production availability. Please contact your nearest STMicroelectronics
sales office for delivery details.

mA

Doc ID 11299 Rev 3 3/10

Electrical characteristics STL72

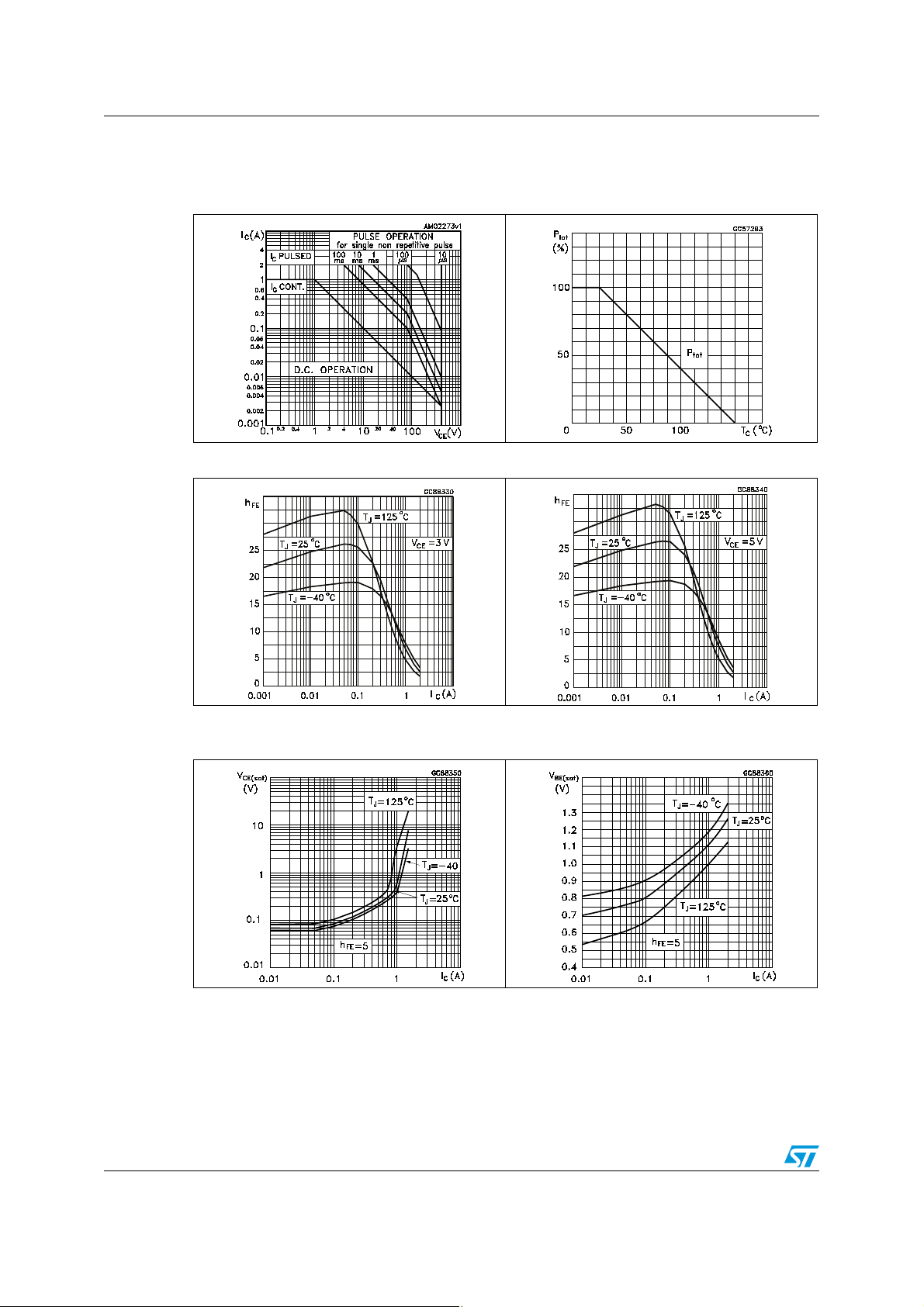

2.1 Electrical characteristics (curves)

Figure 2. Safe operating area Figure 3. Derating curve

Figure 4. DC current gain (VCE = 3 V) Figure 5. DC current gain (VCE = 5 V)

Figure 6. Collector-emitter saturation

voltage

Figure 7. Base-emitter saturation

4/10 Doc ID 11299 Rev 3

voltage

STL72 Electrical characteristics

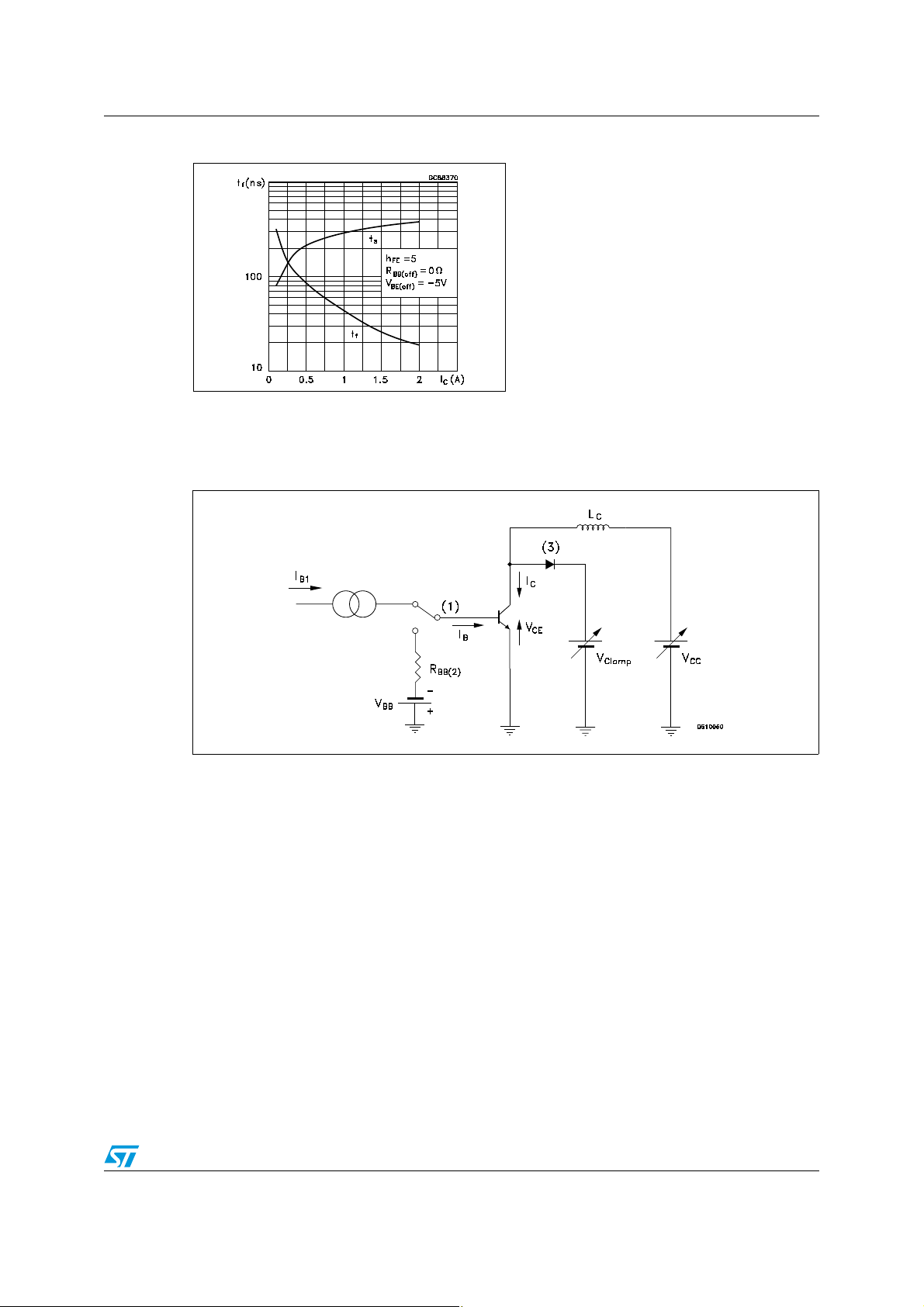

Figure 8. Switching time inductive load

2.2 Test circuit

Figure 9. Inductive load switching test circuit

1. Fast electronic switch

2. Non-inductive resistor

3. Fast recovery rectifier

Doc ID 11299 Rev 3 5/10

Package mechanical data STL72

3 Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

6/10 Doc ID 11299 Rev 3

STL72 Package mechanical data

TO-92 bulk shipment mechanical data

DIM.

MIN. TYP MAX.

mm.

A4.324.95

b 0.36 0.51

D 4.45 4.95

E 3.30 3.94

e 2.41 2.67

e1 1.14 1.40

L 12.70 15.49

R 2.16 2.41

S10.92 1.52

W 0.41 0.56

V5

o

0102782 D

Doc ID 11299 Rev 3 7/10

Package mechanical data STL72

TO-92 ammopack shipment (suffix”-AP”) mechanical data

Dim.

A1 4.80

T 3.80
T1 1.60
T2 2.30

d 0.48
P0 12.50 12.70 12.90
P2 5.65 6.35 7.05

F1,F2 2.44 2.54 2.94

F3 4.98 5.08 5.48

delta H -2.00 2.00

W17.50 18.00 19.00
W0 5.70 6.00 6.30
W1 8.50 9.00 9.25
W2 0.50

H18.50 20.50
H3 0.5 1 1.5
H0 15.50 16.00 16.50
H1 25.00
D0 3.804.004.20

t 0.90

L 11.00

I1 3.00

delta P -1.00 1.00

Min Typ Max

mm

8/10 Doc ID 11299 Rev 3

0050910S

STL72 Revision history

4 Revision history

Table 5. Document revision history

Date Revision Changes

01-Apr-2005 1 Initial release.

12-Jul-2005 2 New hfe range values.

10-Sep-2009 3 Updated package mechanical data.

Doc ID 11299 Rev 3 9/10
