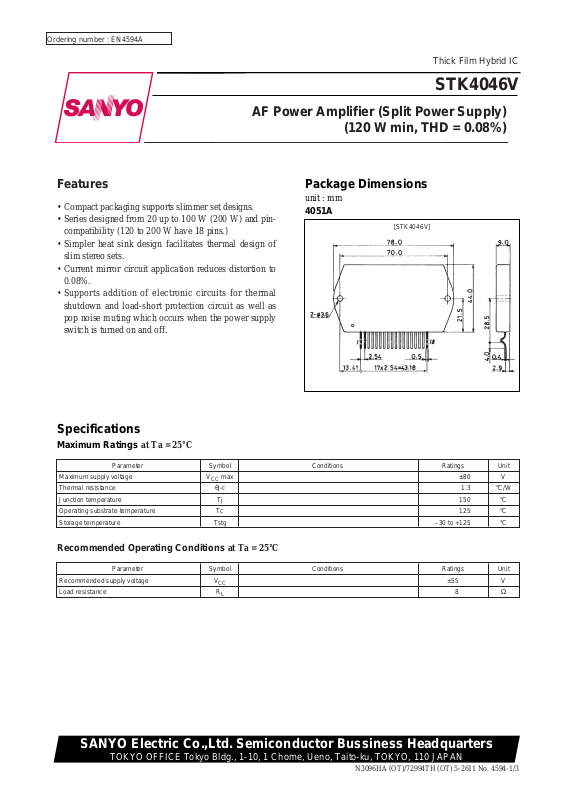

Thick Film Hybrid IC
Ordering number : EN4594A
N3096HA (OT)/72994TH (OT) 5-2611 No. 4594-1/3
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
AF Power Amplifier (Split Power Supply)
(120 W min, THD = 0.08%)
STK4046V
Features
• Compact packaging supports slimmer set designs.
• Series designed from 20 up to 100 W (200 W) and pincompatibility (120 to 200 W have 18 pins.)
• Simpler heat sink design facilitates thermal design of
slim stereo sets.
• Current mirror circuit application reduces distortion to
0.08%.
• Supports addition of electronic circuits for thermal
shutdown and load-short protection circuit as well as
pop noise muting which occurs when the power supply
switch is turned on and off.
Package Dimensions
unit : mm
4051A
Specifications
Maximum Ratings at Ta = 25°C
Recommended Operating Conditions at Ta = 25°C
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
CC
max ±80 V
Thermal resistance
θj-c 1.3 °C/W
Junction temperature Tj 150 °C
Operating substrate temperature Tc 125 °C
Storage temperature Tstg –30 to +125 °C
Parameter Symbol Conditions Ratings Unit
Recommended supply voltage V
CC
±55 V
Load resistance R
L
8 Ω
[STK4046V]
Page 2
STK4046V
No. 4594-2/3
Operating Characteristics
at Ta = 25°C, VCC= ±55 V, RL= 8 Ω (noninductive load), VG = 40 dB, Rg = 600 Ω, 100 k LPF ON
Note: Use rated power supply for test unless otherwise specified.
* Output noise voltage represents the peak value on the rms scale (VTVM). The noise voltage waveform does not include the pulse noise.
Specified Transformer Power Supply
(MG-250 equivalent)
Equivalent Circuit
Parameter Symbol Conditions min typ max Unit
Quiescent current I
CCO
VCC= ±66 V 15 120 mA
Output power P
O
THD = 0.08%, f = 20 Hz to 20 kHz 120 W
Total harmonic distortion THD P
O
= 1.0 W, f = 1 kHz 0.08 %
Frequency response f
L
, f
H
PO= 1.0 W, dB 20 to 50 k Hz
Input resistance r
i
PO= 1.0 W, f = 1 kHz 55 kΩ
Output noise voltage V
NO
* V
CC
= ±66 V, Rg = 10 kΩ 1.2 mVrms
Neutral voltage V
N
VCC= ±66 V –70 0 +70 mV
+0
–3
Page 3
STK4046V
No. 4594-3/3
Application Circuit: Single-Channel 120 W min. AF Power Amplifier
