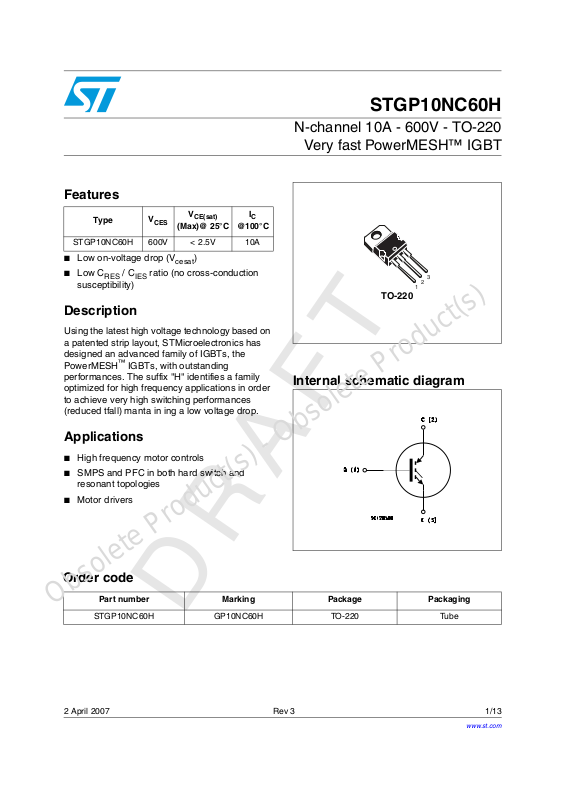

Features
STGP10NC60H
N-channel 10A - 600V - TO-220
Very fast PowerMESH™ IGBT
V
Type
STGP10NC60H 600V < 2.5V 10A
■ Low on-voltage drop (V
■ Low C
RES
V
CES
/ C
ratio (no cross-conduction
IES
CE(sat)
(Max)@ 25°C
)
cesat
I
C
@100°C
susceptibility)
Description
Using the latest high voltage technology based on
a patented strip layout, STMicroelectronics has
designed an advanced family of IGBTs, the
PowerMESH
™
IGBTs, with outstanding
performances. The suffix "H" identifies a family
optimized for high frequency applications in order
to achieve very high switching performances
(reduced tfall) manta in ing a low voltage drop.
Applications
■ High frequency motor controls
■ SMPS and PFC in both hard switch and
resonant topologies
■ Motor drivers
3
2
1
TO-220
Internal schematic diagram
Order code
Part number Marking Package Packaging
STGP10NC60H GP10NC60H TO-220 Tube
2 April 2007 Rev 3 1/13
www.st.com
13
Page 2
Obsolete Product(s) - Obsolete Product(s)
Contents STGP10NC60H
Contents
1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2/13
Page 3
Obsolete Product(s) - Obsolete Product(s)
STGP10NC60H Electrical ratings
1 Electrical ratings
Table 1. Absolute maximum ratings
Symbol Parameter Value Unit
V
CES
I
C
I
C
I
CL
V
P
TOT
T
1. Calculated according to the iterative formula:
ICTC()
2. V
clamp
Collector-emitter voltage (VGS = 0)
(1)
Collector current (continuous) at TC = 25°C
(1)
Collector current (continuous) at TC = 100°C
(2)
Collector current (pulsed) 40 A
Gate-emitter voltage ±20 V
GE
Total dissipation at TC = 25°C
Operating junction temperature – 55 to 150 °C
j
T
–
---------------------------------- --------------------------------------------- -----------------------=
R
THJ C–VCESAT MAX()TCIC
=480V, Tj=150°C, RG=10Ω, VGE=15V
JMAXTC
,()×
600 V
20 A
10 A
60 W
Table 2. Thermal resistance
Symbol Parameter Value Unit
Rthj-case Thermal resistance junction-case max 2.08 °C/W
Rthj-amb Thermal resistance junction-ambient max 62.5 °C/W
3/13
Page 4
Obsolete Product(s) - Obsolete Product(s)
Electrical characteristics STGP10NC60H
2 Electrical characteristics
(T
=25°C unless otherwise specified)
CASE
Table 3. Static
Symbol Parameter Test conditions Min. Typ. Max. Unit
V
BR(CES)
I
CES
I
GES
V
GE(th)
V
CE(sat)
g
Collector-emitter
breakdown voltage
Collector cut-off current
= 0)
(V
GE
Gate-emitter leakage
current (V
CE
= 0)
Gate threshold voltage
Collector-emitter saturation
voltage
Forward transconductance
fs
= 1mA, VGE= 0
I
C
VCE= Max rating,TC= 25°C
V
=Max rating,TC= 125°C
CE
= ±20V, VCE= 0
V
GE
= VGE, IC= 250 µA
V
CE
= 15V, IC= 5A
V
GE
= 15V, IC= 5A, Tc= 125°C
V
GE
= 15V, IC= 5A
V
CE
600 V
1501µA
±100 nA
3.75 5.75 V
1.9
2.5 V
1.7
3.5 S
Table 4. Dynamic
Symbol Parameter Test conditions Min. Typ. Max. Unit
C
C
C
Input capacitance
ies
Output capacitance
oes
Reverse transfer
res
capacitance
= 25V, f = 1MHz,
V
CE
= 0
V
GE
365
43
8.3
mA
V
pF
pF
pF
Q
g
Total gate charge
Q
Q
Gate-emitter charge
ge
Gate-collector charge
gc
VCE = 390V, IC = 5A,
= 15V,
V
GE
(see Figure 16)
19.2
4.5
7
nC
nC
nC
4/13
Page 5
Obsolete Product(s) - Obsolete Product(s)
STGP10NC60H Electrical characteristics
Table 5. Switching on/off (inductive load)
Symbol Parameter Test conditions Min. Typ. Max. Unit
t
d(on)
t
(di/dt)
t
d(on)
t
(di/dt)
t
r(Voff
t
d(off
t
t
r(Voff
t
d(off
t
Turn-on delay time
Current rise time
r
Turn-on current slope
on
Turn-on delay time
Current rise time
r
Turn-on current slope
on
)
Off voltage rise time
)
Turn-off delay time
Current fall time
f
)
Off voltage rise time
)
Turn-off delay time
Current fall time
f
= 390V, IC = 5A
V
CC
= 10Ω, VGE= 15V,
R
G
Figure 15. and Figure 17.
= 390V, IC = 5A
V
CC
= 10Ω, VGE= 15V,
R
G
Tj=125°C
Figure 15. and Figure 17.
= 390V, IC = 5A,
V
cc
= 10Ω, VGE = 15V,
R
GE
Figure 15. and Figure 17.
Vcc = 390V, IC = 5A,
R
=10Ω, VGE =15V,
GE
Tj=125°C
Figure 15. and Figure 17.
14.2
5
1000
14
5
920
27
72
85
50
108
139
Table 6. Switching energy (inductive load)
Symbol Parameter Test conditions Min. Typ. Max. Unit
= 390V, IC = 5A
V
E
on
Turn-on switching losses
(1)
E
off
E
Turn-off switching losses
Total switching losses
ts
CC
=10Ω, VGE=15V,
R
G
Tj=25°C
(see Figure 17)
31.8
95
126.8
ns
ns
A/µs
ns
ns
A/µs
ns
ns
ns
ns
ns
ns
µJ
µJ
µJ
= 390V, IC = 5A
V
E
on
Turn-on switching losses
(1)
E
off
E
1. Turn-off losses include also the tail of the collector current
Turn-off switching Losses
Total switching losses
ts
CC
=10Ω, VGE= 15V,
R
G
Tj= 125°C
(see Figure 17)
61.8
173
234.8
µJ
µJ
µJ
5/13
Page 6
Obsolete Product(s) - Obsolete Product(s)
Electrical characteristics STGP10NC60H

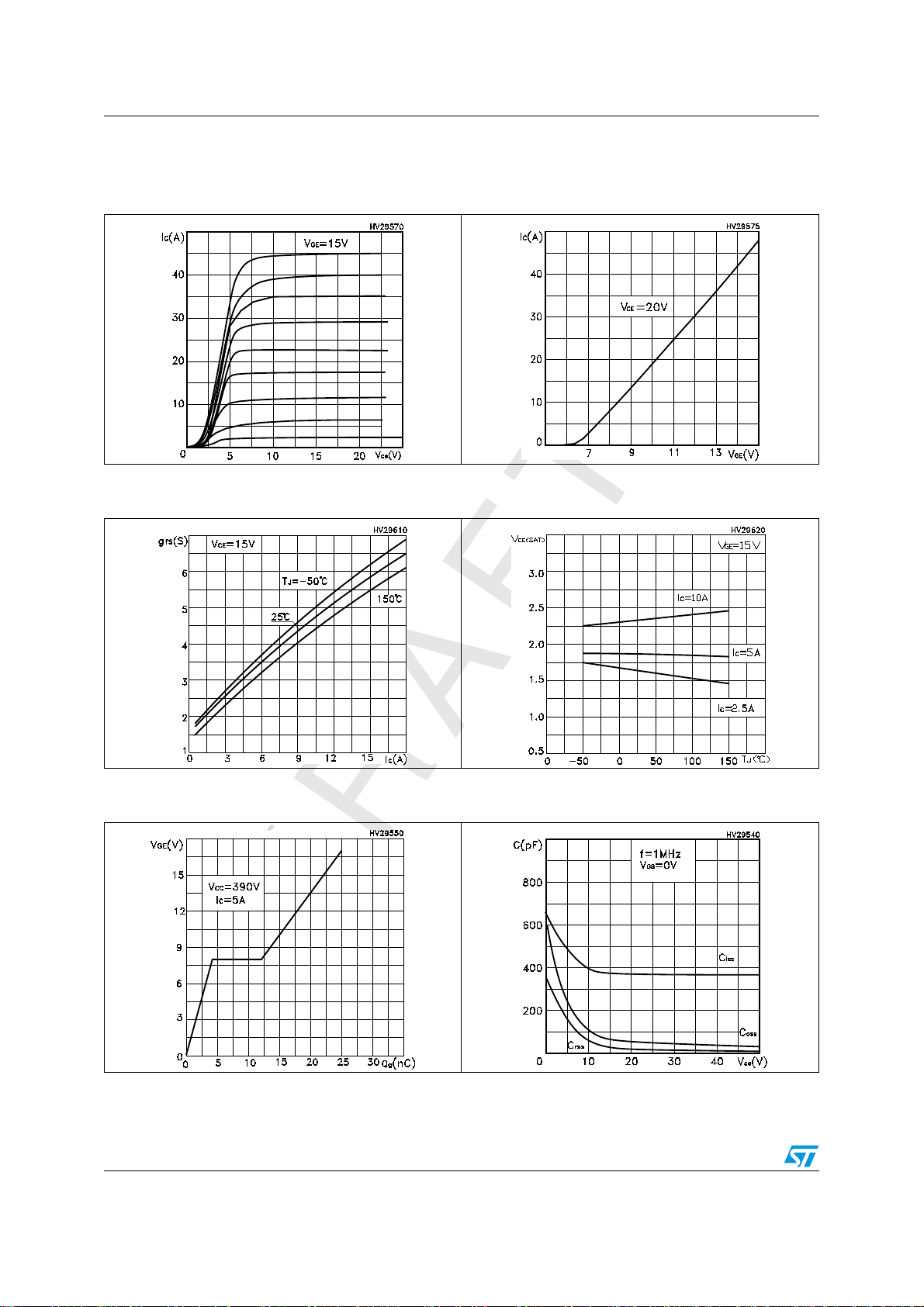

2.1 Electrical characteristics (curves)
Figure 1. Output characteristics Figure 2. Transfer characteristics
Figure 3. Transconductance Figure 4. Collector-emitter on voltage vs
temperature
Figure 5. Gate charge vs gate-source voltage Figure 6. Capacitance variations
6/13
Page 7
Obsolete Product(s) - Obsolete Product(s)
STGP10NC60H Electrical characteristics

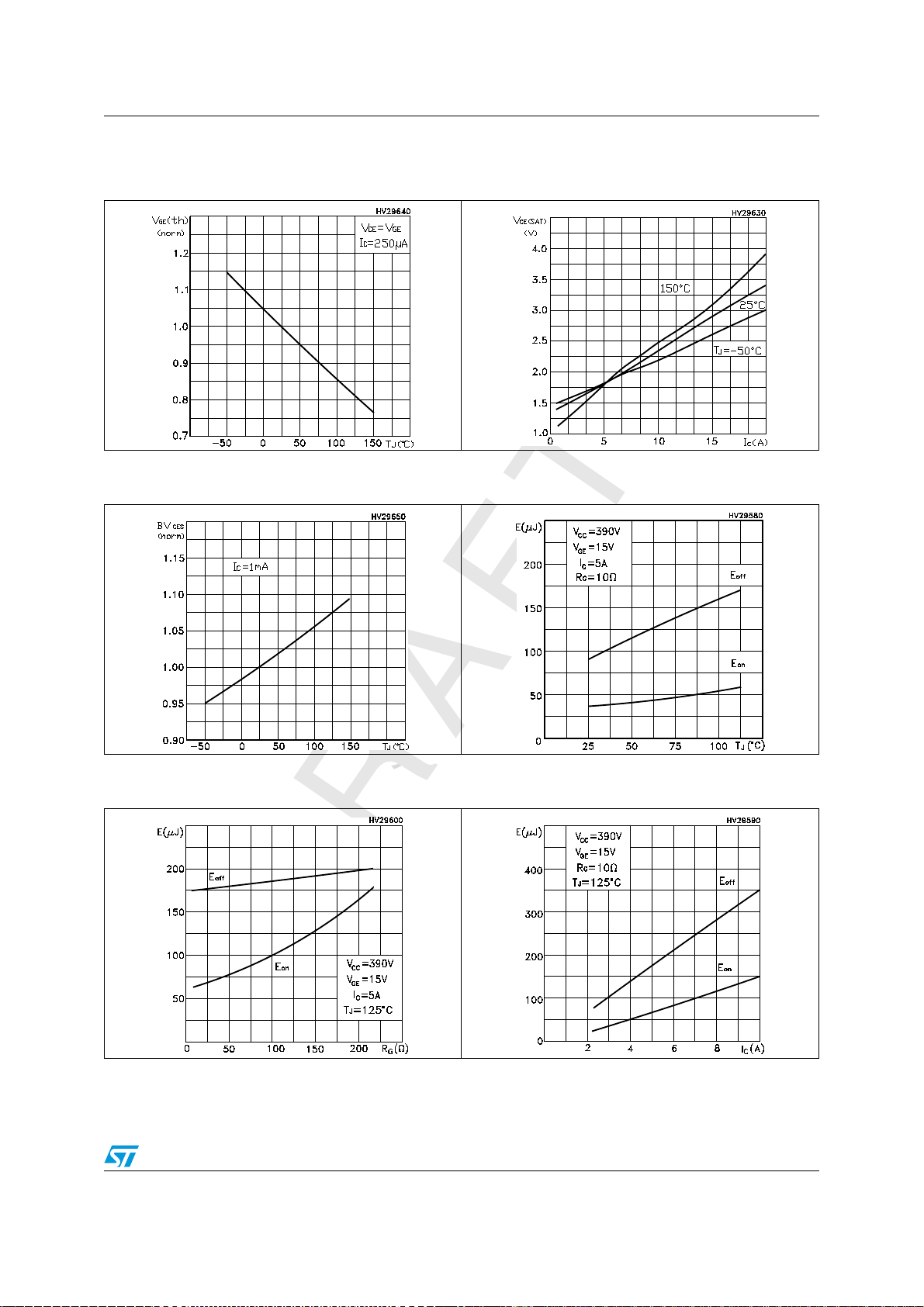

Figure 7. Normalized gate threshold voltage
vs temperature
Figure 9. Normalized breakdown voltage vs
temperature
Figure 8. Collector-emitter on voltage vs
collector current
Figure 10. Switching losses vs temperature
Figure 11. Switching losses vs gate resistance Figure 12. Switching losses vs collector
current
7/13
Page 8
Obsolete Product(s) - Obsolete Product(s)
Electrical characteristics STGP10NC60H

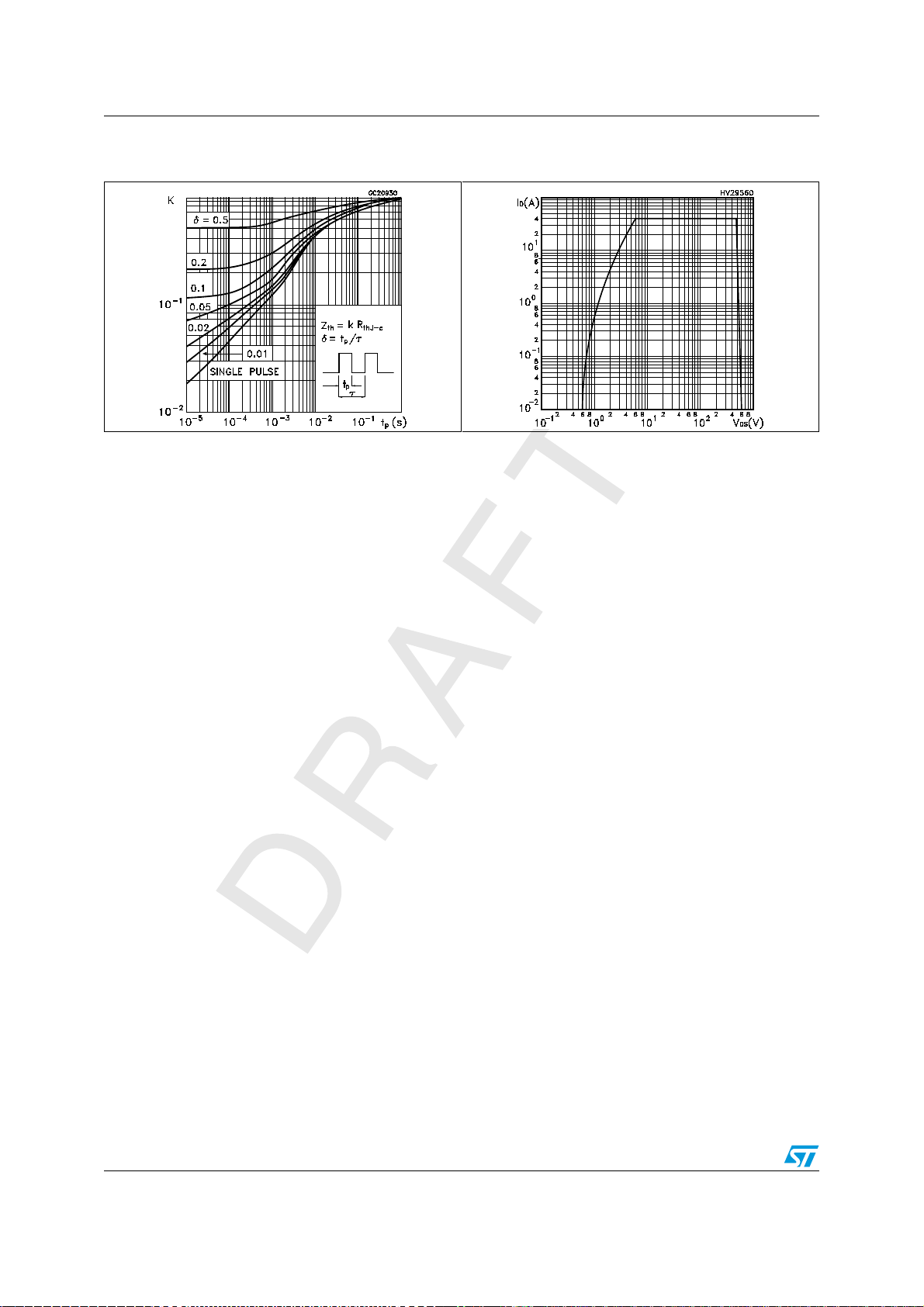

Figure 13. Thermal Impedance Figure 14. Turn-off SOA
8/13
Page 9
Obsolete Product(s) - Obsolete Product(s)
STGP10NC60H Test circuits
3 Test circuits
Figure 15. Test circuit for inductive load
Figure 17. Switching waveform
switching
Figure 16. Gate charge test circuit
9/13
Page 10
Obsolete Product(s) - Obsolete Product(s)
Package mechanical data STGP10NC60H
4 Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
10/13
Page 11
Obsolete Product(s) - Obsolete Product(s)
STGP10NC60H Package mechanical data
TO-220 MECHANICAL DATA
DIM.
A 4.40 4.60 0.173 0.181
b 0.61 0.88 0.024 0.034
b1 1.15 1.70 0.045 0.066
c 0.49 0.70 0.019 0.027
D 15.25 15.75 0.60 0.620
E 10 10.40 0.393 0.409
e 2.40 2.70 0.094 0.106
e1 4.95 5.15 0.194 0.202
F 1.23 1.32 0.048 0.052
H1 6.20 6.60 0.244 0.256
J1 2.40 2.72 0.094 0.107
L 13 14 0.511 0.551
L1 3.50 3.93 0.137 0.154
L20 16.40 0.645
L30 28.90 1.137
øP 3.75 3.85 0.147 0.151
Q 2.65 2.95 0.104 0.116
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
11/13
Page 12
Obsolete Product(s) - Obsolete Product(s)
Revision history STGP10NC60H
5 Revision history
Table 7. Revision history
Date Revision Changes
18-Nov-2005 1 Initial release.
12-Oct-2006 2 The document has been reformatted
02-Apr-2007 3 Corrected value on Table 3.
