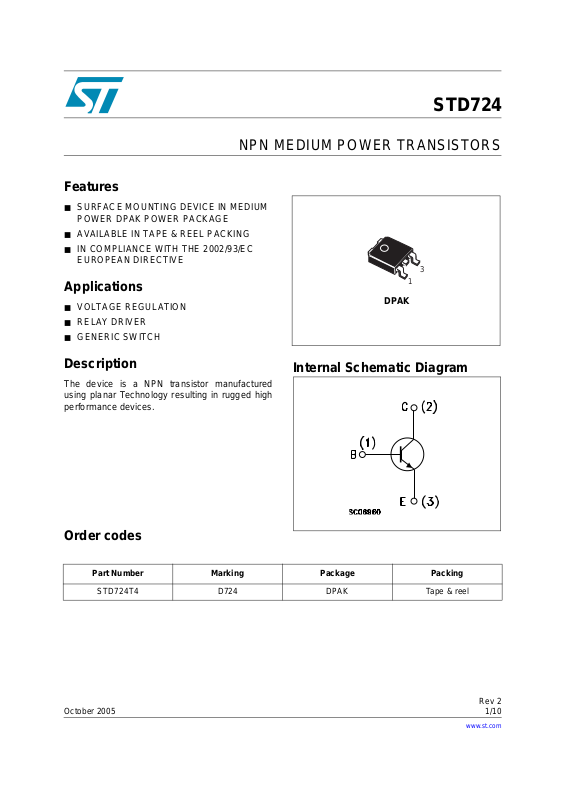

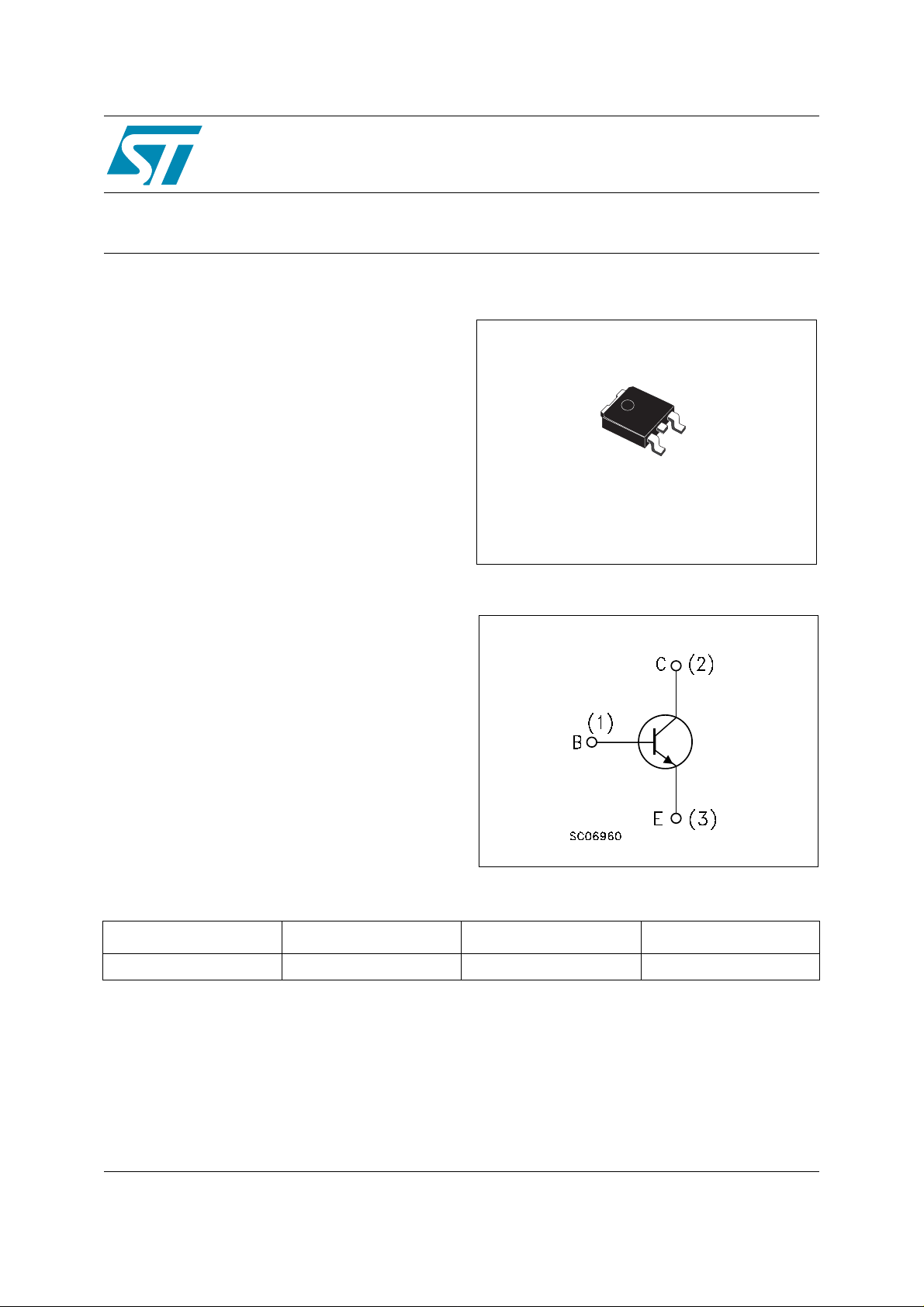

NPN MEDIUM POWER TRANSISTORS
3
Features
■ SURFACE MOUNTING DEVICE IN MEDIUM
POWER DPAK POWER PACKAGE
■ AVAILABLE IN TAPE & REEL PACKING
■ IN COMPLIANCE WITH THE 2002/93/EC
EUROPEAN DIRECTIVE
STD724
Applications
■ VOLTAGE REGULATION
■ RELAY DRIVER
■ GENERIC SWITCH
Description
The device is a NPN transistor manufactured
using planar Technology resulting in rugged high
performance devices.
Order codes
1
DPAK
Internal Schematic Diagram
Part Number Marking Package Packing
STD724T4 D724 DPAK Tape & reel
October 2005 1/10
www.st.com
Rev 2
10
Page 2
1 Electrical Ratings STD724
1 Electrical Ratings
Table 1. Absolute Maximum Rating
Symbol Parameter Value Unit
V
V
V
P
T
CBO
CEO
EBO
I
I
CM
I
I
BM
TOT
STG
T
Collector-Base Voltage (IE = 0)
Collector-Emitter Voltage (IB = 0)
Collector-Base Voltage (IC = 0)
Collector Current 3 A
C
Collector Peak Current (tP < 5ms)
Base Current 1 A
B
Base Peak Current (tP < 5ms)
Total di ssipation at Tc = 25°C
Storage Temperature
Max. Operating Junction Temperature
J
60 V
30 V
5V
6A
2A
15 W
-65 to 150
150
Table 2. Thermal Data
Symbol Parameter Value Unit
R
thj-amb
Thermal Resista nce Junction-Amb ____________________Max 8.33 °C/W
°C
2/10
Page 3
STD724 2 Electrical Char acteristics
2 Electrical Characteristics
Table 3. Electrical Characteristics (T
= 25°C; unless otherwise specified)
CASE
Symbol Parameter T est Conditions Min. Typ. Max. Unit
I
CES
I
CEO
I
EBO
V
(BR)CBO
V
(BR)CEO
Note 1
V
(BR)EBO
V
CE(sat)
Note 1
V
BE(sat)
Note 1
h
Collector Cut-off Current
= 0)
(V
BE
Collector Cut-off Current
= 0)
(I
B
Emitter Cut-off Current
= 0)
(I
C
Collector-Base
Breakdown Voltage (I
Collector-Emit ter Breakdown
Voltage (I
= 0)
B
Collector-Emit ter Breakdown
Voltage (I
= 0)
C
Collector-Emitter Saturation
Voltage
Base-Emitter Saturation Voltage
DC Current Gain
FE
f
Transistor Frequency
T
= 0)
E
= 60V
V
CE
= 30V
V
CE
= 5V
V
EB
= 100μA
I
C
= 10 mA
I
C
= 100 μA
I
E
I
= 1 A IB = 50 mA
C
I
= 2 A IB = 100 mA
C
I
= 3 A IB = 150 mA
C
= 2 A IB = 100 mA
I
C
I
= 100 mA V
C
I
= 1 A V
C
= 3 A V
I
C
V
= 10 V Ic= 0.1 A
CE
CE
CE
CE
= 2 V
= 2 V
= 2 V
10 μA
100 μA
10 μA
60 V
30 V
5V
0.4
0.7
1.1
1.2 V
100
80
300
30
100 MHz
1 Pulsed duration = 300 μs, duty cycle ≤1.5%.
V
V
V
3/10
Page 4
2 Electrical Characteristics STD724
2.1 Electrical characteristics (curve)

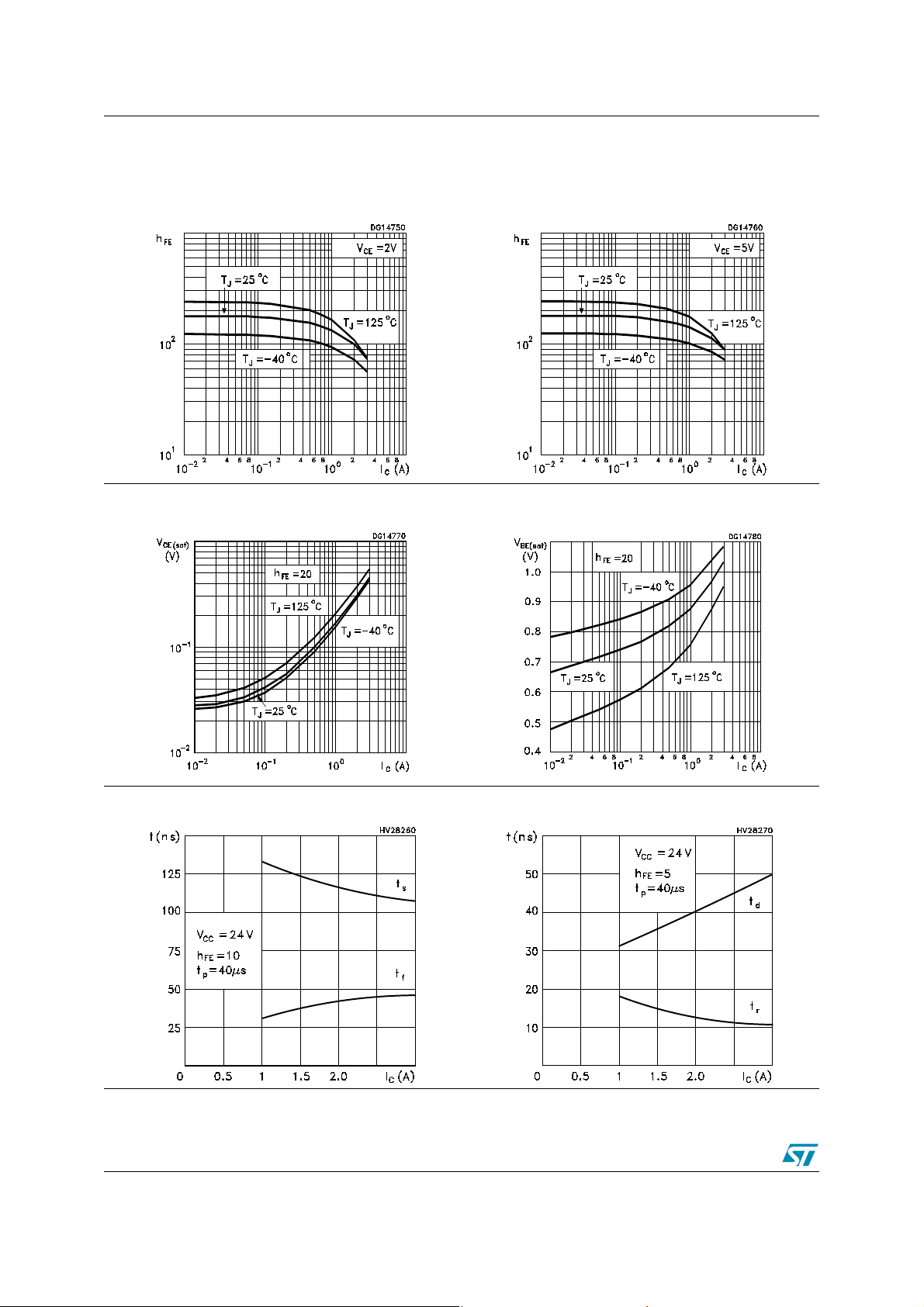

Figure 1. DC Current Gain Figur e 2. DC Current Gain
Figure 3. Collector-emitter saturation voltage Figure 4. Base-emitter satura tion voltage
Figure 5. Switching times on resistive load Figure 6. Switching times resistive on load
4/10
Page 5
STD724 2 Electrical Char acteristics

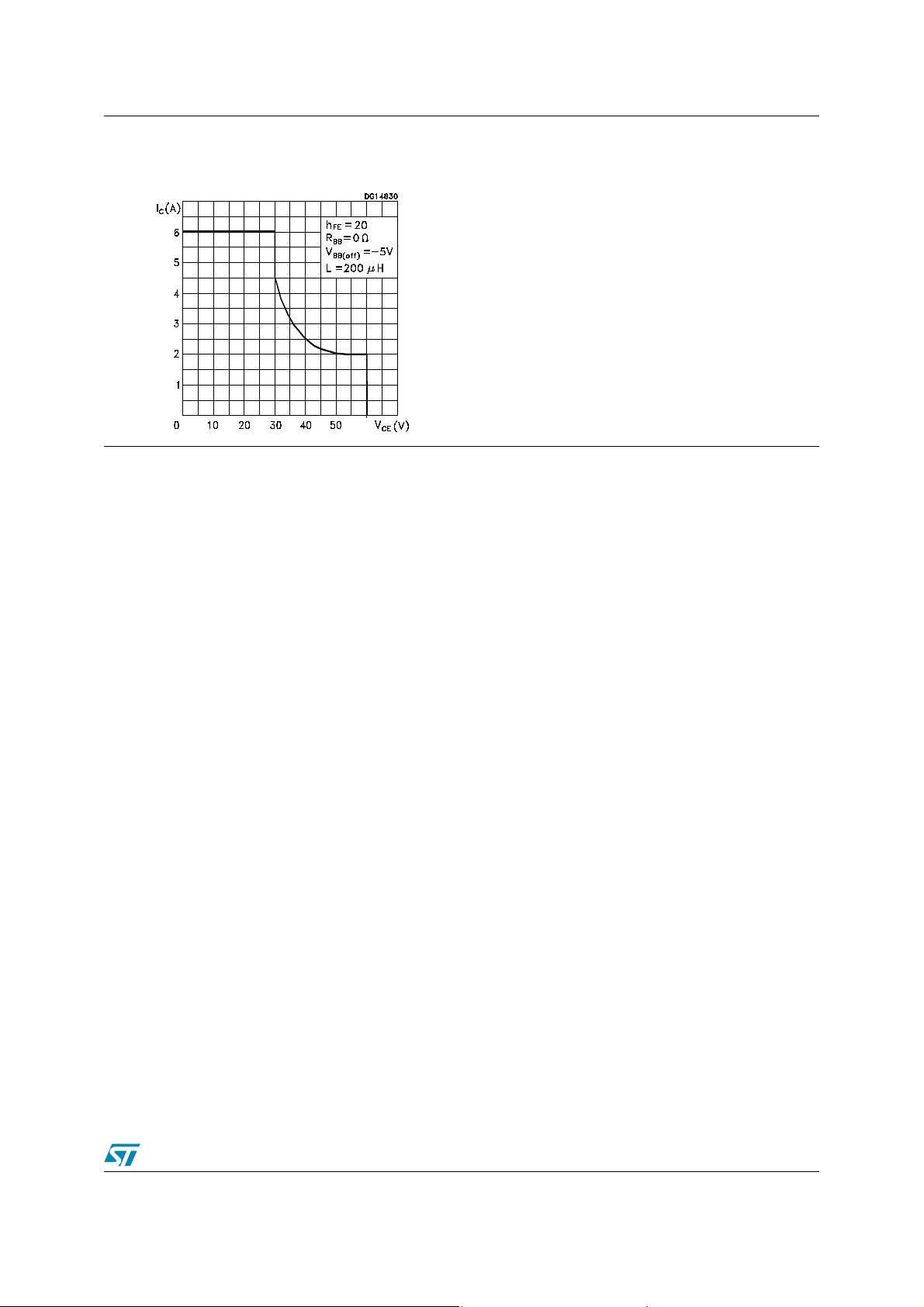

Figure 7. Reverse biased area
5/10
Page 6
3 Package Mechani cal Data STD724
3 Package M echanical Data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect . The category of
second level interconnect is marked on the package and on the inner box label, in compliance
with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also
marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are
available at: www.st.com
6/10
Page 7
STD724 3 Package Mechanical Data

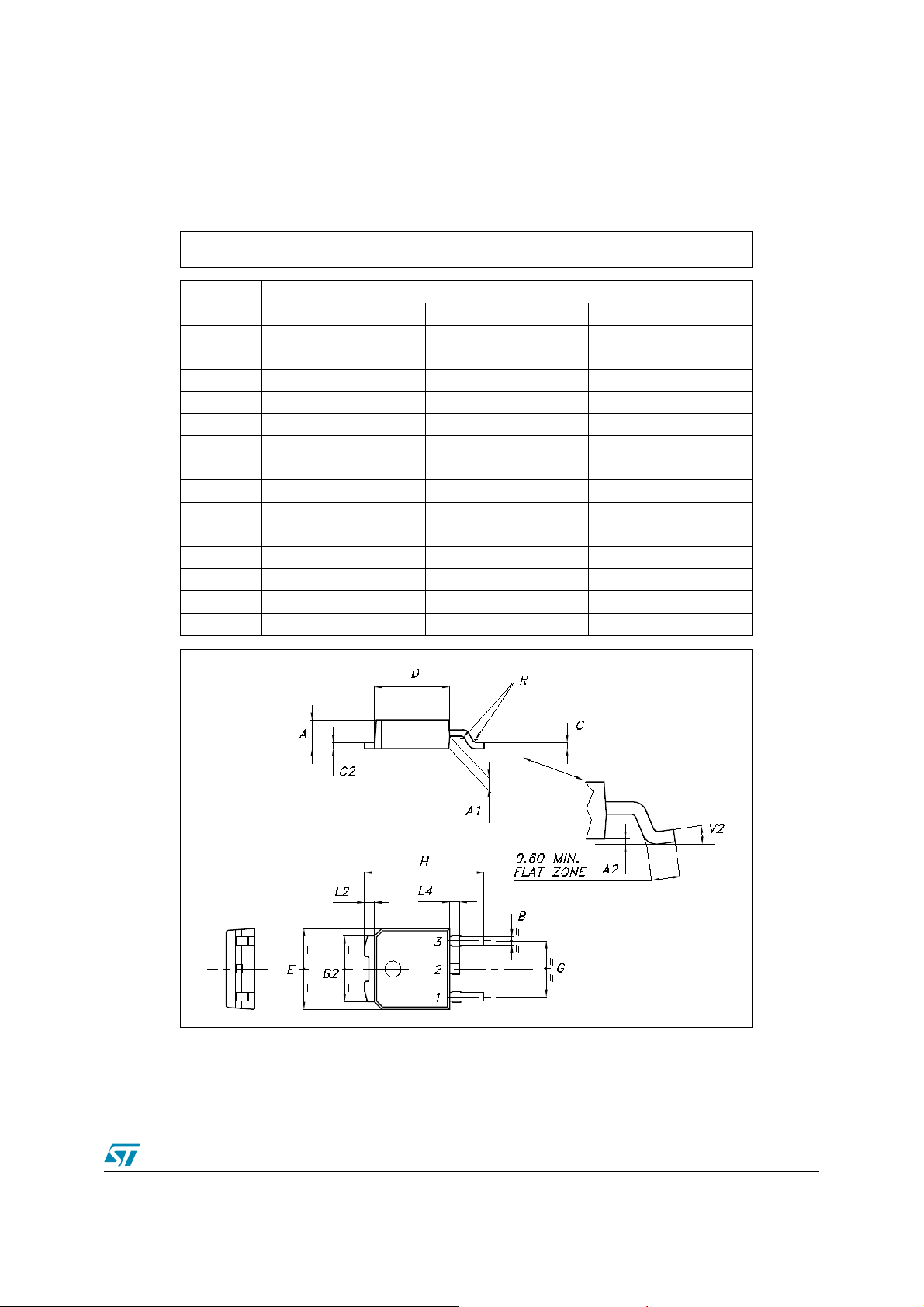

TO-252 (DPAK) MECHANICAL DATA
DIM.
A 2.20 2.40 0.087 0.094
A1 0.90 1.10 0.035 0.043
A2 0.03 0.23 0.001 0.009
B 0.64 0.90 0.025 0.035
B2 5.20 5.40 0.204 0.213
C 0.45 0.60 0.018 0.024
C2 0.48 0.60 0.019 0.024
D 6.00 6.20 0.236 0.244
E 6.40 6.60 0.252 0.260
G 4.40 4.60 0.173 0.181
H 9.35 10.10 0.368 0.398
L2 0.8 0.031
L4 0.60 1.00 0.024 0.039
V2 0
MIN. TYP. MAX. MIN. TYP. MAX.
o
mm inch
o
8
o
0
o
0
P032P_B
7/10
Page 8
4 Packing Mechan ical Data STD724
4 Packing Mechanical Data

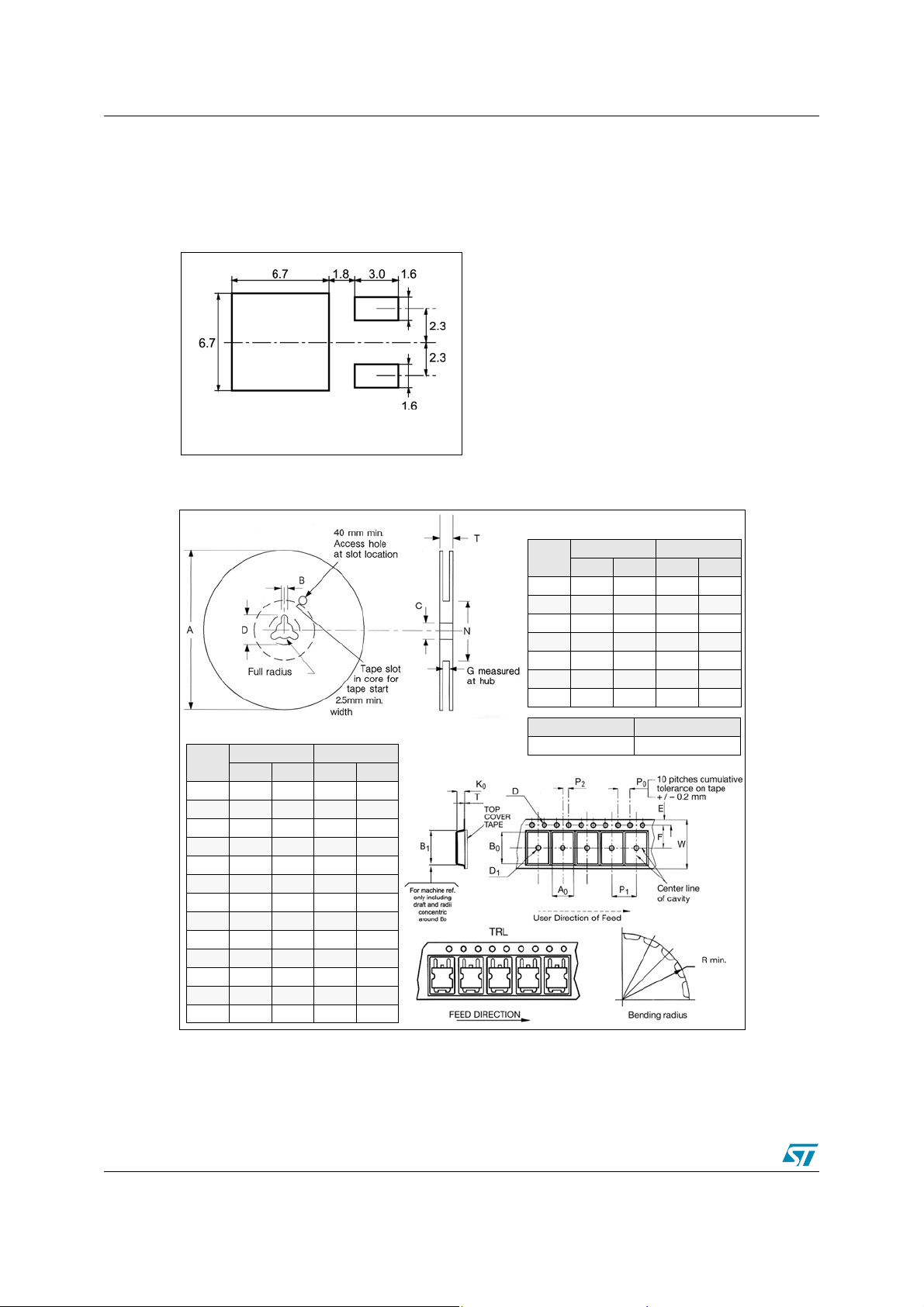

DPAK FOOTPRINT
All dimensions are in millimeters
TAPE AND REEL SHIPMENT
REEL MECHANICAL DATA
DIM.
A 330 12.992
B 1.5 0.059
C 12.8 13.2 0.504 0.520
D 20.2 0.795
G 16.4 18.4 0.645 0.724
N 50 1.968
T 22. 4 0.881
mm inch
MIN. MAX . MIN. MAX.
TAPE MECHANICAL DATA
DIM.
A0 6.8 7 0.267 0.275
B0 10.4 10.6 0.409 0.417
B1 12.1 0.476
D 1.5 1.6 0.059 0.063
D1 1.5 0.059
E 1.65 1.85 0.065 0.073
F 7.4 7.6 0.291 0.299
K0 2.55 2.75 0.100 0.108
P0 3.9 4.1 0.153 0.161
P1 7.9 8.1 0.311 0.319
P2 1.9 2.1 0.075 0.082
R 40 1.574
W 15.7 16.3 0.618 0.641
mm inch
MIN. MAX. MIN. MAX.
8/10
BASE QTY BULK QTY
2500 2500
Page 9
STD724 5 Revision History
5 Revision History
Date Revision Changes
17-Oct-2005 2 Inserted cur ves
9/10
Page 10
