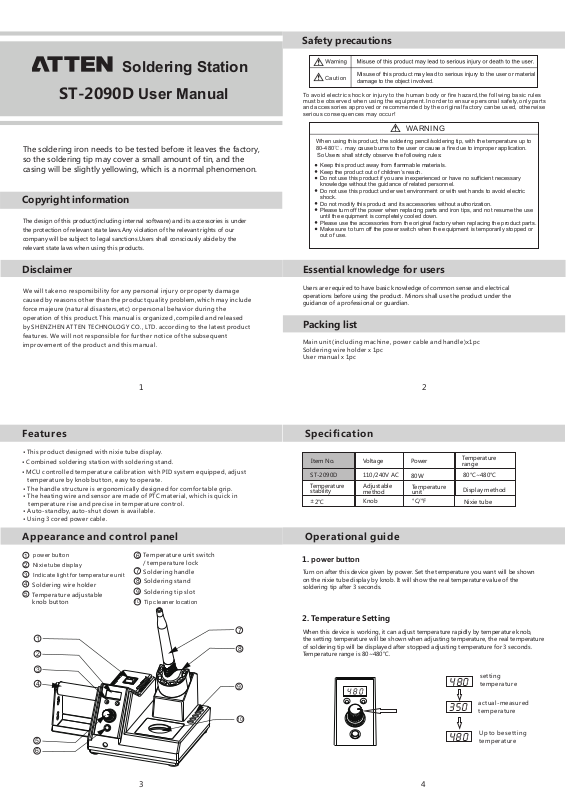

Page 1
Safety precautions
Soldering Station
ST-2090D User Manual
The soldering iron needs to be tested before it leaves the factory,
so the soldering tip may cover a small amount of tin, and the
casing will be slightly yellowing, which is a normal phenomenon.
Copyright information
The design of this product(including internal software) and its accessories is under
the protection of relevant state laws.Any violation of the relevant rights of our
company will be subject to legal sanctions.Users shall consciously abide by the
relevant state laws when using this products.
Disclaimer
We wi ll t ak e no r es po ns ib il ity for any p er so na l injur y or pro per ty d am age
caused by reason s ot he r th an t he p ro du ct quality proble m, wh ic h ma y include
force m ajeure (natur al d is as te rs ,etc ) or pers on al b eh av io r during th e
operatio n of this produc t. Th is m an ua l is org anized ,c om pi le d an d re le as ed
by SHENZHE N ATT EN T EC HN OLOG Y CO. , LTD. a cc or di ng t o th e la te st p ro du ct
features. We wi ll not res ponsibl e fo r fu rth er n ot ic e of t he s ub se qu ent
impro ve ment of th e prod uct and thi s ma nu al .
Cauti on
To avoid electr ic s ho ck o r in ju ry t o th e hu ma n bo dy o r fi re h az ar d, th e fo ll wi ng b as ic r ul es
must be o bs er ve d wh en u si ng t he e qu ip me nt .I n or de r to e ns ur e pe rs on al s af et y,o nl y pa rt s
and accesso ri es a pp ro ve d or r ec om me nd ed b y th e or ig in al f ac to ry c an be u se d, o th er wi se
serio us c on se qu en ce s ma y oc cu r!
Misuse of this product may lead to serious injury to the user or material
damage to the object involved.
WAR NIN G
When using this product, the soldering pencil/soldering tip, with the temperature up to
80-480℃，may cause burns to the user or cause a fire due to improper application.
So Users shall strictly observe the following rules:
Keep this product away from flammable materials.
Keep the product out of children’s reach.
Do not use this product if you are inexperienced or have no sufficient necessary
knowledge without the guidance of related personnel.
Do not use this product under wet environment or with wet hands to avoid electric
shock.
Do not modify this product and its accessories without authorization.
Please turn off the power when replacing parts and iron tips, and not resume the use
until the equipment is completely cooled down.
Please use the accessories from the original factory when replacing the product parts.
Make sure to turn off the power switch when the equipment is temporarily stopped or
out of use.
Essential knowledge for users
3.Essential knowledge for users
Users are required to have basic knowledge of common sense and electrical
operations before using the product. Minors shall use the product under the
guidance of a professional or guardian.
Packing list
Main unit (i nc lu di ng m achine, pow er c ab le a nd h an dle)x 1pc
Solderin g wi re h ol de r x 1p c
User manua l x 1p c
1
Features
· This product des ig ne d wi th n ix ie tube dis pl ay.
· Combined s ol de ri ng s tation with s ol de ri ng s ta nd.
· MCU controlled tem pe ra tu re c al ib ra tion with PID s ys te m eq ui pp ed, adjust
tem perature by kno b bu tt on , ea sy t o op er at e.
· The handle s tr uc tu re i s er go no mi ca lly desig ne d fo r co mf or tabl e gr ip .
· The heatin g wi re a nd s en so r ar e ma de o f PTC m at er ial, which is q ui ck i n
tem perature rise a nd p re ci se i n te mp er at ure co ntro l.
· Auto-stand by, a ut o- sh ut d ow n is ava il able.
· Using 3 cored power ca bl e.
Appearance and control panel
power butto n
1
2
Nixie t ub e di sp la y
3
Ind ic at e li gh t fo r te mp er at ur e un it
4
Solderin g wi re h ol de r
5
Temperat ure ad ju st ab le
knob button
1
2
3
4
5
6
Temperat ure un it s wi tc h
6
/ tem perature lock
7
Solderin g ha nd le
Solderin g st an d
8
Solderin g ti p sl ot
9
10
Tip c le an er l oc at io n
7
8
9
10
2
Specification
Item No.
ST-2090D
Temperature
stability
±
2℃
Voltage
110/240V AC
Adjustable
method
Knob
Power
80W
Temperature
unit
° °C/ F
Temperature
range
80°C~480°C
Display method
Nixie tube
Operational guide
1. power button
Turn on after this device given by power. Set the temperature you want will be shown
on the nixie tube display by knob. It will show the real temperature value of the
soldering tip after 3 seconds.
2. Temperature Setting
When this device is working, it can adjust temperature rapidly by temperature knob,
the setting temperature will be shown when adjusting temperature, the real temperature
of soldering tip will be displayed after stopped adjusting temperature for 3 seconds.
Temperature range is 80~480℃.
48 0
35 0
48 0
setting
tem perature
actual-m ea su re d
tem perature
Up to b e setting
tem perature
3
4
Page 2
3. Temperature Locking Function
Press LOOK/℃/℉ button for 3 seconds at the same time under working mode, the
current temperature will be locked, the temperature won't be changed by turning
the knob button, and display LOC for locking temperature. Can unlock the current
temperature by pressing LOOK/℃/℉ button for 3 seconds again when temperature
locking.
480
Turn t he k no b
button
4. Switching Temperature Unit
The current temperature unit will be switched by pressing LOOK/℃/℉ button at
the same time under working mode, the indicate light of temperature unit will
be changed accordingly .
8 9 6
5. Auto Sta ndby Functio n
When the soldering not in use and put the soldering iron on the iron holder, it will auto
standby after 10 minutes, heater is heating up to 200 ℃, nixie tube display STB，pick up
the soldering iron and back to normal working mode.
6.Auto Sle ep Functi on
In auto standby mode, the soldering station will auto sleep after 20 minutes, nixie tube
display SLP , the heaing core is not heated , it will get back to normal work mode by
adjusting the knob or pressing the button.(P.S. It will auto sleep when not in use
machine doesn't operate and turn to sleep mode)
slp
7. Wa rning
E02 shown on t he d is pl ay s cr ee n me ans there is error for sens or.
e02
Soldering tips
5
6
Product warranty
This product is guaranteed for two years from the date of purchase(excluding
consumables such as the heating core).Ifany quality problem is found within the
guarantee period, we will response for the maintenance free of charge.
For those product beyond the warranty period, we provide life-long maintenance
services.
For those product damaged due to users’improper application and unauthoried
changes to the product parts, ourcompany only provides limited warranty service.
In case of a product fault, please send the faulty product to the designated
maintenance shop for maintenance, and those service center and personnel
unauthorized by the factory are prohibited from carrying out any maintenance
on the product.
Tel:86-755-8602 1 373
Web:www.atten.com
Fac ebook :Https: //www.fa cebook.com/a tte ncn/
E-mail:s ales@at ten .com.cn
7
Fax :86- 755-8602 1365
CBN0 32615 B
