Datasheet -- SS94A2

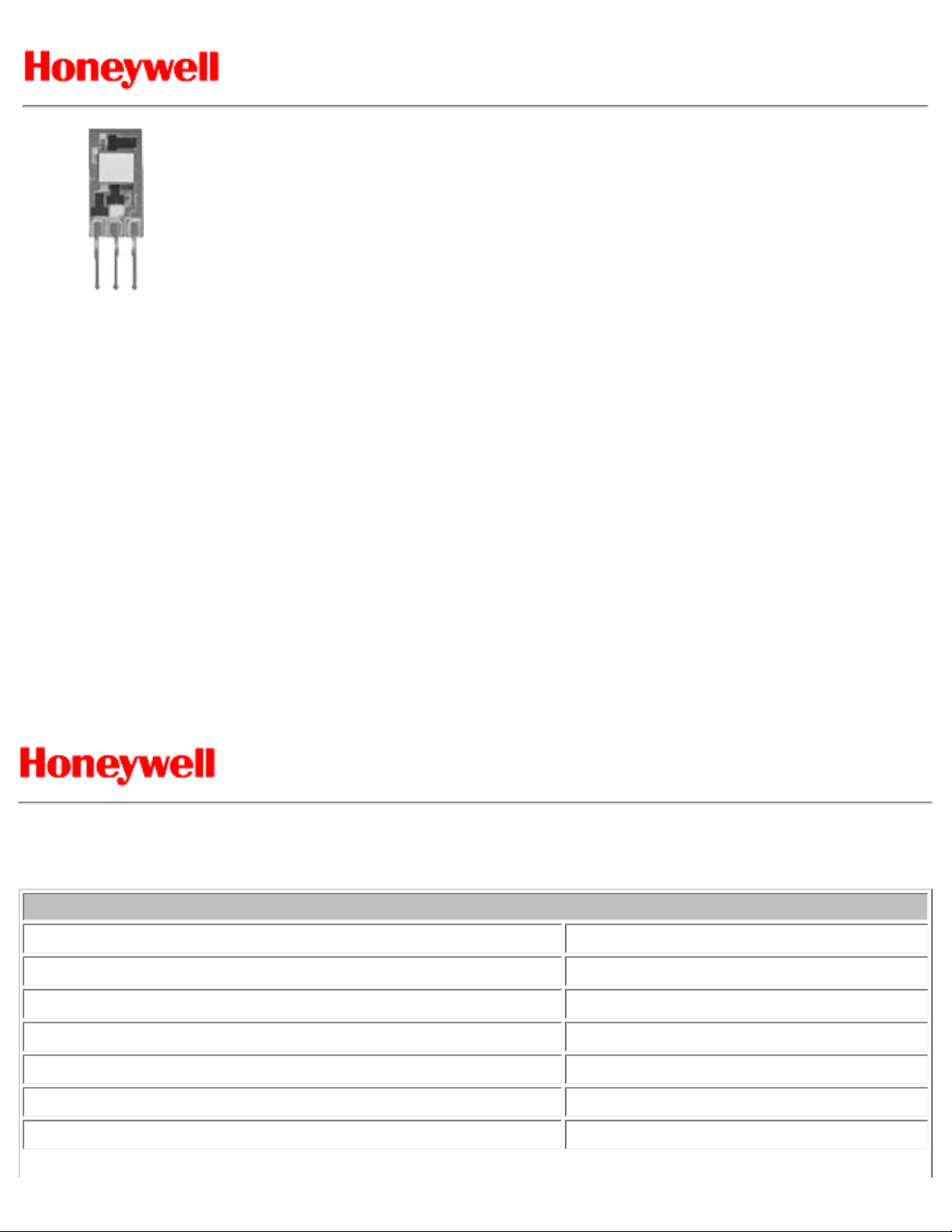

Representative
photograph, actual
product appearance
may vary.
Due to regional
agency approval
requirements, some
products may not be
available in your area.
Please contact your
regional Honeywell
office regarding your
product of choice.
SS94A2
SS94 Series Noise Shielded Ratiometric Linear Sensor; Vdc
supply voltage
Features
● Single current sinking or current sourcing linear output
● Improved temperature stability
● Standard mounting centers
● Laser trimmed thin film and thick film resistors minimize
sensitivity variations and compensate for temperature
variations
Description
The SS9 utilizes a Hall effect integrated circuit chip which provides
increased temperature stability and performance. Laser trimmed
thick film resistors on the ceramic substrate and thin film resistors
on the integrated circuit reduce null and gain shifts over
temperature which results in consistent sensitivity from one device
to the next.
APPLICATION CONSIDERATION: The output is clamped at the
high end. Clamping voltage may be as low as 9 Vdc. The output will
not exceed the clamping voltage regardless of field strength or
power supply.
SS94A2
SS94 Series Noise Shielded Ratiometric Linear Sensor; Vdc supply voltage
Product Specifications
Product Type
Hall-Effect Linear Position Sensor
Package Style
Ceramic
Supply Voltage
6.6 Vdc to 12.6 Vdc
Output Type
Sink/Source
Magnetic Actuation Type
Ratiometric
Operating Temperature Range
-40 °C to 125 °C [-40 °F to 257 °F]
Linearity (% of Span)
-0.8 % typ., -1.5 % max.
file:///Y|/Names/Tarankov/pdf/357/SS94A2.htm (1 of 3)16.05.2006 13:42:28
Page 2
Datasheet -- SS94A2
Availability
Global
Supply Current (max. @ 25 °C)
30 mA
Output Current (max.)
1 mA
Sensitivity @ 25 °C
5.0 mV ± .1 mV/G
Temperature Error (@ 25 °C) Null Shift (%/°C)
-0.02 % min., 0.02 % max.
Temperature Error (@ 25 °C) Sensitivity (%/°C)
-0.02 % min., 0.02 % max.
Magnetic Range (min.)
-50 mT to 50 mT [-500 G to 500 G]
Response Time (µs)
3 µs (typ.)
Vout (0 G @ 25 °C)
4.00 Vdc ± 0.04 Vdc
Series Name
SS94 Series
SS94A2
SS94 Series Noise Shielded Ratiometric Linear Sensor; Vdc supply voltage
file:///Y|/Names/Tarankov/pdf/357/SS94A2.htm (2 of 3)16.05.2006 13:42:28
Page 3
Datasheet -- SS94A2

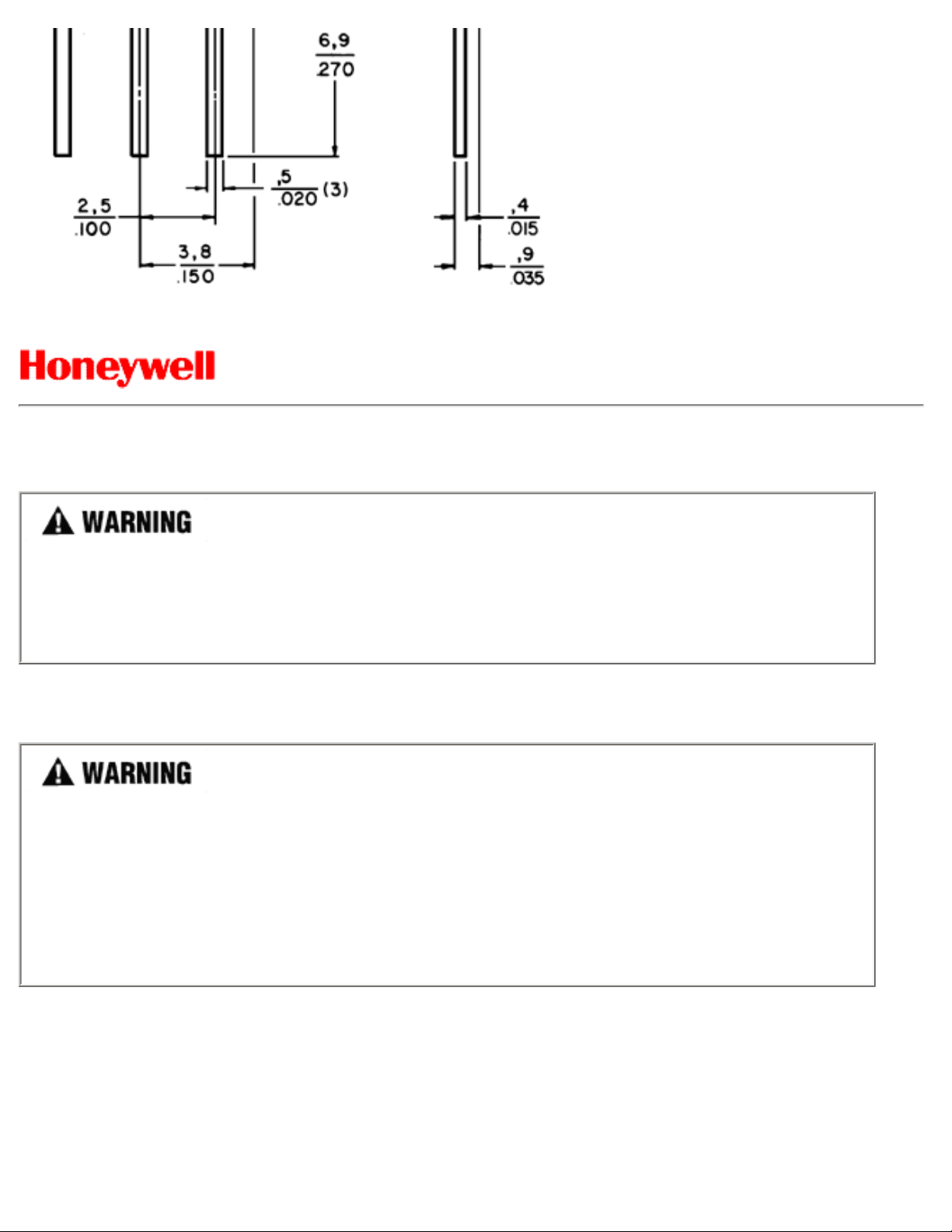

SS94A2
SS94 Series Noise Shielded Ratiometric Linear Sensor; Vdc supply voltage
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop devices, or in any other
application where failure of the product could result in personal injury.
Failure to comply with these instructions could result in death or serious injury.
MISUSE OF DOCUMENTATION
● The information presented in this product sheet (or catalog) is for reference only.
DO NOT USE this document as product installation information.
● Complete installation, operation and maintenance information is provided in the
instructions supplied with each product.
Failure to comply with these instructions could result in death or serious injury.
© Copyright Honeywell Inc.1998-2004 All rights reserved.
