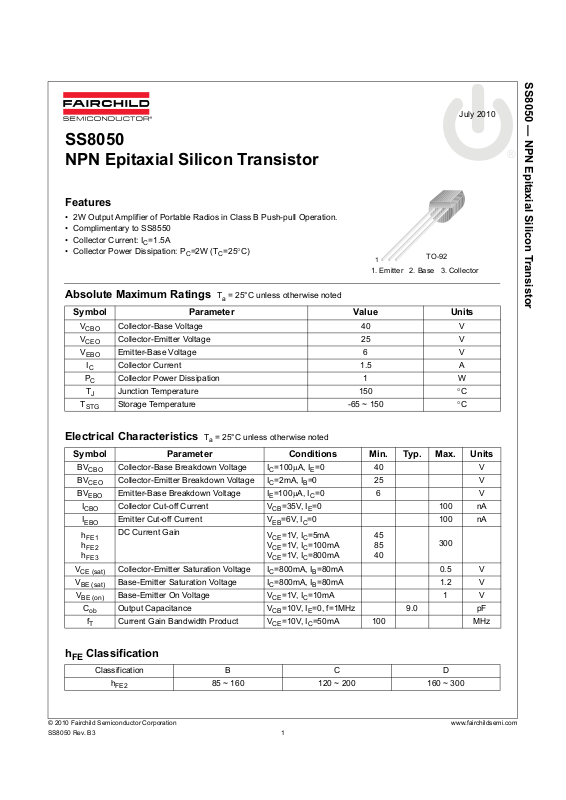

SS8050 NPN Epitaxial Silicon Transistor

Features

• 2W Output Amplifier of Portable Radios in Class B Push-pull Operation.

• Complimentary to SS8550

• Collector Current: I

• Collector Power Dissipation: P

=1.5A

=2W (TC=25°C)

July 2010

1. Emitter 2. Base 3. Collector

TO-92

SS8050 — NPN Epitaxial Silicon Transistor

Absolute Maximum Ratings T

= 25°C unless otherwise noted

Symbol Parameter Value Units

CBO

CEO

EBO

STG

Electrical Characteristics T

Collector-Base Voltage 40 V

Collector-Emitter Voltage 25 V

Emitter-Base Voltage 6 V

Collector Current 1.5 A

Collector Power Dissipation 1 W

Junction Temperature 150 °C

Storage Temperature -65 ~ 150 °C

= 25°C unless otherwise noted

Symbol Parameter Conditions Min. Typ. Max. Units

CBO

EBO

FE1

FE2

FE3

CE (sat)

BE (sat)

BE (on)

CBO

CEO

EBO

Collector-Base Breakdown Voltage IC=100µA, IE=0 40 V

Collector-Emitter Breakdown Voltage IC=2mA, IB=0 25 V

Emitter-Base Breakdown Voltage IE=100µA, IC=0 6 V

Collector Cut-off Current VCB=35V, IE=0 100 nA

Emitter Cut-off Current VEB=6V, IC=0 100 nA

DC Current Gain

=1V, IC=5mA

=1V, IC=100mA

=1V, IC=800mA

45 85 40

300

Collector-Emitter Saturation Voltage IC=800mA, IB=80mA 0.5 V

Base-Emitter Saturation Voltage IC=800mA, IB=80mA 1.2 V

Base-Emitter On Voltage VCE=1V, IC=10mA 1 V

Output Capacitance VCB=10V, IE=0, f=1MHz 9.0 pF

Current Gain Bandwidth Product VCE=10V, IC=50mA 100 MHz

hFE Classification

Classification B C D

FE2

SS8050 Rev. B3 1

85 ~ 160 120 ~ 200 160 ~ 300

Page 2

Typical Performance Characteristics

SS8050 — NPN Epitaxial Silicon Transistor

0.5

0.4

0.3

0.2

0.1

[A], COLLECTOR CURRENT

0 0.4 0.8 1.2 1.6 2.0

VCE[V], COLLECTOR-EMITTER VOLTAGE

Figure 1. Static Characteristic Figure 2. DC current Gain

10000

VBE(sat)

1000

IB = 3.0mA

IB = 2.5mA

IB = 2.0mA

IB = 1.5mA

IB = 1.0mA

IB = 0.5mA

IC = 10 I

1000

VCE = 1V

100

, DC CURRENT GAIN

0.1 1 1 0 100 100 0

IC[mA], COLLECTOR CURRENT

100

VCE = 1V

100

(sat)[mV], SATURATION VOLTAGE

(sat), V

0.1 1 10 100 1000

VCE(sat)

IC[mA], COLLECTOR CURRENT

Figure 3. Base-Emitter Saturation Voltage Collector-Emitter Saturation Voltage

1000

100

[pF], CAPACITANCE

110100

VCB [V], COLLECTOR-BASE VOLTAGE

IE = 0 f = 1MHz

[mA], COLLECTOR CURRENT

0.1

0.0 0.2 0.4 0.6 0.8 1.0 1.2

VBE[V], BASE-EMITTER VOLTAGE

Figure 4. Base-Emitter On Voltage

1000

100

[MHz],

CURRENT GAIN BANDWIDTH PRODUCT

1 10 100 400

IC[mA], COLLECTOR CURRENT

VCE = 10V

Figure 5. Collector Output Capacitance Figure 6. Current Gain Bandwidth Product

SS8050 Rev. B3 2

Page 3

Physical Dimensions

3.86MAX

0 5

0.46

±0.10

4.58

+0.25 –0.15

SS8050 — NPN Epitaxial Silicon Transistor

TO-92

±0.20

4.58

±0.40

1.27TYP

[1.27

±0.10

.02

±0.20

+0.10

]

–0.05

0.38

3.60

±0.20

1.27TYP

[1.27

(R2.29)

±0.20

14.47

]

(0.25)

0.38

+0.1 –0.0

SS8050 Rev. B3 3

Dimensions in Millimeters
