74HC151; 74HCT151

8-input multiplexer

Rev. 8 — 18 March 2021 Product data sheet

1. General description

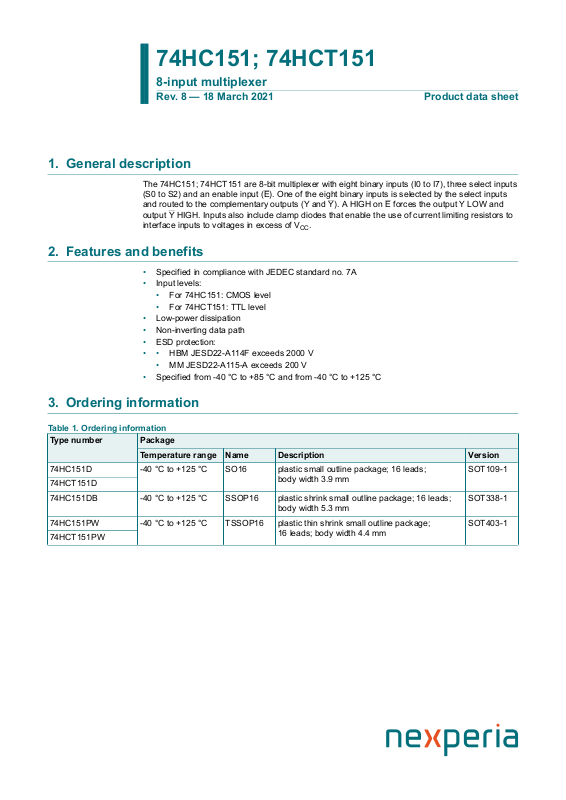

The 74HC151; 74HCT151 are 8-bit multiplexer with eight binary inputs (I0 to I7), three select inputs (S0 to S2) and an enable input (E). One of the eight binary inputs is selected by the select inputs and routed to the complementary outputs (Y and Y). A HIGH on E forces the output Y LOW and output Y HIGH. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.

2. Features and benefits

• Specified in compliance with JEDEC standard no. 7A

• Input levels:

• For 74HC151: CMOS level

• For 74HCT151: TTL level

• Low-power dissipation

• Non-inverting data path

• ESD protection:

• • HBM JESD22-A114F exceeds 2000 V

• MM JESD22-A115-A exceeds 200 V

• Specified from -40 °C to +85 °C and from -40 °C to +125 °C

3. Ordering information

Table 1. Ordering information

PackageType number

Temperature range Name Description Version

74HC151D

74HCT151D

74HC151DB -40 °C to +125 °C SSOP16 plastic shrink small outline package; 16 leads;

74HC151PW

74HCT151PW

-40 °C to +125 °C SO16 plastic small outline package; 16 leads; body width 3.9 mm

body width 5.3 mm

-40 °C to +125 °C TSSOP16 plastic thin shrink small outline package; 16 leads; body width 4.4 mm

SOT109-1

SOT338-1

SOT403-1

Page 2

Nexperia

aaa-004582

91011

121314151234

I1I0

I3I2

I5I4

I7I6

aaa-004586

121314151234

MULTIPLEXER

I1I0 I3I2 I5I4 I7

Y Y

aaa-004587

ES0S1S2

I3 V

I2 I4

I1 I5

I0 I6

Y I7

Y S0

E S1

GND S2

aaa-004590

74HC151

74HCT151

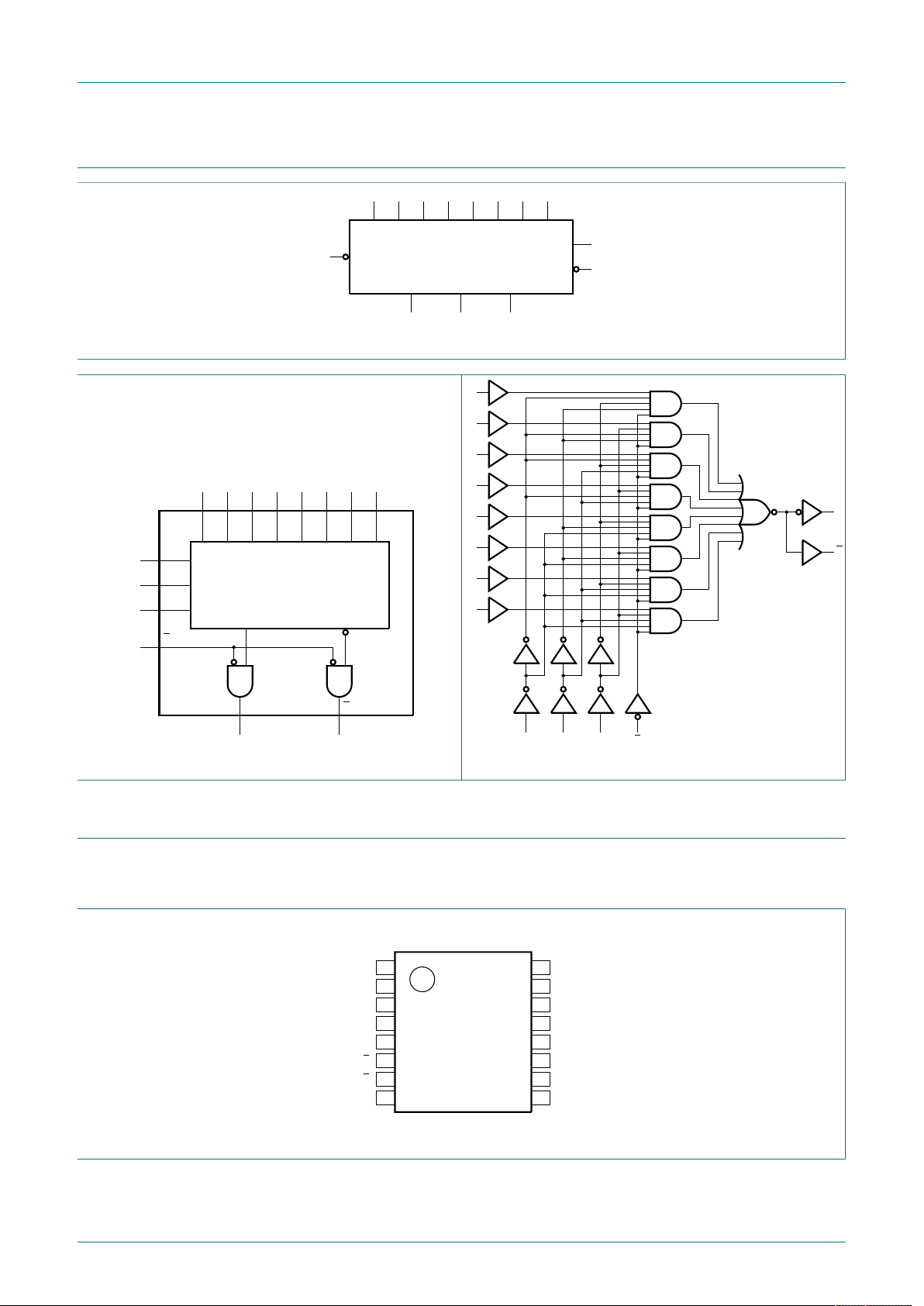

4. Functional diagram

Fig. 1. Logic symbol

74HC151; 74HCT151

8-input multiplexer

Fig. 2. Functional diagram

5. Pinning information

Fig. 4. Pin configuration for SOT109-1 (SO16), SOT338-1 (SSOP16) and SOT403-1 (TSSOP16)

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 2 / 15

5.1. Pinning

Fig. 3. Logic diagram

Page 3

Nexperia

74HC151; 74HCT151

8-input multiplexer

5.2. Pin description

Table 2. Pin description

Symbol Pin Description

I0 to I7 4, 3, 2, 1, 15, 14, 13, 12 data inputs

Y 5 multiplexer output

Y 6 complementary multiplexer output

E 7 enable input (active LOW)

GND 8 ground (0 V)

S0, S1, S2 11, 10, 9 common data select inputs

16 supply voltage

6. Functional description

Table 3. Function table

H = HIGH voltage level; L = LOW voltage level; X = don’t care.

Input Output

E S2 S1 S0 I0 I1 I2 I3 I4 I5 I6 I7 Y Y

H X X X X X X X X X X X H L

L L L L L X X X X X X X H L

L L L L H X X X X X X X L H

L L L H X L X X X X X X H L

L L L H X H X X X X X X L H

L L H L X X L X X X X X H L

L L H L X X H X X X X X L H

L L H H X X X L X X X X H L

L L H H X X X H X X X X L H

L H L L X X X X L X X X H L

L H L L X X X X H X X X L H

L H L H X X X X X L X X H L

L H L H X X X X X H X X L H

L H H L X X X X X X L X H L

L H H L X X X X X X H X L H

L H H H X X X X X X X L H L

L H H H X X X X X X X H L H

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 3 / 15

Page 4

Nexperia

74HC151; 74HCT151

8-input multiplexer

7. Limiting values

Table 4. Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).

Symbol Parameter Conditions Min Max Unit

GND

stg

tot

supply voltage -0.5 +7 V

input clamping current VI < -0.5 V or VI > VCC + 0.5 V - ±20 mA

output clamping current VO < -0.5 V or VO > VCC + 0.5 V - ±20 mA

output current VO = -0.5 V to (VCC + 0.5 V) - ±25 mA

supply current - +50 mA

ground current -50 - mA

storage temperature -65 +150 °C

total power dissipation T

= -40 °C to +125 °C [1] - 500 mW

amb

[1] For SOT109-1 (SO16) package: P

For SOT338-1 (SSOP16) package: P For SOT403-1 (TSSOP16) package: P

derates linearly with 12.4 mW/K above 110 °C.

tot

derates linearly with 8.5 mW/K above 91 °C.

tot

derates linearly with 8.5 mW/K above 91 °C.

tot

8. Recommended operating conditions

Table 5. Recommended operating conditions

Voltages are referenced to GND (ground = 0 V)

amb

Δt/ΔV input transition rise and fall rate

supply voltage 2.0 5.0 6.0 4.5 5.0 5.5 V

input voltage 0 - V

output voltage 0 - V

ambient temperature -40 +25 +125 -40 +25 +125 °C

VCC = 2.0 V - - 625 - - - ns/V

VCC = 4.5 V - 1.67 139 - 1.67 139 ns/V

VCC = 6.0 V - - 83 - - - ns/V

9. Static characteristics

74HC151 74HCT151Symbol Parameter Conditions

Min Typ Max Min Typ Max

0 - V

Unit

Table 6. Static characteristics

At recommended operating conditions; voltages are referenced to GND (ground = 0 V).

25 °C -40 °C to +85 °C -40 °C to +125 °CSymbol Parameter Conditions

Unit

Min Typ Max Min Max Min Max

74HC151

HIGH-level input voltage

VCC = 2.0 V 1.5 1.2 - 1.5 - 1.5 - V

VCC = 4.5 V 3.15 2.4 - 3.15 - 3.15 - V

VCC = 6.0 V 4.2 3.2 - 4.2 - 4.2 - V

LOW-level input voltage

VCC = 2.0 V - 0.8 0.5 - 0.5 - 0.5 V

VCC = 4.5 V - 2.1 1.35 - 1.35 - 1.35 V

VCC = 6.0 V - 2.8 1.8 - 1.8 - 1.8 V

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 4 / 15

Page 5

Nexperia

74HC151; 74HCT151

8-input multiplexer

74HCT151

ΔI

HIGH-level output voltage

VI = VIH or V

IO = -20 μA; VCC = 2.0 V 1.9 2.0 - 1.9 - 1.9 - V

IO = -20 μA; VCC = 4.5 V 4.4 4.5 - 4.4 - 4.4 - V

IO = -20 μA; VCC = 6.0 V 5.9 6.0 - 5.9 - 5.9 - V

IO = -4.0 mA; VCC = 4.5 V 3.98 4.32 - 3.84 - 3.7 - V

IO = -5.2 mA; VCC = 6.0 V 5.48 5.81 - 5.34 - 5.2 - V

LOW-level output voltage

VI = VIH or V

IO = 20 μA; VCC = 2.0 V - 0 0.1 - 0.1 - 0.1 V

IO = 20 μA; VCC = 4.5 V - 0 0.1 - 0.1 - 0.1 V

IO = 20 μA; VCC = 6.0 V - 0 0.1 - 0.1 - 0.1 V

IO = 4.0 mA; VCC = 4.5 V - 0.15 0.26 - 0.33 - 0.4 V

IO = 5.2 mA; VCC = 6.0 V - 0.16 0.26 - 0.33 - 0.4 V

input leakage

VI = VCC or GND; VCC = 6.0 V - - ±0.1 - ±1.0 - ±1.0 μA

current

supply current VI = VCC or GND; IO = 0 A;

VCC = 6.0 V

input capacitance

HIGH-level

VCC = 4.5 V to 5.5 V 2.0 1.6 - 2.0 - 2.0 - V

input voltage

LOW-level

VCC = 4.5 V to 5.5 V - 1.2 0.8 - 0.8 - 0.8 V

input voltage

HIGH-level output voltage

VI = VIH or VIL; VCC = 4.5 V

IO = -20 μA 4.4 4.5 - 4.4 - 4.4 - V

IO = -4 mA 3.98 4.32 - 3.84 - 3.7 - V

LOW-level output voltage

VI = VIH or VIL; VCC = 4.5 V

IO = 20 μA - 0 0.1 - 0.1 - 0.1 V

IO = 4.0 mA - 0.15 0.26 - 0.33 - 0.4 V

input leakage

VI = VCC or GND; VCC = 5.5 V - - ±0.1 - ±1.0 - ±1.0 μA

current

supply current VI = VCC or GND; IO = 0 A;

VCC = 5.5 V

additional supply current

VI = VCC - 2.1 V; other inputs at VCC or GND; VCC = 4.5 V to 5.5 V; IO = 0 A

per input pin; In inputs - 45 162 - 203 - 221 μA

per input pin; E input - 30 108 - 135 - 147 μA

per input pin; Sn input - 150 540 - 675 - 735 μA

input capacitance

25 °C -40 °C to +85 °C -40 °C to +125 °CSymbol Parameter Conditions

Min Typ Max Min Max Min Max

- - 8.0 - 80 - 160 μA

- 3.5 - - - - - pF

- - 8.0 - 80 - 160 μA

- 3.5 - - - - - pF

Unit

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 5 / 15

Page 6

Nexperia

74HC151; 74HCT151

8-input multiplexer

10. Dynamic characteristics

Table 7. Dynamic characteristics

Voltages are referenced to GND (ground = 0 V); CL = 50 pF unless otherwise specified; for test circuit see Fig. 7.

25 °C -40 °C to +85 °C -40 °C to +125 °CSymbol Parameter Conditions

Min Typ Max Min Max Min Max

74HC151

propagation delay

transition time

power dissipation capacitance

In to Y; see Fig. 5 [1]

VCC = 2.0 V - 52 170 - 215 - 255 ns

VCC = 4.5 V - 19 34 - 43 - 51 ns

VCC = 5 V; CL = 15 pF - 17 - - - - - ns

VCC = 6.0 V - 15 29 - 37 - 43 ns

In to Y; see Fig. 5 [1]

VCC = 2.0 V - 58 185 - 230 - 280 ns

VCC = 4.5 V - 21 37 - 46 - 56 ns

VCC = 5 V; CL = 15 pF - 17 - - - - - ns

VCC = 6.0 V - 17 31 - 39 - 48 ns

Sn to Y; see Fig. 6 [1]

VCC = 2.0 V - 61 185 - 230 - 280 ns

VCC = 4.5 V - 22 37 - 46 - 56 ns

VCC = 5 V; CL = 15 pF - 19 - - - - - ns

VCC = 6.0 V - 18 31 - 39 - 48 ns

Sn to Y; see Fig. 6 [1]

VCC = 2.0 V - 61 205 - 255 - 310 ns

VCC = 4.5 V - 22 41 - 51 - 62 ns

VCC = 5 V; CL = 15 pF - 19 - - - - - ns

VCC = 6.0 V - 18 35 - 43 - 53 ns

E to Y; see Fig. 6

VCC = 2.0 V - 41 125 - 155 - 190 ns

VCC = 4.5 V - 15 25 - 31 - 38 ns

VCC = 5 V; CL = 15 pF - 12 - - - - - ns

VCC = 6.0 V - 12 21 - 26 - 32 ns

E to Y; see Fig. 6

VCC = 2.0 V - 47 145 - 180 - 220 ns

VCC = 4.5 V - 17 29 - 36 - 44 ns

VCC = 5 V; CL = 15 pF - 14 - - - - - ns

VCC = 6.0 V - 14 25 - 31 - 38 ns

Y, Y; see Fig. 5 [2]

VCC = 2.0 V - 19 75 - 95 - 110 ns

VCC = 4.5 V - 7 15 - 19 - 22 ns

VCC = 6.0 V - 6 13 - 16 - 19 ns

CL = 50 pF; f = 1 MHz; VI = GND to V

[3] - 40 - - - - - pF

Unit

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 6 / 15

Page 7

Nexperia

74HC151; 74HCT151

8-input multiplexer

74HCT151

propagation delay

transition time

power dissipation capacitance

25 °C -40 °C to +85 °C -40 °C to +125 °CSymbol Parameter Conditions

Min Typ Max Min Max Min Max

In to Y; see Fig. 5 [1]

VCC = 4.5 V - 22 38 - 48 - 57 ns

VCC = 5 V; CL = 15 pF - 19 - - - - - ns

In to Y; see Fig. 5 [1]

VCC = 4.5 V - 22 38 - 48 - 57 ns

VCC = 5 V; CL = 15 pF - 19 - - - - - ns

Sn to Y; see Fig. 6 [1]

VCC = 4.5 V - 23 41 - 51 - 62 ns

VCC = 5 V; CL = 15 pF - 20 - - - - - ns

Sn to Y; see Fig. 6 [1]

VCC = 4.5 V - 25 43 - 54 - 65 ns

VCC = 5 V; CL = 15 pF - 20 - - - - - ns

E to Y; see Fig. 6 [1]

VCC = 4.5 V - 16 29 - 36 - 44 ns

VCC = 5 V; CL = 15 pF - 13 - - - - - ns

E to Y; see Fig. 6 [1]

VCC = 4.5 V - 21 36 - 45 - 54 ns

VCC = 5 V; CL = 15 pF - 18 - - - - - ns

Y, Y; see Fig. 5 [2]t

VCC = 4.5 V - 7 15 - 19 - 22 ns

CL = 50 pF; f = 1 MHz;

[3] - 40 - - - - - pF

VI = GND to VCC - 1.5 V

Unit

[1] tpd is the same as t [2] tt is the same as t [3] CPD is used to determine the dynamic power dissipation (PD in μW).

PD = CPD x VCC 2 x fi x N + Σ(CL x VCC 2 x fo) where: fi = input frequency in MHz; fo = output frequency in MHz; CL = output load capacitance in pF; VCC = supply voltage in V; N = number of inputs switching; Σ(CL x VCC 2 x fo) = sum of outputs.

THL

PLH

and t

TLH

PHL

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 7 / 15

Page 8

Nexperia

aaa-004588

PLH

PHL

10 %

Y output

In input

GND

TLH

THL

PHL

PLH

90 %

10 %

THL

TLH

90 %

Y output

90 %

aaa-004589

PHL

PLH

90 %

10 %

THL

TLH

90 %

Y output

PLH

PHL

10 %

Y output

Sn, E input

GND

TLH

THL

90 %

74HC151; 74HCT151

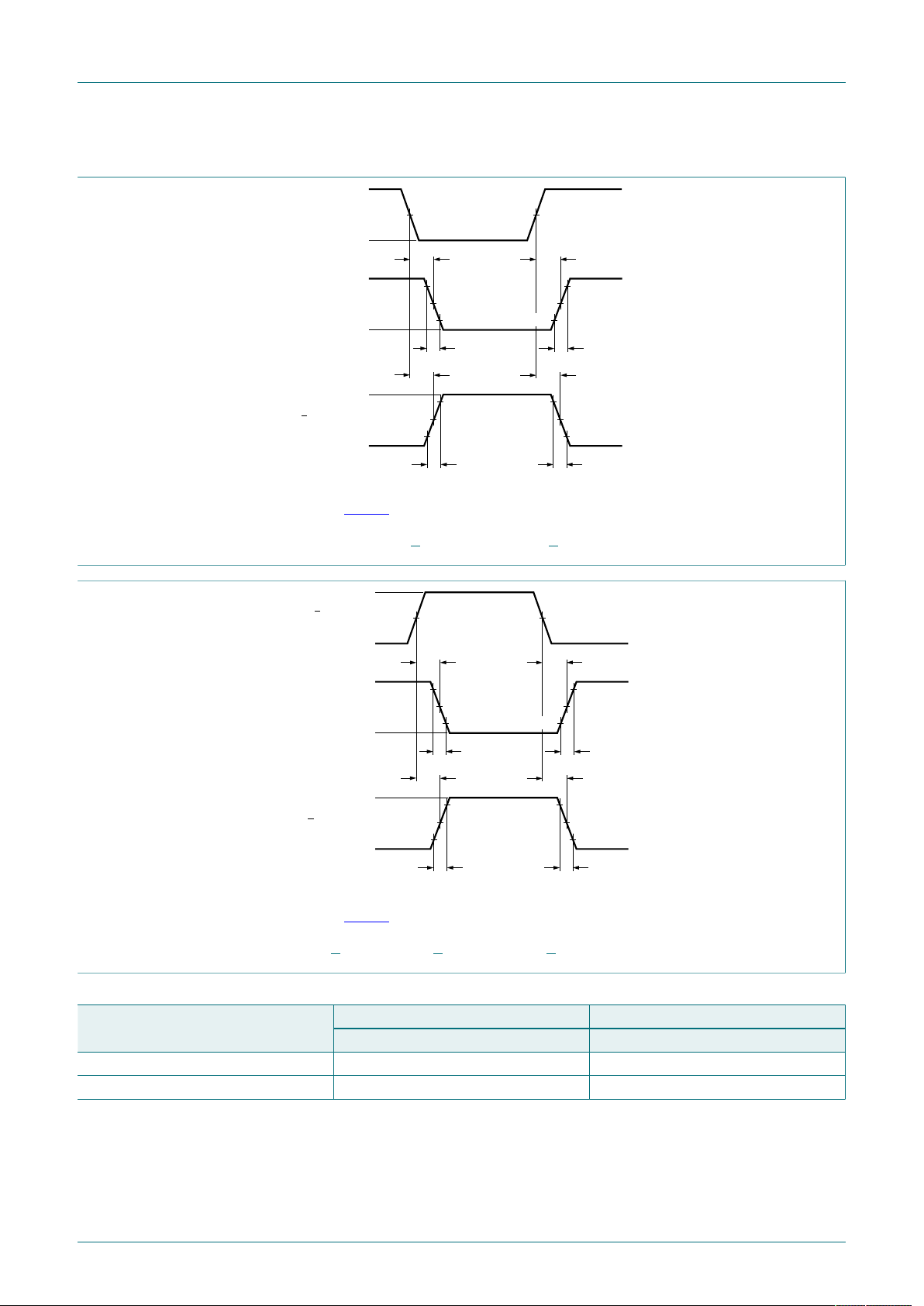

10.1. Waveforms and test circuit

Measurement points are given in Table 8. VOL and VOH are typical voltage output levels that occur with the output load.

Fig. 5. Propagation delay input (In) to output (Y, Y) and the output (Y, Y) transition time

8-input multiplexer

Measurement points are given in Table 8. VOL and VOH are typical voltage output levels that occur with the output load.

Fig. 6. Propagation delay input (Sn, E) to output (Y, Y) and output (Y, Y) transitions time

Table 8. Measurement points

74HC151 0.5V

74HCT151 1.3 V 1.3 V

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 8 / 15

Input OutputType

0.5V

Page 9

Nexperia

001aah768

negative

pulse

GND

positive

pulse

GND

10 %

90 %

10 %

DUT

Test data is given in Table 9. Definitions test circuit: RT = Termination resistance should be equal to output impedance Zo of the pulse generator. CL = Load capacitance including jig and probe capacitance. RL = Load resistance. S1 = Test selection switch.

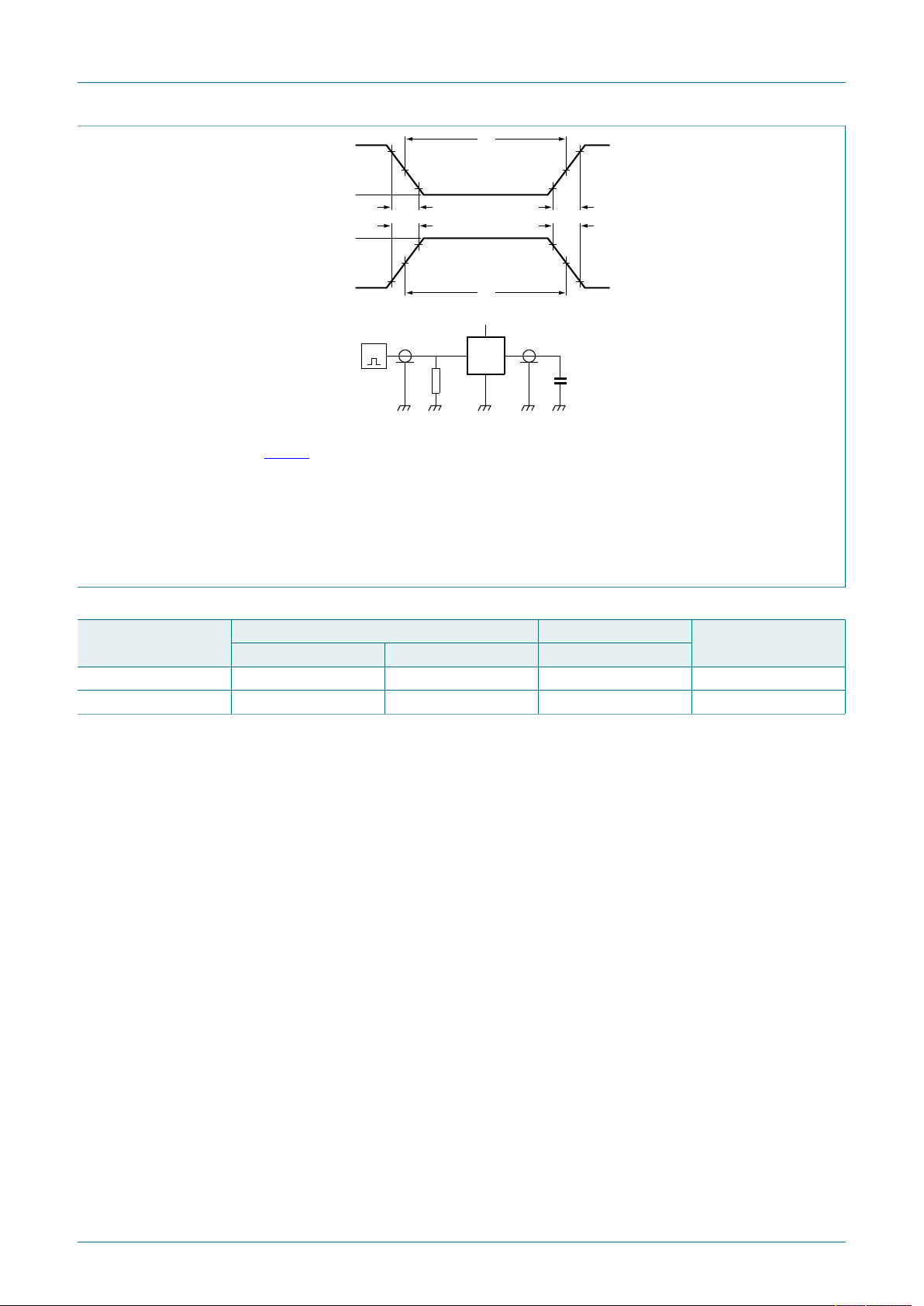

Fig. 7. Test circuit for measuring switching times

74HC151; 74HCT151

8-input multiplexer

Table 9. Test data

Input LoadType

74HC151 V

tr, t

6.0 ns 15 pF, 50 pF t

74HCT151 3.0 V 6.0 ns 15 pF, 50 pF t

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 9 / 15

Test

, t

PLH

PHL

, t

PLH

PHL

Page 10

Nexperia

w M

detail X

v M

(A )

pin 1 index

UNIT

max.

A 1 A 2 A 3 b

c D

(1) E (1) (1)

e H E L L p Q Z y w v θ

REFERENCES

OUTLINE VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC JEITA

inches

1.75

0.25

0.10

1.45

1.25

0.25

0.49

0.36

0.25

0.19

10.0

9.8

4.0

3.8

1.27

6.2

5.8

0.7

0.6

0.7

0.3

8 0

0.25 0.1

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

Note

1. Plastic or metal protrusions of 0.15 mm (0.006 inch) maximum per side are not included.

1.0

0.4

SOT109-1

99-12-27 03-02-19

076E07 MS-012

0.069

0.010

0.004

0.057

0.049

0.01

0.019

0.014

0.0100

0.0075

0.39

0.38

0.16

0.15

0.05

1.05

0.041

0.244

0.228

0.028

0.020

0.028

0.012

0.01

0.25

0.01 0.004

0.039

0.016

0 2.5 5 mm

scale

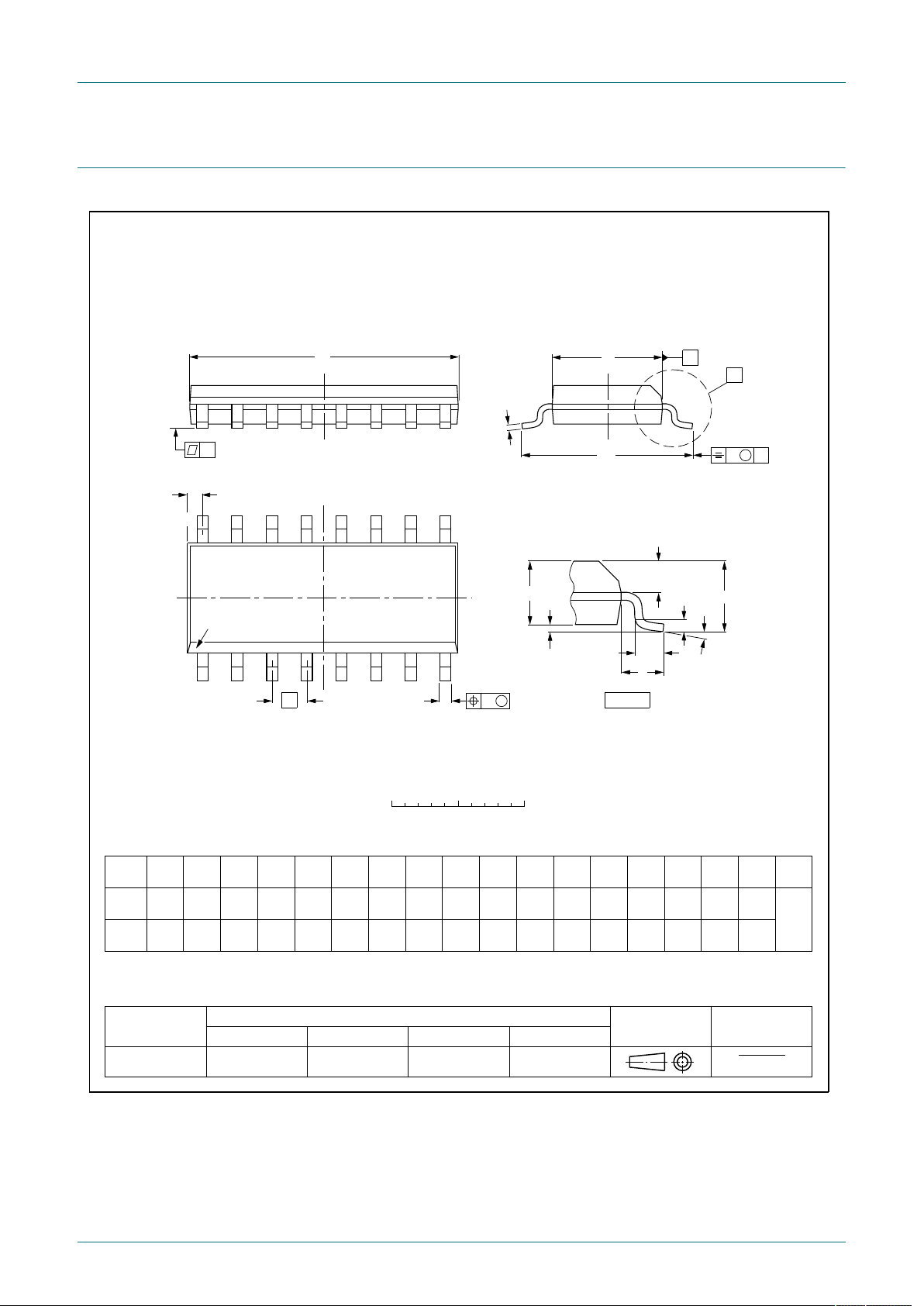

SO16: plastic small outline package; 16 leads; body width 3.9 mm

SOT109-1

11. Package outline

74HC151; 74HCT151

8-input multiplexer

Fig. 8. Package outline SOT109-1 (SO16)

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 10 / 15

Page 11

Nexperia

UNIT A 1 A 2 A 3 b p c D

(1) E (1)

e H

L L p Q Z y w v θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC JEITA

0.21

0.05

1.80

1.65

0.25

0.38

0.25

0.20

0.09

6.4

6.0

5.4

5.2

0.65 1.25

7.9

7.6

1.03

0.63

0.9

0.7

1.00

0.55

8 0

0.13 0.2 0.1

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

SOT338-1

99-12-27 03-02-19

(1)

w M

v M

detail X

(A )

MO-150

pin 1 index

0 2.5 5 mm

scale

SSOP16: plastic shrink small outline package; 16 leads; body width 5.3 mm

SOT338-1

max.

74HC151; 74HCT151

8-input multiplexer

Fig. 9. Package outline SOT338-1 (SSOP16)

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 11 / 15

Page 12

Nexperia

UNIT A 1 A 2 A 3 b p c D

(1) E (2) (1)

e H

L L p Q Z y w v θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC JEITA

0.15

0.05

0.95

0.80

0.30

0.19

0.2

0.1

5.1

4.9

4.5

4.3

0.65

6.6

6.2

0.4

0.3

0.40

0.06

8 0

0.13 0.1 0.2 1

DIMENSIONS (mm are the original dimensions)

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.

0.75

0.50

SOT403-1 MO-153

99-12-27 03-02-18

w M

0.25

1 8

detail X

(A )

v M

0 2.5 5 mm

scale

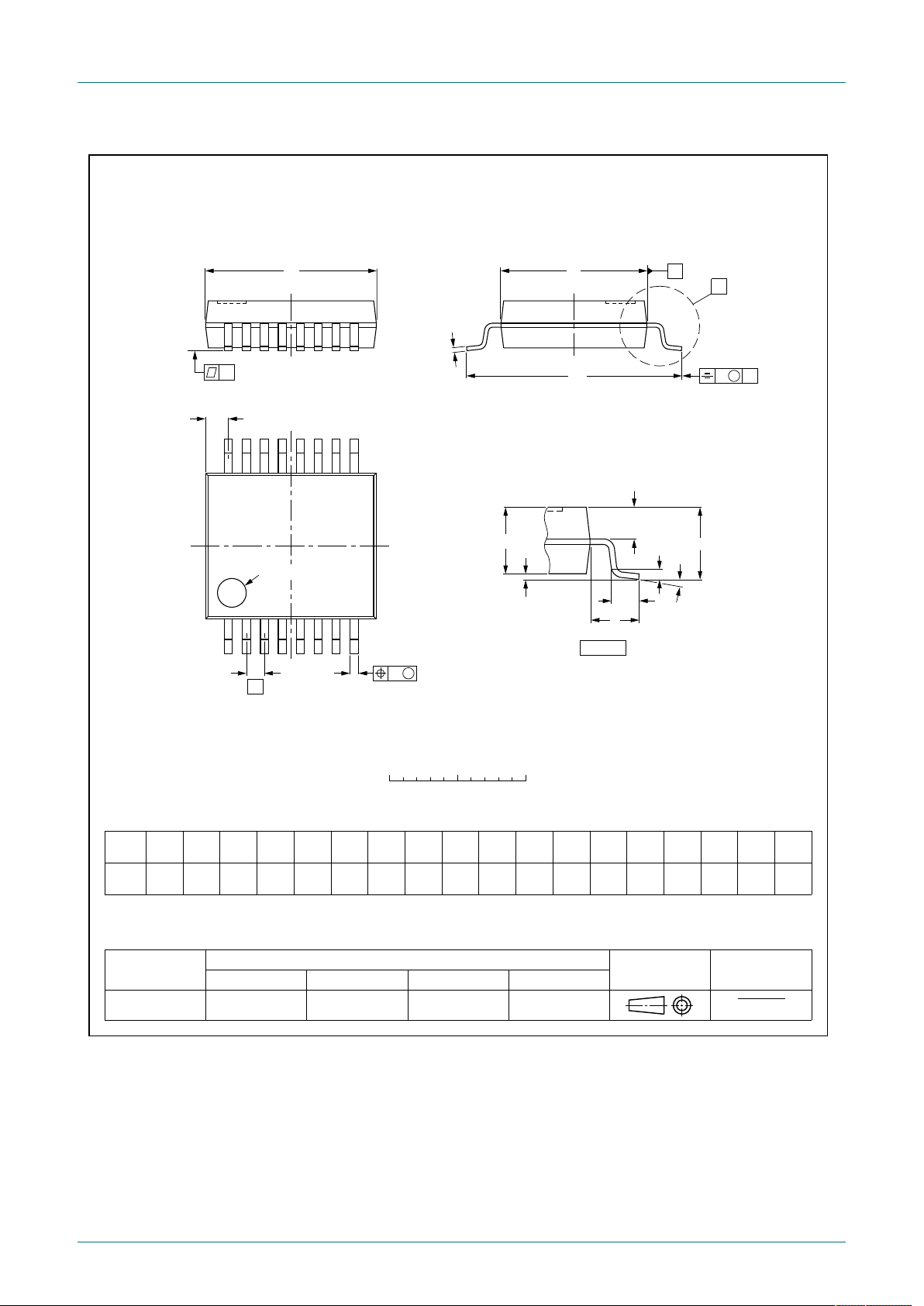

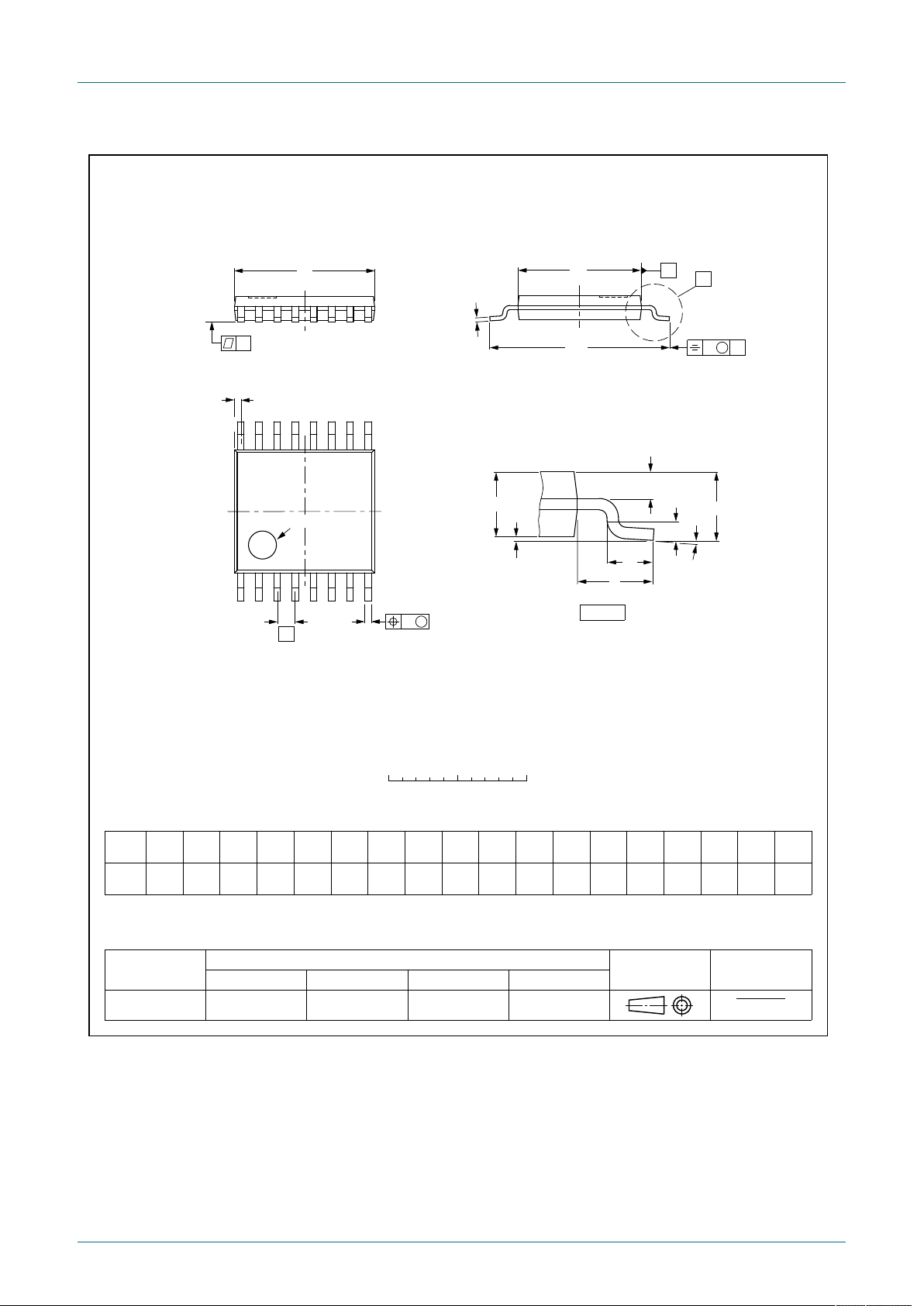

TSSOP16: plastic thin shrink small outline package; 16 leads; body width 4.4 mm

SOT403-1

max.

1.1

pin 1 index

74HC151; 74HCT151

8-input multiplexer

Fig. 10. Package outline SOT403-1 (TSSOP16)

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 12 / 15

Page 13

Nexperia

74HC151; 74HCT151

8-input multiplexer

12. Abbreviations

Table 10. Abbreviations

Acronym Description

CMOS Complementary Metal Oxide Semiconductor

DUT Device Under Test

ESD ElectroStatic Discharge

HBM Human Body Model

MM Machine Model

TTL Transistor-Transistor Logic

13. Revision history

Table 11. Revision history

Document ID Release date Data sheet status Change notice Supersedes

74HC_HCT151 v.8 20210318 Product data sheet - 74HC_HCT151 v.7

Modifications:

74HC_HCT151 v.7 20210114 Product data sheet - 74HC_HCT151 v.6

Modifications:

74HC_HCT151 v.6 20151228 Product data sheet - 74HC_HCT151 v.5

Modifications:

74HC_HCT151 v.5 20150126 Product data sheet - 74HC_HCT151 v.4

Modifications:

74HC_HCT151 v.4 20130211 Product data sheet - 74HC_HCT151 v.3

Modifications:

74HC_HCT151 v.3 20120919 Product data sheet - 74HC_HCT151_CNV v.2

74HC_HCT151_CNV v.2 19970827 Product specification -

• Type number 74HC151DB (SOT338-1 / SSOP16) added.

• The format of this data sheet has been redesigned to comply with the identity

guidelines of Nexperia.

• Legal texts have been adapted to the new company name where appropriate.

• Type numbers 74HC151DB and 74HCT151DB (SOT338-1 / SSOP16) removed.

• Section 7: Derating values for P

• Type numbers 74HC151N and 74HCT151N (SOT38-4) removed.

• Table 7: Power dissipation capacitance condition for 74HCT151 is corrected.

• New descriptive title (errata).

total power dissipation have been updated.

tot

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 13 / 15

Page 14

Nexperia

14. Legal information

Data sheet status

Document status

[1][2]

Objective [short] data sheet

Preliminary [short] data sheet

Product [short] data sheet

[1] Please consult the most recently issued document before initiating or

completing a design. [2] The term 'short data sheet' is explained in section "Definitions". [3] The product status of device(s) described in this document may have

changed since this document was published and may differ in case of

multiple devices. The latest product status information is available on

the internet at https://www.nexperia.com.

Definitions

Draft — The document is a draft version only. The content is still under

internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information.

Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail.

Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet.

Disclaimers

Limited warranty and liability — Information in this document is believed

to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia.

In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory.

Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia.

Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof.

Suitability for use — Nexperia products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal

Product status [3]

Development This document contains data from

Qualification This document contains data from

Production This document contains the product

Definition

the objective specification for product development.

the preliminary specification.

specification.

74HC151; 74HCT151

8-input multiplexer

injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk.

Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding.

Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products.

Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect.

Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device.

Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer.

No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights.

Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities.

Non-automotive qualified products — Unless this data sheet expressly states that this specific Nexperia product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Nexperia accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications.

In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Nexperia’s warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Nexperia’s specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Nexperia for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Nexperia’s standard warranty and Nexperia’s product specifications.

Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions.

Trademarks

Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners.

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 14 / 15

Page 15

Nexperia

1. General description......................................................1

2. Features and benefits.................................................. 1

3. Ordering information.................................................... 1

4. Functional diagram.......................................................2

5. Pinning information......................................................2

5.1. Pinning......................................................................... 2

5.2. Pin description............................................................. 3

6. Functional description................................................. 3

7. Limiting values............................................................. 4

8. Recommended operating conditions..........................4

9. Static characteristics....................................................4

10. Dynamic characteristics............................................ 6

10.1. Waveforms and test circuit........................................ 8

11. Package outline........................................................ 10

12. Abbreviations............................................................ 13

13. Revision history........................................................13

14. Legal information......................................................14

74HC151; 74HCT151

8-input multiplexer

For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: [email protected]

Date of release: 18 March 2021

74HC_HCT151 All information provided in this document is subject to legal disclaimers.

Product data sheet Rev. 8 — 18 March 2021 15 / 15

Datasheet SMD HC 151 Datasheet (FREI)

1. General description

2. Features and benefits

3. Ordering information

4. Functional diagram

5. Pinning information

5.1. Pinning

5.2. Pin description

6. Functional description

7. Limiting values

8. Recommended operating conditions

9. Static characteristics

10. Dynamic characteristics

10.1. Waveforms and test circuit

11. Package outline

12. Abbreviations

13. Revision history

14. Legal information

Contents
