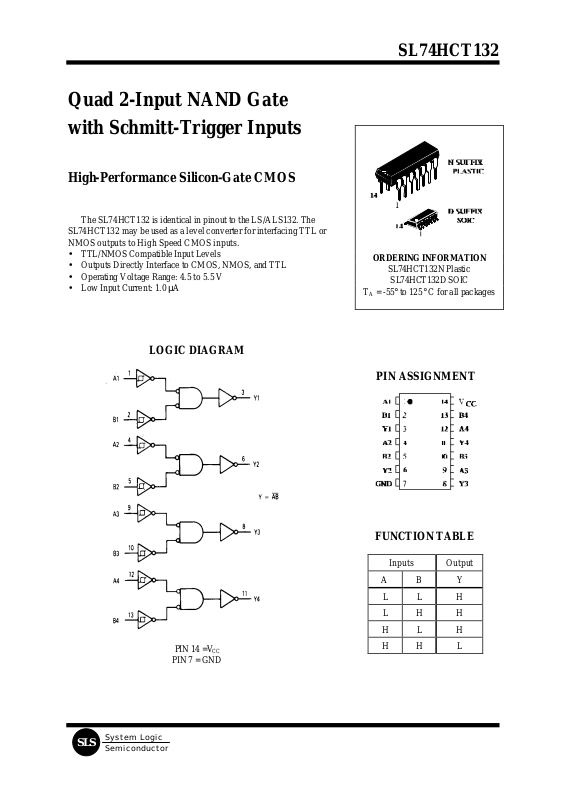

Semiconductor
Quad 2-Input NAND Gate
SL74HCT132
with Schmitt-Trigger Inputs
High-Performance Silicon-Gate CMOS
The SL74HCT132 is identical in pinout to the LS/ALS132. The
SL74HCT132 may be used as a level converter for interfacing TTL or
NMOS outputs to High Speed CMOS inputs.
• TTL/NMOS Compatible Input Levels
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1.0 µA
LOGIC DIAGRAM
ORDERING INFORMATION
SL74HCT132N Plastic
SL74HCT132D SOIC
TA = -55° to 125° C for all packages
PIN ASSIGNMENT
SLS
System Logic
PIN 14 =VCC
PIN 7 = GND
FUNCTION TABLE
Inputs Output
A B Y
L L H
L H H
H L H
H H L
Page 2
SL74HCT132
Semiconductor
MAXIMUM RATINGS*
Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V
V
DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V
OUT
IIN DC Input Current, per Pin ±20 mA
I
DC Output Current, per Pin ±25 mA
OUT
ICC DC Supply Current, VCC and GND Pins ±50 mA
PD Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
750
500
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
260 °C
(Plastic DIP or SOIC Package)
*
Maximum Rati ngs are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Min Max Unit
VCC DC Supply Voltage (Referenced to GND) 4.5 5.5 V
VIN, V
*
When VIN ≈ 0.5VCC, ICC> > quiescent current.
DC Input Voltage, Output Voltage (Referenced to GND) 0 VCC V
OUT
TA Operating Temperature, All Package Types -55 +125 °C
tr, tf Input Rise and Fall Time (Figure 1) - no
limit*
mW
ns
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, VIN and V
GND≤(VIN or V
OUT
)≤VCC.
should be constrained to the range
OUT
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or VCC).
Unused outputs must be left open.
System Logic
SLS
Page 3
SL74HCT132
Semiconductor
DC ELECTRICAL CHARACTERISTICS(Voltages Referenced to GND)
VCC Guaranteed Limit
Symbol Parameter Test Conditions V 25 °C
to
-55°C
VT+max Maximum Positive-
Going Input Threshold
V
OUT
I
OUT
=0.1 V
≤ 20 µA
4.5
5.5
1.9
2.1
Voltage
VT+min Minimum Positive-
Going Input Threshold
V
OUT
I
OUT
=0.1 V
≤ 20 µA
4.5
5.5
1.2
1.4
Voltage
VT-max Maximum Negative-
Going Input Threshold
V
OUT=VCC
I
OUT
-0.1 V
≤ 20 µA
4.5
5.5
1.2
1.4
Voltage
VT-min Minimum Negative-
Going Input Threshold
V
OUT=VCC
I
OUT
-0.1 V
≤ 20 µA
4.5
5.5
0.5
0.6
Voltage
VHmax
Note
VHmin
Note
VOH Minimum High-Level
VOL Maximum Low -Level
IIN Maximum Input
Maximum Hysteresis
Voltage
Minimum Hysteresis
Voltage
V
=0.1 V or VCC-0.1 V
OUT
I
≤ 20 µA
OUT
V
=0.1 V or VCC-0.1 V
OUT
I
≤ 20 µA
OUT
VIN≤VT-min or VT+max
Output Voltage
I
≤ 20 µA
out
VIN≤VT-min or VT+max
I
≤ 4.0 mA
OUT
I
≤ 5.2 mA
OUT
VIN ≥VT+max
Output Voltage
I
OUT
≤ 20 µA
VIN≥ VT+max
I
≤ 4.0 mA
OUT
I
≤ 5.2 mA
OUT
VIN=VCC or GND 5.5 ±0.1 ±1.0 ±1.0 µA
4.5
5.5
4.5
5.5
4.5
5.5
1.4
1.5
0.4
0.4
4.4
5.4
4.5 3.98 3.84 3.7
4.5
5.5
0.1
0.1
4.5 0.26 0.33 0.4
Leakage Current
≤85
°C
1.9
2.1
1.2
1.4
1.2
1.4
0.5
0.6
1.4
1.5
0.4
0.4
4.4
5.4
0.1
0.1
≤125
°C
1.9
2.1
1.2
1.4
1.2
1.4
0.5
0.6
1.4
1.5
0.4
0.4
4.4
5.4
0.1
0.1
Unit
V
V
V
V
V
V
V
V
ICC Maximum Quiescent
Supply Current
VIN=VCC or GND
I
=0µA
OUT
(per Package)
∆ICC Additional Quiescent
Supply Current
VIN = 2.4 V, Any One Input
VIN=VCC or GND, Other
Inputs
I
=0µA 5.5 2.9 2.4
OUT
Note. VHmin>(VT+min) -(VT-max); VHmax=(VT+max)+(VT-min).
System Logic
SLS
5.5 1.0 10 40 µA
≥-55°C 25°C to
mA
125°C
Page 4
SL74HCT132
Semiconductor
AC ELECTRICAL CHARACTERISTICS(V
=5.0 V ± 10%, CL=50pF,Input tr=tf=6.0 ns)
CC
Guaranteed Limit
Symbol Parameter 25 °C to
≤85°C ≤125°C Unit
-55°C
t
, t
PLH
Maximum Propagation Delay, Input A or B to
PHL
25 31 38 ns
Output Y (Figures 1 and 2)
t
, t
TLH
Maximum Output Transition Time, Any Output
THL
15 19 22 ns
(Figures 1 and 2)
CIN Maximum Input Capacitance 10 10 10 pF
Power Dissipation Capacitance (Per Gate) Typical @25°C,VCC=5.0 V
CPD Used to determine the no-load dynamic power
consumption: PD=CPDV
2
f+ICCVCC
CC
27 pF
SLS
System Logic
