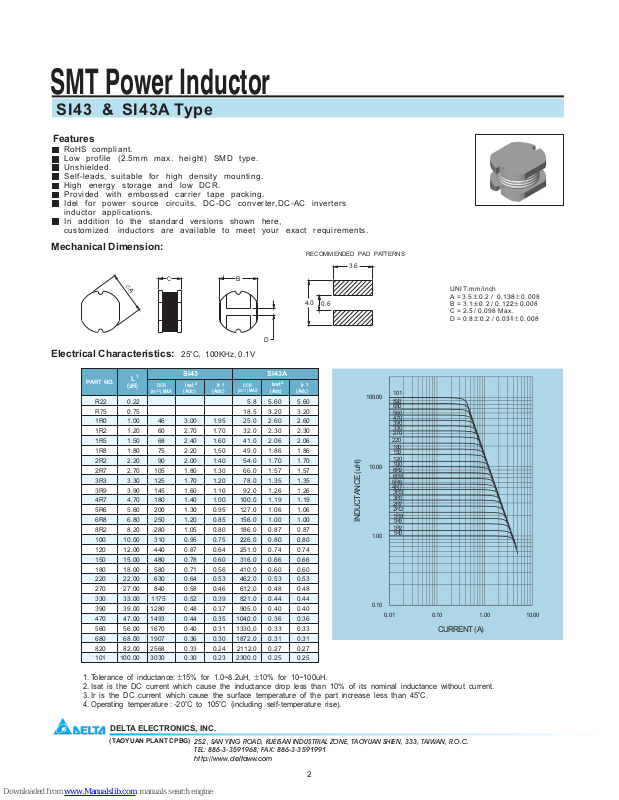

SMT Power Inductor
SI43 & SI43A Type
RoHS compliant.
mounting.
Low profile (2.5mm max. height) SMD type.
Unshielded.
Self-leads, suitable for high density
High energy storage and low DCR.
Provided with embossed carrier tape packing.
Idel for power source circuits, DC-DC converter,DC-AC inverters
inductor applications.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.
Features
Electrical Characteristics:
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
25 100KHz, 0.1V
o
C,
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
2
1. Tolerance of inductance: 15% for 1.0~8.2uH, 10% for 10~100uH.
2. Isat is the DC current which cause the inductance drop less than 10% of its nominal inductance without current.
3. Ir is the DC current which cause the surface temperature of the part increase less than 45
4. Operating temperature : -20 to 105 (including self-temperature rise).
o
C.
oo
C C
R22 0.22 5.8 5.60 5.60
R75 0.75 18.5 3.20 3.20
1R0 1.00 46 3.00 1.95 25.0 2.60 2.60
1R2 1.20 60 2.70 1.70 32.0 2.30 2.30
1R5 1.50 68 2.40 1.60 41.0 2.06 2.06
1R8 1.80 75 2.20 1.50 49.0 1.86 1.86
2R2 2.20 90 2.00 1.40 54.0 1.70 1.70
2R7 2.70 105 1.80 1.30 66.0 1.57 1.57
3R3 3.30 125 1.70 1.20 78.0 1.35 1.35
3R9 3.90 145 1.60 1.10 92.0 1.26 1.26
4R7 4.70 180 1.40 1.00 100.0 1.19 1.19
5R6 5.60 200 1.30 0.95 127.0 1.06 1.06
6R8 6.80 250 1.20 0.85 156.0 1.00 1.00
8R2 8.20 280 1.05 0.80 186.0 0.87 0.87
100 10.00 310 0.95 0.75 226.0 0.80 0.80
120 12.00 440 0.87 0.64 251.0 0.74 0.74
150 15.00 480 0.78 0.60 316.0 0.66 0.66
180 18.00 580 0.71 0.56 410.0 0.60 0.60
220 22.00 630 0.64 0.53 462.0 0.53 0.53
270 27.00 840 0.58 0.46 612.0 0.48 0.48
330 33.00 1175 0.52 0.39 821.0 0.44 0.44
390 39.00 1280 0.48 0.37 905.0 0.40 0.40
470 47.00 1493 0.44 0.35 1040.0 0.36 0.36
560 56.00 1670 0.40 0.31 1330.0 0.33 0.33
680 68.00 1907 0.36 0.30 1872.0 0.31 0.31
820 82.00 2568 0.33 0.24 2112.0 0.27 0.27
101 100.00 3030 0.30 0.23 2300.0 0.25 0.25
Mechanical Dimension:
A
C
0.6
4.0
3.6
B
D
UNIT:mm/inch
A = 3.5 0.2 / 0.138 0.008
B = 3.1 0.2 / 0.122 0.008
C = 2.5 / 0.098 Max.
D = 0.8 0.2 / 0.031 0.008
¡Ó
¡Ó
¡Ó
¡Ó
¡Ó
¡Ó
RECOMMENDED PAD PATTERNS
0.01 0.10 1.00 10.00
CURRENT (A)
0.10
1.00
10.00
100.00
INDUCTANCE (uH)
101
680
1R5
6R8
8R2
120
180
270
470
820
560
390
330
220
150
100
4R7
5R6
3R3
2R7
1R0
3R9
2R2
1R8
1R2
PART NO.
L
(uH)
1
SI43
SI43A
DCR
(m ) MAX
2
Isat
(Adc)
Ir
(Adc)
3
DCR
(m ) MAX
2
Isat
(Adc)
Ir
(Adc)
3
