SAA7811HL

Single-chip DVD-ROM

1999 Oct 05 2

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

FEATURES
Host interface

• Enhanced Integrated DriveElectronics (IDE) Advanced
TechnologyAttachmentProgramInterface(ATAPI)host
interface

• Built-in 12-byte ATAPI Packet command First-In,
First-Out (FIFO)

• Supports Advanced Technology Attachment (ATA) and
ATA-2 PIO and multi-word Direct Memory Access
(DMA) data transfer modes

• Supports ATA/ATAPI-4 Ultra DMA transfer modes with
data rate up to 33 MBytes/s

• Configurable as generic DMA interface, for use with
external host interface devices

• Automatic sequencing of ATAPI packet command
protocol; including command termination

• Automatic determination of block length for mode2,
form 1 and form 2 sectors (block length transferred is
programmable).

Block decoder

• Supports CD-ROM, CD-R and CD-R/W; CD-DA and
DVD-ROM formats

• Supports real time error detection and correction in
hardware for CD-ROM mode

• CD-ROM error corrector switchable between single or
dual pass (both with Error Detection/Correction [EDC])

• Internal registers are memory-mapped

• Embedded DVD-video authentication module.

Buffer memory controller

• Supports up to 2 MBytes of DRAM buffer

• Block based sector addressing.

Channel decoder

• Selectable differential and single-ended HF inputs;
compatible with TZA1033 (DVDalas2plus) and
TZA1020A (Aeger2); single-ended input has
bypassable AGC

• Internal 6-bit ADC

• Digital PLL and slicer for HF clock regeneration

• Supports Eight-to-Fourteen Modulation

(EFM) and EFM+ demodulation

• Full CD error correction strategy; t = 2 ande=4

• On-chip CD error corrector memory with ±8 frame jitter

margin

• Built-in hardware for double pass DVD error corrector;
(can correct 5 errors in C1 frame and 16 errors in
C2 frame)

• Error corrector monitor signal available

• I2C-bus output available via programmable vampire

pins.

Spindle motor control

• Advanced motor control loop allows Constant Angular
Velocity (CAV), Constant Linear Velocity (CLV) and
pseudo-CLV playback

• Support for 3-pin and 1-pin tacho control

• Motor control via incoming bit stream or tacho.

Speed operation

• Supports up to 56 × CD-ROM playback

• Supports up to 10 × DVD-ROM playback.

Multimedia functions and built-in DAC

• Supports audio playback via DRAM buffer; allows audio
discs to be played at higher speeds

• IEC958 (SPDIF, AES/EBU and DOBM) output with
Q to W subcode bits and programmable category code,
output at n = 1 rate

• Built-in digital audio DAC including: −4 × oversampling
filter

• Built-in digital volume control, attenuator and
single-sample interpolator

• Separate left and right channel routing and mute control.

Microcontroller interface

• Embedded microcontroller can operate as 33 MHz or
67 MHz equivalent 80C51

• Embedded co-processor for fast multiply, divide, shift,
and normalize instructions; supported by C-compilers

• Co-processor for MSF calculations

• Memory mapped interfaces to sub functions

• External microcontroller support

1999 Oct 05 3

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

• Embedded SRAM (1.5 kbytes Xdata, 512 bytes Idata,
224 bytes data and registers)

• 4 banks: on Idata and registers; for better multi-tasking
support

• External flash EPROM programming support
– Serial boot possible with empty flash EPROM
– Internal program upload support.

• Code space support up to 1 Mbyte through built-in bank
switching

• Debug interface for embedded microcontroller.

Servo processor

• Switched current analog-to-digital converters for diode
and error signal inputs

• Selectable servo error or servo diode inputs

• Focus and radial servo loops

• Automatic closed loop gain control available for focus

and radial loops

• Built-in access procedure with fast track count input

• High-speed track crossing velocity measurement

(>350 kHz) for CD and DVD

• Special DVD track crossing support

• Fast radial brake circuitry

• EFM actuator damping circuitry

• SledgemotorservoloopwithenhancedPositionControl

Sledge (PCS) support

• Sledge stepper motor support

• Adaptive Repetitive Control (ARC)

• Debug interface for servo.

Clock multiplier

• On-chip clock multipliers allows the use of 8.4672 MHz
crystal.

Disclaimer

SupplyofthisCompactDiscICdoesnotconveyanimplied
license under any patent right to use this IC in any
Compact Disc application.

GENERAL DESCRIPTION

The SAA7811 is a single-chip device for high speed
DVD-ROM applications. The device contains the following
blocks previously contained in separate ICs:

• channel decoder

• block decoder

• servo processor

• microcontroller.

QUICK REFERENCE DATA

Note

1. The analog and digital core supply pins (V

DDA

and V

DDD(CO)

) must be connected to the same external supply.

ORDERING INFORMATION

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

DDD(CO)

supply voltage digital part core; note 1 3.0 3.3 3.6 V

V

DDD1(3P)

supply voltage digital part pad cells 3 V 3.0 3.3 3.6 V

V

DDD2(5P)

supply voltage digital part pad cells 5 V 4.5 5.0 5.5 V

V

DDA

supply voltage analog part; note 1 3.0 3.3 3.6 V

I

DD

supply current − tbf − mA

f

XTAL

crystal frequency 8 8.4672 35 MHz

T

amb

operating ambient temperature 0 − 60 °C

T

stg

storage temperature −55 − +125 °C

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

SAA7811HL LQFP208 plastic low profile quad flat package; 208 leads; body 28 × 28 × 1.4 mm SOT459-1

1999 Oct 05 4

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to forcelandscapepagesto be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

BLOCK DIAGRAM

handbook, full pagewidth

CHANNEL DECODER

BIT DETECTOR

AND DEMODULATOR

MEMORY

PROCESSOR

CD/DVD
ERROR

CORRECTOR

BLOCK DECODER

INTERFACE

DRIVE

INTERFACE

HOST

INTERFACE

SUBCODE

INTERFACE

ERROR

CORRECTOR

MEMORY

PROCESSOR

DRAM

INTERFACE

CSS

MODULE

CPU INTERFACE

CONTROL

REGISTERS

MOTOR/

TACHO INTERFACE

ADC

MULTIMEDIA

INTERFACE

DAC

SERVO

PCS

ACCELERATOR

SERVO

ACCELERATOR

SERVO

PROCESSOR

RAM

MICROCONTROLLER

SAA7811

ADDRESS
DECODER

1.5 KBYTES

AUXILIARY RAM

SFRs PORT REGS

736-BYTE RAM

1.5 KBYTES ROM

CPU

FCE404

ADC

ADC

Fig.1 Block diagram.

1999 Oct 05 5

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

PINNING

See note 1

SYMBOL PIN DESCRIPTION

V

DDD1(3P)

1 pad digital supply (3.3 V)

V

SSD1(3P)

2 pad digital ground (3.3 V)
T1 3 tacho 1 input, tcb_tck_pregate
T2 4 tacho 2 input
T3 5 tacho 3 input
DAC/RP 6 DAC differential outputright (positive)/debug signal from MACE (opc_int)
DAC/RN 7 DAC differential output right (negative)/debug signal from MACE (servo_int)
DAC_VPOS 8 DAC V

ref

(positive)

DAC_VNEG 9 DAC V

ref

(negative)
DAC_LP 10 DAC differential output left (positive)/debug signal from MACE (dakota_int0)
DAC_LN 11 DAC differential output left (negative)/debug signal from MACE (dakota_int1)
TEST1 12 test input, tcb_tms and tcb_tdi connected to an internal pull-down resistor
TEST2 13 test input, tcb_trstn connected to an internal pull-down resistor
CRIN 14 clock input
CROUT 15 clock output
V

DDA

16 analog supply (3.3 V)

V

SSA

17 analog supply ground
HFIN_DN 18 differential HF in (negative)
HFIN_DP 19 differential HF in (positive)
HFIN_SE 20 single-ended HF in (AGC)
VCOM 21 common mode reference signal (DVDalas2plus)
I

ref

22 analog current reference
WREFLO 23 V

ref

low; connect to V

SSA

via capacitor

TEST3 24 test input; connect to V

SSA

V

SSA

25 analog supply ground
V

DDA

26 analog supply (3.3 V)
SIN_PHI 27 sine input from hall detectors
COS_PHI 28 cosine input from hall detectors
TEST4 29 test input; connect to V

SSA

XDET 30 auxiliary ADC input
ACT_EMFP 31 EMF of the actuator; positive input
ACT_EMFN 32 EMF of the actuator; negative input
TEST5 33 test input; connect to V

SSA

TEST6 34 test input; connect to V

SSA

TEST7 35 test input; connect to V

SSA

UOPB 36 decoupling point for ADC ladder
UOPT 37 upper reference voltage for ADC ladder
ALPHA0 38 gain control for TZA1030 (DROPPI)
V

SSA

39 analog supply ground

1999 Oct 05 6

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

V

DDA

40 analog supply (3.3 V)
D1 41 diode input
D2/TLN 42 diode input (normalized); track-loss signal
D3/REN 43 diode input (normalized); radial error signal
D4/FEN 44 diode input (normalized); focus error signal
S1/MIRN 45 satellite diode (normalized); mirror signal
S2 46 satellite diode
VRIN 47 I/O voltage reference; for servo ADC
FTCH 48 track count input
P5_7/

DEFO 49 defect output (active LOW)/general purpose I/O

P5_6/

DEFI 50 defect input (active LOW)/general purpose I/O
P5_5/TL 51 track-loss means output/general purpose I/O
P5_4/RP/FOK 52 radial polarity/focus OK/general purpose I/O
P5_3/CE1 53 CS external SRAM/programmable I/O
P5_2/CLO 54 servo clock output/alpha0 step pulse for LADIC
P5/SDA 55 I

2

C-bus data/general purpose I/O

P5_0/SCL 56 I

2

C-bus clock/general purpose I/O
RA 57 radial output (3-state during reset)
SL 58 sledge output (3-state during reset)
FO 59 focus output (3-state during reset)
RAC_SW 60 disconnects radial actuator (active HIGH)
REF_SIN 61 pulse density modulated reference signal; removes DC offset from sin_phi
REF_COS 62 pulse density modulated reference signal; removes DC offset from cos_phi
V

DDD1(3P)

63 pad digital supply (3.3 V)

V

SSD1(3P)

64 pad digital ground (3.3 V)
P4_7/PXT2EN 65 timer 2 input enable/SIDA for DVDalas2plus
P4_6/PXT2 66 timer 2 clock input/SICL for DVDalas2plus
P4_5/PXT0 67 timer 1 clock input/SILD for DVDalas2plus
P4_4/PXT 68 timer0 clock input/CS2 for external device
V

DDD(3CO)

69 core digital supply (3.3 V)
V

SSD(3CO)

70 core digital ground
P4_3/A19 71 A19 to EPROM
P4_2/A18 72 A18 to EPROM
P4_1/A17 73 A17 to EPROM
P4_0/A16 74 A16 to EPROM
UA15 75 port 2; upper microcontroller address lines
UA14 76 port 2; upper microcontroller address lines
UA13 77 port 2; upper microcontroller address lines
UA12 78 port 2; upper microcontroller address lines
UA11 79 port 2; upper microcontroller address lines
UA10 80 port 2; upper microcontroller address lines

SYMBOL PIN DESCRIPTION

1999 Oct 05 7

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

UA9 81 port 2; upper microcontroller address lines
UA8 82 port 2; upper microcontroller address lines
V

DDD1(3P)

83 pad digital supply (3.3 V)
V

SSD1(3P)

84 pad digital ground (3.3 V)
EA_WAIT 85 address input/wait output internal pull-up resistor (active LOW)
DSDEN_SRST 86 microcontroller reset
SCCLK 87 microcontroller clock for testing
PSENN_CS 88 programme strobe enable/output enable for external device internal pull-up resistor
ALE_ASTB 89 address latch; chip select internal pull-up resistor
V

DDD(3CO)

90 core digital supply (3.3 V)
V

SSD(3CO)

91 core digital ground
UA7_P1_7 92 port 1; demultiplexed lower microcontroller address lines (mode3 = vampire7; V4)
UA6_P1_6 93 port 1; demultiplexed lower microcontroller address lines (mode3 = vampire6; SYNC)
UA5_P1_5 94 port 1; demultiplexed lower microcontroller address lines (mode3 = MON_D)
UA4_P1_4 95 port 1; demultiplexed lower microcontroller address lines (mode3 = MON_A)
UA3_P1_3 96 port 1; demultiplexed lower microcontroller address lines (mode3 = DEB_OUT)
UA2_P1_2 97 port 1; demultiplexed lower microcontroller address lines (mode3 = OTD)
UA1_P1_1 98 port 1; demultiplexed lower microcontroller address lines
UA0_P1_0 99 port 1; demultiplexed lower microcontroller address lines
V

DDD1(3P)

100 pad digital supply (3.3 V)

V

SSD1(3P)

101 pad digital ground (3.3 V)
UDA0 102 port 0; multiplexed microcontroller data/lower address lines
UDA1 103 port 0; multiplexed microcontroller data/lower address lines
UDA2 104 port 0; multiplexed microcontroller data/lower address lines
UDA3 105 port 0; multiplexed microcontroller data/lower address lines
UDA4 106 port 0; multiplexed microcontroller data/lower address lines
UDA5 107 port 0; multiplexed microcontroller data/lower address lines
UDA6 108 port 0; multiplexed microcontroller data/lower address lines
UDA7 109 port 0; multiplexed microcontroller data/lower address lines
P3_7/

RD 110 read signal (active LOW)

P3_6/

WR 111 write signal (active LOW)
P3_5/TXD2 112 UART2 transmit data line
P3_4/RXD2 113 UART 2 receive data line
V

DDD1(3P)

114 pad digital supply (3.3 V)

V

SSD1(3P)

115 pad digital ground (3.3 V)
P3_3/INT1 116 interrupt 1 input/programmable I/O
P3_2/INT0 117 interrupt 0 input/programmable I/O
P3_1/TXD1 118 UART1 transmit data line
P3_0/RXD1 119 UART 1 receive data line
HRESET 120 host reset
V

DDD2(5P)

121 pad digital supply (5.0 V)

SYMBOL PIN DESCRIPTION

1999 Oct 05 8

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

V

SSD5(pad3)

122 pad digital ground (5.0 V)
DD7 123 host interface; generic DMA
DD8 124 host interface; generic DMA (mode1 = MEAS1_CFLG)
DD6 125 host interface; generic DMA
DD9 126 host interface; generic DMA (mode1 = MEAS1)
DD5 127 host interface; generic DMA
DD10 128 host interface; generic DMA (mode1 = MON_A)
DD4 129 host interface; generic DMA
DD11 130 host interface; generic DMA (mode1 = MON_D)
DD3 131 host interface; generic DMA
DD12 132 host interface; generic DMA (mode1 = DEB_OUT)
DD2 133 host interface; generic DMA
DD13 134 host interface; generic DMA (mode1 = OTD)
DD1 135 host interface; generic DMA
DD14 136 host interface; generic DMA
DD0 137 host interface; generic DMA
DD15 138 host interface; generic DMA
V

DDD2(5P)

139 pad digital supply (5.0 V)
V

SSD2(5P)

140 pad digital ground (5.0 V)
DMARQ/GACK 141 host DMA request; generic DMA acknowledge
DIOW 142 host interface write strobe
DIOR 143 host interface read strobe
IORDY 144 host interface ready
DMACK/GRQ 145 host DMA acknowledge; generic DMA request
INTRQ 146 host interface interrupt request
IOCS16 147 host interface

8

⁄16 bit port

DA1_GWR 148 host add bit 1; generic write
PDIAG 149 host interface passed test (mode1 = vampire6; SYNC)
DA0 150 host add bit 0
DA2_GRD 151 host add bit 2; generic read
V

DDD2(5P)

152 pad digital supply (5.0 V)
V

SSD2(5P)

153 pad digital ground (5.0 V)
CS0 154 host interface chip select 0
CS1 155 host interface chip select 1
DASP 156 host interface active slave present (mode1 = vampire7; V4)
V

DDD1(3P)

157 pad digital supply (3.3 V)
V

SSD1(3P)

158 pad digital ground (3.3 V)
XDA0 159 DRAM address
XDA1 160 DRAM address
XDA2 161 DRAM address
XDA3 162 DRAM address

SYMBOL PIN DESCRIPTION

1999 Oct 05 9

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

XDA4 163 DRAM address
XDA5 164 DRAM address
XDA6 165 DRAM address
XDA7 166 DRAM address
XDA8 167 DRAM address
XDA9 168 DRAM address
V

DDD(3CO)

169 core digital supply (3.3 V)
V

SSD(3CO)

170 core digital ground
XRAS 171 DRAM RAS strobe
XCAS_HI 172 DRAM CAS strobe
XCAS_LO 173 DRAM CAS strobe
XWR 174 DRAM write strobe
V

DDD1(3P)

175 pad digital supply (3.3 V)
V

SSD1(3P)

176 pad digital ground (3.3 V)
XDD0 177 DRAM data bus
XDD1 178 DRAM data bus
XDD2 179 DRAM data bus
XDD3 180 DRAM data bus
XDD4 181 DRAM data bus
XDD5 182 DRAM data bus
XDD6 183 DRAM data bus
XDD7 184 DRAM data bus
XDD8 185 DRAM data bus
XDD9 186 DRAM data bus
XDD10 187 DRAM data bus
XDD11 188 DRAM data bus
XDD12 189 DRAM data bus
XDD13 190 DRAM data bus
XDD14 191 DRAM data bus
XDD15 192 DRAM data bus
V

SSD1(3P)

193 pad digital ground (3.3 V)
V

DDD1(3P)

194 pad digital supply (3.3 V)
IECO/CL1 195 IEC958 output/CL1 output from HDr62
MCK 196 multimedia master clock input/output (mode2 = MEAS_CFLG)
V

DDD(3CO)

197 core digital supply (3.3 V)
V

SSD(3CO)

198 core digital ground
WCLK_WSI 199 I

2

C-bus word clock output/input (mode2 = MEAS1)

BCLK_SCKI 200 I

2

C-bus bit clock output/input (mode2 = MON_D)

DATA_SDI 201 I

2

C-bus data output/input (mode2 = MON_A)

FLAG 202 I

2

C-bus flag output/input (mode2 = DEB_OUT)

TEST8 203 test output; leave unconnected

SYMBOL PIN DESCRIPTION

1999 Oct 05 10

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

Note

1. All supply pins must be connected to the same external power supply voltage.

TEST9 204 test output; leave unconnected
TEST10 205 test output; leave unconnected
POR 206 Power-on reset (active LOW)
BCA 207 BCA input
MOTO1 208 motor control output

SYMBOL PIN DESCRIPTION

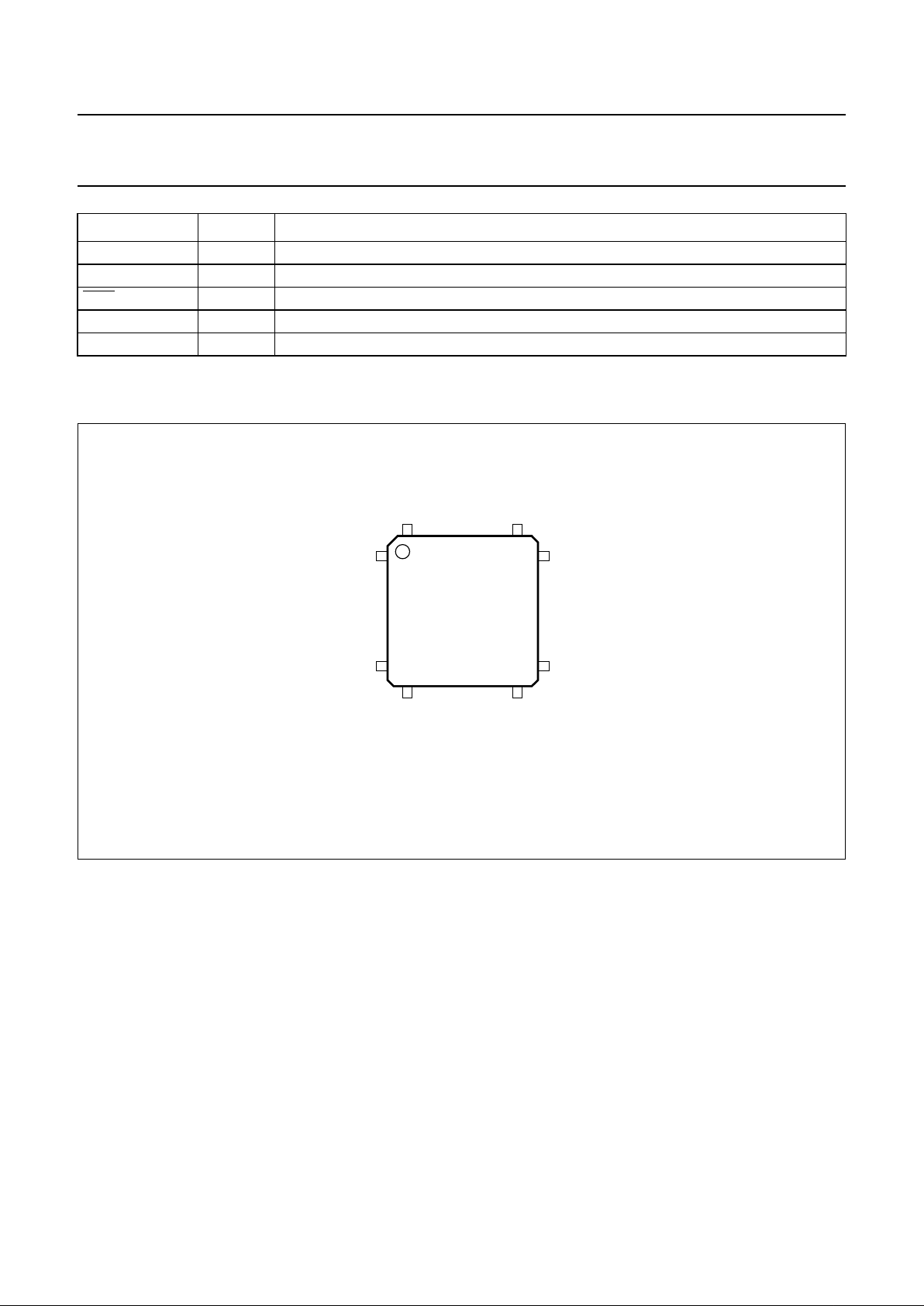

handbook, halfpage

SAA7811HL

1

208

157

53

104

52

156

105

FCE405

Fig.2 Pin configuration.

1999 Oct 05 11

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

CHARACTERISTICS

V

DDD(3CO)

= 3.0 to 3.6 V; V

DDD1(3P)

= 3.0 to 3.6 V; V

DDA

= 3.0 to 3.6 V; V

DDD2(5P)

= 4.5 to 5.5 V; VSS=0V;

T

amb

= 0 to 60 °C; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Pins: HFIN_DN and HFIN_DP

f

clk(sample)

clock frequency sample
rate

−−140 MHz

B

rec

recovered bandwidth

1

⁄3Nyquist − 46.6 − MHz

N

bit(eff)

effective number of bits f

clk(sample)

= 140 MHz − 5 −

V

i(dif)(p-p)

differential input signal
voltage (peak-to-peak
value)

0 dB; depends on V

DDA

− 1.4 1.4V

DDA

V

V

i(se)(p-p)

single-ended input signal
voltage (peak-to-peak
voltage)

0 dB; depends on V

DDA

− 0.7 1.7V

DDA

V

V

offset(dif)

differential offset voltage V

HFIN_DP

; V

HFIN_DN

−100 − +100 mV

V

offset(cm)

common mode offset
voltage

−200 − +100 mV

V

offset(ADC)

ADC offset voltage −60 − +60 mV

C

i

static input capacitance input to ground − 7 − pF

input to input − 3 − pF

R

i

input resistance −∞−kΩ

t

d(g)

group delay −−100 ps

Pin: HFIN_SE

f

clk(sample)

clock frequency sample
rate

−−−MHz

B

rec

recovered bandwidth − 35 − MHz

G

AGC

AGC gain (32 steps) −2.1 − +11.4 dB

THD total harmonic distortion signal = 25 MHz; at

V

dif

= 1.4 V(p-p)

−−−35 dB

S/N signal to noise ratio and

distortion of AGC

− 50 − dB

V

i(se)(p-p)

single-ended input signal
voltage (peak-to-peak
voltage)

0 dB; depends on V

DDA

− 0.7 0.7V

DDA

V

C

i

static input capacitance input to ground − 7 − pF

R

i

input resistance − 8.6 − kΩ

t

d(g)

group delay flatness 0 to 35 MHz −−600 ps

Pins: D1, D2/TL, D3/RE, S1/MIR and S2

I

i/o(max)

maximum input/output
current

selectable via gain;
note 1

1 − 16 µA

V

i

voltage at input − V

VRIN

− V

G

tol

gain tolerance −20 0 +20 %

1999 Oct 05 12

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

∆G variation of gain between

channels (D1 to D2/TL,
D3/RE to
D4/FE and S1/MIR to S2)

−2 − +2 %

C

par(max)

maximum parasitic
capacitance connected to
input

−−25 pF

f

clk

clock frequency sample
rate

− 8.4672 − MHz

B

rec

recovered bandwidth − 20 − kHz

(THD + N)/S total harmonic

distortion-plus-noise to
signal ratio

I

sink

or I

source

=6µA −−−30 dB

DR dynamic range I

sink

or I

source

=6µA50 −− dB

Pin: VRIN

V

o(VRIN)

output voltage 0.75 0.9 1.05 V

V

i(VRIN)

input voltage 1.0 −

1

⁄2V

DDA

+ 0.1 V

Pin: FTCH

V

(comp)(offset)(FTC)

comparator FTC offset
voltage

−20 − +20 mV

V

(comp)(hys)(FTC)

comparator FTC
hysteresis voltage

−10 − +10 mV

V

cm

common mode voltage − 1.2 − V

f

sample

sample rate − 8.4672 − MHz

C

i

input capacitance input to ground − 7 − pF

R

i

input resistance 100 −− kΩ

Pins: UOPB and UOPT

V

i(UOPB)

input voltage on UOPB − 0 − V

V

i(UOPT)

input voltage on UOPT − 2.9 − V

Pins: ACT_EMFP and ACT_EMFN

V

i

input voltage 0 − V

i(UOPT)

V

V

cm

common mode voltage − tbf − V
G gain note 2 − 5 − V
B bandwidth − 265 − kHz
R

i

input resistance 80 100 120 kΩ
C

i

static input capacitance − 7 − pF
Pins: SIN_PHI, COS_PHI, XDET and ACT_EMFP; note 3
V

i

input voltage 0 − V

(UOPT)

V

∆G gain matching between

channels

−1 − +1 %

R

i

input resistance −∞−kΩ
C

i(static)

static input capacitance − 7 − pF

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Oct 05 13

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

C

i(dynamic)

dynamic input capacitance − 5 − pF
f

clk(sample)

clock frequency sample

rate

− 1.05 − MHz

B

rec

recovered bandwidth 5 −− kHz
N

bit(eff)

effective number of bits at 1.05 MHz − 7.2 −
CODE

minvi

output code for V

i(UOPB)

input

0510

CODE

maxvi

output code for V

i(UOPT)

input

251 253 255

Pin: ALPHA0

f

clk

clock frequency sample

rate

− 1.05 − MHz

V

o

output voltage 0 − V

i(UOPT)

V

C

L

load capacitance −−25 pF
R

L

load resistance 10 − 30 kΩ

Pins: DAC_LN, DAC_LP, DAC/RN and DAC/RP

f

clk

clock frequency sample

rate

− 4.236 − MHz

B frequency bandwidth −−20 kHz
S/N

AW

A-weighted signal-to-noise

ratio

note 4 90 −− dB

THD total harmonic distortion note 4 −−−80 dB

Digital inputs

POR, HRESET AND BCA (SCHMITT TRIGGERS) TTL INPUT WITH HYSTERESIS
V

sw(th)(r)

switchingthreshold voltage

(rising)

1.4 − 1.9 V

V

sw(th)(f)

switchingthreshold voltage

(falling)

0.9 − 1.45 V

V

hys

hysteresis voltage 0.4 − 0.7 V
C

I

input capacitance −−10 pF

DESIGNATED BY ‘T’ TTL INPUT; note 5

V

IL

LOW-level input voltage −−0.8 V
V

IH

HIGH-level input voltage 2.0 −− V
I

LI

input leakage current VLI= 0 to V

DDD1(3P)

−10 − +10 µA

C

i

input capacitance −−10 pF

Digital outputs

DESIGNATED BY ‘L’ (CMOS LEVELS)

V

OL

LOW-level output voltage IOL=2mA −−0.4 V
V

OH

HIGH-level output voltage IOH= −2 mA 0.85V

DDD1(3P)

−− V

C

L

load capacitance −−20 pF

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Oct 05 14

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

t

o(r)

output rise time CL= 20 pF;

10% to 90% levels

−−20 ns

t

o(f)

output fall time CL= 20 pF;

90% to 10% levels

−−20 ns

DESIGNATED BY ‘M’ (CMOS LEVELS)

V

OL

LOW-level output voltage IOL=4mA −−0.4 V
V

OH

HIGH-level output voltage IOH= −4 mA 0.85V

DDD1(3P)

−− V

C

L

load capacitance −−20 pF
t

o(r)

output rise time CL= 20 pF;

10% to 90% levels

−−20 ns

t

o(f)

output fall time CL= 20 pF;

90% to 10% levels

−−20 ns

I

L(3-state)

3-state leakage current VLI= 0 to V

DDD1(3P)

−10 − +10 µA

DESIGNATED BY ‘AL’ (ATA DATA BUS LEVELS)

V

OL

LOW-level output voltage IOL=4mA −−0.5 V
V

OH

HIGH-level output voltage IOH= −4 mA 0.9V

DDD2(5P)

−− V

C

L

load capacitance −−100 pF
t

o(r)

output rise time CL= 100 pF;

0.5 V to 90% V

DDD2(5P)

5 −− ns

t

o(f)

output fall time CL= 100 pF;

90% V

DDD2(5P)

to 0.5 V

5 −− ns

DESIGNATED BY ‘AH’ (ATA LEVELS)

V

OL

LOW-level output voltage IOL=12mA −−0.5 V
V

OH

HIGH-level output voltage IOH= −4 mA 0.9V

DDD2(5P)

−− V

C

L

load capacitance −−100 pF
t

o(r)

output rise time CL= 100 pF;

0.5 V to 90% V

DDD2(5P)

5 −− ns

t

o(f)

output fall time CL= 100 pF;

90% V

DDD2(5P)

to 0.5 V

5 −− ns

Input: CRIN (external clock)

V

IL

LOW-level input voltage −0.3 − +0.5 V
V

IH

HIGH-level input voltage 2.0 − V

DDA

+ 0.3 V

t

IH

input HIGH time relative to period 45 − 55 %
I

LI

input leakage current −10 − +10 µA
C

i

input capacitance −−7pF

Output: CROUT

f

XTAL

crystal frequency note 6 − 8.4672 − MHz
g

m(mutual)

mutual conductance at

start-up

− 17 − mA/V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Oct 05 15

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

Notes

1. Clips at maximum gain setting; input can handle two times the maximum signal amplitude.

2. Gain depends on application components.

3. Pin ACT_EMFP operating in bypass mode.

4. Performance largely determined by application circuit.

5. Does not apply to pins EA_WAIT, PSENN_CS and ALE_ASTB as they have internal pull-up resistors.

6. It is recommended that the nominal running series resistance of the crystal or ceramic resonator is ≤ 60 Ω.

C

(feedback)

feedback capacitance −−2pF
C

o

output capacitance −−7pF
R

bias

internal bias resistor − 200 − kΩ

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Oct 05 16

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

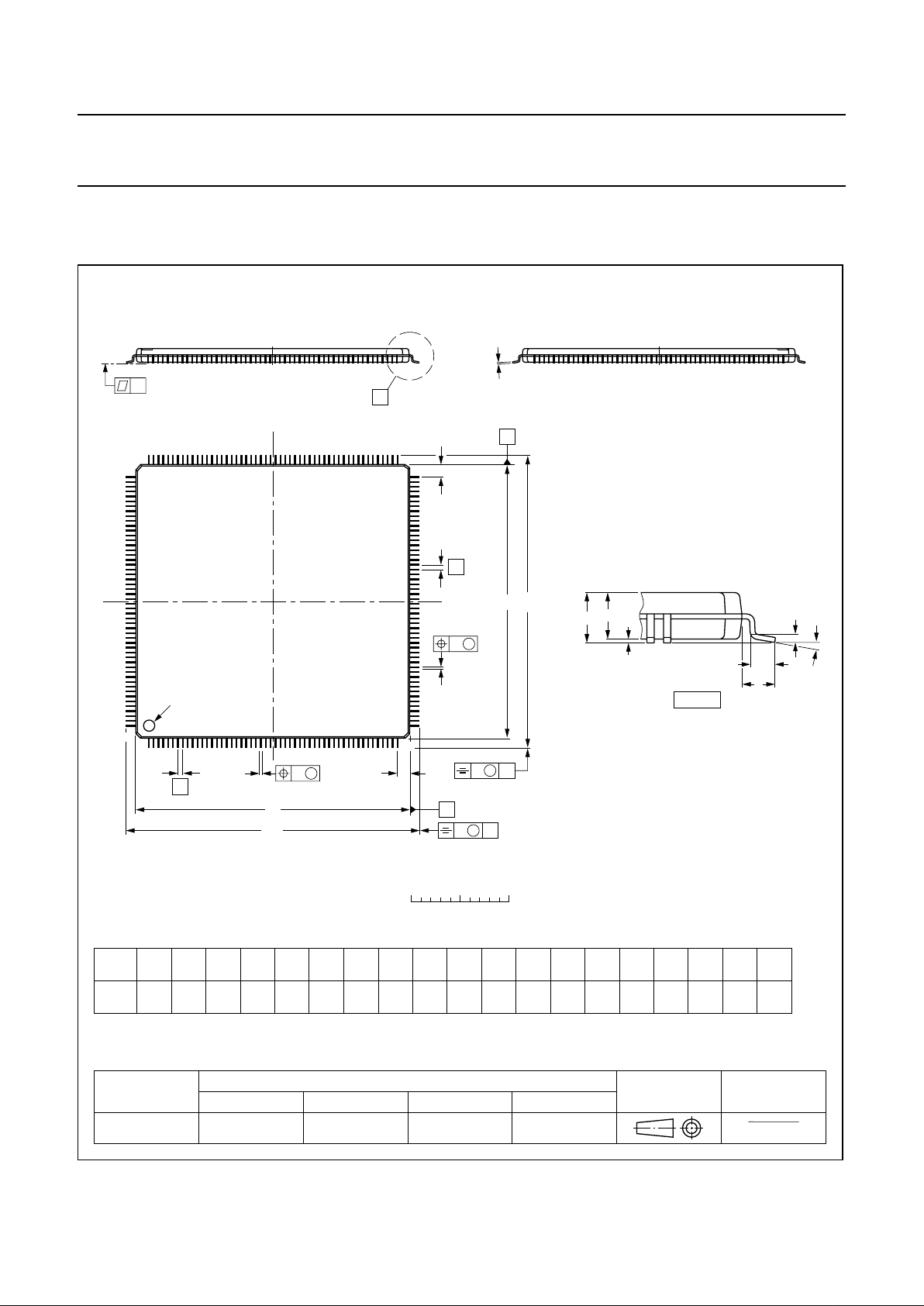

PACKAGE OUTLINE

UNIT A1A2A3b

p

cE

(1)

eH

E

LL

p

Zywv θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

0.15

0.05

1.45

1.35

0.25

0.27

0.17

0.20

0.09

28.1

27.9

0.5

30.15

29.85

1.43

1.08

7
0

o
o

0.150.121.0 0.1

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

0.75

0.45

SOT459-1

97-10-02
98-06-17

D

(1)

28.1

27.9

H

D

30.15

29.85

E

Z

1.43

1.08

D

pin 1 index

b

p

e

θ

E

A

1

A

L

p

detail X

L

(A )

3

B

52

c

D

H

b

p

E

H

A

2

v M

B

D

Z

D

A

Z

E

e

v M

A

X

1

208

157

156

105

104

53

y

w M

w M

0 5 10 mm

scale

LQFP208; plastic low profile quad flat package; 208 leads; body 28 x 28 x 1.4 mm

SOT459-1

A

max.

1.6

1999 Oct 05 17

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

SOLDERING
Introduction to soldering surface mount packages

Thistextgivesavery brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering is not alwayssuitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
tothe printed-circuit board by screen printing, stencillingor
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

Wave soldering

Conventional single wave soldering is not recommended
forsurfacemountdevices(SMDs)orprinted-circuitboards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• Forpackageswithleadsonfoursides,thefootprintmust
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Oct 05 18

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

Suitability of surface mount IC packages for wave and reflow soldering methods

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

PACKAGE

SOLDERING METHOD

WAVE REFLOW

(1)

BGA, SQFP not suitable suitable
HLQFP, HSQFP, HSOP, HTSSOP, SMS not suitable

(2)

suitable

PLCC

(3)

, SO, SOJ suitable suitable

LQFP, QFP, TQFP not recommended

(3)(4)

suitable

SSOP, TSSOP, VSO not recommended

(5)

suitable

1999 Oct 05 19

Philips Semiconductors Preliminary specification

Single-chip DVD-ROM SAA7811HL

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PURCHASE OF PHILIPS I

2

C COMPONENTS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

Purchase of Philips I

2

C components conveys a license under the Philips’ I2C patent to use the
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

1999

68

Philips Semiconductors – a w orldwide compan y

For all other countries apply to: Philips Semiconductors,

International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

Printed in The Netherlands 545006/01/pp20 Date of release:1999 Oct 05 Document order number: 9397 750 06164
