SAA7780

ThunderBird Q3D PCI Audio Accelerator

Product specification 1999 Sep 30




ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

• Add's reverb as an additional positional que

• Reverb preset's can be applied to any
DirectSound3D application

• EAXTM Compatible

• QXpanderTM and Stereo to 3D remapping

• Second Generation ActiMediaTM Programma­bleDSP architecture

• Comprehensive Real Mode DOS and DOS window
support

FEATURES

• Full H/W acceleration of 64 audio sources

• 64 H/W sample fetch channels

• 64 H/W sample rate convertors

• H/W mixing of 64 streams

• H/W DSP filter/effects/music synthesis applied
to 64 streams

• Concurrent processing of up to 384 audio sources

• Up to 64 DirectSound/wavetable sources pro­cessed in H/W

• 64 plus DirectSound sources processed on host

• Up to 128 total DirectSound sources

• Up to 64 3D sources

• Up to 64 H/W wavetable voices

• Up to 256 host wavetable voices

• QSound3DInteractiveTM interactive positional 3D

• H/W DSP processing for maximum performance

• Stereo speaker, headphone and quad speaker
algorithms

• Proprietary technology eliminates crosstalk can­cellation and broadens "sweet spot"

• A3DTM compatible

• QSound Multi-Speaker SystemTM stereo-to-quad pro­cessing

• Transforms ordinary stereo applications to quad­raphonic

• Non-3D games become immersive quad 3D
games

• Enhanced DVD movie playback

• True quadraphonic music playback from CD's,
music DVD's and MP3 players

• Effective with both stereo and Dolby Pro-LogicTM
encoded material

• QSound Environmental ModelingTM

• SoundBlaster ProTM Compatibility

• PC/PCI, DDMA and LAMTM PCI DMA support

• FM, MIDI stereo and MIDI quad music in Real
Mode DOS

• Supports low cost AC97 1.0 and serial stereo DAC
output

• Dual gameport accelerator with legacy and digital
joystick modes

• Integrated 16650 UART for Modem or other serial
port applications

• Windows
NT 5.0 (WDM) Drivers

• 0.35u TLM manufacturing technology

• 3.3v operation with 5v tolerant I/O

(R)

95, Windows

(R)

98, and Windows

GENERAL DESCRIPTION

The SAA7780 ThunderBird Q3DTM is a high-perfor­mance PCI audio accelerator targeting PC gaming
and music applications. Developed by QSound Labs
and Philips Semiconductors, it combines the most
compelling 3D, quadraphonic and music synthesis
technologies available with the powerful yet cost
effective ActiMediaTM DSP architecture. Full H/W
acceleration of DirectSoundTM, 3D audio, music syn­thesis, and gameport functions guarantees excep­tional system performance. QSound's new Q3DTM
algorithms not only render exceptional 3D sound­scapes for 3D applications but add a new dimension
to stereo applications using their unique stereo-to-3D
and stereo-to-quad remapping capabilities. Three
available PCI DMA modes assure full SoundBlaster
ProTM compatibility on most platforms without addi­tional hardware. The Intel AC97 architecture pro­vides high audio quality using a low cost AC97
codec.

(R)

1999 Sep 30 2 853-2174 22449

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

PACKAGE

SAA7780 QFP160 plastic quad flat pack; 160 leads (lead length 1.60 mm); body

28 x 28 x 3.42 mm

QUICK REFERENCE DATA

Condition Symbol Maximum Ratings

Ambient Operating Temperature T
Ambient Storage Temperature T

A
S

Non-Operating Core and Ring Supply Voltage VDD, VDDIC -0.5V to 4.6V *
Operating Core Supply Voltage VDDIC -0.5V to 3.63V *
Operating Ring Supply Voltage VDD 3.0V to 3.63V *
5V Tolerant Supply (5.0V nominal supply) NWELL -0.5V to 5.5V *
NWELL to VDD Differential NWELL-VDD 0 ≤ (NWELL-VDD) < 4.0V

0°C to +70°C

-65°C to +150°C

25-90019

3V Tolerant I/O DC Input Voltage V
3V Tolerant I/O DC Output Voltage V
5V Tolerant I/O DC Input Voltage V
5V Tolerant I/O DC Output Voltage V
DC Input Current (at VI < 0V or VI > VDD) I
DC Output Current (at VO < 0V or VO > VDD) I
Power Dissipation P

I3
O3
I5

O5
I
O

D

-0.5V to VDD+0.5V (≤ 4.6V max)+

-0.5V to VDD+0.5V (≤ 4.6V max)+

-0.5V to 5.5V (≤ 6.0V max)+

-0.5V to VDD+0.5V (≤ 4.6V max)+

± 20mA
± 20mA

500mW

*Refer to Section 3.1 to ensure proper power supply sequencing as well as voltage ranges.
+Items in parenthesis are non-operating conditions.

1999 Sep 30 3

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

FIGURE 1 BLOCK DIAGRAM

Serial

CFG

Port

PCI
Bus

Test
Port

INTA#

Port

Port

Xtal

PCI

Configuration

Headers

PCI

Master/Slave

Interface

Serial

Interrupt

Controller

16650
UART

Game Port

Interface

PLL

Test Logic

PLL Cell

Multimedia

Timer

32 BIT DMA BUS

16 BIT PS BUS

32 BIT VREG BUS

8 BIT PS/VPB BUS

AC Link Interface

AC Link

& the DMD

Interface

Legacy

DMA

Interface

SoundBlaster

Registers

OPL3

Registers

FM

Accelerator

Sample Fetch

Accelerator

Virtual

Registers

Address

Generation

(2/64x24,

2/64x36)

DAC

Interface

General

Purpose I/O

DSP Interrupt

Controller

INTRs

Pine

DSP DATA BUS

DSP Core

DSP Code

ROM

DSP Code

Patch RAM

DSP

Memory

Controller

DSP Data

RAM

Serial
DAC
Port

GPIO

DSP CODE BUS

1999 Sep 30 4

Host/DSP

Interface

MIDI Regs
and UART

MIDI Interface

Prog

IIR Filter

Phase/Env

Accelerator

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

PINNING

PIN # PIN NAME PIN # PIN NAME PIN # PIN NAME PIN # PIN NAME PIN # PIN NAME

1 VDD 35 PCGNT# 69 TRDY# 103 MD15 137 MA10
2 SYNC 36 PCREQ# 70 DEVSEL# 104 VSS 138 VDDIC
3 BIT_CLK 37 GNT# 71 STOP# 105 MD14 139 MA11
4 SDATA_OUT 38 REQ# 72 PERR# 106 MD13 140 MA12
5 SDATA_IN 39 AD31 73 SERR# 107 MD12 141 MA13
6 AC_RST# 40 VSS 74 VSS 108 MD11 142 VDD
7 JAB1 41 VDD 75 PAR 109 MD10 143 MA14
8 JBB1 42 AD30 76 C/BE1# 110 MD9 144 MCS#

9 JACX 43 AD29 77 AD15 111 MD8 145 TXD
10 JBCX 44 AD28 78 AD14 112 VDD 146 RXD
11 MIDIOUT 45 AD27 79 AD13 113 MD7 147 VSSIC
12 JBCY 46 AD26 80 VDD 114 MD6 148 RTS#
13 JACY 47 VSS 81 VSS 115 MD5 149 DTR#
14 JBB2 48 AD25 82 AD12 116 MD4 150 CTS#
15 VSS 49 AD24 83 AD11 117 NWELL 151 DSR#
16 JAB2 50 C/BE3# 84 VDD 118 MD3 152 DCD#
17 VSSIC 51 IDSEL 85 AD10 119 MD2 153 RI#
18 MIDIIN 52 AD23 96 AD9 120 VSS 154 GPIO0
19 PLLAGND 53 AD22 87 AD8 121 VDD 155 GPIO1
20 PSUB 54 VDD 88 C/BE0# 122 MD1 156 GPIO2
21 PLLAPWR 55 AD21 89 AD7 123 MD0 157 MSI
22 PLLDPWR 56 VDDIC 90 VSS 124 MA0 158 MCLK
23 XTALIN 57 AD20 91 AD6 125 MA1 159 MLRCK
24 XTALOUT 58 NWELL 92 AD5 126 MA2 160 VSS
25 PLLDGND 59 AD19 93 AD4 127 MA3
26 VSS 60 VSSIC 94 AD3 128 VSS
27 DSPCLK 61 AD18 95 AD2 129 MA4
28 VDD 62 VSS 96 VDD 130 MA5
29 TRI# 63 AD17 97 AD1 131 MA6
30 NAND# 64 AD16 98 AD0 132 MA7
31 INTA# 65 C/BE2# 99 VDDIC 133 MWE#
32 IRQSER 66 FRAME# 100 CLKRUN# 134 MA8
33 RST# 67 IRDY# 101 CFGDAT 135 VDD
34 PCLK 68 VDD 102 CFGCLK 136 MA9

1999 Sep 30 5

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

FIGURE 2 PIN CONFIGURATION

VSS

MLRCK

MCLK

MSI

GPIO2

GPIO1

GPIO0

RI#

DCD#

DSR#

CTS#

DTR#

RTS#

VSSIC

RXD

TXD

MCS#

MA14

VDD

MA13

MA12

MA11

VDDIC

MA10

MA9

VDD

MA8

MWE#

MA7

MA6

MA5

MA4

VSS

MA3

MA2

MA1

MA0

MD0

MD1

VDD

160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

VDD

SYNC

BIT_CLK

SDATA_OUT

SDATA_IN

AC_RST#

JAB1

JBB1
JACX
JBCX

MIDIOUT

JBCY
JACY

JBB2

VSS

JAB2

VSSIC

MIDIIN

PLLAGND

PSUB

PLLAPWR

PLLDPWR

XTALIN

XTALOUT

PLLDGND

VSS

DSPCLK

VDD
TRI#

NAND#

INTA#

IRQSER

RST#

PCLK
PCGNT#
PCREQ#

GNT#

REQ#

AD31

VSS

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

414243444546474849505152535455565758596061626364656667686970717273747576777879

TOP VIEW

SAA7780

120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100

80

99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81

VSS
MD2
MD3
NWELL
MD4
MD5
MD6
MD7
VDD
MD8
MD9
MD10
MD11
MD12
MD13
MD14
VSS
MD15
CFGCLK
CFGDAT
CLKRUN#
VDDIC
AD0
AD1
VDD
AD2
AD3
AD4
AD5
AD6
VSS
AD7
C/BE0#
AD8
AD9
AD10
VDD
AD11
AD12
VSS

1999 Sep 30 6

VDD

AD30

VSS

AD29

AD28

AD27

AD26

AD25

AD24

VDD

AD23

AD22

AD21

IDSEL

C/BE3#

AD20

VDDIC

VSS

AD19

AD18

AD17

VSSIC

NWELL

VDD

AD16

IRDY#

TRDY#

C/BE2#

FRAME#

VSS

PAR

STOP#

PERR#

SERR#

DEVSEL#

VDD

AD15

AD14

AD13

C/BE1#

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

FUNCTIONAL OVERVIEW
True Hardware Acceleration

The ThunderBird PCI
functions are performed on the ActiMediaTM DSP which frees the host CPU to perform other tasks, boosting graphic
frame rates and raising system benchmark performance.

TM

products are true hardware accelerators. Positional 3D, music synthesis and SoundBlasterTM

High Concurrency

Today's multimedia applications demand concurrent, independent audio processing of many diverse audio streams.
Mainstream applications may require 32 or more wavetable synthesis voices and 24 or more sound effects positioned
in 3D space concurrently with other audio stream processing. The ThunderBird Q3DTM can simultaneously process 64
combined audio and wavetable voice streams in H/W plus an additional 64 audio streams using QSound's efficient
MMX host engine for a total of 128 audio and wavetable streams. For greater concurrency and higher music polyphony
a professional quality 256 voice soft-synth is available. This can be used for all music synthesis reserving all 128
streams for other audio sources bringing the total concurrency to 384 streams.

Immersive 3D Audio

The ThunderBird Q3DTM is armed with the most advanced arsenal of 3D technology available. The listener is immersed
in a realistic 3 dimensional soundscape. QSound’s technology renders 3D applications using stereo speakers,
headphones or quad speakers; and transforms ordinary stereo applications from games to CD players into 3D and
quad applications.

QInteractive3DTM (QI3DTM ) utilizes the ActiMedia DSP to interactively position DirectSound streams in 3D space
around the listener. Three different 3D engines based on HRTF and patented QSound Technology are used to render
over 2 speakers, headphones or quad speakers. Since the unique 2 speaker engine requires no signal cross
cancellation, QI3D provides a more robust 3D imaging than ordinary HRTF processing with minimal sensitivity to
speaker placement, speaker quality and listener location. QI3D utilizes the industry standard DirectSound3D API and
is compatible with DirectSound3D and A3DTM applications.

QSound Environmental ModelingTM (QEMTM) adds further realism by using reverb as an additional positional que. With
QEM enabled each DirectSound3D sound source receives reverb simulating acoustic reflections based on the regions
reverb preset and the sources current position relative to the listener. Reverb presets can also me manually enabled by
the listener for DirectSound3D applications that do not support EAX. QEM is EAXTM 1.0 compatible.

QSound Multi-Speaker SystemTM(QMSSTM) utilizes a proprietary stereo-to-quad remapping algorithm to transform
ordinary stereo applications into more immersive quad applications. Unlike some other implementations that simply
mirror the front speaker content in the rear speakers QMSS creates 4 individual channels. For musical applications
different instruments or sounds will seem to emanate from one or more speakers. For 1st person gaming applications
and movie playback, QMSS will estimate approximate placement of each sound based on the stereo mix and adjust it's
amplitude and timing in each speaker accordingly.

QMSS can be used to dramatically enhance numerous stereo applications. DirectSound games become more realistic
with action all around the listener. Music CD, MP3, and MIDI playback become more immersive. Stereo and Dolby
ProLogicTM film clips become the theatre-like in presentation without a decoder required. QMSS can also be used to
enhance Dolby Digital DVD playback using only the stereo or Dolby ProLogic audio tracks. Many viewers prefer this
alternative to standard Dolby digital playback because of the additional audio content in the rear speakers. QI3D can
also be used for more traditional quad playback of Dolby Digital DVD's when combined with a soft-DVD player using the
DirectSound3D API.

QXpander enhances 2 speaker playback by broadening the sound field and mapping stereo positions to 3D positions.

1999 Sep 30 7

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

CD Quality Wavetable Synthesis with 320 Total Voices

ThunderBird Q3DTM includes two wavetable synthesis engines. When configured for wavetable synthesis only the
ActiMedia DSP can produce up to 64 wavetable 44KHz, 16 bit voices. Using the ActiMedia engine minimizes CPU
consumption and is ideal for games with MIDI music tracks. Also available is a professional quality soft-synth that can
produce up to 256 voices including special effects. The soft-synth is highly configurable and can be optimized for
highest quality with pure music applications or for minimum CPU consumption in gaming applications.

Both engines maximize quality and minimize cost by using system memory for wavetable sample sets and the
ActiMedia engine can be used to accelerate DirectMusic and DLS (Down Loadable Sound) sample sets using WDM
drivers.

ActiMedia DSP Architecture

The ActiMedia architecture combines the strengths of both programmable and fixed function DSP architectures. A
programmable DSP processor enables custom features, field up-grade and ease of development. An array of gate­efficient fixed function DSP processors (accelerators) operate in parallel with the programmable DSP, providing an
extremely high performance-to-cost ratio. Unlike fixed-point DSP's that must use a single resolution for all audio
processing, each accelerator is designed with the optimum resolution for its function. This preserves the audio integrity
without the cost of a high-resolution or floating point programmable DSP implementation. The result is a performance,
quality and concurrency that requires 10 times the MIPS on a classical DSP architecture.

Digital Mode Dual Game Port

The S/W polling used by analog game ports can consume up to 10% of the host CPU. ThunderBird PCI products utilize
a digital operating mode that can eliminate S/W polling and accelerate the game port function resulting in significantly
improved system performance. Joystick buttons can be polled or interrupt driven to further enhance performance. A
default analog mode assures compatiblitiy with DOS and other non-DirectInputTM applications.

PCI Interface

The ThunderBird Q3DTM is a PCI 2.1 compliant multifunction device including audio, game port and 16650 UART
functions capable of bursting at 132 MB data rates. The high bandwidth and low latency of the PCI bus reduces the
need for host based processing and local memory. The PCI bus consumption of each audio stream is reduced by a
factor of 10 compared to ISA solutions. The PCI and CPU busses are no longer locked during slow ISA DMA
transactions and system performance is improved as much as 20%.

To maximize performance, the PCI interface includes dual 32 bit bus masters: DMA, DirectSound and wavetable
synthesis acceleration. A 16 bit DSP Master Device is used to transfer data directly between the host and DSP or AC97
interface. Additional slave devices support legacy and MIDI interfaces. All I/O is re-mappable creating a true "Plug and
Play" device.

Comprehensive Legacy Audio Support

SoundBlaster Pro compatibility in both Real Mode DOS and DOS windows is achieved through H/W SoundBlaster and
OPL 3 (FM) emulation registers. Legacy DMA over the PCI bus is supported on all major platforms utilizing PC/PCI,
DDMA, or VLSI's proprietary Legacy Accommodation ModeTM (LAMTM). DOS music synthesis includes stereo MIDI
playback, quad MIDI playback, and FM emulation.

Integrated I/O and Peripherals

ThunderBird Q3D products include all the required features to implement a PCI audio solution with minimal chip count.
I/O includes an AC97 link for a AC97 1.0 codec, stereo DAC serial port for multi-channel or low cost playback

1999 Sep 30 8

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

applications, MPU-401 UART with MIDI IN and MIDI Out connections for external keyboard, sequencer, synthesizer or
other MIDI devices, 16650 UART for modem, other serial connections or usage as GPIO's , I2C configuration port for
storage of SubSystem/Vendor ID's and other data in serial EEPROM, dual Game Port and 3 GPIO's, and an external
SRAM interface for DSP code development or field programmable applications. Only a single 14.318 MHz crystal is
required to support the internal PLL. A 20bit, 1us resolution timer is provided for DirectXTM audio/video synchronization.

Operating System Support

VXD driver support includes: WIN95, WIN98, and NT 4.0. WDM driver support will include WIN98 and NT

5.0/WIN2000.

Power Management

ThunderBird Q3D provides localized clock control and full event monitoring including interrupts, I/O and S/W events.
Independent power down control of the PLL, DSP, and codec is provided and PCI CLKRUN protocol is supported.
Power management h/w hooks exist to achieve compliancy with ACPI and "On Now" initiatives.

1999 Sep 30 9

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Architectural Overview

The ThunderBird Q3D - SAA7780 is a multi-functional device that provides full duplex sound processing, DirectSound
acceleration, 3D audio acceleration, SoundBlaster emulation, FM emulation, wavetable synthesis, and other audio
effects utilizing its ActiMedia DSP processor. The ActiMedia processor consists of a number of fixed function DSP
accelerator blocks and a programmable Pine DSP core. Included within the SAA7780 are interfaces for an AC97
codec, serial DAC, MIDI port, and standard analog and digital joysticks as well as optional external code RAM.

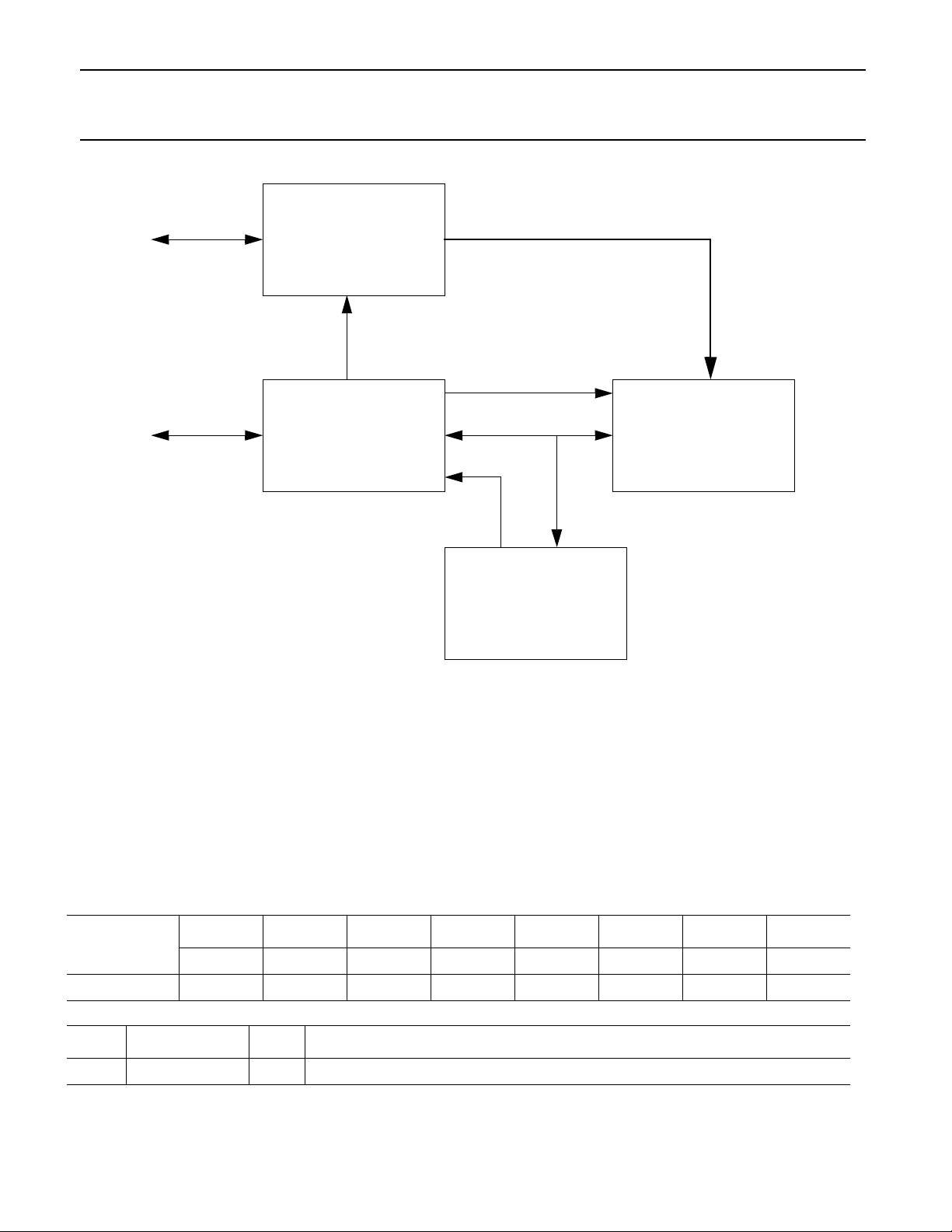

FIGURE 3 Block Diagram of a PC/AT System with the SAA7780

CPU

System

Bridge

TM

HOST BUS

AGP

Graphics

Cache

Memory

ISA BUS PCI BUS

Pentium

Controller

PCI to ISA

Multi I/O

AC97 CODEC

Serial DAC

1999 Sep 30 10

and/or

ThunderBirdTM Audio

Controller

JoystickMIDI Port

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Systems that provide DDMA or have the ISA bridge on the primary PCI bus are able to perform SoundBlaster emulation
enabling the operation of legacy DOS based games. The SAA7780 chip provides two 8237 style DMA channels to
perform legacy DMA cycles on selected systems. The same two 8237 channels provide Distributed DMA support as
well. PC/PCI is also supported to provide legacy DMA support on chipsets that support said protocol.

DirectSound acceleration, both for 2D and 3D audio along with wavetable sample fetching, is accomplished using the
SAA7780 chip PCI 2.1 bus master. This bus master provides the means for the SAA7780 chip to accelerate
DirectSound audio streams as well as fetch wavetable samples for the 64 voice wavetable synthesis and effects
algorithms. Wavetable sample fetching is always retrieved from system memory saving the cost of an external
wavetable ROM. Downloadable sample sets, with software, are also supported using the bus master hardware.

Additionally, the SAA7780 chip follows the AC97 Architecture to provide high quality audio by the use of a separate
codec. Serial DACs, as well as an AC97 CODEC can be selected to provide audio into the analog world. A serial DAC
is used in case the system designer wishes to use an inexpensive playback converter and does not require a record
function. A codec and a DAC can be used if multi-channel audio is required.

The SAA7780 chip supports additional interfaces to sustain both required and optional features. These interfaces
include a standard 4-axis/4 button joystick, external MIDI port, an SRAM interface for external DSP code or enhanced
reverb, and a 16650 UART for an external modem.

The ActiMedia DSP runs the audio algorithms for wavetable synthesis, FM synthesis, special effects such as reverb
and chorus, along with sample rate conversion and data management. The imbedded DSP core and its peripherals are
managed solely by the DSP and require no intervention from the host. The DSP can pass messages to and from each
domain to provide a host software interface into the DSP domain.

Structural and Functional Overview

The SAA7780 contains components to implement the sound generation with accessories to add value to a gaming type
environment. In short, there are three basic types of blocks to implement all of the advanced features present in this
chip. The three types of blocks are PCI domain, DSP domain and mailbox. The PCI domain type of blocks refer to the
blocks that connect only to the internal and external PCI interfaces. The DSP domain blocks connected only to the DSP
code or data busses. The mailbox type interfaces between both worlds providing both functional and test operations
between the two domains. The following sections will give more details on the function and operation of each block.

PCI Interface, Configuration and Interrupt Serializer

The SAA7780 chip PCI interface is composed of master and slave state machines, an address/data/byte enable
datapath, a bus arbiter for the two on chip masters, control logic for the master and slave internal busses, an interrupt
serializer, and the standard PCI configuration register header.

The standard PCI configuration header is also supported. Since the SAA7780 is a multi-function device, there are three
PCI configuration spaces allocated for each function. The three functions are the audio device, the joystick and the
16650 UART. The purpose of the multiple configuration headers is to ensure PCI compliance and enable the operating
system to select the correct software driver for each individual device. The Serial CFG Port is used to shift in subvendor
specific data for each of the PCI configuration headers. The Serial CFG port is an industry standard I2CTM format. The
configuration headers are included in the PCI interface to reduce inter-block routing. All other PCI configuration space
registers are included in the blocks that utilize these registers.

16650 UART

In order to support an external hardware modem chip set, a 16650 UART is included in the SAA7780 chip. The 16650
UART excludes the need for an additional ISA based UART thereby reducing system costs. The 16650 UART resides
in I/O space and is re-mappable.

1999 Sep 30 11

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Clocks and the PLL Subsystem

Clocks for operation of the SAA7780 are derived from two sources; an external crystal and bit clock from the AC97
CODEC. The SAA7780 PLL Subsystem derives its reference from the external crystal.

FIGURE 4

xtalin

15pF

470k

The SAA7780 substem consists of a fixed layout PLL cell and a digital interface to the 8 bit PS bus. The PLL is
designed to drive the clocks for the DSP subsystem. The implementation calls for the PLL to be utilized with complete
programmable register interface to enable the tuning of the frequencies as necessary.

Multimedia Timer

The SAA7780 chip supplies a 20-bit, 1uS resolution timer for game synchronization. The timer data can be accessed as
an I/O device. This timer can be used by game developers to keep track of time elapsed to synchronize the video to the
audio stream. The timer can be polled or interrupt driven and is selectable by the user application.

DMA is for the Sound Blaster registers, the DSP Mastering Device (DMD), and the Audio codec. To cover as many
systems as possible, the DMA interface supports three modes for legacy support: Mobile PC/PCI DMA Arbitration
(PC/PCI), Distributed DMA (DDMA), and Legacy Accommodation Mode (LAM).

Legacy Accommodation Mode allows the SAA7780, in an architecturally compatible system, to snoop and snarf
selected DMA cycles on the PCI bus that were intended to the ISA Bridge. If a chip set supports Distributed DMA, the
SAA7780 will use this method since it is more efficient than LAM. Additionally, PC/PCI can be utilized as well if neither
DDMA nor LAM are supported on the selected chip set.

14.318MHz

15pF

SAA7780

xtalout

AC Link and the DSP Master Device Interface

The SAA7780 chip provides support for the AC97 specification by supplying an AC Link interface to communicate with
an industry standard AC97 CODEC. The AC Link interface is set up to allow the PCI, DMA and DSP busses to interface
with the AC97 codec via the AC Link. The AC Link is compliant with the release 1.03 of the AC97 specification.

Sound Blaster Registers

The other device that requires DMA is the SoundBlaster registers. DMA is used to transfer SoundBlaster digital audio
files from the host to a codec for playback in addition to providing a mailbox for other commands. In order for the DSP
to emulate the Sound Blaster sound effects, a legacy register set must be implemented to capture these commands.
These sixteen, 16-bit registers are used primarily to emulate SoundBlaster Pro register set as well as the SoundBlaster

1999 Sep 30 12

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Pro mixer registers. These registers are used as a mailbox to the DSP data bus to deliver data to the SoundBlaster
Emulation code. The SAA7780 chip supports DMA to the Sound Blaster that legacy code requires. All data transmitted
over the SoundBlaster Registers is processed by the DSP to emulate the Sound Blaster Pro hardware.

OPL3 Registers and the FM Accelerator

The OPL3 register interface is a subset of the complete SoundBlaster register set. The OPL3 registers are separate to
point out that the FM legacy is supported at the register level. The OPL3 registers simply pass FM synthesis commands
to the SoundBlaster Emulation code and receive status from the same code.

Virtual Registers

The Virtual Registers interfaces the PCI bus and two substantial wavetable synthesis accelerators: the Sample Fetch
and Address Generation accelerators. The Virtual Registers is responsible for setting up the PCI interface for master
cycles data fetches and retrieving those fetches into a sample buffer. The Virtual Registers get commands from the
Address Generation accelerator and turns them into PCI master requests. Once the data has been retrieved, the Virtual
Register then instructs the Sample Fetch accelerator to process a block of data. Once the processing is complete, the
Sample Fetch Accelerator notifies the Virtual Registers that all is clear and that new data can be processed.

Address Generation Accelerator

The Address Generation accelerator is a preprocessing unit for the sample fetching mechanism inside the Virtual
Registers. The Address Generator will get a set of parameters from the DSP code on a per voice basis for either
DirectSound processing or wavetable synthesis. Once these voice parameters are set, the hardware is instructed to
translate the addresses and fetch the audio samples from system memory. The Address Generator is also capable of
looping with intervention from the DSP code. The DSP kills voices by instructing the Address Generator to stop fetching
data. Once the samples are fetched, they are stored in the Virtual Register’s input sample buffer for processing by the
Sample Fetch Accelerator.

Sample Fetch Accelerator

The Sample Fetch accelerator is used to process audio samples fetched by the Virtual Registers and deliver them to
the DSP code for further processing. This processing can include pitch shifting or rate conversion. The degree of pitch
shifting is under direction of DSP code indicating the Sample Fetch accelerator is programmable. The input samples
are taken from the Virtual Register’s input sample buffer and stored in DSP memory space.

MIDI Registers and UART

An MPU401 compatible UART is supplied to enable external MIDI devices to use the SAA7780 chip synthesizers as
well as its external device’s own synthesizer. The MIDI register interface is used to pass the MIDI command stream
from the host to the DSP firmware for parsing into synthesizer commands. The MPU401 UART always operates in
“dumb” mode. Both the PCI and DSP can access the MIDI UART directly. Data is presented from/to the MPU401
Registers in a mailbox fashion to the MPU401 UART.

Music DAC Interface

The music DAC interface allows for an inexpensive, high quality, playback of the final stereo mix or for providing the
unique QUAD feature when used in conjunction with the standard AC97 V1.03 CODEC. The interface is a standard
EIAJ format supporting many brands of inexpensive 16 bit DACs. The Music DAC interface is capable of playback
sample rates from 22.05 - 48.0 KHz.

1999 Sep 30 13

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

General Purpose Input/Output

There are five general purpose I/O pins that are controlled by the DSP. These pins can be used for power management
of external devices or for test and debug of DSP code. All are full time available under DSP code control. These GPIOs
are not controllable from the PCI bus and are generally not available to users.

PINE DSP Core

The Pine DSP core is a programmable 16-bit integer DSP with separate code and data busses (Harvard architecture).
Main features of the DSP core include 2K x 16 data RAM, 64K word code and data space, 16 x 16 bit two’s complement
parallel multiplier with 32-bit product, single cycle multiply/accumulate instructions, 36-bit ALU, two 36-bit accumulators,
six-general purpose 16-bit pointer registers, option for up to eight user-defined 16-bit registers, zero overhead looping,
repeat and block-repeat instructions with one nesting level, shifting capability, automatic saturation mode on overflow
while reading content of accumulators, divide and normalize step support.

As noted on Figure 1, the DSP subsystem is supported by two dedicated Pine internal busses called the DSP code bus
and the DSP data bus. All DSP peripherals are connected to the DSP data bus while the code bus is used for just that,
DSP code ROM and RAM. Both the DSP code and data busses are 16-bit for the address and data lines on each bus.
DSP code also enables the DSP core to act as a PCI bus master making it a powerful and flexible audio processing
unit.

DSP Interrupt Controller

The DSP Interrupt Controller is a programmable, priority encoded device that encodes two interrupt signals to the Pine
core. The DSP Interrupt Controller resides on the DSP data bus and is programmed by DSP code. Both sets of
interrupt vectors feature an enable and status bit for each interrupt based device.

DSP Memory Controller

The DSP memory controller provides controls and decodes for the regular DSP data and code RAMs as well as the
code ROMs. The Memory Controller also includes a patch mechanism to allow ROM code to be updated or fixed using
a trapping device.

Game Port

The SAA7780 Game Port interface is designed to emulate the PC-AT based legacy joystick operation as well as
support of a digital joystick mode. The legacy or analog, type of operation is designed to support all legacy software that
uses the original joystick address and the method for resolving the joystick axes positions. The Digital Mode is
designed to reduce the joystick overhead by resolving the joystick position directly and to support applications that use
DirectInput.

The legacy joystick used a one shot multi-vibrator on each of the four joystick potentiometers. These one shots were
set up to deliver a pulse that was proportional to the resistor value of the joystick potentiometers. Software would them
poll the one shots to see if they had been set to the original value. The time it took for each axes to return to the original
value was resolved into a position by the legacy software. The SAA7780 emulates the 558 based one shot circuit to
support legacy games that use the PC-AT joystick. The joystick button values were routed directly to the system bus
where only a decode was required to read the value of the button. Software would poll the buttons as well. All button
and joystick axes data is returned in a single byte wide register.

Game Port Legacy I/O Register

This register is the legacy mode register for the 558 based joystick. Typically, this register is located at legacy address
of 201h. Reads from this register will poll the status of the joystick buttons and are used to resolve the position. Writes

1999 Sep 30 14

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

to this register will discharge the external capacitors to emulate the 558 one shots. Software can then poll the joystick
register bit to resolve each of the joystick axes positions by timing. The joystick button register bits have meaning in
both the digital and analog modes. The axes bits are only valid for analog mode.

Game Port 558-Based Register - Gameport (RO) )

I/O GMBASE D7 D6 D5 D4 D3 D2 D1 D0
Offset 1h JOYB_2 JOYB_1 JOYA_2 JOYA_1 JOYB_Y JOYB_X JOYA_Y JOYA_X
POR Value 1 1 1 1 0 0 0 0

Bit Name R/W Function

7 JOYB_2 RO Joystick B button 2 status. The joystick buttons should be de-bounced and

de-glitched from the chip interface. The joystick button status registers are

cleared when the joystick button is pressed.
6 JOYB_1 RO Joystick B button 1 status.
5 JOYA_2 RO Joystick A button 2 status.
4 JOYA_1 RO Joystick A button 1 status.
3 JOYB_Y RO Joystick B y-coordinate. Can also be referred to as position 3.
2 JOYB_X RO Joystick B x-coordinate. Can also be referred to as position 2.
1 JOYA_Y RO Joystick A y-coordinate. Can also be referred to as position 1.
0 JOYA_X RO Joystick A x-coordinate. Can also be referred to as position 0.

SAA7780 Signal Definitions

PCI Local Bus Interface Signals

AD[31:0] 39,42,43,44,

45,46,48,49,
52,53,55,57,
59,61,63,64,
77,78,79,82,
83,85,86,87,
89,91,92,93,
94,95,97,98

IO-T PCI Address/Data

AD[31:0] contains a physical byte address during the first clock of a
PCI transaction, and data during subsequent clocks.

When the SAA7780 is a PCI master, AD[31:0] are outputs during
the address phase of a transaction. They are either inputs or outputs
during the data phase, depending on the type of PCI cycle in
process.

When the SAA7780 is a PCI slave, AD[31:0] are inputs during the
address phase. They are either inputs or outputs during the data
phase, depending on the type of PCI cycle in process.

1999 Sep 30 15

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

C/BE#[3:0] 50,65,76,88 IO-T PCI Bus Command and Byte Enables

C/BE#[3:0] defines the bus command during the first clock of a PCI
transaction, and the byte enables during subsequent clocks.

C/BE#[3:0] are outputs when the SAA7780 is a PCI bus master and
inputs when it is a PCI bus slave.

DEVSEL# 70 IO-STS PCI Bus Device Select

When the SAA7780 is a PCI bus master the SAA7780 uses
DEVSEL# to determine whether a master abort should occur if
DEVSEL# is not sampled active by clock 5 of the transaction, or to
determine whether a cycle is to be aborted or retried when a target­initiated termination occurs.

When the SAA7780 is a PCI bus slave, DEVSEL# is an output
which the SAA7780 drives LOW during the second PCLK after
FRAME# assertion to the end of a transaction if the SAA7780 is
selected.

FRAME# 66 IO-STS PCI Bus Cycle Frame

When the SAA7780 is a PCI master, FRAME# is an output which
indicates the beginning of a SAA7780-initiated bus transaction.
While FRAME# is asserted data transfers continue. When FRAME#
is deasserted the transaction is in the final data phase.

When the SAA7780 is a PCI slave, FRAME# is an input that initiates
an I/O, memory or configuration register access if the SAA7780 is
selected for the transaction. The SAA7780 latches the C/BE#[3:0]
and AD[31:0] signals on the PCLK edge on which it first samples
FRAME# active.

IRDY# 67 IO-STS PCI Bus Initiator Ready

When the SAA7780 is a PCI master, IRDY# is an output which
indicates the SAA7780’s ability to complete the data phase of the
current transaction. It is always asserted from the PCLK cycle after
FRAME# is asserted to the last clock of the transaction.

When the SAA7780 is a PCI slave, IRDY# is an input which causes
the SAA7780 to hold-off completion of a read or write cycle until
sampled active.

STOP# 71 IO-STS PCI Bus Stop (Target Initiated Termination)

When the SAA7780 is a PCI master, STOP# is an input which
causes the SAA7780 to complete, abort or retry the transfer,
depending on the state of TRDY# and DEVSEL#.

When the SAA7780 is a PCI slave, it drives STOP# as active (LOW)
to terminate or retry a transaction.

1999 Sep 30 16

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

TRDY# 69 IO-STS PCI Bus Target Ready

When the SAA7780 is a PCI master, TRDY# is an input which
indicates the target agent’s ability to complete the data phase of the
transaction. After initiation of a PCI bus transaction, the SAA7780
inserts wait cycles until TRDY# is sampled active.

When the SAA7780 is a PCI slave, it drives TRDY# active to
indicate that the SAA7780 has sampled the data from AD[31:0]
during a write phase, or presented valid data on AD[31:0] during a
read phase.

PAR 75 IO-T PCI Bus Parity

When the SAA7780 is a PCI master, it drives PAR to reflect the
correct value for even parity on the AD[31:0] and C/BE#[3:0] buses
one clock after the address phase and after each write data phases.

When the SAA7780 is a PCI slave, it drives PAR to reflect the
correct value for even parity on the AD[31:0] and C/BE#[3:0] buses
one clock after completion of each read data phase.

PCREQ# 36 O-TS PC/PCI DMA Request

This signal requests DMA servies from en external chipset that
supports PC/PCI protocols. The SAA7780 chip asserts PCGNT#
according to the desired DMA channel required by either the
SoundBlaster or AC97 interfaces. The requested channel is
encoded serially on the PCGNT# pin.

The SAA7780 will become the bus owner when it receives an
asserted PCGNT# signal. This handshaking is synchronous to
PCLK.

PCGNT# 35 I-T PC/PCI DMA Grant

An asserted PCGNT# pin indicates that the external PC/PCI master
arbiter has granted DMA services to the the encoded DMA channel
to the requesting DMA agent on the SAA7780 chip.

REQ# 38 O-TS PCI Bus Request

This signal controls the PCI bus arbitration between the SAA7780
chip and the PCI master arbiter. When REQ# is asserted, the
SAA7780 indicates a desire to become the PCI bus owner. The
SAA7780 will become the bus owner when it receives an asserted
grant signals (GNT# is LOW). This handshaking is synchronous to
PCLK.

REQ# is three-stated while RST# is active.

1999 Sep 30 17

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

GNT# 37 I-T PCI Bus Grant

An asserted GNT# pin indicates that the PCI master arbiter has
granted bus ownership to the SAA7780 chip.

IRQSER 32 IO-OD PCI Bus Serial Interrupts

This pin is used to output the serial interrupt stream for legacy
interrupts. It is used only if the SAA7780 is used in a Common
Architecture system. Otherwise it is tri-stated.

INTA# 31 IO-OD PCI Bus Interrupt A

The interrupt output is a PCI compatible active low level sensitive
interrupt. It is only used if the SAA7780 is used in a non Common
Architecture system. Otherwise it is tri-stated. It is driven low when
any of the internal interrupts are asserted.

PERR# 72 IO-STS PCI Bus Parity Error

This signal indicates a data parity error for any cycle type other than
a Special Cycle command. PERR# is made active two clocks after
the completion of the data phase which caused the parity error. This
error signal may result in the generation of a non-maskable interrupt
(NMI) or other high priority interrupt sent to the CPU.

SERR# 73 IO-OD PCI Bus System Error

This signal indicates an address parity error, data parity errors on
Special Cycle commands or any other catastrophic system error.
SERR# is an open-drain bidirectional pin which is driven low for a
single PCLK cycle by the agent reporting the error. This error may
result in the generation of a non-maskable interrupt (NMI) or other
high priority interrupt sent to the CPU.

IDSEL 51 I-T Initialization Device Select

IDSEL is used as a chip select during configuration register read
and write operations. One system board address line from
AD[31:11] is used as IDSEL to select the SAA7780 configuration
space in the SAA7780 chip when used on the PCI bus.

CLKRUN# 100 O-OD PCI Bus Clock Run Request

The SAA7780 uses CLKRUN# according to the Mobile PCI protocol
to start the PCI clock or keep the clock running whenever an internal
PCI device requires it.

1999 Sep 30 18

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

PCLK 34 I-T PCI Bus Clock Input

PCLK is the PCI bus clock input. It is used to synchronize all PCI
bus operations and typically runs at 33MHz.

RST# 33 I PCI Bus Reset

An active low version of the system reset, this signal causes the PCI
interface to return to the idle states in all state machines and
asynchronously three-states all PCI bus signals. All registers will be
reset to their default values as well. The CODEC interface line
should be all driven inactive along with the external memory
interface. This reset will assert the DSP reset.

Serial Configuration Port

CFGDAT 101 I,PU-T Serial Configuration Data

This pin is used to shift in PCI configuration data for the Subsystem
ID and the Subsystem Vendor ID in each of the PCI configuration
headers present in the SAA7780 chip. The Serial Configuration Port
is a standard I2C interface. This line should never be pulled low.

CFGCLK 102 O-T Serial Configuration Clock

The serial clock is a 400 KHz clock generated from OSC and
supplied to an external serial EEPROM to synchronize the serial
configuration data.

Test Interface

TRI# 29 I-T Tri-State Test Enable

When this pin is pulled low and RST# is pulsed asserted, all output
and I/O pins of the SAA7780 will be forced into a three-state
condition. Pulsed assertion of the RST# signal will release the
SAA7780 from this test mode.

NAND# 30 I-T NAND Tree Test Enable

When this pin is pulled low and RST# is pulsed asserted, the
SAA7780 will enter the parametric NAND tree test mode. The
details of the NAND tree test mode are described later in this
document.

1999 Sep 30 19

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

16650 UART Interface

RXD 146 I-T UART Serial Data Input

This pin provides the serial bit stream to the 550-compatible UART.
This input is ignored when the Loop Mode is enabled.

TXD 145 O-T UART Serial Data Output

This pin is an output from UART, providing the serial bit stream to
external buffers or devices. This signal is forced high whenever the
transmitter is disabled, RST# is asserted, the transmit register is
empty, or the UART is in the Loop Mode.

RTS# 148 O-T UART Request To Send

An active low output that is the inverted value of the Modem Control
Register (MCR) bit 1, as follows:

When MCR[1] = 1, RTS# is low.
When MCR[1] = 0, RTS# is high.
When RST# is asserted, RTS# is forced high.

DTR# 149 O-T UART Data Terminal Ready

An active low output that is the inverted value of the Modem Control
Register bit 0, as follows:

When MCR[0] = 1, DTR# is low.
When MCR[0] = 0, DTR# is high.
When RST# is asserted, DTR# is forced high.

CTS# 150 I-T UART Clear To Send

The status of this input can be determined by reading bit 4 of the
Modem Status Register. When MSR[4] is read, it will be the inverted
value of CTS#. A change in status of CTS# sets the Delta CTS bit in
the Modem Status Register.

If the CTS# line changes state while the modem status interrupts
are enabled, an interrupt packet will be generated.

DSR# 151 I-T UART Data Set Ready

The status of this input can be determined by reading bit 5 of the
Modem Status Register. When MSR[5] is read, it will be the inverted
value of DSR#. A change in status of DSR# sets the Delta DSR bit
in the Modem Status Register.

If the DSR# line changes state while the modem status interrupts
are enabled, an interrupt will be generated.

1999 Sep 30 20

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

DCD# 152 I-T UART Data Carrier Detect

The status of this input can be determined by reading bit 7 of the
Modem Status Register. When MSR[7] is read, it will be the inverted
value of DCD#. A change in status of DCD# sets the Delta DCD bit
in the Modem Status Register.

If the DCD# line changes state while the modem status interrupts
are enabled, an interrupt will be generated.

RI# 153 I-T UART Ring Indicator

The status of this input can be determined by reading bit 6 of the
Modem Status Register. When MSR[6] is read, it will be the inverted
value of RI#. Bit 2 (TERI) of the Modem Status Register indicates
whether the RI# input signal has changed from a low to a high, since
the previous reading of the Modem Status Register.

If modem status interrupts are enabled when MSR[6] changes from
a 1 to a 0, an interrupt will be generated.

Joystick/Game Port

JACX 9 I/O-C,S Joystick A X Axis

Joystick A X-position.

JACY 13 I/O-C,S Joystick A Y Axis

Joystick A Y-position.

JBCX 10 I/O-C,S Joystick B X Axis

Joystick B X-position.

JBCY 12 I/O-C,S Joystick B Y Axis

Joystick B Y-position.

JAB[2:1] 7 I-T Joystick A Button Interface

Joystick A buttons. These buttons are internally de-bounced and de­glitched using a low speed clock and metastable hardened flip-flops.

JBB[2:1] 14 I-T Joystick B Button Interface

Joystick B buttons. These buttons are internally de-bounced and de­glitched using a low speed clock and metastable hardened flip-flops.

1999 Sep 30 21

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

MIDI Interface

MIDIIN 18 I-T MIDI Serial Data Input

This signal is part of the standard 2 wire MIDI interface. This input
receives MIDI data at a rate of 31.25Kbaud. Optical isolation is
required.

MIDIOUT 11 O-T MIDI Serial Data Output

This signal is part of the standard 2 wire MIDI interface. This output
transmits MIDI data at a rate of 31.25Kbaud. Optical isolation is
required.

PLL/DSP CLK Subsystem Interface

XTALIN
XTALOUT

DSPCLK 27 I-T DSP Clock Input

PSUB 20 AGND PLL Substrate

PLLDPWR 22 DPWR PLL Digital Power

PLLDGND 25 DGND PLL Digital Ground

PLLAPWR 21 APWR PLL Analog Power

PLLAGND 19 AGND PLL Analog Ground

23
24

I-C
O-C

OSC Clock Crystal Pad

This pin pair describes the pad required for the 14.31818MHz OSC
pad oscillator. The OSC clock is used to provide a fixed timebase for
many functions within the SAA7780 device.

This pin can be used as the clock input for the SAA7780 for the DSP
subsystem in place of the PLL driving the clock. DSPCLK is also
used to drive the DSP subsystem for controllability during testing.

DSP External Memory Interface

MA[14:0] 143,141,140,

1999 Sep 30 22

139,137,136,
134,132,131,
130,129,127,
126,125,124

O-T External Memory Address

Address lines for the external SRAM devices. The external memory
interface can be used for DSP code space if the EXT_SRAM_EN (in
HDCFG, bit 5) is set. Otherwise, the reverb accelerator will use the
external SRAM.

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

MD[15:0] 103,105,106,

107,108,109,
110,111,113,
114,115,116,
118,119,122,
123

MCS# 144 O-T External Memory Chip Select

MWE# 133 O-T External Memory Read/Write Control

AC’97 CODEC Interface

SYNC 2 O-T AC’97 Codec Synchronization/Frame Output

BIT_CLK 3 I AC’97 Data Bit Clock

IO-T External Memory Data Bus

Word wide data bus for the external SRAM. Use 6ns memory for
DSP code usage and 20 ns memory for reverb usage.

Chip select line for the external SRAM devices.

Selects the external SRAM for reading or writing.

This signal is used to frame the tag packet from the AC link designer
from the SAA7780 chip.

This signal is used to clock synchronous data on the AC link
interface.

SDATA_OUT 4 O-T AC’97 Serial Data Out

This is the time division multiplexed serial output data stream from
the SAA7780 controller.

SDATA_IN 5 I AC’97 Serial Data In

This is the time division multiplexed serial input data stream the
external AC’97 codec.

AC_RST_N# 6 O-T AC’97 Master Reset

The external AC’97 codec has a master reset line which is has a
separate control. The codec status must report a ready before any
audio or modem data is transmitted to the codec.

1999 Sep 30 23

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Music DAC Interface

MSI 157 IO-T Music DAC Serial Data Output

This signal is the serial bit stream used to transmit PCM data to a
industry standard serial DAC. Any mono or stereo PCM audio
stream can be played from the DSP to this interface to provide
music without the need for an AC’97 codec.

If the serial port is disabled, then this pin can be used for general
purpose I/O control.

MCLK 158 IO-T Music DAC Data Bit Clock

The MSI data is synchronized to this clock used by an external
Music DAC.

If the serial port is disabled, then this pin can be used for general
purpose I/O control.

MLRCK 159 IO-T Music DAC Data Word Clock

This signal is used to frame the left and right channel PCM data
being transmitted to the external Music DAC.

If the serial port is disabled, then this pin can be used for general
purpose I/O control.

General Purpose Input/Output

GPIO0 154 I/O-T General Purpose I/O Bit 0

This pin can be used for general purpose I/O control.

GPIO1 155 I/O-T General Purpose I/O Bit 1

This pin can be used for general purpose I/O control.

GPIO2 156 I/O-T General Purpose I/O Bit 2

This pin can be used for general purpose I/O control.

Power and Ground Pins

VDDIC 138,99 DPWR Core Power
VSSIC 60,147 DGND Core Ground
VSS 26,15,40,47,

62,74,81,90,
104,120,128,
160

DGND Ring Ground

1999 Sep 30 24

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

VDD 1,142,28,41,

DPWR Ring Power
54,68,80,96,
112,121,135,
142

VWELL 117 DPWR External N-Well Bias

Tie these pins to 5V for proper 5 volt tolerant operation. The 5V
supply must be powered up before the 3V supply. Likewise, the 3V
supply must be powered down before the 5V supply.

Legend: C CMOS-compatible input

AGND Analog ground
DGND Digital ground pin
I Input-only pin (can become bidirectional for test mode)
IO Bidirectional pin
O Output-only pin (can become bidirectional for test mode)
APWR Analog power supply pin
DPWR Digital power supply pin
T TTL-compatible input
PD Indicates a high-impedance with approximately 10 K¾ minimum resistance to VSS (internal pull-down

PU Indicates a high-impedance with approximately 10 K¾ minimum resistance to VDD (internal pull-up resis­PUB Inidcates that this pin needs an external pull-up resistor when the chip is installed on a board or tester. A
S Indicates a Schmitt-trigger input with hysteresis for noise immunity

TS Three-state pin
STS Sustained three-state output / TTL input (if applicable)
OD Open drain pad
A Analog based I/O. Use a pad with ESD protection
CP Core power. Denotes a pad that supplies power for the core of the chip only
CG Core ground. Denotes a pad that supplies ground to the core only
RP Ring power. Denotes a pad that supplies power to the pads only
RG Ring ground. Denotes a pad that supplies ground to the ring only
RPD Ring power with option to power core level shifter. Denotes a pad that supplies power to the ring while its

RCG Ring/core ground. Denotes a pad that supple a ground connection to the ring and core
HZ High impedance. When in a three state test mode, this pin will be forced into a high impedance state
NT Nand tree. When in a NAND tree test mode, this pin will be included in the parametric NAND tree logic
NTO Nand tree output. When in a NAND tree test mode, this pin is the output of the parametric NAND tree
FSB Function System Block test. Denotes that his pin is not timing critical and is available for FSB multiplexing

resistor on pin)
tor on pin)
10K ohm resistor is nominal

core side connector can optionally supply internal level shifters

1999 Sep 30 25

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

SAA7780 Functional Block Descriptions
Register Table Document Description and Example

The next table gives an example of how registers are documented in this specification.

Example Register - Regex (RW/RO)

SPACE D15 D14 D13 D12 D11 D10 D9 D8
Offset nnh R R R R R R R R
POR Value 0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

EXDATA[7:0]

POR Value 0 0 0 0 0 0 0 0

Bit Name R/W Function

15:8 R RO Reserved. These bits always return zeros.
7:0 EXDATA RW Example data. The example data for all to see.

In the above table example, the EXAMPLE REGISTER text would be a descriptive title for the register that we wish to
detail. Following the register description would be a register mnemonic used in register summary tables and the like. In
this example the mnemonic is REGEX. Following the mnemonic is the read/write access allowed into this register. If the
entire register is readable and writable, then the RW key is assigned. If some bits are read/write while others are read
only, then the key will indicate this fact. In the example, this register has both read/write and read only bits. The register
memory map location is marked in the table cell marked SPACE. SPACE could be substituted with PCI CFG n (for PCI
configuration register space for function n), IOBASE (for an I/O space register with an IOBASE specified in a
configuration register), DSP DATA (for DSP data memory mapped registers), MEM MSTR (indicating a PCI master in
memory space), and DSP CODE (indicating a DSP code memory mapped register. Just below the SPACE marker is
the offset from the base address specified in the SPACE field. The rest of the table should be obvious.

SAA7780 PCI Interface

Overview

The SAA7780 chip PCI interface is designed to interface the external PCI bus interface to all of the selected devices in
the SAA7780 chip. The PCI interface composed of master and slave state machines, an address/data/byte enable
datapath, a bus arbiter for the two on chip masters, control logic for the master and slave internal busses, and standard
PCI configuration register headers. The Interrupt Serializer will be discussed in a later chapter. This section of the
specification will describe the PCI interface in more detail along with design considerations for both the slave, master,
and datapath. The configuration header will be discussed in the SAA7780 PCI Configuration Registers section of this
specification.

The discussion will begin with the PCI master and target systems. The PCI bus master has the capability to burst
double words to/from the two internal bus masters, the Distributed DMA and the Virtual Registers. The full address
range is supported for these master devices. Since there are two masters, an arbiter is required to determine priority
between the two devices. Details on the arbiter can be found in the PCI master section.

1999 Sep 30 26

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

The PCI datapath block contains the multiplexors and registers to steer the data to and from the PCI interfaces. The
data is de-multiplexed from the external PCI interface to the internal master and slave busses. Control logic from the
master and slave devices control the datapath.

The SAA7780 is considered a multi-function device since the operating system may wish to load different drivers for
certain functions. These functions are the audio subsystem, the joystick and the 16650 UART. Each of these major
functions must have a separate PCI configuration space. The standard PCI configuration header for these three
functions are supported in the PCI interface.

The SAA7780 PCI interface responds to and initiates PCI cycles with positive decoding according to the PCI 2.1
specification. The interface asserts DEVSEL# after the first clock following FRAME# making it a medium responder. For
specific LAM cycles, the SAA7780 will be a fast responder. The following table indicates which cycles the PCI interface
responds to or initiates.

PCI Bus Command Definitions and SAA7780 Responses

c/be#[3:0] Command Type SAA7780 Response to Cycle

0000 Interrupt Acknowledge This cycle is not claimed.
0001 Special Cycle This cycle is not claimed.
0010 I/O Read All I/O Read cycles directed to the SAA7780 are claimed by the

target interface.

0011 I/O Write All I/O Write cycles directed to the SAA7780 are claimed by the

target interface.
0100 Reserved This cycle is not claimed.
0101 Reserved This cycle is not claimed.
0110 Memory Read This cycle is not claimed.
0111 Memory Write This cycle is not claimed.
1000 Reserved This cycle is not claimed.
1001 Reserved This cycle is not claimed.
1010 Configuration Read All Configuration Read cycles are claimed by the target interface

provided IDSEL is sampled asserted during the address/cmd

phase.
1011 Configuration Write All Configuration Write cycles are claimed by the target interface

provided IDSEL is sampled asserted during the address/cmd

phase.
1100 Memory Read Multiple This cycle is not claimed.
1101 Dual Address Cycle The SAA7780 supports 32-bit addresses only.
1110 Memory Read Line This cycle is not claimed.
1111 Memory Write and Invalidate This cycle is not claimed.

The SAA7780 will respond to byte, word, tri-byte or double word access for configuration read and configuration write
cycles provided PCI addressing rules are followed. Byte and word width accesses allowed for I/O cycles depend largely
on the target I/O device. In general, 24-bit and 32-bit accesses are not allowed to I/O devices and will result in a target
abort. The SAA7780 performs double word accesses when initiating master cycles. Note that the SAA7780 cannot
initiate a master cycle to itself. The next table summarizes the access rules for configuration and I/O cycles.

1999 Sep 30 27

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

BIT Width Device Access Rules

Data

Device Cycle Types

Width Comments

PCI Configuration
Registers

Game Port I/O Read

AC’97 Codec I/O Read

DMA Interface I/O R/W Any
Sound Blaster

Registers
Host/DSP Interface I/O Read

Virtual Registers Mem Read Any Follow PCI addressing rules.
Host/DSP Interface I/O Read

Config Read
Config Write

I/O Write

I/O Write

I/O Read
I/O Write

I/O Write

I/O Write

Any Follow PCI addressing rules, otherwise assert a target abort.

Note that configuration registers, no matter where they are,
are accessed by configuration cycles only. Note that the PLL
will only allow 8 bit configuration accesses, the Virtual
Registers TBLBASE registers are 32 bit access only, and the
VRCFG is 16 bit access only.

8 Any other access will result in a target abort.

16 For PIO type accesses, only 16 bit I/O cycles are allowed,

other wise a target abort will result.

8 Any other access will result in a target abort.

8,16 Word accesses must be word aligned.

8,16 Usually, only 16 bit accesses will be used to download and

access the DSP. Byte wide are also allowed for DSP
configuration accesses. Word access must be on word
boundaries.

MPU401 Registers I/O Read

I/O Write

16650 UART I/O Read

I/O Write

The PCI interface consists of three major blocks, the PCI master interface, the PCI slave interface and the PCI
datapath. The PCI master interface contains the master state machine, the master control logic, and the PM bus
arbiter. The PCI slave interface contains the target state machine, the target control logic and configuration register
headers. The PCI datapath is the de-multiplexing logic for the address, data and byte enable data paths for the PS and
PM busses. The PM and PS busses are described in detail in the SAA7780 Internal Busses section. Partitioning of
these PCI blocks is done in this manner to reduce block inter-connectivity and to provide an interface between the three
major sections of the PCI interface.

PCI Master Interface

The SAA7780 PCI master interface performs the memory read and write cycles initiated by the DMA or Virtual
Registers blocks. The major components of the PCI master interface are the master state machine, the PM bus arbiter
and the master control logic. Each of the functional blocks will be discussed in detail.

PCI Master State Machine

This block performs the handshaking between the PCI interface and the PM internal bus. The PCI master will perform

1999 Sep 30 28

8 Any other access will result in a target abort.

8 Any other access will result in a target abort.

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

bursting in a linear incrementing type fashion. The PCI master state machine may also wish to provide a target lockout
signal. This signal prevents the PCI target interface from responding to any master signals.

PC/PCI Legacy Support

The PCI block supports the PC/PCI sideband signals for legacy support of the soundblaster. The PC/PCI can be
enabled by a configuration register bit and one channel selected. The PCI slave block will provide the serial encoded
request signal (PCREQ#) in response to a request from the soundblaster and decode the serial encoded PCGNT# line.
The PCI slave will then claim I/O writes to address 0000h or 0004h with the PCGNT# line asserted as writes to the
SoundBlaster and pass the data to the SoundBlaster.

PCI Target State Machine A

The PCI target state machine controls all SAA7780 target responses on the PCI bus in addition to handling the PS
internal bus.

PCI Target Control Logic

The target control logic handles the address decoding for the ps_NNNcs# signals, bus command decoding for the
ps_XXXrd# and ps_XXXwr# signals, determination of target abort conditions, and data path/pad control logic from the
target interface. Also included in this logic are the controls for the PCI datapath and I/O pads. These controls are sent to
the datapath logic where they are combined with the master controls and then sent to the datapath and pad devices.
The control logic also includes an interface to the PCI configuration headers.

Serial Configuration Port

The Subsystem Vendor ID and Subsystem ID for each of the configuration headers presents a special case. These
three 32 bit registers must be programmed by the Subsystem Vendor. It is impractical to hard wire the Subsystem ID
registers since each Subsystem Vendor will have a unique ID. Therefore an external serial EEROM device is used to
download the proper values into the ID registers after reset and before begin read by the BIOS or other configuration
software. The PCI interface should force a retry if any of the subsystem registers have not completed a loading. The
Serial Configuration Port is a standard two pin I2C interface. The SAA7780 will supply the 400 KHz clock to the external
serial EEPROM on the CFGCLK pin. The serial data stream will arrive on the CFGDAT input pin. Please refer to a
24LC00 128 bit I2C Bus Serial EEPROM data sheet for interface protocols and timings.

Serial Configuration Port Programming

The SAA7780 uses an inexpensive external EEPROM, programmed before installation, to download the Subsystem
Vendor ID and Subsystem ID registers for each function for a total of 96 bits (six 16 bit registers). The recommended
device, a Microchip 24LC01B 1K Bit (128 Byte) Serial EEPROM, can be programmed using a conventional DATA I/O
programmer.

1999 Sep 30 29

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

FIGURE 5

+5V

CFGDAT

ThunderBird

CFGCLK

SDA

EEPROM

SCL

WP

In each of the three SAA7780 functions PCI configuration space there is a Subsystem Vendor ID register at an offset of
2Ch and a Subsystem ID register at an offset of 2Eh. Each register is 16 bits in length and is write-only by the serial
EEPROM and read-only from the PCI interface. The data from the EEPROM is loaded into the registers immediately
after PCI reset. If no EEPROM is detected, the default values are loaded as shown and reflect the default values for the
System ID and Vendor ID for that function.

Subsystem Register Default Values

Function Device Type Offset Register Name Default Value

0 Audio Subsystem 2Ch Subsystem Vendor ID 1004h
0 Audio Subsystem 2Eh Subsystem ID 0304h
1 Joystick 2Ch Subsystem Vendor ID 1004h
1 Joystick 2Eh Subsystem ID 0305h
2 16650 UART 2Ch Subsystem Vendor ID 1004h
2 16650 UART 2Eh Subsystem ID 0306h

The EEPROM contains bits 000h through 3FFh. Only bits 000h through 05Fh are utilized to program the Subsystem ID
and Subsystem Vendor ID registers. The bit assignments between the EEPROM and the configuration registers are
shown below.

EEPROM BIT Assignments to Subsystem Registers

Function 0 - Audio Subsystem Function 1 - Joystick Function 2 - 16650 Modem UART

Subsystem

Vendor ID - Offset

2Ch

EEPROM

Bit #

000h 15 010h 15 020h 15 030h 15 040h 15 050h 15
001h 14 011h 14 021h 14 031h 14 041h 14 051h 14
002h 13 012h 13 022h 13 032h 13 042h 13 052h 13

Reg

Bit #

Subsystem ID -

Offset 2Eh

EEPROM

Bit #

Reg

Bit #

Subsystem

Vendor ID - Offset

2Ch

EEPROM

Bit #

Reg

Bit #

Subsystem ID -

Offset 2Eh

EEPROM

Bit #

Reg

Bit #

Subsystem

Vendor ID - Offset

2Ch

EEPROM

Bit #

Reg

Bit #

Subsystem ID -

Offset 2Eh

EEPROM

Bit #

Reg

Bit #

1999 Sep 30 30

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Function 0 - Audio Subsystem Function 1 - Joystick Function 2 - 16650 Modem UART

Subsystem

Vendor ID - Offset

2Ch

EEPROM

Bit #

003h 12 013h 12 023h 12 033h 12 043h 12 053h 12
004h 11 014h 11 024h 11 034h 11 044h 11 054h 11
005h 10 015h 10 025h 10 035h 10 045h 10 055h 10
006h 9 016h 9 026h 9 036h 9 046h 9 056h 9
007h 8 017h 8 027h 8 037h 8 047h 8 057h 8
008h 7 018h 7 028h 7 038h 7 048h 7 058h 7
009h 6 019h 6 029h 6 039h 6 049h 6 059h 6
00Ah 5 01Ah 5 02Ah 5 03Ah 5 04Ah 5 05Ah 5
00Bh 4 01Bh 4 02Bh 4 03Bh 4 04Bh 4 05Bh 4
00Ch 3 01Ch 3 02Ch 3 03Ch 3 04Ch 3 05Ch 3
00Dh 2 01Dh 2 02Dh 2 03Dh 2 04Dh 2 05Dh 2
00Eh 1 01Eh 1 02Eh 1 03Eh 1 04Eh 1 05Eh 1
00Fh 0 01Fh 0 02Fh 0 03Fh 0 04Fh 0 05Fh 0

Reg

Bit #

Subsystem ID -

Offset 2Eh

EEPROM

Bit #

Reg

Bit #

Subsystem

Vendor ID - Offset

2Ch

EEPROM

Bit #

Reg

Bit #

Subsystem ID -

Offset 2Eh

EEPROM

Bit #

Reg

Bit #

Subsystem

Vendor ID - Offset

2Ch

EEPROM

Bit #

Reg

Bit #

Subsystem ID -

Offset 2Eh

EEPROM

Bit #

Reg

Bit #

These bits correspond to Function 0, Subsystem ID (offset 2Eh) bits 2, 1, and 0, respectively. The Vendor should
choose and ID that corresponds to the peripherals present and program the EEPROM accordingly.

PCI Data Path

The PCI datapath provides the flip flop and multiplexers required to convert the external PCI interface address, data,
command and byte enables busses to the internal PM and PS busses.

PCI Configuration Registers

Since the SAA7780 is a multi-function device, there are three configuration headers. They are defined as the audio
configuration header as function 0, the joystick configuration header as function 1, and the UART configuration header
defined as function 2. Each configuration space is divided up into two groups, the registers that stay with the PCI
interface and the registers that do not. This section will describe the PCI configuration registers that bunk with the PCI
interface. These registers include the PCI standard configuration header registers and the base address registers for
various blocks in the SAA7780 chip.

To be more specific, the registers in the offset config space from 00h - 3Fh are the predefined PCI configuration
header. All three PCI configuration header registers will reside with the PCI interface. The remainder of the registers
are function specific and can be found in the block section itself.

The following sections will detail each of the configuration header spaces for each of the SAA7780 functions: audio,
joystick and UART.

PCI Configuration Space 0

The following table is a summary of all the PCI configuration space registers. The registers that are block-mates with
the PCI interface (offset 00h - 44h) will be detailed following the PCI configuration space table. The remainder of the

1999 Sep 30 31

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

registers will be detailed with the blocks they control.

PCI Configuration Space 0 Register Map

Byte 3 Byte 2 Byte 1 Byte 0 Offset

Device ID Vendor ID 00h

Status Command 04h

Class Code Revision ID 08h

BIST Header Type Master Latency Timer Cache Line Size 0Ch

SONGBASE 10h

SBBASE 14h

MDBASE 18h

ALBASE 1Ch

Reserved 20-2Bh

SUBSYSTEM ID SUBSYSTEM VENDOR ID 2Ch

Reserved 30-3Bh

Max_Lat Min_Gnt Interrupt Pin Interrupt Line 3Ch

DMABBASE DMAABASE 40h

Reserved 44-57h
Reserved Reserved Reserved MSCCFG 58h
Reserved Reserved Reserved ACLCFG0 5Ch
Reserved Reserved VRCFG 60h
Reserved Reserved Reserved TIMRCFG0 64h
Reserved Reserved HDCFG 68h

Reserved 6Ch
Reserved Reserved DMACFG 70h

Reserved 74-77h
Reserved Reserved Reserved DPLLCTL0 78h
Reserved Reserved Reserved DPLLCTL1 7Ch
Reserved Reserved Reserved DPLLCTL2 80h

Reserved 84-87h
Reserved Reserved Reserved TESTCTL0 88h

Reserved 8C-8Fhh

TBLBASE0 90h
TBLBASE1 94h
TBLBASE2 98h

TBLBASE3 9Ch
Reserved Reserved Reserved IRQCTL0 A0h
Reserved Reserved Reserved IRQCTL1 A4h
Reserved Reserved Reserved IRQCTL2 A8h
Reserved Reserved Reserved IRQCTL3 ACh
Reserved Reserved Reserved IRQCTL4 B0h
Reserved Reserved Reserved IRQCTL5 B4h
Reserved Reserved Reserved IRQCTL6 B8h

1999 Sep 30 32

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Reserved Reserved Reserved IRQCTL7 BCh
Reserved Reserved Reserved COMARCH0 C0h

Reserved C4-EFh
DMAACCNT DMAACADR F0h
DMABCCNT DMABCADR F4h

DMAMASK DMACMD DMAAMODE Reserved F8h

Reserved Reserved DMABMODE Reserved FCh

Vendor ID Register- Vendor _ID (RO)

PCI CFG 0 D15 D14 D13 D12 D11 D10 D9 D8
Offset 00h
POR Value

0 0 0 1 0 0 0 0

VENDOR_ID[15:8]

D7 D6 D5 D4 D3 D2 D1 D0

VENDOR_ID[7:0]

POR Value

0 0 0 0 0 1 0 0

Bit Name R/W Function

15:0 VENDOR_ID RO The PCI Vendor ID for Philips Semiconductors (VLSI Technology) is 1004h.

Device ID Register - Device_ID (RO)

PCI CFG 0 D15 D14 D13 D12 D11 D10 D9 D8
Offset 02h
POR Value

0 0 0 0 0 0 1 1

DEVICE_ID[15:8]

D7 D6 D5 D4 D3 D2 D1 D0

POR Value

Bit Name R/W Function

15:0 DEVICE_ID RO The Device ID for the SAA7780, function 0 is 0304h.

Command Register - Command (RO/RW)

PCI CFG 0 D15 D14 D13 D12 D11 D10 D9 D8

1999 Sep 30 33

DEVICE_ID[7:0]

0 0 0 0 0 1 0 0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

R R R R R R FBACK_

Offset 04h
POR Value

POR Value

Bit Name R/W Function

15:10 R RO Reserved. These bits always return zero.
9 FBACK_ENB RO Fast Back-to-Back Enable: the SAA7780, function 0 does not support fast

8 SERR_RESP RW System Error Response: When set to 1, the SAA7780, function 0 responds to

7 STEPPING RO Address / Data Stepping: Always returns 0.
6 PERR_RESP RW Parity Error Response: When set to 1, the SAA7780, function 0 responds to

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

STEP-

PING

0 0 0 0 0 0 0 0

PERR_

RESP

SNOOP_

ENB

back to back master cycles therefore this bit always returns a zero.

detected PCI bus address parity errors by asserting SERR#. When 0, the
SAA7780 ignores these errors.

detected PCI bus data parity errors by asserting PERR#. When 0, the
SAA7780 ignores PCI bus data parity errors.

MEM_

INV_EN

SPEC_

CNTL

MAST_

CNTL

ENB

MEM_

CNTL

SERR_R

ESP

IO_

CNTL

5 SNOOP_ENB RO VGA Snoop Enable. The SAA7780, function 0 does not support VGA snoop

enable, therefore this bit always returns a zero.
4 MEM_INV_EN RO Memory Write and Invalidate Enable: Always returns 0.
3 SPEC_CNTL RO Special Cycle Control: Controls the devices ability to respond to Special

Cycle Operations. A value of 0 causes the SAA7780, function 0 to ignore all

Special Cycles.
2 MAST_CNTL RW Master Control: Controls the devices ability to act as a master on the PCI bus.

A value of 0 disables the ability of the SAA7780, function 0, to act as a

primary PCI master. A value of 1 enables the SAA7780, function 0 to become

a PCI bus master.
1 MEM_CNTL RO Memory Response Control: The SAA7780, function 0 does not support target

memory cycles therefore this bit always returns a zero.
0 IO_CNTL RW I/O Response Control: Controls the SAA7780, function 0’s response to I/O

space. A value of 0 disables the device response. A value of 1 allows the

device to respond to I/O space accesses.

Status Register - Status (RO/RW)

PCI CFG 0 D15 D14 D13 D12 D11 D10 D9 D8

Offset 06h

R_PERR S_SERR SM_

ABORT

RT_

ABORT

ST_

ABORT

DEVSEL_TMG S_PERR

1999 Sep 30 34

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

POR Value

POR Value

Bit Name R/W Function

15 R_PERR RC Received Parity Error: When set to 1, this bit indicates that the SAA7780,

14 S_SERR RC Signalled System Error: When set to 1, this bit indicates that the SAA7780,

13 SM_ABORT RC Signalled Master Abort: When set to 1, this bit indicates that the SAA7780,

12 RT_ABORT RC Received Target Abort: When set to 1, this bit indicates that the SAA7780,

0 0 0 0 0 0 1 0

D7 D6 D5 D4 D3 D2 D1 D0

F_

BK2BK

1 0 0 0 0 0 0 0

UDF MHz66 R R R R R

function 0 has detected a PCI bus parity error at least once since this bit was

last reset.

function 0 has reported a system error on the SERR# signal at least once

since this bit was last reset.

function 0 (acting as a master) had to initiate a master abort at least once

since this bit was last reset.

function 0 (acting as a master) has received a target abort at least once since

this bit was last reset.
11 ST_ABORT RC Signalled Target Abort: When set to 1, this bit indicates that the SAA7780,

function 0 has signalled a target abort at least once since this bit was last

reset.
10:9 DEVSEL_TMGRO DEVSEL Timing: This field indicates the timing of the DEVSEL output (when

a PCI master is accessing a SAA7780, function 0 resource). It always returns

01 (Bin).

00 = Fast

01 = Medium (Default Timing)

10 = Slow
8 S_PERR RC Signalled Parity Error: When set to 1, this bit indicates that the SAA7780,

function 0 was a bus master for a cycle in which PERR# was activated. This

bit cannot be set if the PERR_RESP bit in the command register is not

enabled.
7 F_BK2BK RO Always returns 1 to indicate support of fast back to back cycles when the

SAA7780, function 0 is the target.
6 UDF RO User Definable Features. Always returns 0.
5 MHz66 RO 66 MHz Capable. Always returns 0.
4:0 R RO Reserved. These bits always return zero.

Note: An RC indicates that this bit can be reset to 0 by writing a 1. Writing a zero leaves this bit unchanged.

1999 Sep 30 35

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Revision ID Register - Revision (RO)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 08h
POR Value

Bit Name R/W Function

7:0 REVISION_ID RO The current revision ID for the SAA7780, function 0, the audio subsystem.

Class Code Register - Class (RO)

PCI CFG 0 D23 D22 D21 D20 D19 D18 D17 D16
Offset 09h
POR Value

POR Value

0 0 0 0 0 0 0 0

0 0 0 0 0 1 0 0

D15 D14 D13 D12 D11 D10 D9 D8

0 0 0 0 0 0 0 1

D7 D6 D5 D4 D3 D2 D1 D0

REVISION_ID[7:0]

BASE_CLASS[7:0]

SUB_CLASS[7:0]

PGM_IFACE[7:0]

POR Value

Bit Name R/W Function

23:16 BASE_CLASS RO The base class of 04h describes a PCI multimedia device.
15:8 SUB_CLASS RO The sub class of 01h describes a PCI audio multimedia device.
7:0 PGM_IFACE RO Device generic function identification.

CACHELINE Size Register - CACHELINE (RO)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Ch
POR Value

0 0 0 0 0 0 0 0

CACHELINE[7:0]

0 0 0 0 0 0 0 0

1999 Sep 30 36

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

7:0 CACHELINE RO Reserved for cache line size indicator.

Master Latency Timer Register - Latime (RW)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Dh
POR Value

Bit Name R/W Function

7:0 LATIME RW The primary bus latency timer specifies the number of primary clocks that the

Header Type Register - Header (RO)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0

Offset 0Eh
POR Value

Bit Name R/W Function

7 MULTI_FN RO A 1 indicates that the SAA7780 is a multi-function device. The three PCI

0 0 0 0 0 0 0 0

primary master may consume. The timer is reloaded at each assertion of
FRAME# by the primary master. If the primary master loses its bus grant,
then it must relinquish the bus after the timer expires.

MULTI_

FN

1 0 0 0 0 0 0 0

configuration headers are accessed by the configuration cycle address bits
10-8. The function definitions are as follows:

0 = Audio Subsystem
1 = Joystick
2 = 16650 UART

LATIME[7:0]

HEADER[6:0]

6:0 HEADER RO Header Type. A 00h indicates this device is a not a PCI-to-PCI bridge.

BIST Register - BIST (RO)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Fh
POR Value

1999 Sep 30 37

BIST START R R CODE[3:0]

0 0 0 0 0 0 0 0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

7 BIST RO BIST capable. BIST is not supported in the SAA7780, function 0 at this

revision. It may be desired to include a BIST test for the DSP at a later time.

6 START RO If BIST capable, this bit will start the BIST. Writing a 1 will start the test and

the BIST should write this bit to a zero when complete. Software should fail

the device if the BIST is not complete after 2 seconds.
5:4 R RO Reserved. These bits always return zero.
3:0 CODE RO Completion Code. A value of zero means the device has passed its test.

Non-zero values means the device has failed using device specific failure

codes.

SAA7780 CFG Space 0 Non-Legacy Base Address Registers

The ThunderBird Base Address Register (SONGBASE) is used to I/O map all of the non-legacy I/O devices in the
SAA7780 chip. The SONGBASE register maps the two DMA channels, the AC Link registers, the Host/DSP interface,
the Serial Port interfaces, and the Multimedia Timer. The offset index for each are shown below.

SAA7780 Non-Legacy I/O Device Map

Device Name Byte 3 Byte 2 Byte 1 Byte 0

TMCOUNT2 TMCOUNT1 TMCOUNT0 TMSTAT

Reserved Reserved Reserved Reserved

Multimedia Timer

Reserved Reserved Reserved Reserved
Reserved Reserved Reserved Reserved

Reserved Reserved

Serial Ports

Reserved Reserved
Reserved Reserved
Reserved Reserved

HDPCTL HDDATA

Host/DSP Interface

HDDLA HDPSTT
Reserved HDDLD
Reserved Reserved

ACDATA ACADDR
ACSTAT ACCTRL

AC Link Interface

ACPCML

ACPCMR

Serial IRQ Reserved Reserved Reserved IRQCTL

Thunderbird Reserved Reserved

Offset

00h
04h
08h
0Ch
10h
14h
18h
1Ch
20h
24h
28h
2Ch
30h
34h
38h
3Ch
40h
44-7Fh

1999 Sep 30 38

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Thunderbird Base Address Register - Songbase (RW/RO)

PCI CFG 0 D31 D30 D29 D28 D27 D26 D25 D24
Offset 10h
POR Value

POR Value

POR Value

POR Value

SONGBASE[31:24]

0 0 0 0 0 0 0 0

D23 D22 D21 D20 D19 D18 D17 D16

SONGBASE[23:16]

0 0 0 0 0 0 0 0

D15 D14 D13 D12 D11 D10 D9 D8

SONGBASE[15:8]

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

SONG

BASE[7]

0 0 0 0 0 0 0 1

R R R R R R IO

Bit Name R/W Function

31:7 SONGBASE RW Thunderbird non-legacy device base address register. This register supplies

the I/O base address for the non-legacy I/O devices within the SAA7780 chip.

6:1 R RO Reserved. These bits are reserved a must always return a zero for plug and

play.

0 IO RO I/O flag. This read only bit indicates that this is an I/O range.

SAA7780 CFG Space 0 Legacy Base Address Registers

The SAA7780 contains three legacy I/O base registers in configuration space 0. These legacy devices are the Sound
Blaster register, the AdLib registers and the MIDI interface registers. They are described in detail in the next three
tables.

Sound Blaster Base Address - SBBASE (RW/RO)

PCI CFG 0 D31 D30 D29 D28 D27 D26 D25 D24
Offset 14h
POR Value

0 0 0 0 0 0 0 0

SBBASE[31:24]

1999 Sep 30 39

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

D23 D22 D21 D20 D19 D18 D17 D16

SBBASE[23:16]

POR Value

POR Value

POR Value

Bit Name R/W Function

31:4 SBBASE RW Sound Blaster programmable base address. The address should be on a 16 byte

3:1 R RO Reserved. These bits are reserved and always return zeros for plug and play.
0 IO RO I/O flag. This read only bit indicates that this is an I/O range.

0 0 0 0 0 0 0 0

D15 D14 D13 D12 D11 D10 D9 D8

SBBASE[15:8]

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

SBBASE[7:4] R R R IO

0 0 0 0 0 0 0 1

boundary. For reference, the Sound Blaster legacy base addresses are 220h and
240h. Note that accesses from the AdLib base address are mapped into a subset
of the SoundBlaster registers.

MIDI Base Address - MDBASE (RW/RO)

PCI CFG 0 D31 D30 D29 D28 D27 D26 D25 D24
Offset 18h
POR Value

POR Value

POR Value

1999 Sep 30 40

0 0 0 0 0 0 0 0

D23 D22 D21 D20 D19 D18 D17 D16

0 0 0 0 0 0 0 0

D15 D14 D13 D12 D11 D10 D9 D8

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

MDBASE[31:24]

MDBASE[23:16]

MDBASE[15:8]

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

MDBASE[7:2] R IO

POR Value

Bit Name R/W Function

31:2 MDBASE RW MIDI port programmable base address. The address should be on a double word

1 R RO Reserved. This bit is reserved a must always return a zero for plug and play.
0 IO RO I/O flag. This read only bit indicates that this is an I/O range.

ADLIB Base Address Register - ALBASE (RW/RO)

PCI CFG 0 D31 D30 D29 D28 D27 D26 D25 D24
Offset 1Ch
POR Value

POR Value

0 0 0 0 0 0 0 1

boundary. For reference the MIDI port legacy base addresses are 220h, 230h,
240h, 250h, 300h, 320h, 330h, 332h, 334h, 336h, 340h, and 360h.

ALBASE[31:24]

0 0 0 0 0 0 0 0

D23 D22 D21 D20 D19 D18 D17 D16

ALBASE[23:16]

0 0 0 0 0 0 0 0

D15 D14 D13 D12 D11 D10 D9 D8

ALBASE[15:8]

POR Value

POR Value

Bit Name R/W Function

31:3 ALBASE RW AdLib registers programmable base address. The address should be on a quad

2:1 R RO Reserved. These bits are reserved and always return zeros for plug and play.
0 IO RO I/O flag. This read only bit indicates that this is an I/O range.

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

ALBASE[7:3] R R IO

0 0 0 0 0 0 0 1

word (64 bit) boundary. For reference, the AdLib legacy base address is at 388h
and maps into a subset of the Sound Blaster registers.

1999 Sep 30 41

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Subsystem Vendor ID - SUBVENID (RO)

PCI CFG 0 D15 D14 D13 D12 D11 D10 D9 D8
Offset 2Ch
POR Value

POR Value

Bit Name R/W Function

15:0 SUBVEN_ID RO Subsystem Vendor ID. The Subsystem Vendor ID register allows the

Subsystem ID - SUBSYSID (RO)

0 0 0 1 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 1 0 0

manufacturer to uniquely identify their board since more than one board OEM
may use the SAA7780 chip. The Subsystem Vendor ID register is loaded by
an external EEPROM via the Serial Configuration Port after reset and before
any access to the PCI configuration header. The PCI target logic should force
a retry if the Subsystem Vendor ID register has not completed loading. The
Subsystem Vendor ID is read only to the PCI interface. If no external
EEPROM is present, then the default Subsystem Vendor ID is 1004h, that of
Philips Semiconductors (VLSI Technology).

SUBVEN_ID[15:8]

SUBVEN_ID[7:0]

PCI CFG 0 D15 D14 D13 D12 D11 D10 D9 D8
Offset 2Eh
POR Value

POR Value

Bit Name R/W Function

15:0 SUBSYS_ID RO Subsystem ID. The Subsystem ID register allows the manufacturer to

0 0 0 0 0 0 1 1

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 1 0 0

uniquely identify their board since more than one board OEM may use the
SAA7780 chip. The Subsystem ID register is loaded by an external EEPROM
via the Serial Configuration Port after reset and before any access to the PCI
configuration header. The PCI target logic should force a retry if the
Subsystem ID register has not completed loading. The Subsystem ID is read
only to the PCI interface. If no external EEPROM is present, then the default
Subsystem ID is 0304h, identical to the SAA7780 function 0 Device ID.

SUBSYS_ID[15:8]

SUBSYS_ID[7:0]

1999 Sep 30 42

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Interrupt Line Register - INTLINE (RW)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Ch
POR Value

Bit Name R/W Function

7:0 INTLINE RW Interrupt Line. The Interrupt Line register is an eight bit register used to

Interrupt PIN Register - INTPIN (RO)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Dh
POR Value

Bit Name R/W Function

0 0 0 0 0 0 0 0

communicate interrupt line routing information. The value in this register tells
which input of the system interrupt controller(s) the SAA7780 Device's
interrupt pin is connected to. If serial interrupts are enabled (COMARCH0
Register IRQSER=1) then the INT_LINE register will be read only and will
have the value of all 1's. If Serial Interrupts are disabled (IRQSER=0) then
the INT_LINE register will be readable/writable.

0 0 0 0 0 0 0 1

INTLINE[7:0]

INTPIN[7:0]

7:0 INTPIN RO Interrupt Pin. The interrupt pin register tells which interrupt the SAA7780

device uses. If serial interrupts are enabled (COMARCH0 Register
IRQSER=1) then the INT_PIN register will have the read only value of all 0's
implying that the SAA7780 device does not use any of the PCI Interrupt pins.
If Serial Interrupts are disabled (IRQSER=0) then the INT_PIN register will
have the read only value of 01h implying that the SAA7780 device uses INT
A interrupt pin.

MIN_GNT Register - MINGNT (RO)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Eh
POR Value

0 0 0 0 1 0 0 1

MINGNT[7:0]

1999 Sep 30 43

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

7:0 MINGNT RO Minimum grant specifies how long of a burst period the device needs

assuming a clock speed of 33MHz. Since the SAA7780, function 0, will burst
a maximum of 64 double words, therefore requiring about 75 33MHz clocks
or 2.25 microseconds. The time units specified are in 0.25 microsecond
increments.

MAX_LAT Register - MAXLAT (RO)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Fh
POR Value

Bit Name R/W Function

7:0 MAXLAT RO Maximum latency specifies how often a device needs to gain access to the

SAA7780 CFG Space 0 DMA Base Registers

This section will describe the PCI configuration registers that provide functions such as base address remapping and
the like. These registers reside within the PCI interface.

DMA Channel A Base Address Register - DMAABASE (RW)

PCI CFG 0 D15 D14 D13 D12 D11 D10 D9 D8
Offset 40h
POR Value

0 0 1 0 1 0 0 0

PCI bus. The SAA7780, function 0, should only request the bus a a
maximum of every 10 microseconds. The MAXLAT value is computed using
the same parameters as the MINGNT.

0 0 0 0 0 0 0 0

MAXLAT[7:0]

DMAABASE[15:8]

POR Value

Bit Name R/W Function

15:7 DMAABASE RW DMA channel A programmable base address, bits 15:7.
6 R RO Reserved. This bit must always be zero.

1999 Sep 30 44

D7 D6 D5 D4 D3 D2 D1 D0

DMAA

BASE[7]

0 0 0 0 0 1 0 0

R DMAABASE[5:4] R XFRSIZ[1:0] DDMAA

EN

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

5:4 DMAABASE RW DMA channel A programmable base address, bits 5:4. These bits select a

channel number for this channel. In LAM DMAABASE[5:4] select the channel
number that this DMA represents, it should be different than

DMABBASE[5:4].
3 R RO Reserved. This bit must always be zero.
2:1 XFRSIZ RW DMA transfer size.

00 = reserved

10 = double word

11 = reserved

01 = reserved
0 DDMAAEN RW DDMA channel A enable. This DDMA channel is enabled when this bit is set

to a one.

DMA Channel B Base Address Register - DMABBASE (RW)

PCI CFG 0 D31 D30 D29 D28 D27 D26 D25 D24
Offset 42h
POR Value

POR Value

Bit Name R/W Function

15:7 DMABBASE RW DMA channel B programmable base address. Normally this base is set the

6 R RO Reserved. This bit must always be zero.
5:4 DMABBASE RW DMA channel B programmable base address, bits 5:4. These bits select a

0 0 0 0 0 0 0 0

D23 D22 D21 D20 D19 D18 D17 D16

DMAB

BASE[7]

0 0 0 0 0 0 0 0

R DMABBASE[5:4] R R R DDMAB

same as DMA channel A except for DMABBASE[5:4] which selects the

channel number. This is a requirement of some PC chipsets. Future chipsets

may eliminate this requirement. In LAM DMABBASE[5:4] select the channel

number that this DMA represents, it should be different than

DMAABASE[5:4].

channel number for this channel. In LAM DMABBASE[5:4] select the channel

number that this DMA represents, it should be different than

DMAABASE[5:4].

DMABBASE[15:8]

EN

3:1 R RO Reserved. These bits must always be zeros.
0 DDMABEN RW DMA channel B enable. This DDMA channel is enabled when this bit is set to

1999 Sep 30 45

a one.

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Miscellaneous Configuration Register - MSCCFG (RO/RW)

PCI CFG 0 D7 D6 D5 D4 D3 D2 D1 D0

ASYMCLK[1:0] RDY_EN CFGCLK BHEN PCCH[1:0] PCPCI

Offset 58h
POR Value

0 0 0 0 0 0 0 0

Bit Name R/W Function

7:6 ASYMCLK RW Asymmetrical Clock Select. These bits program the duty cycle for the input

for the two phase DSP clock generator.

5 RDY_EN RW Music registers ready enable. When set, the music registers will cause the

PCI interface to retry when either of the music registers (music0 or music1)
are full.

4 CFGCLK RW Serial Configuration Port Clock Select. This bit selects the clock output to the

Configuration Serial Port.
0 = Ouput a 400 KHz clock. Incoming data will be synchronized to this clock.
1 = Output the PCI clock.

_EN

3 BHEN RW Bus Hog Fix Enable.
2:1 PCCH RW These two bits are the encoded channel number that the soundblaster will be

on in the PC/PCI mode and are valid only when the PC/PCI mode is enabled.

0 PCPCI_EN RW PC/PCI mode enable bit. This bit, when set = 1, will enable the PC/PCI

sideband signals for the Soundblaster legacy mode.

PCI Configuration Space 1

The following table is a summary of all the PCI configuration space registers. The registers that are block-mates with
the PCI interface (offset 00h - 3Ch) will be detailed following this table. The remainder of the registers will be detailed
with the blocks they control. This register space is for the joystick.

PCI Configuration Space 1 Register Map

Byte 3 Byte 2 Byte 1 Byte 0 Offset

Device ID Vendor ID 00h

Status Command 04h

Class Code Revision ID 08h

BIST Header Type Master Latency Timer Cache Line Size 0Ch

GMBASE 10h
Reserved 14-2B

Subsystem ID Subsystem Vendor ID 2Ch

Reserved 30-3Bh

Max_Lat Min_Gnt Interrupt Pin Interrupt Line 3Ch

Reserved 40-6Bh

Reserved Reserved Reserved GAMECFG0 6Ch

1999 Sep 30 46

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Reserved 70-FFh

Vendor ID Register - VENDOR_ID (RO)

PCI CFG 1 D15 D14 D13 D12 D11 D10 D9 D8
Offset 00h
POR Value

POR Value

Bit Name R/W Function

15:0 VENDOR_ID RO The PCI Vendor ID for Philips Semiconductors (VLSI Technology) is 1004h.

Device ID Register - DEVICE_ID (RO)

PCI CFG 1 D15 D14 D13 D12 D11 D10 D9 D8
Offset 02h
POR Value

0 0 0 1 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 1 0 0

0 0 0 0 0 0 1 1

D7 D6 D5 D4 D3 D2 D1 D0

VENDOR_ID[15:8]

VENDOR_ID[7:0]

DEVICE_ID[15:8]

DEVICE_ID[7:0]

POR Value

Bit Name R/W Function

15:0 DEVICE_ID RO The Device ID for the SAA7780, function 1 is 0305h.

Command Register - COMMAND (RO/RW)

PCI CFG 1 D15 D14 D13 D12 D11 D10 D9 D8

Offset 04h
POR Value

1999 Sep 30 47

0 0 0 0 0 1 0 1

R R R R R R FBACK_

ENB

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

SERR_R

ESP

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

STEP-

PING

POR Value

Bit Name R/W Function

15:10 R RO Reserved. These bits always return zero.
9 FBACK_ENB RO Fast Back-to-Back Enable: the SAA7780, function 1 does not support fast

8 SERR_RESP RW System Error Response: When set to 1, the SAA7780, function 1 responds to

7 STEPPING RO Address / Data Stepping: Always returns 0.
6 PERR_RESP RW Parity Error Response: When set to 1, the SAA7780, function 1 responds to

5 SNOOP_ENB RO VGA Snoop Enable. The SAA7780, function 1 does not support VGA snoop

4 MEM_INV_EN RO Memory Write and Invalidate Enable: Always returns 0.
3 SPEC_CNTL RO Special Cycle Control: Controls the devices ability to respond to Special

0 0 0 0 0 0 0 0

PERR_

RESP

SNOOP_

ENB

back to back master cycles therefore this bit always returns a zero.

detected PCI bus address parity errors by asserting SERR#. When 0, the

SAA7780 ignores these errors.

detected PCI bus data parity errors by asserting PERR#. When 0, the

SAA7780 ignores PCI bus data parity errors.

enable, therefor this bit always returns a zero.

Cycle Operations. A value of 0 causes the SAA7780, function 1 to ignore all

Special Cycles.

MEM_

INV_EN

SPEC_

CNTL

MAST_

CNTL

MEM_

CNTL

IO_

CNTL

2 MAST_CNTL RO Master Control: The SAA7780, function 1 does not have any master

functions.
1 MEM_CNTL RO Memory Response Control: The SAA7780, function 1 does not support target

memory cycles therefore this bit always returns a zero.
0 IO_CNTL RW I/O Response Control: Controls the SAA7780, function 1’s response to I/O

space. A value of 0 disables the device response. A value of 1 allows the

device to respond to I/O space accesses.

Status Register - STATUS (RO/RW)

PCI CFG 1 D15 D14 D13 D12 D11 D10 D9 D8

Offset 06h
POR Value

POR Value

R_PERR S_SERR SM_

ABORT

0 0 0 0 0 0 1 0

D7 D6 D5 D4 D3 D2 D1 D0

F_

BK2BK

1 0 0 0 0 0 0 0

UDF MHz66 R R R R R

RT_

ABORT

ST_

ABORT

DEVSEL_TMG S_PERR

1999 Sep 30 48

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

15 R_PERR RC Received Parity Error: When set to 1, this bit indicates that the SAA7780,

function 1 has detected a PCI bus parity error at least once since this bit was

last reset.
14 S_SERR RC Signalled System Error: When set to 1, this bit indicates that the SAA7780,

function 1 has reported a system error on the SERR# signal at least once

since this bit was last reset.
13 SM_ABORT RO Signalled Master Abort: The SAA7780, function 1, does not act as a master.
12 RT_ABORT RO Received Target Abort: The SAA7780, function 1 does not act as a master.
11 ST_ABORT RC Signalled Target Abort: When set to 1, this bit indicates that the SAA7780,

function 1 has signalled a target abort at least once since this bit was last

reset.
10:9 DEVSEL_TMGRO DEVSEL Timing: This field indicates the timing of the DEVSEL output (when

a PCI master is accessing a SAA7780, function 1 resource). It always returns

01 (Bin).

00 = Fast

01 = Medium (Default Timing)

10 = Slow
8 S_PERR RO Signalled Parity Error: The SAA7780, function 1, does not act as a bus

master.
7 F_BK2BK RO Always returns 1 to indicate support of fast back to back cycles when the

SAA7780, function 1 is the target.
6 UDF RO User Definable Features. Always returns 0.
5 MHz66 RO 66 MHz Capable. Always returns 0.
4:0 R RO Reserved. These bits always return zero.

Note: An RC indicates that this bit can be reset to 0 by writing a 1. Writing a zero leaves this bit unchanged.

Revision ID Register - REVISION (RO)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 08h
POR Value

Bit Name R/W Function

7:0 REVISION_ID RO The current revision ID for the SAA7780 joystick.

0 0 0 0 0 0 0 0

REVISION_ID[7:0]

1999 Sep 30 49

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Class Code Register - CLASS (RO)

PCI CFG 1 D23 D22 D21 D20 D19 D18 D17 D16
Offset 09h
POR Value

POR Value

POR Value

Bit Name R/W Function

23:16 BASE_CLASS RO The base class of 09h describes an input device.
15:8 SUB_CLASS RO The sub class of 80h describes a “other” input controller.
7:0 PGM_IFACE RO Device generic function identification.

0 0 0 0 1 0 0 1

D15 D14 D13 D12 D11 D10 D9 D8

1 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 0 0 0

BASE_CLASS[7:0]

SUB_CLASS[7:0]

PGM_IFACE[7:0]

CACHELINE Size Register - CACHELINE (RO)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Ch
POR Value

Bit Name R/W Function

7:0 CACHELINE RO Reserved for cache line size indicator.

Master Latency Timer Register - LATIME (RW)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Dh
POR Value

0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0

CACHELINE[7:0]

LATIME[7:0]

1999 Sep 30 50

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

7:0 LATIME RO The primary bus latency timer specifies the number of primary clocks that the

primary master may consume. It is set to zero since the joystick is a target
only.

Header Type Register - HEADER (RO)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0

MULTI_

Offset 0Eh
POR Value

Bit Name R/W Function

7 MULTI_FN RO For the SAA7780, function 1, this bit has no meaning.
6:0 HEADER RO Header Type. A 00h indicates this device is not a PCI-to-PCI bridge.

BIST Register - BIST (RO)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Fh
POR Value

Bit Name R/W Function

7 BIST RO BIST capable. BIST is not supported in the SAA7780, function 1 at this

FN

1 0 0 0 0 0 0 0

BIST START R R CODE[3:0]

0 0 0 0 0 0 0 0

revision.

HEADER[6:0]

6 START RO If BIST capable, this bit will start the BIST. Writing a 1 will start the test and

5:4 R RO Reserved. These bits always return zero.
3:0 CODE RO Completion Code. A value of zero means the device has passed its test.

SAA7780 CFG Space 1 Legacy Base Address Registers

The SAA7780, contains one legacy I/O base registers in configuration space 1. The joystick is the sole legacy I/O base
address register and is documented here.

1999 Sep 30 51

the BIST should write this bit to a zero when complete. Software should fail
the device if the BIST is not complete after 2 seconds.

Non-zero values means the device has failed using device specific failure
codes.

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Game Port (Joystick) Base Address - GMBASE (RW/RO)

PCI CFG 1 D31 D30 D29 D28 D27 D26 D25 D24
Offset 10h
POR Value

POR Value

POR Value

POR Value

Bit Name R/W Function

0 0 0 0 0 0 0 0

D23 D22 D21 D20 D19 D18 D17 D16

0 0 0 0 0 0 0 0

D15 D14 D13 D12 D11 D10 D9 D8

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

GMBASE[7:3] R R IO

0 0 0 0 0 0 0 1

GMBASE[31:24]

GMBASE[23:16]

GMBASE[15:8]

31:3 GMBASE RW Game port programmable base address. The address should be on a 8 byte

boundary. For reference, the game port legacy base address is 201h.
2:1 R RO Reserved. These bits are reserved and always return zeros for plug and play.
0 IO RO I/O flag. This read only bit indicates that this is an I/O range.

Subsystem Vendor ID - SUBVENID (RO)

PCI CFG 1 D15 D14 D13 D12 D11 D10 D9 D8
Offset 2Ch
POR Value

POR Value

0 0 0 1 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 1 0 0

SUBVEN_ID[15:8]

SUBVEN_ID[7:0]

1999 Sep 30 52

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

15:0 SUBVEN_ID RO Subsystem Vendor ID. The Subsystem Vendor ID register allows the

manufacturer to uniquely identify their board since more than one board OEM
may use the SAA7780 chip. The Subsystem Vendor ID register is loaded by
an external EEPROM via the Serial Configuration Port after reset and before
any access to the PCI configuration header. The PCI target logic should force
a retry if the Subsystem Vendor ID register has not completed loading. The
Subsystem Vendor ID is read only to the PCI interface. If no external
EEPROM is present, then the default Subsystem Vendor ID is 1004h, that of
Philips Semiconductors (VLSI Technology).

Subsystem ID - SUBSYSID (RO)

PCI CFG 1 D15 D14 D13 D12 D11 D10 D9 D8
Offset 2Eh
POR Value

POR Value

Bit Name R/W Function

15:0 SUBSYS_ID RO Subsystem ID. The Subsystem ID register allows the manufacturer to

Interrupt Line Register - INTLINE (RO)

0 0 0 0 0 0 1 1

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 1 0 1

uniquely identify their board since more than one board OEM may use the
SAA7780 chip. The Subsystem ID register is loaded by an external EEPROM
via the Serial Configuration Port after reset and before any access to the PCI
configuration header. The PCI target logic should force a retry if the
Subsystem ID register has not completed loading. The Subsystem ID is read
only to the PCI interface. If no external EEPROM is present, then the default
Subsystem ID is 0305h, identical to the SAA7780 function 1 Device ID.

SUBSYS_ID[15:8]

SUBSYS_ID[7:0]

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Ch
POR Value

1999 Sep 30 53

INTLINE[7:0]

0 0 0 0 0 0 0 0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

7:0 INTLINE RO Interrupt Line. The Interrupt Line register is an eight bit register used to

communicate interrupt line routing information. The value in this register tells
which input of the system interrupt controller(s) the SAA7780 Device's
interrupt pin is connected to. It is set to 00h to use function 0’s interrupt line.
There is no legacy interrupt support for function 1.

Interrupt PIN Register - INTPIN (RO)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Dh
POR Value

Bit Name R/W Function

7:0 INTPIN RO Interrupt Pin. The interrupt pin register tells which interrupt the SAA7780

MIN_GNT Register - MINGNT (RO)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Eh
POR Value

Bit Name R/W Function

7:0 MINGNT RO Minimum grant specifies how long of a burst period the device needs

0 0 0 0 0 0 0 0

device uses. The read only value of 00h implies that the SAA7780 device
shares the INT A interrupt pin with function 0. There is no legacy interrupt
support for function 1.

0 0 0 0 0 0 0 0

assuming a clock speed of 33MHz. Since the SAA7780, function 1, is a
target only, this register is read only and set to zero.

INTPIN[7:0]

MINGNT[7:0]

MAX_LAT Register - MAXLAT (RO)

PCI CFG 1 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Fh
POR Value

1999 Sep 30 54

MAXLAT[7:0]

0 0 0 0 0 0 0 0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

7:0 MAXLAT RO Maximum latency specifies how often a device needs to gain access to the

PCI bus. The SAA7780, function 1, is a target only, this register is read only
and set to zero.

PCI Configuration Space 2

The following table is a summary of all the PCI configuration space registers. The registers that are block-mates with
the PCI interface (offset 00h - 3Ch) will be detailed following this table. The remainder of the registers will be detailed
with the blocks they control. This register space is for the 16650 UART.

PCI Configuration Space 2 Register Map

Byte 3 Byte 2 Byte 1 Byte 0 Offset

Device ID Vendor ID 00h

Status Command 04h

Class Code Revision ID 08h

BIST Header Type Master Latency Timer Cache Line Size 0Ch

UARTBASE 10-13h

Reserved 14-2B

Subsystem ID Subsystem Vendor ID 2Ch

Reserved 30-3Bh

Max_Lat Min_Gnt Interrupt Pin Interrupt Line 3Ch
Reserved Reserved Reserved UARTCFG0 40h
Reserved Reserved Reserved SFCR 44h

Reserved 48-FFh

Vendor ID Register - VENDOR_ID (RO)

PCI CFG 2 D15 D14 D13 D12 D11 D10 D9 D8
Offset 00h
POR Value

POR Value

Bit Name R/W Function

15:0 VENDOR_ID RO The PCI Vendor ID for Philips Semiconductors (VLSI Technology) is 1004h.

1999 Sep 30 55

VENDOR_ID[15:8]

0 0 0 1 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

VENDOR_ID[7:0]

0 0 0 0 0 1 0 0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Device ID Register - DEVICE_ID (RO)

PCI CFG 2 D15 D14 D13 D12 D11 D10 D9 D8
Offset 02h
POR Value

POR Value

Bit Name R/W Function

15:0 DEVICE_ID RO The Device ID for the SAA7780, function 2 is 0306h.

Command Register - COMMAND (RO/RW)

PCI CFG 2 D15 D14 D13 D12 D11 D10 D9 D8

Offset 04h
POR Value

0 0 0 0 0 0 1 1

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 1 1 0

R R R R R R FBACK_

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

DEVICE_ID[15:8]

DEVICE_ID[7:0]

SERR_R

ENB

ESP

STEP-

PING

POR Value

Bit Name R/W Function

15:10 R RO Reserved. These bits always return zero.
9 FBACK_ENB RO Fast Back-to-Back Enable: the SAA7780, function 2 does not support fast

8 SERR_RESP RW System Error Response: When set to 1, the SAA7780, function 2 responds to

7 STEPPING RO Address / Data Stepping: Always returns 0.
6 PERR_RESP RW Parity Error Response: When set to 1, the SAA7780, function 2 responds to

5 SNOOP_ENB RO VGA Snoop Enable. The SAA7780, function 2 does not support VGA snoop

0 0 0 0 0 0 0 0

PERR_

RESP

SNOOP_

ENB

back to back master cycles therefore this bit always returns a zero.

detected PCI bus address parity errors by asserting SERR#. When 0, the
SAA7780 ignores these errors.

detected PCI bus data parity errors by asserting PERR#. When 0, the
SAA7780 ignores PCI bus data parity errors.

enable, therefor this bit always returns a zero.

MEM_

INV_EN

SPEC_

CNTL

MAST_

CNTL

MEM_

CNTL

IO_

CNTL

1999 Sep 30 56

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

4 MEM_INV_EN RO Memory Write and Invalidate Enable: Always returns 0.
3 SPEC_CNTL RO Special Cycle Control: Controls the devices ability to respond to Special

Cycle Operations. A value of 0 causes the SAA7780, function 2 to ignore all
Special Cycles.

2 MAST_CNTL RO Master Control: The SAA7780, function 2 does not have any master

functions.

1 MEM_CNTL RO Memory Response Control: The SAA7780, function 2 does not support target

memory cycles therefore this bit always returns a zero.

0 IO_CNTL RW I/O Response Control: Controls the SAA7780, function 2’s response to I/O

space. A value of 0 disables the device response. A value of 1 allows the
device to respond to I/O space accesses.

Status Register - STATUS (RO/RW)

PCI CFG 2 D15 D14 D13 D12 D11 D10 D9 D8

R_PERR S_SERR SM_

Offset 06h
POR Value

POR Value

Bit Name R/W Function

15 R_PERR RC Received Parity Error: When set to 1, this bit indicates that the SAA7780,

14 S_SERR RC Signalled System Error: When set to 1, this bit indicates that the SAA7780,

13 SM_ABORT RO Signalled Master Abort: The SAA7780, function 2, does not act as a master.
12 RT_ABORT RO Received Target Abort: The SAA7780, function 2 does not act as a master.

0 0 0 0 0 0 1 0

D7 D6 D5 D4 D3 D2 D1 D0

F_

BK2BK

1 0 0 0 0 0 0 0

UDF MHz66 R R R R R

function 2 has detected a PCI bus parity error at least once since this bit was
last reset.

function 2 has reported a system error on the SERR# signal at least once
since this bit was last reset.

ABORT

RT_

ABORT

ST_

ABORT

DEVSEL_TMG S_PERR

11 ST_ABORT RC Signalled Target Abort: When set to 1, this bit indicates that the SAA7780,

1999 Sep 30 57

function 2 has signalled a target abort at least once since this bit was last
reset.

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

10:9 DEVSEL_TMGRO DEVSEL Timing: This field indicates the timing of the DEVSEL output (when

a PCI master is accessing a SAA7780 resource). It always returns 01 (Bin).
00 = Fast

01 = Medium (Default Timing)
10 = Slow

8 S_PERR RO Signalled Parity Error: The SAA7780, function 2, does not act as a bus

master.

7 F_BK2BK RO Always returns 1 to indicate support of fast back to back cycles when the

SAA7780, function 2 is the target.
6 UDF RO User Definable Features. Always returns 0.
5 MHz66 RO 66 MHz Capable. Always returns 0.
4:0 R RO Reserved. These bits always return zero.

Note: An RC indicates that this bit can be reset to 0 by writing a 1. Writing a zero leaves this bit unchanged.

Revision ID Register - REVISION (RO)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 08h
POR Value

Bit Name R/W Function

7:0 REVISION_ID RO The current revision ID for the SAA7780, function 2 joystick.

Class Code Register - CLASS (RO)

PCI CFG 2 D23 D22 D21 D20 D19 D18 D17 D16
Offset 09h
POR Value

POR Value

0 0 0 0 0 0 0 0

0 0 0 0 0 1 1 1

D15 D14 D13 D12 D11 D10 D9 D8

0 0 0 0 0 0 0 0

REVISION_ID[7:0]

BASE_CLASS[7:0]

SUB_CLASS[7:0]

POR Value

1999 Sep 30 58

D7 D6 D5 D4 D3 D2 D1 D0

PGM_IFACE[7:0]

0 0 0 0 0 0 1 0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

23:16 BASE_CLASS RO The base class of 07h describes simple communication devices.
15:8 SUB_CLASS RO The sub class of 00h describes serial controllers.
7:0 PGM_IFACE RO The interface of 02h details a 16550 compatible serial controller.

CACHELINE Size Register - CACHELINE (RO)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Ch
POR Value

Bit Name R/W Function

7:0 CACHELINE RO Reserved for cache line size indicator.

Master Latency Timer Register - LATIME (RW)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Dh
POR Value

Bit Name R/W Function

7:0 LATIME RO The primary bus latency timer specifies the number of primary clocks that the

Header Type Register - HEADER (RO)

0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0

primary master may consume. It is set to zero since the 16650 UART is a
target only.

CACHELINE[7:0]

LATIME[7:0]

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0

Offset 0Eh
POR Value

Bit Name R/W Function

7 MULTI_FN RO For the SAA7780, function 2, this bit has no meaning.
6:0 HEADER RO Header Type. A 00h indicates this device is not a PCI-to-PCI bridge.

1999 Sep 30 59

MULTI_

FN

1 0 0 0 0 0 0 0

HEADER[6:0]

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

BIST Register - BIST (RO)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 0Fh
POR Value

Bit Name R/W Function

7 BIST RO BIST capable. BIST is not supported in the SAA7780, function 2 at this

6 START RO If BIST capable, this bit will start the BIST. Writing a 1 will start the test and

5:4 R RO Reserved. These bits always return zero.
3:0 CODE RO Completion Code. A value of zero means the device has passed its test.

SAA7780 CFG Space 1 Legacy Base Address Registers

The SAA7780, contains one legacy I/O base registers in configuration space 1. The joystick is the sole legacy I/O base
address register and is documented here.

16650 UART Base Address- UARTBASE (RW/RO)

BIST START R R CODE[3:0]

0 0 0 0 0 0 0 0

revision.

the BIST should write this bit to a zero when complete. Software should fail
the device if the BIST is not complete after 2 seconds.

Non-zero values means the device has failed using device specific failure
codes.

PCI CFG 2 D31 D30 D29 D28 D27 D26 D25 D24
Offset 10h
POR Value

POR Value

POR Value

POR Value

0 0 0 0 0 0 0 0

D23 D22 D21 D20 D19 D18 D17 D16

0 0 0 0 0 0 0 0

D15 D14 D13 D12 D11 D10 D9 D8

0 0 0 0 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

UARTBASE[7:3] R R IO

0 0 0 0 0 0 0 1

UARTBASE[31:24]

UARTBASE[23:16]

UARTBASE[15:8]

1999 Sep 30 60

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

31:3 UARTBASERW 16650 UART base address. The address should be on a 8 byte boundary. For

reference, 550 compatible UART legacy base addresses are 3E8h, 338h, 2E8h,

220h, 238h, 2E0h, 228h, 3F8h, and 2F8h.
2:1 R RO Reserved. These bits are reserved and always return zeros for plug and play.
0 IO RO I/O flag. This read only bit indicates that this is an I/O range.

Subsystem Vendor ID - SUBVENID (RO)

PCI CFG 2 D15 D14 D13 D12 D11 D10 D9 D8
Offset 2Ch
POR Value

POR Value

Bit Name R/W Function

15:0 SUBVEN_ID RO Subsystem Vendor ID. The Subsystem Vendor ID register allows the

Subsystem ID - SUBSYSID (RO)

0 0 0 1 0 0 0 0

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 1 0 0

manufacturer to uniquely identify their board since more than one board OEM
may use the SAA7780 chip. The Subsystem Vendor ID register is loaded by
an external EEPROM via the Serial Configuration Port after reset and before
any access to the PCI configuration header. The PCI target logic should force
a retry if the Subsystem Vendor ID register has not completed loading. The
Subsystem Vendor ID is read only to the PCI interface. If no external
EEPROM is present, then the default Subsystem Vendor ID is 1004h, that of
Philips Semiconductors (VLSI Technology).

SUBVEN_ID[15:8]

SUBVEN_ID[7:0]

PCI CFG 2 D15 D14 D13 D12 D11 D10 D9 D8
Offset 2Eh
POR Value

POR Value

1999 Sep 30 61

SUBSYS_ID[15:8]

0 0 0 0 0 0 1 1

D7 D6 D5 D4 D3 D2 D1 D0

SUBSYS_ID[7:0]

0 0 0 0 0 1 1 0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

15:0 SUBSYS_ID RO Subsystem ID. The Subsystem ID register allows the manufacturer to

uniquely identify their board since more than one board OEM may use the
SAA7780 chip. The Subsystem ID register is loaded by an external EEPROM
via the Serial Configuration Port after reset and before any access to the PCI
configuration header. The PCI target logic should force a retry if the
Subsystem ID register has not completed loading. The Subsystem ID is read
only to the PCI interface. If no external EEPROM is present, then the default
Subsystem ID is 0306h, identical to the SAA7780 function 2 Device ID.

Interrupt Line Register - INTLINE (RO)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Ch
POR Value

Bit Name R/W Function

7:0 INTLINE RO Interrupt Line. The Interrupt Line register is an eight bit register used to

Interrupt PIN Register - INTPIN (RO)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Dh
POR Value

Bit Name R/W Function

7:0 INTPIN RO Interrupt Pin. The interrupt pin register tells which interrupt the SAA7780

0 0 0 0 0 0 0 0

communicate interrupt line routing information. The value in this register tells
which input of the system interrupt controller(s) the SAA7780 Device's
interrupt pin is connected to. It is set to 00h to use function 0’s interrupt line.
There is no legacy interrupt support for function 2.

0 0 0 0 0 0 0 0

device uses. The read only value of 00h implies that the SAA7780 device
shares the INT A interrupt pin with function 0. There is no legacy interrupt
support for function 2.

INTLINE[7:0]

INTPIN[7:0]

MIN_GNT Register - MINGNT (RO)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Eh

1999 Sep 30 62

MINGNT[7:0]

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

POR Value

Bit Name R/W Function

7:0 MINGNT RO Minimum grant specifies how long of a burst period the device needs

MAX_LAT Register - MAXLAT (RO)

PCI CFG 2 D7 D6 D5 D4 D3 D2 D1 D0
Offset 3Fh
POR Value

Bit Name R/W Function

7:0 MAXLAT RO Maximum latency specifies how often a device needs to gain access to the

0 0 0 0 0 0 0 0

assuming a clock speed of 33MHz. Since the SAA7780, function 2, is a
target only, this register is read only and set to zero.

MAXLAT[7:0]

0 0 0 0 0 0 0 0

PCI bus. The SAA7780, function 2, is a target only, this register is read only
and set to zero.

Multimedia Timer

Overview

The Multimedia Timer is a 20 bit, 1 microsecond resolution timer that is used for game audio/video synchronization. The
timer subsystem consists of the actual 20-bit timer and I/O space registers to report the status and count.

In a hypothetical operation, the multimedia timer is started at the end of a set of audio commands. The timer then starts
counting while the game control will play its video frames. If the system interrupts the video while the audio is playing,
the game application can read to multimedia timer to see which video frame should be displayed and make corrections
as necessary. The counter value must be read in three PS bus cycles.

The 1-uS resolution timer will get its time base from dividing down the OSC clock. An interrupt and flag is provided to
determine if the timer count has rolled over. The timer can either start from zero or be preloaded with a start value. Only
8 bit accesses are allowed to this device.

1999 Sep 30 63

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

FIGURE 6 Multimedia Timer Block Diagram

OSC

PS BUS

CLOCK
DIVIDE

LOGIC

CTL

INTERNAL

PS BUS

INTERFACE

COUNTER CLOCK

CTL

COUNT

INTR

INTERRUPT

GENERATION

LOGIC

20 BIT - 1uS

RESOLUTION

UP COUNTER

Multimedia Timer Register Definition

There are five registers that control the multimedia timer. These registers are the timer control register, timer status,
and timer count registers. The timer control register resides in PCI configuration space. The remainder of the timer
registers are in I/O space.

Multimedia Timer PCI Configuration Registers

Multimedia Timer Configuration Register 0 - TIMRCFG0 (RW/RO)

PCI CFG 0
Offset 64h R R R R R FSTCLK TMRRST R
POR Value 0 0 0 0 0 0 0 0

Bit Name R/W Function

7:3 R RO Reserved. These bits return zeros.

1999 Sep 30 64

D7 D6 D5 D4 D3 D2 D1 D0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

2 FSTCLK RW Fast clock enable. When set, the timer counter will use the PCI clock instead

of the 1 micro second timer clock. This function will reduce the simulation and
test time of the timer.

1 TMRRST RW Timer reset. When set, this bit holds the multimedia timer in reset. The

multimedia timer is also reset by the system reset.

0 R RO Reserved. This bit returns a zero.

Multimedia Timer I/O Space Registers

Multimedia Timer Status Register - TMSTAT (RW/RO)

SONGBASE

Offset 00h
POR Value 0 0 0 0 0 0 0 0

Bit Name R/W Function

7:4 R RO Reserved. These bits return zeros.
3 TPLD RW Timer preload indicator. When set, this indicates the timer will start counting

2 TRESUME RW Timer resume. When set, the timer will resume counting at the next 1uS

1 TMINT RC Timer interrupt. When asserted, the multimedia timer has flagged an interrupt

0 TINTEN RW Timer interrupt enable. When set, the multimedia timer will generate an

Multimedia Timer Count Registers

There are three registers required to hold the timer value. These three registers can be read at different cycles, It is
recommended that the least significant byte be read first for the most accuracy.

D7 D6 D5 D4 D3 D2 D1 D0

R R R R TPLD TRE-

SUME

from the values set in the timer count registers. When cleared, the timer will
start counting from zero or its last value when stopped

clock edge. When cleared, the timer will stop counting.

when the timer has counted to zero. The timer will continue to count. Writing
a one to this bit will clear the interrupt.

interrupt.

TMINT TINTEN

Multimedia Timer Count Register 2 - TMCOUNT2 (RW/RO)

SONGBASE
Offset 03h R R R R TMCOUNT2[7:0]
POR Value 0 0 0 0 0 0 0 0

1999 Sep 30 65

D7 D6 D5 D4 D3 D2 D1 D0

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Bit Name R/W Function

7:4 R RO Reserved. These bits return zeros.
3:0 TMCOUNT2 RW High nibble timer count. This nibble is the most significant digits of the timer

value.

Multimedia Timer Count Register 1 - TMCOUNT1 (RW)

SONGBASE
Offset 02h TMCOUNT1[7:0]
POR Value 0 0 0 0 0 0 0 0

Bit Name R/W Function

7:0 TMCOUNT1 RW Middle byte timer count. This byte is the middle significant digits of the timer

Multimedia Timer Count Register 0 - TMCOUNT0 (RW)

SONGBASE
Offset 01h TMCOUNT0[7:0]
POR Value 0 0 0 0 0 0 0 0

Bit Name R/W Function

7:0 TMCOUNT0 RW Low byte timer count. This byte is the least significant digits of the timer

D7 D6 D5 D4 D3 D2 D1 D0

value.

D7 D6 D5 D4 D3 D2 D1 D0

value.

1999 Sep 30 66

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Absolute Maximum Ratings

Absolute maximum ratings are those values which damage to the device may occur. Functional operation under these
conditions or at any other condition beyond those indicated in the operational sections of this specification is not
implied.1

Power Supply Operating Requirements

SAA7780 Minimum VDD Operating Requirement

IMPORTANT: The SAA7780 requires VDD >= 3.0V. If VDD < 3.0V, excessive damage from hot electrons might occur.

SAA7780 Power Supply Sequencing Requirement

0 <= (NWELL - VDD) < 4.0V
IMPORTANT: The 5.0V (NWELL) supply must power up ahead of the 3.3V (VDD, not VDDIC) supply. Likewise, the

3.0V supply must power down before the 5.0V supply. More specifically, the voltage level of the 5.0V supply must
always exceed, or at least equal, the voltage level of the 3.3V supply during power up or down, but not by more than

4.0V. This is due the biasing of the P+ source junctions and that some pad gate oxides see the (NWELL-VDD) voltage
level. If this level exceeds 4.0V or becomes less than 0V, damage will occur.

Device Maximum Ratings

The following table notes both the operating and non-operating conditions for both the 3.0V and 5.0V tolerant pads.
Remember that the ranges imply an operating range unless otherwise noted. The 5.0V tolerant pads signal at 3.0V
levels and are CMOS and TTL compatible.

Device Maximum Ratings

Condition Symbol Maximum Ratings

Ambient Operating Temperature T
Ambient Storage Temperature T

A
S

Non-Operating Core and Ring Supply Voltage VDD, VDDIC -0.5V to 4.6V *
Operating Core Supply Voltage VDDIC -0.5V to 3.63V *
Operating Ring Supply Voltage VDD 3.0V to 3.63V *
5V Tolerant Supply (5.0V nominal supply) NWELL -0.5V to 5.5V *
NWELL to VDD Differential NWELL-VDD 0 ≤ (NWELL-VDD) < 4.0V
3V Tolerant I/O DC Input Voltage V
3V Tolerant I/O DC Output Voltage V
5V Tolerant I/O DC Input Voltage V
5V Tolerant I/O DC Output Voltage V
DC Input Current (at VI < 0V or VI > VDD) I
DC Output Current (at VO < 0V or VO > VDD) I

I3
O3
I5

O5
I
O

0°C to +70°C

-65°C to +150°C

-0.5V to VDD+0.5V (≤ 4.6V max)+

-0.5V to VDD+0.5V (≤ 4.6V max)+

-0.5V to 5.5V (≤ 6.0V max)+

-0.5V to VDD+0.5V (≤ 4.6V max)+

± 20mA
± 20mA

1. Adapted from the JEDEC standards JESD8-A and JESD36.

1999 Sep 30 67

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Condition Symbol Maximum Ratings

Power Dissipation P

D

500mW

*Refer to Section 3.1 to ensure proper power supply sequencing as well as voltage ranges.
+Items in parenthesis are non-operating conditions.

DC Characteristics

All parameters apply across the recommended operating temperature range unless noted.

Recommended Operating Conditions

Symbol Parameter Min Max Units Notes

T

A

VDD Ring Power Supply 3.15 3.63 V VSS = 0V typical

NWELL 5V Tolerant Supply 4.75 5.50 V See IMPORTANT notes on

V

IN

V

IN

V

OUT

DC Characteristics of CMOS and TTL Inputs

Ambient Temperature 0 +70 °C

previous page.
Input Signal Voltage 0 5.50 V For 5.0V tolerant inputs only.
Input Signal Voltage 0 VDD+.3 V For 3.3V signal inputs only.

Output Voltage Active 0 VDD V

Symbol Parameter Min Max Units Test Condition (Note 1)

V

IH

V

IL

I

IN

High-Level Input Voltage 2.0 NWELL V V
Low-Level Input Voltage -0.3 0.8 V

≥ VOH (min) or

OUT

V

≤ VOL (max)

OUT

Input Current ± 5 uA VIN = 0V or VIN = VDD (Note 2)

Note 1: For conditions shown as ‘min’ or ‘max’, use the appropriate value shown in DC Characteristics of TTL/CMOS

Outputs.

Note 2: Excluding common Input/Output terminals.

DC Characteristics of Joystick Axis Inputs

Symbol Parameter Min Max Units Test Condition (Note 1)

V

IH

V

IL

High-Level Input Voltage 2.8 NWELL V V
Low-Level Input Voltage -0.3 0.4 V

≥ VOH (min) or

OUT

V

≤ VOL (max)

OUT

DC Characteristics of TTL Outputs

Symbol Parameter Min Max Units Test Condition

V

OH

High-Level Output Voltage 2.4 V VDD = min, IOH = -2mA

1999 Sep 30 68

ThunderBird Q3D PCI Audio SAA7780

Philips Semiconductors

Product Specification

Accelerator

Symbol Parameter Min Max Units Test Condition

V

OL

Low-Level Output Voltage 0.4 V VDD = min, IOL = 2mA

DC Characteristics of CMOS Outputs

Symbol Parameter Min Max Units Test Condition

V

OH

V

OL

High-Level Output Voltage VDD-0.2 V VDD = min, IOH = -100uA
Low-Level Output Voltage 0.2 V VDD = min, IOL = 100uA

DC Current Drive of Non-Standard Outputs1

Symbol Parameter Min Max Units Test Condition

I

OL

MIDI and Memory Interface

8 mA V

OUT

= 0.4V

Output Sink

I

OH

MIDI and Memory Interface

12 mA V

OUT

= 2.4V

Output Source

I

OL

UART, GPIO, Music DAC,

4 mA V

OUT

= 0.4V
and Serial Configuration
Output Sink

I

OH

UART, GPIO, Music DAC,

7 mA V

OUT

= 2.4V
and Serial Configuration
Output Source

1. Refer to the PCI LOCAL BUS SPECIFICATION, revision 2.1, June 1995 for DC current capabilities on the PCI bus.
Refer to the Audio Codec’97 Specification, revision 1.02, for DC current capabilities on the AC-Link interface.

1999 Sep 30 69

Philips Semiconductors Product specification

SAA7780ThunderBird Q3D PCI Audio Accelerator

Data sheet status

Data sheet
status

Objective
specification

Preliminary
specification

Product
specification

Product
status

Development

Qualification

Production

Definition

This data sheet contains the design target or goal specifications for product development.
Specification may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date.
Philips Semiconductors reserves the right to make changes at any time without notice in order to
improve design and supply the best possible product.

This data sheet contains final specifications. Philips Semiconductors reserves the right to make
changes at any time without notice in order to improve design and supply the best possible product.

[1]

[1] Please consult the most recently issued datasheet before initiating or completing a design.

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For

detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one

or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or
at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended
periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips
Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or
modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can

reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard
cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified.

Philips Semiconductors
811 East Arques Avenue
P.O. Box 3409
Sunnyvale, California 94088–3409
Telephone [phone]

 Copyright Philips Electronics North America Corporation 1999

All rights reserved. Printed in U.S.A.

Date of release: 09-99

Document order number: 9397 750 06456



