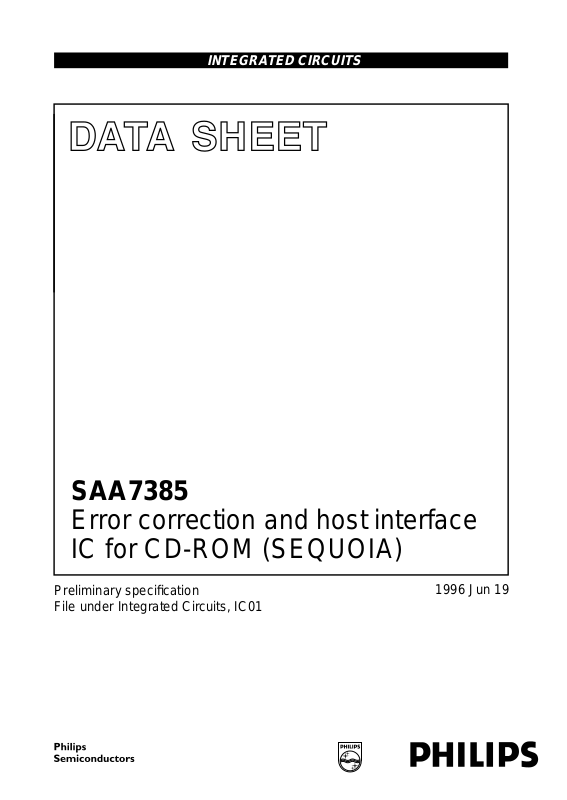

INTEGRATED CIRCUITS

DATA SH EET

SAA7385

Error correction and host interface IC for CD-ROM (SEQUOIA)

Preliminary speciﬁcation File under Integrated Circuits, IC01

1996 Jun 19

Page 2

Philips Semiconductors Preliminary speciﬁcation

Error correction and host interface IC for CD-ROM (SEQUOIA)

1 FEATURES

1.1 General

1.2 53CF94 SCSI controller

1.3 80C32 high-speed microcontroller

1.4 Front-end interface logic

1.5 Buffer controller

1.6 Hardware third-level error correction

1.7 Additional product support 2 GENERAL DESCRIPTION 3 QUICK REFERENCE DATA 4 ORDERING INFORMATION 5 BLOCK DIAGRAM 6 PINNING 7 FUNCTIONAL DESCRIPTION

7.1 80C32 microcontroller

7.2 53CF94 fast SCSI controller

7.3 Input clock doubler

7.4 Front-end 8 MICROCONTROLLER INTERFACE

8.1 Microcontroller interface status register

8.2 Microcontroller interface command register

8.3 Microcontroller interrupts

8.4 Microcontroller RAM organization 9 FRONT PANEL AND MISCELLANEOUS

CONTROL SIGNALS

9.1 S2B UART registers

9.2 Miscellaneous control registers 10 FRONT-END

10.1 Minute Second Frame (MSF) addressing and header information

10.2 Front-end status and control

SAA7385

11 BUFFER MANAGER

11.1 Front-end to buffer manager interface

11.2 Microcontroller to buffer manager interface

11.3 ECC to buffer manager interface

11.4 SCSI to buffer manager interface

11.5 Miscellaneous buffer manager considerations

11.6 53CF94 related registers 12 FRAME BUFFER ORGANIZATION 13 SUMMARY OF CONTROL REGISTER MAP 14 LIMITING VALUES 15 OPERATING CHARACTERISTICS

15.1 I2S-bus timing; data mode

15.2 EIAJ timing; audio mode

15.3 R-W timing (see Fig.15)

15.4 C-flag timing (see Fig.16)

15.5 S2B interface timing

15.6 SCSI interface timing

15.7 Microprocessor interface

15.8 DRAM interface (the SAA7385 is designed to operate with standard 70 ns DRAMs)

16 PACKAGE OUTLINE 17 SOLDERING

17.1 Introduction

17.2 Reflow soldering

17.3 Wave soldering

17.4 Repairing soldered joints

18 DEFINITIONS 19 LIFE SUPPORT APPLICATIONS

1996 Jun 19 2

Page 3

Philips Semiconductors Preliminary speciﬁcation

Error correction and host interface IC for CD-ROM (SEQUOIA)

1 FEATURES

1.1 General

• Single chip digital solution for an 8 × speed CD-ROM controller chip

• 10 Mbytes/s NCR53CF94 equivalent SCSI controller included

• High-speed 80C32 microcontroller with 256 × 8 scratch-pad SRAM included

• High performance CD-ROM interface logic

• 128 pin QFP package.

1.2 53CF94 SCSI controller

• Separate clock input to allow operation up to the maximum 10 Mbytes/s

• Fast synchronous SCSI-2 compatible

• 24-bit transfer counter for single transfers up to

16 Mbytes

• High-speed 16-bit DMA interface to the buffer manager DRAM

• On-chip 48 mA SCSI drivers

• Software compatible with members of the 53C90 family

• Allows for SCAM support.

SAA7385

1.5 Buffer controller

• Ten level arbitration logic

• Utilizes low cost 70 ns DRAMs

• Page mode DRAM access for high-speed error

correction and SCSI data transfer

• Data organization by 3 kbyte frames

• 256 kbyte or 1 Mbyte DRAM supported.

1.6 Hardware third-level error correction

• Third-level correction provides superior performance in unfavourable conditions

• Full hardware error correction to reduce microcontroller overhead

• Corrections are automatically written to the DRAM frame buffer.

1.7 Additional product support

• All control registers mapped into 80C32 special function memory space

• Dedicated S2B interface UART

• Input clock synthesizer

• Red book audio pass through.

1.3 80C32 high-speed microcontroller

• 33.87 MHz full system speed operation

• Three timers/event counters

• Programmable full duplex serial channel

• Eight general purpose microcontroller I/O pins

• External program ROM.

1.4 Front-end interface logic

• Full 8 × speed hardware operation

• Block decoder

• Sector sequencer

• CRC checking of Mode 1 and Mode 2, Form 1 sectors

• 212 ms watch-dog timer

• Sub-code interface with synchronization

• C-flag interface for absolute time stamp.

2 GENERAL DESCRIPTION

The SAA7385 is a high integration ASIC that incorporates all of the digital electronics necessary to connect a CD decoder to a SCSI host. An 80C32 microcontroller and a 53CF94 SCSI controller are embedded in the ASIC. The following functions are supported:

• Input clock doubler

• Block decoder

• CRC checking of Mode 1 and Mode 2, Form 1 sectors

• Red book audio pass through to SCSI

• Buffer manager

• Third-level error correction

• Sub-code and Q-channel support

• Dedicated S2B interface UART

• Embedded 80C32 microcontroller

• Embedded 53CF94 SCSI controller.

1996 Jun 19 3

Page 4

Philips Semiconductors Preliminary speciﬁcation

Error correction and host interface IC for CD-ROM (SEQUOIA)

The SAA7385 uses a 33.8688 MHz clock and is capable of accepting data at eight times (n = 8 or 1.4 Mbytes/s) the normal CD-ROM data rate.

Third level error correction hardware is included to improve the correction efficiency of the system. The buffer manager hardware utilizes a ten-level arbitration unit and can stop the clock to the microcontroller to emulate a wait condition when necessary.

The SAA7385 comprises five major functional blocks:

• The 80C32 microcontroller is an industry standard core

• The 53CF94 is an industry standard core

• The front-end block connects to the external CD-60

based decoder and fully processes the incoming data stream to provide bytes of data that are stored in the external buffer

• The buffer manager block provides the address generation and timing control for the external DRAM buffer

• The ECC block performs the error correction functions in hardware on the data in the DRAM buffer.

SAA7385

Supply of this Compact Disc IC does not convey an implied license under any patent right to use this IC in any Compact Disc application.

3 QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

amb

stg

4 ORDERING INFORMATION

TYPE

NUMBER

SAA7385GP SQFP128 plastic quad ﬂat package; 128 leads (lead length 1.6 mm);

digital supply voltage 4.5 5.0 5.5 V operating ambient temperature 0 − 70 °C storage temperature −55 − +150 °C

PACKAGE

NAME DESCRIPTION VERSION

SOT387-2

body 14 × 20 × 2.8 mm

1996 Jun 19 4

Page 5

Philips Semiconductors Preliminary speciﬁcation

Error correction and host interface IC for CD-ROM (SEQUOIA)

5 BLOCK DIAGRAM

handbook, full pagewidth

DECODER

CD

data subcode

DATA

CONVERTER

AND SUB-CODE

UART

data subcode C-flag

256K × 8 or 1M × 8

BUFFER MANAGER

LAYERED

ERROR

CORRECTOR

DRAM BUFFER

BUFFER

MAPPER

MICROCONTROLLER INTERFACE

53CF94

SCSI

SAA7385

SCSI

interface

SERVO

PROCESSOR

S2B serial interface

80C32 MICROCONTROLLER

DEBUG UART

debug UART

SAA7385

MGE388 

64K × 8 ROM

Fig.1 Block diagram (simplified).
