INTEGRATED CIRCUITS

DATA SH EET

SAA7212

Integrated MPEG AVG decoder

Preliminary specification
Supersedes data of 1998 Feb 18
File under Integrated Circuits, IC02

1998 Sep 07

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

FEATURES
General features

• Single external Synchronous DRAM organized
as1M×16 interfacing at 81 MHz. Due to efficient
memory use in MPEG decoding, more than 1 Mbit
available for graphics

• Fast 16-bit data + 8-bit address interface with external
controller on 27 MHz. Sustained data rate to external
SDRAM ≤9 Mbytes/s in bursts of 128 bytes

• Dedicated input for audio and video in PES or ES in byte
wide. Data input rate: ≤9 Mbytes/s in byte mode.
Accompanying strobe signals distinguish between audio
and video data

• Dedicated compressed data input compatible with the
VLSI VES2020/2030 demultiplexers; video is received
in byte format and audio serially

• Audio and/or video can also be input via the CPU
interface in PES/ES in 8 or 16-bit parallel format up to a
peak data rate of 9 Mbytes/s

• Single 27 MHz external clock for time base reference
and internal processing. Internal system time base at
90 kHz can be synchronized via CPU port. All required
decoding and presentation clocks are generated
internally

• Flexible memory allocation under control of the external
CPU enables optimized partitioning of memory for
different tasks

• Boundary scan testing implemented

• External SDRAM self test

• Supply voltage 3.3 V

• Package QFP160.

CPU related features

• 16 bits data, 8 bits address, or 16 bits multiplexed bus.
Motorola 68xxx and Intel x 86 compatible.

• Support fast DMA transfer

• Flexible bidirectional interface to external SDRAM.

Minimum sustained rate is 9 Mbytes/s

• Enhanced block mover allows 3 D data move in the
external SDRAM. Picture move/Graphic bit maps
construction can be done with minimum CPU support.

MPEG2 system features

• Parsing of MPEG2 PES and MPEG1 packet streams

• Double system time clock counters

• Stand-alone or supervised audio/video synchronization

• Processing of errors flagged by channel decoding

section

• Support for retrieval of PES header.

MPEG2 video features

• Decoding of MPEG2 video up to main level, main profile

• Output picture format: CCIR-601 4:2:2 interlaced

pictures. Picture format 720 × 576 at 50 Hz or 720 × 480
at 60 Hz

• Support of constant and variable bit rates up to
15 Mbits/s

• Stand-alone or CPU controlled mode for
decoding/display processes

• Stand-alone mode can be used by applications requiring
still pictures manipulations

• Output interface at 8-bit wide, 27 MHz UYVY
multiplexed bus

• Horizontal and vertical pan and scan allows the
extraction of a window from the coded picture

• Flexible horizontal scaling from 0.5 up to 4 allows easy
aspect ratio conversion including support
for 2.21 : 1 aspect ratio movies. In case of shrinking an
anti-aliasing pre-filter is applied

• Vertical scaling with fixed factors 0.5, 1 or 2. Factor 0.5,
realizing picture shrink. Factor 2 can be used for
up-conversion of pictures with 288 (240) lines or less.

• Vertical down-scaling with 0.75 factor, realizing letter
box conversion

• Horizontal and vertical scaling can be combined to scale
pictures to
space for graphic applications like electronic program
guides

• Non full screen MPEG pictures will be displayed in a box
of which position and background colour are adjustable
by the external microcontroller

• Nominal video input buffer size for ml@mp 2.7 Mbit

• Video output may be slaved to internally (master)

generated or externally (slave) supplied HV
synchronization signals. The position of active video is
programmable. Display phase is not affected by MPEG
timebase changes.

1

⁄4 their original size, thus freeing up screen

1998 Sep 07 2

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

• Video output direct connectable to SAA718x encoder
family

• Various trick modes under control of external
microcontroller in stand-alone mode:

– Freeze field/frame on I or P pictures; restart on I


– Freeze field on B pictures; restart on the next I or P

picture.

– Scanning and decoding of I or I + P pictures in a IBP

sequence
– Single step mode
– Repeat/skip field for time base correction.

MPEG2 audio features

• Decoding of 2 channels, layer I and II MPEG audio.
Support for mono, stereo, intensity stereo and dual
channel mode.

• Constant and variable bit rates up to 448 kbit/s

• Supported audio sampling frequencies: 48, 44.1, 32, 24,

22.05 and 16 kHz

• CRC error detection

• 3 decoding modes for dual channel streams: decoding

of CH1 only, decoding of CH2 only and decoding of both
CH1 and CH2

• Storage of last 54 bytes in ancillary data field

• Dynamic Range Control (DRC) at output

• Independent channel volume control and programmable

inter channel crosstalk through a baseband audio
processing unit

• Muting possibility via external controller. Automatic
muting in case of errors or data lack.

• Generation of ‘beeps’ with programmable tone height,
duration and amplitude

• Serial two channel digital audio output with 16, 18, 20 or
22 bits per sample, compatible either to I
formats. Output can be set to high-impedance mode via
the external controller.

• Serial SPDIF audio output. Output can be set to
high-impedance mode.

• Clock output 256 or 384 × fs for external DA converter.
Output can be set to high-impedance mode.

• Audio FIFO in external SDRAM. Programmable buffer
size, at least 64 kbit is available.

• Synchronization modes: PTS controlled, PTS free
running, software controlled, buffer controlled

• PTS register can be set via external controller

2

S or Japanese

• Programmable processing delay compensation

• Software controlled stop and restart functions.

Graphics features

• Graphics are presented in boxes independent of video
format

• Screen arrangement of boxes is determined by display
list mechanism which allows for multiple boxes,
background loading, fast switching, scrolling and fading
of regions

• Support of 2, 4, 8-bit/pixel in fixed bit maps format or
coded in accordance to the DVB variable/run length
standard for region based graphics

• Display colours are obtained via colour look up tables.
CLUT output is YUVT at 8-bit for each signal component
thus enabling 16 M different colours and 6-bit for T
which gives 64 mixing levels with video,
(T = transparency).

• Bit-map table mechanism to specify a sub set of entries
if the CLUT is larger than required by the coded bit
pattern. Supported bit-map tables are 16 to 256,
4 to 256 and 4 to 16.

• Graphics boxes may not overlap vertically. If 256 entry
CLUT has to be down loaded, a vertical separation of
1 line is mandatory.

• Optimized memory utilization in MPEG video decoding
allows for a storage capacity of 1.2 Mbit for graphics bit
maps. Flexibility in memory control enables larger
capacity in a lot of applications. Moreover variable
length/run length encoding makes better use of
available memory capacity for graphics bit maps thus
making full screen graphics at 8-bit/pixel feasible.

• Fast CPU access (9 Mbytes/s) enables full 1.2 Mbit bit
map update within 20 ms

• Internal support for fast block moves in external SDRAM

• Graphics mechanism can be used for signal generation

in the vertical blanking interval. Useful for teletext, wide
screen signalling, closed caption, etc.

• Support for a single down loadable cursor of 1k pixel
with programmable shape. Supported shapes are
8 × 128 pixels, 16 × 64 pixels, 32 × 32 pixels,
64 × 16 pixels and 128 × 8 pixels.

• Cursor colours obtained via 4 entry CLUT with YUVT at
6,4,4 respectively 2 bits. Mixing of cursor with
video + graphics in 4 levels.

• Cursor can be moved freely across the screen without
overlapping restrictions.

1998 Sep 07 3

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

APPLICATIONS

• Tbf.

GENERAL DESCRIPTION

The SAA7212 is an MPEG2 source decoder which combines audio decoding and video decoding. Additionally to these
basic MPEG functions it also provides means for enhanced graphics and/or on-screen display (OSD). Due to an
optimized architecture for audio and video decoding, maximum capacity in external memory and processing power from
the external CPU is available for graphics support.

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

DD

I

DD(tot)

f

clk

functional supply voltage 3.0 3.3 3.6 V
total supply current; VDD= 3.3 V − tbf − mA
device clock frequency −30 ppm 27.0 +30 ppm MHz

ORDERING INFORMATION

PACKAGE

TYPE NUMBER

NAME DESCRIPTION VERSION

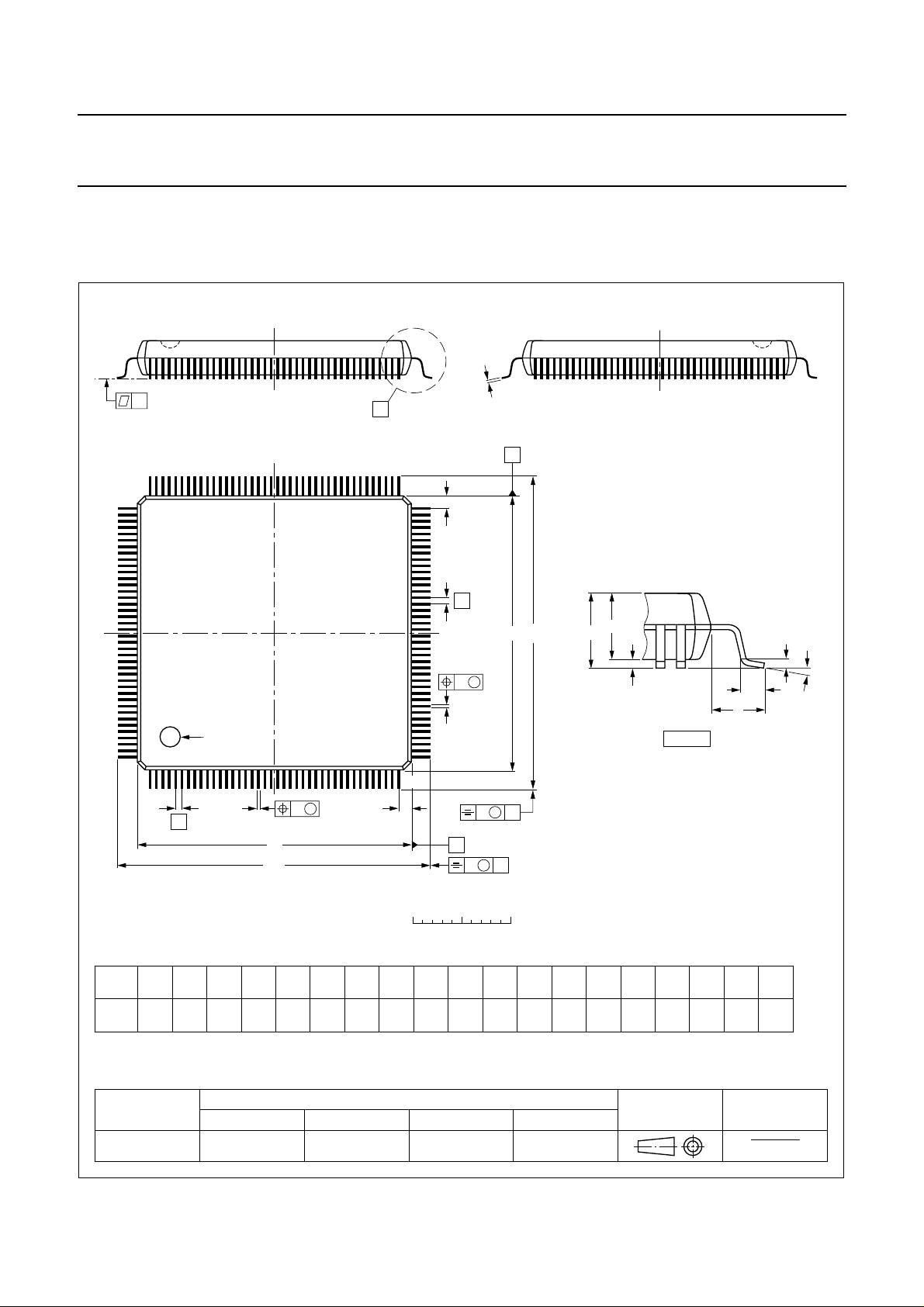

SAA7212H QFP160 plastic quad flat package; 160 leads (lead length 1.95 mm);

body 28 × 28 × 3.4 mm; high stand-off height

SOT322-1

1998 Sep 07 4

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

BLOCK DIAGRAM

SDRAM

Memory
interface

Video input

buffer and sync

from

Demux

to/from

external

CPU

Audio/video

interface

System time

base unit

Host interface

SDRAM access

unit

Clock

generation

Video

Decoder

Display

unit

Graphics

unit

Audio

Decoder

to

digital

encoder

to

audio

DAC

JTAG

Fig.1 Block diagram.

1998 Sep 07 5

Audio input

buffer and sync

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

PINNING

SYMBOL PIN DESCRIPTION

MUX 1 multiplexed/non multiplexed bus
CPU_TYPE 2 Intel/Motorola selection
DMA_ACK 3 DMA acknowledge
DMA_REQ 4 DMA request
DMA_DONE 5 DMA end
DMA_RDY 6 DMA ready
V

SS

CS 8 chip select.
DS 9 data strobe
AS 10 address strobe
RWN 11 read/write
DTACK 12 data acknowledge
V

DD

IRQ 0 14 individually maskable interrupts
IRQ 1 15 individually maskable interrupts
V_REQ 16 compressed video data request
A_REQ 17 compressed audio data request
V

SS

V

SSCO

V

DDCO

DATA 0 21 CPU data interface
DATA 1 22 CPU data interface
DATA 2 23 CPU data interface
DATA 3 24 CPU data interface
V

DD

DATA 4 26 CPU data interface
DATA 5 27 CPU data interface
DATA 6 28 CPU data interface
DATA 7 29 CPU data interface
V

SS

DATA 8 31 CPU data interface
DATA 9 32 CPU data interface
DATA 10 33 CPU data interface
DATA 11 34 CPU data interface
V

DD

DATA 12 36 CPU data interface
DATA 13 37 CPU data interface
DATA 14 38 CPU data interface
DATA 15 39 CPU data interface
V

SS

7 ground for pad ring

13 3.3 V supply for pad ring

18 ground for pad ring
19 ground for core logic
20 3.3 V supply for core logic

25 3.3 V supply for pad ring

30 ground for pad ring

35 3.3 V supply for pad ring

40 ground for pad ring

1998 Sep 07 6

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

SYMBOL PIN DESCRIPTION

ADDRESS 1 41 CPU address interface
ADDRESS 2 42 CPU address interface
ADDRESS 3 43 CPU address interface
ADDRESS 4 44 CPU address interface
V

DD

ADDRESS 5 46 CPU address interface
ADDRESS 6 47 CPU address interface
ADDRESS 7 48 CPU address interface
ADDRESS 8 49 CPU address interface
V

SS

V

SSCO

V

DDCO

SDRAM_DATA 0 53 SDRAM data
SDRAM_DATA 15 54 SDRAM data
SDRAM_DATA 1 55 SDRAM data
V

DD

SDRAM_DATA 14 57 SDRAM data
SDRAM_DATA 2 58 SDRAM data
SDRAM_DATA 13 59 SDRAM data
V

SS

SDRAM_DATA 3 61 SDRAM data
SDRAM_DATA 12 62 SDRAM data
SDRAM_DATA 4 63 SDRAM data
V

DD

SDRAM_DATA 11 65 SDRAM data
SDRAM_DATA 5 66 SDRAM data
SDRAM_DATA 10 67 SDRAM data
V

SS

SDRAM_DATA 6 69 SDRAM data
SDRAM_DATA 9 70 SDRAM data
SDRAM_DATA 7 71 SDRAM data
V

DD

SDRAM_DATA 8 73 SDRAM data
SDRAM_WE 74 SDRAM write enable
SDRAM_CAS 75 SDRAM column address strobe
V

SS

SDRAM_RAS 77 SDRAM row address strobe
SDRAM_UDQ 78 SDRAM write mask
V

DD

READ_IN 80 read command in
READ_OUT 81 read command out

45 3.3 V supply for pad ring

50 ground for pad ring
51 ground for core logic
52 3.3 V supply for core logic

56 3.3 V supply for pad ring

60 ground for pad ring

64 3.3 V supply for pad ring

68 ground for pad ring

72 3.3 V supply for pad ring

76 ground for pad ring

79 3.3 V supply for pad ring

1998 Sep 07 7

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

SYMBOL PIN DESCRIPTION

V

SS

CP81MEXT 83 81 MHz SDRAM clock return path
CP81M 84 81 MHz SDRAM memory clock
V

DD

SDRAM_ADDR 8 86 SDRAM address
SDRAM_ADDR 9 87 SDRAM address
SDRAM_ADDR 11 88 SDRAM address
V

SS

SDRAM_ADDR 7 90 SDRAM address
SDRAM_ADDR 10 91 SDRAM address
SDRAM_ADDR 6 92 SDRAM address
V

DD

SDRAM_ADDR 0 94 SDRAM address
SDRAM_ADDR 5 95 SDRAM address
SDRAM_ADDR 1 96 SDRAM address
V

SS

SDRAM_ADDR 4 98 SDRAM address
SDRAM_ADDR 2 99 SDRAM address
SDRAM_ADDR 3 100 SDRAM address
V

SSCO

V

DDCO

V

DD

Test 5 104 IC test interface (see note 2)
Test 6 105 IC test interface (see note 2)
HS 106 horizontal synchronization
VS 107 vertical synchronization
V

SS

YUV 0 109 YUV video output at 27 MHz
YUV 1 110 YUV video output at 27 MHz
YUV 2 111 YUV video output at 27 MHz
YUV 3 112 YUV video output at 27 MHz
V

DD

YUV 4 114 YUV video output at 27 MHz
YUV 5 115 YUV video output at 27 MHz
YUV 6 116 YUV video output at 27 MHz
YUV 7 117 YUV video output at 27 MHz
Test 4 118 IC test interface (see note 3)
GRPH 119 indicator for graphics information
Test 3 120 IC test interface (see note 4)
V

DDAN

V

SSAN

82 ground for pad ring

85 3.3 V supply for pad ring

89 ground for pad ring

93 3.3 V supply for pad ring

97 ground for pad ring

101 ground for core logic
102 3.3 V supply for core logic
103 3.3 V supply for pad ring

108 ground for pad ring

113 3.3 V supply for pad ring

121 3.3 V supply for analog blocks
122 ground for analog blocks

1998 Sep 07 8

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

SYMBOL PIN DESCRIPTION

V

SS

CLK 124 27 MHz Clock input
V

SS

TCK 126 boundary scan test clock
TRST 127 boundary scan test reset
TMS 128 boundary scan test mode select
TDO 129 boundary scan test data output
TDI 130 boundary scan test data input
V

DD

Test 0 132 IC test interface (see note 4)
Test 1 133 IC test interface (see note 4)
Test 2 134 IC test interface (see note 4)
AUDDEN 135 synchronization of the serial audio input (A_DATA)
A_DATA 136 serial audio input
V

DD

RESET 138 hard reset input, active LOW
FSCLK 139 256 or 384f
V

DDCO

V

SSCO

SCK 142 serial audio clock
SD 143 serial audio data output
V

SS

WS 145 word select
SPDIF 146 digital audio output
ERROR 147 flag for bitstream error.
V_STROBE 148 video strobe
V

DD

AV_DATA 0 150 MPEG stream input port
AV_DATA 1 151 MPEG stream input port
AV_DATA 2 152 MPEG stream input port
AV_DATA 3 153 MPEG stream input port
V

SS

AV_DATA 4 155 MPEG stream input port
AV_DATA 5 156 MPEG stream input port
AV_DATA 6 157 MPEG stream input port
AV_DATA 7 158 MPEG stream input port
A_STROBE 159 audio strobe
V

DD

123 ground for pad ring

125 ground for pad ring

131 3.3 V supply for pad ring

137 3.3 V supply for pad ring

(audio sampling)

s

140 3.3 V supply for core logic
141 ground for core logic

144 ground for pad ring

149 3.3 V supply for pad ring

154 ground for pad ring

160 3.3 V supply for pad ring

1998 Sep 07 9

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

Notes

1. 5 V tolerant outputs swing between VSS and VDD but 5 V tolerant input can receive signal swinging between VSS and

3.3 V or VSS and 5 V.

2. Should be left open in normal mode.

3. Should be tied up to VDD in normal mode.

4. Should be tied down to ground in normal mode.

handbook, halfpage

160

1

SAA7212H

40

41

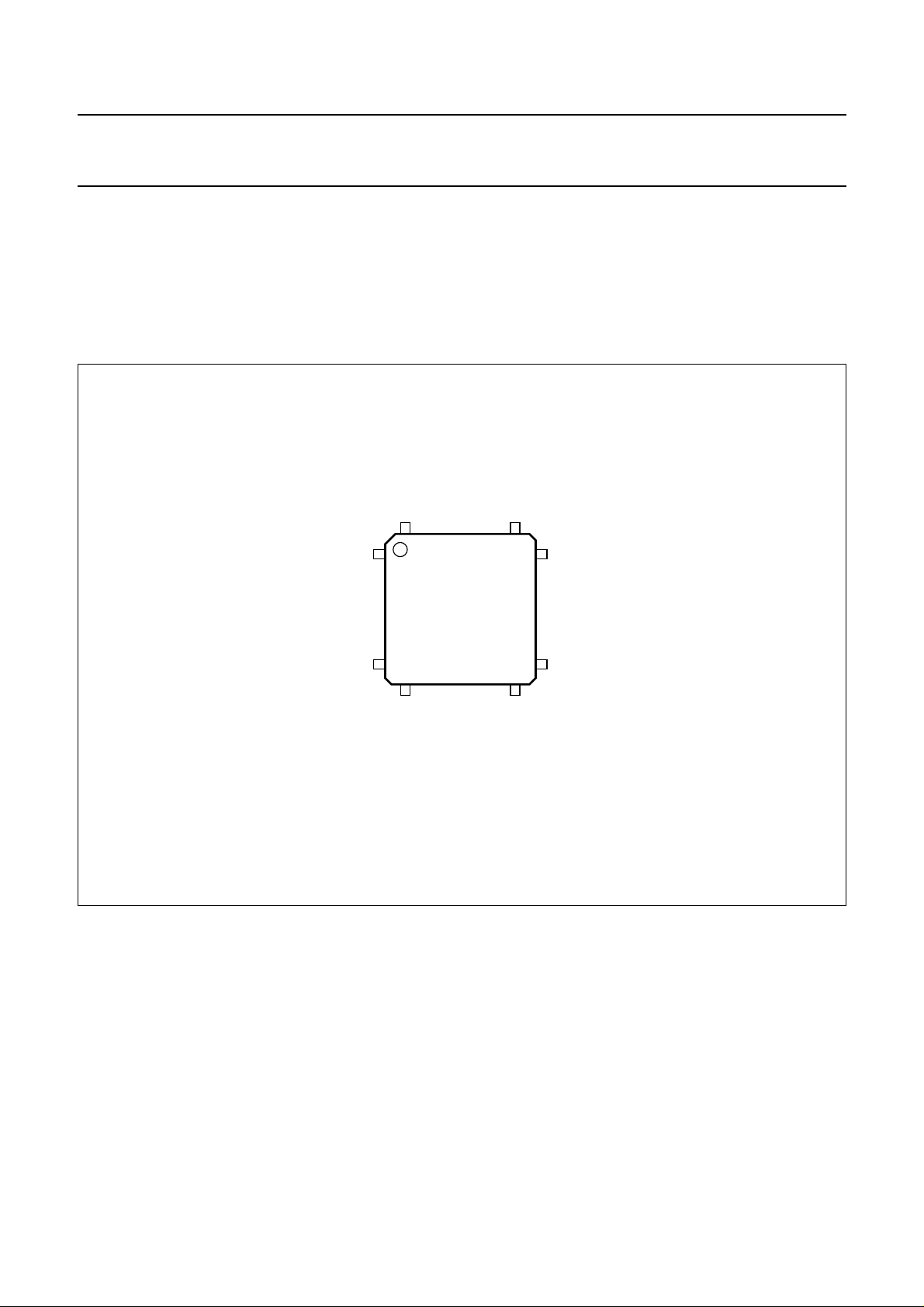

Fig.2 Pin configuration.

121

120

81

MGL400

80

1998 Sep 07 10

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

DD

V

n(max)

P

tot

T

stg

T

amb

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

th(j-a)

HANDLING

supply voltage −0.5 +5 tbf V
voltage on all pins 0 5 tbf V
total power dissipation T

=25°C − 1 tbf W

amb

IC storage temperature −55 150 tbf °C
operating ambient temperature 0 70 tbf °C

thermal resistance from junction to ambient in free air 30 K/W

Inputs and outputs are protected against electrostatic discharges in normal handling. However, to be totally safe, it is
desirable to take normal precautions appropriate to handling integrated circuits.

CHARACTERISTICS

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

Supply

V

DD

I

DD(tot)

functional supply voltage 3.0 3.3 3.6 V
total supply current; VDD= 3.3 V − tbf − mA

Inputs

V

IH(5V tolerant)

V

IH

V

IL(5V tolerant)

V

IL

I

L

C

i

input voltage HIGH 2.0 − 6.5 V
input voltage HIGH 0.7V

DD

− VDD+2.0 V
input voltage LOW −0.5 − 0.8 V
input voltage LOW −0.5 − 0.3V

DD

V
leakage current −−20 µA
input capacitance 0 − 10 pF

Outputs

V

OH(5V tolerant)

V

OH

V

OL(5V tolerant)

V

OL

output voltage HIGH 2.4 −− V
output voltage HIGH VDD− 0.4 −− V
output voltage LOW −−0.4 V
output voltage LOW −−0.4 V

DC timing

T

cy

cycle time − 37.037 − ns

δ duty factor 40 − 60 %

1998 Sep 07 11

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

APPLICATION INFORMATION

27.0 MHz

4-Mbit

EPROM

CPU + DEMUX

high

speed

data

4-Mbit

DRAM

Strobe

27 MHz

H,V,FP

TTX/TTXRQ

Irq

16-Mbit

SDRAM

YUV

ctrldataaddr

I2S

AUDIO

D/A

L

R

16

12

8+3

4
8

16

SAA7212

2

H,V

valid

I2C-bus

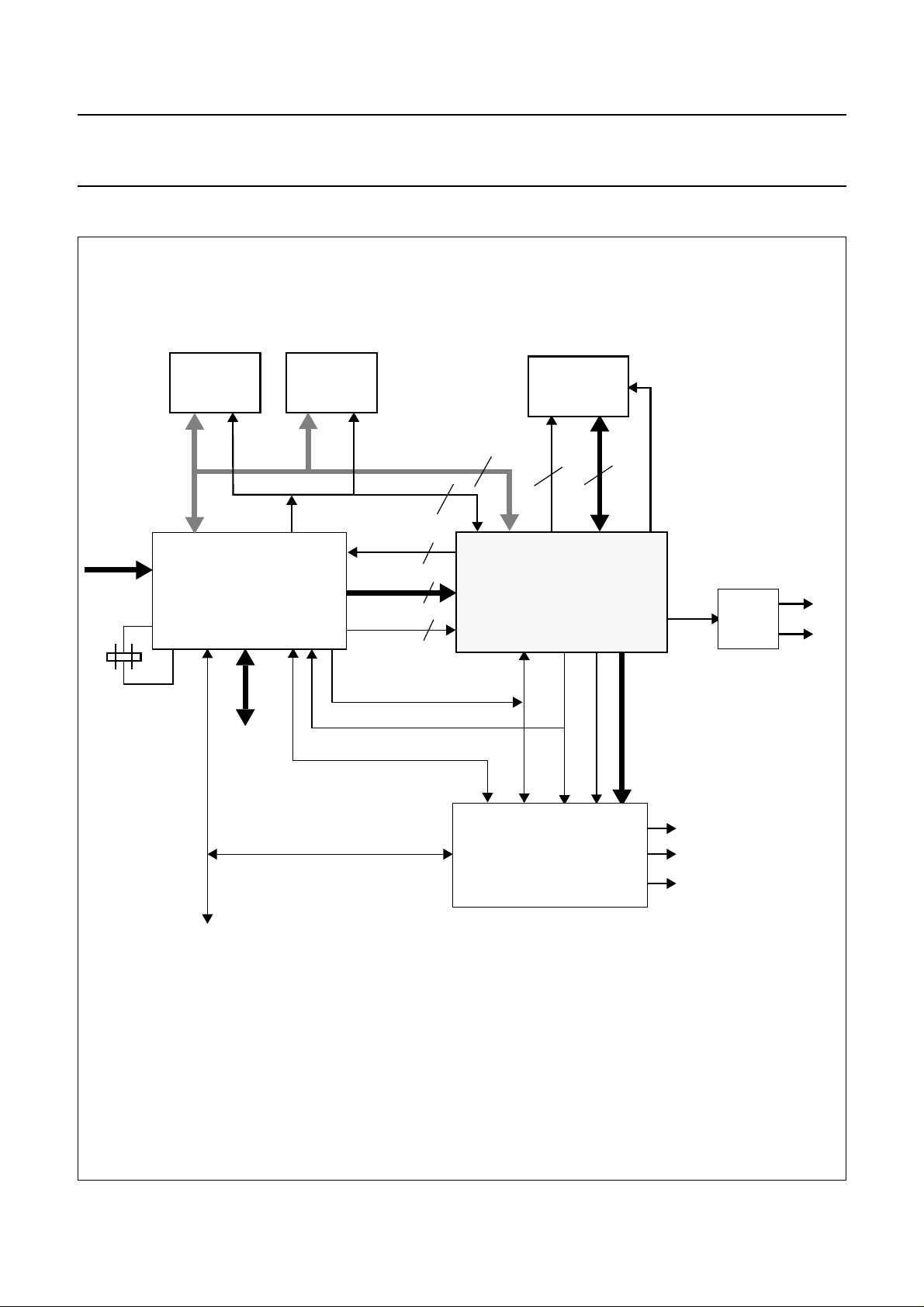

Fig.3 Application diagram

1998 Sep 07 12

SAA7183

(euro-denc)

CVBS
Y/C
RGB

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

CP81MEXT

CP81M

READ_OUT

READ_IN

SDRAM_UDQ

SDRAM_CAS
SDRAM_RAS

SDRAM_CS

SDRAM_WE

SDRAM_DATA0

.......

SDRAM_DATA15
SDRAM_ADDR11
SDRAM_ADDR10

SDRAM_ADDR9

SDRAM_ADDRA8

CLK
CKE
LDQM
UDQM
CAS
RAS
CS

SDRAM 16-Mbit

WE
DQ0

....

DQ15
A11
A10
A9
A8

TSSOP II

50 pins
400 mil

SDRAM_ADDR7

....

SDRAM_ADDR0

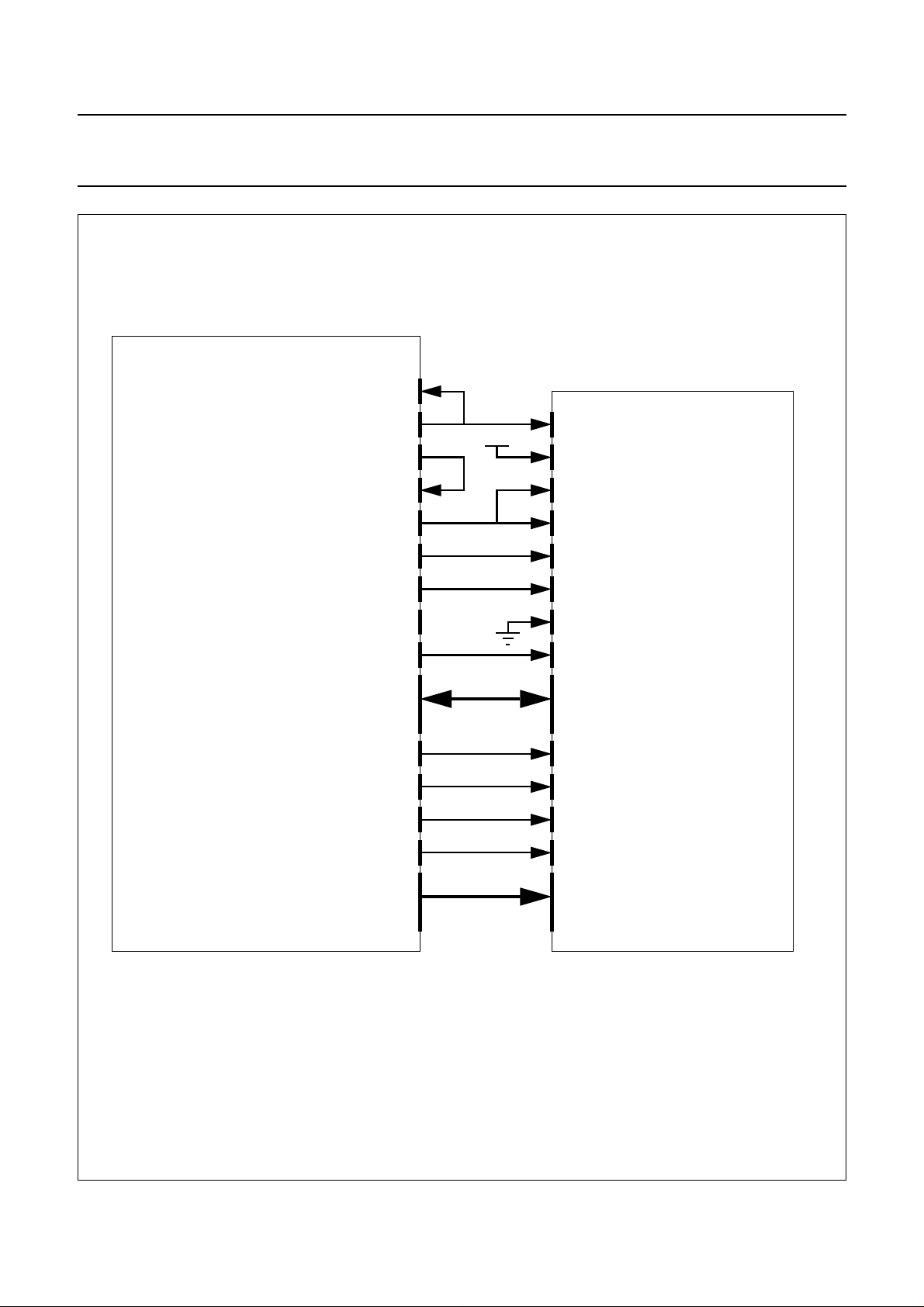

The board should be designed to insure a similar load on the CP81M and READ_OUT pins as well as a similar fly time between the CP81M and
CP81MEXT pins on one side and the READ_OUT and READ_IN pins on the other side.

Fig.4 Connection SAA7212 SDRAM.

1998 Sep 07 13

A7

....

A0

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

PACKAGE OUTLINE

QFP160: plastic quad flat package;

160 leads (lead length 1.95 mm); body 28 x 28 x 3.4 mm; high stand-off height

c

y

X

A

SOT322-1

120

121

pin 1 index

160

1

w M

b

3.70

3.15

0.25

p

D

H

D

cE

p

0.40

0.23

0.25

0.13

e

DIMENSIONS (mm are the original dimensions)

mm

A

max.

3.95

0.40

0.25

UNIT A1A2A3b

81

80

Z

E

e

A

p

A

2

A

1

0.15 0.1

H

E

E

w M

b

p

41

40

Z

D

0 5 10 mm

(1) (1) (1)

D

28.1

27.9

(1)

eH

28.1

0.65 0.31.95

27.9

B

scale

H

32.2

31.6

v M

D

v M

B

E

32.2

31.6

A

LL

1.1

0.7

detail X

Z

D

1.5

1.1

(A )

3

L

p

L

Zywv θ

E

o

1.5

8

o

1.1

0

θ

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE
VERSION

SOT322-1 MO112DD1

IEC JEDEC EIAJ

REFERENCES

1998 Sep 07 14

EUROPEAN

PROJECTION

ISSUE DATE

95-02-04
97-08-04

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(order code 9398 652 90011).

Reflow soldering

Reflow soldering techniques are suitable for all QFP
packages.

The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For details,
refer to the Drypack information in the

“Data Handbook
IC26; Integrated Circuit Packages; Section: Packing
Methods”

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 50 and 300 seconds depending on heating
method. Typical reflow peak temperatures range from
215 to 250 °C.

.

Wave soldering

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

CAUTION

Wave soldering is NOT applicable for all QFP
packages with a pitch (e) equal or less than 0.5 mm.

If wave soldering cannot be avoided, for QFP
packages with a pitch (e) larger than 0.5 mm, the
following conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1998 Sep 07 15

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1998 Sep 07 16

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

NOTES

1998 Sep 07 17

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

NOTES

1998 Sep 07 18

Philips Semiconductors Preliminary specification

Integrated MPEG AVG decoder SAA7212

NOTES

1998 Sep 07 19

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213, Tel. [phone],

Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie BesantRoad, Worli, MUMBAI 400 025,
Tel. [phone], Fax.[phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext.2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax.[phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax.[phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone]

Middle East: see Italy
Netherlands: Postbus 90050, 5600PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC,MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax.[phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax.[phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax.[phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax.[phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax.[phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax.[phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1998 SCA60
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 545104/750/02/pp20 Date of release: 1998 Sep 07 Document order number: 9397 750 04068
