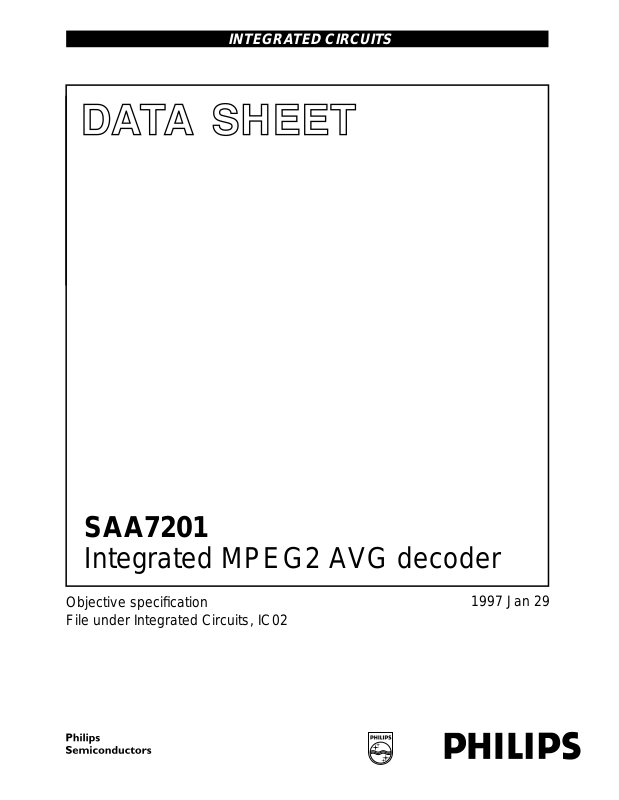

INTEGRATED CIRCUITS

DATA SH EET

SAA7201

Integrated MPEG2 AVG decoder

Objective specification
File under Integrated Circuits, IC02

1997 Jan 29

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

FEATURES
General

• Uses single external Synchronous DRAM (SDRAM)
organized as 1M × 16 interfacing at 81 MHz; compatible
with the SDRAM ‘lite’ or ‘PC’

• Fast external CPU interface; 16-bit data + 8-bit address

• Dedicated input for audio and video data in PES or ES
format; data input rate: ≤9 Mbytes/s in byte mode;
≤20 Mbit/s in bit serial mode; audio and/or video data

can also serve as input via CPU interface

• Single 27 MHz external clock for time base reference
and internal processing; all required decoding and
presentation clocks are generated internally

• Internal system time base at 90 kHz can be
synchronized via CPU port

• Flexible memory allocation under control of the external
CPU enables optimized partitioning of memory for
different tasks

• Boundary scan (JTAG) plus external SDRAM self test
implemented

• Supply voltage 3.3 V

• Package 160 QFP.

CPU relation

• 16-bit data, 8-bit address, or 16-bit multiplexed bus;
Motorola and Intel mode supported

• Support for fast DMA transfer to either internal registers
or external SDRAM

• Maximum sustained rate to the external SDRAM is
9 Mbytes/s.

MPEG2 audio

• Decoding of 2 channel, layer I and II MPEG audio;
support for mono, stereo, intensity stereo and dual
channel mode

• Constant and variable bit rates up to 448 kbit/s

• Audio sampling frequencies: 48, 44.1, 32, 24, 22.05 and

16 kHz

• CRC error detection

• Selectable output channel in dual channel mode

• Independent volume control for both channels and

programmable inter-channel crosstalk control through a
baseband audio processing unit

• Storage ancillary data up to 54 bytes

• Dynamic range control at output

• Muting possibility via external controller; automatic

muting in case of errors

• Generation of ‘beeps’ with programmable tone height,
duration and amplitude

• Serial two channel digital audio output with 16, 18, 20 or
22 bits per sample, compatible with either I2S or
Japanese formats

• Serial SPDIF audio output

• Clock output 256 or 384 × fs for external D/A converter

• Audio input buffer in external SDRAM with

programmable size (default is 64 kbit)

• Programmable processing delay compensation

• Software controlled stop, pause, restricted skip, and

restart functions.

MPEG2 video

MPEG2 system

• Parsing of MPEG2 PES and MPEG1 packet streams

• Double System Time Clock (STC) counters for

discontinuity handling

• Time stamps or CPU controlled audio/video
synchronization

• Support for seamless time base change (edition)

• Processing of errors flagged by channel decoding or

demux section

• Support for retrieval of PES header and PES private
data.

1997 Jan 29 2

• Decoding of MPEG2 video up to main level, main profile

• Nominal video input buffer size equals 2.6 Mbit for Video

Main Profile and Main Level (MP@ML)

• Output picture format: CCIR-601 4 : 2 : 2 interlaced
pictures; picture format 720 × 576 at 50 Hz or 720 × 480
at 60 Hz

• 3 : 2 pull-down supported with 24 and 30 Hz sequences

• Support of constant and variable bit rates up to 15 Mbit/s

• Output interface at 8-bit wide, 27 MHz UYVY

multiplexed bus

• Horizontal and vertical pan and scan allows the
extraction of a window from the coded picture

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

• Flexible horizontal continuous scaling from 0.5 up to 4
allows easy aspect ratio conversion including support
for 2.21 : 1 aspect ratio movies

• Vertical scaling with fixed factors 0.5, 1 or 2 to support
picture scaling and up-sampling

• Scaling of incoming pictures to 25% of their original size
with anti-aliasing filtering to free screen space for
graphics applications like electronic program guides

• Non-full screen MPEG pictures will be displayed in a box
of which position and background colour are adjustable
by the external CPU

• Video output may be slaved to internally (master)
generated or externally (slave) supplied HV
synchronization signals; the position of active video is
programmable; MPEG timebase changes do not
affected the display phase

• Video output direct connectable to SAA718X encoder
family

• Various trick modes under control of external CPU:
– Freeze I or P pictures; restart on I picture
– Freeze on B pictures; restart at any moment
– Scanning and decoding of I or I and P pictures
– Single step mode
– Repeat/Skip field for time base correction.

Graphics

• Graphics is region based and presented in boxes
independent of video format

• Screen arrangement of boxes is determined by display
list mechanism which allows for multiple boxes,
background loading, fast switching, scrolling and fading
of regions

• Support of 2, 4, 8 bits/pixel bit-maps in fixed bit-maps or
coded in accordance to the DVB variable/run length
standard for region bases graphics

• Optimized memory control in MPEG video decoding
allows for storage of graphical bit-maps up to 1.2 Mbit in
50 Hz and 2.0 Mbit in 60 Hz systems

• VL/RL encoding enables full screen graphics at
8 bit/pixel in 50 Hz

• Fast CPU access enables full bit-map updates within a
display field period

• Display colours are obtained via colour look-up tables;
CLUT output is YUVT at 8-bit for each signal component
thus enabling 16M different colours and 6-bit for T
(transparency) which gives 64 mixing levels with video

• Bit-map table mechanism to specify a sub-set of entries
if the CLUT is larger than required by the coded bit
pattern; supported bit-map tables are 16 to 256,
4 to 256 and 4 to 16

• Graphics boxes may not overlap vertically; if 256 entry
CLUT has to be down loaded, a vertical separation of
1 field line is mandatory

• Internal support for fast block moves in the external
SDRAM during MPEG decoding

• Graphics mechanism can be used for signal generation
in the vertical blanking interval; useful for teletext, wide
screen signalling, closed caption etc.

• Support for a single down-loadable cursor of 1 kpixel
with programmable shape; supported shapes are
8 × 128, 16 × 64, 32 × 32, 64 × 16 and 128 × 8

• Cursor colours are determined via a 4-entry CLUT with
YUVT at 6, 4, 4 respectively 2 bits; mixing of cursor with
video + graphics in 4 levels

• Cursor can be moved freely across the screen without
overlapping restrictions.

1997 Jan 29 3

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

GENERAL DESCRIPTION

The SAA7201 is an MPEG2 decoder which combines
audio decoding and video decoding. Additionally to these
basic MPEG functions it also provides means for

Due to an optimized architecture for audio and video
decoding, maximum capacity in the external memory and
processing power from the external CPU is available for
the support for graphics.

enhanced graphics and/or on-screen display.

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

DD

V

CC

I

DD(tot)

f

CLK

∆f

CLK

functional supply voltage 3.0 3.3 3.6 V
pad supply voltage 3.0 3.3 3.6 V
total supply current at VDD= 3.3 V − tbf − mA
clock frequency − 27.0 − MHz
frequency deviation −30 × 10−6− +30 × 10

−6

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

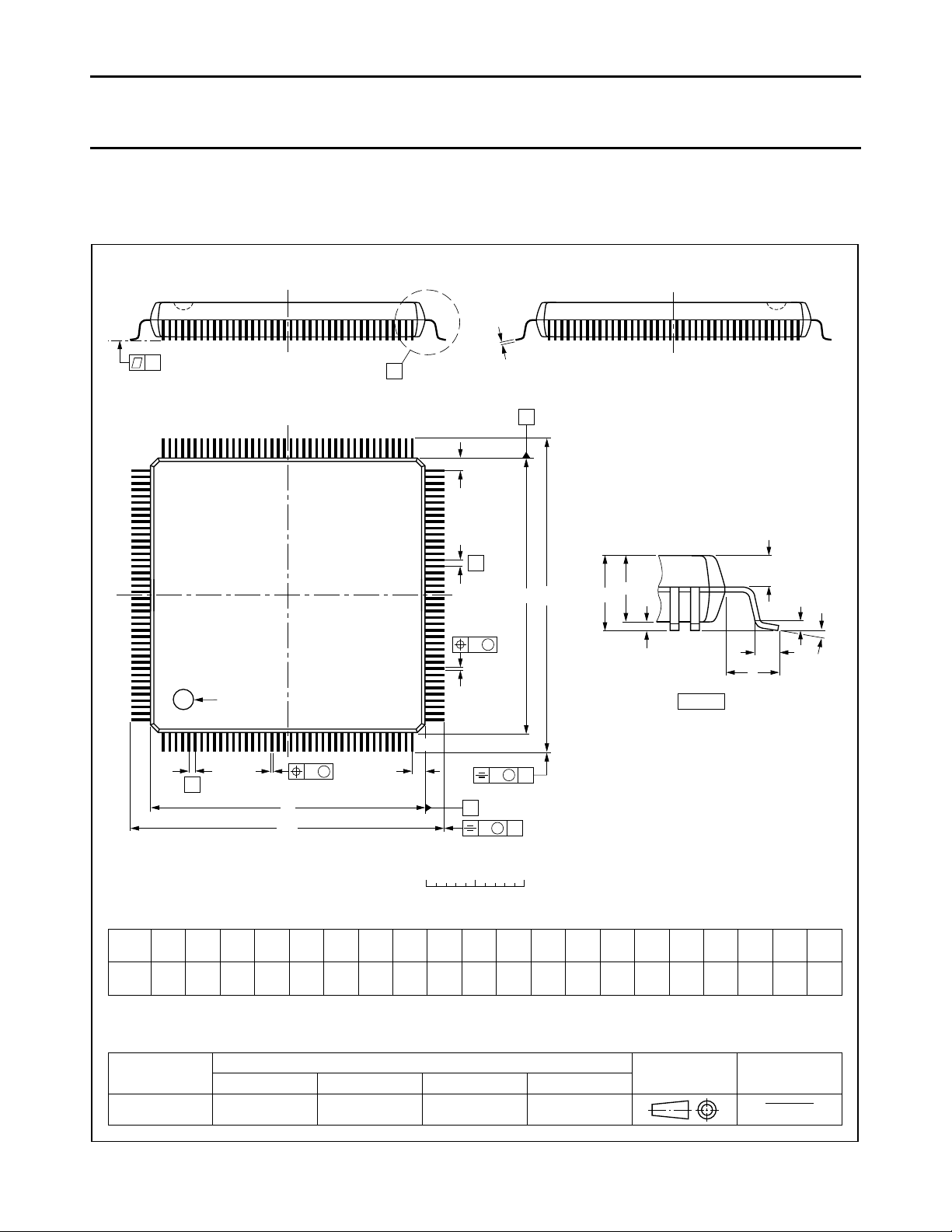

SAA7201H QFP160 plastic quad flat package; 160 leads (lead length 1.95 mm);

PACKAGE

SOT322-4

body 28 × 28 × 3.4 mm; high stand-off height

1997 Jan 29 4

Philips Semiconductors Objective specification

Fig.1 Block diagram.

handbook, full pagewidth

AUDIO/VIDEO

INTERFACE

HOST

INTERFACE

SYSTEM TIME

BASE UNIT

VIDEO INPUT

BUFFER & SYNC

MEMORY

INTERFACE

VIDEO

DECODER

GRAPHICS

UNIT

AUDIO INPUT

BUFFER & SYNC

CLOCK

GENERATION

JTAG

MGD322

159

A_STROBE

77 75 74 78 84 83 81 80

SDRAM_RAS

V

DDCO1

to

V

DDCO4

SDRAM_WE

CP81M READ

O

READ

I

SDRAM_ADDR

(11 to 0)

SDRAM_DATA

(15 to 0)

SDRAM_CAS SDRAM_UDQ CP81MEXT

CPU_TYPE

DMA_REQ

DMA_ACK

DMA_RDY

DMA_DONE

V_STROBE

ERROR

MUX

HS
VS

106
107

CS
DS
AS

R/W

DTACK

ADDRESS(8 to 1)

DATA(15 to 0)

IRQ(3 to 0)

AV_DATA(0 to 7)

2
1
8

CLK

124

RESET

138

9

10

4
4
3
6

5

DISPLAY

UNIT

SD
SCLK
WS
SPDIF

143
142
145
146

AUDIO

DECODER

GRPH

YUV(7 to 0)

119

FSCLK

139

11
12

8

148

147

8

16

8

16

12

4

SAA7201

V

SSCO1

to V

SSCO4

4

V

SS1

to V

SS16

16

V

SSA

122

V

DD1

to

V

DD16

16

V

DDA

121

Integrated MPEG2 AVG decoder SAA7201

BLOCK DIAGRAM

1997 Jan 29 5

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

PINNING

SYMBOL PIN DESCRIPTION V I/O

MUX 1 multiplexed/non-multiplexed (active LOW) bus input 5.0 I
CPU_TYPE 2 Intel/Motorola (active LOW) selection input 5.0 I
DMA_ACK 3 DMA acknowledge input 3.3 I
DMA_REQ 4 DMA request input and output 3.3 I/O
DMA_DONE 5 DMA end input 3.3 I
DMA_RDY 6 DMA ready output 3.3 O/Z
V

SS1

CS 8 chip select input 5.0 I
DS 9 data strobe input 5.0 I
AS 10 address strobe input 5.0 I
R/W 11 read/write (active LOW) input 5.0 I
DTACK 12 data acknowledge output 5.0 O/Z
V

DD1

IRQ0 14 individually maskable interrupts 3.3 O/Z
IRQ1 15 individually maskable interrupts 3.3 O/Z
IRQ2 16 individually maskable interrupts 3.3 O/Z
IRQ3 17 individually maskable interrupts 3.3 O/Z
V

SS2

V

SSCO1

V

DDCO1

DATA0 21 CPU data interface 5.0 I/O
DATA1 22 CPU data interface 5.0 I/O
DATA2 23 CPU data interface 5.0 I/O
DATA3 24 CPU data interface 5.0 I/O
V

DD2

DATA4 26 CPU data interface 5.0 I/O
DATA5 27 CPU data interface 5.0 I/O
DATA6 28 CPU data interface 5.0 I/O
DATA7 29 CPU data interface 5.0 I/O
V

SS3

DATA8 31 CPU data interface 5.0 I/O
DATA9 32 CPU data interface 5.0 I/O
DATA10 33 CPU data interface 5.0 I/O
DATA11 34 CPU data interface 5.0 I/O
V

DD3

DATA12 36 CPU data interface 5.0 I/O
DATA13 37 CPU data interface 5.0 I/O
DATA14 38 CPU data interface 5.0 I/O
DATA15 39 CPU data interface 5.0 I/O
V

SS4

7 ground for pad ring 3.3 −

13 supply for pad ring 3.3 −

18 ground for pad ring − −
19 ground for core logic − −
20 supply for core logic 3.3 −

25 supply for pad ring 3.3 −

30 ground for pad ring − −

35 supply for pad ring − −

40 ground for pad ring − −

1997 Jan 29 6

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

SYMBOL PIN DESCRIPTION V I/O

ADDRESS1 41 CPU address interface 5.0 I
ADDRESS2 42 CPU address interface 5.0 I
ADDRESS3 43 CPU address interface 5.0 I
ADDRESS4 44 CPU address interface 5.0 I
V

DD4

ADDRESS5 46 CPU address interface 5.0 I
ADDRESS6 47 CPU address interface 5.0 I
ADDRESS7 48 CPU address interface 5.0 I
ADDRESS8 49 CPU address interface 5.0 I
V

SS5

V

SSCO2

V

DDCO2

SDRAM_DATA0 53 memory data interface 3.3 I/O
SDRAM_DATA15 54 memory data interface 3.3 I/O
SDRAM_DATA1 55 memory data interface 3.3 I/O
V

DD5

SDRAM_DATA14 57 memory data interface 3.3 I/O
SDRAM_DATA2 58 memory data interface 3.3 I/O
SDRAM_DATA13 59 memory data interface 3.3 I/O
V

SS6

SDRAM_DATA3 61 memory data interface 3.3 I/O
SDRAM_DATA12 62 memory data interface 3.3 I/O
SDRAM_DATA4 63 memory data interface 3.3 I/O
V

DD6

SDRAM_DATA11 65 memory data interface 3.3 I/O
SDRAM_DATA5 66 memory data interface 3.3 I/O
SDRAM_DATA10 67 memory data interface 3.3 I/O
V

SS7

SDRAM_DATA6 69 memory data interface 3.3 I/O
SDRAM_DATA9 70 memory data interface 3.3 I/O
SDRAM_DATA7 71 memory data interface 3.3 I/O
V

DD7

SDRAM_DATA8 73 memory data interface 3.3 I/O
SDRAM_WE 74 SDRAM write enable output 3.3 O
SDRAM_CAS 75 SDRAM column address strobe output 3.3 O
V

SS8

SDRAM_RAS 77 SDRAM row address strobe output 3.3 O
SDRAM_UDQ 78 SDRAM write mask output 3.3 O
V

DD8

READ

I

45 supply for pad ring 3.3 −

50 ground for pad ring − −
51 ground for core logic − −
52 supply for core logic 3.3 −

56 supply for pad ring 3.3 −

60 ground for pad ring − −

64 supply for pad ring 3.3 −

68 ground for pad ring − −

72 supply for pad ring 3.3 −

76 ground for pad ring − −

79 supply for pad ring 3.3 −
80 read command input 3.3 I

1997 Jan 29 7

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

SYMBOL PIN DESCRIPTION V I/O

READ

O

V

SS9

CP81MEXT 83 81 MHz clock return path input 3.3 I
CP81M 84 81 MHz memory clock output 3.3 O
V

DD9

SDRAM_ADDR8 86 memory address 3.3 O
SDRAM_ADDR9 87 memory address 3.3 O
SDRAM_ADDR11 88 memory address 3.3 O
V

SS10

SDRAM_ADDR7 90 memory address 3.3 O
SDRAM_ADDR10 91 memory address 3.3 O
SDRAM_ADDR6 92 memory address 3.3 O
V

DD10

SDRAM_ADDR0 94 memory address 3.3 O
SDRAM_ADDR5 95 memory address 3.3 O
SDRAM_ADDR1 96 memory address 3.3 O
V

SS11

SDRAM_ADDR4 98 memory address 3.3 O
SDRAM_ADDR2 99 memory address 3.3 O
SDRAM_ADDR3 100 memory address 3.3 O
V

SSCO3

V

DDCO3

V

DD11

TEST8 104 IC test interface 3.3 I/O
TEST7 105 IC test interface 3.3 I/O
HS 106 horizontal synchronization input and output 3.3 I/O
VS 107 vertical synchronization input and output 3.3 I/O
V

SS12

YUV0 109 YUV video output at 27 MHz 3.3 O/Z
YUV1 110 YUV video output at 27 MHz 3.3 O/Z
YUV2 111 YUV video output at 27 MHz 3.3 O/Z
YUV3 112 YUV video output at 27 MHz 3.3 O/Z
V

DD12

YUV4 114 YUV video output at 27 MHz 3.3 O/Z
YUV5 115 YUV video output at 27 MHz 3.3 O/Z
YUV6 116 YUV video output at 27 MHz 3.3 O/Z
YUV7 117 YUV video output at 27 MHz 3.3 O/Z
TEST6 118 IC test interface 3.3 I/O
GRPH 119 indicator for graphics information output 3.3 O
TEST5 120 IC test interface 3.3 I/O

81 read command output 3.3 O
82 ground for pad ring − −

85 supply for pad ring 3.3 −

89 ground for pad ring − −

93 supply for pad ring 3.3 −

97 ground for pad ring − −

101 ground for core logic − −
102 supply for core logic 3.3 −
103 supply for pad ring 3.3 −

108 ground for pad ring − −

113 supply for pad ring 3.3 −

1997 Jan 29 8

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

SYMBOL PIN DESCRIPTION V I/O

V

DDA

V

SSA

V

SS13

CLK 124 27 MHz clock input 3.3 I
V

SS14

TCLK 126 boundary scan test clock input 3.3 I
TRST 127 boundary scan test reset input 3.3 I
TMS 128 boundary scan test mode select input 3.3 I
TD

O

TD

I

V

DD13

TEST4 132 IC test interface 3.3 I/O
TEST3 133 IC test interface 3.3 I/O
TEST2 134 IC test interface 3.3 I/O
TEST1 135 IC test interface 3.3 I/O
TEST0 136 IC test interface 3.3 I/O
V

DD14

RESET 138 hard reset input (active LOW) 3.3 I
FSCLK 139 256 or 384 fs (audio sampling) output 3.3 O/Z
V

DDCO4

V

SSCO4

SCLK 142 serial audio clock output 3.3 O/Z
SD 143 serial audio data output 3.3 O/Z
V

SS15

WS 145 word select output 3.3 O/Z
SPDIF 146 digital audio output 3.3 O/Z
ERROR 147 flag for bitstream error input 5.0 I
V_STROBE 148 video strobe input 5.0 I
V

DD15

AV_DATA0 150 MPEG input port for PES data 5.0 I
AV_DATA1 151 MPEG input port for PES data 5.0 I
AV_DATA2 152 MPEG input port for PES data 5.0 I
AV_DATA3 153 MPEG input port for PES data 5.0 I
V

SS16

AV_DATA4 155 MPEG input port for PES data 5.0 I
AV_DATA5 156 MPEG input port for PES data 5.0 I
AV_DATA6 157 MPEG input port for PES data 5.0 I
AV_DATA7 158 MPEG input port for PES data 5.0 I
A_STROBE 159 audio strobe input 5.0 I
V

DD16

121 supply for analogue blocks 3.3 −
122 ground for analogue blocks − −
123 ground for pad ring − −

125 ground for pad ring − −

129 boundary scan test data output 3.3 O
130 boundary scan test data input 3.3 I
131 supply for pad ring 3.3 −

137 supply for pad ring 3.3 −

140 supply for core logic 3.3 −
141 ground for core logic − −

144 ground for pad ring − −

149 supply for pad ring 3.3 −

154 ground for pad ring − −

160 supply for pad ring 3.3 −

1997 Jan 29 9

Philips Semiconductors Objective specification

Fig.2 Pin configuration.

handbook, full pagewidth

MGD321

SAA7201

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

MUX

CPU_TYPE

DMA_ACK
DMA_REQ

DMA_DONE

DMA_RDY

V

SS1

CS
DS
AS

R/W

DTACK

V

DD1

IRQ0
IRQ1
IRQ2
IRQ3

V

SS2

V

SSCO1

V

DDCO1

DATA0
DATA1
DATA2
DATA3

V

DD2

DATA4
DATA5
DATA6
DATA7

V

SS3
DATA8
DATA9

DATA10
DATA11

V

DD3
DATA12
DATA13
DATA14
DATA15

V

SS4

120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100

99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81

160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

414243444546474849505152535455565758596061626364656667686970717273747576777879

80

TEST5
GRPH
TEST6
YUV7
YUV6
YUV5
YUV4
V

DD12

YUV3
YUV2
YUV1
YUV0
V

SS12

VS
HS
TEST7
TEST8
V

DD11

V

DDCO3

V

SSCO3

SDRAM_ADDR3
SDRAM_ADDR2
SDRAM_ADDR4
V

SS11

SDRAM_ADDR1
SDRAM_ADDR5
SDRAM_ADDR0
V

DD10
SDRAM_ADDR6
SDRAM_ADDR10

SDRAM_ADDR7
V

SS10
SDRAM_ADDR11

SDRAM_ADDR9
SDRAM_ADDR8
V

DD9
CP81M

CP81MEXT
V

SS9
READ

O

V

DD16

A_STROBE

AV_DATA7

AV_DATA6

AV_DATA5

AV_DATA4

V

SS16

AV_DATA3

AV_DATA2

AV_DATA1

AV_DATA0

V

DD15

V_STROBE

ERROR

SPDIFWSV

SS15

SD

SCLK

V

SSCO4VDDCO4

FSCLK

RESET

V

DD14

TEST0

TEST1

TEST2

TEST3

TEST4

V

DD13

TDITDOTMS

TRST

TCLK

V

SS14

CLK

V

SS13VSSAVDDA

ADDRESS1

ADDRESS2

ADDRESS3

ADDRESS4

V

DD4

ADDRESS5

ADDRESS6

ADDRESS7

ADDRESS8

V

SS5

V

SSCO2

V

DDCO2

SDRAM_DATA0

SDRAM_DATA15

SDRAM_DATA1

V

DD5

SDRAM_DATA14

SDRAM_DATA2

SDRAM_DATA13

V

SS6

SDRAM_DATA3

SDRAM_DATA12

SDRAM_DATA4

V

DD6

SDRAM_DATA11

SDRAM_DATA5

SDRAM_DATA10

V

SS7

SDRAM_DATA6

SDRAM_DATA9

SDRAM_DATA7

V

DD7

SDRAM_DATA8

SDRAM_WE

SDRAM_CAS

V

SS8

SDRAM_RAS

SDRAM_UDQ

V

DD8

READ

I

Integrated MPEG2 AVG decoder SAA7201

1997 Jan 29 10

Philips Semiconductors Objective specification

handbook, full pagewidth

V_STROBE

A_STROBE

ERROR

AV_DATA

(0 to 7)

≥25 ns ≥25 ns

≥111 ns

video byte (n) video byte (n + 1) audio byte (m)

MGD323

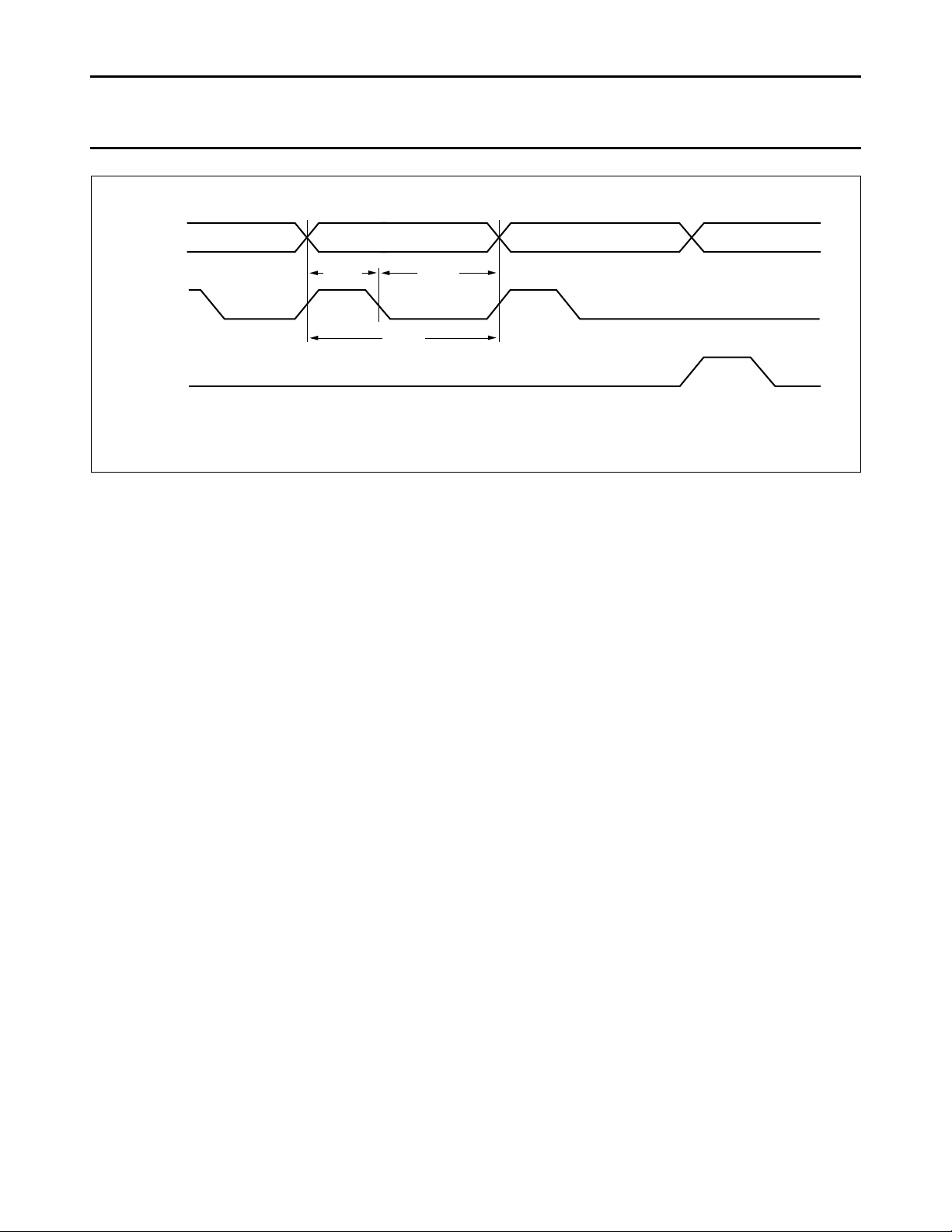

Fig.3 Timing diagram of parallel input mode.

Integrated MPEG2 AVG decoder SAA7201

FUNCTIONAL DESCRIPTION
General

The SAA7201 is an MPEG2 decoder which combines
audio decoding, video decoding and enhanced region
based graphics. The decoder operates with a single
16 Mbit external synchronous dynamic random access
memory (SDRAM) and runs from a single external 27 MHz
clock. Due to the optimized memory control for MPEG2
decoding, more than 1 Mbit is available for graphics in
50 Hz systems.

MPEG2 data can be accepted up to 9 Mbytes/s through a
dedicated byte wide interface. The data on this interface
can be either in PES (Packetized Elementary Stream),
MPEG1 packet or ES (Elementary Stream) format as
described in Chapter “References”. Two additional strobe
signals distinguish between audio and video data.

The internal video decoder is capable of decoding all
MPEG compliant streams up to main level main profile as
specified in Chapter “References”. The audio decoder
implements 2 channel audio decoding according to the
standards in Chapter “References”.

All real time audio/video decoding and synchronization
tasks are performed autonomously, so the external
microcontroller only needs to perform high-level tasks like
initialization, status monitoring and trick mode control.

The main support task of the external microcontroller
concerns the control of the graphical unit. This unit should

be supplied with bit-maps, determining the contents of the
graphical regions and by a simple set of instructions
determining the appearance of the graphical data on the
screen. Most graphical information should be stored in the
external memory which implies multiple data transfers
between CPU and the external memory. By performing
these data transfers on a direct memory access (DMA)
basis, full bit-maps can be transferred within one video
frame period.

The video output, containing a mix of MPEG video and
graphical data, is at a YUV multiplexed format which can
be directly connected to an external composite video
encoder. The audio output, containing a mix of MPEG
audio and programmable ‘beeps’, is in a serial, I2S or
Japanese format which can be directly supplied to most
commercially available up-sampling audio DA converters.

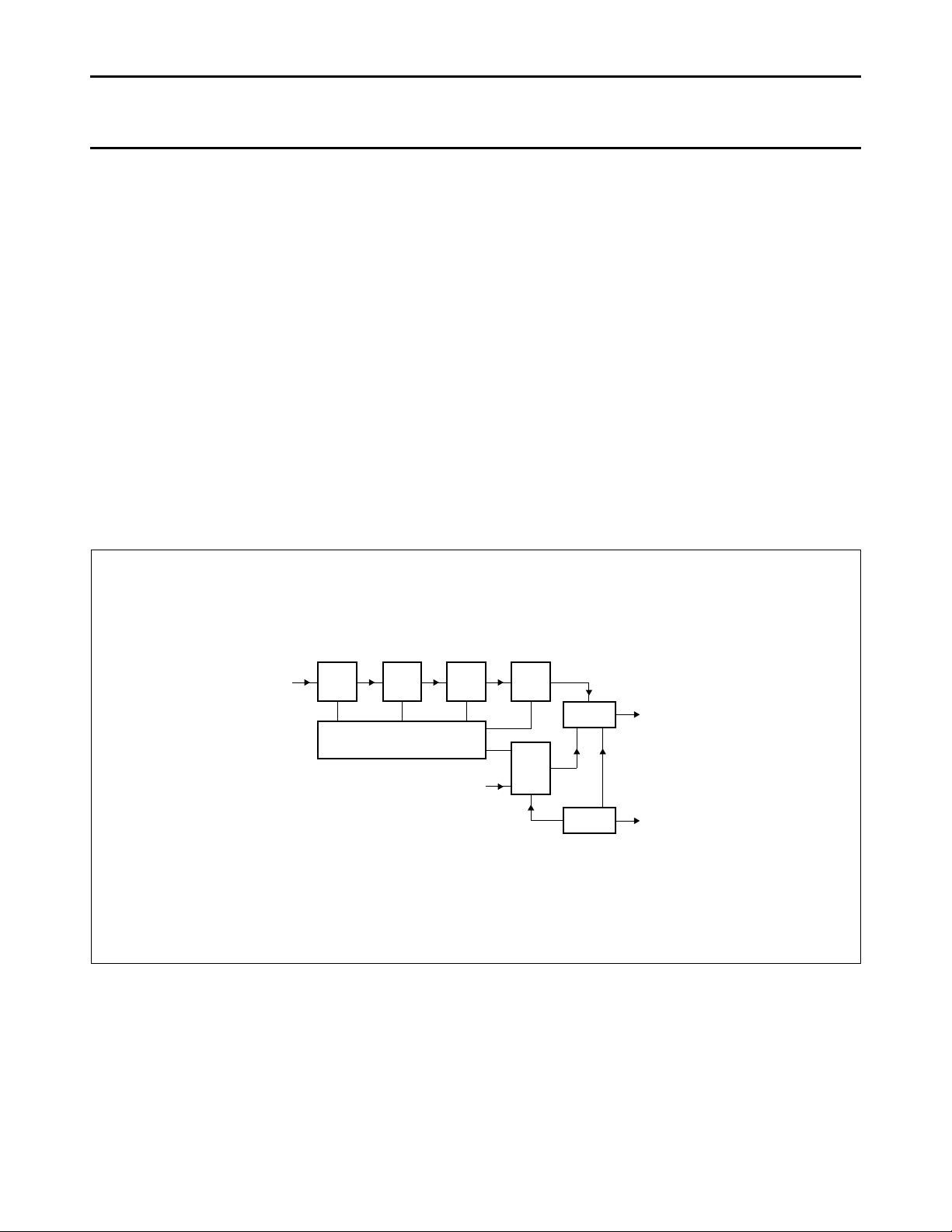

A functional block diagram of the decoder is given in Fig.1.

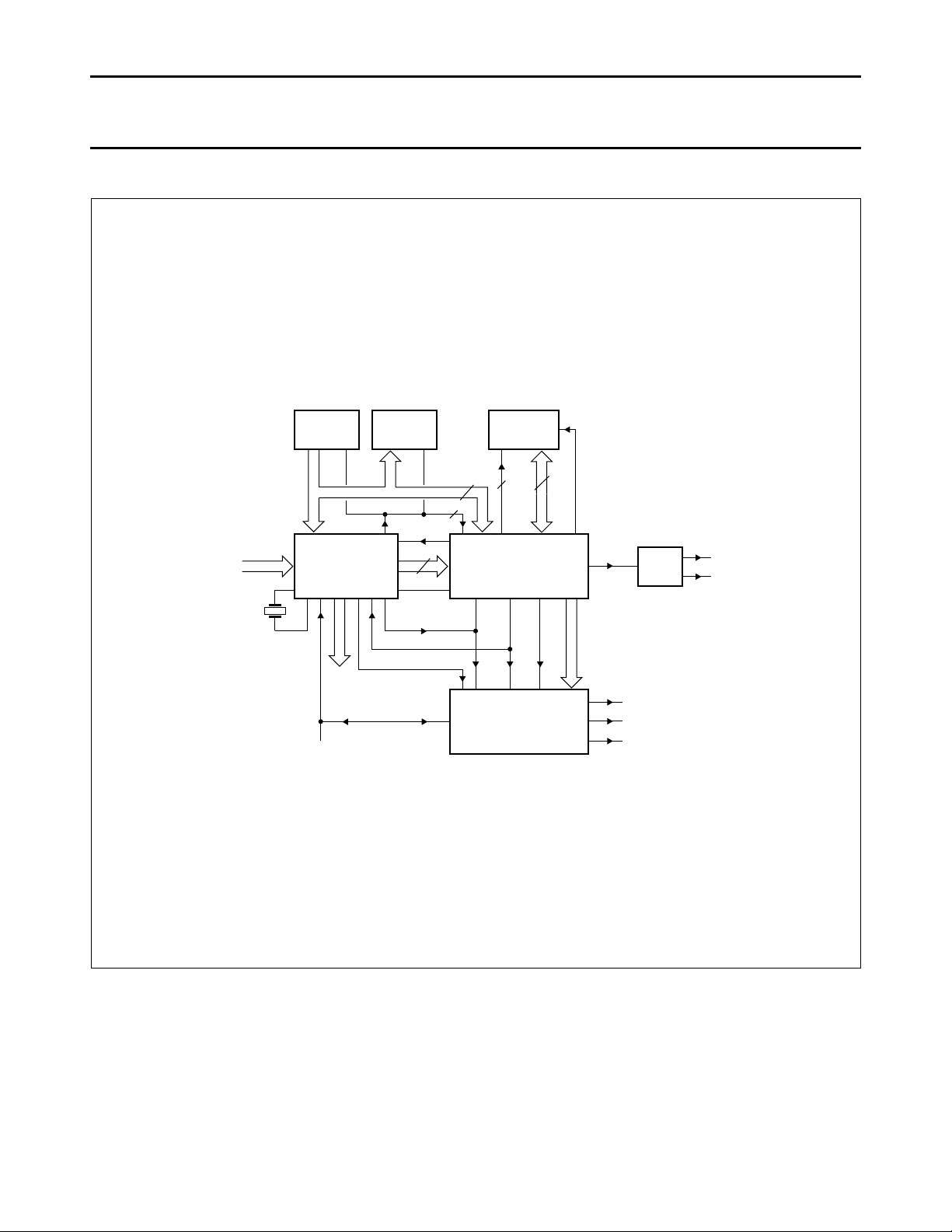

Its application environment is depicted in Fig.24. In the
following sections, a brief description of the individual
internal blocks of the MPEG2 decoder will be given.

Audio/video interface

In a basic set-top box application the SAA7201 receives
audio and video PES data in a byte wide format at rates up
to 9 Mbytes/s. A timing diagram is shown in Fig.3. Next to
the 8-bit wide data bus an audio and video strobe is
expected at the input. Erroneous data may be flagged via
the error indicator.

1997 Jan 29 11

Philips Semiconductors Objective specification

Fig.4 Timing diagram of serial input mode.

handbook, full pagewidth

V_STROBE

A_STROBE

AV_DATA0

≥25 ns ≥25 ns

≥50 ns

video bit (n + 6) video bit (n + 7) audio bit (m + 0)

first bit of a byte

MGD324

Integrated MPEG2 AVG decoder SAA7201

Alternatively data can be received in a 1-bit serial format at
rates up to 20 Mbit/s. In this mode, data is input at the LSB
input of the AV_DATA bus. Audio and video data must be
input in multiples of 8 bits. The first bit after switching from
audio to video (or the other way around) must be the first
bit of a byte since this transition will be used for the internal
bit-to-byte conversion.

Audio/video data can also be received via the CPU
interface in 8 or 16-bit mode. The peak rate is 27 Mbytes/s
in bursts of ≤128 bytes with a sustained rate up to
9 Mbytes/s. However, the MPEG bit rate is still limited to
15 Mbit/s for video and 448 kbit/s for audio.

Independent of the input mode all audio and video input
data are stored sequentially in the audio or video input
buffer area of the external memory. The audio and video
data can be either in MPEG2 PES, MPEG1 packet or ES
format.

Memory interface unit

The memory interface takes care of addressing and
control of the 16-Mbit external SDRAM. The SDRAM
should be either JEDEC compliant either the ‘lite/PC’
version.

Due to memory communication requirements this interface
runs at 81 MHz. The SDRAM types used with the
SAA7201 should be organized as 1M × 16, split internally
in two banks, each having 2048 pages of 256 words of
16 bits.

The target SDRAM type is NECµPD 4516161G5-A12-7FJ
(83 MHz JEDEC version) or NEC
µPD 4516421G5-A83-7FJ-PC (83 Mhz PC version).

Clock generation

The clock generation unit generates all the internal
processing clocks, the clock for the system time base
counter and the audio oversampling clock for the audio
DAC. For this purpose a non-integer divider plus a PLL is
implemented. In order to get reliable audio and video
decoding the 27 MHz input clock should be locked
externally to the MPEG time base.

Host interface system

The host interface system handles the communication
between on one side the SAA7201 plus SDRAM and on
the other side the external CPU. The interface consists of
a 16-bit wide data bus plus 8 address lines. It is compatible
with both Motorola’s 68xxx and Intel’s x86 family.
An optimized interface with the SAA7208 is also
supported. Via this interface a fast direct access to a large
number of internal status and data registers can be
achieved. Moreover, the external SDRAM can be
accessed via a specific register in combination with an
internally implemented auto increment counter.
The access to the external SDRAM is guaranteed up to a
sustained data rate of 9 Mbyte per second. However, in
practice the achievable data rate can be much higher.

Next to the data and address lines, 4 interrupt lines are
part of the host interface bus. Each interrupt line can
monitor up to 32 internal events which all can be masked
individually. Examples of internal events are audio/video
bit stream information, decoder status, internal error
conditions and input buffer occupation. The latter may be
very useful in interactive applications to serve as input data
request line.

1997 Jan 29 12

Philips Semiconductors Objective specification

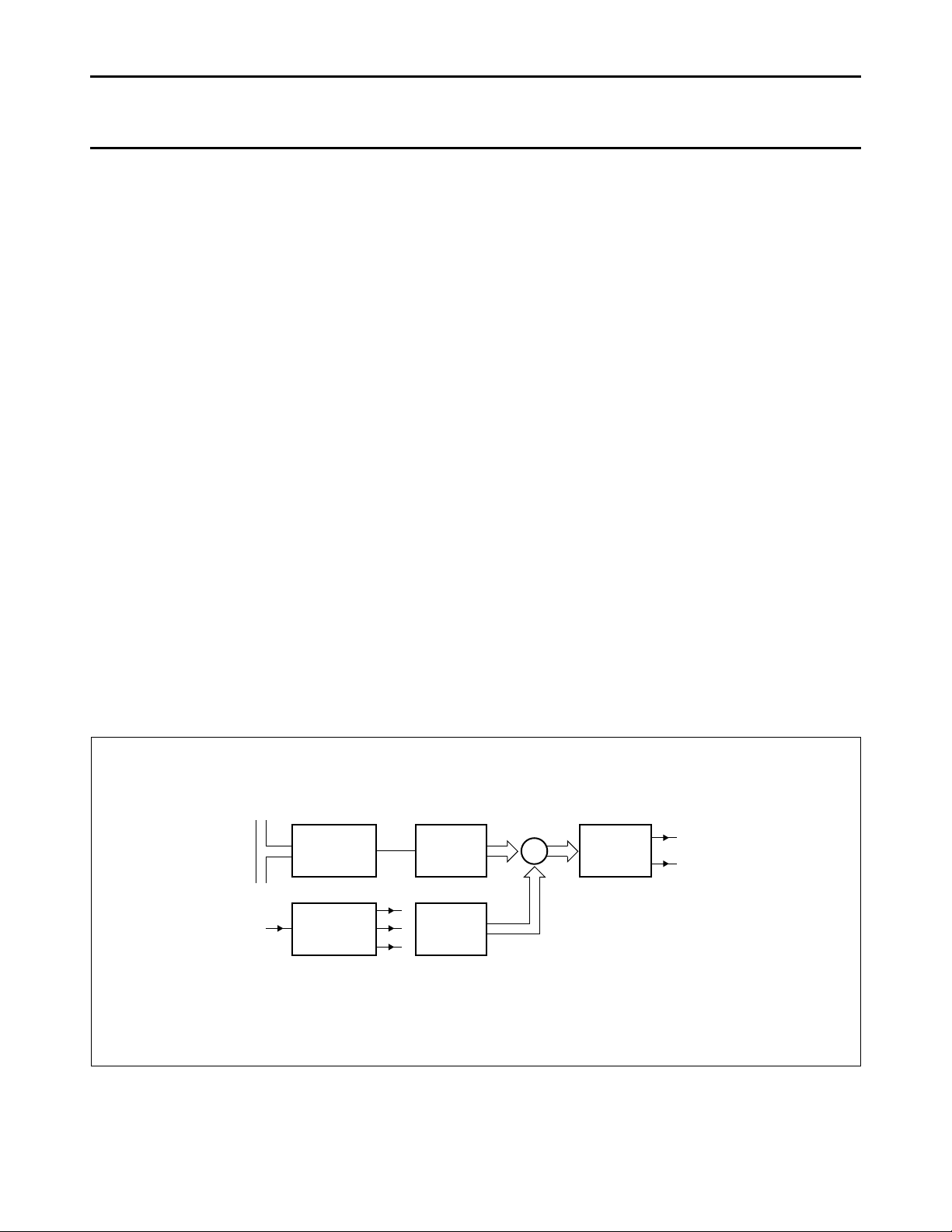

Fig.5 Audio decoding unit.

handbook, full pagewidth

BUFFER AND

SYNC UNIT

AUDIO

CLOCK

GENERATOR

AUDIO

BEEP

DRAM-bus

81 MHz

MPEG

AUDIO

DECODER

OUTPUT

INTERFACE

Sony or
I

2

S-bus

SPDIF

MGD325

Audio decoding unit

+

Integrated MPEG2 AVG decoder SAA7201

System time base unit

The system time base unit serves as a timing master for all
internal processes. It consists of two 24-bit wide System
Time Clock (STC) counters, running at 90 kHz. The STCs
will be used as internal synchronization reference for audio
and video.The contents of the STC can be loaded by the
external CPU which should insure that the phase of the
SAA7201 internal STC is identical to the main system time
clock in the system demultiplexer. The CPU should correct
for possible latency problems.

Because two counters are implemented, the previous time
base reference which might still be required as reference
for some time in case of time base discontinuity, can be
maintained. Thus all information for audio/video
synchronization is available in the decoder chip and only
minor support of the external controller is required.

The synchronization of graphics for e.g. subtitling, should
be controlled by the external CPU.

Video input buffer and synchronization control

The size and position of the video input buffer in the
external SDRAM is programmable. By default 2.6 Mbit/s
are reserved for the video input buffer but in principle any
other value can be programmed. The current fullness of
the video input buffer can be monitored by the CPU and an
internal interrupt will be generated is case of either near
over- or near underflow.

Data retrieval from the input buffer can be controlled by
DTS time stamps parsed from the PES or MPEG1 packet
stream. For those frames where no DTS time stamp is
present in the video bitstream a DTS is emulated by the
SAA7201.

Obviously this emulation mode can also be used when the
input stream is a video elementary stream (ES). The latter
case should be handled by start and stop decode
commands from the CPU.

The external CPU can select to retrieve the video PES
header and/or video PES private data for further software
processing.

Audio input buffer and synchronization control

The audio input buffer and synchronization control
basically behaves identical to its video counter part.
The default buffer size is 64 kbit in this case.
Synchronization will be controlled by PTS time stamps in
the audio Packetized Elementary Stream. Also in this case
an PTS emulation or a free running start/stop controlled
mode are supported.

Audio decoder

A functional block diagram for the audio decoding part is
depicted in Fig.5.

1997 Jan 29 13

Philips Semiconductors Objective specification

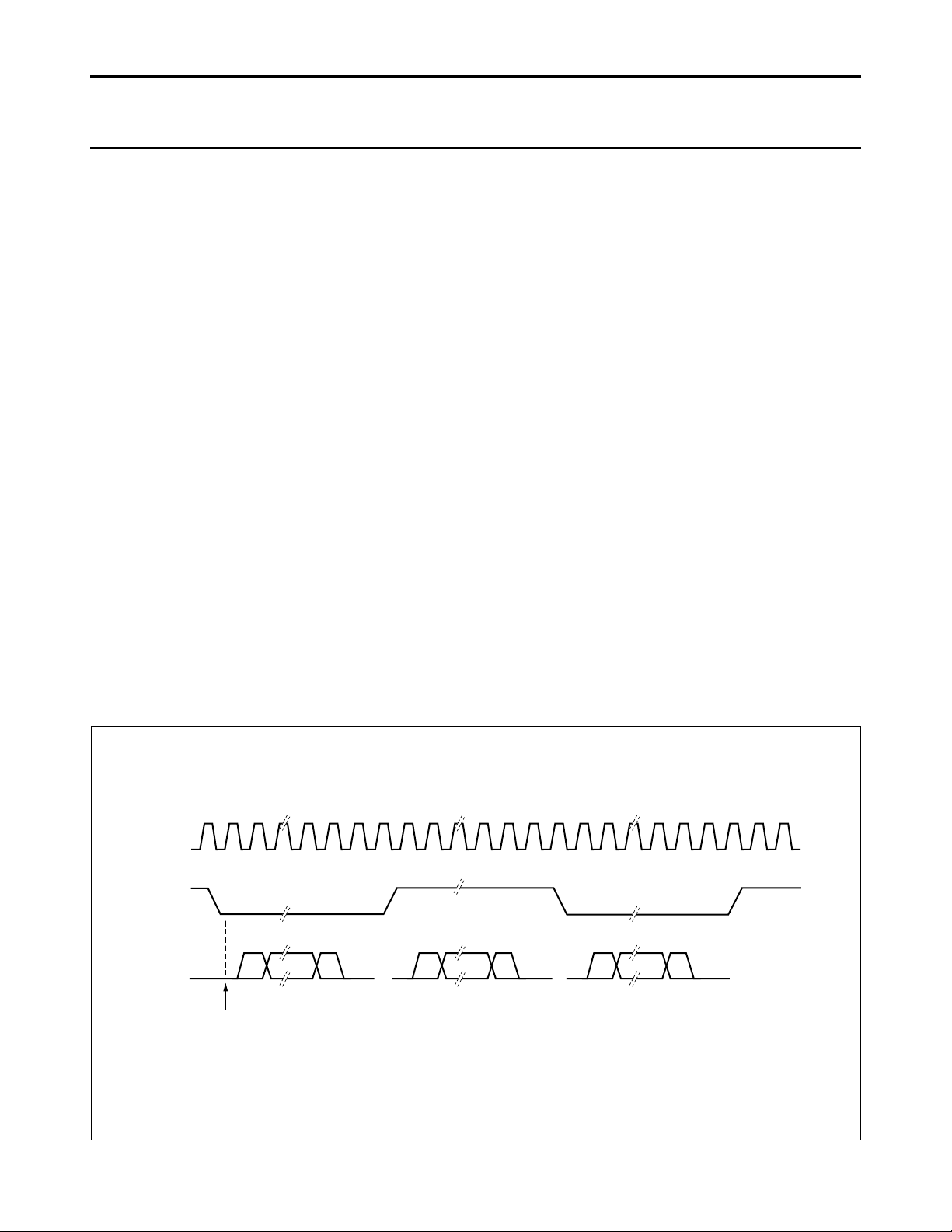

Fig.6 I2S-bus format with 18-bit sample precision.

handbook, full pagewidth

b17

MSB aligned

MGD326

left sample n left sample n + 1right sample n

0

31 32 63

SCLK

WS

SD

b0

b17 b0 b17 b0

Integrated MPEG2 AVG decoder SAA7201

Audio decoding will be performed at a clock locked to the
video decoding clock and only the output interface is
running on the audio oversampling clock.

The audio decoder unit performs the decoding of the
selected MPEG audio stream in a range from 8 up to
448 kbit/s in a fixed or variable bit rate format. Decoding is
restricted to 2 channel, layer I, II MPEG audio at sampling
frequency of 48.0, 44.1, 32.0, 24.0, 22.05 or 16.0 kHz.

The audio decoder support the stop, mute, and skip
function to support insertion

Apart from basic MPEG processing the audio decoder
core contain also:

• Support for: stop, mute and skip function.

• Fully parameterized dynamic range compression unit to

decrease the dynamic range of the output signal on
audio frame basis. Depending on the power level a
programmable amplification and offset may be applied.

• Fully programmable base band audio processing unit to
control the gain in both output channels independently
and/or to mix both channels.

• MPEG de-emphasis filtering on the output data, thus
avoiding the need of external analog de-emphasis filter
circuitry.

• Storage buffer for the last 54 bytes of each audio frame.
The CPU can retrieve eventual ancillary data from this
buffer.

The output of the audio decoder unit can be mixed with
square waveform audio signals which are generated by a
beep generator. Programmable parameters for the beep
generator are amplitude, frequency and duration.

The audio output interface module produces stereo base
band output samples on two different outputs at the same
time:

• Serial digital audio in I2S-bus or in Japanese format in
16, 18, 20 or 22-bit

• SPDIF (Sony/Philips Digital Interface).

Any of the two outputs may be enabled or set to high
impedance mode. The I2S-bus format with 18-bit sample
precision is shown in Fig.6.

The difference between I2S-bus and the Japanese format
is that I2S-bus is MSB aligned whereas the Japanese
format is LSB aligned.

The 1-bit serial interface SPDIF contains 64-bit per audio
sample period. Complete frames must be transmitted at
the audio sample rate. Not only left/right information but
also validity flags, channel status, user data and parity
information is contained in an SPDIF frame (see Chapter
“References”).

1997 Jan 29 14

Philips Semiconductors Objective specification

Fig.7 Video decoding unit.

handbook, full pagewidth

VLD

FLD

IZZ IQ IDCT

MC

INTERP

FBM

to display
unit

to external
memory

from reference

memory

from

input

buffer

MGD327

Integrated MPEG2 AVG decoder SAA7201

Video decoder

The video decoding unit provides all actions required for
compliant decoding of MPEG2 main level, main profile
coded video bit streams. The decoding process consists of
fixed and variable length decoding, run length decoding,
inverse quantization, inverse discrete cosine
transformation, motion compensation and interpolation.

In general the arithmetic decoding result is stored as
reference picture in the external memory.
Decoded B-frames are only stored for the conversion from
the frame coded macro block (MB) to the scanning line
format. In many cases a field storage is sufficient for this
conversion but in some cases the user might decide to use
a full frame storage to enable chroma frame up-conversion
or full performance 3 : 2 pull-down in 60 Hz systems.
Obviously when using less memory for the video decoding
process more memory is available for non-video decoding
tasks.

The Frame Buffer Management unit (FBM) manages the
allocation of frame buffers in external SDRAM for both
video decoding and display unit and can be programmed
to use less memory in not fully MP@ML bitstreams:
smaller pictures (e.g. 544 × 576), simple profile, etc.

Apart from decoding compliant MPEG video streams the
decoder deals with some trick modes. Supported are field
or frame freeze at I or P pictures or freeze field on
B-pictures. In the latter case decoding will continue as a
background process and the output can be restarted at
any moment. When receiving non-compliant MPEG
streams the decoder can be switched to a scanning mode
in which only I or I + P frames are decoded while skipping
all other pictures. In the single step mode, the decoder
decodes just one frame and awaits a next step command.

The functional diagram of the video decoding unit is shown
in Fig.7.

1997 Jan 29 15

Philips Semiconductors Objective specification

Fig.8 Graphics unit.

handbook, full pagewidth

REGION-1 (VBI-SIGNALS)

REGION-2

active
video

REGION-3 (256 ENTRY CLUT)

REGION-4

MGD328

active
video

H-size (2)H-start (2)

V-start (2)

V-size (2)

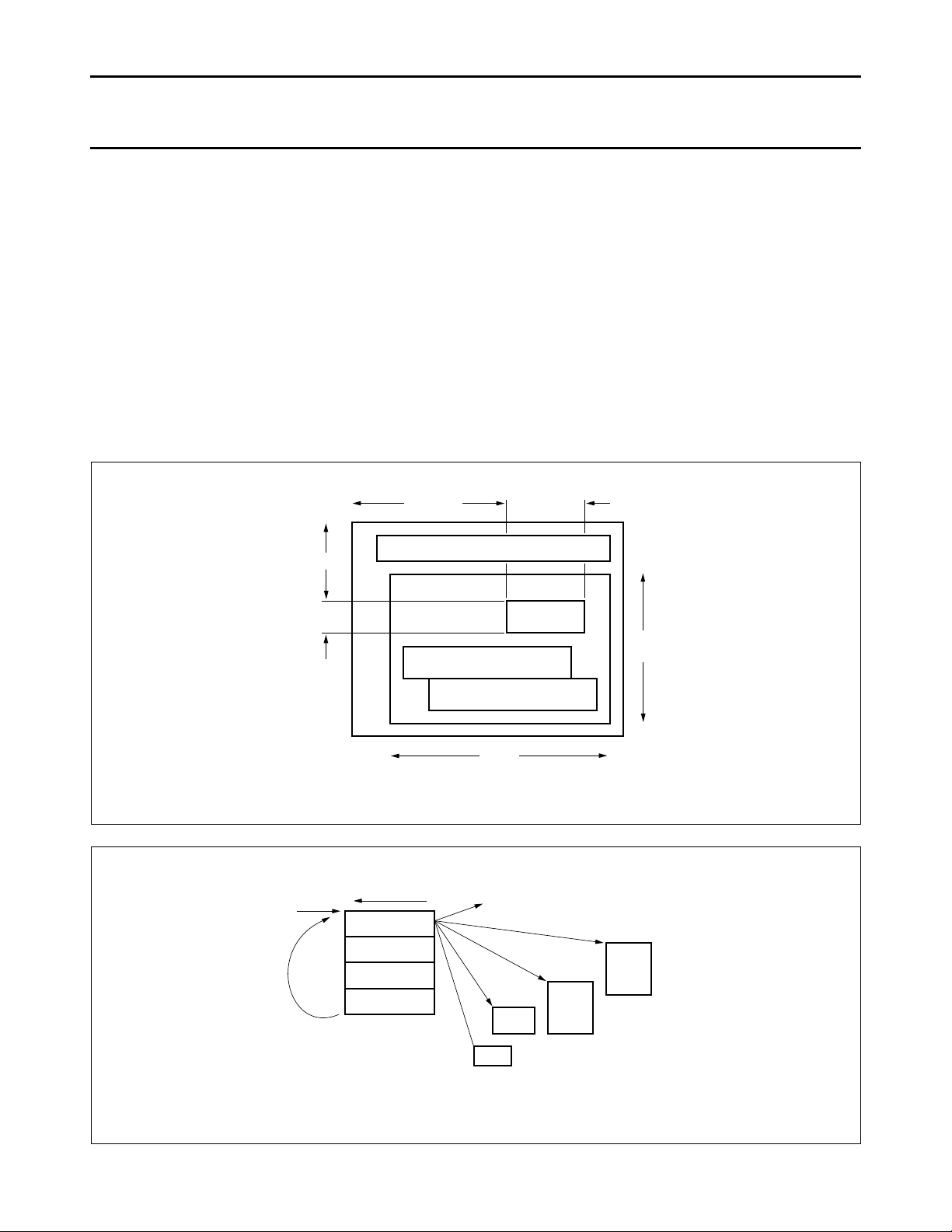

Fig.9 Display list.

handbook, full pagewidth

DESCRIPTOR 1

MAP

CLUT

bottom-field

top-field

table
data

PIXEL
DATA

PIXEL
DATA

128 bit

gfx

anchor

address

eodl

position, size, format

pointers to locations in SDRAM

DESCRIPTOR 2
DESCRIPTOR 3
DESCRIPTOR 4

MGD329

Integrated MPEG2 AVG decoder SAA7201

Graphics unit

The SAA7201 incorporates the display support for pixel
based graphics. Possible applications are the user
interface, logos and subtitling. Graphical data should be
grouped logically in regions and will be displayed in boxes
at the screen.

The definition of each region in the decoder consists of
four parts being a region descriptor, a top-field descriptor,
a bottom-field descriptor and a table-data descriptor:

• The region descriptor contains information relevant for
the full region like format, size, position and pointers to
the other descriptors.

• The top-field and bottom-field descriptor contain a pixel
based bit-map for the contents of that region for both
fields independently. The bit-maps can be stored in
either straight forward or in a compressed bit-map
format.

• The table-data descriptor defines the tables to be used
for the transformation of bit-maps to display colours.

All descriptors should be loaded under control of the
external CPU in the external memory.

The appearance of graphical data at the display is
determined by the assembly of region descriptors in a so
called display list. An example of such a display list for the
4 regions example is shown in Fig.9.

1997 Jan 29 16

Philips Semiconductors Objective specification

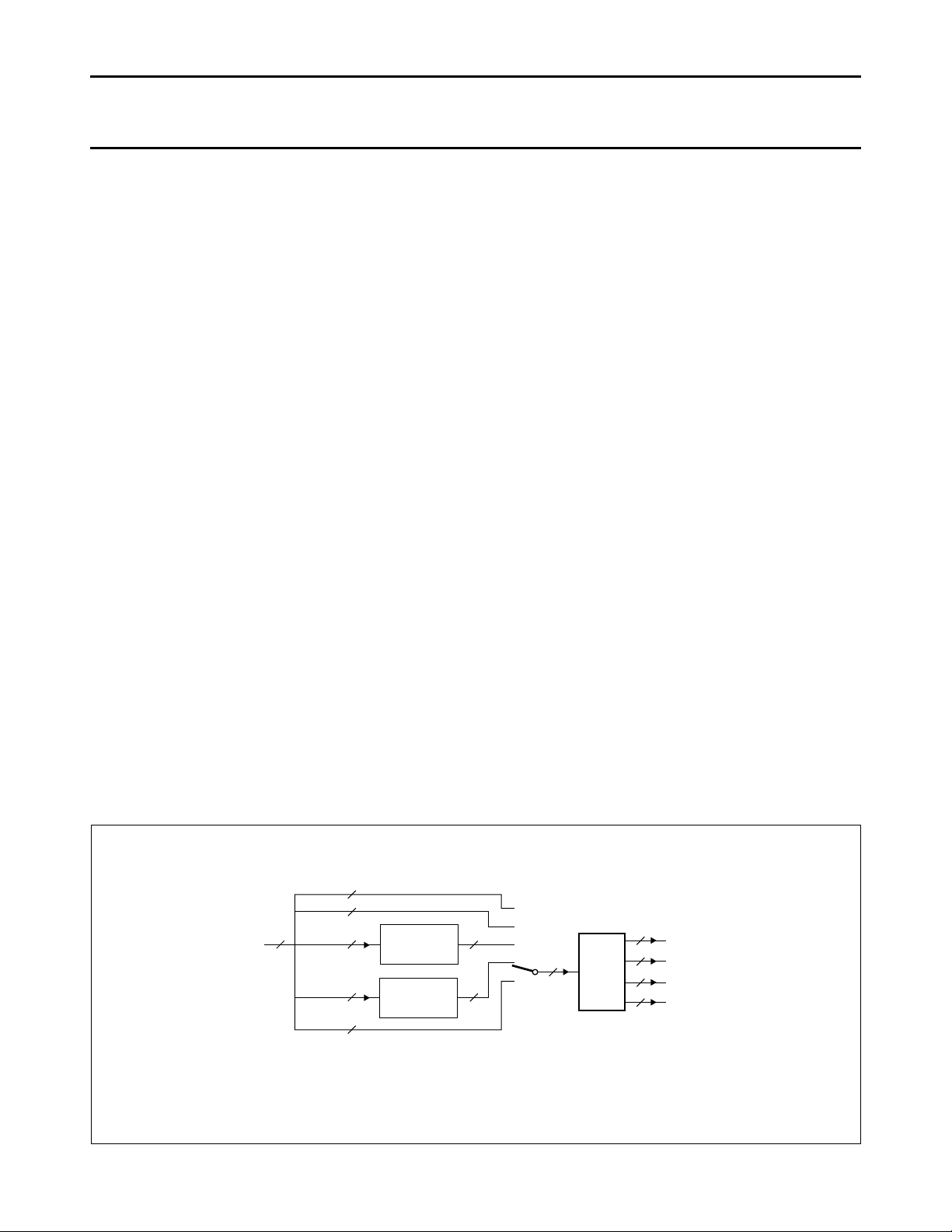

Fig.10 Bit-map to pixel conversion.

handbook, full pagewidth

8

4 LSBs

2 LSBs

2 LSBs

4 LSBs

8 LSBs

8

CLUT

8

8

MGD330

MAP

TABLE 4 to 8

MAP

TABLE 2 to 8

8

Y
U

V
T

8

8
8

Integrated MPEG2 AVG decoder SAA7201

Basically there is no restriction on the number of different
regions but because regions may not vertically overlap the
practical limit will be the number of lines within a field.
However, one should realize that each region requires its
own 128-bit region descriptor.

The display list will be scanned twice per frame, once for
each display field. The region descriptors should be
ordered properly in the external SDRAM, starting from the
graphics anchor address. The last descriptor in the list
must have the end of display list indicator set.

Multiple pixel bit-maps, CLUTs and map tables may be
stored in the external memory but per region only two
bit-maps (one for each fields) and two tables
(CLUT + map table) may be used. Obviously bit-maps and
tables may be shared by multiple regions.

Pixel data bit-maps can be described in 2, 4 or 8 bit/pixel
in either a direct bit-map or coded in a one-dimensional (H)
variable and run length encoded format according the
pixel-data-sub-block syntax as specified in Chapter
“References” and illustrated in Chapter “Appendix”.
The actual coding format is specified in the region
descriptor for each region thus allowing different coding
schemes within a picture.

During display the 2, 4 and 8 bit/pixel bit-maps will be
transformed, eventually with run length decoding, via a
table look-up mechanism into a 4, 16 or 256 different YUV
colours with 8-bit resolution for each component plus a
factor T for mixing of graphics and MPEG video.

In order to obtain maximum flexibility two cascaded tables
are active in this bit-map to pixel conversion as indicated
in Fig.10.

The tables are retrieved from the external memory just
before the region is going to be displayed. One table per
region can be updated and for small tables this occurs
during the horizontal blanking interval. However, updating
a 256 entry CLUT may take about one line period which
means that a spatial separation of one line with the
previous region is mandatory in this case. If the required
tables for a certain region are already stored in the local
memory, the table down load action can be skipped.

Additionally some special bits can be set in the region
descriptor.

• Transparency shift: this parameter overrules the pixel
based transparency in order to support fading of the
entire graphical region.

• Zoom: this parameter initiates horizontal pixel repetition.
It should be noted that a copy of pixels in vertical
direction can be achieved by pointing to a single bit-map
for both fields.

Regions can also be defined in the vertical blanking
interval. In combination with 8 bit/pixel coding, arbitrary
test signals on 13.5 MHz grid can be programmed.
Possible application areas are teletext, closed caption,
wide screen signalling bits, Video Programming Signals
(VPS) and Vertical Interval Test Signals (VITS).

As indicated above multiple regions can be specified in a
display list which will be scanned sequentially every frame.
In case of stationary graphics no updates of the display list
are required, but the external CPU can update it
dynamically to achieve scrolling and/or fading of one or
more graphical boxes. The display list mechanism also
allows for non real time transfer of large bit-maps by
keeping that region out of the display list during loading.

1997 Jan 29 17

Philips Semiconductors Objective specification

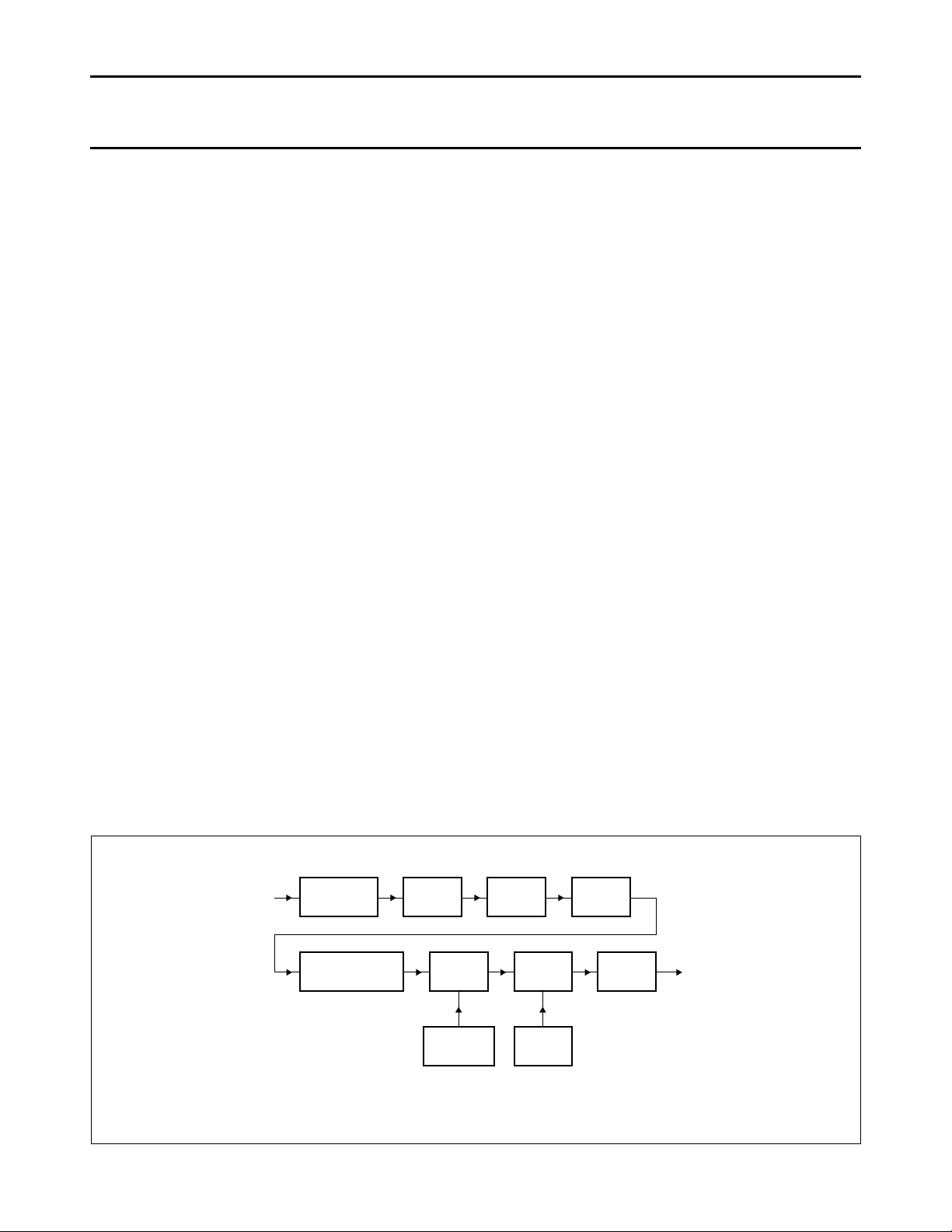

Fig.11 Display unit.

handbook, full pagewidth

WINDOW

EXTRACTION

SCALING

64 STEP

MIXER

4 STEP

MIXER

GRAPHICS CURSOR

OUTPUT
FORMAT

to digital
CVBS
encoder

SHIFTING CLIPPING

CHROMA

UP-CONVERSION

MPEG

decoded


MGD331

Integrated MPEG2 AVG decoder SAA7201

CURSOR PROCESSING
Additionally to the above defined graphics boxes one

cursor can be activated on the screen. Since the cursor
data is fully stored locally, no overlapping restriction apply
to this box so the cursor can moved over the entire screen.
The cursor can be as large as 1 kpixel with a 2 bits/pixel
colour depth. Obviously data transfer can be done on DMA
basis and need only be performed when a cursor is
required or when its contents must be modified.

The cursor XY dimensions (where the Y dimension refers
to frame lines) can be selected between 8 × 128, 16 × 64,
32 × 32, 64 × 16 and 128 × 8. On top of these shapes, a
zoom with a factor 2 can be applied in both directions
independently.

The cursor pixels will be translated via a 4-entry CLUT to
YUV colours and a transparency factor T. The resolution
of the YUV parameters is 6, 4, 4 bits respectively.
The T parameter is coded in 2 bits to enable the mixing
with video and graphics in 4 steps being 100% (cursor
only), 50%, 25% and 0% (fully transparent cursor).

Display unit

Before feeding the MPEG decoded and graphical data to
the output, a display unit re-formats the MPEG specific
4 : 2 : 0 format to CCIR-601 4 : 2 : 2 format and performs
a mixing between video and graphics where required.
The output picture can be up to 720 × 576 pixels at 50 Hz
or 720 × 480 pixels at 60 Hz.

A schematic representation of this unit is shown in Fig.11.

• In a first step a selected window can be retrieved from
the decoded MPEG data. This might be useful for e.g.
pan and scan operations for aspect ratio conversion.

• In case the resulting number of pixels per line does not
match the 720 pixels/line output format a horizontal
scaler can be activated. This scaling unit can transform
any number of bits below 720 to the required output
format. Internally a poly-phase filter is used which
performs a 64 phases interpolation. Not only
up-conversion but also down-conversion is supported
up to a scaling by a factor 2. Thus horizontal scaling can
be performed in a range from 0.5 up to 64. In practice
the maximum up-conversion factor will be less or equal
to 4.

• In vertical direction the picture can be expanded or
scaled down, in both cases by a factor 2. Expansion with
a factor 2 might be relevant for the up-conversion of SIF
resolution pictures to full screen. The factor 2 scaling, if
combined with the appropriate horizontal scaling, results
is1⁄4picture thus freeing-up a large screen area for
graphics. This might be very useful for electronic
program guide applications. It should be noted that in
case of picture compression an anti-aliasing filter can be
activated.

• Shifting: when the resulting MPEG picture is smaller
than the 720 × 576 (480) display format, this picture can
be located anywhere on the display screen.
Moreover, the non-covered area can be given any
background colour.

• Clipping: the amplitude of the MPEG decoded and
re-scaled video signal is kept within the range 16 to 235
for luminance and 16 to 240 for both chrominance
components.

1997 Jan 29 18

Philips Semiconductors Objective specification

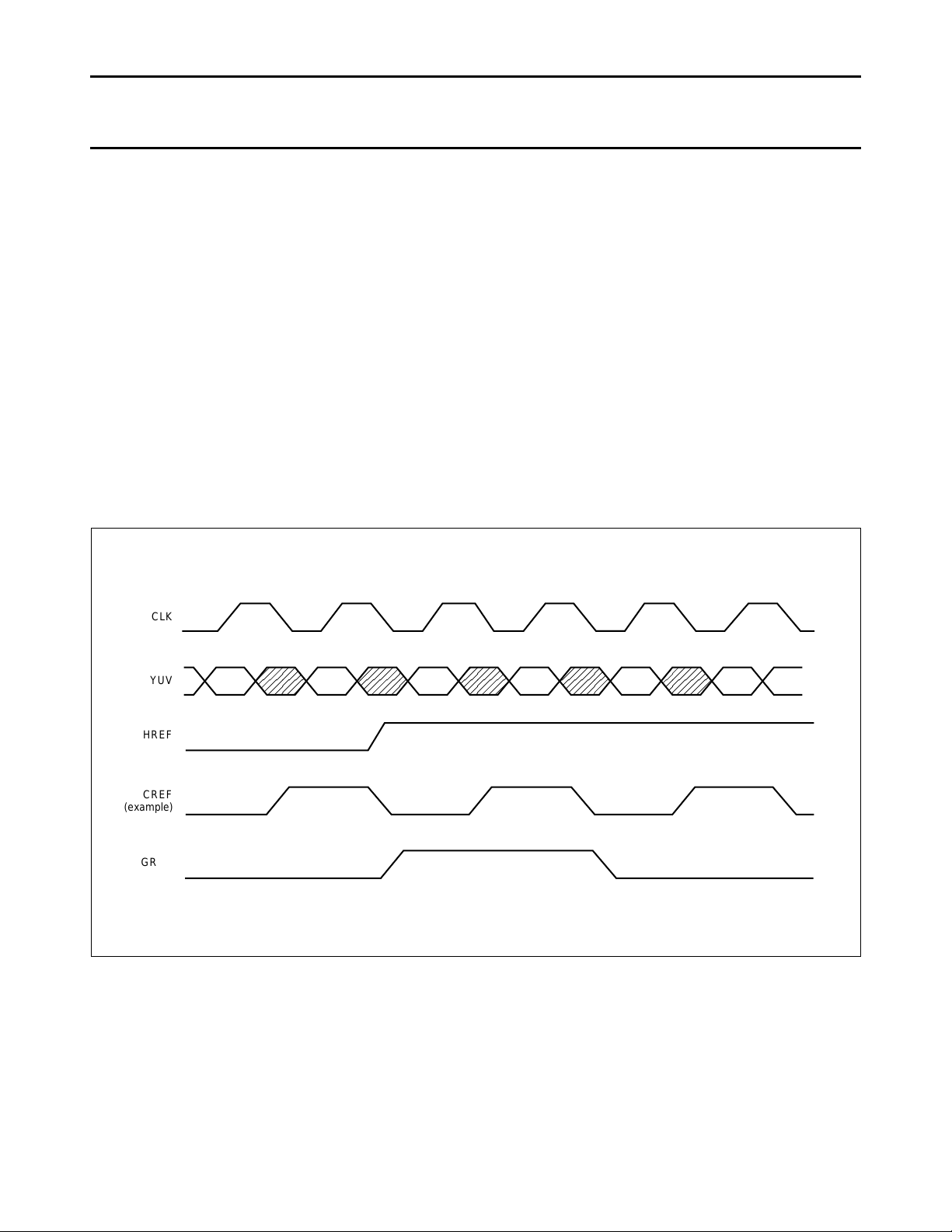

Fig.12 Timing diagram of graphics information output.

handbook, full pagewidth

CLK

YUV

HREF

CREF

(example)

GRPH

'128' '16'

U

0

Y

0

V

0

Y

2

MGD332

Integrated MPEG2 AVG decoder SAA7201

• The chroma up-conversion unit converts the MPEG
4 : 2 : 0 format into the at the output required
4 : 2 : 2 format. This vertical up-conversion is performed
by a simple 8-phase interpolation between two adjacent
lines.

• The mixer units combine MPEG video with graphics and
cursor information in two steps. In a first step the MPEG
decoded information is mixed with graphical information.
Mixing can be done at pixel basis in 64 steps and is
controlled by the internally implemented colour look up
table. In a second step, the video plus graphics can be
mixed in 4 steps with the internally generated cursor.

• The output formatting unit performs two main tasks, i.e.
synchronization and formatting. Synchronization is
characterized by three signals being horizontal (H),
vertical (V) and field parity (FP), all having
programmable length and polarity.

Since the decoder can operate in master or slave mode,
the synchronization signals can be generated by the
decoder or should be delivered by an external device.
In both cases the length and polarity should be
programmed internally.

The video output samples are supplied in a multiplexed
YUV format to the output. Next to this byte wide YUV
stream, which can directly be supplied to most
commercially available composite video encoder ICs,
three additional signals are delivered at the output.
HREF indicates all active samples; CREF can flag any
combination of pixels: U, V, Y

and/or Y

odd

even

; GRPH

flags all the pixels inside a graphical box.

Additionally the full YUV bus can be set to a HIGH
impedance state under control of the signal YUV_ENA.
This might be useful for multiplexing the MPEG decoder
output with any other signal source on static basis.

1997 Jan 29 19

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

JTAG

The SAA7201 supports the standard Boundary Scan test
instructions: bypass, extest, sample, intest, runbist,
idcode.

Memory requirements

As indicated before the MPEG source decoder operates
with 16 Mbit of external memory. Several processes
require access to the external memory, mostly being the
video decoding process. In normal main level, main profile
video applications about 1.2 Mbit of memory space is free
for non-video processes. In practice most of this capacity
will be used for graphics. In combination with the internal
variable length decoding, full screen graphics at 8-bit per
pixel is feasible. Moreover, by having introduced a flexible
memory allocation procedure the available memory
capacity for graphics may be enlarged when decoding
lower resolution MPEG pictures or when the input bit rate
is less than 15 Mbit/s.

Table 1 Required memory capacity for some user defined modes

System 50 Hz 60 Hz

Obviously for graphics-only applications all 16 Mbit can be
used for the storage of bit-maps and look-up tables.

In Table 1 an overview is given of the required memory
capacity for some user defined modes.

In 50 Hz systems memory capacity can be saved by
restricting the chroma vertical interpolation to field
interpolation. This mode would only bring some extra
chroma resolution in case the input stream contains
progressive coded pictures.

In 60 Hz systems the reduction of storage capacity for
B-frames to field capacity has not only consequences for
the chroma vertical interpolation but also for the
3 : 2 pull-down operation mode. The operation
repeat-first-field is not possible in all cases and a modified
3 : 2 pull-down is performed under the control of the
SAA7201. The user may decide to use this modified
3 : 2 pull-down mode in order to have more memory
available for OSD or graphics.

Bit rate (R) 15 Mbit/s 15 Mbit/s 9 Mbit/s

Chroma interpolation frame field field frame field field

3 : 2 pull-down n.a. n.a. n.a. full MPEG modified modified

Picture format 720 × 576 720 × 576 544 × 576 720 × 480 720 × 480 720 × 480

Audio input buffer 64 kbit 64 kbit 64 kbit 64 kbit 64 kbit 64 kbit
Video input buffer 1835 kbit 1835 kbit 1835 kbit 1835 kbit 1835 kbit 1835 kbit
Video implementation buffer (R/P) 600 kbit 600 kbit 400 kbit 500 kbit 500 kbit 300 kbit
Slave synchronization buffer (R/2P) 300 kbit 300 kbit 200 kbit 250 kbit 250 kbit 150 kbit
Reference and decoded picture 13456 kbit 12719 kbit 9609 kbit 12441 kbit 10634 kbit 8042 kbit
Total for video + audio 16255 kbit 15518 kbit 12108 kbit 15090 kbit 13292 kbit 10391 kbit
Remains for OSDG (224= 16777 kbit) 522 kbit 1259 kbit 4669 kbit 1687 kbit 3485 kbit 6386 kbit

1997 Jan 29 20

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

DD

V

max

P

tot

T

stg

T

amb

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

th j-a

supply voltage (on all supply pins) 3.0 3.6 V
maximum voltage on all pins 0 5.5 V
total power dissipation T

= 25 °C − tbf W

amb

storage temperature −55 +150 °C
operating ambient temperature 0 +70 °C

thermal resistance from junction to ambient in free air 30 K/W

1997 Jan 29 21

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

CHARACTERISTICS

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

Supply

V

DD

I

DD

Inputs

V

IH

V

IL

I

LI

C

i

Outputs

V

OH

V

OL

CLK timing

T

C

δ duty factor 40 − 60 %
t

r

t

f

Input timing with respect to CLK rising edge

t

su

t

h

Timing (see Figs. 13, 14, 15, 16, 17, 18, 19, 20, 21, 21 and 21)
t

su(A-CS)

t

h(A-CS)

t

su(D-W)

t

su(D-R)

t

rel(D)

t

h(CT)

t

W(ACK)

t

rel(ACK)

t

d(ACK-R)

t

d(ACK-W)

t

W(RW)

Output timing with respect to CLK rising edge

t

h

t

d

C

L

supply voltage 3.0 3.3 3.6 V
supply current − tbf − mA

HIGH level input voltage 2.0 − VDD+ 2.0 V
LOW level input voltage −0.5 − 0.8 V
leakage current − − 20 mA
input capacitance 0 − 10 pF

HIGH level output voltage 2.4 − − V
LOW level output voltage − − 0.4 V

cycle time 37.036 37.037 37.038 ns

rise time 2 − 4 ns
fall time 2 − 4 ns

set-up time 8 − − ns
hold time 0 − − ns

address/CS set-up time 20 − − ns
address/CS hold time 75 − − ns
data write set-up time 20 − − ns
data read set-up time 20 − − ns
data release time 0 − 10 ns
control signal hold time 0 − − ns
acknowledge pulse width 25 − − ns
acknowledge release time 0 − 10 ns
delay time for acknowledge read 96 − 125 ns
delay time for acknowledge write 48 − 75 ns
write/read pulse width 25 − − ns

hold time 3 − t
delay time t

h

− 20 ns

d

ns

load capacitance 10 − 30 pF

1997 Jan 29 22

Philips Semiconductors Objective specification

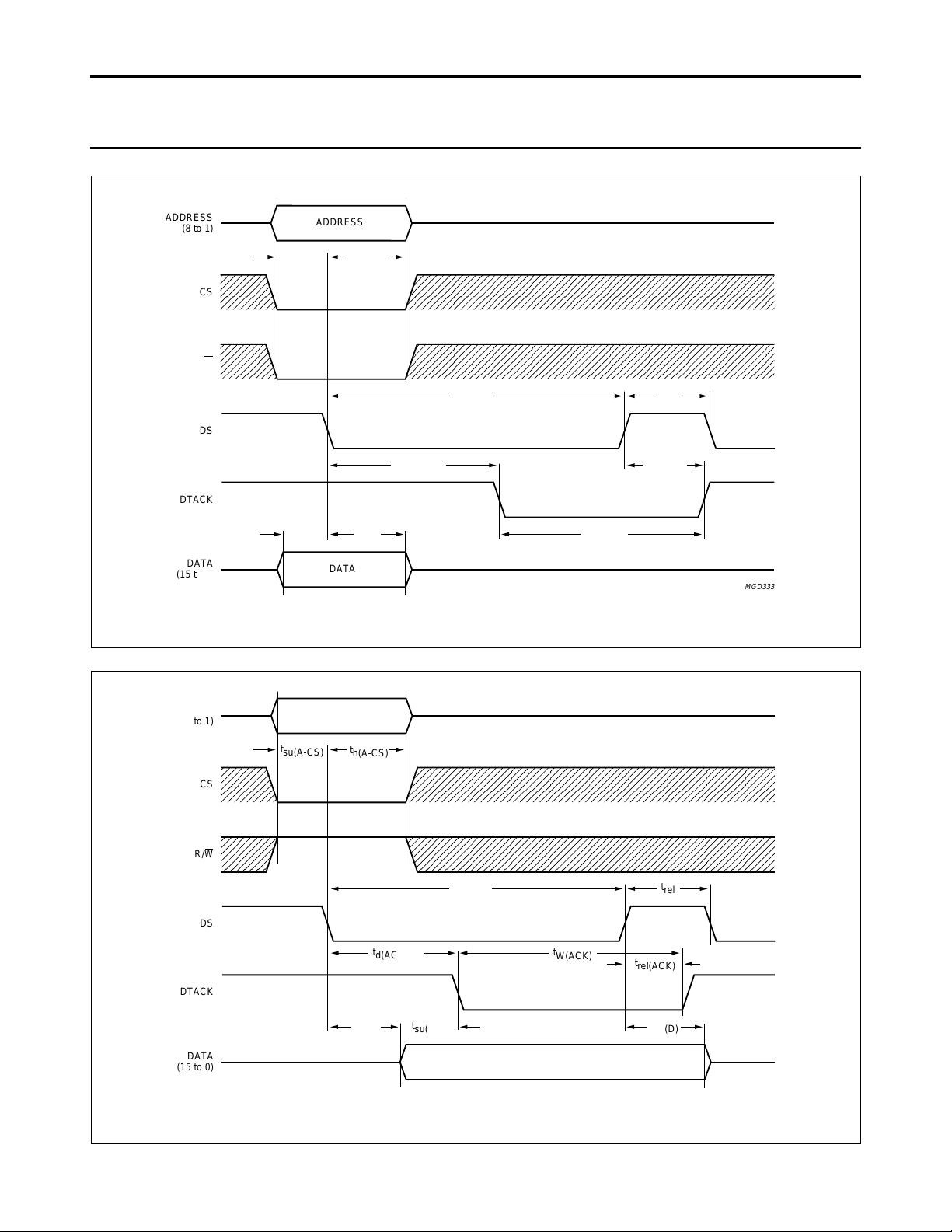

handbook, full pagewidth





ADDRESS

DATA

MGD333

ADDRESS

(8 to 1)

CS

DS

DTACK

DATA

(15 to 0)

R/W

t

su(A-CS)

t

h(A-CS)

t

su(D-W)

t

h(D)

t

W(ACK)

t

rel

t

rel(ACK)

t

d(ACK-W)

t

W(RW)

Fig.13 Motorola write timing (non-multiplexed).

handbook, full pagewidth

ADDRESS

DATA

MGD334

ADDRESS

(8 to 1)

CS

DS

DTACK

DATA

(15 to 0)

R/W

t

su(A-CS)

t

h(A-CS)

t

su(D-R)

t

AR

t

rel(D)

t

W(ACK)

t

rel

t

rel(ACK)

t

d(ACK-R)

t

W(RW)

Fig.14 Motorola read timing (non-multiplexed).

Integrated MPEG2 AVG decoder SAA7201

1997 Jan 29 23

Philips Semiconductors Objective specification

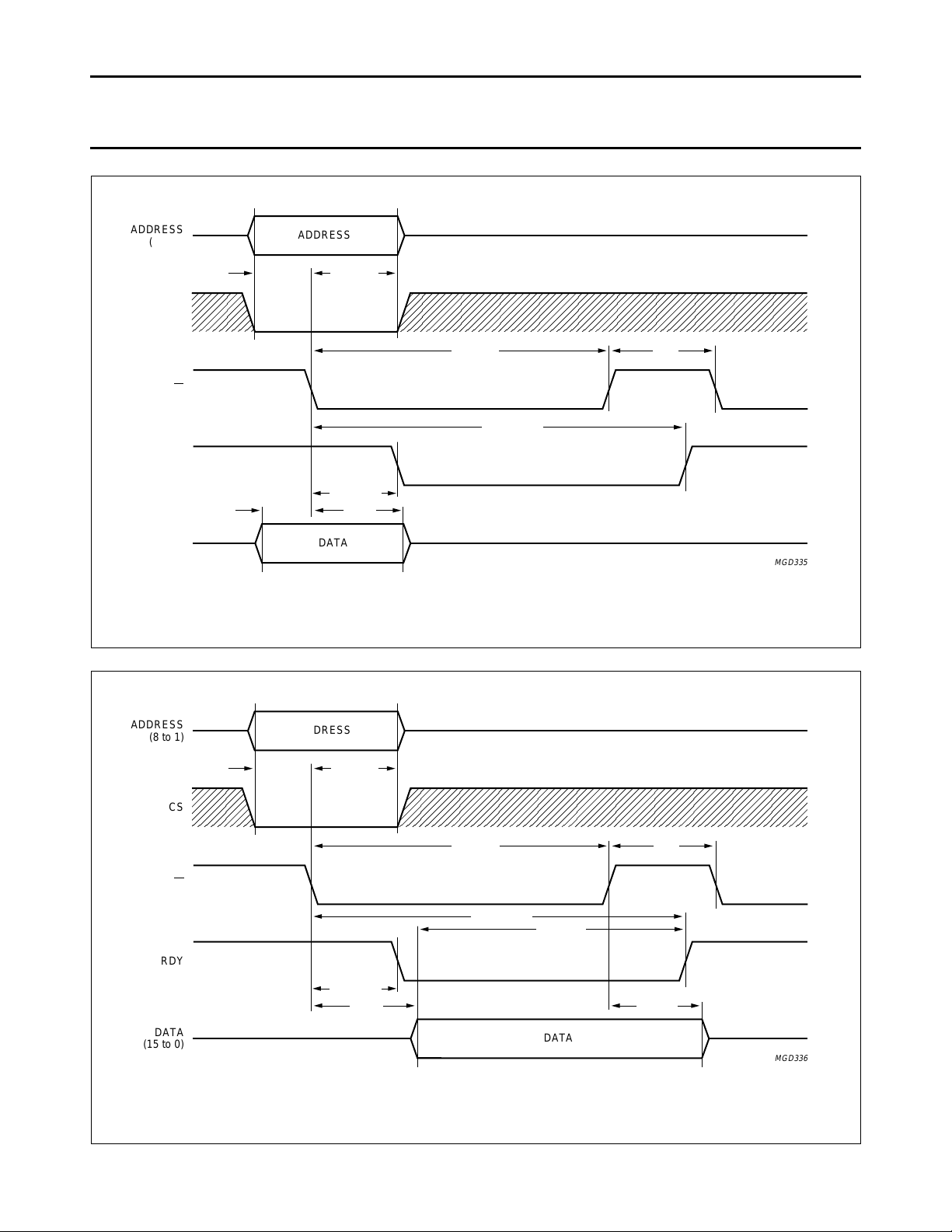

Fig.15 Intel write timing (non-multiplexed).

handbook, full pagewidth

ADDRESS

DATA

MGD335

ADDRESS

(8 to 1)

CS

RDY

DATA

(15 to 0)

R/W

t

su(A-CS)

t

h(A-CS)

t

su(D-W)

t

h(D)

t

rel

t

rel(ACK)

t

d(ACK-W)

t

W(RW)

Fig.16 Intel read timing (non-multiplexed).

handbook, full pagewidth

ADDRESS

DATA

MGD336

ADDRESS

(8 to 1)

CS

RDY

DATA

(15 to 0)

R/W

t

su(A-CS)

t

h(A-CS)

t

rel(D)

t

AR

t

su(D-R)

t

rel

t

rel(ACK)

t

d(ACK-R)

t

W(RW)

Integrated MPEG2 AVG decoder SAA7201

1997 Jan 29 24

Philips Semiconductors Objective specification

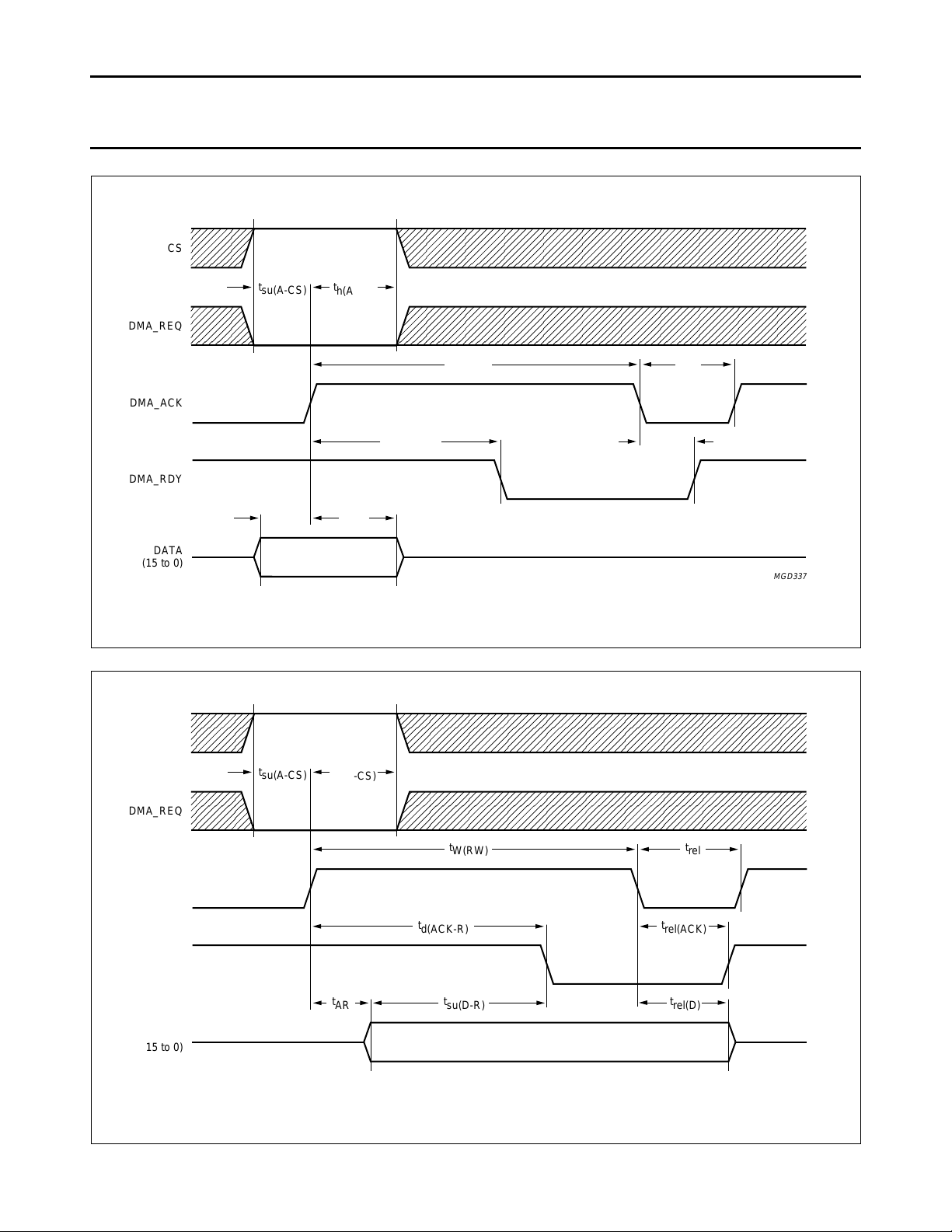

Fig.17 DMA read access.

handbook, full pagewidth

DATA

MGD337

CS

DMA_ACK

DMA_RDY

DATA

(15 to 0)

DMA_REQ

t

su(A-CS)

t

h(A-CS)

t

su(D-W)

t

h(D)

t

rel

t

rel(ACK)

t

d(ACK-W)

t

W(RW)

Fig.18 DMA write access.

handbook, full pagewidth

DATA

MGD338

CS

DMA_ACK

DMA_RDY

DATA

(15 to 0)

DMA_REQ

t

su(A-CS)

t

h(A-CS)

t

AR

t

su(D-R)

t

rel

t

rel(ACK)

t

rel(D)

t

d(ACK-R)

t

W(RW)

Integrated MPEG2 AVG decoder SAA7201

1997 Jan 29 25

Philips Semiconductors Objective specification

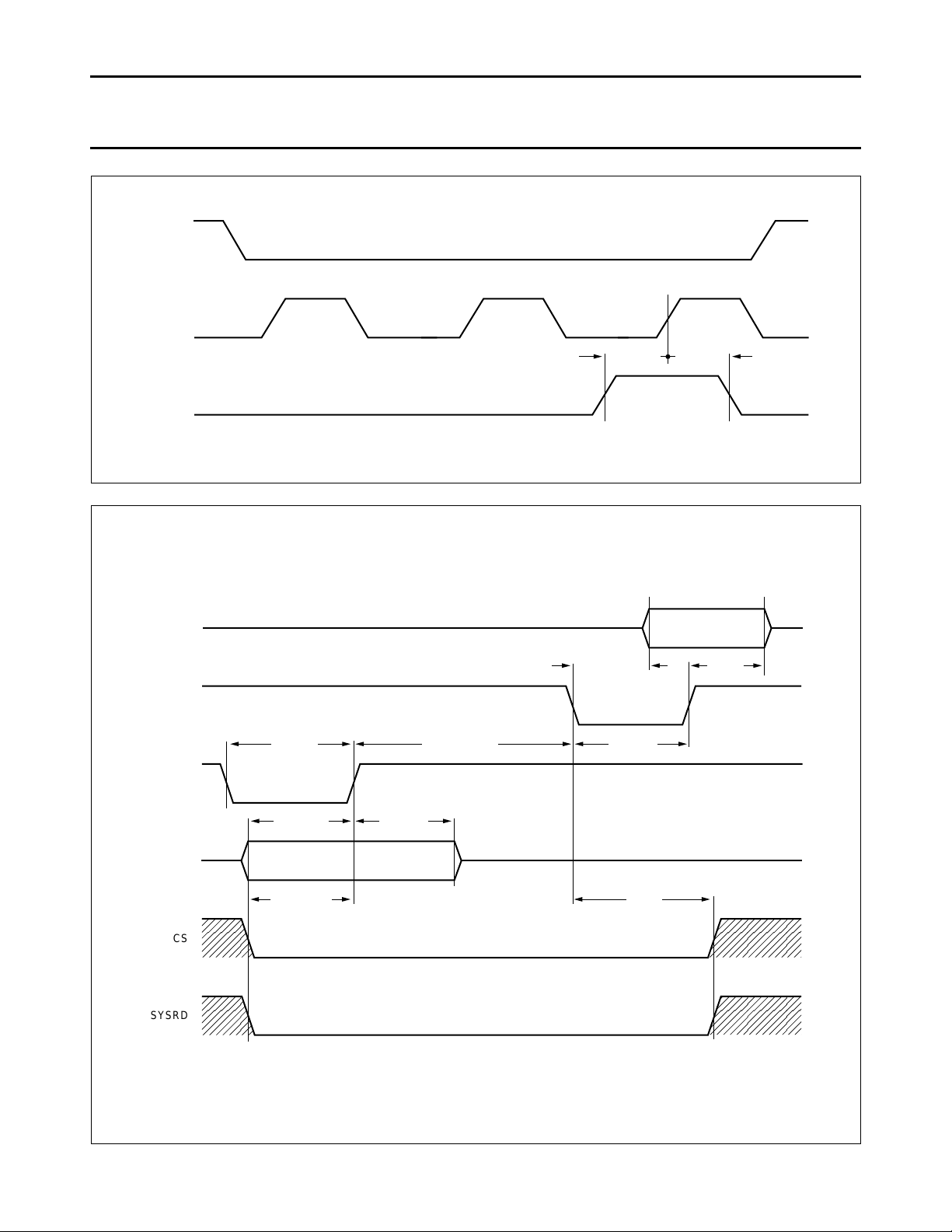

Fig.19 DMA_DONE timing.

handbook, full pagewidth

MGD339

DMA_ACK

DMA_DONE

DMA_REQ

t

su(A-CS)th(A-CS)

Fig.20 SAA7208 mode; read timing.

handbook, full pagewidth

MGD919

ADDRESS

ADDRESS

(8 to 0)

DATA

DATA

(15 to 0)

RDY

ALE

t

h(CS)

t

h(CS-ALE)

t

W(ALE)

t

W(SDR)

t

rel(D)

t

su(SDR-D)

t

su(ALE-SDR)

t

su(A-CS)

t

h(A-CS)



CS



SYSRD

Integrated MPEG2 AVG decoder SAA7201

1997 Jan 29 26

Philips Semiconductors Objective specification

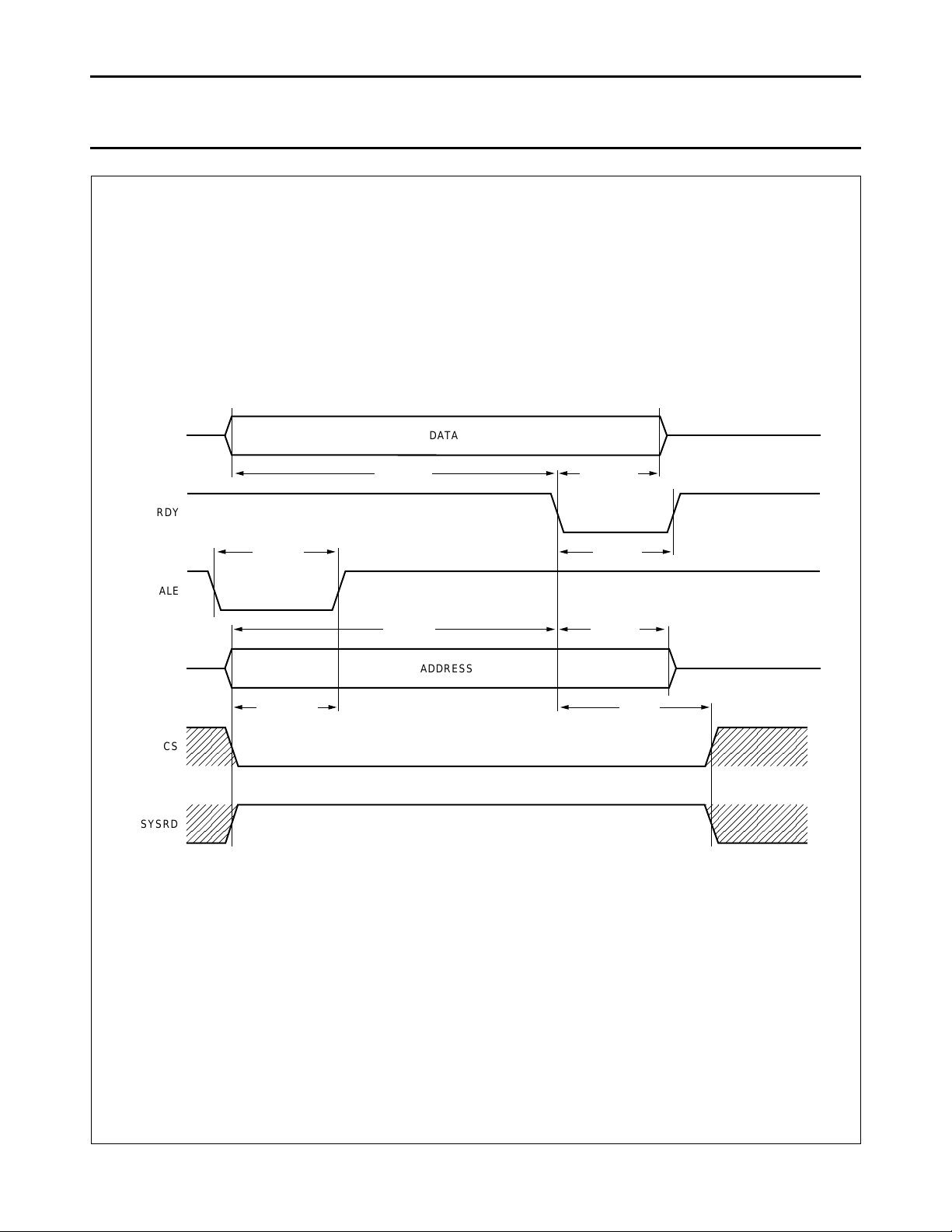

Fig.21 SAA7208 mode; write timing.

handbook, full pagewidth

MGD918

DATA

(15 to 0)

ADDRESS

(8 to 0)

CS

SYSRD

RDY

DATA

ADDRESS

ALE

t

h(CS)

t

h(A-CS)

t

su(A-CS)

t

h(CS-ALE)

t

W(SDR)

t

W(ALE)

t

W(D-SDR)

t

h(D-SDR)

Integrated MPEG2 AVG decoder SAA7201

1997 Jan 29 27

Philips Semiconductors Objective specification

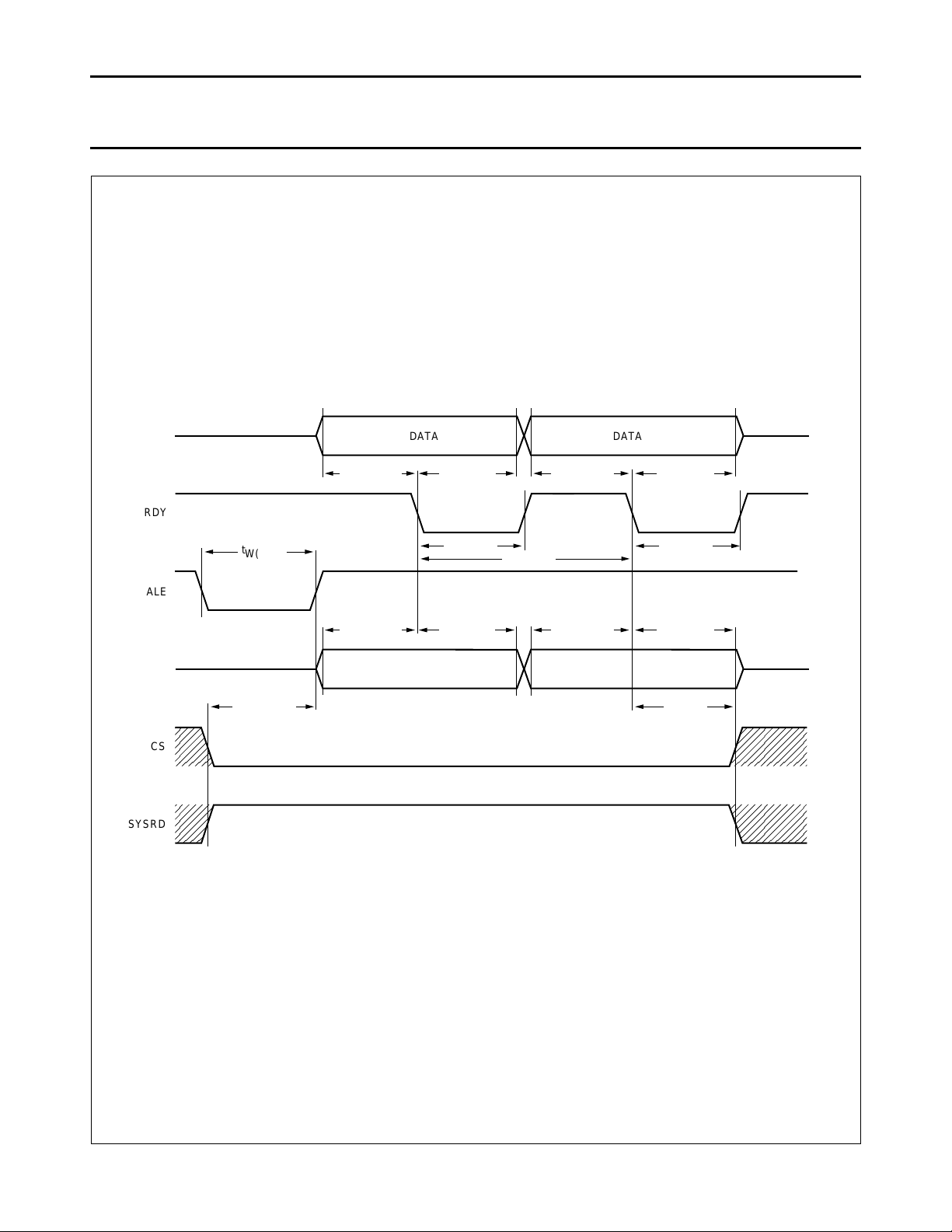

Fig.22 SAA7208 mode; burst write timing.

handbook, full pagewidth

MGD920

DATA

(15 to 0)

ADDRESS

(8 to 0)

CS

SYSRD

RDY

DATA DATA

ALE

t

W(ALE)

t

su(D-SDR)

t

h(D-SDR)

t

su(D-SDR)

t

h(D-SDR)

t

W(SDR)

t

W(SDR)

t

rel(SDR)

ADDRESS ADDRESS

t

h(CS)

t

h(CS-ALE)

t

su(A-SDR)

t

h(A-SDR)

t

su(A-SDR)

t

h(A-SDR)

Integrated MPEG2 AVG decoder SAA7201

1997 Jan 29 28

Philips Semiconductors Objective specification

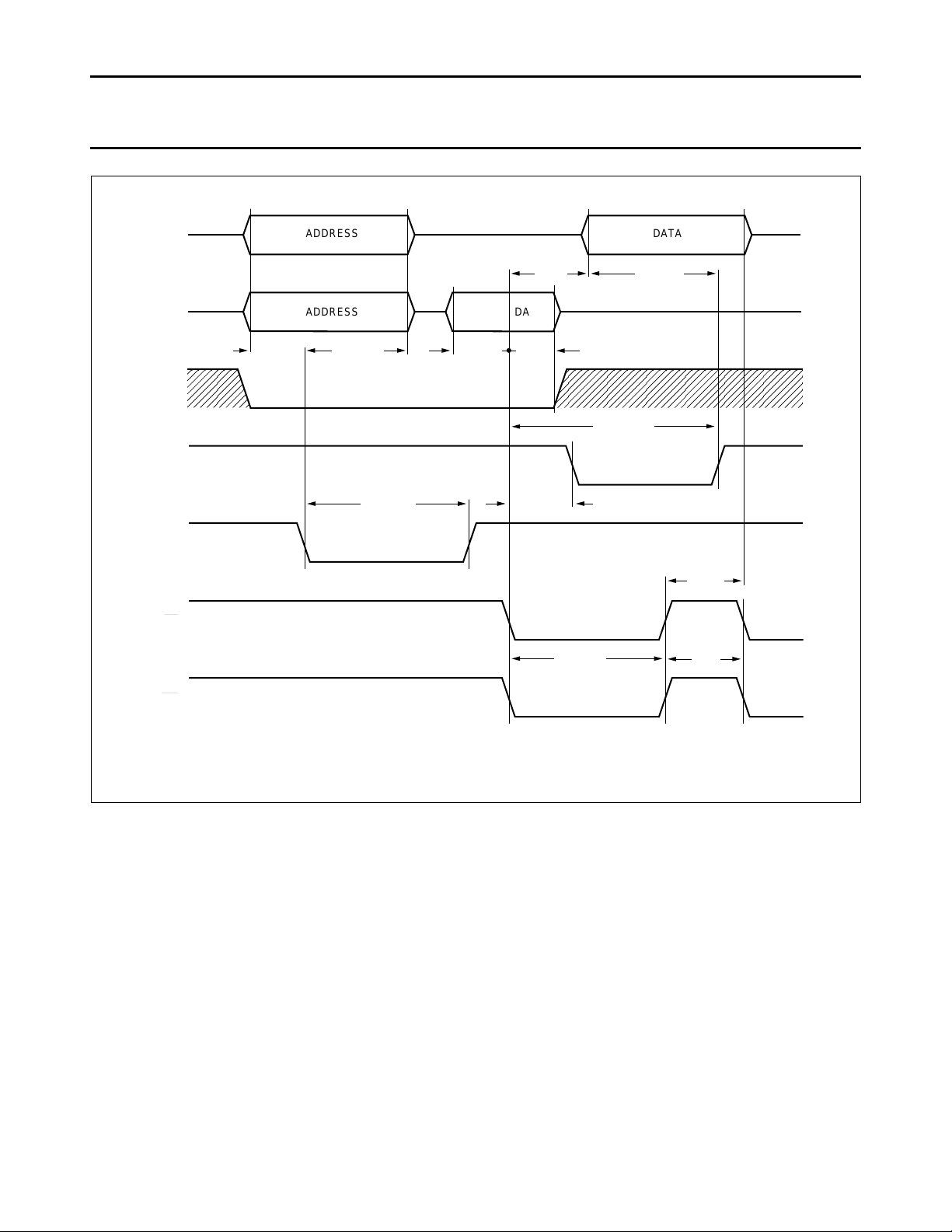

Fig.23 Intel read/write timing multiplexed.

handbook, full pagewidth

ADDRESS

ADDRESS

DATA

DATA

MGD341

AD(read)

AD(write)

CS

RD

RDY

ALE

t

W(ACK)

t

rel(D)

t

rel(ACK)

t

W(A-CS)

t

su(D-R)

t

AR

t

h(D)

t

su(D-W)

t

h(A-CS)

t

su(A-S)

t

rel

t

W(RW)

WR

Integrated MPEG2 AVG decoder SAA7201

REFERENCES

1.

2.

3.

4.

5.

6.

7.

MPEG ISO/IEC 11172-1 International standard; MPEG-1 systems.
MPEG ISO/IEC 13818-1 International standard; MPEG-2 systems.
MPEG ISO/IEC 11172-2 International standard; MPEG-1 Video.
MPEG ISO/IEC 13818-2 International standard; MPEG-2 Video.
MPEG ISO/IEC 11172-3 International standard; MPEG-1 Audio.
MPEG ISO/IEC 13818-3 International standard; MPEG-2 Audio.
DVB subtitling system; working draft 2.0; TM 1398 rev 2

.

1997 Jan 29 29

Philips Semiconductors Objective specification

Fig.24 Application diagram.

handbook, full pagewidth

SAA7208

(DEMUX/MIPS)

4 Mbit

EPROM

4 Mbit
DRAM

SAA7201

SAA7183

(EURO-DENC)

16 Mbit

SDRAM

AUDIO

DA

8+3

12

address data control

8

16

16

INT

H,V valid YUV

CVBS

MGD342

RGB

Y/C

L
R

strobe

27.0

MHz

27 MHz

I

2

C-bus

I

2

C-bus

H, V, FP

TTX/TTXRQ

high

speed

data

Integrated MPEG2 AVG decoder SAA7201

APPLICATION INFORMATION

1997 Jan 29 30

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

APPENDIX
Syntax of pixel-data-sub-block

data type pixel-code-string of N-coded words end of string

2 bit/pixel 01 1 pixel in colour 1

10 1 pixel in colour 2

0001 0000 11 1 pixel in colour 3 00 00 00

00 01 1 pixel in colour 0
00 00 01 2 pixels in colour 0
00 1L LL CC L pixels (3 to 10) in colour C
00 00 10 LL LL CC L pixels (12 to 27) in colour C
00 00 11 LL LL LL LL CC L pixels (29 to 284) in colour C

4 bit/pixel 0001 1 pixel in colour 1

↓ ↓ ↓ ↓

0001 0001 1111 1 pixel in colour 15 0000 0000

0000 1100 1 pixel in colour 0
0000 1101 2 pixels in colour 0
0000 0LLL (L>0) L pixels (3 to 9) in colour 0
0000 10LL CCCC L pixels (4 to 7) in colour C
0000 1110 LLLL CCCC L pixels (9 to 24) in colour C
0000 1111 LLLL LL11 CCCC L pixels (25 to 280) in colour C

8 bit/pixel 00000001 1 pixel in colour 1 00000000-- --00000000

↓ ↓ ↓ ↓

0001 0010 11111111 1 pixel in colour 255

00000000 0LLLLLLL L pixels (1 to 127) in colour 0
00000000 1LLLLLLL CCCCCCCC L pixels (3 to 127) in colour C

1997 Jan 29 31

Philips Semiconductors Objective specification

UNIT A1A2A3b

p

c E

(1) (1) (1)

e HEL LpQ Zywv θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

0.40

0.25

3.70

3.15

0.25

0.40

0.25

0.23

0.13

28.1

27.9

0.65 0.31.95

32.2

31.6

1.70

1.55

1.5

1.1

8
0

o
o

0.15 0.1

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

1.1

0.7

SOT322-1 MO112DD1

93-08-25
95-02-04

D

(1)

28.1

27.9

H

D

32.2

31.6

E

Z

1.5

1.1

D

pin 1 index

b

p

e

θ

E

A

1

A

L

p

Q

detail X

L

(A )

3

B

40

c

D

H

b

p

E

H

A

2

v M

B

D

Z

D

A

Z

E

e

v M

A

X

1

160

121

120

81

80

41

y

w M

w M

0 5 10 mm

scale

SOT322-1

160 leads (lead length 1.95 mm); body 28 x 28 x 3.4 mm; high stand-off height

QFP160: plastic quad flat package;

A

max.

3.95

Integrated MPEG2 AVG decoder SAA7201

PACKAGE OUTLINE

1997 Jan 29 32

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Reflow soldering

Reflow soldering techniques are suitable for all QFP
packages.

The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

Reference Handbook”

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

(order code 9398 652 90011).

“Quality

(order code 9397 750 00192).

Wave soldering

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

If wave soldering cannot be avoided, the following
conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

Even with these conditions, do not consider wave
soldering the following packages: QFP52 (SOT379-1),
QFP100 (SOT317-1), QFP100 (SOT317-2),
QFP100 (SOT382-1) or QFP160 (SOT322-1).

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1997 Jan 29 33

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1997 Jan 29 34

Philips Semiconductors Objective specification

Integrated MPEG2 AVG decoder SAA7201

NOTES

1997 Jan 29 35

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]/xxx
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1997 SCA53
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 547047/1200/01/pp36 Date of release: 1997 Jan 29 Document order number: 9397 750 00989
