Datasheet saa7182, saa7183 DATASHEETS (Philips)

INTEGRATED CIRCUITS

DATA SH EET

SAA7182; SAA7183

Digital Video Encoder
(EURO-DENC)

Preliminary specification
Supersedes data of 1995 Sep 19
File under Integrated Circuits, IC22

1996 Jul 08

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

FEATURES

• CMOS 5 V device

• Digital PAL/NTSC/SECAM encoder

• System pixel frequency 13.5 MHz

• Accepts MPEG decoded data on 8-bit wide input port.

Input data format Cb, Y, Cr etc. or Y and Cb, Cr on
16 lines (

“CCIR 656”

)

• Three DACs for CVBS, Y and C operating at 27 MHz
with 10-bit resolution

• Three DACs for RGB operating at 27 MHz with 9-bit
resolution, RGB sync on CVBS and Y

• CVBS, Y, C and RGB output simultaneously

• Closed captioning and teletext encoding including

sequencer and filter

• On-chip YUV to RGB matrix

2

• Fast I

C-bus control port (400 kHz)

• Encoder can be master or slave

• Programmable horizontal and vertical input

synchronization phase

• Programmable horizontal sync output phase

• Internal Colour Bar Generator (CBG)

• Overlay with Look-Up Tables (LUTs) 8 × 3 bytes

• Macrovision Pay-per-View protection system as option,

also used for RGB output
This applies to SAA7183 only. The device is protected

by USA patent numbers 461603, 4577216 and 4819098
and other intellectual property rights.

Use of the Macrovision anti-copy process in the device
is licensed for non-commercial home use only. Reverse
engineering or disassembly is prohibited. Please
contact your nearest Philips Semiconductor sales office
for more information

• Controlled rise/fall times of output syncs and blanking

• Down-mode of DACs

• PLCC84 package.

GENERAL DESCRIPTION

The SAA7182; SAA7183 encodes digital YUV video data
to an NTSC, PAL, SECAM CVBS or S-Video signal and
also RGB.

The circuit accepts CCIR compatible YUV data with
720 active pixels per line in 4:2:2 multiplexed formats,
for example MPEG decoded data. It includes a sync/clock
generator and on-chip Digital-to-Analog Converters
(DACs).

The circuit is compatible to the DIG-TV2 chip family.

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V
V
I

DDA

I

DDD

V
V

DDA
DDD

i
o(p-p)

analog supply voltage 4.75 5.0 5.25 V
digital supply voltage 4.75 5.0 5.25 V
analog supply current − 90 110 mA
digital supply current − 220 250 mA
input signal voltage levels TTL compatible
analog output signal voltages Y, C, CVBS and RGB

− 2 − V

without load (peak-to-peak value)

R

L

load resistance 80 −−Ω
ILE LF integral linearity error −−±2 LSB
DLE LF differential linearity error −−±1 LSB
T

amb

operating ambient temperature 0 − +70 °C

1996 Jul 08 2

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

ORDERING INFORMATION

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

SAA7182WP PLCC84 plastic leaded chip carrier; 84 leads SOT189-2
SAA7183WP PLCC84 plastic leaded chip carrier; 84 leads SOT189-2

BLOCK DIAGRAM

RTCI

RCV1

TTXRQ

handbook, full pagewidth

10 to 13
16 to 19

DP0

to DP7

MP7

to MP0

OVL2

to OVL0

KEY

TTX

8

25 to 28
31 to 34

8

6 to 8

3

9

21

3, 15, 24,
30, 39, 42,
51, 79, 81

RESET SDA SCL

184834

I2C-BUS

INTERFACE

8

DATA

MANAGER

2

I

C-bus

control

3

V
V

SSD1
SSD9

V



DDD1

V

DDD9

to

to

SA

2

I

C-bus

control

5, 14, 22, 
29, 38, 41,
49, 80, 82



CbCr

I2C-bus

control

SECAM

PROCESSOR

DbDr

Y

2, 23, 40, 43,
46, 56, 59, 
62, 65, 66

n.c.

8

ENCODER

I2C-bus

8

SAA7182
SAA7183

control

CbCr

SP AP

RCV2

CDIR

50 35 36 20 47 45

37

CLOCK

clock

and timing

Y

OUTPUT

C

control bus

Y

78 77

INTERFACE

internal 

PROCESSOR

CREF

SYNC

8

8

8

RGB

XTALO

2

I

control

2

I

control

2

I

control

C-bus

C-bus

C-bus

XTALI

LLC

44 48

V

Y/C/CVBS

V

refH2

53 63

refH1

75

D

D

I

RGB

V

DDA4

to

V

DDA7

68 64, 70,

72, 74

A

A

54,
57, 60

V

DDA1

to

V

DDA3



73
71
69

67
76

52

61
58
55

MGB696



CVBS
Y
CHROMA

V

SSA

V

refL2

V

refL1

RED
GREEN
BLUE

Fig.1 Block diagram.

1996 Jul 08 3

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

PINNING

SYMBOL PIN DESCRIPTION

RESET 1 Reset input, active LOW. After reset is applied, all digital I/Os are in input mode.

The I2C-bus receiver waits for the START condition.
n.c. 2 not connected
V

SSD1

SA 4 The I
V

DDD1

OVL2 6

OVL0 8
KEY 9 Key input for OVL. When HIGH it selects OVL input.
DP0 10
DP1 11
DP2 12
DP3 13
V

DDD2

V

SSD2

DP4 16
DP5 17
DP6 18
DP7 19
TTXRQ 20 Teletext request output, indicating when the bitstream is valid.
TTX 21 Teletext bitstream input.
V

DDD3

n.c. 23 not connected
V

SSD3

MP7 25 Upper 4 bits of MPEG port. It is an input for
MP6 26
MP5 27
MP4 28
V

DDD4

V

SSD4

MP3 31 Lower 4 bits of MPEG port. It is an input for
MP2 32
MP1 33
MP0 34
RCV1 35 Raster Control 1 for video port. This pin receives/provides a VS/FS/FSEQ signal.
RCV2 36 Raster Control 2 for video port. This pin provides an HS pulse of programmable length or

RTCI 37 Real Time Control Input. If the LLC clock is provided by an

3 digital ground 1

2

C-bus slave address select pin. LOW: slave address = 88H, HIGH = 8CH.

5 digital supply voltage 1

3-bit overlay data input. This is the index for the internal look-up table.OVL1 7

Lower 4 bits of the data port. Input for multiplexed Cb, Cr data if 16 line input mode is used.

14 digital supply voltage 2
15 digital ground 2

Upper 4 bits of the data port. Input for multiplexed Cb, Cr data if 16 line input mode is used.

22 digital supply voltage 3

24 digital ground 3

input for Y data only, if 16 line input mode is used.

29 digital supply voltage 4
30 digital ground 4

input for Y data only, if 16 line input mode is used.

receives an HS pulse.

should be connected to the RTCO pin of the respective decoder to improve the signal quality.

“CCIR 656”

“CCIR 656”

style multiplexed Cb, Y, Cr data, or

style multiplexed Cb, Y, Cr data, or

SAA7111

or

SAA7151B

, RTCI

1996 Jul 08 4

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

SYMBOL PIN DESCRIPTION

V

DDD5

V

SSD5

n.c. 40 not connected
V

DDD6

V

SSD6

n.c. 43 not connected
XT ALI 44 Crystal oscillator input (from crystal). If the oscillator is not used, this pin should be connected

XTALO 45 Crystal oscillator output (to crystal).
n.c. 46 not connected
CREF 47 Clock Reference signal. This is the clock qualifier for DIG-TV2 compatible signals.
LLC 48 Line-Locked Clock. This is the 27 MHz master clock for the encoder. The I/O direction is set

V

DDD7

CDIR 50 Clock direction. If the CDIR input is HIGH, the circuit receives a clock and optional CREF

V

SSD7

V

refL1

V

refH1

V

DDA1

BLUE 55 Analog output of the BLUE component.
n.c. 56 not connected
V

DDA2

GREEN 58 Analog output of the GREEN component.
n.c. 59 not connected
V

DDA3

RED 61 Analog output of the RED component.
n.c. 62 not connected
I

RGB

V

DDA4

n.c. 65 not connected
n.c. 66 not connected
V

SSA

I

Y/C/CVBS

CHROMA 69 Analog output of the chrominance signal.
V

DDA5

Y 71 Analog output of the luminance signal.
V

DDA6

CVBS 73 Analog output of the CVBS signal.

38 digital supply voltage 5
39 digital ground 5

41 digital supply voltage 6
42 digital ground 6

to ground.

by the CDIR pin.

49 digital supply voltage 7

signal, otherwise if CDIR is LOW CREF and LLC are generated by the internal crystal

oscillator.

51 digital ground 7
52 Lower reference voltage 1 input for the RGB DACs, connect to V

SSA

.
53 Upper reference voltage 1 input for the RGB DACs, connect via 100 nF capacitor to V
54 Analog supply voltage 1 for the RGB DACs.

57 Analog supply voltage 2 for the RGB DACs.

60 Analog supply voltage 3 for the RGB DACs.

63 Current input for RGB amplifiers, connected via 15 kΩ resistor to V

DDA

.

64 Analog supply voltage 4 for the Y/C/CVBS DACs.

67 Analog ground for the DACs.
68 Current input for the Y/C/CVBS amplifiers, connected via 15 kΩ resistor to V

DDA

.

70 Analog supply voltage 5 for the Y/C/CVBS DACs.

72 Analog supply voltage 6 for the Y/C/CVBS DACs.

SSA.

1996 Jul 08 5

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

SYMBOL PIN DESCRIPTION

V

DDA7

V

refH2

V

refL2

AP 77 Test pin. Connected to digital ground for normal operation.
SP 78 Test pin. Connected to digital ground for normal operation.
V

SSD8

V

DDD8

V

SSD9

V

DDD9

SCL 83 I
SDA 84 I

74 Analog supply voltage 6 for the Y/C/CVBS DACs.
75 Upper reference voltage 2 input for the Y/C/CVBS DACs, connected via 100 nF capacitor to

V

SSA.

76 Lower reference voltage 2 input for the Y/C/CVBS DACs, connect to V

SSA

.

79 digital ground 8
80 digital supply voltage 8
81 digital ground 9
82 digital supply voltage 9

2

C-bus serial clock input.

2

C-bus serial data input/output.

1996 Jul 08 6

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

handbook, full pagewidth

DP1
11

DP0
10

KEY

9

OVL0
8

OVL1
7

OVL2
6

DDD1

V
5

SA
4

SSD1

V
3

n.c.
2

RESET
1

SDA
84

DDD9VSSD9VDDD8VSSD8

SCL

V

83

82

81

AP
77

refL2VrefH2

V
76

75

SP

80

79

78

DP3

V

DDD2

V

SSD2

DP4
DP5
DP6
DP7

TTXRQ

TTX

V

DDD3

n.c.

V

SSD3

MP7
MP6
MP5
MP4

V

DDD4

V

SSD4

MP3
MP2

12DP2
13
14
15
16
17
18
19
20
21

74
73
72
71
70
69
68
67
66
65

V

DDA7

CVBS
V

DDA6

Y
V

DDA5

CHROMA
I

Y/C/CVBS

V

SSA

n.c.
n.c.

SAA7182

22
23
24
25
26
27
28
29
30
31
32

SAA7183

64
63
62
61
60
59
58
57
56
55
54

V

DDA4

I

RGB

n.c.
RED
V

DDA3

n.c.
GREEN
V

DDA2

n.c.
BLUE
V

DDA1

33

34

35

36

37

38

39

40

41

42

MP1

MP0

RCV1

RCV2

RTCI

DDD5

V

SSD5

V

n.c.

DDD6

V

SSD6

V

Fig.2 Pin configuration.

1996 Jul 08 7

43

n.c.

44

XTALI

45

XTALO

46

n.c.

47

CREF

48

LLC

49

DDD7

V

50

CDIR

51

SSD7

V

52

refL1

V

53

refH1

V

MGB697

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

FUNCTIONAL DESCRIPTION

The digital video encoder (EURO-DENC) encodes digital
luminance and colour difference signals into analog CVBS
and simultaneously S-Video signals. NTSC-M, PAL B/G
and SECAM standards and sub-standards are supported.

Both interlaced and non-interlaced operation is possible
for all standards.

In addition to RED, GREEN and BLUE converted
components, the dematrixed YUV input is available on
three separate analog outputs.

The basic encoder function consists of subcarrier
generation and colour modulation also insertion of
synchronization signals. Luminance and chrominance
signals are filtered in accordance with the standard
requirements of RS-170-A and

For ease of analog post filtering the signals are twice
oversampled with respect to the pixel clock before
digital-to-analog conversion.

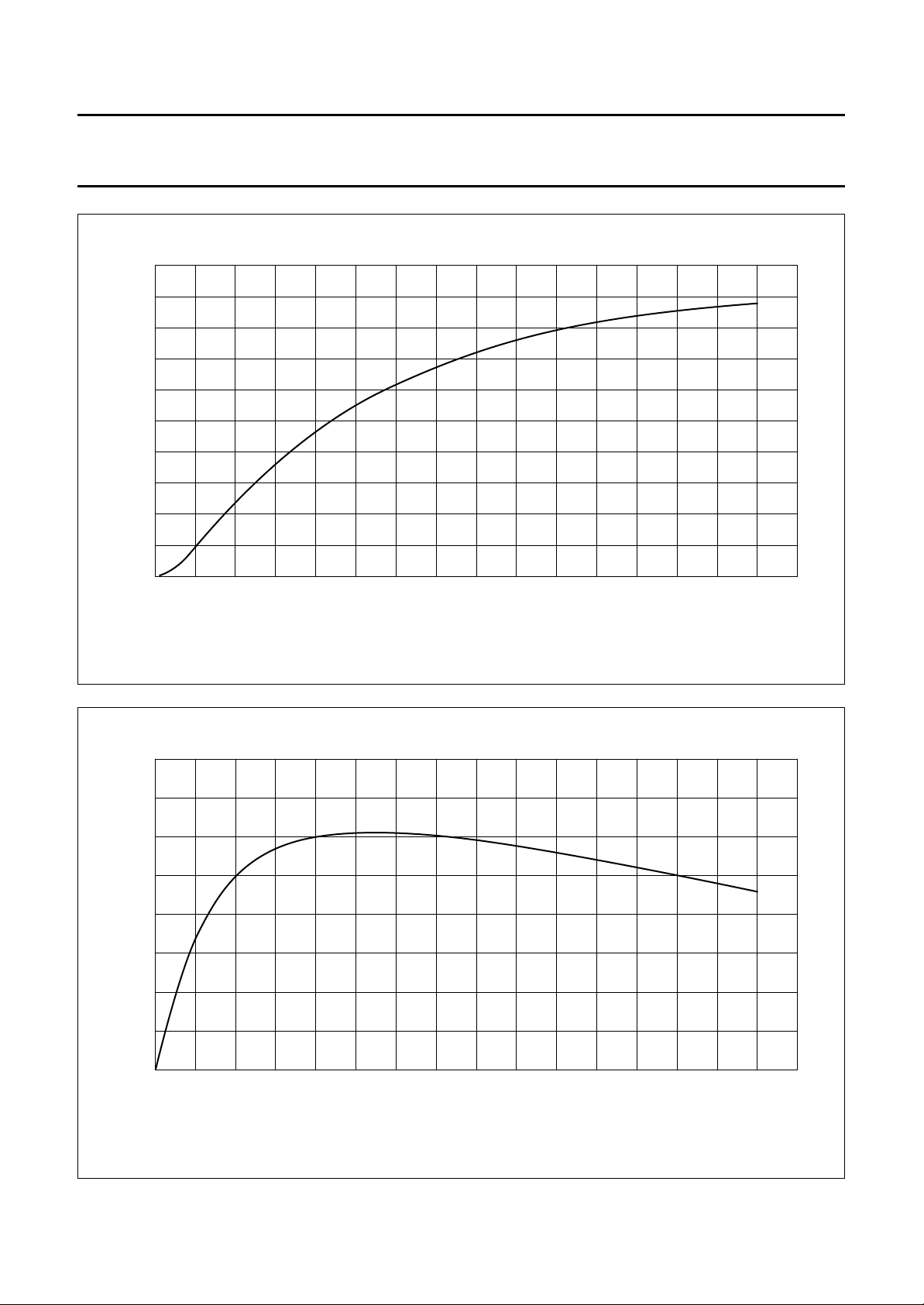

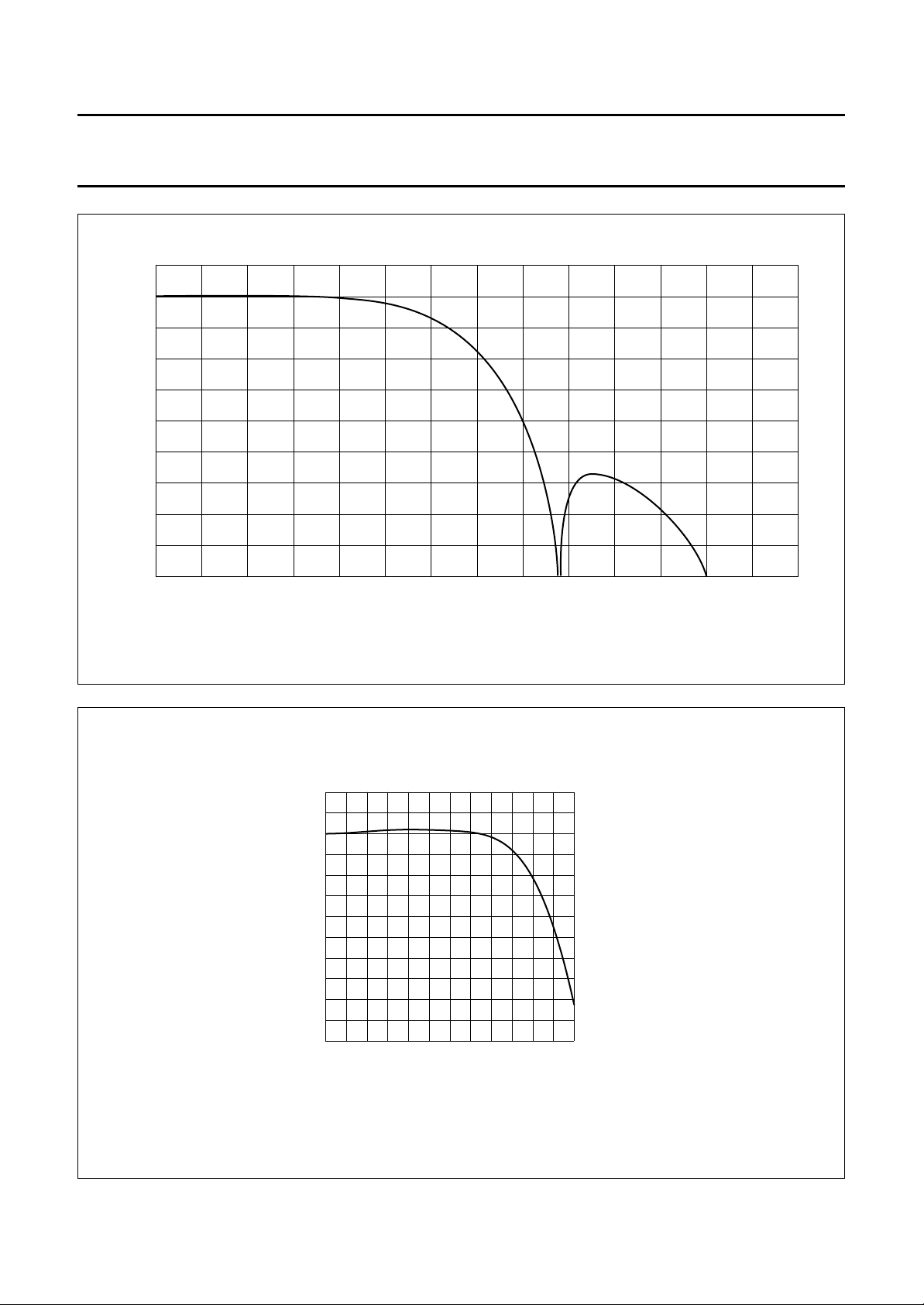

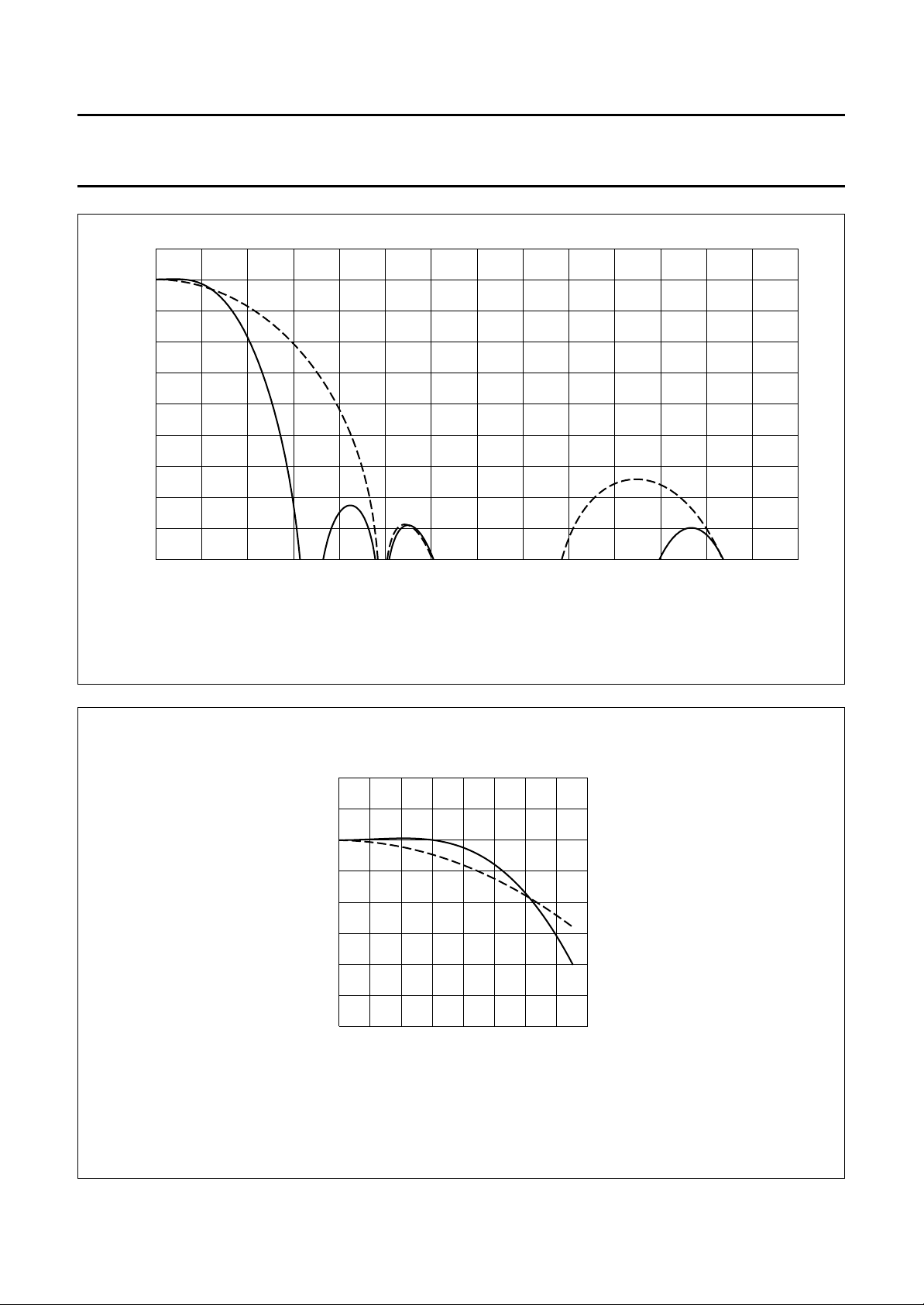

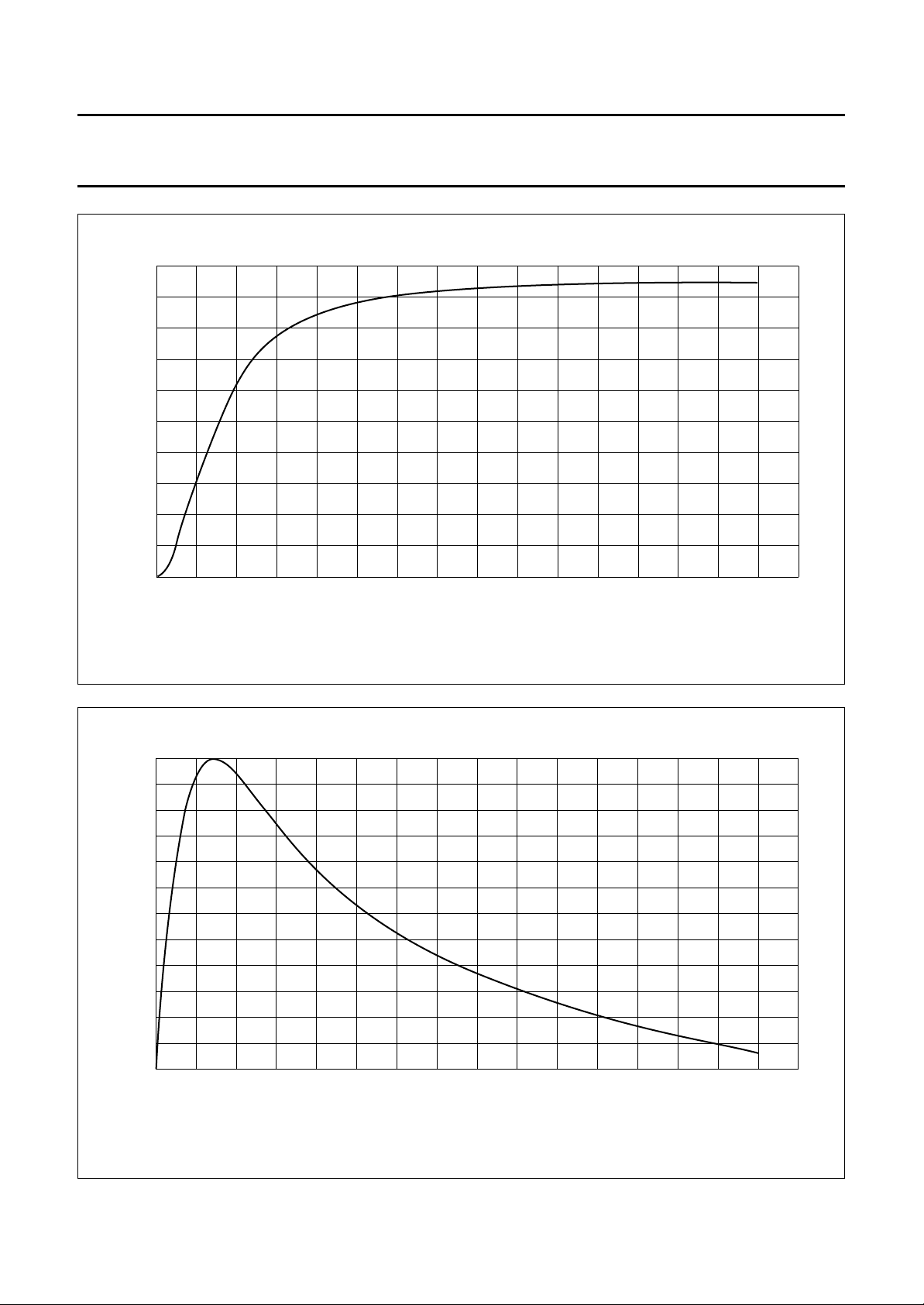

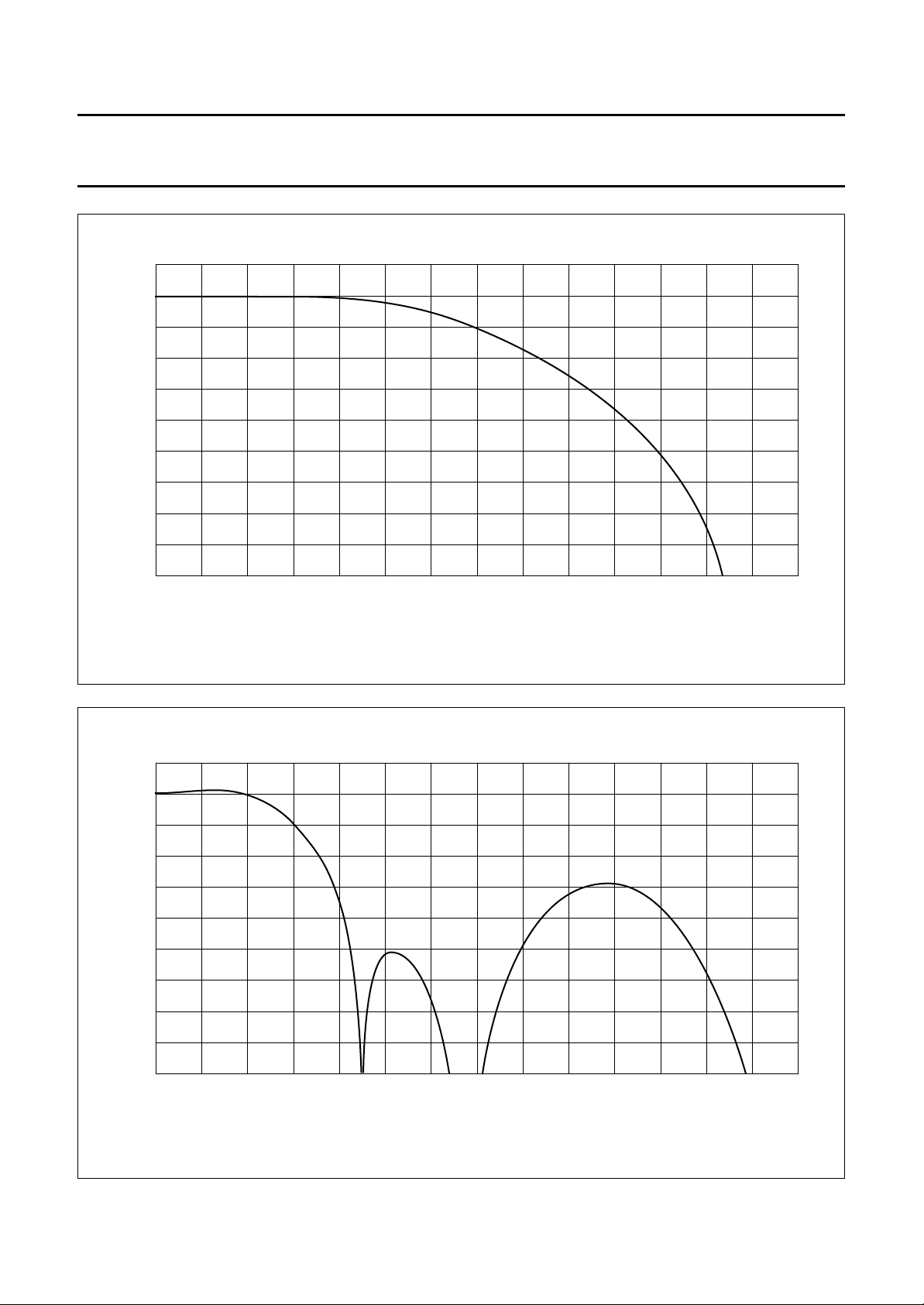

For total filter transfer characteristics see
Figs 3, 4, 5, 6, 7 and 8. The DACs for Y, C and CVBS are
realized with full 10-bit resolution, DACs for RGB are with
9-bit resolution.

The MPEG port (MP) accept 8 lines multiplexed Cb-Y-Cr
data.

The 8-bit multiplexed Cb-Y-Cr formats are
(D1 format) compatible, but the SAV, EAV etc. codes are
not decoded.

Alternatively, 8-bits Y on MP port and 8-bit multiplexed Cb,
Cr on DP port can be chosen as input.

A crystal-stable master clock (LLC) of 27 MHz, which is
twice the CCIR line-locked pixel clock of 13.5 MHz, needs
to be supplied externally. Optionally, a crystal oscillator
input/output pair of pins and an on-chip clock driver is
provided.

It is also possible to connect a Philips Digital Video
Decoder (SAA7111 or SAA7151B) in conjunction with a
CREF clock qualifier to EURO-DENC. Via RTCI pin
connected to RTCO of a decoder, information concerning
actual subcarrier, PAL-ID (see
definite subcarrier phase can be inserted.

“CCIR 624”

“data sheet SAA7111”

.

“CCIR 656”

)

European teletext encoding is supported if an appropriate
teletext bitstream is applied to the TTX pin.

The IC also contains Closed Caption and Extended Data
Services Encoding (Line 21), and supports anti-taping
signal generation in accordance with Macrovision; it also
supports overlay via KEY and three control bits by a 24 × 8
LUT.

A number of possibilities are provided for setting of
different video parameters such as:

Black and blanking level control
Colour subcarrier frequency
Variable burst amplitude etc.

During reset (
all digital I/O stages are set to input mode. A reset forces
the I2C-bus interface to abort any running bus transfer and
sets register 3A to 03H, register 61 to 06H and
registers 6BH and 6EH to 00H. All other control registers
are not influenced by a reset.

Data manager

In the data manager, real time arbitration on the data
stream to be encoded is performed.

Depending on the polarity of pin KEY, the MP input
(or MP/DP input) or OVL input are selected to be encoded
to CVBS and Y/C signals, and output as RGB.

KEY controls OVL entries of a programmable LUT for
encoded signals and for RGB output. The common KEY
switching signal can be disabled by software for the
signals to be encoded (Y, C and CVBS), such that OVL will
appear on RGB outputs, but not on Y, C and CVBS.

OVL input under control of KEY can be also used to insert
decoded teletext information or other on-screen data.

Optionally, the OVL colour LUTs located in this block, can
be read out in a pre-defined sequence (8 steps per active
video line), achieving, for example, a colour bar test
pattern generator without need for an external data
source. The colour bar function is only under software
control.

RESET = LOW) and after reset is released,

The EURO-DENC synthesizes all necessary internal
signals, colour subcarrier frequency, and synchronization
signals, from that clock. The encoder is always timing
master for the MPEG port (MP), but it can additionally be
configured as slave with respect to the RCV trigger inputs.

1996 Jul 08 8

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Encoder

V

IDEO PATH

The encoder generates out of Y, U and V baseband
signals luminance and colour subcarrier output signals,
suitable for use as CVBS or separate Y and C signals.

Luminance is modified in gain and in offset (latter
programmable in a certain range to enable different black
level set-ups). After having been inserted a fixed
synchronization level, in accordance with standard
composite synchronization schemes, and blanking level,
programmable also in a certain range to allow for
manipulations with Macrovision anti-taping, additional
insertion of AGC super-white pulses, programmable in
height, is supported.

In order to enable easy analog post filtering, luminance is
interpolated from 13.5 MHz data rate to 27 MHz data rate,
providing luminance in 10-bit resolution. This filter is also
used to define smoothed transients for synchronization
pulses and blanking period. For transfer characteristic of
the luminance interpolation filter see Figs 5 and 6.

Chrominance is modified in gain (programmable
separately for U and V), standard dependent burst is
inserted, before baseband colour signals are interpolated
from 6.75 MHz data rate to 27 MHz data rate. One of the
interpolation stages can be bypassed, thus providing a
higher colour bandwidth, which can be made use of for Y/C
output. For transfer characteristics of the chrominance
interpolation filter see Figs 3 and 4.

The amplitude of inserted burst is programmable in a
certain range, suitable for standard signals and for special
effects. Behind the succeeding quadrature modulator,
colour in 10-bit resolution is provided on subcarrier.

The numeric ratio between Y and C outputs is in
accordance with set standards.

C

LOSED CAPTION ENCODER

Using this circuit, data in accordance with the specification
of Closed Caption or Extended Data Service, delivered by
the control interface, can be encoded (Line 21). Two
dedicated pairs of bytes (two bytes per field), each pair
preceded by run-in clocks and framing code, are possible.

The actual line number where data is to be encoded in, can
be modified in a certain range.

Data clock frequency is in accordance with definition for
NTSC-M standard 32 times horizontal line frequency.

Data LOW at the output of the DACs corresponds to 0 IRE,
data HIGH at the output of the DACs corresponds to
approximately 50 IRE.

It is also possible to encode Closed Caption Data for 50 Hz
field frequencies at 32 times horizontal line frequency.

NTI-TAPING (SAA7183 ONLY)

A
For more information contact your nearest Philips

Semiconductors sales office.

RGB processor

This block contains a dematrix in order to produce RED,
GREEN and BLUE signals to be fed to a SCART plug.

Before Y, Cb, Cr signals are dematrixed, 2 times
oversampling for luminance and 4 times oversampling for
colour difference signals is performed. For transfer curves
of luminance and colour difference components of RGB
see Figs 7 and 8.

SECAM processor

SECAM specific pre-processing is achieved in this block
by a pre-emphasis of colour difference signals (for gain
and phase see Figs 9 and 10.

ELETEXT INSERTION AND ENCODING

T

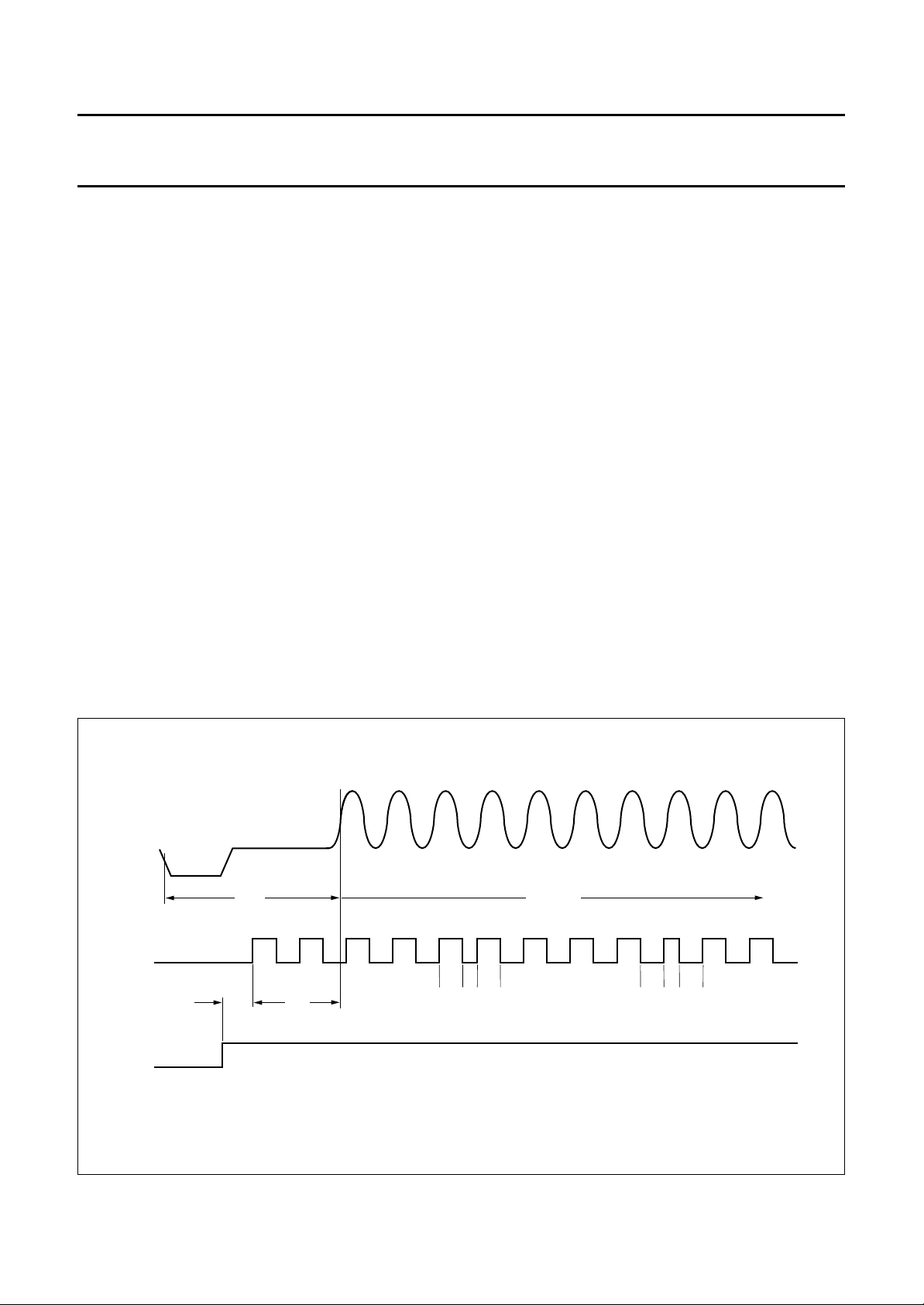

Pin TTX receives a teletext bitstream sampled at the LLC

clock, each teletext bit is carried by four or three LLC
samples.

Phase variant interpolation is achieved on this bitstream in
the internal teletext encoder, providing sufficient small
phase jitter on the output text lines.

TTXRQ provides a fully programmable request signal to
the teletext source, indicating the insertion period of
bitstream at lines selectable independently for both fields.
The internal insertion window for text is set to 360 teletext
bits including clock run-in bits. For protocol and timing see

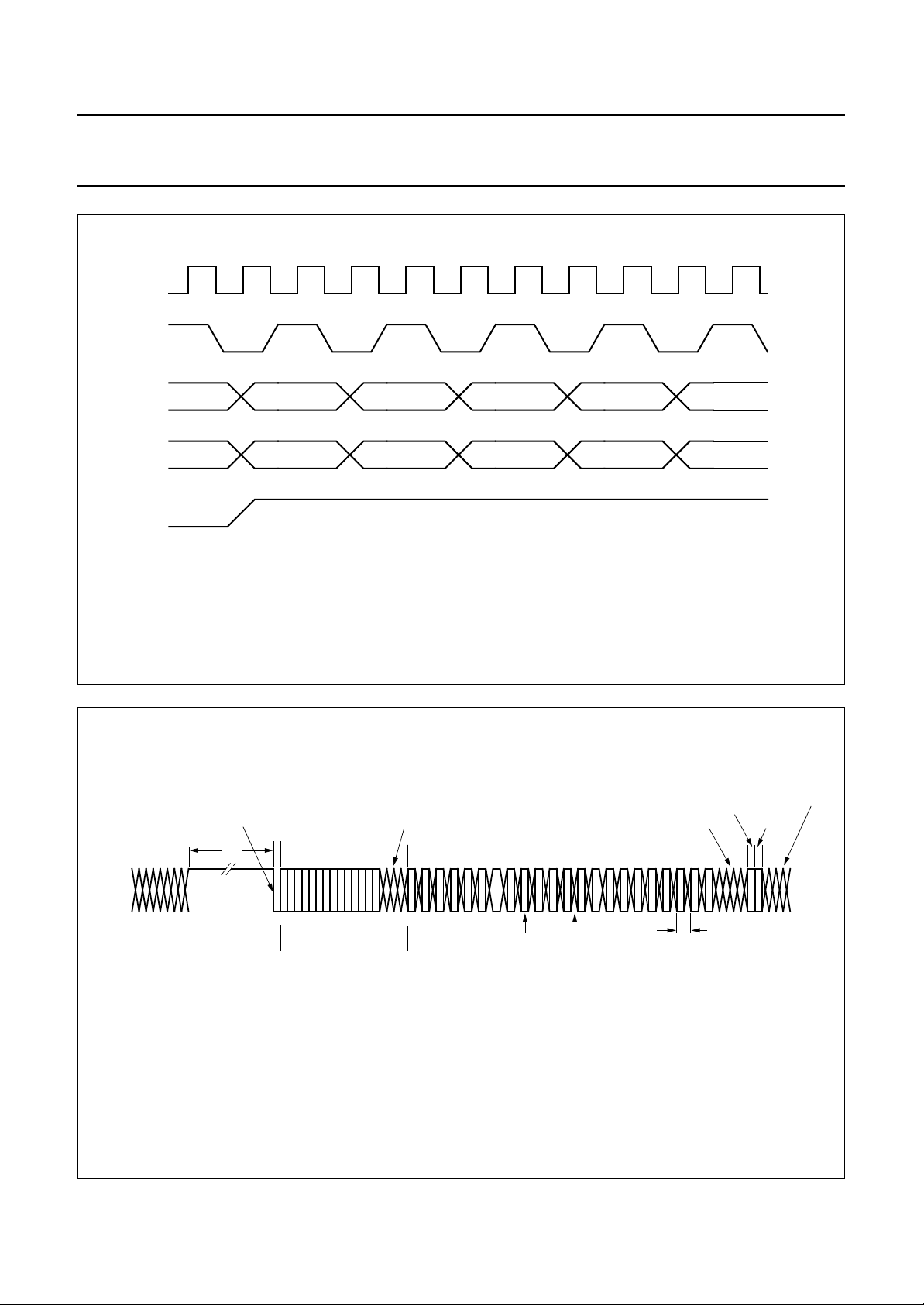

Fig.17.

1996 Jul 08 9

A baseband frequency modulator with a reference
frequency shifted from 4.286 MHz to DC carries out
SECAM modulation in accordance with appropriate
standard or optionally wide clipping limits.

After the HF pre-emphasis, also applied on a DC reference
carrier (anti-Cloche filter; see Figs 11 and 12), line-by-line
sequential carriers with black reference of 4.25 MHz (Db)
and 4.40625 MHz (Dr) are generated using specified
values for FSC programming bytes.

Alternating phase reset in accordance with SECAM
standard is carried out automatically. During vertical
blanking the so-called bottle pulses are not provided.

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Output interface/DACs

In the output interface encoded both Y and C signals are
converted from digital-to-analog in 10-bit resolution. Y and
C signals are also combined to a 10-bit CVBS signal.

The CVBS output occurs with the same processing delay
as the Y and C outputs. Absolute amplitudes at the input
of the DAC for CVBS is reduced by15⁄16 with respect to Y
and C DACs to make maximum use of conversion ranges.

RED, GREEN and BLUE signals are also converted from
digital-to-analog, each providing a 9-bit resolution.

Outputs of the DACs can be set together in two groups via
software control to minimum output voltage for either
purpose.

Synchronization

Synchronization of the EURO-DENC is able to operate in
two modes; slave mode and master mode.

In the slave mode, the circuit accepts synchronization
pulses at the bidirectional RCV1 port. The timing and
trigger behaviour related to RCV1 can be influenced by
programming the polarity and on-chip delay of RCV1.
Active slope of RCV1 defines the vertical phase and
optionally the odd/even and colour frame phase to be
initialized, it can be also used to set the horizontal phase.

If the horizontal phase is not be influenced by RCV1, a
horizontal pulse needs to be supplied at the RCV2 pin.
Timing and trigger behaviour can also be influenced for
RCV2.

If there are missing pulses at RCV1 and/or RCV2, the time
base of EURO-DENC runs free, thus an arbitrary number
of synchronization slopes may miss, but no additional
pulses (such with wrong phase) must occur.

If the vertical and horizontal phase is derived from RCV1,
RCV2 can be used for horizontal or composite blanking
input or output.

On the RCV2 port, the IC can provide a horizontal pulse
with programmable start and stop phase; this pulse can be
inhibited in the vertical blanking period to build up, for
example, a composite blanking signal.

The polarity of both RCV1 and RCV2 is selectable by
software control.

Field length is in accordance with 50 Hz or 60 Hz
standards, including non-interlaced options; start and end
of its active part can be programmed. The active part of a
field always starts at the beginning of a line, if the standard
blanking option SBLBN is not set.

2

C-bus interface

I

The I2C-bus interface is a standard slave transceiver,
supporting 7-bit slave addresses and 400 kbits/s
guaranteed transfer rate. It uses 8-bit subaddressing with
an auto-increment function. All registers are write only,
except one readable status byte.

Two I2C-bus slave addresses are selected:

88H: LOW at pin 4
8CH: HIGH at pin 4.

Input levels and formats

EURO-DENC expects digital Y, Cb, Cr data with levels
(digital codes) in accordance with

For C and CVBS outputs, deviating amplitudes of the
colour difference signals can be compensated by
independent gain control setting, while gain for luminance
is set to predefined values, distinguishable for 7.5 IRE
set-up or without set-up.

For RGB outputs fixed amplification in accordance with

“CCIR 601”

Reference levels are measured with a colour bar,
100% white, 100% amplitude and 100% saturation.

is provided.

“CCIR 601”

.

In the master mode, the time base of the circuit
continuously runs free. On the RCV1 port, the IC can
output:

• A Vertical Sync signal (VS) with 3 or 2.5 lines duration,
or

• An ODD/EVEN signal which is LOW in odd fields, or

• A field sequence signal (FSEQ) which is HIGH in the first

of 4 respectively 8 respectively 12 fields.

1996 Jul 08 10

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 1

“CCIR 601”

COLOUR

signal component levels

SIGNALS

YCbCrR

(1)

(2)

(2)

G

B

White 235 128 128 235 235 235
Yellow 210 16 146 235 235 16
Cyan 170 166 16 16 235 235
Green 145 54 34 16 235 16
Magenta 106 202 222 235 16 235
Red 81 90 240 235 16 16
Blue 41 240 110 16 16 235
Black 16 128 128 16 16 16

Notes

1. Transformation:

a) R = Y + 1.3707 × (Cr − 128)
b) G = Y − 0.3365 × (Cb − 128) − 0.6982 × (Cb − 128)
c) B = Y + 1.7324 × (Cb − 128).

2. Representation of R, G and B at the output is 9 bits at 27 MHz.

Table 2 8-bit multiplexed format (similar to

“CCIR 601”

)

(2)

TIME 0 1 2 2 4 5 6 7

Sample Cb

0

Y

0

Cr

0

Y

1

Cb

2

Y

2

Cr

2

Luminance pixel number 0 1 2 3
Colour pixel number 0 2

Table 3 16-bit multiplexed format (DTV2 format)

TIME 0 1 2 3 4 5 6 7

Sample Y line Y
Sample UV line Cb

0

0

Y

Cr

1

0

Y

Cb

2

2

Luminance pixel number 0 1 2 3
Colour pixel number 0 2

Cr

Y

3

Y

3

2

1996 Jul 08 11

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

DATA BYTE

D7 D6 D5 D4 D3 D2 D1 D0

SUB

ADDRESS

↓↓

↓↓

5E GAINV8 DECTYP BLNNL5 BLNNL4 BLNNL3 BLNNL2 BLNNL1 BLNNL0

REGISTER FUNCTION

Null 00 00000000

Null 39 00000000

Input port control 3A CBENB DISKEY 0 0 0 FMT16 Y2C UV2C

OVL LUT Y0 42 OVLY07 OVLY06 OVLY05 OVLY04 OVLY03 OVLY02 OVLY01 OVLY00

OVL LUT U0 43 OVLU07 OVLU06 OVLU05 OVLU04 OVLU03 OVLU02 OVLU01 OVLU00

Bit allocation map

Table 4 Slave Receiver (Slave Address 88H or 8CH)

1996 Jul 08 12

OVL LUT V0 44 OVLV07 OVLV06 OVLV05 OVLV04 OVLV03 OVLV02 OVLV01 OVLV00

OVL LUT Y7 57 OVLY77 OVLY76 OVLY75 OVLY74 OVLY73 OVLY72 OVLY71 OVLY70

OVL LUT U7 58 OVLU77 OVLU76 OVLU75 OVLU74 OVLU73 OVLU72 OVLU71 OVLU70

OVL LUT V7 59 OVLV77 OVLV76 OVLV75 OVLV74 OVLV73 OVLV72 OVLV71 OVLV70

Chrominance phase 5A CHPS7 CHPS6 CHPS5 CHPS4 CHPS3 CHPS2 CHPS1 CHPS0

Gain U 5B GAINU7 GAINU6 GAINU5 GAINU4 GAINU3 GAINU2 GAINU1 GAINU0

Gain V 5C GAINV7 GAINV6 GAINV5 GAINV4 GAINV3 GAINV2 GAINV1 GAINV0

Gain U MSB, black level 5D GAINU8 0 BLCKL5 BLCKL4 BLCKL3 BLCKL2 BLCKL1 BLCKL0

Gain V MSB, blanking level,

decoder type

Blanking level VBI 5F 0 0 BLNVB5 BLNVB4 BLNVB3 BLNVB2 BLNVB1 BLNVB0

Null 60 00000000

Standard control 61 DOWNB DOWNA INPI YGS SECAM SCBW PAL FISE

Burst amplitude 62 RTCE BSTA6 BSTA5 BSTA4 BSTA3 BSTA2 BSTA1 BSTA0

Subcarrier 0 63 FSC07 FSC06 FSC05 FSC04 FSC03 FSC02 FSC01 FSC00

Subcarrier 1 64 FSC15 FSC14 FSC13 FSC12 FSC11 FSC10 FSC09 FSC08

Subcarrier 2 65 FSC23 FSC22 FSC21 FSC20 FSC19 FSC18 FSC17 FSC16

Subcarrier 3 66 FSC31 FSC30 FSC29 FSC28 FSC27 FSC26 FSC25 FSC24

Line 21 odd 0 67 L21O07 L21O06 L21O05 L21O04 L21O03 L21O02 L21O01 L21O00

Line 21 odd 1 68 L21O17 L21O16 L21O15 L21O14 L21O13 L21O12 L21O11 L21O10

Line 21 even 0 69 L21E07 L21E06 L21E05 L21E04 L21E03 L21E02 L21E01 L21E00

Line 21 even 1 6A L21E17 L21E16 L21E15 L21E14 L21E13 L21E12 L21E11 L21E10

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

DATA BYTE

D7 D6 D5 D4 D3 D2 D1 D0

SUB

ADDRESS

REGISTER FUNCTION

RCV port control 6B SRCV11 SRCV10 TRCV2 ORCV1 PRCV1 CBLF ORCV2 PRCV2

Trigger control 6C HTRIG7 HTRIG6 HTRIG5 HTRIG4 HTRIG3 HTRIG2 HTRIG1 HTRIG0

Trigger control 6D HTRIG10 HTRIG9 HTRIG8 VTRIG4 VTRIG3 VTRIG2 VTRIG1 VTRIG0

Multi control 6E SBLBN 0 PHRES1 PHRES0 0 0 FLC1 FLC0

Closed caption/teletext control 6F CCEN1 CCEN0 TTXEN SCCLN4 SCCLN3 SCCLN2 SCCLN1 SCCLN0

RCV2 output start 70 RCV2S7 RCV2S6 RCV2S5 RCV2S4 RCV2S3 RCV2S2 RCV2S1 RCV2S0

RCV2 output end 71 RCV2E7 RCV2E6 RCV2E5 RCV2E4 RCV2E3 RCV2E2 RCV2E1 RCV2E0

MSBs RCV2 output 72 0 RCV2E10 RCV2E9 RCV2E8 0 RCV2S10 RCV2S9 RCV2S8

TTX request H start 73 TTXHS7 TTXHS6 TTXHS5 TTXHS4 TTXHS3 TTXHS2 TTXHS1 TTXHS0

TTX request H end 74 TTXHE7 TTXHE6 TTXHE5 TTXHE4 TTXHE3 TTXHE2 TTXHE1 TTXHE0

MSBs TTX request H 75 0 TTXHE10 TTXHE9 TTXHE8 0 TTXHS10 TTXHS9 TTXHS8

TTX odd request V S 76 TTXOVS7 TTXOVS6 TTXOVS5 TTXOVS4 TTXOVS3 TTXOVS2 TTXOVS1 TTXOVS0

TTX odd request V E 77 TTXOVE7 TTXOVE6 TTXOVE5 TTXOVE4 TTXOVE3 TTXOVE2 TTXOVE1 TTXOVE0

TTX even request V S 78 TTXEVS7 TTXEVS6 TTXEVS5 TTXEVS4 TTXEVS3 TTXEVS2 TTXEVS1 TTXEVS0

1996 Jul 08 13

TTX even request V E 79 TTXEVE7 TTXEVE6 TTXEVE5 TTXEVE4 TTXEVE3 TTXEVE2 TTXEVE1 TTXEVE0

First active line 7A FAL7 FAL6 FAL5 FAL4 FAL3 FAL2 FAL1 FAL0

Last active line 7B LAL7 LAL6 LAL5 LAL4 LAL3 LAL2 LAL1 LAL0

MSBs vertical 7C 0 LAL8 0 FAL8 TTXEVE8 TTXOVE8 TTXEVS8 TTXOVS8

Null 7D 00000000

Null 7E 00000000

Null 7F 00000000

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

I2C-bus format

2

Table 5 I

S SLAVE ADDRESS ACK SUBADDRESS ACK DATA 0 ACK -------- DATA n ACK P

Table 6 Explanation of Table 5

S START condition
Slave address 1000100X or 1000110X (note 1)
ACK acknowledge, generated by the slave
Subaddress (note 2) subaddress byte
DATA data byte

-------- continued data bytes and ACKs
P STOP condition

Notes

1. X is the read/write control bit; X = logic 0 is order to write; X = logic 1 is order to read, no subaddressing with read.

2. If more than 1 byte DATA is transmitted, then auto-increment of the subaddress is performed.

C-bus address; see Table 6

PART DESCRIPTION

Slave Receiver
Table 7 Subaddress 3A

DATA BYTE LOGIC LEVEL DESCRIPTION

UV2C 0 Cb/Cr data are two’s complement.

1 Cb/Cr data are straight binary. Default after reset.

Y2C 0 Y data are two’s complement.

1 Y data are straight binary. Default after reset.

FMT16 0 Selects Cb, Y, Cr, Y on 8 lines on MP port (

reset.

1 Selects Cb, Cr on DP port and Y on MP port.

DISKEY 0 OVL keying enabled for Y, C and CVBS outputs. Default after reset.

1 OVL keying disabled for Y, C and CVBS outputs.

CBENB 0 Data from input ports are encoded. Default after reset.

1 Colour bar with programmable colours (entries of OVL_LUTs) is encoded.

The LUTs are read in upward order from index 0 to index 7.

“CCIR 656”

compatible). Default after

1996 Jul 08 14

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 8 Subaddress 42 to 59

COLOUR

INDEX (note 2)

OVLY OVLU OVLV

White 107 (6BH) 0 (00H) 0 (00H) 0

107 (6BH) 0 (00H) 0 (00H)

Yellow 82 (52H) 144 (90H) 18 (12H) 1

34 (22H) 172 (ACH) 14 (0EH)

Cyan 42 (2AH) 38 (26H) 144 (90H) 2

03 (03H) 29 (1DH) 172 (ACH)

Green 17 (11H) 182 (B6H) 162 (A2H) 3

240 (F0H) 200 (C8H) 185 (B9H)

Magenta 234 (EAH) 74 (4AH) 94 (5EH) 4

212 (D4H) 56 (38H) 71 (47H)

Red 209 (D1H) 218 (DAH) 112(70H) 5

193 (C1H) 227 (E3H) 84 (54H)

Blue 169 (A9H) 112 (70H) 238 (EEH) 6

163 (A3H) 84 (54H) 242 (F2H)

Black 144 (90H) 0 (00H) 0 (00H) 7

144 (90H) 0 (00H) 0 (00H)

Notes

1. Contents of OVL look-up tables. All 8 entries are 8-bits. Data representation is in accordance with

DATA BYTE (note 1)

(Y, Cb, Cr), but two’s complement, e.g. for a

100

⁄

(upper number) or

100

100

⁄75(lower number) colour bar.

2. For normal colour bar with CBENB = logic 1.

“CCIR 601”

Table 9 Subaddress 5A

DATA BYTE

(1)

VALUE RESULT

CHPS 68H PAL-B/G and data from input ports

92H PAL-B/G and data from look-up table
82H NTSC-M and data from input ports
A4H NTSC-M and data from look-up table

Note

1. Phase of encoded colour subcarrier (including burst) relative to horizontal sync. Can be adjusted in steps of 360/256

degrees.

1996 Jul 08 15

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 10 Subaddress 5B and 5D

DATA BYTE DESCRIPTION CONDITIONS REMARKS

GAINU variable gain for Cb signal;

input representation
accordance with

“CCIR 601”

white-to-black = 92.5 IRE

GAINU = 0 output subcarrier of U contribution = 0
GAINU = 118 (76H) output subcarrier of U contribution = nominal

white-to-black = 100 IRE

GAINU = 0 output subcarrier of U contribution = 0
GAINU = 125 (7DH) output subcarrier of U contribution = nominal

nominal GAINU for

value = 106 (6AH)

SECAM encoding

Notes

1. GAINU = −2.17 × nominal to +2.16 × nominal.

2. GAINU = −2.05 × nominal to +2.04 × nominal.

Table 11 Subaddress 5C and 5E

(1)

(2)

DATA BYTE DESCRIPTION CONDITIONS REMARKS

GAINV variable gain for Cr signal;

input representation
accordance with

“CCIR 601”

white-to-black = 92.5 IRE

GAINV = 0 output subcarrier of V contribution = 0
GAINV = 165 (A5H) output subcarrier of V contribution = nominal

white-to-black = 100 IRE

(1)

(2)

GAINV = 0 output subcarrier of V contribution = 0
GAINV = 175 (AFH) output subcarrier of V contribution = nominal

nominal GAINV for

value = −129 (17FH)

SECAM encoding

Notes

1. GAINV = −1.55 × nominal to +1.55 × nominal.

2. GAINV = −1.46 × nominal to +1.46 × nominal.

Table 12 Subaddress 5D

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BLCKL variable black level; input

representation accordance
with

“CCIR 601”

white-to-sync = 140 IRE

BLCKL = 0 output black level = 24 IRE
BLCKL = 63 (3FH) output black level = 49 IRE

white-to-sync = 143 IRE

(1)

(2)

BLCKL = 0 output black level = 24 IRE
BLCKL = 63 (3FH) output black level = 50 IRE

Notes

1. Output black level/IRE = BLCKL × 25/63 + 24; recommended value: BLCKL = 60 (3CH) normal.

2. Output black level/IRE = BLCKL × 26/63 + 24; recommended value: BLCKL = 45 (2DH) normal.

1996 Jul 08 16

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 13 Subaddress 5E

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BLNNL variable blanking level white-to-sync = 140 IRE

BLNNL = 0 output blanking level = 17 IRE
BLNNL = 63 (3FH) output blanking level = 42 IRE

white-to-sync = 143 IRE

BLNNL = 0 output blanking level = 17 IRE
BLNNL = 63 (3FH) output blanking level = 43 IRE

DECTYP RTCI logic 0 real time control input from SAA7151B

logic 1 real time control input from SAA7111

Notes

1. Output black level/IRE = BLNNL × 25/63 + 17; recommended value: BLNNL = 58 (3AH) normal.

2. Output black level/IRE = BLNNL × 26/63 + 17; recommended value: BLNNL = 63 (3FH) normal.

(1)

(2)

Table 14 Subaddress 5F

DATA BYTE DESCRIPTION

BLNVB variable blanking level during vertical blanking interval is typically identical to value of BLNNL

Table 15 Subaddress 61:

DATA BYTE LOGIC LEVEL DESCRIPTION

FISE 0 864 total pixel clocks per line; default after reset

1 858 total pixel clocks per line

PAL 0 NTSC encoding (non-alternating V component)

1 PAL encoding (alternating V component); default after reset

SCBW 0 enlarged bandwidth for chrominance encoding (for overall transfer characteristic of

chrominance in baseband representation see Figs 3 and 4); wide clipping for
SECAM

1 standard bandwidth for chrominance encoding (for overall transfer characteristic of

chrominance in baseband representation see Figs 3 and 4); default after reset

SECAM 0 no SECAM encoding; default after reset

1 SECAM encoding activated

YGS 0 luminance gain for white − black 100 IRE; default after reset

1 luminance gain for white − black 92.5 IRE including 7.5 IRE set-up of black

INPI 0 PAL switch phase is nominal; default after reset

1 PAL switch phase is inverted compared to nominal

DOWNA 0 DACs for CVBS, Y and C in normal operational mode; default after reset

1 DACs for CVBS, Y and C forced to lowest output voltage

DOWNB 0 DACs for R, G and B in normal operational mode; default after reset

1 DACs for R, G and B forced to lowest output voltage

1996 Jul 08 17

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 16 Subaddress 62A

DATA BYTE LOGIC LEVEL DESCRIPTION

RTCE 0 no real time control of generated subcarrier frequency

1 real time control of generated subcarrier frequency through SAA7151B or SAA7111

(timing see Fig.16)

Table 17 Subaddress 62B

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BSTA amplitude of colour burst;

input representation in
accordance with

“CCIR 601”

fixed burst amplitude with SECAM encoding

white-to-black = 92.5 IRE;
burst = 40 IRE; NTSC encoding

BSTA = 0 to 1.25 × nominal

white-to-black = 92.5 IRE;
burst = 40 IRE; PALencoding

BSTA = 0 to 1.76 × nominal

white-to-black = 100 IRE;
burst = 43 IRE; NTSC encoding

BSTA = 0 to 1.20 × nominal

white-to-black = 100 IRE;
burst = 43 IRE; PALencoding

BSTA = 0 to 1.67 × nominal

(1)

(2)

(3)

(4)

Notes

1. Recommended value: BSTA = 102 (66H).

2. Recommended value: BSTA = 72 (48H).

3. Recommended value: BSTA = 106 (6AH).

4. Recommended value: BSTA = 75 (4BH).

Table 18 Subaddress 63 to 66 (four bytes to program subcarrier frequency)

DATA BYTE DESCRIPTION CONDITIONS REMARKS

FSC0 to FSC3 f

= subcarrier frequency

fsc

(in multiples of line
frequency);
f

= clock frequency (in

llc

FSC round

=

see note 1



f

32

fsc



2

×

------- ­f



llc

FSC3 = most significant byte
FSC0 = least significant byte

multiples of line frequency)

Note

1. Examples:
a) NTSC-M: f
b) PAL-B/G: f
c) SECAM: f

= 227.5, f

fsc

= 283.7516, f

fsc

= 274.304, f

fsc

= 1716 → FSC = 569408543 (21F07C1FH).

llc

= 1728 → FSC = 705268427 (2A098ACBH).

llc

= 1728 → FSC = 681786290 (28A33BB2H).

llc

1996 Jul 08 18

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 19 Subaddress 67 to 6A

DATA BYTE

L21O0 first byte of captioning data, odd field
L21O1 second byte of captioning data, odd field
L21E0 first byte of extended data, even field
L21E1 second byte of extended data, even field

Note

1. LSBs of the respective bytes are encoded immediately after run-in and framing code, the MSBs of the respective
bytes have to carry the parity bit, in accordance with the definition of Line 21 encoding format.

Table 20 Subaddress 6B

DATA BYTE LOGIC LEVEL DESCRIPTION

PRCV2 0 polarity of RCV2 as output is active HIGH, rising edge is taken when input; default

ORCV2 0 pin RCV2 is switched to input; default after reset

CBLF 0 if ORCV2 = HIGH, pin RCV2 provides an HREF signal (Horizontal Reference Pulse

(1)

DESCRIPTION

after reset

1 polarity of RCV2 as output is active LOW, falling edge is taken when input

1 pin RCV2 is switched to output

that is defined by RCV2S and RCV2E, also during vertical blanking Interval); default
after reset

if ORCV2 = LOW, signal input to RCV2 is used for horizontal synchronization only
(if TRCV2 = 1); default after reset

1 if ORCV2 = HIGH, pin RCV2 provides a ‘Composite-Blanking-Not’ signal, for

example a reference pulse that is defined by RCV2S and RCV2E, excluding Vertical
Blanking Interval, which is defined by FAL and LAL (PRCV2 must be LOW)

if ORCV2 = LOW, signal input to RCV2 is used for horizontal synchronization
(if TRCV2 = 1) and as an internal blanking signal

PRCV1 0 polarity of RCV1 as output is active HIGH, rising edge is taken when input,

respectively; default after reset

1 polarity of RCV1 as output is active LOW, falling edge is taken when input,

respectively

ORCV1 0 pin RCV1 is switched to input; default after reset

1 pin RCV1 is switched to output

TRCV2 0 horizontal synchronization is taken from RCV1 port; default after reset

1 horizontal synchronization is taken from RCV2 port

SRCV1 − defines signal type on pin RCV1; see Table 21

1996 Jul 08 19

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 21 Logic levels and function of SRCV1

DATA BYTE

SRCV11 SRCV10

0 0 VS VS vertical sync each field; default after reset
0 1 FS FS frame sync (odd/even)
1 0 FSEQ FSEQ field sequence, vertical sync every fourth field

1 1 not applicable not applicable −

Table 22 Subaddress 6C, 6D

DATA BYTE DESCRIPTION

HTRIG sets the horizontal trigger phase related to signal on RCV1 or RCV2 input

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed
increasing HTRIG decreases delays of all internally generated timing signals
reference mark: analog output horizontal sync (leading slope) coincides with active edge of RCV

used for triggering at HTRIG = 049H (054H)

Table 23 Subaddress 6D

DATA BYTE LOGIC LEVEL DESCRIPTION

VTRIG − sets the vertical trigger phase related to signal on RCV1 input

AS OUTPUT AS INPUT FUNCTION

(PAL = SECAM = 0), eighth field (PAL=1) or
twelfth field (SECAM = 1)

increasing VTRIG decreases delays of all internally generated timing signals,
measured in half lines

variation range of VTRIG=0to31(1FH)

Table 24 Subaddress 6E

DATA BYTE LOGIC LEVEL DESCRIPTION

SBLBN 0 vertical blanking is defined by programming of FAL and LAL; default after reset

1 vertical blanking is forced in accordance with
PHRES − selects the phase reset mode of the colour subcarrier generator; see Table 25
FLC − field length control; see Table 26

Table 25 Logic levels and function of PHRES

DATA BYTE

FUNCTION

PHRES1 PHRES0

0 0 no reset or reset via RTCI from SAA7111 if bit RTCE = 1; default after reset
0 1 reset every two lines or SECAM-specific if bit SECAM = 1
1 0 reset every eight fields
1 1 reset every four fields

1996 Jul 08 20

“CCIR 624”

(50 Hz) or RS170A (60 Hz)

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 26 Logic levels and function of FLC

DATA BYTE

FLC1 FLC0

0 0 interlaced 312.5 lines/field at 50 Hz, 262.5 lines/field at 60 Hz; default after reset
0 1 non-interlaced 312 lines/field at 50 Hz, 262 lines/field at 60 Hz
1 0 non-interlaced 313 lines/field at 50 Hz, 263 lines/field at 60 Hz
1 1 non-interlaced 313 lines/field at 50 Hz, 263 lines/field at 60 Hz

Table 27 Subaddress 6F

DATA BYTE LOGIC LEVEL DESCRIPTION

CCEN − enables individual line 21 encoding; see Table 28
TTXEN 0 disables teletext insertion

1 enables teletext insertion
SCCLN − selects the actual line, where closed caption or extended data are encoded

line = (SCCLN + 4) for M-systems
line = (SCCLN + 1) for other systems

Table 28 Logic levels and function of CCEN

DATA BYTE

CCEN1 CCEN0

0 0 Line 21 encoding off
0 1 enables encoding in field 1 (odd)
1 0 enables encoding in field 2 (even)
1 1 enables encoding in both fields

FUNCTION

FUNCTION

Table 29 Subaddress 70 to 72

DATA BYTE DESCRIPTION

RCV2S start of output signal on RCV2 pin

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed
first active pixel at analog outputs (corresponding input pixel coinciding with RCV2) at

RCV2S = 0F2H (110H)

RCV2E end of output signal on RCV2 pin

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed
last active pixel at analog outputs (corresponding input pixel coinciding with RCV2) at

RCV2E = 67CH (68AH)

1996 Jul 08 21

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Table 30 Subaddress 73 to 75

DATA BYTE DESCRIPTION

TTXHS start of signal on pin TTXRQ (standard for 50 Hz field rate = 13FH)

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed

TTXHE end of signal on pin TTXRQ (standard for 50 Hz field rate = TTXHS + 1402 = 6B9H)

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed

Table 31 Subaddress 76, 77 and 7C

DATA BYTE DESCRIPTION

TTXOVS first line of occurrence of signal on pin TTXRQ in odd field
TTXOVE last line of occurrence of signal on pin TTXRQ in odd field

Table 32 Subaddress 78, 79 and 7C

DATA BYTE DESCRIPTION

TTXEVS first line of occurrence of signal on pin TTXRQ in even field
TTXEVE last line of occurrence of signal on pin TTXRQ in even field

Table 33 Subaddress 7A to 7C

DATA BYTE DESCRIPTION

FAL first active line = FAL + 4 for M-systems, = FAL + 1 for other systems, measured in lines

FAL = 0 coincides with the first field synchronization pulse

LAL last active line = LAL + 3 for M-systems, = LAL for other system, measured in lines

LAL = 0 coincides with the first field synchronization pulse

UBADDRESSES

S
In subaddresses 5B, 5C, 5D, 5E and 62 all IRE values are rounded up.

1996 Jul 08 22

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Slave Transmitter
Table 34 Slave transmitter (slave address 89H or 8DH)

REGISTER
FUNCTION

Status byte − VER2 VER1 VER0 CCRDO CCRDE 0 FSEQ O_E

Table 35 No subaddress

DATA BYTE LOGIC LEVEL DESCRIPTION

VER − Version identification of the device. It will be changed with all versions of the IC that

CCRDO 1 Closed caption bytes of the odd field have been encoded.

CCRDE 1 Closed caption bytes of the even field have been encoded.

FSEQ 0 Not first field of a sequence.

O_E 0 During odd field.

SUBADDRESS

D7 D6 D5 D4 D3 D2 D1 D0

have different programming models. Current Version is 000 binary.

0 The bit is reset after information has been written to the subaddresses 67 and 68. It

is set immediately after the data has been encoded.

0 The bit is reset after information has been written to the subaddresses 69 and 6A.

It is set immediately after the data has been encoded.

1 During first field of a sequence (repetition rate: NTSC = 4 fields, PAL = 8 fields,

SECAM = 12 fields.

1 During even field.

DATA BYTE

1996 Jul 08 23

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

handbook, full pagewidth

6

G

v

(dB)

0

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

(1) SCBW = 1.
(2) SCBW = 0.

(1) (2)

Fig.3 Chrominance transfer characteristic 1.

MBE737

6 8 10 12 14

f (MHz)

handbook, halfpage

(1) SCBW = 1.
(2) SCBW = 0.

2

G

v

(dB)

0

−2

−4

−6

0 0.4 0.8 1.6

Fig.4 Chrominance transfer characteristic 2.

1996 Jul 08 24

MBE735

(1)

(2)

1.2

f (MHz)

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

handbook, full pagewidth

6

G

v

(dB)

0

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

6 8 10 12 14

Fig.5 Total luminance of Y and CVBS; luminance transfer characteristic 1.

MGB707

f (MHz)

handbook, halfpage

1

G

v

(dB)

0

−1

−2

−3

−4

−5

02 6

Fig.6 Detailed luminance of Y and CVBS; luminance transfer characteristic 2.

1996 Jul 08 25

MBE736

4

f (MHz)

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

handbook, full pagewidth

6

G

v

(dB)

0

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

6 8 10 12 14

Fig.7 Luminance transfer characteristic in RGB.

MGB708

f (MHz)

handbook, full pagewidth

6

G

v

(dB)

0

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

6 8 10 12 14

Fig.8 Colour difference transfer characteristic in RGB.

MGB706

f (MHz)

1996 Jul 08 26

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

handbook, full pagewidth

10

G

v

(dB)

8

6

4

2

0

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB705

0.6
f (MHz)

Fig.9 Gain of SECAM pre-emphasis.

handbook, full pagewidth

30

ϕ

(deg)

20

10

0

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB704

0.6
f (MHz)

Fig.10 Phase of SECAM pre-emphasis.

1996 Jul 08 27

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

handbook, full pagewidth

20

G

v

(dB)

16

12

8

4

0

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB703

0.6
f (MHz)

Fig.11 Gain of SECAM anti-Cloche.

handbook, full pagewidth

80

ϕ

(deg)

60

40

20

0

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB702

0.6
f (MHz)

Fig.12 Phase of SECAM anti-Cloche.

1996 Jul 08 28

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

CHARACTERISTICS

V

= 4.75 to 5.25 V; T

DDD

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Supply

V
V
I

DDD

I

DDA

DDD
DDA

digital supply voltage 4.75 5.25 V
analog supply voltage 4.75 5.25 V
digital supply current note 1 − 250 mA
analog supply current note 1 − 110 mA

Inputs

V

IL

LOW level input voltage
(except SDA, SCL, AP, SP and XTALI)

V

IH

HIGH level input voltage
(except LLC, SDA, SCL, AP, SP and XTALI)

HIGH level input voltage (LLC) 2.4 V

I

LI

C

I

input leakage current − 1 µA
input capacitance clocks − 10 pF

= 0 to +70 °C; unless otherwise specified.

amb

data − 8pF
I/Os at high impedance − 8pF

−0.5 +0.8 V

2.0 V

DDD

DDD

+ 0.5 V

+ 0.5 V

Outputs

V

OL

LOW level output voltage
(except SDA and XTALO)

V

OH

HIGH level output voltage
(except LLC, SDA, and XTALO)

HIGH level output voltage (LLC) note 2 2.6 V

2

C-bus; SDA and SCL

I

V

IL

V

IH

I

I

V

OL

I

O

LOW level input voltage −0.5 +1.5 V
HIGH level input voltage 3.0 V
input current VI= LOW or HIGH −10 +10 µA
LOW level output voltage (SDA) IOL=3mA − 0.4 V
output current during acknowledge 3 − mA

Clock timing (LLC)

T

LLC

cycle time note 3 34 41 ns
δ duty factor t
t

r

t

f

rise time note 3 − 5ns

fall time note 3 − 6ns

Input timing

t

SU

input data set-up time (any other except

CDIR, SCL, SDA, RESET, AP and SP)
t

HD

input data hold time (any other except

CDIR, SCL, SDA, RESET, AP and SP)

HIGH/TLLC

note 2 0 0.6 V

note 2 2.4 V

DDD

DDD

DDD

+ 0.5 V

+ 0.5 V

+ 0.5 V

note 4 40 60 %

6 − ns

3 − ns

1996 Jul 08 29

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Crystal oscillator

f

n

∆f/f

n

CRYSTAL SPECIFICATION
T

amb

C

L

R

S

C

1

C

0

Data and reference signal output timing

C

L

t

OH

t

OD

CHROMA, Y, CVBS and RGB outputs

V

o(p-p)

R

I

R

L

B output signal bandwidth of DACs −3dB 10 − MHz
ILE LF integral linearity error of DACs −±2 LSB
DLE LF differential linearity error of DACs −±1 LSB

nominal frequency (usually 27 MHz) 3rd harmonic − 30 MHz

permissible deviation of nominal frequency note 5 −50 +50 10

−6

operating ambient temperature 0 70 °C

load capacitance 8 − pF

series resistance − 80 Ω

motional capacitance (typical) 1.5 −20% 1.5 +20% fF

parallel capacitance (typical) 3.5 −20% 3.5 +20% pF

output load capacitance 7.5 40 pF

output hold time 4 − ns

output delay time − 25 ns

output signal voltage (peak-to-peak value) note 6 1.9 2.1 V

internal serial resistance 18 35 Ω

output load resistance 80 −Ω

Notes

1. At maximum supply voltage with highly active input signals.

2. The levels have to be measured with load circuits of 1.2 kΩ to 3.0 V (standard TTL load) and CL= 25 pF.

3. The data is for both input and output direction.

4. With LLC in input mode. In output mode, with a crystal connected to XTALO/XTALI duty factor is typically 50%.

5. If an internal oscillator is used, crystal deviation of nominal frequency is directly proportional to the deviation of
subcarrier frequency and line/field frequency.

6. For full digital range, without load, V

= 5.0 V. The typical voltage swing is 2.0 V, the typical minimum output

DDA

voltage (digital zero at DAC) is 0.2 V.

1996 Jul 08 30

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

T

t

d

LLC

t

f

T

LLC

t

f

not valid

not valid

2.6 V

1.5 V

0.6 V

t

r

2.4 V

1.5 V

0.8 V

t

r

valid

valid

MBE742

2.0 V

0.8 V

2.4 V

0.6 V

handbook, full pagewidth

LLC clock output

LLC clock input

input data

output data

t

SU; DAT

t

HD; DAT

t

HD; DAT

valid

t

HD; DAT

valid

t

HIGH

t

HIGH

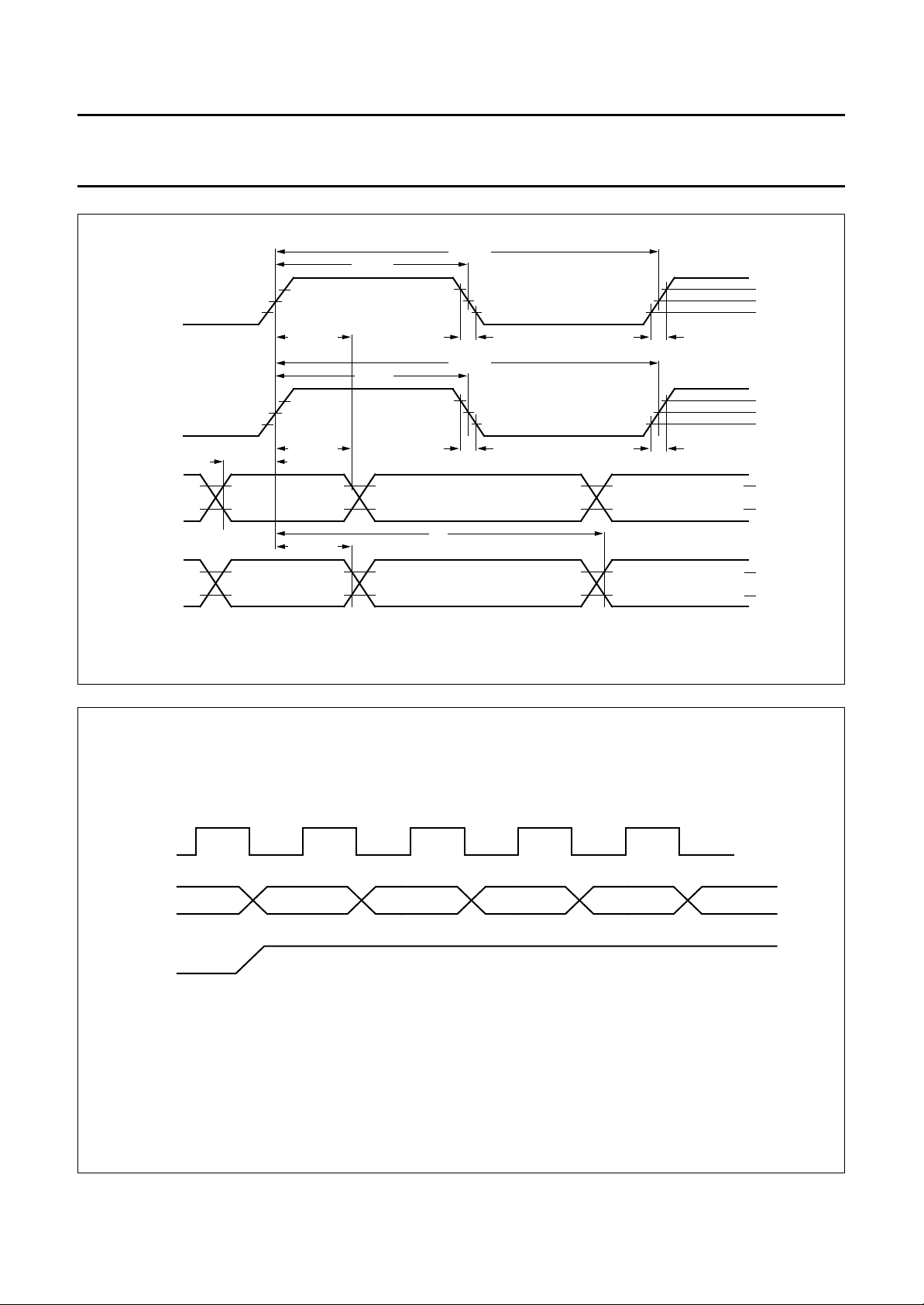

Fig.13 Clock data timing.

handbook, full pagewidth

LLC

MP(n)

RCV2

The data demultiplexing phase is coupled to the internal horizontal phase.
The phase of the RCV2 signal is programmed to 0F8h (110h for 50 Hz) in this example in output mode (RCV2S).

Cb(0) Y(0) Cr(0) Y(1) Cb(2)

MGB699

Fig.14 Functional timing.

1996 Jul 08 31

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

handbook, full pagewidth

LLC

CREF

VP(n) Y(0)

Cb(0)

RCV2

The data demultiplexing phase is coupled to the internal horizontal phase.
The C

signal applies only for the 16 line digital TV format, because these signals are only valid in 13.5 MHz.

ref

The phase of the RCV2 signal is programmed to 0F2h (110h for 50 Hz) in this example in output mode (RCV2S).

Y(1)

Cr(0)

Y(2)

Cb(2)

Fig.15 Digital TV timing.

handbook, full pagewidth

H/L transition

count start

128

LOW

13

HPLL

increment

4 bits

reserved

0 021

FSCPLL increment (4)

Y(3)

Cr(2)

5 bits

reserved

Y(4)

Cb(4)DP(n)

MBE739

sequence

bit (1)

reserved (2)

reset

bit (1)

RTCI

time slot:

(1) Sequence bit:

PAL = logic 0 then (R − Y) line normal; PAL = logic 1 then (R − Y) line inverted.

NTSC = logic 0 then no change.
(2) Reserved bits: 235 with 50 Hz systems; 232 with 60 Hz systems.
(3) Only from SAA7111 decoder.
(4) SAA7111 provides (22 : 0) bits, resulting in 3 reserved bits before sequence bit.

01

not used in SAA7182/83

14 19

Fig.16 RTCI timing.

1996 Jul 08 32

valid

sample

invalid

sample

8/LLC

6768

MGB700

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

Teletext timing

Time tFD is the time needed to interpolate input data TTX
and inserting it into the CVBS and Y output signal, such
that it appears at t

= 10.2 µs after the leading edge of

TTX

the horizontal synchronization pulse.
Time tPD is the pipeline delay time introduced by the

source that is gated by TTXRQ in order to deliver TTX
data.

Since the pulse representing the TTXRQ signal is fully
programmable in duration and rising/falling edges (TTXHS
and TTXHE), it always can be ensured that the TTX data
is inserted at the correct position of 10.2 µs after the
leading edge of outgoing horizontal synchronization pulse.

Time t

is the internally used insertion window for

TTXWin

TTX data; it has a constant length that allows insertion of
360 teletext bits (maximum) at a text data rate of

6.9375 bits/s. The insertion window is not opened if the
control bit TTXEN is zero.

ELETEXT PROTOCOL

T
The frequency relationship between TTX bit clock and the

system clock LLC for 50 Hz field rate is given by the
relationship of line frequency multiples, which means
1728/444.

Thus 37 TTX bits correspond to 144 LLC clocks, each bit
has a duration of nearly 4 LLC clocks. The chip-internal
sequencer and variable phase interpolation filter
minimizes the phase jitter, and thus generates a
bandwidth limited signal, which is digital-to-analog
converted for the CVBS and Y outputs.

At the TTX input, bit duration scheme repeats after 37 TTX
bits or 144 LLC clocks. The protocol demands that TXX
bits 10, 19, 28 and 37 are carried by three LLC samples,
all others by four LLC samples. After a cycle of 37 TTX
bits, the next bits with three LLC samples are bits 47, 56,
65 and 74; this scheme holds for all succeeding cycles of
37 TTX bits, until 360 TTX bits (including 16 run-in bits)
are completed. For every additional line with TTX data, the
bit duration scheme starts in the same way.

Using appropriate programming, all suitable lines of the
odd field (TTXOVS and TTXOVE) plus all suitable lines of
the even field (TTXEVS and TTXEVE) can be used for
teletext insertion.

handbook, full pagewidth

CVBS/Y

t

TTX

textbit #: 1 2 3 4 5 6 7 8 9 10 11

TTX

434 4341/LLC 1/LLC

TTXRQ

t

PD

t

FD

Fig.17 Teletext timing diagram.

1996 Jul 08 33

t

TTXWin

12 13 14 15 16 17 18 19 20 21 22 23 24

MGB701

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

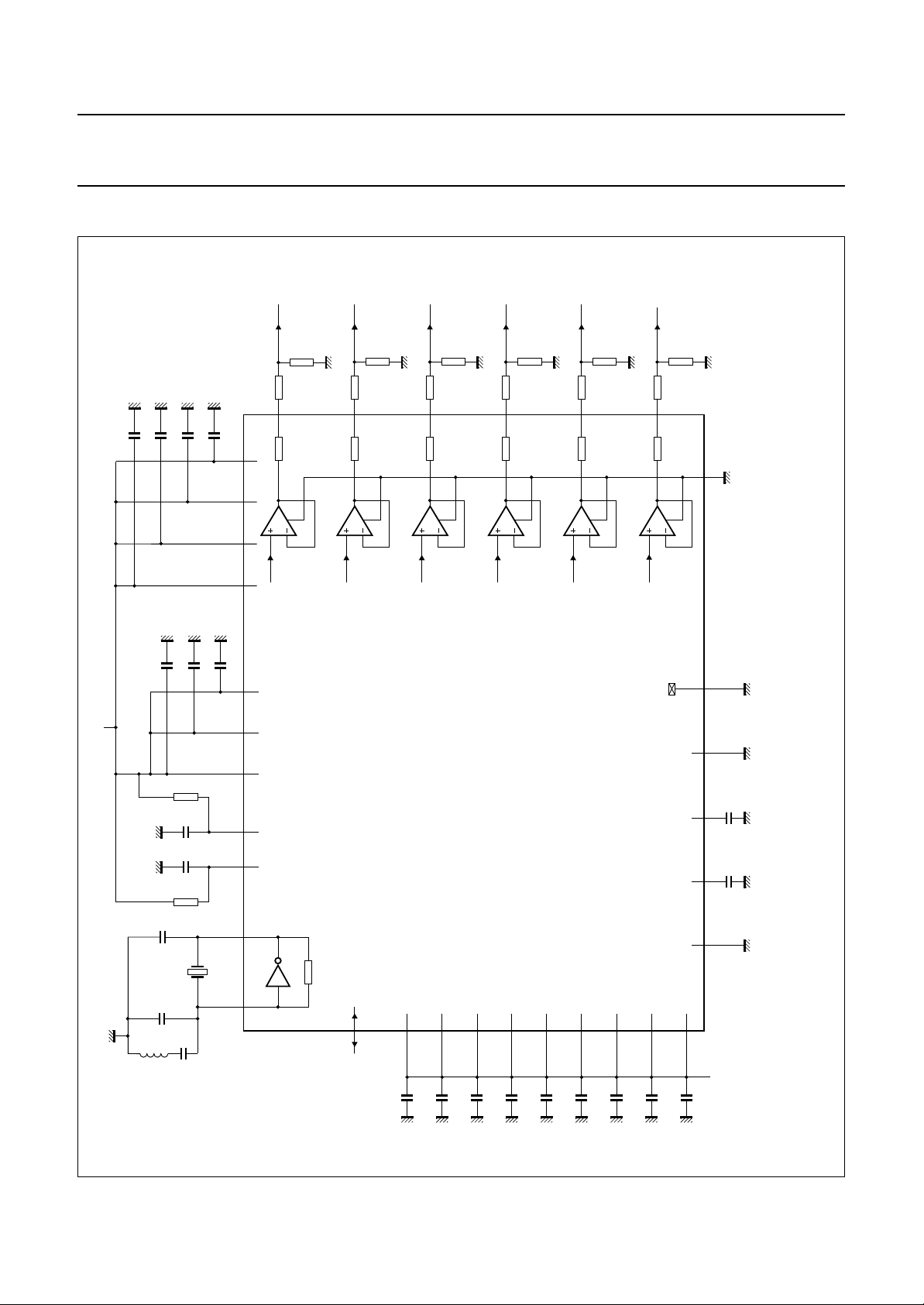

APPLICATION INFORMATION

SSA

V

100 nF

book, full pagewidth

+5 V analog

V

V

SSD

V

SSA

V

100 nF

100 nF

SSA

SSA

10

10

10

µH

100 nF

SSA

V

100 nF

15

100

100

15

pF

X1

27.0 MHz

pF

1

V

SSA

V

kΩ

nF

nF

kΩ

(3)

nF

100 nF

SSA

SSA

V

DDA1

V

DDA2

V

DDA3

V

DDA4

V

SSA

V

100 nF

DDA5

V

DDA6

V

DDA7

V

Y/C/CVBS

I

RGB

I

XTALOXTALI

3rd harmonic

(2)

74 Ω 0.7 V (p-p)

(1)

35 Ω

44 45 63 68 74 72 70 64 60 57 54

61

RED

38

DDD5

V

(2)

SSA

V

20 Ω 1.0 V (p-p)

(1)

35 Ω

V

100 nF

Y

71

41

DDD6

75 Ω

49

DDD7

V

100 nF

(2)

SSA

V

20 Ω 0.62 V (p-p)

69

(1)

35 Ω

80

DDD8

V

100 nF

CHROMA

75 Ω

3, 15, 24, 30, 39, 

82

DDD9

V

100 nF

SSA

V

MGB698

SSA

V

67

VSSD9

to

SSD1

42, 51, 79, 81

V

refL2

V

refH2

V

nF

100

refH1

V

nF

100

refL1

V

52 53 75 76

+5 V digital

Fig.18 Application environment of the EURO-DENC.

SSA

V

5

DDD1

V

100 nF

BLUE

(2)

74 Ω 0.7 V (p-p)

55

(1)

35 Ω

14

DDD2

V

100 nF

SSA

V

75 Ω

SAA7182

22

DDD3

V

100 nF

CVBS

(2)

12 Ω 1.23 V (p-p)

73

(1)

35 Ω

SAA7183

29

DDD4

V

100 nF

75 Ω

100 nF

GREEN

(2)

SSA

V

74 Ω 0.7 V (p-p)

58

(1)

35 Ω

digital

outputs

inputs and

75 Ω

75 Ω

SSD

SSDVSSDVSSDVSSDVSSDVSSDVSSDVSSD

V

V

1996 Jul 08 34

(1) Typical value.

(2) For 100/100 colour bar.

(3) Philips 12NC ordering code: 4312 065 02341.

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

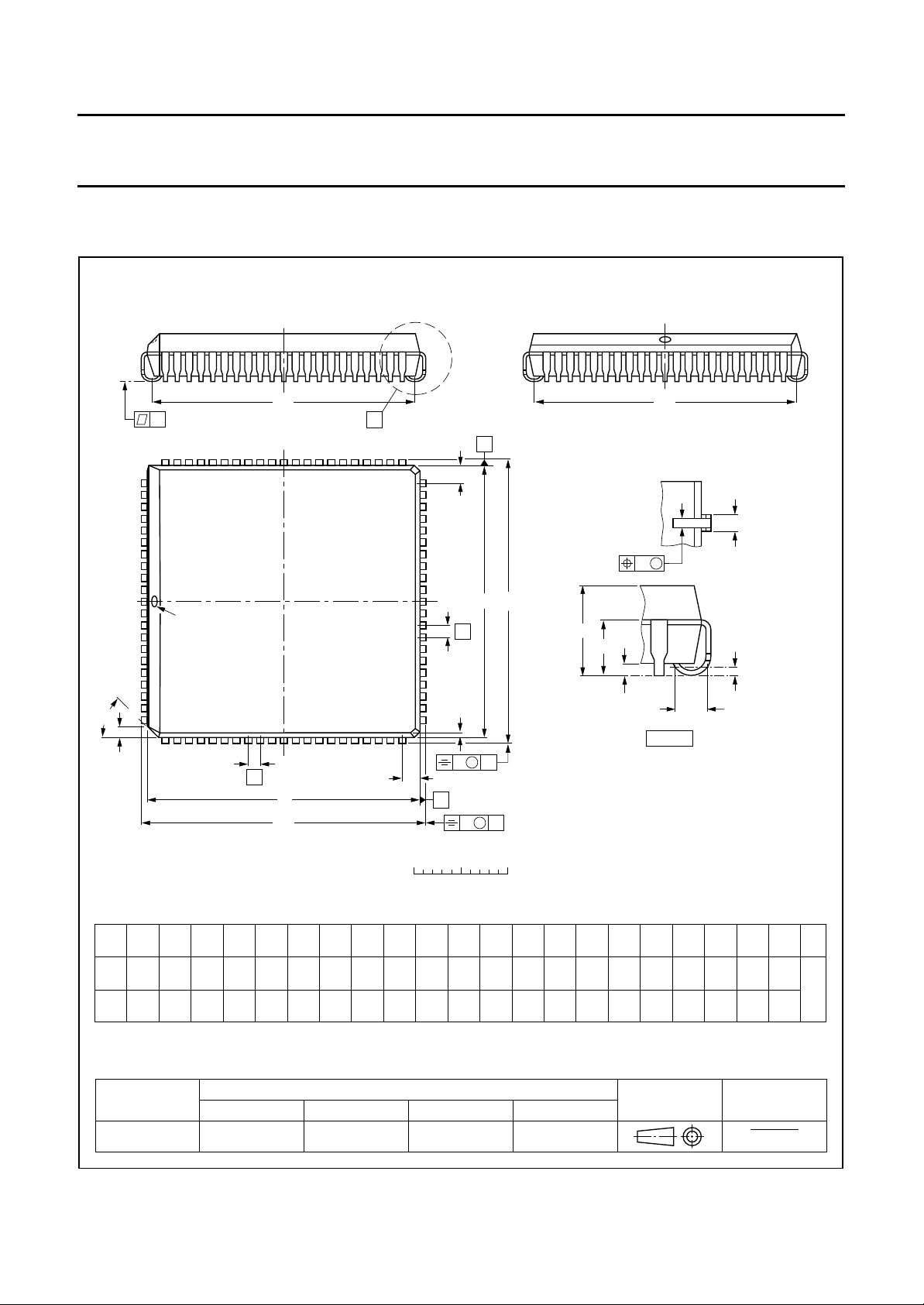

PACKAGE OUTLINE

PLCC84: plastic leaded chip carrier; 84 leads

SOT189-2

e

y

75

D

X

5474

53

A

Z

E

e

E

b

p

b

1

w M

84

H

1

pin 1 index

11

β

k

12 32

e

Z

D

D

H

D

33

E

E

e

k

1

A

A

1

A

4

(A )

3

L

p

detail X

v M

A

B

v M

B

0 5 10 mm

scale

DIMENSIONS (millimetre dimensions are derived from the original inch dimensions)

UNIT A

mm

inches

A

1

min. max. max. max. max.

4.57

0.51

4.19

0.180

0.020

0.165

A

0.25

0.01

A

4

3

3.30

0.13

b

p

0.53

0.33

0.021

0.013

b

0.81

0.66

0.032

0.026

1

D

29.41

29.21

1.158

1.150

(1)

(1)

E

eH

29.41

1.27

29.21

1.158

0.05

1.150

e

D

28.70

27.69

1.130

1.090

e

E

28.70

27.69

1.130

1.090

30.35

30.10

1.195

1.185

Note

1. Plastic or metal protrusions of 0.01 inches maximum per side are not included.

OUTLINE

VERSION

IEC JEDEC EIAJ

REFERENCES

SOT189-2

1996 Jul 08 35

H

E

D

30.35

30.10

1.195

1.185

k

1.22

1.07

0.048

0.042

k

0.51

0.020

1

L

p

1.44

1.02

0.057

0.040

EUROPEAN

PROJECTION

(1) (1)

Z

Z

E

D

ywv β

0.18 0.100.18

0.007 0.0040.007

2.16

0.085

2.16

0.085

o

45

ISSUE DATE

92-11-17
95-03-11

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Reflow soldering

Reflow soldering techniques are suitable for all LQFP
packages.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

Wave soldering is not recommended for LQFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

(order code 9398 652 90011).

If wave soldering cannot be avoided, the following
conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

Even with these conditions, do not consider wave
soldering LQFP packages LQFP48 (SOT313-2),
LQFP64 (SOT314-2) or LQFP80 (SOT315-1).

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1996 Jul 08 36

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PURCHASE OF PHILIPS I

2

C COMPONENTS

2

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

C components conveys a license under the Philips’ I2C patent to use the

1996 Jul 08 37

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

NOTES

1996 Jul 08 38

Philips Semiconductors Preliminary specification

Digital Video Encoder (EURO-DENC) SAA7182; SAA7183

NOTES

1996 Jul 08 39

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone], Fax. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66,
Chung Hsiao West Road, Sec. 1, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 2A Akademika Koroleva str., Office 165,
252148 KIEV, Tel. [phone]/1642, Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1996 SCA50
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Printed in The Netherlands 657021/1200/02/pp40 Date of release: 1996 Jul 08 Document order number: 9397750 00951

Internet: http://www.semiconductors.philips.com/ps/
(1) SAA7182_83_2 June 26, 1996 11:51 am
