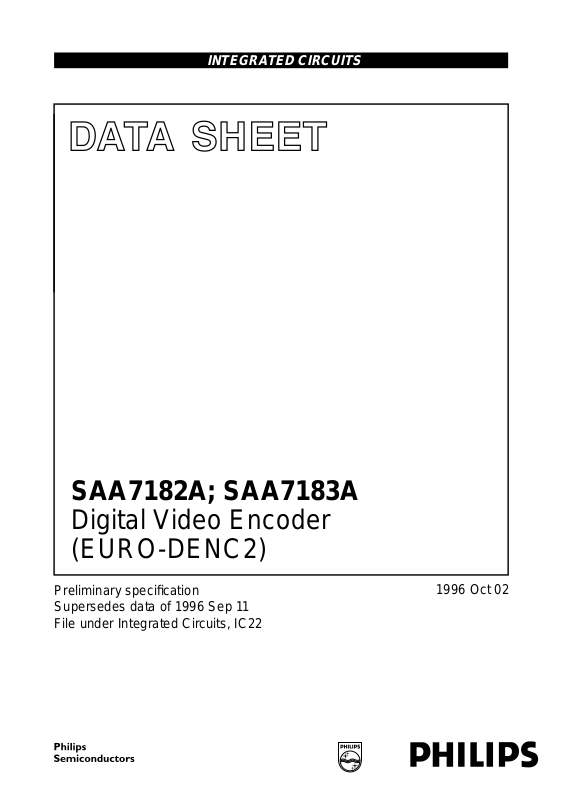

Page 1

INTEGRATED CIRCUITS

DATA SH EET

SAA7182A; SAA7183A

Digital Video Encoder (EURO-DENC2)

Preliminary speciﬁcation Supersedes data of 1996 Sep 11 File under Integrated Circuits, IC22

1996 Oct 02

Page 2

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

FEATURES

• Monolithic CMOS 3.3 V device with 5 V input stages

• Digital PAL/NTSC/SECAM encoder

• System pixel frequency 13.5 MHz

• Accepts MPEG decoded data on 8-bit wide input port.

Input data format Cb, Y, Cr etc. “ Y and Cb, Cr on 16 lines

• Three DACs for CVBS, Y and C operating at 27 MHz with 10 bit resolution

• Three DACs for RGB operating at 27 MHz with 9 bit resolution, RGB sync on CVBS and Y

• Analog multiplexing between internal RGB and external RGB on-chip

• CVBS, Y, C and RGB output simultaneously

• Closed captioning and teletext encoding including

sequencer and filter

• Line 23 wide screen signalling encoding

• On-chip Cr, Y, Cb to RGB dematrix, including gain

adjustment for Y and Cr, Cb, optionally to be by-passed for Cr, Y, Cb output on RGB DACs

• Fast I

• Encoder can be master or slave

• Programmable horizontal and vertical input

• Programmable horizontal sync output phase

• Internal Colour Bar Generator (CBG)

• Overlay with Look-Up Tables (LUTs) 8 × 3 bytes

• Macrovision Pay-per-View copy protection system as

C-bus control port (400 kHz)

synchronization phase

option, also used for RGB output.

(CCIR 656)

” or

This applies to SAA7183A only. The device is protected by USA patent numbers 4631603, 4577216 and 4819098 and other intellectual property rights. Use of the Macrovision anti-copy process in the device is licensed for non-commercial home use only. Reverse engineering or disassembly is prohibited. Please contact your nearest Philips Semiconductor sales office for more information

• Controlled rise/fall times of output syncs and blanking

• Down-mode of DACs

• PQFP80 or PLCC84 package.

GENERAL DESCRIPTION

The SAA7182A; SAA7183A encodes digital YUV video data to an NTSC, PAL, SECAM CVBS or S-Video signal and also RGB.

Optionally, the YUV to RGB dematrix can be by-passed providing the digital-to-analog converted Cb, Y, Cr signals instead of RGB.

The circuit accepts CCIR compatible YUV data with 720 active pixels per line in 4:2:2multiplexed formats, for example MPEG decoded data. It includes a sync/clock generator and on-chip Digital-to-Analog Converters (DACs).

The circuit is compatible to the DIG-TV2 chip family.

ORDERING INFORMATION

TYPE

NUMBER

SAA7182AWP; SAA7183AWP

1996 Oct 02 2

NAME DESCRIPTION VERSION

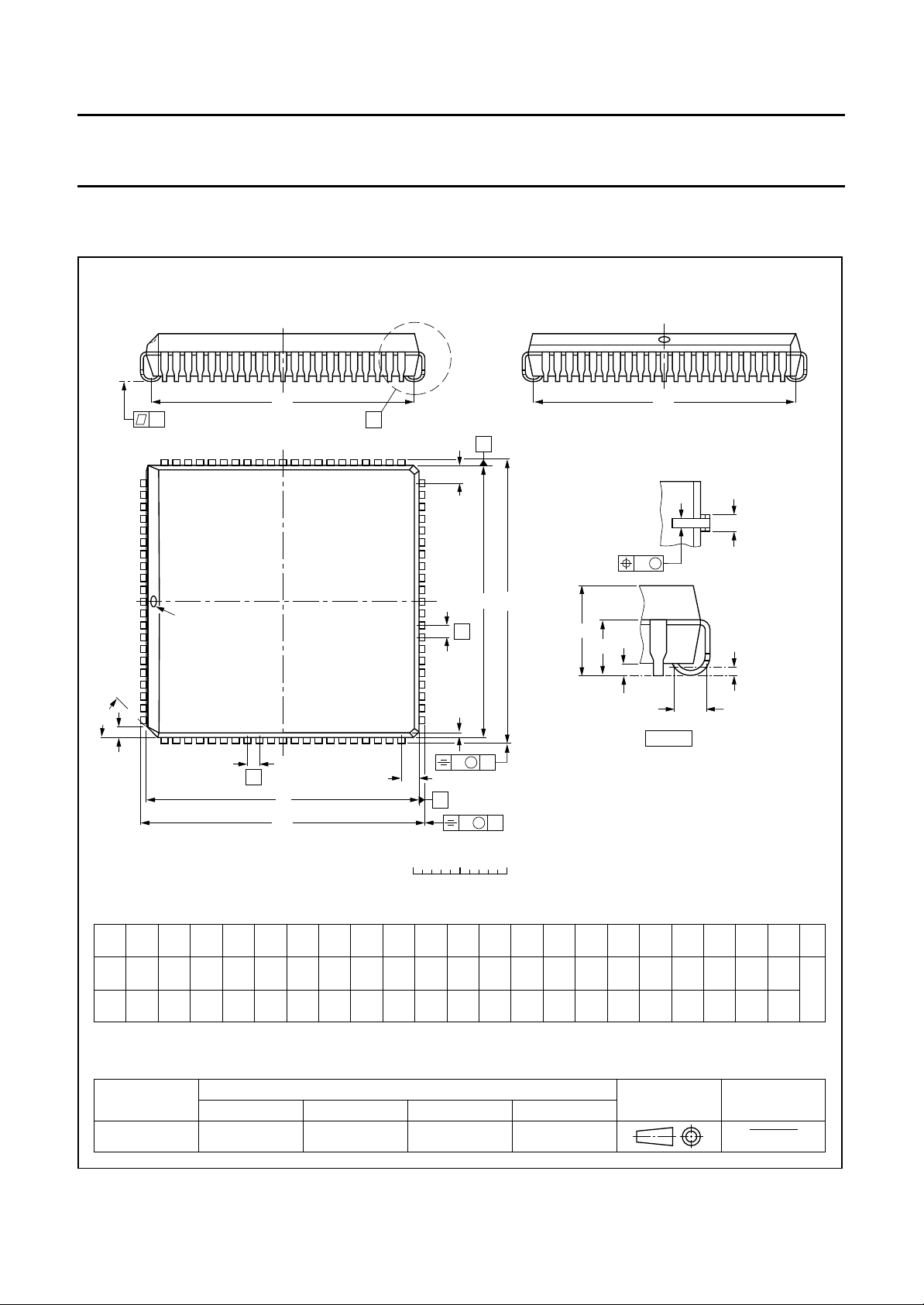

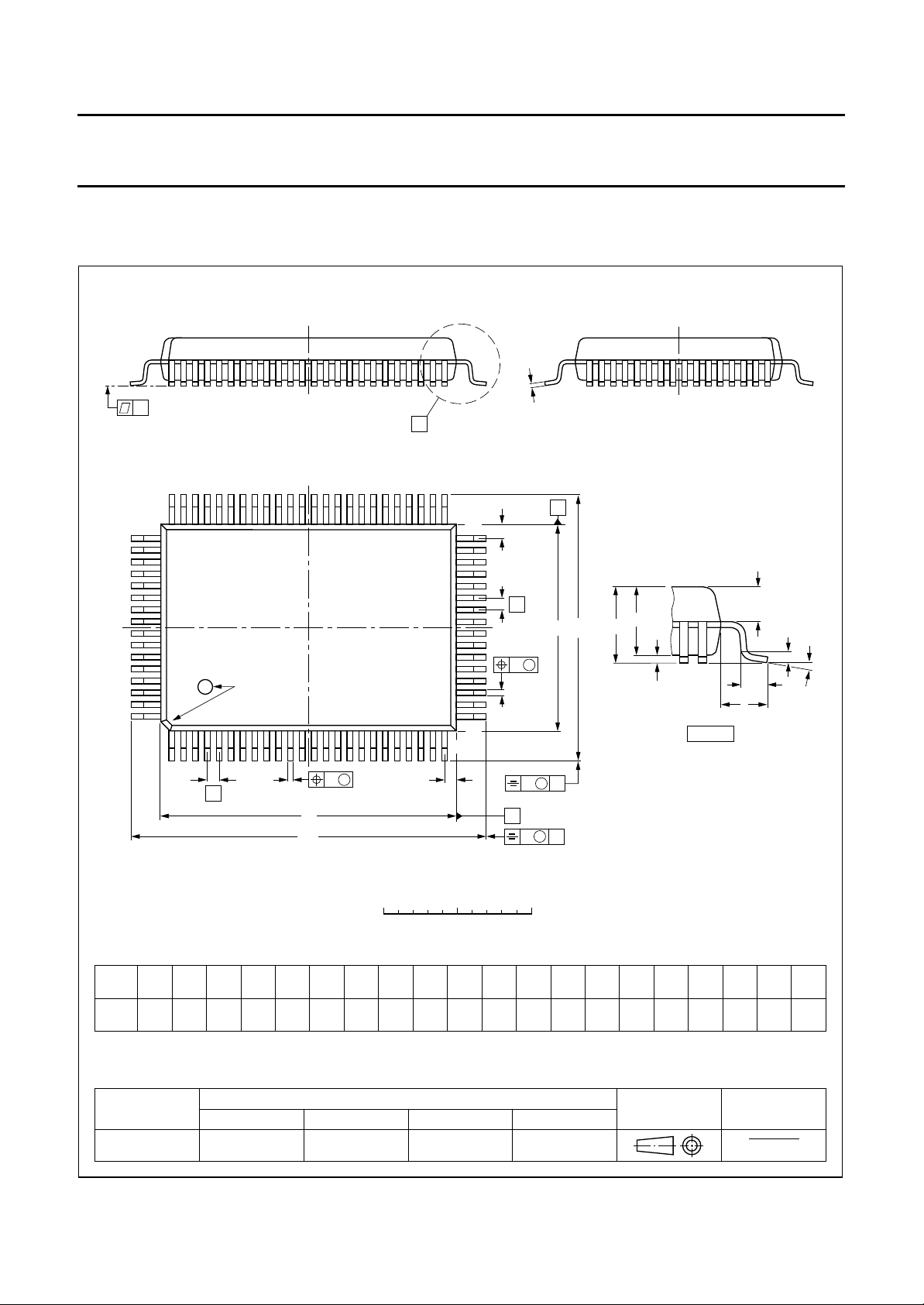

PLCC84 plastic leaded chip carrier; 84 leads SOT189-2

QFP80 plastic quad ﬂat package; 80 leads (lead length 1.95 mm);

body 14 × 20 × 2.8 mm

PACKAGE

SOT318-2

Page 3

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

DDA3

DDD3

DDD5

DDA

DDD3

DDD5

o(p-p)

ILE LF integral linearity error −−±2 LSB DLE LF differential linearity error −−±1 LSB T

amb

3.3 V analog supply voltage 3.1 3.3 3.5 V

3.3 V digital supply voltage 3.0 3.3 3.6 V 5 V digital supply voltage 4.75 5.0 5.25 V analog supply current −−110 mA

3.3 V digital supply current −−80 mA 5 V digital supply current −−10 mA input signal voltage levels TTL compatible analog output signal voltages Y, C, CVBS and RGB without load

− 1.4 − V

(peak-to-peak value) load resistance 75 − 300 Ω

operating ambient temperature 0 − +70 °C

1996 Oct 02 3

Page 4

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

BLOCK DIAGRAM

RTCI

RCV1

TTXRQ

handbook, full pagewidth

RESET SDA SCL

CDIR

RCV2

XTALO

CREF

XTALI

LLC

TESTB

DDA4

to V

DDA9

DP0

to

DP7

MP7

to

MP0

OVL2

to

OVL0

KEY

TTX

10 to 13 16 to 19

25 to 28 31 to 34

6 to 8

3, 15, 24, 30, 39, 42, 51, 79, 81

184834

I2C-BUS

INTERFACE

DATA

MANAGER

C-bus

control

V V

SSD1 SSD9



to

DDD1

DDD9

C-bus

control

5, 14, 22,  29, 38, 46, 49, 80, 82



to

CbCr

I2C-bus

control

SECAM

PROCESSOR

DbDr

ENCODER

2, 23, 40, 41, 43, 66

n.c.

SAA7182A SAA7183A

I2C-bus

control

CbCr

SP AP

50 35 36 20 47 45

CLOCK

clock

and timing

OUTPUT

control bus

78 77

INTERFACE

internal 

PROCESSOR

SYNC

RGB

C-bus

control

C-bus

control

C-bus

control

44 48

59 56

63, 64, 68, 70, 72, 74

52, 67, 76

54, 57, 60

DDA1

to

DDA3

73 71 69

53 65 62

61 58 55



MGD668

CVBS Y CHROMA

SSA1

to

SSA3

TESTC SELI

RED GREEN BLUE

Fig.1 Block diagram; PLCC84.

1996 Oct 02 4

Page 5

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

RTCI

RCV1

TTXRQ

andbook, full pagewidth

RESET SDA SCL

CDIR

RCV2

XTALO

CREF

XTALI

LLC

TESTB

DDA4

to V

DDA9

DP0

to

DP7

MP7

to

MP0

OVL2

to

OVL0

KEY

TTX

1 to 4 7 to 10

15 to 18 21 to 24

77 to 79

6, 14, 20, 29, 31, 39, 67, 69, 74

73 72 71 75

I2C-BUS

INTERFACE

DATA

MANAGER

C-bus

control



SSD1

to

SSD9

C-bus

control

CbCr

5, 13, 19,  28, 34, 37, 68, 70, 76 30, 40



DDD1

to

DDD9

I2C-bus

control

SECAM

PROCESSOR

DbDr

n.c.

ENCODER

I2C-bus

SAA7182A SAA7183A

control

CbCr

SP AP

38 25 26 11 35 33

CLOCK

clock

and timing

OUTPUT

control bus

66 65

INTERFACE

internal 

PROCESSOR

SYNC

RGB

C-bus

control

C-bus

control

C-bus

control

32 36

48 45

52, 53, 56, 58, 60, 62

41, 55, 64

43, 46, 49

DDA1

to

DDA3

61 59 57

42 54 51

50 47 44



MGD670

CVBS Y

CHROMA

SSA1

to

SSA3

TESTC SELI

RED GREEN BLUE

Fig.2 Block diagram; QFP80.

1996 Oct 02 5

Page 6

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

PINNING

SYMBOL

DESCRIPTION

PLCC84 QFP80

RESET 1 73 Reset input, active LOW. After reset is applied, all digital I/Os are in input mode.

The I2C-bus receiver waits for the START condition.

n.c. 2 − not connected

SSD1

SA 4 75 The I

3 6 digital ground 1

C-bus slave address select input pin. LOW: slave address = 88H,

HIGH = 8CH.

DDD1

5 13 digital supply voltage 1 (3.3 V)

OVL2 6 77

3-bit overlay data input. This is the index for the internal look-up table.OVL1 7 78 OVL0 8 79 KEY 9 80 Key input for OVL. When HIGH it selects OVL input. DP0 10 1 DP1 11 2 DP2 12 3

Lower 4 bits of the data port. Input for multiplexed Cb, Cr data if 16 line input mode

is used. DP3 13 4

V V

DDD2 SSD2

14 5 digital supply voltage 2 (5 V)

15 14 digital ground 2 DP4 16 7 DP5 17 8 DP6 18 9

Upper 4 bits of the data port. Input for multiplexed Cb, Cr data if 16 line input mode is used.

DP7 19 10 TTXRQ 20 11 Teletext request output, indicating when bit stream is valid. TTX 21 12 Teletext bit stream input. V

DDD3

22 28 digital supply voltage 3 (3.3 V) n.c. 23 − not connected V

SSD3

24 20 digital ground 1 MP7 25 15 MP6 26 16 MP5 27 17

Upper 4 bits of MPEG port. It is an input for “ data, or for Y data only, if 16 line input mode is used.

CCIR 656

” style multiplexed Cb, Y, Cr

MP4 28 18 V V

DDD4 SSD4

29 19 digital supply voltage 4 (5 V)

30 29 digital ground 4 MP3 31 21 MP2 32 22 MP1 33 23

Lower 4 bits of MPEG port. It is an input for “ data, or for Y data only, if 16 line input mode is used.

CCIR 656

” style multiplexed Cb, Y, Cr

MP0 34 24 RCV1 35 25 Raster Control 1 for video port. This pin receives/provides a VS/FS/FSEQ signal. RCV2 36 26 Raster Control 2 for video port. This pin provides an HS pulse of programmable

length or receives an HS pulse.

1996 Oct 02 6

Page 7

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

SYMBOL

DESCRIPTION

PLCC84 QFP80

RTCI 37 27 Real Time Control input. If the LLC clock is provided by an SAA7111 or SAA7151B,

RTCI should be connected to the RTCO pin of the respective decoder to improve the signal quality.

V V

DDD5 SSD5

38 68 digital supply voltage 5 (3.3 V)

39 39 digital ground 5 n.c. 40 40 not connected n.c. 41 − not connected V

SSD6

42 31 digital ground 6 for oscillator n.c. 43 30 not connected XTALI 44 32 Crystal oscillator input (from crystal). If the oscillator is not used, this pin should be

connected to ground. XTALO 45 33 Crystal oscillator output (to crystal). V

DDD6

46 34 digital supply voltage 6 for oscillator (3.3 V) CREF 47 35 Clock Reference signal. This is the clock qualiﬁer for DIG-TV2 compatible signals. LLC 48 36 Line-Locked Clock. This is the 27 MHz master clock for the encoder. The I/O

direction is set by the CDIR pin.

DDD7

49 37 digital supply voltage 7 (5 V) CDIR 50 38 Clock direction. If CDIR input is HIGH, the circuit receives a clock and optional

CREF signal, otherwise if CDIR is LOW, CREF and LLC are generated by the

internal crystal oscillator. V V

SSD7 SSA1

51 67 digital ground 7

52 41 Analog ground 1 for the DACs. TESTC 53 42 Analog test pin. Leave open-circuit for normal operation. V

DDA1

54 43 Analog supply voltage 1 for the RGB DACs (3.3 V). BLUE 55 44 Analog output of the BLUE component. BI 56 45 Analog input that can be switched to BLUE when SELI = HIGH. V

DDA2

57 46 Analog supply voltage 2 for RGB DACs (3.3 V). GREEN 58 47 Analog output of GREEN component. GI 59 48 Analog input that can be switched to GREEN when SELI = HIGH. V

DDA3

60 49 Analog supply voltage 3 for RGB DACs (3.3 V). RED 61 50 Analog output of RED component. RI 62 51 Analog input that can be switched to RED when SELI = HIGH. V V

DDA4 DDA5

63 52 Analog supply voltage 4 for DACs (3.3 V).

64 53 Analog supply voltage 5 for DACs (3.3 V). SELI 65 54 Select analog input. Digital-to-analog converted RGB output when SELI = LOW;

RI, GI and BI output when SELI = HIGH. n.c. 66 − not connected V V

SSA2 DDA6

67 55 Analog ground 2 for the DACs.

68 56 Analog supply voltage 6 for DACs (3.3 V). CHROMA 69 57 Analog output of the chrominance signal. V

DDA7

70 58 Analog supply voltage 7 for the Y/C/CVBS DACs (3.3 V).

1996 Oct 02 7

Page 8

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

SYMBOL

DESCRIPTION

PLCC84 QFP80

Y 71 59 Analog output of VBS signal.

DDA8

72 60 Analog supply voltage 8 for the Y/C/CVBS DACs. CVBS 73 61 Analog output of the CVBS signal. V

DDA9

74 62 Analog supply voltage 9 for the Y/C/CVBS DACs. TESTB 75 63 Analog test pin. Leave open-circuit for normal operation. V

SSA3

76 64 Analog ground 3 for the DACs. AP 77 65 Test pin. Connected to digital ground for normal operation. SP 78 66 Test pin. Connected to digital ground for normal operation. V

SSD8

DDD8

SSD9

DDD9

SCL 83 71 I SDA 84 72 I

79 69 digital ground 8

80 76 digital supply voltage 8 (3.3 V)

81 74 digital ground 9

82 70 digital supply voltage 9 (5 V)

C-bus serial clock input.

C-bus serial data input/output.

1996 Oct 02 8

Page 9

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

DP1 11

DP0 10

KEY 9

OVL0 8

OVL1 7

OVL2 6

DDD1

V 5

SA 4

SSD1

V 3

n.c. 2

RESET 1

SDA 84

DDD9VSSD9VDDD8VSSD8

SCL

AP 77

SSA3

V 76

TESTB 75

DP3

DDD2

SSD2

DP4 DP5 DP6 DP7

TTXRQ

TTX

DDD3

n.c.

SSD3

MP7 MP6 MP5 MP4

DDD4

SSD4

MP3 MP2

12DP2 13 14 15 16 17 18 19 20 21

74 73 72 71 70 69 68 67 66 65

DDA9

CVBS V

DDA8

Y V

DDA7

CHROMA V

DDA6

SSA2

n.c. SELI

SAA7182A

22 23 24 25 26 27 28 29 30 31 32

SAA7183A

64 63 62 61 60 59 58 57 56 55 54

DDA5

DDA4

RI RED V

DDA3

GI GREEN V

DDA2

BI BLUE V

DDA1

n.c.

MP1

MP0

RCV1

RCV2

RTCI

DDD5

SSD5

n.c.

SSD6

Fig.3 Pin configuration; PLCC84.

1996 Oct 02 9

n.c.

XTALI

XTALO

DDD6

CREF

LLC

DDD7

CDIR

SSD7

SSA1

TESTC

MGD669

Page 10

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

DP0 DP1 DP2 DP3

DDD2

SSD1

DP4 DP5 DP6 DP7

TTXRQ

TTX

DDD1

SSD2

MP7 MP6 MP5 MP4

DDD4

SSD3

MP3 MP2 MP1 MP0

KEY

OVL0

OVL1

78 1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

RCV2

RTCI

RCV1

OVL2 77

DDD3

DDD8

V 76

SSD4

SA 75

30 n.c.

SSD9

RESET

SAA7182A SAA7183A

SSD6

XTALI

SDA 72

XTALO

DDD9VSSD8VDDD5VSSD7

SCL

CREF

LLC

DDD6

DDD7

CDIR

SP 66

SSD5

AP 65

40 n.c.

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41

MGD671

SSA3

TESTB V

DDA9

CVBS V

DDA8

Y V

DDA7

CHROMA V

DDA6

SSA2

SELI V

DDA5

DDA4

RI RED V

DDA3

GI GREEN V

DDA2

BI BLUE V

DDA1

TESTC V

SSA1

Fig.4 Pin configuration; QFP80.

1996 Oct 02 10

Page 11

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

FUNCTIONAL DESCRIPTION

The digital video encoder (EURO-DENC2) encodes digital luminance and colour difference signals into analog CVBS and simultaneously S-Video signals. NTSC-M, PAL B/G, SECAM standards and sub-standards are supported.

Both interlaced and non-interlaced operation is possible for all standards.

In addition, the de-matrixed Y, Cb, and Cr input is available on three separate analog outputs as RED, GREEN and BLUE. Under software control the dematrix can be by-passed to output digital-to-analog converted Cr, Y, and Cb signals on RGB outputs. Separate digital gain adjustment for luminance and colour difference signals is available.

Analog on-chip multiplexing between internal digital-to-analog converted RGB and external RI, GI and BI signals is also supported.

The basic encoder function consists of subcarrier generation, colour modulation and insertion of synchronization signals. Luminance and chrominance signals are filtered in accordance with the standard requirements of “

For ease of analog post filtering the signals are twice oversampled with respect to the pixel clock before digital-to-analog conversion.

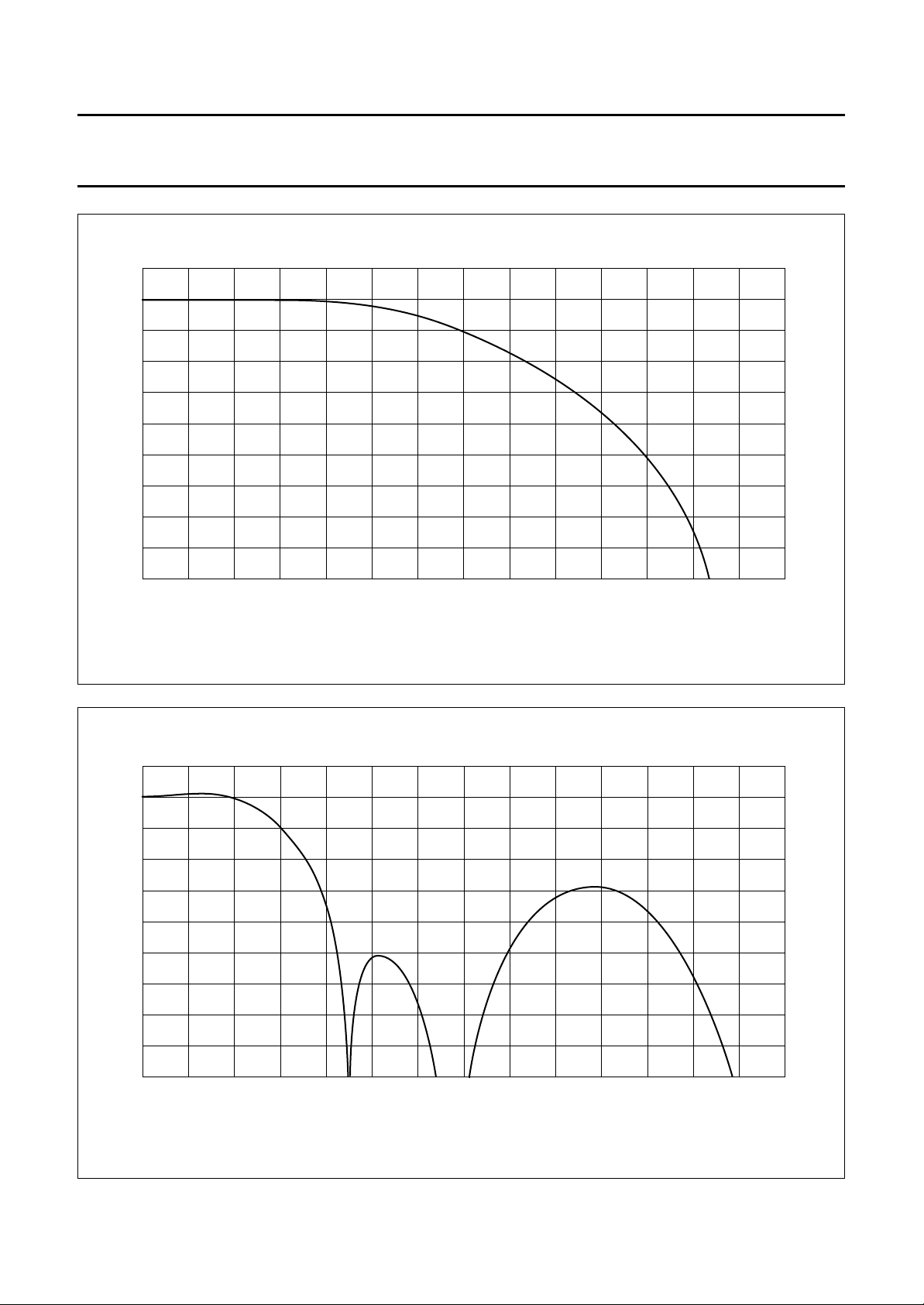

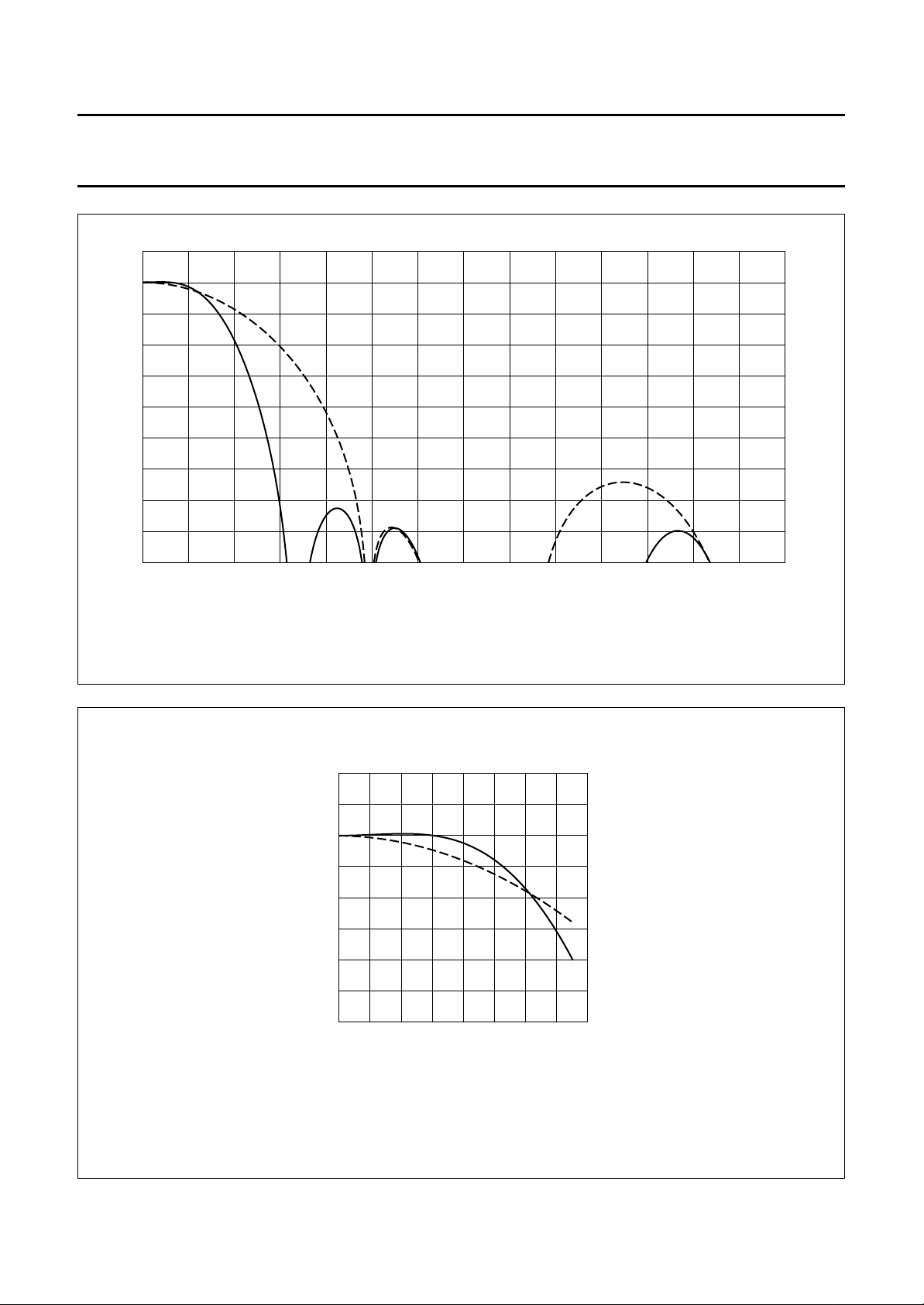

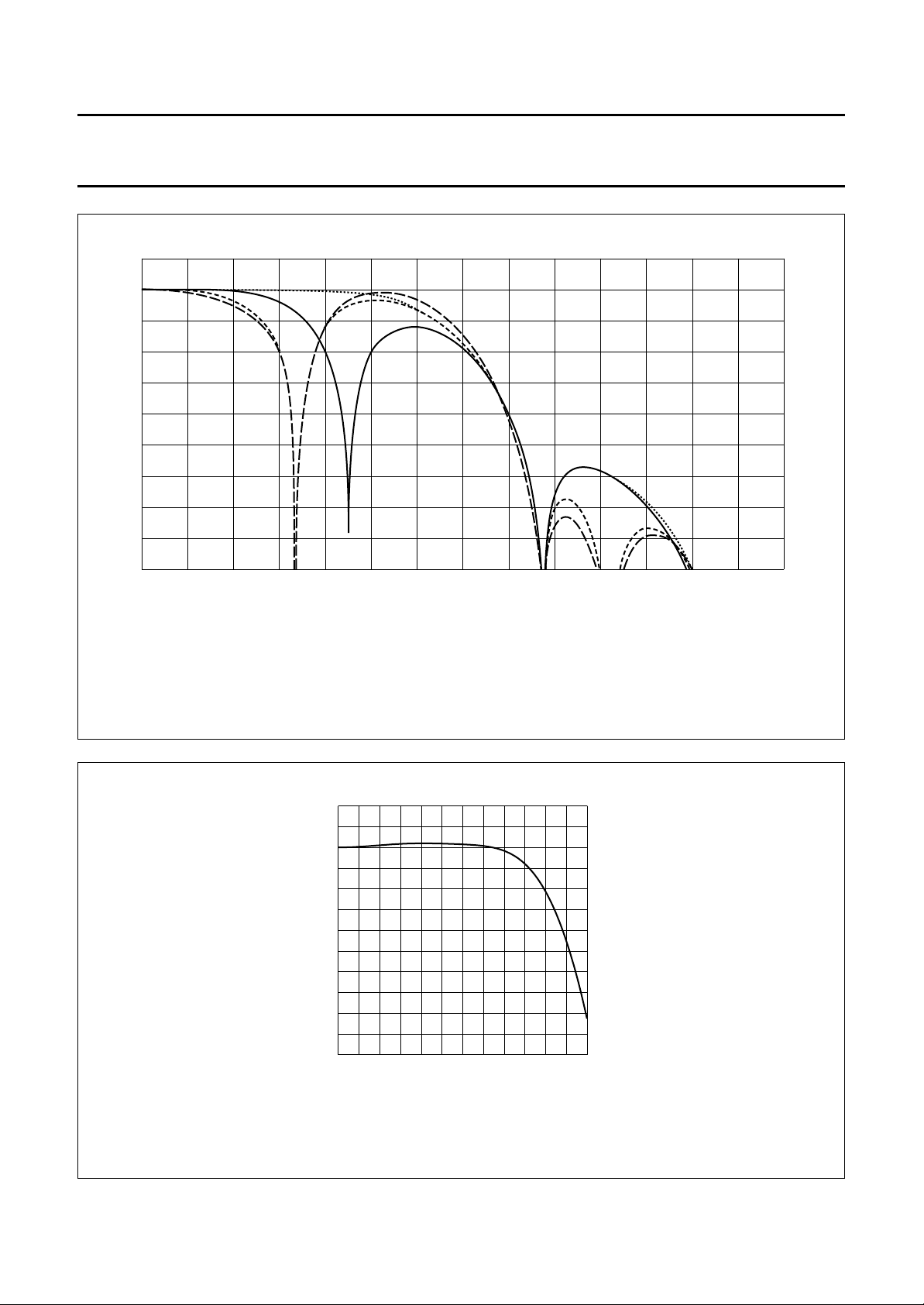

For total filter transfer characteristics see Figs 5, 6, 7, 8, 9 and 10. The DACs for Y, C, and CVBS are realized with full 10-bit resolution, DACs for RGB are with 9-bit resolution.

The MPEG port (MP) accept 8 line multiplexed Cb, Y, Cr data.

The 8-bit multiplexed Cb-Y-Cr formats are “ (D1 format) compatible, but the SAV and EAV codes can be decoded optionally, when the device is to operate in slave mode.

Alternatively, 8-bits Y on MP port and 8-bit multiplexed Cb, Cr on DP port can be chosen as input.

A crystal-stable master clock (LLC) of 27 MHz, which is twice the CCIR line-locked pixel clock of 13.5 MHz, needs to be supplied externally. Optionally, a crystal oscillator input/output pair of pins and an on-chip clock driver is provided.

It is also possible to connect a Philips Digital Video Decoder (SAA7111 or SAA7151B) in conjunction with a CREF clock qualifier to EURO-DENC2. Via the RTCI pin, connected to RTCO of a decoder, information concerning

RS-170-A

” and “

CCIR 624

”.

CCIR 656

”

actual subcarrier, PAL-ID, and if connected to SAA7111, definite subcarrier phase can be inserted.

The EURO-DENC2 synthesizes all necessary internal signals, colour subcarrier frequency, and synchronization signals, from that clock.

European teletext encoding is supported if an appropriate teletext bitstream is applied to the TTX pin.

Wide screen signalling data can be loaded via the I and is inserted into line 23 for standards using 50 Hz field rate.

The IC also contains Closed Caption and Extended Data Services Encoding (Line 21), and supports anti-taping signal generation in accordance with Macrovision; it also supports overlay via KEY and three control bits by a 24 × 8 LUT.

A number of possibilities are provided for setting different video parameters such as:

Black and blanking level control Colour subcarrier frequency Variable burst amplitude etc.

During reset (RESET = LOW) and after reset is released, all digital I/O stages are set to input mode. A reset forces the I2C-bus interface to abort any running bus transfer and sets register 3A to 03H, register 61 to 06H and registers 6BH and 6EH to 00H. All other control registers are not influenced by a reset.

Data manager

In the data manager, real time arbitration on the data stream to be encoded is performed.

Depending on the polarity of pin KEY, the MP input (or MP/DP input) or OVL input are selected to be encoded to CVBS and Y/C signals, and output as RGB.

KEY controls OVL entries of a programmable LUT for encoded signals and for RGB output. The common KEY switching signal can be disabled by software for the signals to be encoded (Y, C and CVBS), such that OVL will appear on RGB outputs, but not on Y, C and CVBS.

OVL input under control of KEY can be also used to insert decoded teletext information or other on-screen data.

Optionally, the OVL colour LUTs located in this block, can be read out in a pre-defined sequence (8 steps per active video line), achieving, for example, a colour bar test pattern generator without need for an external data source. The colour bar function is only under software control.

C-bus,

1996 Oct 02 11

Page 12

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Encoder

IDEO PATH

The encoder generates out of Y, U and V baseband signals luminance and colour subcarrier output signals, suitable for use as CVBS or separate Y and C signals.

Luminance is modified in gain and in offset (latter programmable in a certain range to enable different black level set-ups). After having been inserted a fixed synchronization level, in accordance with standard composite synchronization schemes, and blanking level, programmable also in a certain range to allow for manipulations with Macrovision anti-taping, additional insertion of AGC super-white pulses, programmable in height, is supported.

In order to enable easy analog post filtering, luminance is interpolated from 13.5 MHz data rate to 27 MHz data rate, providing luminance in 10-bit resolution. This filter is also used to define smoothed transients for synchronization pulses and blanking period. For transfer characteristic of the luminance interpolation filter see Figs 7 and 8.

Chrominance is modified in gain (programmable separately for U and V), standard dependent burst is inserted, before baseband colour signals are interpolated from 6.75 MHz data rate to 27 MHz data rate. One of the interpolation stages can be bypassed, thus providing a higher colour bandwidth, which can be made use of for Y and C output. For transfer characteristics of the chrominance interpolation filter see Figs 5 and 6.

The amplitude of inserted burst is programmable in a certain range, suitable for standard signals and for special effects. Behind the succeeding quadrature modulator, colour in 10-bit resolution is provided on subcarrier.

The numeric ratio between Y and C outputs is in accordance with set standards.

ELETEXT INSERTION AND ENCODING

LOSED CAPTION ENCODER

Using this circuit, data in accordance with the specification of Closed Caption or Extended Data Service, delivered by the control interface, can be encoded (Line 21). Two dedicated pairs of bytes (two bytes per field), each pair preceded by run-in clocks and framing code, are possible.

The actual line number where data is to be encoded in, can be modified in a certain range.

Data clock frequency is in accordance with definition for NTSC-M standard 32 times horizontal line frequency.

Data LOW at the output of the DACs corresponds to 0 IRE, data HIGH at the output of the DACs corresponds to approximately 50 IRE.

It is also possible to encode Closed Caption Data for 50 Hz field frequencies at 32 times horizontal line frequency.

NTI-TAPING (SAA7183A ONLY)

A For more information contact your nearest Philips

Semiconductors sales office.

RGB processor

This block contains a dematrix in order to produce RED, GREEN and BLUE signals to be fed to a SCART plug.

Before Y, Cb and Cr signals are de-matrixed, individual gain adjustment for Y and colour difference signals and 2 times oversampling for luminance and 4 times oversampling for colour difference signals is performed. For transfer curves of luminance and colour difference components of RGB see Figs 9 and 10.

SECAM processor

SECAM specific pre-processing is achieved in this block by a pre-emphasis of colour difference signals (for gain and phase see Figs 11 and 12).

Pin TTX receives a teletext bitstream sampled at the LLC clock, each teletext bit is carried by four or three LLC samples.

Phase variant interpolation is achieved on this bitstream in the internal teletext encoder, providing sufficient small phase jitter on the output text lines.

TTXRQ provides a fully programmable request signal to the teletext source, indicating the insertion period of bitstream at lines selectable independently for both fields. The internal insertion window for text is set to 360 teletext bits including clock run-in bits. For protocol and timing see Fig.19.

1996 Oct 02 12

A baseband frequency modulator with a reference frequency shifted from 4.286 MHz to DC carries out SECAM modulation in accordance with appropriate standard or optionally wide clipping limits.

After the HF pre-emphasis, also applied on a DC reference carrier (anti-Cloche filter; see Figs 13 and 14), line-by-line sequential carriers with black reference of 4.25 MHz (Db) and 4.40625 MHz (Dr) are generated using specified values for FSC programming bytes.

Alternating phase reset in accordance with SECAM standard is carried out automatically. During vertical blanking the so-called bottle pulses are not provided.

Page 13

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Output interface/DACs

In the output interface encoded both Y and C signals are converted from digital-to-analog in 10-bit resolution. Y and C signals are also combined to a 10-bit CVBS signal.

The CVBS output occurs with the same processing delay as the Y and C outputs. Absolute amplitudes at the input of the DAC for CVBS is reduced by15⁄16 with respect to Y and C DACs to make maximum use of conversion ranges.

RED, GREEN and BLUE signals are also converted from digital-to-analog, each providing a 9-bit resolution. It is also possible to feed through three external analog RGB signals at pins RI, BI and GI when pin SELI = HIGH

Outputs of the DACs can be set together in two groups via software control to minimum output voltage for either purpose.

Synchronization

Synchronization of the EURO-DENC2 is able to operate in two modes; slave mode and master mode.

In the slave mode, the circuit accepts synchronization pulses at the bidirectional RCV1 port. The timing and trigger behaviour related to RCV1 can be influenced by programming the polarity and on-chip delay of RCV1. Active slope of RCV1 defines the vertical phase and optionally the odd/even and colour frame phase to be initialized, it can be also used to set the horizontal phase.

If the horizontal phase is not to be influenced by RCV1, a horizontal pulse needs to be supplied at the RCV2 pin. Timing and trigger behaviour can also be influenced for RCV2.

If there are missing pulses at RCV1 and/or RCV2, the time base of EURO-DENC2 runs free, thus an arbitrary number of synchronization slopes may miss, but no additional pulses (with the incorrect phase) must occur.

If the vertical and horizontal phase is derived from RCV1, RCV2 can be used for horizontal or composite blanking input or output.

Alternatively, the device can be triggered by auxiliary codes in a

CCIR 656

data stream at the MP port

• A Vertical Sync signal (VS) with 3 or 2.5 lines duration, or;

• An ODD/EVEN signal which is LOW in odd fields, or;

• A field sequence signal (FSEQ) which is HIGH in the first

of 4, 8, 12 fields respectively.

On the RCV2 port, the IC can provide a horizontal pulse with programmable start and stop phase; this pulse can be inhibited in the vertical blanking period to build up, for example, a composite blanking signal.

The polarity of both RCV1 and RCV2 is selectable by software control.

The length of a field and the start and end of its active part can be programmed. The active part of a field always starts at the beginning of a line.

C-bus interface

The I2C-bus interface is a standard slave transceiver, supporting 7-bit slave addresses and 400 kbits/s guaranteed transfer rate. It uses 8-bit subaddressing with an auto-increment function. All registers are write only, except one readable status byte.

Two I2C-bus slave addresses are selected:

88H: LOW at pin SA 8CH: HIGH at pin SA.

Input levels and formats

EURO-DENC2 expects digital Y, Cb, Cr data with levels (digital codes) in accordance with

For C and CVBS outputs, deviating amplitudes of the colour difference signals can be compensated by independent gain control setting, while gain for luminance is set to predefined values, distinguishable for 7.5 IRE set-up or without set-up.

For RGB outputs variable amplification of the Y, Cb and Cr components is provided, enabling adjustment of contrast and colour saturation in certain range.

Reference levels are measured with a colour bar, 100% white, 100% amplitude and 100% saturation.

“CCIR 601”

In the master mode, the time base of the circuit continuously runs free. On the RCV1 port, the IC can output:

1996 Oct 02 13

Page 14

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 1

“CCIR 601”

COLOUR

signal component levels

SIGNALS

YCbCrR

(1)

(2)

White 235 128 128 235 235 235 Yellow 210 16 146 235 235 16 Cyan 170 166 16 16 235 235 Green 145 54 34 16 235 16 Magenta 106 202 222 235 16 235 Red 81 90 240 235 16 16 Blue 41 240 110 16 16 235 Black 16 128 128 16 16 16

Notes

1. Transformation: a) R = Y + 1.3707 × (Cr − 128) b) G = Y − 0.3365 × (Cb − 128) − 0.6982 × (Cr − 128) c) B = Y + 1.7324 × (Cb − 128).

2. Representation of R, G and B (or Cr, Y and Cb) at the output is 9 bits at 27 MHz.

Table 2 8-bit multiplexed format (similar to

“CCIR 601”

)

(2)

TIME

BITS

01224567

Sample Cb

Luminance pixel number 0123 Colour pixel number 0 2

Table 3 16-bit multiplexed format (DTV2 format)

BITS

TIME

01234567

Sample Y line Y Sample UV line Cb

Luminance pixel number 0123 Colour pixel number 0 2

1996 Oct 02 14

Page 15

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

DATA BYTE

D7 D6 D5 D4 D3 D2 D1 D0

SUB

ADDRESS

↓

5E GAINV8 DECTYP BLNNL5 BLNNL4 BLNNL3 BLNNL2 BLNNL1 BLNNL0

Null 00 00000000

Null 25 00000000

Wide screen signal 26 WSS7 WSS6 WSS5 WSS4 WSS3 WSS2 WSS1 WSS0

Wide screen signal 27 WSSON 0 WSS13 WSS12 WSS11 WSS10 WSS9 WSS8

Null 28 00000000

Null 37 00000000

Gain Y for RGB 38 0 0 0 GY4 GY3 GY2 GY1 GY0

Gain CD for RGB 39 0 0 0 GCD4 GCD3 GCD2 GCD1 GCD0

Input port control 3A CBENB DISKEY PCREF SYMP DEMOFF FMT16 Y2C UV2C

Bit allocation map

Table 4 Slave receiver (slave address 88H or 8CH)

1996 Oct 02 15

OVL LUT Y0 42 OVLY07 OVLY06 OVLY05 OVLY04 OVLY03 OVLY02 OVLY01 OVLY00

OVL LUT U0 43 OVLU07 OVLU06 OVLU05 OVLU04 OVLU03 OVLU02 OVLU01 OVLU00

OVL LUT V0 44 OVLV07 OVLV06 OVLV05 OVLV04 OVLV03 OVLV02 OVLV01 OVLV00↓OVL LUT Y7 57 OVLY77 OVLY76 OVLY75 OVLY74 OVLY73 OVLY72 OVLY71 OVLY70

OVL LUT U7 58 OVLU77 OVLU76 OVLU75 OVLU74 OVLU73 OVLU72 OVLU71 OVLU70

OVL_LUT_V7 59 OVLV77 OVLV76 OVLV75 OVLV74 OVLV73 OVLV72 OVLV71 OVLV70

Chrominance phase 5A CHPS7 CHPS6 CHPS5 CHPS4 CHPS3 CHPS2 CHPS1 CHPS0

Gain U 5B GAINU7 GAINU6 GAINU5 GAINU4 GAINU3 GAINU2 GAINU1 GAINU0

Gain V 5C GAINV7 GAINV6 GAINV5 GAINV4 GAINV3 GAINV2 GAINV1 GAINV0

Gain U MSB, black level 5D GAINU8 0 BLCKL5 BLCKL4 BLCKL3 BLCKL2 BLCKL1 BLCKL0

Gain V MSB, blanking level,

decoder type

CCR, blanking level VBI 5F CCRS1 CCRS0 BLNVB5 BLNVB4 BLNVB3 BLNVB2 BLNVB1 BLNVB0

Null 60 00000000

Standard control 61 DOWNB DOWNA INPI YGS SECAM SCBW PAL FISE

Burst amplitude 62 RTCE BSTA6 BSTA5 BSTA4 BSTA3 BSTA2 BSTA1 BSTA0

Subcarrier 0 63 FSC07 FSC06 FSC05 FSC04 FSC03 FSC02 FSC01 FSC00

Page 16

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

DATA BYTE

D7 D6 D5 D4 D3 D2 D1 D0

SUB

ADDRESS

Subcarrier 1 64 FSC15 FSC14 FSC13 FSC12 FSC11 FSC10 FSC09 FSC08

Subcarrier 2 65 FSC23 FSC22 FSC21 FSC20 FSC19 FSC18 FSC17 FSC16

Subcarrier 3 66 FSC31 FSC30 FSC29 FSC28 FSC27 FSC26 FSC25 FSC24

Line 21 odd 0 67 L21O07 L21O06 L21O05 L21O04 L21O03 L21O02 L21O01 L21O00

Line 21 odd 1 68 L21O17 L21O16 L21O15 L21O14 L21O13 L21O12 L21O11 L21O10

Line 21 even 0 69 L21E07 L21E06 L21E05 L21E04 L21E03 L21E02 L21E01 L21E00

Line 21 even 1 6A L21E17 L21E16 L21E15 L21E14 L21E13 L21E12 L21E11 L21E10

RCV port control 6B SRCV11 SRCV10 TRCV2 ORCV1 PRCV1 CBLF ORCV2 PRCV2

Trigger control 6C HTRIG7 HTRIG6 HTRIG5 HTRIG4 HTRIG3 HTRIG2 HTRIG1 HTRIG0

Trigger control 6D HTRIG10 HTRIG9 HTRIG8 VTRIG4 VTRIG3 VTRIG2 VTRIG1 VTRIG0

Multi control 6E SBLBN 0 PHRES1 PHRES0 0 0 FLC1 FLCO

Closed caption/teletext control 6F CCEN1 CCEN0 TTXEN CCLN4 CCLN3 CCLN2 CCLN1 CCLN0

RCV2 output start 70 RCV2S7 RCV2S6 RCV2S5 RCV2S4 RCV2S3 RCV2S2 RCV2S1 RCV2S0

RCV2 output end 71 RCV2E7 RCV2E6 RCV2E5 RCV2E4 RCV2E3 RCV2E2 RCV2E1 RCV2E0

1996 Oct 02 16

MSBs RCV2 output 72 0 RCV2E10 RCV2E9 RCV2E8 0 RCV2S10 RCV2S9 RCV2S8

TTX request H start 73 TTXHS7 TTXHS6 TTXHS5 TTXHS4 TTXHS3 TTXHS2 TTXHS1 TTXHS0

TTX request H end 74 TTXHE7 TTXHE6 TTXHE5 TTXHE4 TTXHE3 TTXHE2 TTXHE1 TTXHE0

MSBs TTX request H 75 0 TTXHE10 TTXHE9 TTXHE8 0 TTXHS10 TTXHS9 TTXHS8

TTX odd request V S 76 TTXOVS7 TTXOVS6 TTXOVS5 TTXOVS4 TTXOVS3 TTXOVS2 TTXOVS1 TTXOVS0

TTX odd request V E 77 TTXOVE7 TTXOVE6 TTXOVE5 TTXOVE4 TTXOVE3 TTXOVE2 TTXOVE1 TTXOVE0

TTX even request V S 78 TTXEVS7 TTXEVS6 TTXEVS5 TTXEVS4 TTXEVS3 TTXEVS2 TTXEVS1 TTXEVS0

TTX even request V E 79 TTXEVE7 TTXEVE6 TTXEVE5 TTXEVE4 TTXEVE3 TTXEVE2 TTXEVE1 TTXEVE0

First active line 7A FAL7 FAL6 FAL5 FAL4 FAL3 FAL2 FAL1 FAL0

Last active line 7B LAL7 LAL6 LAL5 LAL4 LAL3 LAL2 LAL1 LAL0

MSB vertical 7C 0 LAL8 0 FAL8 TTXEVE8 TTXOVE8 TTXEVS8 TTXOVS8

Null 7D 00000000

Disable TTX line 7E LINE15 LINE14 LINE13 LINE12 LINE11 LINE10 LINE9 LINE8

Disable TTX line 7F LINE23 LINE22 LINE21 LINE20 LINE19 LINE18 LINE17 LINE16

Page 17

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

I2C-bus format

Table 5 I

S SLAVE ADDRESS ACK SUBADDRESS ACK DATA 0 ACK -------- DATA n ACK P

Table 6 Explanation of Table 5

S START condition Slave address 1000100X or 1000110X (note 1) ACK acknowledge, generated by the slave Subaddress (note 2) subaddress byte DATA data byte

-------- continued data bytes and ACKs P STOP condition

Notes

1. X is the read/write control bit; X = logic 0 is order to write; X = logic 1 is order to read, no subaddressing with read.

2. If more than 1 byte DATA is transmitted, then auto-increment of the subaddress is performed.

C-bus address; see Table 6

PART DESCRIPTION

Slave Receiver Table 7 Subaddress 26 and 27

DATA BYTE LOGIC LEVEL DESCRIPTION

WSS0 to WSS13 − Wide Screen Signalling bits

3 to 0 = aspect ratio 7 to 4 = enhanced services 10 to 8 = subtitles 13 to 11 = reserved

WSSON 0 wide screen signalling output is disabled

1 wide screen signalling output is enabled

Table 8 Subaddress 38 and 39

DATA BYTE DESCRIPTION

GY0 to GY4 Gain luminance of RGB (Cr, Y and Cb) output, ranging from (1 −

⁄32) to (1 +15⁄32). Suggested

nominal value = −6 (11010b), depending on external application.

GCD0 to GCD4 Gain Colour Difference of RGB (Cr, Y and Cb) output, ranging from (1 -

Suggested nominal value = −6 (11010b), depending on external application.

⁄32)to(1+15⁄32).

1996 Oct 02 17

Page 18

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 9 Subaddress 3A

DATA BYTE

UV2C 0 Cb, Cr data are two’s complement.

Y2C 0 Ydata is two’s complement.

FMT16 0 Selects Cb, Y, Cr and Y on 8 lines on MP port (

DEMOFF 0 Y, Cb and Cr for RGB dematrix is active. Default after reset.

SYMP 0 Horizontal and vertical trigger is taken from RCV2 and RCV1 respectively. Default after reset.

PCREF 0 Normal polarity of CREF for DIG-TV2 compatible input signals.

DISKEY 0 OVL keying enabled for Y, C and CVBS outputs. Default after reset.

CBENB 0 Data from input ports is encoded. Default after reset.

LOGIC LEVEL

1 Cb, Cr data are straight binary. Default after reset.

1 Y data is straight binary. Default after reset.

1 Selects Cb and Cr on DP port and Y on MP port.

1 Y, Cb and Cr for RGB dematrix is bypassed.

1 Horizontal and vertical trigger is decoded out of

1 Inverted polarity of CREF for DIG-TV2 compatible input signals.

1 OVL keying disabled for Y, C and CVBS outputs.

1 Colour bar with programmable colours (entries of OVL_LUTs) is encoded. The LUT s are read in

upward order from index 0 to index 7.

DESCRIPTION

“CCIR 656”

compatible). Default after reset.

compatible data at MP port.

1996 Oct 02 18

Page 19

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 10 Subaddress 42 to 59

COLOUR

DATA BYTE

OVLY OVLU OVLV

White 107 (6BH) 0 (00H) 0 (00H) 0

107 (6BH) 0 (00H) 0 (00H)

Yellow 82 (52H) 144 (90H) 18 (12H) 1

34 (22H) 172 (ACH) 14 (0EH)

Cyan 42 (2AH) 38 (26H) 144 (90H) 2

03 (03H) 29 (1DH) 172 (ACH)

Green 17 (11H) 182 (B6H) 162 (A2H) 3

240 (F0H) 200 (C8H) 185 (B9H)

Magenta 234 (EAH) 74 (4AH) 94 (5EH) 4

212 (D4H) 56 (38H) 71 (47H)

Red 209 (D1H) 218 (DAH) 112 (70H) 5

193 (C1H) 227 (E3H) 84 (54H)

Blue 169 (A9H) 112 (70H) 238 (EEH) 6

163 (A3H) 84 (54H) 242 (F2H)

Black 144 (90H) 0 (00H) 0 (00H) 7

144 (90H) 0 (00H) 0 (00H)

(1)

INDEX

(2)

Notes

1. Contents of OVL look-up tables. All 8 entries are 8-bits. Data representation is in accordance with (Y, Cb and Cr), but two’s complement, e.g. for a

100

⁄

(upper number) or

100

⁄75(lower number) colour bar.

“CCIR 601”

2. For normal colour bar with CBENB = logic 1.

Table 11 Subaddress 5A

DATA BYTE

(1)

VALUE RESULT

CHPS tbf PAL-B/G and data from input ports

tbf PAL-B/G and data from look-up table tbf NTSC-M and data from input ports tbf NTSC-M and data from look-up table

Note

1. Phase of encoded colour subcarrier (including burst) relative to horizontal sync. Can be adjusted in steps of 360/256 degrees.

1996 Oct 02 19

Page 20

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 12 Subaddress 5B and 5D

DATA BYTE DESCRIPTION CONDITIONS REMARKS

GAINU variable gain for Cb signal;

input representation accordance with

“CCIR 601”

white-to-black = 92.5 IRE

GAINU = 0 output subcarrier of U contribution = 0 GAINU = 118 (76H) output subcarrier of U contribution = nominal

white-to-black = 100 IRE

GAINU = 0 output subcarrier of U contribution = 0 GAINU = 125 (7DH) output subcarrier of U contribution = nominal

nominal GAINU for

value = 106 (6AH)

SECAM encoding

Notes

1. GAINU = −2.17 × nominal to +2.16 × nominal.

2. GAINU = −2.05 × nominal to +2.04 × nominal.

Table 13 Subaddress 5C and 5E

(1)

(2)

DATA BYTE DESCRIPTION CONDITIONS REMARKS

GAINV variable gain for Cr signal;

input representation accordance with

“CCIR 601”

white-to-black = 92.5 IRE

GAINV = 0 output subcarrier of V contribution = 0 GAINV = 165 (A5H) output subcarrier of V contribution = nominal

white-to-black = 100 IRE

(1)

(2)

GAINV = 0 output subcarrier of V contribution = 0 GAINV = 175 (AFH) output subcarrier of V contribution = nominal

nominal GAINV for

value = −129 (17FH)

SECAM encoding

Notes

1. GAINV = −1.55 × nominal to +1.55 × nominal.

2. GAINV = −1.46 × nominal to +1.46 × nominal.

Table 14 Subaddress 5D

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BLCKL variable black level; input

representation accordance with

“CCIR 601”

white-to-sync = 140 IRE

BLCKL = 0 output black level = 24 IRE BLCKL = 63 (3FH) output black level = 49 IRE

white-to-sync = 143 IRE

(1)

(2)

BLCKL = 0 output black level = 24 IRE BLCKL = 63 (3FH) output black level = 50 IRE

Notes

1. Output black level/IRE = BLCKL × 25/63 + 24; recommended value: BLCKL = 60 (3CH) normal.

2. Output black level/IRE = BLCKL × 26/63 + 24; recommended value: BLCKL = 45 (2DH) normal.

1996 Oct 02 20

Page 21

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 15 Subaddress 5E

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BLNNL variable blanking level white-to-sync = 140 IRE

BLNNL = 0 output blanking level = 17 IRE BLNNL = 63 (3FH) output blanking level = 42 IRE

white-to-sync = 143 IRE

BLNNL = 0 output blanking level = 17 IRE BLNNL = 63 (3FH) output blanking level = 43 IRE

DECTYP RTCI logic 0 real time control input from SAA7151B

logic 1 real time control input from SAA7111

Notes

1. Output black level/IRE = BLNNL × 25/63 + 17; recommended value: BLNNL = 58 (3AH) normal.

2. Output black level/IRE = BLNNL × 26/63 + 17; recommended value: BLNNL = 63 (3FH) normal.

(1)

(2)

Table 16 Subaddress 5F

DATA BYTE DESCRIPTION

BLNVB variable blanking level during vertical blanking interval is typically identical to value of BLNNL CCRS select cross colour reduction ﬁlter in luminance; see Table 17

Table 17 Logic levels and function of CCRS

CCRS1 CCRS0 FUNCTION

0 0 no cross colour reduction; for overall transfer characteristic of luminance see Fig.7 0 1 cross colour reduction #1 active; for overall transfer characteristic see Fig.7 1 0 cross colour reduction #2 active; for overall transfer characteristic see Fig.7 1 1 cross colour reduction #3 active; for overall transfer characteristic see Fig.7

1996 Oct 02 21

Page 22

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 18 Subaddress 61:

DATA BYTE LOGIC LEVEL DESCRIPTION

FISE 0 864 total pixel clocks per line; default after reset

1 858 total pixel clocks per line

PAL 0 NTSC encoding (non-alternating V component)

1 PAL encoding (alternating V component); default after reset

SCBW 0 enlarged bandwidth for chrominance encoding (for overall transfer characteristic of

chrominance in baseband representation see Figs 5 and 6); wide clipping for SECAM

1 standard bandwidth for chrominance encoding (for overall transfer characteristic of

chrominance in baseband representation see Figs 5 and 6); default after reset

SECAM 0 no SECAM encoding; default after reset

1 SECAM encoding activated

YGS 0 luminance gain for white − black 100 IRE; default after reset

1 luminance gain for white − black 92.5 IRE including 7.5 IRE set-up of black

INPI 0 PAL switch phase is nominal; default after reset

1 PAL switch phase is inverted compared to nominal

DOWNA 0 DACs for CVBS, Y and C in normal operational mode; default after reset

1 DACs for CVBS, Y and C forced to lowest output voltage

DOWNB 0 DACs for R, G and B in normal operational mode; default after reset

1 DACs for R, G and B forced to lowest output voltage

1996 Oct 02 22

Page 23

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 19 Subaddress 62A

DATA BYTE LOGIC LEVEL DESCRIPTION

RTCE 0 no real time control of generated subcarrier frequency

1 real time control of generated subcarrier frequency through SAA7151B or SAA711 1

(timing see Fig.18)

Table 20 Subaddress 62B

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BSTA amplitude of colour burst;

input representation in accordance with

“CCIR 601”

ﬁxed burst amplitude with SECAM encoding

white-to-black = 92.5 IRE; burst = 40 IRE; NTSC encoding

BSTA = 0 to 1.25 × nominal

white-to-black = 92.5 IRE; burst = 40 IRE; PALencoding

BSTA = 0 to 1.76 × nominal

white-to-black = 100 IRE; burst = 43 IRE; NTSC encoding

BSTA = 0 to 1.20 × nominal

white-to-black = 100 IRE; burst = 43 IRE; PALencoding

BSTA = 0 to 1.67 × nominal

(1)

(2)

(3)

(4)

Notes

1. Recommended value: BSTA = 102 (66H).

2. Recommended value: BSTA = 72 (48H).

3. Recommended value: BSTA = 106 (6AH).

4. Recommended value: BSTA = 75 (4BH).

Table 21 Subaddress 63 to 66 (four bytes to program subcarrier frequency)

DATA BYTE DESCRIPTION CONDITIONS REMARKS

FSC0 to FSC3 f

= subcarrier frequency

fsc

(in multiples of line frequency); f

= clock frequency (in

llc

FSC round

see note 1



fsc



------- f



llc

FSC3 = most signiﬁcant byte FSC0 = least signiﬁcant byte

multiples of line frequency)

Note

1. Examples: a) NTSC-M: f b) PAL-B/G: f c) SECAM: f

= 227.5, f

fsc

= 283.7516, f

fsc

= 274.304, f

fsc

= 1716 → FSC = 569408543 (21F07C1FH).

llc

= 1728 → FSC = 705268427 (2A098ACBH).

llc

= 1728 → FSC = 681786290 (28A33BB2H).

llc

1996 Oct 02 23

Page 24

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 22 Subaddress 67 to 6A

DATA BYTE

L21O0 ﬁrst byte of captioning data, odd ﬁeld L21O1 second byte of captioning data, odd ﬁeld L21E0 ﬁrst byte of extended data, even ﬁeld L21E1 second byte of extended data, even ﬁeld

Note

1. LSBs of the respective bytes are encoded immediately after run-in and framing code, the MSBs of the respective bytes have to carry the parity bit, in accordance with the deﬁnition of Line 21 encoding format.

Table 23 Subaddress 6B

DATA BYTE LOGIC LEVEL DESCRIPTION

PRCV2 0 polarity of RCV2 as output is active HIGH, rising edge is taken when input,

ORCV2 0 pin RCV2 is switched to input; default after reset

CBLF 0 if ORCV2 = HIGH, pin RCV2 provides an HREF signal (Horizontal Reference pulse

(1)

DESCRIPTION

respectively; default after reset

1 polarity of RCV2 as output is active LOW, falling edge is taken when input,

respectively

1 pin RCV2 is switched to output

that is deﬁned by RCV2S and RCV2E, also during vertical blanking Interval); default after reset

if ORCV2 = LOW and bit SYMP = LOW, signal input to RCV2 is used for horizontal synchronization only (if TRCV2 = 1); default after reset

1 if ORCV2 = HIGH, pin RCV2 provides a ‘Composite-Blanking-Not’ signal, this is a

reference pulse that is deﬁned by RCV2S and RCV2E, excluding Vertical Blanking Interval, which is deﬁned by FAL and LAL

if ORCV2 = LOW and bit SYMP = LOW, signal input to RCV2 is used for horizontal synchronization (if TRCV2 = 1) and as an internal blanking signal

PRCV1 0 polarity of RCV1 as output is active HIGH, rising edge is taken when input; default

after reset

1 polarity of RCV1 as output is active LOW, falling edge is taken when input

ORCV1 0 pin RCV1 is switched to input; default after reset

1 pin RCV1 is switched to output

TRCV2 0 horizontal synchronization is taken from RCV1 port (at bit SYMP = LOW) or from

decoded frame sync of

1 horizontal synchronization is taken from RCV2 port (at bit SYMP = LOW)

SRCV1 − deﬁnes signal type on pin RCV1; see Table 24

CCIR 656

input (at bit SYMP = HIGH); default after reset

1996 Oct 02 24

Page 25

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 24 Logic levels and function of SRCV1

DATA BYTE

SRCV11 SRCV10

0 0 VS VS vertical sync each ﬁeld; default after reset 0 1 FS FS frame sync (odd/even) 1 0 FSEQ FSEQ ﬁeld sequence, vertical sync every fourth ﬁeld

1 1 not applicable not applicable −

Table 25 Subaddress 6C and 6D

DATA BYTE DESCRIPTION

HTRIG sets the horizontal trigger phase related to signal on RCV1 or RCV2 input

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed increasing HTRIG decreases delays of all internally generated timing signals reference mark: analog output horizontal sync (leading slope) coincides with active edge of RCV

used for triggering at HTRIG = tbf (tbf)

Table 26 Subaddress 6D

DATA BYTE LOGIC LEVEL DESCRIPTION

VTRIG − sets the vertical trigger phase related to signal on RCV1 input

AS OUTPUT AS INPUT FUNCTION

(PAL = 0), eighth ﬁeld (PAL = 1) or twelfth ﬁeld (SECAM = 1)

increasing VTRIG decreases delays of all internally generated timing signals, measured in half lines

variation range of VTRIG=0to31(1FH)

Table 27 Subaddress 6E

DATA BYTE LOGIC LEVEL DESCRIPTION

SBLBN 0 vertical blanking is deﬁned by programming of FAL and LAL; default after reset

1 vertical blanking is forced in accordance with PHRES − selects the phase reset mode of the colour subcarrier generator; see Table 28 FLC − ﬁeld length control; see Table 29

Table 28 Logic levels and function of PHRES

DATA BYTE

FUNCTION

PHRES1 PHRES0

0 0 no reset or reset via RTCI from SAA7111 if bit RTCE = 1; default after reset 0 1 reset every two lines or SECAM-speciﬁc if bit SECAM = 1 1 0 reset every eight ﬁelds 1 1 reset every four ﬁelds

1996 Oct 02 25

“CCIR 624”

(50 Hz) or RS170A (60 Hz)

Page 26

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 29 Logic levels and function of FLC

DATA BYTE

FLC1 FLC0

0 0 interlaced 312.5 lines/ﬁeld at 50 Hz, 262.5 lines/ﬁeld at 60 Hz; default after reset 0 1 non-interlaced 312 lines/ﬁeld at 50 Hz, 262 lines/ﬁeld at 60 Hz 1 0 non-interlaced 313 lines/ﬁeld at 50 Hz, 263 lines/ﬁeld at 60 Hz 1 1 non-interlaced 313 lines/ﬁeld at 50 Hz, 263 lines/ﬁeld at 60 Hz

Table 30 Subaddress 6F

DATA BYTE LOGIC LEVEL DESCRIPTION

CCEN − enables individual Line 21 encoding; see Table31 TTXEN 0 disables teletext insertion

1 enables teletext insertion SCCLN − selects the actual line, where closed caption or extended data are encoded

line = (SCCLN + 4) for M-systems line = (SCCLN + 1) for other systems

Table 31 Logic levels and function of CCEN

DATA BYTE

CCEN1 CCEN0

0 0 Line 21 encoding off 0 1 enables encoding in ﬁeld 1 (odd) 1 0 enables encoding in ﬁeld 2 (even) 1 1 enables encoding in both ﬁelds

FUNCTION

Table 32 Subaddress 70 to 72

DATA BYTE DESCRIPTION

RCV2S start of output signal on RCV2 pin

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed ﬁrst active pixel at analog outputs (corresponding input pixel coinciding with RCV2) at

RCV2S = tbfH (tbfH)

RCV2E end of output signal on RCV2 pin

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed last active pixel at analog outputs (corresponding input pixel coinciding with RCV2) at

RCV2E = tbfH (tbfH)

1996 Oct 02 26

Page 27

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Table 33 Subaddress 73 to 75

DATA BYTE DESCRIPTION

TTXHS start of signal on pin TTXRQ (standard for 50 Hz ﬁeld rate = tbf)

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed

TTXHE end of signal on pin TTXRQ (standard for 50 Hz ﬁeld rate = TTXHS + 1402)

values above 1715 (FISE = 1) or 1727 (FISE = 0) are not allowed

Table 34 Subaddress 76, 77 and 7C

DATA BYTE DESCRIPTION

TTXOVS ﬁrst line of occurrence of signal on pin TTXRQ in odd ﬁeld = TTXOVS + 1 (50 Hz ﬁeld rate) TTXOVE last line of occurrence of signal on pin TTXRQ in odd ﬁeld = TTXOVE (50 Hz ﬁeld rate)

Table 35 Subaddress 78, 79 and 7C

DATA BYTE DESCRIPTION

TTXEVS ﬁrst line of occurrence of signal on pin TTXRQ in even ﬁeld = TTXEVS + 1 (50 Hz ﬁeld rate) TTXEVE last line of occurrence of signal on pin TTXRQ in even ﬁeld = TTXEVE (50 Hz ﬁeld rate)

Table 36 Subaddress 7A to 7C

DATA BYTE DESCRIPTION

FAL ﬁrst active line = FAL + 4 for M-systems, = FAL + 1 for other systems, measured in lines

FAL = 0 coincides with the ﬁrst ﬁeld synchronization pulse

LAL last active line = LAL + 3 for M-systems, = LAL for other system, measured in lines

LAL = 0 coincides with the ﬁrst ﬁeld synchronization pulse

Table 37 Subaddress 7A to 7C

DATA BYTE DESCRIPTION

LINE individual lines in both ﬁelds (PAL counting) can be disabled for insertion of teletext by the respective

bits, disabled line = LINExx (50 Hz ﬁeld rate)

this bit mask is effective only, if the lines are enabled by TTXOVS/TTXOVE and TTXEVS/TTXEVE

UBADDRESSES

In subaddresses 5B, 5C, 5D, 5E and 62 all IRE values are rounded up.

1996 Oct 02 27

Page 28

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Slave Transmitter Table 38 Slave transmitter (slave address 89H or 8DH)

Status byte − VER2 VER1 VER0 CCRDO CCRDE 0 FSEQ O_E

Table 39 No subaddress

DATA BYTE LOGIC LEVEL DESCRIPTION

VER − Version identiﬁcation of the device. It will be changed with all versions of the IC that

CCRDO 1 Closed caption bytes of the odd ﬁeld have been encoded.

CCRDE 1 Closed caption bytes of the even ﬁeld have been encoded.

FSEQ 1 During ﬁrst ﬁeld of a sequence (repetition rate: NTSC = 4 ﬁelds, PAL = 8 ﬁelds,

O_E 1 During even ﬁeld.

SUBADDRESS

D7 D6 D5 D4 D3 D2 D1 D0

have different programming models. Current Version is 001 binary.

0 The bit is reset after information has been written to the subaddresses 67 and 68. It

is set immediately after the data has been encoded.

0 The bit is reset after information has been written to the subaddresses 69 and 6A.

It is set immediately after the data has been encoded.

SECAM = 12 ﬁelds.

0 Not ﬁrst ﬁeld of a sequence.

0 During odd ﬁeld.

DATA BYTE

1996 Oct 02 28

Page 29

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

(dB)

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

(1) SCBW = 1. (2) SCBW = 0.

(1) (2)

Fig.5 Chrominance transfer characteristic 1.

MBE737

6 8 10 12 14

f (MHz)

handbook, halfpage

(1) SCBW = 1. (2) SCBW = 0.

(dB)

−2

−4

−6

0 0.4 0.8 1.6

Fig.6 Chrominance transfer characteristic 2.

1996 Oct 02 29

MBE735

(1)

(2)

1.2

f (MHz)

Page 30

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

(dB)

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

(1) CCRS1 = 0; CCRS0 = 1. (2) CCRS1 = 1; CCRS0 = 0. (3) CCRS1 = 1; CCRS0 = 1. (4) CCRS1 = 0; CCRS0 = 0.

MGD672

(4)

(3)

(2)

(1)

8101214

f (MHz)

(1) CCRS1 = 0; CCRS0 = 0.

Fig.7 Luminance transfer characteristic 1.

handbook, halfpage

(dB)

−1

−2

−3

−4

−5

Fig.8 Luminance transfer characteristic 2.

MBE736

(1)

f (MHz)

1996 Oct 02 30

Page 31

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

(dB)

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

6 8 10 12 14

Fig.9 Luminance transfer characteristic in RGB.

MGB708

f (MHz)

handbook, full pagewidth

(dB)

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

6 8 10 12 14

Fig.10 Colour difference transfer characteristic in RGB.

MGB706

f (MHz)

1996 Oct 02 31

Page 32

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

v

(dB)

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB705

0.6 f (MHz)

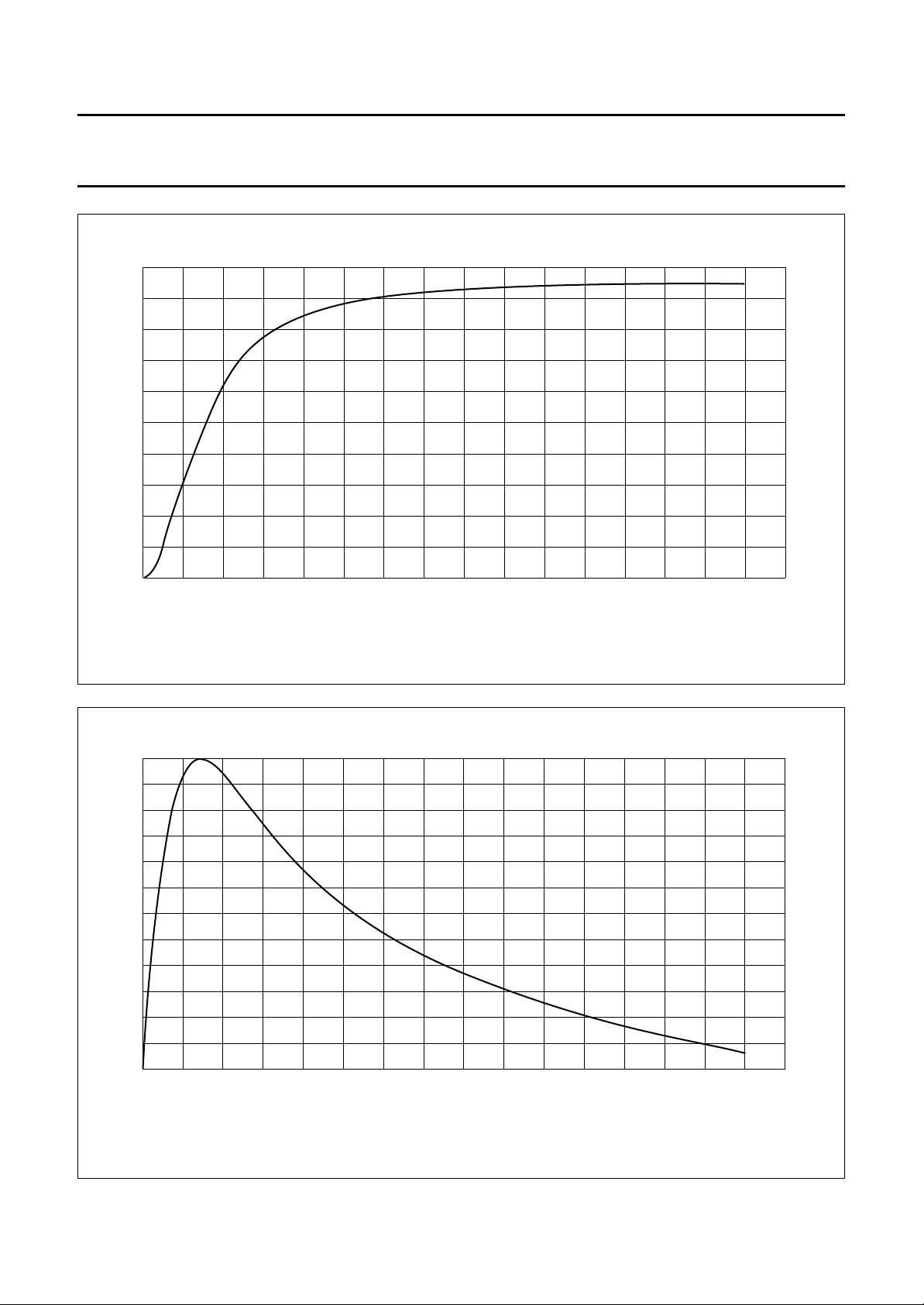

Fig.11 Gain of SECAM pre-emphasis.

handbook, full pagewidth

ϕ

(deg)

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB704

0.6

f (MHz)

Fig.12 Phase of SECAM pre-emphasis.

1996 Oct 02 32

Page 33

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

v

(dB)

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB703

0.6 f (MHz)

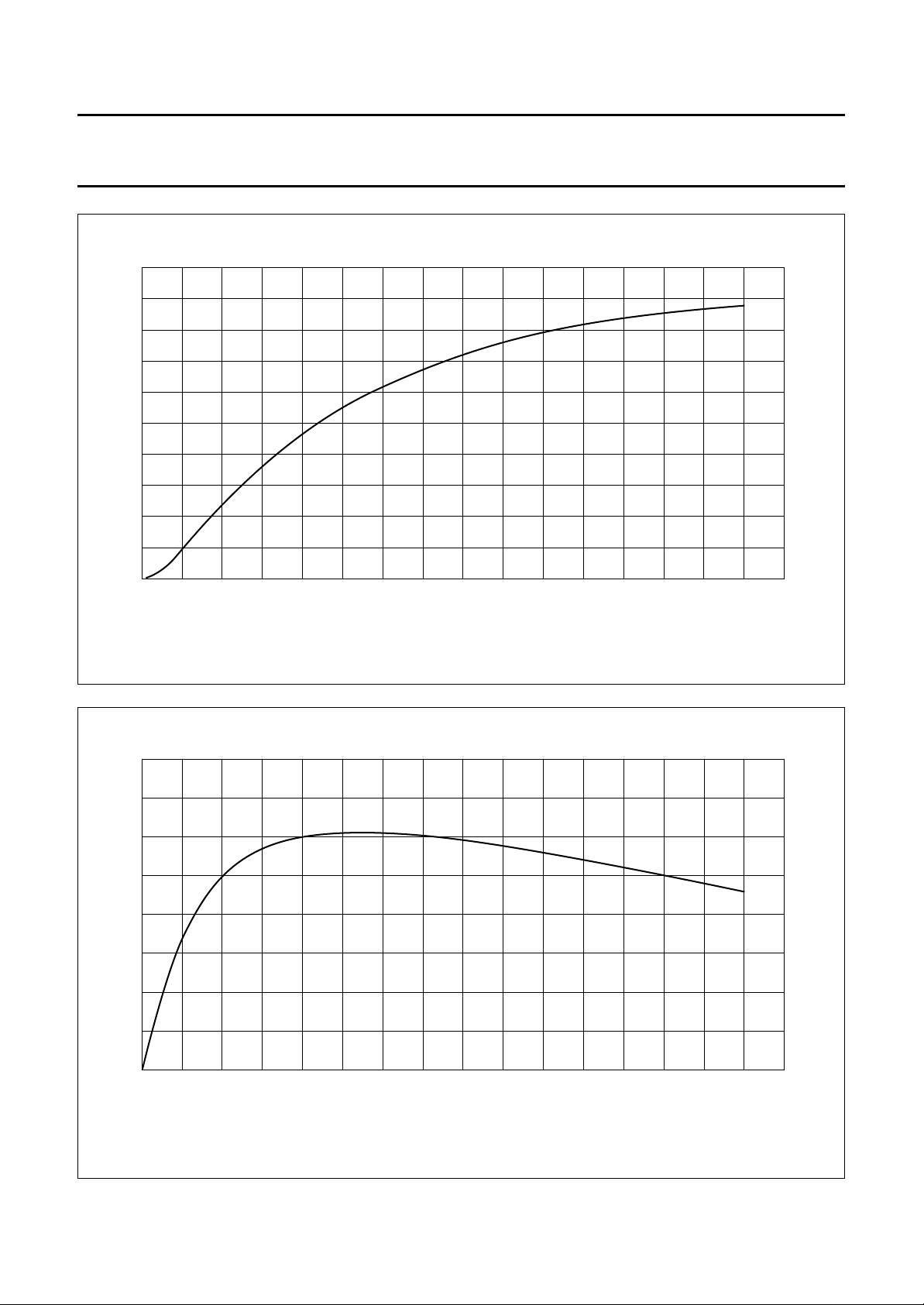

Fig.13 Gain of SECAM anti-Cloche.

handbook, full pagewidth

ϕ

(deg)

0 0.2 0.4 1.4 1.60.8 1 1.2

MGB702

0.6 f (MHz)

Fig.14 Phase of SECAM anti-Cloche.

1996 Oct 02 33

Page 34

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

CHARACTERISTICS

= 3.0 to 3.6 V; V

DDD(3)

= 4.75 to 5.25 V; T

DDD(5)

=0to+70°C; unless otherwise speciﬁed.

amb

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Supply

DDA(3)

DDD(3)

DDD(5)

DDA

DDD(3)

DDD(5)

analog supply voltage (3.3 V) 3.1 3.5 V digital supply voltage (3.3 V) 3.0 3.6 V digital supply voltage (5 V) 4.75 5.25 V analog supply current note 1 − 110 mA digital supply current (3.3 V) note 1 − 80 mA digital supply current (5 V) note 1 − 10 mA

Inputs

LOW level input voltage

−0.5 +0.8 V

(except SDA, SCL, AP, SP and XTALI)

HIGH level input voltage

2.0 V

DDD(5)

+ 0.5 V

(except LLC, SDA, SCL, AP, SP and XTALI) HIGH level input voltage (LLC) 2.4 V

input leakage current − 1 µA input capacitance clocks − 10 pF

DDD(5)

+ 0.5 V

data − 8pF I/Os at high impedance − 8pF

Outputs

LOW level output voltage (except SDA and XTALO)

HIGH level output voltage (except LLC, SDA, and XTALO)

HIGH level output voltage (LLC) note 2 2.6 V

C-bus; SDA and SCL

LOW level input voltage −0.5 +1.5 V HIGH level input voltage 3.0 V input current Vi= LOW or HIGH −10 +10 µA LOW level output voltage (SDA) IOL=3mA − 0.4 V output current during acknowledge 3 − mA

Clock timing (LLC)

LLC

cycle time note 3 34 41 ns δ duty factor t t

rise time note 3 − 5ns

fall time note 3 − 6ns

Input timing

SU;DAT

input data set-up time (any other except

CDIR, SCL, SDA, RESET, AP and SP) t

HD;DAT

input data hold time (any other except

CDIR, SCL, SDA, RESET, AP and SP)

HIGH/TLLC

note 2 0 0.6 V

note 2 2.4 V

DDD(5)

+ 0.5 V

note 4 40 60 %

6 − ns

3 − ns

1996 Oct 02 34

Page 35

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Crystal oscillator

∆f/f

CRYSTAL SPECIFICATION T

amb

Data and reference signal output timing

CHROMA, Y, CVBS and RGB outputs

o(p-p)

int

B output signal bandwidth of DACs −3dB 10 − MHz ILE LF integral linearity error of DACs −±2 LSB DLE LF differential linearity error of DACs −±1 LSB

nominal frequency (usually 27 MHz) 3rd harmonic − 30 MHz

permissible deviation of nominal frequency note 5 −50 +50 10

−6

operating ambient temperature 0 70 °C

load capacitance 8 − pF

series resistance − 80 Ω

motional capacitance (typical) 1.5 −20% 1.5 +20% fF

parallel capacitance (typical) 3.5 −20% 3.5 +20% pF

output load capacitance 7.5 40 pF

output hold time 4 − ns

output delay time − 25 ns

output signal voltage (peak-to-peak value) note 6 1.35 1.45 V

internal serial resistance 1 3 Ω

output load resistance 75 300 Ω

Notes

1. At maximum supply voltage with highly active input signals.

2. The levels have to be measured with load circuits of 1.2 kΩ to 3.0 V (standard TTL load) and CL= 25 pF.

3. The data is for both input and output direction.

4. With LLC in input mode. In output mode, with a crystal connected to XTALO/XTALI duty factor is typically 50%.

5. If an internal oscillator is used, crystal deviation of nominal frequency is directly proportional to the deviation of subcarrier frequency and line/field frequency.

6. For full digital range, without load, V

= 3.3 V. The typical voltage swing is 1.4 V, the typical minimum output

DDA

voltage (digital zero at DAC) is 0.2 V.

1996 Oct 02 35

Page 36

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

LLC

not valid

2.6 V

1.5 V

0.6 V

2.4 V

1.5 V

0.8 V

valid

MBE742

2.0 V

0.8 V

2.4 V

0.6 V

handbook, full pagewidth

LLC clock output

LLC clock input

input data

output data

SU; DAT

HD; DAT

valid

HD; DAT

valid

HIGH

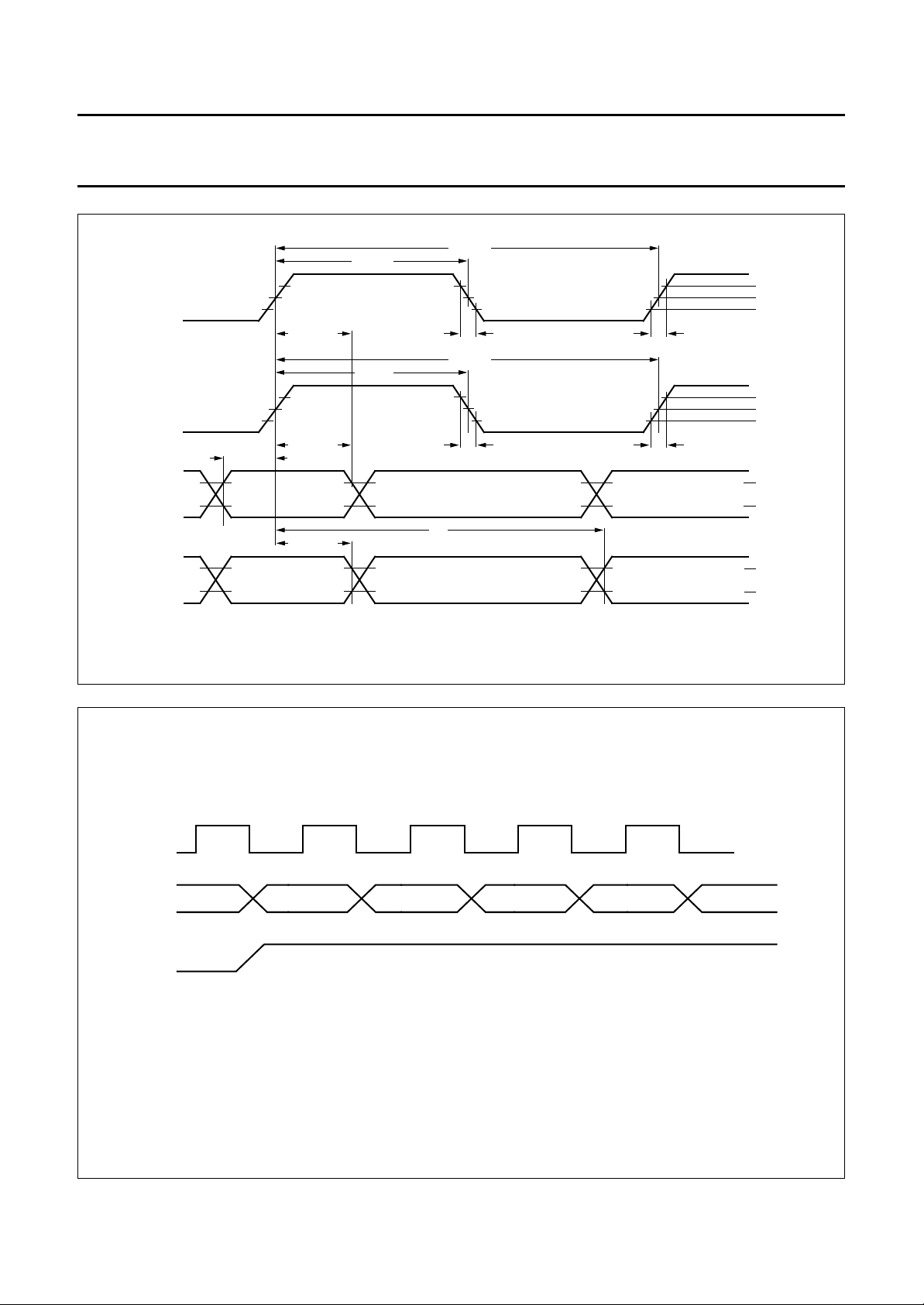

Fig.15 Clock data timing.

handbook, full pagewidth

LLC

MP(n)

RCV2

The data demultiplexing phase is coupled to the internal horizontal phase. The phase of the RCV2 signal is programmed to tbf (tbf for 50 Hz) in this example in output mode (RCV2S).

Cb(0) Y(0) Cr(0) Y(1) Cb(2)

MGB699

Fig.16 Functional timing.

1996 Oct 02 36

Page 37

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

handbook, full pagewidth

LLC

CREF

MP(n) Y(0)

Cb(0)

RCV2

The data demultiplexing phase is coupled to the internal horizontal phase. The CREF signal applies only for the 16 line digital TV format, because these signals are only valid in 13.5 MHz. The phase of the RCV2 signal is programmed to tbf (tbf for 50 Hz) in this example in output mode (RCV2S).

Y(1)

Cr(0)

Y(2)

Cb(2)

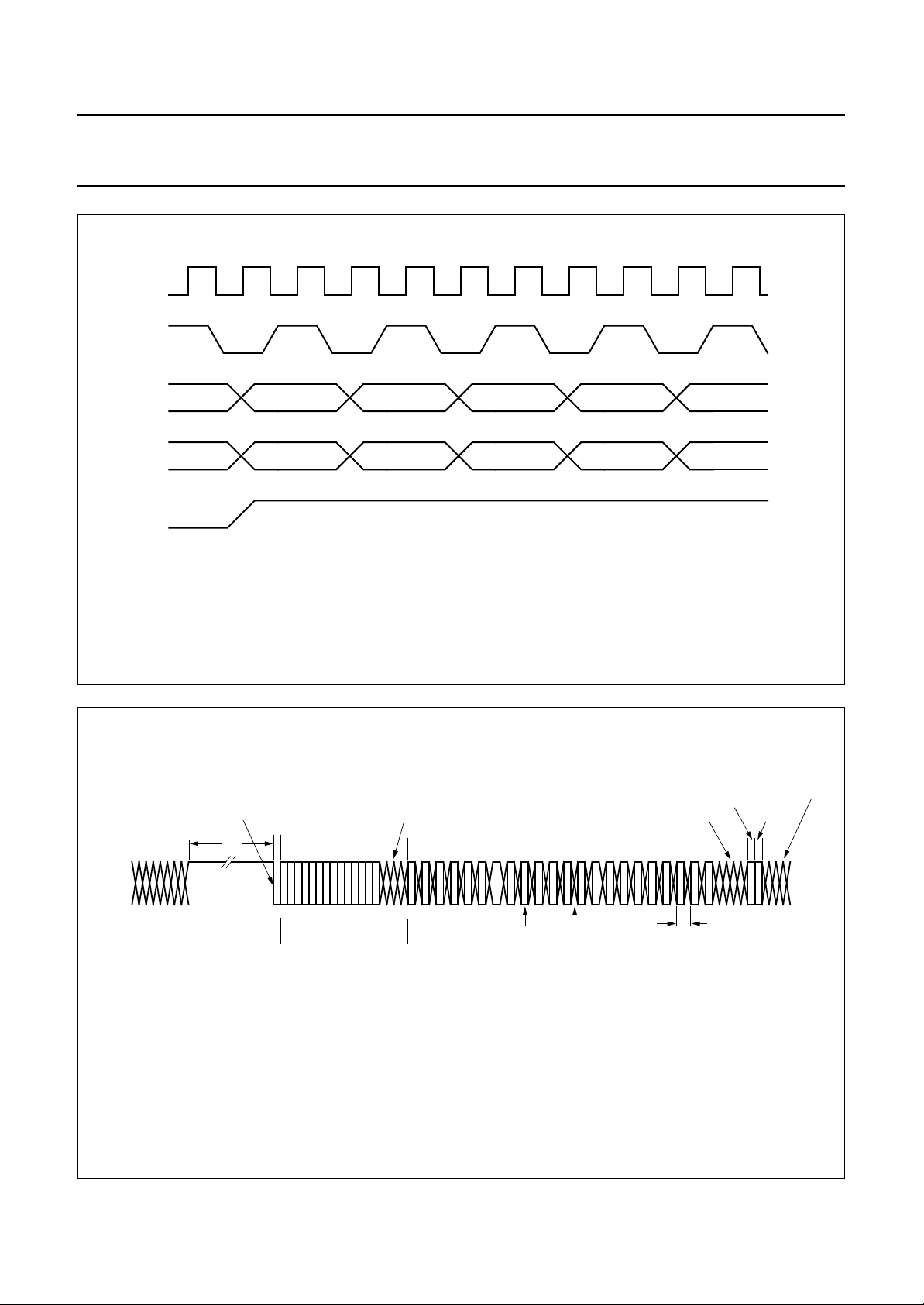

Fig.17 Digital TV timing.

handbook, full pagewidth

H/L transition

count start

128

LOW

HPLL

increment

4 bits

reserved

0 021

FSCPLL increment (4)

Y(3)

Cr(2)

5 bits

reserved

Y(4)

Cb(4)DP(n)

MBE739

sequence

bit (1)

reserved (2)

reset

bit (3)

RTCI

time slot:

(1) Sequence bit:

PAL = logic 0 then (R − Y) line normal; PAL = logic 1 then (R − Y) line inverted.

NTSC = logic 0 then no change. (2) Reserved bits: 235 with 50 Hz systems; 232 with 60 Hz systems. (3) Only from SAA7111 decoder. (4) SAAA7111 provides (22 : 0) bits, resulting in 3 reserved bits before sequence bit.

not used in

SAA7182A/83A

14 19

Fig.18 RTCI timing.

1996 Oct 02 37

valid

sample

invalid

sample

8/LLC

6768

MGD673

Page 38

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

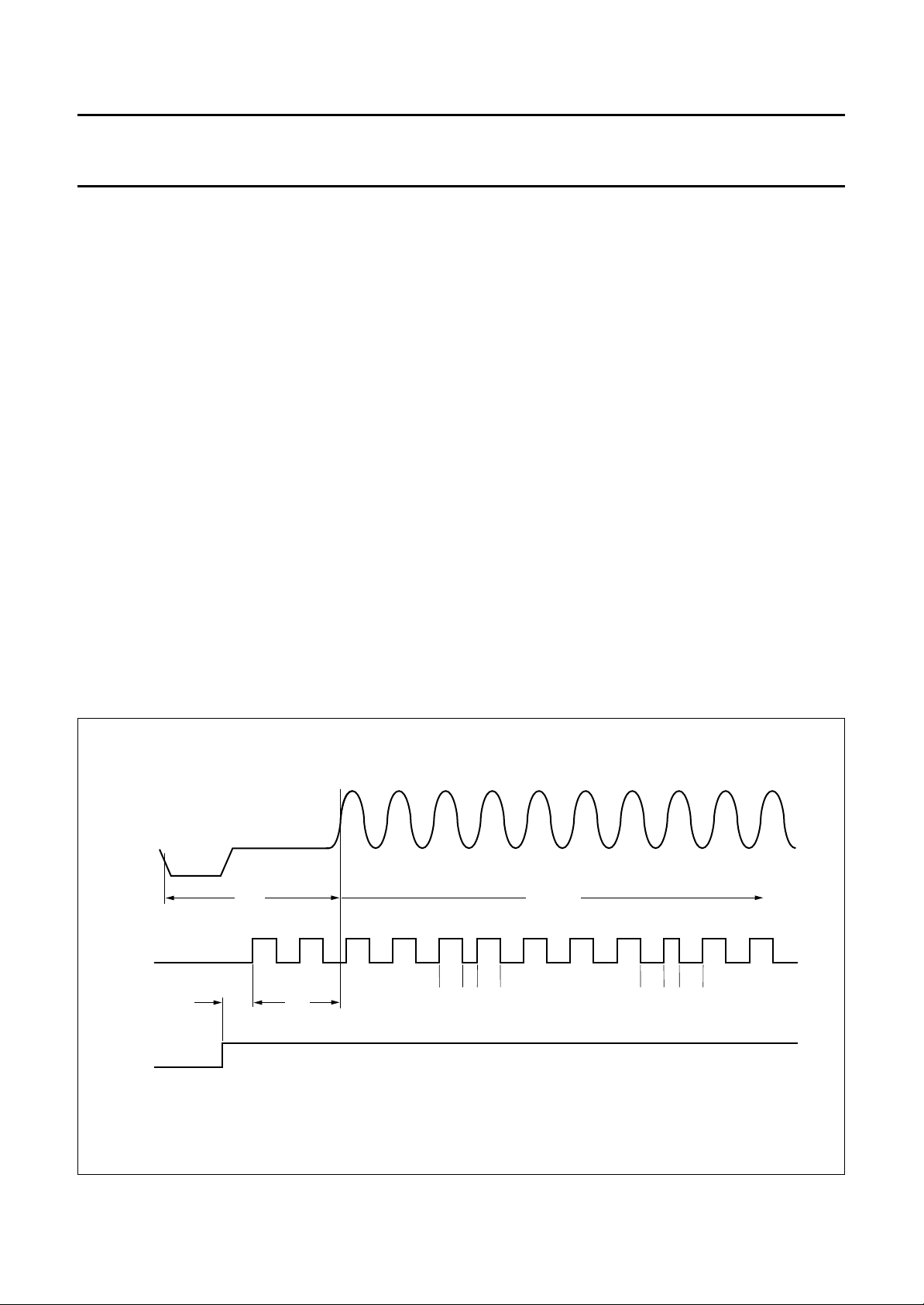

Teletext timing

Time tFD is the time needed to interpolate input data TTX and inserting it into the CVBS and Y output signal, such that it appears at t

= 10.2 µs after the leading edge of

TTX

the horizontal synchronization pulse. Time tPD is the pipeline delay time introduced by the

source that is gated by TTXRQ in order to deliver TTX data.

Since the pulse representing the TTXRQ signal is fully programmable in duration and rising/falling edges (TTXHS and TTXHE), the TTX data is always inserted at the correct position of 10.2 µs after the leading edge of outgoing horizontal synchronization pulse.

Time t

is the internally used insertion window for

TTXWin

TTX data; it has a constant length that allows insertion of 360 teletext bits (maximum) at a text data rate of

6.9375 Mbits/s. The insertion window is not opened if the control bit TTXEN is zero.

ELETEXT PROTOCOL

T The frequency relationship between TTX bit clock and the

system clock LLC for 50 Hz field rate is given by the relationship of line frequency multiples, which means 1728/444.

Thus 37 TTX bits correspond to 144 LLC clocks, each bit has a duration of nearly 4 LLC clocks. The chip-internal sequencer and variable phase interpolation filter minimizes the phase jitter, and thus generates a bandwidth limited signal, which is digital-to-analog converted for the CVBS and Y outputs.

At the TTX input, bit duration scheme repeats after 37 TTX bits or 144 LLC clocks. The protocol demands that TXX bits 10, 19, 28 and 37 are carried by three LLC samples, all others by four LLC samples. After a cycle of 37 TTX bits, the next bits with three LLC samples are bits 47, 56, 65 and 74; this scheme holds for all succeeding cycles of 37 TTX bits, until 360 TTX bits (including 16 run-in bits) are completed. For every additional line with TTX data, the bit duration scheme starts in the same way.

Using appropriate programming, all suitable lines of the odd field (TTXOVS and TTXOVE) plus all suitable lines of the even field (TTXEVS and TTXEVE) can be used for teletext insertion.

handbook, full pagewidth

CVBS/Y

TTX

textbit #: 1 2 3 4 5 6 7 8 9 10 11

TTX

434 4341/LLC 1/LLC

TTXRQ

Fig.19 Teletext timing diagram.

1996 Oct 02 38

TTXWin

12 13 14 15 16 17 18 19 20 21 22 23 24

MGB701

Page 39

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

APPLICATION INFORMATION

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

DDA1

DDA2

DDA3

DDA4

DDA5

DDA6

DDA7

(2)

CVBS

1.23 V (p-p)

SSA

75 Ω

8 Ω

(1)

2 Ω

(2)

1.0 V (p-p)

SSA

75 Ω

13 Ω

(1)

2 Ω

27 Ω

(1)

2 Ω

GREEN

(2)(4)

0.7 V (p-p)

GREEN

75 Ω

SSA

(2)(4)

RED

0.7 V (p-p)

SSA

75 Ω

27 Ω

(1)

2 Ω

63 60 57 54

RED

70 68 64

27 Ω

(1)

2 Ω

BLUE

(2)(4)

BLUE

0.7 V (p-p)

75 Ω

SSA

(2)

MGD674

0.62 V (p-p)

CHROMA

SSA

75 Ω

13 Ω

SSA3

(1)

2 Ω

SSA1

52, 67, 76

SELI

handbook, full pagewidth

DDA8

DDA9

+3.3 V analog

SSD

3.3 V oscillator

SSD

10

X1

µH

100

(3)

27.0 MHz

1

DDD6

SSD6

XTALOXTALI

3rd harmonic

44 45 42 46 74 72

digital

inputs and

outputs

DDD2

100 nF

SSD

100 nF

1996 Oct 02 39

SAA7182A

SAA7183A

DDD4

DDD7

100 nF

SSDVSSDVSSD

DDD9

DDD1

+5 V digital

100 nF

SSDVSSDVSSDVSSD

DDD3

DDD5

100 nF

SSD5

SSD9

V to

to V

and 

SSD1

79, 81

SSD7

+3.3 V digital

3, 15, 24, 30, 39, 51,

DDD8

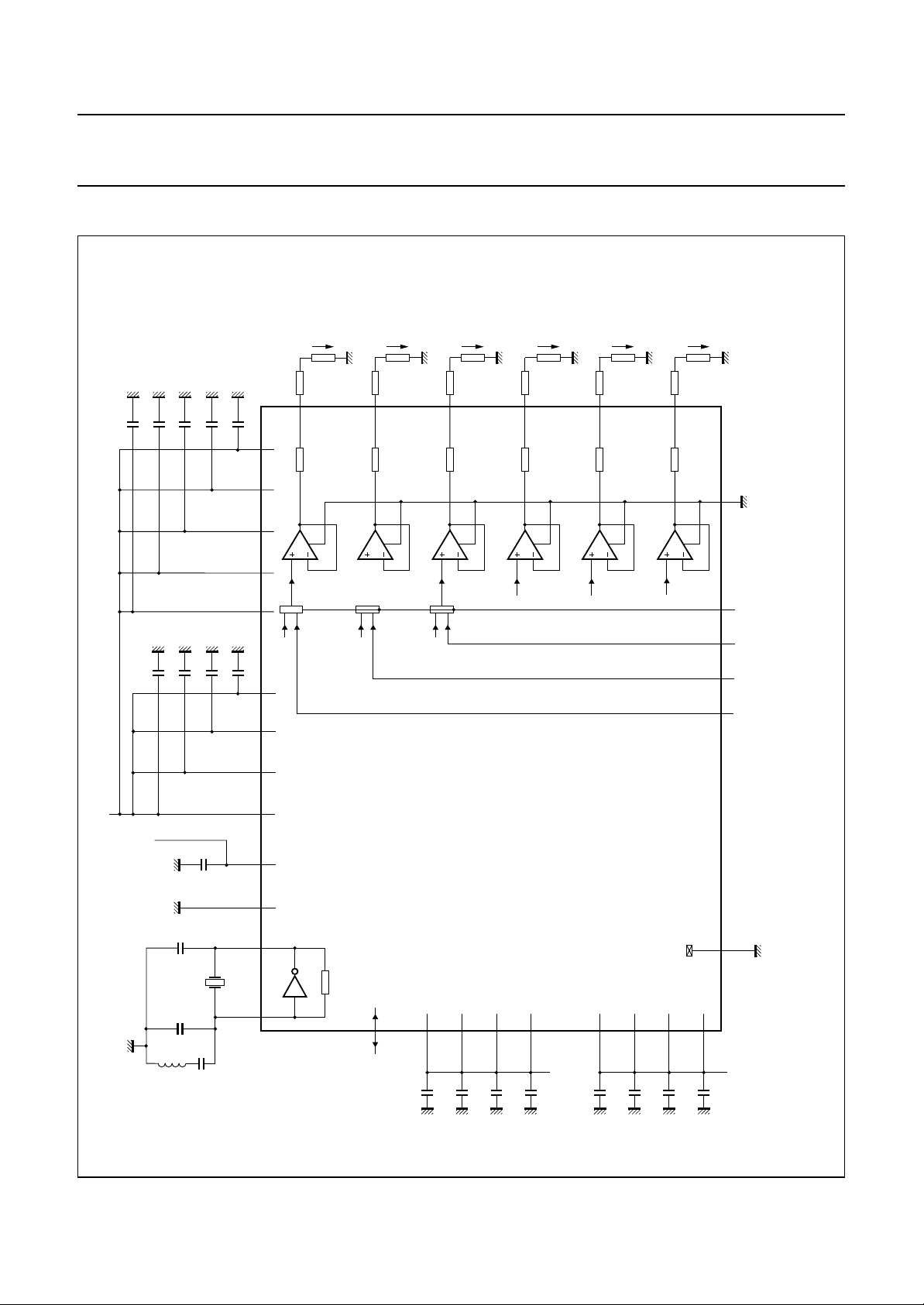

Fig.20 Application environment of the EURO-DENC2; PLCC84.

colour bar. (3) Philips 12NC ordering code: 9922 520 30003. (4) Depending on GY/GCD value.

100

⁄

100

(1) Typical value. (2) For

Page 40

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

SSA

100 nF

DDA1

DDA2

DDA3

DDA4

DDA5

DDA6

DDA7

(2)

CVBS

1.23 V (p-p)

SSA

75 Ω

8 Ω



(1)

2 Ω

(2)

1.0 V (p-p)

SSA

75 Ω

13 Ω



(1)

2 Ω

27 Ω



(1)

2 Ω

GREEN

(2)(4)

0.7 V (p-p)

GREEN

75 Ω

SSA

(2)(4)

RED

0.7 V (p-p)

SSA

75 Ω

27 Ω



(1)

2 Ω

52 49 46 43

RED

58 56 53

27 Ω

(1)

2 Ω

BLUE



(2)(4)

0.7 V (p-p)

SSA

75 Ω

(2)

MGD707

0.62 V (p-p)

CHROMA

SSA

75 Ω

13 Ω



SSA3

(1)

2 Ω

SSA1

41, 55, 64



48

SELI

handbook, full pagewidth

+3.3 V analog

3.3 V

SSD

oscillator

SSD

10

µH

100

X1

27.0 MHz

1

(3)

DDA8

DDA9

DDD6

SSD6

XTALOXTALI

3rd harmonic

32 33 31 34 62 60

digital

inputs and

outputs

DDD2

100 nF

SSD

SAA7182A

SAA7183A

DDD4

DDD7

100 nF

SSDVSSDVSSD

DDD9

100 nF

DDD1

+5 V digital

100 nF

SSDVSSDVSSDVSSD

DDD3

DDD5

100 nF

V to

6, 14, 20, 29,

39, 67, 69, 74

DDD8

100 nF

SSD5

SSD9

to V

and 

SSD1

SSD7

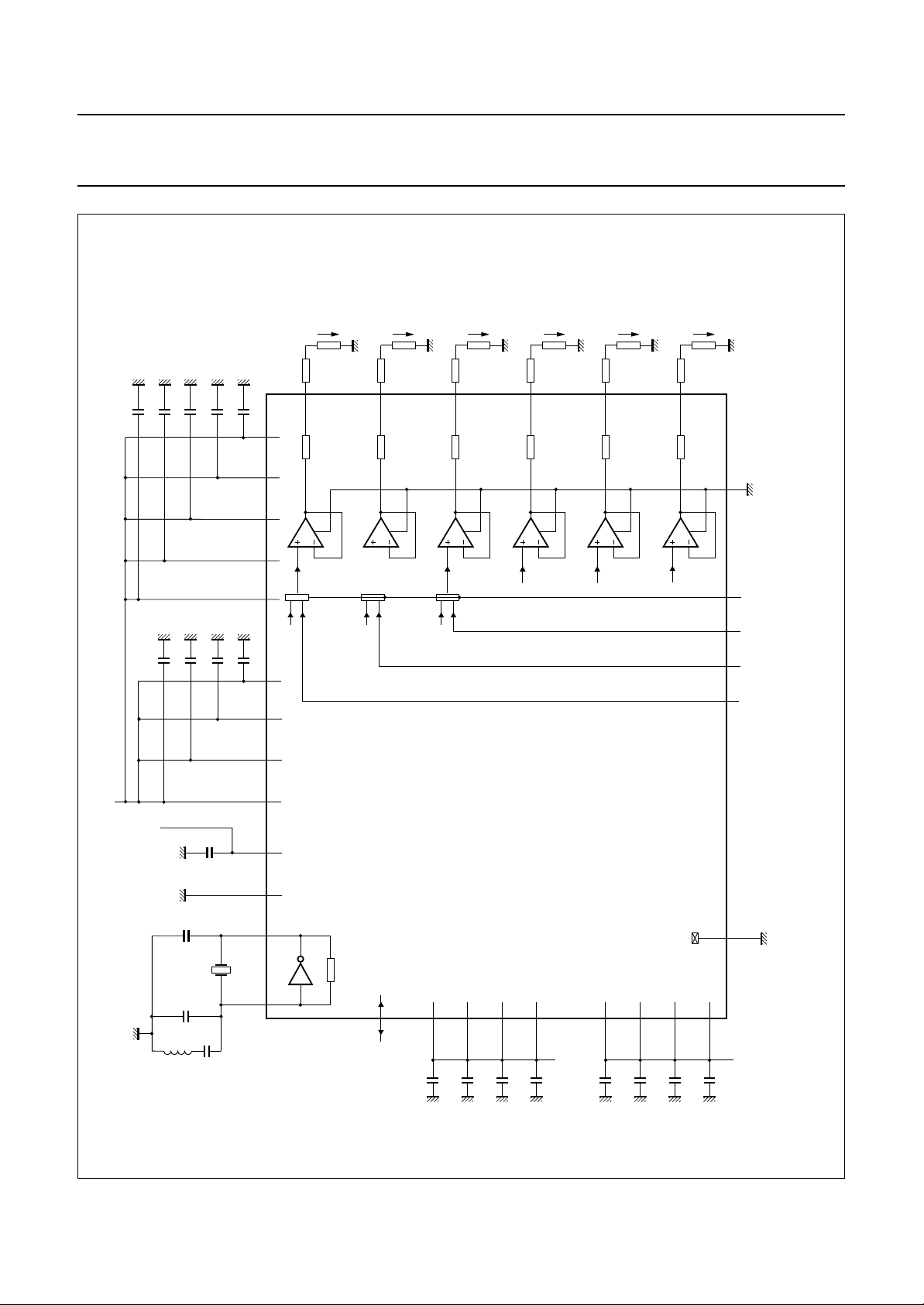

Fig.21 Application environment of the EURO-DENC2; QFP80.

colour bar. (3) Philips 12NC ordering code: 9922 520 30003. (4) Depending on GY/GCD value.

100

⁄

100

+3.3 V digital

(1) Typical value. (2) For

1996 Oct 02 40

Page 41

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

Analog output voltages

The analog output voltages are dependent on the open loop voltage of the operational amplifiers for full-scale conversion (typical value 1.4 V), the internal series resistor (typical value 2 Ω), the external series resistor and the external load impedance.

The digital output signals in front of the DACs under nominal conditions occupy different conversion ranges, as indicated in Table 40 for a

100

⁄

colour bar signal.

100

Table 40 Digital output signals conversion range

CONVERSION RANGE (peak-to-peak

CVBS, SYNC

TIP-TO-PEAK CARRIER

(digits)

Y (VBS) SYNC TIP-TO-WHITE

(digits)

1023 888 712

Values for the external series resistors result from a 75 Ω load (see Figs 20 and 21).

The analog inputs RI, GI, and BI are shifted first by an offset of 0.16 V (typical value), followed by an amplification of 1.72 (typical value). For an input voltage of 0 to 0.7 V an open loop output voltage of 0.28 to 1.48 V is achieved, resulting in V

= 0.86 V (p-p) with an internal series

resistor of 2 Ω, an external series resistor of 27 Ω at a 75 Ω load impedance.

RGB (Y)

BLACK-TO-WHITE AT GDY = GDC = −6

(digits)

1996 Oct 02 41

Page 42

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

PACKAGE OUTLINES

PLCC84: plastic leaded chip carrier; 84 leads

SOT189-2

5474

w M

pin 1 index

12 32

(A )

detail X

v M

0 5 10 mm

scale

DIMENSIONS (millimetre dimensions are derived from the original inch dimensions)

UNIT A

0.180

inches

0.165

min. max. max. max. max.

4.57

0.51

4.19

0.020

0.25

0.01

3.30

0.13

0.53

0.33

0.021

0.013

0.81

0.66

0.032

0.026

29.41

29.21

1.158

1.150

(1)

29.41

1.27

29.21

1.158

0.05

1.150

28.70

27.69

1.130

1.090

30.35

28.70

30.10

27.69

1.195

1.130

1.185

1.090

Note

1. Plastic or metal protrusions of 0.01 inches maximum per side are not included.

OUTLINE VERSION

IEC JEDEC EIAJ

REFERENCES

SOT189-2

1996 Oct 02 42

30.35

30.10

1.195

1.185

1.22

1.07

0.048

0.042

0.51

0.020

0.057

0.040

1.44

1.02

EUROPEAN

PROJECTION

(1) (1)

ywv β

0.18 0.100.18

0.007 0.0040.007

2.16

0.085

2.16

0.085

ISSUE DATE

92-11-17 95-03-11

Page 43

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

QFP80: plastic quad flat package; 80 leads (lead length 1.95 mm); body 14 x 20 x 2.8 mm

w M

64 41

pin 1 index

detail X

SOT318-2

(A )

w M

0 5 10 mm

scale

DIMENSIONS (mm are the original dimensions)

max.

3.2

0.25

0.05

2.90

2.65

0.25

UNIT A1A2A3b

0.45

0.25

0.30

0.14

(1)

(1) (1)(1)

20.1

19.9

14.1

13.9

24.2

0.8 1.95

23.6

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE

VERSION

IEC JEDEC EIAJ

REFERENCES

SOT318-2

1996 Oct 02 43

v M

LLpQZywv θ

18.2

17.6

1.0

0.6

1.4

1.2

0.20.2 0.1

EUROPEAN

PROJECTION

1.0

0.6

ISSUE DATE

1.2

0.8

92-12-15 95-02-04

Page 44

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

SOLDERING Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in our

“IC Package Databook”

Reﬂow soldering

Reflow soldering techniques are suitable for all PLCC and QFP packages.

The choice of heating method may be influenced by larger PLCC or QFP packages (44 leads, or more). If infrared or vapour phase heating is used and the large packages are not absolutely dry (less than 0.1% moisture content by weight), vaporization of the small amount of moisture in them can cause cracking of the plastic body. For more information, refer to the Drypack chapter in our

Reference Handbook”

Reflow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the printed-circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example, thermal conduction by heated belt. Dwell times vary between 50 and 300 seconds depending on heating method. Typical reflow temperatures range from 215 to 250 °C.

(order code 9398 652 90011).

“Quality

(order code 9397 750 00192).

• The package footprint must incorporate solder thieves at the downstream corners.

QFP Wave soldering is not recommended for QFP packages.

This is because of the likelihood of solder bridging due to closely-spaced leads and the possibility of incomplete solder penetration in multi-lead devices.

If wave soldering cannot be avoided, the following conditions must be observed:

• A double-wave (a turbulent wave with high upward pressure followed by a smooth laminar wave) soldering technique should be used.

• The footprint must be at an angle of 45° to the board direction and must incorporate solder thieves downstream and at the side corners.

Even with these conditions, do not consider wave soldering the following packages: QFP52 (SOT379-1), QFP100 (SOT317-1), QFP100 (SOT317-2), QFP100 (SOT382-1) or QFP160 (SOT322-1).

ETHOD (PLCC AND QFP)

M During placement and before soldering, the package must

be fixed with a droplet of adhesive. The adhesive can be applied by screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.

Maximum permissible solder temperature is 260 °C, and maximum duration of package immersion in solder is 10 seconds, if cooled to less than 150 °C within 6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal of corrosive residues in most applications.

Preheating is necessary to dry the paste and evaporate the binding agent. Preheating duration: 45 minutes at 45 °C.

Wave soldering

PLCC Wave soldering techniques can be used for all PLCC

packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward pressure followed by a smooth laminar wave) soldering technique should be used.

• The longitudinal axis of the package footprint must be parallel to the solder flow.

1996 Oct 02 44

Repairing soldered joints

Fix the component by first soldering two diagonallyopposite end leads. Use only a low voltage soldering iron (less than 24 V) applied to the flat part of the lead. Contact time must be limited to 10 seconds at up to 300 °C. When using a dedicated tool, all other leads can be soldered in one operation within 2 to 5 seconds between 270 and 320 °C.

Page 45

Philips Semiconductors Preliminary speciﬁcation

Digital Video Encoder (EURO-DENC2) SAA7182A; SAA7183A

DEFINITIONS

Data sheet status

Objective speciﬁcation This data sheet contains target or goal speciﬁcations for product development. Preliminary speciﬁcation This data sheet contains preliminary data; supplementary data may be published later. Product speciﬁcation This data sheet contains ﬁnal product speciﬁcations.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the speciﬁcation.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

PURCHASE OF PHILIPS I

C COMPONENTS

Purchase of Philips I components in the I2C system provided the system conforms to the I2C specification defined by Philips. This specification can be ordered using the code 9398 393 40011.

C components conveys a license under the Philips’ I2C patent to use the

1996 Oct 02 45
