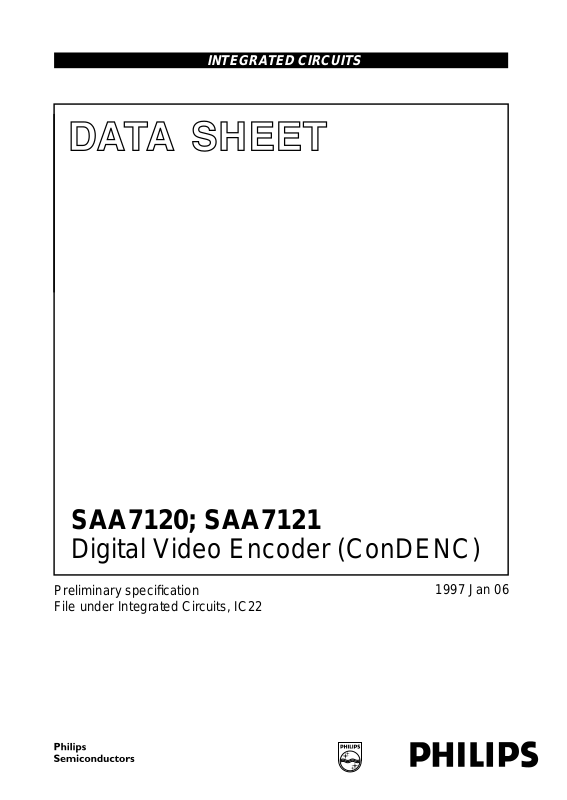

SAA7120; SAA7121

Digital Video Encoder (ConDENC)

Preliminary specification
File under Integrated Circuits, IC22

1997 Jan 06

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

FEATURES

• Monolithic CMOS 3.3 V (5 V) device

• Digital PAL/NTSC encoder

• System pixel frequency 13.5 MHz

• Accepts MPEG decoded data on 8-bit wide input port;

input data format Cb-Y-Cr (CCIR 656), SAV and EAV

• Three DACs for Y, C and CVBS, two times oversampled
with 10 bit resolution

• Real time control of subcarrier

• Cross colour reduction filter

• Closed captioning encoding and WST- and

NABTS-Teletext encoding including sequencer and filter

• Line 23 wide screen signalling encoding

2

• Fast I

C-bus control port (400 kHz)

• Encoder can be master or slave

• Programmable horizontal and vertical input

synchronization phase

• Programmable horizontal sync output phase

• Internal colour bar generator (CBG)

• 2 × 2 bytes in lines 20 (NTSC) for copy guard

management system can be loaded via I2C-bus

• Down-mode of DACs

• Controlled rise/fall times of synchronization and

blanking output signals

• Macrovision Pay-per-View copy protection system rev.7
and rev.6.1 as option.

This applies to SAA7120 only. The device is protected
by USA patent numbers 4631603, 4577216 and
4819098 and other intellectual property rights. Use of
the Macrovision anti-copy process in the device is
licensed for non-commercial home use only.
Reverse engineering or disassembly is prohibited.
Please contact your nearest Philips Semiconductors
sales office for more information.

• QFP44 package.

GENERAL DESCRIPTION

The SAA7120; SAA7121 encodes digital YUV video data
to an NTSC or PAL CVBS or S-Video signal.

The circuit accepts CCIR compatible YUV data with
720 active pixels per line in 4:2:2multiplexed formats,
for example MPEG decoded data. It includes a sync/clock
generator and on-chip DACs.

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V
V
I

DDA

I

DDD

V
V

DDA
DDD

i
o(p-p)

analog supply voltage 3.1 3.3 3.5 V
digital supply voltage 3.0 3.3 3.6 V
analog supply current −−62 mA
digital supply current −−38 mA
input signal voltage levels TTL compatible
analog output signal voltages Y, C, and CVBS without load

1.2 1.35 1.45 V

(peak-to-peak value)

R

L

load resistance 75 − 300 Ω
ILE LF integral linearity error −−±3 LSB
DLE LF differential linearity error −−±1 LSB
T

amb

operating ambient temperature 0 − +70 °C

1997 Jan 06 2

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

ORDERING INFORMATION

TYPE

NUMBER

SAA7120;
SAA7121

BLOCK DIAGRAM

handbook, full pagewidth

RESET SDA SCL

9 to 16

MP7

to

MP0

PACKAGE

NAME DESCRIPTION VERSION

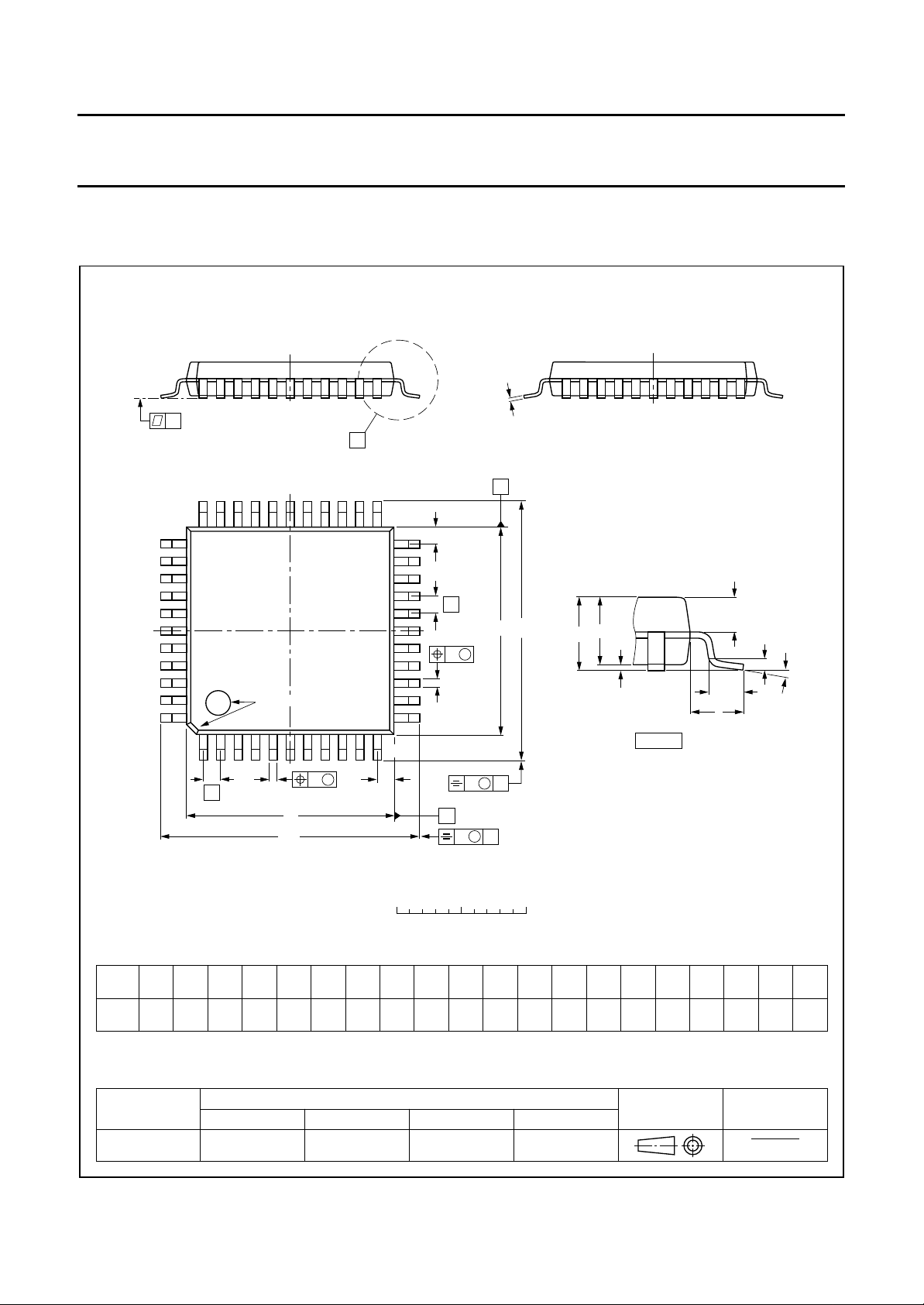

QFP44 plastic quad flat package; 44 leads (lead length 2.35 mm);

SOT307-2

body 10 × 10 × 1.75 mm

V

DDA1,

V

DDA2

V

DDA3

D

,

25, 28,
31

A

V

DDA4

368433734

30

CVBS

27

Y

24

C

SA

40 42 41 21

I2C-BUS

INTERFACE

2

I

C-bus

control

DATA

MANAGER

Y

CbCr

SAA7120
SAA7121

ENCODER

Y

C

RCV1

RCV2

7

clock

and timing

INTERFACE

TTXRQ

XCLK

SYNC

CLOCK

OUTPUT

XTALO

2

C-bus

I

control

LLC

XTALI

35 4

TTX

I2C-bus

control

1, 20, 22,
23, 26, 29

I2C-bus

control

219 3

SPRTCI AP

44

V

SSD1,

V

SSD2

V

SSD3

5, 18, 38

,

V

DDD1,

V

DDD2

V

DDD3

6, 17, 39

res.

,

I2C-bus

control

32, 33

MBH787

V

SSA1

V

SSA2

Fig.1 Block diagram.

1997 Jan 06 3

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

PINNING

SYMBOL PIN I/O DESCRIPTION

res. 1 − reserved
SP 2 I test pin; connected to digital ground for normal operation
AP 3 I test pin; connected to digital ground for normal operation
LLC 4 I line-locked clock; this is the 27 MHz master clock for the encoder
V

SSD1

V

DDD1

RCV1 7 I/O raster control 1 for video port; this pin receives/provides a VS/FS/FSEQ signal
RCV2 8 I/O raster control 2 for video port; this pin provides an HS pulse of programmable length or

MP7 9 I
MP6 10 I
MP5 11 I
MP4 12 I
MP3 13 I
MP2 14 I
MP1 15 I
MP0 16 I
V

DDD2

V

SSD2

RTCI 19 I Real Time Control input; if the LLC clock is provided by an SAA7111 or SAA7151B,

res. 20 − reserved
SA 21 I the I
res. 22 − reserved
res. 23 − reserved
C 24 O analog output of the chrominance signal
V

DDA1

res. 26 − reserved
Y 27 O analog output of VBS signal
V

DDA2

res. 29 − reserved
CVBS 30 O analog output of the CVBS signal
V

DDA3

V

SSA1

V

SSA2

XTALO 34 O crystal oscillator output (to crystal)
XTALI 35 I crystal oscillator input (from crystal); if the oscillator is not used, this pin should be

V

DDA4

XCLK 37 O clock output of the crystal oscillator

5 I digital ground 1
6 I digital supply voltage 1

receives an HS pulse

MPEG port; it is an input for

“CCIR 656”

style multiplexed Cb Y, Cr data

17 I digital supply voltage 2
18 I digital ground 2

RTCI should be connected to pin RTCO of the decoder to improve the signal quality

2

C-bus slave address select input pin; LOW: slave address = 88H, HIGH = 8CH

25 I analog supply voltage 1 for the C DAC

28 I analog supply voltage 2 for the Y DAC

31 I analog supply voltage 3 for the CVBS DAC
32 I analog ground 1 for the DACs
33 I analog ground 2 for the oscillator and reference voltage

connected to ground

36 I analog supply voltage 4 for the oscillator and reference voltage

1997 Jan 06 4

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

SYMBOL PIN I/O DESCRIPTION

V

SSD3

V

DDD3

RESET 40 I reset input, active LOW; after reset is applied, all digital I/Os are in input mode;

SCL 41 I I
SDA 42 I/O I
TTXRQ 43 O teletext request output, indicating when bit stream is valid
TTX 44 I teletext bit stream input

handbook, full pagewidth

38 I digital ground 3
39 I digital supply voltage 3

the I2C-bus receiver waits for the START condition

2

C-bus serial clock input

2

C-bus serial data input/output

TTXRQ

SDA

44 TTX

43

42

SCL
41

RESET
40

DDD3

V

39

SSD3

V

38

XCLK
37

DDA4

V

36

XTALI
35

XTALO
34

V

SSD1

V

DDD1

RCV1
RCV2

SP
AP

LLC

MP7
MP6
MP5

1res.
2
3
4
5
6
7
8

9
10
11

12

13

14

MP4

MP3

MP2

SAA7120
SAA7121

15

MP1

16

MP0

17

DDD2

V

18

SSD2

V

19

RTCI

20
res.

21

SA

22
res.

33
32
31
30
29
28
27
26
25
24
23

MBH790

V

SSA2

V

SSA1

V

DDA3

CVBS
res.
V

DDA2
Y
res.
V

DDA1
C
res.

Fig.2 Pin configuration.

1997 Jan 06 5

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

FUNCTIONAL DESCRIPTION

The digital video encoder (ConDENC) encodes digital
luminance and colour difference signals simultaneously
into analog CVBS and S-Video signals. NTSC-M,
PAL B/G, and sub-standards are supported.

Both interlaced and non-interlaced operation is possible
for all standards.

The basic encoder function consists of subcarrier
generation, colour modulation and the insertion of
synchronization signals. Luminance and chrominance
signals are filtered in accordance with the standard
requirements of

“RS-170-A”

and

“CCIR 624”

.

For ease of analog post-filtering the signals are
oversampled twice with respect to the pixel clock prior to
digital-to-analog conversion.

The filter characteristics are shown in Figs 3 and 4.
The DACs for Y, C, and CVBS have 10-bit resolution.

The 8-bit multiplexed Cb-Y-Cr formats are

“CCIR 656”

(D1 format) compatible, but the SAV and EAV codes can

be decoded optionally when the device is to operate in
slave mode.

It is also possible to connect a Philips Digital Video
Decoder (SAA7111 or SAA7151B) to the ConDENC.
Via pin RTCI, connected to RTCO of a decoder,
information concerning the actual subcarrier, PAL-ID and
(if used in conjunction with the SAA7111) the subcarrier
phase can be inserted.

The ConDENC synthesizes all necessary internal signals,
colour subcarrier frequency and synchronization signals.

2

Wide screen signalling data can be loaded via the I

C-bus.

It is inserted into line 23 for 50 Hz field rate standards.
The IC contains closed caption and extended data

services encoding (line 21), and supports anti-taping
signal generation in accordance with Macrovision.

Possibilities are provided for setting video parameters:

Black and blanking level control
Colour subcarrier frequency
Variable burst amplitude.

6

G

handbook, full pagewidth

v

(dB)

0

−6

−12

−18

−24

−30

−36

−42

−48

−54

024

(1) CCRS1 = 0; CCRS0 = 1.
(2) CCRS1 = 1; CCRS0 = 0.

(4)

(3)

(1)

6

(3) CCRS1 = 0; CCRS0 = 0.
(4) CCRS1 = 1; CCRS0 = 1.

MGD672

(2)

8101214

f (MHz)

Fig.3 Luminance transfer characteristic 1.

1997 Jan 06 6

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

During reset (RESET = LOW) and after reset is released,
all digital I/O stages are set to input mode. A reset forces

handbook, halfpage

G

(dB)

1

v

0

MBE736

(1)

the I2C-bus interface to abort a running bus transfer and
sets register 3A to 03H, register 61 to 06H,
registers 6BH and 6EH to 00H and bit TTX60 to 0.
All other control registers are not influenced by a reset.

−1

−2

−3

−4

−5

02

(1) CCRS1 = 0; CCRS0 = 0.

4

Fig.4 Luminance transfer characteristic 2.

handbook, full pagewidth

G

(dB)

6

v

0

−6

f (MHz)

Encoder

IDEO PATH

V
The encoder generates out of Y, U and V baseband

signals luminance and colour subcarrier output signals,
suitable for use as CVBS or separate Y and C signals.

Luminance is modified in gain and in offset (the latter
programmable in a certain range to enable different black
level set-ups). A fixed synchronization level in accordance

6

with standard composite synchronization schemes is
inserted. The inserted blanking level is programmable to
allow for manipulations with Macrovision anti-taping.
Additional insertion of AGC super-white pulses,
programmable in height, is supported.

MBE737

−12

−18

−24

−30

−36

−42

−48

−54

024

(1) SCBW = 1.
(2) SCBW = 0.

(1) (2)

6 8 10 12 14

Fig.5 Chrominance transfer characteristic 1.

1997 Jan 06 7

f (MHz)

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

signal TTXRQ a single teletext bit has to be provided after

handbook, halfpage

G

(dB)

2

v

0

−2

−4

MBE735

(1)

(2)

a programmable delay at input pin.
Phase variant interpolation is achieved on this bitstream in

the internal teletext encoder, providing sufficient small
phase jitter on the output text lines.

TTXRQ provides a fully programmable request signal to
the teletext source, indicating the insertion period of
bitstream at lines selectable independently for both fields.
The internal insertion window for text is set to 360
(PAL-WST), 296 (NTSC-WST) or 288 (NABTS) teletext
bits including clock run-in bits. For protocol and timing
see Fig.7.

C

LOSED CAPTION ENCODER

−6
0 0.4 0.8 1.6

(1) SCBW = 1.
(2) SCBW = 0.

1.2

f (MHz)

Fig.6 Chrominance transfer characteristic 2.

In order to enable easy analog post-filtering, luminance is
interpolated from 13.5 MHz data rate to 27 MHz data rate,
providing luminance in 10-bit resolution. This filter is also
used to define smoothed transients for synchronization
pulses and blanking period. For transfer characteristic of
the luminance interpolation filter see Figs 3 and 4.

Chrominance is modified in gain (programmable
separately for U and V), standard dependent burst is
inserted, before baseband colour signals are interpolated
from 6.75 MHz data rate to 27 MHz data rate. One of the
interpolation stages can be bypassed, thus providing a
higher colour bandwidth, which can be made use of for
Y and C output. For transfer characteristics of the
chrominance interpolation filter see Figs 5 and 6.

The amplitude, beginning and ending of inserted burst is
programmable in a certain range, suitable for standard
signals and for special effects. Behind the succeeding
quadrature modulator, colour in 10-bit resolution is
provided on subcarrier.

The numeric ratio between Y and C outputs is in
accordance with set standards.

Using this circuit, data in accordance with the specification
of closed caption or extended data service, delivered by
the control interface, can be encoded (Line 21).
Two dedicated pairs of bytes (two bytes per field), each
pair preceded by run-in clocks and framing code, are
possible.

The actual line number where data is to be encoded in, can
be modified in a certain range.

Data clock frequency is in accordance with definition for
NTSC-M standard 32 times horizontal line frequency.

Data LOW at the output of the DACs corresponds to 0 IRE,
data HIGH at the output of the DACs corresponds to
approximately 50 IRE.

It is also possible to encode Closed Caption Data for 50 Hz
field frequencies at 32 times horizontal line frequency.

NTI-TAPING (SAA7120 ONLY)

A
For more information contact your nearest Philips

Semiconductors sales office.

Data manager

In the data manager, real time arbitration on the data
stream to be encoded is performed.

A pre-defined colour look-up table located in this block can
be read out in a pre-defined sequence (8 steps per active
video line), achieving a colour bar test pattern generator
without the need for an external data source. The colour
bar function is under software control only.

T

ELETEXT INSERTION AND ENCODING

Pin TTX receives a WST- or NABTS-Teletext bitstream
sampled at the LLC clock. At each rising edge of output

1997 Jan 06 8

Output interface/DACs

In the output interface encoded Y and C signals are
converted from digital to analog in 10-bit resolution.

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Y and C signals are also combined to a 10-bit CVBS
signal.

The CVBS output occurs with the same processing delay
as the Y and C outputs. Absolute amplitude at the input of
the DAC for CVBS is reduced by15⁄16 with respect to
Y and C DACs to make maximum use of conversion
ranges.

Outputs of the DACs can be set together in two groups via
software control to minimum output voltage for either
purpose.

Synchronization

Synchronization of the ConDENC is able to operate in two
modes; slave mode and master mode.

In the slave mode, the circuit accepts synchronization
pulses at the bidirectional RCV1 port. The timing and
trigger behaviour related to RCV1 can be influenced by
programming the polarity and the on-chip delay of RCV1.
Active slope of RCV1 defines the vertical phase and
optionally the odd/even and colour frame phase to be
initialized, it can be also used to set the horizontal phase.

If the horizontal phase is not to be influenced by RCV1, a
horizontal synchronization pulse needs to be supplied at
the pin RCV2. Timing and trigger behaviour can also be
influenced by RCV2.

If there are missing pulses at RCV1 and/or RCV2, the time
base of ConDENC runs free, thus an arbitrary number of
synchronization slopes may be absent, but no additional
pulses (with the incorrect phase) must occur.

If the vertical and horizontal phase is derived from RCV1,
RCV2 can be used for horizontal or composite blanking
input or output.

Alternatively, the device can be triggered by auxiliary
codes in a

“CCIR 656”

data stream at the MP port.

On the RCV2 port, the device can provide a horizontal
synchronization pulse with programmable start and stop
phase; this pulse can be inhibited in the vertical blanking
period to build up, for example, a composite blanking
signal.

The polarity of both RCV1 and RCV2 is selectable by
software control.

The length of a field and the start and end of its active part
can be programmed. The active part of a field always
starts at the beginning of a line.

Teletext timing

The teletext timing is shown in Fig.7. tFD is the time needed
to interpolate input data TTX and inserting it into the
CVBS and Y output signal, such that it appears at
t

= 10.2 µs (PAL) or t

TTX

= 10.5 µs (NTSC) after the

TTX

leading edge of the horizontal synchronization pulse.
Time tPD is the pipeline delay time introduced by the

source that is gated by TTXRQ in order to deliver TTX
data. This delay is programmable by register TTXHD.
For every active HIGH-state at output pin TTXRQ, a new
teletext bit must be provided by the source.

Since the beginning of the pulses representing the TTXRQ
signal and the delay between the rising edge of TTXRQ
and valid teletext input data are fully programmable
(TTXHS and TTXHD), the TTX data is always inserted at
the correct position after the leading edge of outgoing
horizontal synchronization pulse.

Time t

is the internally used insertion window for

TTXWin

TTX data; it has a constant length that allows insertion of
360 teletext bits at a text data rate of 6.9375 Mbits/s
(PAL), 296 teletext bits at a text data rate of 5.7272 Mbits/s
(World Standard TTX) or 288 teletext bits at a text data
rate of 5.7272 Mbits/s (NABTS). The insertion window is
not opened if the control bit TTXEN is logic 0.

In the master mode, the time base of the circuit
continuously runs free. On the RCV1 port, the device can
output:

• A Vertical Synchronisation signal (VS) with 3 or 2.5 lines
duration, or

• An ODD/EVEN signal which is LOW in odd fields, or

• A field sequence signal (FSEQ) which is HIGH in the first

of 4 or 8 fields respectively.

1997 Jan 06 9

Using appropriate programming, all suitable lines of the
odd field (TTXOVS and TTXOVE) plus all suitable lines of
the even field (TTXEVS and TTXEVE) can be used for
teletext insertion.

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

handbook, full pagewidth

CVBS/Y

t

TTX

textbit #: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

TTX

TTXRQ

t

PD

t

FD

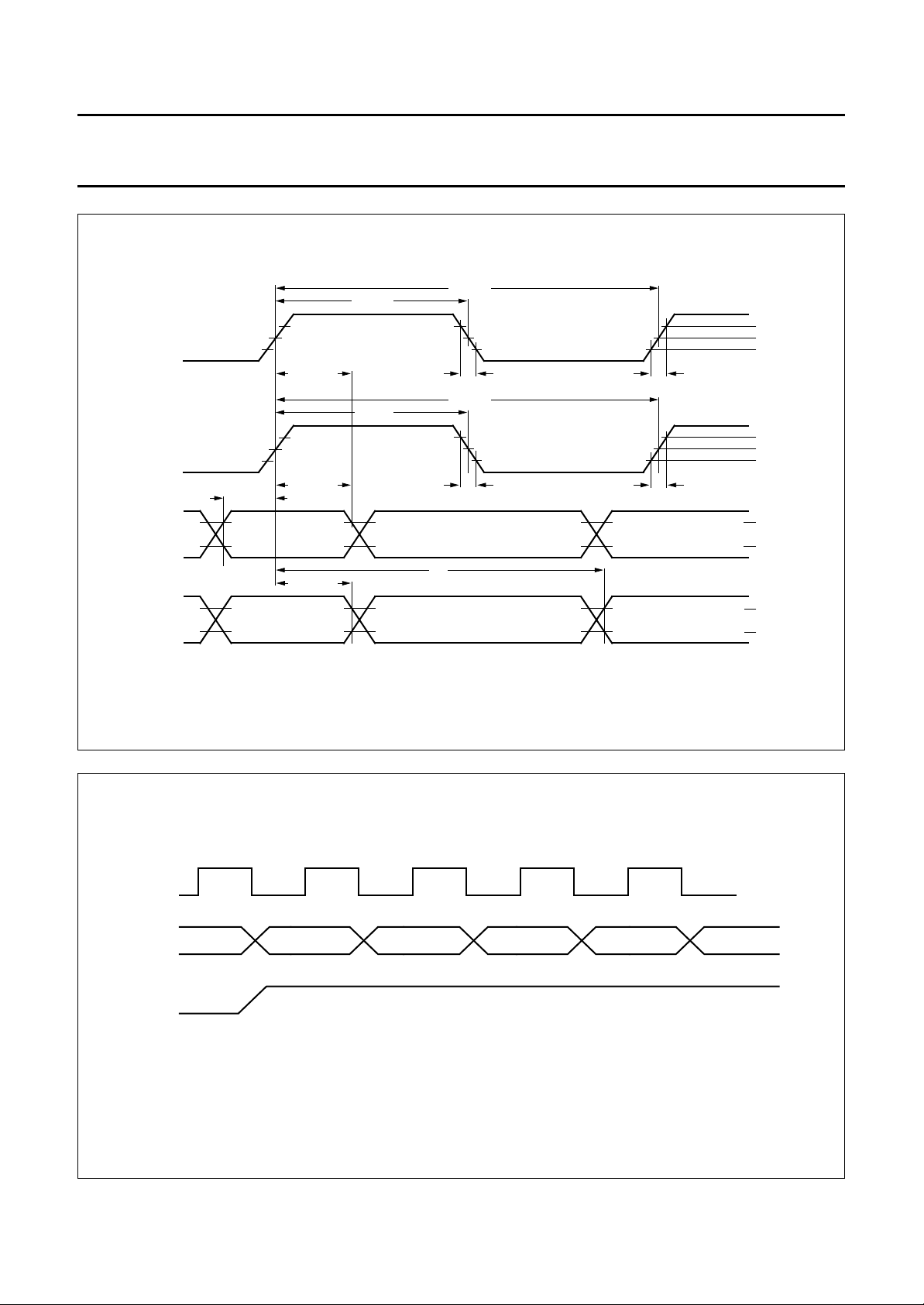

Fig.7 Teletext timing.

Analog output voltages

The analog output voltages are dependent on the
open-loop voltage of the operational amplifiers for
full-scale conversion (typical value 1.35 V), the internal
series resistor (typical value 2 Ω), the external series
resistor and the external load impedance.

The digital output signals in front of the DACs under
nominal conditions occupy different conversion ranges, as
indicated in Table 1 for a

100

⁄

colour bar signal.

100

Values for the external series resistors result in a 75 Ω
load.

Input levels and formats

The ConDENC expects digital Y, Cb, Cr data with levels
(digital codes) in accordance with

“CCIR 601”

(see

Tables 2 and 3).
For C and CVBS outputs, deviating amplitudes of the

colour difference signals can be compensated by
independent gain control setting, while gain for luminance
is set to predefined values, distinguishable for 7.5 IRE
set-up or without set-up.

t

TTXWin

MBH788

Table 1 Digital output signals conversion range

CONVERSION RANGE (peak-to-peak) (digits)

CVBS, SYNC

TIP-TO-PEAK CARRIER

Y (VBS) SYNC
TIP-TO-WHITE

1016 881

Table 2

“CCIR 601”

signal component levels

SIGNALS

COLOUR

YCbCr

White 235 128 128
Yellow 210 16 146
Cyan 170 166 16
Green 145 54 34
Magenta 106 202 222
Red 81 90 240
Blue 41 240 110
Black 16 128 128

Reference levels are measured with a colour bar,
100% white, 100% amplitude and 100% saturation.

1997 Jan 06 10

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

I2C-bus interface

The I2C-bus interface is a standard slave transceiver,
supporting 7-bit slave addresses and 400 kbits/s
guaranteed transfer rate. It uses 8-bit subaddressing with
an auto-increment function. All registers are write only,
except one readable status byte.

Tables 5 and 4 summarize the format of the I
addressing. For more information on how to use the
I2C-bus see

“The I2C-bus and how to use it”

no. 9398 393 40011. Tables 7 to 42 contain the
programming information for the subaddresses. Table 6
summarises this information.

2

C-bus

, order

Two I2C-bus slave addresses are present:

88H: LOW at pin SA
8CH: HIGH at pin SA.

Table 3 8-bit multiplexed format (similar to

“CCIR 601”

)

BITS

0 122 4 567

Sample Cb

0

Y

0

Cr

0

Y

1

Cb

2

Y

2

Cr

2

Luminance pixel number 0 1 2 3
Colour pixel number 0 2

Table 4 I

2

C-bus address format; see Table 5

S SLAVE ADDRESS ACK SUBADDRESS ACK DATA 0 ACK -------- DATA n ACK P

Y

3

Table 5 Explanation of Table 4

PART DESCRIPTION

S START condition
Slave address 1000100x or 1000110x

(1)

ACK acknowledge, generated by the slave
Subaddress

(2)

subaddress byte

DATA data byte

-------- continued data bytes and ACKs
P STOP condition

Notes

1. x is the read/write control bit; write:

x = logic 0;
read: x = logic 1, no subaddressing with read.

2. If more than 1 byte DATA is transmitted, then auto-increment of the subaddress is performed.

1997 Jan 06 11

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

(1)

DATA BITS

D7 D6 D5 D4 D3 D2 D1 D0

SUB

ADDRESS

5E GAINV8 DECPH BLNNL5 BLNNL4 BLNNL3 BLNNL2 BLNNL1 BLNNL0

5D GAINU8 DECOE BLCKL5 BLCKL4 BLCKL3 BLCKL2 BLCKL1 BLCKL0

REGISTER FUNCTION

Null 00 00000000

⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅

Null 25 00000000

Wide screen signal 26 WSS7 WSS6 WSS5 WSS4 WSS3 WSS2 WSS1 WSS0

Wide screen signal 27 WSSON 0 WSS13 WSS12 WSS11 WSS10 WSS9 WSS8

Real time control, Burst start 28 DECCOL DECFIS BS5 BS4 BS3 BS2 BS1 BS0

Burst end 29 0 0 BE5 BE4 BE3 BE2 BE1 BE0

Copy guard odd 0 2A CGO07 CGO06 CGO05 CGO04 CGO03 CGO02 CGO01 CGO00

Copy guard odd 1 2B CGO17 CGO16 CGO15 CGO14 CGO13 CGO12 CGO11 CGO10

Copy guard even 0 2C CGE07 CGE06 CGE05 CGE04 CGE03 CGE02 CGE01 CGE00

Copy guard even 1 2D CGE17 CGE16 CGE15 CGE14 CGE13 CGE12 CGE11 CGE10

Copy guard enable 2E CGEN1 CGEN0 0 0 0 0 0 0

Table 6 Slave receiver (slave address 88H or 8CH)

1997 Jan 06 12

Null 2F 00000000

⋅ ⋅⋅⋅⋅⋅⋅⋅⋅⋅

Null 39 00000000

Input port control 3A CBENB 0 0 SYMP 0 0 Y2C UV2C

Chrominance phase 5A CHPS7 CHPS6 CHPS5 CHPS4 CHPS3 CHPS2 CHPS1 CHPS0

Gain U 5B GAINU7 GAINU6 GAINU5 GAINU4 GAINU3 GAINU2 GAINU1 GAINU0

Gain V 5C GAINV7 GAINV6 GAINV5 GAINV4 GAINV3 GAINV2 GAINV1 GAINV0

Gain U MSB, Real time

control, Black level

Gain V MSB, Real time

control, Blanking level

CCR, Blanking level VBI 5F CCRS1 CCRS0 BLNVB5 BLNVB4 BLNVB3 BLNVB2 BLNVB1 BLNVB0

Null 60 00000000

Standard control 61 0 DOWN INPI YGS 0 SCBW PAL FISE

RTC enable, Burst amplitude 62 RTCE BSTA6 BSTA5 BSTA4 BSTA3 BSTA2 BSTA1 BSTA0

Subcarrier 0 63 FSC07 FSC06 FSC05 FSC04 FSC03 FSC02 FSC01 FSC00

Subcarrier 1 64 FSC15 FSC14 FSC13 FSC12 FSC11 FSC10 FSC09 FSC08

Subcarrier 2 65 FSC23 FSC22 FSC21 FSC20 FSC19 FSC18 FSC17 FSC16

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

(1)

DATA BITS

D7 D6 D5 D4 D3 D2 D1 D0

SUB

ADDRESS

6F CCEN1 CCEN0 TTXEN SCCLN4 SCCLN3 SCCLN2 SCCLN1 SCCLN0

REGISTER FUNCTION

Subcarrier 3 66 FSC31 FSC30 FSC29 FSC28 FSC27 FSC26 FSC25 FSC24

Line 21 odd 0 67 L21O07 L21O06 L21O05 L21O04 L21O03 L21O02 L21O01 L21O00

Line 21 odd 1 68 L21O17 L21O16 L21O15 L21O14 L21O13 L21O12 L21O11 L21O10

Line 21 even 0 69 L21E07 L21E06 L21E05 L21E04 L21E03 L21E02 L21E01 L21E00

Line 21 even 1 6A L21E17 L21E16 L21E15 L21E14 L21E13 L21E12 L21E11 L21E10

RCV port control 6B SRCV11 SRCV10 TRCV2 ORCV1 PRCV1 CBLF ORCV2 PRCV2

Trigger control 6C HTRIG7 HTRIG6 HTRIG5 HTRIG4 HTRIG3 HTRIG2 HTRIG1 HTRIG0

Trigger control 6D HTRIG10 HTRIG9 HTRIG8 VTRIG4 VTRIG3 VTRIG2 VTRIG1 VTRIG0

Multi control 6E SBLBN 0 PHRES1 PHRES0 0 0 FLC1 FLCO

Closed caption,

Teletext enable

RCV2 output start 70 RCV2S7 RCV2S6 RCV2S5 RCV2S4 RCV2S3 RCV2S2 RCV2S1 RCV2S0

RCV2 output end 71 RCV2E7 RCV2E6 RCV2E5 RCV2E4 RCV2E3 RCV2E2 RCV2E1 RCV2E0

MSBs RCV2 output 72 0 RCV2E10 RCV2E9 RCV2E8 0 RCV2S10 RCV2S9 RCV2S8

1997 Jan 06 13

TTX request H start 73 TTXHS7 TTXHS6 TTXHS5 TTXHS4 TTXHS3 TTXHS2 TTXHS1 TTXHS0

TTX request H delay 74 TTXHD7 TTXHD6 TTXHD5 TTXHD4 TTXHD3 TTXHD2 TTXHD1 TTXHD0

V-Sync shift 75 0 0 0 0 0 VS_S2 VS_S1 VS_S0

TTX odd request V S 76 TTXOVS7 TTXOVS6 TTXOVS5 TTXOVS4 TTXOVS3 TTXOVS2 TTXOVS1 TTXOVS0

TTX odd request V E 77 TTXOVE7 TTXOVE6 TTXOVE5 TTXOVE4 TTXOVE3 TTXOVE2 TTXOVE1 TTXOVE0

TTX even request V S 78 TTXEVS7 TTXEVS6 TTXEVS5 TTXEVS4 TTXEVS3 TTXEVS2 TTXEVS1 TTXEVS0

TTX even request V E 79 TTXEVE7 TTXEVE6 TTXEVE5 TTXEVE4 TTXEVE3 TTXEVE2 TTXEVE1 TTXEVE0

First active line 7A FAL7 FAL6 FAL5 FAL4 FAL3 FAL2 FAL1 FAL0

Last active line 7B LAL7 LAL6 LAL5 LAL4 LAL3 LAL2 LAL1 LAL0

MSB vertical 7C TTX60 LAL8 0 FAL8 TTXEVE8 TTXOVE8 TTXEVS8 TTXOVS8

Null 7D 0 0 0 00000

Disable TTX line 7E LINE12 LINE11 LINE10 LINE9 LINE8 LINE7 LINE6 LINE5

Disable TTX line 7F LINE20 LINE19 LINE18 LINE17 LINE16 LINE15 LINE14 LINE13

Note

1. All bits labelled ‘0’ are reserved. They must be programmed with logic 0.

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Slave Receiver
Table 7 Subaddress 26 and 27

DATA BYTE

WSS − wide screen signalling bits: 13 to 11 = reserved

WSSON 0 wide screen signalling output is disabled

Table 8 Subaddress 28 and 29

DATA BYTE

BS − starting point of burst in clock cycles PAL : BS = 33 (21H)

BE − ending point of burst in clock cycles PAL : BS = 29 (1DH)

DECCOL 0 disable colour detection bit of RTCI input

DECFIS 0 field sequence as FISE in subaddress 61

LOGIC
LEVEL

1 wide screen signalling output is enabled

LOGIC
LEVEL

1 enable colour detection bit of RTCI input bit RTCE must be set to 1 (see Fig.10)

1 field sequence as FISE bit in RTCI input bit RTCE must be set to 1 (see Fig.10)

DESCRIPTION REMARKS

DESCRIPTION

10 to 8 = subtitles
7 to 4 = enhanced services
3 to 0 = aspect ratio

NTSC : BS = 25 (19H)

NTSC : BS = 29 (1DH)

Table 9 Subaddress 2A to 2D

DATA BYTE DESCRIPTION REMARKS

CGO0 first byte of Copy guard data, odd field LSBs of the respective bytes are encoded
CGO1 second byte of Copy guard data, odd field
CGE0 first byte of Copy guard data, even field
CGE1 second byte of Copy guard data, even field

Table 10 Subaddress 2E

DATA BYTE

CCEN1 CCEN0

0 0 copy guard encoding off
0 1 enables encoding in field 1 (odd)
1 0 enables encoding in field 2 (even)
1 1 enables encoding in both fields

immediately after run-in and framing code, the
MSBs of the respective bytes have to carry the
parity bit, in accordance with the definition of
Line 20 encoding format.

DESCRIPTION

1997 Jan 06 14

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 11 Subaddress 3A

DATA BYTE

UV2C 0 Cb, Cr data are two’s complement

Y2C 0 Y data is two’s complement

SYMP 0 horizontal and vertical trigger is taken from RCV2 and RCV1 respectively; default after reset

CBENB 0 data from input ports is encoded; default after reset

Table 12 Subaddress 5A

DATA BYTE DESCRIPTION VALUE RESULT

CHPS phase of encoded colour subcarrier

Remark: in subaddresses 5B, 5C, 5D, 5E and 62 all IRE values are rounded up.

Table 13 Subaddress 5B and 5D

LOGIC
LEVEL

1 Cb, Cr data are straight binary; default after reset

1 Y data is straight binary; default after reset

1 horizontal and vertical trigger is decoded out of

1 colour bar with fixed colours is encoded

(including burst) relative to horizontal sync;
can be adjusted in steps of
360/256 degrees

DESCRIPTION

3FH PAL-B/G and data from input ports
69H PAL-B/G and data from look-up table
67H NTSC-M and data from input ports
89H NTSC-M and data from look-up table

“CCIR 656”

compatible data at MP port

DATA BYTE DESCRIPTION CONDITIONS REMARKS

GAINU variable gain for

Cb signal; input
representation
accordance with

“CCIR 601”

Table 14 Subaddress 5C and 5E

DATA BYTE DESCRIPTION CONDITIONS REMARKS

GAINV variable gain for

Cr signal; input
representation
accordance with

“CCIR 601”

white-to-black = 92.5 IRE GAINU = −2.17 × nominal to +2.16 × nominal

GAINU = 0 output subcarrier of U contribution = 0
GAINU = 118 (76H) output subcarrier of U contribution = nominal

white-to-black = 100 IRE GAINU = −2.05 × nominal to +2.04 × nominal

GAINU = 0 output subcarrier of U contribution = 0
GAINU = 125 (7DH) output subcarrier of U contribution = nominal

white-to-black = 92.5 IRE GAINV = −1.55 × nominal to +1.55 × nominal

GAINV = 0 output subcarrier of V contribution = 0
GAINV = 165 (A5H) output subcarrier of V contribution = nominal

white-to-black = 100 IRE GAINV = −1.46 × nominal to +1.46 × nominal

GAINV = 0 output subcarrier of V contribution = 0
GAINV = 175 (AFH) output subcarrier of V contribution = nominal

1997 Jan 06 15

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 15 Subaddress 5D

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BLCKL variable black level; input

representation
accordance with

“CCIR 601”

white-to-sync = 140 IRE

BLCKL = 0 output black level = 34 IRE
BLCKL = 63 (3FH) output black level = 54 IRE

white-to-sync = 143 IRE

BLCKL = 0 output black level = 32 IRE
BLCKL = 63 (3FH) output black level = 52 IRE

DECOE real time control logic 0 disable odd/even field control bit from RTCI

logic 1 enable odd/even field control bit from RTCI

Notes

1. Output black level/IRE = BLCKL × 2/6.29 + 34.0

2. Output black level/IRE = BLCKL × 2/6.18 + 31.7

(1)

recommended value: BLCKL = 42 (2AH)

(2)

recommended value: BLCKL = 35 (23H)

(see Fig.10)

Table 16 Subaddress 5E

DATA BYTE DESCRIPTION CONDITIONS REMARKS

(1)

BLNNL variable blanking level white-to-sync = 140 IRE

recommended value: BLNNL = 46 (2EH)
BLNNL = 0 output blanking level = 25 IRE
BLNNL = 63 (3FH) output blanking level = 45 IRE

(2)

white-to-sync = 143 IRE

recommended value: BLNNL = 53 (35H)
BLNNL = 0 output blanking level = 26 IRE
BLNNL = 63 (3FH) output blanking level = 46 IRE

DECPH real time control logic 0 disable subcarrier phase reset bit from RTCI

logic 1 enable subcarrier phase reset bit from RTCI

(see Fig.10)

Notes

1. Output black level/IRE = BLNNL × 2/6.29 + 25.4

2. Output black level/IRE = BLNNL × 2/6.18 + 25.9

Table 17 Subaddress 5F

DATA BYTE DESCRIPTION

BLNVB variable blanking level during vertical blanking interval is typically identical to value of BLNNL
CCRS select cross colour reduction filter in luminance; see Table 18

Table 18 Logic levels and function of CCRS

CCRS1 CCRS0 DESCRIPTION

0 0 no cross colour reduction; for overall transfer characteristic of luminance see Fig.3
0 1 cross colour reduction #1 active; for overall transfer characteristic see Fig.3
1 0 cross colour reduction #2 active; for overall transfer characteristic see Fig.3
1 1 cross colour reduction #3 active; for overall transfer characteristic see Fig.3

1997 Jan 06 16

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 19 Subaddress 61

DATA BYTE

FISE 0 864 total pixel clocks per line; default after reset

PAL 0 NTSC encoding (non-alternating V component)

SCBW 0 enlarged bandwidth for chrominance encoding (for overall transfer characteristic of

YGS 0 luminance gain for white − black 100 IRE; default after reset

INPI 0 PAL switch phase is nominal; default after reset

DOWN 0 DACs for CVBS, Y and C in normal operational mode; default after reset

Table 20 Subaddress 62H

DATA BYTE

RTCE 0 no real time control of generated subcarrier frequency

LOGIC
LEVEL

1 858 total pixel clocks per line

1 PAL encoding (alternating V component); default after reset

chrominance in baseband representation see Figs 3 and 4)

1 standard bandwidth for chrominance encoding (for overall transfer characteristic of

chrominance in baseband representation see Figs 3 and 4); default after reset

1 luminance gain for white − black 92.5 IRE including 7.5 IRE set-up of black

1 PAL switch phase is inverted compared to nominal

1 DACs for CVBS, Y and C forced to lowest output voltage

LOGIC
LEVEL

1 real time control of generated subcarrier frequency through SAA7151B or SAA7111

(timing see Fig.10)

DESCRIPTION

DESCRIPTION

Table 21 Subaddress 62H

DATA BYTE DESCRIPTION CONDITIONS REMARKS

BSTA amplitude of colour burst; input

representation in accordance

“CCIR 601”

with

1997 Jan 06 17

white-to-black = 92.5 IRE;
burst = 40 IRE; NTSC encoding

BSTA = 0 to 2.02 × nominal

white-to-black = 92.5 IRE;
burst = 40 IRE; PAL encoding

BSTA = 0 to 2.82 × nominal

white-to-black = 100 IRE;
burst = 43 IRE; NTSC encoding

BSTA = 0 to 1.90 × nominal

white-to-black = 100 IRE;
burst = 43 IRE; PAL encoding

BSTA = 0 to 3.02 × nominal

recommended value:
BSTA = 63 (3FH)

recommended value:
BSTA = 45 (2DH)

recommended value:
BSTA = 67 (43H)

recommended value:
BSTA = 47 (2FH)

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 22 Subaddress 63 to 66 (four bytes to program subcarrier frequency)

DATA BYTE DESCRIPTION CONDITIONS REMARKS

FSC0 to FSC3 f

Note

1. Examples:
a) NTSC-M: f
b) PAL-B/G: f

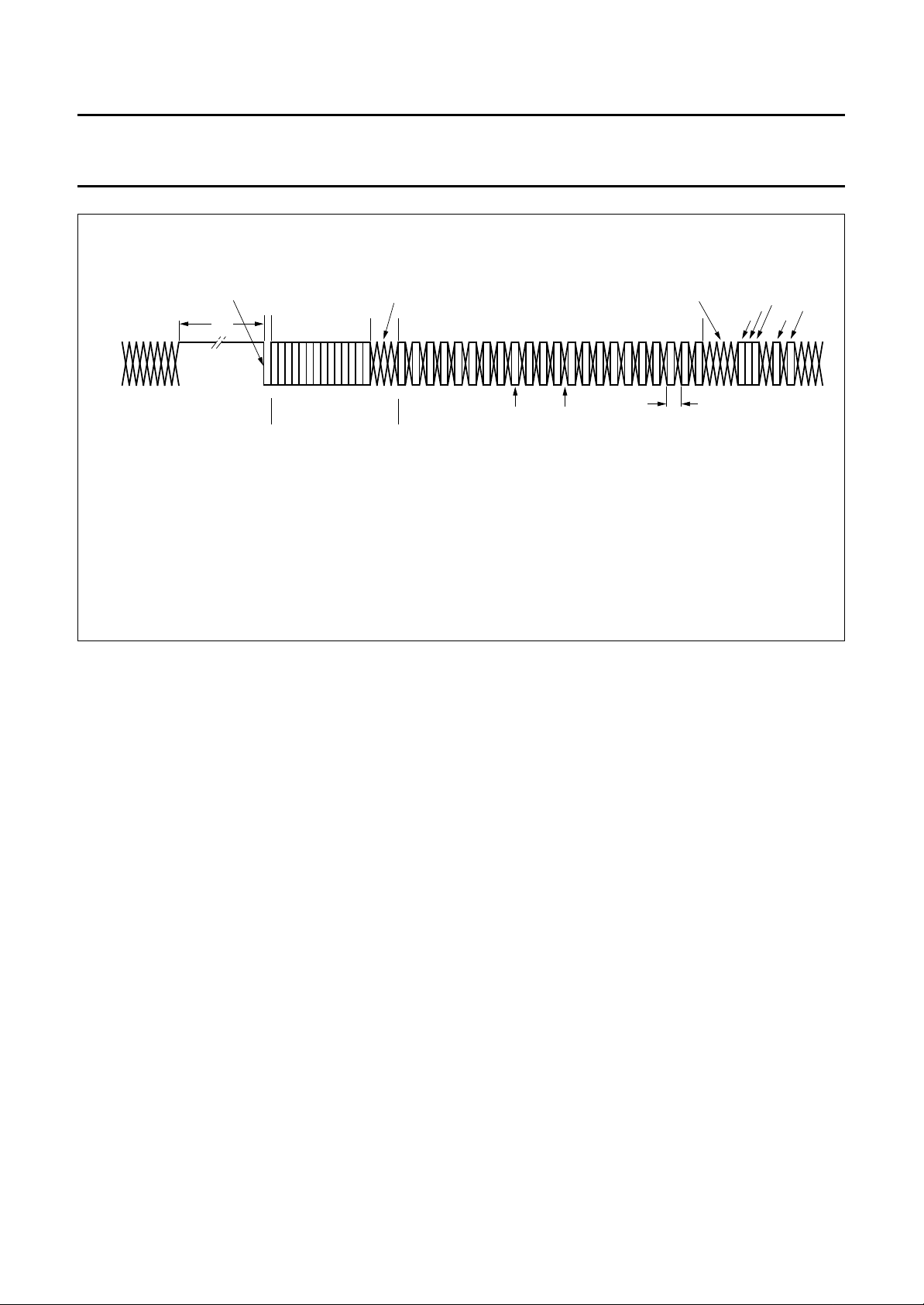

Table 23 Subaddress 67 to 6A

DATA BYTE DESCRIPTION REMARKS

L21O0 first byte of captioning data, odd field LSBs of the respective bytes are encoded
L21O1 second byte of captioning data, odd field
L21E0 first byte of extended data, even field
L21E1 second byte of extended data, even field

= subcarrier frequency (in

fsc

multiples of line frequency);
f

= clock frequency (in multiples

llc

of line frequency)

= 227.5, f

fsc

= 283.7516, f

fsc

= 1716 → FSC = 569408543 (21F07C1FH).

llc

= 1728 → FSC = 705268427 (2A098ACBH).

llc



f

32

fsc



FSC

=

2

×

------- ­f



llc

,

rounded up; see note 1

immediately after run-in and framing code, the
MSBs of the respective bytes have to carry the
parity bit, in accordance with the definition of
Line 21 encoding format.

FSC3 = most significant byte
FSC0 = least significant byte

Table 24 Subaddress 6B

DATA BYTE

LOGIC

LEVEL

DESCRIPTION

PRCV2 0 polarity of RCV2 as output is active HIGH, rising edge is taken when input, respectively;

default after reset

1 polarity of RCV2 as output is active LOW, falling edge is taken when input, respectively

ORCV2 0 pin RCV2 is switched to input; default after reset

1 pin RCV2 is switched to output

CBLF 0 if ORCV2 = HIGH, pin RCV2 provides an HREF signal (Horizontal Reference pulse that is

defined by RCV2S and RCV2E, also during vertical blanking Interval); default after reset
if ORCV2 = LOW and bit SYMP = LOW, signal input to RCV2 is used for horizontal

synchronization only (if TRCV2 = 1); default after reset

1 if ORCV2 = HIGH, pin RCV2 provides a ‘Composite-Blanking-Not’ signal, for example a

reference pulse that is defined by RCV2S and RCV2E, excluding Vertical Blanking Interval,
which is defined by FAL and LAL

if ORCV2 = LOW and bit SYMP = LOW, signal input to RCV2 is used for horizontal
synchronization (if TRCV2 = 1) and as an internal blanking signal

PRCV1 0 polarity of RCV1 as output is active HIGH, rising edge is taken when input; default after reset

1 polarity of RCV1 as output is active LOW, falling edge is taken when input

ORCV1 0 pin RCV1 is switched to input; default after reset

1 pin RCV1 is switched to output

TRCV2 0 horizontal synchronization is taken from RCV1 port (at bit SYMP = LOW) or from decoded

frame sync of “

CCIR 656”

input (at bit SYMP = HIGH); default after reset

1 horizontal synchronization is taken from RCV2 port (at bit SYMP = LOW)

SRCV1 − defines signal type on pin RCV1; see Table 25

1997 Jan 06 18

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 25 Logic levels and function of SRCV1

DATA BYTE

SRCV11 SRCV10

0 0 VS VS vertical sync each field; default after reset
0 1 FS FS frame sync (odd/even)
1 0 FSEQ FSEQ field sequence, vertical sync every fourth field

1 1 not applicable not applicable −

Table 26 Subaddress 6C and 6D

DATA BYTE DESCRIPTION

HTRIG sets the horizontal trigger phase related to signal on RCV1 or RCV2 input

values above 1715 (FISE = 1) or [1727 (FISE = 0)] are not allowed
increasing HTRIG decreases delays of all internally generated timing signals
reference mark: analog output horizontal sync (leading slope) coincides with active edge of RCV used

for triggering at HTRIG = 398H [398H]

Table 27 Subaddress 6D

DATA BYTE DESCRIPTION

VTRIG sets the vertical trigger phase related to signal on RCV1 input

increasing VTRIG decreases delays of all internally generated timing signals, measured in half lines
variation range of VTRIG = 0 to 31 (1FH)

AS OUTPUT AS INPUT FUNCTION

(PAL = 0) or eighth field (PAL = 1)

Table 28 Subaddress 6E

DATA BYTE

SBLBN 0 vertical blanking is defined by programming of FAL and LAL; default after reset

PHRES − selects the phase reset mode of the colour subcarrier generator; see Table 29
FLC − field length control; see Table 30

Table 29 Logic levels and function of PHRES

DATA BYTE

PHRES1 PHRES0

0 0 no reset or reset via RTCI from SAA7111 if bit RTCE = 1; default after reset
0 1 reset every two lines
1 0 reset every eight fields
1 1 reset every four fields

LOGIC
LEVEL

1 vertical blanking is forced in accordance with

DESCRIPTION

DESCRIPTION

“CCIR 624”

(50 Hz) or RS170A (60 Hz)

1997 Jan 06 19

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 30 Logic levels and function of FLC

DATA BYTE

FLC1 FLC0

0 0 interlaced 312.5 lines/field at 50 Hz, 262.5 lines/field at 60 Hz; default after reset
0 1 non-interlaced 312 lines/field at 50 Hz, 262 lines/field at 60 Hz
1 0 non-interlaced 313 lines/field at 50 Hz, 263 lines/field at 60 Hz
1 1 non-interlaced 313 lines/field at 50 Hz, 263 lines/field at 60 Hz

Table 31 Subaddress 6F

DATA BYTE

CCEN − enables individual Line 21 encoding; see Table 32
TTXEN 0 disables teletext insertion

SCCLN − selects the actual line, where closed caption or extended data are encoded

Table 32 Logic levels and function of CCEN

DATA BYTE

CCEN1 CCEN0

0 0 Line 21 encoding off
0 1 enables encoding in field 1 (odd)
1 0 enables encoding in field 2 (even)
1 1 enables encoding in both fields

LOGIC
LEVEL

1 enables teletext insertion

line = (SCCLN + 4) for M-systems
line = (SCCLN + 1) for other systems

DESCRIPTION

DESCRIPTION

DESCRIPTION

Table 33 Subaddress 70 to 72

DATA BYTE DESCRIPTION

RCV2S start of output signal on pin RCV2

values above 1715 (FISE = 1) or [1727 (FISE = 0)] are not allowed
first active pixel at analog outputs (corresponding input pixel coinciding with RCV2) at

RCV2S = 11AH [0FDH]

RCV2E end of output signal on pin RCV2

values above 1715 (FISE = 1) or [1727 (FISE = 0)] are not allowed
last active pixel at analog outputs (corresponding input pixel coinciding with RCV2) at

RCV2E = 694H [687H]

1997 Jan 06 20

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 34 Subaddress 73 and 74

DATA BYTE DESCRIPTION

TTXHS start of signal on pin TTXRQ see Fig.7
TTXHD indicates the delay in clock cycles between rising edge of TTXRQ output and valid data on pin TTX

minimum value has to be TTXHD = 2

Table 35 Subaddress 75

DATA BYTE DESCRIPTION

VS_S Vertical Sync. shift between RCV1 and RCV2 (switched to output) in master mode it is possible to shift

H-sync (RCV2; CBLF = 0) against V-sync (RCV1; SRCV1 = 00)

standard value: VS_S = 3

Table 36 Subaddress 76, 77 and 7C

DATA BYTE DESCRIPTION

TTXOVS first line of occurrence of signal on pin TTXRQ in odd field

line = (TTXOVS + 4) for M-systems
line = (TTXOVS + 1) for other systems

TTXOVE last line of occurrence of signal on pin TTXRQ in odd field

line = (TTXOVE + 3) for M-systems
line = TTXOVE for other systems

Table 37 Subaddress 78, 79 and 7C

DATA BYTE DESCRIPTION

TTXEVS first line of occurrence of signal on pin TTXRQ in even field

line = (TTXEVS + 4) for M-systems
line = (TTXEVS + 1) for other systems

TTXEVE last line of occurrence of signal on pin TTXRQ in even field

line = (TTXEVE + 3) for M-systems
line = TTXEVE for other systems

Table 38 Subaddress 7C

DATA BYTE

TTX60 0 enables NABTS (FISE = 1) or European TTX (FISE = 0); default after reset

Table 39 Subaddress 7A to 7C

DATA BYTE DESCRIPTION

FAL first active line = FAL + 4 for M-systems, = FAL+ 1 for other systems, measured in lines FAL = 0

LAL last active line = LAL + 3 for M-systems, = LAL for other system, measured in lines LAL = 0 coincides

LOGIC

LEVEL

1 enables World Standard Teletext 60 Hz (FISE = 1)

coincides with the first field synchronization pulse

with the first field synchronization pulse

DESCRIPTION

1997 Jan 06 21

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

Table 40 Subaddress 7E and 7F

DATA BYTE DESCRIPTION

LINE individual lines in both fields (PAL counting) can be disabled for insertion of teletext by the respective

bits, disabled line = LINExx (50 Hz field rate)

this bit mask is effective only, if the lines are enabled by TTXOVS/TTXOVE and TTXEVS/TTXEVE

Slave Transmitter
Table 41 Slave transmitter (slave address 89H or 8DH)

REGISTER
FUNCTION

Status byte − VER2 VER1 VER0 CCRDO CCRDE 0 FSEQ O_E

Table 42 No subaddress

DATA BYTE

VER − Version identification of the device. It will be changed with all versions of the device that

CCRDO 1 Closed caption bytes of the odd field have been encoded.

CCRDE 1 Closed caption bytes of the even field have been encoded.

FSEQ 1 During first field of a sequence (repetition rate: NTSC = 4 fields, PAL = 8 fields).

O_E 1 During even field.

SUBADDRESS

D7 D6 D5 D4 D3 D2 D1 D0

LOGIC
LEVEL

have different programming models. Current version is 000 binary.

0 The bit is reset after information has been written to the subaddresses 67 and 68. It is set

immediately after the data has been encoded.

0 The bit is reset after information has been written to the subaddresses 69 and 6A. It is set

immediately after the data has been encoded.

0 Not first field of a sequence.

0 During odd field.

DATA BYTE

DESCRIPTION

1997 Jan 06 22

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

CHARACTERISTICS

V

= 3.0 to 3.6 V; T

DDD

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Supply

V
V
I

DDA

I

DDD

DDA
DDD

analog supply voltage 3.1 3.5 V
digital supply voltage 3.0 3.6 V
analog supply current note 1 − 62 mA
digital supply current note 1 − 38 mA

Inputs

V

IL

LOW level input voltage
(except SDA, SCL, AP, SP and XTALI)

V

IH

HIGH level input voltage
(except, SDA, SCL, AP, SP and XTALI)

I

LI

C

i

input leakage current − 1 µA
input capacitance clocks − 10 pF

= 0 to +70 °C; unless otherwise specified.

amb

−0.5 +0.8 V

2.0 V

DDD

+ 0.3 V

data − 8pF
I/Os at high impedance − 8pF

Outputs

V

OL

LOW level output voltage
(except SDA and XTALO)

V

OH

HIGH level output voltage
(except, SDA, and XTALO)

2

C-bus; SDA and SCL

I

V

IL

V

IH

I

i

V

OL

I

o

LOW level input voltage −0.5 V
HIGH level input voltage 2.3 V
input current Vi= LOW or HIGH −10 +10 µA
LOW level output voltage (SDA) IOL=3mA − 0.4 V
output current during acknowledge 3 − mA

Clock timing (LLC)

T

LLC

cycle time note 2 34 41 ns
δ duty factor t
t

r

t

f

rise time note 2 − 5ns

fall time note 2 − 6ns

Input timing

t

SU;DAT

input data set-up time (any pin except

SCL, SDA, RESET, AP and SP)
t

HD;DAT

input data hold time (any pin except

SCL, SDA, RESET, AP and SP)

HIGH/tLLC

IOL=4mA − 0.4 V

IOH=4mA V

− 4 − V

DDD

DDD
DDD

+ 0.3 V
+ 0.3 V

note 3 40 60 %

6 − ns

3 − ns

1997 Jan 06 23

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Crystal oscillator

f

n

∆f/f

n

CRYSTAL SPECIFICATION
T

amb

C

L

R

S

C

1

C

0

Data and reference signal output timing

C

L

t

h

t

d

C, Y and CVBS outputs

V

o(p-p)

R

int

R

L

B

−3dB

ILE LF integral linearity error of DACs −±3 LSB
DLE LF differential linearity error of DACs −±1 LSB

nominal frequency (usually 27 MHz) 3rd harmonic − 30 MHz

permissible deviation of nominal frequency note 4 −50 × 10−6+50 × 10

−6

operating ambient temperature 0 70 °C

load capacitance 8 − pF

series resistance − 80 Ω

motional capacitance (typical) 1.5 − 20% 1.5 + 20% fF

parallel capacitance (typical) 3.5− 20% 3.5 + 20% pF

output load capacitance 7.5 40 pF

output hold time 4 − ns

output delay time − 25 ns

output signal voltage (peak-to-peak value) note 5 1.20 1.45 V

internal serial resistance 1 3 Ω

output load resistance 75 300 Ω

output signal bandwidth of DACs 10 − MHz

Notes

1. At maximum supply voltage with highly active input signals.

2. The data is for both input and output direction.

3. With LLC in input mode. In output mode, with a crystal connected to XTALO/XTALI duty factor is typically 50%.

4. If an internal oscillator is used, crystal deviation of nominal frequency is directly proportional to the deviation of
subcarrier frequency and line/field frequency.

5. For full digital range, without load, V

= 3.3 V. The typical voltage swing is 1.35 V, the typical minimum output

DDA

voltage (digital zero at DAC) is 0.2 V.

1997 Jan 06 24

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

T

t

d

LLC

t

f

T

LLC

t

f

not valid

not valid

2.6 V

1.5 V

0.6 V

t

r

2.4 V

1.5 V

0.8 V

t

r

valid

valid

MBE742

2.0 V

0.8 V

2.4 V

0.6 V

handbook, full pagewidth

LLC clock output

LLC clock input

input data

output data

t

SU; DAT

t

HD; DAT

t

HD; DAT

valid

t

HD; DAT

valid

t

HIGH

t

HIGH

Fig.8 Clock data timing.

handbook, full pagewidth

LLC

MP(n)

RCV2

The data demultiplexing phase is coupled to the internal horizontal phase.
The phase of the RCV2 signal is programmed to tbf (tbf for 50 Hz) in this example in output mode (RCV2S).

Cb(0) Y(0) Cr(0) Y(1) Cb(2)

Fig.9 Functional timing.

MGB699

1997 Jan 06 25

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

handbook, full pagewidth

RTCI

(1) SAA7111 provides (22:0) bits, resulting in 3 reserved bits before

sequence bit.

(2) Sequence bit

PAL: 0 = (R−Y) line normal, 1 = (R−Y) line inverted
NTSC: 0 = no change.

H/L transition

count start

128

time slot:

LOW

HPLL

increment

13

01

not used in SAA7120/21

4 bits

reserved

0 021

14 19

(7)

Fig.10 RTCI timing.

Explanation of RTCI data bits

1. The ConDENC generates the subcarrier frequency out
of the FSCPLL increment if enabled (see item 6.).

2. The PAL bit indicates the line with inverted R - Y
component of colour difference signal.

3. If the reset bit is enabled
(RTCE = 1; DECPH = 1; PHRES = 00), the phase of
the subcarrier is reset in each line whenever the reset
bit of RTCI input is set to 1.

4. If the FISE bit is enabled (RTCE = 1; DECFIS = 1), the
ConDENC takes this bit instead of the FISE bit in
subaddress 61H.

5. If the odd/even bit is enabled (RTCE = 1; DECOE = 1),
the ConDENC ignores its internally generated
odd/even flag and takes the odd/even bit from RTCI
input.

5 bits

(7)

reserved

invalid

sample

(1)

8/LLC

FSCPLL increment

valid

sample

(3) Reset bit: only from SAA7111 decoder.
(4) FISE bit: 0 = 50 Hz, 1 = 60 Hz.
(5) Odd/even bit: odd/even from external.
(6) Colour detection: 0 = no colour detected, 1 = colour detected.
(7) Reserved bits: 232 with 50 Hz systems, 229 with 60 Hz systems.

(4)

(3)

(5)

(2)

67 69 72 74

68

MBH789

6. If the colour detection bit is enabled (RTCE = 1;
DECCOL = 1) and no colour was detected (colour
detection bit = 0), the subcarrier frequency is
generated by the ConDENC. In the other case (colour
detection bit = 1) the subcarrier frequency is evaluated
out of FSCPLL increment.

If the colour detection bit is disabled (RTCE = 1;
DECCOL = 0), the subcarrier frequency is evaluated
out of FSCPLL increment, independent of the colour
detection bit of RTCI input.

(6)

1997 Jan 06 26

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

APPLICATION INFORMATION

AGND

AGND

0.1 µF

0.1 µF

3.3 V analog supply

+

3.3 V digital supply

+

0.1 µF 0.1 µF

DGND

0.1 µF

AGNDAGND

DDA3

V

DDA2

V

DDA1

V

DDA4

V

DDD3

, V

DDD2

, V

DDD1

V

31

28

25366, 17, 3935 34

(2)

CVBS

U

1.23 V (p-p)

75 Ω

4.7 Ω

30 CVBS

(1)

2 Ω

DAC1

DDD

use one capacitor

for each V

AGND

10 Ω

Y
27

(1)

2 Ω

DAC2

(2)

UY1.00 V (p-p)

AGND

75 Ω

10 Ω

C
24

(1)

2 Ω

DAC3

SAA7120/21

(2)

UC0.62 V (p-p)

AGND

75 Ω

32, 33

5, 18, 38

MBH786

SSA2

, V

SSA1

AGND

V

SSD3

, V

SSD2

, V

SSD1

DGND

V

handbook, full pagewidth

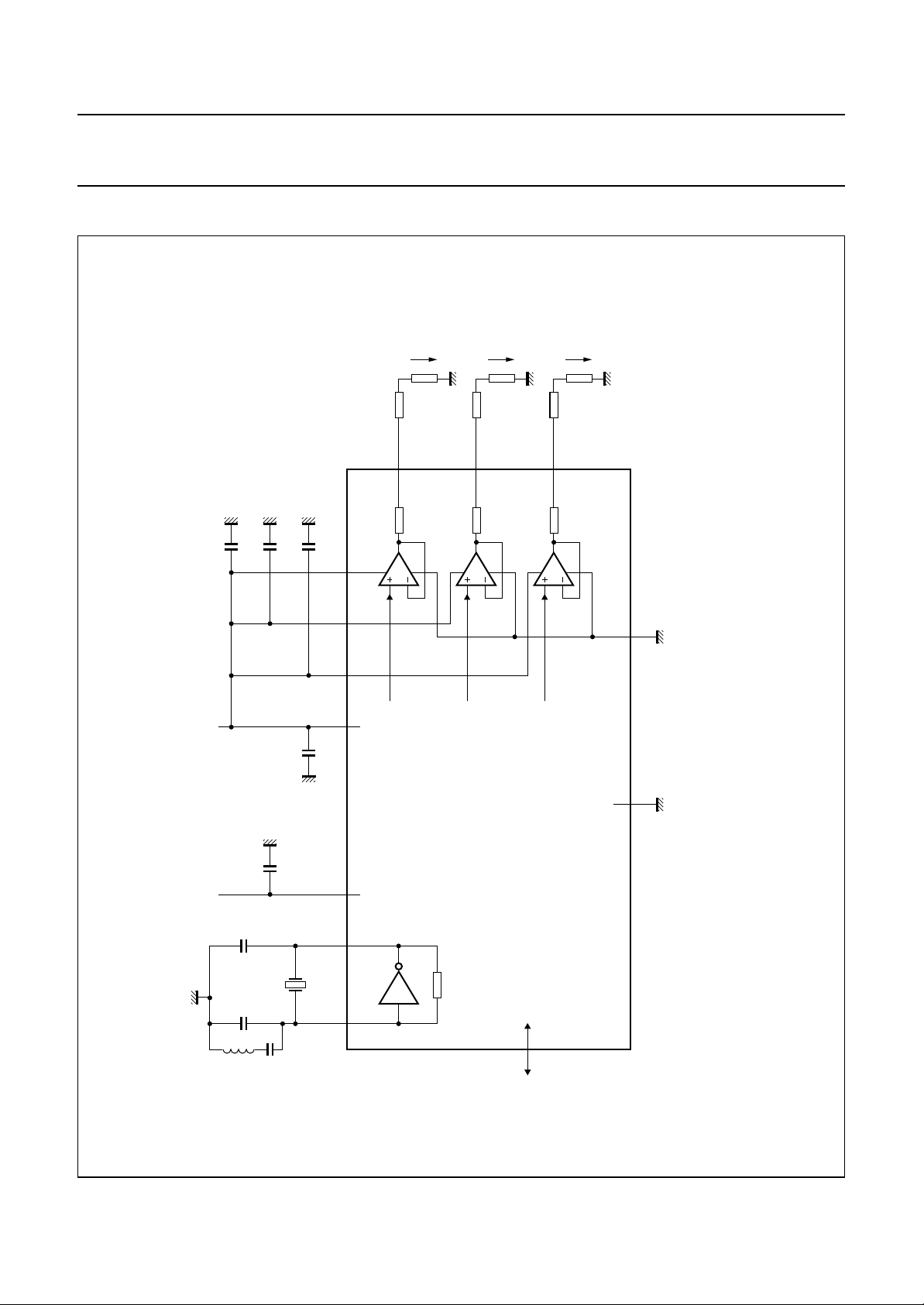

Fig.11 Application environment of ConDENC.

(3)

DGND

10 pF 10 pF

0.1 µH

X1

27.0 MHz

1 nF

3rd harmonic

XTALI XTALO

1997 Jan 06 27

digital

inputs and

outputs

(1) Typical value.

(2) For 100/100 colour bar.

(3) Order no. 4312 065 02341.

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

PACKAGE OUTLINE

QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm

c

y

X

A

33 23

34

pin 1 index

44

1

22

Z

E

e

H

E

E

w M

b

p

12

11

A

2

A

A

1

detail X

SOT307-2

Q

(A )

3

θ

L

p

L

w M

b

e

DIMENSIONS (mm are the original dimensions)

mm

OUTLINE
VERSION

SOT307-2

A

max.

2.10

0.25

0.05

1.85

1.65

UNIT A1A2A3bpcE

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

p

D

H

D

0.40

0.20

0.25

0.14

0.25

IEC JEDEC EIAJ

Z

D

B

0 2.5 5 mm

scale

(1)

(1) (1)(1)

D

10.1

9.9

REFERENCES

eH

10.1

9.9

12.9

0.8 1.3

12.3

1997 Jan 06 28

v M

H

v M

D

A

B

LLpQZywv θ

E

12.9

12.3

0.95

0.55

0.85

0.75

0.15 0.10.15

EUROPEAN

PROJECTION

Z

D

1.2

1.2

0.8

0.8

ISSUE DATE

92-11-17
95-02-04

E

o

10

o

0

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Reflow soldering

Reflow soldering techniques are suitable for all QFP
packages.

The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

Reference Handbook”

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

(order code 9398 652 90011).

“Quality

(order code 9397 750 00192).

If wave soldering cannot be avoided, the following
conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board

direction and must incorporate solder thieves
downstream and at the side corners.

Even with these conditions, do not consider wave
soldering the following packages: QFP52 (SOT379-1),
QFP100 (SOT317-1), QFP100 (SOT317-2),
QFP100 (SOT382-1) or QFP160 (SOT322-1).

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

1997 Jan 06 29

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PURCHASE OF PHILIPS I

2

C COMPONENTS

2

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

C components conveys a license under the Philips’ I2C patent to use the

1997 Jan 06 30

Philips Semiconductors Preliminary specification

Digital Video Encoder (ConDENC) SAA7120; SAA7121

NOTES

1997 Jan 06 31

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]/xxx
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1997 SCA53
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 657021/1200/01/pp32 Date of release: 1997 Jan 06 Document order number: 9397 750 01378
