Page 1
INTEGRATED CIRCUITS
DATA SH EET
SAA7112
Decoder with High-Performance
Scaler (HPS) for Image Port
(PELICAN)
Preliminary specification
File under Integrated Circuits, IC22
1996 Jun 20
Page 2
Philips Semiconductors Preliminary specification
Decoder with High-Performance Scaler
(HPS) for Image Port (PELICAN)
FEATURES
The PELICAN SAA7112 is a video capture device for
application at the image port of a VGA controller, with
following feature highlights:
Video Decoder
• Six analog inputs, internal analog source selectors,
(e.g. 6 × CVBS or(2 × YC and 2 × CVBS) or
(1 × YC and 4 × CVBS)
• Two analog preprocessing channels, including built in
analog anti-alias filters
• Fully programmable static gain for the main channels or
Automatic Gain Control (AGC) for the selected
CVBS/Y channel
• Two 8 bit video CMOS Analog-to-Digital Converters
(ADCs)
• Automatic Clamp Control (ACC) for CVBS, Y and C
• Switchable white peak control
• On-chip line locked clock generation in accordance with
CCIR-601
• Digital PLL for synchronization and clock generation
from all standards and non-standard video sources,
e.g. consumer grade VTR
• Requires only one crystal (32.11 MHz) for all standards
• Horizontal and vertical sync detection
• Automatic detection of 50/60Hz field frequency, and
automatic switching between standards PAL and NTSC
• Luminance and chrominance signal processing for PAL
BGHI, PAL N, PAL M, NTSC M, NTSC N, NTSC 4.43
and SECAM
• User programmable luminance peaking or aperture
correction
• Cross-colour reduction for NTSC by chrominance
combination filtering
• PAL delay line for correcting PAL phase errors
• Real time status information output (RTCO)
• Independent Brightness Contrast Saturation (BCS)
adjustment for decoder part.
Video Scaler
• Horizontal and vertical down-scaling and up-scaling to
randomly sized windows
• Horizontal and vertical scaling range:
2 (zoom) to1⁄64(icon); vertical zoom might be restricted
• Anti-alias- and accumulating filter for horizontal scaling
SAA7112
• Vertical scaling with linear phase interpolation (6-bit
phase accuracy) and accumulating filter for anti-aliasing
• Horizontal phase correct up- and down-scaling for
improved signal quality of scaled data, especially for
compression and video phone applications, with 6-bit
phase accuracy
• Two independent programming sets for scaler part, to
define two ‘ranges’ per field or per frame
• Field-wise switching between decoder-part and
expansion port input
• Brightness, contrast and saturation controls for scaled
outputs.
VBI-data decoder and text slicer
• versatile VBI-data decoder, slicer, clock regeneration
and byte synchronization; e.g. for WST, NABST, Close
Caption, WSS, etc.
Audio clock generation
• Generation of a field locked audio master clock to
support a constant number of audio clocks per video
field
• Generation of an audio serial and left/right (channel)
clock signal.
Digital I/O interfaces
• Real time signal port (R-port), including continuous line
locked reference clock and real time status information
• Bidirectional expansion port (X-port) with half duplex
functionality (D1), 8-bit YUV
– output from decoder part, real time, or
– input to scaler part, e.g. video from MPEG-decoder
• Video image port (I-port) configurable for 8-bit (16-bit)
data in master mode (own clock), or slave mode
(external clock), with auxiliary timing and hand shake
signals
• 8-bit data Host port (H-port) for 16-bit extension of I-port
• Discontinuous data streams supported
• 32-word × 4 bytes FIFO register for video output data
1996 Jun 20 2
Page 3
Philips Semiconductors Preliminary specification
Decoder with High-Performance Scaler
(HPS) for Image Port (PELICAN)
• 16-word × 4 bytes FIFO register for decoded VBI output
data
Scaled 4:2:2, 4:1:1 YUV output
• Scaled 8-bit luminance only and raw data output
• Decoded VBI data output.
miscellaneous
• Power-on control
• Programming via I
(full read-back ability by an external controller)
• Chip enable function (reset for the clock generator).
APPLICATIONS
• Desktop video
• Multimedia
• Digital television
• Image processing
• Video phone.
GENERAL DESCRIPTION
The PELICAN SAA7112 is a video capture device for
applications at the image port of VGA controllers.
The SAA7112 is a combination of a two channel analog
preprocessing circuit including source-selection,
anti-aliasing filter and ADC, an automatic clamp and gain
control, a Clock Generation Circuit (CGC), a digital
multistandard decoder and a SAA7140B based scaler,
including variable horizontal and vertical up and down
2
C-bus, or parallel image data port
SAA7112
scaling and a brightness, contrast and saturation control
circuit (see Fig.1).
It is a highly integrated circuit for desktop video
applications. The decoder is based on the principle of
line-locked clock decoding and is able to decode the colour
of PAL, SECAM and NTSC signals into CCIR-601
compatible colour component values. The SAA7112
accepts as analog inputs CVBS or S-video (Y−C) from TV
or VCR sources, including weak and distorted signals.
An Expansion port for digital video (bidirectional half
duplex, D1 compatible) is also supported to connect to
MPEG or video phone CODEC. At the so called image port
the SAA7112 supports 8-bit (16-bit) wide output data with
auxiliary reference data for interfacing to VGA controllers
The target application for PELICAN is to capture and scale
video images, to be provided as digital video stream
through the image port of a VGA controller, for display via
VGAs frame buffer, or for capture to system memory.
In parallel the SAA7112 incorporates also provisions for
capturing the serially coded data in the vertical blanking
interval (VBI-data). Two principal functions are available:
to capture raw video samples and a versatile data slicer
(data recovery) unit.
The SAA7112 incorporates also a field locked audio clock
generation. This function ensures that there is always the
same number of audio samples associated with a field, or
a set of fields. This prevents the loss of synchronization
between video and audio, during capture or playback.
2
The circuit can be controlled via the I
parallel programming mode of the image port interface (full
write/read capability).
C-bus or via its fast
QUICK REFERENCE DATA
SYMBOL PARAMETER MIN. MAX. UNIT
V
DDD
V
DDA
T
amb
ORDERING INFORMATION
TYPE
NUMBER
SAA7112 LQFP100 plastic low profile quad flat package; 100 leads; body 14 × 14 × 1.4 mm SOT407-1
1996 Jun 20 3
digital supply voltage 3.0 3.6 V
analog supply voltage 3.0 3.6 V
ambient temperature 0 70 °C
PACKAGE
NAME DESCRIPTION VERSION
Page 4
Philips Semiconductors Preliminary specification
Decoder with High-Performance Scaler
(HPS) for Image Port (PELICAN)
BLOCK DIAGRAMS
handbook, full pagewidth
RESIN
RESON
XOUT
XTALI
XTAL
LLC2
LLC
CLOCK
GENERATION
CE
AND
POWER ON
CONTROL
RTCA
RT OUT
RTS0
RTS1
XCLK
XRH
XREC
XDQ
EXPANSION PORT PIN MAPPING
D1 OUT D1 IN
XRV
XTRI
X PORT INPUT FORMATTER (SELECT)
XPD7
to
XPD0
chroma of 16-bit mode
from host port
SAA7112
a
AI11
AI12
AI21
AI22
AI23
AI24
AOUT
AMCLK
ALRCLK
ASCLK
AXMCLK
ANALOG
DUAL
ADC
AUDIO
MASTER
CLOCK
GENERATION
AUDIO
BIT BLOCK
WORD SELECT
GENERATION
SAA7111A
BASED
DIGITAL
DECODER
V
ref
V
ref
4 : 2 : 2
OUTPUT
INTERFACE
data, clock, H, V,
FID and qualifier
to scaler
data, clock, H, V,
FID and qualifier
to text slicer
MGE859
b
c

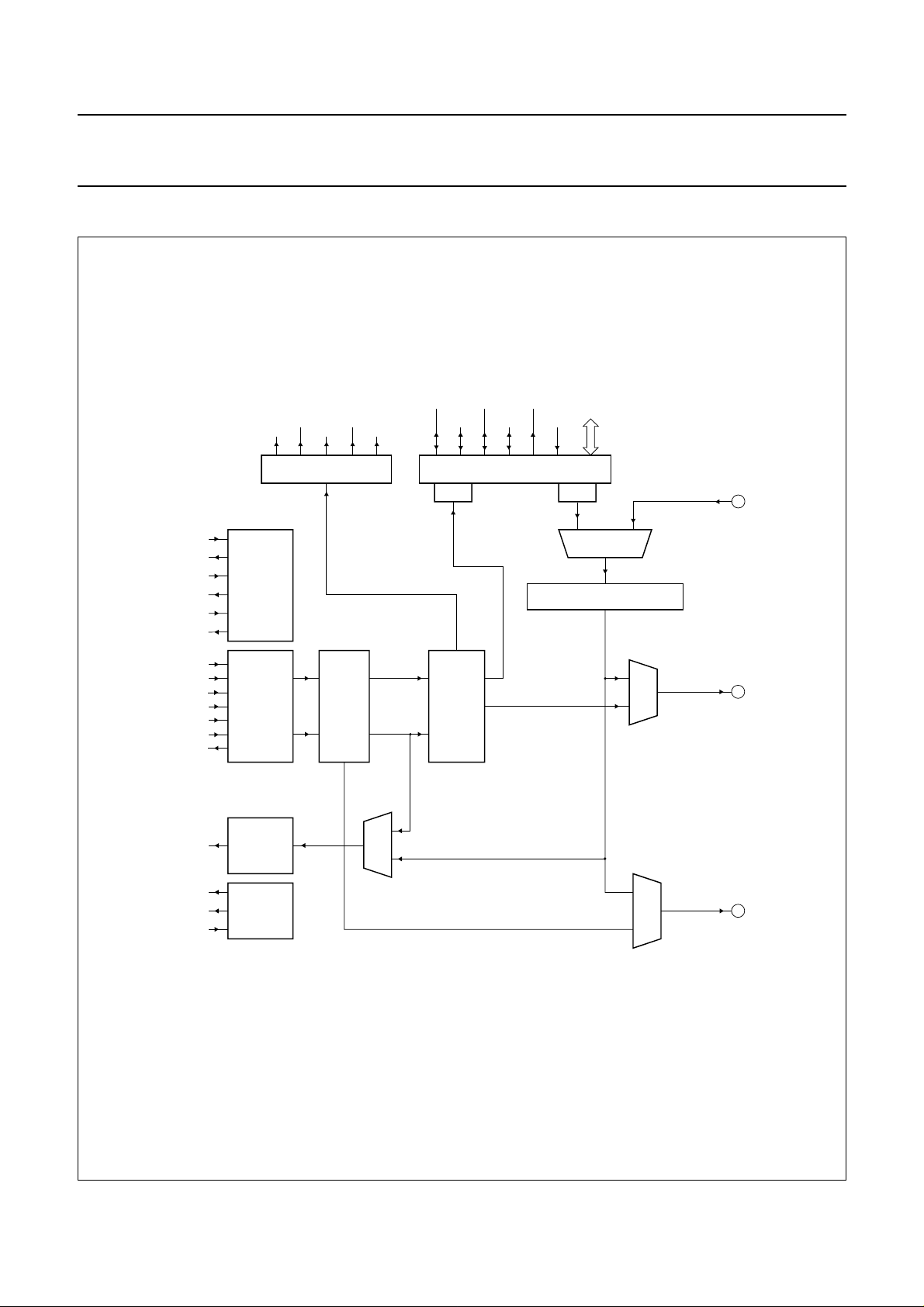

Fig.1 Block diagram (continued in Fig.2).
1996 Jun 20 4
Page 5
Philips Semiconductors Preliminary specification
Decoder with High-Performance Scaler
(HPS) for Image Port (PELICAN)
HCST
A / B
REGISTER
MUX
4 : 2 : 2
BCS
CONTROL
HPD7
to
HPD0
from
event
controller
LINE
FIFO
BUFFER
handbook, full pagewidth
chroma of 16-bit
input mode
a
data, clock, H, V, FID
and qualifier from
scaler input
selector
b
INPUT
ACQUISITION
CONTROL
HADP
2
C-BUS
I
PROG. PORT CONTROL
SLEEP MODE REGISTER
FIR-FILTER
LUMINANCE
FIR FILTER
CHROMINANCE
HRWNF
PROGRAMMING
HACNSD
HDSNSC
HOST PORT PIN MAPPING
REGISTER
ARRAY
PRESCALING
LUMINANCE
PRESCALING
CHROMINANCE
chroma of 16-bit output mode
CLOCK MULTIPLEXER
INCLUDING
TCB
VERTICAL
SCALING
PROCESSOR
LINE MEMORY
1H * 16 BIT
HORIZONTAL
PHASE SCALING
LUMINANCE
HORIZONTAL
PHASE SCALING
CHROMINANCE
LPB
PROG
SAA7112
PORT
PIN
MAPPING
IRH
IPD7
IPD0
to
reference signals
c
EVENT
CONTROLLER
data, clock and
from text input
selector
OUTPUT
ACQUISITION
CONTROL
GENERAL
PURPOSE
TEXTSLICER
YUV
OUTPUT
FORMAT
TXT
INTERFACE
VIDEO
FIFO
32 × 32
FIFO
CONTROL
FIFO
CONTROL
TEXT
FIFO
16 × 32
VIDEO / TEXT
ARBITER
32
TO
8 (16)
MUX
32
TO
8 (16)
MUX

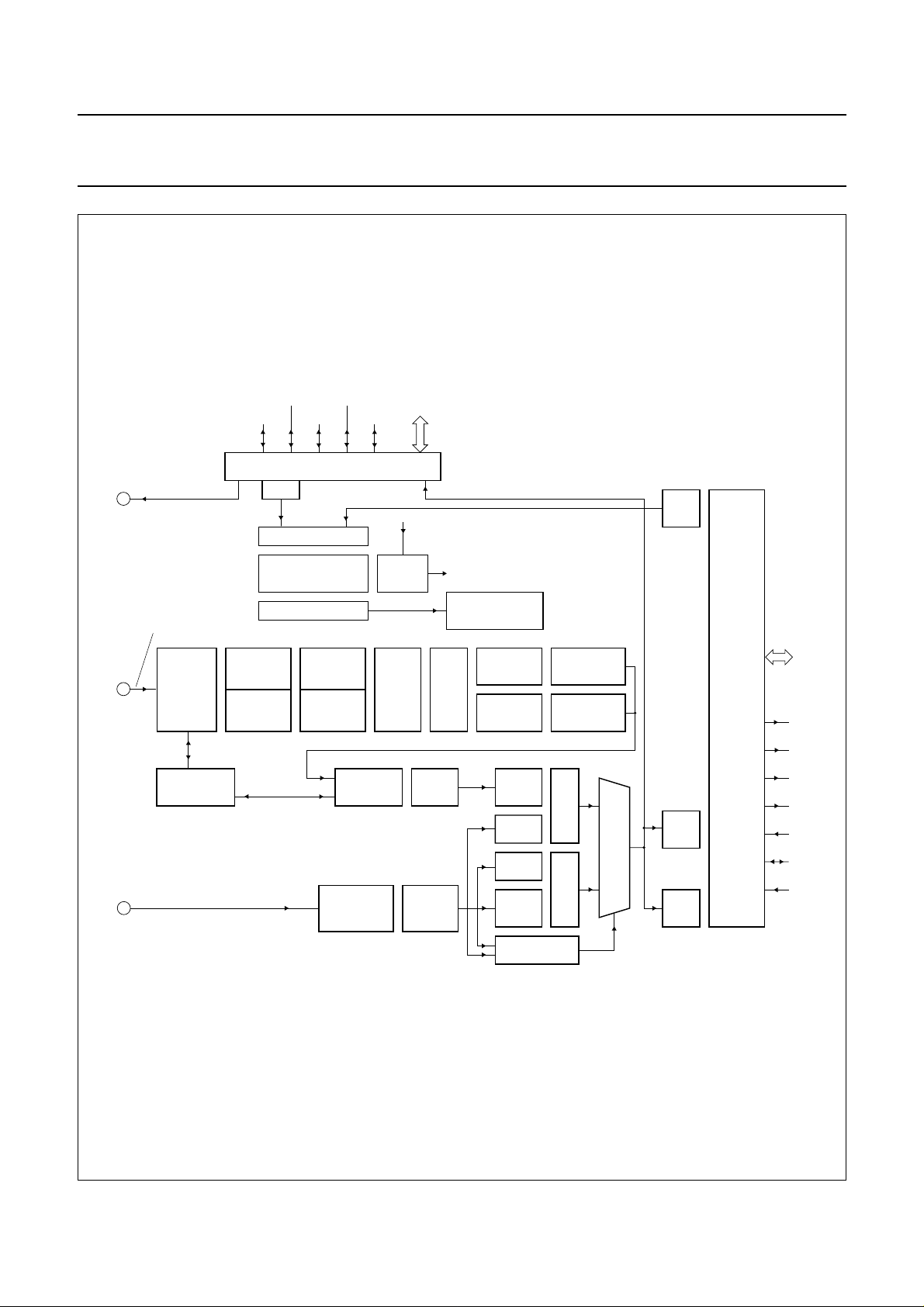

Fig.2 Block diagram (continued from Fig.1).
FF
IP
OUT
LPB
VIDEO
OUT
IRV
IDQE
ICRQF
ITRDY
ICLK
ITRI
MGE860
1996 Jun 20 5
Page 6
Philips Semiconductors Preliminary specification
Decoder with High-Performance Scaler
(HPS) for Image Port (PELICAN)

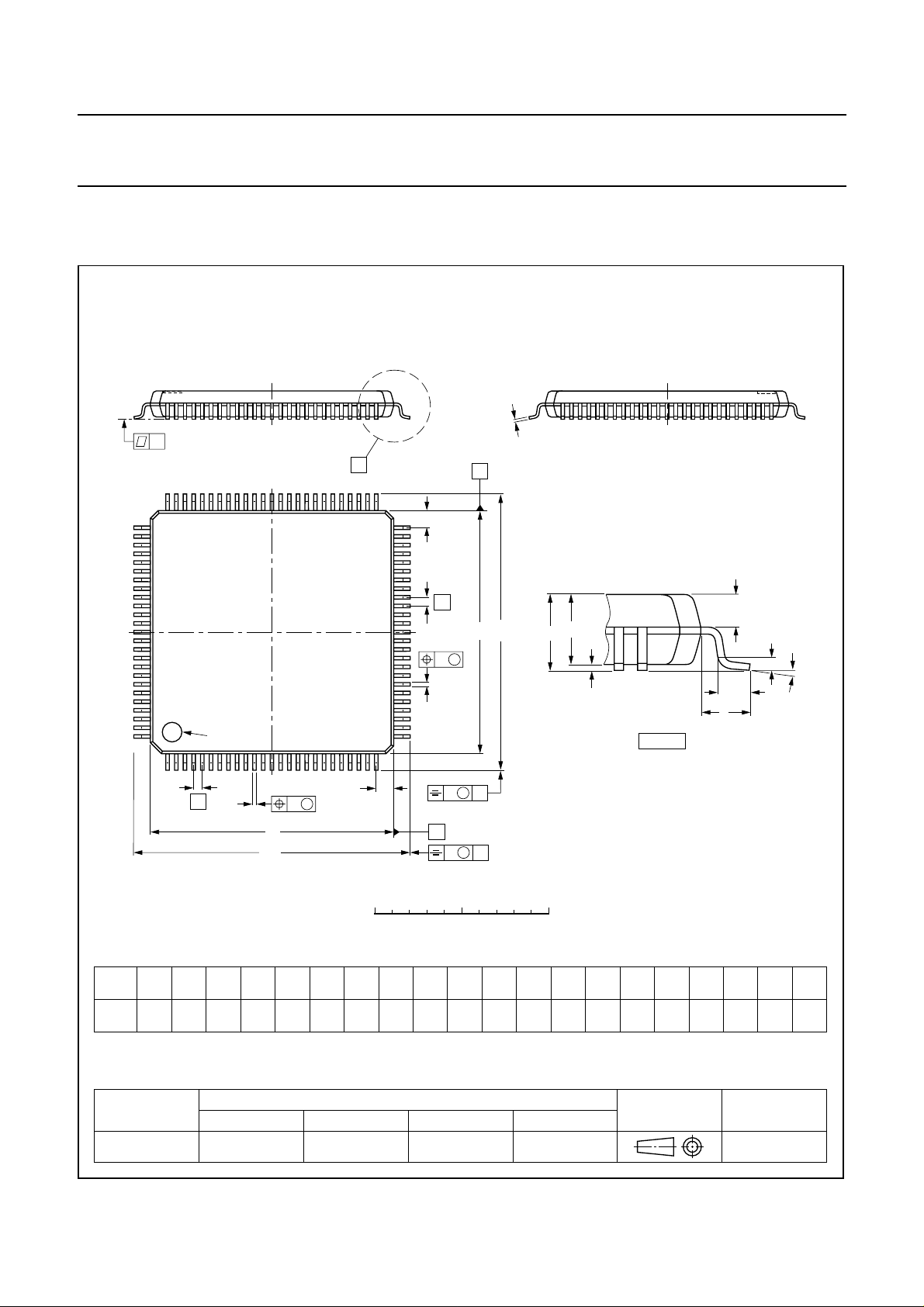

PACKAGE OUTLINE
LQFP100: plastic low profile quad flat package; 100 leads; body 14 x 14 x 1.4 mm
c
y
X
75
76
51
50
Z
E
A
SAA7112
SOT407-1
100
1
DIMENSIONS (mm are the original dimensions)
mm
A
max.
1.6
UNIT
pin 1 index
e
A1A2A3b
0.20
0.05
1.5
1.3
b
p
0.25
D
H
D
w M
cE
p
0.28
0.18
0.16
0.12
e
H
E
E
w M
b
p
26
25
Z
D
0 5 10 mm
(1)
(1) (1)(1)
D
14.1
14.1
13.9
13.9
v M
A
B
v M
B
scale
eH
H
E
D
16.25
16.25
0.5
15.75
15.75
A
2
A
A
1
detail X
LLpQZywv θ
0.70
0.75
0.45
0.57
0.12 0.10.21.0
Q
(A )
3
θ
L
p
L
Z
E
D
1.15
0.85
1.15
0.85
o
7
o
0
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
OUTLINE
VERSION
SOT407-1
IEC JEDEC EIAJ
REFERENCES
1996 Jun 20 6
EUROPEAN
PROJECTION
ISSUE DATE
95-12-19
Page 7
Philips Semiconductors Preliminary specification
Decoder with High-Performance Scaler
SAA7112
(HPS) for Image Port (PELICAN)
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
PURCHASE OF PHILIPS I
Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.
2
C COMPONENTS
2
C components conveys a license under the Philips’ I2C patent to use the
1996 Jun 20 7
Page 8
Philips Semiconductors – a worldwide company
Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 805 4455, Fax. +61 2 805 4466
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101, Fax. +43 1 60 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200773
Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2689 102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381, Fax.+1 708296 8556
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +8522319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 1949
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 615 800, Fax. +358 615 80920
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 4099 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 52 60, Fax. +4940 23536 300
Greece: No. 15, 25th March Street, GR 17778 TAVROS,
Tel. +30 1 4894 339/911, Fax. +30 14814 240
Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.
Worli, MUMBAI 400 018, Tel. +91 22 4938 541, Fax. +91 224938 722
Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax.+353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,
Tel. +972 3 645 0444, Fax.+972 3 648 1007
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,
Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 7574880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +1 800 234 7381, Fax.+1 708296 8556
Middle East: see Italy
Netherlands: Postbus 90050, 5600PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 83749, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC,MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +632 8173474
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax.+48 22612 2327
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 926 5361, Fax.+7 095564 8323
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,
Tel. +65 350 2538, Fax. +65251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax.+27 11470 5494
South America: Rua do Rocio 220 - 5th floor, Suite 51,
CEP: 04552-903-SÃO PAULO-SP, Brazil, P.O. Box 7383 (01064-970),
Tel. +55 11 821 2333, Fax.+55 11829 1849
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 3 301 6312, Fax. +34 3 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 632 2000, Fax. +46 8 632 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2686, Fax. +41 1 481 7730
Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66,
Chung Hsiao West Road, Sec. 1, P.O. Box 22978,
TAIPEI 100, Tel. +886 2 382 4443, Fax.+886 2382 4444
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Ukraine: PHILIPS UKRAINE, 2A Akademika Koroleva str., Office 165,
252148 KIEV, Tel. +380 44 476 0297/1642,Fax. +38044 4766991
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax.+44 181754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381, Fax.+1 708296 8556
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 825 344, Fax.+38111 635777
For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1996 SCA49
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands 657021/01/pp8 Date of release: 1996 Jun 20 Document order number: 9397 750 00923
Internet: http://www.semiconductors.philips.com/ps/
(1) ADDRESS CONTENT SOURCE July 9, 1997
Loading...
