Datasheet S25FL032P Datasheet (Spansion) [ru]

Page 1

S25FL032P

32-Mbit CMOS 3.0 Volt Flash Memory with 104-MHz SPI (Serial Peripheral Interface) Multi I/O Bus

Data Sheet

Notice to Readers: This document states the current technical specifications regarding the Spansion product(s) described herein. Each product described herein may be designated as Advance Information, Preliminary, or Full Production. See Notice On Data Sheet Designations for definitions.

S25FL032P Cover Sheet

Publication Number S25FL032P_00 Revision 06 Issue Date December 7, 2011

Page 2

Notice On Data Sheet Designations

Spansion Inc. issues data sheets with Advance Information or Preliminary designations to advise readers of product information or intended specifications throughout the product life cycle, including development, qualification, initial production, and full production. In all cases, however, readers are encouraged to verify that they have the latest information before finalizing their design. The following descriptions of Spansion data sheet designations are presented here to highlight their presence and definitions.

Advance Information

The Advance Information designation indicates that Spansion Inc. is developing one or more specific products, but has not committed any design to production. Information presented in a document with this designation is likely to change, and in some cases, development on the product may discontinue. Spansion Inc. therefore places the following conditions upon Advance Information content:

“This document contains information on one or more products under development at Spansion Inc. The information is intended to help you evaluate this product. Do not design in this product without contacting the factory. Spansion Inc. reserves the right to change or discontinue work on this proposed product without notice.”

Preliminary

The Preliminary designation indicates that the product development has progressed such that a commitment to production has taken place. This designation covers several aspects of the product life cycle, including product qualification, initial production, and the subsequent phases in the manufacturing process that occur before full production is achieved. Changes to the technical specifications presented in a Preliminary document should be expected while keeping these aspects of production under consideration. Spansion places the following conditions upon Preliminary content:

“This document states the current technical specifications regarding the Spansion product(s) described herein. The Preliminary status of this document indicates that product qualification has been completed, and that initial production has begun. Due to the phases of the manufacturing process that require maintaining efficiency and quality, this document may be revised by subsequent versions or modifications due to changes in technical specifications.”

Data Sheet

Combination

Some data sheets contain a combination of products with different designations (Advance Information, Preliminary, or Full Production). This type of document distinguishes these products and their designations wherever necessary, typically on the first page, the ordering information page, and pages with the DC Characteristics table and the AC Erase and Program table (in the table notes). The disclaimer on the first page refers the reader to the notice on this page.

Full Production (No Designation on Document)

When a product has been in production for a period of time such that no changes or only nominal changes are expected, the Preliminary designation is removed from the data sheet. Nominal changes may include those affecting the number of ordering part numbers available, such as the addition or deletion of a speed option, temperature range, package type, or V description or to correct a typographical error or incorrect specification. Spansion Inc. applies the following conditions to documents in this category:

“This document states the current technical specifications regarding the Spansion product(s) described herein. Spansion Inc. deems the products to have been in sufficient production volume such that subsequent versions of this document are not expected to change. However, typographical or specification corrections, or modifications to the valid combinations offered may occur.”

Questions regarding these document designations may be directed to your local sales office.

range. Changes may also include those needed to clarify a

2 S25FL032P S25FL032P_00_06 December 7, 2011

Page 3

S25FL032P

32-Mbit CMOS 3.0 Volt Flash Memory with 104-MHz SPI (Serial Peripheral Interface) Multi I/O Bus

Data Sheet

Distinctive Characteristics

Architectural Advantages

 Single power supply operation

– Full voltage range: 2.7 to 3.6V read and write operations

 Memory architecture

– Uniform 64 KB sectors

– Top or bottom parameter block (Two 64-KB sectors (top or

bottom) broken down into sixteen 4-KB sub-sectors each) – 256-byte page size – Backward compatible with the S25FL032A device

 Program

– Page Program (up to 256 bytes) in 1.5 ms (typical) – Program operations are on a page by page basis – Accelerated programming mode via 9V W#/ACC pin – Quad Page Programming

 Erase

– Bulk erase function – Sector erase (SE) command (D8h) for 64 KB sectors – Sub-sector erase (P4E) command (20h) for 4 KB sectors – Sub-sector erase (P8E) command (40h) for 8 KB sectors

 Cycling endurance

– 100,000 cycles per sector typical

 Data retention

– 20 years typical

 Device ID

– JEDEC standard two-byte electronic signature – RES command one-byte electronic signature for backward

compatibility

 One time programmable (OTP) area for permanent, secure

identification; can be programmed and locked at the factory or by the customer

 CFI (Common Flash Interface) compliant: allows host system

to identify and accommodate multiple flash devices

 Process technology

– Manufactured on 0.09 µm MirrorBit® process technology

 Package option

– Industry Standard Pinouts – 8-pin SO package (208 mils) – 16-pin SO package (300 mils) – 8-contact USON package (5 x 6 mm) – 8-contact WSON package (6 x 8 mm) – 24-ball BGA 6 x 8 mm package, 5 x 5 pin configuration – 24-ball BGA 6 x 8 mm package, 6 x 4 pin configuration

Performance Characteristics

 Speed

– Normal READ (Serial): 40 MHz clock rate – FAST_READ (Serial): 104 MHz clock rate (maximum) – DUAL I/O FAST_READ: 80 MHz clock rate or

20 MB/s effective data rate

– QUAD I/O FAST_READ: 80 MHz clock rate or

40 MB/s effective data rate

 Power saving standby mode

– Standby Mode 80 µA (typical) – Deep Power-Down Mode 3 µA (typical)

Memory Protection Features

 Memory protection

– W#/ACC pin works in conjunction with Status Register Bits to

protect specified memory areas

– Status Register Block Protection bits (BP2, BP1, BP0) in status

Publication Number S25FL032P_00 Revision 06 Issue Date December 7, 2011

Page 4

General Description

The S25FL032P is a 3.0 Volt (2.7V to 3.6V), single-power-supply Flash memory device. The device consists of 64 uniform 64 KB sectors with the two (Top or Bottom) 64 KB sectors further split up into thirty-two 4KB sub sectors. The S25FL032P device is fully backward compatible with the S25FL032A device.

The device accepts data written to SI (Serial Input) and outputs data on SO (Serial Output). The devices are designed to be programmed in-system with the standard system 3.0-volt V

The S25FL032P device adds the following high-performance features using 5 new instructions:

 Dual Output Read using both SI and SO pins as output pins at a clock rate of up to 80 MHz

 Quad Output Read using SI, SO, W#/ACC and HOLD# pins as output pins at a clock rate of up to 80 MHz

 Dual I/O High Performance Read using both SI and SO pins as input and output pins at a clock rate of up

to 80 MHz

 Quad I/O High Performance Read using SI, SO, W#/ACC and HOLD# pins as input and output pins at a

clock rate of up to 80 MHz

 Quad Page Programming using SI, SO, W#/ACC and HOLD# pins as input pins to program data at a clock

rate of up to 80 MHz

The memory can be programmed 1 to 256 bytes at a time, using the Page Program command. The device supports Sector Erase and Bulk Erase commands.

Each device requires only a 3.0-volt power supply (2.7V to 3.6V) for both read and write functions. Internally generated and regulated voltages are provided for the program operations. This device requires a high voltage supply to the W#/ACC pin to enable the Accelerated Programming mode.

The S25FL032P device also offers a One-Time Programmable area (OTP) of up to 128-bits (16 bytes) for permanent secure identification and an additional 490 bytes of OTP space for other use. This OTP area can be programmed or read using the OTPP or OTPR instructions.

Data Sheet

supply.

4 S25FL032P S25FL032P_00_06 December 7, 2011

Page 5

Distinctive Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2. Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. Input/Output Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4. Logic Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.1 Valid Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6. Spansion SPI Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7. Device Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.1 Byte or Page Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.2 Quad Page Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.3 Dual and Quad I/O Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.4 Sector Erase / Bulk Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.5 Monitoring Write Operations Using the Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.6 Active Power and Standby Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.7 Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7.8 Configuration Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7.9 Data Protection Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.10 Hold Mode (HOLD#) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7.11 Accelerated Programming Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

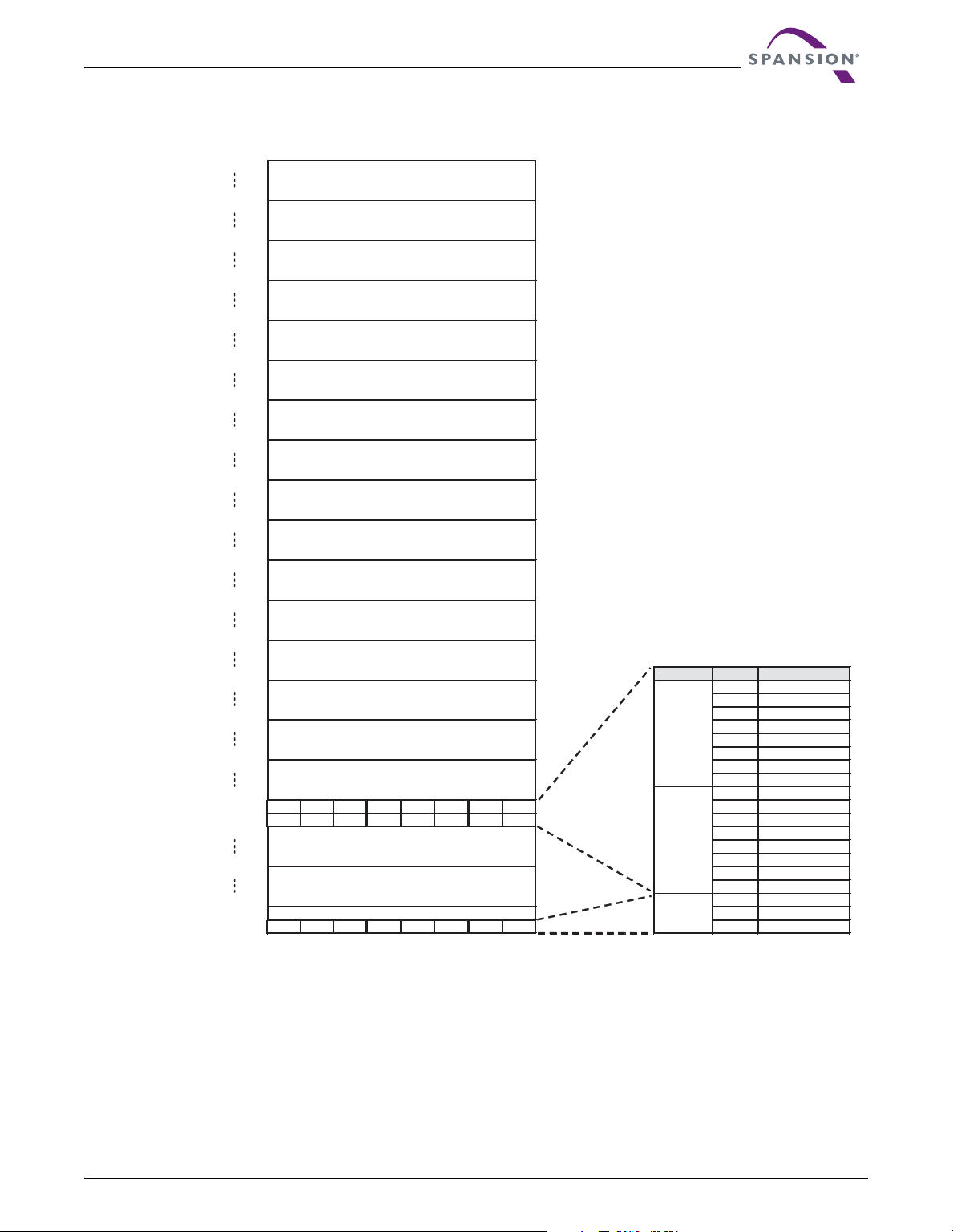

8. Sector Address Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9. Command Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

9.1 Read Data Bytes (READ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

9.2 Read Data Bytes at Higher Speed (FAST_READ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

9.3 Dual Output Read Mode (DOR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

9.4 Quad Output Read Mode (QOR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

9.5 DUAL I/O High Performance Read Mode (DIOR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

9.6 Quad I/O High Performance Read Mode (QIOR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

9.7 Read Identification (RDID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

9.8 Read-ID (READ_ID). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

9.9 Write Enable (WREN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.10 Write Disable (WRDI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

9.11 Read Status Register (RDSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

9.12 Read Configuration Register (RCR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9.13 Write Registers (WRR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

9.14 Page Program (PP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

9.15 QUAD Page Program (QPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

9.16 Parameter Sector Erase (P4E, P8E) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.17 Sector Erase (SE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.18 Bulk Erase (BE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.19 Deep Power-Down (DP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.20 Release from Deep Power-Down (RES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.21 Clear Status Register (CLSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.22 OTP Program (OTPP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.23 Read OTP Data Bytes (OTPR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

10. OTP Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

10.1 Programming OTP Address Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

10.2 Reading OTP Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

10.3 Locking OTP Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

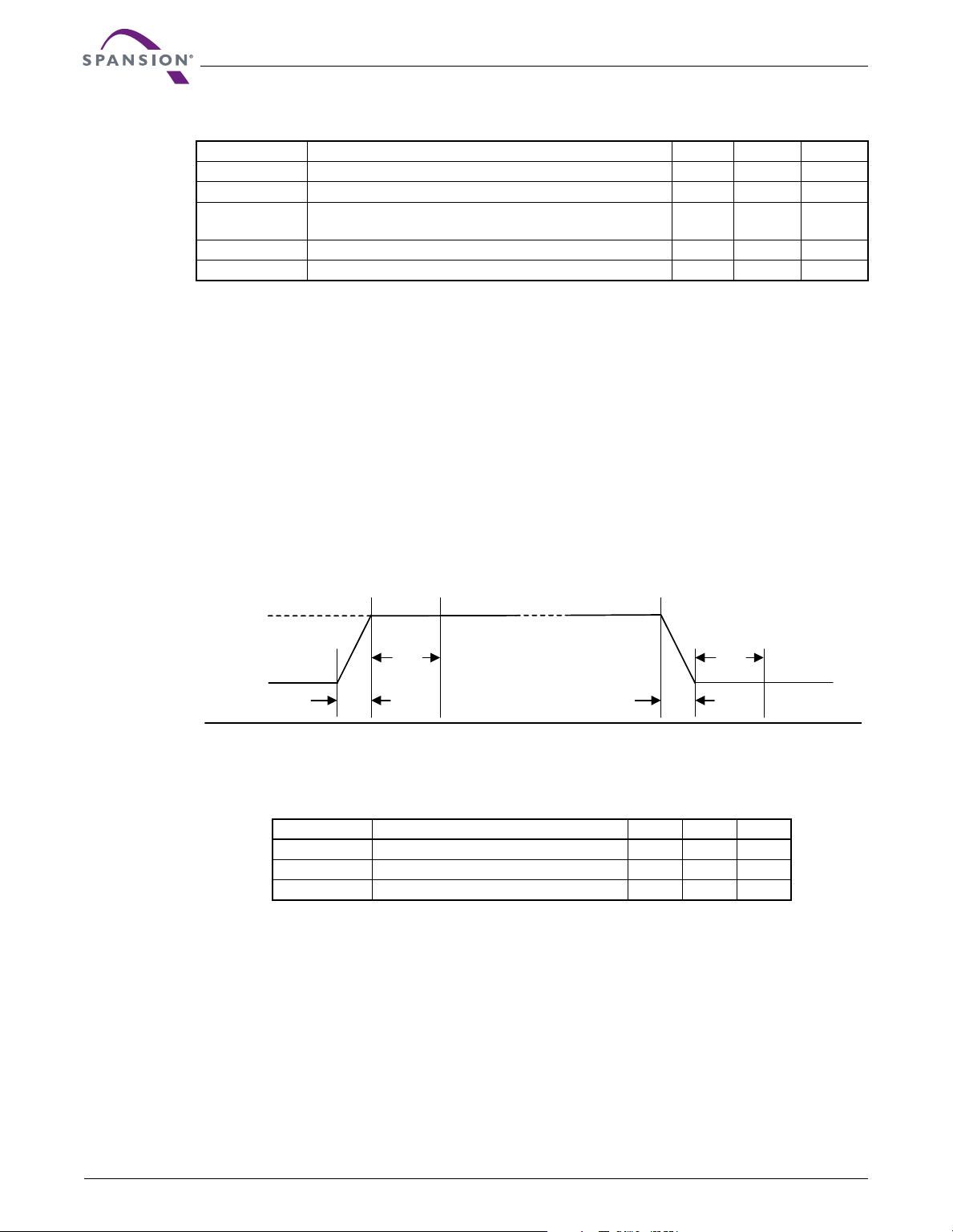

11. Power-up and Power-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

12. Initial Delivery State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Data Sheet

December 7, 2011 S25FL032P_00_06 S25FL032P 5

Page 6

Data Sheet

13. Program Acceleration via W#/ACC Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

14. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

14.1 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

15. Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

16. DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

17. Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

18. AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

18.1 Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

19. Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

19.1 SOC008 wide — 8-pin Plastic Small Outline Package (208-mils Body Width) . . . . . . . . . . . 61

19.2 SO3 016 — 16-pin Wide Plastic Small Outline Package (300-mil Body Width) . . . . . . . . . . 62

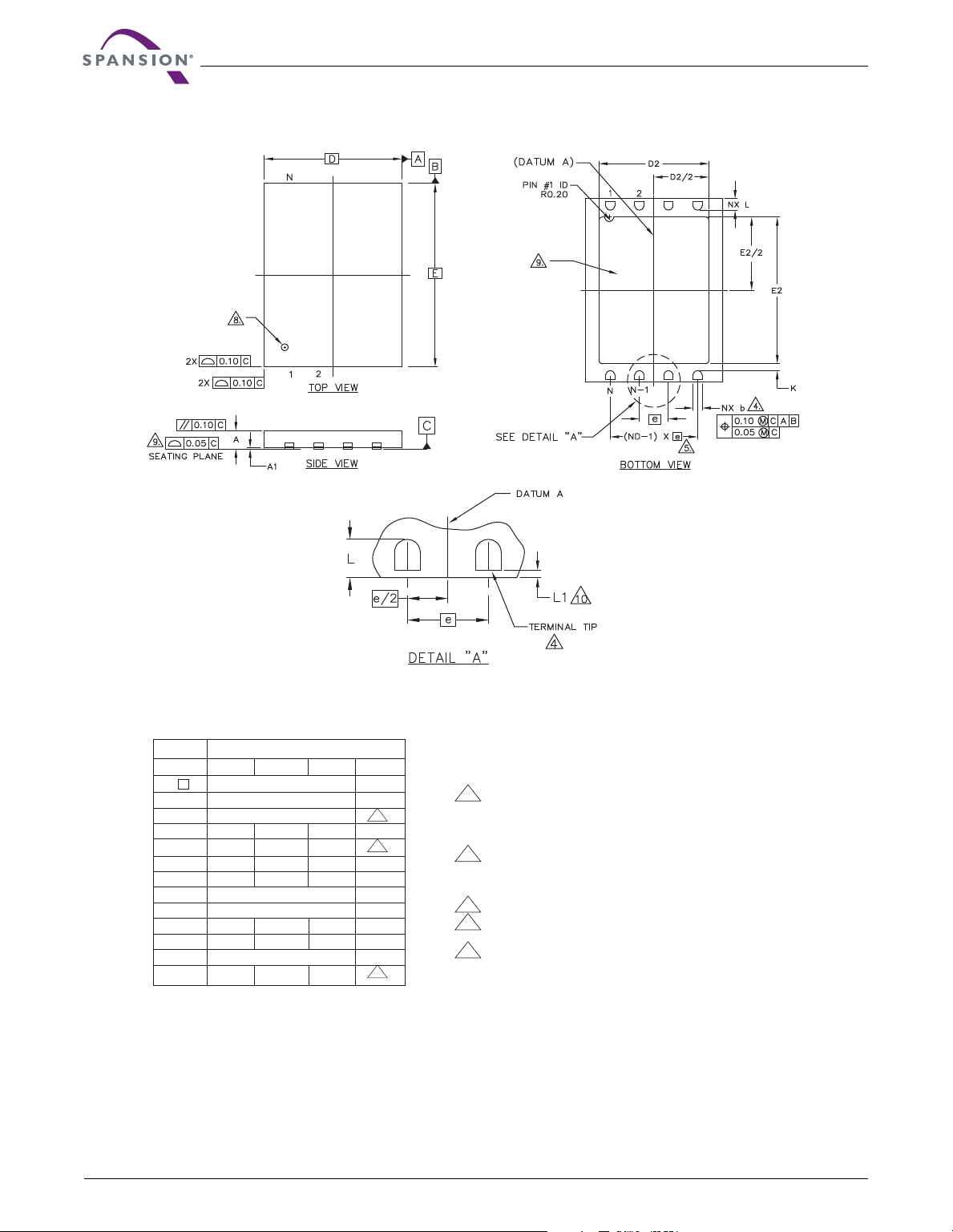

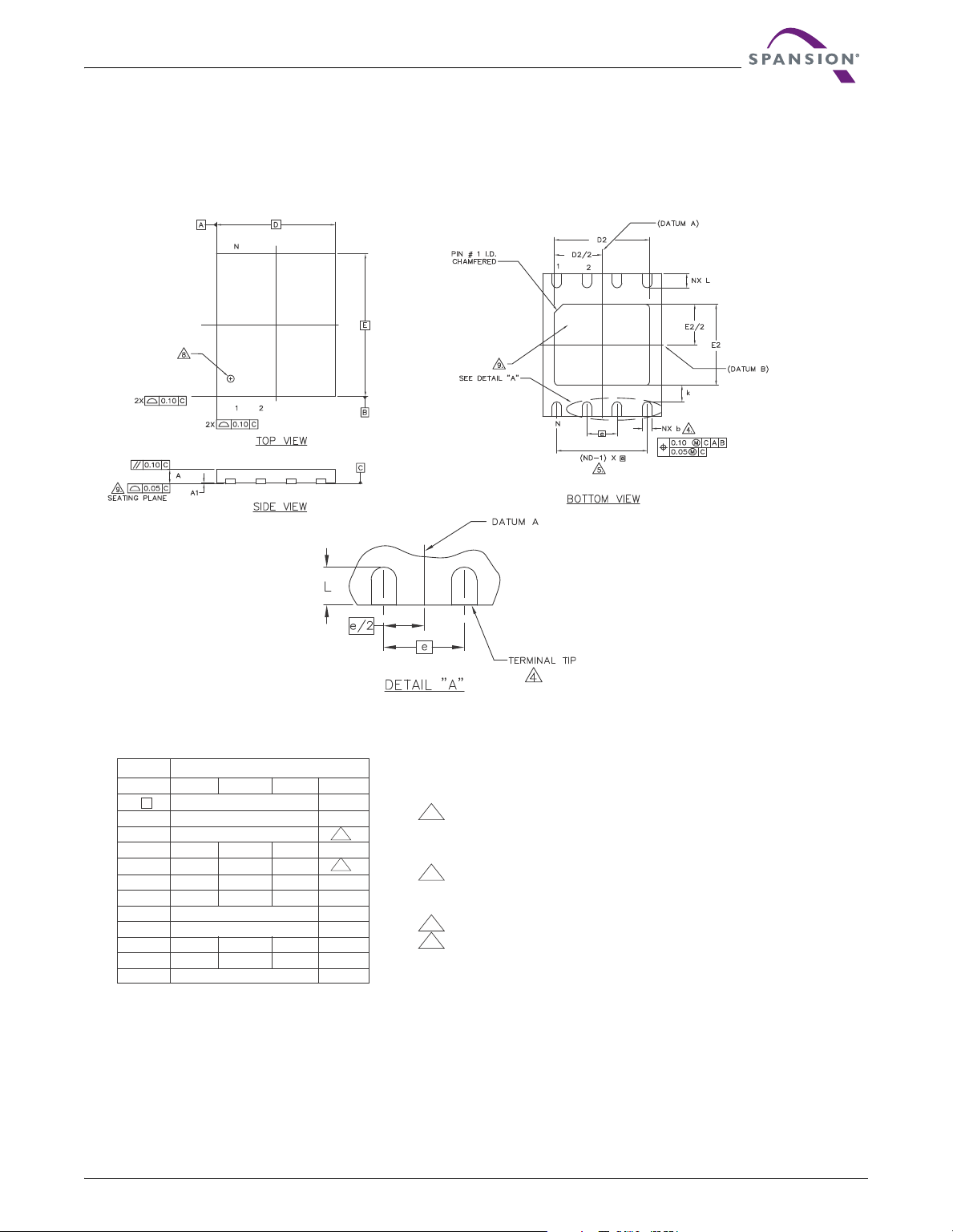

19.3 UNE008 — USON 8-contact (5 x 6 mm) No-Lead Package . . . . . . . . . . . . . . . . . . . . . . . . . 63

19.4 WNF008 — WSON 8-contact (6 x 8 mm) No-Lead Package . . . . . . . . . . . . . . . . . . . . . . . . 64

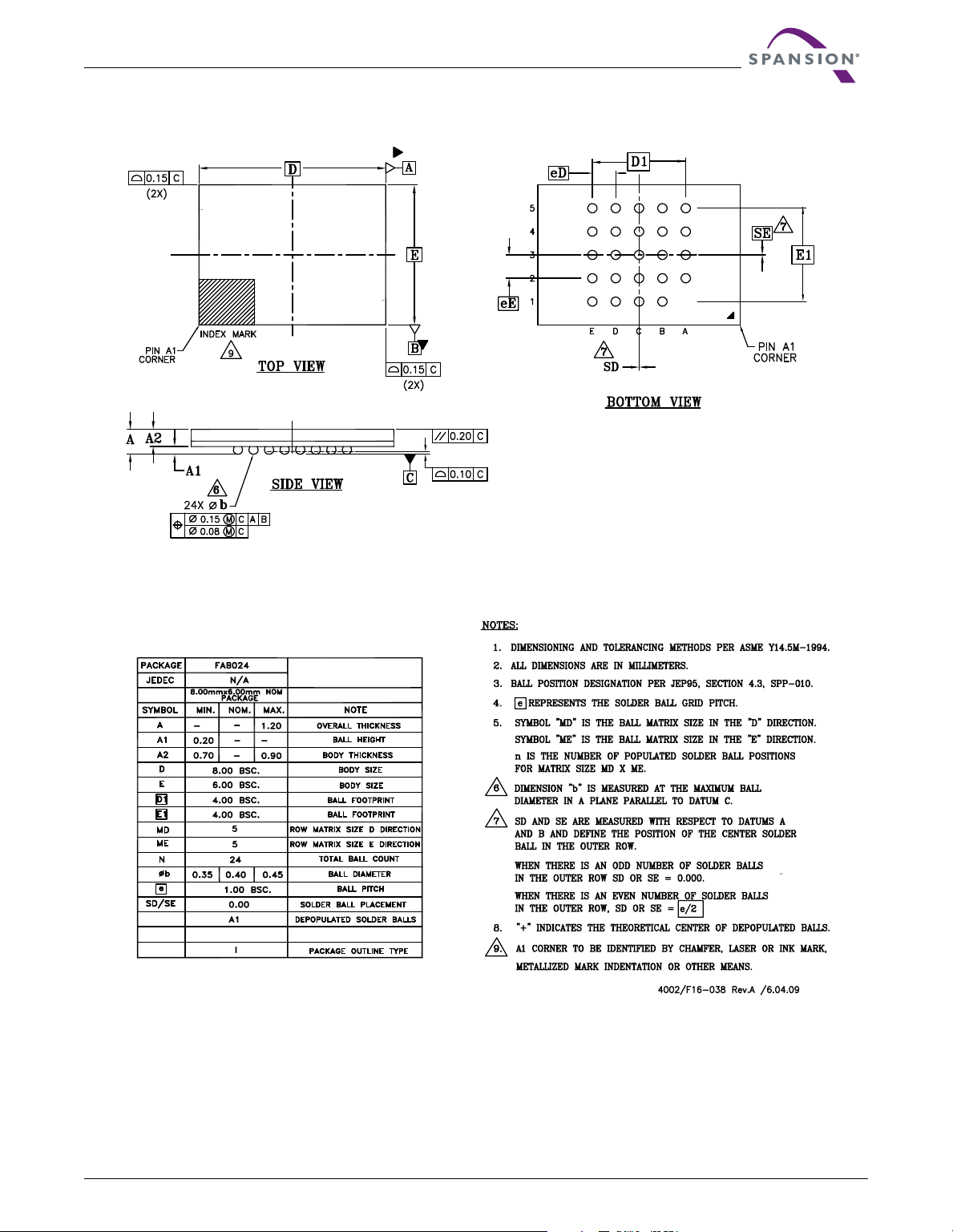

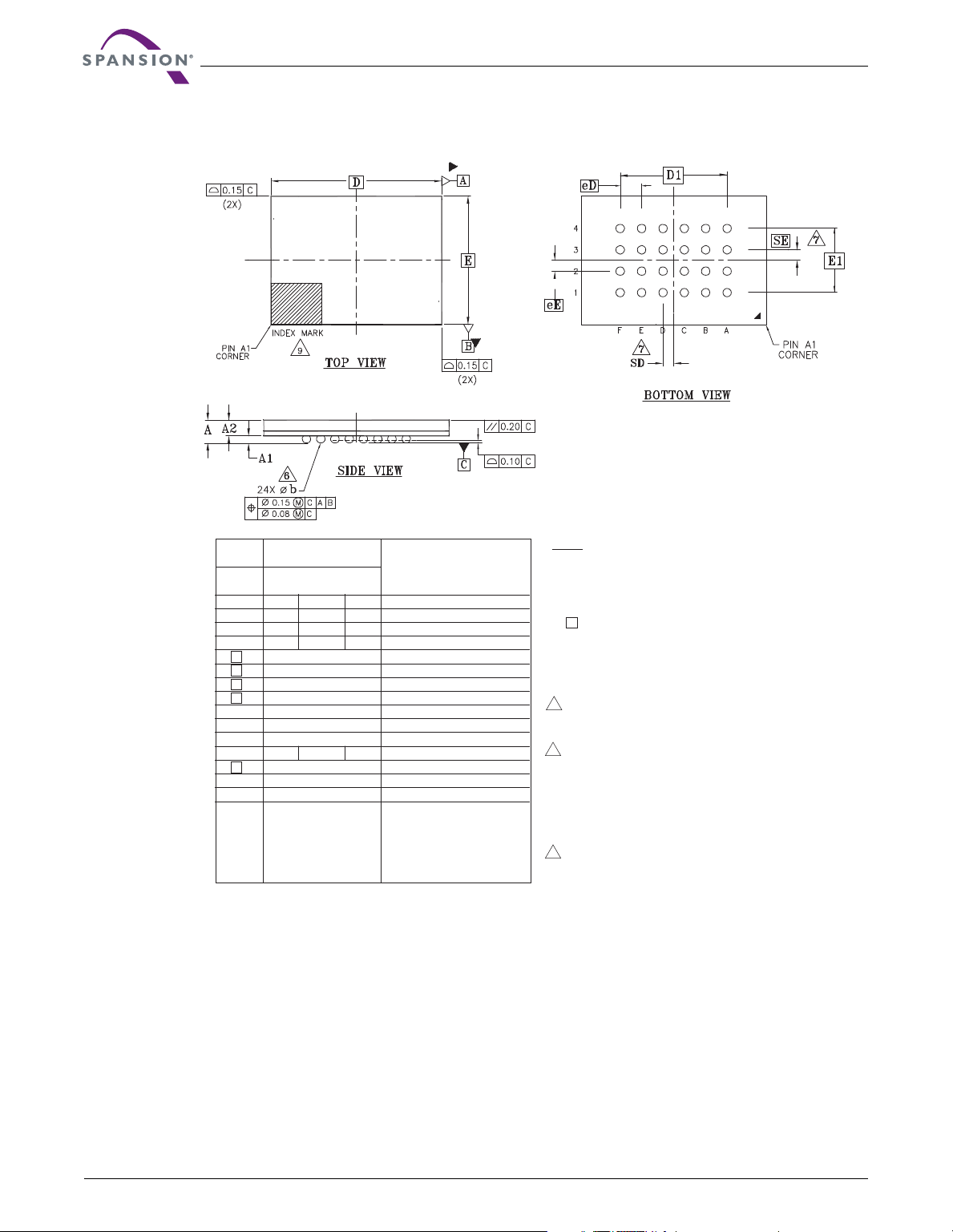

19.5 FAB024 — 24-ball Ball Grid Array (6 x 8 mm) Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

19.6 FAC024 — 24-ball Ball Grid Array (6 x 8 mm) Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

20. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

6 S25FL032P S25FL032P_00_06 December 7, 2011

Page 7

Figures

Data Sheet

Figure 2.1 16-pin Plastic Small Outline Package (SO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 2.2 8-pin Plastic Small Outline Package (SO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 2.3 8-contact USON (5 x 6 mm) Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 2.4 8-contact WSON Package (6 x 8 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

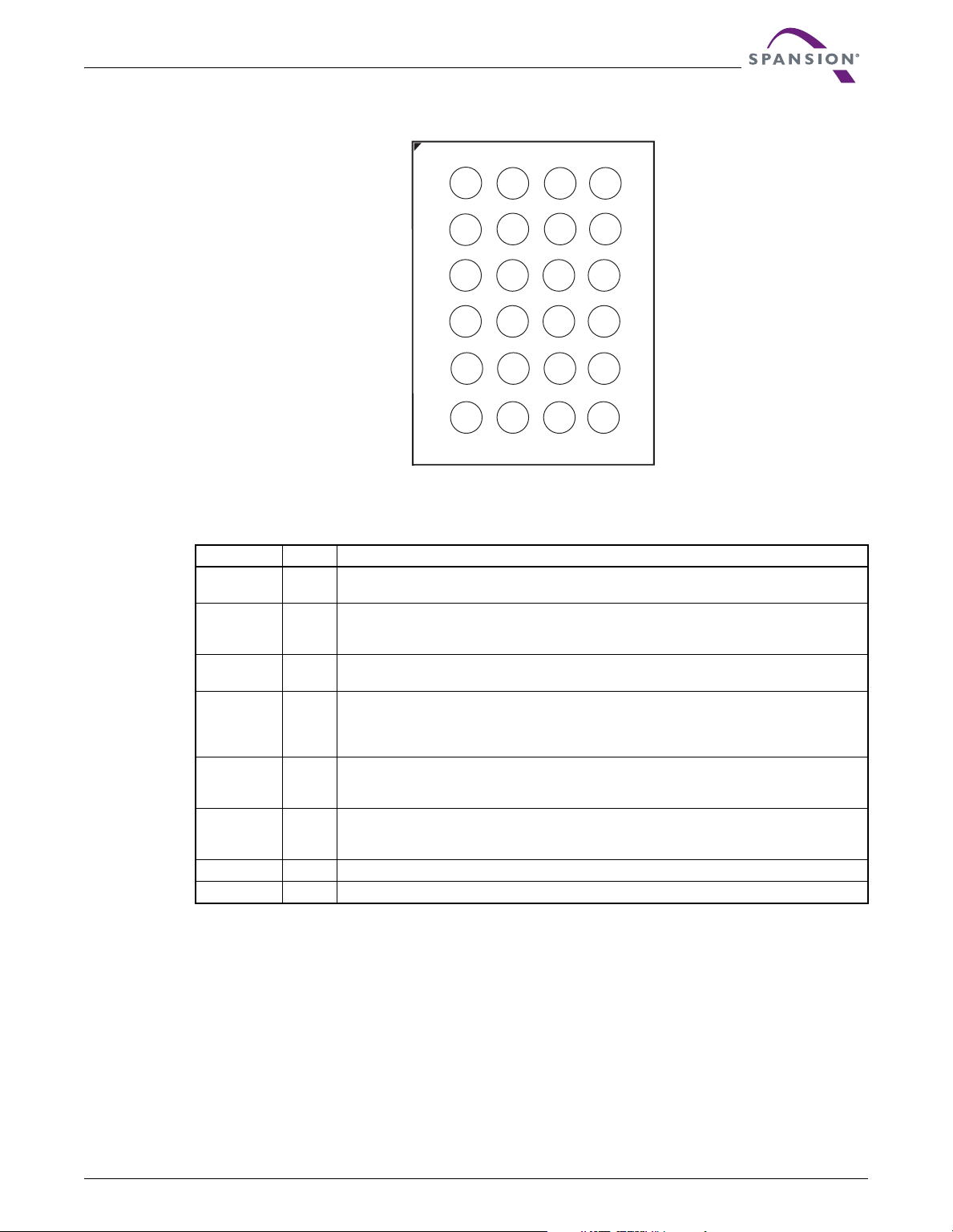

Figure 2.5 6x8 mm 24-ball BGA Package, 5x5 pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 2.6 6x8 mm 24-ball BGA Package, 6x4 pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

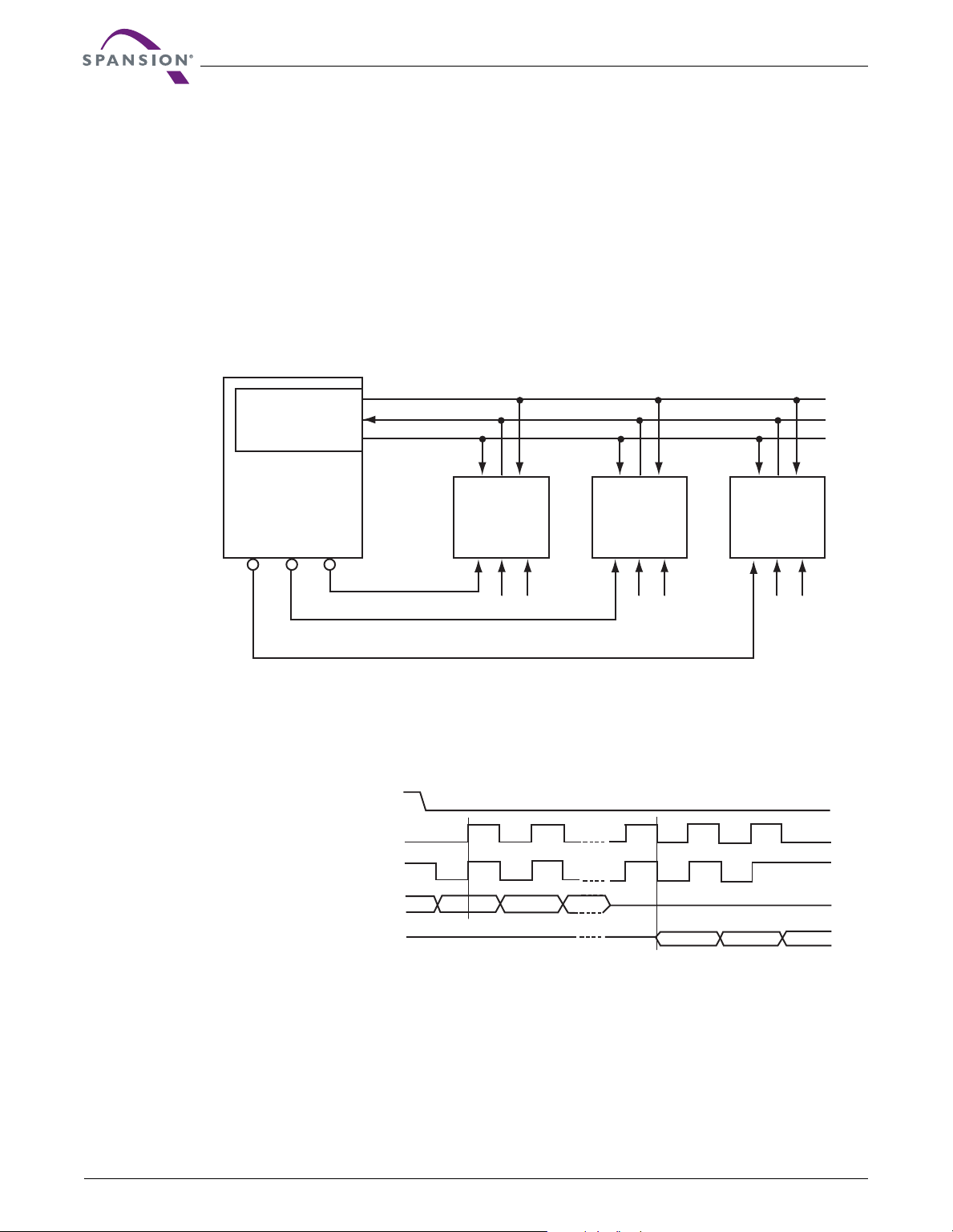

Figure 6.1 Bus Master and Memory Devices on the SPI Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 6.2 SPI Modes Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

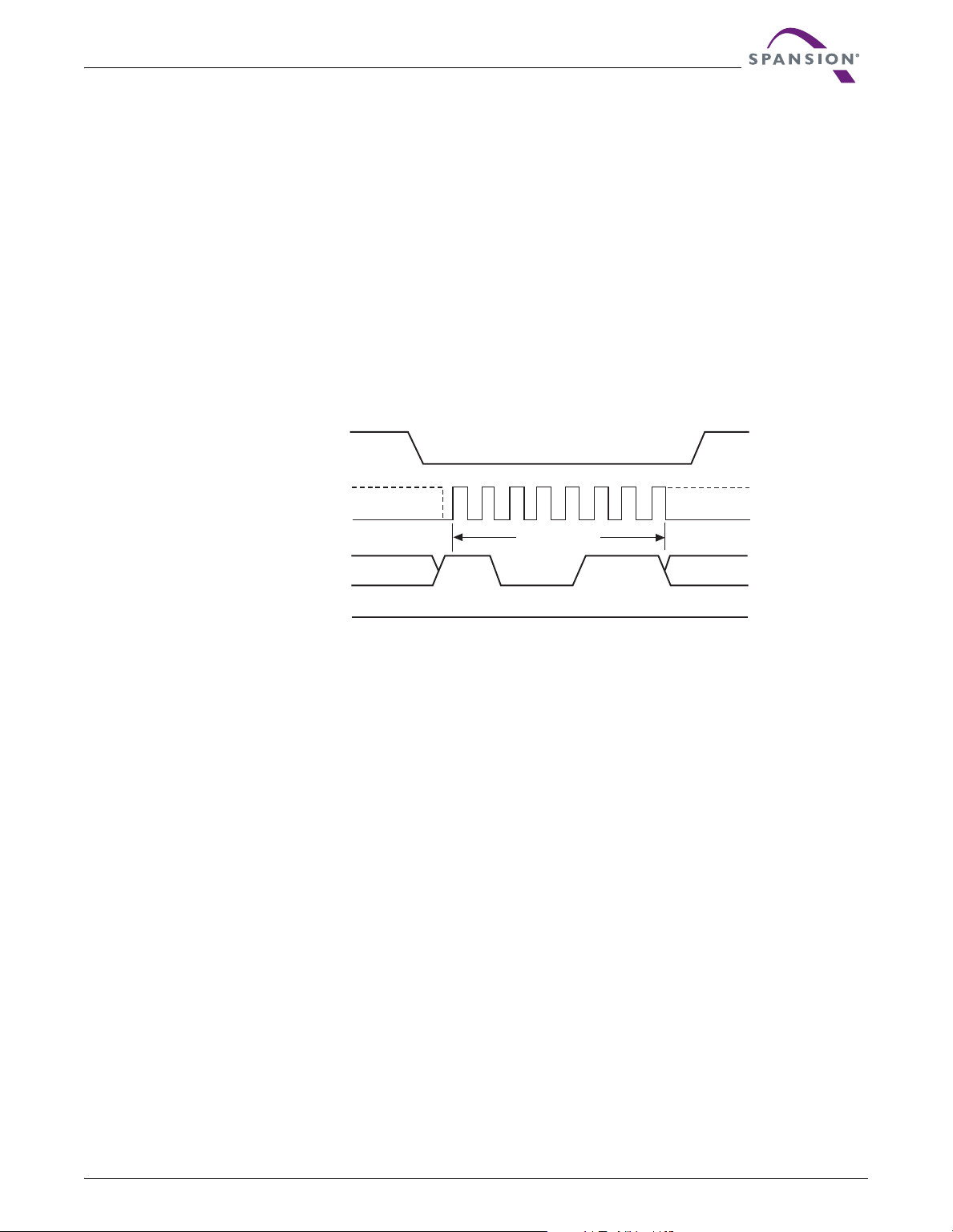

Figure 7.1 Hold Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 9.1 Read Data Bytes (READ) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

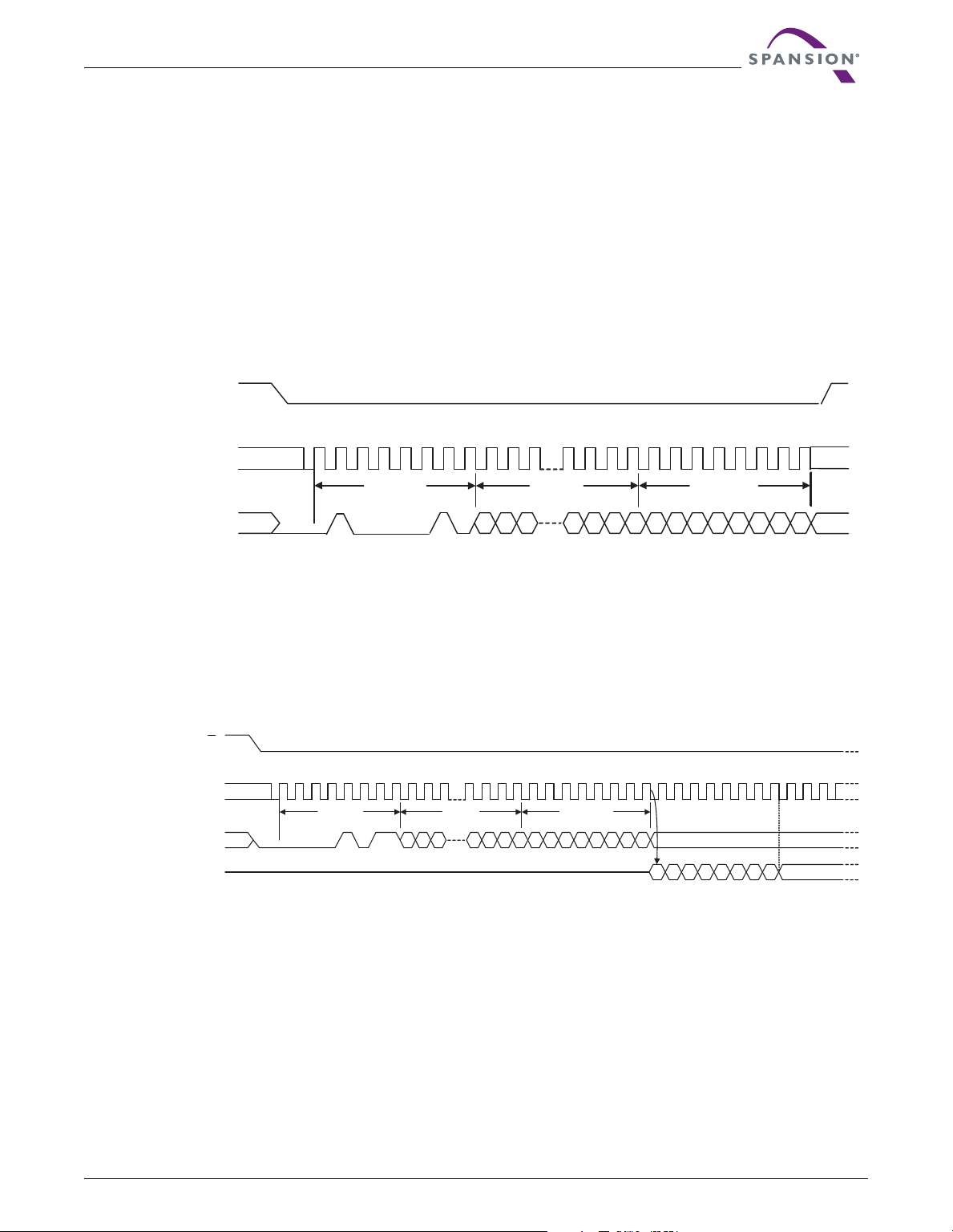

Figure 9.2 Read Data Bytes at Higher Speed (FAST_READ) Command Sequence . . . . . . . . . . . . . . . 25

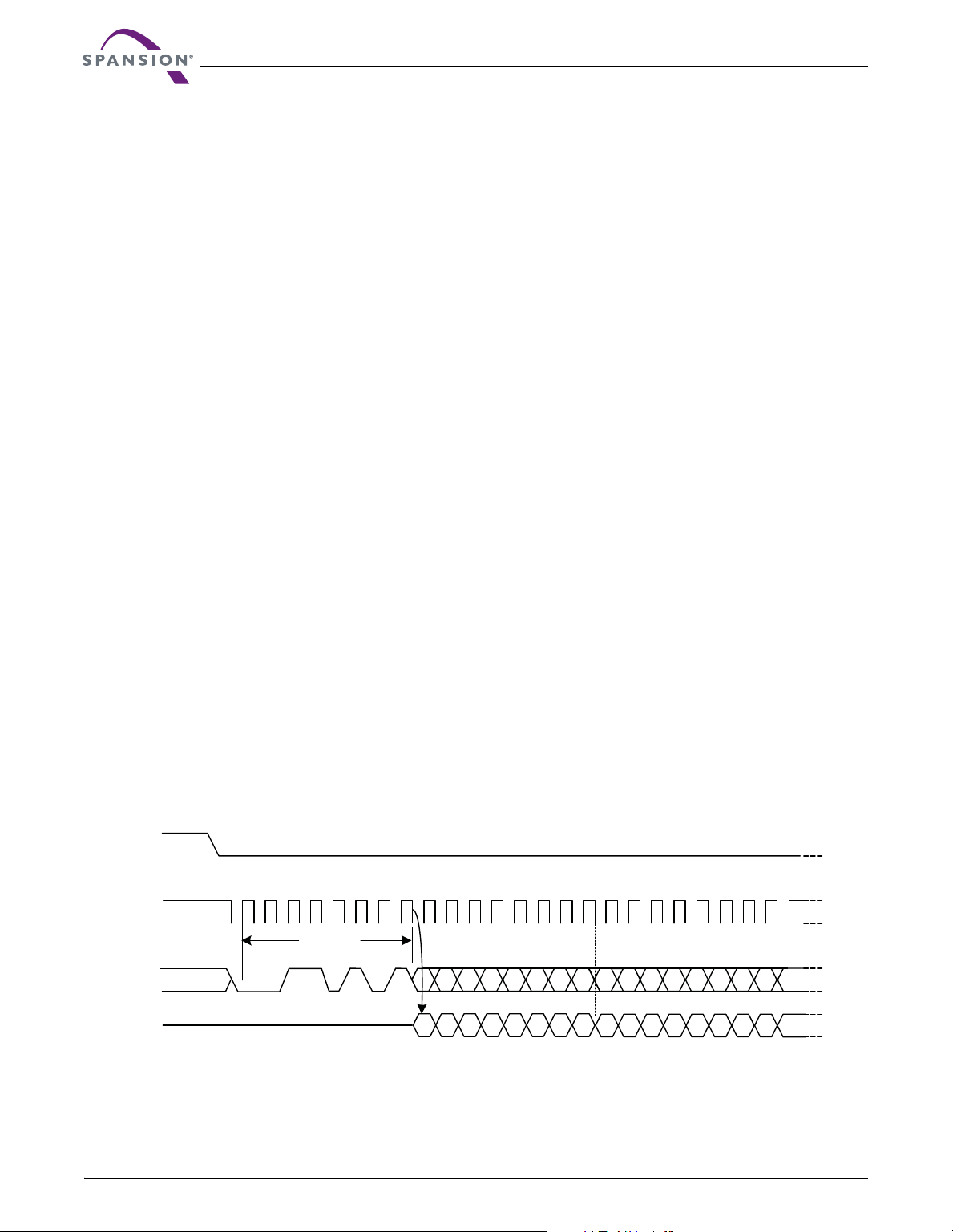

Figure 9.3 Dual Output Read Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 9.4 Quad Output Read Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

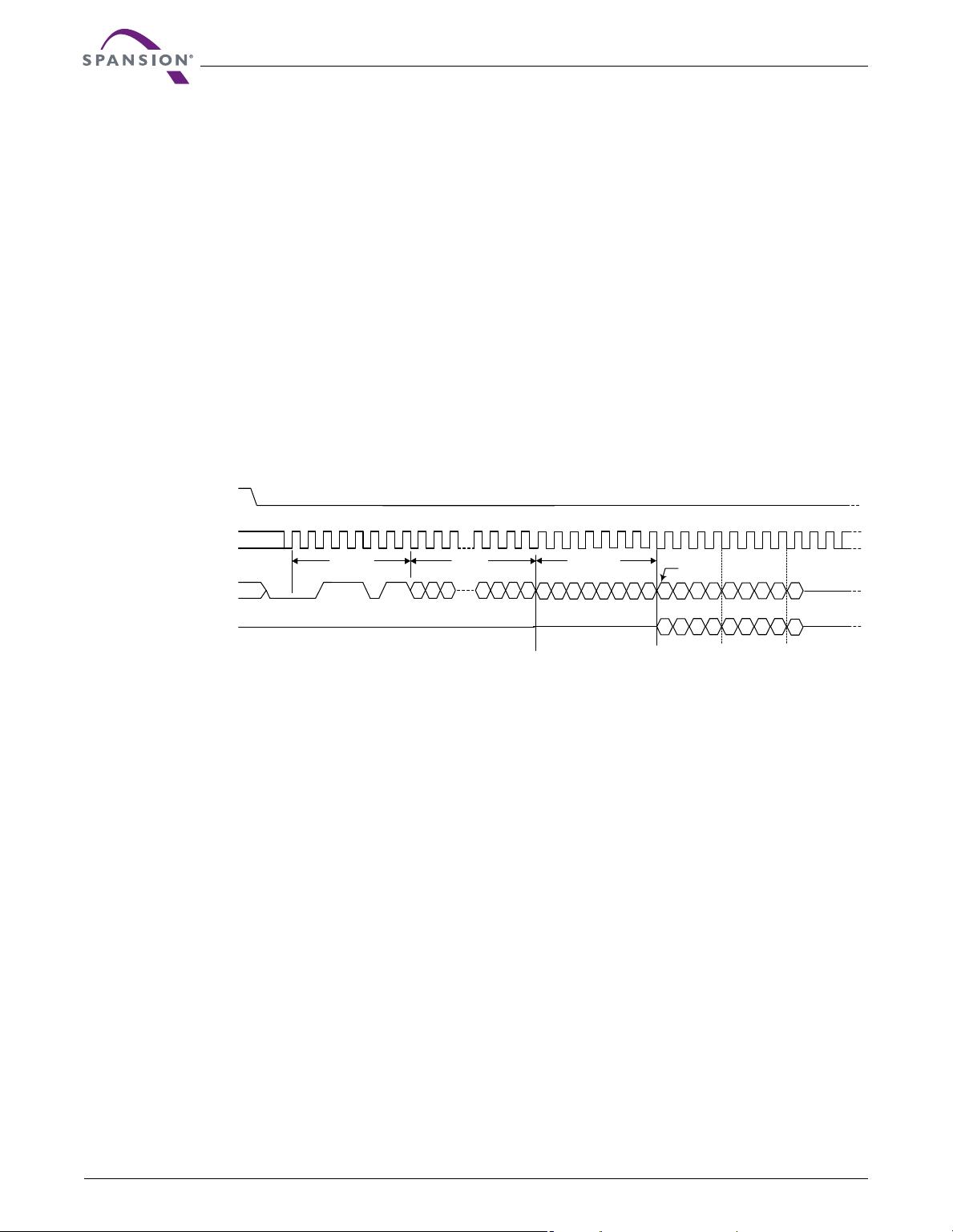

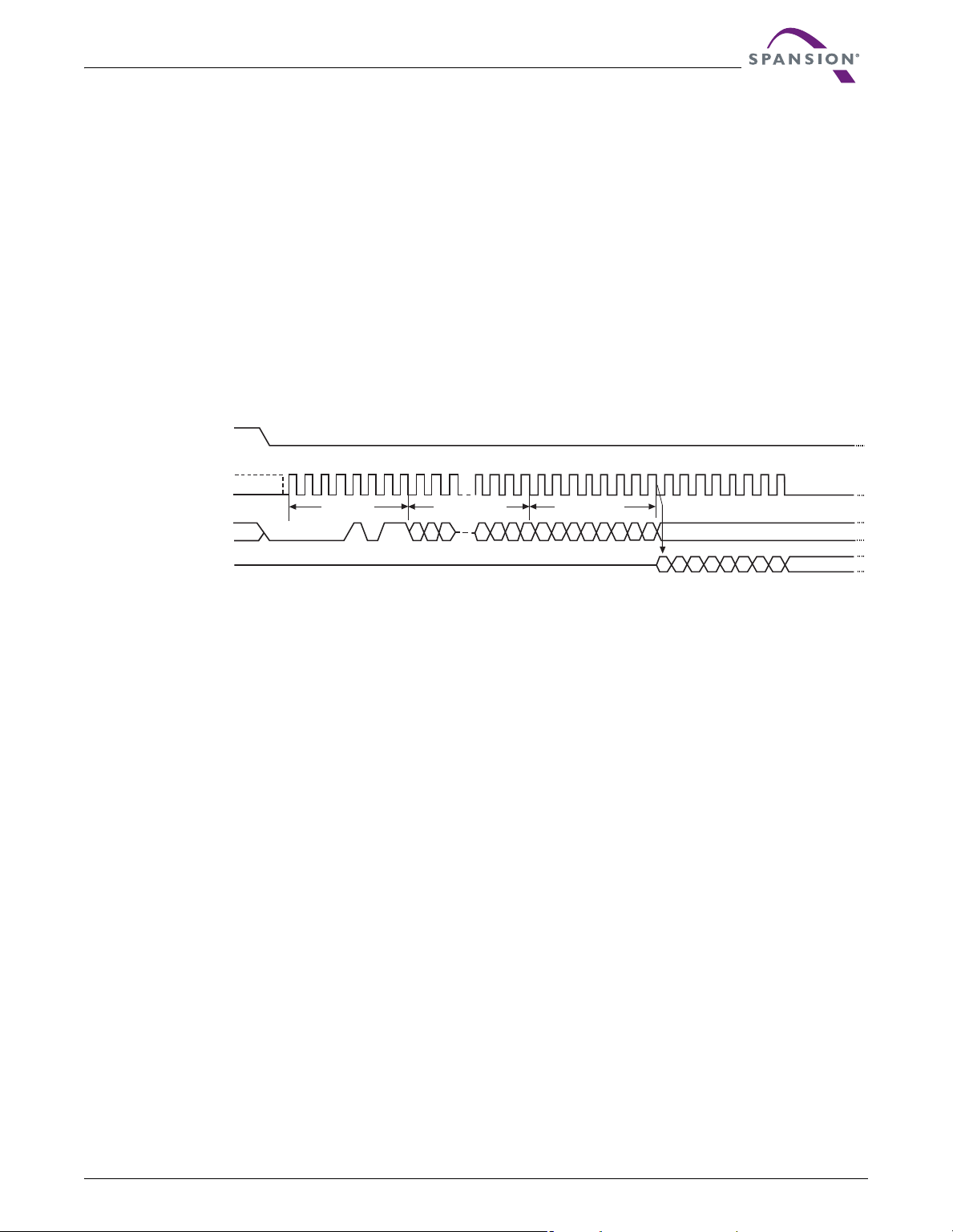

Figure 9.5 DUAL I/O High Performance Read Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 9.6 Continuous Dual I/O High Performance Read Instruction Sequence . . . . . . . . . . . . . . . . . . 29

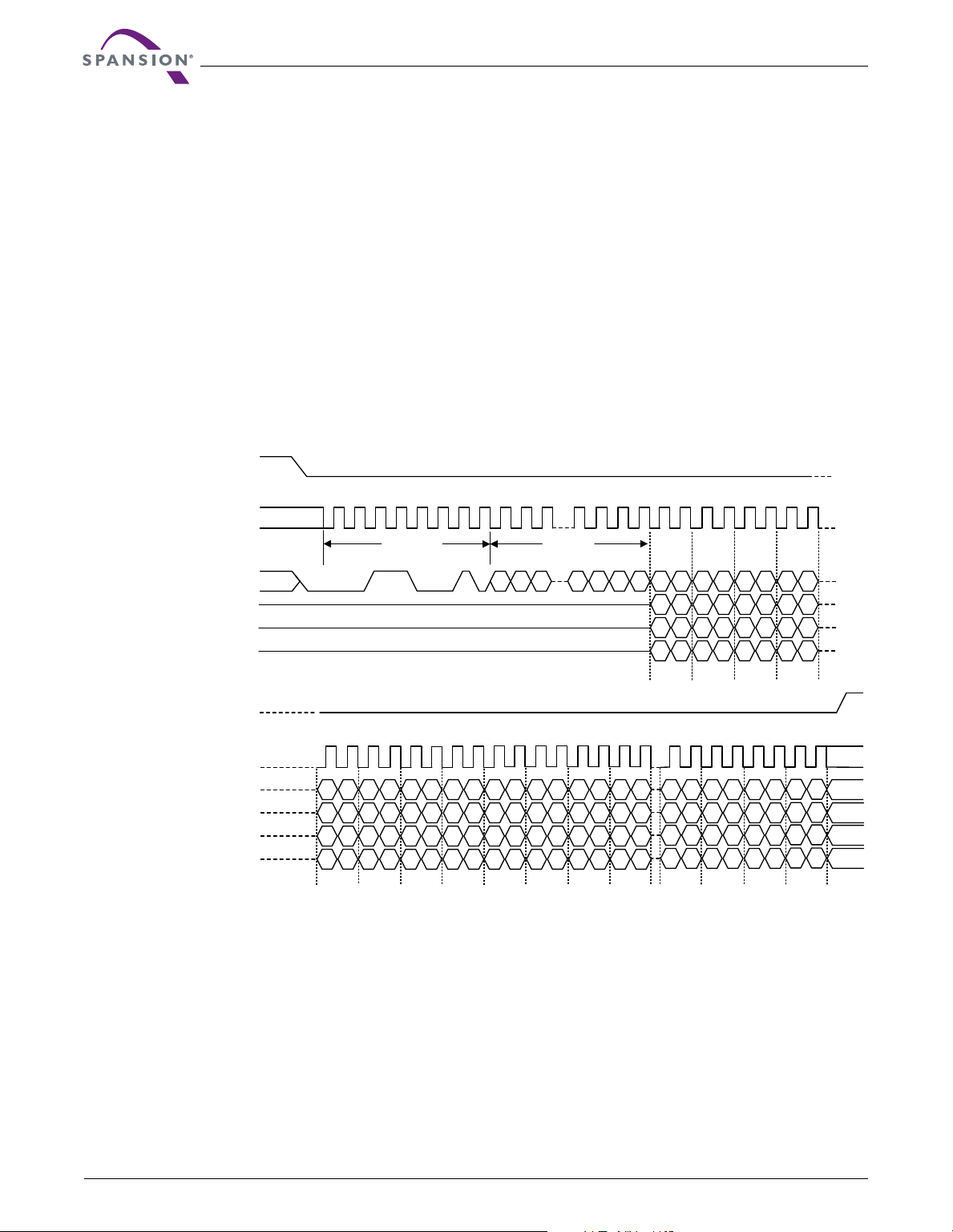

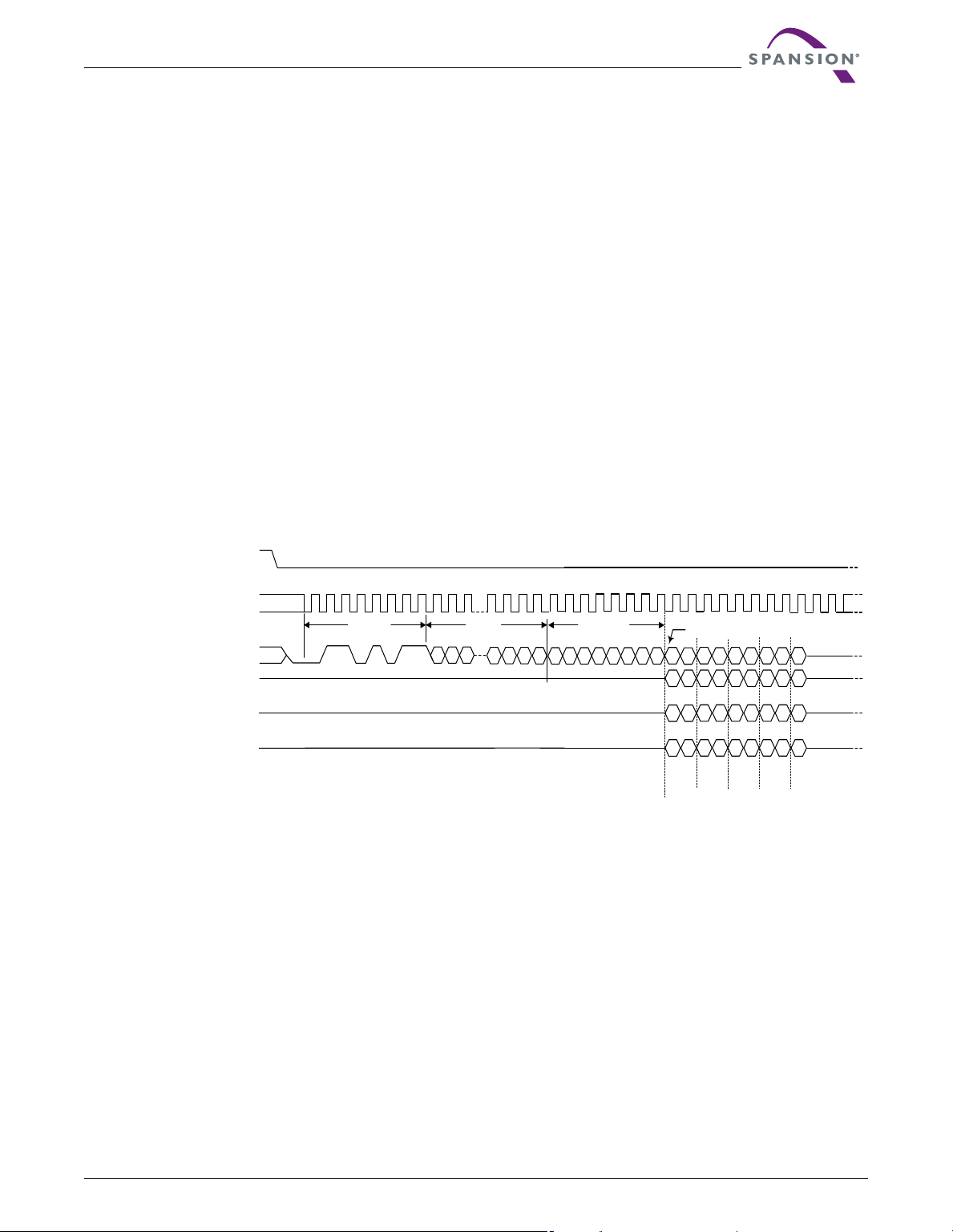

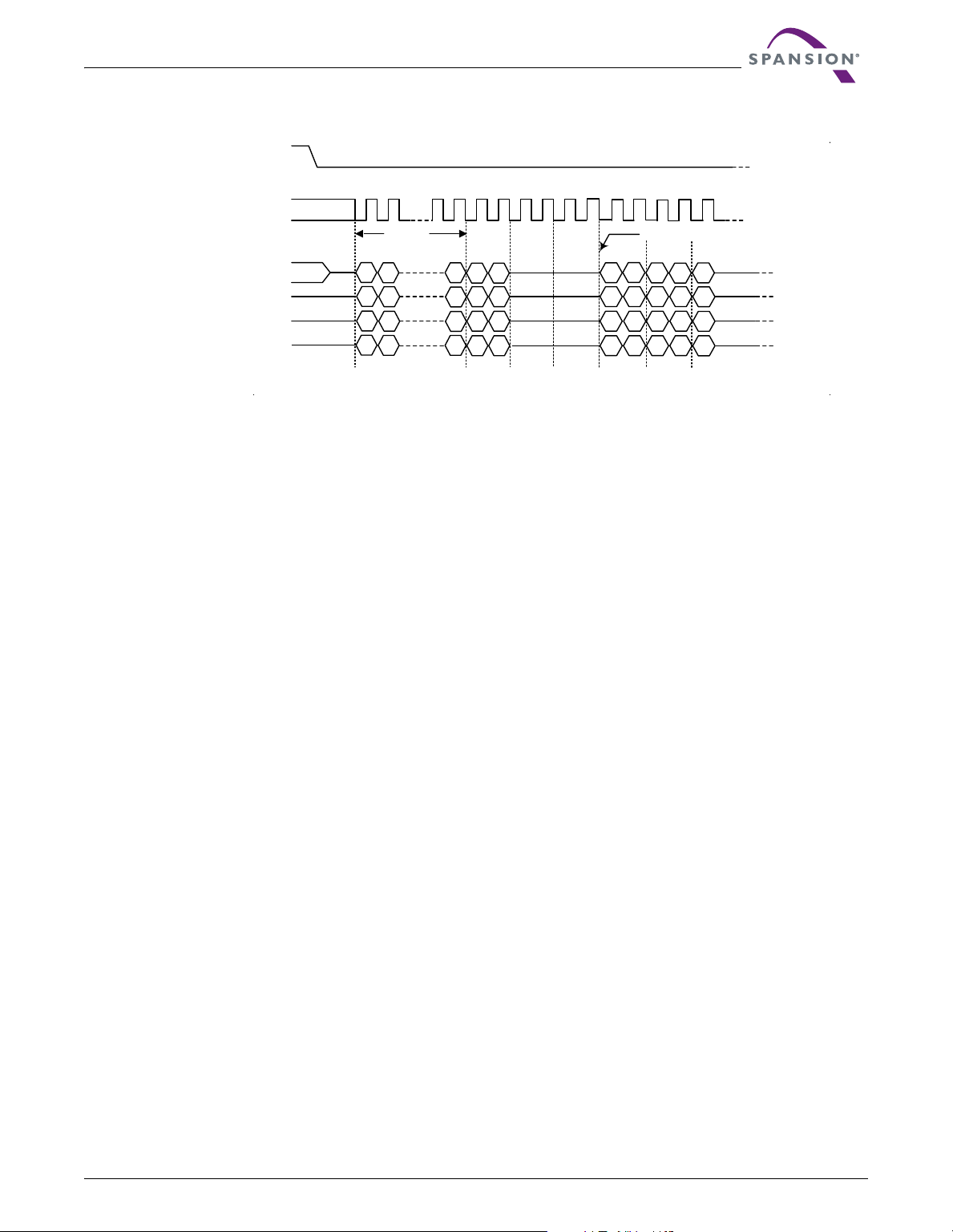

Figure 9.7 QUAD I/O High Performance Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 9.8 Continuous QUAD I/O High Performance Instruction Sequence. . . . . . . . . . . . . . . . . . . . . . 31

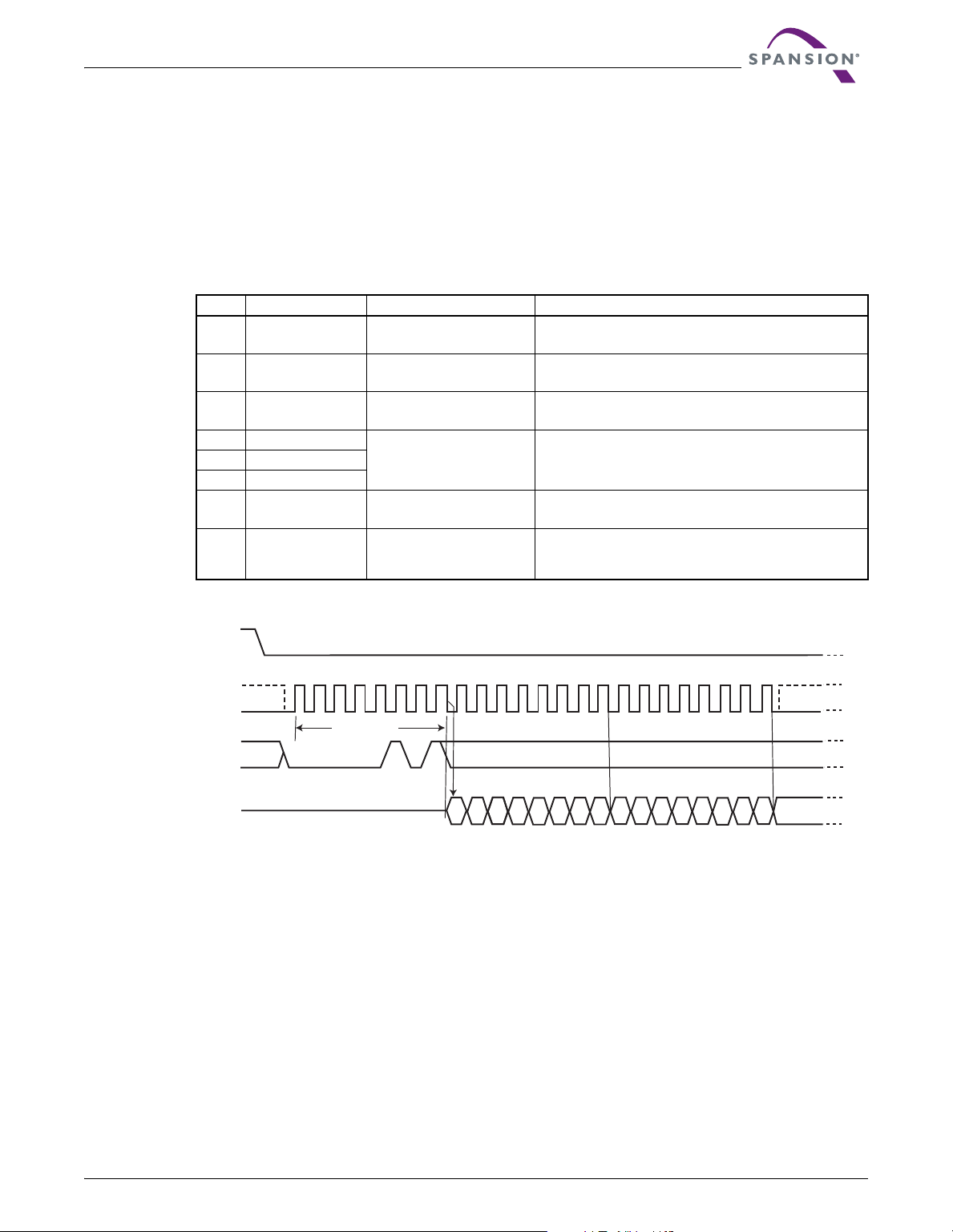

Figure 9.9 Read Identification (RDID) Command Sequence and Data-Out Sequence . . . . . . . . . . . . . 32

Figure 9.10 Read-ID (RDID) Command Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Figure 9.11 Write Enable (WREN) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Figure 9.12 Write Disable (WRDI) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Figure 9.13 Read Status Register (RDSR) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 9.14 Read Configuration Register (RCR) Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Figure 9.15 Write Registers (WRR) Instruction Sequence – 8 data bits . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Figure 9.16 Write Registers (WRR) Instruction Sequence – 16 data bits . . . . . . . . . . . . . . . . . . . . . . . . . 40

Figure 9.17 Page Program (PP) Command Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Figure 9.18 QUAD Page Program Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 9.19 Parameter Sector Erase (P4E, P8E) Instruction Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . 43

Figure 9.20 Sector Erase (SE) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 9.21 Bulk Erase (BE) Command Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 9.22 Deep Power-Down (DP) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 9.23 Release from Deep Power-Down (RES) Command Sequence. . . . . . . . . . . . . . . . . . . . . . . 47

Figure 9.24 Release from Deep Power-Down and RES Command Sequence . . . . . . . . . . . . . . . . . . . . 48

Figure 9.25 Clear Status Register (CLSR) Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Figure 9.26 OTP Program Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 9.27 Read OTP Instruction Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 10.1 OTP Memory Map - Part 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Figure 10.2 OTP Memory Map - Part 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Figure 11.1 Power-Up Timing Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Figure 11.2 Power-down and Voltage Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Figure 13.1 ACC Program Acceleration Timing Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

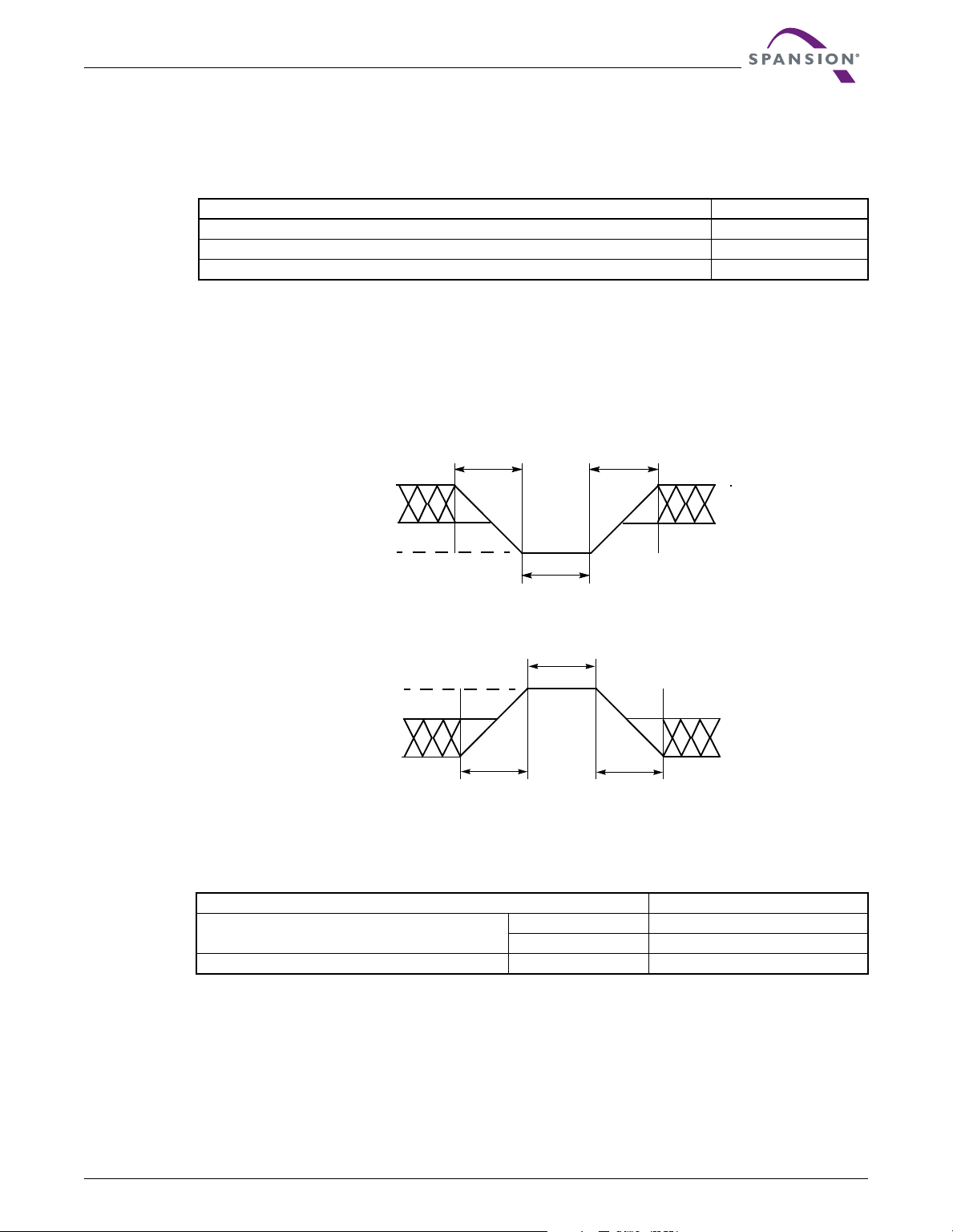

Figure 14.1 Maximum Negative Overshoot Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 14.2 Maximum Positive Overshoot Waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 17.1 AC Measurements I/O Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Figure 18.1 AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Figure 18.2 SPI Mode 0 (0,0) Input Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Figure 18.3 SPI Mode 0 (0,0) Output Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Figure 18.4 HOLD# Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Figure 18.5 Write Protect Setup and Hold Timing during WRR when SRWD = 1 . . . . . . . . . . . . . . . . . . 60

December 7, 2011 S25FL032P_00_06 S25FL032P 7

Page 8

Tables

Data Sheet

Table 5.1 S25FL032P Valid Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Table 7.1 Suggested Cross Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Table 7.2 Configuration Register Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Table 7.3 TBPROT = 0 (Starts Protection from TOP of Array) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Table 7.4 TBPROT=1 (Starts Protection from BOTTOM of Array) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Table 8.1 S25FL032P Sector Address Table TBPARM=0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Table 8.2 S25FL032P Sector Address Table TBPARM=1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Table 9.1 Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Table 9.2 Manufacturer & Device ID - RDID (JEDEC 9Fh): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Table 9.3 Product Group CFI Query Identification String . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Table 9.4 Product Group CFI System Interface String . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Table 9.5 Product Group CFI Device Geometry Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Table 9.6 Product Group CFI Primary Vendor-Specific Extended Query . . . . . . . . . . . . . . . . . . . . . . . .34

Table 9.7 READ_ID Data-Out Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Table 9.8 S25FL032P Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Table 9.9 Protection Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Table 10.1 ESN1 and ESN2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Table 11.1 Power-Up / Power-Down Voltage and Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Table 13.1 ACC Program Acceleration Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Table 15.1 Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Table 16.1 DC Characteristics (CMOS Compatible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Table 17.1 Test Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

8 S25FL032P S25FL032P_00_06 December 7, 2011

Page 9

1. Block Diagram

HOLD#/IO3

VCC

DNC

DNC DNC

DNC

SI/IO0

SCK

W#/ACC/IO2

GND

DNC

CS#

SO/IO1

Data Sheet

SRAM

Logic

X D

Array - L Array - R

E C

DATA PATH

CS#

SCK

SI / IO0

GND

SO / IO1

HOLD# / IO3

W# / ACC / IO2

2. Connection Diagrams

December 7, 2011 S25FL032P_00_06 S25FL032P 9

Note

DNC = Do Not Connect (Reserved for future use)

Figure 2.1 16-pin Plastic Small Outline Package (SO)

Page 10

Data Sheet

CS#

SO/IO1

W#/ACC/IO2

GND SI/IO0

SCK

HOLD#/IO3

VCC

Figure 2.2 8-pin Plastic Small Outline Package (SO)

Figure 2.3 8-contact USON (5 x 6 mm) Package

CS#

SO/IO1 HOLD#/IO3

W#/ACC/IO2

Note

There is an exposed central pad on the underside of the USON package. This should not be connected to any voltage or signal line on the PCB. Connecting the central pad to GND (V GND (V

) lead and the central exposed pad.

) is possible, provided PCB routing ensures 0mV difference between voltage at the USON

GND

USON

VCC

SCK

SI/IO0

Figure 2.4 8-contact WSON Package (6 x 8 mm)

CS#

SO/IO1 HOLD#/IO3

W#/ACC/IO2

Note

There is an exposed central pad on the underside of the WSON package. This should not be connected to any voltage or signal line on the PCB. Connecting the central pad to GND (V GND (V

) lead and the central exposed pad.

) is possible, provided PCB routing ensures 0mV difference between voltage at the WSON

GND

WSON

VCC

SCK

SI/IO0

Figure 2.5 6x8 mm 24-ball BGA Package, 5x5 pin Configuration

10 S25FL032P S25FL032P_00_06 December 7, 2011

A2 A3 A4 A5

NC NC NC NC

C1 C2 C3 C4 C5

D1 D2 D3 D4 D5

E1 E2 E3

NC NC NC

B2 B3 B4 B5

SCK

CS# NC W#/ACC/IO2 NC

SO/IO1 SI/IO0 HOLD#/IO3 NC

GND VCC NC

NC NC

Page 11

Data Sheet

Figure 2.6 6x8 mm 24-ball BGA Package, 6x4 pin Configuration

3. Input/Output Descriptions

Signal I/O Description

SO/IO1 I/O

SI/IO0 I/O

SCK Input

CS# Input

HOLD#/IO3 I/O

W#/ACC/IO2 I/O

GND Input Ground

Serial Data Output: Transfers data serially out of the device on the falling edge of SCK. Functions as an input pin in Dual and Quad I/O, and Quad Page Program modes.

Serial Data Input: Transfers data serially into the device. Device latches commands, addresses, and program data on SI on the rising edge of SCK. Functions as an output pin in Dual and Quad I/O mode.

Serial Clock: Provides serial interface timing. Latches commands, addresses, and data on SI on rising edge of SCK. Triggers output on SO after the falling edge of SCK.

Chip Select: Places device in active power mode when driven low. Deselects device and places SO at high impedance when high. After power-up, device requires a falling edge on CS# before any command is written. Device is in standby mode when a program, erase, or Write Status Register operation is not in progress.

Hold: Pauses any serial communication with the device without deselecting it. When driven low, SO is at high impedance, and all input at SI and SCK are ignored. Requires that CS# also be driven low. Functions as an output pin in Quad I/O mode.

Write Protect: Protects the memory area specified by Status Register bits BP2:BP0. When driven low, prevents any program or erase command from altering the data in the protected memory area. Functions as an output pin in Quad I/O mode.

Input Supply Voltage

C1 C2 C3 C4

D1 D2 D3 D4

NC NC NC

A2 A3 A4

NC NC NC

B2 B3 B4

SCK

GND VCC

CS# NC W#/ACC/IO2

SO/IO1 SI/IO0 HOLD#/IO3

E1 E2 E3

F1 F2 F3

December 7, 2011 S25FL032P_00_06 S25FL032P 11

Page 12

4. Logic Symbol

CS#

SO/IO1

W#/ACC/IO2

GND

SI/IO0

SCK

HOLD#/IO3

Data Sheet

12 S25FL032P S25FL032P_00_06 December 7, 2011

Page 13

5. Ordering Information

The ordering part number is formed by a valid combination of the following:

Data Sheet

S25FL 032 P 0X M F I 00 1

Device Family

S25FL Spansion Memory 3.0 Volt-only, Serial Peripheral Interface (SPI) Flash Memory

Packing Type

0 = Tray 1 = Tube 3 = 13” Tape and Reel

Model Number (Additional Ordering Options)

03 = 6 x 4 pin configuration BGA package 02 = 5 x 5 pin configuration BGA package 01 = 8-pin SO package / 8-contact USON package 00 = 16-pin SO package / 8-contact WSON package

Temperature Range

I = Industrial (–40°C to +85°C) V = Automotive In-cabin (–40°C to +105°C)

Package Materials

F = Lead (Pb)-free H = Low-Halogen, Lead (Pb)-free

Package Type

M = 8-pin / 16-pin SO package N = 8-contact USON / WSON package B = 24-ball BGA 6 x 8 mm package, 1.00 mm pitch

Speed

0X = 104 MHz

Device Technology

P = 0.09 µm MirrorBit

Density

032 = 32 Mbit

Process Technology

5.1 Valid Combinations

Table 5.1 lists the valid combinations configurations planned to be supported in volume for this device.

Base Ordering

Part Number Speed Option

S25FL032P 0X

Table 5.1 S25FL032P Valid Combinations

S25FL032P Valid Combinations

Package &

Temperature

MFI, NFI

MFV, NFV

BHI

BHV

Model

Number Packing Type

00, 01 0, 1, 3

02, 03 0, 3

Package Marking

FL032P + (Temp) + F

December 7, 2011 S25FL032P_00_06 S25FL032P 13

Page 14

6. Spansion SPI Modes

SPI Interface with

(CPOL, CPHA) =

(0, 0) or (1, 1)

Bus Master

CS3 CS2CS1

SPI Memory

Device

SPI Memory

Device

SPI Memory

Device

CS# HOLD#CS# HOLD#CS# HOLD#

SCK SO SI SCK SO SI SCK SO SI

SCK

W#/ACC

A microcontroller can use either of its two SPI modes to control Spansion SPI Flash memory devices:

 CPOL = 0, CPHA = 0 (Mode 0)

 CPOL = 1, CPHA = 1 (Mode 3)

Input data is latched in on the rising edge of SCK, and output data is available from the falling edge of SCK for both modes.

When the bus master is in standby mode, SCK is as shown in Figure 6.2 for each of the two modes:

 SCK remains at 0 for (CPOL = 0, CPHA = 0 Mode 0)

 SCK remains at 1 for (CPOL = 1, CPHA = 1 Mode 3)

Data Sheet

Figure 6.1 Bus Master and Memory Devices on the SPI Bus

Note

The Write Protect/Accelerated Programming (W#/ACC) and Hold (HOLD#) signals should be driven high (logic level 1) or low (logic level 0) as appropriate.

Figure 6.2 SPI Modes Supported

CS#

CPHACPOL

Mode 0

Mode 3

SCK

MSB

14 S25FL032P S25FL032P_00_06 December 7, 2011

Page 15

Data Sheet

7. Device Operations

All Spansion SPI devices accept and output data in bytes (8 bits at a time). The SPI device is a slave device that supports an inactive clock while CS# is held low.

7.1 Byte or Page Programming

Programming data requires two commands: Write Enable (WREN), which is one byte, and a Page Program (PP) sequence, which consists of four bytes plus data. The Page Program sequence accepts from 1 byte up to 256 consecutive bytes of data (which is the size of one page) to be programmed in one operation. Programming means that bits can either be left at 0, or programmed from 1 to 0. Changing bits from 0 to 1 requires an erase operation.

7.2 Quad Page Programming

The Quad Page Program (QPP) instruction allows up to 256 bytes of data to be programmed using 4 pins as inputs at the same time, thus effectively quadrupling the data transfer rate, compared to the Page Program (PP) instruction. The Write Enable Latch (WEL) bit must be set to a 1 using the Write Enable (WREN) command prior to issuing the QPP command.

7.3 Dual and Quad I/O Mode

The S25FL032P device supports Dual and Quad I/O operation when using the Dual/Quad Output Read Mode and the Dual/Quad I/O High Performance Mode instructions. Using the Dual or Quad I/O instructions allows data to be transferred to or from the device at two to four times the rate of standard SPI devices. When operating in the Dual or Quad I/O High Performance Mode (BBh or EBh instructions), data can be read at fast speed using two or four data bits at a time, and the 3-byte address can be input two or four address bits at a time.

7.4 Sector Erase / Bulk Erase

The Sector Erase (SE) and Bulk Erase (BE) commands set all the bits in a sector or the entire memory array to 1. While bits can be individually programmed from 1 to 0, erasing bits from 0 to 1 must be done on a sectorwide (SE) or array-wide (BE) level. In addition to the 64-KB Sector Erase (SE), the S25FL032P device also offers 4-KB Parameter Sector Erase (P4E) and 8-KB Parameter Sector Erase (P8E).

7.5 Monitoring Write Operations Using the Status Register

The host system can determine when a Write Register, program, or erase operation is complete by monitoring the Write in Progress (WIP) bit in the Status Register. The Read from Status Register command provides the state of the WIP bit. In addition, the S25FL032P device offers two additional bits in the Status Register (P_ERR, E_ERR) to indicate whether a Program or Erase operation was a success or failure.

7.6 Active Power and Standby Power Modes

The device is enabled and in the Active Power mode when Chip Select (CS#) is Low. When CS# is high, the device is disabled, but may still be in the Active Power mode until all program, erase, and Write Registers operations have completed. The device then goes into the Standby Power mode, and power consumption drops to I signals. After writing the DP command, the device ignores any further program or erase commands, and reduces its power consumption to I

. The Deep Power-Down (DP) command provides additional data protection against inadvertent

December 7, 2011 S25FL032P_00_06 S25FL032P 15

Page 16

7.7 Status Register

The Status Register contains the status and control bits that can be read or set by specific commands (see

Table 9.1 on page 23). These bits configure different protection configurations and supply information of

operation of the device. (for details see Table 9.8, S25FL032P Status Register on page 37):

 Write In Progress (WIP): Indicates whether the device is performing a Write Registers, program or erase

operation.

 Write Enable Latch (WEL): Indicates the status of the internal Write Enable Latch.

 Block Protect (BP2, BP1, BP0): Non-volatile bits that define memory area to be software-protected

against program and erase commands.

 Erase Error (E_ERR): The Erase Error Bit is used as an Erase operation success and failure check.

 Program Error (P_ERR): The Program Error Bit is used as an program operation success and failure check.

 Status Register Write Disable (SRWD): Places the device in the Hardware Protected mode when this bit

is set to 1 and the W#/ACC input is driven low. In this mode, the non-volatile bits of the Status Register (SRWD, BP2, BP1, BP0) become read-only bits.

7.8 Configuration Register

The Configuration Register contains the control bits that can be read or set by specific commands. These bits configure different configurations and security features of the device.

 The FREEZE bit locks the BP2-0 bits in Status Register and the TBPROT and TBPARM bits in the

Configuration Register. Note that once the FREEZE bit has been set to ‘1’, then it cannot be cleared to ‘0’ until a power-on-reset is executed. As long as the FREEZE bit is set to ‘0’, then the other bits of the Configuration Register, including FREEZE bit, can be written to.

 The QUAD bit is non-volatile and sets the pin out of the device to Quad mode; that is, W#/ACC becomes

IO2 and HOLD# becomes IO3. The instructions for Serial, Dual Output, and Dual I/O reads function as normal. The W#/ACC and HOLD# functionality does not work when the device is set in Quad mode.

 The TBPARM bit defines the logical location of the 4 KB parameter sectors. The parameter sectors consist

of thirty two 4 KB sectors. All sectors other than the parameter sectors are defined to be 64-KB uniform in size. When TBPARM is set to a ‘1’, the 4 KB parameter sectors starts at the top of the array. When TBPARM is set to a ‘0’, the 4 KB parameter sectors starts at the bottom of the array. Note that once this bit is set to a '1', it cannot be changed back to '0'.

 The BPNV bit defines whether or not the BP2-0 bits in the Status Register are volatile or non-volatile.

When BPNV is set to a ‘1’, the BP2-0 bits in the Status Register are volatile and will be reset to binary 111 after power on reset. When BPNV is set to a ‘0’, the BP2-0 bits in the Status Register are non-volatile. Note that once this bit is set to a '1', it cannot be changed back to '0'.

 The TBPROT bit defines the operation of the block protection bits BP2, BP1, and BP0 in the Status

Register. When TBPROT is set to a ‘0’, then the block protection is defined to start from the top of the array. When TBPROT is set to a ‘1’, then the block protection is defined to start from the bottom of the array. Note that once this bit is set to a '1', it cannot be changed back to '0'.

Note: It is suggested that the Block Protection and Parameter sectors not be set to the same area of the array; otherwise, the user cannot utilize the Parameter sectors if they are protected. The following matrix shows the recommended settings.

Data Sheet

Table 7.1 Suggested Cross Settings

TBPARM TBPROT Array Overview

Parameter Sectors – Bottom

0 1 Not recommended (Parameters & BP Protection are both Bottom)

1 0 Not recommended (parameters & BP Protection are both Top)

16 S25FL032P S25FL032P_00_06 December 7, 2011

BP Protection – Top (default)

Parameter Sectors - Top of Array (high address) BP Protection - Bottom of Array (low address)

Page 17

Data Sheet

Bit Bit Name Bit Function Description

7 NA - Not Used

6 NA - Not Used

5 TBPROT Configures start of block protection

4 NA - Do not use

3 BPNV Configures BP2-0 bits in the Status Register

2 TBPARM Configures Parameter sector location

1 QUAD Puts the device into Quad I/O mode

0 FREEZE Locks BP2-0 bits in the Status Register

Note

(Default) indicates the value of each Configuration Register bit set upon initial factory shipment.

7.9 Data Protection Modes

Spansion SPI Flash memory devices provide the following data protection methods:

 The Write Enable (WREN) command: Must be written prior to any command that modifies data. The

WREN command sets the Write Enable Latch (WEL) bit. The WEL bit resets (disables writes) on power-up or after the device completes the following commands:

– Page Program (PP)

– Sector Erase (SE)

– Bulk Erase (BE)

– Write Disable (WRDI)

– Write Register (WRR)

– Parameter 4 KB Sector Erase (P4E)

– Parameter 8 KB Sector Erase (P8E)

– Quad Page Programming (QPP)

– OTP Byte Programming (OTPP)

 Software Protected Mode (SPM): The Block Protect (BP2, BP1, BP0) bits define the section of the

memory array that can be read but not programmed or erased. Table 7.3 and Table 7.4 shows the sizes and address ranges of protected areas that are defined by Status Register bits BP2:BP0.

 Hardware Protected Mode (HPM): The Write Protect (W#/ACC) input and the Status Register Write

Disable (SRWD) bit together provide write protection.

 Clock Pulse Count: The device verifies that all program, erase, and Write Register commands consist of

a clock pulse count that is a multiple of eight before executing them.

Table 7.2 Configuration Register Table

1 = Bottom Array (low address) 0 = Top Array (high address) (Default)

1 = Volatile 0 = Non-volatile (Default)

1 = Top Array (high address) 0 = Bottom Array (low address) (Default)

1 = Quad I/O 0 = Dual or Serial I/O (Default)

1 = Enabled 0 = Disabled (Default)

December 7, 2011 S25FL032P_00_06 S25FL032P 17

Page 18

Data Sheet

Table 7.3 TBPROT = 0 (Starts Protection from TOP of Array)

Status Register Block Memory Array Protected

Protected

Address Range

0 0 0 None 0 000000h-3FFFFFh SA63:SA0 0

0 0 1 3F0000h-3FFFFFh (1) SA63 000000h-3EFFFFh SA62:SA0 1/64

0 1 0 3E0000h-3FFFFFh (2) SA63:SA62 000000h-3DFFFFh SA61:SA0 1/32

0 1 1 3C0000h-3FFFFFh (4) SA63:SA60 000000h-3BFFFFh SA59:SA0 1/16

1 0 0 380000h-3FFFFFh (8) SA63:SA56 000000h-37FFFFh SA55:SA0 1/8

1 0 1 300000h-3FFFFFh (16) SA63:SA48 000000h-2FFFFFh SA47:SA0 1/4

1 1 0 200000h-3FFFFFh (32) SA63:SA32 000000h-1FFFFFh SA31:SA0 1/2

1 1 1 000000h-3FFFFFh (64) SA63:SA0 None None All

Protected

Sectors

Unprotected

Address Range

Unprotected

Sectors

Portion of

Tot al M emo ry

AreaBP2 BP1 BP0

Table 7.4 TBPROT=1 (Starts Protection from BOTTOM of Array)

Status Register Block Memory Array Protected

Protected

Address Range

0 0 0 None 0 000000h-3FFFFFh SA0:SA63 0

0 0 1 000000h-00FFFFh (1) SA0 010000h-3FFFFFh SA1:SA63 1/64

0 1 0 000000h-01FFFFh (2) SA0:SA1 020000h-3FFFFFh SA2:SA63 1/32

0 1 1 000000h-03FFFFh (4) SA0:SA3 040000h-3FFFFFh SA4:SA63 1/16

1 0 0 000000h-07FFFFh (8) SA0:SA7 080000h-3FFFFFh SA8:SA63 1/8

1 0 1 000000h-0FFFFFh (16) SA0:SA15 100000h-3FFFFFh SA16:SA63 1/4

1 1 0 000000h-1FFFFFh (32) SA0:SA31 200000h-3FFFFFh SA32:SA63 1/2

1 1 1 000000h-3FFFFFh (64) SA0:SA63 None None ALL

Protected

Sectors

Unprotected

Address Range

Unprotected

Sectors

Portion of

Tot al M emo ry

AreaBP2 BP1 BP0

7.10 Hold Mode (HOLD#)

The Hold input (HOLD#) stops any serial communication with the device, but does not terminate any Write Registers, program or erase operation that is currently in progress.

The Hold mode starts on the falling edge of HOLD# if SCK is also low (see Figure 7.1, standard use). If the falling edge of HOLD# does not occur while SCK is low, the Hold mode begins after the next falling edge of SCK (non-standard use).

The Hold mode ends on the rising edge of HOLD# signal (standard use) if SCK is also low. If the rising edge of HOLD# does not occur while SCK is low, the Hold mode ends on the next falling edge of CLK (nonstandard use) See Figure 7.1.

The SO output is high impedance, and the SI and SCK inputs are ignored (don’t care) for the duration of the Hold mode.

CS# must remain low for the entire duration of the Hold mode to ensure that the device internal logic remains unchanged. If CS# goes high while the device is in the Hold mode, the internal logic is reset. To prevent the device from reverting to the Hold mode when device communication is resumed, HOLD# must be held high, followed by driving CS# low.

Note: The HOLD Mode feature is disabled during Quad I/O Mode.

18 S25FL032P S25FL032P_00_06 December 7, 2011

Page 19

Data Sheet

SCK

HOLD#

Hold

Condition

(standard use)

Hold

Condition

(non-standard use)

Figure 7.1 Hold Mode Operation

7.11 Accelerated Programming Operation

The device offers accelerated program operations through the ACC function. This function is primarily intended to allow faster manufacturing throughput at the factory. If the system asserts V device uses the higher voltage on the pin to reduce the time required for program operations. Removing V from the W#/ACC pin returns the device to normal operation. Note that the W#/ACC pin must not be at V for operations other than accelerated programming, or device damage may result. In addition, the W#/ACC pin must not be left floating or unconnected; inconsistent behavior of the device may result.

Note: The ACC function is disabled during Quad I/O Mode.

on this pin, the

December 7, 2011 S25FL032P_00_06 S25FL032P 19

Page 20

8. Sector Address Table

The Sector Address tables show the size of the memory array, sectors, and pages. The device uses pages to cache the program data before the data is programmed into the memory array. Each page or byte can be individually programmed (bits are changed from 1 to 0). The data is erased (bits are changed from 0 to 1) on a sub-sector, sector- or device-wide basis using the P4E/P8E, SE or BE commands. Table 8.1 and Table 8.2 show the starting and ending address for each sector. The complete set of sectors comprises the memory array of the Flash device.

Data Sheet

Table 8.1 S25FL032P Sector Address Table TBPARM=0

Sector

SA63 3F0000h 3FFFFFh SA31 1F0000h 1FFFFFh

SA62 3E0000h 3EFFFFh SA30 1E0000h 1EFFFFh

SA61 3D0000h 3DFFFFh SA29 1D0000h 1DFFFFh

SA60 3C0000h 3CFFFFh SA28 1C0000h 1CFFFFh

SA59 3B0000h 3BFFFFh SA27 1B0000h 1BFFFFh

SA58 3A0000h 3AFFFFh SA26 1A0000h 1AFFFFh

SA57 390000h 39FFFFh SA25 190000h 19FFFFh

SA56 380000h 38FFFFh SA24 180000h 18FFFFh

SA55 370000h 37FFFFh SA23 170000h 17FFFFh

SA54 360000h 36FFFFh SA22 160000h 16FFFFh

SA53 350000h 35FFFFh SA21 150000h 15FFFFh

SA52 340000h 34FFFFh SA20 140000h 14FFFFh

SA51 330000h 33FFFFh SA19 130000h 13FFFFh

SA50 320000h 32FFFFh SA18 120000h 12FFFFh

SA49 310000h 31FFFFh SA17 110000h 11FFFFh

SA48 300000h 30FFFFh SA16 100000h 10FFFFh

SA47 2F0000h 2FFFFFh SA15 0F0000h 0FFFFFh

SA46 2E0000h 2EFFFFh SA14 0E0000h 0EFFFFh

SA45 2D0000h 2DFFFFh SA13 0D0000h 0DFFFFh

SA44 2C0000h 2CFFFFh SA12 0C0000h 0CFFFFh

SA43 2B0000h 2BFFFFh SA11 0B0000h 0BFFFFh

SA42 2A0000h 2AFFFFh SA10 0A0000h 0AFFFFh

SA41 290000h 29FFFFh SA9 090000h 09FFFFh

SA40 280000h 28FFFFh SA8 080000h 08FFFFh

SA39 270000h 27FFFFh SA7 070000h 07FFFFh

SA38 260000h 26FFFFh SA6 060000h 06FFFFh

SA37 250000h 25FFFFh SA5 050000h 05FFFFh

SA36 240000h 24FFFFh SA4 040000h 04FFFFh

SA35 230000h 23FFFFh SA3 030000h 03FFFFh

SA34 220000h 22FFFFh SA2 020000h 02FFFFh

SA33 210000h 21FFFFh

SA32 200000h 20FFFFh

Note

Sector SA0 is split up into sub-sectors SS0 - SS15 (dark gray shading) Sector SA1 is split up into sub-sectors SS16 - SS31(light gray shading)

Address range

Start address End address Start address End address Start address End address

Sector

SA1 010000h 01FFFFh SS1 001000h 001FFFh

SA0 000000h 00FFFFh SS0 000000h 000FFFh

Address range

Sector

SS31 01F000h 01FFFFh

SS30 01E000h 01EFFFh

SS29 01D000h 01DFFFh

SS28 01C000h 01CFFFh

SS27 01B000h 01BFFFh

SS26 01A000h 01AFFFh

SS25 019000h 019FFFh

SS24 018000h 018FFFh

SS23 017000h 017FFFh

SS22 016000h 016FFFh

SS21 015000h 015FFFh

SS20 014000h 014FFFh

SS19 013000h 013FFFh

SS18 012000h 012FFFh

SS17 011000h 011FFFh

SS16 010000h 010FFFh

SS15 00F000h 00FFFFh

SS14 00E000h 00EFFFh

SS13 00D000h 00DFFFh

SS12 00C000h 00CFFFh

SS11 00B000h 00BFFFh

SS10 00A000h 00AFFFh

SS9 009000h 009FFFh

SS8 008000h 008FFFh

SS7 007000h 007FFFh

SS6 006000h 006FFFh

SS5 005000h 005FFFh

SS4 004000h 004FFFh

SS3 003000h 003FFFh

SS2 002000h 002FFFh

Address range

20 S25FL032P S25FL032P_00_06 December 7, 2011

Page 21

Data Sheet

Table 8.2 S25FL032P Sector Address Table TBPARM=1

Sector

SS31 3FF000h 3FFFFFh SA63 3F0000h 3FFFFFh SA31 1F0000h 1FFFFFh

SS30 3FE000h 3FEFFFh SA62 3E0000h 3EFFFFh SA30 1E0000h 1EFFFFh

SS29 3FD000h 3FDFFFh SA61 3D0000h 3DFFFFh SA29 1D0000h 1DFFFFh

SS28 3FC000h 3FCFFFh SA60 3C0000h 3CFFFFh SA28 1C0000h 1CFFFFh

SS27 3FB000h 3FBFFFh SA59 3B0000h 3BFFFFh SA27 1B0000h 1BFFFFh

SS26 3FA000h 3FAFFFh SA58 3A0000h 3AFFFFh SA26 1A0000h 1AFFFFh

SS25 3F9000h 3F9FFFh SA57 390000h 39FFFFh SA25 190000h 19FFFFh

SS24 3F8000h 3F8FFFh SA56 380000h 38FFFFh SA24 180000h 18FFFFh

SS23 3F7000h 3F7FFFh SA55 370000h 37FFFFh SA23 170000h 17FFFFh

SS22 3F6000h 3F6FFFh SA54 360000h 36FFFFh SA22 160000h 16FFFFh

SS21 3F5000h 3F5FFFh SA53 350000h 35FFFFh SA21 150000h 15FFFFh

SS20 3F4000h 3F4FFFh SA52 340000h 34FFFFh SA20 140000h 14FFFFh

SS19 3F3000h 3F3FFFh SA51 330000h 33FFFFh SA19 130000h 13FFFFh

SS18 3F2000h 3F2FFFh SA50 320000h 32FFFFh SA18 120000h 12FFFFh

SS17 3F1000h 3F1FFFh SA49 310000h 31FFFFh SA17 110000h 11FFFFh

SS16 3F0000h 3F0FFFh SA48 300000h 30FFFFh SA16 100000h 10FFFFh

SS15 3EF000h 3EFFFFh SA47 2F0000h 2FFFFFh SA15 0F0000h 0FFFFFh

SS14 3EE000h 3EEFFFh SA46 2E0000h 2EFFFFh SA14 0E0000h 0EFFFFh

SS13 3ED000h 3EDFFFh SA45 2D0000h 2DFFFFh SA13 0D0000h 0DFFFFh

SS12 3EC000h 3ECFFFh SA44 2C0000h 2CFFFFh SA12 0C0000h 0CFFFFh

SS11 3EB000h 3EBFFFh SA43 2B0000h 2BFFFFh SA11 0B0000h 0BFFFFh

SS10 3EA000h 3EAFFFh SA42 2A0000h 2AFFFFh SA10 0A0000h 0AFFFFh

SS9 3E9000h 3E9FFFh SA41 290000h 29FFFFh SA9 090000h 09FFFFh

SS8 3E8000h 3E8FFFh SA40 280000h 28FFFFh SA8 080000h 08FFFFh

SS7 3E7000h 3E7FFFh SA39 270000h 27FFFFh SA7 070000h 07FFFFh

SS6 3E6000h 3E6FFFh SA38 260000h 26FFFFh SA6 060000h 06FFFFh

SS5 3E5000h 3E5FFFh SA37 250000h 25FFFFh SA5 050000h 05FFFFh

SS4 3E4000h 3E4FFFh SA36 240000h 24FFFFh SA4 040000h 04FFFFh

SS3 3E3000h 3E3FFFh SA35 230000h 23FFFFh SA3 030000h 03FFFFh

SS2 3E2000h 3E2FFFh SA34 220000h 22FFFFh SA2 020000h 02FFFFh

SS1 3E1000h 3E1FFFh SA33 210000h 21FFFFh SA1 010000h 01FFFFh

SS0 3E0000h 3E0FFFh SA32 200000h 20FFFFh SA0 000000h 00FFFFh

Note

Sector SA62 is split up into sub-sectors SS0 - SS15 (dark gray shading) Sector SA63 is split up into sub-sectors SS16 - SS31 (light gray shading)

Address Range

Start Address End Address Start Address End Address Start Address End Address

Sector

Address Range

Sector

Address Range

December 7, 2011 S25FL032P_00_06 S25FL032P 21

Page 22

9. Command Definitions

The host system must shift all commands, addresses, and data in and out of the device, beginning with the most significant bit. On the first rising edge of SCK after CS# is driven low, the device accepts the one-byte command on SI (all commands are one byte long), most significant bit first. Each successive bit is latched on the rising edge of SCK. Table 9.1 lists the complete set of commands.

Every command sequence begins with a one-byte command code. The command may be followed by address, data, both, or nothing, depending on the command. CS# must be driven high after the last bit of the command sequence has been written.

The Read Data Bytes (READ), Read Data Bytes at Higher Speed (FAST_READ), Dual Output Read (DOR), Quad Output Read (QOR), Dual I/O High Performance Read (DIOR), Quad I/O High Performance Read (QIOR), Read Status Register (RDSR), Read Configuration Register (RCR), Read OTP Data (OTPR), Read Manufacturer and Device ID (READ_ID), Read Identification (RDID) and Release from Deep Power-Down and Read Electronic Signature (RES) command sequences are followed by a data output sequence on SO. CS# can be driven high after any bit of the sequence is output to terminate the operation.

The Page Program (PP), Quad Page Program (QPP), 64 KB Sector Erase (SE), 4 KB Parameter Sector Erase (P4E), 8 KB Parameter Sector Erase (P8E), Bulk Erase (BE), Write Status and Configuration Registers (WRR), Program OTP space (OTPP), Write Enable (WREN), or Write Disable (WRDI) commands require that CS# be driven high at a byte boundary, otherwise the command is not executed. Since a byte is composed of eight bits, CS# must therefore be driven high when the number of clock pulses after CS# is driven low is an exact multiple of eight.

The device ignores any attempt to access the memory array during a Write Registers, program, or erase operation, and continues the operation uninterrupted.

The instruction set is listed in Table 9.1.

Data Sheet

22 S25FL032P S25FL032P_00_06 December 7, 2011

Page 23

Data Sheet

Table 9.1 Instruction Set

Operation Command

READ (03h) 0000 0011 Read Data bytes 3 0 0 1 to ∞

FAST_READ (0Bh) 0000 1011 Read Data bytes at Fast Speed 3 0 1 1 to ∞

DOR (3Bh) 0011 1011 Dual Output Read 3 0 1 1 to ∞

Read

Write Control

Erase

Program

Status & Configuration Register

Powe r Savi ng

OTP

QOR (6Bh) 0110 1011 Quad Output Read 3 0 1 1 to ∞

DIOR (BBh) 1011 1011 Dual I/O High Performance Read 3 1 0 1 to ∞

QIOR (EBh) 1110 1011 Quad I/O High Performance Read 3 1 2 1 to ∞

RDID (9Fh) 1001 1111 Read Identification 0 0 0 1 to 81

READ_ID (90h) 1001 0000 Read Manufacturer and Device Identification 3 0 0 1 to ∞

WREN (06h) 0000 0110 Write Enable 0 0 0 0

WRDI (04h) 0000 0100 Write Disable 0 0 0 0

QPP (32h) 0011 0010 Quad Page Programming 3 0 0 1 to 256

RDSR (05h) 0000 0101 Read Status Register 0 0 0 1 to ∞

WRR (01h) 0000 0001 Write (Status & Configuration) Register 0 0 0 1 to 2

RCR (35h) 0011 0101 Read Configuration Register (CFG) 0 0 0 1 to ∞

CLSR (30h) 0011 0000

RES

OTPP (42h) 0100 0010 Program one byte of data in OTP memory space 3 0 0 1

OTPR (4Bh) 0100 1011 Read data in the OTP memory space 3 0 1 1 to ∞

One byte Command

Code

P4E (20h) 0010 0000 4 KB Parameter Sector Erase 3 0 0 0

P8E (40h) 0100 0000 8 KB (two 4KB) Parameter Sector Erase 3 0 0 0

SE (D8h) 1101 1000 64KB Sector Erase 3 0 0 0

PP (02h) 0000 0010 Page Programming 3 0 0 1 to 256

DP (B9h) 1011 1001 Deep Power-Down 0 0 0 0

(60h) 0110 0000 or

(C7h) 1100 0111

(ABh) 1010 1011 Release from Deep Power-Down Mode 0 0 0 0

(ABh) 1010 1011

Bulk Erase 0 0 0 0

Reset the Erase and Program Fail Flag (SR5 and SR6) and restore normal operation)

Release from Deep Power-Down and Read Electronic Signature

Description

Address

Byte Cycle

0001

0031 to ∞

Mode

Bit

Cycle

Dummy

Byte Cycle

Data Byte

Cycle

December 7, 2011 S25FL032P_00_06 S25FL032P 23

Page 24

9.1 Read Data Bytes (READ)

Command 24 Bit Address

Hi-Z

MSB

Data Out 1 Data Out 2

31 32 33 34 35 36 37 38 39302928

10987654321

23 22 21

SCK

CS#

Mode 3

Mode 0

The Read Data Bytes (READ) command reads data from the memory array at the frequency (fR) presented at the SCK input, with a maximum speed of 40 MHz. The host system must first select the device by driving CS# low. The READ command is then written to SI, followed by a 3 byte address (A23-A0). Each bit is latched on the rising edge of SCK. The memory array data, at that address, are output serially on SO at a frequency f on the falling edge of SCK.

Figure 9.1 and Table 9.1 on page 23 detail the READ command sequence. The first address byte specified

can start at any location of the memory array. The device automatically increments to the next higher address after each byte of data is output. The entire memory array can therefore be read with a single READ command. When the highest address is reached, the address counter reverts to 00000h, allowing the read sequence to continue indefinitely.

The READ command is terminated by driving CS# high at any time during data output. The device rejects any READ command issued while it is executing a program, erase, or Write Registers operation, and continues the operation uninterrupted.

Figure 9.1 Read Data Bytes (READ) Command Sequence

Data Sheet

24 S25FL032P S25FL032P_00_06 December 7, 2011

Page 25

Data Sheet

9.2 Read Data Bytes at Higher Speed (FAST_READ)

The FAST_READ command reads data from the memory array at the frequency (fC) presented at the SCK input, with a maximum speed of 104 MHz. The host system must first select the device by driving CS# low. The FAST_READ command is then written to SI, followed by a 3 byte address (A23-A0) and a dummy byte. Each bit is latched on the rising edge of SCK. The memory array data, at that address, are output serially on SO at a frequency f

The FAST_READ command sequence is shown in Figure 9.2 and Table 9.1 on page 23. The first address byte specified can start at any location of the memory array. The device automatically increments to the next higher address after each byte of data is output. The entire memory array can therefore be read with a single FAST_READ command. When the highest address is reached, the address counter reverts to 000000h, allowing the read sequence to continue indefinitely.

The FAST_READ command is terminated by driving CS# high at any time during data output. The device rejects any FAST_READ command issued while it is executing a program, erase, or Write Registers operation, and continues the operation uninterrupted.

Figure 9.2 Read Data Bytes at Higher Speed (FAST_READ) Command Sequence

CS#

, on the falling edge of SCK.

SCK

Mode 3

Mode 0

Hi-Z

01 2

Command

3 4

5678

24 Bit Address

22 21

29 303132

35 36 37

38 394041

42 43

444546

Dummy Byte

654

210

MSB

43210

DATA OUT 1

MSB

DATA OUT 2

December 7, 2011 S25FL032P_00_06 S25FL032P 25

Page 26

9.3 Dual Output Read Mode (DOR)

CS#

SCK

SO/IO1

SI Switches from Input to Output

24 Bit

Address

Dummy Byte

Hi-Z

Byte 2

*MSB

28 29 30 31 32 33 34 35 36 37 38 3940414243 44 45 46 47

23 *22 21

3 2107*6543 210

6420

SI/IO0

012

3 4

5678

Instruction

Byte 1

3 1

6420

The Dual Output Read instruction is similar to the FAST_READ instruction, except that the data is shifted out 2 bits at a time using 2 pins (SI/IO0 and SO/IO1) instead of 1 bit, at a maximum frequency of 80 MHz. The Dual Output Read mode effectively doubles the data transfer rate compared to the FAST_READ instruction.

The host system must first select the device by driving CS# low. The Dual Output Read command is then written to SI, followed by a 3-byte address (A23-A0) and a dummy byte. Each bit is latched on the rising edge of SCK. Then the memory contents, at the address that is given, are shifted out two bits at a time through the IO0 (SI) and IO1 (SO) pins at a frequency f

The Dual Output Read command sequence is shown in Figure 9.3 and Table 9.1 on page 23. The first address byte specified can start at any location of the memory array. The device automatically increments to the next higher address after each byte of data is output. The entire memory array can therefore be read with a single Dual Output Read command. When the highest address is reached, the address counter reverts to 00000h, allowing the read sequence to continue indefinitely.

It is important that the I/O pins be set to high-impedance prior to the falling edge of the first data out clock.

The Dual Output Read command is terminated by driving CS# high at any time during data output. The device rejects any Dual Output Read command issued while it is executing a program, erase, or Write Registers operation, and continues the operation uninterrupted.

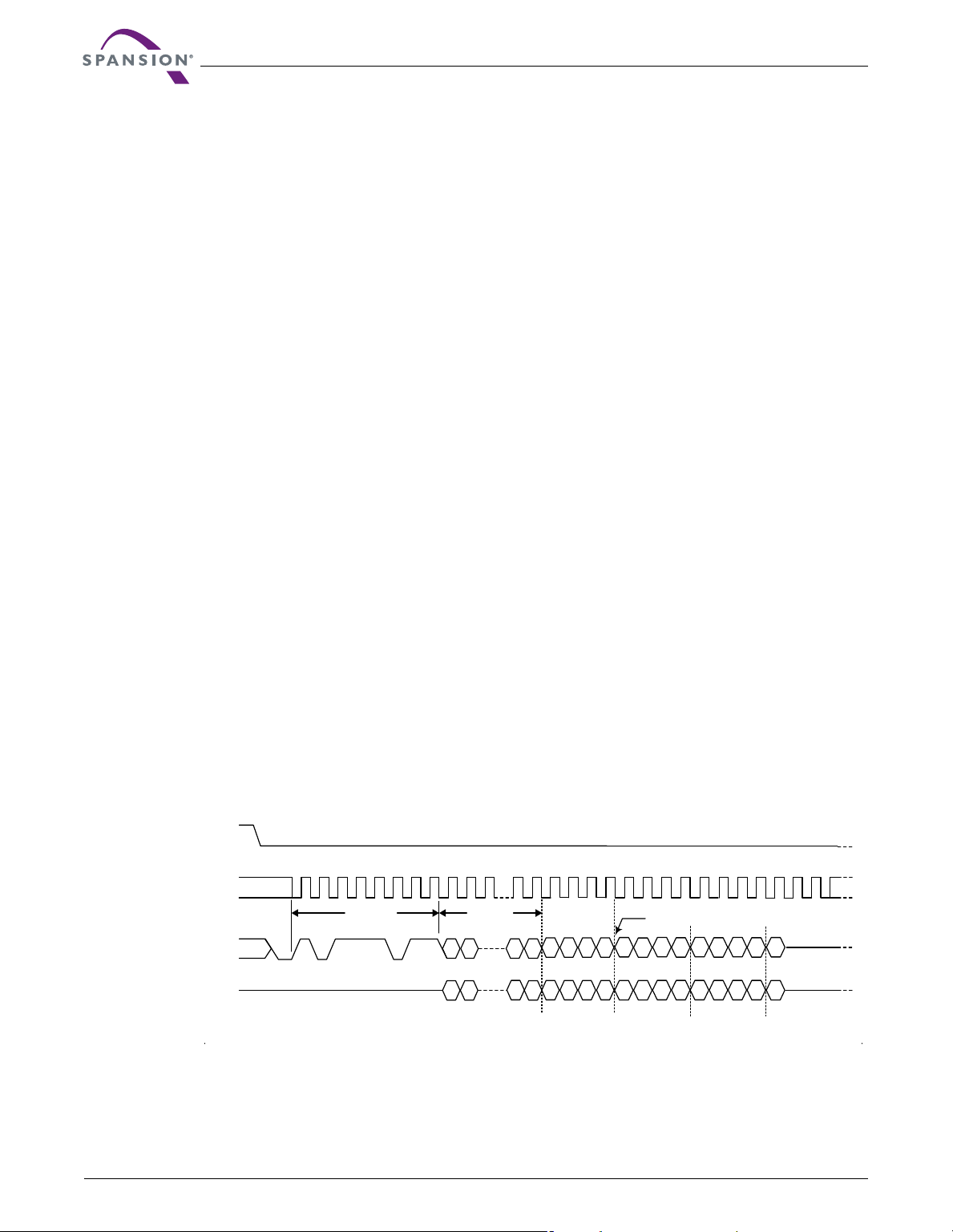

Figure 9.3 Dual Output Read Instruction Sequence

Data Sheet

on the falling edge of SCK.

26 S25FL032P S25FL032P_00_06 December 7, 2011

Page 27

Data Sheet

9.4 Quad Output Read Mode (QOR)

The Quad Output Read instruction is similar to the FAST_READ instruction, except that the data is shifted out 4 bits at a time using 4 pins (SI/IO0, SO/IO1, W#/ACC/IO2 and HOLD#/IO3) instead of 1 bit, at a maximum frequency of 80 MHz. The Quad Output Read mode effectively doubles the data transfer rate compared to the Dual Output Read instruction, and is four times the data transfer rate of the FAST_READ instruction.

The host system must first select the device by driving CS# low. The Quad Output Read command is then written to SI, followed by a 3-byte address (A23-A0) and a dummy byte. Each bit is latched on the rising edge of SCK. Then the memory contents, at the address that are given, are shifted out four bits at a time through IO0 (SI), IO1 (SO), IO2 (W#/ACC), and IO3 (HOLD#) pins at a frequency f

The Quad Output Read command sequence is shown in Figure 9.4 and Table 9.1 on page 23. The first address byte specified can start at any location of the memory array. The device automatically increments to the next higher address after each byte of data is output. The entire memory array can therefore be read with a single Quad Output Read command. When the highest address is reached, the address counter reverts to 00000h, allowing the read sequence to continue indefinitely.

It is important that the I/O pins be set to high-impedance prior to the falling edge of the first data out clock.

The Quad Output Read command is terminated by driving CS# high at any time during data output. The device rejects any Quad Output Read command issued while it is executing a program, erase, or Write Registers operation, and continues the operation uninterrupted.

The Quad bit of Configuration Register must be set (CR Bit1 = 1) to enable the Quad mode capability of the S25FL device.

on the falling edge of SCK.

CS#

SCK

SI/IO0

SO/IO1

W#/ACC/IO2

HOLD#/IO3

Figure 9.4 Quad Output Read Instruction Sequence

0123 45678 910

Instruction

Hi-Z

Address

23 *22 21

28 29 30 31 32 33 34 35 36 37 38 3940414243 44 45 46 47

24 Bit

3 21076543

Dummy Byte

SI Switches from Input to Output

* DATA

OUT 1

262

DATA

OUT 2

5151

* DATA

OUT 3

* DATA

OUT 4

*MSB

December 7, 2011 S25FL032P_00_06 S25FL032P 27

Page 28

Data Sheet

9.5 DUAL I/O High Performance Read Mode (DIOR)

The Dual I/O High Performance Read instruction is similar to the Dual Output Read instruction, except that it improves throughput by allowing input of the address bits (A23-A0) using 2 bits per SCK via two input pins (SI/IO2 and SO/IO1), at a maximum frequency of 80 MHz.

The host system must first select the device by driving CS# low. The Dual I/O High Performance Read command is then written to SI, followed by a 3-byte address (A23-A0) and a 1-byte Mode instruction, with two bits latched on the rising edge of SCK. Then the memory contents, at the address that is given, are shifted out two bits at a time through IO0 (SI) and IO1 (SO).

The DUAL I/O High Performance Read command sequence is shown in Figure 9.5 and Table 9.1

on page 23. The first address byte specified can start at any location of the memory array. The device

automatically increments to the next higher address after each byte of data is output. The entire memory array can therefore be read with a single DUAL I/O High Performance Read command. When the highest address is reached, the address counter reverts to 00000h, allowing the read sequence to continue indefinitely.

In addition, address jumps can be done without exiting the Dual I/O High Performance Mode through the setting of the Mode bits (after the Address (A23-0) sequence, as shown in Figure 9.5). This added feature removes the need for the instruction sequence and greatly improves code execution (XIP). The upper nibble (bits 7-4) of the Mode bits control the length of the next Dual I/O High Performance instruction through the inclusion or exclusion of the first byte instruction code. The lower nibble (bits 3-0) of the Mode bits are DON’T CARE (“x”). If the Mode bits equal Axh, then the device remains in Dual I/O High Performance Read Mode and the next address can be entered (after CS# is raised high and then asserted low) without requiring the BBh instruction opcode, as shown in Figure 9.6, thus eliminating eight cycles for the instruction sequence. However, if the Mode bits are any value other than Axh, then the next instruction (after CS# is raised high and then asserted low) requires the instruction sequence, which is normal operation. The following sequences will release the device from Dual I/O High Performance Read mode; after which, the device can accept standard SPI instructions:

1. During the Dual I/O High Performance Instruction Sequence, if the Mode bits are any value other than Axh, then the next time CS# is raised high and then asserted low, the device will be released from Dual I/O High Performance Read mode.

2. Furthermore, during any operation, if CS# toggles high to low to high for eight cycles (or less) and data input (IO0 & IO1) are not set for a valid instruction sequence, then the device will be released from Dual I/O High Performance Read mode.

It is important that the I/O pins be set to high-impedance prior to the falling edge of the first data out clock.

The read instruction can be terminated by driving the CS# pin to the logic high state. The CS# pin can be driven high at any time during data output to terminate a read operation.

Figure 9.5 DUAL I/O High Performance Read Instruction Sequence

CS#

SCK

SI/IO0

SO/IO1

0123 45678 910

Instruction

Hi-Z

24 Bit

Address

23 *

IO0 & IO1 Switches from Input to Output

Mode Bits

Byte 1

28 S25FL032P S25FL032P_00_06 December 7, 2011

28 29 30 3118 19 20 21 22 23 24 25 26 27

Byte 2

*MSB

Page 29

Data Sheet

CS#

SCK

SO/IO1

IO0 & IO1 Switches from Input to Output

24 Bit

Address

Mode Bits

Byte 2

*MSB

21 22 2311 12 13 14 15 16 17 18 19 20

654

SI/IO0

01 910

Byte 1

64 2 0

Figure 9.6 Continuous Dual I/O High Performance Read Instruction Sequence

December 7, 2011 S25FL032P_00_06 S25FL032P 29

Page 30

Data Sheet

CS#

SCK

SO/IO1

IO’s Switches from Input to Output

24 Bit

Address

Mode Bits

Hi-Z

Byte 2

*MSB

23 24 25 2613 14 15 16 17 18 19 20 21 22

23 *

SI/IO0

0123 45678 9

Instruction

Byte 1

DUMMY DUMMY

Hi-Z

W#/ACC/IO2

HOLD#/IO3

9.6 Quad I/O High Performance Read Mode (QIOR)

The Quad I/O High Performance Read instruction is similar to the Quad Output Read instruction, except that it further improves throughput by allowing input of the address bits (A23-A0) using 4 bits per SCK via four input pins (SI/IO0, SO/IO1, W#/ACC/IO2 and HOLD#/IO3), at a maximum frequency of 80 MHz.

The host system must first select the device by driving CS# low. The Quad I/O High Performance Read command is then written to SI, followed by a 3-byte address (A23-A0) and a 1-byte Mode instruction, with four bits latched on the rising edge of SCK. Note that four dummy clocks are required prior to the data input. Then the memory contents, at the address that is given, are shifted out four bits at a time through IO0 (SI), IO1 (SO), IO2 (W#/ACC), and IO3 (HOLD#).

The Quad I/O High Performance Read command sequence is shown in Figure 9.7 and Table 9.1 on page 23. The first address byte specified can start at any location of the memory array. The device automatically increments to the next higher address after each byte of data is output. The entire memory array can therefore be read with a single Quad I/O High Performance Read command. When the highest address is reached, the address counter reverts to 00000h, allowing the read sequence to continue indefinitely.

In addition, address jumps can be done without exiting the Quad I/O High Performance Mode through the setting of the Mode bits (after the Address (A23-0) sequence, as shown in Figure 9.7). This added feature the removes the need for the instruction sequence and greatly improves code execution (XIP). The upper nibble (bits 7-4) of the Mode bits control the length of the next Quad I/O High Performance instruction through the inclusion or exclusion of the first byte instruction code. The lower nibble (bits 3-0) of the Mode bits are DON'T CARE (“x”). If the Mode bits equal Axh, then the device remains in Quad I/O High Performance Read Mode and the next address can be entered (after CS# is raised high and then asserted low) without requiring the EBh instruction opcode, as shown in Figure 9.8, thus eliminating eight cycles for the instruction sequence. The following sequences will release the device from Quad I/O High Performance Read mode; after which, the device can accept standard SPI instructions:

1. During the Quad I/O High Performance Instruction Sequence, if the Mode bits are any value other than Axh, then the next time CS# is raised high and then asserted low the device will be released from Quad I/O High Performance Read mode.

2. Furthermore, during any operation, if CS# toggles high to low to high for eight cycles (or less) and data input (IO0, IO1, IO2, & IO3) are not set for a valid instruction sequence, then the device will be released from Quad I/O High Performance Read mode.

It is important that the I/O pins be set to high-impedance prior to the falling edge of the first data out clock.

The read instruction can be terminated by driving the CS# pin to the logic high state. The CS# pin can be driven high at any time during data output to terminate a read operation.

Figure 9.7 QUAD I/O High Performance Instruction Sequence

30 S25FL032P S25FL032P_00_06 December 7, 2011

Page 31

Data Sheet

Figure 9.8 Continuous QUAD I/O High Performance Instruction Sequence

CS#

SCK

SI/IO0

SO/IO1

W#/ACC/IO2

HOLD#/IO3

23 *

9.7 Read Identification (RDID)

The Read Identification (RDID) command outputs the one-byte manufacturer identification, followed by the two-byte device identification and the bytes for the Common Flash Interface (CFI) tables. The manufacturer identification is assigned by JEDEC; for Spansion devices, it is 01h. The device identification (2 bytes) and CFI bytes are assigned by the device manufacturer.

See Table 9.2 on page 32 for device ID data.

The Common Flash Interface (CFI) specification outlines device and host system software interrogation handshake, which allows vendor-specified software algorithms to be used for entire families of devices. Software support can then be device-independent, JEDEC ID-independent, and forward- and backwardcompatible for the specified flash device families. Flash vendors can standardize their existing interfaces for long-term compatibility. The system can read CFI information at the addresses given in Table 9.3.

The host system must first select the device by driving CS# low. The RDID command is then written to SI, and each bit is latched on the rising edge of SCK. One byte of manufacture identification, two bytes of device identification and sixty-six bytes of extended device identification are then output from the memory array on SO at a frequency f command is 50 MHz (Normal Read). The manufacturer ID and Device ID can be read repeatedly by applying multiples of 648 clock cycles. The manufacturer ID, Device ID and CFI table can be continuously read as long as CS# is held low with a clock input.

The RDID command sequence is shown in Figure 9.9 and Table 9.1 on page 23.

Driving CS# high after the device identification data has been read at least once terminates the RDID command. Driving CS# high at any time during data output (for example, while reading the extended CFI bytes), also terminates the RDID operation.

The device rejects any RDID command issued while it is executing a program, erase, or Write Registers operation, and continues the operation uninterrupted.

, on the falling edge of SCK. The maximum clock frequency for the RDID (9Fh)

45678 9

24 Bit

Address

10 11 12

Mode Bits Byte 2

DUMMY DUMMY

13 14 15 16

Byte 1

IO’s Switches from Input to Output

*MSB

December 7, 2011 S25FL032P_00_06 S25FL032P 31

Page 32

Data Sheet

Figure 9.9 Read Identification (RDID) Command Sequence and Data-Out Sequence

Table 9.2 Manufacturer & Device ID - RDID (JEDEC 9Fh):

Device

Manuf.

Device Id

# Extended

bytes

Byte 0 Byte 1 Byte 2 Byte 3

S25FL032P SPI Flash 01h 02h 15h 4Dh

Notes

1. Byte 0 is Manufacturer ID of Spansion.

2. Byte 1 & 2 is Device Id.

3. Byte 3 is Extended Device Information String Length, to indicate how many Extended Device Information bytes will follow.

4. Bytes 4, 5 and 6 are Spansion reserved (do not use).

5. For Bytes 07h-0Fh and 3Dh-3Fh, the data will be read as 0xFF.

6. Bytes 10h-50h are factory programmed per JEDEC standard.

Table 9.3 Product Group CFI Query Identification String

Byte Data Description

10h

11h

12h

13h

14h

15h

16h

17h

18h

19h

1Ah

51h

52h

59h

02h

00h

40h

00h

Query Unique ASCII string “QRY”

Primary OEM Command Set

Address for Primary Extended Table

Alternate OEM Command Set (00h = none exists)

Address for Alternate OEM Extended Table (00h = none exists)

Table 9.4 Product Group CFI System Interface String

Byte Data Description

1Bh 27h V

1Ch 36h V

1Dh 00h V

1Eh 00h V

1Fh 0Bh Typical timeout per single byte program 2

20h 0Bh

21h 09h Typical timeout per individual sector erase 2

32 S25FL032P S25FL032P_00_06 December 7, 2011

Min. (erase/program): (D7-D4: Volt, D3-D0: 100 mV)

Max. (erase/program): (D7-D4: Volt, D3-D0: 100 mV)

Min. voltage (00h = no VPP pin present)

Max. voltage (00h = no VPP pin present)

Typical timeout for Min. size Page program 2

µs

(00h = not supported)

Page 33

Data Sheet

Table 9.4 Product Group CFI System Interface String

22h 0Fh Typical timeout for full chip erase 2Nms (00h = not supported)

23h 01h Max. timeout for byte program 2

24h 01h Max. timeout for page program 2

25h 02h Max. timeout per individual sector erase 2

26h 01h

Max. timeout for full chip erase 2 (00h = not supported)

times typical

Table 9.5 Product Group CFI Device Geometry Definition

Byte Data Description

27h 16h Device Size = 2

28h 05h Flash Device Interface Description;

00h = x8 only 01h = x16 only

29h 05h

02h = x8/x16 capable 03h = x32 only 04h = Single I/O SPI, 3-byte address 05h = Multi I/O SPI, 3-byte address

2Ah 08h

2Bh 00h

2Ch 02h

Max. number of bytes in multi-byte write = 2 (00 = not supported)

Number of Erase Block Regions within device 1 = Uniform Device, 2 = Parameter Block

2Dh 1Fh

2Eh 00h

2Fh 10h

Erase Block Region 1 Information (refer to CFI publication 100)

30h 00h

31h 3Dh

32h 00h

33h 00h

Erase Block Region 2 Information (refer to CFI publication 100)

34h 01h

35h 00h

36h 00h

37h 00h

Erase Block Region 3 Information (refer to CFI publication 100)

38h 00h

39h 00h

3Ah 00h

3Bh 00h

Erase Block Region 4 Information (refer to CFI publication 100)

3Ch 00h

byte;

December 7, 2011 S25FL032P_00_06 S25FL032P 33

Page 34

Byte Data Description

40h 50h

42h 49h

43h 31h Major version number, ASCII

44h 33h Minor version number, ASCII

45h 15h

46h 00h

47h 01h

48h 00h

49h 05h

4Ah 00h

4Bh 01h

4Ch 03h

4Dh 85h

4Eh 95h

4Fh 07h

50h 00h

Note

CFI data related to V tables to obtain the V specifications.

Data Sheet

Table 9.6 Product Group CFI Primary Vendor-Specific Extended Query

Query-unique ASCII string “PRI”41h 52h

Address Sensitive Unlock (Bits 1-0) 00b = Required, 01b = Not Required Process Technology (Bits 5-2) 0000b = 0.23 µm Floating Gate 0001b = 0.17 µm Floating Gate 0010b = 0.23 µm MirrorBit 0010b = 0.20 µm MirrorBit 0011b = 0.11 µm Floating Gate 0100b = 0.11 µm MirrorBit 0101b = 0.09 µm MirrorBit 1000b = 0.065 µm MirrorBit

Erase Suspend 0 = Not Supported, 1 = Read Only, 2 = Read & Write

Sector Protect 00 = Not Supported, X = Number of sectors in per smallest group

Temporary Sector Unprotect 00 = Not Supported, 01 = Supported

Sector Protect/Unprotect Scheme 04 = High Voltage Method 05 = Software Command Locking Method 08 = Advanced Sector Protection Method

Simultaneous Operation 00 = Not Supported, X = Number of Sectors outside Bank 1

Burst Mode Type 00 = Not Supported, 01 = Supported

Page Mode Type 00 = Not Supported, 01 = 4 Word Page, 02 = 8 Word Page, 03 = 256 Byte Page

ACC (Acceleration) Supply Minimum 00 = Not Supported, (D7-D4: Volt, D3-D0: 100 mV)

ACC (Acceleration) Supply Maximum 00 = Not Supported, (D7-D4: Volt, D3-D0: 100 mV)

W# Protection 07 = Uniform Device with Top or Bottom Write Protect (user select)

Program Suspend 00 = Not Supported, 01 = Supported

and time-outs may differ from actual VCC and time-outs of the product. Please consult the Ordering Information

range for particular part numbers. Please consult the AC Characteristics on page 57 for typical timeout

34 S25FL032P S25FL032P_00_06 December 7, 2011

Page 35

9.8 Read-ID (READ_ID)

CS#

SCK

High Impedance

8765432219313028109 45444342414039383736353433324746

232221

1234567

Instruction 24-Bit Address

noitacifitnedI eciveDnoitacifitnedI erutcafunaMBSM

The READ_ID instruction provides the S25FL032P manufacturer and device information and is provided as an alternative to the Release from Deep Power-Down and Read Electronic Signature (RES), and the JEDEC Read Identification (RDID) commands.

The instruction is initiated by driving the CS# pin low and shifting in (via the SI input pin) the instruction code “90h” followed by a 24-bit address (which is either 00000h or 00001h). Following this, the Manufacturer ID and the Device ID are shifted out on the SO output pin starting after the falling edge of the SCK serial clock input signal. If the 24-bit address is set to 000000h, the Manufacturer ID is read out first followed by the Device ID. If the 24-bit address is set to 000001h, then the Device ID is read out first followed by the Manufacturer ID. The Manufacturer ID and the Device ID are always shifted out on the SO output pin with the MSB first, as shown in Figure 10-14. Once the device is in Read-ID mode, the Manufacturer ID and Device ID output data toggles between address 000000H and 000001H until terminated by a low to high transition on the CS# input pin. The maximum clock frequency for the Read-ID (90h) command is at 104 MHz (FAST_READ). The Manufacturer ID & Device ID is output continuously until terminated by a low to high transition on CS# chip select input pin.

Data Sheet

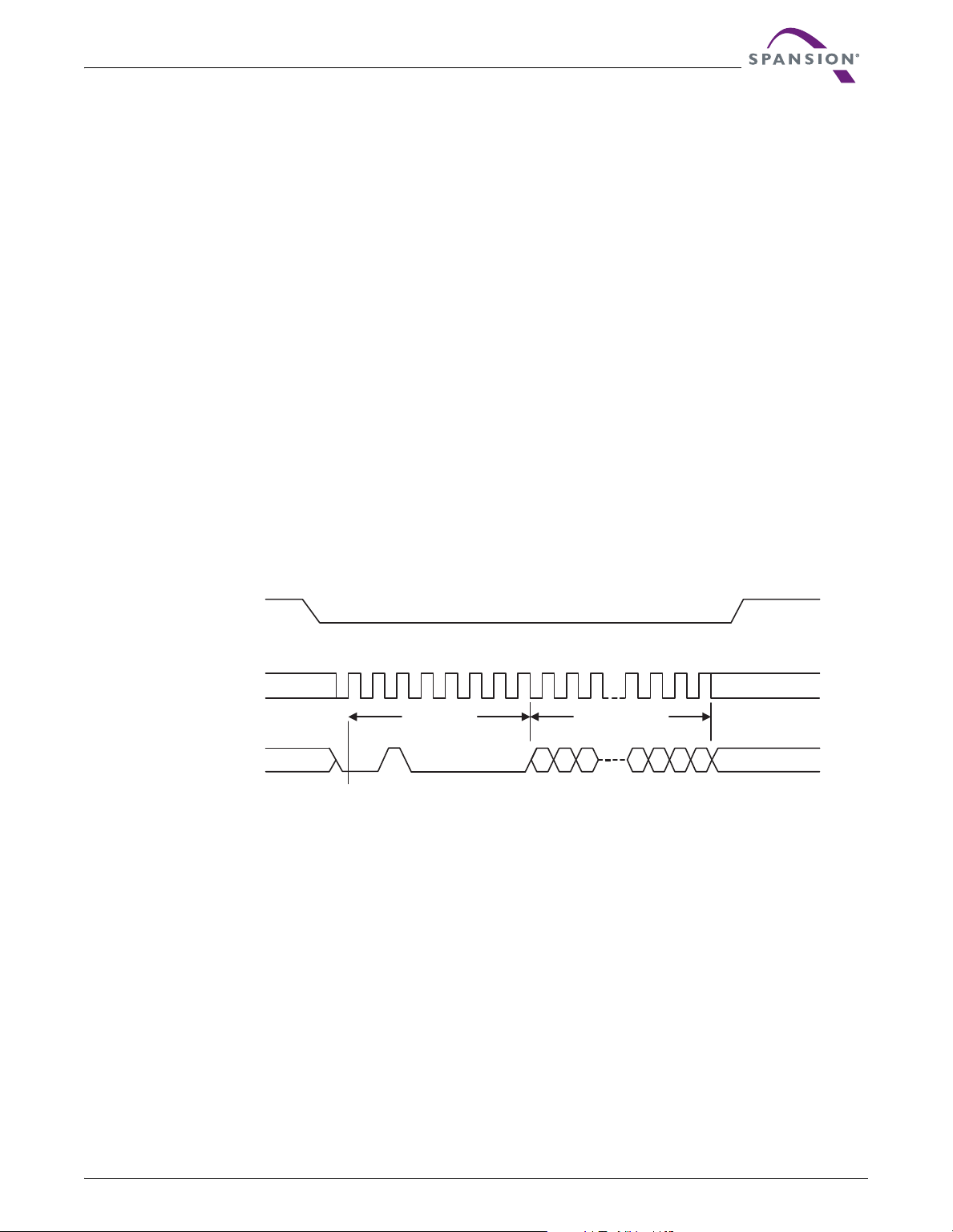

Figure 9.10 Read-ID (RDID) Command Timing Diagram

Table 9.7 READ_ID Data-Out Sequence

Address Uniform

Manufacturer Identification 00000h 01h

Device Identification 00001h 15h

December 7, 2011 S25FL032P_00_06 S25FL032P 35

Page 36

9.9 Write Enable (WREN)

The Write Enable (WREN) command (see Figure 9.11) sets the Write Enable Latch (WEL) bit to a 1, which enables the device to accept a Write Status Register, program, or erase command. The WEL bit must be set prior to every Page Program (PP), Quad Page Program (QPP), Parameter Sector Erase (P4E, P8E), Erase (SE or BE), Write Registers (WRR) and OTP Program (OTPP) command.

The host system must first drive CS# low, write the WREN command, and then drive CS# high.

Data Sheet

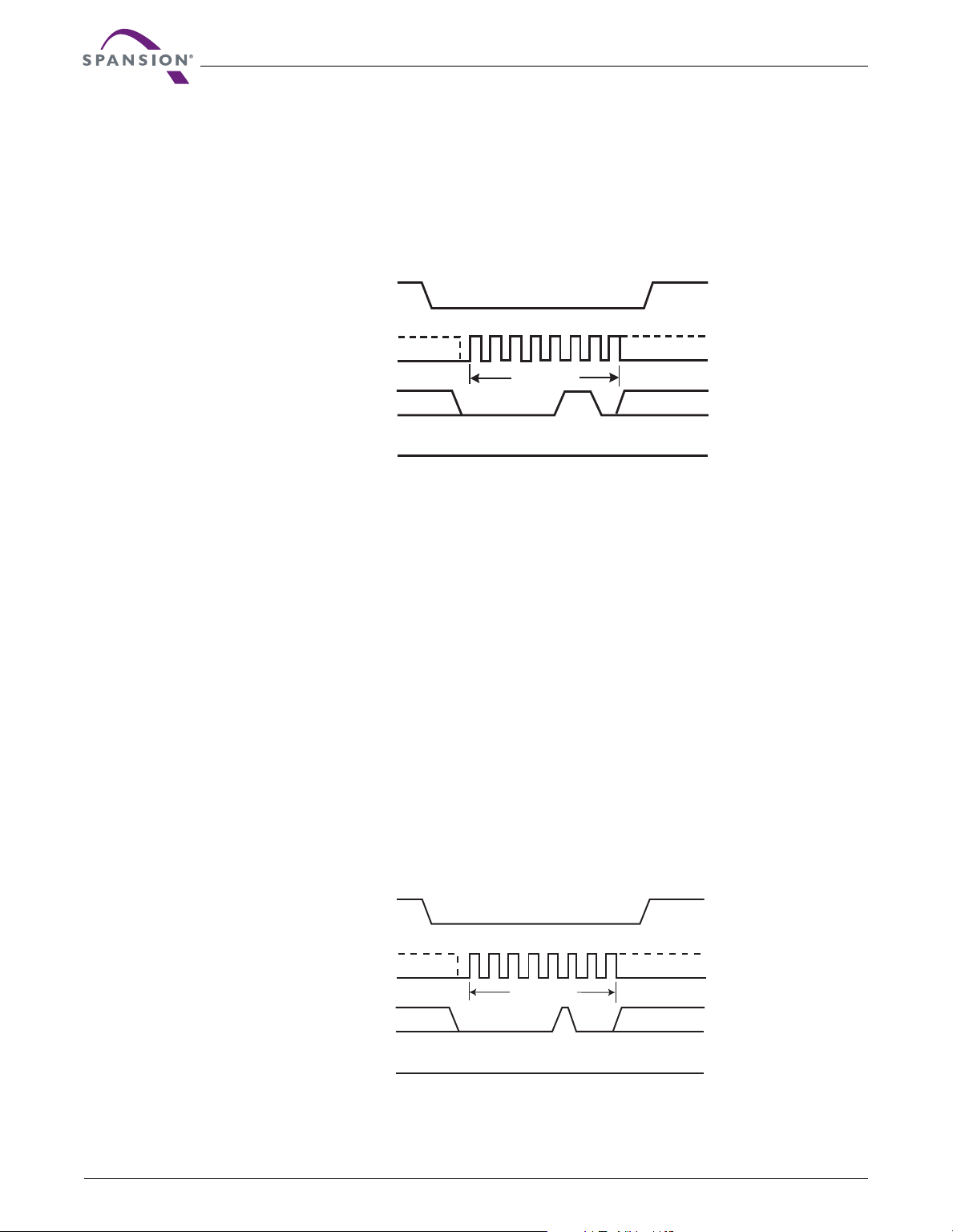

Figure 9.11 Write Enable (WREN) Command Sequence

CS#

9.10 Write Disable (WRDI)

The Write Disable (WRDI) command (see Figure 9.12) resets the Write Enable Latch (WEL) bit to a 0, which disables the device from accepting a Page Program (PP), Quad Page Program (QPP), Parameter Sector Erase (P4E, P8E), Erase (SE, BE), Write Registers (WRR) and OTP Program (OTPP) command. The host system must first drive CS# low, write the WRDI command, and then drive CS# high.

Any of following conditions resets the WEL bit:

 Power-u p

 Write Disable (WRDI) command completion

 Write Registers (WRR) command completion

 Page Program (PP) command completion

 Quad Page Program (QPP) completion

 Parameter Sector Erase (P4E, P8E) completion

 Sector Erase (SE) command completion

 Bulk Erase (BE) command completion

 OTP Program (OTPP) completion

SCK

Mode 3

Mode 0

Hi-Z

0123 45

Command

Figure 9.12 Write Disable (WRDI) Command Sequence

CS#

SCK

Mode 3

Mode 0

3 4

Command

Hi-Z

36 S25FL032P S25FL032P_00_06 December 7, 2011

Page 37

Data Sheet

9.11 Read Status Register (RDSR)

The Read Status Register (RDSR) command outputs the state of the Status Register bits. Table 9.8 shows the status register bits and their functions. The RDSR command may be written at any time, even while a program, erase, or Write Registers operation is in progress. The host system should check the Write In Progress (WIP) bit before sending a new command to the device if an operation is already in progress.

Figure 9.13 shows the RDSR command sequence, which also shows that it is possible to read the Status

Table 9.8 S25FL032P Status Register

Bit Status Register Bit Bit Function Description

7 SRWD Status Register Write Disable

6 P_ERR Programming Error Occurred

5 E_ERR Erase Error Occurred

4BP2

2BP0

1 WEL Write Enable Latch

0 WIP Write in Progress

1 = Protects when W#/ACC is low

0 = No protection, even when W#/ACC is low

0 = No Error

1 = Error occurred

0 = No Error

1 = Error occurred

Block Protect Protects selected Block from Program or Erase3BP1

1 = Device accepts Write Registers, program or erase commands

0 = Ignores Write Registers, program or erase commands

1 = Device Busy a Write Registers, program or erase operation is in

progress

0 = Ready. Device is in standby mode and can accept commands.

Figure 9.13 Read Status Register (RDSR) Command Sequence

CS#

SCK

Mode 3

Mode 0

432

Command

Hi-Z

MSB

Status Register Out Status Register Out

MSB

The following describes the status and control bits of the Status Register.

Write In Progress (WIP) bit: Indicates whether the device is busy performing a Write Registers, program, or erase operation. This bit is read-only, and is controlled internally by the device. If WIP is 1, one of these operations is in progress; if WIP is 0, no such operation is in progress. This bit is a Read-only bit.

Write Enable Latch (WEL) bit: Determines whether the device will accept and execute a Write Registers, program, or erase command. When set to 1, the device accepts these commands; when set to 0, the device rejects the commands. This bit is set to 1 by writing the WREN command, and set to 0 by the WRDI command, and is also automatically reset to 0 after the completion of a Write Registers, program, or erase operation, and after a power down/power up sequence. WEL cannot be directly set by the WRR command.

December 7, 2011 S25FL032P_00_06 S25FL032P 37

Page 38

Data Sheet

Configuration Register Out

noitcurtsnI

1 3 0129876540 14131211 15

13 207654

SCK

MSB

High Impedance

CS#

Configuration Register Out

MSB

13 207654

19181716 20 2221 23

Block Protect (BP2, BP1, BP0) bits: Define the portion of the memory area that will be protected against any changes to the stored data. The Block Protection (BP2, BP1, BP0) bits are either volatile or non-volatile, depending on the state of the non-volatile bit BPNV in the Configuration register. The Block Protection (BP2, BP1, BP0) bits are written with the Write Registers (WRR) instruction. When one or more of the Block Protect (BP2, BP1, BP0) bits is set to 1’s, the relevant memory area is protected against Page Program (PP), Parameter Sector Erase (P4E, P8E), Sector Erase (SE), Quad Page Programming (QPP) and Bulk Erase (BE) instructions. If the Hardware Protected mode is enabled, BP2:BP0 cannot be changed.

The Bulk Erase (BE) instruction can be executed only when the Block Protection (BP2, BP1, BP0) bits are set to 0’s.

The default condition of the BP2-0 bits is binary 000 (all 0’s).

Erase Error bit (E_ERR): The Erase Error Bit is used as a Erase operation success and failure check. When the Erase Error bit is set to a “1”, it indicates that there was an error which occurred in the last erase operation. With the Erase Error bit set to a “1”, this bit is reset with the Clear Status Register (CLSR) command.

Program Error bit (P_ERR): The Program Error Bit is used as a Program operation success and failure check. When the Program Error bit is set to a “1”, it indicates that there was an error which occurred in the last program operation. With the Program Error bit set to a “1”, this bit is reset with the Clear Status Register (CLSR) command.

Status Register Write Disable (SRWD) bit: Provides data protection when used together with the Write Protect (W#/ACC) signal. The Status Register Write Disable (SRWD) bit is operated in conjunction with the Write Protect (W#/ACC) input pin. The Status Register Write Disable (SRWD) bit and the Write Protect (W#/ ACC) signal allow the device to be put in the Hardware Protected mode. With the Status Register Write Disable (SRWD) bit set to a “1” and the W#/ACC driven to the logic low state, the device enters the Hardware Protected mode; the non-volatile bits of the Status Register (SRWD, BP2, BP1, BP0) and the nonvolatile bits of the Configuration Register (TBPARM, TBPROT, BPNV and QUAD) become read-only bits and the Write Registers (WRR) instruction opcode is no longer accepted for execution.

Note: the P_ERR and E_ERR bits will not be set to a 1 if the application writes to a protected memory area.

9.12 Read Configuration Register (RCR)

The Read Configuration Register (RCR) instruction opcode allows the Configuration Register contents to be read out of the SO serial output pin. The Configuration Register contents may be read at any time, even while a program, erase, or write cycle is in progress. When one of these cycles is in progress, it is recommended to the user to check the Write In Progress (WIP) bit of the Status Register before issuing a new instruction opcode to the device. The Configuration Register originally shows 00h when the device is first shipped from the factory to the customer. Refer to Section 7.8 on page 16 for more details.

Figure 9.14 Read Configuration Register (RCR) Instruction Sequence

38 S25FL032P S25FL032P_00_06 December 7, 2011

Page 39

Data Sheet

9.13 Write Registers (WRR)

The Write Registers (WRR) command allows changing the bits in the Status and Configuration Registers. A Write Enable (WREN) command, which itself sets the Write Enable Latch (WEL) in the Status Register, is required prior to writing the WRR command. Table 9.8 shows the status register bits and their functions.

The host system must drive CS# low, then write the WRR command and the appropriate data byte on SI

Figure 9.15.

The WRR command cannot change the state of the Write Enable Latch (bit 1). The WREN command must be used for that purpose.

The Status Register consists of one data byte in length; similarly, the Configuration Register is also one data byte in length. The CS# pin must be driven to the logic low state during the entire duration of the sequence.

The WRR command also controls the value of the Status Register Write Disable (SRWD) bit. The SRWD bit and W#/ACC pin together place the device in the Hardware Protected Mode (HPM). The device ignores all WRR commands once it enters the Hardware Protected Mode (HPM). Table 9.9 shows that W#/ACC must be driven low and the SRWD bit must be 1 for this to occur.

The Write Registers (WRR) instruction has no effect on the P/E Error and the WIP bits of the Status & Configuration Registers. Any bit reserved for the future is always read as a ‘0’

The CS# chip select input pin must be driven to the logic high state after the eighth (see Figure 9.15) or sixteenth (see Figure 9.16) bit of data has been latched in. If not, the Write Registers (WRR) instruction is not executed. If CS# is driven high after the eighth cycle then only the Status Register is written to; otherwise, after the sixteenth cycle both the Status and Configuration Registers are written to. As soon as the CS# chip select input pin is driven to the logic high state, the self-timed Write Registers cycle is initiated. While the Write Registers cycle is in progress, the Status Register may still be read to check the value of the Write In Progress (WIP) bit. The Write In Progress (WIP) bit is a ‘1’ during the self-timed Write Registers cycle, and is a ‘0’ when it is completed. When the Write Registers cycle is completed, the Write Enable Latch (WEL) is set to a ‘0’. The WRR command can operate at a maximum clock frequency of 104 MHz.

CS#

SCK

Figure 9.15 Write Registers (WRR) Instruction Sequence – 8 data bits

1 3 0129876540 14131211 15

nI retsigeR sutatSnoitcurtsnI

13 207654

MSB

High Impedance

December 7, 2011 S25FL032P_00_06 S25FL032P 39

Page 40

Data Sheet

IInstruction Status Register In

1 32 109876540 14131211 15

13 2 07 6 5 4

SCK

MSB

High Impedance

Configuration Register In

181716 22212019 23

13 2 07 6 5 4

MSB

Figure 9.16 Write Registers (WRR) Instruction Sequence – 16 data bits

Table 9.9 Protection Modes

W#/

SRWD

ACC

Note

As defined by the values in the Block Protect (BP2, BP1, BP0) bits of the Status Register, as shown in Table 7.3 on page 18.

Bit Mode Write Protection of Registers

Status & Configuration Registers are Writable Software Protected (SPM)

Hardware Protected (HPM)

(if WREN instruction has set the WEL bit). The

values in the SRWD, BP2, BP1, & BP0 bits &

those in the Configuration Register can be

changed

Status & Configuration Registers are Hardware

Write Protected. The values in the SRWD,

BP2, BP1, & BP0 bits & those in the

Configuration Register cannot be changed

Protected Area Unprotected Area

Protected against Page Program, Parameter Sector Erase, Sector Erase, and Bulk Erase

Protected against Page Program, Sector Erase, and Bulk Erase

Memory Content

Ready to accept Page Program, Parameter Sector Erase, & Sector Erase instructions

Ready to accept Page Program, Sector Erase instructions

Table 9.9 shows that neither W#/ACC or SRWD bit by themselves can enable HPM. The device can enter

HPM either by setting the SRWD bit after driving W#/ACC low, or by driving W#/ACC low after setting the SRWD bit. However, the device disables HPM only when W#/ACC is driven high.

Note that HPM only protects against changes to the status register. Since BP2:BP0 cannot be changed in HPM, the size of the protected area of the memory array cannot be changed. Note that HPM provides no protection to the memory array area outside that specified by BP2:BP0 (Software Protected Mode, or SPM).

If W#/ACC is permanently tied high, HPM can never be activated, and only the SPM (BP2:BP0 bits of the Status Register) can be used.

The Status and Configuration registers originally default to 00h, when the device is first shipped from the factory to the customer.

Note: HPM is disabled when the Quad I/O Mode is enabled (Quad bit = 1 in the Configuration Register). W# becomes IO2; therefore, HPM cannot be utilized.

40 S25FL032P S25FL032P_00_06 December 7, 2011

Page 41

9.14 Page Program (PP)

3332

313029

35 36

37 38 39

4544

434241

47 48

49 50 51

53 54 55

2073

2072

2076

2075

2074

2079

2078

2077

0765

4 3

Data Byte 1

24 Bit Address

Command

Data Byte 2 Data Byte 3

Data Byte 256

MSB

SCK

432

3 21

4 3 210

CS#

Mode 0

Mode 3

The Page Program (PP) command changes specified bytes in the memory array (from 1 to 0 only). A WREN command is required prior to writing the PP command.

The host system must drive CS# low, and then write the PP command, three address bytes, and at least one data byte on SI. If the 8 least significant address bits (A7-A0) are not all zero, all transmitted data that goes beyond the end of the currently selected page are programmed from the starting address of the same page (from the address whose 8 least significant bits are all zero). CS# must be driven low for the entire duration of the PP sequence. The command sequence is shown in Figure 9.17 and Table 9.1 on page 23.

The device programs only the last 256 data bytes sent to the device. If the 8 least significant address bits (A7A0) are not all zero, all transmitted data that goes beyond the end of the currently selected page are programmed from the starting address of the same page (from the address whose 8 least significant bits are all zero). If fewer than 256 data bytes are sent to device, they are correctly programmed at the requested addresses without having any effect on the other bytes in the same page.

The host system must drive CS# high after the device has latched the 8th bit of the data byte, otherwise the device does not execute the PP command. The PP operation begins as soon as CS# is driven high. The device internally controls the timing of the operation, which requires a period of t be read to check the value of the Write In Progress (WIP) bit while the PP operation is in progress. The WIP bit is 1 during the PP operation, and is 0 when the operation is completed. The device internally resets the Write Enable Latch to 0 before the operation completes (the exact timing is not specified).

The device does not execute a Page Program (PP) command that specifies a page that is protected by the Block Protect bits (BP2:BP0) (see Table 7.3 on page 18).

Data Sheet

. The Status Register may

Figure 9.17 Page Program (PP) Command Sequence

December 7, 2011 S25FL032P_00_06 S25FL032P 41

Page 42

9.15 QUAD Page Program (QPP)

*MSB

CS#

SCK

SO/IO1

Instruction

24 Bit

Address

Byte 2

23 *

SI/IO0

01 45678 9

Byte 1

W#/ACC/IO2

HOLD#/IO3

CS#

SCK

SO/IO1

SI/IO0

W#/ACC/IO2

HOLD#/IO3

2 3 28 29 32 33 34 35 36 37 3830 31

Byte 4Byte 3

5140 41 44 45 46 47 48 49 5042 43 54 5552 53

536

537

538

539

540

541

542

543

Byte 6Byte 5 Byte 8Byte 7 Byte 10Byte 9 Byte 12Byte 11 Byte 254Byte 253 Byte 256Byte 255

The Quad Page Program instruction is similar to the Page Program instruction, except that the Quad Page Program (QPP) instruction allows up to 256 bytes of data to be programmed at previously erased (FFh) memory locations using four pins: IO0 (SI), IO1 (SO), IO2 (W#/ACC), and IO3 (HOLD#), instead of just one pin (SI) as in the case of the Page Program (PP) instruction. This effectively increases the data transfer rate by up to four times, as compared to the Page Program (PP) instruction. The QPP feature can improve performance for PROM Programmer and applications that have slow clock speeds < 5 MHz. Systems with faster clock speed will not realize much benefit for the QPP instruction since the inherent page program time is much greater than the time it take to clock-in the data.

To use QPP, the Quad Enable Bit in the Configuration Register must be set (QUAD = 1). A Write Enable instruction must be executed before the device will accept the Quad Page Program instruction (Status Register-1, WEL = 1). The instruction is initiated by driving the CS# pin low then shifting the instruction code “32h” followed by a 24 bit address (A23-A0) and at least one data byte, into the IO pins. The CS# pin must be held low for the entire length of the instruction while data is being sent to the device. All other functions of Quad Input Page Program are identical to standard Page Program. The QPP instruction sequence is shown below.

Figure 9.18 QUAD Page Program Instruction Sequence

Data Sheet

42 S25FL032P S25FL032P_00_06 December 7, 2011

Page 43

Data Sheet

1 3 0129876540 31302928

Instruction 24 Bit Address

2122

13 20

SCK

MSB

CS#

20h or 40h

9.16 Parameter Sector Erase (P4E, P8E)

The Parameter Sector Erase (P4E, P8E) command sets all bits at all addresses within a specified sector to a logic 1 (FFh). A WREN command is required prior to writing the Parameter Sector Erase commands.

The host system must drive CS# low, and then write the P4E or P8E command, plus three address bytes on SI. Any address within the sector (see Table 5.1 on page 13) is a valid address for the P4E or P8E command. CS# must be driven low for the entire duration of the P4E/P8E sequence. The command sequence is shown in Figure 9.19 and Table 9.1 on page 23.

The host system must drive CS# high after the device has latched the 24th bit of the P4E/P8E address, otherwise the device does not execute the command. The parameter sector erase operation begins as soon as CS# is driven high. The device internally controls the timing of the operation, which requires a period of

. The Status Register may be read to check the value of the Write In Progress (WIP) bit while the

parameter sector erase operation is in progress. The WIP bit is 1 during the P4E/P8E operation, and is 0 when the operation is completed. The device internally resets the Write Enable Latch to 0 before the operation completes (the exact timing is not specified).

A Parameter Sector Erase (P4E, P8E) instruction applied to a sector that has been Write Protected through the Block Protect Bits will not be executed.

The Parameter Sector Erase Command (P8E) erases two of the 4 KB Sectors in selected address space. The Parameter Sector Erase Command (P8E) erases two sequential 4 KB Parameter Sectors in the selected address space. The address LSB is disregarded so that two sequential 4 KB Parameter Sectors are erased. The 24 Bit Address is any location within the first Sector to be erased (n), and the next sequential 4 KB Parameter Sector will also be erased (n+1). The 4 KB parameter Sector will only be erased properly if n or n+1 is a valid 4 KB parameter Sector. i.e. If n is not a valid 4K parameter Sector, then it will not be erased. If n+1 is not a valid 4 KB parameter Sector, then it will not be erased.

Figure 9.19 Parameter Sector Erase (P4E, P8E) Instruction Sequence

December 7, 2011 S25FL032P_00_06 S25FL032P 43

Page 44

9.17 Sector Erase (SE)

CS#

SCK

MSB

Command 24 bit Address

2 3 45 678 910 28 29 30 31

23 22 21 3 2

Hi-Z

Mode 0

Mode 3

The Sector Erase (SE) command sets all bits at all addresses within a specified sector to a logic 1. A WREN command is required prior to writing the SE command.

The host system must drive CS# low, and then write the SE command plus three address bytes on SI. Any address within the sector (see Table 7.3 on page 18) is a valid address for the SE command. CS# must be driven low for the entire duration of the SE sequence. The command sequence is shown in Figure 9.20 and

Table 9.1 on page 23.

The host system must drive CS# high after the device has latched the 24th bit of the SE address, otherwise the device does not execute the command. The SE operation begins as soon as CS# is driven high. The device internally controls the timing of the operation, which requires a period of t be read to check the value of the Write In Progress (WIP) bit while the SE operation is in progress. The WIP bit is 1 during the SE operation, and is 0 when the operation is completed. The device internally resets the Write Enable Latch to 0 before the operation completes (the exact timing is not specified).

The device only executes a SE command if all Block Protect bits (BP2:BP0) are 0 (see Table 7.3

on page 18). Otherwise, the device ignores the command.

Data Sheet

Figure 9.20 Sector Erase (SE) Command Sequence

. The Status Register may

44 S25FL032P S25FL032P_00_06 December 7, 2011

Page 45

9.18 Bulk Erase (BE)

The Bulk Erase (BE) command sets all the bits within the entire memory array to logic 1s. A WREN command is required prior to writing the BE command.

The host system must drive CS# low, and then write the BE command on SI. CS# must be driven low for the entire duration of the BE sequence. The command sequence is shown in Figure 9.21 and Table 9.1

on page 23.

The host system must drive CS# high after the device has latched the 8th bit of the CE command, otherwise the device does not execute the command. The BE operation begins as soon as CS# is driven high. The device internally controls the timing of the operation, which requires a period of t be read to check the value of the Write In Progress (WIP) bit while the BE operation is in progress. The WIP bit is 1 during the BE operation, and is 0 when the operation is completed. The device internally resets the Write Enable Latch to 0 before the operation completes (the exact timing is not specified).

The device only executes a BE command if all Block Protect bits (BP2:BP0) are 0 (see Table 7.3

on page 18). Otherwise, the device ignores the command.

Data Sheet

Figure 9.21 Bulk Erase (BE) Command Sequence

CS#

. The Status Register may

SCK

Mode 3

Mode 0

Hi-Z

012 456 7

Command

December 7, 2011 S25FL032P_00_06 S25FL032P 45

Page 46

9.19 Deep Power-Down (DP)

The Deep Power-Down (DP) command provides the lowest power consumption mode of the device. It is intended for periods when the device is not in active use, and ignores all commands except for the Release from Deep Power-Down (RES) command. The DP mode therefore provides the maximum data protection against unintended write operations. The standard standby mode, which the device goes into automatically when CS# is high (and all operations in progress are complete), should generally be used for the lowest power consumption when the quickest return to device activity is required.

The host system must drive CS# low, and then write the DP command on SI. CS# must be driven low for the entire duration of the DP sequence. The command sequence is shown in Figure 9.22 and Table 9.1

on page 23.

The host system must drive CS# high after the device has latched the 8th bit of the DP command, otherwise the device does not execute the command. After a delay of t reduces from I

Once the device has entered the DP mode, all commands are ignored except the RES command (which releases the device from the DP mode). The RES command also provides the Electronic Signature of the device to be output on SO, if desired (see Section 9.20 and 9.20.1).

DP mode automatically terminates when power is removed, and the device always powers up in the standard standby mode. The device rejects any DP command issued while it is executing a program, erase, or Write Registers operation, and continues the operation uninterrupted.

to IDP (see Table 16.1 on page 56).

Figure 9.22 Deep Power-Down (DP) Command Sequence

Data Sheet

the device enters the DP mode and current

DP,

CS#

SCK

Mode 3

Mode 0

Hi-Z

2 3 4567

Command

Standby Mode Deep Power-down Mode

46 S25FL032P S25FL032P_00_06 December 7, 2011

Page 47

Data Sheet

9.20 Release from Deep Power-Down (RES)

The device requires the Release from Deep Power-Down (RES) command to exit the Deep Power-Down mode. When the device is in the Deep Power-Down mode, all commands except RES are ignored.

The host system must drive CS# low and write the RES command to SI. CS# must be driven low for the entire duration of the sequence. The command sequence is shown in Figure 9.23 and Table 9.1 on page 23.

The host system must drive CS# high t

RES(max)

from DP mode to the standby mode after a delay of t can execute any read or write command.

Note: The RES command does not reset the Write Enable Latch (WEL) bit.

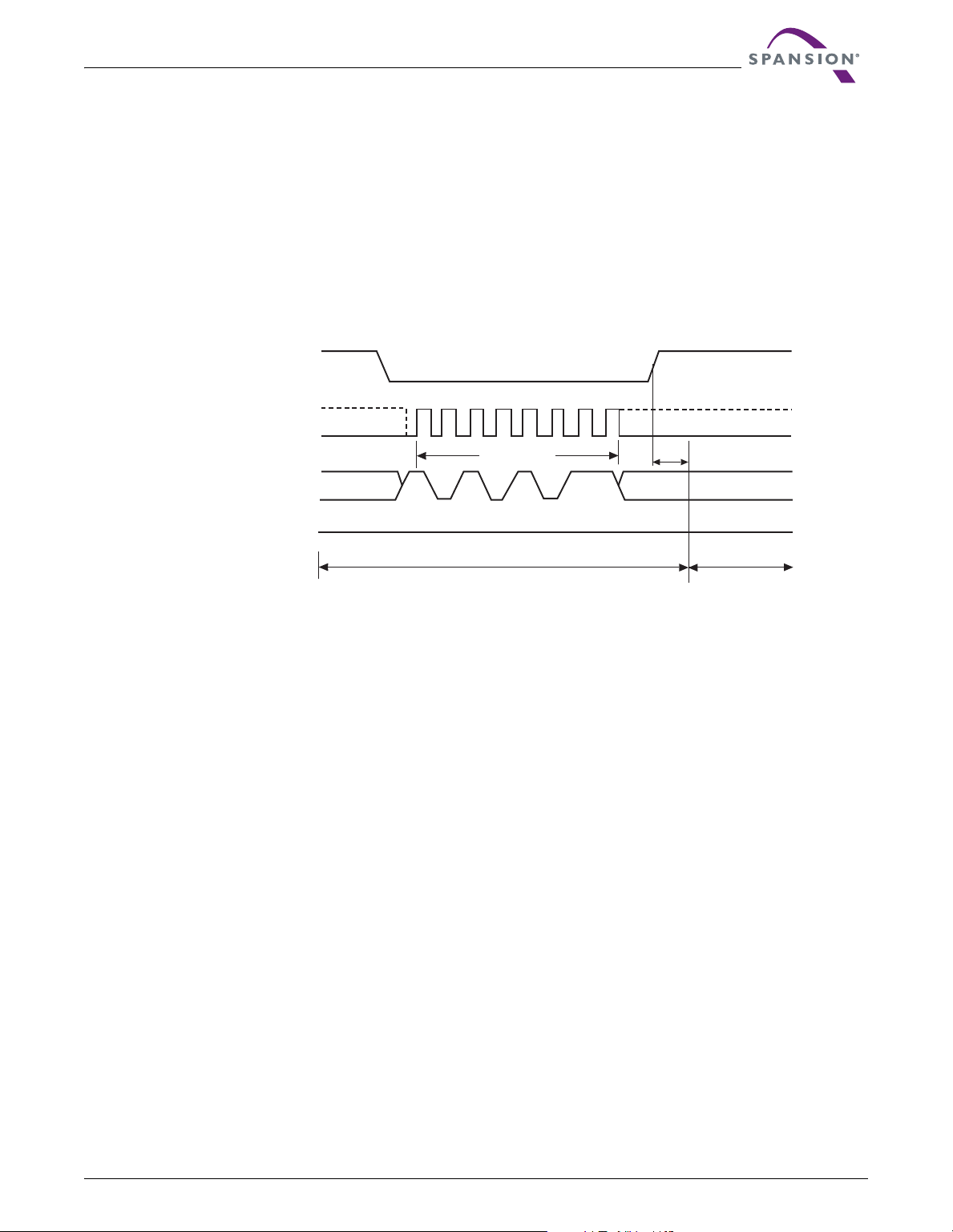

Figure 9.23 Release from Deep Power-Down (RES) Command Sequence

CS#

after the 8-bit RES command byte. The device transitions

(see Figure 18.1). In the standby mode, the device

RES

SCK

Mode 3

Mode 0

Hi-Z

2 3

Command

Deep Power-down Mode

RES

Standby Mode

December 7, 2011 S25FL032P_00_06 S25FL032P 47

Page 48

Data Sheet

CS#

SCK

3 Dummy Bytes

Hi-Z

MSB

Deep Power-Down Mode

Standby Mode

3 456 7

28 29 30

31 32 33 343536 37

Electronic ID

Command

RES

23 22

3210

3 2

MSB

32 76540

Instruction

SCK

CSS#

9.20.1 Release from Deep Power-Down and Read Electronic Signature (RES)

The device features an 8-bit Electronic Signature, which can be read using the RES command. See

Figure 9.24 and Table 9.1 on page 23 for the command sequence and signature value. The Electronic

Signature is not to be confused with the identification data obtained using the RDID command. The device offers the Electronic Signature so that it can be used with previous devices that offered it; however, the Electronic Signature should not be used for new designs, which should read the RDID data instead.

After the host system drives CS# low, it must write the RES command followed by 3 dummy bytes to SI (each bit is latched on SI during the rising edge of SCK). The Electronic Signature is then output on SO; each bit is shifted out on the falling edge of SCK. The RES operation is terminated by driving CS# high after the Electronic Signature is read at least once. Additional clock cycles on SCK with CS# low cause the device to output the Electronic Signature repeatedly.

When CS# is driven high, the device transitions from DP mode to the standby mode after a delay of t previously described. The RES command always provides access to the Electronic Signature of the device and can be applied even if DP mode has not been entered.

Any RES command issued while an erase, program, or Write Registers operation is in progress not executed, and the operation continues uninterrupted.

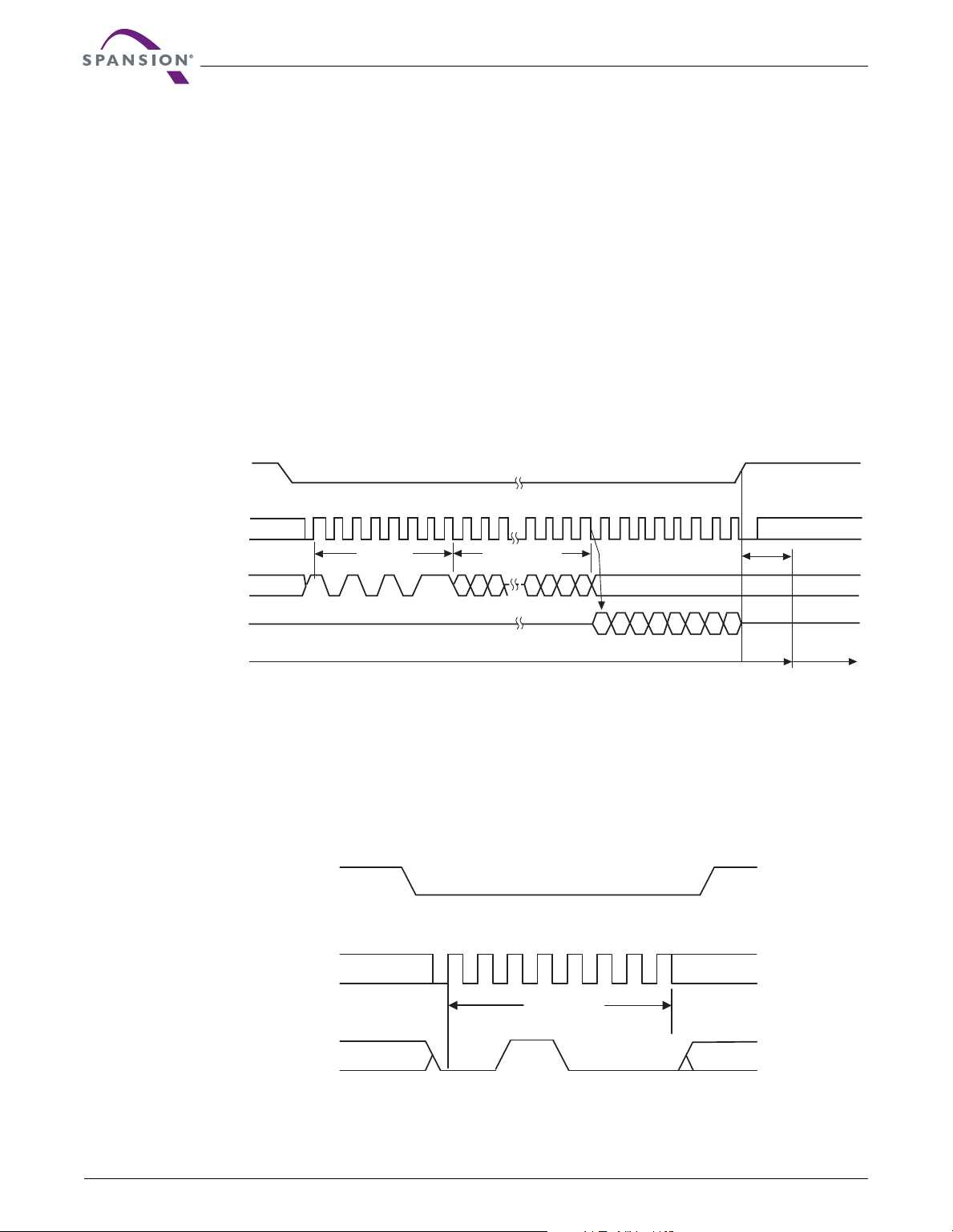

Figure 9.24 Release from Deep Power-Down and RES Command Sequence

RES,

9.21 Clear Status Register (CLSR)

The Clear Status Register command resets bit SR5 (Erase Fail Flag) and bit SR6 (Program Fail Flag). It is not necessary to set the WEL bit before the Clear SR Fail Flags command is executed. The WEL bit will be unchanged after this command is executed. This command also resets the State machine and loads latches

Figure 9.25 Clear Status Register (CLSR) Instruction Sequence

48 S25FL032P S25FL032P_00_06 December 7, 2011

Page 49

9.22 OTP Program (OTPP)

1 32 109876540 31302928

Instruction

24 Bit

Address

23 2122 13 2 0

3635343332 393837

13 2 07 6 5 4

Data Byte 1

SCK

MSB MSB

1 3012987654130302928

Instruction

24 Bit

Address

23 2122 132 0

132 07654

36353433 93233837

132 07654

Dummy Byte

44434241 74044645

DATA OUT 1

DATA OUT 2

SCK

MSB

High Impedance

MSB

The OTP Program command programs data in the OTP region, which is in a different address space from the main array data. Refer to, OTP Regions on page 50 for details on the OTP region. The protocol of the OTP Program command is the same as the Page Program command, except that the OTP Program command requires exactly one byte of data; otherwise, the command will be ignored. To program the OTP in bit granularity, the rest of the bits within the data byte can be set to “1”.

The OTP memory space can be programmed one or more times, provided that the OTP memory space is not locked (as described in “Locking OTP Regions”). Subsequent OTP programming can be performed only on the unprogrammed bits (that is, “1” data).

Note: The Write Enable (WREN) command must precede the OTPP command before programming of the OTP can occur.

Data Sheet

Figure 9.26 OTP Program Instruction Sequence

9.23 Read OTP Data Bytes (OTPR)

The Read OTP Data Bytes command reads data from the OTP region. Refer to “OTP Regions” for details on the OTP region. The protocol of the Read OTP Data Bytes command is the same as the Fast Read Data Bytes command except that it will not wrap to the starting address after the OTP address is at its maximum; instead, the data will be indeterminate.

Figure 9.27 Read OTP Instruction Sequence

December 7, 2011 S25FL032P_00_06 S25FL032P 49

Page 50

10. OTP Regions

The OTP Regions are separately addressable from the main array and consists of two 8-byte (ESN), thirty 16-byte, and one 10-byte regions that can be individually locked.

 The two 8-byte ESN region is a special order part (please contact your local Spansion sales representative

for further details). The two 8-byte regions enable permanent part identification through an Electronic Serial Number (ESN). The customer can utilize the ESN to pair a Flash device with the system CPU/ASIC to prevent system cloning. The Spansion factory programs and locks the lower 8-byte ESN with a 64-bit randomly generated, unique number. The upper 8-byte ESN is left blank for customer use or, if special ordered, Spansion can program (and lock) in a unique customer ID.

Standard part 1h 1h 0h 0h

Special order part 1h 1h/0h Unique random pattern

 The thirty 16-byte and one 10-byte OTP regions are open for the customer usage.

 The thirty 16-byte, one 10-byte, and upper 8-byte ESN OTP regions can be individually locked by the end

user. Once locked, the data cannot changed. The locking process is permanent and cannot be undone.

Data Sheet

Table 10.1 ESN1 and ESN2

Lock register ESN1 (Bit 0) Lock register ESN2 (Bit 1) ESN1 region contains ESN2 region contains

Factory/Customer

programmed pattern

The following general conditions should be noted with respect to the OTP Regions:

 On power-up, or following a hardware reset, or at the end of an OTPP or an OTPR command, the device

reverts to sending commands to the normal address space.

 Reads or Programs outside of the OTP Regions will be ignored

 The OTP Region is not accessible when the device is executing an Embedded Program or Embedded

Erase algorithm.

 The ACC function is not available when accessing the OTP Regions.

 The thirty 16-byte and one 10-byte OTP regions are left open for customer usage, but special care of the

OTP locking must be maintained, or else a malevolent user can permanently lock the OTP regions. This is not a concern, if the OTP regions are not used.

10.1 Programming OTP Address Space

The protocol of the OTP Program command (42h) is the same as the Page Program command. Refer to

Table 9.1 for the command description and protocol. The OTP Program command can be issued multiple

times to any given OTP address, but this address space can never be erased. After a given OTP region is programmed, it can be locked to prevent further programming with the OTP lock registers (refer to

Section 10.3). The valid address range for OTP Program is depicted in the figure below. OTP Program

operations outside the valid OTP address range will be ignored.

10.2 Reading OTP Data

The protocol of the OTP Read command (4Bh) is the same as that of the Fast Read command. Refer to

Table 9.1 for the command description and protocol. The valid address range for OTP Reads is depicted in

the figure below. OTP Read operations outside the valid OTP address range will yield indeterminate data.

10.3 Locking OTP Regions

In order to permanently lock the ESN and OTP regions, individual bits at the specified addresses can be set to lock specific regions of OTP memory, as highlighted in Figures 10.1 and 10.2.

50 S25FL032P S25FL032P_00_06 December 7, 2011

Page 51

Data Sheet

ADDRESS

OTP R EGION

0x213h

0x204h 0x203h

0x1F4h 0x1F3h

0x1E4h 0x1E3

0x1D4h 0x1D3h

0x1C4h 0x1C3h

0x1B4h 0x1B3h

0x1A4h 0x1A3h

0x194h 0x193h

0x184h 0x183h

0x174h 0x173h

0x164h 0x163h

0x154h 0x153h

0x144h

Address Bit Locks Region…

0x143h

0OTP1 1OTP2

0x134h

2OTP3

0x133h

3 OTP4 4OTP5

0x124h

5OTP6

0x123h

6OTP7 7OTP8

0x114h

0OTP9

0x113h

1OTP10

0x112h

2OTP11

0x111h

3 OTP12 4OTP13

0x10Ah

5OTP14

0x109h

6OTP15 7OTP16

0x102h

0ESN1

0x101h

Res erved

1ES N2

0x100h

2 - 7 Res erved

16 bytes (OTP 15)

16 bytes (OTP 14)

16 bytes (OTP 13)

16 bytes (OTP 12)

16 bytes (OTP 5)

16 bytes (OTP 11)

16 bytes (OTP 10)

16 bytes (OTP 9)

16 bytes (OTP 6)

16 bytes (OTP 7)

16 bytes (OTP 8)

0x100h

0x112h

0x113h

16 bytes (OTP 16)

8 bytes (E S N1)

8 bytes (E S N2)

16 bytes (OTP 1)

16 bytes (OTP 2)

16 bytes (OTP 3)

16 bytes (OTP 4)

X X X X X X Bit 1 Bit 0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Figure 10.1 OTP Memory Map - Part 1

Notes

1. Bit 0 at address 0x100h locks ESN1 region.

2. Bit 1 at address 0x100h locks ESN2 region.

3. Bits 2-7 (“X”) are NOT programmable and will be ignored.

December 7, 2011 S25FL032P_00_06 S25FL032P 51

Page 52

Data Sheet

ADDRESS

OTP R EGION

0x2FFh

0x2F6h 0x2F5h

0x2E6h 0x2E5

0x2D6h 0x2D5h

0x2C6h 0x2C5h

0x2B6h 0x2B5h

0x2A6h 0x2A5h

0x296h 0x295h

0x286h 0x285h

0x276h 0x275h

0x266h 0x265h

Address Bit Locks Region…

0OTP17

0x256h

1OTP18

0x255h

2OTP19 3 OTP20

0x246h

4OTP21

0x245h

5OTP22 6OTP23

0x236h

7OTP24

0x235h

0OTP25 1OTP26

0x226h

2OTP27

0x225h

3 OTP28 4OTP29

0x216h

5OTP30

0x215h

OTP31

0x214h

Reserved

16 bytes (OTP 21)

0x214h

0x215h

16 bytes (OTP 17)

16 bytes (OTP 18)

16 bytes (OTP 19)

16 bytes (OTP 20)

16 bytes (OTP 27)

16 bytes (OTP 26)

16 bytes (OTP 25)

16 bytes (OTP 22)

16 bytes (OTP 23)

16 bytes (OTP 24)

10 bytes (OTP 31)

16 bytes (OTP 30)

16 bytes (OTP 29)

16 bytes (OTP 28)

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Figure 10.2 OTP Memory Map - Part 2

Note

1. Bit 7 (“X”) at address 0x215h is NOT programmable and will be ignored.

52 S25FL032P S25FL032P_00_06 December 7, 2011

Page 53

Data Sheet

Vcc

(max)

(min)

Full Device Access

Time

11. Power-up and Power-down

During power-up and power-down, certain conditions must be observed. CS# must follow the voltage applied

, and must not be driven low to select the device until VCC reaches the allowable values as follows

on V

(see Figure 11.1 and Table 11.1 on page 54):

 At power-up, V

 At power-down, GND

A pull-up resistor on Chip Select (CS#) typically meets proper power-up and power-down requirements.

No Read, Write Registers, program, or erase command should be sent to the device until V

min., plus a delay of tPU. At power-up, the device is in standby mode (not Deep Power-Down mode) and

the WEL bit is reset (0).

Each device in the host system should have the V package pins (this capacitor is generally of the order of 0.1 µF), as a precaution to stabilizing the V

When V

drops from the operating voltage to below the minimum VCC threshold at power-down, all

operations are disabled and the device does not respond to any commands. Note that data corruption may result if a power-down occurs while a Write Registers, program, or erase operation is in progress.

(min.) plus a period of t

rail decoupled by a suitable capacitor close to the

Figure 11.1 Power-Up Timing Diagram

rises to the

feed.

Figure 11.2 Power-down and Voltage Drop

Vcc

(max)

No Device Access Allowed

(min)

(cut-off)

(low)

Device Access

Allowed

Time

December 7, 2011 S25FL032P_00_06 S25FL032P 53

Page 54

Data Sheet

Tabl e 1 1 . 1 Power-Up / Power-Down Voltage and Timing

Symbol Parameter Min Max Unit

CC(min)

(cut-off) VCC (Cut off where re-initialization is needed) 2.4 V

(low)

(minimum operation voltage) 2.7 V

(Low voltage for initialization to occur at read/standby)

(Low voltage for initialization to occur at embedded)

VCC(min.) to device operation 300 µs

VCC (low duration time) 1.0 µs

12. Initial Delivery State

The device is delivered with the memory array erased i.e. all bits are set to 1 (FFh) upon initial factory shipment. The Status Register and Configuration Register contains 00h (all bits are set to 0).

13. Program Acceleration via W#/ACC Pin

The program acceleration function requires applying VHH to the W#/ACC input, and then waiting a period of

. Minimum t

from the W#/ACC pin returns the device to normal operation after a period of tWC.

rise and fall times is required for W#/ACC to change to VHH from VIL or VIH. Removing

VHH

0.2

2.3

Figure 13.1 ACC Program Acceleration Timing Requirements

ACC

VIL or V

VHH

Note

Only Read Status Register (RDSR) and Page Program (PP) operation are allow when ACC is at (V The W#/ACC pin is disabled during Quad I/O mode.

Tabl e 1 3 . 1 ACC Program Acceleration Specifications

Symbol Parameter Min. Max Unit

VHH

ACC Pin Voltage High 8.5 9.5 V

ACC Voltage Rise and Fall time 2.2 µs

ACC at VHH and V

or VIH to First command 5 µs

VHH

VIL or V

Command OK

54 S25FL032P S25FL032P_00_06 December 7, 2011

Page 55

Data Sheet

20 ns

+0.8V

–0.5V

20 ns

–2.0V

20 ns

+2.0V

+0.5V

20 ns

2.0V

14. Electrical Specifications

14.1 Absolute Maximum Ratings

Description Rating

Ambient Storage Temperature -65°C to +150°C

Voltage with Respect to Ground: All Inputs and I/Os -0.5V to V

Output Short Circuit Current (Note 2) 200 mA

Notes

1. Minimum DC voltage on input or I/Os is -0.5V. During voltage transitions, inputs or I/Os may undershoot GND to -2.0V for periods of up to

20 ns. See Figure 14.1. Maximum DC voltage on input or I/Os is V V

+ 2.0V for periods up to 20 ns. See Figure 14.2.

2. No more than one output may be shorted to ground at a time. Duration of the short circuit should not be greater than one second.

3. Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this data sheet is not implied. Exposure of the device to absolute maximum rating conditions for extended periods may affect device reliability.

Figure 14.1 Maximum Negative Overshoot Waveform

+0.5V

+ 0.5V. During voltage transitions inputs or I/Os may overshoot to

Figure 14.2 Maximum Positive Overshoot Waveform

15. Operating Ranges

Tabl e 1 5 . 1 Operating Ranges

Description Rating

Industrial –40°C to +85°C

Automotive In-Cabin –40°C to +105°C

)

Ambient Operating Temperature (T

Positive Power Supply Voltage Range 2.7V to 3.6V

Note

Operating ranges define those limits between which functionality of the device is guaranteed.

December 7, 2011 S25FL032P_00_06 S25FL032P 55

Page 56

16. DC Characteristics

This section summarizes the DC Characteristics of the device. Designers should check that the operating conditions in their circuit match the measurement conditions specified in the Test Specifications in Table 17.1

on page 57, when relying on the quoted parameters.

Data Sheet

Table 16.1 DC Characteristics (CMOS Compatible)

Symbol Parameter Test Conditions

Supply Voltage 2.7 3.6 V

ACC Program Acceleration

Vol ta ge

Input Low Voltage

Input High Voltage

Output Low Voltage IOL = 1.6 mA, VCC = VCCmin. 0.4 V

Output High Voltage IOH = -0.1 mA VCC-0.6 V

Input Leakage Current

Output Leakage Current

= 2.7V to 3.6V 8.5 9.5 V

= VCC Max,

= VCC or GND

= VCC Max,

= VCC or GND

At 80 MHz

(Dual or Quad)

At 104 MHz (Serial) 25

CC1

Active Power Supply Current READ (SO = Open)

At 40 MHz (Serial) 12

CC2

CC3

CC4

CC5

SB1

*Typical values are at T

Active Power Supply Current (Page Program)

Active Power Supply Current (WRR)

Active Power Supply Current (SE)

Active Power Supply Current (BE)

Standby Current

Deep Power-down Current

= 25°C and VCC = 3V

SO + V

CS# = V

= GND or V

CS# = V

= GND or V

Limits

Min. Typ

-0.3 0.3 x V

0.7 x V

Max

VCC +0.5 V

Unit

±2µA

;

80 200 µA

310 µA

26 mA

15 mA

26 mA

56 S25FL032P S25FL032P_00_06 December 7, 2011

Page 57

17. Test Conditions

0.8 V

0.2 V

0.7 V

0.3 V

Input Levels

Input and Output Timing Reference levels

0.5 V

Symbol Parameter Min Max Unit

18. AC Characteristics

Data Sheet

Figure 17.1 AC Measurements I/O Waveform

Table 17.1 Test Specifications

Load Capacitance 30 pF

Input Rise and Fall Times 5 ns

Input Pulse Voltage 0.2 V

Input Timing Reference Voltage 0.3 V

Output Timing Reference Voltage 0.5 V

to 0.8 V

to 0.7 V

Figure 18.1 AC Characteristics (Sheet 1 of 2)

Symbol (Notes)

SCK Clock Frequency for READ command DC 40 MHz

SCK Clock Frequency for RDID command DC 50

SCK Clock Frequency for all others: FAST_READ, PP, QPP, P4E, P8E, SE, BE, DP, RES, WREN, WRDI, RDSR, WRR, READ_ID

Clock High Time (5) 4.5 ns

Clock Low Time (5) 4.5 ns

Clock Rise Time (slew rate) 0.1 V/ns

Clock Fall Time (slew rate) 0.1 V/ns

CS# High Time (Read Instructions) CS# High Time (Program/Erase)

CS# Active Setup Time (relative to SCK)

CS# Active Hold Time (relative to SCK)

Data in Setup Time 3 ns

Data in Hold Time 2 ns

Clock Low to Output Valid 0

Output Hold Time 0 ns

Output Disable Time 8ns

HOLD# Active Setup Time (relative to SCK)

HOLD# Active Hold Time (relative to SCK)

HOLD# Non Active Setup Time (relative to SCK)

CRT

CFT

, t

CSS

CSH

SU:DAT

HD:DAT

DIS

HLCH

CHHH

HHCH

, t

CLCH

CHCL

December 7, 2011 S25FL032P_00_06 S25FL032P 57

Parameter

(Notes)

Min.

(Notes)

3ns

Typ

(Notes)

Max

(Notes) Unit

104 (serial)

80 (dual/quad)

8 (Serial)Δ

9.5 (Dual/Quad)Δ

6.5 (Serial)∞

8 (Dual/Quad)∞

7 (Dual/Quad)Ω

MHz

Page 58

Data Sheet

Figure 18.1 AC Characteristics (Sheet 2 of 2)

Symbol (Notes)

CHHL

WPS

WPH

RES

VHH

HOLD# Non Active Hold Time (relative to SCK)

HOLD# enable to Output Invalid 8 ns

HOLD# disable to Output Valid 8 ns

W#/ACC Setup Time (4) 20 ns

W#/ACC Hold Time (4) 100 ns

WRR Cycle Time 50 ms

Page Programming (1)(2) 1.5 3 ms

Page Programming (ACC = 9V) (1)(2)(3) 1.2 2.4 ms

Sector Erase Time (64 KB) (1)(2) 0.5 2 sec

Parameter Sector Erase Time (1)(2) (4 KB or 8 KB)

Bulk Erase Time (1)(2) 32 64 sec

Deep Power-down to Standby Mode 30 µs

Time to enter Deep Power-down Mode 10 µs

ACC Voltage Rise and Fall time 2.2 µs

ACC at VHH and VIL or VIH to first command 5 µs

Parameter

(Notes)

Min.

(Notes)

Typ

(Notes)

Max

(Notes) Unit

3ns

200 800 ms

Notes

1. Typical program and erase times assume the following conditions: 25°C, VCC = 3.0V; 10,000 cycles; checkerboard data pattern.

2. Under worst-case conditions of 85°C; V

= 2.7V; 100,000 cycles.

3. Acceleration mode (9V ACC) only in Program mode, not Erase.

4. Only applicable as a constraint for WRR instruction when SRWD is set to a ‘1’.

5. t

+ tWL must be less than or equal to 1/fC.

Full Vcc range (2.7 – 3.6V) & CL = 30 pF

∞

Regulated Vcc range (3.0 – 3.6V) & CL = 30 pF

Regulated Vcc range (3.0 – 3.6V) & CL = 15 pF

18.1 Capacitance

Symbol Parameter Test Conditions Min Max Unit

OUT

Notes

1. Sampled, not 100% tested.

2. Test conditions T

3. For more information on pin capacitance, please consult the IBIS models.

Input Capacitance (applies to SCK, PO7-PO0, SI, CS#)

Output Capacitance (applies to PO7-PO0, SO)

= 25°C, f = 1.0 MHz.

= 0V 6 pF

OUT

= 0V 8 pF

58 S25FL032P S25FL032P_00_06 December 7, 2011

Page 59

CS#

SCK

LSB OUT

DIS

Data Sheet

Figure 18.2 SPI Mode 0 (0,0) Input Timing

SCK

Hi-Z

CSH

CSS

SU:DAT

HD:DAT

CRT

CFT

MSB IN

Figure 18.3 SPI Mode 0 (0,0) Output Timing

Figure 18.4 HOLD# Timing

CSH

LSB IN

CSS

CS#

SCK

HOLD#

HLCH

CHHL

CHHH

HHCH

December 7, 2011 S25FL032P_00_06 S25FL032P 59

Page 60

Data Sheet

Figure 18.5 Write Protect Setup and Hold Timing during WRR when SRWD = 1

CS#

SCK

WPS

Hi-Z

WPH

60 S25FL032P S25FL032P_00_06 December 7, 2011

Page 61

Data Sheet

19. Physical Dimensions

19.1 SOC008 wide — 8-pin Plastic Small Outline Package (208-mils Body Width)

PACKAGE SOC 008 (inches) SOC 008 (mm)

JEDEC

SYMBOL MIN MAX MIN MAX

A 0.069 0.085 1.753 2.159

A1 0.002 0.0098 0.051 0.249

A2 0.067 0.075 1.70 1.91

b 0.014 0.019 0.356 0.483

b10.013 0.018 0.330 0.457

c 0.0075 0.0095 0.191 0.241

c1 0.006 0.008 0.152 0.203

D 0.208 BSC 5.283 BSC

E 0.315 BSC 8.001 BSC

E1 0.208 BSC 5.283 BSC

e .050 BSC 1.27 BSC

L 0.020 0.030 0.508 0.762

L1 .049 REF 1.25 REF

L2 .010 BSC 0.25 BSC

N 8 8

θ 0˚ 8˚0˚8˚

θ1 5˚ 15˚ 5˚ 15˚

θ2 0˚ 0˚

NOTES:

1. ALL DIMENSIONS ARE IN BOTH INCHES AND MILLMETERS.

2. DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994.

3. DIMENSION D DOES NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. MOLD FLASH, PROTRUSIONS OR GATE BURRS SHALL NOT EXCEED 0.15 mm PER END. DIMENSION E1 DOES NOT INCLUDE INTERLEAD FLASH OR PROTRUSION INTERLEAD FLASH OR PROTRUSION SHALL NOT EXCEED 0.25 mm PER SIDE. D AND E1 DIMENSIONS ARE DETERMINED AT DATUM H.

4. THE PACKAGE TOP MAY BE SMALLER THAN THE PACKAGE BOTTOM. DIMENSIONS D AND E1 ARE DETERMINED AT THE OUTMOST EXTREMES OF THE PLASTIC BODY EXCLUSIVE OF MOLD FLASH, TIE BAR BURRS, GATE BURRS AND INTERLEAD FLASH. BUT INCLUDING ANY MISMATCH BETWEEN THE TOP AND BOTTOM OF THE PLASTIC BODY.

5. DATUMS A AND B TO BE DETERMINED AT DATUM H.

6. "N" IS THE MAXIMUM NUMBER OF TERMINAL PO THE SPECIFIED PACKAGE LENGTH.

7. THE DIMENSIONS APPLY TO THE FLAT SECTION OF THE LEAD BETWEEN 0.10 TO 0.25 mm FROM THE LEAD TIP.

8. DIMENSION "b" DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.10 mm TOTAL IN EXCESS OF THE "b" DIMENSION AT MAXIMUM MATERIAL CONDITION. THE DAMBAR CANNOT BE LOCATED ON THE LOWER RADIUS OF THE LEAD FOOT.

9. THIS CHAMFER FEATURE IS OPTIONAL. IF IT IS NOT PRESENT, THEN A PIN 1 IDENTIFIER MUST BE LOCATED WITHIN THE INDEX AREA INDICATED.

10. LEAD COPLANARITY SHALL BE WITHIN 0.10 mm AS MEASURED FROM THE SEATING PLANE.

SITIONS FOR

3602 \ 16-038.03 \ 9.1.6

December 7, 2011 S25FL032P_00_06 S25FL032P 61

Page 62

Data Sheet

19.2 SO3 016 — 16-pin Wide Plastic Small Outline Package (300-mil Body Width)

62 S25FL032P S25FL032P_00_06 December 7, 2011

Page 63

Data Sheet

g1017 \ 16-038.30 \ 07.21.11

NOTES:

1. DIMENSIONING AND TOLERANCING CONFORMS TO ASME Y14.5M - 1994.

2. ALL DIMENSIONS ARE IN MILLMETERS.

3. N IS THE TOTAL NUMBER OF TERMINALS.

4 DIMENSION “b” APPLIES TO METALLIZED TERMINAL AND IS MEASURED BETWEEN 0.15 AND 0.30mm FROM TERMINAL TIP. IF THE TERMINAL HAS THE OPTIONAL RADIUS ON THE OTHER END OF THE TERMINAL, THE DIMENSION “b” SHOULD NT BE MEASURED IN THAT RADIUS AREA.

5 ND REFER TO THE NUMBER OF TERMINALS ON D SIDE.

6. MAX. PACKAGE WARPAGE IS 0.05mm.

7. MAXIMUM ALLOWABLE BURRS IS 0.076mm IN ALL DIRECTIONS.

8 PIN #1 ID ON TOP WILL BE LASER MARKED.

9 BILATERAL COPLANARITY ZONE APPLIES TO THE EXPOSED HEAT SINK SLUG AS WELL AS THE TERMINALS.

SYMBOL MIN NOM MAX NOTE

e 1.27 BSC.

N 8 3

ND 4 5

L 0.55 0.60 0.65

b 0.35 0.40 0.45 4

D2 3.90 4.00 4.10

E2 3.30 3.40 3.50

D 5.00 BSC

E 6.00 BSC

A 0.45 0.50 0.55

A1 0.00 0.02 0.05

K 0.20 MIN.

PACKAGE UNE008

19.3 UNE008 — USON 8-contact (5 x 6 mm) No-Lead Package

December 7, 2011 S25FL032P_00_06 S25FL032P 63

Page 64

Data Sheet

g1015 \ 16-038.30 \ 07.21.11

NOTES:

1. DIMENSIONING AND TOLERANCING CONFORMS TO ASME Y14.5M - 1994.

2. ALL DIMENSIONS ARE IN MILLMETERS.

3. N IS THE TOTAL NUMBER OF TERMINALS.

5 ND REFER TO THE NUMBER OF TERMINALS ON D SIDE.

6. MAX. PACKAGE WARPAGE IS 0.05mm.

7. MAXIMUM ALLOWABLE BURRS IS 0.076mm IN ALL DIRECTIONS.

8 PIN #1 ID ON TOP WILL BE LASER MARKED.

9 BILATERAL COPLANARITY ZONE APPLIES TO THE EXPOSED HEAT SINK SLUG AS WELL AS THE TERMINALS.

10 A MAXIMUM 0.15mm PULL BACK (L1) MAY BE PRESENT.

SYMBOL MIN NOM MAX NOTE

e 1.27 BSC.

N 8 3

ND 4 5

L 0.45 0.50 0.55

b 0.35 0.40 0.45 4

D2 4.70 4.80 4.90

E2 5.70 5.80 5.90

D 6.00 BSC

E 8.00 BSC

A 0.70 0.75 0.80

A1 0.00 0.02 0.05

K 0.20 MIN.

L1 0.00 --- 0.15 10

PACKAGE WNF008

19.4 WNF008 — WSON 8-contact (6 x 8 mm) No-Lead Package

64 S25FL032P S25FL032P_00_06 December 7, 2011

Page 65

Data Sheet

19.5 FAB024 — 24-ball Ball Grid Array (6 x 8 mm) Package

December 7, 2011 S25FL032P_00_06 S25FL032P 65

Page 66

Data Sheet

PACKAGE FAC024

JEDEC N/A

D x E 8.00 mm x 6.00 mm NOM PACKAGE

SYMBOL MIN NOM MAX NOTE

A --- --- 1.20 PROFILE

A1 0.25 --- --- BALL HEIGHT

A2 0.70 --- 0.90 BODY THICKNESS

D 8.00 BSC. BODY SIZE

E 6.00 BSC. BODY SIZE

D1 5.00 BSC. MATRIX FOOTPRINT

E1 3.00 BSC. MATRIX FOOTPRINT

MD 6 MATRIX SIZE D DIRECTION

ME 4 MATRIX SIZE E DIRECTION

N 24 BALL COUNT

Øb 0.35 0.40 0.45 BALL DIAMETER

e 1.00 BSC. BALL PITCHL

SD/ SE 0.5/0.5 SOLDER BALL PLACEMENT

DEPOPULATED SOLDER BALLS

J PACKAGE OUTLINE TYPE

3642 F16-038.9 \ 09.10.09

NOTES:

1. DIMENSIONING AND TOLERANCING METHODS PER ASME Y14.5M-1994.

2. ALL DIMENSIONS ARE IN MILLIMETERS.

3. BALL POSITION DESIGNATION PER JEP95, SECTION

4.3, SPP-010.

4. e REPRESENTS THE SOLDER BALL GRID PITCH.

5. SYMBOL "MD" IS THE BALL MATRIX SIZE IN THE "D" DIRECTION.

SYMBOL "ME" IS THE BALL MATRIX SIZE IN THE "E" DIREC TION.

n IS THE NUMBER OF POPULATED SOLDER BALL POSITIONS FOR MATRIX SIZE MD X ME.

6 DIMENSION "b" IS MEASURED AT THE MAXIMUM BALL DIAMETER IN A PLANE PARALLEL TO DATUM C.

DATUM C IS THE SEATING PLANE AND IS DEFINED BY THE CROWNS OF THE SOLDER BALLS.

7 SD AND SE ARE MEASURED WITH RESPECT TO DATUMS A AND B AND DEFINE THE POSITION OF THE CENTER SOLDER BALL IN THE OUTER ROW.

WHEN THERE IS AN ODD NUMBER OF SOLDER BALLS IN THE OUTER ROW SD OR SE = 0.000.

WHEN THERE IS AN EVEN NUMBER OF SOLDER BALLS IN THE OUTER ROW, SD OR SE = e/2

8. "+" INDICATES THE THEORETICAL CENTER OF DEPOPULATED BALLS.

9 A1 CORNER TO BE IDENTIFIED BY CHAMFER, LASER OR INK MARK, METALLIZED MARK INDENTATION OR OTHER MEANS.

10 OUTLINE AND DIMENSIONS PER CUSTOMER REQUIREMENT.

19.6 FAC024 — 24-ball Ball Grid Array (6 x 8 mm) Package

66 S25FL032P S25FL032P_00_06 December 7, 2011

Page 67

Data Sheet

20. Revision History

Section Description

Revision 01 (June 9, 2008)

Initial release

Revision 02 (February 12, 2009)

Connection Diagrams

Valid Combinations Table

Configuration Register

Configuration Register Table

Instruction Set

Product Group CFI Primary Vendor-Specific Extended Query

Read-ID (READ_ID)

Read Status Register

Read Configuration Register

Parameter Sector Erase (P4E, P8E)

Release from Deep Power-Down and Read Electronic Signature (RES)

OTP Regions

Power-up and Power-down

Absolute Maximum Ratings

DC Characteristics

AC Characteristics

Revision 03 (May 26, 2009)

Connection Diagrams

Dual Output Read Mode (DOR)

Quad Output Read Mode (QOR)

Power Up & Power Down

AC Characteristics

Revision History

Revision 04 (July 22, 2009)

Distinctive Characteristics Added BGA package information

Connection Diagrams

Ordering Information

Valid Combinations

Configuration Register

Accelerated Programming Operation

Read Identification (RDID)

Write Registers (WRR) Added note for HPM

Parameter Sector Erase (P4E, P8E)

Sector Erase (SE)

Added USON package

Added Tray packing type

Added OTP description for BPNV bit

Corrected TBPARM description

Added “Default” setting information upon initial factory shipment

Separated Mode bit and Dummy bytes

Corrected data of 45h bytes

Removed statement of 8-cycle buffer for Manufacturer ID and the Device ID

Corrected description for SRWD bit in the Status Register Table

Modified E_ERR and P_ERR descriptions

Updated figure

Modified description for the ACC function

Changed specification for t

Corrected the Table

Changed maximum specifications for I

Modified Test Conditions for I

Changed maximum specifications for t

Added note for max values assume 100k cycles

Changed Clock High/Low time

Corrected package name

Added statement for Dual Output Read command

Added statement for Quad Output Read command

Updated VCC(low) Min in Table: Power-Up / Power-Down Voltage and Timing

Updated tWH, tCH and tWL, t

Corrected “Revision 02 (February 12, 2009)” for AC Characteristics

Added BGA package

Added Automotive In-cabin information

Added BGA package information

Corrected Valid Combinations Table

Added Suggested Cross Settings Table

Added note for ACC function

Updated Read Identification description

Updated figure for RDID

Updated CFI table for 29h

Updated description for P4E/P8E command

Updated description for SE command

SB1

and I

CC1

CC3

December 7, 2011 S25FL032P_00_06 S25FL032P 67

Page 68

Data Sheet

Section Description

Release from Deep Power-Down (RES)

OTP Regions

Operating Ranges Added Automotive In-cabin temperature range

AC Characteristics

Physical Dimensions Added BGA 6 x 8 mm package

Revision 05 (October 5, 2009)

Global Changed all references to RDID clock rate from 40 to 50 MHz

Connection Diagrams

Ordering Information

Valid Combinations

Physical Dimensions Added FAC024 BGA package

AC Characteristics Removed 76 MHz Automotive in-cabin spec from f

Revision 06 (December 7, 2011)

Instruction Set Table Updated QIOR command

Power-Up / Power-Down Voltage and Timing Table

Initial Delivery State Modified section

Capacitance Added notes to table

Physical Dimensions Updated the package outline drawing for SOIC, WSON, USON, and BGA 5x5 packages.

Added note for RES command

Updated descriptions

Added ESN1 and ESN2 Table

Added Automotive In-cabin spec for f

Updated tWH, tCH and tWL, t

Added “5 x 5 pin configuration” to Figure 2.5 title

Added 6 x 4 pin configuration BGA connection diagram

Added note regarding exposed central pad on bottom of package to the WSON and USON connection diagram

Added Automotive In-Cabin temperature valid combinations for BGA packages

Added 02 and 03 model numbers for BGA packages

Removed BGA from 00 model number description

Added Low-Halogen material option

Changed valid BGA model number combinations to 02 and 03

Changed valid BGA material option to Low-Halogen

Removed Note 1

and Note 9

Updated t

(max)

68 S25FL032P S25FL032P_00_06 December 7, 2011

Page 69

Data Sheet

Colophon

The products described in this document are designed, developed and manufactured as contemplated for general use, including without limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed and manufactured as contemplated (1) for any use that includes fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2) for any use where chance of failure is intolerable (i.e., submersible repeater and artificial satellite). Please note that Spansion will not be liable to you and/or any third party for any claims or damages arising in connection with above-mentioned uses of the products. Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such failures by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and prevention of over-current levels and other abnormal operating conditions. If any products described in this document represent goods or technologies subject to certain restrictions on export under the Foreign Exchange and Foreign Trade Law of Japan, the US Export Administration Regulations or the applicable laws of any other country, the prior authorization by the respective government entity will be required for export of those products.

Trademarks and Notice

The contents of this document are subject to change without notice. This document may contain information on a Spansion product under development by Spansion. Spansion reserves the right to change or discontinue work on any product without notice. The information in this document is provided as is without warranty or guarantee of any kind as to its accuracy, completeness, operability, fitness for particular purpose, merchantability, non-infringement of third-party rights, or any other warranty, express, implied, or statutory. Spansion assumes no liability for any damages of any kind arising out of the use of the information in this document.

, the Spansion logo, MirrorBit®, MirrorBit® Eclipse™, ORNAND™, EcoRAM™ and combinations thereof, are trademarks and registered trademarks of Spansion LLC in the United States and other countries. Other names used are for informational purposes only and may be trademarks of their respective owners.

December 7, 2011 S25FL032P_00_06 S25FL032P 69

Page 70

Datasheet S25FL032P Datasheet (Spansion) [ru]

Specifications and Main Features

Frequently Asked Questions

User Manual

S25FL032P Cover Sheet

S25FL032P

Distinctive Characteristics

General Description

Table of Contents

Figures

Tables

1. Block Diagram

2. Connection Diagrams

Figure 2.1 16-pin Plastic Small Outline Package (SO)

Figure 2.2 8-pin Plastic Small Outline Package (SO)

Figure 2.3 8-contact USON (5 x 6 mm) Package

Figure 2.4 8-contact WSON Package (6 x 8 mm)

Figure 2.5 6x8 mm 24-ball BGA Package, 5x5 pin Configuration

Figure 2.6 6x8 mm 24-ball BGA Package, 6x4 pin Configuration

3. Input/Output Descriptions

4. Logic Symbol

5. Ordering Information

5.1 Valid Combinations

Table 5.1 S25FL032P Valid Combinations

6. Spansion SPI Modes

Figure 6.1 Bus Master and Memory Devices on the SPI Bus

Figure 6.2 SPI Modes Supported

7. Device Operations

7.1 Byte or Page Programming

7.2 Quad Page Programming

7.3 Dual and Quad I/O Mode

7.4 Sector Erase / Bulk Erase

7.5 Monitoring Write Operations Using the Status Register

7.6 Active Power and Standby Power Modes

7.7 Status Register

7.8 Configuration Register

Table 7.1 Suggested Cross Settings

7.9 Data Protection Modes

Table 7.2 Configuration Register Table

Table 7.3 TBPROT = 0 (Starts Protection from TOP of Array)

Table 7.4 TBPROT=1 (Starts Protection from BOTTOM of Array)

7.10 Hold Mode (HOLD#)

Figure 7.1 Hold Mode Operation

7.11 Accelerated Programming Operation

8. Sector Address Table

Table 8.1 S25FL032P Sector Address Table TBPARM=0

Table 8.2 S25FL032P Sector Address Table TBPARM=1

9. Command Definitions

Table 9.1 Instruction Set

9.1 Read Data Bytes (READ)

Figure 9.1 Read Data Bytes (READ) Command Sequence

9.2 Read Data Bytes at Higher Speed (FAST_READ)

Figure 9.2 Read Data Bytes at Higher Speed (FAST_READ) Command Sequence

9.3 Dual Output Read Mode (DOR)

Figure 9.3 Dual Output Read Instruction Sequence

9.4 Quad Output Read Mode (QOR)

Figure 9.4 Quad Output Read Instruction Sequence

9.5 DUAL I/O High Performance Read Mode (DIOR)

Figure 9.5 DUAL I/O High Performance Read Instruction Sequence

Figure 9.6 Continuous Dual I/O High Performance Read Instruction Sequence

9.6 Quad I/O High Performance Read Mode (QIOR)

Figure 9.7 QUAD I/O High Performance Instruction Sequence

Figure 9.8 Continuous QUAD I/O High Performance Instruction Sequence

9.7 Read Identification (RDID)

Figure 9.9 Read Identification (RDID) Command Sequence and Data-Out Sequence

Table 9.2 Manufacturer & Device ID - RDID (JEDEC 9Fh):

Table 9.3 Product Group CFI Query Identification String

Table 9.4 Product Group CFI System Interface String

Table 9.5 Product Group CFI Device Geometry Definition

Table 9.6 Product Group CFI Primary Vendor-Specific Extended Query

9.8 Read-ID (READ_ID)

Figure 9.10 Read-ID (RDID) Command Timing Diagram

Table 9.7 READ_ID Data-Out Sequence

9.9 Write Enable (WREN)

Figure 9.11 Write Enable (WREN) Command Sequence

9.10 Write Disable (WRDI)

Figure 9.12 Write Disable (WRDI) Command Sequence

9.11 Read Status Register (RDSR)

Table 9.8 S25FL032P Status Register

Figure 9.13 Read Status Register (RDSR) Command Sequence
