Datasheet RTL8187B Datasheet (Realtek Semiconductor)

RTL8187B-GR

WIRELESS LAN NETWORK INTERFACE

CONTROLLER

DATASHEET

09 October 2006

Track ID: JATR-1076-21

Realtek Semiconductor Corp.

No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan

Tel.: [phone]. Fax: [phone]

www.realtek.com.tw

Rev. 1.0

RTL8187B

COPYRIGHT

©2006 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means without the written permission of Realtek Semiconductor Corp.

DISCLAIMER

Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied,
including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in
this document or in the product described in this document at any time. This document could include
technical inaccuracies or typographical errors.

TRADEMARKS

Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are
trademarks/registered trademarks of their respective owners.

Datasheet

USING THIS DOCUMENT

This document is intended for the software engineer’s reference and provides detailed programming
information.

Though every effort has been made to ensure that this document is current and accurate, more information
may have become available subsequent to the production of this guide. In that event, please contact your
Realtek representative for additional information that may help in the development process.

REVISION HISTORY

Revision Release Date

1.0 2006/10/09 First release.

Summary

Wireless LAN Network Interface Controller

ii

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

Table of Contents

1. GENERAL DESCRIPTION ...............................................................................................................................................1

2. FEATURES ..........................................................................................................................................................................2

3. SYSTEM APPLICATIONS ................................................................................................................................................3

4. BLOCK DIAGRAM ............................................................................................................................................................4

5. PIN ASSIGNMENTS...........................................................................................................................................................5

5.1. GREEN PACKAGE AND VERSION IDENTIFICATION ...........................................................................................................5

6. PIN DESCRIPTIONS ..........................................................................................................................................................6

6.1. USB TRANSCEIVER INTERFACE ......................................................................................................................................6

6.2. EEPROM INTERFACE .....................................................................................................................................................6

6.3. POWER PINS ....................................................................................................................................................................6

6.4. LED INTERFACE..............................................................................................................................................................7

6.5. ATTACHMENT UNIT INTERFACE ......................................................................................................................................7

6.5.1. RTL8225 RF Chipset..............................................................................................................................................7

6.5.2. RTL8255 RF Chipset..............................................................................................................................................8

6.6. CLOCK AND OTHER PINS.................................................................................................................................................9

7. CPU ACCESS TO ENDPOINT DATA............................................................................................................................10

7.1. CONTROL TRANSFER.....................................................................................................................................................10

7.2. BULK TRANSFER ...........................................................................................................................................................10

8. USB REQUEST..................................................................................................................................................................11

8.1. GET DESCRIPTOR-DEVICE.............................................................................................................................................11

8.2. GET DESCRIPTOR-DEVICE QUALIFIER (HIGH SPEED)....................................................................................................11

8.3. GET DESCRIPTOR-CONFIGURATION ..............................................................................................................................12

8.4. GET DESCRIPTOR-STRING INDEX 0 ...............................................................................................................................13

8.5. GET DESCRIPTOR-STRING INDEX 1 ...............................................................................................................................13

8.6. GET DESCRIPTOR-STRING INDEX 2 ...............................................................................................................................13

8.7. GET DESCRIPTOR-STRING INDEX 3 ...............................................................................................................................14

8.8. GET DESCRIPTOR-STRING INDEX 4 ...............................................................................................................................14

8.9. GET DESCRIPTOR-STRING INDEX 5 ...............................................................................................................................15

8.10. GET DESCRIPTOR-OTHER SPEED CONFIGURATION....................................................................................................15

8.11. SET ADDRESS ............................................................................................................................................................16

8.12. SET INTERFACE 0 ......................................................................................................................................................16

8.13. SET FEATURE DEVICE ...............................................................................................................................................16

8.14. CLEAR FEATURE DEVICE ..........................................................................................................................................17

8.15. SET CONFIG 0............................................................................................................................................................17

8.16. SET CONFIG 1............................................................................................................................................................17

9. EEPROM (93C46 OR 93C56) CONTENTS ....................................................................................................................18

9.1. EEPROM REGISTERS SUMMARY..................................................................................................................................21

9.2. EEPROM POWER MANAGEMENT REGISTERS SUMMARY .............................................................................................21

10. USB PACKET BUFFERING ........................................................................................................................................22

10.1. TRANSMIT BUFFER MANAGER ..................................................................................................................................22

10.2. RECEIVE BUFFER MANAGER .....................................................................................................................................22

Wireless LAN Network Interface Controller

iii

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

10.3. PACKET RECOGNITION ..............................................................................................................................................22

11. FUNCTIONAL DESCRIPTION ..................................................................................................................................23

11.1. TRANSMIT & RECEIVE OPERATIONS..........................................................................................................................23

11.1.1. Transmit ...............................................................................................................................................................23

11.1.2. Receive .................................................................................................................................................................27

11.2. RX COMMAND...........................................................................................................................................................29

11.3. LOOPBACK OPERATION .............................................................................................................................................29

11.4. TX ENCAPSULATION (WITH RTL8187B INTERNAL BASEBAND PROCESSOR)............................................................29

11.5. RX DECAPSULATION (WITH RTL8187B INTERNAL BASEBAND PROCESSOR) ...........................................................30

11.6. QOS FUNCTIONS .......................................................................................................................................................30

11.7. CONTENTION-BASED ADMISSION CONTROL FUNCTIONS ...........................................................................................30

11.8. DURATION FIELD PROCESSING ..................................................................................................................................31

11.9. LED FUNCTIONS .......................................................................................................................................................31

11.9.1. Link Monitor.........................................................................................................................................................31

11.9.2. Infrastructure Monitor .........................................................................................................................................31

11.9.3. Rx LED .................................................................................................................................................................32

11.9.4. Tx LED .................................................................................................................................................................33

11.9.5. Tx/Rx LED ............................................................................................................................................................33

11.9.6. LINK/ACT LED ....................................................................................................................................................34

12. APPLICATION DIAGRAM .........................................................................................................................................35

Datasheet

13. ELECTRICAL CHARACTERISTICS........................................................................................................................36

13.1. TEMPERATURE LIMIT RATINGS .................................................................................................................................36

13.2. DC CHARACTERISTICS ..............................................................................................................................................36

13.3. AC CHARACTERISTICS ..............................................................................................................................................37

13.3.1. Serial EEPROM Interface Timing (93C46(64*16)/93C56(128*16))...................................................................37

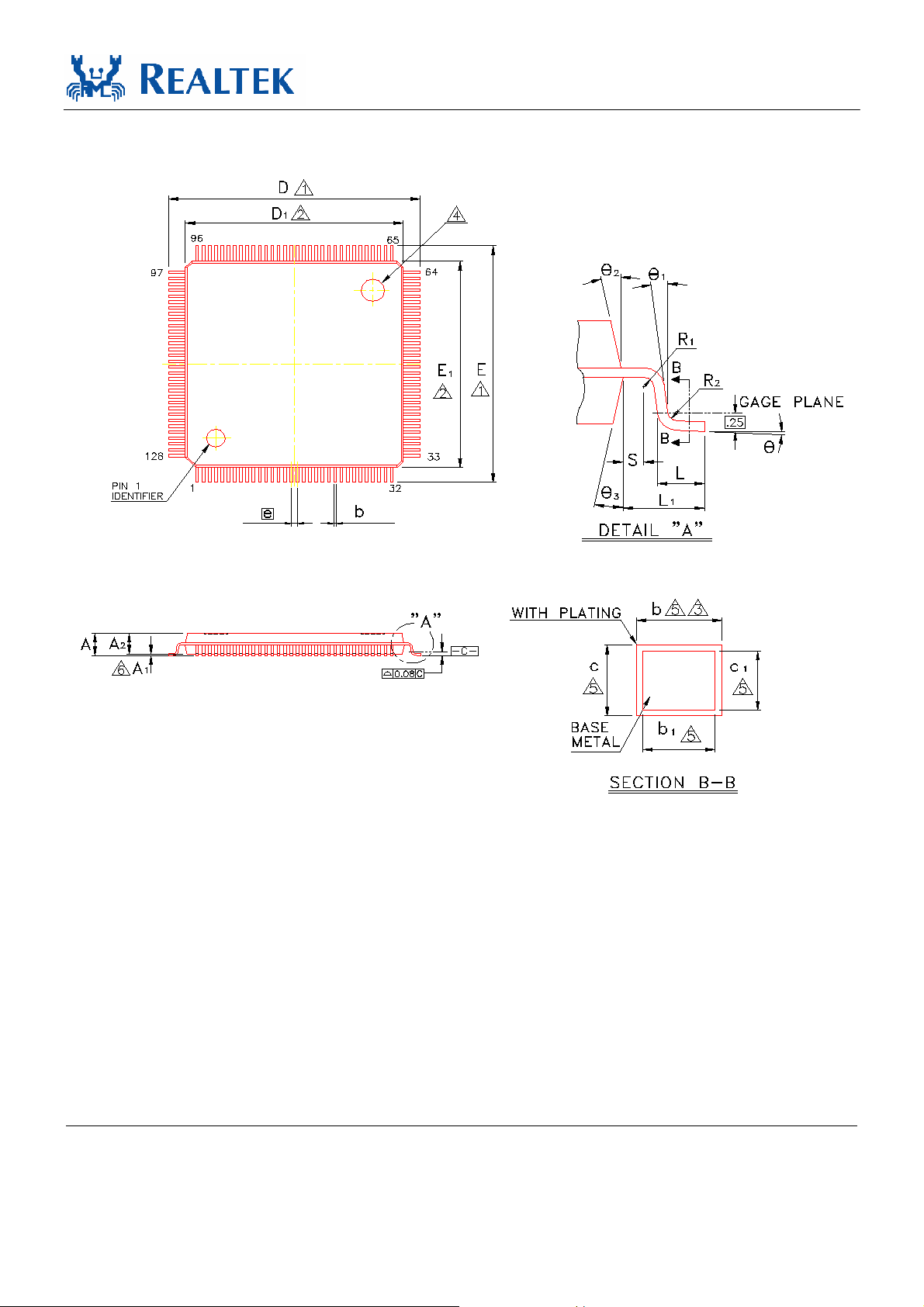

14. MECHANICAL DIMENSIONS ...................................................................................................................................38

14.1. MECHANICAL DIMENSIONS NOTES............................................................................................................................39

15. ORDERING INFORMATION .....................................................................................................................................39

List of Tables

TABLE 1. USB TRANSCEIVER INTERFACE .....................................................................................................................................6

TABLE 2. EEPROM INTERFACE ....................................................................................................................................................6

TABLE 3. POWER PINS ...................................................................................................................................................................6

TABLE 4. LED INTERFACE.............................................................................................................................................................7

TABLE 5. ATTACHMENT UNIT INTERFACE .....................................................................................................................................7

TABLE 6. RTL8255 RF CHIPSET....................................................................................................................................................8

TABLE 7. CLOCK AND OTHER PINS ................................................................................................................................................9

TABLE 8. GET DESCRIPTOR-DEVICE............................................................................................................................................11

TABLE 9. GET DESCRIPTOR- DEVICE QUALIFIER (HIGH SPEED) ..................................................................................................11

TABLE 10. GET DESCRIPTOR-CONFIGURATION .............................................................................................................................12

TABLE 11. GET DESCRIPTOR-STRING INDEX 0 ..............................................................................................................................13

TABLE 12. GET DESCRIPTOR-STRING INDEX 1 ..............................................................................................................................13

TABLE 13. GET DESCRIPTOR-STRING INDEX 2 ..............................................................................................................................13

TABLE 14. GET DESCRIPTOR-STRING INDEX 3 ..............................................................................................................................14

TABLE 15. GET DESCRIPTOR-STRING INDEX 4 ..............................................................................................................................14

Wireless LAN Network Interface Controller

iv

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

TABLE 16. GET DESCRIPTOR-STRING INDEX 5 ..............................................................................................................................15

TABLE 17. GET DESCRIPTOR-OTHER SPEED CONFIGURATION ......................................................................................................15

TABLE 18. SET ADDRESS ..............................................................................................................................................................16

TABLE 19. SET INTERFACE 0 .........................................................................................................................................................16

TABLE 20. SET FEATURE DEVICE..................................................................................................................................................16

TABLE 21. CLEAR FEATURE DEVICE .............................................................................................................................................17

TABLE 22. SET CONFIG 0 ..............................................................................................................................................................17

TABLE 23. SET CONFIG 1 ..............................................................................................................................................................17

TABLE 24. EEPROM (93C46 OR 93C56) CONTENTS....................................................................................................................18

TABLE 25. EEPROM REGISTERS SUMMARY ................................................................................................................................21

TABLE 26. EEPROM POWER MANAGEMENT REGISTERS SUMMARY............................................................................................21

TABLE 27. TX DESCRIPTOR FORMAT ............................................................................................................................................23

TABLE 28. TX STATUS DESCRIPTOR..............................................................................................................................................24

TABLE 29. RX DESCRIPTOR FORMAT ............................................................................................................................................27

TABLE 30. RX STATUS DESCRIPTOR..............................................................................................................................................28

TABLE 31. TX BEACON INTERRUPT...............................................................................................................................................29

TABLE 32. TX CLOSE DESCRIPTOR................................................................................................................................................29

TABLE 33. TEMPERATURE LIMIT RATINGS....................................................................................................................................36

TABLE 34. DC CHARACTERISTICS.................................................................................................................................................36

TABLE 35. EEPROM ACCESS TIMING PARAMETERS ....................................................................................................................37

TABLE 36. ORDERING INFORMATION ............................................................................................................................................39

Datasheet

List of Figures

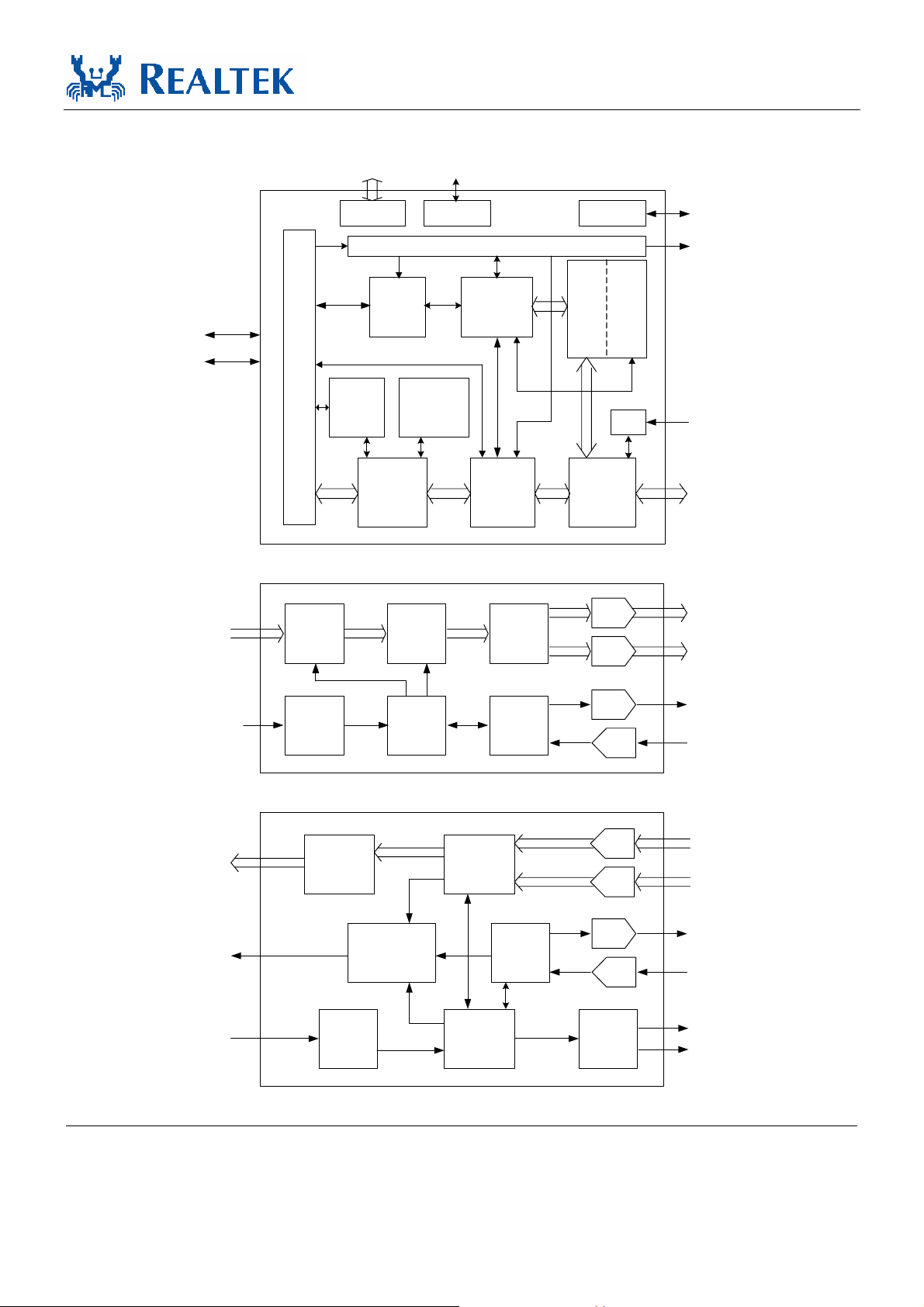

FIGURE 1. BLOCK DIAGRAM..........................................................................................................................................................4

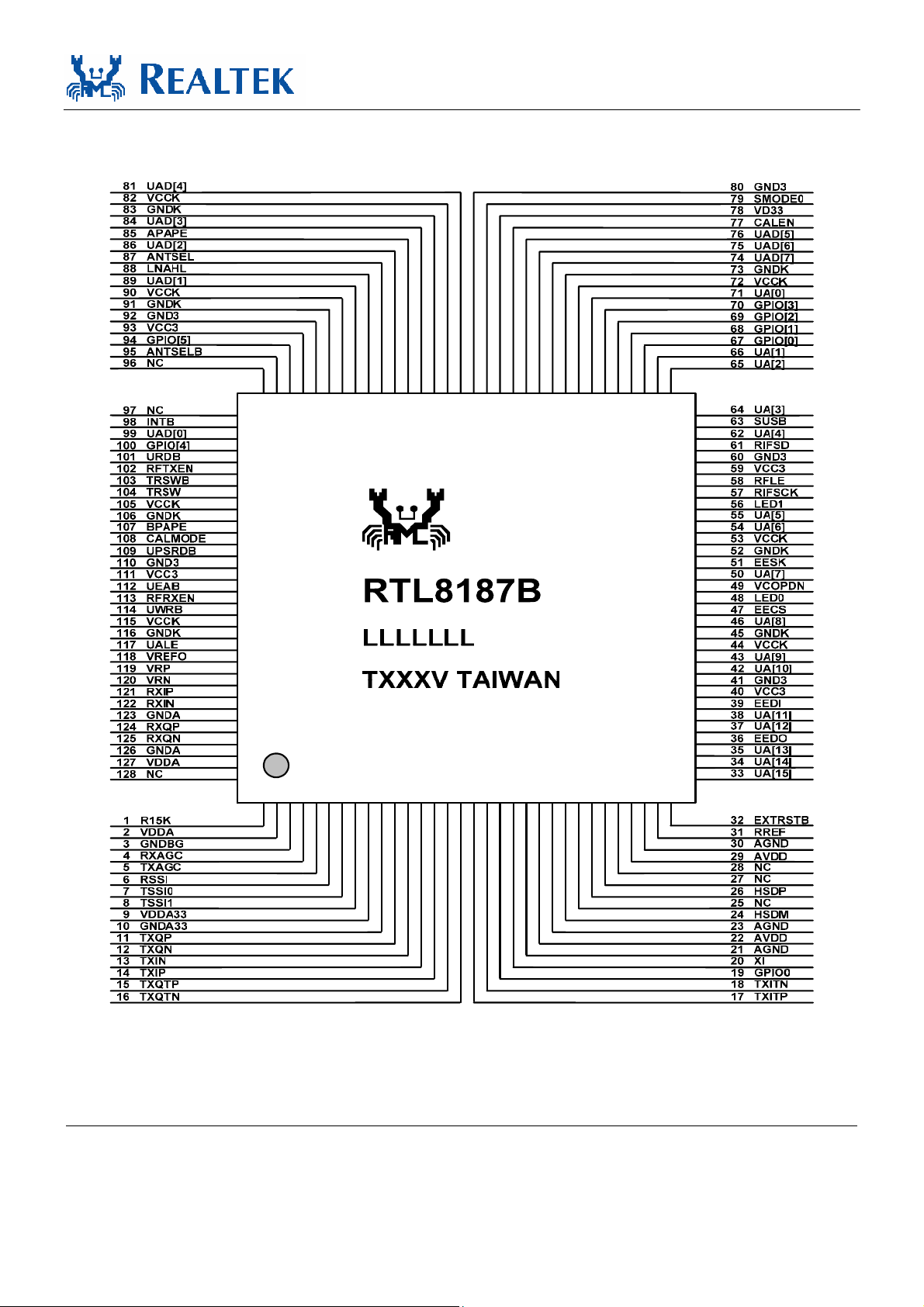

FIGURE 2. PIN ASSIGNMENTS.........................................................................................................................................................5

FIGURE 3. RX LED ......................................................................................................................................................................32

FIGURE 4. TX LED ......................................................................................................................................................................33

FIGURE 5. TX/RX LED ................................................................................................................................................................33

FIGURE 6. LINK/ACT LED.........................................................................................................................................................34

FIGURE 7. APPLICATION DIAGRAM..............................................................................................................................................35

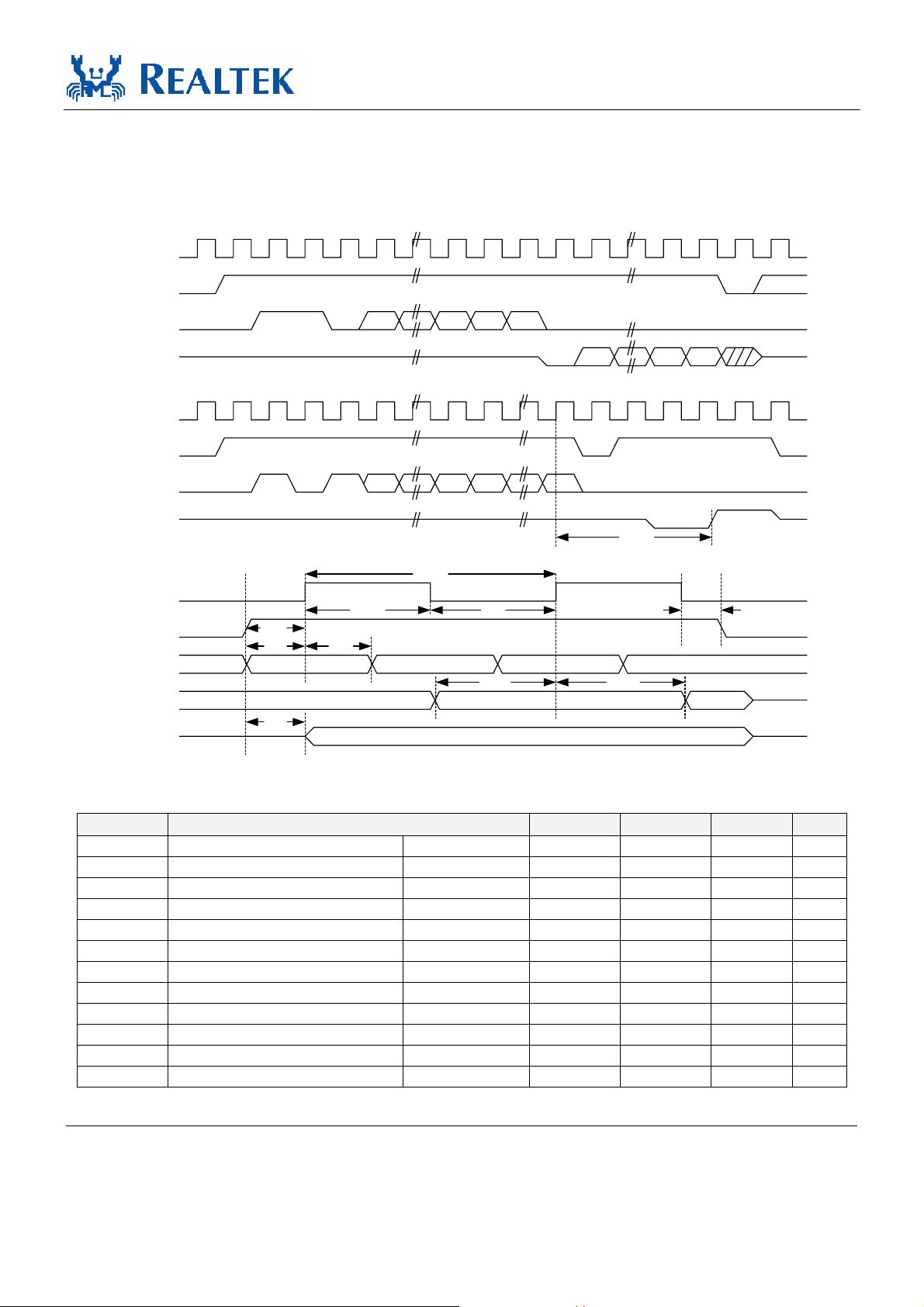

FIGURE 8. SERIAL EEPROM INTERFACE TIMING ........................................................................................................................37

Wireless LAN Network Interface Controller

v

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

1. General Description

The Realtek RTL8187B is a low-profile highly integrated cost-effective Wireless LAN USB 2.0 network
interface controller that integrates a USB 2.0 PHY, SIE (Serial Interface Engine), 8051 MCU, a Wireless
LAN MAC, and a Direct Sequence Spread Spectrum/OFDM baseband processor onto one chip. It provides
USB high speed (480Mbps), and full speed (12Mbps), and supports 9 endpoints for transfer pipes. To
reduce protocol overhead, the RTL8187B supports Short InterFrame Space (SIFS) burst mode to send
packets back-to-back. A protection mechanism prevents collisions among 802.11b nodes. The RTL8187B
fully complies with IEEE 802.11a/b/g, WMM, 802.11e, and CCX specifications.

To reduce protocol overhead, the RTL8187B supports Short InterFrame Space (SIFS) burst mode to send
packets back-to-back. A protection mechanism prevents collisions among 802.11b nodes.

Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK), and Orthogonal
Frequency Division Multiplexing (OFDM) baseband processing are implemented to support all IEEE

802.11a, 802.11b, and 802.11g data rates. Differential phase shift keying modulation schemes, DBPSK and
DQPSK with data scrambling capability, are available, along with complementary code keying to provide
data rates of 1, 2, 5.5, and 11Mbps, with long or short preamble. A high-speed Fast Fourier Transform
(FFT)/Inverse Fast Fourier Transform (IFFT), combined with BPSK, QPSK, 16QAM and 64QAM
modulation of the individual sub-carriers, provides data rates of 6, 9, 12, 18, 24, 36, 48 and 54Mbps, with
rate-compatible punctured convolutional coding with a coding rate of 1/2, 2/3, and 3/4.

An enhanced signal detector, an adaptive frequency domain equalizer, and a soft-decision Viterbi decoder
are built-in to alleviate severe multipath effects. Efficient IQ-imbalance calibration, DC offset, phase noise,
frequency offset, and timing offset compensation reduce radio frequency front-end impairments. Selectable
digital transmit and receiver FIR filters are provided to meet the requirements of transmit spectrum masks,
and to reject adjacent channel interference, respectively. Both in the transmitter and receiver,
programmable scaling in the digital domain trades the quantization noise against the increased probability
of clipping. Robust signal detection, symbol boundary detection, and channel estimation perform well at
the minimum sensitivity.

The RTL8187B supports fast receiver Automatic Gain Control (AGC) and antenna diversity functions, and
an adaptive transmit power control function to obtain better performance in the analog portions of the
transceiver. It also has on-chip digital-to-analog converters and analog-to-digital converters for analog I
and Q inputs and outputs, transmit TSSI and receiver RSSI inputs, and transmit and receiver AGC outputs.

The RTL8187B keeps network maintenance costs low and eliminates usage barriers. The RTL8187B is
highly integrated and requires no ‘glue’ logic or external memory.

The installation for antenna is fixed as vertical polarization.

Wireless LAN Network Interface Controller

1

Track ID: JATR-1076-21 Rev. 1.0

2. Features

RTL8187B

Datasheet

 128-Pin LQFP with ‘Green’ package

 State machine implementation without

external memory (RAM, flash) requirement

 Complies with IEEE 802.11a/b/g standards

 Supports descriptor-based buffer

management

 Integrated Wireless LAN MAC and Direct

Sequence Spread Spectrum/OFDM
Baseband Processor in one chip

 Enhanced signal detector, adaptive frequency

domain equalizer, and soft-decision Viterbi
decoder to alleviate severe multipath effects

 Processing Gain compliant with FCC

 On-Chip A/D and D/A converters for I/Q

Data, AGC, and Adaptive Power Control

 OFDM with BPSK, QPSK, 16QAM and

64QAM modulations and demodulations
supported with rate compatible punctured
convolutional coding with coding rate of 1/2,
2/3, and 3/4

 Efficient IQ-imbalance calibration, DC

offset, phase noise, frequency offset and
timing offset compensation reduce analog
front-end impairments

 Selectable digital transmit and receiver FIR

filters provided to meet transmit spectrum
mask requirements and to reject adjacent
channel interference

 Programmable scaling both in transmitter

and receiver to trade quantization noise
against the increased probability of clipping

 Fast receiver Automatic Gain Control (AGC)

& antenna diversity functions

 Supports both transmit and receive Antenna

Diversity

 Data rates of 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36,

48, and 54Mbps

 Supports 40MHz OSC as the internal clock

source. The frequency deviation of the OSC
must be within 25 PPM on IEEE 802.11g and
20 PPM on IEEE 802.11a

 IEEE 802.11g protection mechanisms for

both RTS/CTS and CTS-to-self

 Burst-mode support for dramatically

enhanced throughput

 DSSS with DBPSK and DQPSK, CCK

modulations and demodulations supported
with long and short preamble

 Complies with WMM, 802.11e, and CCX

specifications

 Complies with 802.11h, 802.11i, 802.11j

specifications

 Hardware-based IEEE 802.11i

encryption/decryption engine, including
64-bit/128-bit WEP, TKIP, and AES

 Supports Wi-Fi alliance WPA and WPA2

security

 Contains two large independent transmit and

receive FIFO buffers

 Advanced power saving mode when the

LAN and wakeup function are not used

Wireless LAN Network Interface Controller

2

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

 Uses 93C46 (64*16-bit EEPROM) or 93C56

(128*16-bit EEPROM) to store resource
configuration and ID parameter data

 LED pins for various network activity

indications

 Six GPIO pins supported

 Supports digital loopback capability on both

ports

 Scatter and gather operation

 Complies with USB Specification 2.0

 Supports Full-speed (12Mbps) and

High-speed (480Mbps)

 Embedded standard 8051 CPU with

enhanced features:

 Four cycles per instruction

 Variable clock speed cuts power

consumption

 Supports 9 endpoints:

 64-Byte buffer for control endpoint

 Two 512-Byte buffers for bulk IN

endpoint

 Seven 512-Byte buffers for bulk OUT

endpoint

 3.3V and 1.5V power supplies required

 5V tolerant I/Os

 0.15µm CMOS process

3. System Applications

 USB Dongle WLAN adapter

 Embedded WLAN solution in notebook, desktop, mobile phone, and motherboard

Wireless LAN Network Interface Controller

3

Track ID: JATR-1076-21 Rev. 1.0

4. Block Diagram

RTL8187B

Datasheet

MAC

D+

D-

BBP, TX Section

MAC/BBP

Interface

SIE + Register

Scrambler

EEPROM

Interface

LED Driver

Power and TX/RX Timing Control Logic

WEP/

TKIP/

AES

Engine

Interrupt

Control

Logic

FIFO

Coding

Checksum

Logic

RTS, CTS,

ACK Frame

Generator

FIFO

Control

Logic

Digital

Filter

Serial

Control

Register

Frame Length

Transmit/

Receive

Logic

Interface

DAC

DAC

FrameType

CCA/

NAV

Radio and
Synthesizer
Control

Discriminator

From BBP

MAC/BBP

Interface

TXI

TXQ

From

Register

MAC

BBP, RX Section

MAC/BBP

Interface

To MAC

From

MAC

Wireless LAN Network Interface Controller

Descrambler

Register

Decoding

RX State
Machine

TX AGC

Control

RX AGC

Control

TX State
Machine

Clear Channel

Assessment/

Signal Quality

Figure 1. Block Diagram

4

DAC

ADC

ADC

ADC

DAC

ADC

Antenna

Diversity

Control

TXAGC

TXDET

RXI

RXQ

RXAGC

RSSI

ANTSEL

ANTSELB

Track ID: JATR-1076-21 Rev. 1.0

5. Pin Assignments

RTL8187B

Datasheet

Figure 2. Pin Assignments

5.1.

Green Package and Version Identification

Green package is indicated by a ‘G’ in the location marked ‘T’ in Figure 2.

Wireless LAN Network Interface Controller

5

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

6. Pin Descriptions

In order to reduce pin count, and therefore size and cost, some pins have multiple functions. In such cases,
the functions are separated with a ‘/’ symbol. Refer to the Pin Assignments diagram on page 5 for a
graphical representation.

The following signal type codes are used in the tables:

I: Input.
O: Output
T/S: Tri-State bi-directional input/output pin.

6.1.

USB Transceiver Interface

Table 1. USB Transceiver Interface

Symbol Type Pin No Description

HSDP I/O 26 High speed USB D+ signal
HSDM I/O 24 High speed USB D- signal
RREF N/A 31 External Reference. Requires 1% precision 6.25K resistor to ground

6.2.

EEPROM Interface

Table 2. EEPROM Interface

Symbol Type Pin No Description

EESK O 51 EESK in 93C46 (93C56) programming or auto-load mode.
EEDI O 39 EEDI in 93C46 (93C56) programming or auto-load mode.
EEDO I/O 36 EEDO in 93C46 (93C56) programming or auto-load mode.
EECS O 47 EEPROM Chip Select. 93C46 (93C56) chip select.

S/T/S: Sustained Tri-State.
O/D: Open Drain.

6.3.

Power Pins

Table 3. Power Pins

Symbol Type Pin No Description

VCC3 P 40, 59, 78, 93, 111 +3.3V (Digital).
AVDD P 2, 9, 22, 29, 127 +3.3V (Analog).
VCCK P 44, 53, 72, 82, 90, 105,

115

GNDK P 41, 45, 52, 60, 73, 80,

83, 91, 92, 106, 110,
116

AGND P 3, 10, 21, 23, 30, 123,

126

Wireless LAN Network Interface Controller

+1.5V.

Ground (Digital).

Ground (Analog).

6

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

6.4.

LED Interface

Table 4. LED Interface

Symbol Ty pe Pin No Description

LED0, 1 O 48, 56 LED Pins (Active low)

LED0 TX/RX TX/RX TX LINK/ACT
LED1 Infrastructure LINK RX Infrastructure
During power down mode, the LED signals are logic high.

LEDS1~0 00 01 10 11

Datasheet

6.5.

Attachment Unit Interface

6.5.1. RTL8225 RF Chipset

Table 5. Attachment Unit Interface

Symbol Type Pin No Description

RIFSCK O 57 Serial Clock Output.

For the RTL8225 RF chipset, all operation mode switching and register setting is

done via a 4-wire serial interface.
RIFSD I/O 61 Serial Data Input/Output.
RFLE O 58 Serial Enable control.
CALEN O 77 Serial Read/Write control.
CALMODE O 108 Receiver Output.

I and Q channel AC coupling high-pass corner frequency selection. The output

function of this pin is not used in the RTL8225 RF chipset.

LNA_HL O 88 Not used in the RTL8225 RF chipset.
ANTSEL O 87 Antenna Select.

The antenna detects signal change states as the receiver switches from antenna to

antenna during the acquisition process in antenna diversity mode. This is a

complement for ANTSELB for differential drive of antenna switches.
ANTSELB O 95 Antenna Select B.

The antenna detects signal change states as the receiver switches from antenna to

antenna during the acquisition process in the antenna diversity mode. This is a

complement for ANTSEL for differential drive of antenna switches.
TRSW
TRSWB
VCOPDN O 49 Output Pin as shutdown mode select digital input.
A_PAPE O 85 2.4GHz Transmit Power Amplifier Power Enable.
B_PAPE O 107 Not used in the RTL8225 RF chipset.
RFTXEN O 102 Not used in the RTL8225 RF chipset.
RFRXEN O 113 Not used in the RTL8225 RF chipset.
GPIO0 O 67 General purpose input/output pin.
GPIO1 O 68 General purpose input/output pin.
GPIO2 O 69 General purpose input/output pin.
GPIO3 O 70 General purpose input/output pin.

O
O

104
103

Transmit/Receive path select.

The TRSW select signal controls the direction of the Transmit/Receive switch.

Wireless LAN Network Interface Controller

7

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Symbol Type Pin No Description

GPIO4 O 100 General purpose input/output pin.
GPIO5 O 94 General purpose input/output pin.
VREFO X 118 Not used in the RTL8225 RF chipset.
VRP X 119 Not used in the RTL8225 RF chipset.
VRN X 120 Not used in the RTL8225 RF chipset.
RXIP
RXIN
RXQP
RXQN
RXAGC I 4 Not used in the RTL8225 RF chipset.
TXAGC O 5 Not used in the RTL8225 RF chipset.
RSSI I 6 Analog Input to the Receive Power A/D Converter for Receive AGC Control.
TSSI0
TSSI1
TXQP

TXQN

TXIP
TXIN

TXQTP
TXQTN

TXITP
TXITN

I
I

I
I

I 7 Input to the Transmit Power A/D Converter for 2.4GHz Transmit AGC Control.
I 8 Not used in the RTL8225 RF chipset.
I

I
O
O
O
O
O
O

121
122
124
125

11
12
14
13
15
16
17
18

Receive (Rx) In-phase Analog Data.

Receive (Rx) Quadrature-phase Analog Data.

Not used in the RTL8225 RF chipset.

Not used in the RTL8225 RF chipset.

Transmit (TX) Quadrature-phase Analog Data.

Transmit (TX) In-phase Analog Data.

Datasheet

6.5.2. RTL8255 RF Chipset

Table 6. RTL8255 RF Chipset

Symbol Type Pin No Description

RIFSCK O 57 Serial Clock Output.

For the RTL8255 RF chipset, all operation mode switching and register setting is

done via a 3-wire serial interface.
RIFSD O 61 Serial Data Input/Output.
RFLE O 58 Serial Enable control.
CALEN X 77 Not used in the RTL8255 RF chipset.
CALMODE O 108 Receiver Output.

I and Q channel AC coupling high-pass corner frequency selection. The output

function of this pin is not used in the RTL8255 RF chipset.
LNAHL O 88 Not used in the RTL8255 RF chipset.
ANTSEL

ANTSELB

TRSW
TRSWB
VCOPDN O 49 Not used in the RTL8255 RF chipset.
APAPE O 85 2.4GHz Transmit Power Amplifier Power Enable.
BPAPE O 107 5GHz Transmit Power Amplifier Power Enable.

O
O

O
O

87
95

104
103

Antenna Select.

The antenna detects signal change states as the receiver switches from antenna to

antenna during the acquisition process in antenna diversity mode.

Transmit/Receive path select.

The TRSW select signal controls the direction of the Transmit/Receive switch.

Wireless LAN Network Interface Controller

8

Track ID: JATR-1076-21 Rev. 1.0

Symbol Type Pin No Description

RFTXEN O 102 Not used in the RTL8255 RF chipset.
RFRXEN O 113 Not used in the RTL8255 RF chipset.

GPIO[0]
GPIO[1]
GPIO[2]
GPIO[3]
GPIO[4]
GPIO[5]

VREFO X
VRP
VRN
RXIP

RXIN

RXQP
RXQN

RXAGC
TXAGC
RSSI
TSSI0
TSSI1
TXQP

TXQN

TXIP
TXIN

TXQTP
TXQTN

TXITP
TXITN

O
O
O
O
O
O

X 119 Not used in the RTL8255 RF chipset.
X 120 Not used in the RTL8255 RF chipset.

I
I

I
I

O 4 Not used in the RTL8255 RF chipset.
O 5 Not used in the RTL8255 RF chipset.

I 6 Analog Input to the Receive Power A/D Converter for Receive AGC Control.
I 7 Input to the Transmit Power A/D Converter for 2.4GHz Transmit AGC Control.

I 8 Input to the Transmit Power A/D Converter for 5GHz Transmit AGC Control.
O
O
O
O
O
O
O
O

67
68
69
70

100

94

118

121
122
124
125

11
12
14
13
15
16
17
18

General purpose input/output pin.
General purpose input/output pin.
General purpose input/output pin.
General purpose input/output pin.
General purpose input/output pin.
General purpose input/output pin.
Not used in the RTL8255 RF chipset.

Receive (Rx) In-phase Analog Data.

Receive (Rx) Quadrature-phase Analog Data.

Transmit (TX) Quadrature-phase Analog Data.

Transmit (TX) In-phase Analog Data.

Not used in the RTL8255 RF chipset.

Not used in the RTL8255 RF chipset.

RTL8187B

Datasheet

6.6.

Clock and Other Pins

Table 7. Clock and Other Pins

Symbol Type Pin No Description

R15K I/O 1 This pin must be pulled low by a 15K Ω resistor.
XI I 20 40MHz clock Input.
EXTRSTB I 32 Pull high 3.3V. If pulled low, the whole chip will be reset.

Wireless LAN Network Interface Controller

9

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

7. CPU Access to Endpoint Data

7.1.

Control Transfer

Control transfers configure and send commands to a device. Because they are so important, they employ
extensive USB error checking. The host reserves a portion of each USB frame for control transfers. Control
transfers consist of two or three stages. The SETUP stage contains eight bytes of USB control data. An
optional DATA stage contains more data, if required. The STATUS stage allows the device to indicate
successful completion of a control operation.

7.2.

Bulk Transfer

Bulk data is bursty, traveling in packets of 8, 16, 32, or 64 bytes at full speed, or at 512 bytes at high speed.
Bulk data has guaranteed accuracy due to an automatic retry mechanism for erroneous data. The host
schedules transmission of bulk packets when there is available bus time.

Wireless LAN Network Interface Controller

10

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

8. USB Request

8.1.

Get Descriptor-Device

Table 8. Get Descriptor-Device

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 00 01 00 00 Lengh_L Length_H

High Speed Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

12 01 00 02 00 00 00 40

DA 0B 87 81 00 01 01 02

03 01

Full Speed Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

12 01 10 01 00 00 00 40

DA 0B 87 81 00 01 01 02

03 01

Datasheet

8.2.

Get Descriptor-Device Qualifier (High Speed)

Table 9. Get Descriptor- Device Qualifier (High Speed)

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 00 06 00 00 Lengh_L Length_H

Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

0A 06 00 02 00 00 00 40

01 00

Wireless LAN Network Interface Controller

11

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

8.3.

Get Descriptor-Configuration

Table 10. Get Descriptor-Configuration

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 00 02 00 00 Length_L Length_H

High Speed Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

09 02 51 00 01 01 04 80
FA 09 04 00 00 09 FF FF
FF 02 07 05 83 02 00 02

00 07 05 04 02 00 02 00

07 05 05 02 00 02 00 07

05 06 02 00 02 00 07 05

07 02 00 02 00 07 05 89

02 00 02 00 07 05 0A 02

00 02 00 07 05 0B 02 00

02 00 07 05 0C 02 00 02

00

Datasheet

Full Speed Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

09 02 51 00 01 01 04 80
FA 09 04 00 00 09 FF FF
FF 02 07 05 83 02 40 00

00 07 05 04 02 40 00 00

07 05 05 02 40 00 00 07

05 06 02 40 00 00 07 05

07 02 40 00 00 07 05 89

02 40 00 00 07 05 0A 02

40 00 00 07 05 0B 02 40

00 00 07 05 0C 02 40 00

00

Wireless LAN Network Interface Controller

12

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

8.4.

Get Descriptor-String Index 0

Table 11. Get Descriptor-String Index 0

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 00 03 00 00 Lengh_L Length_H

Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

04 03 09 04 - - - -

8.5.

Get Descriptor-String Index 1

Table 12. Get Descriptor-String Index 1

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 01 03 09 04 Lengh_L Length_H

Datasheet

Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

10 03 52 00 65 00 61 00
6C 00 74 00 65 00 6B 00

8.6.

Get Descriptor-String Index 2

Table 13. Get Descriptor-String Index 2

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 02 03 09 04 Lengh_L Length_H

Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

2B 03 52 00 54 00 4C 00

38 00 31 00 38 00 37 00

42 00 20 00 57 00 4C 00

41 00 4E 00 20 00 41 00

64 00 6` 00 70 00 74 00

65 00 72

Wireless LAN Network Interface Controller

13

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

8.7.

Get Descriptor-String Index 3

Table 14. Get Descriptor-String Index 3

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 03 03 09 04 Lengh_L Length_H

Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

1A 03 30 00 30 00 65 00

30 00 34 00 63 00 30 00

30 00 30 00 30 00 30 00

31 00

8.8.

Get Descriptor-String Index 4

Datasheet

Table 15. Get Descriptor-String Index 4

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 04 03 09 04 Lengh_L Length_H

Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

2C 03 57 00 69 00 72 00

65 00 6C 00 65 00 73 00

73 00 20 00 4E 00 65 00

74 00 77 00 6F 00 72 00
6B 00 20 00 43 00 61 00

72 00 64 00

Wireless LAN Network Interface Controller

14

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

8.9.

Get Descriptor-String Index 5

Table 16. Get Descriptor-String Index 5

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 05 03 09 04 Lengh_L Length_H

Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

30 03 55 00 53 00 42 00

20 00 48 00 53 00 20 00

48 00 65 00 72 00 69 00

61 00 6C 00 20 00 43 00
6F 00 6E 00 76 00 65 00

72 00 74 00 65 00 72 00

Datasheet

8.10. Get Descriptor-Other Speed Configuration

Table 17. Get Descriptor-Other Speed Configuration

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

80 06 00 07 00 00 Lengh_L Length_H

High Speed Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

09 07 51 00 01 01 04 80
FA 09 04 00 00 09 FF FF
FF 02 07 05 83 02 00 02

00 07 05 04 02 00 02 00

07 05 05 02 00 02 00 07

05 06 02 00 02 00 07 05

07 02 00 02 00 07 05 89

02 00 02 00 07 05 0A 02

00 02 00 07 05 0B 02 00

02 00 07 05 0C 02 00 02

00

Wireless LAN Network Interface Controller

15

Track ID: JATR-1076-21 Rev. 1.0

Full Speed Data Transaction

DATA0 DATA1 DATA2 DATA3 DATA4 DATA5 DATA6 DATA7

09 07 51 00 01 01 04 80
FA 09 04 00 00 09 FF FF
FF 02 07 05 83 02 40 00

00 07 05 04 02 40 00 00

07 05 05 02 40 00 00 07

05 06 02 40 00 00 07 05

07 02 40 00 00 07 05 89

02 40 00 00 07 05 0A 02

40 00 00 07 05 0B 02 40

00 00 07 05 0C 02 40 00

00

8.11. Set Address

Table 18. Set Address

RTL8187B

Datasheet

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

00 05 addrL addrH 00 00 00 00

Note: No data transaction.

8.12. Set Interface 0

Table 19. Set Interface 0

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

01 0B 00 00 00 00 00 00

Note: No data transaction.

8.13. Set Feature Device

Table 20. Set Feature Device

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

00 03 01 00 00 00 00 00

Note: No data transaction.

Wireless LAN Network Interface Controller

16

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

8.14. Clear Feature Device

Table 21. Clear Feature Device

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

00 01 01 00 00 00 00 00

Note: No data transaction.

8.15. Set Config 0

Table 22. Set Config 0

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

00 09 00 02 00 00 00 00

Note: No data transaction.

Datasheet

8.16. Set Config 1

Table 23. Set Config 1

Setup Transaction

BmReq bReq wValueL wValueH wIndexL wIndexH wLengthL wLengthH

00 09 01 00 00 00 00 00

Note: No data transaction.

Wireless LAN Network Interface Controller

17

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

9. EEPROM (93C46 or 93C56) Contents

The RTL8187B supports the attachment of an external EEPROM. The 93C46 is a 1Kbit EEPROM (the
93C56 is a 2Kbit EEPROM). The EEPROM interface provides the ability for the RTL8187B to read from,
and write data to, an external serial EEPROM device. If the EEPROM is not present, the RTL8187B
initialization uses default values for the Operational Registers. Software can read and write to the
EEPROM using “bit-bang” accesses via the 9346CR Register.

Although it is actually addressed by words, its contents are listed below by bytes for convenience. After the
initial power on or auto-load command in the 9346CR, the RTL8187B performs a series of EEPROM read
operations from the 93C46 (93C56).

Note: It is suggested to obtain Realtek approval before changing the default settings of the EEPROM.

Table 24. EEPROM (93C46 or 93C56) Contents

Bytes Contents Description

00h 29h
01h 81h

02h-03h VID USB Vendor ID.
04h-05h DID USB Device ID.

06h ChannelPlan Channel Plan: Map of channels to be scanned.
07h Reserved ­08h Reserved ­09h Version Bit [7:6] Interface Selection

0Ah Tx Power Base Tx power of the serving base station.

0Bh Reserved ­0Ch RFChipID RF Chip ID.

0Dh CONFIG3 RTL8187B Configuration register 3.

0Eh~13h MAC Address MAC Address.

14h TxPower12 Transmit Power Level for 802.11b(g)-defined channel_ID 12

15h CONFIG1 RTL8187B Configuration register 1.

16h~17h

18h CONFIG2 RTL8187B Configuration register 2.

CRC 16-bit CRC value of EEPROM content. Reserved for Software use.

These 2 bytes contain the ID code word for the RTL8187B. The RTL8187B will load
the contents of the EEPROM into the corresponding location if the ID word (8129h) is
correct.

00 : USB
01 : Mini Card
02 : Reserved
03 : Reserved

Bit [5:0] The EEPROM version.

The identifier of the RF chip.

Operational register FF59h.

After the auto-load command or a hardware reset, the RTL8187B loads MAC
Addresses to IDR0~IDR5 of the I/O registers of the RTL8187B.

(center frequency=2467MHz).

Operational register FF52h.
Bit[5:2] : USB receive sensitivity

Operational register FF53h.

Wireless LAN Network Interface Controller

18

Track ID: JATR-1076-21 Rev. 1.0

Bytes Contents Description

19h CONFIG4 RTL8187B Configuration register 4.

Operational register FF5Ah.

1Ah~1Dh ANA_PARM Analog Parameter for the RTL8187B.

Operational registers of the RTL8187B are from 54h to 57h.
Reserved. Do not change this field without Realtek approval.

1Eh TESTR RTL8187B Test Mode Register.

Operational register FF5Bh.
Reserved. Do not change this field without Realtek approval.

1Fh CONFIG5 RTL8187B Configuration register 5.

Operational register FFD8h.

20h TxPower36 Transmit Power Level for 802.11a-defined channel_ID 36

(Center frequency=5180MHz).

21h TxPower40 Transmit Power Level for 802.11a-defined channel_ID 40

(Center frequency=5200MHz).

22h TxPower44 Transmit Power Level for 802.11a-defined channel_ID 44

(Center frequency=5220MHz).

23h TxPower48 Transmit Power Level for 802.11a-defined channel_ID 48

(Center frequency=5240MHz).

24h TxPower52 Transmit Power Level for 802.11a-defined channel_ID 52

(Center frequency=5260MHz).

25h TxPower56 Transmit Power Level for 802.11a-defined channel_ID 56

(Center frequency=5280MHz).

26h

27h

28h

29h

2Ah

2Bh

2Ch TxPower1 Transmit Power Level for 802.11b(g)-defined channel_ID 1

2Dh TxPower2 Transmit Power Level for 802.11b(g)-defined channel_ID 2

2Eh TxPower3 Transmit Power Level for 802.11b(g)-defined channel_ID 3

2Fh TxPower4 Transmit Power Level for 802.11b(g)-defined channel_ID 4

30h TxPower5 Transmit Power Level for 802.11b(g)-defined channel_ID 5

31h TxPower6 Transmit Power Level for 802.11b(g)-defined channel_ID 6

TxPower60

TxPower64

TxPower149

TxPower153

TxPower157

TxPower161

Transmit Power Level for 802.11a-defined channel_ID 60
(Center frequency=5300MHz).
Transmit Power Level for 802.11a-defined channel_ID 64
(Center frequency=5320MHz).
Transmit Power Level for 802.11a-defined channel_ID 149
(Center frequency=5745MHz).
Transmit Power Level for 802.11a-defined channel_ID 153
(Center frequency=5765MHz).
Transmit Power Level for 802.11a-defined channel_ID 157
(Center frequency=5785MHz).
Transmit Power Level for 802.11a-defined channel_ID 161
(Center frequency=5805MHz).

(center frequency=2412MHz).

(center frequency=2417MHz).

(center frequency=2422MHz).

(center frequency=2427MHz).

(center frequency=2432MHz).

(center frequency=2437MHz).

RTL8187B

Datasheet

Wireless LAN Network Interface Controller

19

Track ID: JATR-1076-21 Rev. 1.0

Bytes Contents Description

32h-35h ANA_PARM2 Analog Parameter 2 for RTL8187B.

Operational registers for the RTL8187B are 60h to 63h.
Reserved. Do not change this field without Realtek approval.

36h TxPower11 Transmit Power Level for 802.11b(g)-defined channel_ID 11

(center frequency=2462MHz).

37h Optional functions Bit[1:0]: Suspend pin behavior.

00b: Default pull high
01b: Default pill low
10b: Functions as a PME# signal

Bit[2]: USB remote wake up function.
0: No remote wake up feature for RTL8187B
1: Remote wake up feature for RTL8187B

Bit[3] : UART Support.
0: No UART interface support
1: UART interface support

Bit[5:4]: Response default serial number.
00b: Respond serial number from EEPROM
01b: Respond serial number from internal ROM, 00 E0 4C 00 00 01
Others : Reserved

Bit[6] : Device Power.
0: Bus power
1: Self power

38h TxPower13 Transmit Power Level for 802.11b(g)-defined channel_ID 13

(center frequency=2472MHz).

39h TxPower14 Transmit Power Level for 802.11b(g)-defined channel_ID 14

(center frequency=2484MHz).

3Ah-73h Manufacture String

&

Product String

74h-79h - Reserved.

7Ah TxPower7 Transmit Power Level for 802.11b(g)-defined channel_ID 7

7Bh TxPower8 Transmit Power Level for 802.11b(g)-defined channel_ID 8

7Ch TxPower9 Transmit Power Level for 802.11b(g)-defined channel_ID 9

7Dh TxPower10 Transmit Power Level for 802.11b(g)-defined channel_ID 10

7Eh CustomerID BIT[0-7]: CustomerID, 0x00 and 0xFF is reserved for Realtek.
7Fh SW Antenna

Diversity

Manufacture String and Product String:Those bits specify both manufacturer’s
information and device’s information for the USB standard request.
Maximum two strings total length are 58 bytes.

(center frequency=2442MHz).

(center frequency=2447MHz).

(center frequency=2452MHz).

(center frequency=2457MHz).

BIT[0:1]: 01b enables SW Antenna Diversity.
BIT[2:3]: 01b is default antenna.

RTL8187B

Datasheet

Wireless LAN Network Interface Controller

20

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

9.1.

EEPROM Registers Summary

Table 25. EEPROM Registers Summary

Address Name Ty pe Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

FF00h-

FF05h

FF52h CONFIG1

FF53h CONFIG2

FF54h-

FF57h

FF59h CONFIG3

FF5Ah CONFIG4

FF5Bh TESTR 8-bit Read Write

FF60h-

FF63h

FFD8h CONFIG5 R/W** - - - - - - LANWake -

Note 1: Registers marked 'W
Note 2: Registers marked 'W**' can be written only if bits EEM1:0=[1:1] and

CONFIG3<PARM_EN>= 0.

IDR0 – IDR5 R/W*

R LEDS1 LEDS0 USB Receive Sensitivity - -

W* LEDS1 LEDS0 USB Receive Sensitivity - -

R LCK - - - -

W* - - - - -

ANA_PARM R/W** 32-bit Read Write

R - PARM_En Magic - - - - -

W* - PARM_En Magic - - - - -

R - - - LWPME - LWPTN -

W* - - - LWPME - LWPTN -

ANA_PARM2 R/W 32-bit Read Write

*'

can be written only if bits EEM1=EEM0=1.

PAPE

_sign

PAPE

_sign

Datasheet

PAPE
_time
PAPE
_time

9.2.

EEPROM Power Management Registers Summary

Table 26. EEPROM Power Management Registers Summary

Configuration

Space Offset

52h R Aux_I_b1 Aux_I_b0 DSI Reserved PMECLK Version

53h

Name Type Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

PMC

R PME_D3

Wireless LAN Network Interface Controller

PME_D3

cold

PME_D2 PME_D1 PME_D0 D2 D1 Aux_I_b2

hot

21

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

10. USB Packet Buffering

The RTL8187B incorporates two independent FIFOs for transferring data to/from the system interface and
from/to the network. The FIFOs provide temporary storage of data, freeing the host system from the
real-time demands of the network.

The way in which the FIFOs are emptied and filled is controlled by the FIFO threshold values in the
Receive Configuration registers. These values determine how full or empty the FIFOs must be before the
device requests the bus. Once the RTL8187B requests the bus, it will attempt to empty or fill the FIFOs as
allowed by the respective MXDMA settings in the Transmit Configuration and Receive Configuration
registers.

10.1. Transmit Buffer Manager

The buffer management scheme used on the RTL8187B allows quick, simple, and efficient use of the frame
buffer memory. The buffer management scheme uses separate buffers and descriptors for packet
information. This allows effective transfers of data to the transmit buffer manager by simply transferring
the descriptor information to the transmit queue.

The Tx Buffer Manager DMA’s packet data from system memory and places it in the 3.5KB transmit FIFO,
and pulls data from the FIFO to send to the Tx MAC. Multiple packets may be present in the FIFO,
allowing packets to be transmitted with Short InterFrame (SIF) space. Additionally, once the RTL8187B
requests the bus, it will attempt to fill the FIFO as allowed by the MXDMA setting.

The Tx Buffer Manager process also supports priority queuing of transmit packets. It handles this by
drawing from two separate descriptor lists to fill the internal FIFO. If packets are available in the high
priority queues, they will be loaded into the FIFO before those of low priority.

10.2. Receive Buffer Manager

The Rx Buffer Manager uses the same buffer management scheme as used for transmits. The Rx Buffer
Manager retrieves packet data from the Rx MAC and places it in the 4KB receive data FIFO, and pulls data
from the FIFO for DMA to system memory. The receive FIFO is controlled by the FIFO threshold value in
RXFTH. This value determines the number of long words written into the FIFO from the MAC unit before
a DMA request for system memory occurs. Once the RTL8187B gets the bus, it will continue to transfer the
long words from the FIFO until the data in the FIFO is less than one long word, or has reached the end of the
packet, or the max DMA burst size is reached, as set in MXDMA.

10.3. Packet Recognition

The Rx packet filter and recognition logic allows software to control which packets are accepted, based on
destination address and packet type. Address recognition logic includes support for broadcast, multicast
hash, and unicast addresses. The packet recognition logic includes support for WOL and programmable
pattern recognition.

Wireless LAN Network Interface Controller

22

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

11. Functional Description

11.1. Transmit & Receive Operations

The RTL8187B supports a new descriptor-based buffer management that will significantly lower host CPU utilization. The
RTL8187B supports transmit descriptor and receive descriptor in memory. Each OUT packet contains 3-double-word transmit
descriptors and each IN packet contains 4-double-word receive descriptors.

11.1.1. Transmit

Tx Descriptor Format

Table 27. Tx Descriptor Format

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

O

D

FS LS TXRATE

W

M

N

A
=
1

O

K

L
E

N
G

E

X

T

RATE_FALL

BACK_LIMIT

(5 bits)

R

RTSRATE

(4 bits)

Length (15 bits)

DURATION (16 bits) M

RTS_RATE

_FALL

BACK_LIM

IT (4 bits)

T

(4 bits)

S
E
N

NEXT_TX_DESCRIPTOR_ADDRESS Offset 16

RSVD
(4bits) PI

C

M

T

O

S

R

E

E

N

F
R
A
G

TX_BUFFER_ADDRESS Offset 8

N
O

F

_

S

A
C

M

BSSID

S

N
P
L
C
P

R
T
_

D

B

_NO

O

_
E
N
C
R
Y

P
T

RTSDUR (16 bits)

RSVD

I

(3 bits)

C

_
C
A
L

RETRY_LIMIT (8 bits)

TPKTSIZE (12 bits) Offset 0

Frame_Length (12 bits) Offset 12

RTSAGC (8 bits) Offset 20

Offset 4

Wireless LAN Network Interface Controller

23

Track ID: JATR-1076-21 Rev. 1.0

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

R

S
V
D

SPC A

N
T
E
N
N
A

AGC (8 bits) RSVD

(4bits)

FRAG_QSIZE (16 bits) E

M

DELAY_BOUND (16 bits) Offset 24

E

BCKEY (6 bits) P

N

N

_

_

P

B
C

P

K

D

E
Y

T

TPC

T

R

T

P

_PO

P

S

_

C

LAR

C

V

E

_

ITY

_

D

N

E
N

D
E
S
E
N

Table 28. Tx Status Descriptor

Offset# Bit# Symbol Description

0 31 OWN Ownership.

When set, this bit indicates that the descriptor is owned by the NIC, and the
data relative to this descriptor is ready to be transmitted. When cleared, it
indicates that the descriptor is owned by the host system. The NIC clears this
bit when the relative buffer data is transmitted. In this case, OWN=1.

0 30 DMA OK DMA OK.

Set by the driver, reset by the RTL8187B when TX DMA OK. If IMR’s
corresponding bit is set and the driver sets this bit, the RTL8187B resets this
bit and issues an interrupt right after DMA OK of the last segment (LS). If not,
the RTL8187B just resets this bit without asserting an interrupt.

0 29 FS First Segment Descriptor.

When set, this bit indicates that this is the first descriptor of a Tx packet, and
that this descriptor is pointing to the first segment of the packet.

0 28 LS Last Segment Descriptor.

When set, indicates that this is the last descriptor of a Tx packet, and this
descriptor is pointing to the last segment of the packet.

HW
Leng
thSel

ect

RTL8187B

Datasheet

Offset 28

Wireless LAN Network Interface Controller

24

Track ID: JATR-1076-21 Rev. 1.0

Offset# Bit# Symbol Description

0 27:24 TXRATE

0 23 RTSEN RTS Enable.

0 22:19 RTSRATE

0 18 CTSEN CTS Enable.

0 17 MOREFRAG More Fragment.

0 16 SPLCP Short Physical Layer Convergence Protocol format.

Tx Rate.
These five bits indicate the current frame’s transmission rate.

Bit 27 Bit 26 Bit 25 Bit 24

1Mbps 0 0 0 0
2Mbps 0 0 0 1

5.5Mbps 0 0 1 0
11Mbps 0 0 1 1

6Mbps 0 1 0 0

9Mbps 0 1 0 1
12Mbps 0 1 1 0
18Mbps 0 1 1 1
24Mbps 1 0 0 0
36Mbps 1 0 0 1
48Mbps 1 0 1 0
54Mbps 1 0 1 1

Reserved All other combinations

Set to 1 indicates that an RTS/CTS handshake shall be performed at the
beginning of any frame exchange sequence where the frame is of type Data or
Management, the frame has an unicast address in the Address1 field, and the
length of the frame is greater than RTSThreshold.

RTS Rate.
These four bits indicate the RTS frame’s transmission rate before transmitting

the current frame and will be ignored if the RTSEN bit is set to 0.

1Mbps 0 0 0 0
2Mbps 0 0 0 1

5.5Mbps 0 0 1 0
11Mbps 0 0 1 1
6Mbps 0 1 0 0
9Mbps 0 1 0 1
12Mbps 0 1 1 0
18Mbps 0 1 1 1
24Mbps 1 0 0 0
36Mbps 1 0 0 1
48Mbps 1 0 1 0
54Mbps 1 0 1 1
Reserved All other combinations

Both RTSEN and CTSEN set to 1 indicates that the CTS-to-self protection
mechanism will be used.

This bit is set to 1 in all data type frames that have another fragment of the
current packet to follow.

When set, this bit indicates that a short PLCP preamble will be added to the
header before transmitting the frame.

Bit 22 Bit 21 Bit 20 Bit 19

RTL8187B

Datasheet

Wireless LAN Network Interface Controller

25

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Offset# Bit# Symbol Description

0 15 NO_ENCRYPT No Encryption.

This packet will be sent out without encryption even if Tx encryption is
enabled.

0 14:12 RSVD Reserved.

0 11:0 TPKTSIZE Transmit Packet Size.

This field indicates the number of bytes required to transmit the frame.

4 31 LENGEXT Length Extension.

This bit is used to supplement the Length field (bits 30:16, offset 4). This bit
will be ignored if the TXRATE is set to 1Mbps, 2Mbps, or 5.5Mbps.

4 30:16 Length PLCP Length: The PLCP length field indicates the number of microseconds

required to transmit the frame.

4 15:0 RTSDUR RTS Duration: These bits indicate the RTS frame’s duration field before

transmitting the current frame and will be ignored if the RTSEN bit is set to 0.

8 31:0 TxBuff 32-bit Transmit Buffer Address.
12 31:16 DURATION Time duration to send this packet plus SIFS and ACK
12 15 MIC_CAL Enable MIC calculation.
12 14:12 RSVD Reserved.
12 11:0 Frame_Length Transmit Frame Length.

This field indicates the length in the Tx buffer, in bytes, to be transmitted.

16 31:0 NTDA 32-bit Address of the Next Transmit Descriptor.

20 31:27 RATE_FALL

BACK_LIMIT

20 26:23 RTS_RATE_FALL

BACK_LIMIT

20 22:19 RSVD Reserved.

20 18 PIFS Setting this bit will cause this frame be sent after PIFS

20 17 NO_ACM No admission control procedure.

20 16 RT_DB Lifetime limited by RETRY_LIMIT (RT_DB=0) or DELAY_BOUND

20 15:8 RETRY_LIMIT Retry Count Limit.

20 7:0 RTSAGC Tx RTS AGC.

24 31 RSVD Reserved.

24 30:29 SPC Short preamble count.

24 28 ANTENNA Tx Antenna.

24 27:20 AGC Tx AGC.

24 19:16 RSVD Reserved.

24 15:0 DELAY_BOUND DELAY BOUND

Data Rate Auto Fallback Limit.

RTS/CTS Rate Auto Fallback Limit.

This packet will be sent out without being restricted by admission control
procedures. For example, the management type frames shall be sent using the
access category AC_VO without being restricted by admission control
procedures.

(RT_DB=1).

00: 10 bits
01: 12 bits
10: 14 bits
11: 16 bits

Datasheet

Wireless LAN Network Interface Controller

26

Track ID: JATR-1076-21 Rev. 1.0

Offset# Bit# Symbol Description

28 31:16 FRAG_QSIZE Fragmentation Queue Size.

Upon sending the first frame of a fragmentation sequence, the driver writes the
queue size of the entire fragmentation exchange (including the first frame)
here. MAC uses this value when counting down TXOP. This field is valid
when TCR (0x40) duration processing fields are set to mode 1 or 2.

28 15 ENPMPD Enable Power Meter Pre-distortion Packet.

28 14 EN_BCKEY Enable broadcast/multicast key search when using Multiple BSSID

28 13:8 BCKEY Specify key to use in CAM for broadcast/multicast.

28 7 PT_EN Enable Power Tracking.

28 6 TPC_EN Enable TPC.

28 5:4 TPC_POLARITY TPC Polarity Select.

00: Neither increment nor decrement.
01: Increment.
10: Decrement.
11: Reserved.

28 3 TPC_DESEN TPC Descriptor AGC Enable.

0: Use the value of register TPC_TXAGC_OFDM as 54MHz TXAGC Base.
1: Use the value of AGC in the same descriptor as 54MHz TXAGC Base.

28 1:0 HWLengthSelect HW Length Select.

00: No Encryption.
01: RC4 Encryption.
10: AES Encryption.
11: Reserved.

RTL8187B

Datasheet

11.1.2. Receive

Rx Descriptor Format

Table 29. Rx Descriptor Format

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

O

D

W

N

FS L

M

S

A

=

_

0

O
K

MPDUExchangeTime (16 bits) RSVD (4

RSVD (11 bits)

TX_BUFFER_ADDRESS

NEXT_TX_ DESCRIPTOR _ADDRESS

U

T

D

O

R

K

RSVD

RSVD
RSVD
RSVD

RTS RC

(7 bits)

bits)

Frame_Length (12 bits)

Packet RC

(8 bits)

Offset 0

Offset 4
Offset 8
Offset 12

Offset 16
Offset 20
Offset 24
Offset 28

Wireless LAN Network Interface Controller

27

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Table 30. Rx Status Descriptor

Offset# Bit# Symbol Description

0 31 OWN Ownership.

When set, this bit indicates that the descriptor is owned by the NIC. When clear, it
indicates that the descriptor is owned by the host system. The NIC clears this bit
when the related buffer data has been transmitted. In this case, OWN=0.

0 30 DMA_OK DMA Okay.

0 29 FS First Segment Descriptor.

When set, this bit indicates that this is the first descriptor of a Tx packet, and that
this descriptor is pointing to the first segment of the packet.

0 28 LS Last Segment Descriptor.

When set, this bit indicates that this is the last descriptor of a Tx packet, and that
this descriptor is pointing to the last segment of the packet.

0 27:17 RSVD Reserved.

0 16 UDR FIFO underrun during transmission of this packet.

0 15 TOK Transmit (Tx) OK.

Indicates that a packet exchange sequence has completed successfully.

0 14:8 RTS RC RTS Retry Count. The RTS RC’s initial value is 0. It indicates the number of

retries of RTS.

0 7:0 Packet RC Packet Retry Count.

The RC’s initial value is 0. It indicates the number of retries before a packet was
transmitted properly.

4 31:0 RSVD Reserved.

8 31:0 TxBuff 32-bit Transmit Buffer Address.

12 31:16 MPDUExchange

Time

12 15:12 RSVD Reserved.

12 11:0 Frame_Length Transmit Frame Length.

16 31:0 NTDA 32-bit Address of Next Transmit Descriptor.

20 31:0 RSVD Reserved.

24 31:0 RSVD Reserved.

28 31:0 RSVD Reserved.

MPDUExchangeTime corresponds to the just completed MPDU exchange. The
MPDUExchangeTime equals the time required to transmit the MPDU sequence,
i.e., the time required to transmit the MPDU plus the time required to transmit the
expected response frame plus one SIFS.

This field indicates the length in the Tx buffer, in bytes, to be transmitted.

Datasheet

Wireless LAN Network Interface Controller

28

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

11.2. Rx Command

The RTL8187B supports an Rx command queue to feedback the Tx state and beacon interrupt . When the
Command Type (bit[31:30]) is set to 00b, it indicates Tx Beacon Interrupt. When set to 01b, it indicates Tx
Close Descriptor.

Table 31. Tx Beacon Interrupt

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Cmd

Type

RSVD Last Beacon CW

Last Beacon TSF[31:0]

Table 32. Tx Close Descriptor

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Cmd

Type

FS LS Sequence No[11:0] T

MAC Used Time [15:0]

RTS Retry Count[6:0] Packet Retry Count[7:0]
O
K

11.3. Loopback Operation

Loopback mode is normally used to verify that the logic operations have performed correctly. In loopback
mode, the RTL8187B takes frames from the transmit descriptor and transmits them up to internal Rx logic.
The loopback function does not apply to an external PHYceiver.

11.4. Tx Encapsulation (With RTL8187B Internal Baseband
Processor)

When operating in Tx mode, the RTL8187B encapsulates the frames that it transmits according to the
Differential Binary Phase Shift Keying (DBPSK) for 1Mbps, Differential Quaternary Phase Shift Keying
(DQPSK) for 2Mbps, and Complementary Code Keying (CCK) for 5.5Mbps and 11Mbps modulators. The
changes to the original packet data are as follows:

1. The PLCP preamble is always transmitted as the DBPSK waveform and used by the receiver to achieve

initial PN synchronization.

2. The PLCP header can be configured to be either DBPSK or DQPSK and includes the necessary data

fields of the communications protocol to establish the physical layer link.

3. The MAC frame can be configured for DBPSK, DQPSK, or CCK.

Wireless LAN Network Interface Controller

29

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

11.5. Rx Decapsulation (With RTL8187B Internal Baseband
Processor)

The RTL8187B continuously monitors the network when reception is enabled. When activity is recognized
it starts to process the incoming data. After detecting receive activity on the channel, the RTL8187B starts
to process the PLCP preamble and header based on the mode of operation.

The RTL8187B checks CRC16 and CRC32, then reports if CRC16 or CRC32 has errors. When using the
40-bit WEP and 104-bit WEP module for decryption, the RTL8187B also checks the Integrity Check Value
(ICV) and reports if the ICV has errors.

11.6. QoS Functions

The RTL8187B supports WMM, WMM Scheduled Access, and IEEE 802.11e functions.

11.7. Contention-based Admission Control Functions

Refer to Section 9.9.3 of the IEEE 802.11e specification for greater detail.

The ATL (Admitted Time Limit) is a statically set value which determines the maximum transmission time
a class can have.

Software keeps track of admitted time per access that requires admission control. Upon receipt of a
successful response frame, the non-AP QSTA adds the admitted time variable for the specified EDCAF to
the value contained in the Medium Time field of the TSPEC element. The non-AP QSTA then starts a
five-second timer. The non-AP QSTA shall update the value of used time:

A. At five second intervals

used_time = max ((used_time-admitted_time), 0)

B. After each successful or unsuccessful MPDU (re)transmission attempt,

used_time = used_time + MPDUExchangeTime

If the used_time reaches or exceeds the admitted time value, the corresponding EDCAF sets the
corresponding bit in the ACM_CONTROL register to 1. The corresponding EDCAF may then choose to
temporarily replace the EDCA parameters for the EDCAF with those specified for an access category of
lower priority, if no admission control is required for those access categories.

Wireless LAN Network Interface Controller

30

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

11.8. Duration Field Processing

The RTL8187B supports three modes of duration field processing (selected via the DurProcMode bit in
each AC_XX_TXOPQueued register).

• Mode 0: Software takes full control of duration field processing. MAC has nothing to do with it.

• Mode 1: DMA reads the 2-byte DURATION value in the TX descriptor and adds it to the

AC_XX_TXOPQueued register.

• Mode2: Hardware accumulates all the requested duration values of each EDCAF data queue and each

EDCAF FIFO and writes the value to each corresponding AC_XX_TXOPQueued register.

In Mode1 and Mode2, MAC decreases the value in the AC_XX_TXOPQueued register each time an
EDCAF packet is transmitted.

11.9. LED Functions

The RTL8187B supports 2 LED signals in 4 configurable operation modes. The following sections describe
the different LED actions.

11.9.1. Link Monitor

The Link Monitor senses the link integrity. Whenever link status is established, the specific link LED pin is
driven low.

11.9.2. Infrastructure Monitor

The Infrastructure Monitor senses the link integrity of an Infrastructure network. Whenever Link OK in
Infrastructure network status is established, the specific Infrastructure LED pin is driven low.

Wireless LAN Network Interface Controller

31

Track ID: JATR-1076-21 Rev. 1.0

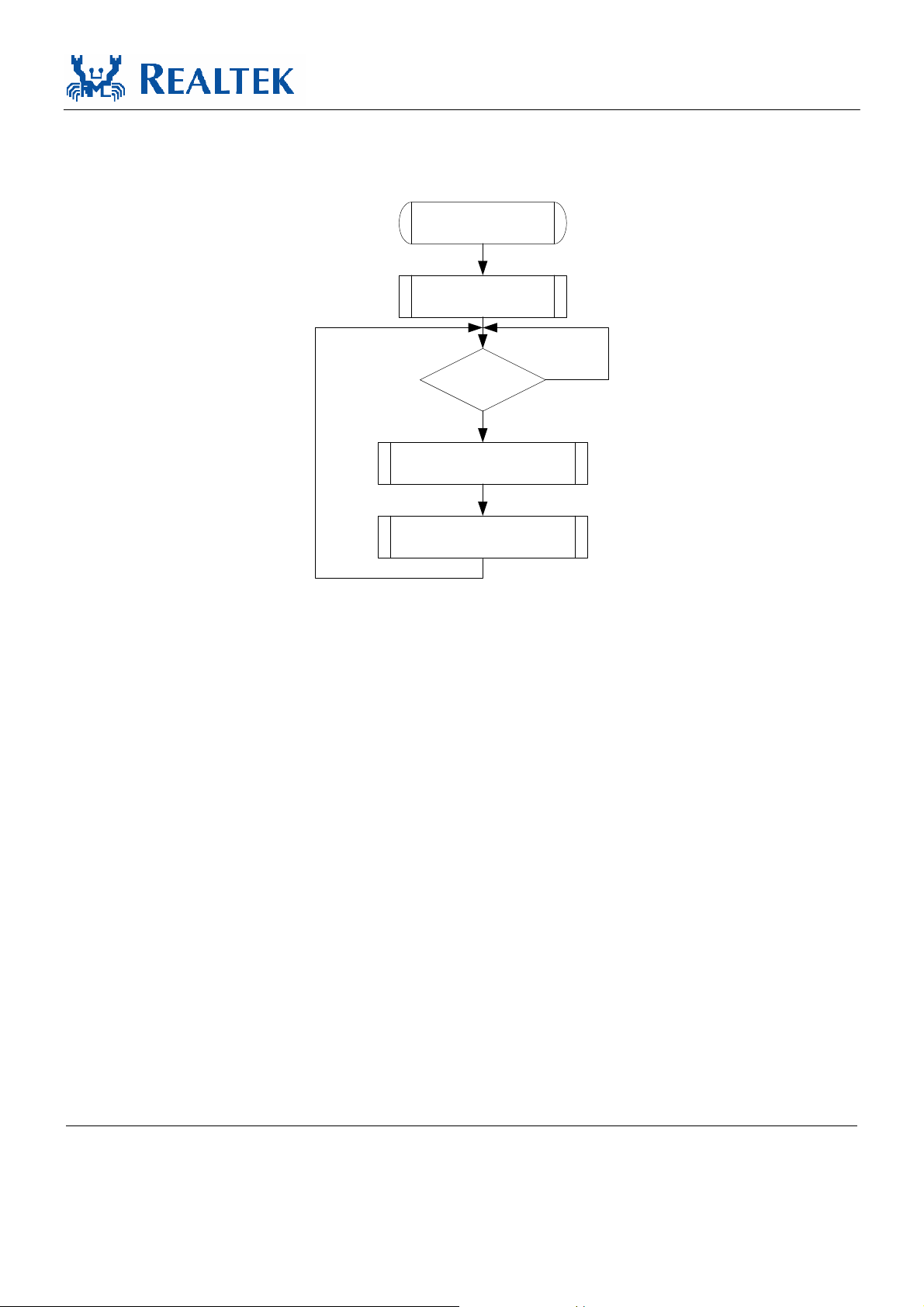

11.9.3. Rx LED

Blinking of the Rx LED indicates that receive activity is occurring.

Power On

LED = High

RTL8187B

Datasheet

Receiving

Packet?

Yes

LED = High for (100 +- 10) ms

LED = Low for (12 +- 2) ms

Figure 3. Rx LED

No

Wireless LAN Network Interface Controller

32

Track ID: JATR-1076-21 Rev. 1.0

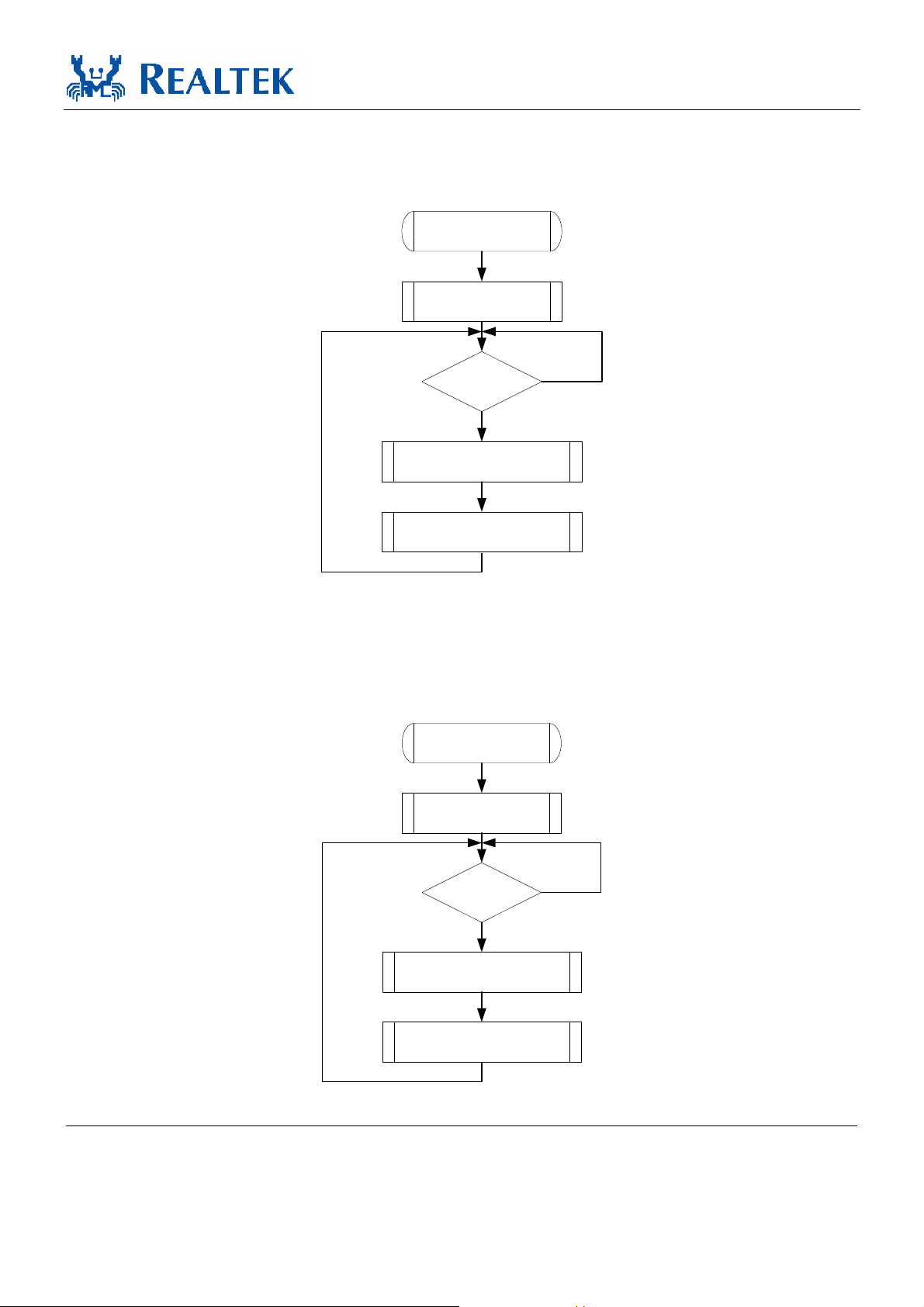

11.9.4. Tx LED

Blinking of the Tx LED indicates that transmit activity is occurring.

Power On

LED = High

RTL8187B

Datasheet

Transmitting

Packet?

Yes

LED = High for (100 +- 10) ms

LED = Low for (12 +- 2) ms

No

Figure 4. Tx LED

11.9.5. Tx/Rx LED

Blinking of the Tx/Rx LED indicates that both transmit and receive activity is occurring.

Power On

LED = High

Wireless LAN Network Interface Controller

Tx/Rx Packet?

Yes

LED = High for (100 +- 10) ms

LED = Low for (12 +- 2) ms

Figure 5. Tx/Rx LED

33

No

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

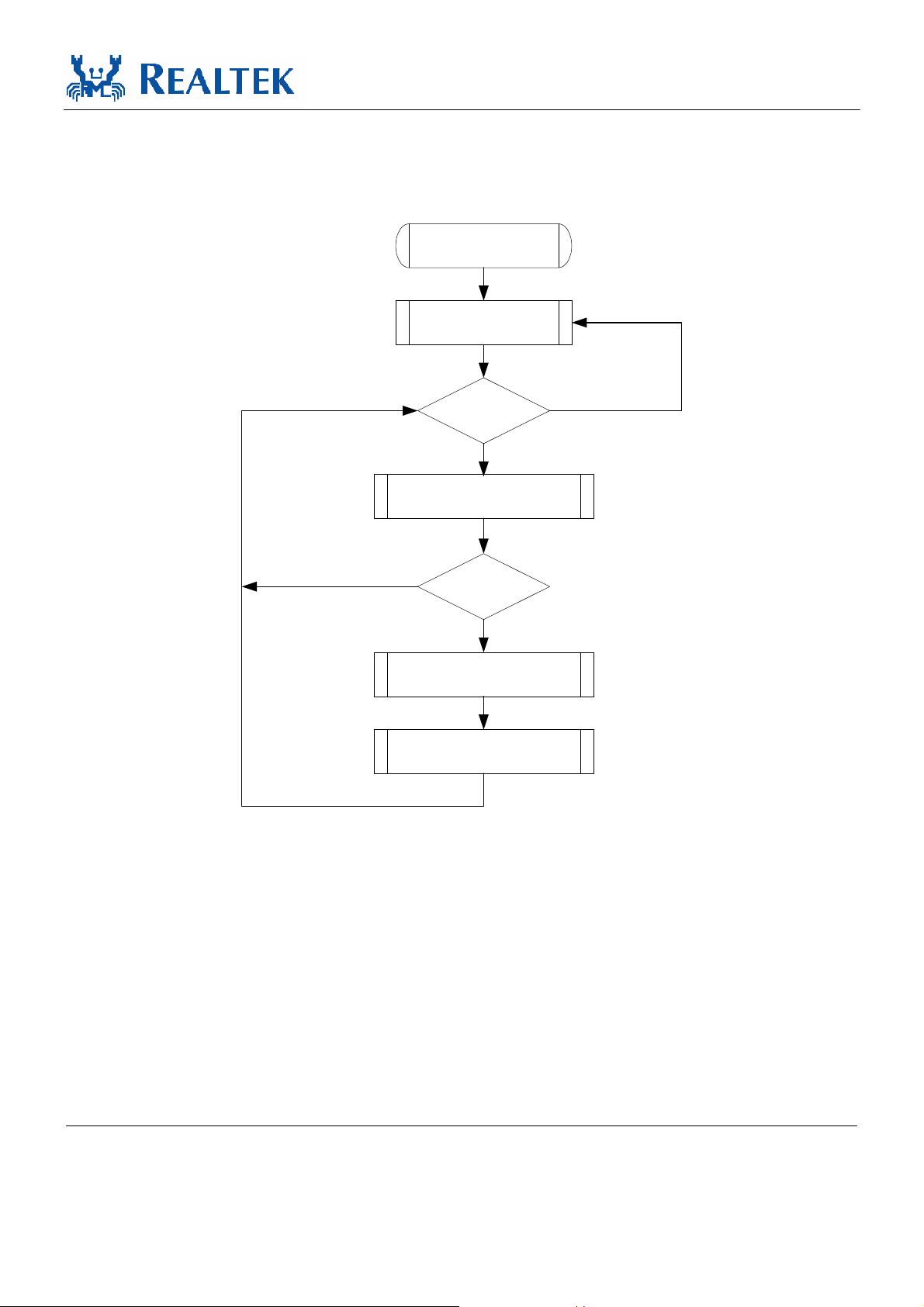

11.9.6. LINK/ACT LED

Blinking of the LINK/ACT LED indicates that the RTL8187B is linked and operating properly. If this LED
is high for extended periods it indicates that a link problem exists.

Power On

LED = High

Link?

Yes

LED = Low

No

Tx/Rx packet?

Yes

LED = High for (100 +- 10) ms

LED = Low for (12 +- 2) ms

Figure 6. LINK/ACT LED

No

Wireless LAN Network Interface Controller

34

Track ID: JATR-1076-21 Rev. 1.0

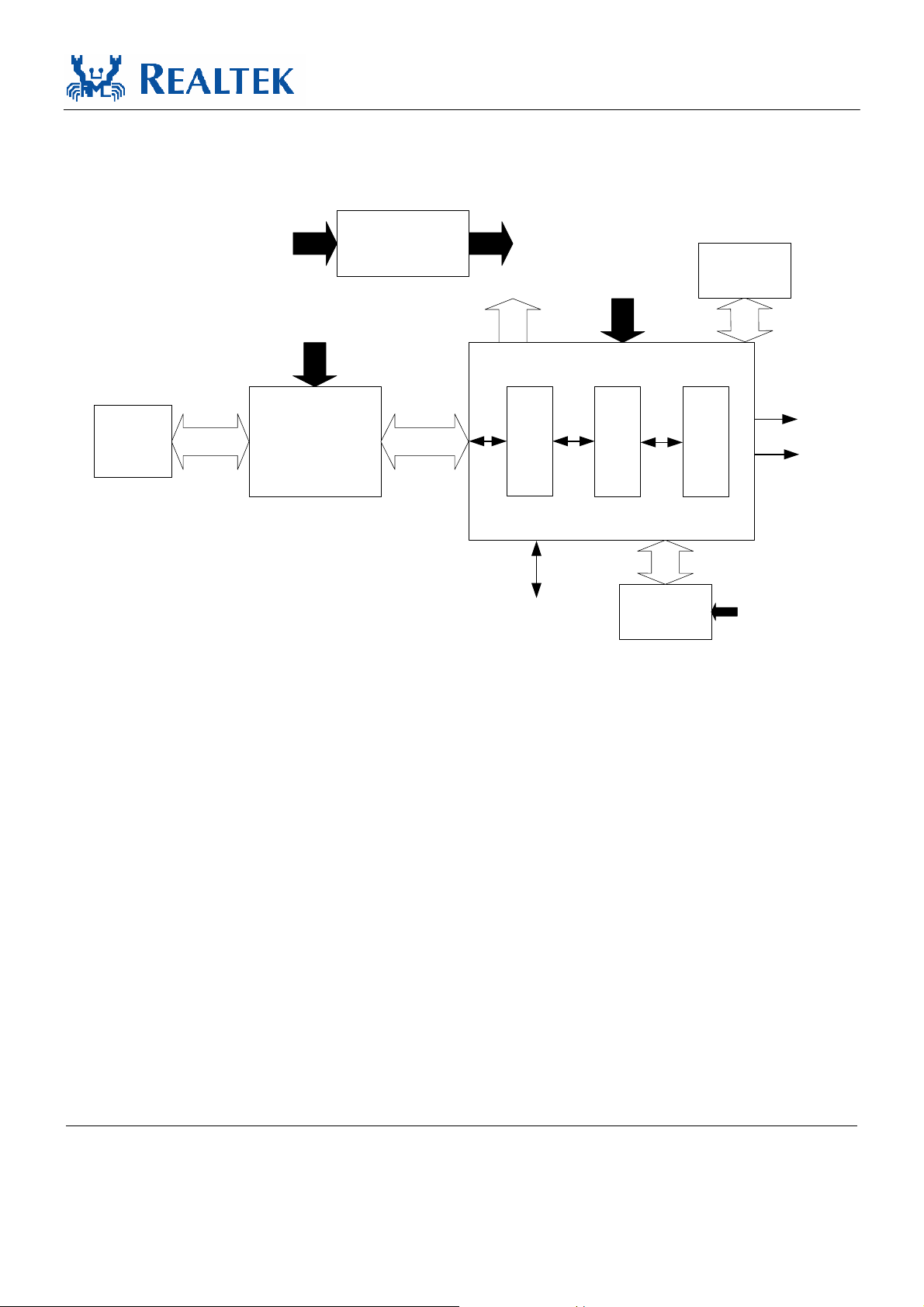

12. Application Diagram

RTL8187B

Datasheet

Main/Aux. Power

Antenna

Regulators

Power 3.3V, 1.8V

External

RF

Devices

Figure 7. Application Diagram

Power 3.3V, 1.5V

LED

Power 3.3V, 1.5V

RTL8187B

Base

Band

40MHz

Clock

EEPROM

External

ROM/RAM

SIEMAC

Power 3.3V

D+

D-

Wireless LAN Network Interface Controller

35

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

13. Electrical Characteristics

13.1. Temperature Limit Ratings

Table 33. Temperature Limit Ratings

Parameter Minimum Maximum Units

Storage temperature -55 +125 °C
Operating temperature -10 70 °C

13.2. DC Characteristics

Table 34. DC Characteristics

Symbol Parameter Conditions Minimum Typ ical Maximum Units

VDD33 3.3V Supply Voltage 3.0 3.3 3.6 V

VDD15 1.5V Supply Voltage 1.4 1.5 1.6 V

Voh Minimum High Level Output

Voltage

Vol Maximum Low Level Output

Voltage

Vih Minimum High Level Input Voltage 0.5 * Vcc Vcc+0.5 V

Vil Maximum Low Level Input Voltage -0.5 0.3 * Vcc V

Iin Input Current V

Ioz Tri-State Output Leakage Current V

Icc Average Operating Supply Current I

I

oh = -8mA

I

ol = 8mA

in =Vcc or GND

out =Vcc or GND

out =

0.9 * Vcc Vcc V

0.1 * Vcc V

0mA 242 mA

-1.0 1.0 µA

-10 10 µA

Wireless LAN Network Interface Controller

36

Track ID: JATR-1076-21 Rev. 1.0

RTL8187B

Datasheet

13.3. AC Characteristics

13.3.1. Serial EEPROM Interface Timing (93C46(64*16)/93C56(128*16))

EESK

EECS

EEDI

EEDO

EESK

EECS

EEDI

EEDO

EESK

EECS

EEDI

EEDO

EEDO

(Read)

(Read)

High Impedance

(Write)

(Write)

High Impedance

(Read)

(Program)

110An A2 A0A1

110AnA0

tskh

tcss

tdis tdih

tsv

...

tsk

...

Dn

tskl

tdos tdoh

STATUS VALID

Figure 8. Serial EEPROM Interface Timing

Dn D1 D0

0

tcs

D0

twp

tcs

BUSY READY

tcsh

Table 35. EEPROM Access Timing Parameters

Symbol Parameter Minimum Ty pica l Maximum Units

tcs Minimum CS Low Time 9346/9356 1000/250 ns

twp Write Cycle Time 9346/9356 10/10 ms

tsk SK Clock Cycle Time 9346/9356 4/1 µs

tskh SK High Time 9346/9356 1000/500 ns

tskl SK Low Time 9346/9356 1000/250 ns
tcss CS Setup Time 9346/9356 200/50 ns

tcsh CS Hold Time 9346/9356 0/0 ns

tdis DI Setup Time 9346/9356 400/50 ns
tdih DI Hold Time 9346/9356 400/100 ns
tdos DO Setup Time 9346/9356 2000/500 ns

tdoh DO Hold Time 9346/9356 2000/500 ns

tsv CS to Status Valid 9346/9356 1000/500 ns

Wireless LAN Network Interface Controller

37

Track ID: JATR-1076-21 Rev. 1.0

14. Mechanical Dimensions

RTL8187B

Datasheet

See the Mechanical Dimensions notes on the next page.

Wireless LAN Network Interface Controller

38

Track ID: JATR-1076-21 Rev. 1.0

14.1. Mechanical Dimensions Notes

Symbol Dimension in inch Dimension in mm

Min Typical Max Min Typical Max protrusion/intrusion.

A

A1

A2

b
c

D

D1

e

E

E1

L

L1

Θ

- - 0.063 - - 1.60 2.Controlling dimension: Millimeter

0.002 - - 0.05 - - 3.General appearance spec. should be based

0.053 0.055 0.057 1.35

0.005 0.007 0.009 0.13

0.004 - 0.006 0.09 - 0.20 TITLE: 128LD LQFP ( 14x14x1.4 mm*2 ) PACKAGE OUTLINE

0.624 0.630 0.636 15.85

0.547 0.551 0.555 13.90

0.016 BSC 0.40 BSC

0.624 0.630 0.636 15.85

0.547 0.551 0.555 13.90

0.018 0.024 0.030 0.45

0.039 REF 1.00 REF

0° 3.5° 7° 0° 3.5° 7°

1.40

0.18

16.00

14.00

16.00

14.00

0.60

1.45 on final visual inspection spec.

0.23

16.15 -CU L/F, FOOTPRINT 2.0 mm

14.10 LEADFRAME MATERIAL:

16.15 VERSION 1

14.10 PAGE OF

0.75 CHECK DWG NO. LQ128 - 2

Note:

1.Dimension b does not include dambar

APPROVE DOC. NO. 530-ASS-P004

DATE MAY. 13.2002

REALTEK SEMICONDUCTOR CORP.

RTL8187B

Datasheet

15. Ordering Information

Table 36. Ordering Information

Part Number Package Status

RTL8187B-GR 128-pin LQFP with green package MP

Note: See page 5 for Green package identification.

Realtek Semiconductor Corp.
Headquarters

No. 2, Innovation Road II, Hsinchu Science Park,
Hsinchu 300, Taiwan.
Tel: [phone] Fax: [phone]
www.realtek.com.tw

Wireless LAN Network Interface Controller

39

Track ID: JATR-1076-21 Rev. 1.0

=

Test Report

REALTEK SEMICONDUCTOR CORP.
NO. 2, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL

PARK, HSINCHU 300, TAIWAN

The following merchandise was (were) submitted and identified by the client as :

Report No. : CE/2005/12075
Date : 2005/01/20
Page : 1 of 2

Type of Product
Style/Item No
Sample Received
Testing Date

LQFP (LF)

:

4C055S2

:
:

2005/01/13

:

2005/01/13 TO 2005/01/20

===========================================================================

:

Test Result

- Please see the next page -

The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full,
without prior written permission of the Company

SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan.

t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw

/

)

/

)

Test Report

REALTEK SEMICONDUCTOR CORP.
NO. 2, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL

PARK, HSINCHU 300, TAIWAN

Test Result

Report No. : CE/2005/12075
Date : 2005/01/20
Page : 2 of 2

PART NAME NO.1 :

MIXED BLACK PLASTIC BODY&SILVER COLORED
METAL-MIXED ALL PART

Test Item (s): Method MDLUnit

PBBs(Polybrominated
biphenyls)(CAS NO:059536­65-1)

% With reference to

USEPA3540 or USEPA3550.
Analysis was performed by
HPLC/DAD, LC/MS or
GC/MS. (prohibited by
2002/95/EC (RoHS),
83/264/EEC, and
76

769/EEC
PBBEs(PBDEs)(Polybrominat
ed biphenyl ethers)

% With reference to

USEPA3540 or USEPA3550.
Analysis was performed by
HPLC/DAD, LC/MS or
GC/MS. (prohibited by
2002/95/EC (RoHS),
83/264/EEC, and
76

769/EEC

Test Item (s): Unit Method MDL

Chromium VI (Cr+6) ppm As per US EPA 7196A and

US EPA 3060A.

Cadmium (Cd) ppm ICP-AES after as per EN

1122, method B:2001 or
other acid digestion.

Mercury (Hg) ppm ICP-AES after as per US

EPA 3052 or other acid
digestion.

Lead (Pb) ppm ICP-AES after as per US

EPA 3050B or other acid
digestion.

Result

No.1

0.0005 N.D.

0.0005 N.D.

Result

No.1

2 N.D.

2 N.D.

2 N.D.

2 N.D.

NOTE： (1) N.D. = Not detected (<MDL)
(2) ppm = mg/kg
(3) MDL = Method Detection Limit

The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full,
without prior written permission of the Company

SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan.

t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw

Federal Communication Commission Interference

Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with

any other antenna or transmitter.

IMPORTANT NOTE:

This module is intended for OEM integrator. The OEM integrator is still responsible

for the FCC compliance requirement of the end prouduct which integrates this

module.

20cm minimum distance has to be able to be maintained between the antenna and

the users for the host this module is integrated into. Under such configuration, the

FCC radiation exposure limits set forth for an population/uncontrolled environment

can be satisfied.

Any changes or modifications not expressly approved by the manufacturer

could void the user's authority to operate this equipment.

USERS MANUAL OF THE END PRODUCT:

In the users manual of the end product, the end user has to be informed to keep

at least 20cm separation with the antenna while this end product is installed and

operated. The end user has to be informed that the FCC radio-frequency

exposure guidelines for an uncontrolled environment can be satisfied. The end

user has to also be informed that any changes or modifications not expressly

approved by the manufacturer could void the user's authority to operate this

equipment. If the size of the end product is smaller than 8x10cm, then additional

FCC part 15.19 statement is required to be available in the users manual: This

device complies with Part 15 of FCC rules. Operation

is subject to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including

interference that may cause undesired operation.

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following

" Contains TX FCC ID: TX2-RTL8187B ". If the size of the end product is larger than

8x10cm, then the following FCC part 15.19 statement has to also

be available on the label: This device complies with Part 15 of FCC rules. Operation

is subject to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including

interference that may cause undesired operation.

IC Radiation Exposure Statement:

"Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device."

Without Co-located
The antenna (s) used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.

For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.

Modular OEM Integrator Notice
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users. The final end product must be labeled
in a visible area with the following: "Contains TX IC: 6317A-RTL8187B"
