Datasheet RTL8111C-GR Datasheet (Realtek)

Download

Page 1

RTL8111C-GR

INTEGRATED GIGABIT ETHERNET CONTROLLER

FOR PCI EXPRESS™ APPLICATIONS

DATASHEET

Rev. 1.1

09 February 2007

Track ID: JATR-1076-21

Realtek Semiconductor Corp.

No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw

Page 2

RTL8111C-GR

Datasheet

©2007 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp.

DISCLAIMER

Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors.

TRADEMARKS

Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners.

USING THIS DOCUMENT

This document is intended for the software engineer’s reference and provides detailed programming information.

Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your Realtek representative for additional information that may help in the development process.

REVISION HISTORY

Revision Release Date Summary

1.0 2006/12/12 First release.

1.1 2007/02/09

Changed Figure 1, Pin Assignments, page 3. Changed Table 8, Power & Ground, page 7. Removed SMBus table. Added Table 9, GPIO Pins, page 7. Changed Table 10, NC (Not Connected) Pins, page 4. Renamed VDD12 to DVDD12.

Integrated Gigabit Ethernet Controller for PCI Express ii Track ID: JATR-1076-21 Rev. 1.1

Page 3

RTL8111C-GR

Datasheet

Table of Contents

1. General Description .................................................................................................... 1

2. Features ........................................................................................................................2

3. System Applications .................................................................................................... 2

4. Pin Assignments........................................................................................................... 3

4.1. PACKAGE IDENTIFICATION ...............................................................................................................3

5. Pin Descriptions........................................................................................................... 4

5.1. POWER MANAGEMENT/ISOLATION...................................................................................................4

5.2. PCI

5.3. EEPROM.........................................................................................................................................5

5.4. T

5.5. CLOCK..............................................................................................................................................6

5.6. REGULATOR & REFERENCE..............................................................................................................6

5.7. LEDS ...............................................................................................................................................6

5.8. POWER & GROUND...........................................................................................................................7

5.9. GPIO................................................................................................................................................7

5.10. NC (NOT CONNECTED) PINS ............................................................................................................7

EXPRESS INTERFACE .................................................................................................................4

RANSCEIVER INTERFACE ................................................................................................................5

6. Functional Description................................................................................................ 8

6.1. PCI EXPRESS BUS INTERFACE ..........................................................................................................8

6.1.1. PCI Express Transmitter.........................................................................................................................................8

6.1.2. PCI Express Receiver .............................................................................................................................................8

6.2. LED FUNCTIONS ..............................................................................................................................8

6.2.1. Link Monitor...........................................................................................................................................................8

6.2.2. Rx LED...................................................................................................................................................................9

6.2.3. Tx LED ...................................................................................................................................................................9

6.2.4. Tx/Rx LED............................................................................................................................................................10

6.2.5. LINK/ACT LED .................................................................................................................................................... 11

6.3. PHY

6.3.1. PHY Transmitter ...................................................................................................................................................12

6.3.2. PHY Receiver........................................................................................................................................................12

6.4. NEXT PAGE ....................................................................................................................................13

6.5. EEPROM

6.6. P

6.7. V

6.8. MESSAGE SIGNALED INTERRUPT (MSI) .........................................................................................17

6.8.1. MSI Capability Structure in PCI Configuration Space.........................................................................................17

6.8.2. Message Control...................................................................................................................................................18

6.8.3. Message Address ..................................................................................................................................................18

6.8.4. Message Upper Address .......................................................................................................................................19

6.8.5. Message Data.......................................................................................................................................................19

6.9. MSI-X............................................................................................................................................20

6.9.1. MSI-X Capability Structure in PCI Configuration Space.....................................................................................20

TRANSCEIVER ........................................................................................................................12

INTERFACE ....................................................................................................................13

OWER MANAGEMENT ...................................................................................................................14

ITAL PRODUCT DATA (VPD) .......................................................................................................16

Integrated Gigabit Ethernet Controller for PCI Express iii Track ID: JATR-1076-21 Rev. 1.1

Page 4

RTL8111C-GR

Datasheet

6.9.2. Message Control...................................................................................................................................................21

6.9.3. Table Offset/BIR ...................................................................................................................................................21

6.9.4. PBA Offset/PBA BIR.............................................................................................................................................22

6.9.5. Message Address for MSI-X Table Entries ...........................................................................................................22

6.9.6. Message Upper Address for MSI-X Table Entries ................................................................................................23

6.9.7. Message Data for MSI-X Table Entries ................................................................................................................23

6.9.8. Vector Control for MSI-X Table Entries ...............................................................................................................23

6.9.9. Pending Bits for MSI-X PBA Entries....................................................................................................................23

6.10. RECEIVE-SIDE SCALING (RSS).......................................................................................................24

6.10.1. Receive-Side Scaling (RSS) Initialization.............................................................................................................24

6.10.2. RSS Operation ......................................................................................................................................................25

7. Characteristics ........................................................................................................... 26

7.1. ABSOLUTE MAXIMUM RATINGS .....................................................................................................26

7.2. R

7.3. C

7.4. THERMAL CHARACTERISTICS .........................................................................................................27

7.5. DC CHARACTERISTICS ...................................................................................................................27

7.6. AC CHARACTERISTICS ...................................................................................................................28

7.6.1. Serial EEPROM Interface Timing ........................................................................................................................28

7.7. PCI EXPRESS BUS PARAMETERS ....................................................................................................30

7.7.1. Differential Transmitter Parameters.....................................................................................................................30

7.7.2. Differential Receiver Parameters.........................................................................................................................31

7.7.3. REFCLK Parameters............................................................................................................................................31

7.7.4. Auxiliary Signal Timing Parameters ....................................................................................................................35

ECOMMENDED OPERATING CONDITIONS......................................................................................26

RYSTAL REQUIREMENTS ..............................................................................................................26

8. Mechanical Dimensions ............................................................................................ 36

9. Ordering Information ............................................................................................... 36

Integrated Gigabit Ethernet Controller for PCI Express iv Track ID: JATR-1076-21 Rev. 1.1

Page 5

RTL8111C-GR

Datasheet

List of Tables

Table 1. Power Management/Isolation .....................................................................................................4

Table 2. PCI Express Interface .................................................................................................................4

Table 3. EEPROM ....................................................................................................................................5

Table 4. Transceiver Interface ..................................................................................................................5

Table 5. Clock...........................................................................................................................................6

Table 6. Regulator & Reference ...............................................................................................................6

Table 7. LEDs...........................................................................................................................................6

Table 8. Power & Ground.........................................................................................................................7

Table 9. GPIO Pins ...................................................................................................................................7

Table 10. NC (Not Connected) Pins ...........................................................................................................7

Table 11. EEPROM Interface...................................................................................................................13

Table 12. Message Control .......................................................................................................................18

Table 13. Message Address ......................................................................................................................18

Table 14. Message Upper Address ...........................................................................................................19

Table 15. Message Data............................................................................................................................19

Table 16. Message Control .......................................................................................................................21

Table 17. Table Offset/BIR ......................................................................................................................21

Table 18. PBA Offset/PBA BIR...............................................................................................................22

Table 19. Message Address for MSI-X Table Entries..............................................................................22

Table 20. Message Upper Address for MSI-X Table Entries...................................................................23

Table 21. Message Data............................................................................................................................23

Table 22. Vector Control for MSI-X Table Entries..................................................................................23

Table 23. Pending Bits for MSI-X PBA Entries.......................................................................................23

Table 24. Absolute Maximum Ratings.....................................................................................................26

Table 25. Recommended Operating Conditions.......................................................................................26

Table 26. Crystal Requirements ...............................................................................................................26

Table 27. Thermal Characteristics............................................................................................................27

Table 28. DC Characteristics....................................................................................................................27

Table 29. EEPROM Access Timing Parameters ......................................................................................29

Table 30. Differential Transmitter Parameters .........................................................................................30

Table 31. Differential Receiver Parameters..............................................................................................31

Table 32. REFCLK Parameters ................................................................................................................31

Table 33. Auxiliary Signal Timing Parameters ........................................................................................35

Table 34. Ordering Information................................................................................................................36

Integrated Gigabit Ethernet Controller for PCI Express v Track ID: JATR-1076-21 Rev. 1.1

Page 6

RTL8111C-GR

Datasheet

List of Figures

Figure 1. Pin Assignments........................................................................................................................3

Figure 2. Rx LED .....................................................................................................................................9

Figure 3. Tx LED......................................................................................................................................9

Figure 4. Tx/Rx LED..............................................................................................................................10

Figure 5. LINK/ACT LED .....................................................................................................................11

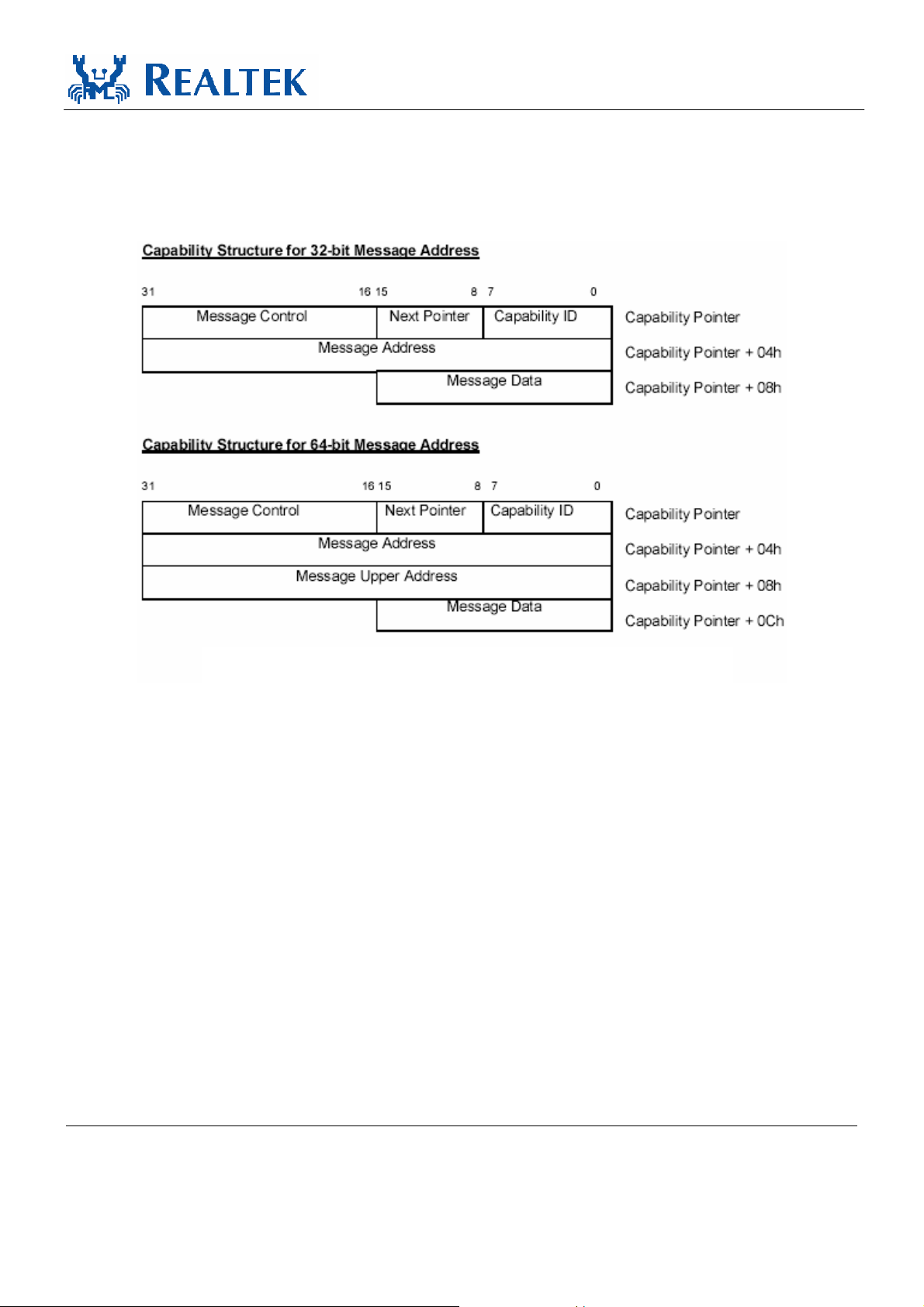

Figure 6. Message Capability Structure..................................................................................................17

Figure 7. MSI-X Capability Structure ....................................................................................................20

Figure 8. MSI-X Table Structure............................................................................................................20

Figure 9. MSI-X PBA Structure .............................................................................................................20

Figure 10. Serial EEPROM Interface Timing ..........................................................................................28

Figure 11. Single-Ended Measurement Points for Absolute Cross Point and Swing...............................33

Figure 12. Single-Ended Measurement Points for Delta Cross Point ......................................................33

Figure 13. Single-Ended Measurement Points for Rise and Fall Time Matching....................................33

Figure 14. Differential Measurement Points for Duty Cycle and Period .................................................34

Figure 15. Differential Measurement Points for Rise and Fall Time .......................................................34

Figure 16. Differential Measurement Points for Ringback ......................................................................34

Figure 17. Reference Clock System Measurement Point and Loading....................................................35

Figure 18. Auxiliary Signal Timing..........................................................................................................35

Integrated Gigabit Ethernet Controller for PCI Express vi Track ID: JATR-1076-21 Rev. 1.1

Page 7

RTL8111C-GR

Datasheet

1. General Description

The Realtek RTL8111C-GR Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111C-GR offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

The RTL8111C-GR is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space.

Advanced Configuration Power management Interface (ACPI)—power management for modern operating systems that are capable of Operating System-directed Power Management (OSPM)—is supported to achieve the most efficient power management possible. PCI MSI (Message Signaled Interrupt) and MSI-X are also supported.

In addition to the ACPI feature, remote wake-up (including AMD Magic Packet™ and Microsoft® Wake-up frame) is supported in both ACPI and APM (Advanced Power Management) environments. To support WOL from a deep power down state (e.g., D3cold, i.e. main power is off and only auxiliary exists), the auxiliary power source must be able to provide the needed power for the RTL8111C-GR.

The RTL8111C-GR is fully compliant with Microsoft® NDIS5, NDIS6(IPv4, IPv6, TCP, UDP) Checksum and Segmentation Task-offload(Large send and Giant send) features, and supports IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q Virtual bridged Local Area Network (VLAN). The above features contribute to lowering CPU utilization, especially benefiting performance when in operation on a network server.

The RTL8111C-GR supports Receive Side Scaling (RSS) to hash incoming TCP connections and load-balance received data processing across multiple CPUs. RSS improves the number of transactions per second and number of connections per second, for increased network throughput.

The device also features inter-connect PCI Express technology. PCI Express is a high-bandwidth, low pin count, serial, interconnect technology that offers significant improvements in performance over conventional PCI and also maintains software compatibility with existing PCI infrastructure. The device embeds an adaptive equalizer in the PCIe PHY for ease of system integration and excellent link quality. The equalizer enables the length of the PCB traces to reach 40 inches.

The RTL8111C-GR is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, and embedded applications.

Integrated Gigabit Ethernet Controller for PCI Express 1 Track ID: JATR-1076-21 Rev. 1.1

Page 8

2. Features

RTL8111C-GR

Datasheet

 Integrated 10/100/1000 transceiver

 Auto-Negotiation with Next Page

capability

 Supports PCI Express™ 1.1

 Supports pair swap/polarity/skew

correction

 Crossover Detection & Auto-Correction

 Wake-on-LAN and remote wake-up

support

 Microsoft

NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send and Giant send) support

 Supports Full Duplex flow control

(IEEE 802.3x)

 Fully compliant with IEEE 802.3,

IEEE 802.3u, IEEE 802.3ab

 Supports IEEE 802.1P Layer 2 Priority

Encoding

 Supports IEEE 802.1Q VLAN tagging

 Serial EEPROM

 Transmit/Receive on-chip buffer

support

 Supports power down/link down power

saving

 Supports PCI MSI (Message Signaled

Interrupt) and MSI-X

 Supports Receive-Side Scaling (RSS)

 64-pin QFN package (Green package)

 Embeds an adaptive equalizer in PCI

express PHY (PCB traces to reach 40 inches)

3. System Applications

 PCI Express™ Gigabit Ethernet on Motherboard, Notebook, or Embedded system

Integrated Gigabit Ethernet Controller for PCI Express 2 Track ID: JATR-1076-21 Rev. 1.1

Page 9

4. Pin Assignments

RTL8111C-GR

Datasheet

DVDD12

IGPIO

OGPIO

DVDD12

VDD33

LED3

LED2

LED1

LED0

AVDD12

AVDD33

CKTAL1

CKTAL2

ENSR

VDDSR

RSET

EESK

EEDI/AUX

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

123456789

EEDO

VDD33

LLLLLLL TXXXV

65 GND (Exposed Pad)

EECS

DVDD12

NCNCNC

RTL8111C

DVDD12

VDD33

10 11 12 13 14 15 16

ISOLATEB

CLKREQB

DVDD12

EGND

HSON

HSOP

EVDD12

REFCLK_N

REFCLK_P

EGND

HSIN

HSIP

EVDD12

DVDD12

PERSTB

LANW AKEB

MDIP0

AVDD33

SROUT12

FB12

MDIN0

MDIP1

MDIN1

Figure 1. Pin Assignments

AVDD12

MDIP2

MDIN2

AVDD12

MDIP3

MDIN3

AVDD12

VDD33

4.1. Package Identification

‘Green’ package is indicated by a ‘G’ in the location marked ‘T’ in Figure 1.

Integrated Gigabit Ethernet Controller for PCI Express 3 Track ID: JATR-1076-21 Rev. 1.1

Page 10

5. Pin Descriptions

The signal type codes below are used in the following tables:

I: Input S/T/S: Sustained Tri-State

O: Output O/D: Open Drain

T/S: Tri-State bi-directional input/output pin

5.1. Power Management/Isolation

Table 1. Power Management/Isolation

Symbol Type Pin No Description

LANWAKEB O/D 19

ISOLATEB I 36

Power Management Event: Open drain, active low. Used to reactivate the PCI Express slot’s main power rails and reference clocks. Isolate Pin: Active low. Used to isolate the RTL8111C-GR from the PCI Express bus. The RTL8111C-GR will not drive its PCI Express outputs (excluding LANWAKEB) and will not sample its PCI Express input as long as the Isolate pin is asserted.

RTL8111C-GR

Datasheet

5.2. PCI Express Interface

Table 2. PCI Express Interface

Symbol Type Pin No Description

REFCLK_P I 26 REFCLK_N I 27 HSOP O 29 HSON O 30 HSIP I 23 HSIN I 24

PERSTB I 20

CLKREQB O/D 33

PCI Express Differential Reference Clock Source: 100MHz ± 300ppm.

PCI Express Transmit Differential Pair.

PCI Express Receive Differential Pair.

PCI Express Reset Signal: Active low. When the PERSTB is asserted at power-on state, the RTL8111C-GR returns to a pre-defined reset state and is ready for initialization and configuration after the de-assertion of the PERSTB. Reference clock request signal. This signal is used by the RTL8111C-GR to request starting of the PCI Express reference clock.

Integrated Gigabit Ethernet Controller for PCI Express 4 Track ID: JATR-1076-21 Rev. 1.1

Page 11

5.3. EEPROM

Table 3. EEPROM

Symbol Type Pin No Description

EESK O 48 Serial data clock.

EEDI: Output to serial data input pin of EEPROM. AUX: Input pin to detect if Aux. Power exists or not on initial power-on.

EEDI/AUX O/I 47

EEDO I 45 Input from serial data output pin of EEPROM. EECS O 44 EECS: EEPROM chip select.

This pin should be connected to EEPROM. To support wakeup from ACPI D3cold or APM power-down, this pin must be pulled high to Aux. Power via a resistor. If this pin is not pulled high to Aux. Power, the RTL8111C-GR assumes that no Aux. Power exists.

5.4. Transceiver Interface

Table 4. Transceiver Interface

Symbol Type Pin No Description

MDIP0 I/O 3

MDIN0 I/O

MDIP1 I/O 6

MDIN1 I/O

MDIP2 I/O 9 MDIN2 I/O 10 MDIP3 I/O 12 MDIN3 I/O 13

In MDI mode, this is the first pair in 1000Base-T, i.e. the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX. In MDI crossover mode, this pair acts as the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX. In MDI mode, this is the second pair in 1000Base-T, i.e. the BI_DB+/- pair, and is the transmit pair in 10Base-T and 100Base-TX. In MDI crossover mode, this pair acts as the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX. In MDI mode, this is the third pair in 1000Base-T, i.e. the BI_DC+/- pair. In MDI crossover mode, this pair acts as the BI_DD+/- pair. In MDI mode, this is the fourth pair in 1000Base-T, i.e. the BI_DD+/- pair. In MDI crossover mode, this pair acts as the BI_DC+/- pair.

RTL8111C-GR

Datasheet

Integrated Gigabit Ethernet Controller for PCI Express 5 Track ID: JATR-1076-21 Rev. 1.1

Page 12

5.5. Clock

Table 5. Clock

Symbol Type Pin No Description

CKTAL1 I 60 Input of 25MHz clock reference. CKTAL2 O 61 Output of 25MHz clock reference.

5.6. Regulator & Reference

Table 6. Regulator & Reference

Symbol Type Pin No Description

SROUT12 O 1 Switching regulator 1.2V output. Connect to 5uH inductor. FB12 I 5 Feedback pin for switching regulator.

ENSR I 62

VDDSR Power 63 Digital 3.3V power supply for switching regulator. RSET I 64 Reference. External resistor reference.

3.3V: Enable switching regulator. 0 V: disable switching regulator.

RTL8111C-GR

Datasheet

5.7. LEDs

Table 7. LEDs

Symbol Type Pin No Description

LED0 O 57 LED1 O 56 LED2 O 55

LED3 O 54

Note 1: During power down mode, the LED signals are logic high. Note 2: LEDS1-0’s initial value comes from the 93C46. If there is no 93C46, the

default value of the (LEDS1, LEDS0) = (1, 1).

LEDS1-0 00 01 10 11

LED0 Tx/Rx Tx/Rx Tx LINK10/ACT

LED1 LINK100

LED2 LINK10 LINK10/100 Rx FULL

LED3 LINK1000 LINK1000 FULL

LINK10/100/

1000

LINK

LINK100/

ACT

LINK1000/

ACT

Integrated Gigabit Ethernet Controller for PCI Express 6 Track ID: JATR-1076-21 Rev. 1.1

Page 13

5.8. Power & Ground

Table 8. Power & Ground

Symbol Type Pin No Description

VDD33 Power 16, 37, 46, 53 Digital 3.3V power supply. DVDD12 Power 21, 32, 38, 43, 49, 52 Digital 1.2V power supply. AVDD12 Power 8, 11, 14, 58 Analog 1.2V power supply. EVDD12 Power 22, 28 Analog 1.2V power supply. AVDD33 Power 2, 59 Analog 3.3V power supply. EGND Power 25, 31 Analog Ground. GND Power 65 Ground (Exposed Pad).

Note: Refer to the most updated schematic circuit for correct configuration.

5.9. GPIO

Table 9. GPIO Pins

Symbol Type Pin No Description

IGPIO I 50 Input GPIO Pin.

Output GPIO Pin. This pin reflects the link up or link down state.

OGPIO O 51

High: Link up Low: Link down.

RTL8111C-GR

Datasheet

5.10. NC (Not Connected) Pins

Table 10. NC (Not Connected) Pins

Symbol Type Pin No Description

NC -

15, 17, 18, 34, 35, 39,

40, 41, 42

Not Connected.

Integrated Gigabit Ethernet Controller for PCI Express 7 Track ID: JATR-1076-21 Rev. 1.1

Page 14

RTL8111C-GR

Datasheet

6. Functional Description

6.1. PCI Express Bus Interface

The RTL8111C-GR is compliant with PCI Express Base Specification Revision 1.1, and runs at a 2.5GHz signaling rate with X1 link width, i.e., one transmit and one receive differential pair. The RTL8111C-GR supports four types of PCI Express messages: interrupt messages, error messages, power management messages, and hot-plug messages. To ease PCB layout constraints, PCI Express lane polarity reversal and link reversal are also supported.

6.1.1. PCI Express Transmitter

The RTL8111C-GR’s PCI Express block receives digital data from the Ethernet interface and performs data scrambling with Linear Feedback Shift Register (LFSR) and 8B/10B coding technology into 10-bit code groups. Data scrambling is used to reduce the possibility of electrical resonance on the link, and 8B/10B coding technology is used to benefit embedded clocking, error detection, and DC balance by adding an overhead to the system through the addition of 2 extra bits. The data code groups are passed through its serializer for packet framing. The generated 2.5Gbps serial data is transmitted onto the PCB trace to its upstream device via a differential driver.

6.1.2. PCI Express Receiver

The RTL8111C-GR’s PCI Express block receives 2.5Gbps serial data from its upstream device to generate parallel data. The receiver’s PLL circuits are re-synchronized to maintain bit and symbol lock. Through 8B/10B decoding technology and data de-scrambling, the original digital data is recovered and passed to the RTL8111C-GR’s internal Ethernet MAC to be transmitted onto the Ethernet media.

6.2. LED Functions

The RTL8111C-GR supports four LED signals in four different configurable operation modes. The following sections describe the various LED actions.

6.2.1. Link Monitor

The Link Monitor senses link integrity, such as LINK10, LINK100, LINK1000, LINK10/100/1000, LINK10/ACT, LINK100/ACT, or LINK1000/ACT. Whenever link status is established, the specific link LED pin is driven low. Once a cable is disconnected, the link LED pin is driven high, indicating that no network connection exists.

Integrated Gigabit Ethernet Controller for PCI Express 8 Track ID: JATR-1076-21 Rev. 1.1

Page 15

RTL8111C-GR

Datasheet

6.2.2. Rx LED

In 10/100/1000Mbps mode, blinking of the Rx LED indicates that receive activity is occurring.

Power On

LED = High

Receiving

Packet?

Yes

LED = High for 40 ms

LED = Low for 40 ms

Figure 2. Rx LED

6.2.3. Tx LED

In 10/100/1000Mbps mode, blinking of the Tx LED indicates that transmit activity is occurring.

Power On

LED = High

Transmitting

Packet?

Yes

LED = High for 40 ms

LED = Low for 40 ms

Figure 3. Tx LED

Integrated Gigabit Ethernet Controller for PCI Express 9 Track ID: JATR-1076-21 Rev. 1.1

Page 16

RTL8111C-GR

Datasheet

6.2.4. Tx/Rx LED

In 10/100/1000Mbps mode, blinking of the Tx/Rx LED indicates that both transmit and receive activity is occurring.

Power On

LED = High

Tx/Rx Packet?

Yes

LED = High for 40 ms

LED = Low for 40 ms

Figure 4. Tx/Rx LED

Integrated Gigabit Ethernet Controller for PCI Express 10 Track ID: JATR-1076-21 Rev. 1.1

Page 17

RTL8111C-GR

Datasheet

6.2.5. LINK/ACT LED

In 10/100/1000Mbps mode, blinking of the LINK/ACT LED indicates that the RTL8111C-GR is linked and operating properly. When this LED is high for extended periods, it indicates that a link problem exists.

Power On

LED = High

Link?

Yes

LED = Low

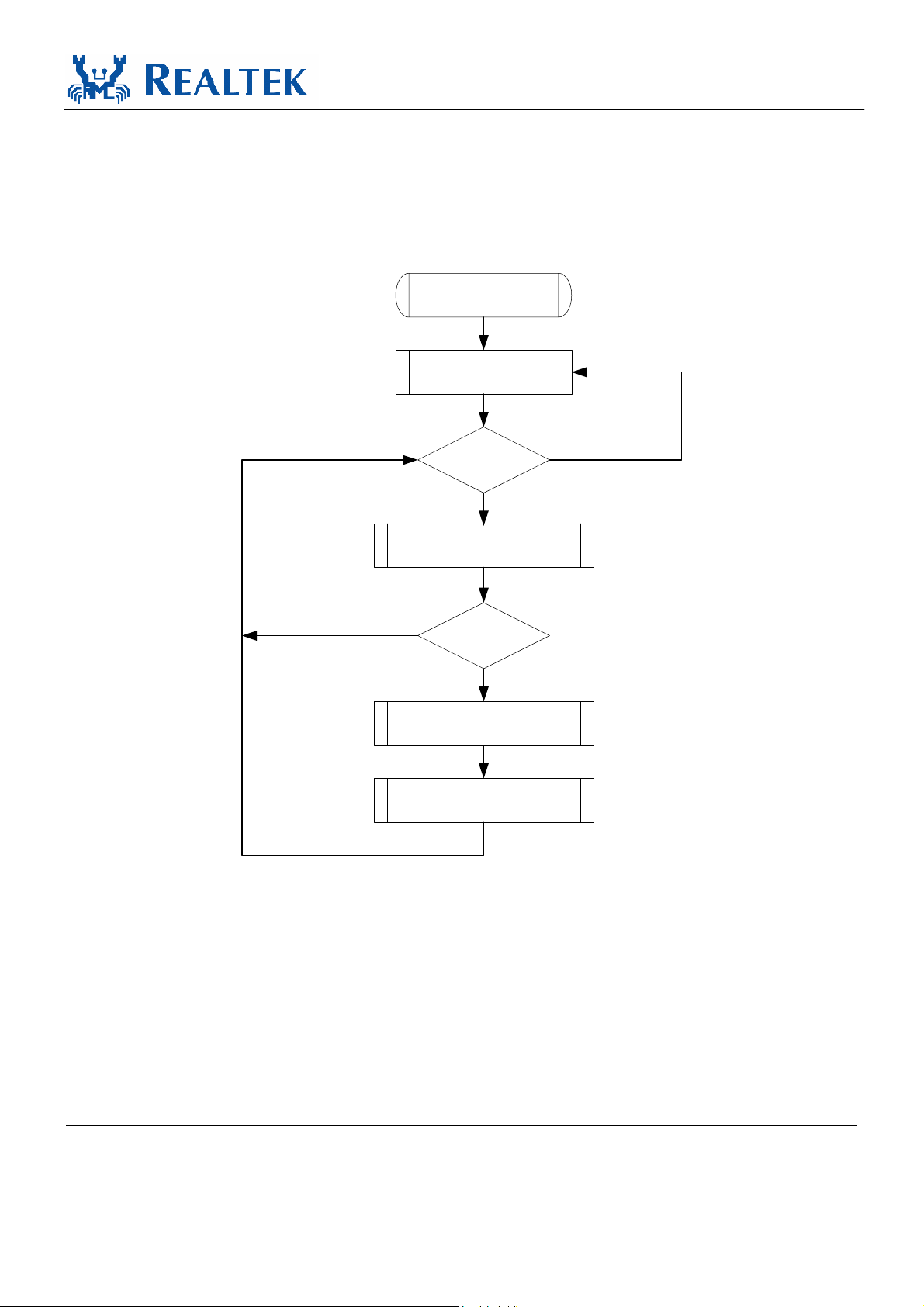

Figure 5. LINK/ACT LED

Tx/Rx

Packet?

Yes

LED = High for 40 ms

LED = Low for 40 ms

Integrated Gigabit Ethernet Controller for PCI Express 11 Track ID: JATR-1076-21 Rev. 1.1

Page 18

RTL8111C-GR

Datasheet

6.3. PHY Transceiver

6.3.1. PHY Transmitter

Based on state-of-the-art DSP technology and mixed-mode signal processing technology, the RTL8111C-GR operates at 10/100/1000Mbps over standard CAT.5 UTP cable (100/1000Mbps), and CAT.3 UTP cable (10Mbps).

GMII (1000Mbps) Mode

The RTL8111C-GR’s PCS layer receives data bytes from the MAC through the GMII interface and performs the generation of continuous code-groups through 4D-PAM5 coding technology. These code groups are passed through a waveform-shaping filter to minimize EMI effect, and are transmitted onto the 4-pair CAT5 cable at 125MBaud/s through a D/A converter.

MII (100Mbps) Mode

The transmitted 4-bit nibbles (TXD[3:0]) from the MAC, clocked at 25MHz (TXC), are converted into 5B symbol code through 4B/5B coding technology, then through scrambling and serializing, are converted to 125Mhz NRZ and NRZI signals. After that, the NRZI signals are passed to the MLT3 encoder, then to the D/A converter and transmitted onto the media.

MII (10Mbps) Mode

The transmitted 4-bit nibbles (TXD[3:0]) from the MAC, clocked at 2.5MHz (TXC), are serialized into 10Mbps serial data. The 10Mbps serial data is converted into a Manchester-encoded data stream and is transmitted onto the media by the D/A converter.

6.3.2. PHY Receiver

GMII (1000Mbps) Mode

Input signals from the media pass through the sophisticated on-chip hybrid circuit to separate the transmitted signal from the input signal for effective reduction of near-end echo. Afterwards, the received signal is processed with state-of-the-art technology, e.g., adaptive equalization, BLW (Baseline Wander) correction, cross-talk cancellation, echo cancellation, timing recovery, error correction, and 4D-PAM5 decoding. Then, the 8-bit-wide data is recovered and is sent to the GMII interface at a clock speed of 125MHz. The Rx MAC retrieves the packet data from the receive MII/GMII interface and sends it to the Rx Buffer Manager.

MII (100Mbps) Mode

The MLT3 signal is processed with an ADC, equalizer, BLW (Baseline Wander) correction, timing recovery, MLT3 and NRZI decoder, descrambler, 4B/5B decoder, and is then presented to the MII interface in 4-bit-wide nibbles at a clock speed of 25MHz.

MII (10Mbps) Mode

The received differential signal is converted into a Manchester-encoded stream first. Next, the stream is processed with a Manchester decoder and is de-serialized into 4-bit-wide nibbles. The 4-bit nibbles are presented to the MII interface at a clock speed of 2.5MHz.

Integrated Gigabit Ethernet Controller for PCI Express 12 Track ID: JATR-1076-21 Rev. 1.1

Page 19

RTL8111C-GR

Datasheet

6.4. Next Page

If 1000Base-T mode is advertised, three additional Next Pages are automatically exchanged between the two link partners. Users can set PHY Reg4.15 to 1 to manually exchange extra Next Pages via Reg7 and Reg8 as defined in IEEE 802.3ab.

6.5. EEPROM Interface

The RTL8111C-GR requires the attachment of an external EEPROM. The 93C46/93C56 is a 1K-bit/2K-bit EEPROM. The EEPROM interface permits the RTL8111C-GR to read from, and write data to, an external serial EEPROM device.

Values in the external EEPROM allow default fields in PCI configuration space and I/O space to be overridden following a power-on or software EEPROM auto-load command. The RTL8111C-GR will auto-load values from the EEPROM. If the EEPROM is not present, the RTL8111C-GR initialization uses default values for the appropriate Configuration and Operational Registers. Software can read and write to the EEPROM using bit-bang accesses via the 9346CR Register, or using PCI VPD (Vital Product Data). The interface consists of EESK, EECS, EEDO, and EEDI.

The correct EEPROM (i.e. 93C46/93C56) must be used in order to ensure proper LAN function.

Table 11. EEPROM Interface

EEPROM Description

EECS 93C46/93C56 chip select. EESK EEPROM serial data clock.

Input data bus/Input pin to detect whether Aux. Power exists on initial power-on.

EEDI/Aux

EEDO Output data bus.

Integrated Gigabit Ethernet Controller for PCI Express 13 Track ID: JATR-1076-21 Rev. 1.1

Page 20

RTL8111C-GR

Datasheet

6.6. Power Management

The RTL8111C-GR is compliant with ACPI (Rev 1.0, 1.0b, 2.0), PCI Power Management (Rev 1.1), PCI Express Active State Power Management (ASPM), and Network Device Class Power Management Reference Specification (V1.0a), such as to support an Operating System-directed Power Management (OSPM) environment.

The RTL8111C-GR can monitor the network for a Wakeup Frame, a Magic Packet, and notify the system via a PCI Express Power Management Event (PME) Message, Beacon, or LANWAKEB pin when such a packet or event occurs. Then the system can be restored to a normal state to process incoming jobs.

When the RTL8111C-GR is in power down mode (D1 ~ D3):

• The Rx state machine is stopped. The RTL8111C-GR monitors the network for wakeup events such as

a Magic Packet and Wakeup Frame in order to wake up the system. When in power down mode, the RTL8111C-GR will not reflect the status of any incoming packets in the ISR register and will not receive any packets into the Rx on-chip buffer.

• The on-chip buffer status and packets that have already been received into the Rx on-chip buffer

before entering power down mode are held by the RTL8111C-GR.

• Transmission is stopped. PCI Express transactions are stopped. The Tx on-chip buffer is held.

• After being restored to D0 state, the RTL8111C-GR transmits data that was not moved into the Tx

on-chip buffer during power down mode. Packets that were not transmitted completely last time are re-transmitted.

The D3cold_support_PME bit (bit15, PMC register) and the Aux_I_b2:0 bits (bit8:6, PMC register) in PCI configuration space depend on the existence of Aux power. If aux. power is absent, the above 4 bits are all 0 in binary.

Example:

If EEPROM D3c_support_PME = 1:

• If aux. power exists, then PMC in PCI config space is the same as EEPROM PMC

(if EEPROM PMC = C3 F7, then PCI PMC = C3 F7)

• If aux. power is absent, then PMC in PCI config space is the same as EEPROM PMC except the

above 4 bits are all 0’s (if EEPROM PMC = C3 F7, then PCI PMC = 03 76)

In the above case, if wakeup support is desired when main power is off, it is suggested that the EEPROM PMC be set to C3 F7 (Realtek EEPROM default value).

If EEPROM D3c_support_PME = 0:

• If aux. power exists, then PMC in PCI config space is the same as EEPROM PMC

(if EEPROM PMC = C3 77, then PCI PMC = C3 77)

• If aux. power is absent, then PMC in PCI config space is the same as EEPROM PMC except the

above 4 bits are all 0’s (if EEPROM PMC = C3 77, then PCI PMC = 03 76)

In the above case, if wakeup support is not desired when main power is off, it is suggested that the EEPROM PMC be set to 03 76.

Integrated Gigabit Ethernet Controller for PCI Express 14 Track ID: JATR-1076-21 Rev. 1.1

Page 21

RTL8111C-GR

Datasheet

Magic Packet Wakeup occurs only when the following conditions are met:

• The destination address of the received Magic Packet is acceptable to the RTL8111C-GR, e.g., a

broadcast, multicast, or unicast packet addressed to the current RTL8111C-GR adapter.

• The received Magic Packet does not contain a CRC error.

• The Magic bit (CONFIG3#5) is set to 1, the PMEn bit (CONFIG1#0) is set to 1, and the

corresponding wake-up method (message, beacon, or LANWAKEB) can be asserted in the current power state.

• The Magic Packet pattern matches, i.e. 6 * FFh + MISC (can be none) + 16 * DID (Destination ID) in

any part of a valid Ethernet packet.

A Wakeup Frame event occurs only when the following conditions are met:

• The destination address of the received Wakeup Frame is acceptable to the RTL8111C-GR, e.g., a

broadcast, multicast, or unicast address to the current RTL8111C-GR adapter.

• The received Wakeup Frame does not contain a CRC error.

• The PMEn bit (CONFIG1#0) is set to 1.

• The 16-bit CRCA of the received Wakeup Frame matches the 16-bit CRC of the sample Wakeup

Frame pattern given by the local machine’s OS. Or, the RTL8111C-GR is configured to allow direct packet wakeup, e.g., a broadcast, multicast, or unicast network packet.

Note: 16-bit CRC: The RTL8111C-GR supports eight long wakeup frames (covering 128 mask bytes from offset 0 to 127 of any incoming network packet).

The corresponding wake-up method (message, beacon, or LANWAKEB) is asserted only when the following conditions are met:

• The PMEn bit (bit0, CONFIG1) is set to 1.

• The PME_En bit (bit8, PMCSR) in PCI Configuration Space is set to 1.

• The RTL8111C-GR may assert the corresponding wake-up method (message, beacon, or

LANWAKEB) in the current power state or in isolation state, depending on the PME_Support (bit15-11) setting of the PMC register in PCI Configuration Space.

• A Magic Packet, LinkUp, or Wakeup Frame has been received.

• Writing a 1 to the PME_Status (bit15) of the PMCSR register in the PCI Configuration Space clears

this bit and causes the RTL8111C-GR to stop asserting the corresponding wake-up method (message, beacon, or LANWAKEB) (if enabled).

When the RTL8111C-GR is in power down mode, e.g., D1-D3, the IO and MEM accesses to the RTL8111C-GR are disabled. After a PERSTB assertion, the device’s power state is restored to D0 automatically if the original power state was D3

. There is almost no hardware delay at the device’s

cold

power state transition. When in ACPI mode, the device does not support PME (Power Management Enable) from D0 (this is the Realtek default setting of the PMC register auto-loaded from EEPROM). The setting may be changed from the EEPROM, if required.

Integrated Gigabit Ethernet Controller for PCI Express 15 Track ID: JATR-1076-21 Rev. 1.1

Page 22

RTL8111C-GR

Datasheet

6.7. Vital Product Data (VPD)

Bit 31 of the Vital Product Data (VPD) capability structure in the RTL8111C-GR’s PCI Configuration Space is used to issue VPD read/write commands and is also a flag used to indicate whether the transfer of data between the VPD data register and the 93C46/93C56/93C66 has completed or not.

Write VPD register: (write data to the 93C46/93C56/93C66) Set the flag bit to 1 at the same time the VPD address is written to write VPD data to EEPROM. When the flag bit is reset to 0 by the RTL8111C-GR, the VPD data (4 bytes per VPD access) has been transferred from the VPD data register to EEPROM.

Read VPD register: (read data from the 93C46/93C56/93C66) Reset the flag bit to 0 at the same time the VPD address is written to retrieve VPD data from EEPROM. When the flag bit is set to 1 by the RTL8111C-GR, the VPD data (4 bytes per VPD access) has been transferred from EEPROM to the VPD data register.

Note1: Refer to the PCI 2.3 Specifications for further information. Note2: The VPD address must be a DWORD-aligned address as defined in the PCI 2.3 Specifications.

VPD data is always consecutive 4-byte data starting from the VPD address specified. Note3: Realtek reserves offset 60h to 7Fh in EEPROM mainly for VPD data to be stored. Note4: The VPD function of the RTL8111C-GR is designed to be able to access the full range of the

93C46/93C56/93C66 EEPROM.

Integrated Gigabit Ethernet Controller for PCI Express 16 Track ID: JATR-1076-21 Rev. 1.1

Page 23

RTL8111C-GR

6.8. Message Signaled Interrupt (MSI)

6.8.1. MSI Capability Structure in PCI Configuration Space

Datasheet

Figure 6. Message Capability Structure

Integrated Gigabit Ethernet Controller for PCI Express 17 Track ID: JATR-1076-21 Rev. 1.1

Page 24

RTL8111C-GR

6.8.2. Message Control

Table 12. Message Control

Bits RW Field Description

15:8 RO Reserved Reserved. Always return 0

7 RO 64-bit address capable 1: The RTL8111C is capable of generating a 64-bit

message address. 0: The RTL8111C is NOT capable of generating a 64-bit message address. This bit is read only and the RTL8111C is set to 1.

6:4 RW Multiple Message Enable

3:1 RO Multiple Message Capable

0 RW MSI Enable 1: Enable MSI (Also the INTx pin is disabled automatically, MSI

System software (e.g., BIOS, OS) indicates to the RTL8111C-GR the number of allocated messages/vectors (equal to or less than the number of requested messages/vectors). This field after PCI reset is ‘000’.

Encoding Number of Messages/Vectors

000 1 001 2 010 4 011 8 100 16 101 32 110 Reserved

111 Reserved Indication to system software (e.g., BIOS, OS) of the number of RTL8111C-GR requested vectors. The RTL8111C-GR supports only one vector messages/vectors.

Encoding Number of Messages/Vectors

000 1

Others Reserved

and INTx are mutually exclusive), this bit is set by system software. 0: Disable MSI (Default value after power-on or PCI reset)

Datasheet

6.8.3. Message Address

Table 13. Message Address

Bits RW Field Description

31:02 RW Message Address System-specified message/vector address.

Low DWORD aligned address for MSI memory write transaction.

01:00 RO Reserved Always return ‘00’.

This bit is read only.

Integrated Gigabit Ethernet Controller for PCI Express 18 Track ID: JATR-1076-21 Rev. 1.1

Page 25

RTL8111C-GR

Datasheet

6.8.4. Message Upper Address

Table 14. Message Upper Address

Bits RW Field Description

31:00 RW Message Upper Address System-specified message/vector upper address.

Upper 32 bits of a 64-bit message/vector address. This register is effective only when the DAC function is enabled, i.e., 64-bit addressing is enabled; bit7 in Message Control register is set. If the contents of this register are 0, the RTL8111C-GR only performs 32-bit addressing for the memory write of the messages/vectors. This bit is read/write.

6.8.5. Message Data

Table 15. Message Data

Bits RW Field Description

15:00 RW Message Data If the Message Enable bit is set, the message/vector data is driven

onto the lower word of the memory write transaction’s data phase. This bit is read/write.

Integrated Gigabit Ethernet Controller for PCI Express 19 Track ID: JATR-1076-21 Rev. 1.1

Page 26

RTL8111C-GR

6.9. MSI-X

6.9.1. MSI-X Capability Structure in PCI Configuration Space

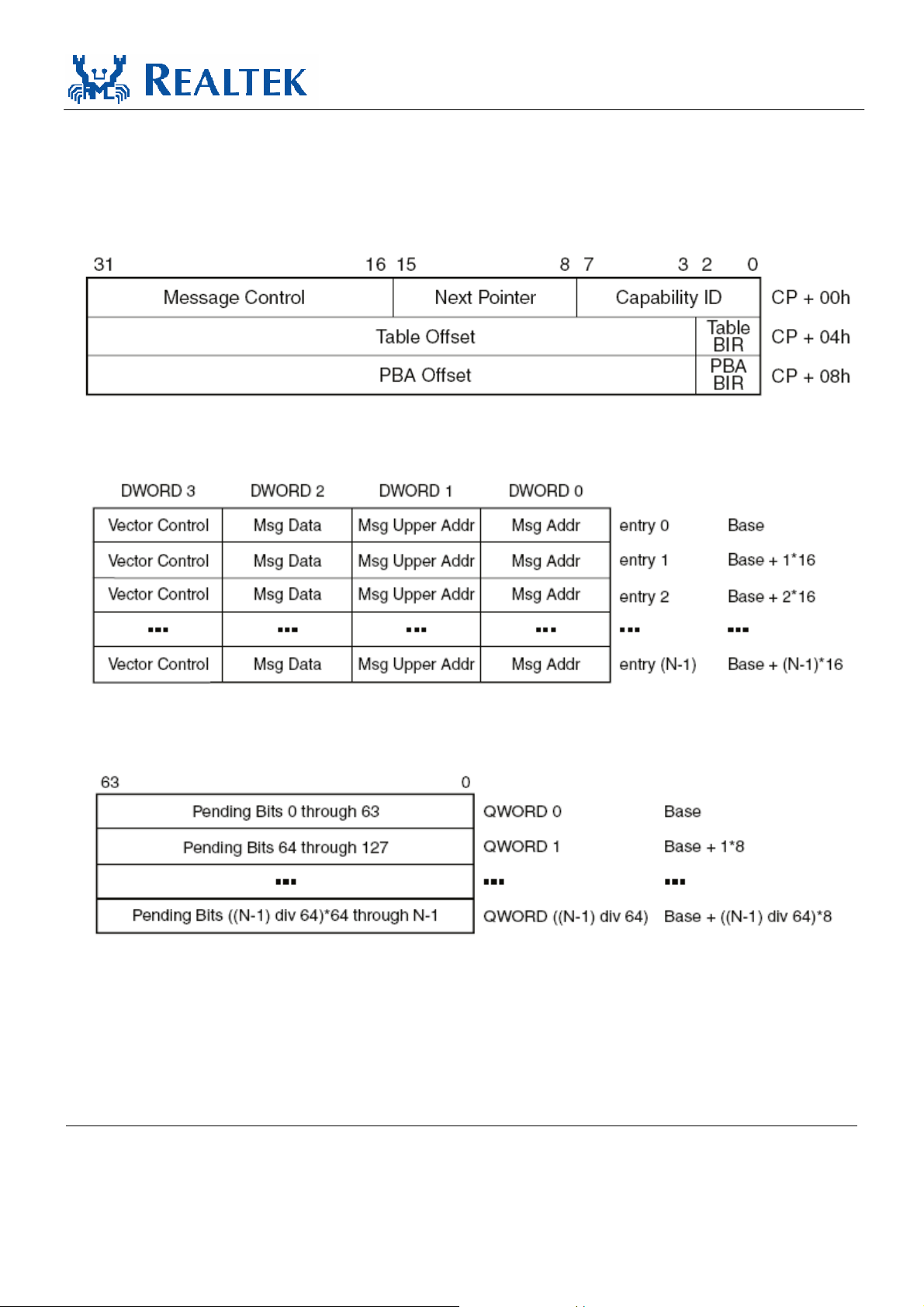

Figure 7. MSI-X Capability Structure

Datasheet

Figure 8. MSI-X Table Structure

Figure 9. MSI-X PBA Structure

Integrated Gigabit Ethernet Controller for PCI Express 20 Track ID: JATR-1076-21 Rev. 1.1

Page 27

RTL8111C-GR

6.9.2. Message Control

Table 16. Message Control

Bits RW Field Description

15 RW MSI-X Enable If 1 and the MSI Enable bit in the MSI Message Control register

is 0, the function is permitted to use MSI-X to request service and is prohibited from using its INTx# pin. System configuration software sets this bit to enable MSI-X. A device driver is prohibited from writing this bit to mask a function’s service request. If 0, the function is prohibited from using MSI-X to request service. This bit’s state after reset is 0 (MSI-X is disabled). This bit is read/write.

14 RW Function Mask If 1, all of the vectors associated with the function are masked,

regardless of their per-vector Mask bit states. If 0, each vector’s Mask bit determines whether the vector is masked or not. Setting or clearing the MSI-X Function Mask bit has no effect on the state of the per-vector Mask bits. This bit’s state after reset is 0 (unmasked). This bit is read/write.

13:11 RO Reserved Always returns 0 on a read. A write operation has no effect. 10:00 RO Table Size System software reads this field to determine the

MSI-X Table Size N, which is encoded as N-1. The RTL8111C-GR value is ‘00000000001’, indicating a table size of

Datasheet

6.9.3. Table Offset/BIR

Table 17. Table Offset/BIR

Bits RW Field Description

31:03 RW Table Offset Used as an offset from the address contained by one of the

function’s Base Address registers to point to the base of the MSI-X Table. The lower 3 BIR bits are masked off (set to zero) by software to form a 32bit QWORD-aligned offset. This field is read only.

Integrated Gigabit Ethernet Controller for PCI Express 21 Track ID: JATR-1076-21 Rev. 1.1

Page 28

RTL8111C-GR

Bits RW Field Description

02:00 RO BIR Indicates which one of a function’s Base Address registers,

located beginning at 10h in Configuration Space, is used to map the function’s MSI-X Table into Memory Space.

BIR Value Base Address register

0 10h 1 14h 2 18h 3 1Ch 4 20h 5 24h 6 Reserved

7 Reserved For a 64-bit Base Address register, the BIR indicates the lower DWORD. With PCI-to-PCI bridges, BIR values 2 through 5 are also reserved. The function’s Base Address registers of RTL8111C-GR located beginning at 20h. This field is read only.

Datasheet

6.9.4. PBA Offset/PBA BIR

Table 18. PBA Offset/PBA BIR

Bits RW Field Description

31:03 RO PBA Offset Used as an offset from the address contained by one of the

function’s Base Address registers to point to the base of the MSI-X PBA. The lower 3 PBA BIR bits are masked off (set to zero) by software to form a 32-bit QWORD-aligned offset. This field is read only.

02:00 RO PBA BIR Indicates which one of a function’s Base Address registers,

located beginning at 10h in Configuration Space, is used to map the function’s MSI-X PBA into Memory Space. The PBA BIR value definitions are identical to those for the MSI-X Table BIR. This field is read only.

6.9.5. Message Address for MSI-X Table Entries

Table 19. Message Address for MSI-X Table Entries

Bits RW Field Description

31:02 RW Message Address System-specified message lower address.

For MSI-X messages, the contents of this field from an MSI-X Table entry specifies the lower portion of the DWORD aligned address for the memory write transaction. This field is read/write.

01:00 RW Message Address For proper DWORD alignment, software must always write

zeroes to these two bits; otherwise the result is undefined. The state of these bits after reset must be 0. These bits are permitted to be read only or read/write.

Integrated Gigabit Ethernet Controller for PCI Express 22 Track ID: JATR-1076-21 Rev. 1.1

Page 29

6.9.6. Message Upper Address for MSI-X Table Entries

Table 20. Message Upper Address for MSI-X Table Entries

Bits RW Field Description

31:00 RW Message Upper Address System-specified message upper address bits.

This field is read/write.

6.9.7. Message Data for MSI-X Table Entries

Table 21. Message Data

Bits RW Field Description

31:00 RW Message Data System-specified message data.

For MSI-X messages, the contents of this field are taken from an MSI-X Table entry. In contrast to message data used for MSI messages, the low-order message data bits in MSI-X messages are not modified by the function. This field is read/write.

RTL8111C-GR

Datasheet

6.9.8. Vector Control for MSI-X Table Entries

Table 22. Vector Control for MSI-X Table Entries

Bits RW Field Description

31:01 RW Reserved After reset, the state of these bits must be 0. However, for

potential future use, software must preserve the value of these reserved bits when modifying the value of other Vector Control bits. If software modifies the value of these reserved bits, the result is undefined.

00 RW Mask Bit When this bit is set, the function is prohibited from sending a

message using this MSI-X Table entry. However, any other MSI-X Table entries programmed with the same vector will still be capable of sending an equivalent message unless they are also masked. This bit’s state after reset is 1 (entry is masked). This bit is read/write.

6.9.9. Pending Bits for MSI-X PBA Entries

Table 23. Pending Bits for MSI-X PBA Entries

Bits RW Field Description

63:00 RW Pending Bits For each Pending Bit that is set, the function has a pending

message for the associated MSI-X Table entry. Pending bits that have no associated MSI-X Table entry are reserved. After reset, the state of reserved Pending bits must be 0. Software should never write, and should only read Pending Bits. If software writes to Pending Bits, the result is undefined. Each Pending Bit’s state after reset is 0 (no message pending). These bits are permitted to be read only or read/write.

Integrated Gigabit Ethernet Controller for PCI Express 23 Track ID: JATR-1076-21 Rev. 1.1

Page 30

RTL8111C-GR

Datasheet

6.10. Receive-Side Scaling (RSS)

The RTL8111C-GR is compliant with the new Network Driver Interface Specification (NDIS) 6.0 Receive-Side Scaling (RSS) technology for the Microsoft Windows family of operating systems. RSS allows packet receive-processing from a network adapter to be balanced across the number of available computer processors, increasing perfromance on multi CPU platforms.

6.10.1. Receive-Side Scaling (RSS) Initialization

During RSS initialization, the Windows operating system will inform the RTL8111C-GR to store the following parameters: hash function, hash type, hash bits, indirection table, BaseCPUNumber, and the secret hash key.

Hash Function

The default hash function is the Toeplitz hash function.

Hash Type

The hash types indicate which field of the packet needs to be hashed to get the hash result. There are several combinations of these fields, mainly, TCP/IPv4, IPv4, TCP/IPv6, IPv6, and IPv6 extension headers.

• TCP/IPv4 requires hash calculations over the IPv4 source address, the IPv4 destination address, the

source TCP port and the destination TCP port.

• IPv4 requires hash calculations over the IPv4 source address and the IPv4 destination address.

• TCP/IPv6 requires hash calculations over the IPv6 source address, the IPv6 destination address, the

source TCP port and the destination TCP port.

• IPv6 requires hash calculations over the IPv6 source address and the IPv6 destination address

(Note: The RTL8111C-GR does not support the IPv6 extension header hash type in RSS).

Hash Bits

Hash bits are used to index the hash result into the indirection table

Integrated Gigabit Ethernet Controller for PCI Express 24 Track ID: JATR-1076-21 Rev. 1.1

Page 31

RTL8111C-GR

Datasheet

Indirection Table

The Indirection Table stores values that are added to the BaseCPUNumber to enable RSS interrupts to be restricted from some CPUs. The OS will update the Indirection Table to rebalance the load.

BaseCPUNumber

The lowest number CPU to use for RSS. BaseCPUNumber is added to the result of the indirection table lookup.

Secret hash key

The key used in the Toeplitz function. For different hash types, the key size is different.

6.10.2. RSS Operation

After the parameters are set, the RTL8111C-GR will start hash calculation on each incoming packet and forward each packet to its correct queue according to the hash result. If the incoming packet is not in the hash type, it will be forwarded to the primary queue. The hash result plus the BaseCPUNumber will be indexed into the indirection table to get the correct CPU number. The RTL8111C-GR uses three methods to inform the system of incoming packets: inline interrupt, MSI, and MSIX. Periodically the OS will update the indirection table to rebalance the load across the CPUs.

Integrated Gigabit Ethernet Controller for PCI Express 25 Track ID: JATR-1076-21 Rev. 1.1

Page 32

RTL8111C-GR

Datasheet

7. Characteristics

7.1. Absolute Maximum Ratings

WARNING: Absolute maximum ratings are limits beyond which permanent damage may be caused to

the device, or device reliability will be affected. All voltages are specified reference to GND unless otherwise specified.

Table 24. Absolute Maximum Ratings

Symbol Description Minimum Maximum Unit

VDD33, AVDD33 Supply Voltage 3.3V -0.3 +0.5 V AVDD12, DVDD12 Supply Voltage 1.2V -0.3 +0.4 V EVDD12 Supply Voltage 1.2V TBD TBD DCinput Input Voltage -0.3 Corresponding Supply Voltage + 0.5 V DCoutput Output Voltage -0.3 Corresponding Supply Voltage + 0.5 V Storage Temperature -55 +125 °C

* Refer to the most updated schematic circuit for correct configuration.

7.2. Recommended Operating Conditions

Table 25. Recommended Operating Conditions

Description Pins Minimum Ty pica l Maximum Unit

VDD33, AVDD33 2.97 3.3 3.63 V

Supply Voltage VDD

Ambient Operating Temperature T Maximum Junction Temperature

* Refer to the most updated schematic circuit for correct configuration.

AVDD12, DVDD12

EVDD12 1.14 1.2 1.26 V

- 0 - 70 °C

- - - 125 °C

1.1 1.2 1.32 V

7.3. Crystal Requirements

Table 26. Crystal Requirements

Symbol Description/Condition Minimum Typical Maximum Unit

ref

Stability

ref

Tolerance

ref

Duty Cycle C

ESR Equivalent Series Resistance. - TBD -  DL

Parallel resonant crystal reference frequency, fundamental mode, AT-cut type. Parallel resonant crystal frequency stability, fundamental mode, AT-cut type. T Parallel resonant crystal frequency tolerance, fundamental mode, AT-cut type. T

=-20°C ~+70°C.

Reference clock input duty cycle. 40 - 60 %

Load Capacitance. - TBD - pF

Drive Level. - TBD 0.5 mW

=25°C.

- 25 - MHz

-50 - +50 ppm

-30 - +30 ppm

Integrated Gigabit Ethernet Controller for PCI Express 26 Track ID: JATR-1076-21 Rev. 1.1

Page 33

RTL8111C-GR

Datasheet

7.4. Thermal Characteristics

Table 27. Thermal Characteristics

Parameter Minimum Maximum Units

Storage Temperature -55 +125 °C Ambient Operating Temperature

0 70 °C

7.5. DC Characteristics

Table 28. DC Characteristics

Symbol Parameter Conditions Minimum Ty pica l Maximum Units

VDD33, AVDD33 EVDD12, AVDD12 DVDD12 1.2V Supply Voltage - 1.1 1.2 1.32 V

Vo h

Vo l

Vih

Vil

Iin

Icc33

Icc12

* Refer to the most updated schematic circuit for correct configuration.

3.3V Supply Voltage - 2.97 3.3 3.63 V

1.2V Supply Voltage - 1.1 1.2 1.32 V

Minimum High Level Output Voltage Maximum Low Level Output Voltage Minimum High Level Input Voltage Maximum Low Level Input Voltage

Input Current

Average Operating Supply Current from

3.3V Average Operating Supply Current from

1.8V

Ioh

= -4mA

Iol= 4mA

Vin = VDD33 or

GND

At 1Gbps with

heavy network

traffic At 1Gbps with heavy network

traffic

0.9 * VDD33 - VDD33 V

0 - 0.1 * VDD33 V

1.8 - - V

- - 0.8 V

0 - 0.5 µA

- TBD - mA

Integrated Gigabit Ethernet Controller for PCI Express 27 Track ID: JATR-1076-21 Rev. 1.1

Page 34

7.6. AC Characteristics

7.6.1. Serial EEPROM Interface Timing

93C46(64*16)/93C56(128*16)

EESK

RTL8111C-GR

Datasheet

EECS

EEDI

EEDO

EESK

EECS

EEDI

EEDO

EESK

EECS

EEDI

EEDO

(Read)

High Impedance

(Write)

High Impedance

(Read)

(Program)

110

tcss tdis tdih

tsv

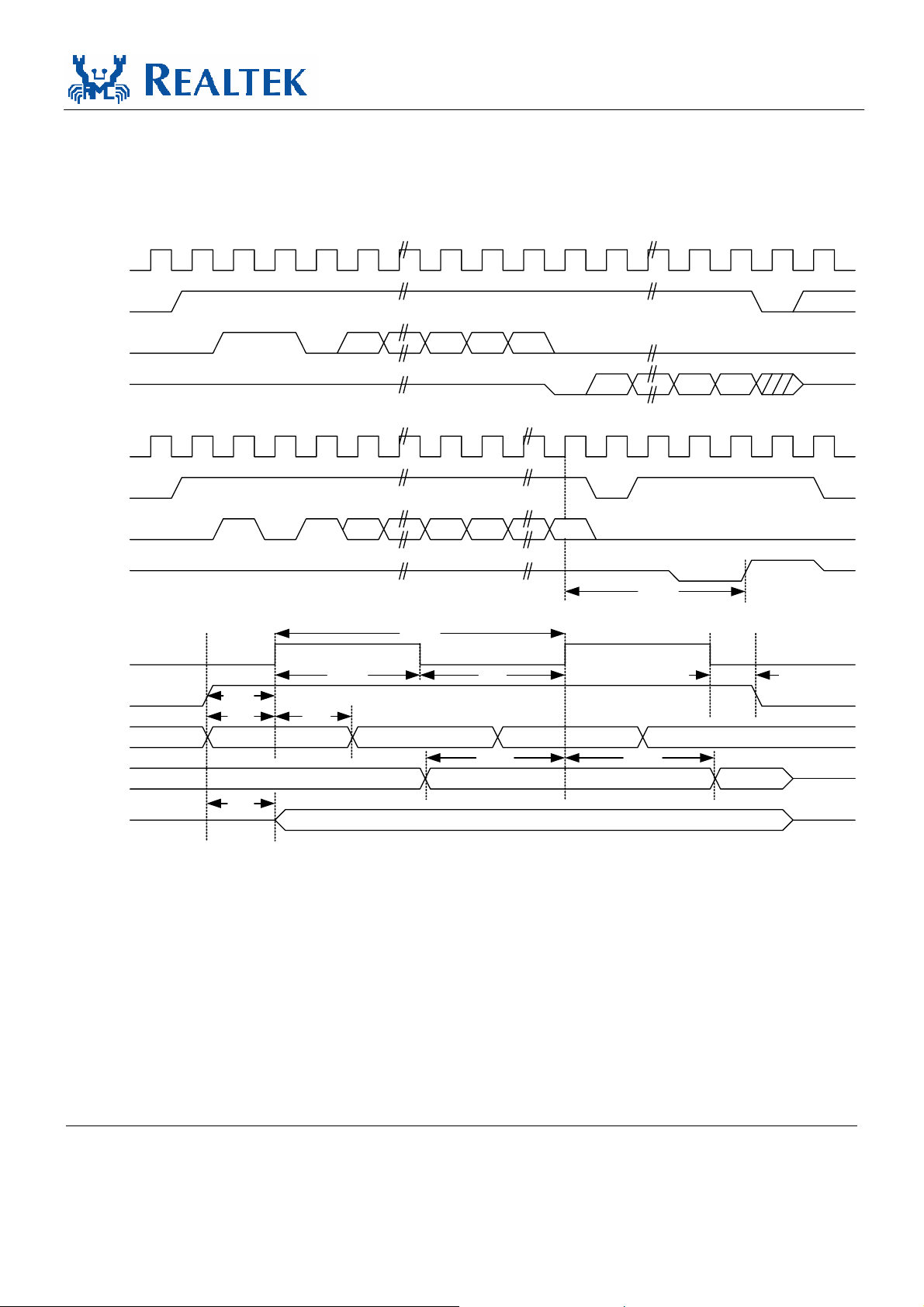

Figure 10. Serial EEPROM Interface Timing

An A2 A0A1

...

An A0

tsk

tskh tskl

tdos tdoh

...

STATUS VALID

tcs

Dn D1 D0

tcs

BUSY READY

twp

tcsh

Integrated Gigabit Ethernet Controller for PCI Express 28 Track ID: JATR-1076-21 Rev. 1.1

Page 35

RTL8111C-GR

Table 29. EEPROM Access Timing Parameters

Symbol Parameter EEPROM Type Min. Max. Unit

tcs Minimum CS Low Time 9346 1000 - ns

twp Write Cycle Time 9346 - 10 ms

tsk SK Clock Cycle Time 9346 4 - µs

tskh SK High Time 9346 1000 - ns

tskl SK Low Time 9346 1000 - ns tcss CS Setup Time 9346 200 - ns

tcsh CS Hold Time 9346 0 - ns

tdis DI Setup Time 9346 400 - ns tdih DI Hold Time 9346 400 - ns tdos DO Setup Time 9346 2000 - ns tdoh DO Hold Time 9346 - 2000 ns

tsv CS to Status Valid 9346 - 1000 ns

Datasheet

Integrated Gigabit Ethernet Controller for PCI Express 29 Track ID: JATR-1076-21 Rev. 1.1

Page 36

RTL8111C-GR

Datasheet

7.7. PCI Express Bus Parameters

7.7.1. Differential Transmitter Parameters

Table 30. Differential Transmitter Parameters

Symbol Parameter Min Typical Max Units

UI V

TX-DIFFp-p

TX-DE-RATIO

TX-EYE

TX-EYE-MEDIAN-

to-MAX-JITTER

T V V

IDLEDELTA

DELTA

V V

, T

TX-RISE

TX-CM-ACp

TX-CM-DCACTIVE-

TX-FALL

TX-CM-DCLINE-

TX-IDLE-DIFFp

TX-RCV-DETECT

Electrical Idle Differential Peak Output Voltage 0 - 20 mV

Unit Interval Differential Peak to Peak Output Voltage 0.800 - 1.2 V De-Emphasized Differential Output Voltage (Ratio) -3.0 -3.5 -4.0 dB Minimum Tx Eye Width 0.75 - - UI Maximum time between the jitter median and maximum deviation from the median

D+/D- Tx Output Rise/Fall Time 0.125 - - UI

RMS AC Peak Common Mode Output Voltage - - 20 mV Absolute Delta of DC Common Mode Voltage During L0 and Electrical Idle Absolute Delta of DC Common Mode Voltage between D+ and D-

The amount of voltage change allowed during

Receiver Detection

TX-DC-CM

TX-SHORT

TX-IDLE-MIN

TX-IDLE- SETTO-IDLE

The TX DC Common Mode Voltage 0 - 3.6 V

TX Short Circuit Current Limit - - 90 mA

Minimum time spent in Electrical Idle 50 - - UI

Maximum time to transition to a valid Electrical Idle

after sending an Electrical Idle ordered set

TX-IDLE-TOTO-

DIFF-DATA

RL RL Z L

TX-DIFF

Common Mode Return Loss 6 - - dB

TX-CM

TX-DIFF-DC

TX-SKEW

Differential Return Loss 10 - - dB

DC Differential TX Impedance 80 100 120 

Lane-to-Lane Output Skew - - 500+2

Maximum time to transition to valid TX specifications after leaving an Electrical Idle condition

CTX AC Coupling Capacitor 75 - 200 nF T

Crosslink Random Timeout 0 - 1 ms

crosslink

Note1: Refer to PCI Express Base Specification, rev.1.1, for correct measurement environment setting of each parameter. Note2: The data rate can be modulated with an SSC (Spread Spectrum Clock) from +0 to -0.5% of the nominal data rate

frequency, at a modulation rate in the range not exceeding 30 kHz – 33 kHz. The +/- 300 ppm requirement still holds, which requires the two communicating ports be modulated such that they never exceed a total of 600 ppm difference.

399.88 400 400.12 ps

- - 0.125 UI

0 - 100 mV

0 - 25 mV

- - 600 mV

- - 20 UI

Integrated Gigabit Ethernet Controller for PCI Express 30 Track ID: JATR-1076-21 Rev. 1.1

Page 37

RTL8111C-GR

Datasheet

7.7.2. Differential Receiver Parameters

Table 31. Differential Receiver Parameters

Symbol Parameter Min. Ty pica l Max. Units

UI Unit Interval 399.88 400 400.12 ps V

RX-DIFFp-p

RX-EYE

RX-EYE-MEDIAN-to-

MAX-JITTER

RX-CM-ACp

RL RL Z

RX-DIFF-DC

RX--DC

RX-HIGH-IMP-DC

RX-IDLE-DET-DIFFp-p

RX-IDLE-DET-

DIFFENTERTIME

RX-SKEW

Differential Return Loss 10 - - dB

RX-DIFF

RX-CM

DC Differential Input Impedance 80 100 120 

DC Input Impedance 40 50 60 

Total Skew - - 20 ns

Note: Refer to PCI Express Base Specification, rev.1.1, for correct measurement environment setting of each parameter.

Differential Input Peak to Peak Voltage 0.175 - 1.200 V Minimum Receiver Eye Width 0.4 - - UI Maximum time between the jitter median and

- - 0.3 UI maximum deviation from the median AC Peak Common Mode Input Voltage - - 150 mV

Common Mode Return Loss 6 - - dB

Powered Down DC Input Impedance 200 k - - 

Electrical Idle Detect Threshold 65 - 175 mV

Unexpected Electrical Idle Enter Detect Threshold

- - 10 ms Integration Time

7.7.3. REFCLK Parameters

Table 32. REFCLK Parameters

Symbol Parameter 100MHz Input

Min Max

Rise Edge Rate Rising Edge Rate 0.6 4.0 V/ns 2,3 Fall Edge Rate Falling Edge Rate 0.6 4.0 V/ns 2,3 VIH VIL VCROSS VCROSS DELTA

Differential Input High Voltage +150 - mV 2 Differential Input Low Voltage - -150 mV 2 Absolute crossing point voltage +250 +550 mV 1,4,5 Variation of VCROSS over all rising clock

- +140 mV 1,4,9

edges VRB Ring-back Voltage Margin -100 +100 mV 2,12 TSTABLE

Time before VRB is allowed 500 - ps 2,12 TPERIOD AVG Average Clock Period Accuracy -300 +2800 ppm 2,10,13 TPERIOD ABS Absolute Period (including Jitter and

Spread Spectrum) TCCJITTER Cycle to Cycle jitter

9.847 10.203 ns 2,6

150 VMAX Absolute Max input voltage - +1.15 V 1,7 VMIN Absolute Min input voltage - -0.3 V 1,8

Units Note

ps 2

Integrated Gigabit Ethernet Controller for PCI Express 31 Track ID: JATR-1076-21 Rev. 1.1

Page 38

RTL8111C-GR

Datasheet

Symbol Parameter 100MHz Input

Min Max

Duty Cycle Duty Cycle 40 60 % 2 Rise-Fall Matching Rising edge rate (REFCLK+) to falling

edge rate (REFCLK-) matching

ZC-DC Clock source DC impedance 40 60  1,11

Note1: Measurement taken from single ended waveform. Note2: Measurement taken from differential waveform. Note3: Measured from -150 mV to +150 mV on the differential waveform (derived from REFCLK+ minus REFCLK-).

The signal must be monotonic through the measurement region for rise and fall time. The 300 mV measurement window is centered on the differential zero crossing. See Figure 14, page 34.

Note4: Measured at crossing point where the instantaneous voltage value of the rising edge of REFCLK+ equals the

falling edge of REFCLK-. See Figure 10, page 28.

Note5: Refers to the total variation from the lowest crossing point to the highest, regardless of which edge is crossing.

Refers to all crossing points for this measurement. See Figure 10, page 28.

Note6: Defines as the absolute minimum or maximum instantaneous period. This includes cycle to cycle jitter, relative

PPM tolerance, and spread spectrum modulation. See Figure 13, page 33. Note7: Defined as the maximum instantaneous voltage including overshoot. See Figure 10, page 28. Note8: Defined as the minimum instantaneous voltage including undershoot. See Figure 10, page 28. Note9: Defined as the total variation of all crossing voltages of Rising REFCLK+ and Falling REFCLK-. This is the

maximum allowed variance in VCROSS for any particular system. See Figure 11, page 33. Note10: Refer to Section 4.3.2.1 of the PCI Express Base Specification, Revision 1.1 for information regarding PPM

considerations. Note11: System board compliance measurements must use the test load card described in Figure16. REFCLK+ and

REFCLK- are to be measured at the load capacitors CL. Single ended probes must be used for measurements requiring single ended measurements. Either single ended probes with math or differential probe can be used for differential measurements. Test load C

Note12: T

Note13: PPM refers to parts per million and is a DC absolute period accuracy specification. 1 PPM is 1/1,000,000th of

Note14: Matching applies to rising edge rate for REFCLK+ and falling edge rate for REFCLK-. It is measured using a

Note15: Refer to PCI Express Card Electromechanical Specification, rev.1.1, for correct measurement environment

STABLE is the time the differential clock must maintain a minimum ±150 mV differential voltage after

rising/falling edges before it is allowed to droop back into the VRB ±100 mV differential range. See Figure 15.

100.000000 MHz exactly or 100 Hz. For 300 PPM then we have a error budget of 100 Hz/PPM * 300 PPM = 30

kHz. The period is to be measured with a frequency counter with measurement window set to 100 ms or greater.

The ±300 PPM applies to systems that do not employ Spread Spectrum or that use common clock source. For

systems employing Spread Spectrum there is an additional 2500 PPM nominal shift in maximum period resulting

from the 0.5% down spread resulting in a maximum average period specification of +2800 PPM

±75 mV window centered on the median cross point where REFCLK+ rising meets REFCLK- falling. The

median cross point is used to calculate the voltage thresholds the oscilloscope is to use for the edge rate

calculations. The Rise Edge Rate of REFCLK+ should be compared to the Fall Edge Rate of REFCLK-, the

maximum allowed difference should not exceed 20% of the slowest edge rate. See Figure 12, page 33.

setting of each parameter.

L = 2 pF.

- 20 % 1,14

Units Note

Integrated Gigabit Ethernet Controller for PCI Express 32 Track ID: JATR-1076-21 Rev. 1.1

Page 39

RTL8111C-GR

Datasheet

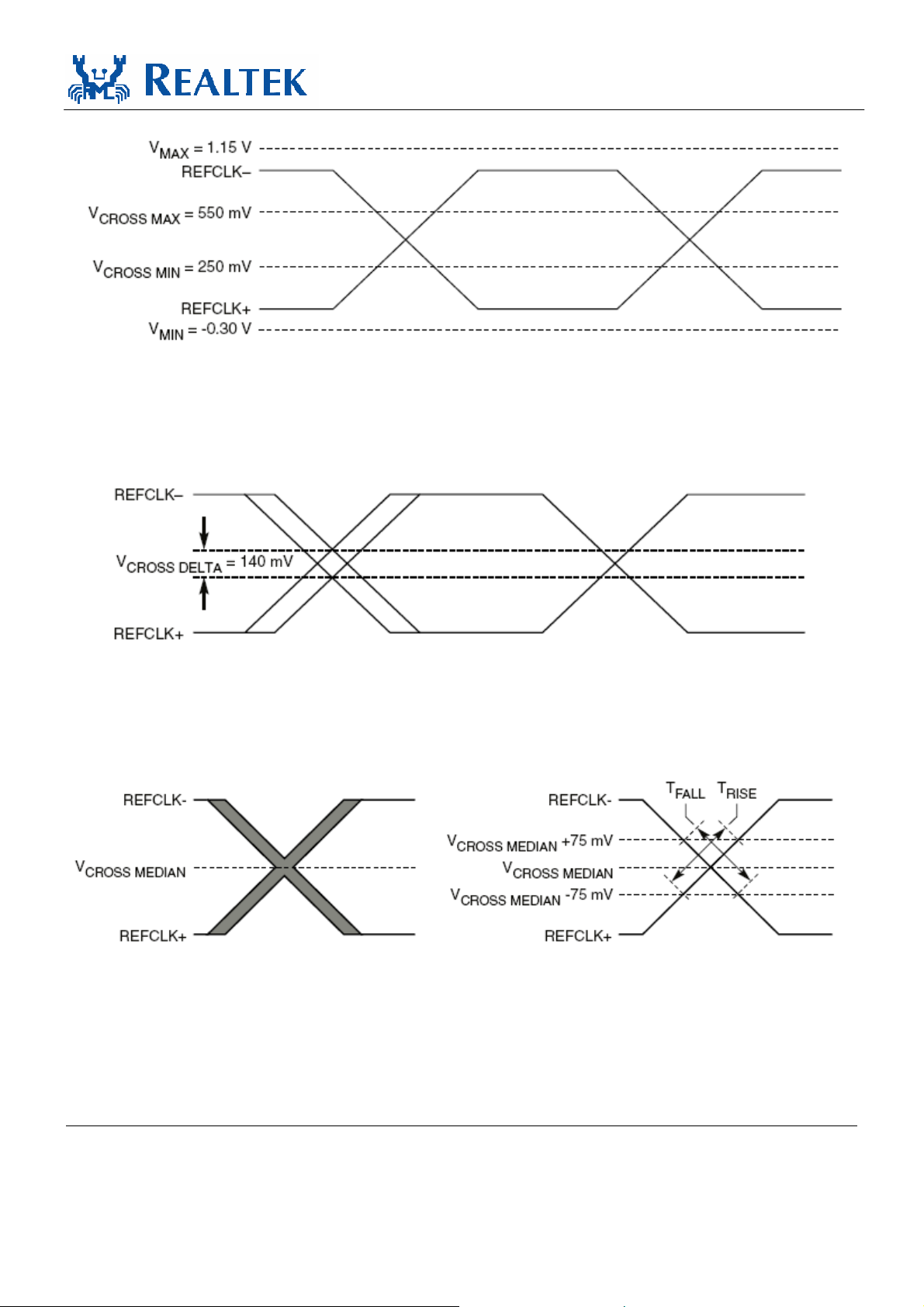

Figure 11. Single-Ended Measurement Points for Absolute Cross Point and Swing

Figure 12. Single-Ended Measurement Points for Delta Cross Point

Figure 13. Single-Ended Measurement Points for Rise and Fall Time Matching

Integrated Gigabit Ethernet Controller for PCI Express 33 Track ID: JATR-1076-21 Rev. 1.1

Page 40

RTL8111C-GR

Datasheet

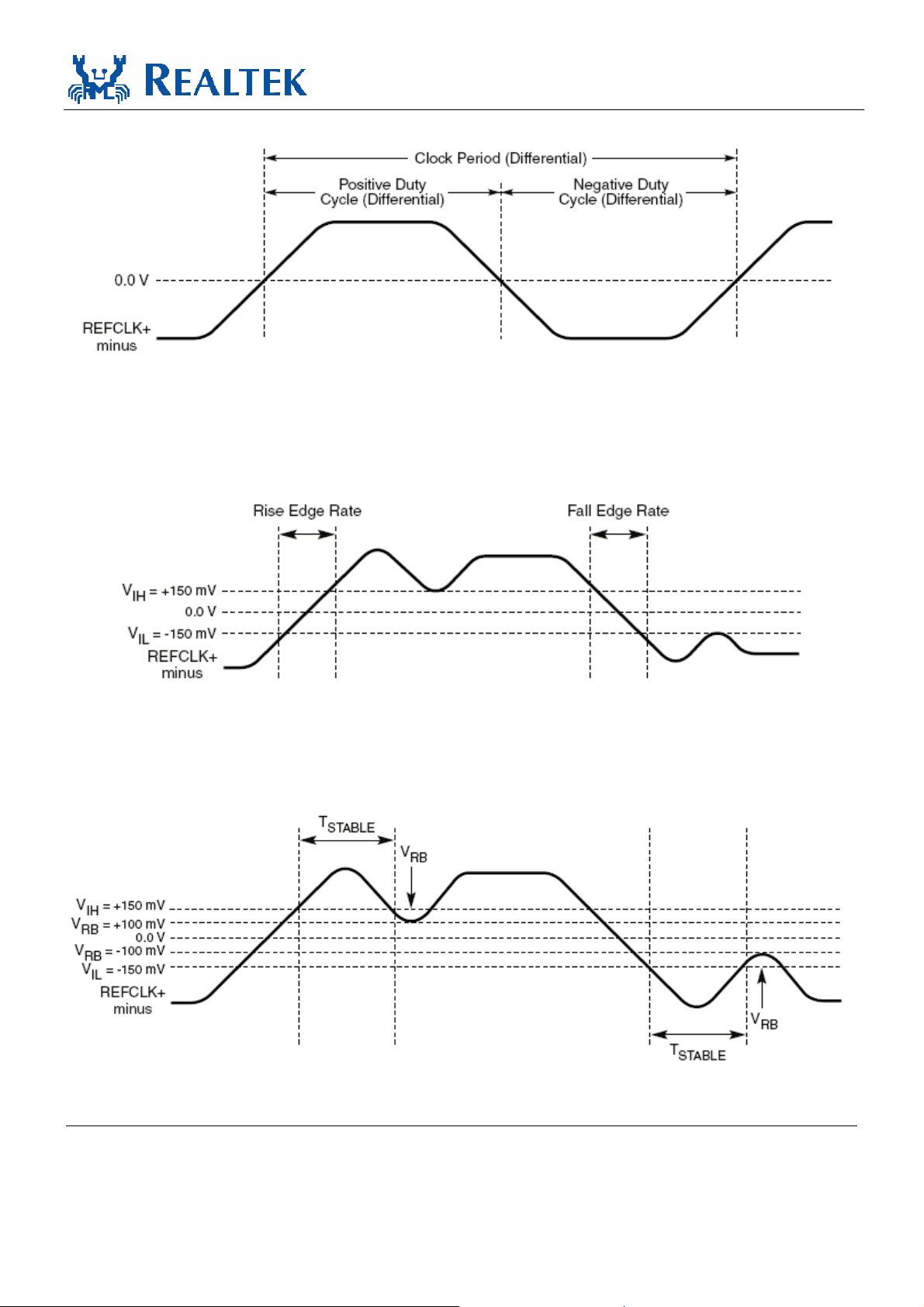

Figure 14. Differential Measurement Points for Duty Cycle and Period

Figure 15. Differential Measurement Points for Rise and Fall Time

Figure 16. Differential Measurement Points for Ringback

Integrated Gigabit Ethernet Controller for PCI Express 34 Track ID: JATR-1076-21 Rev. 1.1

Page 41

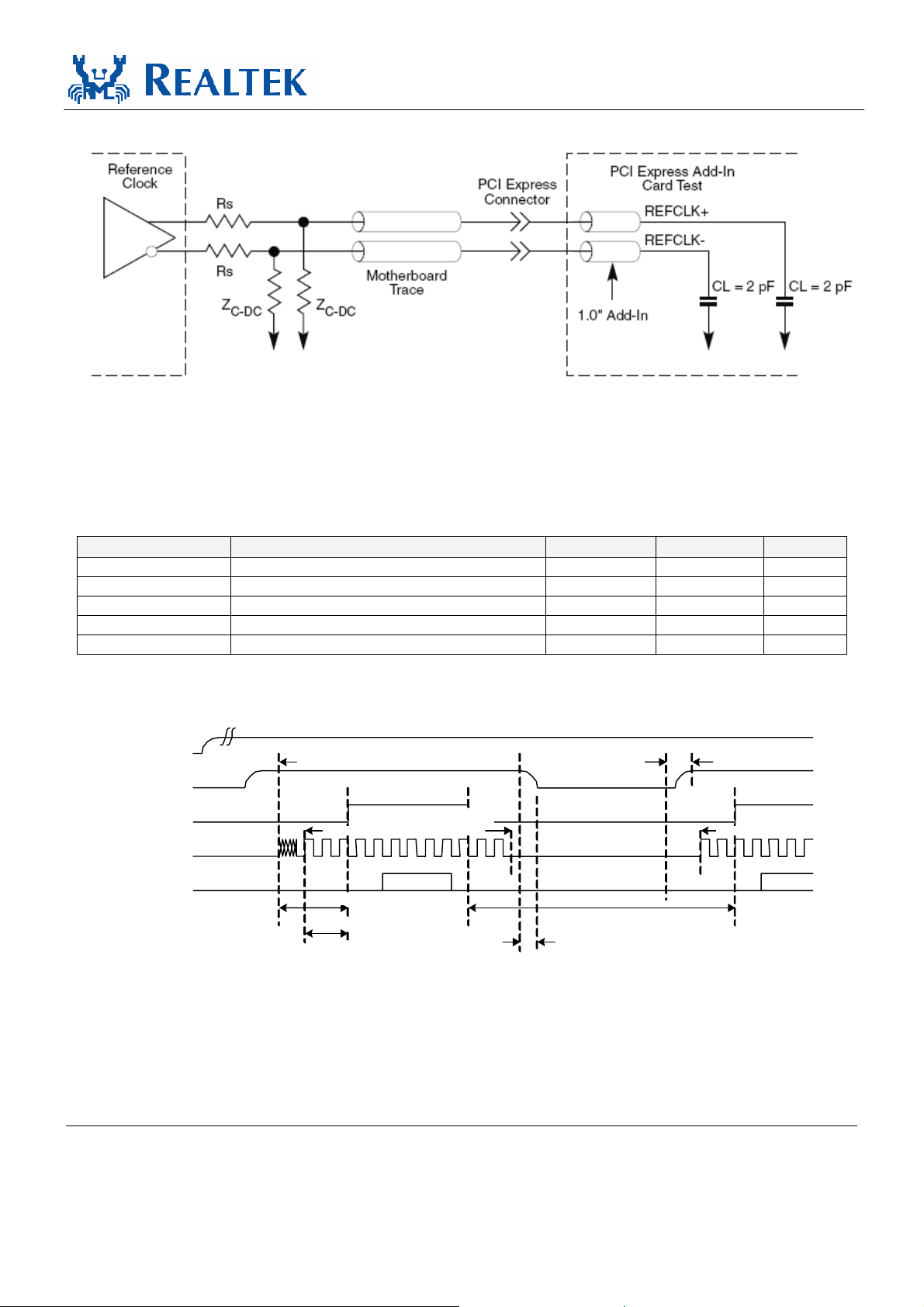

Figure 17. Reference Clock System Measurement Point and Loading

7.7.4. Auxiliary Signal Timing Parameters

RTL8111C-GR

Datasheet

Table 33. Auxiliary Signal Timing Parameters

Symbol Parameter Min Max Units

Power stable to PERSTB inactive 100 - ms

PVPERL

PERST-CLK

PERST

FAI L

WKRF

REFCLK stable before PERSTB inactive 100 - µs

PERSTB active time 100 - µs

Power level invalid to PWRGD inactive - 500 ns

LANWAKEB rise – fall time - 100 ns

3.3 Vaux

3.3/12V

PERSTB

REFCLK

PCI-E Link

Inactive

Power Stable

Clock not

Clock Stable Clock Stable

PVPERL

PERST-CLK

Stable

Active

Wakeup Event

Inactive

PERST

FAIL

Figure 18. Auxiliary Signal Timing

Power Stable

Active

Integrated Gigabit Ethernet Controller for PCI Express 35 Track ID: JATR-1076-21 Rev. 1.1

Page 42

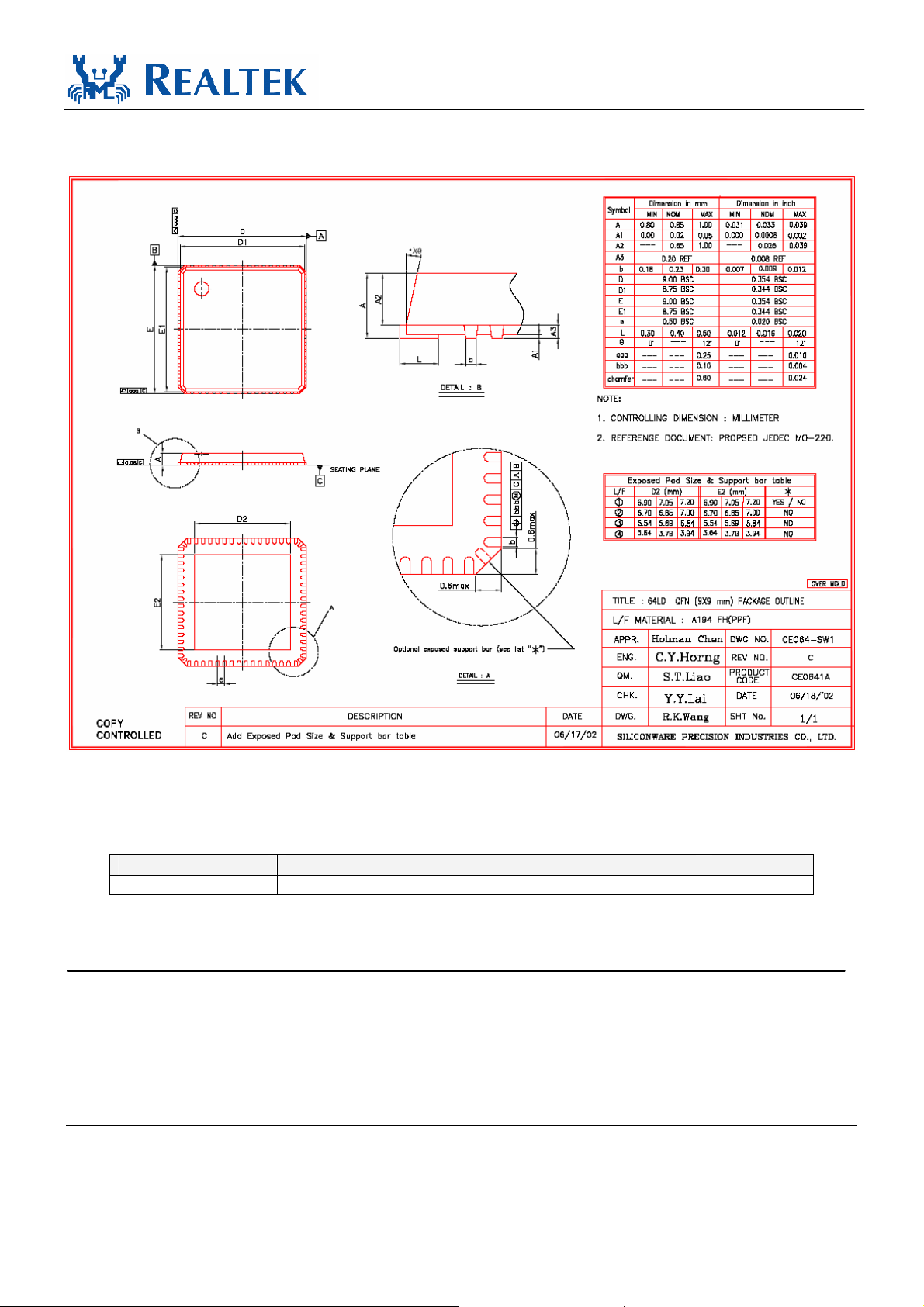

8. Mechanical Dimensions

RTL8111C-GR

Datasheet

9. Ordering Information

Table 34. Ordering Information

Part Number Package Status

RTL8111C-GR 64-Pin QFN ‘Green’ package Production

Note: See page 3 for package ID information.

Realtek Semiconductor Corp. Headquarters

No. 2, Innovation Road II Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com.tw

NOTE: RTL8111C’s exposed pad size is L/F 3

Integrated Gigabit Ethernet Controller for PCI Express 36 Track ID: JATR-1076-21 Rev. 1.1
