Datasheet RFM12 Datasheet (Rainbow Electronics)

RFM12

UNIVERSAL ISM BAND FSK TRANSCEIVER MODULE

RFM12

（the purpose of this spec covers mainly for the physical characteristic of the module, for register configure and its related command info please refer to

RF12 data sheets）

General Introduction

RFM12 is a low costing ISM band transceiver module implemented with unique PLL. It works signal ranges from 315/433/868/915MHZ bands, comply with FCC, ETSI regulation. The SPI interface is used to communicate with microcontroller for parameter setting.

Features:

• Low costing, high performance and price ratio

• Tuning free during production

• PLL and zero IF technology

• Fast PLL lock time

• High resolution PLL with 2.5 KHz step

• High data rate (up to 115.2 kbps with internal demodulator，with external RC filter highest data rate is 256 kbps)

• Differential antenna input

• Automatic antenna tuning

• Programmable TX frequency deviation (from 15 to 240 KHz)

• Programmable receiver bandwidth (from 67 to 400 kHz)

• Analog and digital signal strength indicator (ARSSI/DRSSI)

• AFC

• DQD

• Internal data filtering and clock recovery

• RX synchron pattern recognition

• SPI interface

• Clock and reset signal output for external MCU use

• 16 bit RX Data FIFO

• Two 8 bit TX data registers

• 10MHz crystal for PLL timing

• Wakeup timer

• 2.2V - 5.4V power supply

• Low power consumption

• Standby current less than 0.3uA

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

RFM12

T ypical Application：

• Remote control

• Remote sensor

• Wireless data collection

• Home security system

• Toys

• Tire pressure monitoring system

Pin Definition：

SMD DIP

definition Type Function nINT/VDI DI/ DO Interrupt input (active low)/Valid data indicator VDD S Positive power supply SDI DI SPI data input SCK DI SPI clock input nSEL DI Chip select (active low) SDO DO Serial data output with bus hold nIRQ DO FSK/DATA/nFFS DI/DO/DI Transmit FSK data input/ Received data output (FIFO not used)/ FIFO

DCLK/CFIL/FFIT DO/AIO/DO Clock output (no FIFO )/ external filter capacitor(analog mode)/ FIFO

CLK DO Clock output for external microcontroller nRES DIO GND S Power ground

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

Interrupts request output（active low）

select

interrupts(active high)when FIFO level set to 1, FIFO empty interruption can be achieved

Reset output（active low）

http://www.hoperf.com

RFM12

Electrical Parameter：

Maximum（not at working mode）

symbol parameter minimum maximum Unit V

dd

V

in

I

in

ESD Human body model 1000 V T

st

T

ld

Recommended working range

symbol parameter minimum maximum Unit V

dd

T

op

DC characteristic

symbol parameter Remark minimum typical maximum Unit I

dd_TX_0

I

dd_TX_PMAX

I

dd_RX

I

x

I

pd

I

lb

V

lb

V

lba

V

il

V

ih

I

il

I

ih

V

ol

V

oh

Positive power supply -0.5 6.0 V All pin input level -0.5 Vdd+0.5 V Input current except power -25 25 mA

Storage temperature -55 125 Soldering temperature(10s) 260

℃ ℃

Positive power supply 2.2 5.4 V Working temperature -40 85

Supply current (TX mode, P

out

= 0dBm)

315,433MHz band 868MHz band

13

915MHz band Supply current (TX mode, P

out

= P

max

315,433MHz band

)

868MHz band

21

915MHz band Supply current (RX mode)

315,433MHz band

868MHz band

10

915MHz band Stand by current Crystal and base band

16 17

mA 24 25

mA 12 13 3．0 3．5

℃

mA

on Sleep mode current All blocks off 0.3 uA Low battery detection 0.5 uA Low battery step 0.1V per step 2.2 5.3 V Low battery detection

75 mV accuracy Low level input 0.3*V High level input 0.7*V

V

dd

V

dd

Leakage current Vil=0V -1 1 uA Leakage current Vih=Vdd, Vdd=5.4V -1 1 uA Low level output Iol=2mA 0.4 V High level output Ioh=-2mA Vdd-0.4 V

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

RFM12

AC characteristic

symbol parameter remark min typical max Unit f

ref

f

LO

f

LO

f

LO

BW Receiver

t

lock

PLL frequency 8 10 12 MHz frequency (10MHz crystal used)

315 MHz band,2.5KHz step 433 MHz band,2.5KHz step 868 MHz band,5KHz step

915 MHz band,7.5KHz step frequency (8MHZ crystal used)

315 MHz band,2.5KHz step

433 MHz band,2.5KHz step

868 MHz band,5KHz step

915 MHz band,7.5KHz step frequency (12MHZ crystal used)

315 MHz band,2.5KHz step

433 MHz band,2.5KHz step

868 MHz band,5KHz step

915 MHz band,7.5KHz step

1 bandwidth

2

3

4

5

6 PLL lock time After 10MHz step hopping,

310.24

430.24

860.48

900.72

248.19

344.19

688.38

720.57

372.28

516.28

1032.5

1080.8 60 120 180 240 300 360

319.75

439.75

879.51

929.27

255.80

351.80

703.61

743.41

383.71

527.71

1055.4

1115.1 67 134 200 270 350 400

75 150 225 300 375 450

20 us

MHz

KHz

frequency error <10 kHz

BR Data rate With internal digital

0.6 115.2 kbps

demodulator BR P

min

AFC

RS RS C

ARSSI

RS

A

R

STEP

Data rate With external RC filter 256 kbps sensitivity BW=134KHz,BR=1.2kbps -102 -96 dBm AFC working range df

range

FSK deviation in the

FSK

received signal

0.8* df

FSK

RSSI accuracy ±5 dB RSSI range 46 dB ARSSI filter 1 nF RSSI

6 dB

programmable step

RS

RESP

DRSSI response time

RSSI output high after valid , CARRSI=5nF

500 us

AC characteristic(Transmitter)

symbol parameter remark min typical max Unit P

max

P

out

Available output power with optimal antenna impedance

315/433MHZ band 868/915MHZ band

Typical output power Selectable in 3 dB

steps

8 0 dbm

P

-21 P

max

dbm

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

RFM12

C

o

Output capacitance (set by the automatic antenna

In low bands In high bands

2

2.1

2.6

2.7

3.2

3.3

pf

tuning circuit)

Q

o

L

out

Quality factor of the output capacitance

In low bands In high bands

Output phase noise 100 kHz from carrier

1 MHz from carrier

13 8

-75

15 10

17 12

-85

dbc/HZ

BR FSK bit rate 256 kbps df

fsk

FSK frequency deviation Programmable in 15

15 240 kHZ

kHz steps

AC characteristic(Turn-on/Turnaround timings)

symbol parameter remark min typical max Unit T

st

T

tx_rx_XTAL_ON

T

rx_tx_XTAL_ON

Crystal oscillator startup time Transmitter - Receiver turnover time Receiver - Transmitter turnover time

Crystal ESR < 100 5 ms

Synthesizer off, crystal

450 us oscillator on Synthesizer off, crystal

350 us oscillator on

T

tx_rx_SYNT_ON

T

rx_tx_SYNT_ON

C

xl

t

POR

Transmitter - Receiver turnover time Receiver - Transmitter turnover time Crystal load capacitance

Synthesizer on, crystal oscillator on Synthesizer on, crystal oscillator on Programmable in 0.5 pF steps, tolerance+/- 10%

Internal POR timeout After Vdd has reached 90% of

425 us

300 us

8.5 16 pf

100 ms final value

t

PBt

Wake-up timer clock

Calibrated every 30 seconds 0.96 1.05 ms

period

C

in, D

t

r, f

Digital input apacitance 2 pf Digital output rise/fall

15pF pure capacitive load 10 ns

time

Field testing range

Band Test condition Distance 315MHz band Receiver bandwidth=67KHz,data rate =1.2kbps,Transmitter frequency

deviation =45KHZ（matches with RFM12）in free open area

433MHz band Receiver bandwidth =67KHz, data rate=1.2kbps, transmitter frequency

deviation =45KHZ（matches with RFM12）In free open area

868MHz band Receiver bandwidth=67KHz,data rate =1.2kbps,Transmitter frequency

deviation =45KHZ（matches with RFM12）in free open area

915MHz band Receiver bandwidth=67KHz,data rate =1.2kbps,Transmitter frequency

deviation =45KHZ（matches with RFM12）in free open area

>100M

>150M

>100M

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

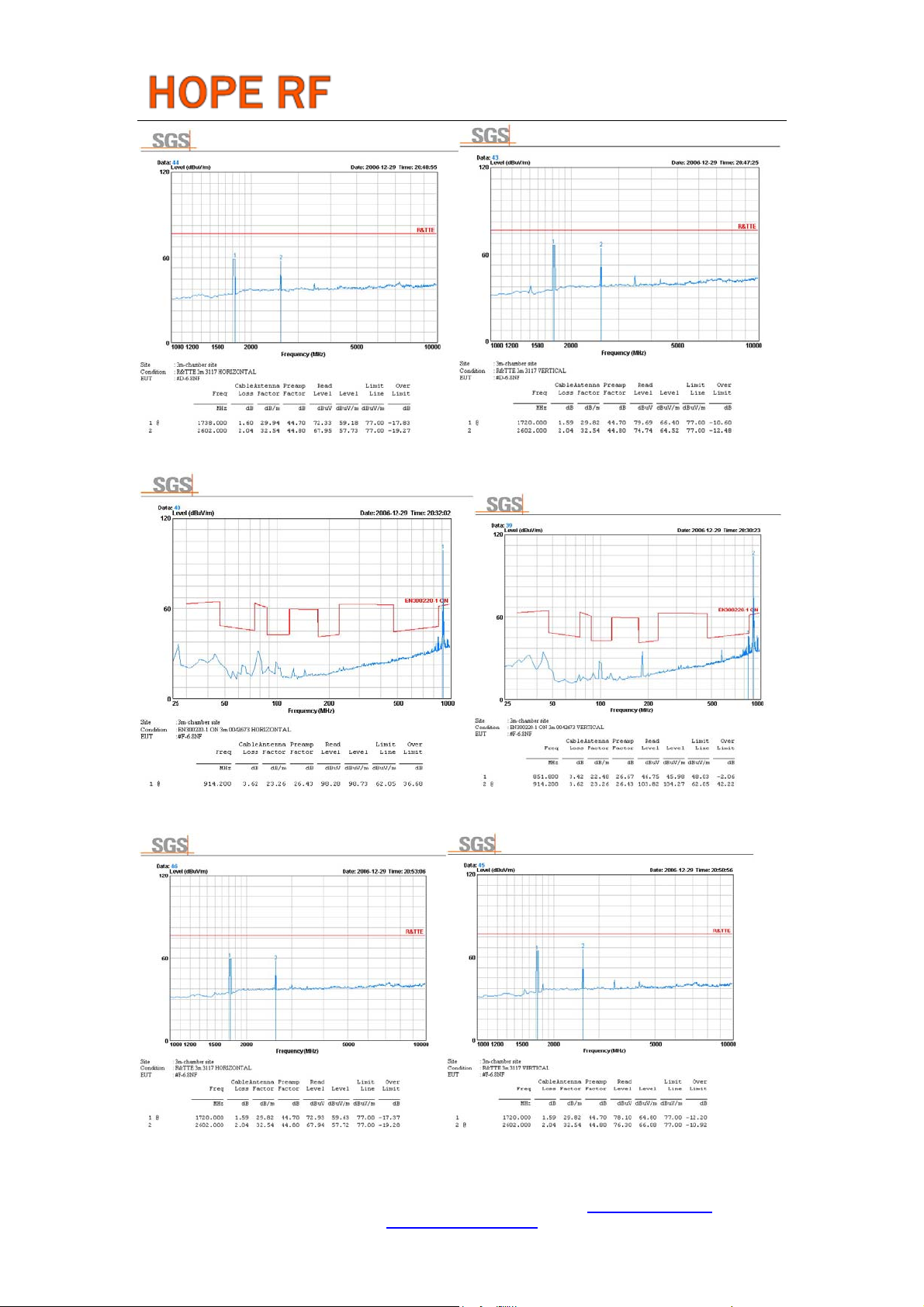

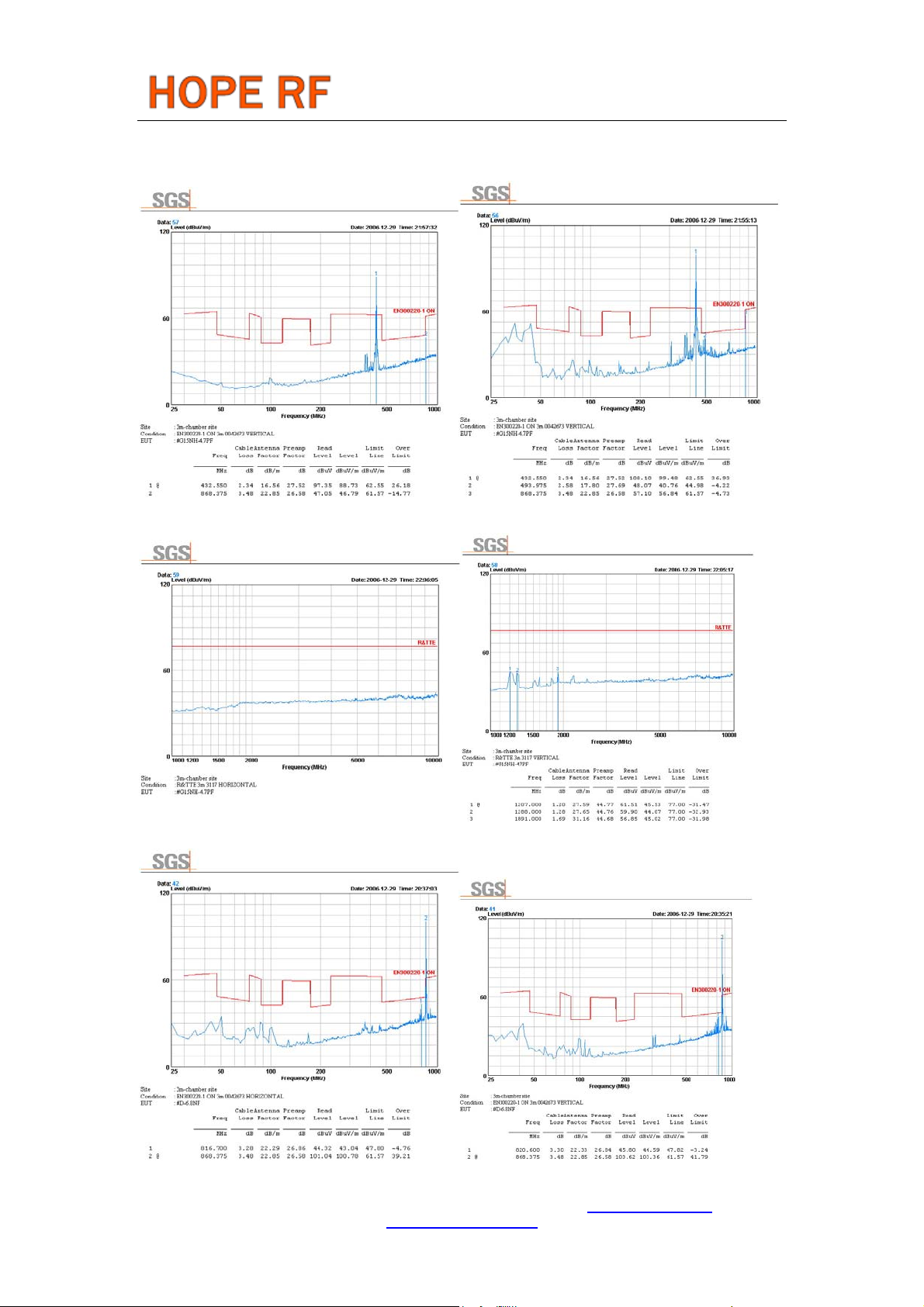

SGS Reports

RFM12

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

RFM12

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

RFM12

Mechanical Dimension

（units in mm）

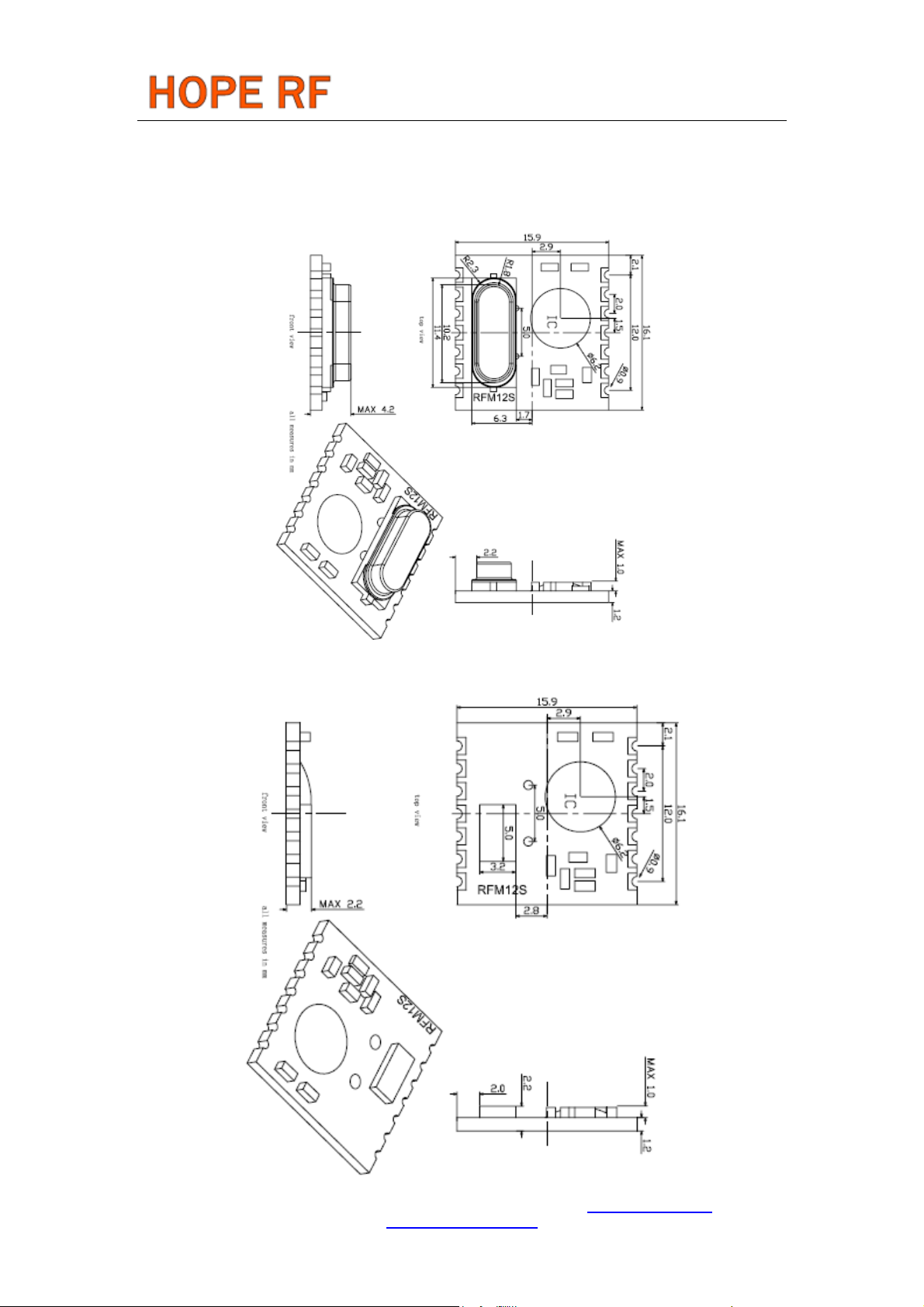

SMD PACKAGE（S1）

SMD PACKAGE（S2）

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

RFM12

DIP PACKAGE（D）

Module Model Definition

model=module-operation band

RFM12 – 433-D/S

module type operation band Package

example：1，RFM12 module at 433MHz band, DIP : RFM12-433-D。 2，RFM12 module at 868MHZ band, SMD, thickness at 4.2mm: RFM12-868-S1。

Tel: +86-755-82973806 Fax: +86-755-82973550 E-mail: [email protected]

http://www.hoperf.com

RFM12

HOPE MICROELECTRONICS CO.,LTD

Rm B.8/F LiJingGe Emperor Regency 6012 ShenNan Rd., Shenzhen,China Tel: 86-755-82973805 Fax: 86-755-82973550 Email:

t[email protected]
