Proposed
0
Typical Applications
• GaAs HBT Pre-Driver for Basestation Amplifiers
• Power Amplifier Stage for Commercial Wireless
Infrastructure
Product Description
The RF3805 is specifically designed for wireless infrastructure applications. Using a highly reliable GaAs HBT
fabrication process, this high-performance dual-stage
amplifier achieves high output power over a broad frequency range. The RF3805 amplifier also provides excellent efficiency and thermal stability through the use of a
thermally-enhanced surface-mount AlN package. Ease of
integration is accomplished through the incor poration of
an optimized evaluation board design provided to ach ieve
proper 50 Ω operation. Various evaluation board configurations are available to address a broad range of wireless
infrastructure applications:
• GSM/EDGE1800
•CDMA2000
•W-CDMA

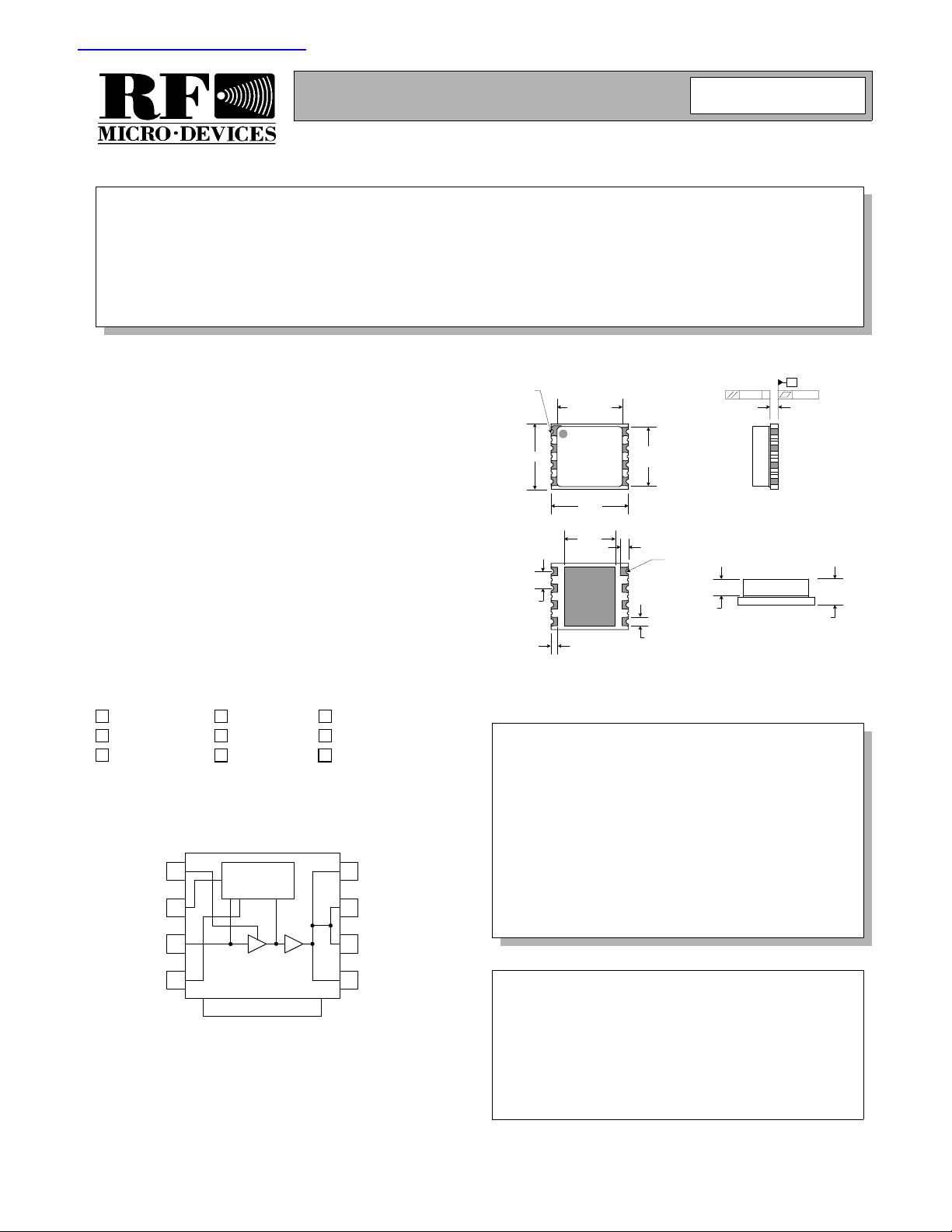

RF3805
GaAs HBT PRE-DRIVER AMPLIFIER
• Class AB Operation for GSM/EDGE/
CDMA2000/W-CDMA Transmitter Applications
Pin 1
0.198
0.050
TYP
0.020
7 PL
0.200 REF
0.236
0.156
Shaded circle designates
pin 1 location.
0.180
REF
Dimensions in inches.
0.025
R.008
0.050
REF
0.028
TYP
-A-
0.005 A 0.0025
0.024
0.0780
MAX
Optimum Technology Matching® Applied
Si BJT GaAs MESFETGaAs HBT
Si Bi-CMOS
InGaP/HBT
VCC1
VREF
RF IN RF OUT/VCC2
V_BIAS
9
SiGe HBT
GaN HEMT SiGe Bi-CMOS
1
2
3
4
Bias
Circuit
PACKAGE BASE
GND
Si CMOS
RF OUT/VCC2
8
RF OUT/VCC2
7
6
RF OUT/VCC2
5
Functional Block Diagram
Package Style: AlN
Features
• 5W Output Power
• High Linearity
• 40% Power-Added Efficiency
• Thermally-Enhanced AlN Packaging
• Broadband Platform Design Approach
Ordering Information
RF3805 GaAs HBT Pre-Driver Amplifier
RF3805PCBA-411 Fully Assembled Evaluation Board - 1625 to 1665
RF3805PCBA-412 Fully Assembled Evaluation Board - 1710 to 1785
RF3805PCBA-413 Fully Assembled Evaluation Board - DCS1800
RF3805PCBA-414 Fully Assembled Evaluation Board - PCS1900
RF3805PCBA-415 Fully Assembled Evaluation Board - UMTS2100
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Rev A1 040806
4-631
RF3805
Proposed
Please contact
RF Micro Devices
Applications Engineering
at (336) 678-5570
for more information.
4-632
Rev A1 040806
