0.6/1 kV
0.6/1 kV
LOW VOLTAGE

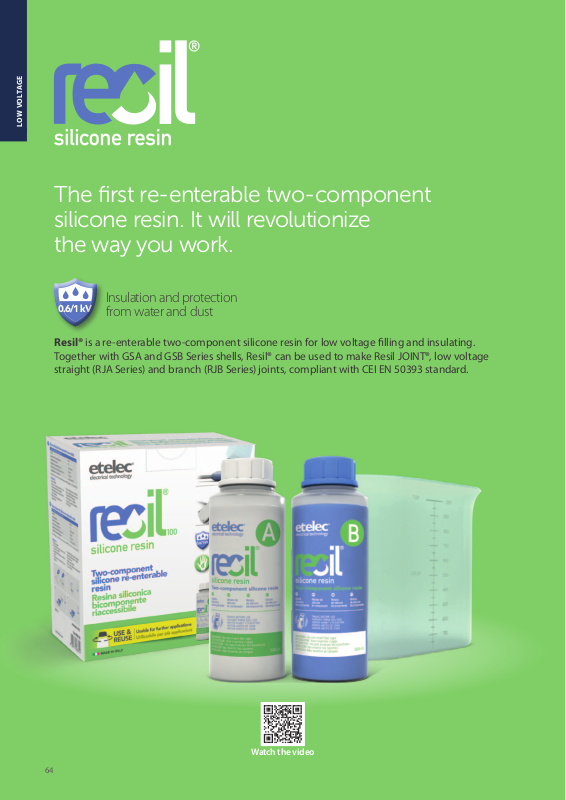

The first re-enterable two-component
silicone resin. It will revolutionize
the way you work.
Insulation and protection
from water and dust
Resil® is a re-enterable two-component silicone resin for low voltage lling and insulating.
Together with GSA and GSB Series shells, Resil® can be used to make Resil JOINT®, low voltage
straight (RJA Series) and branch (RJB Series) joints, compliant with CEI EN 50393 standard.
Watch the video
64
Page 2
Non-toxic
and eco-friendly
Resil® is classied as non-hazardous under
European Regulation 1272/2008 (CLP).
The product is safe to handle.
The two components, supplied in special
containers, are mixed in a measuring jug that
ensures the correct 1:1 dose however much
product is used. The components polymerize
quickly and ll the shell rapidly and safely
thanks to their low viscosity.
LOW VOLTAGE
USE &
REUSE
Thanks to RESIL®'s innovative
formula, unlike traditional resins,
it is possible to use
only the amount required,
keeping the remainder
for later use: no waste
of product, maximum yield
and versatility of use.
Watch the video
65
Page 3
Re-enterable
Resil®, unlike traditional polyurethane and epoxy resins,
allows re-entering long after cross-linking
has taken place, and ensures good mechanical
strength and protection against accidental
contact with live parts.
High performance
Resil®'s fast cross-linking reduces installation
and activation time, as well as labour costs.
The process is non-exothermic and so it causes
no damage to the components and the parts to be
insulated. High dielectric strength: 23 kV/mm.
Wide operating temperature range
(-40 to 180 ºC).
Safe
Resil® contains no isocyanates and ensures
maximum safety levels for the environment
and operators. Resil® is classied as non-hazardous
under European Regulation no. 1272/2008 (CLP)
and can be disposed of as solid waste.
Available size
Resil® is available in 2 sizes: 1 and 4-liters bottles,
both with measuring jug.
Re-enterable two-component silicone resin
NEW 1L AND 5L
MEASURING
JUGS
Easy and waste-free
The two components used to make Resil® come in separate containers to ensure
the correct 1:1 mixing ratio.
The new 1 and 5-liter measuring jugs allow waste-free, thorough and rapid
mixing, even if the whole content of resin is mixed in one go.
66
LOW VOLTAGE
Page 4
Applications
▪ Electrical junction boxes lling
▪ Insulation of 0.6/1 kV electrical connections
▪ Insulation of electronic boards and components
▪ Ideal for low voltage Resil Joint® joints:
straight (RJA Series) with GSA Series shells,
and branch (RJB Series) with GSB Series shells
Advantages
▪ Re-enterable
▪ May be partially used as needed
▪ Can be mixed in one go in the jugs provided
▪ Easy pouring
▪ Rapid and non-exothermic cross-linking
▪ Excellent electrical insulation
▪ Non-hygroscopic
▪ Good mechanical strength that prevents
accidental contact with live parts
▪ Protection from elements (rain, moisture),
dust, animals, insects, leaves
▪ Self-extinguishing class V0
▪ Non-toxic (isocyanate-free)
▪ Eco-friendly
▪ Easy-to-clean reusable jug
Resil 100
Two-component re-enterable
silicone resin - 1 liter
item
volume
(liters)
weight
(kg)
RESIL 100 1.0 1.3
item
volume
(liters)
weight
(kg)
RESIL 400 4.0 5.2
t Re-enterable
t Dielectric strength: 23 kV/mm
t Mixing ratio 1:1
t Density: 1.3 g/cm
3
t Working time at 23 °C: 5 min
t Cross-linking time at 23 °C: 12 min
t Operating temperature: -40 to 180 °C
t Color: blue
t Storage temperature: 5 to 25 ºC
t Self-extinguishing class V0
t Classied as non-hazardous under
European Regulation no. 1272/2008 (CLP)
Kits contents
▪ 2 transparent 500 ml bottles
▪ 1-liter measuring jug
Kits contents
▪ 2 transparent 2-liters bottles
▪ 5-liter measuring jug
0.6/1 kV0.6/1 kV
Resil 400
Two-component re-enterable
silicone resin - 4 liters
U
S
E
&
R
E
U
S
E
67
LOW VOLTAGE
