Datasheet OP07CSZ Specification

Operational Amplifier

OP07

Rev. G

Trademarks and registered trademarks are the prop erty of their respective owner s.

Fax: [phone] ©2002-2011 Analog Devices, Inc. All rights reserved.

1

V

OS

TRIM

8

V

OS

TRIM

2

–IN

7

V+

3

+IN

6

OUT

4

V–

5

NC

OP07

NC = NO CONNECT

00316-001

1

R2A AND R2B ARE ELECTRONICALLY ADJUS TED ON CHIP AT FACTORY FOR MINI M UM INPUT OF FSET VO LTAGE.

6

V+

7

8

3

C3

1

4

2

OUT

Q5

R2A

1

R5

R8

R7

V–

R6

R3

R4

Q21
Q22

Q23
Q24

R1A

R2B

1

R1B

Q7

Q3 Q6

Q1

Q4

Q2

Q27

Q26

Q25

C1

Q9

Q10

Q11

Q12

C2

(OPTIONAL

NULL)

Q13

Q14

Q17

Q16

Q15

Q18

Q20

Q19

R10

R9

Q8

NONINVERTING

INPUT

INVERTING

INPUT

00316-002

Data Sheet

FEATURES

Low VOS: 75 μV maximum
Low V
Ultrastable vs. time: 1.5 μV per month maximum
Low noise: 0.6 μV p-p maximum
Wide input voltage range: ±14 V typical
Wide supply voltage range: ±3 V to ±18 V
125°C temperature-tested dice

APPLICATIONS

Wireless base station control circuits
Optical network control circuits
Instrumentation
Sensors and controls

Precision filters

GENERAL DESCRIPTION

The OP07 has very low input offset voltage (75 μV maximum for
OP07E) that is obtained by trimming at the wafer stage. These
low offset voltages generally eliminate any need for external
nulling. The OP07 also features low input bias current (±4 nA for
the OP07E) and high open-loop gain (200 V/mV for the OP07E).
The low offset and high open-loop gain make the OP07
particularly useful for high gain instrumentation applications.

drift: 1.3 μV/°C maximum

OS

Thermocouples
Resistor thermal detectors (RTDs)
Strain bridges
Shunt current measurements

Ultralow Offset Voltage

PIN CONFIGURATION

Figure 1.

The wide input voltage range of ±13 V minimum combined
with a high CMRR of 106 dB (OP07E) and high input
impedance provide high accuracy in the noninverting circuit
configuration. Excellent linearity and gain accuracy can be
maintained even at high closed-loop gains. Stability of offsets
and gain with time or variations in temperature is excellent. The
accuracy and stability of the OP07, even at high gain, combined
with the freedom from external nulling have made the OP07 an
industry standard for instrumentation applications.

The OP07 is available in two standard performance grades. The
OP07E is specified for operation over the 0°C to 70°C range,
and the OP07C is specified over the −40°C to +85°C
temperature range.

The OP07 is available in epoxy 8-lead PDIP and 8-lead narrow
SOIC packages. For CERDIP and TO-99 packages and standard
microcircuit drawing (SMD) versions, see the OP77.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

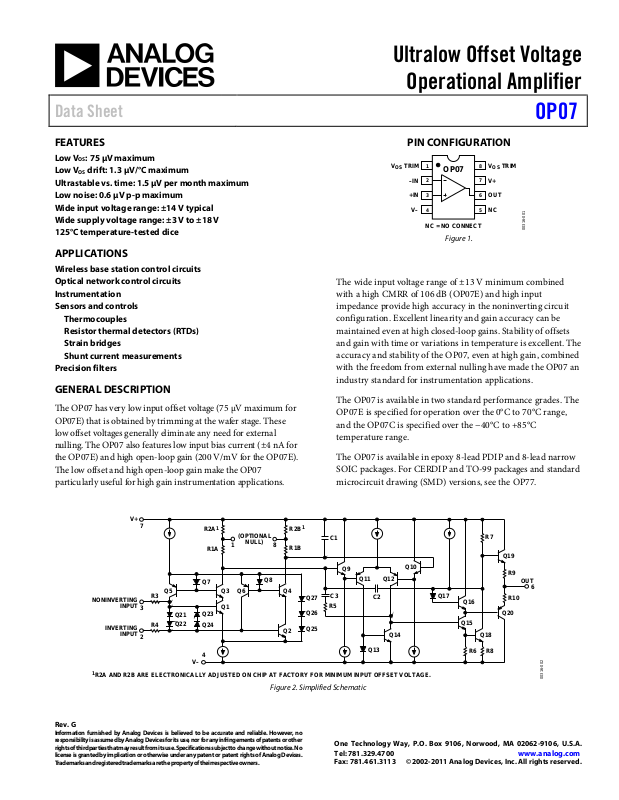

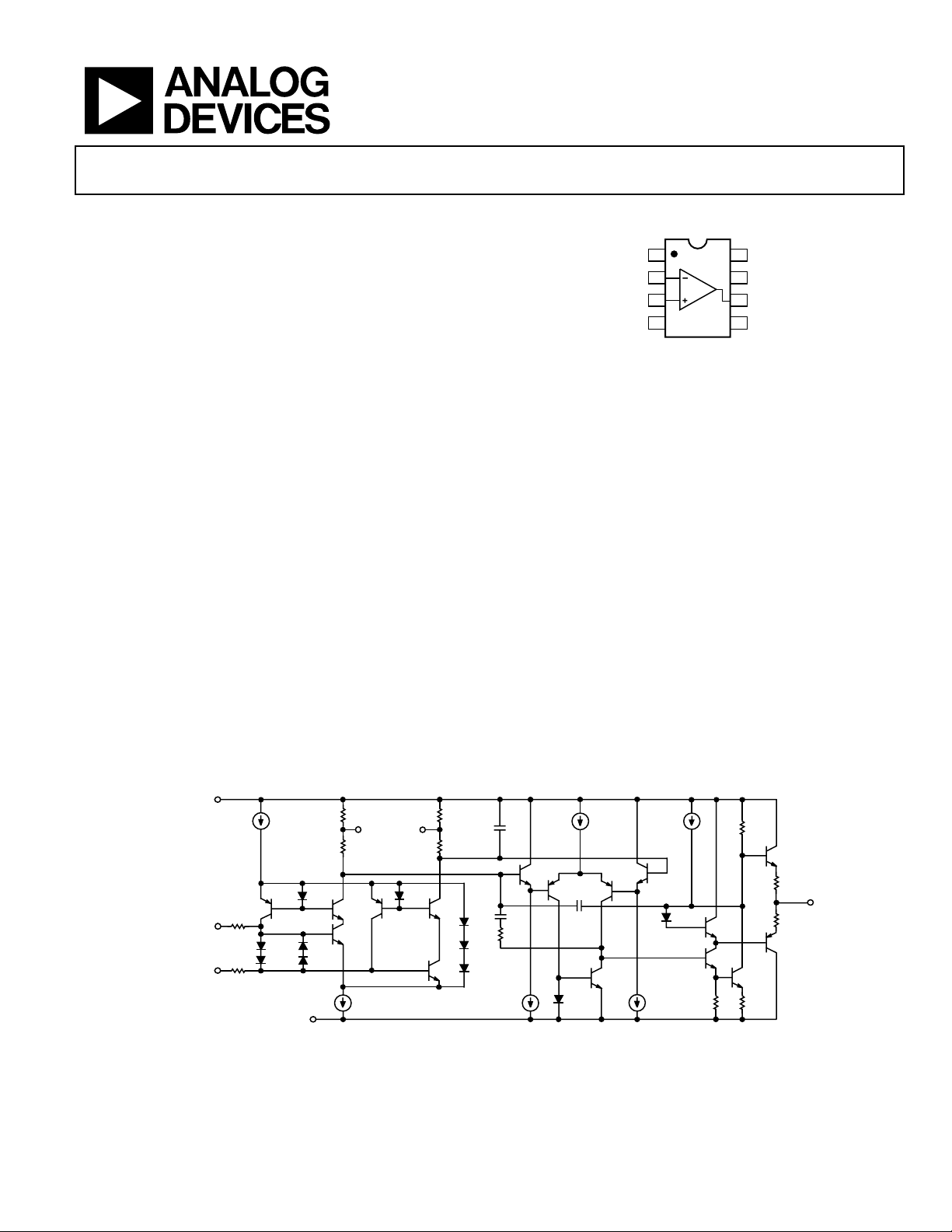

Figure 2. Simplified Schematic

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] www.analog.com

OP07 Data Sheet

TABLE OF CONTENTS

Features .............................................................................................. 1

Absolute Maximum Ratings ............................................................6

Applications ....................................................................................... 1

General Description ......................................................................... 1

Pin Configuration ............................................................................. 1

Revision History ............................................................................... 2

Specifications ..................................................................................... 3

OP07E Electrical Characteristics ............................................... 3

OP07C Electrical Characteristics ............................................... 4

REVISION HISTORY

10/11—Re v. F. to Rev G

Changes to Features Section............................................................ 1

8/10—Re v. E. to Rev F

Changes to Ordering Guide .......................................................... 14

7/09—Re v. D. to Rev E

Changes to Figure 29 Caption ....................................................... 11

Changes to Ordering Guide .......................................................... 14

7/06—Rev. C. to Rev D

Changes to Features .......................................................................... 1

Changes to General Description .................................................... 1

Changes to Specifications Section .................................................. 3

Changes to Ta bl e 4 ............................................................................ 6

Changes to Figure 6 and Figure 8 ................................................... 7

Changes to Figure 13 and Figure 14 ............................................... 8

Changes to Figure 20 ........................................................................ 9

Changes to Figure 21 to Figure 25 ................................................ 10

Changes to Figure 26 and Figure 30 ............................................. 11

Replaced Figure 28 ......................................................................... 11

Changes to Applications Information Section ............................ 12

Updated Outline Dimensions ....................................................... 13

Changes to Ordering Guide .......................................................... 14

Thermal Resistance .......................................................................6

ESD Caution...................................................................................6

Typical Performance Characteristics ..............................................7

Typical Applications ....................................................................... 11

Applications Information .......................................................... 12

Outline Dimensions ....................................................................... 13

Ordering Guide .......................................................................... 14

8/03—Re v. B to Re v. C

Changes to OP07E Electrical Specifications .................................. 2

Changes to OP07C Electrical Specifications ................................. 3

Edits to Ordering Guide ................................................................... 5

Edits to Figure 6 ................................................................................. 9

Updated Outline Dimensions ....................................................... 11

3/03—Re v. A to R e v. B

Updated Package Titles ...................................................... Universal

Updated Outline Dimensions ....................................................... 11

2/02—Re v. 0 to Re v. A

Edits to Features ................................................................................. 1

Edits to Ordering Guide ................................................................... 1

Edits to Pin Connection Drawings ................................................. 1

Edits to Absolute Maximum Ratings .............................................. 2

Deleted Electrical Characteristics .............................................. 2–3

Deleted OP07D Column from Electrical Characteristics ....... 4–5

Edits to TPCs ................................................................................ 7–9

Edits to High-Speed, Low V

Composite Amplifier ................... 9

OS

Rev. G | Page 2 of 16

Data Sheet OP07

Input Offset Voltage1

VOS

30

75

μV

fO = 1 kHz

0.12

0.17

pA/√Hz

Large Signal Voltage Gain

AVO

RL ≥ 2 kΩ, VO = ±10 V

200

500 V/mV

Input Voltage Range

IVR ±13

±13.5

V

SPECIFICATIONS

OP07E ELECTRICAL CHARACTERISTICS

VS = ±15 V, unless otherwise noted.

Table 1.

Parameter Symbol Conditions Min Typ Max Unit

INPUT CHARACTERISTICS

TA = 25°C

Long-Term VOS Stability2 VOS/Time 0.3 1.5 μV/Month
Input Offset Current IOS 0.5 3.8 nA
Input Bias Current IB ±1.2 ±4.0 nA
Input Noise Voltage en p-p 0.1 Hz to 10 Hz3 0.35 0.6 μV p-p
Input Noise Voltage Density en fO = 10 Hz 10.3 18.0 nV/√Hz
fO = 100 Hz3 10.0 13.0 nV/√Hz
fO = 1 kHz 9.6 11.0 nV/√Hz
Input Noise Current In p-p 14 30 pA p-p
Input Noise Current Density In fO = 10 Hz 0.32 0.80 pA/√Hz
fO = 100 Hz3 0.14 0.23 pA/√Hz

Input Resistance, Differential Mode4 RIN 15 50 MΩ
Input Resistance, Common Mode R
Input Voltage Range IVR ±13 ±14 V
Common-Mode Rejection Ratio CMRR VCM = ±13 V 106 123 dB
Power Supply Rejection Ratio PSRR VS = ±3 V to ±18 V 5 20 μV/V

160 GΩ

INCM

RL ≥ 500 Ω, VO = ±0.5 V, VS = ±3 V4 150 400 V/mV

0°C ≤ TA ≤ 70°C

Input Offset Voltage1 VOS 45 130 μV
Voltage Drift Without External Trim4 TCVOS 0.3 1.3 μV/°C
Voltage Drift with External Trim3 TCV
Input Offset Current IOS 0.9 5.3 nA
Input Offset Current Drift TCIOS 8 35 pA/°C
Input Bias Current IB ±1.5 ±5.5 nA
Input Bias Current Drift TCIB 13 35 pA/°C

Common-Mode Rejection Ratio CMRR VCM = ±13 V 103 123 dB
Power Supply Rejection Ratio PSRR VS = ±3 V to ±18 V 7 32 μV/V
Large Signal Voltage Gain AVO RL ≥ 2 kΩ, VO = ±10 V 180 450 V/mV

OUTPUT CHARACTERISTICS

TA = 25°C

Output Voltage Swing VO RL ≥ 10 kΩ ±12.5 ±13.0 V
RL ≥ 2 kΩ ±12.0 ±12.8 V
RL ≥ 1 kΩ ±10.5 ±12.0 V

0°C ≤ TA ≤ 70°C

Output Voltage Swing VO RL ≥ 2 kΩ ±12 ±12.6 V

RP = 20 kΩ 0.3 1.3 μV/°C

OSN

Rev. G | Page 3 of 16

OP07 Data Sheet

Long-Term VOS Stability2

VOS/Time

0.4

2.0

μV/Month

Input Resistance, Differential Mode4

RIN 8

33 MΩ

Voltage Drift with External Trim3

TCV

RP = 20 kΩ

0.4

1.6

μV/°C

Common-Mode Rejection Ratio

CMRR

VCM = ±13 V

97

120 dB

Parameter Symbol Conditions Min Typ Max Unit

DYNAMIC PERFORMANCE

TA = 25°C

Slew Rate SR RL ≥ 2 kΩ3 0.1 0.3 V/μs
Closed-Loop Bandwidth BW A
Open-Loop Output Resistance RO VO = 0, IO = 0 60 Ω
Power Consumption Pd VS = ±15 V, No load 75 120 mW
VS = ±3 V, No load 4 6 mW
Offset Adjustment Range RP = 20 kΩ ±4 mV

1

Input offset voltage measurements are performed by automated test equipment approximately 0.5 seconds after application of power.

2

Long-term input offset voltage stability refers to the averaged trend time of VOS vs. the time over extended periods after the first 30 days of operation. Excluding the

initial hour of operation, changes in VOS during the first 30 operating days are typically 2.5 μV. Refer to the Typical Performance Characteristics section. Parameter is
sample tested.

3

Sample tested.

4

Guaranteed by design.

5

Guaranteed but not tested.

OP07C ELECTRICAL CHARACTERISTICS

VS = ±15 V, unless otherwise noted.

Table 2.

Parameter Symbol Conditions Min Typ Max Unit

INPUT CHARACTERISTICS

TA = 25°C

Input Offset Voltage1 VOS 60 150 μV

= 15 0.4 0.6 MHz

VOL

Input Offset Current IOS 0.8 6.0 nA
Input Bias Current IB ±1.8 ±7.0 nA
Input Noise Voltage en p-p 0.1 Hz to 10 Hz3 0.38 0.65 μV p-p
Input Noise Voltage Density en fO = 10 Hz 10.5 20.0 nV/√Hz
fO = 100 Hz3 10.2 13.5 nV/√Hz
fO = 1 kHz 9.8 11.5 nV/√Hz
Input Noise Current In p-p 15 35 pA p-p
Input Noise Current Density In fO = 10 Hz 0.35 0.90 pA/√Hz
fO = 100 Hz3 0.15 0.27 pA/√Hz
fO = 1 kHz 0.13 0.18 pA/√Hz

Input Resistance, Common Mode R

120 GΩ

INCM

Input Voltage Range IVR ±13 ±14 V
Common-Mode Rejection Ratio CMRR VCM = ±13 V 100 120 dB
Power Supply Rejection Ratio PSRR VS = ±3 V to ±18 V 7 32 μV/V
Large Signal Voltage Gain AVO RL ≥ 2 kΩ, VO = ±10 V 120 400 V/mV
RL ≥ 500 Ω, VO = ±0.5 V, VS = ±3 V4 100 400 V/mV

−40°C ≤ TA ≤ +85°C

Input Offset Voltage1 VOS 85 250 μV
Voltage Drift Without External Trim4 TCVOS 0.5 1.8 μV/°C

OSN

Input Offset Current IOS 1.6 8.0 nA
Input Offset Current Drift TCIOS 12 50 pA/°C
Input Bias Current IB ±2.2 ±9.0 nA
Input Bias Current Drift TCIB 18 50 pA/°C
Input Voltage Range IVR ±13 ±13.5 V

Power Supply Rejection Ratio PSRR VS = ±3 V to ±18 V 10 51 μV/V
Large Signal Voltage Gain AVO RL ≥ 2 kΩ, VO = ±10 V 100 400 V/mV

Rev. G | Page 4 of 16

Data Sheet OP07

Parameter Symbol Conditions Min Typ Max Unit

OUTPUT CHARACTERISTICS

TA = 25°C

Output Voltage Swing VO RL ≥ 10 kΩ ±12.0 ±13.0 V
RL ≥ 2 kΩ ±11.5 ±12.8 V
RL ≥ 1 kΩ ±12.0 V

−40°C ≤ TA ≤ +85°C

Output Voltage Swing VO RL ≥ 2 kΩ ±12 ±12.6 V

DYNAMIC PERFORMANCE

TA = 25°C

Slew Rate SR RL ≥ 2 kΩ3 0.1 0.3 V/μs
Closed-Loop Bandwidth BW A
Open-Loop Output Resistance RO VO = 0, IO = 0 60 Ω
Power Consumption Pd VS = ±15 V, No load 80 150 mW
VS = ±3 V, No load 4 8 mW
Offset Adjustment Range RP = 20 kΩ ±4 mV

1

Input offset voltage measurements are performed by automated test equipment approximately 0.5 seconds after application of power.

2

Long-term input offset voltage stability refers to the averaged trend time of VOS vs. the time over extended periods after the first 30 days of operation. Excluding the

initial hour of operation, changes in VOS during the first 30 operating days are typically 2.5 μV. Refer to the Typical Performance Characteristics section. Parameter is
sample tested.

3

Sample tested.

4

Guaranteed by design.

5

Guaranteed but not tested.

= 15 0.4 0.6 MHz

VOL

Rev. G | Page 5 of 16

OP07 Data Sheet

±

±

electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance

ABSOLUTE MAXIMUM RATINGS

Table 3.

Parameter Ratings

Supply Voltage (VS)
Input Voltage1
Differential Input Voltage
Output Short-Circuit Duration Indefinite
Storage Temperature Range

S and P Packages

Operating Temperature Range

OP07E

OP07C
Junction Temperature
Lead Temperature, Soldering (60 sec)

1

For supply voltages less than ±22 V, the absolute maximum input voltage is

equal to the supply voltage.

±22 V

22 V
30 V

−65°C to +125°C

0°C to 70°C

−40°C to +85°C
150°C
300°C

ESD CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on
the human body and test equipment and can discharge without detection. Although this product features
proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy

degradation or loss of functionality.

Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.

THERMAL RESISTANCE

θJA is specified for the worst-case conditions, that is, a device
soldered in a circuit board for surface-mount packages.

Table 4. Thermal Resistance

Package Type θJA θJC Unit

8-Lead PDIP (P-Suffix) 103 43 °C/W
8-Lead SOIC_N (S-Suffix) 158 43 °C/W

Rev. G | Page 6 of 16

Data Sheet OP07

1000

0

200

400

600

800

900

100

300

500

700

–50–75 100500–25 1257525

OPEN-LOOP GAIN (V/mV)

TEMPERATURE (°C)

V

S

= ±15V

00316-003

30

25

20

15

10

5

0

–20 0 20 40 60 80 100

ABSOLUTE CHANGE IN INPUT

OFFSET VOLTAGE (µV)

TIME (Seconds)

VS = ±15V
T

A

= 25°C, TA = 70°C

THERMAL

SHOCK

RESPONSE

BAND

DEVICE IMMERSED
IN 70°C OI L BATH

00316-004

OP07C

OP07E

25

20

15

10

5

0

0 1 2 3 4 5

ABSOLUTE CHANGE IN INPUT

OFFSET VOLTAGE (µV)

TIME AFTER SUPPLY TURN-ON (Minutes)

V

S

= ±15V

T

A

= 25°C

00316-005

1.0

0.8

0.6

0.4

0.2

0

100 1k 10k 100k

MATCHED OR UNMATCHED SOURCE RESIST ANCE (Ω)

MAXIMUM ERROR REFERRED TO INPUT (mV )

OP07E

OP07C

00316-006

V

S

= ±15V

T

A

= 25°C

1.2

1.0

0.8

0.6

0.4

0.2

0

100 1k 10k 100k

MATCHED OR UNMATCHED SOURCE RESIST ANCE (Ω)

MAXIMUM ERROR REFERRED TO INPUT (mV )

V

S

= ±15V

0°C ≤ T

A

≤ 70°C

OP07C

OP07E

00316-007

30

–30

–20

–10

0

10

20

–30 –20 –10 3020100

DIFFERENTIAL INPUT VALUE (V)

NONINVERT ING INPUT BIAS CURRENT (n A)

AT |V

DIFF

| ≤ 1.0V, | IB| ≤ 7nA (OP07C)

V

S

= ±15V

TA = 25°C

00316-008

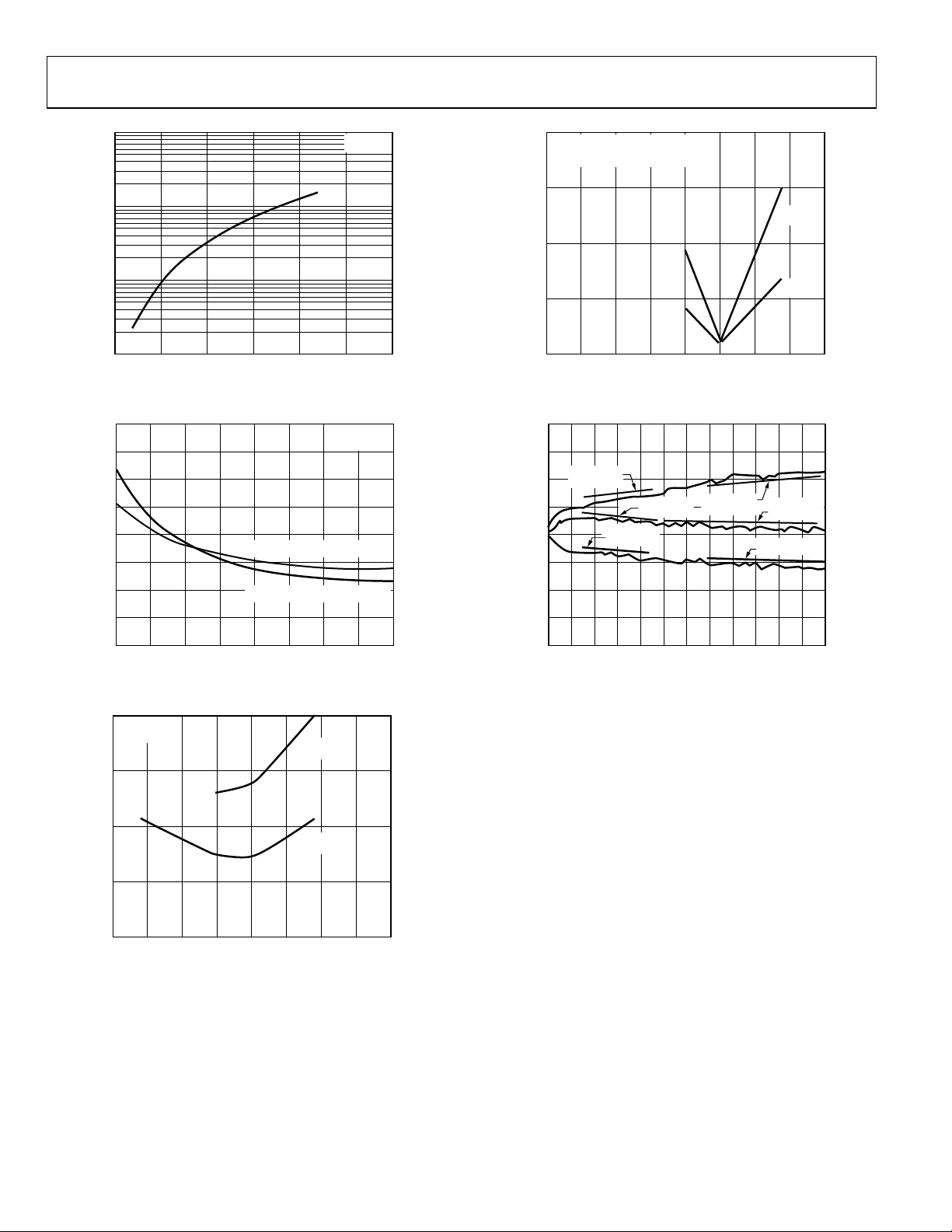

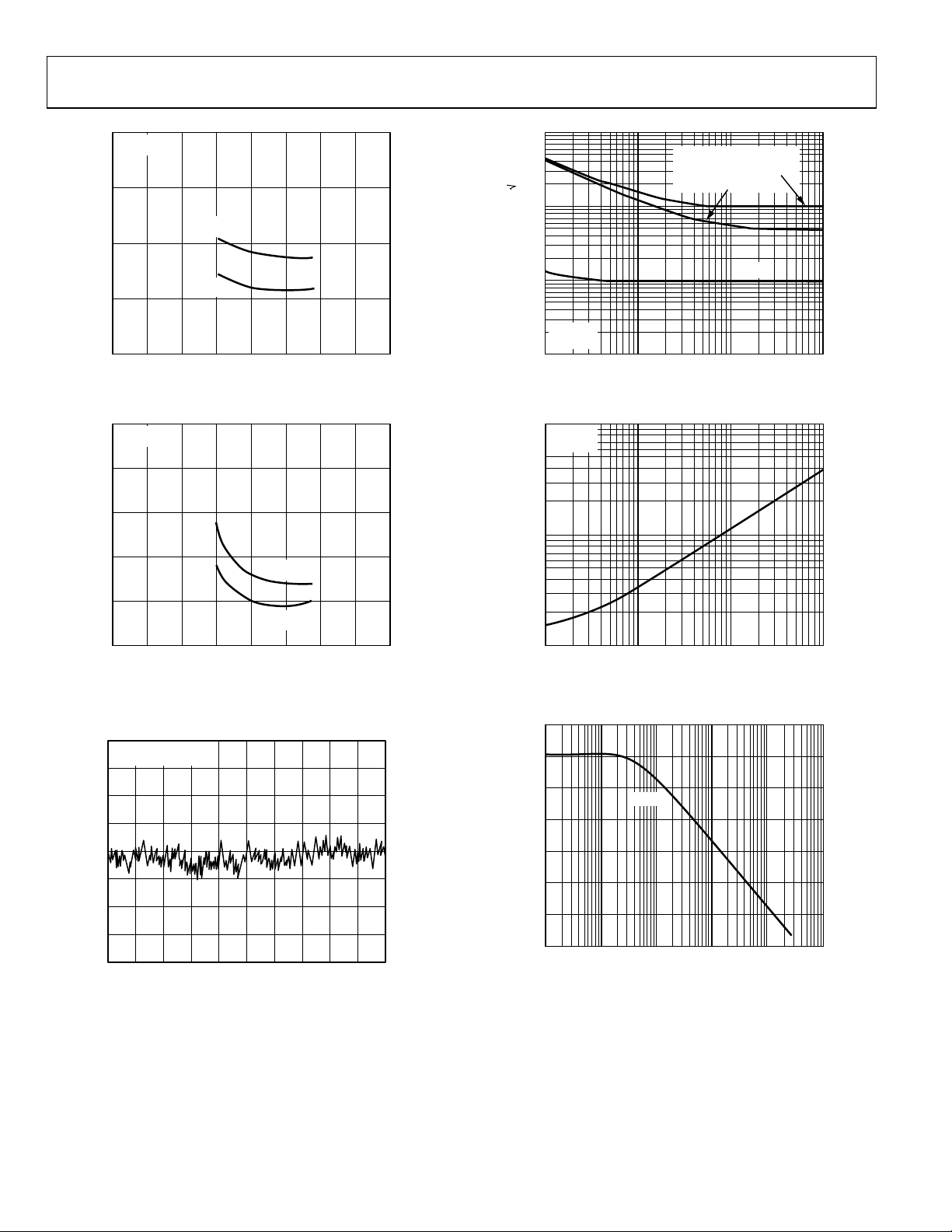

TYPICAL PERFORMANCE CHARACTERISTICS

Figure 3. Open-Loop Gain vs. Temperature

Figure 4. Offset Voltage Change due to Thermal Shock

Figure 6. Maximum Error vs. Source Resistance

Figure 7. Maximum Error vs. Source Resistance

Figure 5. Warm-Up Drift

Figure 8. Input Bias Current vs. Differential Input Voltage

Rev. G | Page 7 of 16

OP07 Data Sheet

4

3

2

1

0

TEMPERATURE (°C)

INPUT BIAS CURRE NT (nA)

–50–75 100500–25 1257525

VS = ±15V

OP07C

OP07E

00316-009

2.5

2.0

1.5

1.0

0.5

0

TEMPERATURE (°C)

INPUT OFFSET CURRENT (nA)

–50–100 –75 500–25 1007525

V

S

= ±15V

OP07C

OP07E

00316-010

TIME (1s/DIV)

VOLTAGE (200nV/DIV)

REFERRED TO INPUT
5mV/CM AT O UTPUT

00316-011

1000

100

10

1

FREQUENCY ( Hz )

INPUT NOISE VOLTAGE (nV/ Hz)

101 1000100

R

S1

= R

S2

= 200kΩ

THERMAL NO ISE SOURCE
RESISTORS INCLUDED

EXCLUDED

R

S

= 0

V

S

= ±15V

T

A

= 25°C

00316-012

10

1

0.1

BANDWIDTH (Hz )

RMS NOISE (µV)

1k100 100k10k

V

S

= ±15V

T

A

= 25°C

00316-013

130

120

110

100

90

80

70

60

FREQUENCY ( Hz )

CMRR (dB)

101 100k1k 10k100

OP07C

00316-014

Figure 9. Input Bias Current vs. Temperature

Figure 10. Input Offset Current vs. Temperature

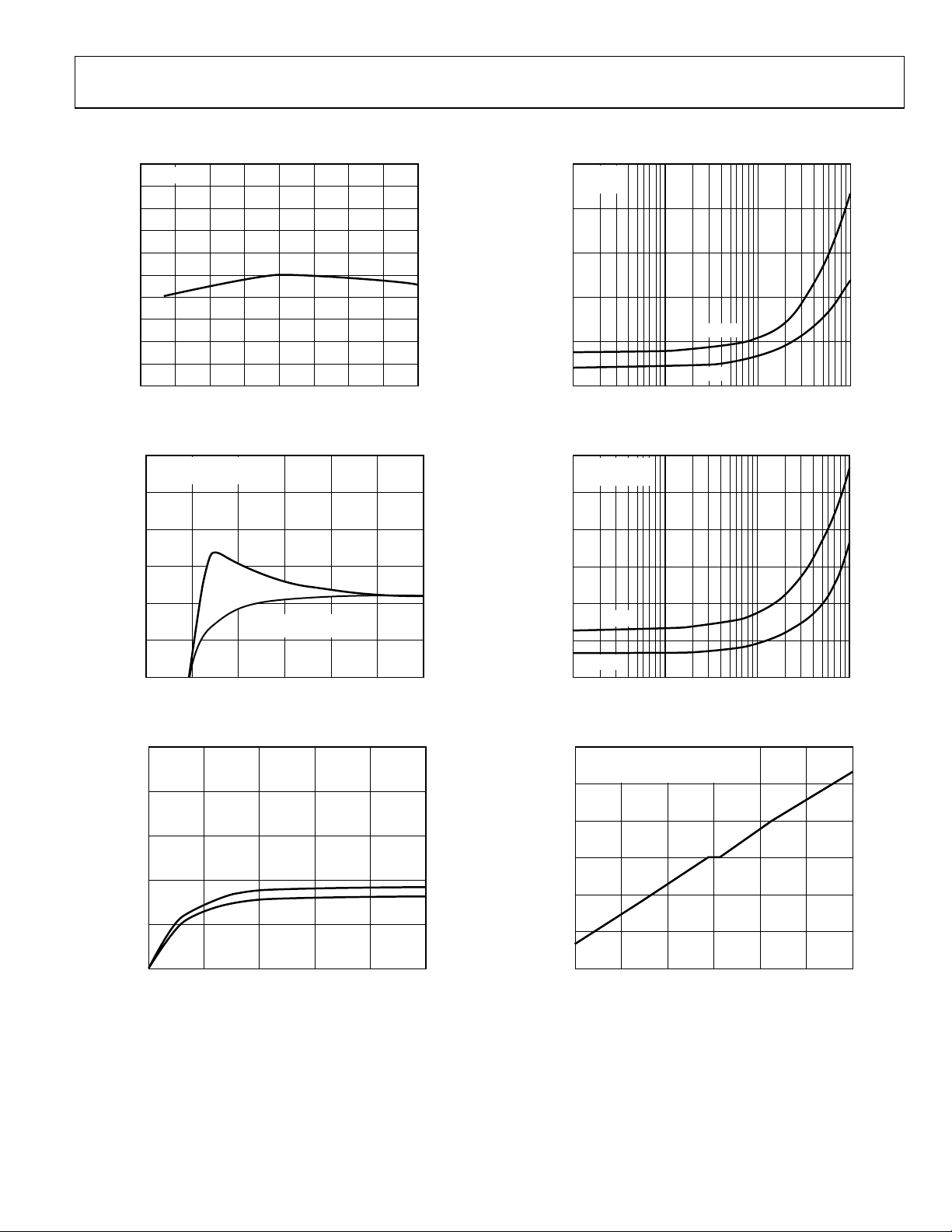

Figure 12. Total Input Noise Voltage vs. Frequency

Figure 13. Input Wideband Noise vs. Bandwidth,

0.1 Hz to Frequency Indicated

Figure 11. Low Frequency Noise

Figure 14. CMRR vs. Frequency

Rev. G | Page 8 of 16

Data Sheet OP07

120

110

100

90

80

70

50

60

FREQUENCY ( Hz )

PSRR (dB)

100.1 1 10k1k100

OP07C

T

A

= 25°C

00316-015

1000

800

600

400

200

0

POWER SUPPLY VOLTAGE (V)

OPEN-LOOP GAIN (V/mV)

±100 ±5 ±20±15

T

A

= 25°C

00316-016

120

100

80

60

40

20

0

–20

–40

FREQUENCY ( Hz )

OPEN-LOOP GAIN (dB)

0.1 1 10 100 1k 10k 100k 1M 10M

V

S

= ±15V

T

A

= 25°C

00316-017

100

80

60

40

20

0

–20

FREQUENCY ( Hz )

CLOSED-LOOP GAIN (dB)

10 100 1k 10k 100k 1M 10M

V

S

= ±15V

T

A

= 25°C

00316-018

28

24

20

16

12

8

4

0

FREQUENCY ( Hz )

PEAK-TO-PEAK AMPLITUDE (V)

1k 10k 100k 1M

V

S

= ±15V

T

A

= 25°C

00316-019

20

15

10

5

0

LOAD RESISTANCE TO GROUND (Ω)

MAXIMUM OUTPUT (V)

100 1k 10k

V

S

= ±15V

V

IN

= ±10mV

T

A

= 25°C

POSITIVE SWING

NEGATIVE SWING

00316-020

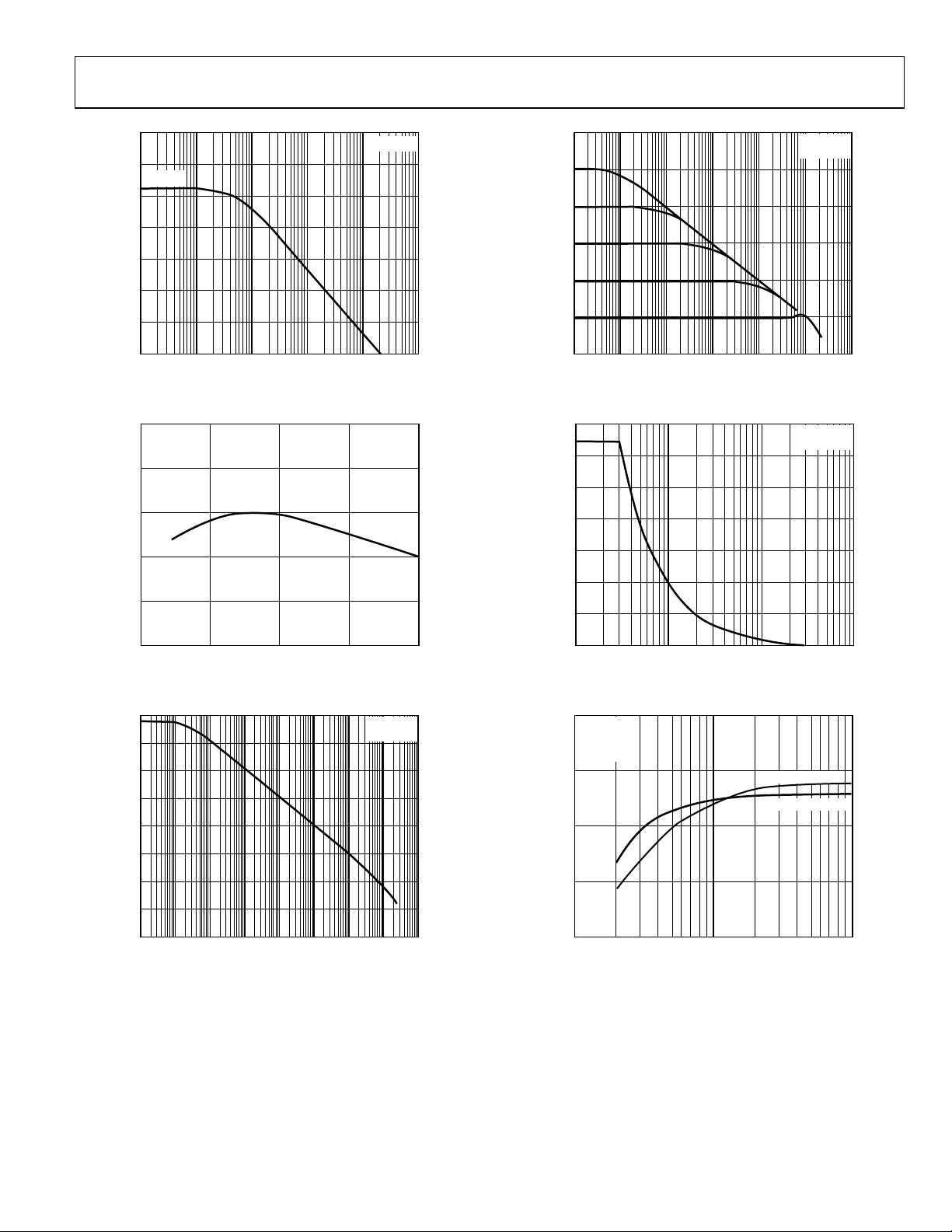

Figure 15. PSRR vs. Frequency

Figure 16. Open-Loop Gain vs. Power Supply Voltage

Figure 18. Closed-Loop Frequency Response for Various Gain Configurations

Figure 19. Maximum Output Swing vs. Frequency

Figure 17. Open-Loop Frequency Response

Figure 20. Maximum Output Voltage vs. Load Resistance

Rev. G | Page 9 of 16

OP07 Data Sheet

1000

100

10

1

TOTAL SUPPLY VOLTAGE, V+ TO V– (V)

POWER CO NS UM P TION (mW)

0 10 20 30 40 50 60

T

A

= 25°C

00316-021

35

30

25

20

15

TIME FROM OUTPUT BEING SHORTED (Minutes)

OUTPUT S HORT-CIRCUIT CURRENT (mA)

0 4321

V

S

= ±15V

T

A

= 25°C

V

IN

(PIN 3) = +10mV, V

O

= –15V

V

IN

(PIN 3) = –10mV, V

O

= +15V

00316-022

85.00

42.50

63.75

21.25

0

TEMPERATURE (°C)

ABSOLUTE VALUE OF OFFSET VOLTAGE (µV)

–75 1251007550250–25–50

VS = ±15V
R

S

= 100Ω

OP07C

OP07E

00316-023

30.0

15.0

22.5

7.5

0

TEMPERATURE (°C)

ABSOLUTE VALUE OF OFFSET VOLTAGE (µV)

–100 –75 1007550250–25–50

OP07C

OP07E

OP07E

OP07C

V

OS

TRIMMED TO < 5µV AT 25°C

NULLING POT = 20kΩ

00316-024

16

–16

–12

–8

–4

0

4

8

12

TIME (Months)

TOTAL DRIFT WITH TIME (µV)

0 121110987654321

0.3µV/MONTH
TREND LINE

0.3µV/MONTH
TREND LINE

0.3µV/MONTH
TREND LINE

0.2µV/MONTH
TREND LINE

0.2µV/MONTH
TREND LINE

0.2µV/MONTH
TREND LINE

00316-025

Figure 21. Power Consumption vs. Power Supply

Figure 22. Output Short-Circuit Current vs. Time

Figure 24. Trimmed Offset Voltage vs. Temperature

Figure 25. Offset Voltage Drift vs. Time

Figure 23. Untrimmed Offset Voltage vs. Temperature

Rev. G | Page 10 of 16

Data Sheet OP07

AD7115 OR

AD8510

+

–

6

E

O

E

IN

V+

V–

7

4

2

3

6

OP07C

A1

+

–

V–

V+

7

4

2

3

R3

3kΩ

R5

10kΩ

R2

100kΩ

RF

SUM MODE
BIAS

R1

E

O

= –EIN–IBRF

RF
R1

00316-026

6

OP07C

+

–

–15V

+15V

7

4

2

3

E

O

R5

2.5kΩ

E

3

R3

10kΩ

E

2

R2

10kΩ

E

1

R1

10kΩ

R4

10kΩ

00316-027

6

OP07

+

–

V–

1

8

7

4

2

INPUT

3

–

+

OUT

V+

20kΩ

00316-028

OP07

+

–

6

E

O

V+

V–

7

4

2

3

R5

10kΩ

R4

10kΩ

R3

10kΩ

E

IN

±10V

=

R1
R3

R2
R4

R2

10kΩ

6

OP07

+

–

V–

V+

7

4

2

3

FD333

D1

FD333

D2

R1

10kΩ

0V TO +10V

00316-029

OP07C

A2

+

–

6

E

O

E

IN

V+

V–

7

4

2

3

6

OP07C

A1

+

–

V–

V+

7

4

2

3

R3

3kΩ

R1

10kΩ

R2

100kΩ

RF

SUM MODE
BIAS

R1

E

O

= –E

IN

+ IBRF

RF
R1

NOTES

1. PINOUT SHOWN FOR P PACKAGE

00316-030

6

OP07

+

–

–15V

+15V

7

4

2

3

E

O

R5

2.5kΩ

E

3

R3

10kΩ

E

2

R2

10kΩ

E

1

R1

10kΩ

R4

10kΩ

NOTES

1. PINOUT SHOWN FOR P PACKAGE

00316-031

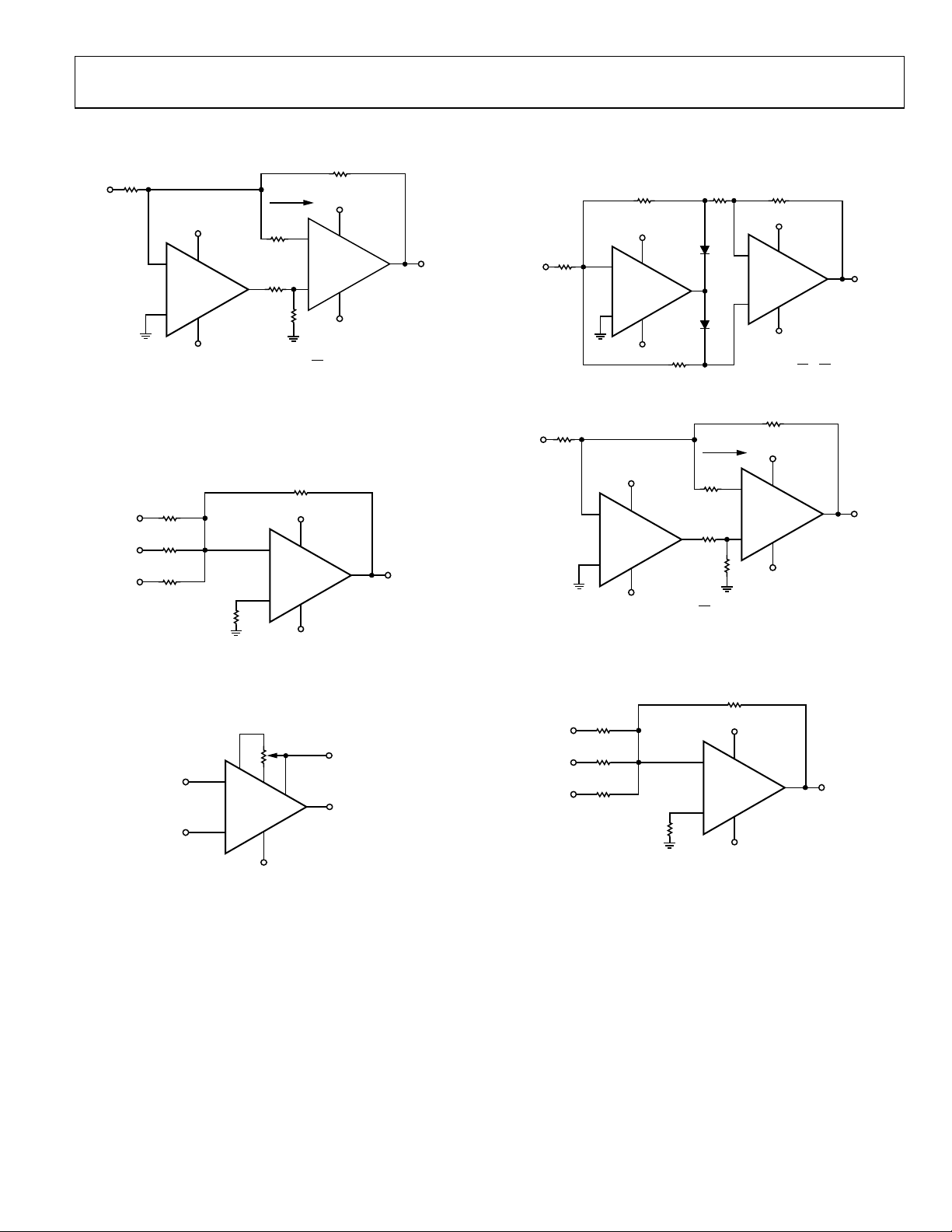

TYPICAL APPLICATIONS

Figure 26. Typical Offset Voltage Test Circuit

Figure 27. Typical Low Frequency Noise Circuit

Figure 29. Absolute Value Circuit

Figure 30. High Speed, Low VOS Composite Amplifier

Figure 28. Optional Offset Nulling Circuit

Figure 31. Adjustment-Free Precision Summing Amplifier

Rev. G | Page 11 of 16

OP07 Data Sheet

NOTES

1. PINOUT SHOWN FOR P PACKAGE

6

OP07

+

–

V–

V+

7

4

2

3

E

O

R4

REFERENCE

JUNCTION

SENDING

JUNCTION

R3

R1

R2

=

R1
R3

R2
R4

00316-032

OP07

A2

+

–

6

E

O

V+

V–

7

4

2

3

R5

10kΩ

R4

10kΩ

R3

10kΩ

E

IN

±10V

R2

10kΩ

6

OP07

A1

+

–

V–

V+

7

4

2

3

FD333

D1

FD333

D2

R1

10kΩ

0V TO +10V

NOTES

1. PINOUT S HOWN FOR P P ACKAGE

V

A

00316-033

APPLICATIONS INFORMATION

The OP07 provides stable operation with load capacitance of up
to 500 pF and ±10 V swings; larger capacitances should be
decoupled with a 50 Ω decoupling resistor.

Stray thermoelectric voltages generated by dissimilar metals at
the contacts to the input terminals can degrade drift
performance. Therefore, best operation is obtained when both
input contacts are maintained at the same temperature,
preferably close to the package temperature.

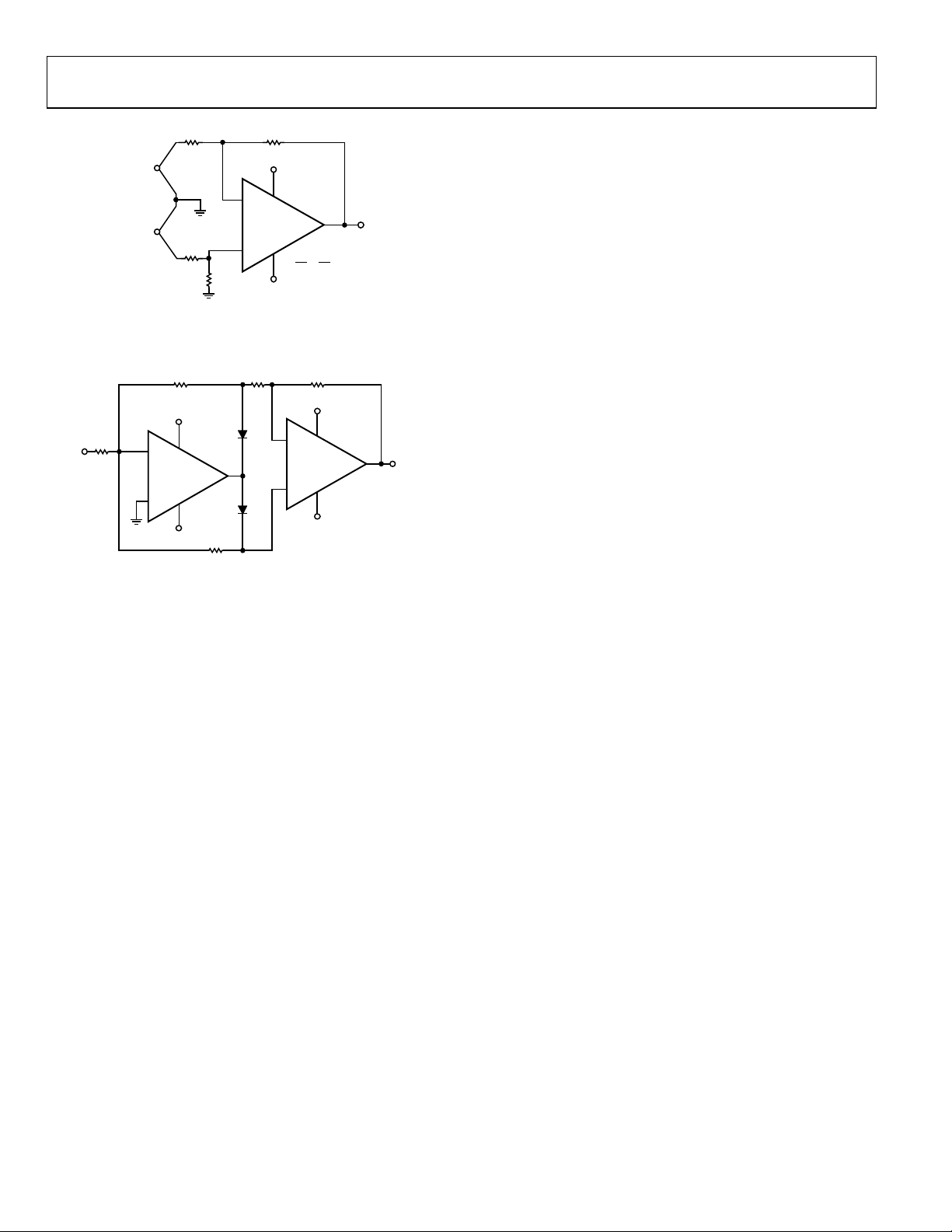

Figure 32. High Stability Thermocouple Amplifier

Figure 33. Precision Absolute-Value Circuit

Rev. G | Page 12 of 16

Data Sheet OP07

CONTROLLING DIMENSIONS

ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHE

SES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

R

EFERENCE ONLYAND ARE NOT APPROPRIATE FOR USE IN DES

IGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AA

012407-A

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

45°

8°
0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

4

1

8 5

5.00(0.1968)

4.80(0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)
BSC

6.20 (0.2441)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

COMPLIANT TO JEDEC STANDARDS MS-001

CONTROLLING DIMENSIONSARE IN INCHES; MILLIMETER DIMENSIONS
(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR
REFERENCE O NLYAND ARE NO T APPROPRIATE FOR USE IN DESIGN.
CORNER LEADS MAY BE CONFIGURED AS WHOLE OR HAL F LEADS.

070606-A

0.022 (0.56)

0.018 (0.46)

0.014 (0.36)

SEATING
PLANE

0.015
(0.38)
MIN

0.210 (5.33)
MAX

0.150 (3.81)

0.130 (3.30)

0.115 (2.92)

0.070 (1.78)

0.060 (1.52)

0.045 (1.14)

8

1

4

5

0.280 (7.11)

0.250 (6.35)

0.240 (6.10)

0.100 (2.54)
BSC

0.400 (10.16)

0.365 (9.27)

0.355 (9.02)

0.060 (1.52)
MAX

0.430 (10.92)
MAX

0.014 (0.36)

0.010 (0.25)

0.008 (0.20)

0.325 (8.26)

0.310 (7.87)

0.300 (7.62)

0.195 (4.95)

0.130 (3.30)

0.115 (2.92)

0.015 (0.38)
GAUGE

PLANE

0.005 (0.13)
MIN

OUTLINE DIMENSIONS

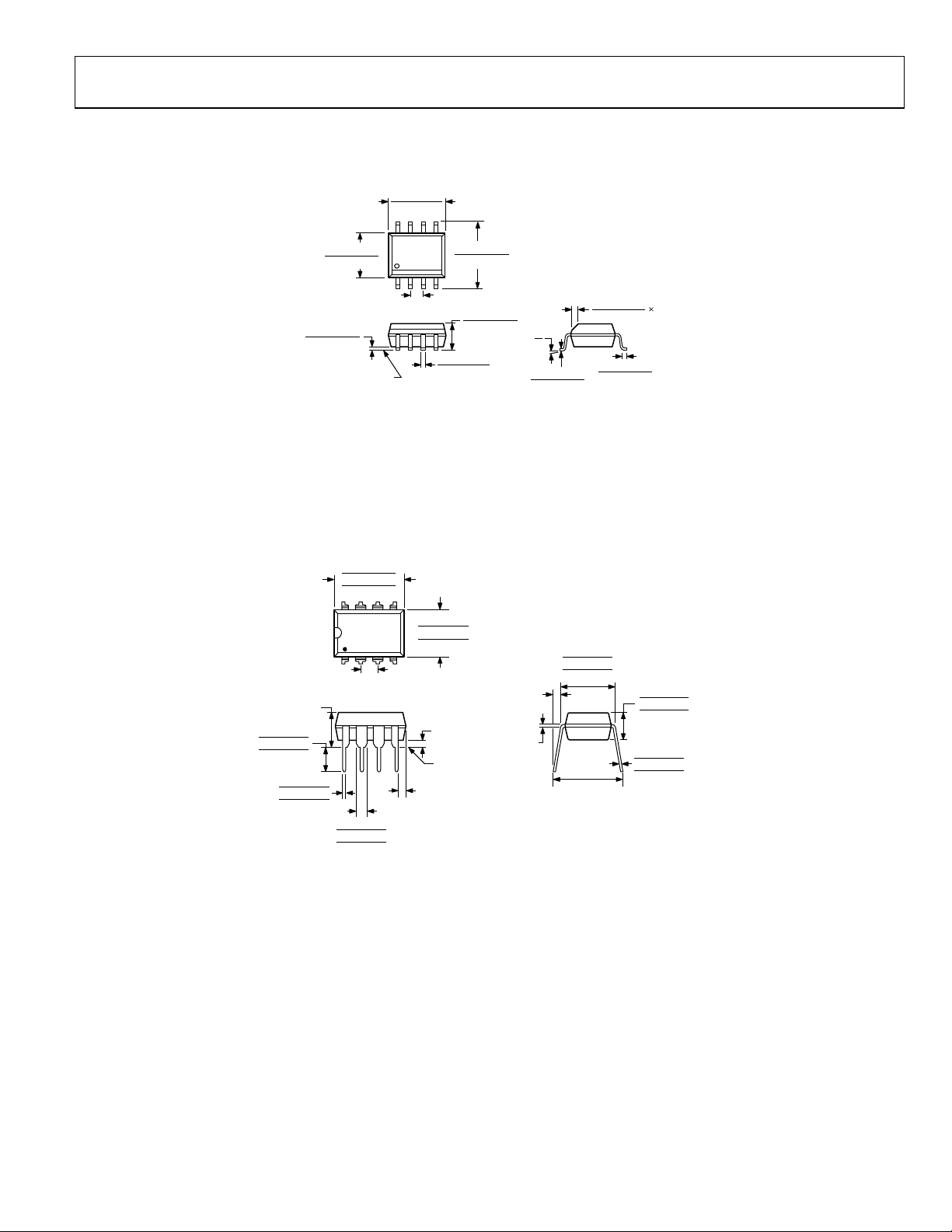

Figure 34. 8-Lead Standard Small Outline Package [SOIC_N]

Narrow Body S-Suffix

(R-8)

Dimensions shown in millimeters and (inches)

Figure 35. 8-Lead Plastic Dual-in-Line Package [PDIP]

Dimensions shown in inches and (millimeters)

P-Suffix

(N-8)

Rev. G | Page 13 of 16

OP07 Data Sheet

Model1

Temperature Range

Package Description

Package Option

OP07CPZ

8-Lead PDIP

N-8 (P-Suffix)

OP07CSZ-REEL7

8-Lead SOIC_N

R-8 (S-Suffix)

ORDERING GUIDE

OP07EPZ 0°C to 70°C 8-Lead PDIP N-8 (P-Suffix)

−40°C to +85°C
OP07CSZ
OP07CSZ-REEL

1

Z = RoHS Compliant Part.

−40°C to +85°C

−40°C to +85°C

−40°C to +85°C

8-Lead SOIC_N R-8 (S-Suffix)
8-Lead SOIC_N R-8 (S-Suffix)

Rev. G | Page 14 of 16

Data Sheet OP07

NOTES

Rev. G | Page 15 of 16

OP07 Data Sheet

©2002-2011 Analog Devices, Inc. All rights reserved. Trademarks and

NOTES

registered trademarks are the property of their respective owners.
D00316-0-10/11(G)

Rev. G | Page 16 of 16
