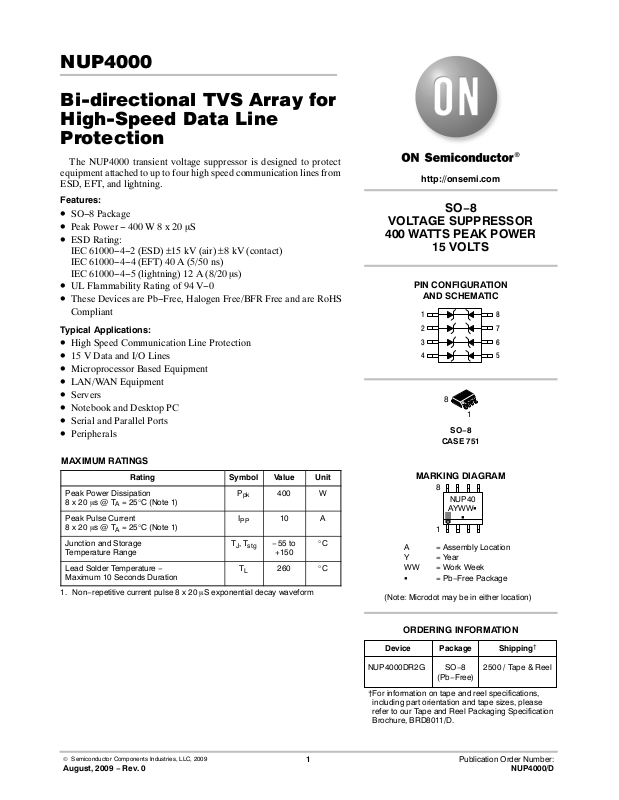

NUP4000

Bi-directional TVS Array for
High-Speed Data Line
Protection

The NUP4000 transient voltage suppressor is designed to protect
equipment attached to up to four high speed communication lines from
ESD, EFT, and lightning.

Features:

• SO−8 Package

• Peak Power − 400 W 8 x 20 mS

• ESD Rating:

IEC 61000−4−2 (ESD) ±15 kV (air) ±8 kV (contact)
IEC 61000−4−4 (EFT) 40 A (5/50 ns)
IEC 61000−4−5 (lightning) 12 A (8/20 ms)

• UL Flammability Rating of 94 V−0

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

Typical Applications:

• High Speed Communication Line Protection

• 15 V Data and I/O Lines

• Microprocessor Based Equipment

• LAN/WAN Equipment

• Servers

• Notebook and Desktop PC

• Serial and Parallel Ports

• Peripherals

http://onsemi.com

SO−8

VOLTAGE SUPPRESSOR

400 WATTS PEAK POWER

15 VOLTS

PIN CONFIGURATION

AND SCHEMATIC

1

2

3

4

8

SO−8

CASE 751

8

7

6

5

1

MAXIMUM RATINGS

Rating Symbol Value Unit

Peak Power Dissipation
8 x 20 ms @ T

Peak Pulse Current
8 x 20 ms @ T

Junction and Storage
Temperature Range

Lead Solder Temperature −
Maximum 10 Seconds Duration

1. Non−repetitive current pulse 8 x 20 mS exponential decay waveform

= 25°C (Note 1)

A

= 25°C (Note 1)

A

P

I

TJ, T

T

PP

stg

400 W

10 A

−55 to
+150

260 °C

pk

L

°C

MARKING DIAGRAM

8

NUP40

AYWWG

G

1

A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package

(Note: Microdot may be in either location)

ORDERING INFORMATION

Device Package Shipping

NUP4000DR2G SO−8

(Pb−Free)

†For information on tape and reel specifications,

including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.

2500 / Tape & Reel

†

© Semiconductor Components Industries, LLC, 2009

August, 2009 − Rev. 0

1 Publication Order Number:

NUP4000/D

NUP4000

ELECTRICAL CHARACTERISTICS

Characteristic Symbol Min Typ Max Unit

Reverse Working Voltage V

Reverse Breakdown Voltage @ It = 1.0 mA V

Reverse Leakage Current @ V

Maximum Clamping Voltage @ IPP = 1.0 A, 8 x 20 mS

Maximum Clamping Voltage @ IPP = 5.0 A, 8 x 20 mS

Maximum Peak Pulse Current I

Junction Capacitance @ VR = 0 V, f = 1 MHz C

= 15 Volts I

RWM

RWM

BR

R

V

C

V

C

PP

J

− − 15 V

16.7 − − V

N/A − 1.0

N/A − 24 V

N/A − 30 V

− − 10 A

− − 75 pF

mA

1000

100

10

NOTE: Non−Repetitive Surge.

, PEAK SURGE POWER (WATTS)

pk

P

1

1 10 100 1000

t, TIME (ms)

Figure 1. Pulse Width

100

90

80

70

60

50

t

r

PEAK VALUE I

PULSE WIDTH (tP) IS DEFINED
AS THAT POINT WHERE THE
PEAK CURRENT DECAY = 8 ms

HALF VALUE I

RSM

@ 8 ms

RSM

/2 @ 20 ms

40

30

20

10

% OF PEAK PULSE CURRENT

0

t

P

020406080

t, TIME (ms)

Figure 2. 8 × 20 ms Pulse Waveform

http://onsemi.com

2

−Y−

−Z−

NUP4000

PACKAGE DIMENSIONS

SOIC−8 NB

CASE 751−07

ISSUE AJ

−X−

B

H

A

58

1

4

G

D

0.25 (0.010) Z

M

S

0.25 (0.010)

M

M

Y

K

Y

C

SXS

SEATING
PLANE

0.10 (0.004)

N

X 45

_

M

J

SOLDERING FOOTPRINT*

NOTES:

1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DIMENSION A AND B DO NOT INCLUDE
MOLD PROTRUSION.

4. MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.

5. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE DAMBAR
PROTRUSION SHALL BE 0.127 (0.005) TOTAL
IN EXCESS OF THE D DIMENSION AT
MAXIMUM MATERIAL CONDITION.

6. 751−01 THRU 751−06 ARE OBSOLETE. NEW
STANDARD IS 751−07.

MILLIMETERS

DIMAMIN MAX MIN MAX

4.80 5.00 0.189 0.197

B 3.80 4.00 0.150 0.157
C 1.35 1.75 0.053 0.069
D 0.33 0.51 0.013 0.020
G 1.27 BSC 0.050 BSC
H 0.10 0.25 0.004 0.010
J 0.19 0.25 0.007 0.010
K 0.40 1.27 0.016 0.050
M 0 8 0 8

____

N 0.25 0.50 0.010 0.020
S 5.80 6.20 0.228 0.244

INCHES

1.52

0.060

7.0

0.275

0.6

0.024

4.0

0.155

1.270

0.050

SCALE 6:1

ǒ

inches

mm

Ǔ

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
