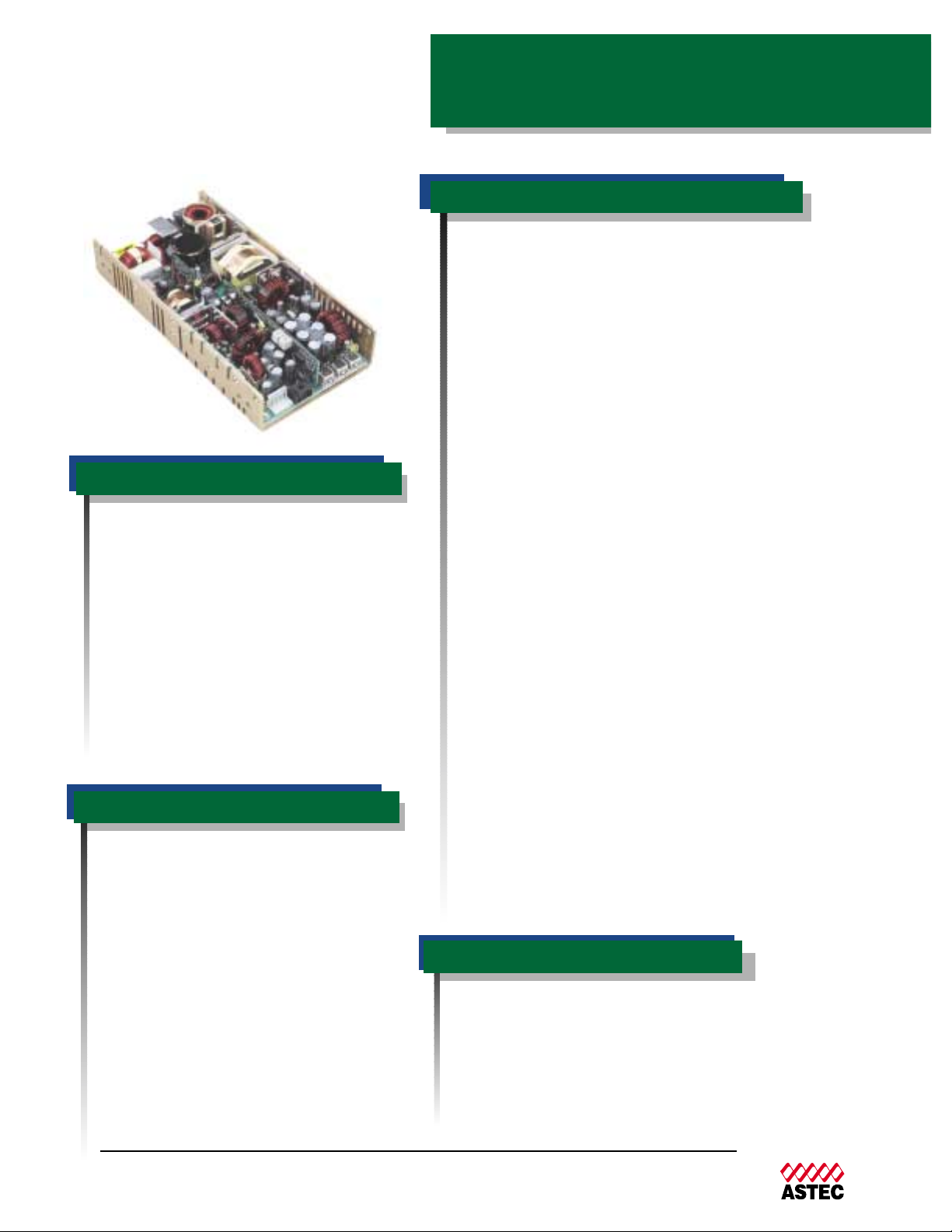

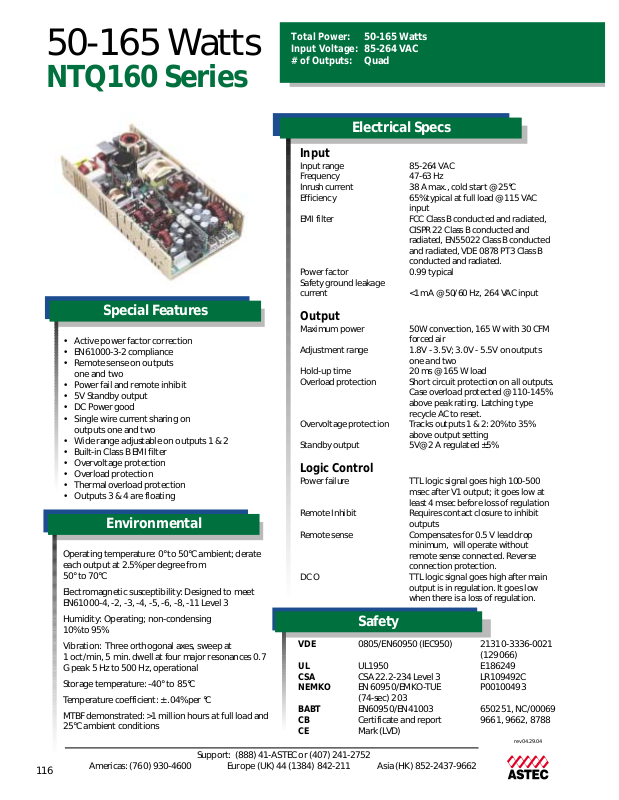

Page 1

rev 04.29.04

Support: (888) 41-ASTEC or (407) 241-2752

Americas: (760) 930-4600 Europe (UK) 44 (1384) 842-211 Asia (HK) 852-2437-9662

116

Special Features

Electrical Specs

50-165 Watts

NTQ160 Series

Input

Input range 85-264 VAC Frequency 47-63 Hz Inrush current 38 A max., cold start @ 25°C Efficiency 65% typical at full load @ 115 VAC

input

EMI filter FCC Class B conducted and radiated,

CISPR 22 Class B conduc ted and radiated, EN55022 Class B conducted and radiated, VDE 0878 PT3 Class B

conducted and radiated. Power factor 0.99 typical Safety ground leakage current <1 mA @ 50/60 Hz, 264 VAC input

Output

Maximum power 50W convection, 165 W with 30 CFM

forced air Adjustment range 1.8V - 3.5V; 3.0V - 5.5V on outputs

one and two Hold-up time 20 ms @ 165 W load Overload protection Short circuit protection on all outputs.

Case overload protec ted @ 110-145%

above peak rating. Latching type

recycle AC to reset. Overvoltage protection Tracks outputs 1 & 2: 20% to 35%

above output setting Standby output 5V@ 2 A regulated ±5%

Logic Control

Power failure TTL logic signal goes high 100-500

msec after V1 output; it goes low at

least 4 msec before loss of regulation Remote Inhibit Requires contact closure to inhibit

outputs Remote sense Compensates for 0.5 V lead drop

minimum, will operate without

remote sense connected. Reverse

connection protection. DC O TTL logic signal goes high after main

output is in regulation. It goes low

when there is a loss of regulation.

• Active power factor correction

• EN61000-3-2 compliance

• Remote sense on outputs one and two

• Power fail and remote inhibit

• 5V Standby output

• DC Power good

• Single wire current sharing on outputs one and two

• Wide range adjustable on outputs 1 & 2

• Built-in Class B EMI filter

• Overvoltage protection

• Overload protection

• Thermal overload protection

• Outputs 3 & 4 are floating

Operating temperature: 0° to 50°C ambient; derate each output at 2.5% per degree from 50° to 70°C

Electromagnetic susceptibility: Designed to meet EN61000-4, -2, -3, -4, -5, -6, -8, -11 Level 3

Humidity: Operating; non-condensing 10% to 95%

Vibration: Three orthogonal axes, sweep at 1 oct/min, 5 min. dwell at four major resonances 0.7 G peak 5 Hz to 500 Hz, operational

Storage temperature: -40° to 85°C Temperature coefficient: ± .04% per °C MTBF demonstrated: >1 million hours at full load and

25°C ambient conditions

VDE 0805/EN60950 (IEC950) 21310-3336-0021

(129066)

UL UL1950 E186249 CSA CSA 22.2-234 Level 3 LR109492C NEMKO EN 60950/EMKO-TUE P00100493

(74-sec) 203

BABT EN60950/EN41003 650251, NC/00069 CB Certificate and report 9661, 9662, 8788 CE Mark (LVD)

Environmental

Total Power: 50-165 Watts Input Voltage: 85-264 VAC # of Outputs: Quad

Safety

Page 2

ASIA

Units 2111-2116, Level 21

Tower1, Metroplaza

223, Hing Fong Road

Fwai Fong, New Territories

Hong Kong

Telephone: 852-2437-9662

Facsimile: 852-2402-4426

EUROPE

Astec House, Waterfront Business Park

Merry Hill, Dudley

West Midlands, DY5 1LX, UK

Telephone: 44 (1384) 842-211

Facsimile: 44 (1384) 843-355

AMERICAS

5810 Van Allen Way Carlsbad, CA 92008

Telephone: 760-930-4600

Facsimile: 760-930-0698

117

www.astecpower.com

Model Output Minimum Maximum Load with Maximum Load with Peak Regulation2 Ripple Number Voltage Load Convection Cooling 30 CFM Forced Air Load1 P/P (PARD)3

NTQ162 +3.3 V(1.8 - 3.5V) 2 A 15 A 30 A 38 A ±2% 50 mV

+5 V (3 - 5.5V) 0 A 10 A 20 A 22 A ±2% 50 mV 12 V* 0 A 2 A 4.5 A 5 A ±3% 120 mV 12 V* 0 A 2 A 4.5 A 5 A ±3% 120 mV

NTQ163 +5 V (3 - 5.5V) 2 A 15 A 30 A 32 A ±2% 50 mV

+3.3 V (1.8 - 3.5V) 0 A 10 A 20 A 22 A ±2% 50 mV 12 V* 0 A 2 A 4.5 A 5 A ±3% 120 mV 12 V* 0 A 2 A 4.5 A 5 A ±3% 120 mV

NTQ165 +3.3 V (3 - 5.5V) 2 A 15 A 30 A 32 A ±2% 50 mV

+2.5 V (1.8 - 3.5V) 0 A 10 A 20 A 22 A ±2% 50 mV 5 V* 0 A 2 A 4 A 5 A ±3% 120 mV

12 V* 0 A 2 A 4 A 5 A ±3% 120 mV

* outputs are floating

1. Peak current lasting <30 seconds with a maximum 10% duty cycle.

2. At 25°C including initial tolerance, line voltage, load currents and output voltages adjusted to factor y settings.

3. Peak-to-peak with 20 MHz bandwidth and 10 µF in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.

4. Minimum loads are required. In parallel minimum loads are 2.5 A on the V1 output and 1 A on the V2 output for each power supply.

5. Total output current between V1 and V2 is 40A maximum.

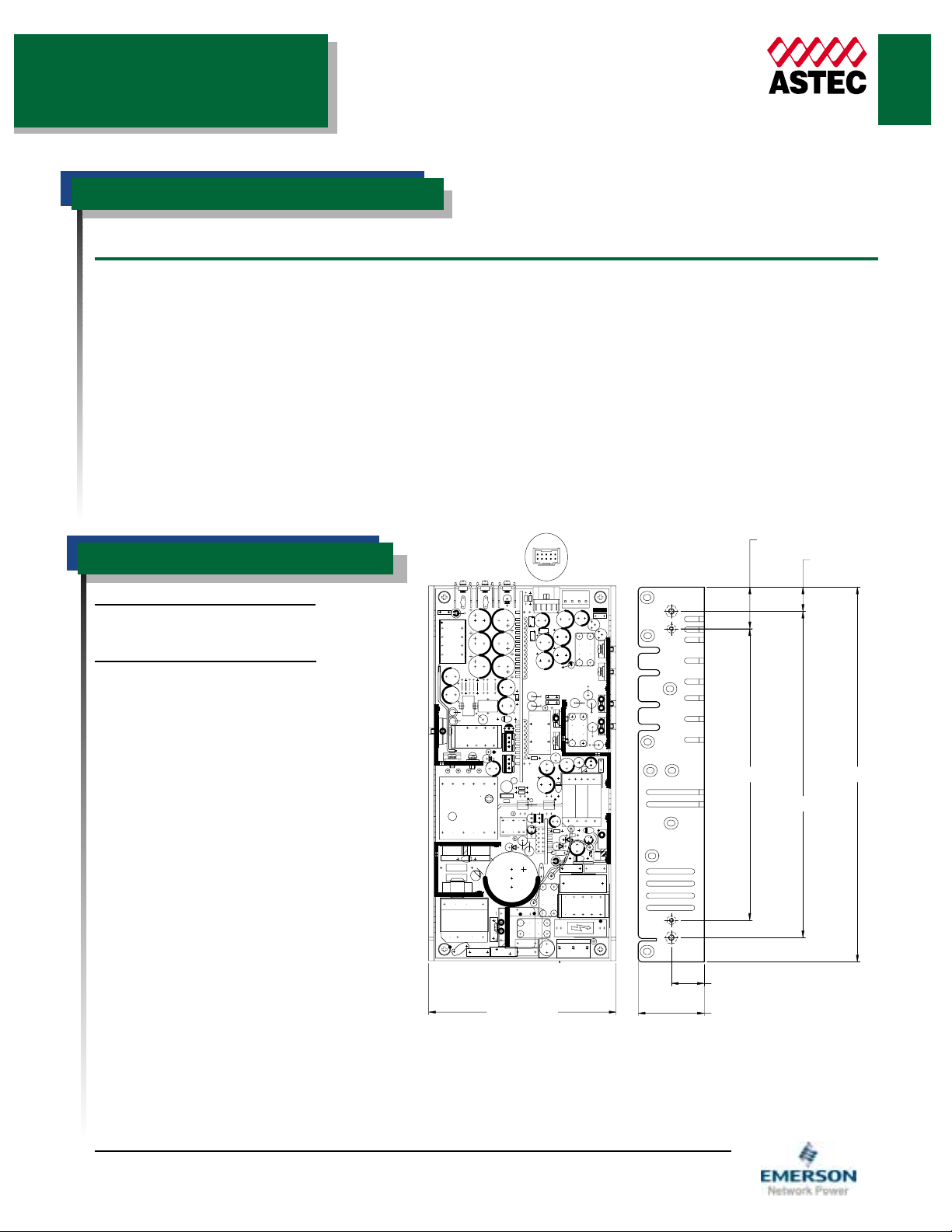

Connector

SK1 PIN 1 Ground

PIN 3 Neutral PIN 5 Live

SK2 V1 SK3 Common SK4 V2 SK6 PIN 1 V4 Common

PIN 2 V4 PIN 3 V3 Common PIN 4 V3

SK5 PIN 1 V2 SWP

PIN 2 5V Standby PIN 3 +V2 Sense PIN 4 V1 SWP PIN 5 COMMON PIN 6 +V1 Sense PIN 7 Sense COMMON PIN 8 Remote Inhibit PIN 9 DC Power Good PIN 10 Power Fail

Mating Connectors

(SK1) AC Input: Molex: 09-50-8051 (USA)

Molex: 09-91-0500 (UK) PINS: 08-58-0111

SK2,3,4: Molex BB -124-08

(SK6) ±12V Molex:09-50-8041 (USA)

Molex: 09-91-0400 (UK) PINS: 08-58-0111

(SK5) Control Signals: Molex: 90142-0010

PINS: 90119-2110 or Amp: 87977-3 PINS: 87309-8

Astec Connector Kit #70-841-014, includes all of the above

Ordering Information

NTQ160 Series

Notes:

1. Specifications subject to change without notice.

2. All dimensions in inches (mm), tolerance ±.02”.

3. Remote inhibit requires an external contact closure to activate

4. Mounting maximum insertion depth is 0.12”.

5. Warranty: 1 year

6. Weight: 2.38 lb. /1.08 kg

SK5

345

SK6

321

110

SK5

THR3

R32

C40 C72

R89

D21D22

R35

C22

D12

C60

B+

R47

Z1 Z2

PRI_DB

D11

C20

R31

C70

B+

F4A

250V

531

SK6

C84

C86

VR2

C48

VR1

C43

C46

IC8

C47

L11

IC7L15

D27

R87

HTSK-SEC3

R30

R67

L10

D24

R84

R68

3 1 D

C94

C23

HTSK-SEC2

042-66102310D

IC2

R39

D10

C18

C19

B-

C10

C11

HTSK-PRI2

SK1

R41

SK4

C77

R46

THR4

C38

C29

THR2

C42

C28

C41

C36

R77

C37

SEC_DB

R66

R42

P401

C31

TP1

R48

R65

IC6

C24

R34

C 1999 ASTEC

CUSTOM POWER (PHIL.)

IC9

T1-W1

C63

R63

R64

B-

VDR1

HTSK-RECT

C3C2

SK1

C85

HTSK-PRI1

C67

C66

HTSK-SEC1

SK2

SK3 SK4

SK3

C89

C91

SK2

R78

D19

C27

C33

C68

R56

R57

R58

R55

R94

R95

R25

R26

R24

R27

L13

R 7

D23

L12

R73

SCR1

THR5

D18

D20

R80

Q7 Q8

C21

VR3

C26

SO1

T1-W1A

D17

D16

DB1

THR1

C71

4.25 [108.0]

6.61 [168.0]

0.75 [19.0]

1.50 [38.1]

0.95 [24.0]

0.55 [14.0]

8.50 [216.0]

7.40 [188.0]

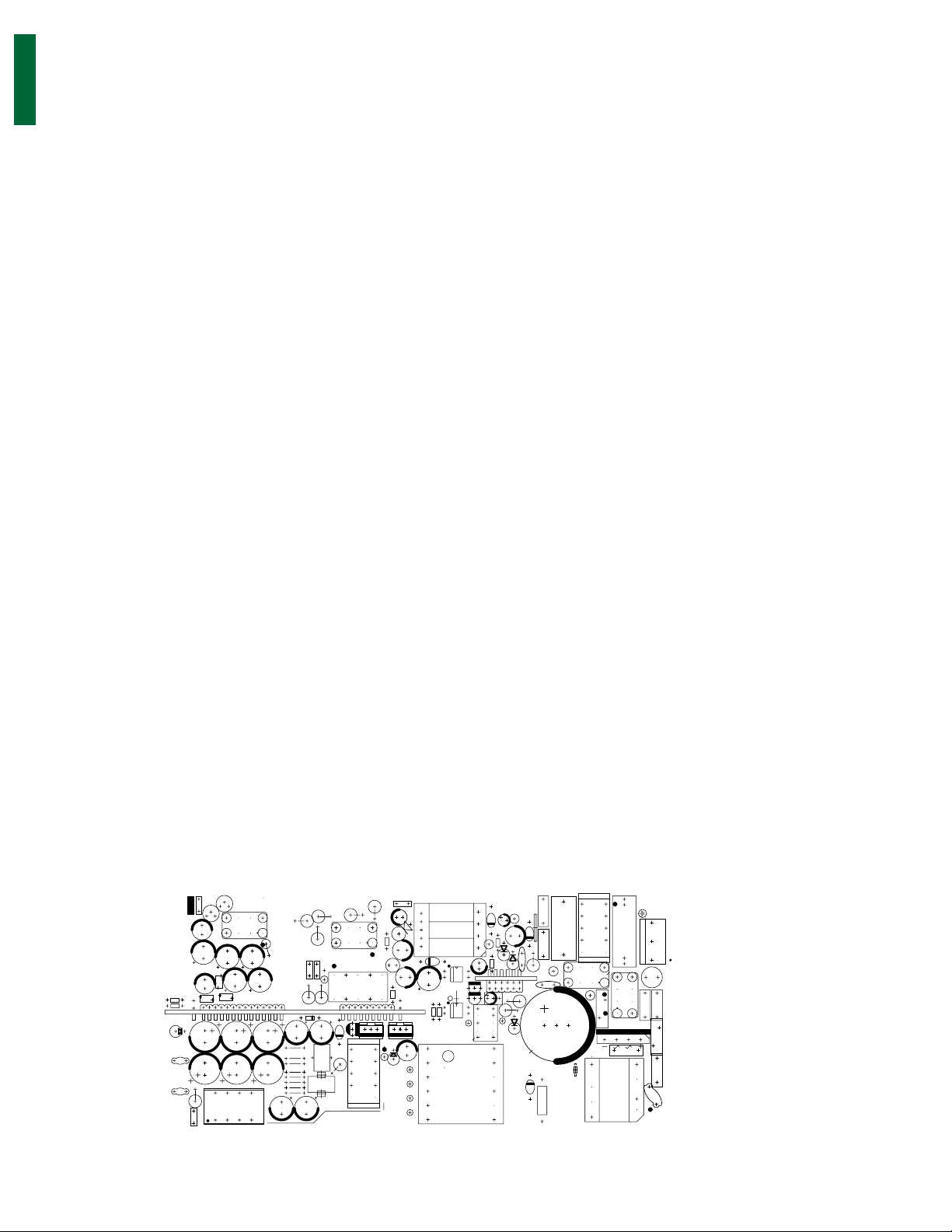

Page 3

VR1

VR2

C84

C86

C48

C43
