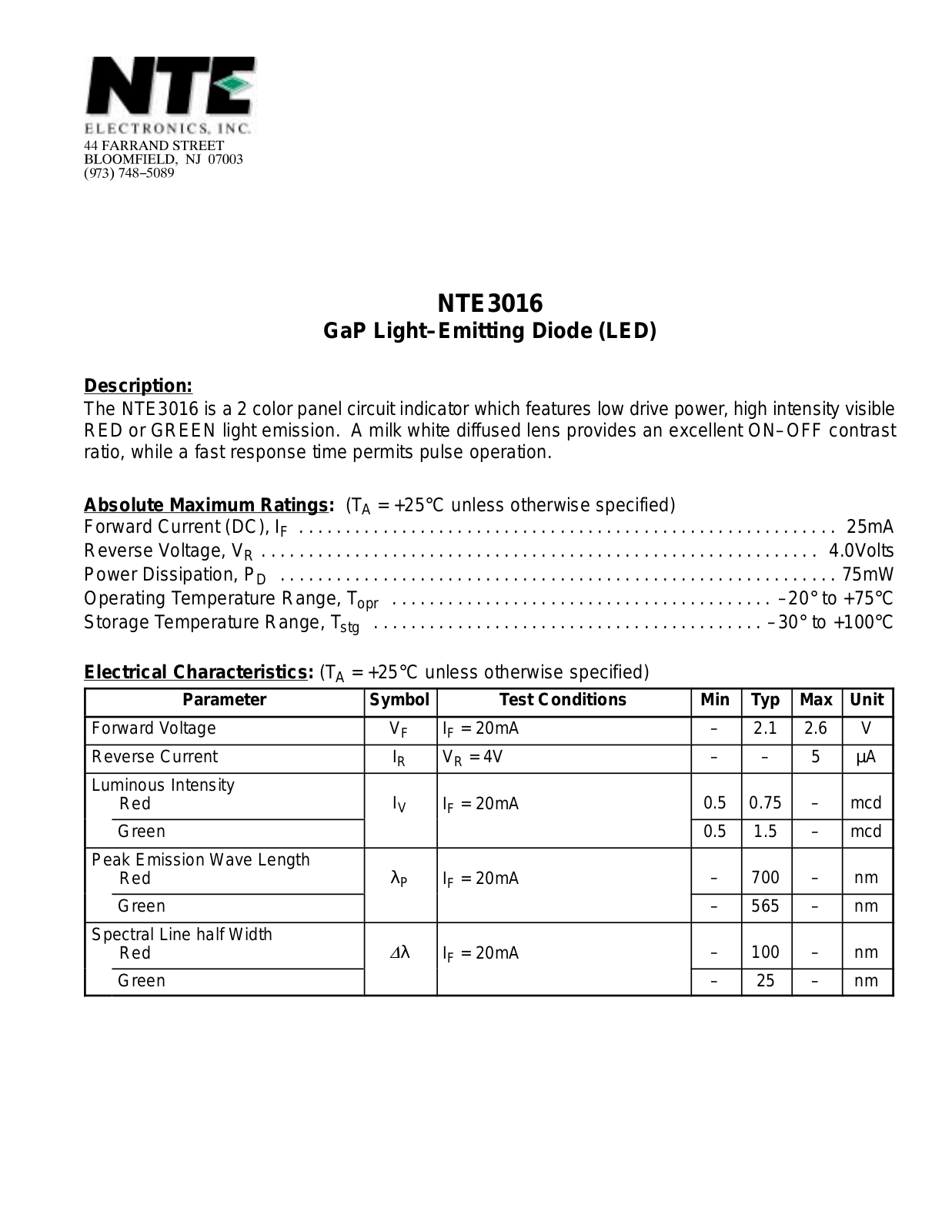

Page 1
NTE3016
GaP Light–Emitting Diode (LED)
Description:
The NTE3016 is a 2 color panel circuit indicator which features low drive power, high intensity visible
RED or GREEN light emission. A milk white diffused lens provides an excellent ON–OFF contrast
ratio, while a fast response time permits pulse operation.
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Forward Current (DC), I
Reverse Voltage, V
Power Dissipation, P
Operating Temperature Range, T
Storage Temperature Range, T
F
R
D
opr
stg
Electrical Characteristics: (TA = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
–20° to +75°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–30° to +100°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.0Volts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
75mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Forward Voltage V
Reverse Current I
Luminous Intensity
Red
Green 0.5 1.5 – mcd
Peak Emission Wave Length
Red
Green – 565 – nm
Spectral Line half Width
Red
Green – 25 – nm
I
λ
Dλ
IF = 20mA – 2.1 2.6 V
F
VR = 4V – – 5 µA
R
V
P
IF = 20mA
IF = 20mA
IF = 20mA
0.5 0.75 – mcd
– 700 – nm
– 100 – nm

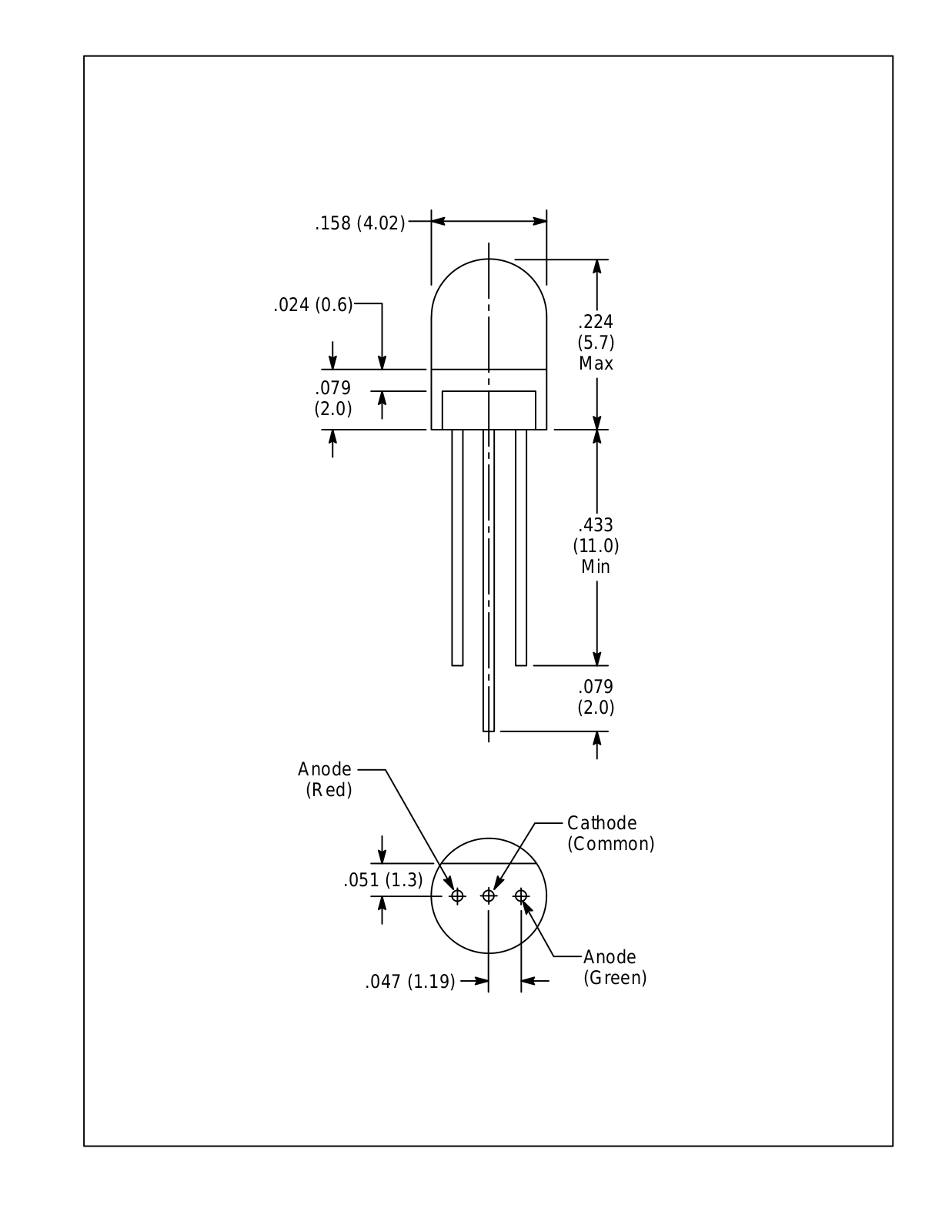

Page 2
.158 (4.02)
.024 (0.6)
.079
(2.0)
.224
(5.7)
Max
.433
(11.0)
Min
Anode
(Red)
.051 (1.3)
.047 (1.19)
.079
(2.0)
Cathode
(Common)
Anode
(Green)
