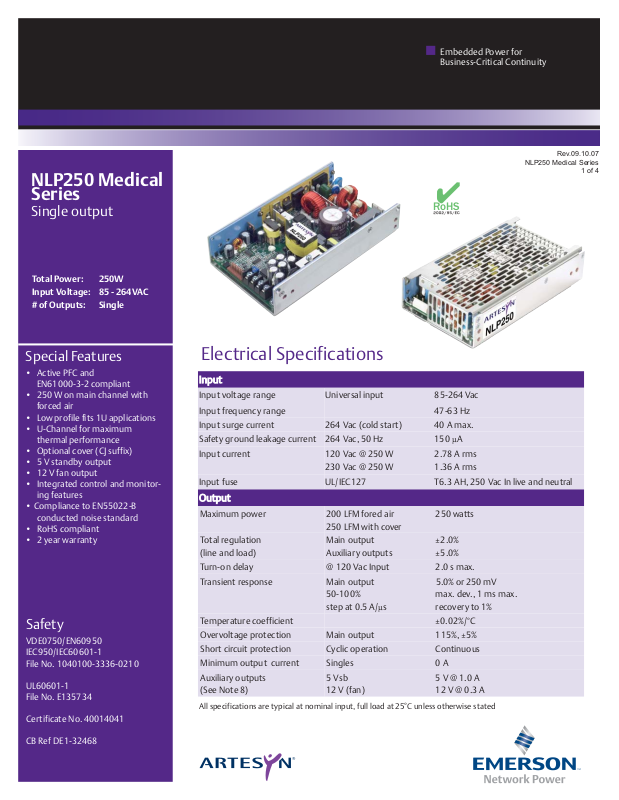

Datasheet NLP250 Datasheet (Datasheet)

Embedded Power for
Business-Critical Continuity

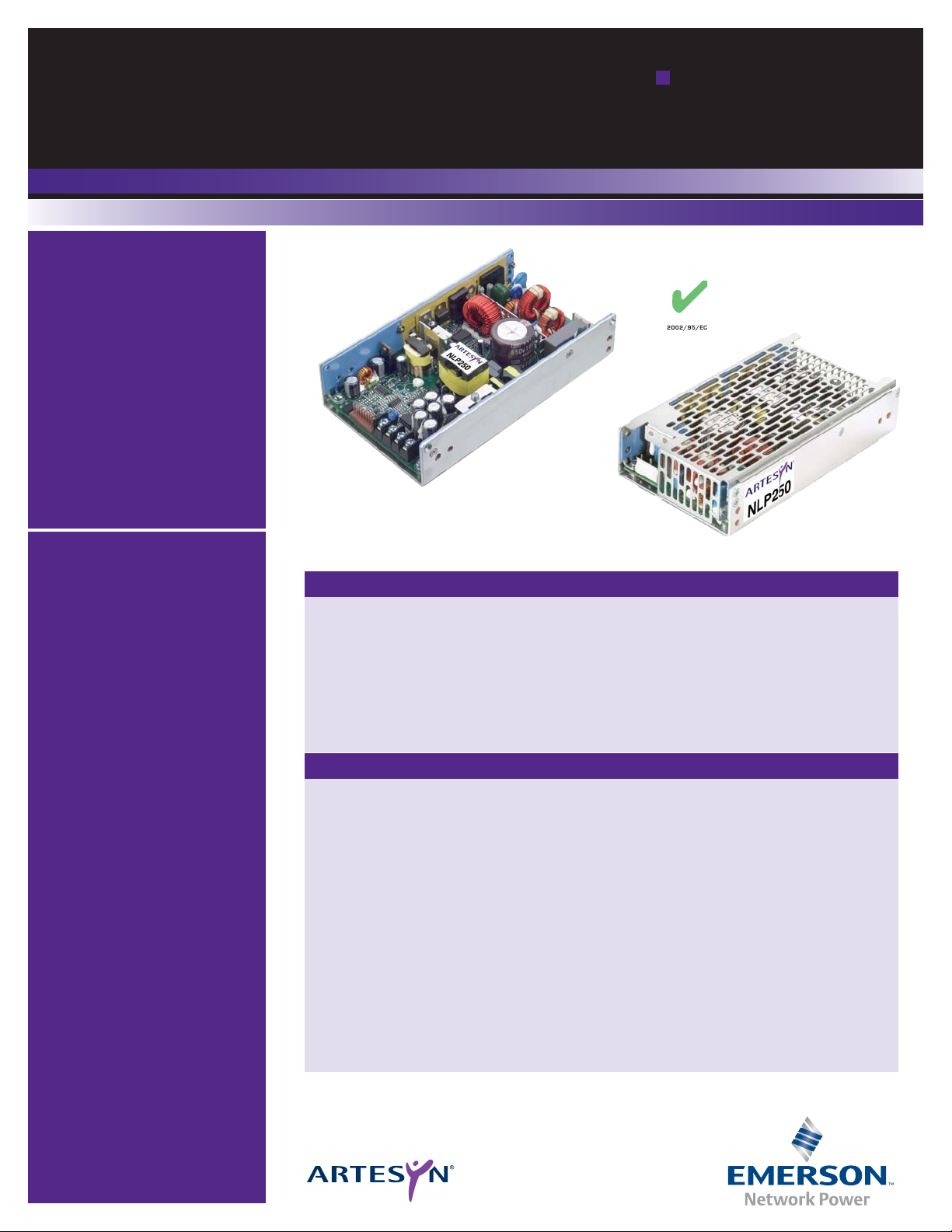

NLP250 Medical
Series

Single output

Special Features

• Active PFC and
EN61000-3-2 compliant

• 250 W on main channel with
forced air

• Low profile fits 1U applications

• U-Channel for maximum
thermal performance

• Optional cover (CJ suffix)

• 5 V standby output

• 12 V fan output

• Integrated control and monitor­ing features

• Compliance to EN55022-B
conducted noise standard

• RoHS compliant

• 2 year warranty

Total Power: 250W
Input Voltage: 85 - 264VAC
# of Outputs: Single

Rev.09.10.07

NLP250 Medical Series

1 of 4

Electrical Specifications

Input

Input voltage range Universal input 85-264 Vac

Input frequency range 47-63 Hz

Input surge current 264 Vac (cold start) 40 A max.

Safety ground leakage current 264 Vac, 50 Hz 150 μA

Input current 120 Vac @ 250 W 2.78 A rms

230 Vac @ 250 W 1.36 A rms

Input fuse UL/IEC127 T6.3 AH, 250 Vac In live and neutral

All specifications are typical at nominal input, full load at 25°C unless otherwise stated

Output

Maximum power 200 LFM fored air 250 watts

250 LFM with cover

Total regulation
(line and load)

Main output ±2.0%
Auxiliary outputs ±5.0%

Turn-on delay @ 120 Vac Input 2.0 s max.

Transient response Main output 5.0% or 250 mV

50-100% max. dev., 1 ms max.

step at 0.5 A/μs recovery to 1%
Temperature coefficient ±0.02%/°C

Overvoltage protection Main output 115%, ±5%

Short circuit protection Cyclic operation Continuous
Minimum output current Singles 0 A

Auxiliary outputs
(See Note 8)

5 Vsb 5 V @ 1.0 A

12 V (fan) 12 V @ 0.3 A

Safety

VDE0750/EN60950
IEC950/IEC60601-1
File No. 1040100-3336-0210

UL60601-1
File No. E135734

Certificate No. 40014041

CB Ref DE1-32468

RoHS

Rev.09.10.07

NLP250 Medical Series

2 of 4

Embedded Power for
Business-Critical Continuity

Environmental Specifications

Thermal performance Operating ambient, 0° C to +70 °C

(See derating curve)

Non-operating -40 °C to +85 °C

0 °C to 50 °C ambient, 250 W

200 LFM forced air

250 LFM with cover

0 °C to 50 °C ambient, 175 W

0 °C to 40 °C with cover

convection cooled

50 °C to 70 °C ambient, Derate linearly

convection cooled to 50% load

Relative humidity Non-condensing 5-95% RH

Altitude Operating 10,000 feet max.

Non-operating 30,000 feet max.

Vibration (See Note 7) 5-500 Hz 2.4 G rms peak

Shock per MIL-STD-810E 516.4 Part IV

EMC Characteristics

(5)

Conducted emissions EN55022, FCC part 15 Level B

Harmonic current correction EN61000-3-2 Compliant

ESD air EN61000-4-2 Level 3
ESD contact EN61000-4-2 Level 3

Radiated immunity EN61000-4-3 Level 3

Fast transients EN61000-4-4 Level 3
Surge EN61000-4-5 Level 3

Conducted immunity EN61000-4-6 Level 3

General Specifications

Hold-up time 85 Vac @ 60 Hz 20 ms @ 250 W

Efficiency 115 Vac @ 250 W 84% typ.

230 Vac @ 250 W 86% typ.

Isolation voltage Input/output 4000 Vac

Input/chassis 2000 Vac

Safety approvals (see note 6) UL/cUL UL60601-1, VDE EN60601-1

CAN/CSA22.2 No. 601-1

Weight 650g (22oz)

MTBF (@25º C) Telcordia SR-332 317,000 hours min.

MIL-HDBK-217F 158,000 hours min.

Rev 09.10.07

NLP250 Medical Series

3 of 4

Embedded Power for
Business-Critical Continuity

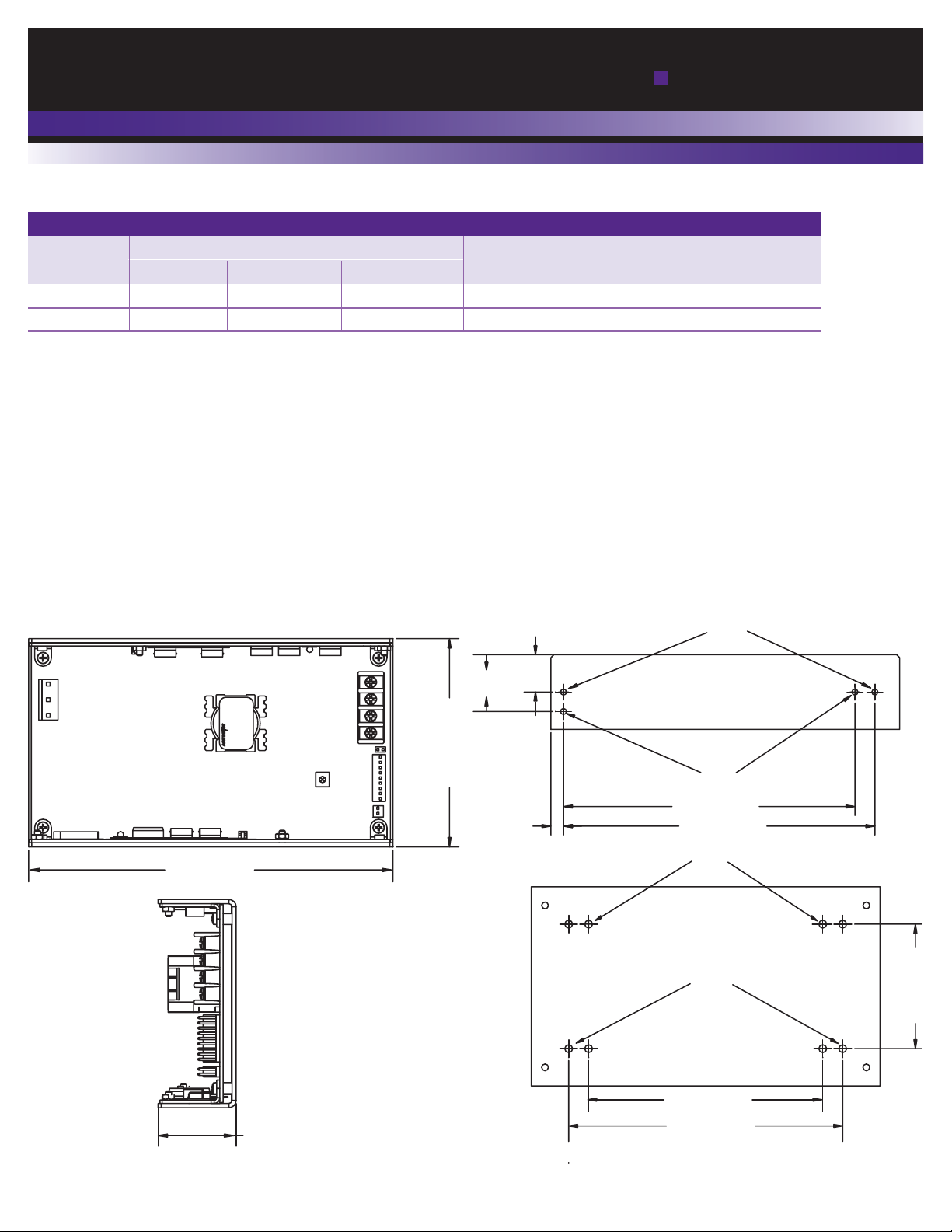

Figure 2: Mechanical Drawing

Ordering Information

Output

Output Current

Ripple

(3)

Tot al Mo de l

Voltage Min

Max (free air)

(1,4)

Max (forced air)

(2,4)

Regulation Numbers

(9,10)

12 V 0 A 14.6 A 21 A 120 mV ±2.0% NLP250N-99S12J

24 V 0 A 7.3 A 10.5 A 240 mV ±2.0% NLP250N-99S24J

Notes

1 Free air convection. Maximum continuous output power not to exceed 175W.

Refer to Figure 1 for the derating curve.

2 200 LFM (250 LFM with cover) forced air cooling from the longer side.

Maximum continuous output power not to exceed 250 W.

3 Figure is peak-to-peak for room temperature rating. Output noise

measurements are made across a 20 MHz bandwidth using a 6 inch twisted
pair, terminated with a 10 μF tantalum capacitor and a 0.1 μF ceramic
capacitor.

4 CAUTION: Allow a minimum of 1 second after disconnecting line power when

making thermal measurements. For optimum reliability no part of the heatsink
should exceed 115 °C and no semi-conductor case temperature should exceed
120 °C.

5 No external filtering required during conducted emissions testing but some

applications may require additional filtering to achieve system compliance.
Compliance with radiated EMI specifications may require mounting in a
suitable enclosure.

6 This product is only for inclusion by professional installers within other

equipment and must not be operated as a stand alone product.

7 Three orthogonal axes, random vibration 10 minutes for each axes, 2.4 G
8 5 V sb (standby) output is available whenever AC is present, regardless of

remote ON/OFF signal status. 12 V (fan) present when main output is present.

9 The ‘J’ suffix indicates that these parts are Pb-free (RoHS 6/6) compliant.

"CJ" suffix indicates covered RoHS version.

10 NOTICE: Some models do not support all options. Please contact your local

Artesyn representative or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.

CUSTOMER MOUNTING HOLES

MAX. SCREW PENETRATION 0.08IN

6-32

J1

J3

JP1

J4

J2

1

1.140

(28.96)

1

4.000 (101.60)

0.750 (19.05)

1

0.25 (6.35)

M3.0

5.850 (148.59)

6.250 (158.75)

M3.0

4 PLACES

G
L
N

VR7

7.000 [177.80]

6-32

4 PLACES

2.500 (63.50)

4.700 (119.38)

1.500 [38.10]

5.500 (139.70)

BOTTOM VIEW

Embedded Power for
Business-Critical Continuity

Rev.09.10.07

NLP250 Medical Series

4 of 4

Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2007 Emerson Electric Co.

Emerson Network Power.

The global leader in enabling
business-critical continuity.

EmersonNetworkPower. com

AC Power

Connectivity

DC Power

Embedded Power

Inbound Power
Integrated Cabinet Solutions
Outside Plant

Precision Cooling

Site Monitoring and Services

Americas

5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: [phone]
Facsimile: [phone]

Europe (UK)

Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: [phone]
Facsimile: [phone]

Asia (HK)

16th - 17th Floors, Lu Plaza
2 Wing Yip Street, Kwun Tong
Kowloon, Hong Kong
Telephone: [phone]
Facsimile: [phone]

For global contact, visit:

www.powerconversion.com

[e-mail]

While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.

J4 PIN CONNECTIONS

Pin 1 +S +Vo Remote Sense
Pin 2 -S -Vo Remote Sense
Pin 3 LS Load Share Signal
Pin 4 PS OFF Remote ON/OFF signal NO
Pin 5 PS ON Remote ON/OFF signal NC
Pin 6 SGND Signal Common
Pin 7 PW OK Power Good
Pin 8 5 Vsb Stand-by Voltage
Pin 9 DC OK DC Power Good Signal

J1 PIN CONNECTIONS

Pin 1 Ground/Earth
Pin 2 Live
Pin 3 Neutral

J2 PIN CONNECTIONS

Pin 1 +12 V Fan Voltage
Pin 2 SGND Return

J3 PIN CONNECTIONS

Pin 1 Vo +Main Output
Pin 2 Vo +Main Output
Pin 3 RTN Main Return
Pin 4 RTN Main Return

Connector and Mating Connector Types

Connector Type Mating Connector Type

J1

Molex 09-65-2058 (5273 series)void pins 2
and 4 or equivalent

Molex 09-52-4054 (5239 series) or equivalent with
Molex 08-52-0072 (2478 series) or equivalent crimp
terminals

J2 Molex 22-23-2021 (6373 series) or equivalent

Molex 22-01-3027 (2695 series) or equivalent with
Molex 08-50-01113 (2759 series) or equivalent crimp
terminals

J3

Molex terminal block 387007504 or
equivalent

Terminal block contains #6-32 screw with clamp
washer suitable for wire size 12-22 awg (0.5-2.5 mm

2

).

Max Torque tp 1.36 Nm (12 in.lb)

J4 Molex 22-23-2091 (6373 series) or equivalent

Molex 22-01-3097 (2695 series) or equivalent with
Molex 08-50-0113 (2759 series) or equivalent crimp
terminals

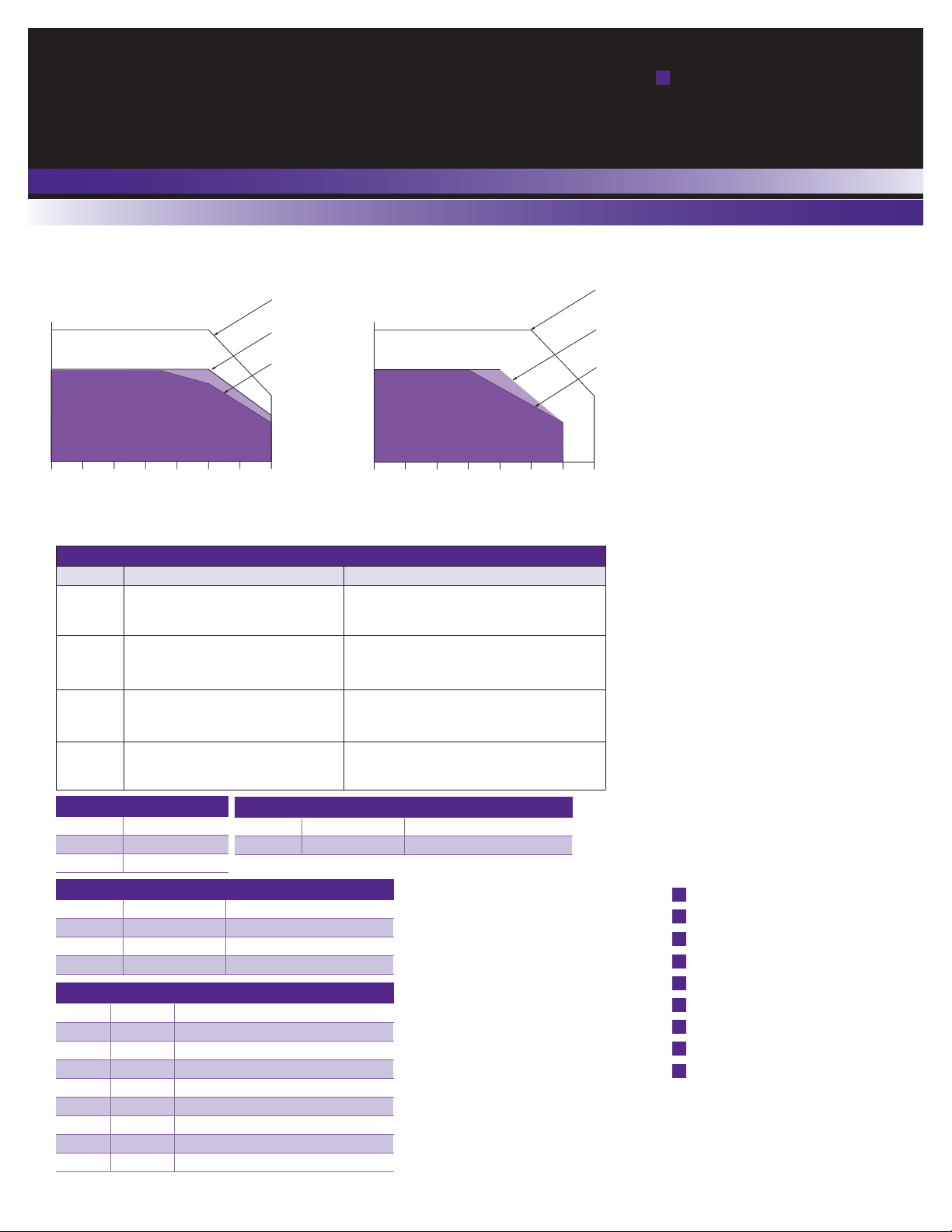

Figure 1: Derating Curve
