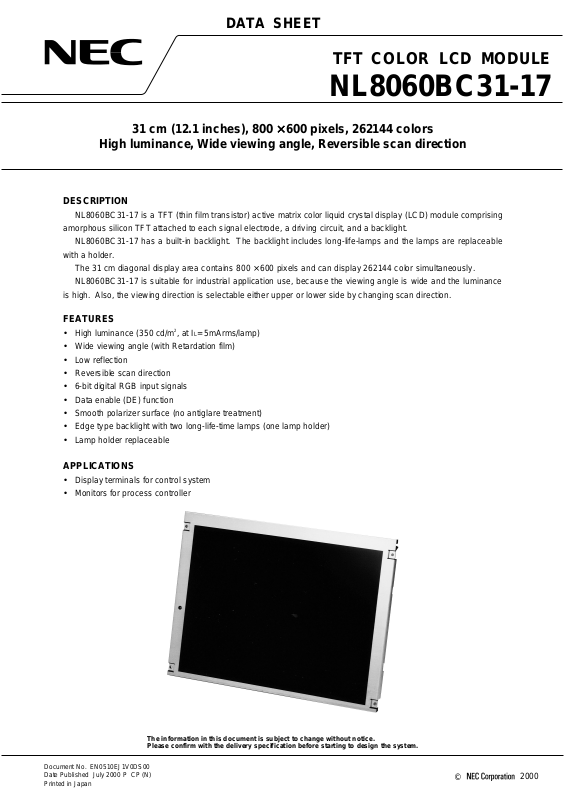

DATA SHEET

TFT COLOR LCD MODULE

NL8060BC31-17

31 cm (12.1 inches), 800

××××

600 pixels, 262144 colors

High luminance, Wide viewing angle, Reversible scan direction

DESCRIPTION

NL8060BC31-17 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) module comprising

amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight.

NL8060BC31-17 has a built-in backlight. The backlight includes long-life-lamps and the lamps are replaceable

with a holder.

The 31 cm diagonal display area contains 800 × 600 pixels and can display 262144 color simultaneously. NL8060BC31-17 is suitable for industrial application use, because the viewing angle is wide and the luminance

is high. Also, the viewing direction is selectable either upper or lower side by changing scan direction.

FEATURES

High luminance (350 cd/m

•

Wide viewing angle (with Retardation film)

•

Low reflection

•

Reversible scan direction

•

6-bit digital RGB input signals

•

Data enable (DE) function

•

Smooth polarizer surface (no antiglare treatment)

•

Edge type backlight with two long-life-time lamps (one lamp holder)

•

Lamp holder replaceable

•

, at IL= 5mArms/lamp)

APPLICATIONS

Display terminals for control system

•

Monitors for process controller

•

The information in this document is subject to change without notice. Please confirm with the delivery specification before starting to design the system.

Document No. EN0510EJ1V0DS00 Date Published July 2000 P CP (N) Printed in Japan

2000

Page 2

NL8060BC31-17

STRUCTURE AND FUNCTIONS

A color TFT (thin film transistor) LCD module is comprised of a TFT liquid crystal panel structure, LSIs for driving the TFT array, and a backlight assembly. The TFT panel structure is created by sandwiching liquid crystal material in the narrow gap between a TFT array glass substrate and a color filter glass substrate. After the driver LSIs are connected to the panel, the backlight assembly is attached to the backside of the panel.

RGB (red, green, blue) data signals from a source system is modulated into a form suitable for active matrix addressing by the onboard signal processor and sent to the driver LSIs which in turn addresses the individual TFT cells.

Acting as an electro-optical switch, each TFT cell regulates light transmission from the backlight assembly when activated by the data source. By regulating the amount of light passing through the array of red, green, and blue dots, color images are created with clarity.

OUTLINE OF CHARACTERISTICS (at room temperature)

Item Description Display area 246.0 (H) × 184.5 (V) mm Drive system a-Si TFT active matrix Display colors 262,144 colors Number of pixels 800 × 600 pixels Pixel arrangement RGB vertical stripe Pixel pitch 0.3075 (H) × 0.3075 (V) mm Module size 280.0 (H) × 210.0 (V) × 13.0 (D) mm (typ.) Weight 750 (typ.) Contrast ratio 350:1 (typ.) Viewing angle

(more than the contrast ratio of 10:1) Designed viewing direction

Color gamut 43% (typ'. at center, to NTSC) Response time 15 ms (typ.), “white 100%” to ”black 10%” Luminance Signal system 6-bit signals for each of RGB primary colors, synchronous signals (Hsync,

Supply voltage 3.3 V [5.0 V] (Logic, LCD driving) Backlight Edge light type, two cold cathode fluorescent lamp in a holder

Power consumption 7.0 W (typ. at 3.3 V, with a recommended inverter)

Horizontal: 55° (typ. left side, right side) Vertical: 40° (typ. up side), 50° (typ. down side)

•

Wider viewing angle with contrast ratio : down side

(6 o’clock, normal scan) up side (12 o’clock, reverse scan)

•

Wider viewing angle without image reversal: up side

(12 o’clock, normal scan) down side (6 o’clock, reverse scan)

•

Optimum grayscale (γ = 2.2) : perpendicular

350 cd/m

Vsync), dot clock (CLK)

•

(typ.) (Lamp current: IL = 5 mArms per lamp)

Lamp holder : Part No.121LHS15 Recommended invertor: Part No. 121PW111

Data Sheet EN0510EJ1V0DS00

Page 3

BASIC STRUCTURE

NL8060BC31-17

R0 - R5

G0 - G5

B0 - B5

CLK

H sync

V sync

DPS

GND

200 Ω

47 Ω

200 Ω

4.7 kΩ

Controller

DC/DC

Converter

Power supply

for drivers

V-driver

H-driver

2400 lines

TFT LCD panel

600 lines

H: 800 × 3 (R, G, B) V: 600

Note 1:

GND is not connected to FG (Frame Ground) in the LCD module.

Backlight

Data Sheet EN0510EJ1V0DS00

Page 4

NL8060BC31-17

GENERAL SPECIFICATIONS

Item Specification Unit Module size 280.0 ± 0.5 (H) × 210.0 ± 0.5 (V) × 13.7 max. (D) mm Display area 246.0 (H) × 184.5 (V) [Diagonal display area: 31 cm (Type 12.1)] mm Number of pixels 800 × 3 (H) × 600 (V) pixel Dot pitch 0.1025 (H) × 0.3075 (V) mm Pixel pitch 0.3075 (H) × 0.3075 (V) mm Pixel arrangement RGB (Red, Green, Blue) vertical stripe Display colors 262,144 color Weight 780 (max.) g

ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks

−

Supply voltage V Input voltage V Lamp voltage V Storage temp. T Operating temp. T

−

0.3 to 6.5 V

−

0.3 to V

+ 0.3 V

1800 V

−

20 to 60 0 to 50

≤

95 % T

≤

85 % 40 < T

Absolute humidity Absolute humidity shall not

exceed T

= 50°C, RH=85%

* Measured at the panel surface (including self-heat)

ELECTRICAL CHARACTERISTICS

(1) Logic LCD driving

Parameter Symbol Min. Typ. Max. Unit Remarks

Supply voltage V

Logic input “L” voltage V Logic input “H” voltage V Supply current I

3.0

(4.75)

VCC × 0.7

−

3.3

(5.0)

−

* 320 (240)

g/m

3.6

(5.25)

VCC × 0.3 V

V 600

(500)

rms

C Module surface*

≤ 40°CRelative Humidity (RH)

≤ 50°C

Ta > 50°C

VVCC = 3.3 V

= 5.0 V)

CMOS level

= 3.3 V

= 5.0 V)

Ta = 25°C

−

No condensation

Ta = 25°C

* Checker flag pattern (in EIAJ ED-2522)

Data Sheet EN0510EJ1V0DS00

Page 5

(2) Backlight

Parameter Symbol Min. Typ. Max. Unit Remarks

NL8060BC31-17

Ta = 25°C

2.0

Lamp current I Lamp voltage V

Note 2

Oscillator frequency Ft 58 65 69 kHz

Note 1:

In an atmosphere of below 10°C, keep the lamp current more than 3.0 mArms in order to prevent the

−

960

1200

Note 1

5.0 5.5 mArm at a lamp

600

−−

−

lamp from blinking.

Note 2: Note 3:

The phase of the supply voltage for lamps must keep same one. Recommended value of "Ft".

Ft is within the specification.

•

and

Ft = 1/4th × (2n-1) th: Hsync period

•

n: a natural number (1, 2, 3…) If Ft is out of the recommended value, interference between Ft frequency and Hsync frequency may cause beat on the display.

SUPPLY VOLTAGE SEQUENCE

The supply voltage for input signals should be the same as V

Turn on the backlight within the LCD

operation period. When the backlight turns on before LCD operation or the LCD operation turns off before the backlight turns off, the display may momentarily become white.

When the power is off, please keep

whole signals (Hsync, Vsync, CLK, DE, R0-R5, G0-G5, B0-B5) low level or high impedance.

Wrong power sequence may dam-

age to the module. The signal should not be down dur-

ing operation. Even if signal could recover, LCD module can not be operated correctly, the display may be un-uniformity. In case signal is down, V then turn V sequence.

3.0 (4.75 V)

Signals

- ON

Signals: CLK, Hsync, Vsync, DE, R0-R5, G0-G5, B0-B5

0<t<35 ms 0<t<35 ms

VALID

3.0 (4.75 V)

- OFF

Notes1.

Time

Vrms I Vrms

should be turned off, and

and signal on as above

Ta = 25°CLamp turn on voltage

= 5mA

Ta = 0°C

Note 3

Data Sheet EN0510EJ1V0DS00

Page 6

NL8060BC31-17

INTERFACE AND CONNECTOR PIN ASSIGNMENT

(1) Interface signals, power supply

CN1: DF9-41P-1V (HIROSE ELECTRIC CO., LTD.) Adaptable socket: DF9-41S-1V (HIROSE ELECTRIC CO., LTD.)

or IL-310-T41S-VF (Japan Aviation Electronics Industry Limited (JAE)

Pin No. Symbol Function Pin No. Symbol Function

1 GND Ground 22 GND Ground 2 CLK Dot clock 23 G3 Green data 3 GND Ground 24 G4 Green data 4 Hsync Horizontal sync. 25 G5 Green data (MSB) 5 Vsync Vertical sync. 26 GND Ground 6 GND Ground 27 GND Ground 7 GND Ground 28 GND Ground 8 GND Ground 29 B0 Blue data (LSB)

9 R0 Red data (LSB) 30 B1 Blue data 10 R1 Red data 31 B2 Blue data 11 R2 Red data 32 GND Ground 12 GND Ground 33 B 3 Blue data 13 R3 Red data 34 B4 Blue data 14 R4 Red data 35 B5 Blue data (MSB) 15 R5 Red data (MSB) 36 GND Ground 16 GND Ground 37 DE Data enable signal 17 GND Ground 38 N.C. Not Connection 18 GND Ground 39 V 19 G0 Green data (LSB) 40 V 20 G1 Green data 41 DPS 21 G2 Green data

LSB : Least Significant Bit MSB : Most Significant Bit

CC CC

Power supply Power supply Scan direction select

Note 1 Note 1 Note 2

Notes 1.

Notes 2.

DE/This function recognizes Fixed or DE mode whe Vsync rises. Low = DE mode High = Fixed mode DPS/DPS changes scan direction (normal scan and reverse scan). Low or Open = Normal scan High = Reverse scan See DISPLAY POSITION about the scan directions.

Data Sheet EN0510EJ1V0DS00

Page 7

NL8060BC31-17

(2) Lamp connector

CN2: BHR-03VS-1 Adaptable socket: SM03 (4.0) B-BHS-TB Supplier: J.S.T TRADING COMPANY, LTD.

Pin No. Symbol Function

1VLLow voltage terminal

2VHHigh voltage terminal

3VHHigh voltage terminal

*VH and VL must be connected correctly. If you make a mistake to connect, you will get hurt and the module

will break.

(3) Connection of recommended Inverter: 121PW111

CN1 Part No.: LZ-5P-SL-SMT Adaptable socket: LZ-5S-SC3 Supplier: Japan Aviation Electronics Industry Limited (JAE)

Pin No. Symbol Function

3 GNDB Back light ground

4 GNDB Back light ground

5 BRTHL

DDB

Note 1:

Power supply (12 V) Power supply (12 V)

Luminance control

Note 1

BRTHL = High (+5 V) or open : High luminance (100%) BRTHL = Low (GNDB level) : Low luminance (20%)

CN3 Part No.: IL-Z-3PL-SMTY Adaptable socket: IL-Z-3S-S125C3 Supplier: Japan Aviation Electronics Industry Limited (JAE)

Pin No. Symbol Function

1BRTC

2BRTH

3BRTL

Backlight ON/OFF signal Luminance control input Luminance control input

Note 1 Note 2 Note 2

Notes 1.

BRTC = High (+5 V) or Open : Backlight “ON” BRTC = Low (GNDB level) : Backlight “OFF”

Data Sheet EN0510EJ1V0DS00

Page 8

<1> A way of luminance control by a variable resistor.

This way works when BRTHL (No.5 pin) of CN1 is opened.

BRTHBRTL

<2> A way of luminance control by a voltage

BRTL and BRTHL are opened. The range of input voltage between BRTH and GNDB is as follows. Minimum luminance (20%, typ.) : 3.45 V Maximum luminance (100%) : ≤ 1.0 V

NL8060BC31-17

Mating variable resistor : 10 kΩ ±5 % Minimum luminance (20%) : R = 0 Maximum luminance (100%): R = 10 k

Ω

Data Sheet EN0510EJ1V0DS00

Page 9

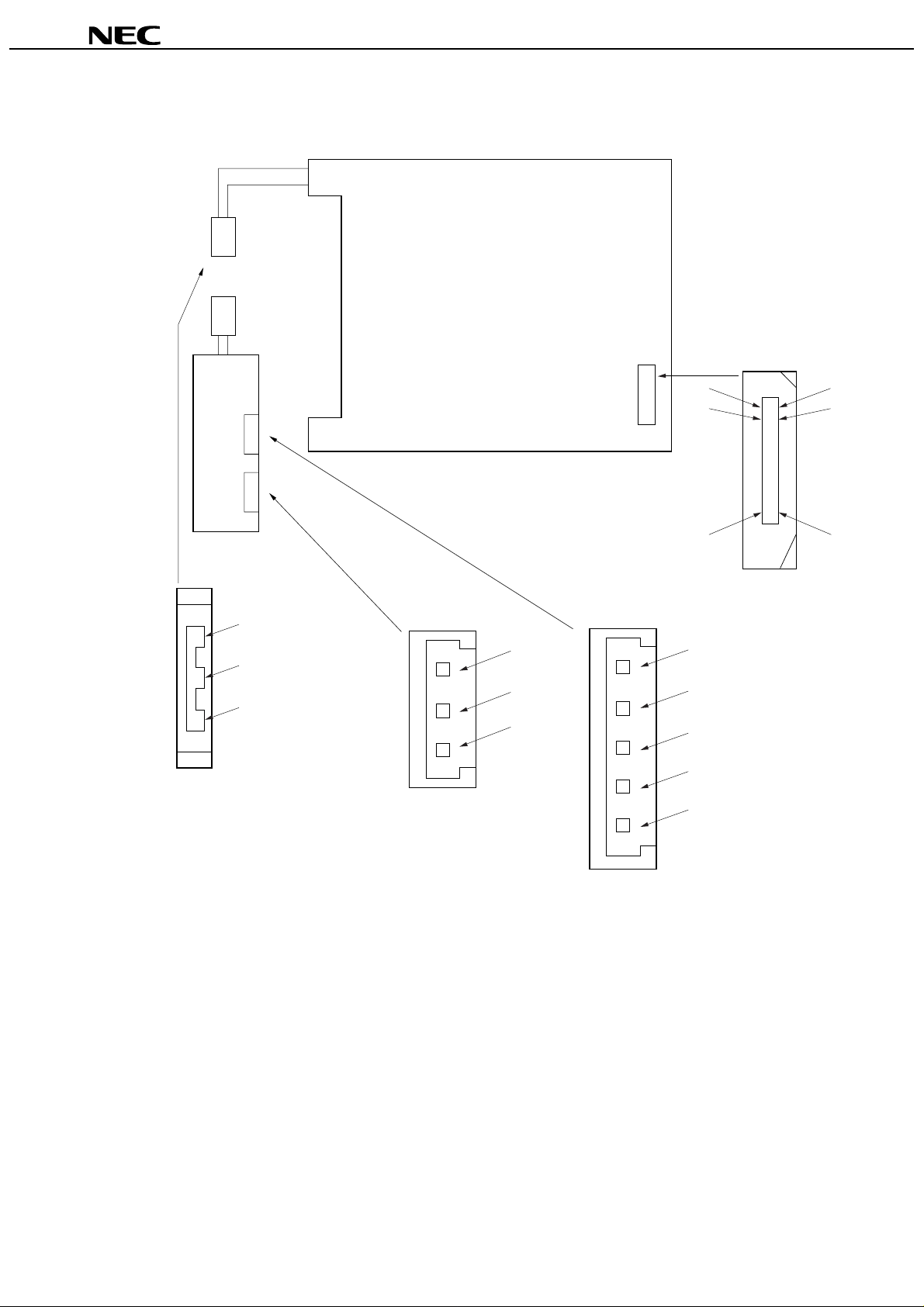

(4) Connector location

CN2

NL8060BC31-17

Upper side

CN1

CN3

Recommended inverter (121PW111)

Lower side

1 3

•

• 41

2 4

•

Data Sheet EN0510EJ1V0DS00

Page 10

DISPLAY COLORS vs. INPUT DATA SIGNALS

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0

Black 000000000000000000

Blue 000000000000111111

Red 111111000000000000

Basic colors

Red grayscale

Green grayscale

Blue grayscale

Magenta 111111000000111111

Green 000000111111000000

Cyan 000000111111111111

Yellow111111111111000000

White 111111111111111111 Black 000000000000000000

000001000000000000

Dark 000010000000000000

↑| | |

|||

↓| | |

Bright 111101000000000000

111110000000000000

Red 111111000000000000

Black 000000000000000000

000000000001000000

Dark 000010000010000000

↑| | |

|||

↓| | |

Bright 000000111101000000

000000111110000000

Green 000000111111000000

Black 000000000000000000

000000000000000001

Dark 000000000000000010

↑| | |

|||

↓| | |

Bright 000000000000111101

000000000000111110

Blue 000000000000111111

NL8060BC31-17

Data signal (0: Low level, 1: High level)Display colors

Colors are developed in combination with 6-bit signals (64 steps in grayscale) of each primary red, green,

Note

and blue color. This process can result in up to 262144 (64 × 64 × 64) colors.

Data Sheet EN0510EJ1V0DS00

Page 11

INPUT SIGNAL TIMING

(1) Input signal specifications

Parameter Symbol Min. Typ. Max. Unit Remarks

CLK

Hsync

Vsync

DATA R0 – R5 G0 – G5 B0 – B5

Frequency 1/t Duty tch/t Rise, fall tcrf

Display period thd 800 CLK Front-porch thf

CLK-Hsync ti min g thch 10 Hsync-CLK ti min g thcs 8 Hsync-Vsync timing thv 1 Vsync-Hsync timing tvs 15 Rise, fall thrf

Display period tvd 600 H Front-porch tvf

Rise, fall tvrf CLK-DATA timing tds 8 DATA-CLK timing tdh 10 Rise, fall tdrf DE-CLK timing tes 8 CLK-DE timing teh 10 Rise, fall terf

NL8060BC31-17

34.0 38.362 40.0 MHz 26.067 ns (typ.)

0.4 0.5 0.6

−−

24.3 26.693 829 1024

−

4 24 12 72 127 CLK Fixed modePulse width thp 12 72 73 128 198 CLK Fixed modeBack-porch thb 13 128 509 CLK DE mode

25 200 511 CLK DE mode

−−

16.1 16.683 17.2 msPeriod tv 603 625

−

1 1 1 2 23 H Fixed modePulse width tvp 1 2 1 22 23 H Fixed modeBack-porch tvb 1 22

2 24 254 H DE mode

−−

− −

200 CLK Fixed modethp + thb

−−

24 H Fixed modetvp + tvb

−−

− −

10 ns

−

10 ns

−

10 ns

−−

sPeriod th

CLK

CLK Fixed mode CLK DE mode

CLK DE mode

ns ns

CLK

H Fixed mode H DE mode

H DE mode

ns ns

−

37.468 kHz (typ.)

−

59.95 Hz (typ.)

−

* All of parameters should be kept in the specified range.

Data Sheet EN0510EJ1V0DS00

Page 12

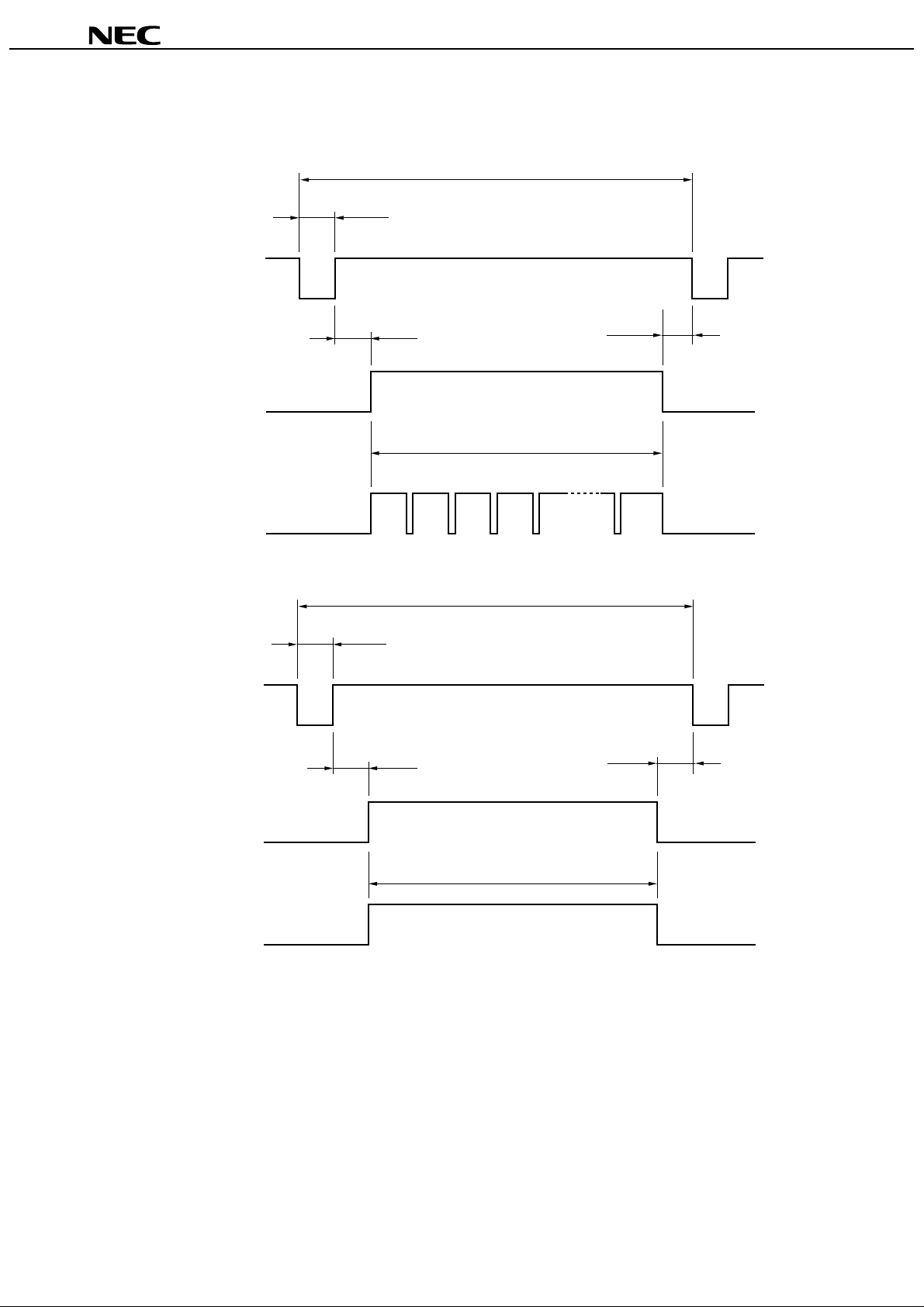

(2) Definition of input signal timing

Vsync

NL8060BC31-17

tvp

Display period

(note)

Hsync

thp

thb

tvb

tvf

tvd

thf

Display period

(note)

thd

These do not exist as signals.

Note

Data Sheet EN0510EJ1V0DS00

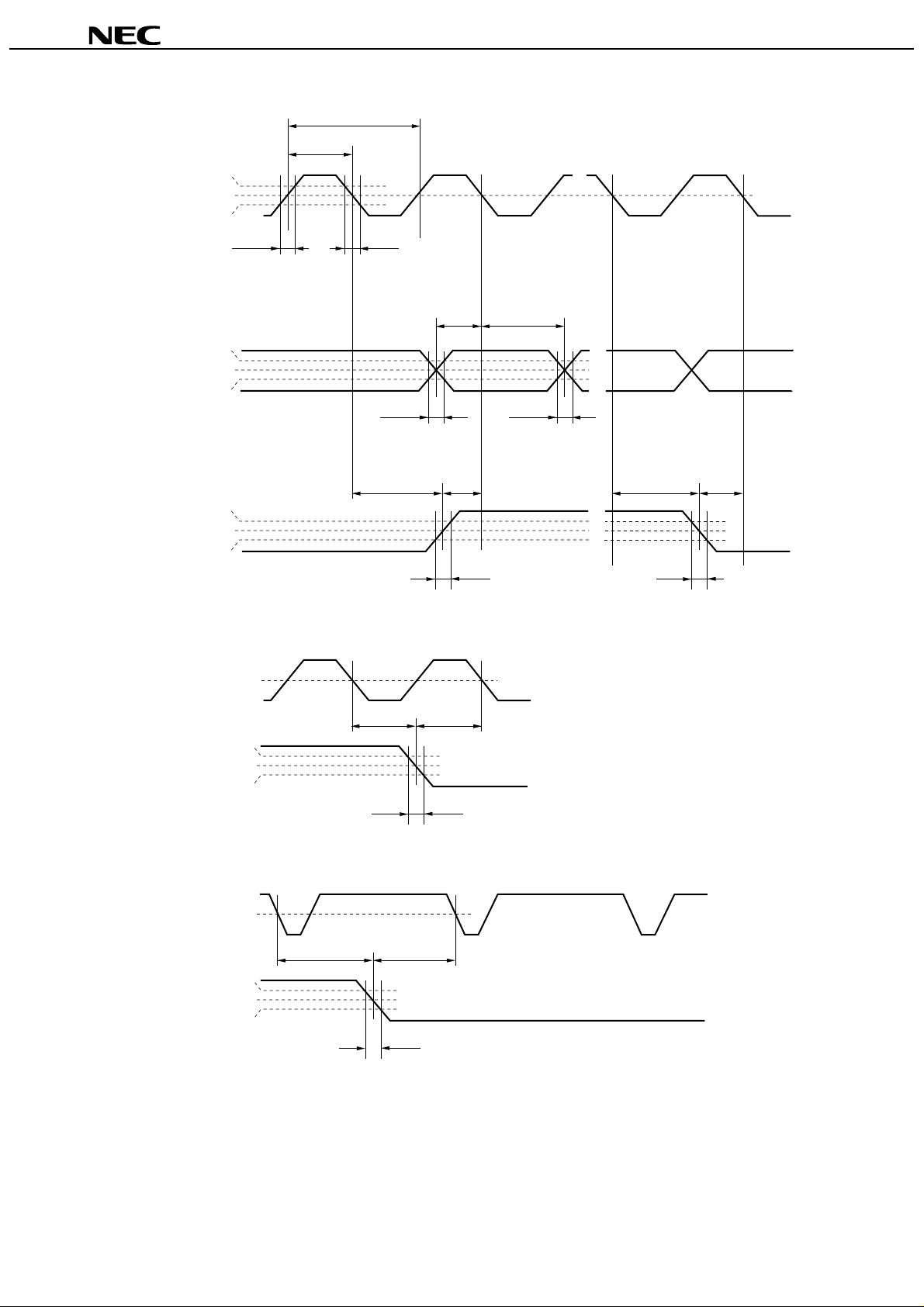

Page 13

CLK

0.7 V

0.5 V

0.3 V

tch

CC CC CC

tcrf tcrf

NL8060BC31-17

DATA

(R0-R5) 0.7 V

(G0-G5) 0.5 V (B0-B5) 0.3 V

CLK

Hsync

0.7 V

0.5 V

0.3 V

CC CC

CC CC CC

0.5 V

0.7 V

0.5 V

0.3 V

tdhtds

INVALID

tdrftdrf

testehtesteh

terf

thcsthch

CC CC CC

thrf

Hsync

Vsync

0.5 V

0.7 V

0.5 V

0.3 V

thsthv

CC CC CC

tvrf

Data Sheet EN0510EJ1V0DS00

Page 14

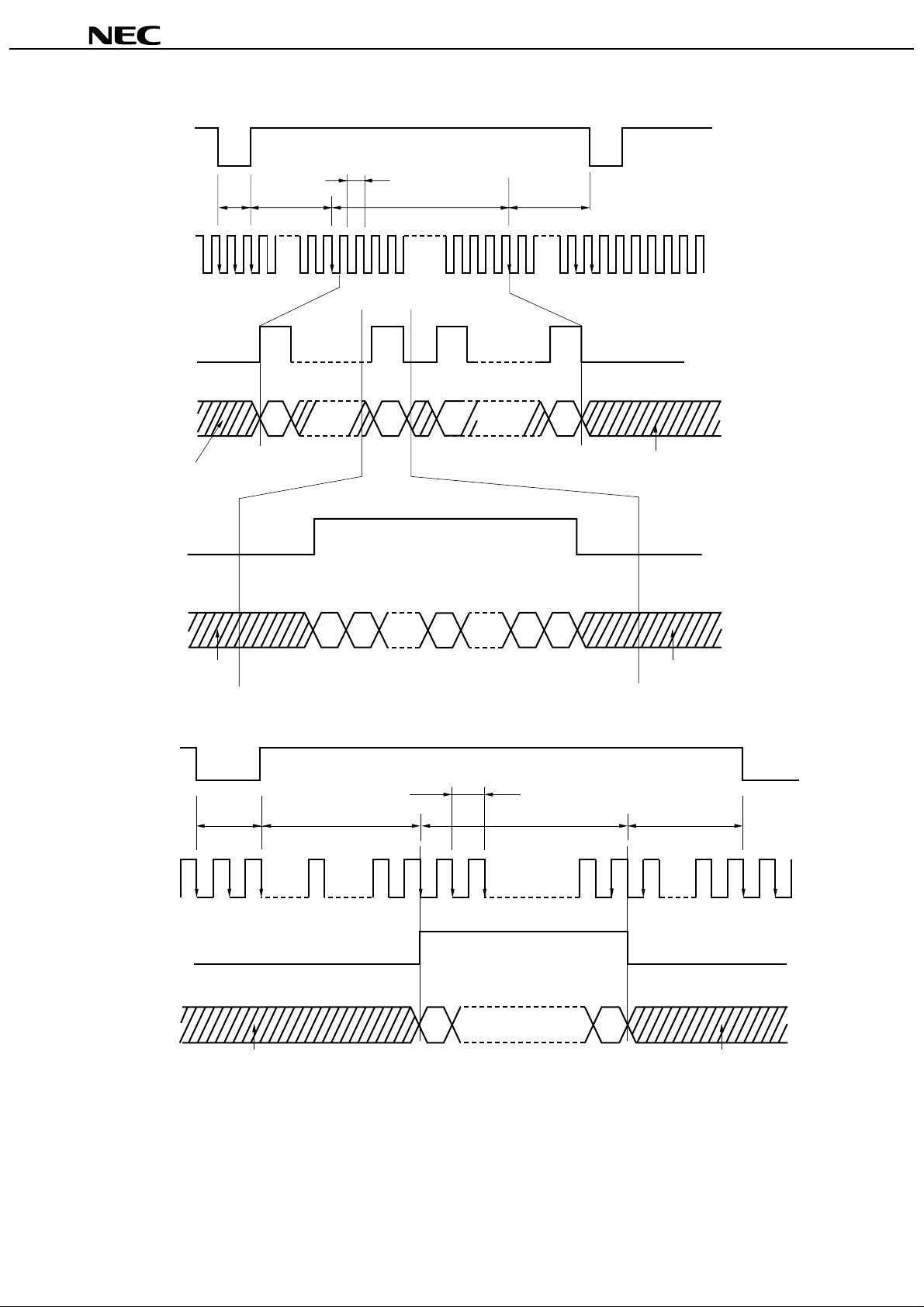

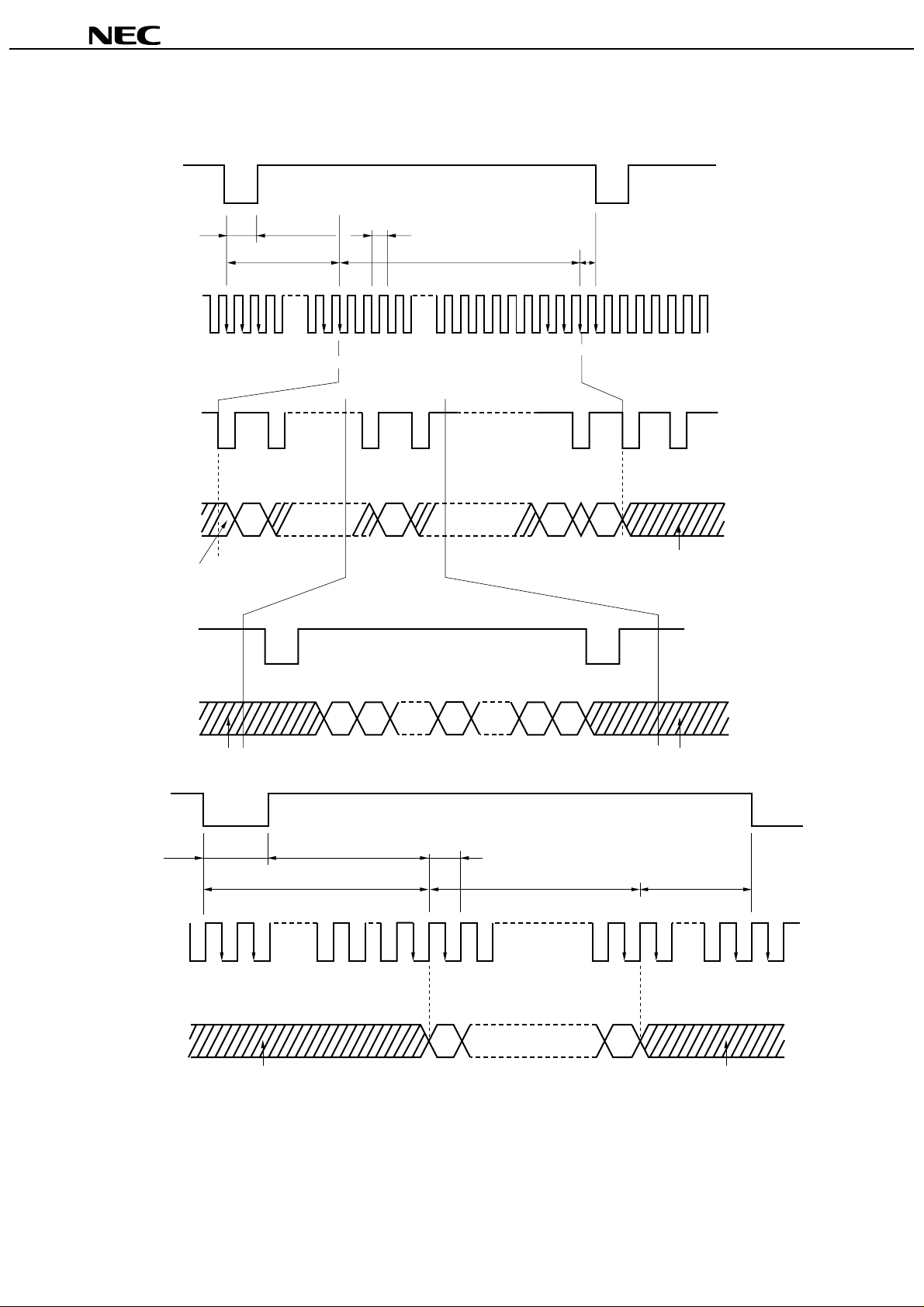

(3) Input signal timing chart

a) Fixed timing mode

Vsync

NL8060BC31-17

Hsync

R0 - R5

G0 - G5

B0 - B5

Hsync

1H (min.)

INVALID

1H (min.)

24H (fixed)

321

25 623 624 0

D (X, 0) D (X, Y) D (X, 598) D (X, 599)

600H (fixed)

623

624

INVALID (Note: X = 0 to 799)

R0 - R5

G0 - G5

B0 - B5

Hsync

2CLK (min.)

CLK

R0 - R5

G0 - G5

B0 - B5

INVALID

12 201200

INVALID

D (0, Y) D (1, Y) D (798, Y) D (799, Y)

2CLK (min.)

200CLK (fixed)

D (X, Y)

1CLK

D (0, Y) D (1, Y)

INVALID

800CLK (fixed) 24CLK

1001 1024 1

1000

D (799, Y)

(Note: Y = 0 to 599)

INVALID

Data Sheet EN0510EJ1V0DS00

Page 15

b) DE mode

Vsync

NL8060BC31-17

Hsync

R0 - R5

G0 - G5

B0 - B5

R0 - R5

G0 - G5

B0 - B5

INVALID

321

D (X, 0)

tvb

D (X, Y) D (X, 599)

D (0, Y) D (1, Y) D (798, Y) D (799, Y)

600H (fixed)

D (X, Y)

tvp tvf

INVALID (Note: X = 0 to 799)

INVALID

Hsync

CLK

R0 - R5

G0 - G5

B0 - B5

thp

INVALID

thb

1CLK

D (0, Y) D (1, Y)

800CLK (fixed)

D (799, Y)

thf

INVALID

(Note: Y = 0 to 599)

Data Sheet EN0510EJ1V0DS00

Page 16

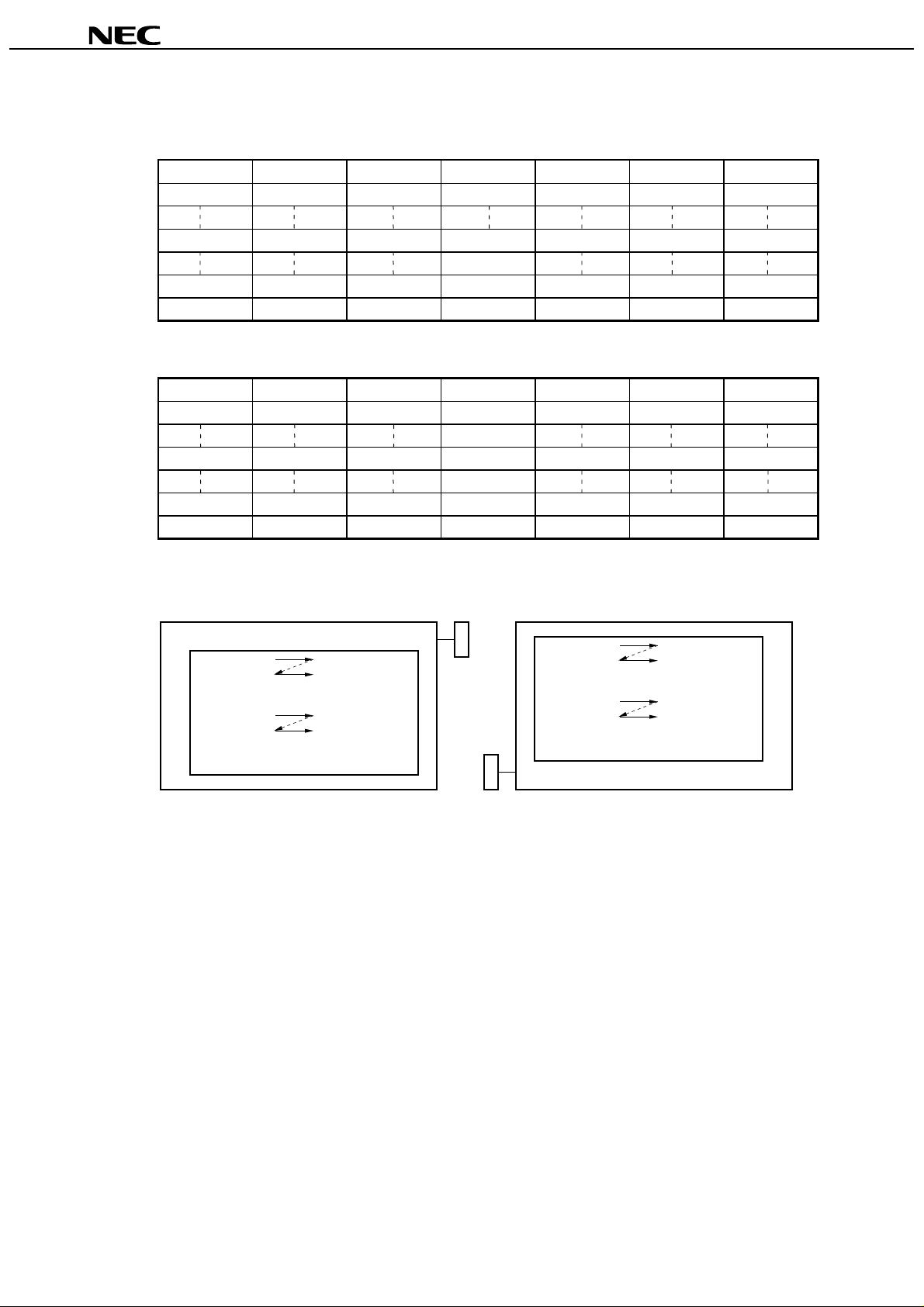

DISPLAY POSITION

Normal scan (DPS = “Low” or “Open”)

D (0, 1) D (1, 1) - - - - - - - - - D (X, 1) - - - - - - - - - D (798, 1) D (799, 1) D (0, 1) D (1, 1) - - - - - - - - - D (X, 1) - - - - - - - - - D (798, 1) D (799, 1)

D (0, Y) D (1, Y) - - - - - - - - - D (X, Y ) - - - - - - - - - D (798, Y) D (799, Y)

D (0, 598) D (1, 598) - - - - - - - - - D (X, 598) - - - - - - - - - D (798, 598) D (799, 598) D (0, 599) D (1, 599) - - - - - - - - - D (X, 599) - - - - - - - - - D (798, 599) D (799, 599)

Reverse scan (DPS = “High”)

D (799,599) D (798, 599) - - - - - - - - - D (X, 599) - - - - - - - - - D (1, 599) D (0,599) D (799,598) D (798, 598) - - - - - - - - - D (X, 598) - - - - - - - - - D (1, 598) D (0,598)

D (799, Y) D (798, Y) - - - - - - - - - D (X, Y) - - - - - - - - - D (1, Y) D (0, Y)

D (799, 1) D (798, 1) - - - - - - - - - D (X, 1) - - - - - - - - - D (1, 1) D (0, 1) D (799, 0) D (798, 0) - - - - - - - - - D (X, 0) - - - - - - - - - D (1, 0) D (0, 0)

* Below drawings show relations between the scan direction and the viewing direction.

NL8060BC31-17

- - - - - - - - - - - - - - - - - -

Normal scan Reverse scan

D (0, 0) D (799, 0)

D (0, 599) D (799, 599)

C N

N 2

C N 2

D (0, 0) D (799, 0)

D (0, 599) D (799, 599)

C N 1

Data Sheet EN0510EJ1V0DS00

Page 17

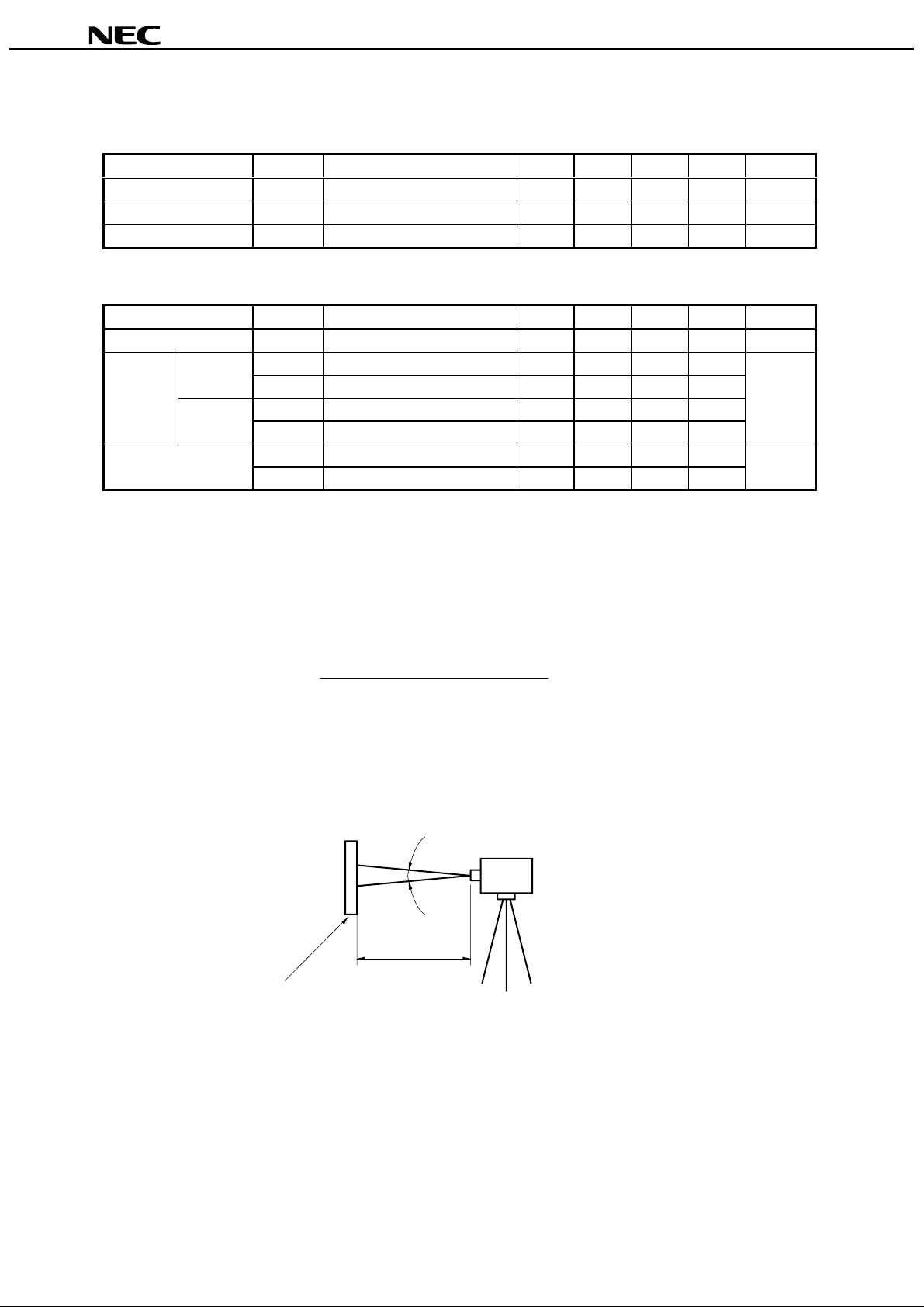

OPTICAL CHARACTERISTICS

NL8060BC31-17

Item Symbols Conditions Min. Typ. Max. Unit Remarks Contrast ratio CR Luminance Lumax. Luminance uniformity

Note 2 Note 2

−

max./min.

200 350 270 350

−−

Reference data

Item Symbols Conditions Min. Typ. Max. Unit Remarks Color gamut C at center, to NTSC 35 43 Viewing

angle range

Notes 1.

x+ CR > 10, θy = ±0

−

CR > 10, θy = ±0

Vertical

= 3.3 V, IL = 5.0 mA rms, with recommended inverter Part No. 121PW111.

Viewing angle: θx = ±0°, θy = ±0°, At center.

y+ CR > 10, θx = ±0

−

CR > 10, θx = ±0 t on White to black 100% → 10% t off Black to white 0% → 90%

° ° ° °

45 55 45 55 30 40 40 50

−

Ta = 25°C

−−

cd/m

−

1.4

−

15 40 msResponse time 55 70 ms

% deg.Horizontal deg. deg. deg.

Note 1

Note 3

Note 4

−

Note 5

−

Note 7

Note 6

The contrast ratio is calculated by using the following formula.

Contrast ratio (CR) =

Luminance with all pixels in "white" Luminance with all pixels in "black"

The luminance is measured in darkroom.

The luminance is measured after 20 minutes from the module works, with all pixels in "white". Typical

value is measured after luminance saturation. The luminance is measured in darkroom.

1°

50 cm

LCD MODULE

Photodetector (TOPCON BM-5A)

Data Sheet EN0510EJ1V0DS00

Page 18

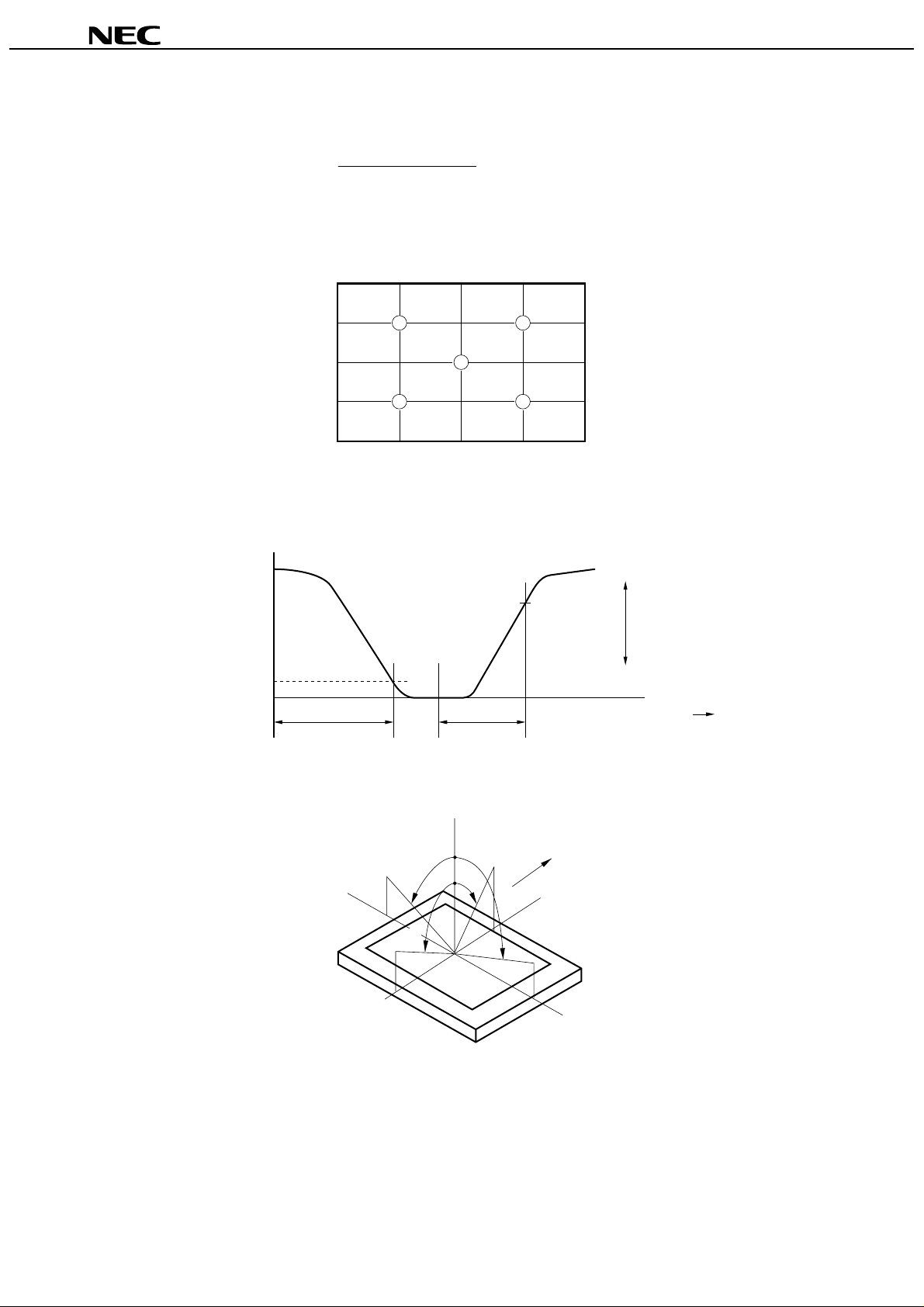

The luminance uniformity is calculated by using following formula.

NL8060BC31-17

Luminance uniformity =

Maximum lumi nance Minimum luminance

The luminance is measured at near the five points shown below.

Definition of response time is as follows.

(133)Column

(400) (667)

Line

(100)

(300)

(500)

Photodetector output signal is measured when the Luminance changes "white" to "black" or "black" to "white".

100%

90%

White

Luminance

range

10%

Definitions of viewing angle are as follows.

ton toff

Left

Lower

Perpendicular

x–

y–

Display color

Black

Time

12 o’clock

Upper

Right

Data Sheet EN0510EJ1V0DS00

Page 19

RELIABILITY TEST SPECIFICATIONS

Test items Test conditions Judgement

High temperature/humidity operation

Heat cycle (operation) <1> 0°C ±3°C … 1 hour

Thermal shock (non-operation)

Vibration (non-operation)

Mechanical shock (nonoperation)

ESD (operation)

Dust (operation)

50 ±2°C, 85% relative humidity 240 hours Display data is black.

55°C ±3°C … 1 hour <2> 50 cycl es, 4 hours/cycle <3> Dis pl ay data is black.

<1>−20°C ±3°C … 30 minutes

60°C ±3°C … 30 minutes <2> 100 cyc l es <3> Temperat ure transition time within 5 minutes

<1> 5 - 100 Hz, 19.6 m/s

1 minute/cycle,

X, Y, Z direction <2> 120 tim es each direction

<1> 539 m/s

<2> 5 times eac h direction 150 pF, 150 Ω, ±10 kV

9 places on a panel 10 times each place at one-second intervals

15 kinds of dust (JIS Z 8901) Hourly 15 seconds stir, 8 times repeat

(55G), 11 ms

X, Y, Z direction

(2G)

NL8060BC31-17

Note 1

Note 1 Note 2

Note 1

Note 3

Note 1

Notes 1.

Display function is checked by the same condition as LCD module out-going in spection. Physical damage.

Discharge points are shown as follows.

Data Sheet EN0510EJ1V0DS00

Page 20

GENERAL CAUTIONS

Next figures and sentence are very important, please understand these contents as follows.

This figure is a mark that you will get hurt and/or the module will have damages when you make

CAUTION

This figure is a mark that you will get an electric shock when you make a mistake to operate.

This figure is a mark that you will get hurt when you make a mistake to operate

CAUTION

Do not touch an inverter …on which is stuck a caution label… while the LCD module is under the operation, because of dangerous high voltage.

a mistake to operate.

NL8060BC31-17

(1) Caution when taking out the module

<1> Pick the pouch only, when taking out the module from a carrier box.

(2) Cautions for handling the module

<1> As the electrostatic discharges may break the LCD module, handle the LCD module with care against

electrostatic discharges. Peel protection sheet cut from the LCD panel surface as slowly as possible.

<2> As the LCD panel and backlight element are made from fragile glass material, impulse and

pressure to the LCD module should be avoided.

<3> As the surface of polarizer is very soft and easily scratched, use a soft dry cloth without chemicals for

cleaning. <4> Do not pull the interface connectors in or out while the LCD module is operating. <5> Put the module display side down on a flat horizontal plane. <6> Handle connectors and cables with care. <7> When the module is operating, do not lose CLK, Hsync, or Vsync signal. If any one of these signals is

lost, the LCD panel would be damaged. <8> The torque for mounting screw should never exceed 0.294 N.m (3 kgf.cm). <9> Don’t push or rub the surface of LCD module please.

If you do, the scratches or the marks like rubbing marks may be left on the surface of the module. <10> Do not give the stress to interface connectors. The module may become function by a contact defective

and damages. Pay attention to handling at the time of matching connector connection and in the

connection condition.

(3) Cautions for the atmosphere

<1> Dew drop atmosphere must be avoided. <2> Do not store and/or operate the LCD module in high temperature and/or high humidity atmosphere.

Storage in an anti-static pouch and under the room temperature atmosphere is recommended. <3> This module uses cold cathod fluorescent lamps. Therefore, the life time of lamp becomes short if the

module is operated under the low temperature environment. <4> Do not operate the LCD module in high magnetic field.

Data Sheet EN0510EJ1V0DS00

Page 21

NL8060BC31-17

(4) Caution for the module characteristics

<1> Do not apply any fixed patterns data for a long time to the LCD module. It may cause image sticking.

Please use screen savers if the display pattern is fixed for a long time. <2> This module has the retardation film which may cause the variation of the color hue in the different

viewing angles. The ununiformity may appear on the screen under the high temperature operation. <3> The light vertical stripe may be observed depending on the display pattern. This is not defects or

malfunctions. <4> The noise from the inverter circuit may be observed in the luminance control mode. This is not defects

or malfunctions.

(5) Other cautions

<1> Do not disassemble and/or reassemble LCD module. <2> Do not readjust variable resistors nor switches etc. <3> When returning the module for repair etc., Please pack the module properly to avoid any damages. We

recommend the original shipping packages.

Liquid Crystal Display has the following specific characteristics. There are not defects nor malfunctions.

The optical characteristics of this module may be affected by the ambient temperature. The LCD module uses cold cathode tube for backlighting. Optical characteristics, like luminance or uniformity, will be changed by the progress in time.

Uneven brightness and/or small spots may be observed depending on different display patterns.

Data Sheet EN0510EJ1V0DS00

Page 22

Data Sheet EN0510EJ1V0DS00

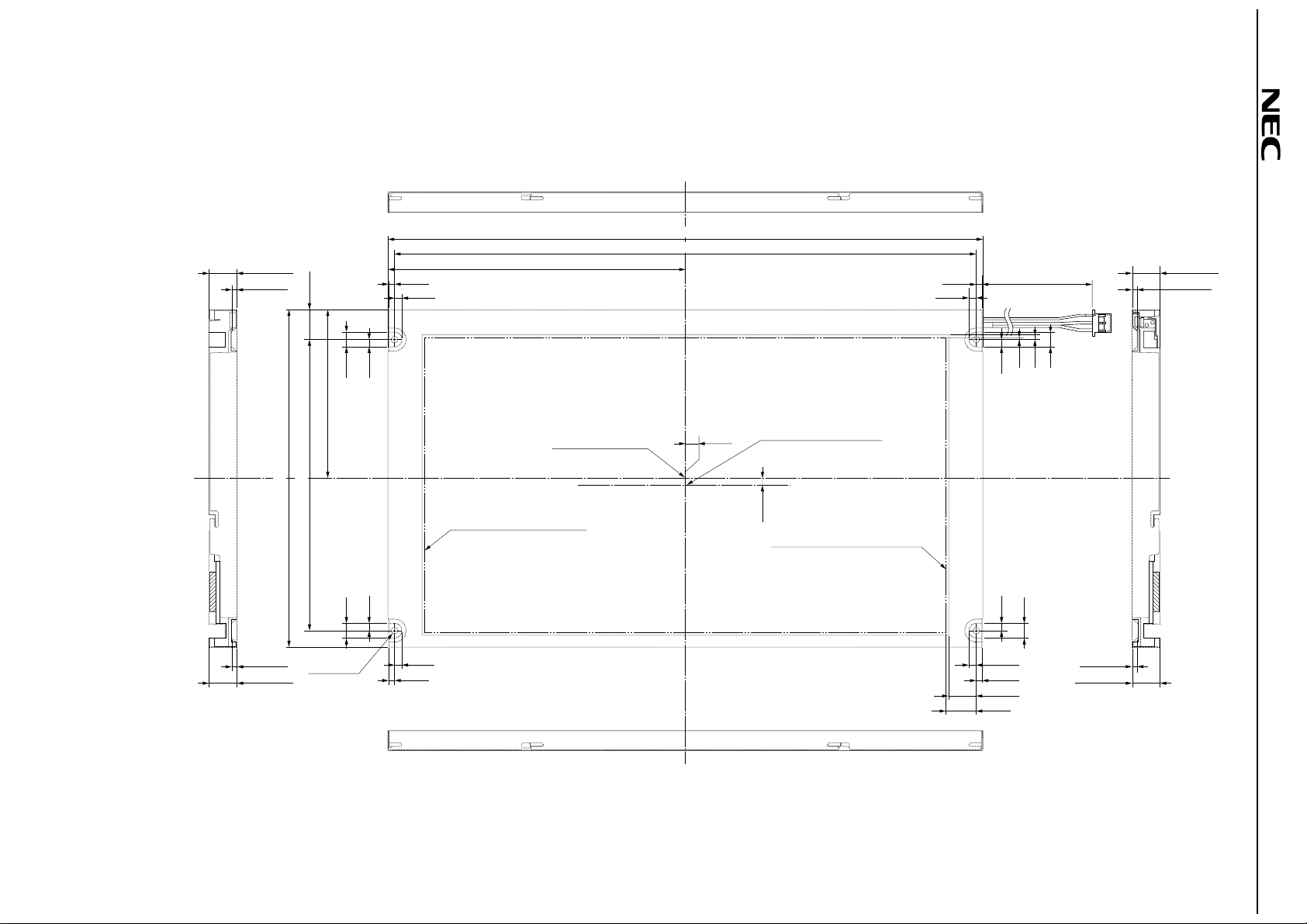

OUTLINE DRAWING

FRONT SIDE (Unit in mm)

13.7 MAX

2.5 ± 0.3

(18.7)

(105)

(9)

(4.5)

(3.3)

(4.5)

(140)

280 ± 0.5

272.2 ± 0.3

(4.5)

(80)(3.3)

(1.6)

(3.1)

13.7 MAX

2.5 ± 0.3

(9)

2.5 ± 0.3

13.7 MAX

210 ± 0.5

181.3 ± 0.3

4 − ( 3.5)

(9)

MODULE CENTER

ACTIVE AREA (246∗184.5)

(4.5)

(3.3)

Note 1: The value in parentheses are for reference. Note 2: The torque to mounting screw never exceed 0.294 N

(0.1)

ACTIVE AREA CENTER

(4.35)

BEZEL OPENING (249∗187.5)

m (3kgf.cm).

(4.5)

(3.3) (11.5) (13)

(9)

2.5 ± 0.3

13.7 MAX

NL8060BC31-17

Page 23

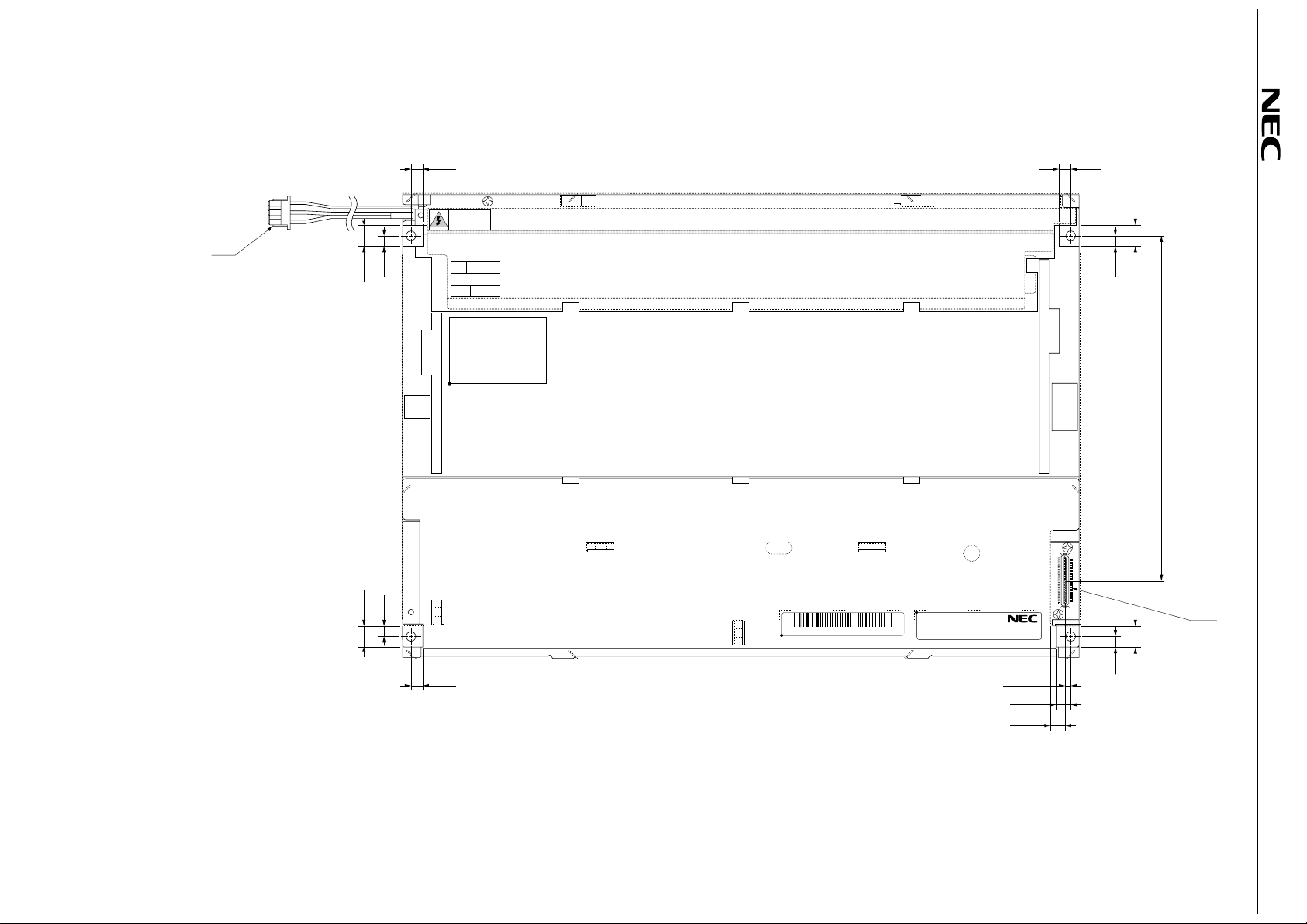

OUTLINE DRAWING

REAR SIDE (Unit in mm)

(5) (5)

HIOK VOLTAGE

CAUTION

CN2

(5)

(10)

THE TFT COLOR LCD PANEL CONTAINS COLD CATHODE FLOURESCENT LAMPS. PLEASE FOLLOW LOCAL ORDINANCES OR REGULATIONS FOR ITS DISPOSAL

Data Sheet EN0510EJ1V0DS00

(5)

(10)

156.4 ± 0.5

(10)

(5)

A1000A762802

(5.4)

Note 1: The value in parentheses are for reference. Note 2: The torque to mounting screw never exceed 0.294 N.m (3kgf.cm).

NL8060BC31-17

ES2228421 MADE IN JAPAN A100100100100

2.2 ± 0.5 (5.4)

(6.2)

(5)

(10)

CN1

NL8060BC31-17

Page 24

1/ензн%&кмрмж

DATA SHEET

No part of this document may be copied in any form or by any means without the prior written consent of NEC Corporation. NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual property rights of third parties by or arising from use of a device described herein or any other liability arising from use of such device. No license, either express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC Corporation or of others. While NEC Corporation has been making continuous effort to enhance the reliability of its Electronic Components, the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or property arising from a defect in an NEC Electronic Components, customers must incorporate sufficient safety measures in its design, such as redundancy, fire-containment, and anti-failure features. NEC devices are classified into the following three quality grades: "Standard", "Special", and "Specific". The Specific quality grade applies only to devices developed based on a customer designated "quality assurance program" for a specific application. The recommended applications of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots. Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster systems, anti-crime systems, safety equipment and medical equipment (not specifically designed for life support) Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life support systems or medical equipment for life support, etc. The quality grade of NEC devices is "Standard" unless otherwise specified in NEC's Data Sheets or Data Books. If customers intend to use NEC devices for applications other than those specified for Standard quality grade, they should contact an NEC sales representative in advance. Anti-radioactive design is not implemented in this product.
