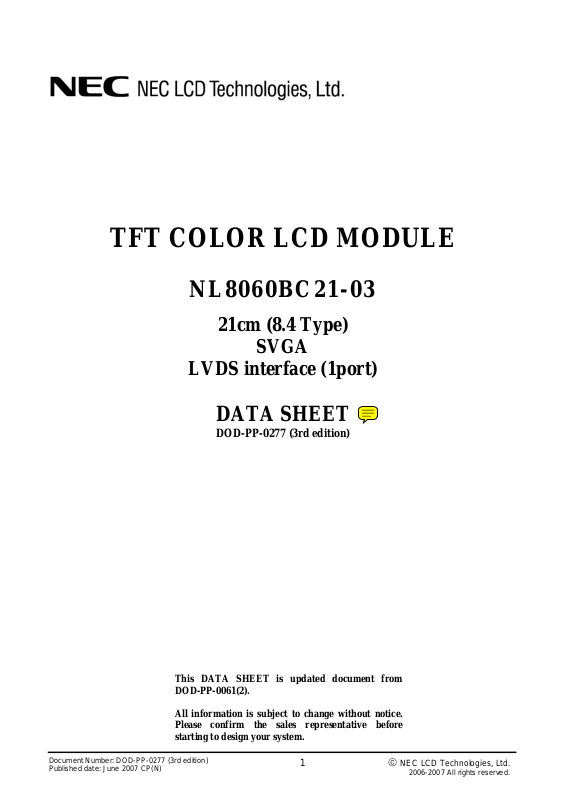

Page 1
TFT COLOR LCD MODULE
NL8060BC21-03
21cm (8.4 Type)
SVGA
LVDS interface (1port)
DATA SHEET
DOD-PP-0277 (3rd edition)
This DATA SHEET is updated document from
DOD-PP-0061(2).
All information is subject to change without notice.
Please confirm the sales representative before
starting to design your system.
Document Number: DOD-PP-0277 (3rd edition)
Published date: June 2007 CP(N)
1
© NEC LCD Technologies, Ltd.
2006-2007 All rights reserved.
Page 2
NL8060BC21-03
INTRODUCTION
The Copyright to this document belongs to NEC LCD Technologies, Ltd. (hereinafter called "NEC").
No part of this document will be used, reproduced or copied without prior written consent of NEC.
NEC does and will not assume any liability for infringement of patents, copyrights or other intellectual
property rights of any third party arising out of or in connection with application of the products
described herein except for that directly attributable to mechanisms and workmanship thereof. No license,
express or implied, is granted under any patent, copyright or other intellectual property right of NEC.
Some electronic parts/components would fail or malfunction at a certain rate. In spite of every effort to
enhance reliability of products by NEC, the possibility of failures and malfunction might not be avoided
entirely. To prevent the risks of damage to death, human bodily injury or other property arising out
thereof or in connection therewith, each customer is required to take sufficient measures in its safety
designs and plans including, but not limited to, redundant system, fire-containment and anti-failure.
The products are classified into three quality grades: "Standard", "Special", and "Specific" of the
highest grade of a quality assurance program at the choice of a customer. Each quality grade is designed
for applications described below. Any customer who intends to use a product for application other than
that of Standard quality grade is required to contact an NEC sales representative in advance.
The Standard quality grade applies to the products developed, designed and manufactured in
accordance with the NEC standard quality assurance program, which are designed for such application as
any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses
are, directly or indirectly, free of any damage to death, human bodily injury or other property, like general
electronic devices.
Examples: Computers, office automation equipment, communications equipment, test and measurement
equipment, audio and visual equipment, home electronic appliances, machine tools, personal
electronic equipment, industrial robots, etc.
The Special quality grade applies to the products developed, designed and manufactured in accordance
with an NEC quality assurance program stricter than the standard one, which are designed for such
application as any failure or malfunction of the products (sets) or parts/components incorporated therein a
customer uses might directly cause any damage to death, human bodily injury or other property, or such
application under more severe condition than that defined in the Standard quality grade without such
direct damage.
Examples: Control systems for transportation equipment (automobiles, trains, ships, etc.), traffic control
systems, anti-disaster systems, anti-crime systems, medical equipment not specifically
designed for life support, safety equipment, etc.
The Specific quality grade applies to the products developed, designed and manufactured in accordance
with the standards or quality assurance program designated by a customer who requires an extremely
higher level of reliability and quality for such products.
Examples: Military systems, aircraft control equipment, aerospace equipment, nuclear reactor control
systems, medical equipment/devices/systems for life support, etc.
The quality grade of this product is the "Standard" unless otherwise specified in this document.
DATA SHEET DOD-PP-0277 (3rd edition)
2
Page 3
NL8060BC21-03
CONTENTS
INTRODUCTION ........................................................................................................................................
1. OUTLINE..................................................................................................................................................
1.1 STRUCTURE AND PRINCIPLE ........................................................................................................
1.2 APPLICATION....................................................................................................................................
1.3 FEATURES..........................................................................................................................................
2. GENERAL SPECIFICATIONS..............................................................................................................
3. BLOCK DIAGRAM.................................................................................................................................
4. DETAILED SPECIFICATIONS.............................................................................................................
4.1 MECHANICAL SPECIFICATIONS...................................................................................................
4.2 ABSOLUTE MAXIMUM RATINGS..................................................................................................
4.3 ELECTRICAL CHARACTERISTICS.................................................................................................
4.3.1 LCD panel signal processing board.............................................................................................
4.3.2 Backlight lamp.............................................................................................................................
4.3.3 Power supply voltage ripple.......................................................................................................
4.3.4 Fuse............................................................................................................................................
4.4 POWER SUPPLY VOLTAGE SEQUENCE.....................................................................................
4.4.1 LCD panel signal processing board...........................................................................................
4.4.2 Inverter.......................................................................................................................................
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS......................................................
4.5.1 LCD panel signal processing board...........................................................................................
4.5.2 Backlight lamp...........................................................................................................................
4.5.3 Positions of plug and socket ......................................................................................................
4.5.4 Connection between receiver and transmitter for LVDS...........................................................
4.6 DISPLAY COLORS AND INPUT DATA SIGNALS.......................................................................
4.6.1 Combinations between input data signals and FRC signal........................................................
4.6.2 16,777,216 colors.......................................................................................................................
4.6.3 262,144 colors............................................................................................................................
4.7 DISPLAY POSITIONS......................................................................................................................

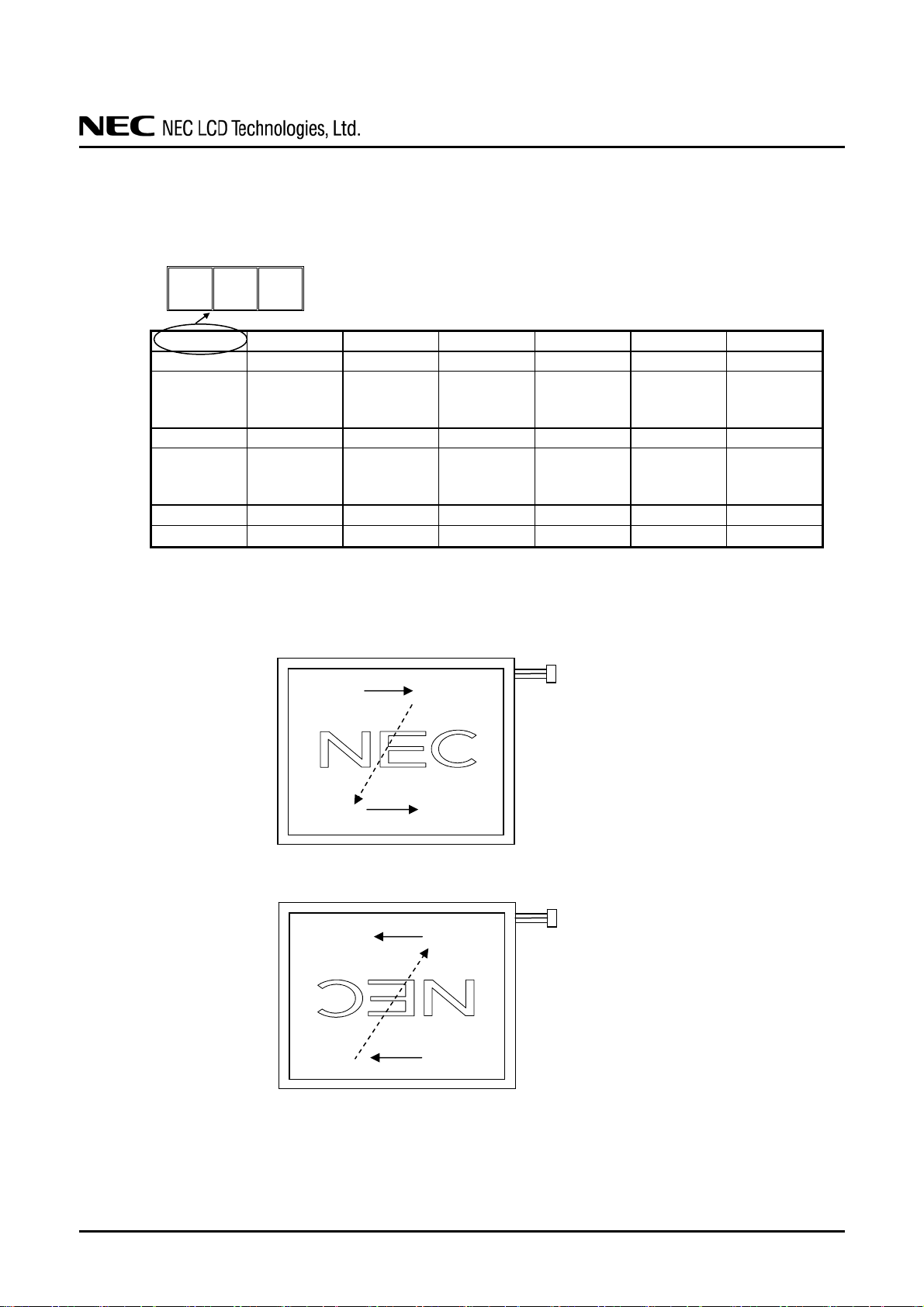

4.8 SCANNING DIRECTIONS........................................................................................................ .......
4.9 INPUT SIGNAL TIMINGS ...............................................................................................................
4.9.1 Outline of input signal timings ..................................................................................................
4.9.2 Timing characteristics................................................................................................................
4.9.3 Input signal timing chart............................................................................................................
4.10 OPTICS.............................................................................................................................................

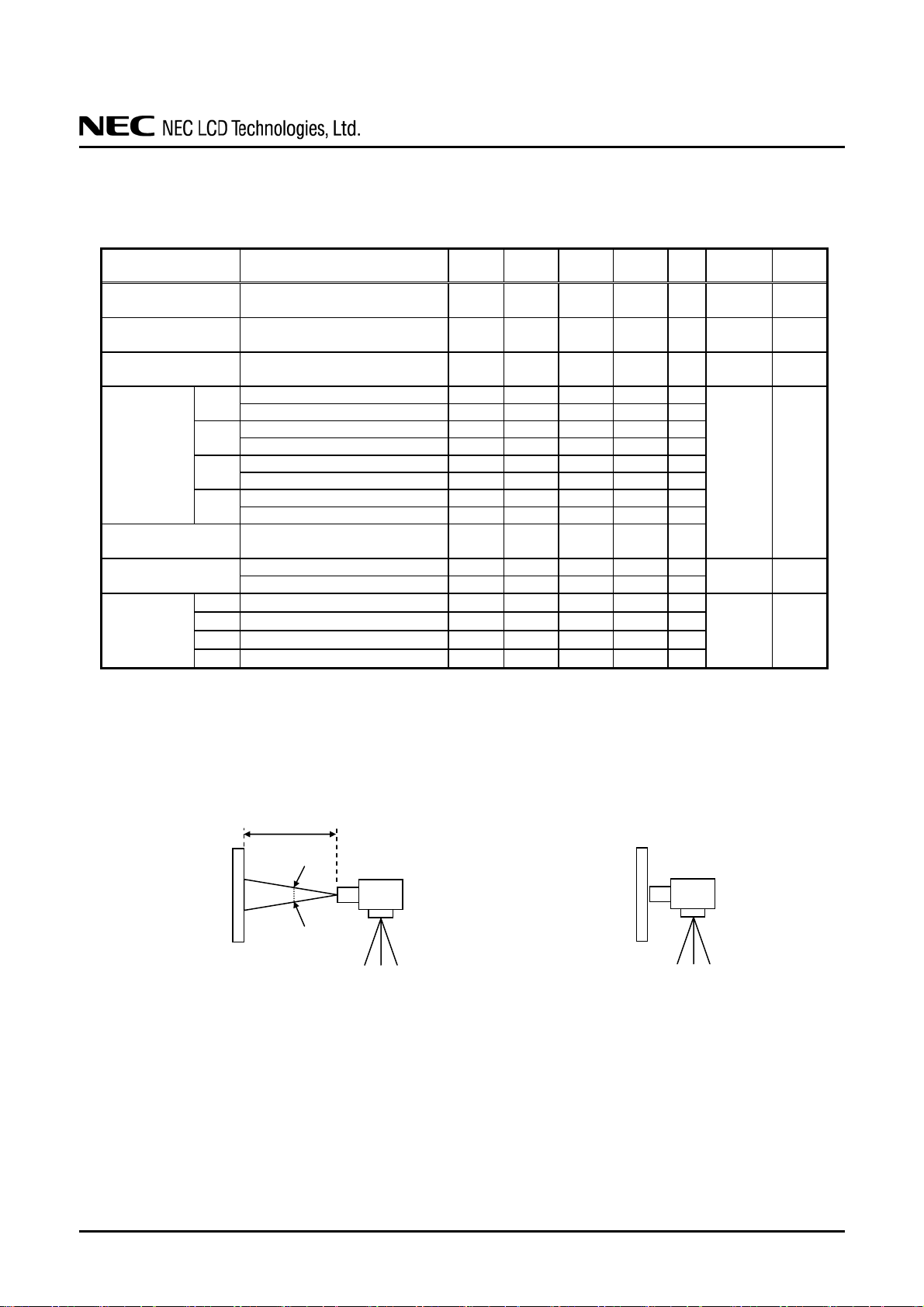

4.10.1 Optical characteristics..............................................................................................................

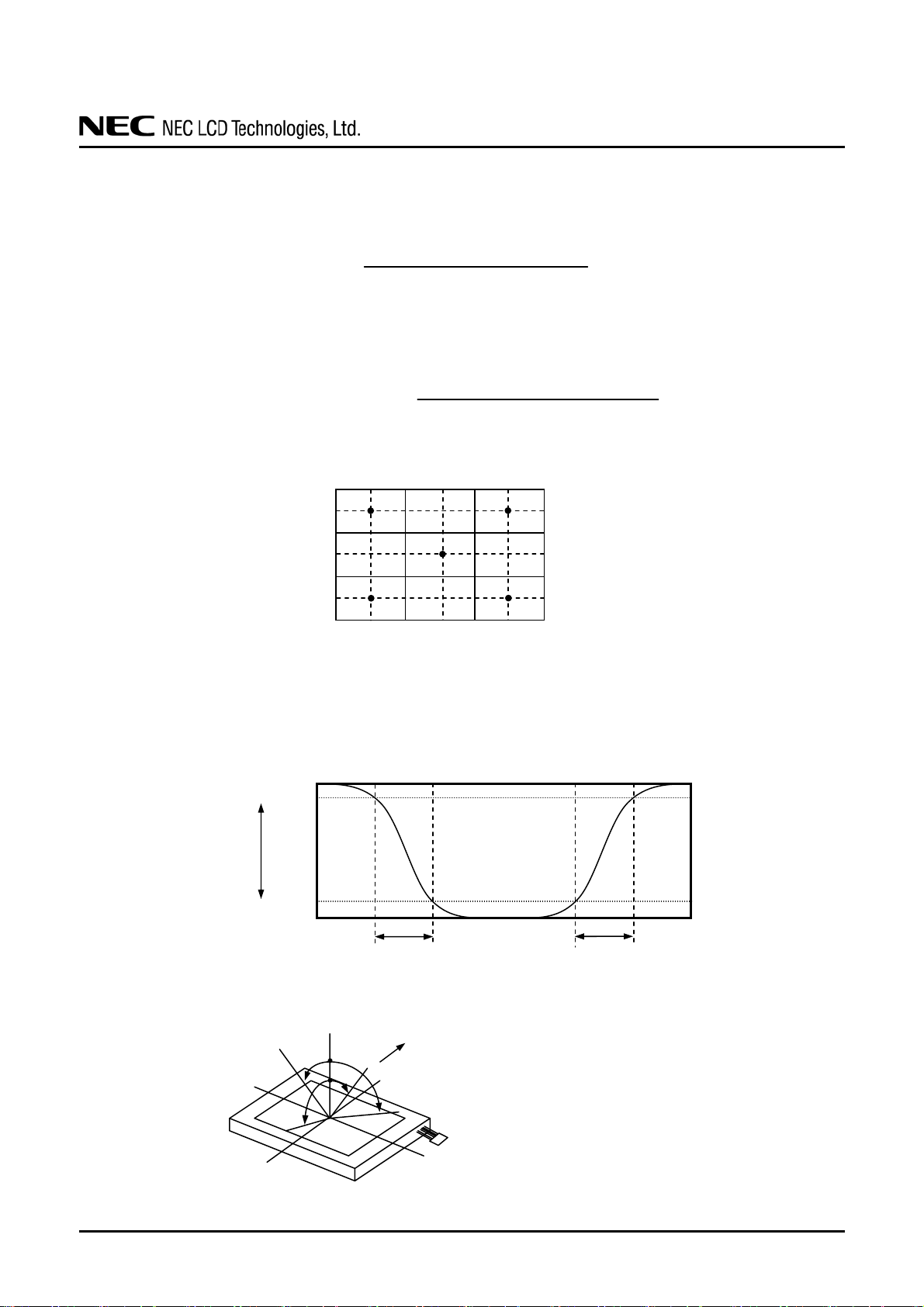

4.10.2 Definition of contrast ratio.......................................................................................................
4.10.3 Definition of luminance uniformity.........................................................................................
4.10.4 Definition of response times....................................................................................................
4.10.5 Definition of viewing angles....................................................................................................
5. RELIABILITY TESTS ..........................................................................................................................
6. PRECAUTIONS .....................................................................................................................................
6.1 MEANING OF CAUTION SIGNS....................................................................................................
6.2 CAUTIONS........................................................................................................................................
6.3 ATTENTIONS....................................................................................................................................
6.3.1 Handling of the product.............................................................................................................
6.3.2 Environment...............................................................................................................................
6.3.3 Characteristics............................................................................................................................
6.3.4 Other..........................................................................................................................................
7. OUTLINE DRAWINGS.........................................................................................................................
7.1 FRONT VIEW....................................................................................................................................
7.2 REAR VIEW ......................................................................................................................................
2
4
4
4
4
5
6
7
7
7
8
8
9
10
10
11
11
11
12
12
13
13
14
16
16
17
18
19
19
20
20
21
22
23
23
24
24
24
24
25
26
26
26
26
26
27
27
28
29
29
30
DATA SHEET DOD-PP-0277 (3rd edition)
3
Page 4
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
Color LCD module NL8060BC21-03 is composed of the amorphous silicon thin film transistor liquid
crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film
Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the
TFT array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated
into best form for active matrix system by a signal processing board, and sent to the driver LSIs which
drive the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Color images are created by regulating the amount of
transmitted light through the TFT array of red, green and blue dots.
1.2 APPLICATION
• For industrial use
1.3 FEATURES
• Adoption of ST-NLT (Super-Transmissive Natural Light TFT)
• Wide viewing angle
• High contrast
• LVDS interface
• Reversible-scan direction
• Selectable 8bit or 6bit digital signals for data of RGB
• Edge light type (without inverter)
• Replaceable lamp for backlight
• Acquisition product for UL60950-1/CSA-C22.2 No.60950-1-03 (File number: E170632)
• Compliance with the European RoHS directive (2002/95/EC)
NL8060BC21-03
DATA SHEET DOD-PP-0277 (3rd edition)
4
Page 5
2. GENERAL SPECIFICATIONS
Display area
NL8060BC21-03
170.4 (H) × 127.8 (V) mm
Diagonal size of display
Drive system
Display color
Pixel
Pixel arrangement
Dot pitch
Pixel pitch
Module size
Weight
Contrast ratio
Viewing angle
Designed viewing direction
Polarizer surface
21cm (8.4 inches)
a-Si TFT active matrix
16,777,216 colors (At 8-bit input, FRC terminal= High)
262,144 colors (At 6-bit input, FRC terminal= Low or Open)
800 (H) × 600 (V) pixels
RGB (Red dot, Green dot, Blue dot) vertical stripe
0.071 (H) × 0.213 (V) mm
0.213 (H) × 0.213 (V) mm
200.0 (W) × 152.0 (H) × 10.5 (D) mm (typ.)
330g (typ.)
600:1 (typ.)
≥
At the contrast ratio
10:1
• Horizontal: Right side 80° (typ.), Left side 80° (typ.)
• Vertical: Up side 80° (typ.), Down side 60° (typ.)
At DPS terminal= Low or Open: Normal scan
• Viewing direction without image reversal: up side (12 o'clock)
• Viewing direction with contrast peak: down side (6 o'clock)
• Viewing angle with optimum grayscale (γ=2.2): normal axis
(perpendicular)
Clear + Antireflection (AR)
Polarizer pencil-hardness
Color gamut
Response time
Luminance
Signal system
Power supply voltage
Backlight
Power consumption
2H (min.) [by JIS K5400]
At LCD panel center
40% (typ.) [against NTSC color space]
Ton+Toff (10%
←→
90%)
25ms (typ.)
At IBL= 5.0mArms/lamp
650cd/m
2
(typ.)
LVDS 1port (Receiver: THC63LVDF84B, THine Electronics Inc. or
equivalent)
[8bit/6bit digital signals for data of RGB colors, Dot clock (CLK),
Data enable (DE)]
LCD panel signal processing board: 3.3V
Edge light type: 2 cold cathode fluorescent lamps
Replaceable part
• Lamp holder set: Type No. 84LHS06
Recommended inverter (Option)
• Inverter: Type No. 84PW031, 84PW041
At IBL=5.0mArms / lamp, Checkered flag pattern
5.5W (typ., Power dissipation of the inverter is not included.)
DATA SHEET DOD-PP-0277 (3rd edition)
5
Page 6

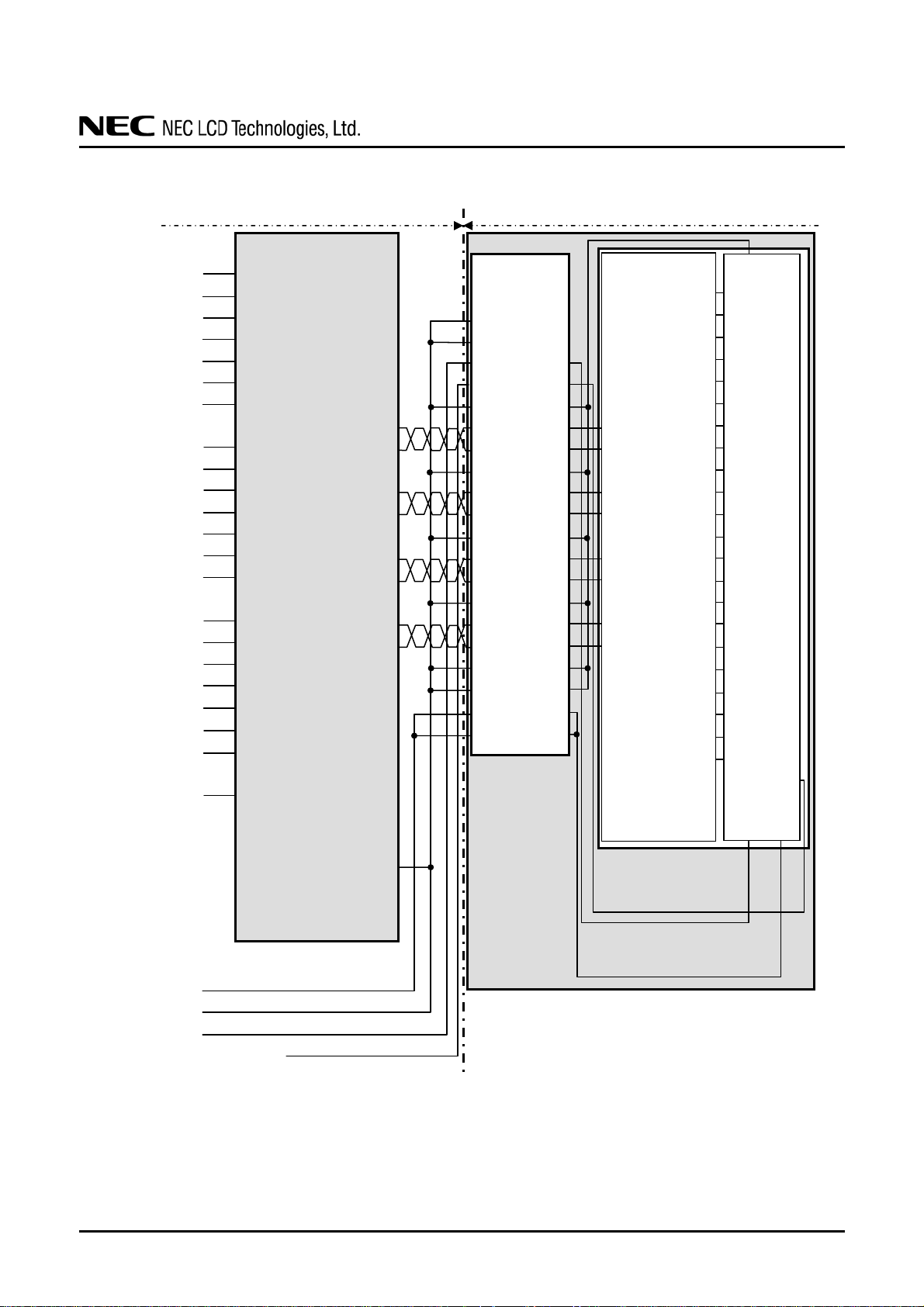

3. BLOCK DIAGRAM
Host
D0+
D0D1+
D1D2+
D2D3+
D3-
CLK+
CLK-
DPS
FRC
GND
Note1
Note2
VCC
Fuse
FG
Note1
Note2
VDDB
GNDB
Note2
Note1: Relations between GND (Signal ground), FG (Frame ground) and VBLC (Lamp low voltage
terminal) in the LCD module are as follows.
Note2: GND, FG and GNDB must be connected to customer equipment’s ground, and it is
recommended that these grounds are connected together in customer equipment.
LCD module (Product)
100Ω
100Ω
100Ω
100Ω
Controller with receiver for LVDS
V-driver
100Ω
Power supply
for gradation
50kΩ 47kΩ
DC/DC
converter
LCD panel signal processing board
Inverter
(Option)
VBLH
VBLH
VBLC
Note1
GND - FG Connected
GND - VBLC Not connected
FG - VBLC Not connected
NL8060BC21-03
H-driver
2,400 lines
LCD panel
H: 800 × 3 (R, G, B)
V: 600
600 lines
Backlight (Edge light type)
2 lamps
DATA SHEET DOD-PP-0277 (3rd edition)
6
Page 7
4. DETAILED SPECIFICATIONS
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
NL8060BC21-03
Module size
Display area
Weight 330 (typ.), 350 (max.) g

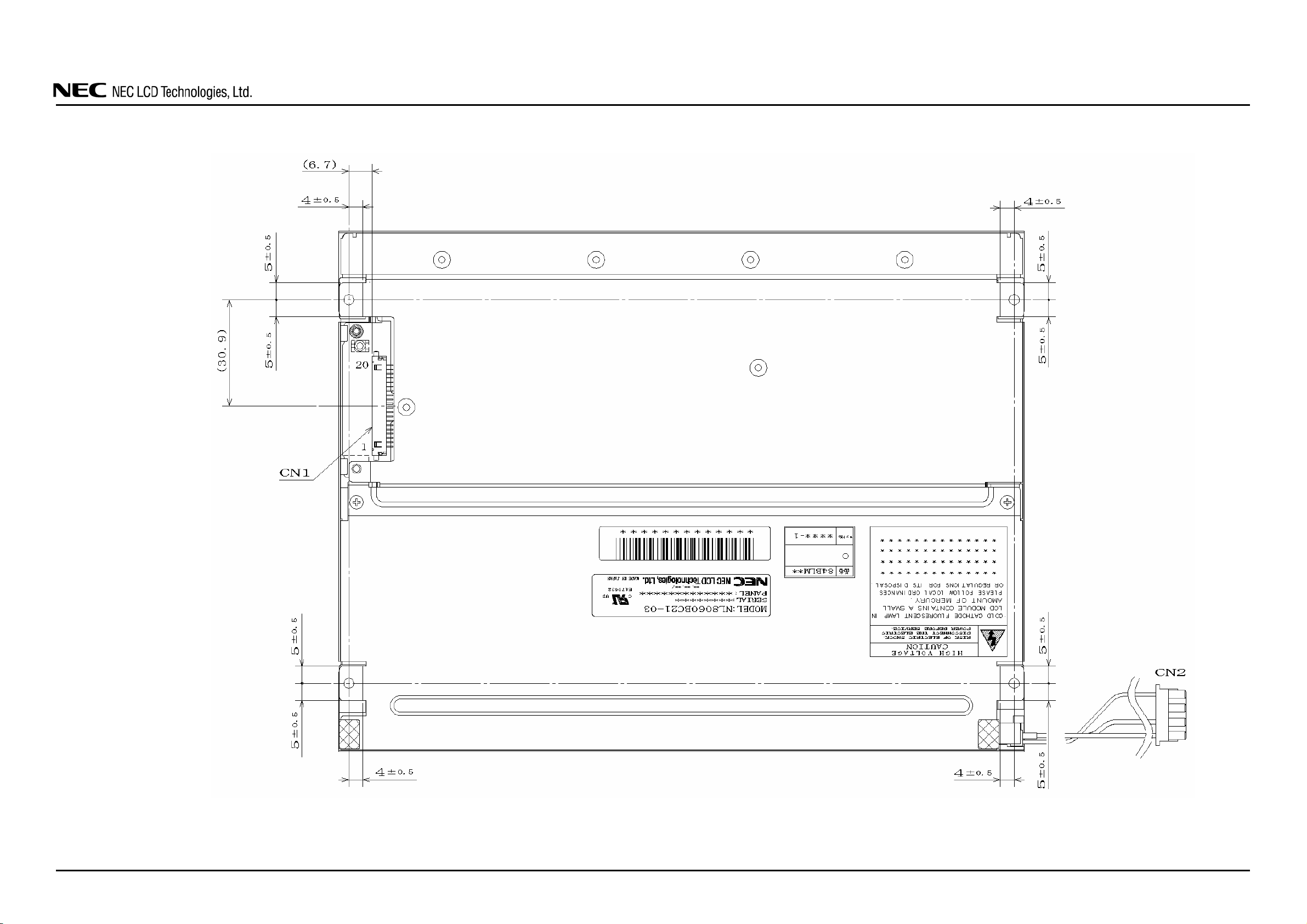

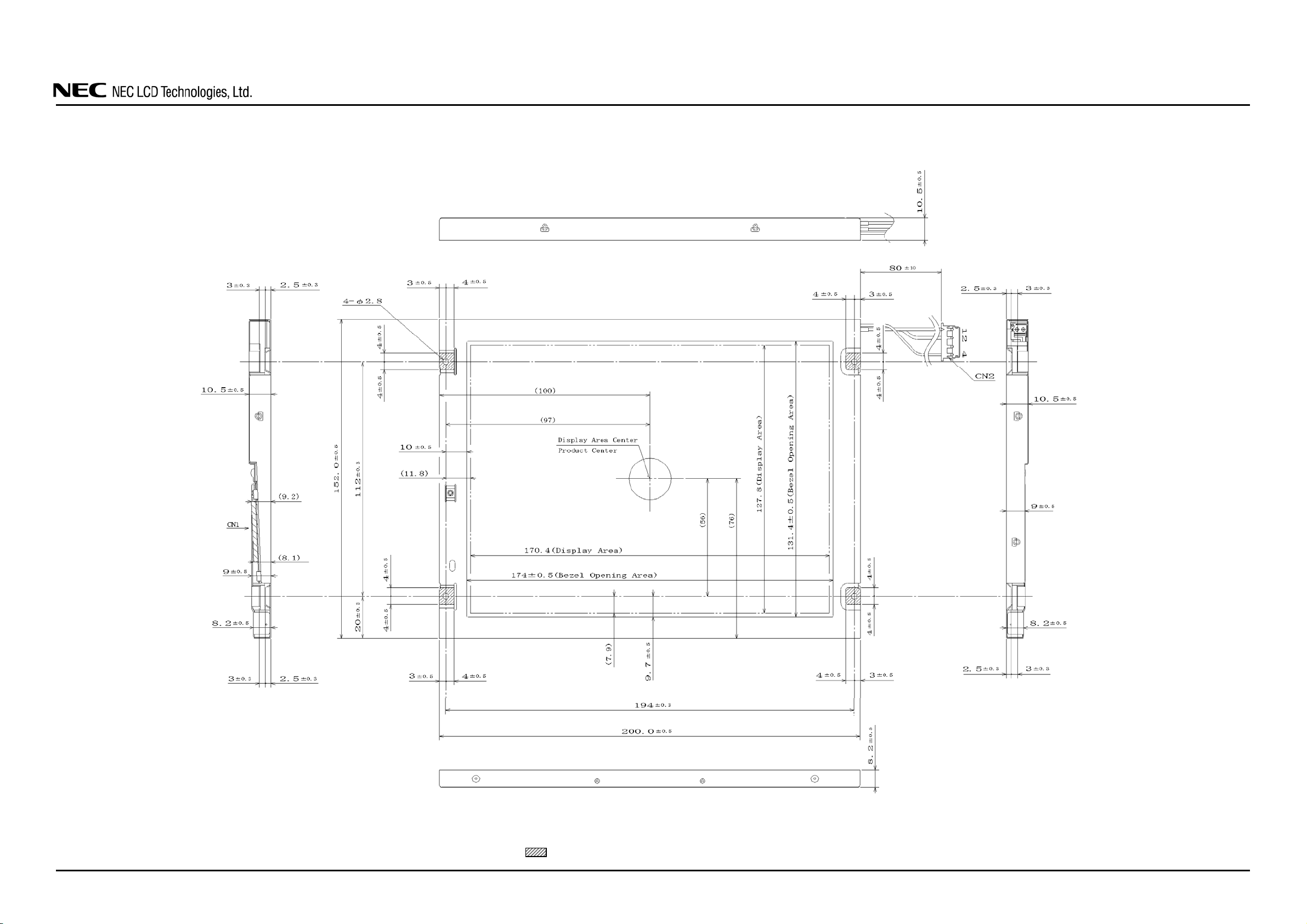

Note1: See "7. OUTLINE DRAWINGS".
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
Power supply
voltage
Input voltage
for signals
Operating temperature
LCD panel signal processing board VCC -0.3 to +4.0 V
Display signals
Incident light intensity II 150,000 lx Note3
Storage temperature Tst -30 to +80
Function signals
200.0 ± 0.5 (W) × 152.0 ± 0.5 (H) × 10.5 ± 0.5 (D)
170.4 (H) × 127.8 (V)
Lamp voltage VBLH 1,700 Vrms
Note1
Note2
Front surface TopF -20 to +70
Rear surface TopR -20 to +70
VD
-0.3 to VCC+0.3 V
VF
°C
°C
°C
Note1 mm
Note1 mm
-
-
Note4
Note5
%
%
%
%
g/m
40°C <Ta≤ 50°C
50°C <Ta≤60°C
60°C <Ta≤70°C
3
Ta ≤ 40°C
Ta> 70°C
Relative humidity
Note6
Absolute humidity
Note6
RH
AH
≤ 95
≤ 85
≤ 55
≤ 36
≤ 70
Note7
Note1: D0+/-, D1+/-, D2+/-, D3+/-, CLK+/Note2: DPS, FRC
Note3: If the product surface (polarizer) is exposed to an ultraviolet ray, the polarizer may discolor
(Surface treatment may be damaged.). Use a filter to protect the polarizer from the ultraviolet
ray.
Note4: Measured at center of LCD panel surface (including self-heat)
Note5: Measured at center of LCD module's rear shield surface (including self-heat)
Note6: No condensation
Note7: Water amount at Ta= 70°C and RH= 36%
DATA SHEET DOD-PP-0277 (3rd edition)
7
Page 8
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VCC 3.0 3.3 3.6 V -
NL8060BC21-03
(Ta= 25°C)
Power supply current ICC -
Permissible ripple voltage VRP - - 100 mVp-p for VCC
Differential input
threshold voltage
Terminating resistance RT - 100 -
Input voltage for
DPS and FRC signals
Input current for FRC
signal
High VTH - - +100 mV
Low VTL -100 - - mV
High VFH 0.7VCC - VCC V
Low VFL 0 - 0.3VCC V
High IFH - - 300
Low IFL -300 - -
360
Note1
480
Note2
mA at VCC= 3.3V
at VCM= 1.2V
Note3
Ω
μA
μA
-
CMOS level
-
Note1: Checkered flag pattern [by EIAJ ED-2522]
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS receiver
DATA SHEET DOD-PP-0277 (3rd edition)
8
Page 9
4.3.2 Backlight lamp
Lamp current IBL 3.0 5.0 5.5 mArms
Lamp voltage VBLH - 435 - Vrms Note2, Note3
Lamp starting voltage VS
Lamp oscillation frequency FO 45 - 60 kHz Note6
Note1: This product consists of 2 backlight lamps, and these specifications are for each lamp.
Note2: The lamp voltage cycle between lamps should be kept on a same phase. "VS" and "VBLH"
Note3: The asymmetric ratio of working waveform for lamps (Power supply voltage peak ratio,
Note4: This product consists of 2 lamps. 2 lamps are contained in the 1 lamp holder, and both lamps
Note5: The inverter should be designed so that the lamp starting voltage can be maintained for more
Note6: In case "FO" is not the recommended value, beat noise may display on the screen, because of
Note7: Method of lamp cable installation may invite fluctuation of lamp current and voltage or
NL8060BC21-03
(Ta= 25°C, Note1)
Parameter Symbol min. typ. max. Unit Remarks
at IBL= 5.0mArms:
L= 650cd/m
Note3, Note4
Ta= 25°C
1,050 - - Vrms
1,250 - - Vrms
Note2, Note3,
Note5, Note8
Ta= -10°C
Note2, Note3,
Note5, Note8
are the voltage value between low voltage side (Cold) and high voltage side (Hot).
power supply current peak ratio and waveform space ratio) should be less than 5 % (See the
following figure.). If the waveform is asymmetric, DC (Direct current) element apply into the
lamp. In this case, a lamp lifetime may be shortened, because a distribution of a lamp
enclosure substance inclines toward one side between low voltage terminal (Cold terminal)
and high voltage terminal (Hot terminal). When designing the inverter, evaluate asymmetric of
lamp working waveform sufficiently.
Pa
Pb
Sa
0
Sb
|Pa - Pb|
Pb
|Sa - Sb|
Sb
× 100 ≤ 5%
× 100 ≤ 5%
Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative
Sa: Waveform space for positive part, Sb: Waveform space for negative part.
are connected to 1 low voltage cable. Recommended lamp current is 5.0mArms typical for
each lamp, and sum of 2 lamps is 10mArms typical. The lamp current should be measured by
high-frequency current meter at the low voltage terminal.
than 1 second. Otherwise the lamp may not be turned on.
interference between "FO" and "1/th". Recommended value of "FO" is as following.
FO
=
1
4
×
1
th
×
(2n-1)
th: Horizontal cycle (See "4.9.2 Timing characteristics".)
n : Natural number (1, 2, 3 ⋅⋅⋅⋅⋅⋅⋅⋅)
asymmetric of lamp working waveform. When designing method of lamp cable installation,
evaluate the fluctuation of lamp current, voltage and working waveform sufficiently.
2
DATA SHEET DOD-PP-0277 (3rd edition)
9
Page 10
Note8: In case of Inverter with Ballast condenser, "VS" is the voltage level between Ballast condenser
and Connector (Refer to the below “Example of measurement”). "VS" should be designed to
be more than minimum "VS". Otherwise the lamp may not be turned on because the lamp
starting voltage is less than minimum "VS".

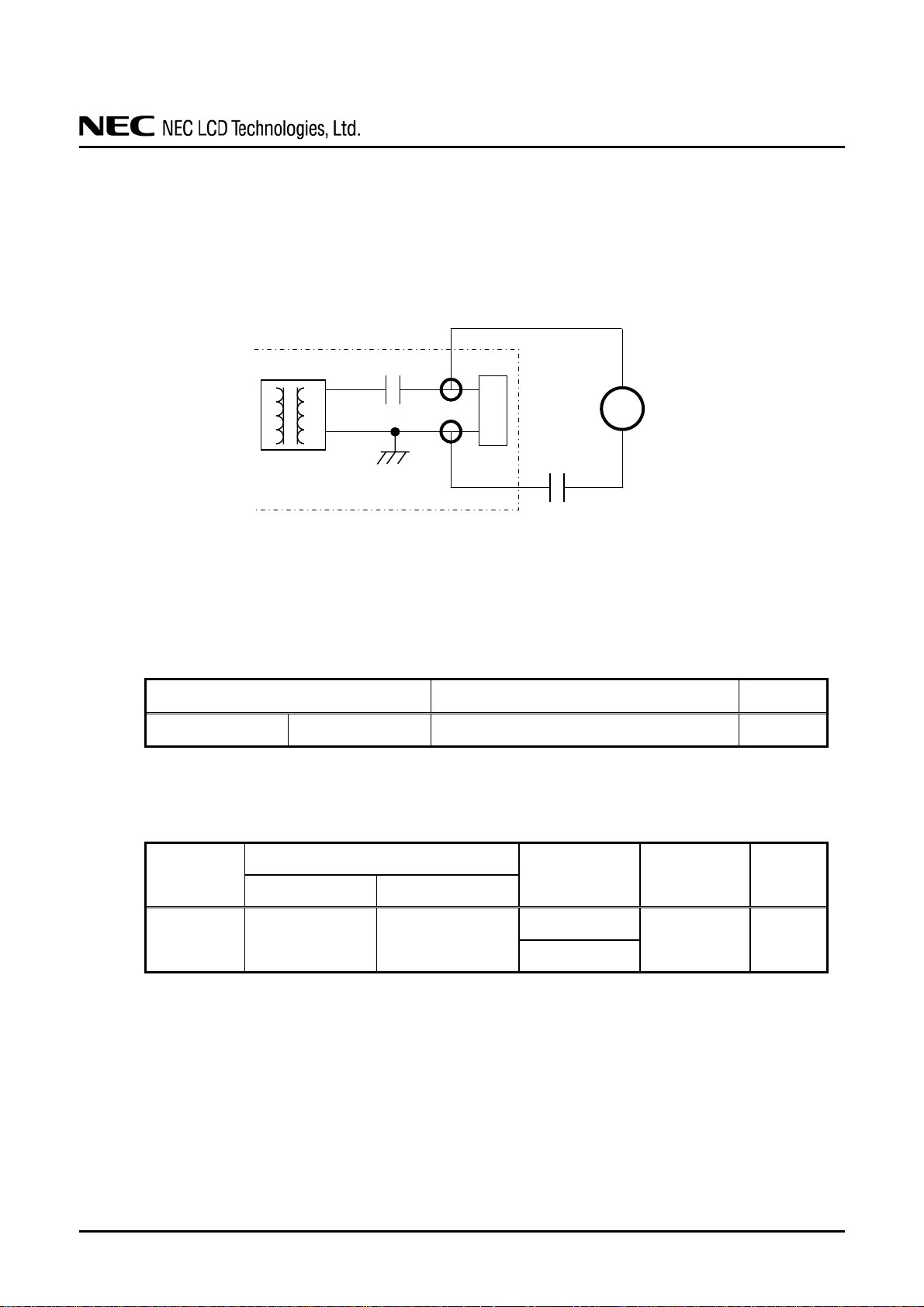

Example of measurement
Probe capacity: 3pF (Tektronix, inc.: P6015A)
Transformer
4.3.3 Power supply voltage ripple
This product works, even if the ripple voltage levels are beyond the permissible values as following
the table, but there might be noise on the display image.
Power supply voltage
VCC 3.3V
Ballast condenser
Inverter
NL8060BC21-03
(Lamp side)
Connector
Probe capacity
Ripple voltage Note1
(Measure at input terminal of power supply)
≤ 100
High voltage probe
VS
Unit
mVp-p
Note1: The permissible ripple voltage includes spike noise.
4.3.4 Fuse
Parameter
Note1: The power supply capacity should be more than the fusing current. If it is less than the fusing
Type Supplier
VCC FCC16162AB
Fuse
KAMAYA
ELECTRIC Co., Ltd
Rating Fusing current Remarks
1.6A
3.2A Note1
32V
current, the fuse may not blow in a short time, and then nasty smell, smoke and so on may
occur.
DATA SHEET DOD-PP-0277 (3rd edition)
10
Page 11

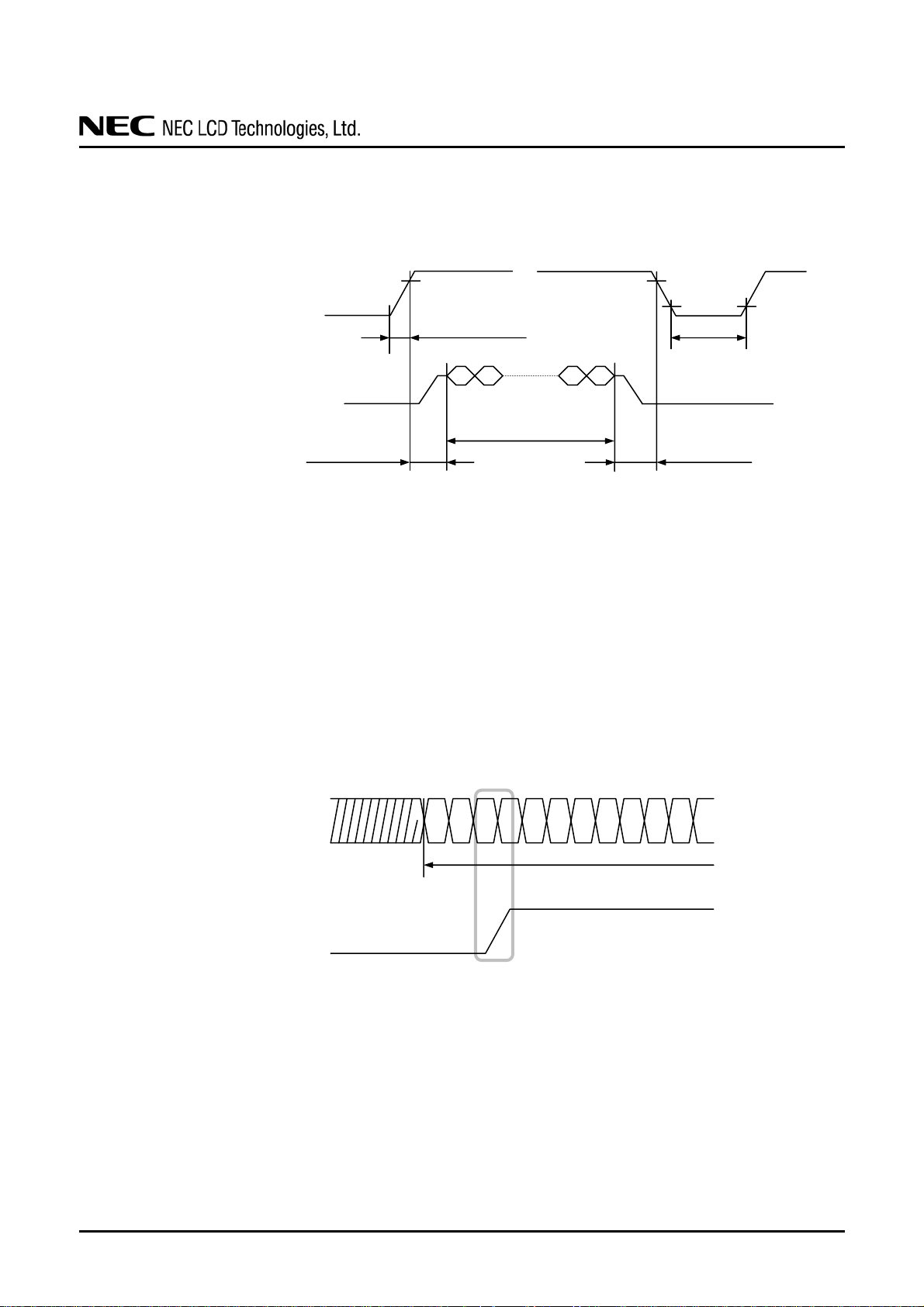

4.4 POWER SUPPLY VOLTAGE SEQUENCE
4.4.1 LCD panel signal processing board
VCC
Note1
0V
Display signals*
Function signals
Note2
0V
0ms <t< 35ms
* These signals should be measured at the terminal of 100Ω resistance.
Note1: In terms of voltage variation (voltage drop) while VCC rising edge is below 3.0V, a protection
circuit may work, and then this product may not work.
Note2: Display signals (D0+/-, D1+/-, D2+/-, D3+/- and CLK+/-) and function signals (DPS and
FRC) must be Low or High-impedance, exclude the VALID period (See above sequence
diagram), in order to avoid that internal circuits is damaged.
If so me of display and function signals of this product are cut while this product is working,
even if the signal input to it once again, it might not work normally. VCC should be cut when
the display and function signals are stopped.
4.4.2 Inverter (Option)
Display signals
Function signals
Note1
VDDB
Note1: These are the display and function signals for LCD panel signal processing board.
Note2: The backlight should be t urned on wi thin the v ali d peri od of di splay an d fu nct ion sig n als, i n
order to avoid unstable data display.
3.0V
ON
10μs ≤Tr< 50ms
Note2
VALID period
VALID period
NL8060BC21-03
OFF
Toff≥ 50ms
0ms <t< 35ms
ON
0.3V
DATA SHEET DOD-PP-0277 (3rd edition)
11
Page 12
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS
4.5.1 LCD panel signal processing board
CN1 socket (LCD module side): FI-SE20P-HFE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: FI-S20S (Japan Aviation Electronics Industry Limited (JAE))
Pin No. Symbol Signal Remarks
A D3+ Pixel data Note1, Note2
1
B GND Ground Note3
A D3- Pixel data Note1, Note2
2
B GND Ground Note3
3 DPS Selection of scan direction
4 FRC
5 GND Ground Note3
Selection of the number of
colors
NL8060BC21-03
High: Reverse scan
Low or Open: Normal scan Note4
High: 16,777,216 colors
Low or Open: 262,144 colors Note1
6 CLK+
7 CLK-
8 GND Ground Note3
9 D2+
10 D2-
11 GND Ground Note3
12 D1+
13 D1-
14 GND Ground Note3
15 D0+
16 D0-
17 GND
18 GND
19 VCC
20 VCC
Pixel clock Note2
Pixel data Note2
Pixel data Note2
Pixel data Note2
Ground Note3
Power supply Note3
Note1: See "4.6 DISPLAY COLORS AND INPUT DATA SIGNALS".
Note2: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note3: All GND and VCC terminals should be used without any non-connected lines.
Note4: See "4.8 SCANNING DIRECTIONS".
Note5: See "4.5.4 Connection between receiver and transmitter for LVDS".
DATA SHEET DOD-PP-0277 (3rd edition)
12
Page 13
4.5.2 Backlight lamp
Attention: VBLH and VBLC must be connected correctly. Wrong connections will cause electric
shock and also break down of the product.
CN2 plug (LCD module side): BHR-04VS-1 (J.S.T Mfg. Co., Ltd.)
Adaptable socket: SM03 (7-D1) B-BHS-1-TB (LF)(SN),
SM03 (7-D1) B-BHS-1-TB (J.S.T Mfg. Co., Ltd.)
Pin No. Symbol Signal Remarks
1 VBLH High voltage (Hot) Cable color: Pink
2 VBLH High voltage (Hot) Cable color: Pink
3 N. C. - Keep this pin Open.
4 VBLC Low voltage (Cold) Cable color: Black

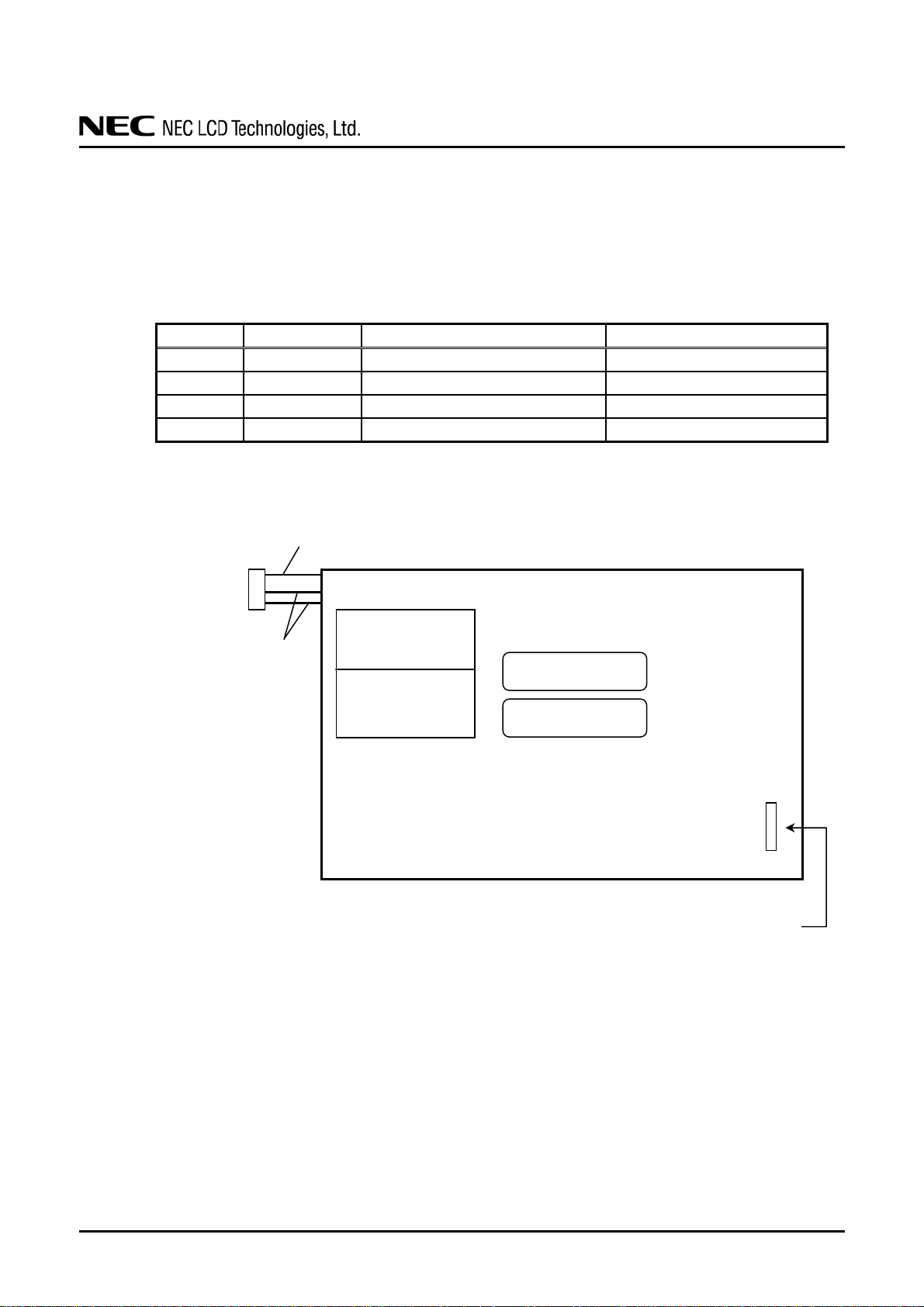

4.5.3 Positions of plug and socket
CN2
High voltage (Hot)
4
2
1
Low voltage (Cold)
High voltage
caution marking
Disposal method
marking for lamp
NL8060BC21-03
Rear side
Nameplate label
Barcode label
1
CN1
20
Insert direction
DATA SHEET DOD-PP-0277 (3rd edition)
13
Page 14

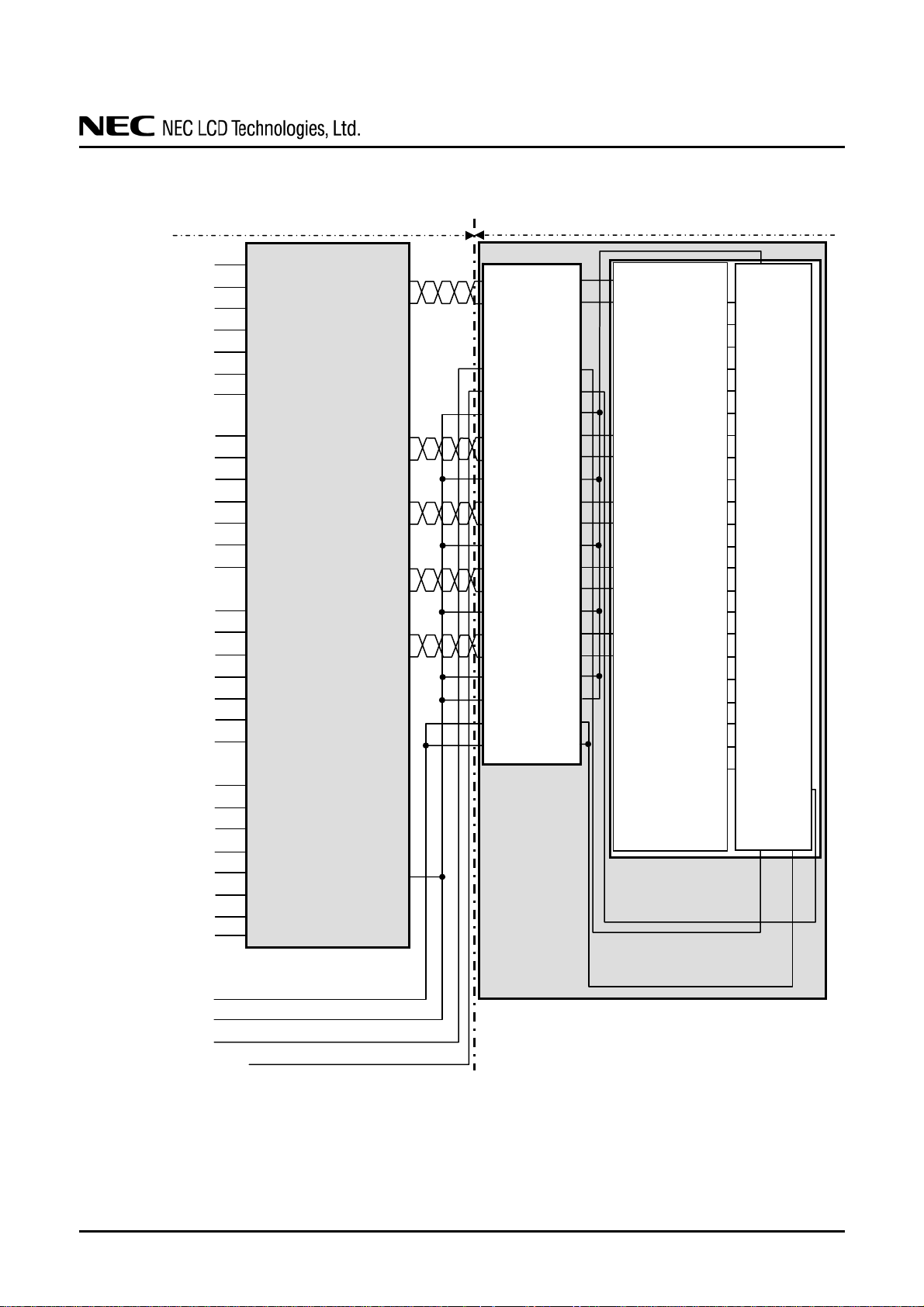

4.5.4 Connection between receiver and transmitter for LVDS (1) Input data signal: 8bit
Note2
R2
R3
R4
R5
R6
R7
G2
G3
G4
G5
G6
G7
B2
B3
B4
B5
B6
B7
Note4
Note4
DE
R0
R1
G0
G1
B0
B1
Note4
CLK
VCC
GND
DPS
FRC
TA0
TA1
TA2
TA3
TA4
TA5
TA6
TB0
TB1
TB2
TB3
TB4
TB5
TB6
TC0
TC1
TC2
TC3
TC4
TC5
TC6
TD0
TD1
TD2
TD3
TD4
TD5
TD6
CLK IN
LVDS transmitter
THC63LVDM83R or equivalent
(High)
Host
Note1
TD+
TD-
TCLK+
TCLK-
TC+
TC-
TB+
TB-
TA+
TA-
GND
Note1: Recommended transmitter THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) - R0, G0, B0 MSB (Most Significant Bit) - R7, G7, B7
Note3: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note4: Input signals to TC4, TC5 and TD6 are not used inside the product, but do not keep TC4,TC5
and TD6 open to avoid noise problem.
Note3
1A
2A
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NL8060BC21-03
LCD module (Product)
D3+
D3-
DPS
FRC
GND
CLK+
CLK-
GND
D2+
D2-
GND
D1+
D1-
GND
D0+
D0GND
GND
VCC
VCC
CN1
LCD panel signal processing board
RD+
RD-
RCLK+
RCLK-
RC+
RC-
RB+
RB-
RA+
RA-
Receiver for LVDS
Equivalent of
THC63LVDF84B
LCD controller
GND
Signal
processor
DPS
FRC
VCC
DATA SHEET DOD-PP-0277 (3rd edition)
14
Page 15
(2) Input data signal: 6bit
Note2
R0
R1
R2
R3
R4
R5
G0
G1
G2
G3
G4
G5
B0
B1
B2
B3
B4
B5
Note4
Note4
DE
CLK
VCC
GND
DPS
FRC
(Low or Open)
Note1: Recommended transmitter THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) – R0, G0, B0 MSB (Most Significant Bit) – R5, G5, B5
Note3: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note4: Input signals to TC4 and TC5 are not used inside the product, but do not keep TC4 and TC5
open to avoid noise problem.
Host
TA0
TA1
TA2
TA3
TA4
TA5
TA6
TB0
TB1
TB2
TB3
TB4
TB5
TB6
TC0
TC1
TC2
TC3
TC4
TC5
TC6
CLK IN
LVDS transmitter
THC63LVDM83R or equivalent
Note1
TCLK+
TCLK-
TC+
TC-
TB+
TB-
TA+
TA-
GND
Note3
1B
2B
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NL8060BC21-03
LCD module (Product)
GND
GND
DPS
FRC
GND
CLK+
CLKGND
D2+
D2-
GND
D1+
D1-
GND
D0+
D0GND
GND
VCC
VCC
CN1
LCD panel signal processing board
RCLK+
RCLK-
RC+
RC-
RB+
RB-
RA+
RA-
Receiver for LVDS
Equivalent of
THC63LVDF84B
LCD controller
GND
Signal
processor
DPS
FRC
VCC
DATA SHEET DOD-PP-0277 (3rd edition)
15
Page 16
4.6 DISPLAY COLORS AND INPUT DATA SIGNALS
4.6.1 Combinations between input data signals and FRC signal
This product can display in equivalent to 16,777,216 colors in 256 gray scales and 262,144 colors in
64 gray scales by combination between input data signals and FRC signal. See following table.
Combination
Input data
signals
CN1-Pin No.1 and 2 FRC terminal Display colors Remarks
NL8060BC21-03
①
②
8-bit D3+/- High 16,777,216 Note1
6-bit GND Low or Open 262,144 Note2
Note1: See "4.6.2 16,777,216 color s ".
Note2: See "4.6.3 262,144 colors".
DATA SHEET DOD-PP-0277 (3rd edition)
16
Page 17
4.6.2 16,777,216 colors
This product can display equivalent of 16,777,216 colors in 256 gray scales by combination ①.
(See "4.6.1 Combinations between input data signals and FRC signal".)
Also the relation between display colors and input data signals is as the following table.
Display colors
Basic Colors
Red gray scale
Green gray scale
Blue gray scale
Black
Blue
Red
Magenta
Green
Cyan
Yellow
White
Black
dark
↑
↓
bright
Red
Black
dark
↑
↓
bright
Green
Black
dark
↑
↓
bright
Blue
NL8060BC21-03
Data signal (0: Low level, 1: High level)
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
00000000
00000000
11111111
11111111
00000000
00000000
11111111
11111111
00000000
00000001
00000010
:
:
11111101
11111110
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000000
00000000
00000000
11111111
11111111
11111111
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000001
00000010
:
:
11111101
11111110
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
11111111
00000000
11111111
00000000
11111111
00000000
11111111
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000000
00000000
:
:
00000000
00000000
00000000
00000000
00000001
00000010
:
:
11111101
11111110
11111111
DATA SHEET DOD-PP-0277 (3rd edition)
17
Page 18
4.6.3 262,144 colors
This product can display equivalent of 262,144 colors in 64 gray scales by combination ②.
(See "4.6.1 Combinations between input data signals and FRC signal".)
Also the relation between display colors and input data signals is as the following table.
Display colors
Black
Blue
Red
Magenta
Green
Basic colors
Red gray scale
Green gray scale
Blue gray scale
Cyan
Yellow
White
Black
dark
bright
Red
Black
dark
bright
Green
Black
dark
bright
Blue
NL8060BC21-03
Data signal (0: Low level, 1: High level)
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
000000
000000
111111
111111
000000
000000
111111
111111
000000
000001
000010
↑
↓
111101
111110
111111
000000
000000
000000
↑
↓
000000
000000
000000
000000
000000
000000
↑
↓
000000
000000
000000
:
:
:
:
:
:
000000
000000
000000
000000
111111
111111
111111
111111
000000
000000
000000
:
:
000000
000000
000000
000000
000001
000010
:
:
111101
111110
111111
000000
000000
000000
:
:
000000
000000
000000
000000
111111
000000
111111
000000
111111
000000
111111
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000001
000010
111101
111110
111111
:
:
:
:
:
:
DATA SHEET DOD-PP-0277 (3rd edition)
18
Page 19
4.7 DISPLAY POSITIONS
The following table is the coordinates per pixel (See "4.8 SCANNING DIRECTIONS".).
C (0, 0)
R G B
C( 0, 0) C( 1, 0) ∙ ∙ ∙ C( X, 0) ∙ ∙ ∙ C(798, 0) C(799, 0)
C( 0, 1) C( 1, 1) ∙ ∙ ∙ C( X, 1) ∙ ∙ ∙ C(798, 1) C(799, 1)
∙
∙
∙
C( 0, Y) C( 1, Y) ∙ ∙ ∙ C( X, Y) ∙ ∙ ∙ C(798, Y) C(799, Y)
∙
∙
∙
C( 0, 598) C( 1, 598) ∙ ∙ ∙ C( X, 598) ∙ ∙ ∙ C(798, 598) C(799, 598)
C( 0, 599) C( 1, 599) ∙ ∙ ∙ C( X, 599) ∙ ∙ ∙ C(798, 599) C(799, 599)
4.8 SCANNING DIRECTIONS
The following figures are seen from a front view. Also the arrow shows the direction of scan.
Note1: Meaning of C (X, Y) and D (X, Y)
C (X, Y): The coordinates of the display position (See "4.7 DISPLAY POSITIONS".)
D (X, Y): The data number of input signal for LCD panel signal processing board
∙
∙
∙
∙
∙
∙
C (0, 0)
D (0, 0)
C (0, 599)
D (0, 599)
∙
∙ ∙ ∙
∙
∙
∙ ∙ ∙
∙
C (799, 599)
D (799, 599)
∙
∙
∙
∙
∙
∙
C (799, 0)
D (799, 0)
Figure1. Normal scan (DPS: Low or Open)
C (0, 0)
D (799, 599)
C (0, 599)
D (799, 0)
C (799, 0)
D (0, 599)
C (799, 599)
D (0, 0)
Figure2. Reverse scan (DPS: High)
∙
∙ ∙ ∙
∙
∙
∙ ∙ ∙
∙
Note1
Note1
NL8060BC21-03
∙
∙
∙
∙
∙
∙
∙
∙ ∙ ∙
∙
∙
∙
∙
DATA SHEET DOD-PP-0277 (3rd edition)
19
Page 20

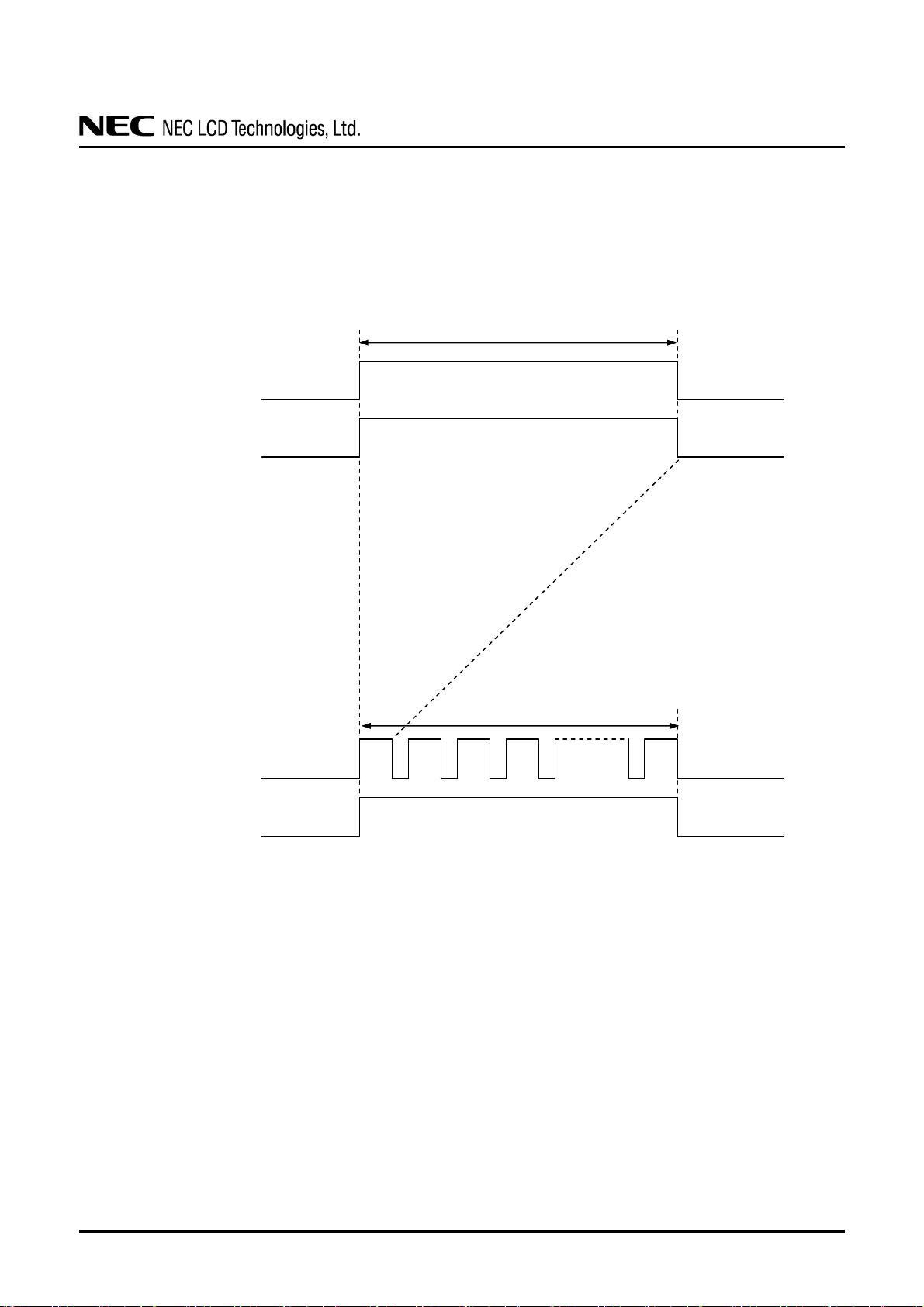

4.9 INPUT SIGNAL TIMINGS
4.9.1 Outline of input signal timings
• Horizontal signal
Note1
Horizontal display period (thd)
DE (Data enable)
Display period
• Vertical signal
Note1
Vertical display period (tvd)
DE (Data enable)
Display period
1
2
34
Note1: This diagram indicates virtual signal for set up to timing.
Note2: See "4.9.3 Input signal timing chart" for numeration of pulse.
NL8060BC21-03
600
Note2
DATA SHEET DOD-PP-0277 (3rd edition)
20
Page 21
4.9.2 Timing characteristics
CLK
DATA
DE
Note1: Definition of parameters is as follows.
Note2: See the data sheet of LVDS transmitter.
Note3: Vertical cycle (tv) should be specified in integral multiple of Horizontal cycle (th).
NL8060BC21-03
(Note1, Note2, Note3)
Parameter Symbol min. typ. max. Unit Remarks
Frequency 1/tc 34.0 38.362 40.0 MHz 26.067ns (typ.)
Duty - -
Rise time, Fall time -
CLK-DATA
Rise time, Fall time -
Horizontal
Vertical
(One frame)
CLK-DE
Rise time, Fall time -
Setup time - ns
Hold time - ns
Cycle th
Display period thd 800 CLK
Cycle tv
Display period tvd 600 H
Setup time - ns
Hold time - ns
tc= 1CLK, th= 1H
24.0 26.693 30.1
- 1,024 - CLK
16.1 16.683 17.2 ms
- 625 - H
-
ns
-
ns
μs
37.463kHz (typ.)
-
ns
-
-
59.94Hz (typ.)
-
DATA SHEET DOD-PP-0277 (3rd edition)
21
Page 22

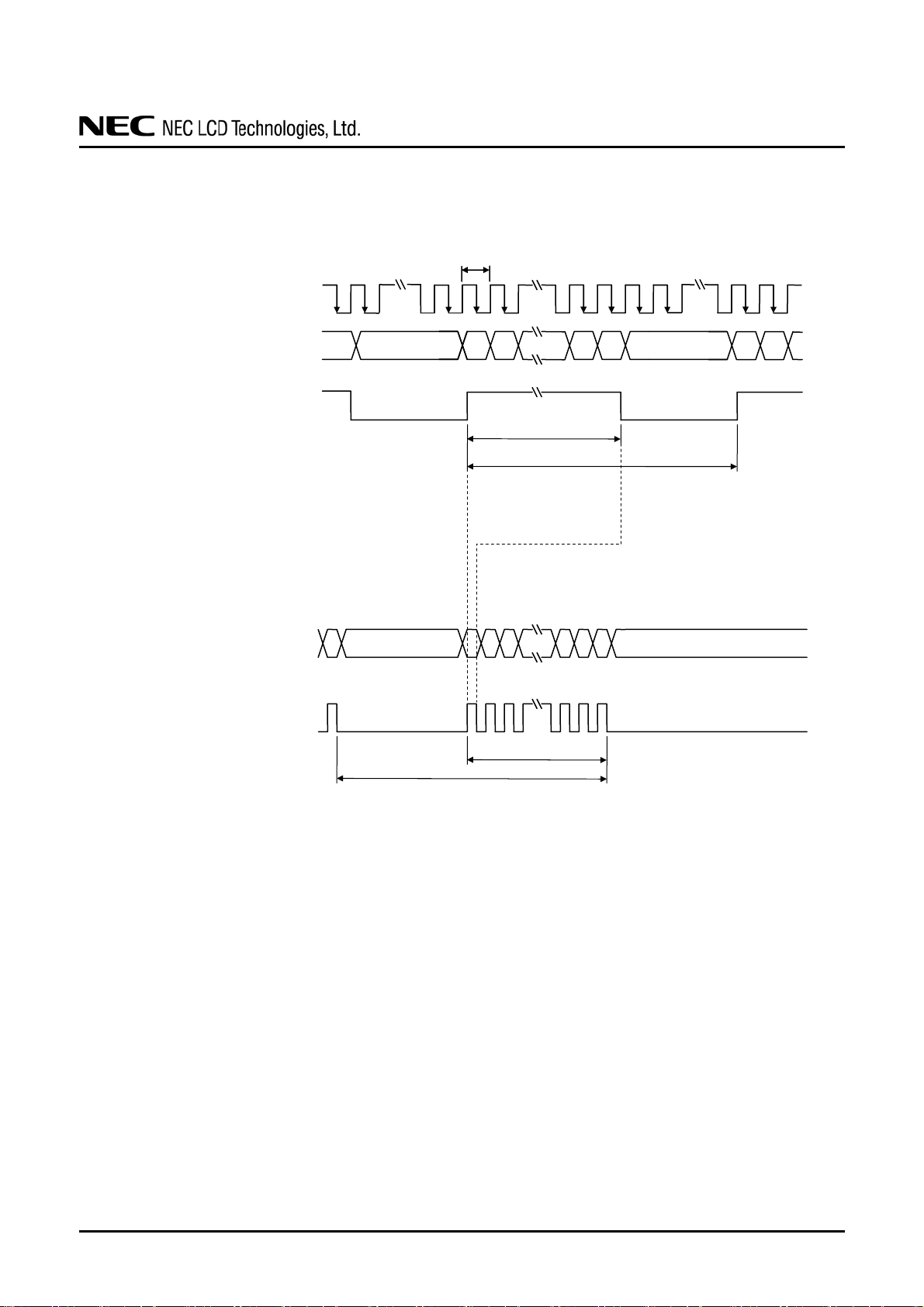

4.9.3 Input signal timing chart
Horizontal timing
(R0-R7) (R0-R5)
(G0-G7) or (G0-G5)
(B0-B7) (B0-B5)
Vertical timing
(R0-R7) (R0-R5)
(G0-G7) or (G0-G5)
(B0-B7) (B0-B5)
CLK
DATA
DE
DATA
DE
INVALID
INVALID
tc
1 2 799 800
thd
1 2 599 600
tvd
tv
NL8060BC21-03
INVALID
th
INVALID
DATA SHEET DOD-PP-0277 (3rd edition)
22
Page 23
4.10 OPTICS
4.10.1 Optical characteristics
Parameter Condition Symbol min. typ. max. Unit
Luminance
Contrast ratio
Luminance uniformity
White
Chromaticity
Green
Blue
Color gamut
Response time
Right
Viewing angle
Left
Down
θR= 0°, θL= 0°, θU= 0°, θD= 0°
θR= 0°, θL= 0°, θU= 0°, θD= 0°
θR= 0°, θL= 0°, θU= 0°, θD= 0°
Red
θR= 0°, θL= 0°, θU= 0°, θD= 0°
at center, against NTSC color space
Up
Note1: These are initial characteristics.
Note2: Measurement conditions are as follows.
Ta= 25°C, VCC= 3.3V, IBL= 5.0mArms/lamp, Display mode: SVGA, Horizontal cycle=
1/37.463kHz, Vertical cycle= 1/59.94Hz, DPS= Low or Open: Normal scan
Optical characteristics are measured at luminance saturation after 20minutes from working the
product, in the dark room. Also measurement methods are as follows.
LCD module
(Product)
Note3: See "4.10.2 Definition of contrast ratio".
Note4: See "4.10.3 Definition of luminance uniformity".
Note5: Th ese coord inates are found on CIE 1931 chromaticity diagram.
Note6: Product surface temperature: TopF= 28°C
Note7: See "4.10.4 Definition of response times".
Note8: See "4.10.5 Definition of viewing angles".
White at center
White/Black at center
White
x coordinate Wx 0.283 0.313 0.343 -
y coordinate Wy 0.299 0.329 0.359 -
x coordinate Rx - 0.584 - -
y coordinate Ry - 0.341 - -
x coordinate Gx - 0.324 - -
y coordinate Gy - 0.535 - -
x coordinate Bx - 0.158 - -
y coordinate By - 0.157 - -
White to Black Ton - 6 15 ms
Black to White Toff - 19 47 ms
θU= 0°, θD= 0°, CR≥ 10 θR
θU= 0°, θD= 0°, CR≥ 10 θL
θR= 0°, θL= 0°, CR≥ 10 θU
θR= 0°, θL= 0°, CR≥ 10 θD
50cm
1°
Photodetector (BM-5A or SR-3)
L 500 650 - cd/m2 BM-5A -
CR 300 600 - - BM-5A Note3
LU - 1.25 1.4 - BM-5A Note4
C 35 40 - %
70 80 70 80 70 80 50 60 -
LCD module
(Product)
NL8060BC21-03
(Note1, Note2)
Measuring
instrument
SR-3 Note5
BM-5A
°
°
Contrast
°
°
Photodetector (EZ Contrast)
EZ
Remarks
Note6
Note7
Note8
DATA SHEET DOD-PP-0277 (3rd edition)
23
Page 24
N
4.10.2 Definition of contrast ratio
The contrast ratio is calculated by using the following formula.
Contrast ratio (CR) =
4.10.3 Definition of luminance uniformity
The luminance uniformity is calculated by using following formula.
Luminance uniformity (LU) =
The luminance is measured at near the 5 points shown below .
100
300
500
4.10.4 Definition of response times
Response time is measured, the luminance changes from "white" to "black", or "black" to "white" on
the same screen point, by photo-detector. Ton is the time it takes the luminance change from 90% down
to 10%. Also Toff is the time it takes the luminance change from 10% up to 90% (See the following
diagram.).
White
100%
90%
Luminance
Black
10%
0%
4.10.5 Definition of viewing angles
ormal axis (Perpendicular)
θL
Left
θD
Lower
NL8060BC21-03
Luminance of white screen
Luminance of black screen
Maximum luminance from ①
Minimum luminance from ①
133
①
400
667
②
③
⑤
θU
④
Ton
12 o’clock
Upper
θR
Right
to ⑤
to ⑤
Toff
DATA SHEET DOD-PP-0277 (3rd edition)
24
Page 25
5. RELIABILITY TESTS
Test item Condition Judgment
High temperature and humidity
(Operation)
NL8060BC21-03
(Note1)
① 60 ± 2°C, RH= 90%, 240hours
② Display data is black.
High temperature
(Operation)
Heat cycle
(Operation)
Thermal shock
(Non operation)
ESD
(Operation)
Dust
(Operation)
Vibration
(Non operation)
Mechanical shock
(Non operation)
① 70 ± 3°C, 240hours
② Display data is black.
① -20 ± 3°C…1hour
70 ± 3°C…1hour
② 50cycles, 4 hours/cycle
③ Display data is black.
① -30 ± 3°C…30minutes
80 ± 3°C…30minutes
② 100cycles, 1hour/cycle
③ Temperature transition time is within
5 minutes.
① 150pF, 150Ω, ±10kV
② 9 places on a panel surface Note2
③ 10 times each places at 1 sec interval
① Sample dust: No. 15 (by JIS-Z8901))
② 15 seconds stir
③ 8 times repeat at 1 hour interval
① 5 to 100Hz, 19.6m/s
② 1 minute/cycle
③ X, Y, Z direction
④ 120 times each directions
① 539m/ s
② ±X, ±Y, ±Z direction
③ 5 times each directions
2
, 11ms
2
No display malfunctions
No display malfunctions
No physical damages
Note1: Display and appearance are checked under environmental conditions equivalent to the
inspection conditions of defect criteria.
Note2: See the followi ng figure for discharge points.
{ {
{
{
{
{
{
{
{
DATA SHEET DOD-PP-0277 (3rd edition)
25
Page 26
!
6. PRECAUTIONS
6.1 MEANING OF CAUTION SIGNS
The following caution signs have very important meaning. Be sure to read "6.2 CAUTIONS" and
"6.3 ATTENTIONS", after understanding these contents!
This sign has the meaning that customer will be injured by himself or the product
will sustain a damage, if customer has wrong operations.
This sign has the meaning that customer will get an electrical shock, if customer has
wrong operations.
This sign has the meaning that customer will be injured by himself, if customer has
wrong operations.
6.2 CAUTIONS
∗ Do not touch the working backlight. There is a danger of an electric shock.
NL8060BC21-03
∗ Do not touch the working backlight. There is a danger of burn injury.
∗ Do not shock and press the LCD panel and the backlight! There is a danger of
breaking, because they are made of glass. (Shock: To be not greater 539m/s
not greater 11ms, Pressure: To be not greater 19.6 N (φ16mm jig))
6.3 ATTENTIONS
6.3.1 Handling of the product
① Take hold of both ends without touching the circuit board when the product (LCD module) is picked
up from inner packing box to avoid broken down or misadjustment, because of stress to mounting
parts on the circuit board.
② Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage.
③ When the product is put on the table temporarily, display surface must be placed downward.
④ When handling the product, take the measures of electrostatic discharge with such as earth band,
ionic shower and so on, because the product may be damaged by electrostatic.
⑤ The torque for product mounting screws must never exceed 0.294N⋅m. Higher torque might result in
distortion of the bezel.
⑥ The product must be installed using mounting holes without undue stress such as bends or twist (See
outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends or
twist described above and undue stress to any portion may cause display mura.
⑦ Do not press or rub on the sensitive product surface. When cleaning the product surface, use of the
cloth with ethanolic liquid such as screen cleaner for LCD is recommended.
⑧ Do not push nor pull the interface connectors while the product is working.
2
and to be
!
DATA SHEET DOD-PP-0277 (3rd edition)
26
Page 27
⑨ Do not bend or unbend the lamp cable at the near part of the lamp holding rubber, to avoid the
⑩ Properly connect the plug (backlight side) to adaptable socket (inverter side) without incomplete
⑪ If the lamp cable is attached on the metal part of the product directly, high frequency leak current to
⑫ When handling the product, use of an original protection sheet on the product surface (polarizer) is
⑬ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of
6.3.2 Environment
① Do not operate or store in high temperature, high humidity, d ewdrop atmosphere or corrosiv e gases.
② In order to prevent dew condensation occurring by temperature difference, the product packing box
③ Do not operate in high magnetic field. Circuit boards may be broken down by it.
④ This product is not designed as radiation hardened.
6.3.3 Characteristics
The following items are neither defects nor failures.
① Characteristics of the LCD (such as response time, luminance, color uniformity and so on) may be
② Display mura, flicker, vertical seam or small spot may be observed depending on display patterns.
③ Optical characteristics (e.g. luminance, display uniformity, etc.) gradually is going to change
④ Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen
⑤ The display color may be changed depending on viewing angle because of the use of condenser
⑥ Optical characteristics may be changed depending on input signal timings.
⑦ The interference noise between input signal frequency for this product's signal processing board and
⑧ The color of the polarizer surface may differ between products because of antireflection treatment.
⑨ After the product is stored under condition of low temperature or dark place for a long time, the cold
NL8060BC21-03
damage for high voltage side of the lamp.
connection. After connecting, be careful not to hook the lamp cables because incomplete connection
may occur by hooking the lamp cables. This incomplete connection may cause abnormal operation
of high voltage circuit.
the metal part may occur, then the brightness may decrease or the lamp may not be turned on.
recommended for protection of product surface. Adhesive type protection sheet may change color or
characteristics of the polarizer.
thin layer and the construction of LCD panel. But, if you contact with liquid crystal for the worst,
please wash it out with soap.
Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and
sunlight, when storing the product.
should be opened after enough time being left under the environment of an unpacking room.
Evaluate the leaving time sufficiently because a situation of dew condensation occurring is changed
by the environmental temperature and humidity. (Recommended leaving time: 6 hours or more with
packing state)
changed depending on ambient temperature. If the product is stored under condition of low
temperature for a long time, it may cause display mura. In this case, the product should be operated
after enough time being left under condition of operating temperature.
depending on operating time, and especially low temperature, because the LCD has cold cathode
fluorescent lamps.
saver, if the fixed pattern is displayed on the screen.
sheet in the backlight.
luminance control frequency of the inverter may appear on a display. Set up luminance control
frequency of the inverter so that the interference noise does not appear.
cathode fluorescent lamp may not be turned on under the same condition because of the general
characteristic of cold cathode fluorescent lamp. In addition, when Luminance control ratio is low in
pulse width modulation method inverter, the lamp may not be turned on. In this case, power should
be supplied again.
DATA SHEET DOD-PP-0277 (3rd edition)
27
Page 28
NL8060BC21-03
6.3.4 Other
① All GND and VCC terminals should be used without any non-connected lines.
② Do not disassemble a product or adjust variable resistors.
③ See "REPLACEMENT MANUAL FOR LAMP HOLDER SET", when replacing backlight lamps.
④ Pay attention not to insert foreign materials inside of the product, when using tapping screws.
⑤ Pack the product with original shipping package, in order to avoid any damages during
transportation, when returning the product to NEC for repair and so on.
DATA SHEET DOD-PP-0277 (3rd edition)
28
Page 29
7. OUTLINE DRAWINGS
7.1 FRONT VIEW
Note1: The values in parentheses are for reference.
Note2: The torque for product mounting screws must never exceed 0.294N⋅m.
Note3: Mounting hole portions (4 pieces)
NL8060BC21-03
Unit: mm
DATA SHEET DOD-PP-0277 (3rd edition)
29
Page 30
7.2 REAR VIEW
NL8060BC21-03
Unit: mm
Note1: The values in parentheses are for reference.
Note2: The torque for product mounting screws must never exceed 0.294N⋅m.
DATA SHEET DOD-PP-0277 (3rd edition)
30
Loading...
