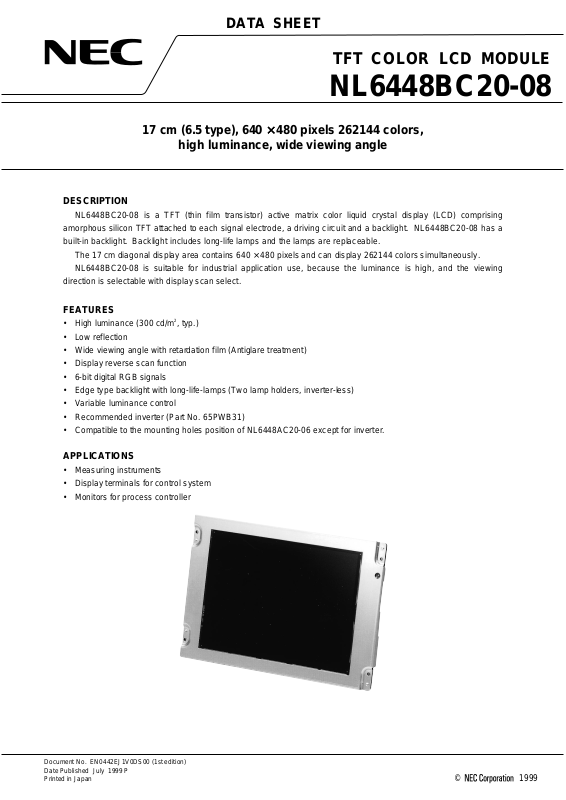

DATA SHEET

TFT COLOR LCD MODULE

NL6448BC20-08

17 cm (6.5 type), 640

××××

480 pixels 262144 colors,

high luminance, wide viewing angle

DESCRIPTION

NL6448BC20-08 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. NL6448BC20-08 has a built-in backlight. Backlight includes long-life lamps and the lamps are replaceable.

The 17 cm diagonal display area contains 640 × 480 pixels and can display 262144 colors simultaneously.

NL6448BC20-08 is suitable for industrial application use, because the luminance is high, and the viewing direction is selectable with display scan select.

FEATURES

• High luminance (300 cd/m2, typ.)

• Low reflection

• Wide viewing angle with retardation film (Antiglare treatment)

• Display reverse scan function

• 6-bit digital RGB signals

• Edge type backlight with long-life-lamps (Two lamp holders, inverter-less)

• Variable luminance control

• Recommended inverter (Part No. 65PWB31)

• Compatible to the mounting holes position of NL6448AC20-06 except for inverter.

APPLICATIONS

• Measuring instruments

• Display terminals for control system

• Monitors for process controller

Document No. EN0442EJ1V0DS00 (1st edition) Date Published July 1999 P Printed in Japan

1999©

Page 2

NL6448BC20-08

STRUCTURE AND FUNCTIONS

A color TFT (thin film transistor) LCD module is comprised of a TFT liquid crystal panel structure. LSIs for driving the TFT array, and a backlight assembly. The TFT panel structure is created by sandwiching liquid crystal material in the narrow gap between a TFT array glass substrate and a color filter glass substrate. After the driver LSIs are connected to the panel, the backlight assembly is attached to the backside of the panel.

RGB (red, green, blue) data signals from a source system is modulated into a form suitable for active matrix addressing by the onboard signal processor and sent to the driver LSIs which in turn addresses the individual TFT cells.

Acting as an electro-optical switch, each TFT cell regulates light transmission from the backlight assembly when activated by the data source. By regulating the amount of light passing through the array of red, green, and blue dots, color images are created with clarity.

Data Sheet EN0442EJ1V0DS00

Page 3

BLOCK DIAGRAM

100 Ω

R0-R5

100 Ω

G0-G5

100 Ω

B0-B5

47 Ω

CLK

100 Ω

H sync

100 Ω

V sync

Digital signal processor

LCD timing controller

Level shift

V-driver

· · · · · ·

TFT LCD panel

H: 640 × 3 (R, G, B) V: 480

480 lines

NL6448BC20-08

H-driver

1920 lines

DE DPS

GND (SG)

Frame (FG)

47 kΩ

100 Ω

47 kΩ

Power supply circuit

LSIs (VCCi: 3.3 V)

Drivers

Data Sheet EN0442EJ1V0DS00

Page 4

(1) In case of use NEC recommended inverter

InverterVDDB

BRTL BRTH GNDB

(2) In case of use the inverter of customers

VH VL

NL6448BC20-08

Backlight

(Part No. 65PWB31)

Lamp

VL VH

Lamp

Backlight

OUTLINE OF CHARACTERISTICS (at room temperature)

Display area 132.48 (H) × 99.36 (V) mm

Drive system a-Si TFT active matrix

Display colors 262144

Number of pixels 640 × 480

Pixel arrangement RGB vertical stripe

Pixel pitch 0.207 (H) × 0.207 (V) mm

Module size 178.8 (H) × 126.8 (V) × 11.0 typ. (D) mm

Weight 240 g (typ.)

Contrast ratio 250:1 (typ.)

Viewing angle (more than the contrast ratio of 10:1)

• Horizontal: 50° (typ. left side, right side)

• Vertical : 35° (typ. up side), 45° (typ. down side)

Designed viewing direction

• wider viewing angle with contrast ratio : up side (12 o’clock, reverse scan) : down side (6 o’clock, normal scan)

• wider viewing angle without image reversal: up side (12 o’clock, normal scan) : down side (6 o’clock, reverse scan)

Palarizer pencil-hardness 2H (min. at JIS K5400) Color gamut 42% (typ. center to NTSC) Response time 16 ms (typ.) “white” to “black”

Luminance 300 cd/m

(typ.)

Signal system 6-bit digital signals for each of RGB primary colors,

Synchronous signals (Hsync, Vsyc), Dot clock (CLK) Supply voltage 5.0 V (3.3 V) (Logic, LCD driving) Backlight Edge light type: two fluorescent lamps (cold cathode type)

Power consumption 5.0 W (typ., at 300 cd/m

, not include inverter less)

Data Sheet EN0442EJ1V0DS00

Page 5

NL6448BC20-08

GENERAL SPECIFICATIONS

Item Specifications Unit Module size 178.8 ± 0.5 (H) × 126.8 ± 0.5 (V) × 11.5 max. (D) mm Display area 132.48 (H) × 99.36 (V) mm Number of pixels 640 (H) × 480 (V) pixel Dot pitch 0.069 (H) × 0.207 (V) mm Pixel pitch 0.207 (H) × 0.207 (V) mm Pixel arrangement RGB (Red, Green, Blue) vertical stripe Display colors 262144 color Weight 260 (max.) g

ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks

−

Supply voltage

Input voltage V Lamp voltage V Storage temp. T Operating remp. T Humidity

V V

(no condensation)

measured at the display area

Note

ELECTRICAL CHARACTERISTICS

(1) Logic, LCD driving

Parameters Symbols Min. Typ. Max. Unit. Remarks

Supply voltage V

Logic input “L” voltage V Logic input “H” voltage V Supply current I

−

0.3 to 6.5 V

−

0.3 to 6.5 V

−

0.3 to V

+ 0.3 V

1600 V

−

25 to 70 0 to 60

≤

95% relative humidity Ta ≤ 40°C

≤

85% relative humidity 40 < Ta ≤ 50°C

Absolute humidity shall not exceed Ta = 50°C, 85% relative humidity level.

4.75 (3.0)

CCi

0 × 0.7

−

5.0

(3.3)

200

(320)

−

Note 1

5.25 (3.6)

CCi

(600)

× 0.3 V

V 450

rms

mA V

Ta = 25°C

− VCC < 3.0

module surface

Ta > 50°C

CMOS level

= 5.0 V

= 3.3 V)

−

Note

Ta = 25°C

−

Note 2

Notes 1.

Checker flag pattern (in EIAJ ED-2522)

CCi

= 3.3 V : V

CCi

is given by DC/DC converter in the LCD module.

Data Sheet EN0442EJ1V0DS00

Page 6

(2) Backlight

Parameters Symbols Min. Typ. Max. Unit. Remarks

NL6448BC20-08

Ta = 25°C

Lamp current I Lamp voltage V Lamp turn on voltage V

Oscillator frequency F

Recommended value of “F

Note

•Ft is within the specification.

and

Ft =

•

4th

× (2n – 1)

If Ft is out of the recommended value, interference between Ft frequency and Hsync frequency may cause beat on the display.

SUPPLY VOLTAGE SEQUENCE

4.75 V (3.0 V) 4.75 V (3.0 V)

0 V

t < 150 ms

”

2.0 5.0 6.0 mArms with one lamp

−

−−

50 54 58 kHz

400

thn: Hsync period

: a natural number (1, 2, 3, ····)

0 < t < 35 ms 0 < t < 35 ms

−

720 Ta = 0°C 590

Vrms Vrms

Ta = 25°C

Note

−

Signal

0 V

Power-on Power-off

The supply voltage for input signals should be the same as V

Apply VDDB within the LCD operation period. When the backlight turns on before LCD operation or the LCD

VALID

operation turns off before the backlight turn off, the display may momentarily become white. When the power is off, please keep whole signals (Hsync, Vsync, CLK, DE, and DATA) low level or high

impedance.

Data Sheet EN0442EJ1V0DS00

Page 7

NL6448BC20-08

INTERFACE PIN CONNECTION

Module side connector Mating connector CN31 ····· IL-310-T31PB-VF (No. 1 to 31) IL-310-T31S-VF Supplier: Japan Aviation Electronics or

Industry Limited (JAE) DF9-31S-1V or DF9M-31S-1R

Supplier: HIROSE ELECTRIC CO., LTD

(1) 6-bit interface signals, power supply

Pin No. Symbols Func tion Pin No. Symbols Func tion

1 GND Ground 17 G4 Green data 2 CLK Dot clock 18 G5 Green data (MSB) 3 Hsync Horizontal synchronous 19 GND Ground 4 Vsync Vertic al sync hronous 20 B0 Blue data (LSB) 5 GND Ground 21 B1 Blue data 6 R0 Red data (LSB) 22 B2 Blue data 7 R1 Red data 23 B3 Blue data 8 R2 Red data 24 B4 Blue data

9 R3 Red data 25 B5 Blue data (MSB) 10 R4 Red data 26 GND Ground 11 R5 Red data (MSB) 27 DE Data enable 12 GND Ground 28 V 13 G0 Green data (LSB) 29 V 14 G1 Green data 30 N.C. Non-connection (Open) 15 G2 Green data 31 DPS Scan Direction select

Power supply Power supply

16 G3 Green data

: All VCC terminals should be connected to VCC.

Notes 1.

V DPS: Normal scan is “L” or “Open”. And reverse scan is “H”.

During the operation, do not change the operation mode: e.g. scan direction.

LSB : Least Significant Bit MSB: Most Significant Bit

Data Sheet EN0442EJ1V0DS00

Page 8

NL6448BC20-08

(2) Inverter

<2-1> In case of use NEC recommended inverter

• Inverter side connector 1 Mating connector 1 CN1 ··· IL-Z-6PL-SMTY IL-Z-6S-S125C3

Supplier: Japan Aviation Electronics Industry Limited (JAE)

Pin No. Symbols Func tion Pin No. Symbols Func tion

1 GNDB Backli ght ground 4 VDDB Power supply 2 GNDB Backlight ground 5 BRTL Luminance control input 3V

• Inverter side connector 2 Mating connector 2 (Lamp side) CN2 andCN3 ··· SM02 (8.0) B-BHS-TB BHR-03VS-1

Pin No. Symbols Func tion

1 VH High voltage terminal 2 N.C. Non-connection 3 GNDB Backli ght ground

B Power supply 6 BRTH Lum i nance control input

Supplier: J.S.T TRADING COMPANY, LTD.

Notes 1.

A way of luminance control by a variable resistor

Mating variable resistor

BRTL BRTH

A way of luminance control by a voltage

Minimum luminance (50%) Maximum luminance (100%)

The range of input voltage between BRTH and GNDB is as follows. Minimum luminance (50%) : 1.5 V Maximum luminance (100%): 1.9 V

: 10 kΩ ±5% : R = 0 Ω : R = 10 kΩ

Data Sheet EN0442EJ1V0DS00

Page 9

Connector location

NL6448BC20-08

Upper side

Recommended inverter

CN3

CN1

Inverter

(Part No. 65PWB31)

To CN2 or CN3

CN2

LCD module

Lower side

CN31

1 3

· 31

2 4

· 30

Data Sheet EN0442EJ1V0DS00

Page 10

<2-2> In case of use the inverter of customers

• Module side connector Mating connector CN2 and CN3: BHR-03VS-1 CN2 and CN3: SM03 (4.0) B-BHS-1-TB Supplier: J.S.T TRADING COMPANY. LTD. Supplier: J.S.T TRADING COMPANY.LTD.

Pin No. Symbols Function

1 VH High voltage terminal (The cable color is white.) 2 N.C. non-connection 3 V L Low voltage terminal (The cable color is gray.)

Upper side

NL6448BC20-08

To CN2

3 2 1

or CN3

To CN2 or CN3

LCD module

Lower side

CN31

1 3

· 31

PIN DESCRIPTIONS

Symbols Functions Logic Descriptions

Vsync Vertical sync. Negative Vertical synchronous signal Hsync Horizontal sync. Negative Horizontal synchronous signal

CLK Dot clock Negative Timing signal for display data. The video signal is

sampled at the falling edge of DOTCLK.

R0 to R5 G0 to G5 B0 to B5

DE Data enable signal Positive Data enable signal

DPS Scan direction select

GND Ground

Display data Positive 6 bits digital signals for each of RGB primary colors.

Back-porch (thb and tvb) can be changed when DE is high. Don’t fix “DE = Low”, if not, the display will have un-uniformity.

Note

+5.0 V (+3.3 V) Logic ground for V

Power supply

−

2 4

· 30

DPS: DPS changes display scan direction.

Note

GND or Open= Normal scan

= Reverse scan

See 7-8. DISPLAY POSITION about another way for reversible scan.

Data Sheet EN0442EJ1V0DS00

Page 11

DISPLAY COLORS vs. INPUT DATA SIGNALS

(1) 6-bit interface signals

NL6448BC20-08

Display colors

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0

Basic colors Black 000000 000000 000000

Blue 000000 000000 111111

Red 111111 000000 000000

Magenta 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 1 1 1

Green 000000 111111 000000

Cyan 000000 111111 111111

Yellow 111111 111111 000000

White 111111 111111 111111

Red grayscale Black 000000 000000 00 0000

000001 000000 000000

Dark 000010 000000 00 0000

↑ ↓

Bright 111101 000000 000000

111110 000000 000000

Red 111111 000000 00 0000

Green grayscale Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

000000 000001 000000

Dark 000000 000010 000000

↑ ↓

Bright 000000 111101 000000

000000 111110 000000

Green 000000 111111 000000

Blue grayscale Black 000000 000000 00 0000

000000 000000 000001

Dark 000000 00 0000 000010

↑ ↓

Bright 000000 00000 0 111101

000000 000000 111110

Blue 000000 000000 11111 1

Data signals (0: Low level, 1: High level)

Colors are developed in combination with 6 bit signal (64 steps in grayscale) of each primary red, green,

Note

and blue color. This process can result in up to 262144 (64 × 64 × 64) colors.

Data Sheet EN0442EJ1V0DS00

Page 12

INPUT SIGNAL TIMING

(1) Input signal specifications

Parameters Symbols Min. Typ. Max. Unit Remarks

NL6448BC20-08

CLK

Hsync

Vsync

DATA R0 to R5 G0 to G5 B0 to B5

Frequency 1/tc 21.0 25. 175 29.0 MHz 39.722 ns (typ.) Duty tch/tc 0.4 0.5 0.6 Rise, fall tcrf

Display period thd

Front-porch thf

Pulse width thp

Back-porch thb

*) thp + thb 64 144 CLK-Hsync ti min g thch 12 Hsync-CLK ti min g thcs 8 Hsync-Vsync timing tvh 15 Vsync-Hsync timing tvs 15 Rise, fall thrf

Display period tvd

Front-porch tvf

Pulse width tvp

Back-porch tvb

*) tvp + tvb 6 33

Rise, fall CLK-DATA timing tds 8 DATA-CLK timing tdh 12 Rise, fall tdrf

DE-CLK timing tes 8 CLK-DE timing teh 12 Rise, fall terf

−−

30.0 31.778 33.6

−

−−

16.1 16.683 17.2 msPeriod tv

−

−−

800

25.422 640

0.636 16

3.813 96

1.907 48

−−

525

15.253 480

0.381 12

0.063

0.985 31

−−

10 ns

−

−−

−

CLK

CLK CLK

ns ns ns ns

H H

ns ns

sPeriod th

31.468 kHz (typ.)

−

59.94 Hz (typ.)

−

All parameters should be kept within the specified range.

Note

Data Sheet EN0442EJ1V0DS00

Page 13

(2) Definition of input signal timing

NL6448BC20-08

Vsync

Display period

tvp

tvb tvf

Note 1

tvd

Hsync

Display period

Notes 1.

thp

thb thf

Note 1

thd

Display period does not exist as signals. Set the total of thp + thb and tvp + tvb as the table of input signal timing, otherwise display position is

shifted to right or left side, or to up or down side.

Data Sheet EN0442EJ1V0DS00

Page 14

NL6448BC20-08

tch

cci

0.5CLK

tcrf tcrf

DATA (R0 to R5)

(B0 to B5)

INVALID INVALID

tds tdh

cci

0.5(G0 to G5)

tdrf

testeh testeh

cci

0.5DE

terf terf

cci

0.5CLK

thch thcs

VIH = V

= V

CCi

= 3.3 V: V

cci

CCi

× 0.7 (min.)

CCi

× 0.3 (max.)

0.5Hsync

tvh tvs

0.5Vsync

tvrf

CCi

is given by DC/DC converter in the LCD module.

thrf

Data Sheet EN0442EJ1V0DS00

Page 15

(3) Input signal timing chart

Vsync

NL6448BC20-08

Hsync

R0 to R5 G0 to G5 B0 to B5

tvp tvb 480H (fixed)

123 1

INVALID D (X, 0) D (X, Y) D (X, 479) INVALID

INVALID

D (0, Y) D (1, Y) D (X, Y) D (638, Y) D (639, Y) INVALID

tvf

(Note: X = 0 to 639)

Hcync

CLK

R0 to R5 G0 to G5 B0 to B5

1CLK

thp thb 640CLK (fixed)

12 1

INVALID

D (0, Y) D (1, Y) INVALIDD (639, Y)

Data Sheet EN0442EJ1V0DS00

thf

(Note: Y = 0 to 479)

Page 16

NL6448BC20-08

DISPLAY POSITION

Normal scan: DPS = “L” (factory set)

D (0, 0) D (1, 0) D (X, 0) D (638, 0) D (639, 0) D (0, 1) D (1, 1) D (X, 1) D (638, 1) D (639, 1)

D (0, Y) D (1, Y) D (X, Y) D (638, Y) D (639, Y)

D (0, 478) D (1, 478) D (X, 478) D (638, 478) D (639, 478) D (0, 479) D (1, 479) D (X, 479) D (638, 479) D (639, 479)

Reverse scan: DPS = “H”

D (639, 479) D (638, 479) D (X, 479) D (1, 479) D (0, 479) D (639, 478) D (638, 478) D (X, 478) D (1, 478) D (0, 478)

D (639, Y) D (638, Y) D (X, Y) D (1, Y) D (0, Y)

D (639, 1) D (638, 1) D (X, 1) D (1, 1) D (0, 1) D (639, 0) D (638, 0) D (X, 0) D (1, 0) D (0, 0)

Below drawings show relations between the scan direction and the viewing direction.

Note

Normal scan Reverse scan

D (0, 0) D (639, 0)

D (0, 479) D (639, 479)

Data Sheet EN0442EJ1V0DS00

Page 17

OPTICAL CHARACTERISTICS

Parameters Symbols Conditions Min. Typ. Max. Unit Remarks

NL6448BC20-08

Ta = 25°C

Note 1

Contrast ratio CR Luminance Lu Luminance uniformity

−

Note 2 Note 2

max./min.

150 250 250 300

−−

Reference data

Parameters Symbols Conditions Min. Typ. Max. Unit Remarks

t on White to black

t off Black to white Color gamut C at center, to NTSC 35 42 Viewing

angle range

Notes 1.

x+ CR > 10, θy = ±0

−

Vertical

= 5.0 V, IL = 5.0 mA rms, with NEC recommended inverter (Part No.65PWB31).

V Viewing angle: θx = ±0°, θy = ±0°, At center.

Best contrast angle: The contrast ratio is calculated by using the following formula.

y+ CR > 10, θx = ±0

x = ±0°, θy = −10°, At center.

−

CR > 10, θy = ±0

CR > 10, θx = ±0

° ° ° °

−

45 50 45 50 30 35 40 45

−−

−

cd/m

1.25

16 40 msResponse time 55 90 ms

−

% deg.Horizontal deg. deg. deg.

Note 3

Note 4

−

Note 5

Note 6

−−−−

Note 7

Contrast ratio (CR) =

Luminance with all pixels in “white” Luminance with all pixels in “black”

The Luminance is measured in darkroom. The luminance is measured after 20 minutes from the module works, with all pixels in “white”. Typical

value is measured after luminance saturation.

1°

50 cm

LCD MODULE

Photodetector (TOPCON BM-5A)

Data Sheet EN0442EJ1V0DS00

Page 18

The luminance uniformity is calculated by using following formula.

NL6448BC20-08

Luminance uniformity =

Maximum lumi nance Minimum luminance

The luminance is measured at near the five points shown below.

(160)Column

Definition of response time is as follows.

(320) (480)

Line

(120)

(240)

(360)

Photodetector output signal is measured when the Luminance changes “white” to “black”. Response time is the time between 10% and 100% of the photodetector output amplitude.

100%

90%

White

Luminance

range

10%

Definitions of viewing angle are as follows.

ton toff

Left

Lower

Perpendicular

x–

y–

Display color

Black

Time

12 o’clock

Upper

Right

Data Sheet EN0442EJ1V0DS00

Page 19

NL6448BC20-08

RELIABILITY TEST

No. Test items Test conditions Judgement

1. High temperature/ humidity operation

2. High temperature (operat i on) 60 ± 3°C

3. Heat cycle (operat i on) <1> 0°C ± 3°C ··· 1 hour

4. Thermal shock (non-operation) <1> –25°C ± 3°C ··· 30 minutes

5. Vibration (non-operati on) <1> 5 - 100 Hz, 2G

6. Mechanical shock (nonoperation)

7. ESD (operation) 150 pF, 150 Ω, ±10 kV

8. Dust (operation) 15 kinds of dust (JIS Z 8901)

50 ± 2°C, 85% relative humidity 240 hours Display data is black.

240 hours Display data is black.

55°C ± 3°C ··· 1 hour <2> 50 cy cl es, 4 hours/cycle <3> Display data is black.

70°C ± 3°C ··· 30 minutes <2> 100 cy cles <3> Tem perature transition time within 5 minutes

1 minute/cycle,

X, Y, Z direction <2> 120 t i m es each direction

<1> 55 G, 11 ms

X, Y, Z direction <2> 5 t imes eac h directi on

9 places on a panel 10 times each place at one-second intervals

Hourly 15 seconds stir, 8 times repeat

Note 1

Note 1 Note 2

Note 1

Note 3

Note 1

Notes 1.

Display function is checked by the same condition as LCD module out-going inspection. Physical damage.

Discharge points are shown in the figure.

Data Sheet EN0442EJ1V0DS00

Page 20

NL6448BC20-08

GENERAL CAUTIONS

Next figures and sentence are very important, please understand these contents as follows.

This figure is a mark that you will get hurt and/or the module will have damages when you make

CAUTION

This figure is a mark that you will get an electric shock when you make a mistake to operate.

This figure is a mark that you will get hurt when you make a mistake to operate

CAUTION

(1) Caution when taking out the module

<1> Pick the pouch only, when taking out the module from a carrier box.

(2) Cautions for handling the module

<1> As the electrostatic discharges may break the LCD module, handle the LCD module with care against

electrostatic discharges.

<2> As the LCD panel and backlight element are made from fragile glass material, impulse and

pressure to the LCD module should be avoided.

<3> As the surface of polarizer is very soft and easily scratched, use a soft dry cloth without chemicals for

cleaning. <4> Do not pull the interface connectors in or out while the LCD module is operating. <5> Put the module display side down on a flat horizontal plane. <6> Handle connectors and cables with care. <7> When the module is operating, do not lose CLK, Hsync, or Vsync signal. If any one or more of these

signals is lost, the LCD panel would be damaged. <8> The torque for mounting screw should never exceed 0.20 N·m (2 kgf·cm).

a mistake to operate.

(3) Cautions for the atmosphere

<1> Dew drop atmosphere must be avoided. <2> Do not store and/or operate the LCD module in high temperature and/or high humidity atmosphere.

Storage in an electro-conductive polymer packing pouch and under relatively low temperature atmosphere

is recommended. <3> This module uses cold cathod fluorescent lamps. Therefore, the life time of lamp becomes short

conspicuously at low temperature. <4> Do not operate the LCD module in high magnetic field.

(4) Caution for the module characteristics

<1> Do not apply any fixed patterns data signal to the LCD module at product aging. Applying fixed pattern for

a long time may cause image sticking. <2> This module has the retardation film which may cause the variation of the color hue in the different viewing

angles. The ununiformity may appear on the screen under the high temperature operation.

Data Sheet EN0442EJ1V0DS00

Page 21

NL6448BC20-08

(5) Other cautions

<1> Do not disassemble and/or reassemble LCD module. <2> Do not readjust variable resistors nor switches etc. <3> When returning the module for repair or etc, pack the module not to be broken. We recommend the

original shipping packages.

Liquid Crystal Display has the following specific characteristics. There are not defects nor malfunctions. The display condition of the LCD module may be affected by the ambient temperature. The LCD module uses cold cathode tube for backlighting. Optical characteristics, like luminance or uniformity, will change during time. Uneven brightness and/or small spots may be noticed depending on different display patterns.

Data Sheet EN0442EJ1V0DS00

Page 22

OUTLINE DRAWING/FRONT SIDE (Unit in mm)

7.6±0.5

3.3±0.3

2.5±0.3

126.8±0.5 98±0.3

(49) (14.4)

NL6448BC20-08

3.3±0.3

2.5±0.3

172±0.3(3.4)

178.8±0.5

(86)

ACTIVE AREA

CENTER

MADE IN JAPANES8C10004

K1028B2015035 98.12.18/

NL6448BC20-08

MODULE CENTER

(1)

172±0.3

(86)

4- 2.8

MOUNTING HOLE

(7.8)

2.5±0.3

3.3±0.3

7.6±0.5

(48)

96±0.3

FRONT VIEW

Data Sheet EN0442EJ1V0DS00

(46.95)

(10.1)

(15.4)

2.5±0.3

3.3±0.3

(9.3)

11.5 MAX.

Page 23

OUTLINE DRAWING/REAR SIDE (Unit in mm)

(20.4)

(9.2)

(66.4)

NL6448BC20-08

I/F CONNECTOR IL-310-T31P-VF (JAE)

(20.4)

(9.2)(9.7)

(169)

(9.75)

112±10

I/F CONNECTOR BHR-03VS-1 (JST)

K1028B2015035

REAR VIEW

THE TFT COLOR LCD

PANEL CONTAINS COLD CATHODE

FLOURESCENT LAMPS. PLEASE

FOLLOW LOCAL ORDINANCES

OR REGULATIONS FOR ITS

DISPOSAL

Name

Pal No.

65BLM04

∗ ∗ ∗ − ∗

(4.35)(4.35)

(17.95)(17.95)

I/F CONNECTOR

BHR-03VS-1 (JST)

RISK OF ELECTRIC SHOCK.

DISCONNECT THE ELECTRIC

POWER BEFORE SERVICE.

NION VOLTEGE

CAUTION

112±10

Notes 1.

Not shown tolerances of the dimensions are ±0.5 mm. The value in parenthese are for reference.

Data Sheet EN0442EJ1V0DS00

Page 24

NL6448BC20-08

DATA SHEET

No part of this document may be copied or reproduced in any form or by any means without the prior written consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in this document. NEC Corporation does not assume any liability for infringement of patents. Copyrights or other intellectual property rights of third parties by or arising from use of a device de scribed h erein or any other liability arising from use of such device. No license, either express, implied or otherwise, is granted under any patents, copyrights or other intellectual property rights of NEC Corporation or others. While NEC Corporation has been making continuous effort to enhance the reliability of its Electronic Components, the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or property arising from a defect in an NEC Electronic Components, customers must incorporate sufficient safety measures in its design, such a s redundancy, fire-containment, and anti-failure features. NEC devices are classified into the following three q uality grade s: “Standard”, “Special”, and “Specific”. The Specific quality grade applies only to devices developed based on a customer designated “quality assurance program” for a specific application. The recommended applications of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device before using it in a particular application. Standard: Computers, office equipment, communications equipment, test and measurement equipment, audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment and industrial robots Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster systems, anti-crime systems, safety equipment and m edica l equipment (not specifically designe d for life s upport) Specific: Aircrafts, aerospace equipment, submersible repeaters, nuclear reactor control systems, life support systems or medical equipment for life support, etc. The quality grade of NEC devices is “Standard” unless otherwis e spe cified i n NEC ’s Data Sheets or D ata Books. If customers intend to use NEC devices for applications other than those specified for Standard quality grade, they should contact an NEC sales representative in adv ance. Anti-radioactive design is not implemented in this produ ct.
