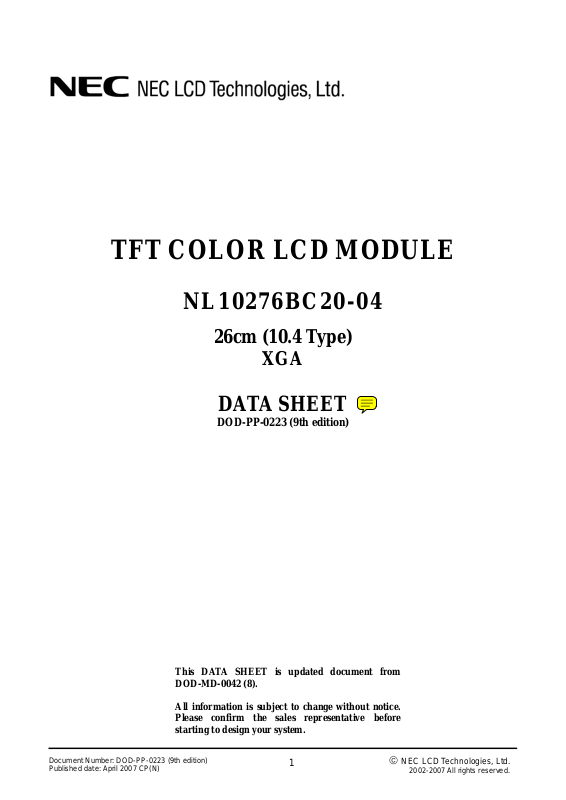

Page 1
TFT COLOR LCD MODULE
NL10276BC20-04
26cm (10.4 Type)
XGA
DATA SHEET
DOD-PP-0223 (9th edition)
This DATA SHEET is updated document from
DOD-MD-0042 (8).
All information is subject to change without notice.
Please confirm the sales representative before
starting to design your system.
Document Number: DOD-PP-0223 (9th edition)
Published date: April 2007 CP(N)
1
© NEC LCD Technologies, Ltd.
2002-2007 All rights reserved.
Page 2
NL10276BC20-04
INTRODUCTION
The Copyright to this document belongs to NEC LCD Technologies, Ltd. (hereinafter called "NEC").
No part of this document will be used, reproduced or copied without prior written consent of NEC.
NEC does and will not assume any liability for infringement of patents, copyrights or other intellectual
property rights of any third party arising out of or in connection with application of the products
described herein except for that directly attributable to mechanisms and workmanship thereof. No license,
express or implied, is granted under any patent, copyright or other intellectual property right of NEC.
Some electronic parts/components would fail or malfunction at a certain rate. In spite of every effort to
enhance reliability of products by NEC, the possibility of failures and malfunction might not be avoided
entirely. To prevent the risks of damage to death, human bodily injury or other property arising out
thereof or in connection therewith, each customer is required to take sufficient measures in its safety
designs and plans including, but not limited to, redundant system, fire-containment and anti-failure.
The products are classified into three quality grades: "Standard", "Special", and "Specific" of the
highest grade of a quality assurance program at the choice of a customer. Each quality grade is designed
for applications described below. Any customer who intends to use a product for application other than
that of Standard quality grade is required to contact an NEC sales representative in advance.
The Standard quality grade applies to the products developed, designed and manufactured in
accordance with the NEC standard quality assurance program, which are designed for such application as
any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses
are, directly or indirectly, free of any damage to death, human bodily injury or other property, like general
electronic devices.
Examples: Computers, office automation equipment, communications equipment, test and measurement
equipment, audio and visual equipment, home electronic appliances, machine tools, personal
electronic equipment, industrial robots, etc.
The Special quality grade applies to the products developed, designed and manufactured in accordance
with an NEC quality assurance program stricter than the standard one, which are designed for such
application as any failure or malfunction of the products (sets) or parts/components incorporated therein a
customer uses might directly cause any damage to death, human bodily injury or other property, or such
application under more severe condition than that defined in the Standard quality grade without such
direct damage.
Examples: Control systems for transportation equipment (automobiles, trains, ships, etc.), traffic control
systems, anti-disaster systems, anti-crime systems, medical equipment not specifically
designed for life support, safety equipment, etc.
The Specific quality grade applies to the products developed, designed and manufactured in accordance
with the standards or quality assurance program designated by a customer who requires an extremely
higher level of reliability and quality for such products.
Examples: Military systems, aircraft control equipment, aerospace equipment, nuclear reactor control
systems, medical equipment/devices/systems for life support, etc.
The quality grade of this product is the "Standard" unless otherwise specified in this document.
DATA SHEET DOD-PP-0223 (9th edition)
2
Page 3
NL10276BC20-04
CONTENTS
INTRODUCTION ..........................................................................................................................................
1. OUTLINE....................................................................................................................................................
1.1 STRUCTURE AND PRINCIPLE...........................................................................................................
1.2 APPLICATION.......................................................................................................................................
1.3 FEATURES.............................................................................................................................................
2. GENERAL SPECIFICATIONS ................................................................................................................5
3. BLOCK DIAGRAM...................................................................................................................................
4. DETAILED SPECIFICATIONS...............................................................................................................
4.1 MECHANICAL SPECIFICATIONS......................................................................................................
4.2 ABSOLUTE MAXIMUM RATINGS ....................................................................................................
4.3 ELECTRICAL CHARACTERISTICS...................................................................................................
4.3.1 LCD panel signal processing board ...............................................................................................
4.3.2 Backlight lamp...............................................................................................................................

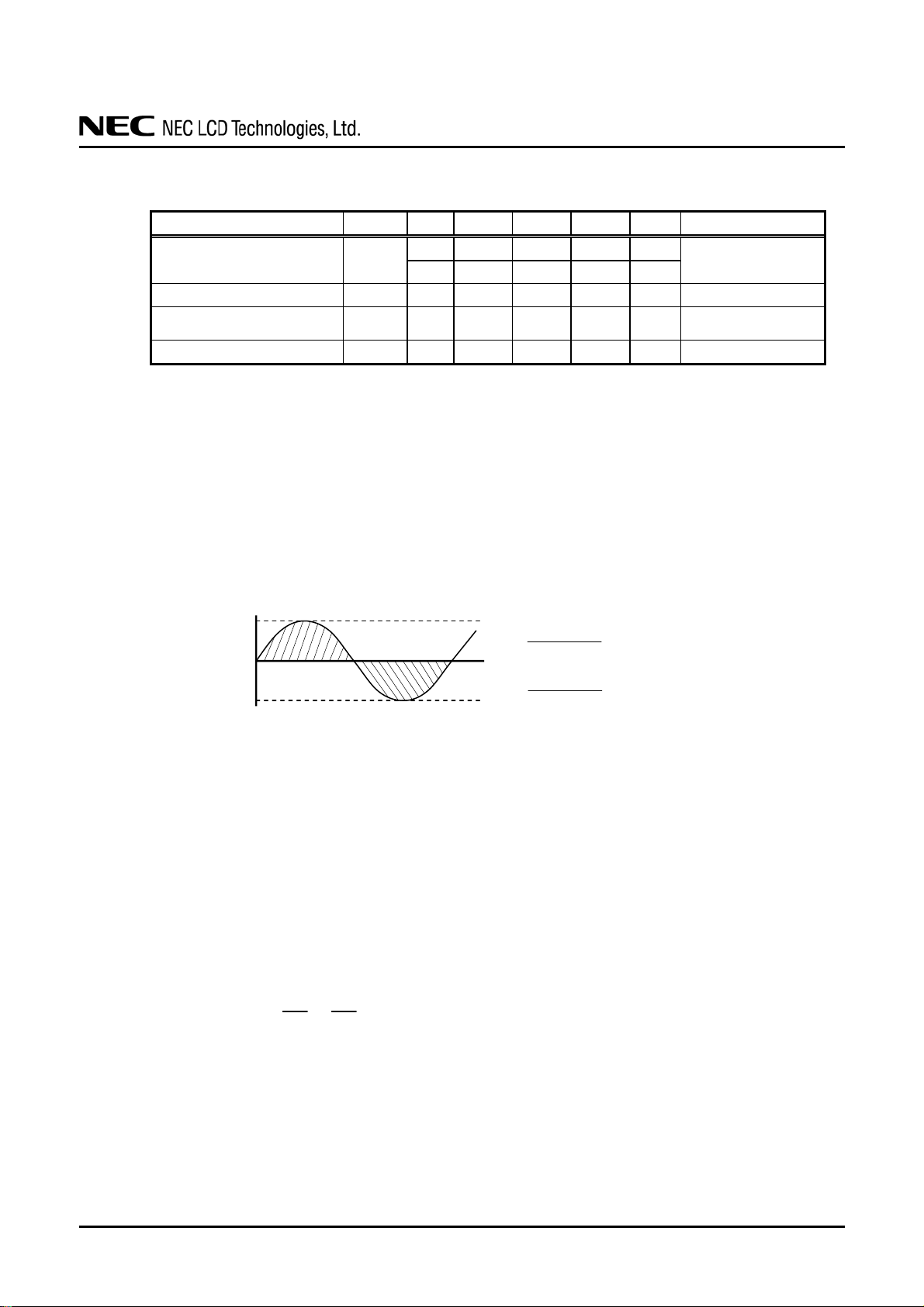

4.3.3 Power supply voltage ripple.........................................................................................................
4.3.4 Fuse..............................................................................................................................................

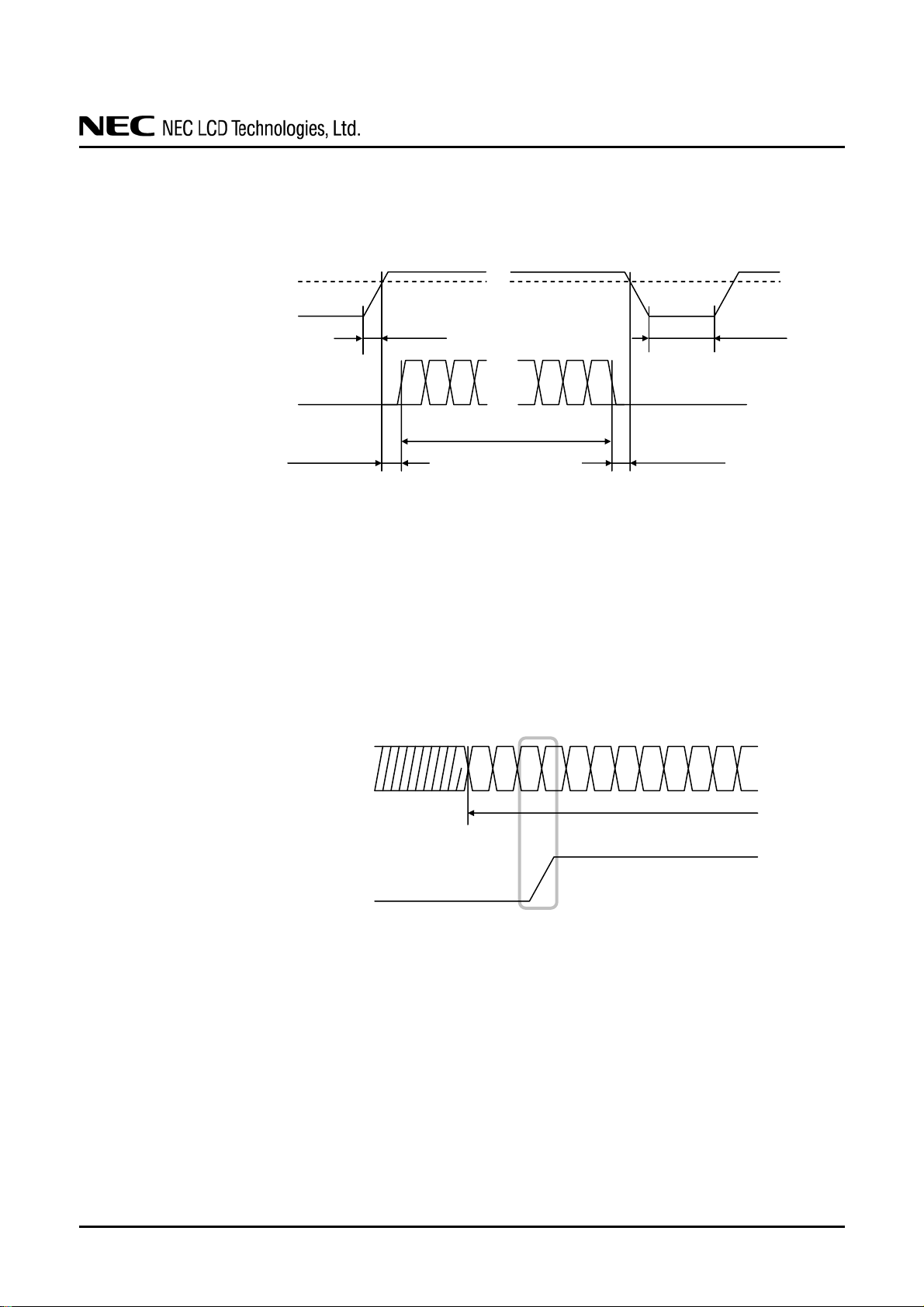

4.4 POWER SUPPLY VOLTAGE SEQUENCE ........................................................................................
4.4.1 LCD panel signal processing board .............................................................................................
4.4.2 Inverter.........................................................................................................................................
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS.........................................................
4.5.1 LCD panel signal processing board .............................................................................................
4.5.2 Backlight lamp.............................................................................................................................
4.5.3 Positions of a plug and a socket...................................................................................................
4.5.4 Connection between receiver and transmitter for LVDS .............................................................
4.6 DISPLAY COLORS AND INPUT DATA SIGNALS ..........................................................................
4.7 DISPLAY POSITIONS.........................................................................................................................

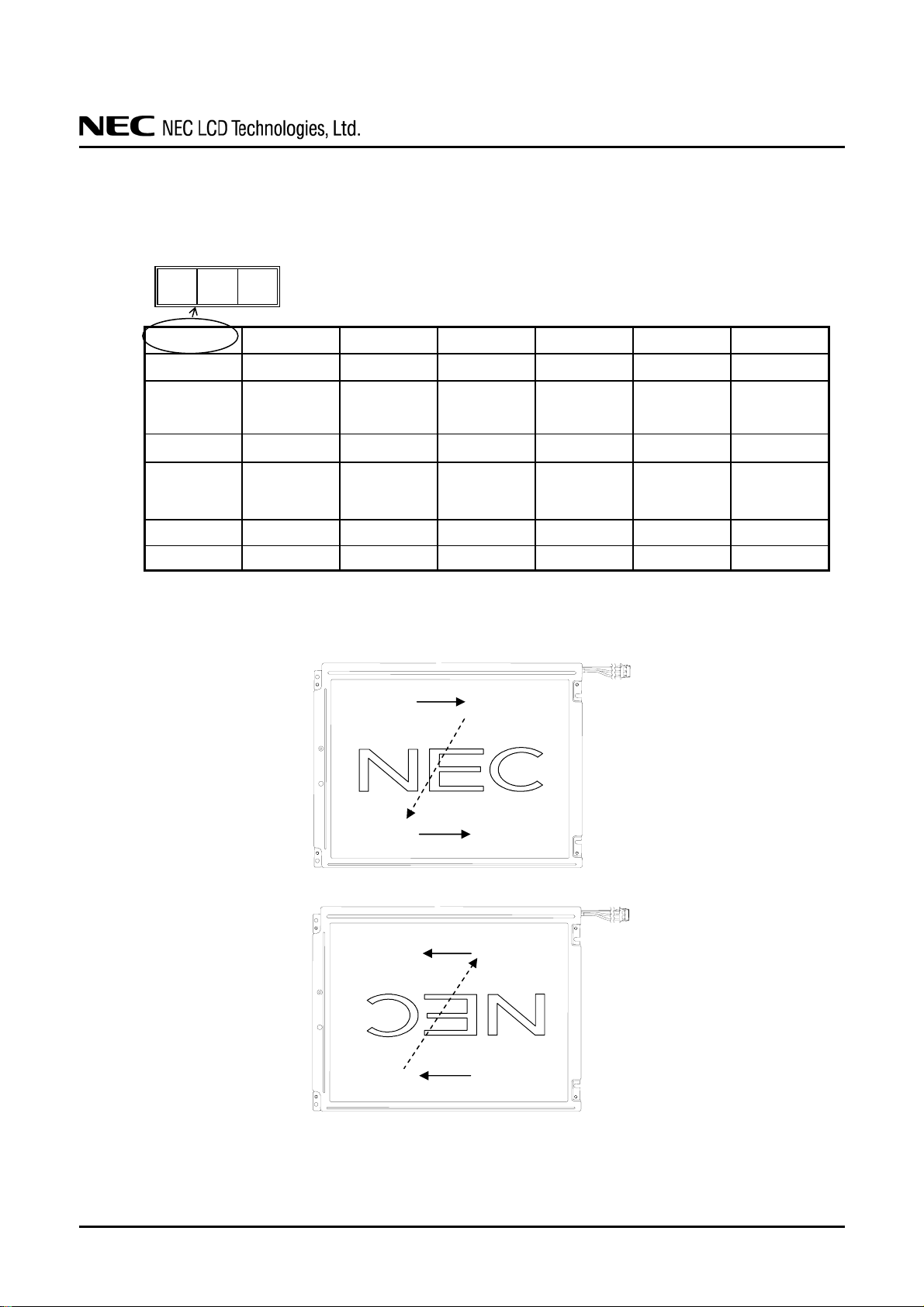

4.8 SCANNING DIRECTIONS .................................................................................................................
4.9 INPUT SIGNAL TIMINGS..................................................................................................................
4.9.1 Outline of input signal timings ....................................................................................................

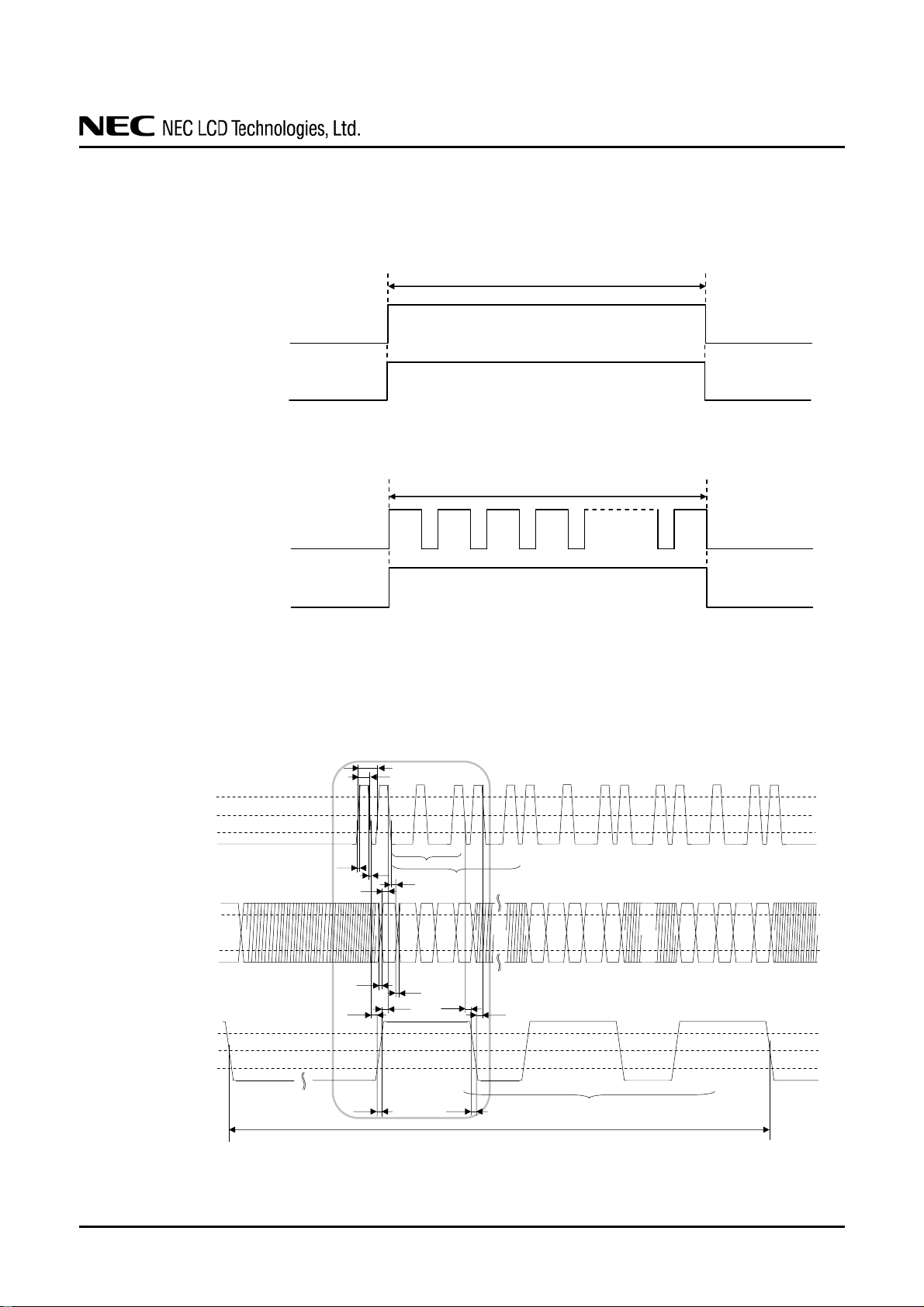

4.9.2 Input signal timing chart ..............................................................................................................

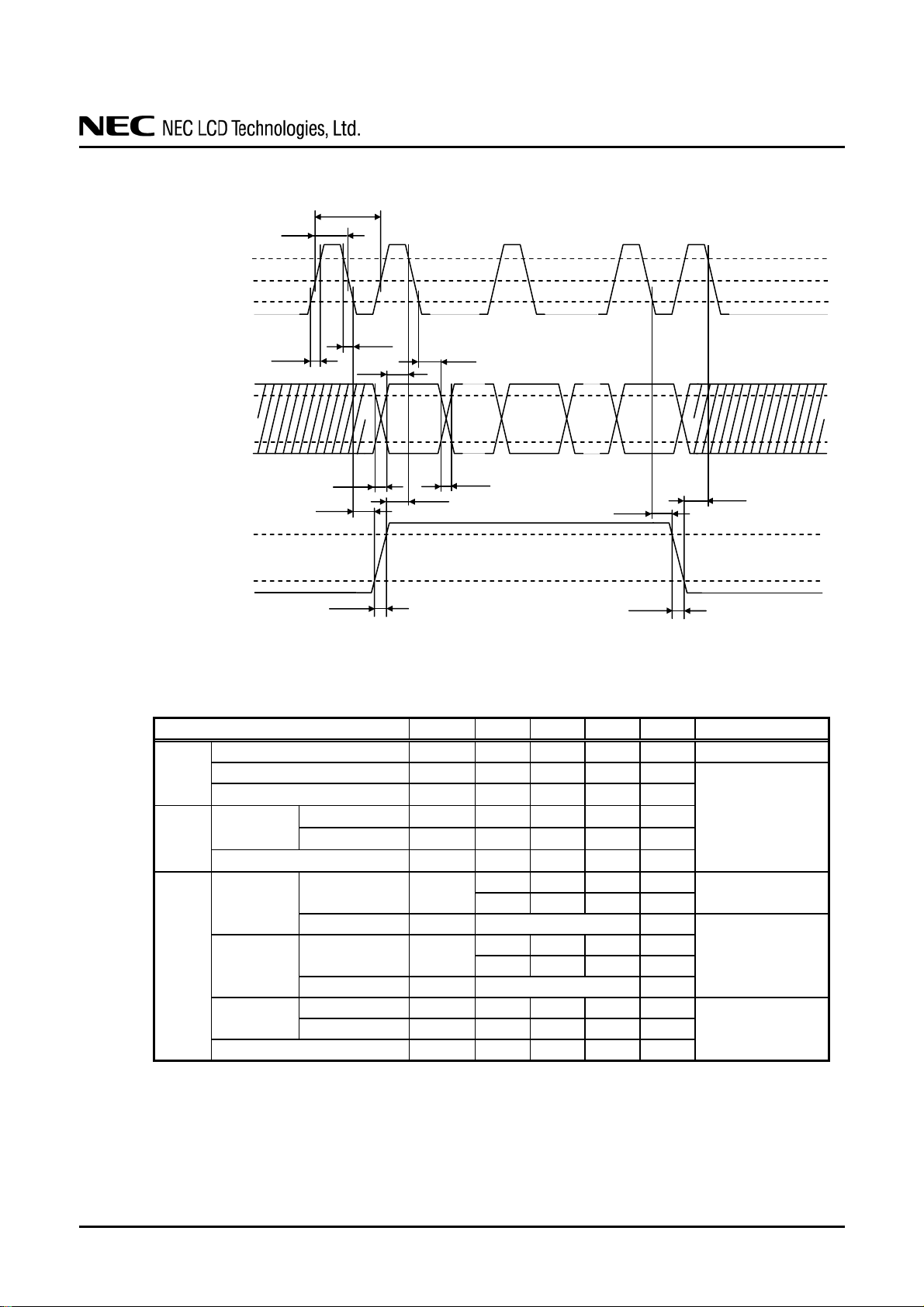

4.9.3 Timing characteristics..................................................................................................................
4.10 OPTICS...............................................................................................................................................

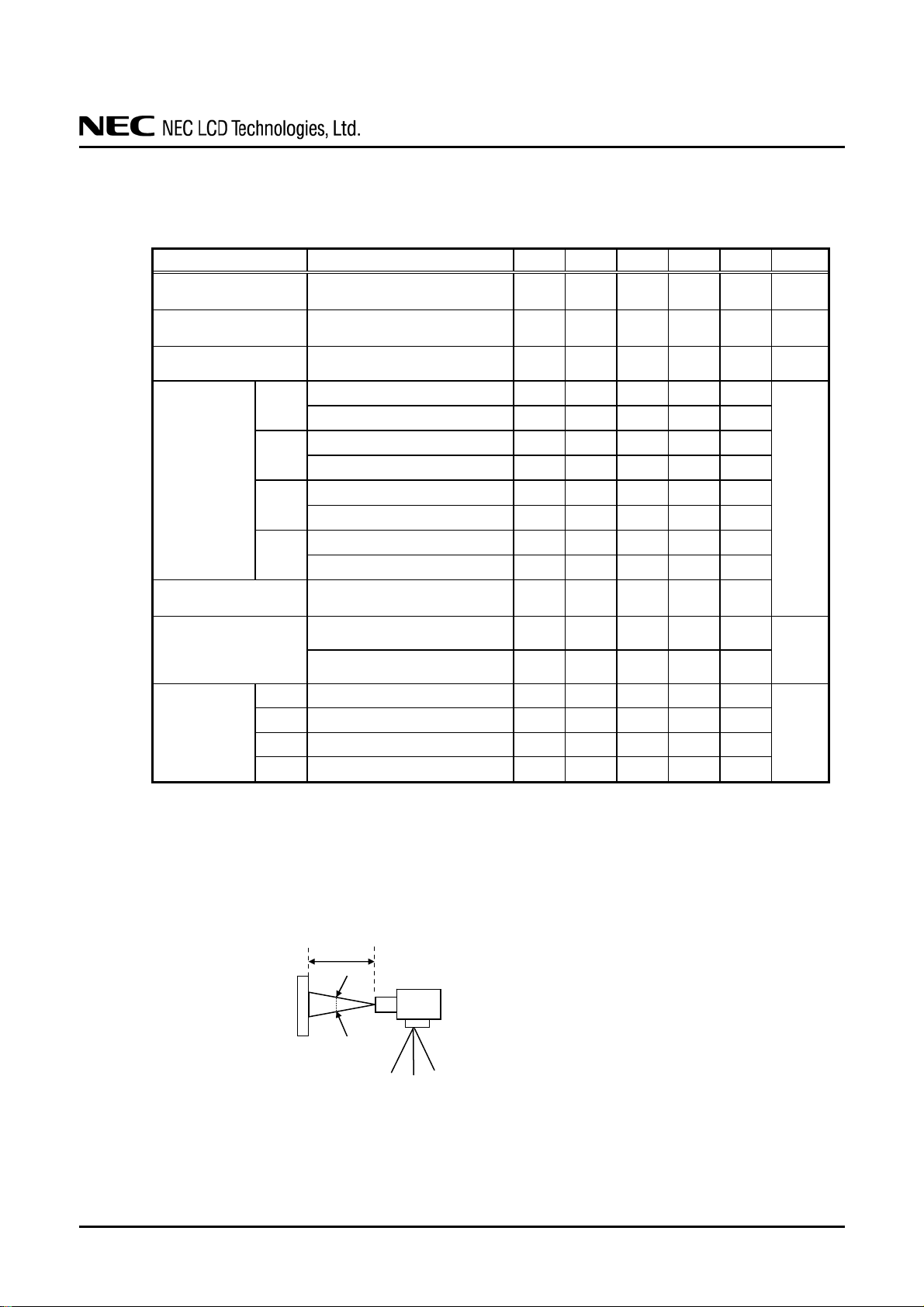

4.10.1 Optical characteristics................................................................................................................

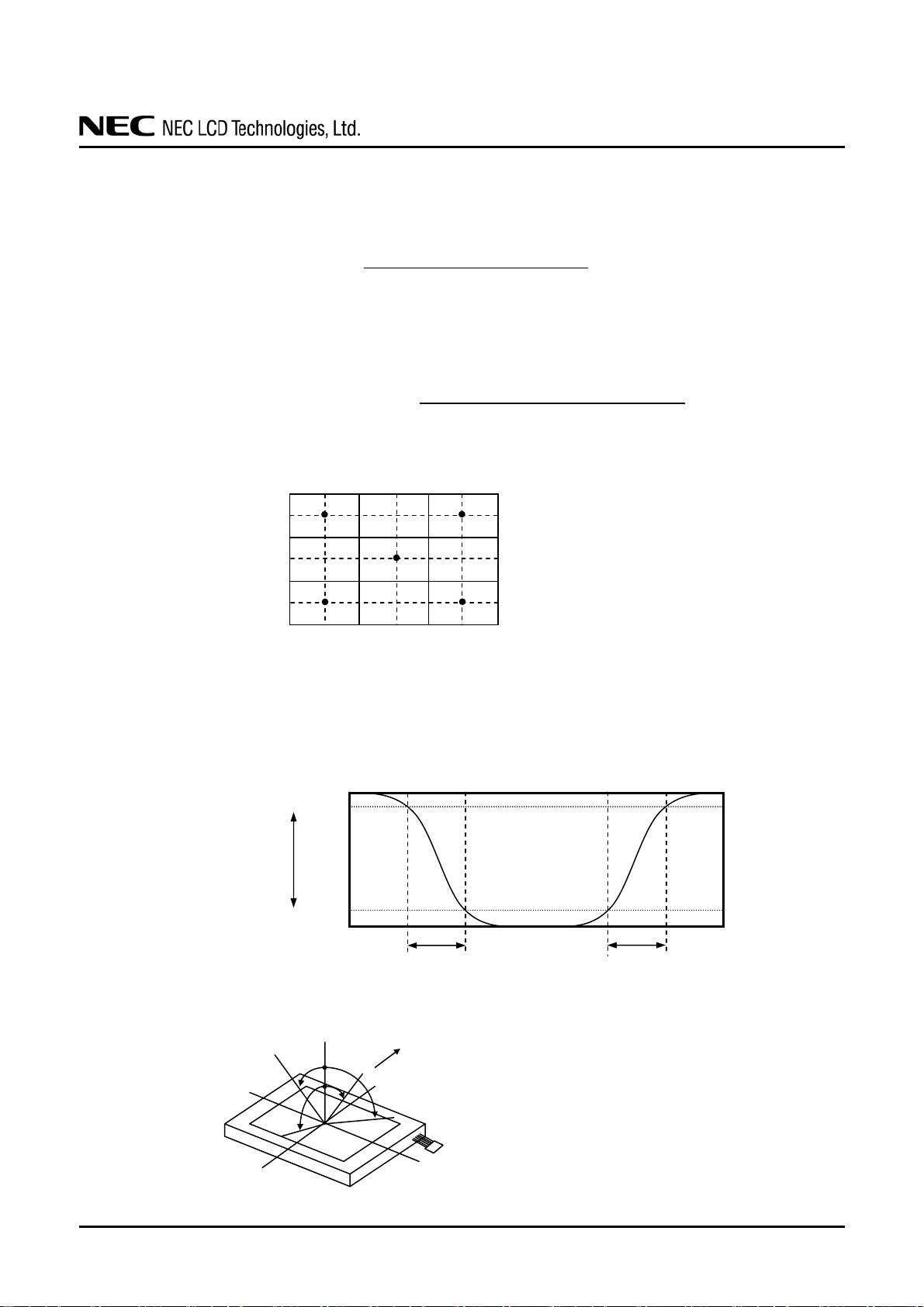

4.10.2 Definition of contrast ratio.........................................................................................................
4.10.3 Definition of luminance uniformity...........................................................................................
4.10.4 Definition of response times ......................................................................................................
4.10.5 Definition of viewing angles......................................................................................................

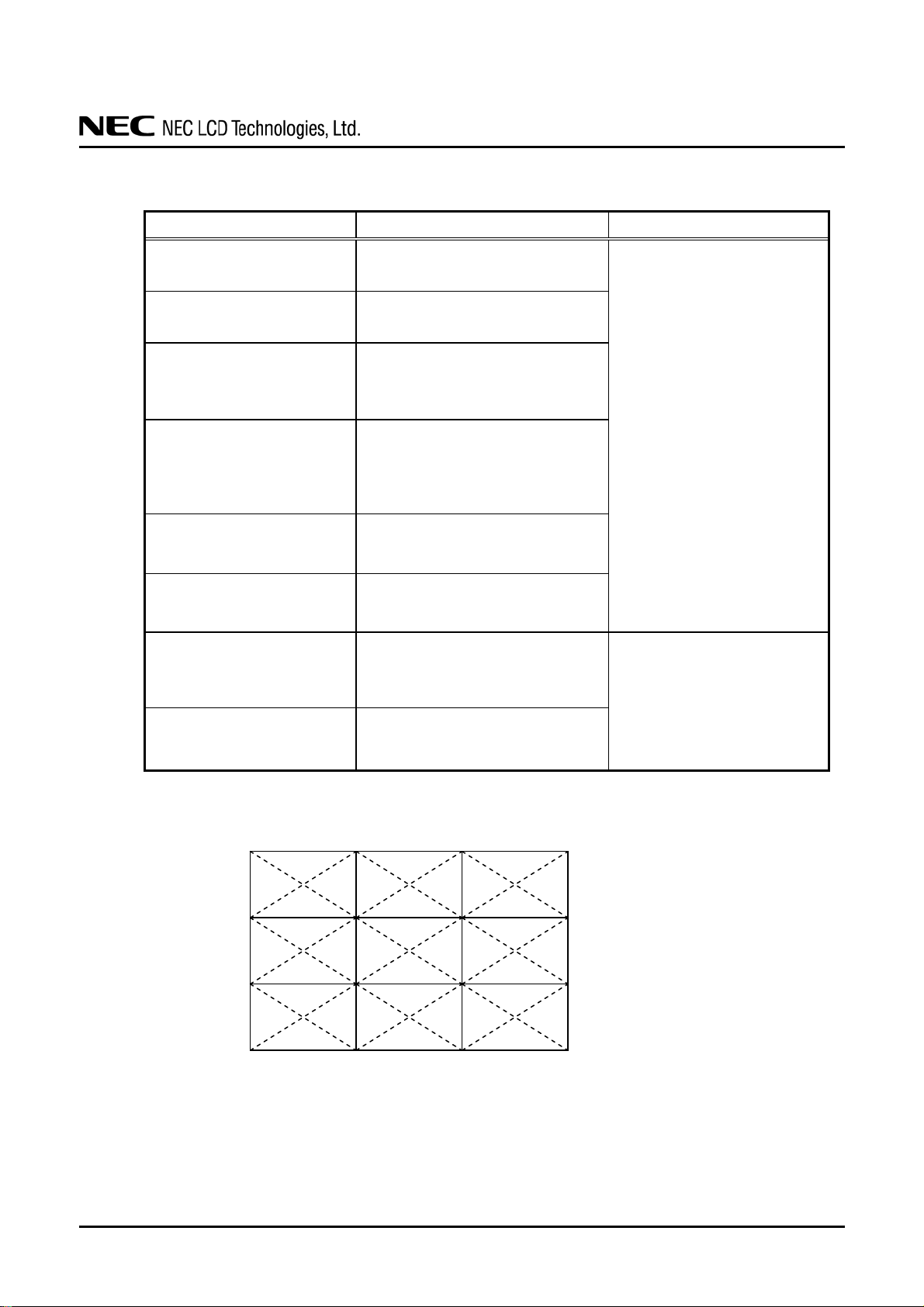

5. RELIABILITY TESTS.............................................................................................................................
6. PRECAUTIONS .......................................................................................................................................

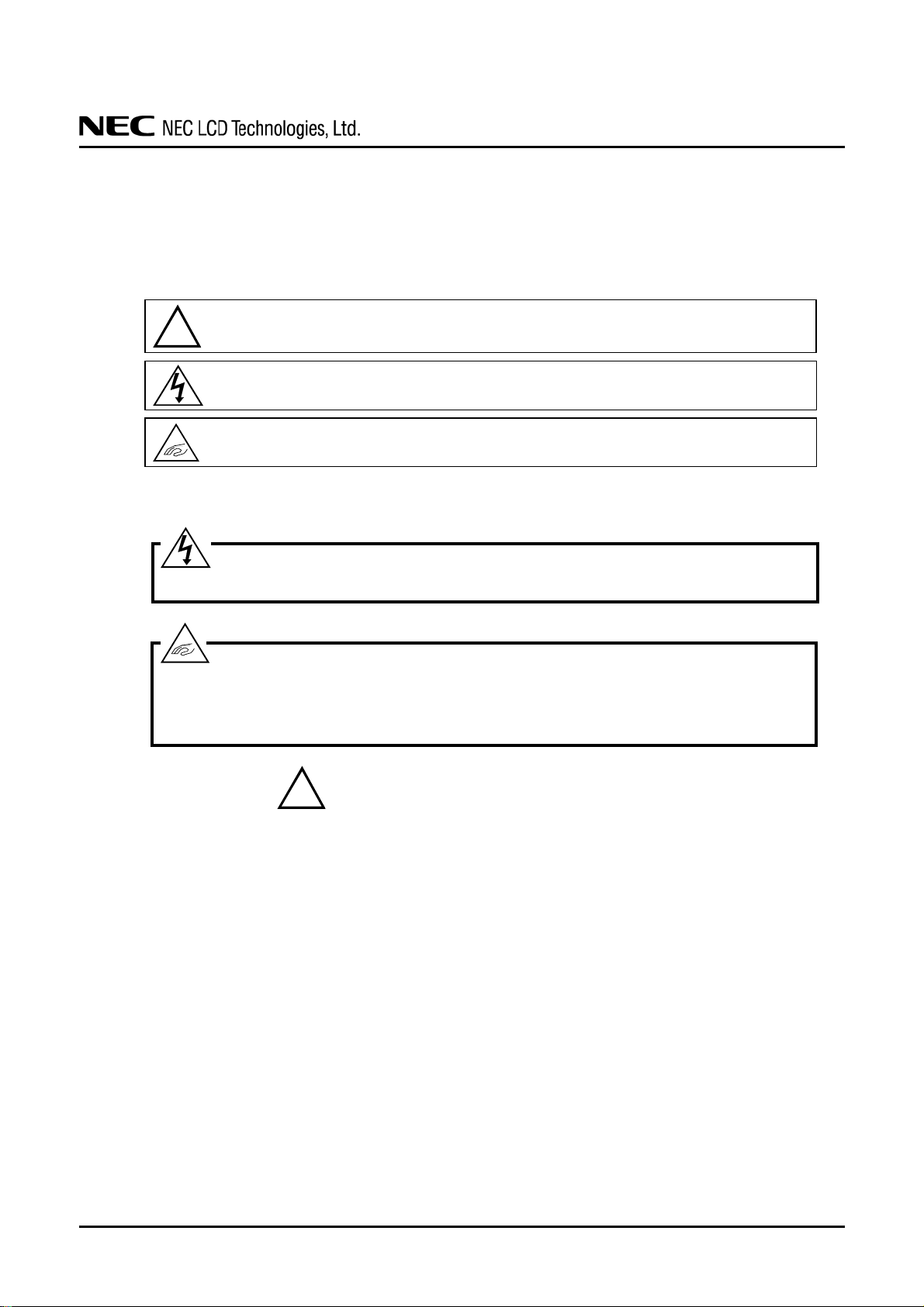

6.1 MEANING OF CAUTION SIGNS ......................................................................................................
6.2 CAUTIONS ..........................................................................................................................................
6.3 ATTENTIONS ..................................................................................................................................
6.3.1 Handling of the product ...............................................................................................................
6.3.2 Environment.................................................................................................................................
6.3.3 Characteristics..............................................................................................................................
6.3.4 Other ............................................................................................................................................

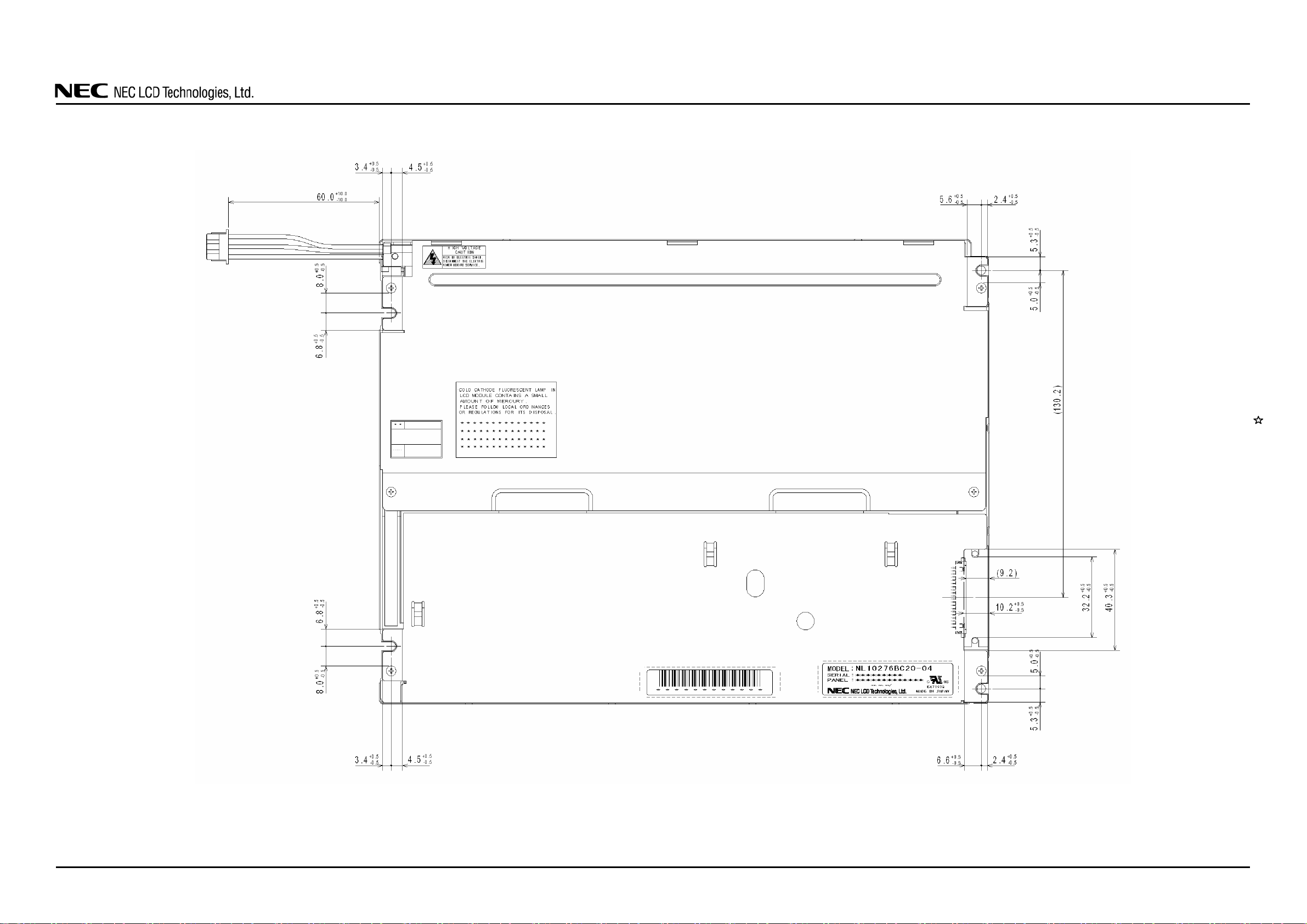

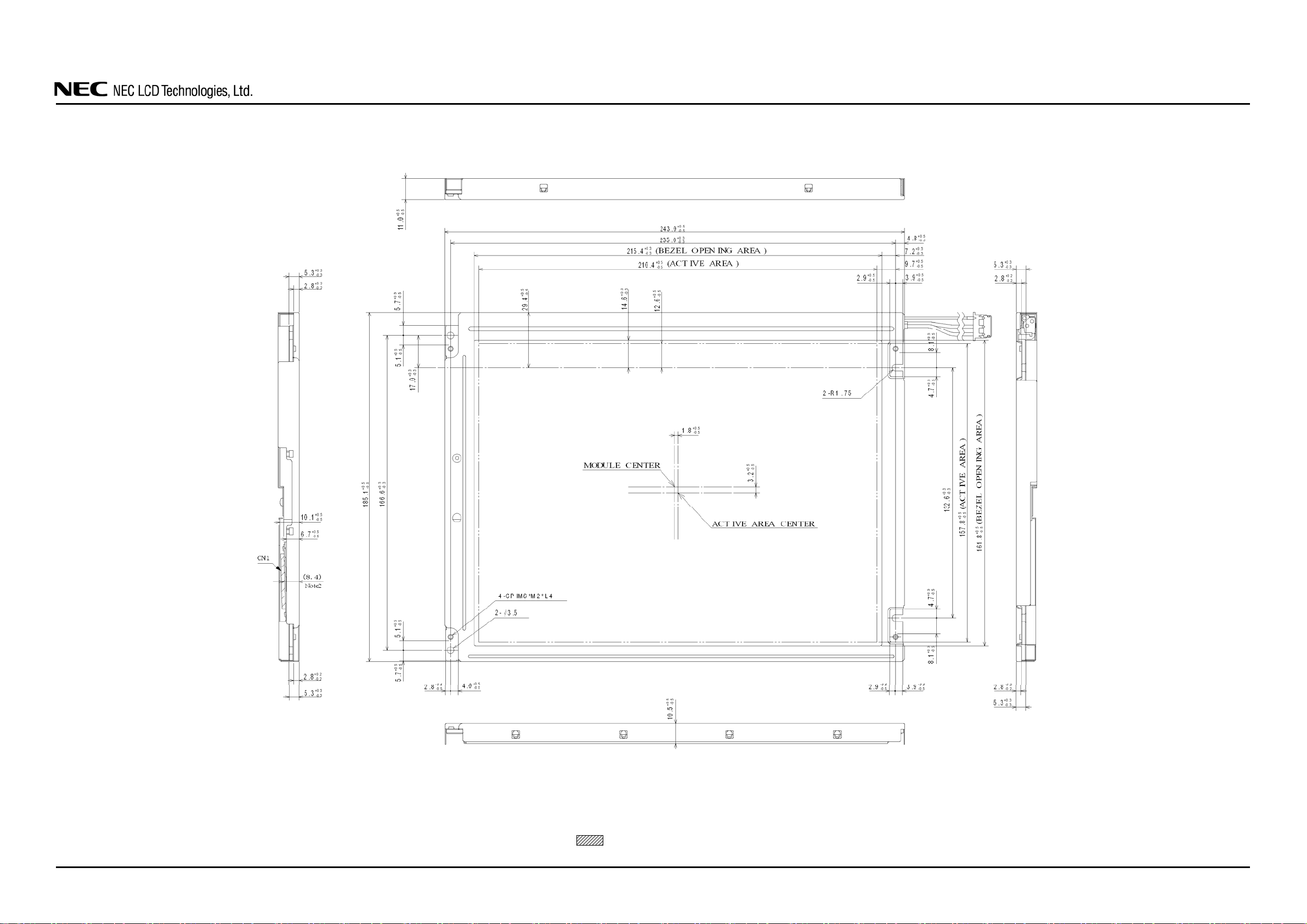

7. OUTLINE DRAWINGS...........................................................................................................................25
7.1 FRONT VIEW......................................................................................................................................
7.2 REAR VIEW ........................................................................................................................................
2
4
4
4
4
6
7
7
7
8
8
9
10
10
11
11
11
12
12
13
13
14
15
16
16
17
17
17
18
19
19
20
20
20
20
21
22
22
22
22
22
23
23
24
25
26
DATA SHEET DOD-PP-0223 (9th edition)
3
Page 4
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
Color LCD module NL10276BC20-04 is composed of the amorphous silicon thin film transistor
liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film
Transistor) array and a backlight unit.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the
TFT array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated
into best form for active matrix system by a signal processing board, and sent to the driver LSIs which
drive the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the
backlight assembly, when it is controlled by data signals. Color images are created by regulating the
amount of transmitted light through the TFT array of red, green and blue dots.
1.2 APPLICATION
• For industrial use
1.3 FEATURES
• High luminance
• Wide viewing angle
• Wide temperature range
• 6-bit digital RGB signals
• LVDS interface
• Reversible-scan direction
• Edge light type (without inverter)
• Replaceable lamp for backlight
• Acquisition product for UL60950-1/CSA-C22.2 No.60950-1-03 (File number: E170632)
• Compliance with the European RoHS directive (2002/95/EC)
(From product which was produced after April. 1, 2006)
NL10276BC20-04
DATA SHEET DOD-PP-0223 (9th edition)
4
Page 5
2. GENERAL SPECIFICATIONS
Display area
NL10276BC20-04
210.4 (H) × 157.8 (V) mm
Diagonal size of display
Drive system
Display color
Pixel
Pixel arrangement
Dot pitch
Pixel pitch
Module size
Weight
Contrast ratio
Viewing angle
Designed viewing direction
Polarizer surface
26cm (10.4 inches)
a-Si TFT active matrix
262,144 colors
1,024 (H) × 768 (V) pixels
RGB (Red dot, Green dot, Blue dot) vertical stripe
0.0685 (H) × 0.2055 (V) mm
0.2055 (H) × 0.2055 (V) mm
243.0 (W) × 185.1 (H) × 11.0 (D) mm (typ.)
530g (typ.)
300:1 (typ.)
≥
At the contrast ratio
10:1
• Horizontal: Left side 60° (typ.), Right side 60° (typ.)
• Vertical: Up side 45° (typ.), Down side 60° (typ.)
At DPSR= Low or Open: Normal scan
• Viewing direction without image reversal: up side (12 o'clock)
• Viewing direction with contrast peak: down side 5° to 10° (6 o'clock)
• Viewing angle with optimum grayscale (γ=2.2): normal axis
Clear
Polarizer pencil-hardness
Color gamut
Response time
Luminance
Signal system
Power supply voltage
Backlight
Power consumption
3H (min.) [by JIS K5400]
At LCD panel center
40% (typ.) [against NTSC color space]
Ton
+
Toff ( 1 0 % ←→ 90%)
55ms (typ.)
At IBL= 5.0mArms / lamp
300cd/m
2
(typ.)
Single link LVDS (Receiver: THC63LVDF64A, THine Electronics Inc.)
[6-bit digital signals for data of RGB colors, Dot clock (CLK),
Data enable (DE)]
LCD panel signal processing board: 3.3V
Edge light type: 2 cold cathode fluorescent lamps
Replaceable parts
• Lamp holder set: Type No. 104LHS35
Recommended inverter (Option)
• Inverter: Type No. 104PW191
At IBL= 5.0mArms / lamp, Checkered flag pattern
6.2W (typ., Power dissipation of the inverter is not included.)
DATA SHEET DOD-PP-0223 (9th edition)
5
Page 6

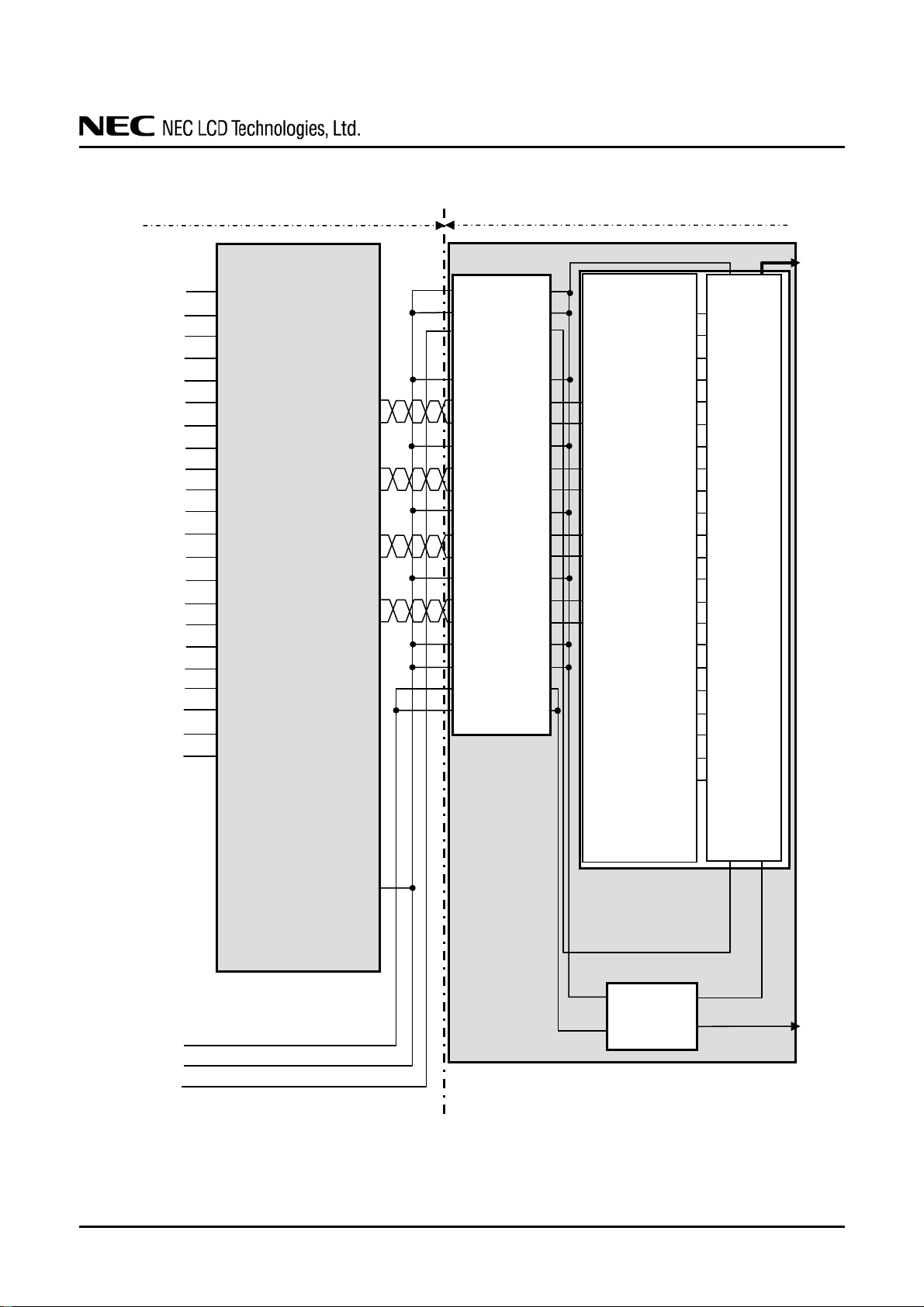

3. BLOCK DIAGRAM
Host
LCD module (Product)
D0+
D0D1+
100Ω
100Ω
D1D2+
D2CLK+
100Ω
100Ω
CLK-
DPSR
GND
Note1
Note2
VCC
Note3
+3.3V
Fuse
FG
Note1
Note2
GNDB
Note2
Note1: Relations between GND (Signal ground), FG (Frame ground) and VBLC (Lamp low voltage
terminal) in the LCD module are as follows.
GND - FG Not connected
GND - VBLC Not connected
FG - VBLC Not connected
Controller with receiver for LVDS
Power supply
for gradation
DC/DC
converter
LCD panel signal processing board
VBLH
Inverter (Option)
VBLH
VBLC
Note1
NL10276BC20-04
H-driver
3,072 lines
LCD panel
H: 1,024 × 3 (R, G, B)
V: 768
768 lines
V-d ri ver
Backlight (Edge light type)
Lamp
Lamp
Metallic frame of lamp holder
V-d ri ver
DATA SHEET DOD-PP-0223 (9th edition)
6
Page 7
Note2: GND, FG and GNDB must be connected to customer equipment's ground, and it is
recommended that these grounds are connected together in customer equipment.
Note3: Pull-down resistance of DPSR pin
min. typ. max.
20 50 132
4. DETAILED SPECIFICATIONS
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
NL10276BC20-04
(kΩ)
Module size
Display area
Weight 530 (typ.), 550 (max.) g
Note1: See "7. OUTLINE DRAWINGS".
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
LCD panel signal board VCC -0.3 to +4.0 V
Power supply voltage
Input voltage for
signals
Storage temperature Tst -20 to +70
Operating temperature
Lamp voltage
Display signals
Function signals
243.0 ± 0.5 (W) × 185.1 ± 0.5 (H) × 11.0 ± 0.5 (D)
210.4 (H) × 157.8 (V)
Note1
Note2
Note3
Front surface TopF 0 to +60
Rear surface TopR 0 to +60
VBLH 1,500 Vrms
VD -0.3 to VCC+0.3 V
VF -0.3 to VCC+0.3 V
Note1 mm
Note1 mm
Ta = 25°C
°C
°C
°C
-
%
%
%
%
g/m
40 < Ta ≤ 50°C
50 < Ta ≤ 55°C
55 < Ta ≤ 60°C
3
Ta ≤ 40°C
Ta > 60°C
Relative humidity
Note4
Absolute humidity
Note4
≤ 95
≤ 85
RH
≤ 70
≤ 60
AH
≤ 78
Note5
Note1: "VBLH" is the voltage value between low voltage terminal (Cold) and high voltage terminal
(Hot).
Note2: Display signals are D0+/-, D1+/-, D2+/- and CLK+/-.
Note3: Function signal is DPSR.
Note4: No condensation
Note5: Water amount at Ta= 60°C and RH= 60%
DATA SHEET DOD-PP-0223 (9th edition)
7
Page 8
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VCC 3.0 3.3 3.6 V -
Power supply current ICC -
Input voltage swing Vi 0 - 2.4 V -
300
Note1
NL10276BC20-04
(Ta = 25°C)
500
Note2
mA VCC= 3.3V
Differential input threshold
voltage for LVDS receiver
Input voltage for DPSR signal
High VTH - - +100 mV
Low VTL -100 - - mV
High VFDH 2.0 - VCC V
Low VFDL 0 - 0.8 V
Note1: Checkered flag pattern [by EIAJ ED-2522]
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS receiver
VCM= 1.2V
Note3
-
DATA SHEET DOD-PP-0223 (9th edition)
8
Page 9
⏐
⏐
×
⏐
×
4.3.2 Backlight lamp
Note1: This product consists of 2 backlight lamps, and these specifications are for each lamp.
Note2: The lamp voltage cycle between lamps should be kept on a same phase. "VS" and "VBLH"
Note3: The asymmetric ratio of working waveform for lamps (Power supply voltage peak ratio,
Note4: This product consists of 2 lamps. 2 lamps are contained in the 1 lamp holder, and both lamps
Note5: The inverter should be designed so that the lamp starting voltage can be maintained for more
Note6: In case "FO" is not the recommended value, beat noise may display on the screen, because of
Note7: Method of lamp cable installation may invite fluctuation of lamp current and voltage or
NL10276BC20-04
Parameter Symbol Ta min. typ. max. Unit Remarks
Lamp starting voltage VS
Lamp voltage VBLH
Lamp current IBL
Lamp oscillation frequency FO
0°C
25°C
25°C
25°C
25°C
are the voltage value between low voltage side (Cold) and high voltage side (Hot).
power supply current peak ratio and waveform space ratio) should be less than 5 % (See the
following figure.). If the waveform is asymmetric, DC (Direct current) element apply into the
lamp. In this case, a lamp lifetime may be shortened, because a distribution of a lamp
enclosure substance inclines toward one side between low voltage terminal (Cold terminal)
and high voltage terminal (Hot terminal). When designing the inverter, evaluate asymmetric of
lamp working waveform sufficiently.
Pa
Sa
0
Sb
Pb
Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative
Sa: Waveform space for positive part, Sb: Waveform space for negative part
are connected to 1 low voltage cable. The recommended lamp current is 5.0mArms typical for
each lamp, and sum of 2 lamps is 10mArms typical. The lamp current should be measured by
high-frequency current meter at the low voltage terminal.
than 1 second. Otherwise the lamp may not be turned on.
interference between "FO" and "1/th". Recommended value of "FO" is as following.
1
4
1
× ×
th
(2n-1) FO =
th: Horizontal synchronous cycle (See "4.9.3 T iming characteristics".)
n: Natural number (1, 2, 3 ⋅⋅⋅⋅⋅⋅⋅⋅)
asymmetric of lamp working waveform. When designing method of lamp cable installation,
evaluate the fluctuation of lamp current, voltage and working waveform sufficiently.
1,100 - - Vrms
850 - - Vrms
- 520 - Vrms Note2, Note3
2.0 5.0 5.5
60 65 70 kHz Note6
Pa - Pb
Pb
Sa - Sb⏐
Sb
mAr
ms
100 ≤ 5 %
100 ≤ 5 %
Note2, Note3,
Note5, Note8
Note3, Note4
(Note1)
DATA SHEET DOD-PP-0223 (9th edition)
9
Page 10
Note8: In case of Inverter with Ballast condenser, "VS" is the voltage level between Ballast condenser
and Connector (Refer to the below “Example of measurement”). "VS" should be designed to
be more than minimum "VS". Otherwise the lamp may not be turned on because the lamp
starting voltage is less than minimum "VS".

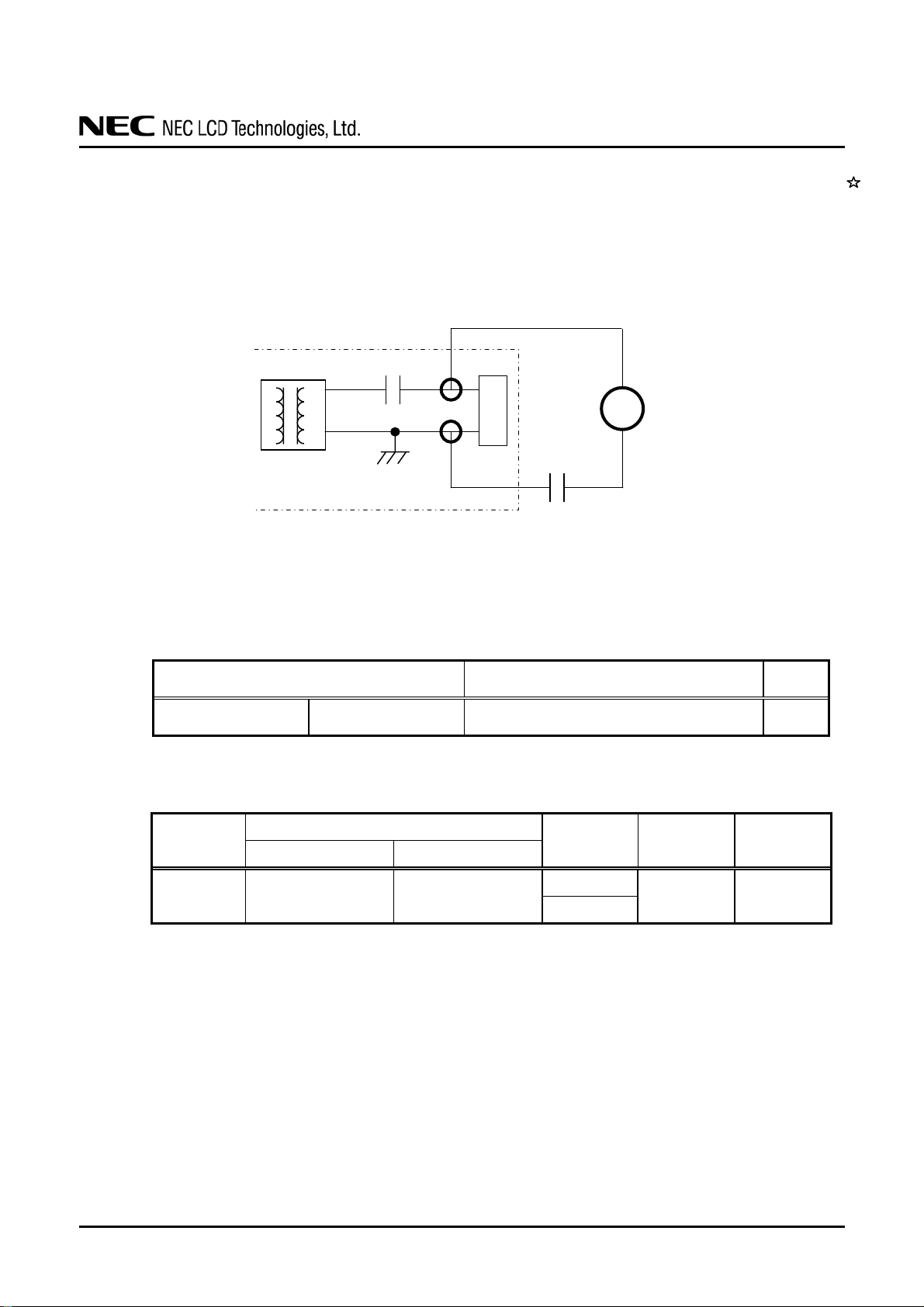

Example of measurement
Probe capacity: 3pF (Tektronix, inc.: P6015A)
Transformer
4.3.3 Power supply voltage ripple
This product works, even if the ripple voltage levels are beyond the permissible values as following
the table, but there might be noise on the display image.
Power supply voltage
Ballast condenser
Inverter
NL10276BC20-04
(Lamp side)
Connector
Probe capacity
Ripple voltage Note1
(Measure at input terminal of power supply)
High voltage probe
VS
Unit
VCC 3.3V
≤ 100
Note1: The permissible ripple voltage includes spike noise.
4.3.4 Fuse
Parameter
Type Supplier
VCC TF16SN2.00T KOA Corporation
Fuse
Rating Fusing current Remarks
2.0A
32V
4.0A Note1
Note1: The power supply capacity should be more than the fusing current. If it is less than the fusing
current, the fuse may not blow in a short time, and then nasty smell, smoke and so on may
occur.
mVp-p
DATA SHEET DOD-PP-0223 (9th edition)
10
Page 11
4.4 POWER SUPPLY VOLTAGE SEQUENCE
4.4.1 LCD panel signal processing board
VCC
Note1
3.0V
0V
0ms < t < 35ms
Note1: In terms of voltage variation (voltage drop) while VCC rising edge is below 3.0V, a protection
circuit may work, and then this product may not work.
Note2: Display signals (D0+/-, D1+/-, D2+/- and CLK+/-) and function signal (DPSR) must be Low
or High-impedance, exclude the VALID period (See above sequence diagram), in order to
avoid that internal circuits is damaged.
If some of display and function signals of this product are cut while this product is working,
even if the signal input to it once again, it might not work normally. VCC should be cut when
the display and function signals are stopped.
4.4.2 Inverter (Option)
Display and
function signals
Note1
VDDB
Note1: These are display and function signals for LCD panel signal processing board.
Note2: The backlight should be turned on within the valid period of display and function signals, in
order to avoid unstable data display.
ON
Tr < 50ms
VALID period
Note2
OFF
0ms < t < 35ms
VALID period
NL10276BC20-04
ON
Toff > 100ms
DATA SHEET DOD-PP-0223 (9th edition)
11
Page 12
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS
4.5.1 LCD panel signal processing board
CN1 socket (Module side): FI-SE20P-HFE (Japan Aviation Electronics Industry Limited)
Adaptable plug: FI-S20S (Japan Aviation Electronics Industry Limited)
Pin No. Symbol Function Remarks
NL10276BC20-04
1 GND
2 GND
3 DPSR Selection of scan direction
4 N.C. - Keep this pin Open.
5 GND Ground Note1
6 CLK+
7 CLK-
8 GND Ground Note1
9 D2+
10 D2-
11 GND Ground Note1
12 D1+
13 D1-
14 GND Ground Note1
Ground Note1
High: Reverse scan
Low or Open: Normal scan Note2
Pixel clock Note3
Pixel data Note3
Pixel data Note3
15 D0+
Pixel data Note3
16 D0-
17 GND
Ground
18 GND
Note1
19 VCC
Power supply
20 VCC
Note1: All GND and VCC terminals should be used without any non-connected lines.
Note2: See "4.8 SCANNING DIRECTIONS".
Note3: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
Note4: See "4.5.4 Connection between receiver and transmitter for LVDS".
DATA SHEET DOD-PP-0223 (9th edition)
12
Page 13
4.5.2 Backlight lamp
Attention: VBLH and VBLC must be connected correctly. Wrong connections will cause electric
shock and also break down of the product.
CN2 plug: BHR-03VS-1 (J.S.T Mfg. Co., Ltd.)
Adaptable socket: SM03 (4.0) B-BHS-1-TB (LF) (SN),
SM03 (4.0) B-BHS-1-TB (J.S.T Mfg. Co., Ltd.)
Pin No. Symbol Signal Remarks
1 VBLC Low voltage (Cold) Cable color: Gray
2 VBLH High voltage (Hot) Cable color: White
3 VBLH High voltage (Hot) Cable color: White

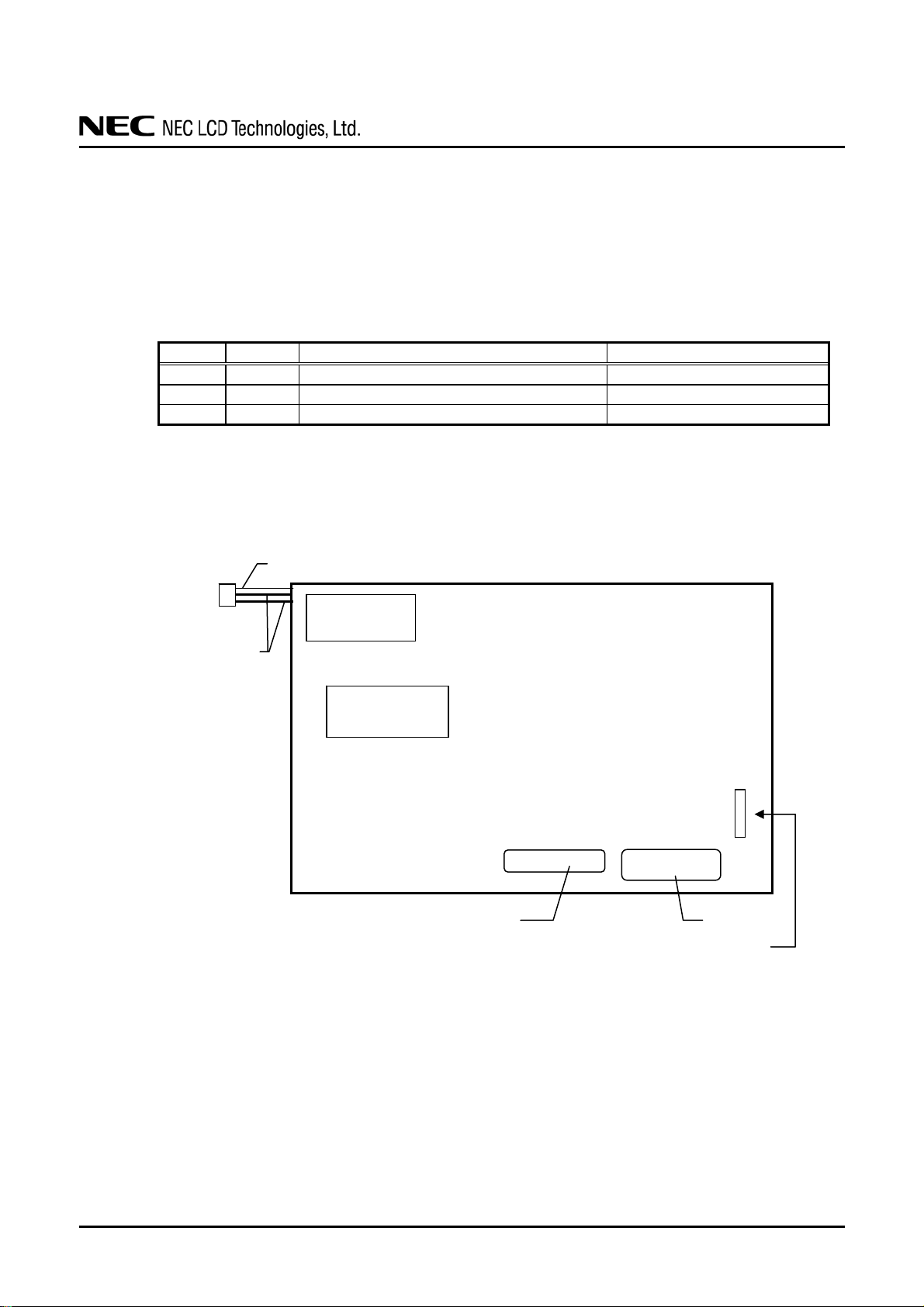

4.5.3 Positions of a plug and a socket
High voltage (Hot)
1
3
CN2
Low voltage (Cold)
High voltage
caution marking
Disposal method
marking for lamp
Barcode label
NL10276BC20-04
Rear side
1
CN1
20
Name plate
Insert direction
DATA SHEET DOD-PP-0223 (9th edition)
13
Page 14
4.5.4 Connection between receiver and transmitter for LVDS
Host
Note2 “High”
VCC (+3.3V)
R0
R1
R2
R3
R4
R5
G0
G1
G2
G3
G4
G5
B0
B1
B2
B3
B4
B5
Note3
DE
CLK
GND
DPSR
TA 0
TA 1
TA 2
TA 3
TA 4
TA 5
TA 6
TB0
TB1
TB2
TB3
TB4
TB5
TB6
TC0
TC1
TC2
TC3
TC4
TC5
TC6
CLK IN
Transmitter for LVDS
THC63LVDM63A
Note1
TCLK+
TCLK-
TC+
TC-
TB+
TB-
TA +
TA -
GND
Note1: Recommended transmitter
See the data sheet for THC63LVDM63A (THine Electronics Inc.).
Note2: TC4 should be fixed to “High”.
Note3: Input signals to TC5 is not used inside the product, but do not keep TC5 open to avoid noise
problem.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GND
GND
DPSR
GND
CLK+
CLK-
GND
GND
GND
GND
GND
VCC
VCC
CN1
Socket
LCD module (Product)
N.C.
D2+
D2-
D1+
D1-
D0+
D0-
LCD panel signal processing board
RCLK+
RCLK-
RC+
RC-
RB+
RB-
RA+
RA-
Receiver for LVDS
Equivalent of
THC63LVDF64A
LCD controller
DC/DC
converter
NL10276BC20-04
Panel driver
GND
Signal
processor
DPSR
VCC
Panel driver
DATA SHEET DOD-PP-0223 (9th edition)
14
Page 15
4.6 DISPLAY COLORS AND INPUT DATA SIGNALS
This product can display in equivalent to 262,144 colors in 64 gray scales. Also the relation between
display colors and input data signals is as the following table.
Display colors
Black
Blue
Red
Magenta
Green
Basic colors
Red gray scale
Green gray scale
Blue gray scale
Cyan
Yellow
White
Black
dark
bright
Red
Black
dark
bright
Green
Black
dark
bright
Blue
↑
↓
↑
↓
↑
↓
R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
000000
000000
111111
111111
000000
000000
111111
111111
000000
000001
000010
:
:
111101
111110
111111
000000
000000
000000
:
:
000000
000000
000000
000000
000000
000000
:
:
000000
000000
000000
NL10276BC20-04
Data signal (0: Low level, 1: High level)
000000
000000
000000
000000
111111
111111
111111
111111
000000
000000
000000
:
:
000000
000000
000000
000000
000001
000010
:
:
111101
111110
111111
000000
000000
000000
:
:
000000
000000
000000
000000
111111
000000
111111
000000
111111
000000
111111
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000000
000001
000010
111101
111110
111111
:
:
:
:
:
:
DATA SHEET DOD-PP-0223 (9th edition)
15
Page 16
4.7 DISPLAY POSITIONS
The following table is the coordinates per pixel (See figure of "4.8 SCANNING DIRECTIONS".).
C (0, 0 )
R G B
C( 0, 0) C( 1, 0)
C( 0, 1) C( 1, 1)
•
•
•
C( 0, Y) C( 1, Y)
•
•
•
C( 0, 766) C( 1, 766)
C( 0, 767) C( 1, 767)
4.8 SCANNING DIRECTIONS
The following figures are seen from a front view. Also the arrow shows the direction of scan.
Note1: Meaning of C (X, Y) and D (X, Y)
C (X, Y): The coordinates of the display position (See "4.7 DISPLAY POSITIONS".)
D (X, Y): The data number of input signal for LCD panel signal processing board
• • •
• • •
•
•
•
•
•
•
•
• • •
•
• • •
•
• • •
•
• • •
• • •
C (0,0)
D (0,0)
C (0,767)
D (0,767)
C( X, 0)
C( X, 1)
•
•
•
C( X, Y)
•
•
•
C( X, 766)
C( X, 767)
C (1023,0)
D (1023,0)
C (1023,767)
D (1023,767)
Figure 1. Normal scan (DPSR: Low or Open)
C (0,0)
D (1023,767)
C (0,767)
D (1023,0)
C (1023,0)
D (0,767)
C (1023,767)
D (0,0)
Figure 2. Reverse scan (DPSR: High)
• • •
• • •
•
• • •
•
• • •
•
• • •
•
• • •
• • •
NL10276BC20-04
C(1022, 0) C(1023, 0)
C(1022, 1) C(1023, 1)
•
•
•
C(1022, Y) C(1023, Y)
•
•
•
C(1022, 766) C(1023, 766)
C(1022, 767) C(1023, 767)
Note1
Note1
•
• • •
•
•
•
•
DATA SHEET DOD-PP-0223 (9th edition)
16
Page 17
4.9 INPUT SIGNAL TIMINGS
4.9.1 Outline of input signal timings
• Horizontal signal
Note1
Data enable
(DE)
Display period
• Vertical signal
Note1
Data enable
(DE)
Display period
Note1: This diagram indicates virtual signal for set up to timing.
Note2: See "4.9.2 Input signal timing chart" for numeration of pulse.
4.9.2 Input signal timing chart
• Outline chart
VDRH
0.5VCC
CLK
VDRL
VDRH
DATA
(R0 to R5)
(G0 to G5)
(B0 to B5)
VDRL
VDRH
0.5VCC
DE
VDRL
Note1: X is data number from 1 to 1022. See "4.8 SCANNING DIRECTIONS".
1
tc
tch
tcrf
1
tcrf
tds
D (0, 0) D (1023, 0)
tdrf
tdeh
tderf
tdes
A
tdh
tdrf
Horizontal display period (thd)
Vertical display period (tvd)
tderf
1025
1024
th
34
1344 (typ.)
tdes
2
X+1
thd
D (X, 0)
tdeh
1
Note1
NL10276BC20-04
768
D (1023, 2)
D (X, 2) D (0, 2)
2
tvd
tv
Note2
D (1023, 767)
D (X, 767) D (0, 767)
768
Note1
DATA SHEET DOD-PP-0223 (9th edition)
17
Page 18
• Detail of A part
CLK
VDRH
0.5VCC
VDRL
tch
tc
DATA
(R0 to R5)
(G0 to G5)
(B0 to B5)
DE
VDRH
VDRL
VDRH
VDRL
tcrf
tcrf
tds
1
tdh
D (0, 0)
tdrf
tdeh
tdrf
tdes
tderf
X+1
D (X, 0)
Note1
Note1
tdeh
Note1: X is data number from 1 to 1022. See "4.8 SCANNING DIRECTIONS".
4.9.3 Timing characteristics
Parameter Note1 Symbol min. typ. max. Unit Remarks
Frequency tcf 60.0 65.0 68.0 MHz 15.4ns (typ.)
CLK
DATA
DE
CLK-DATA
Horizontal
Vertical
(One frame)
CLK-DE
Duty tcd - - - -
Rise time, Fall time tcrf - - - -
Setup time tds - - - -
Hold time tdh - - - -
Rise time, Fall time tdrf - - - -
Cycle th
Display period thd 1,024 CLK
Cycle tv
Display period tvd 768 H
Setup time tdes - - - -
Hold time tdeh - - - -
Rise time, Fall time tderf - - - -
19.67 20.676 22.4
- 1,344 - CLK
13.3 16.666 18.5 ms
780 806 - H
Note1: Definition of parameters is as follows.
tcf= 1/tc, tcd= tch/tc= tch×tcf, tc= 1CLK, th= 1H
Note2: See the data sheet of LVDS transmitter.
NL10276BC20-04
1024
D (1023, 0)
tderf
μs
1025
tdes
(Note1)
Note2
48.363kHz (typ.)
60.0Hz (typ.)
Note2
DATA SHEET DOD-PP-0223 (9th edition)
18
Page 19
4.10 OPTICS
4.10.1 Optical characteristics
Parameter Condition Symbol min. typ. max. Unit Remarks
Contrast ratio
Luminance
Luminance uniformity
Chromaticity
Color gamut
White/Black at center
θR= 0°, θL= 0°, θU= 0°, θD= 0°
White at center
θR= 0°, θL= 0°, θU= 0°, θD= 0°
White
θR= 0°, θL= 0°, θU= 0°, θD= 0°
White
Red
Green
Blue
θR= 0°, θL= 0°, θU= 0°, θD= 0°
at center, against NTSC color space
x coordinate Wx
y coordinate Wy
x coordinate Rx
y coordinate Ry
x coordinate Gx
y coordinate Gy
x coordinate Bx
y coordinate By
NL10276BC20-04
(Note1, Note2)
CR 150 300 - - Note3
L 240 300 - cd/m2 -
LU - 1.24 1.40 - Note4
0.315 -
-
0.340 -
-
0.575
-
0.335
-
0.332
-
0.536
-
0.153
-
0.150
-
C 35 40 - %
- -
- -
- -
- -
- -
- -
-
-
Note5
White to black Ton - 15 30 ms
Response time
Black to white Toff - 40 60 ms
Viewing angle
Right
Left
Up
Down
θU= 0°, θD= 0°, CR≥ 10 θR
θU= 0°, θD= 0°, CR≥ 10 θL
θR= 0°, θL= 0°, CR≥ 10 θU
θR= 0°, θL= 0°, CR≥ 10 θD
- 60 -
- 60 -
- 45 -
- 60 -
Note1: These are initial characteristics.
Note2: Measurement conditions are as follows.
Ta= 2 5°C, VCC= 3.3V, IBL= 5.0mArms/lamp, Display mode: XGA,
Horizontal cycle= 1/48.363kHz, Vertical cycle= 1/60.0Hz, DPSR= Low or Open: Normal
scan
Optical characteristics are measured at luminance saturation after 20minutes from working
the product, in the dark room. Also measurement methods are as follows.
50cm
Photodetector (BM-5A)
LCD module
(Product)
1°
Note3: See "4.10.2 Definition of contrast ratio".
Note4: See "4.10.3 Definition of luminance uniformity".
Note5: These coordinates are found on CIE 1931 chromaticity diagram.
Note6: Product surface temperature: TopF= 25°C
Note7: See "4.10.4 Definition of response times".
Note8: See "4.10.5 Definition of viewing angles".
Note6
Note7
°
°
Note8
°
°
DATA SHEET DOD-PP-0223 (9th edition)
19
Page 20
N
4.10.2 Definition of contrast ratio
The contrast ratio is calculated by using the following formula.
Contrast ratio (CR) =
4.10.3 Definition of luminance uniformity
The luminance uniformity is calculated by using following formula.
Luminance uniformity (LU) =
The luminance is measured at near the 5 points shown below.
128
384
640
4.10.4 Definition of response times
Response time is measured, the luminance changes from "white" to "black", or "black" to "white"
on the same screen point, by photo-detector. Ton is the time it takes the luminance change from 90%
down to 10%. Also Toff is the time it takes the luminance change from 10% up to 90% (See the
following diagram.).
White
100%
Luminance
Black
4.10.5 Definition of viewing angles
ormal axis (Perpendicular)
θL
Left
θD
Lower
Luminance of white screen
Luminance of black screen
Maximum luminance from ① to ⑤
Minimum luminance from ① to ⑤
171 512 853
①
③
④ ⑤
90%
10%
0%
12 o’clock
θU
Upper
θR
DATA SHEET DOD-PP-0223 (9th edition)
②
Ton
Right
NL10276BC20-04
Tof f
20
Page 21
5. RELIABILITY TESTS
Test item Condition Judgement
NL10276BC20-04
High temperature and humidity
(Operation)
High temperature
(Operation)
Heat cycle
(Operation)
Thermal shock
(Non operation)
ESD
(Operation)
Dust
(Operation)
Vibration
(Non operation)
Mechanical shock
(Non operation)
① 55 ± 2°C, RH= 85%, 240hours
② Display data is black.
① 60 ± 2°C, 240hours
② Display data is black.
① 0 ± 3°C…1hour
60 ± 3°C…1hour
② 50cycles, 4hours/cycle
③ Display data is black.
① -20 ± 3°C…30minutes
70 ± 3°C…30minutes
② 100cycles, 1hour/cycle
③ Temperature transition time is within
5 minutes.
① 150pF, 150Ω, ±10kV
② 9 places on a panel surface Note2
③ 10 times each places at 1 sec interval
① Sample dust: No. 15 (by JIS-Z8901)
② 15 seconds stir
③ 8 times repeat at 1 hour interval
① 5 to 100Hz, 11.76m/s
② 1 minute/cycle
③ X, Y, Z direction
④ 120 times each directions
① 539m/ s
② ±X, ±Y, ±Z direction
③ 5 times each directions
2
, 11ms
2
No display malfunctions Note1
No display malfunctions
No physical damages
Note1
Note1: Display and appearance are checked under environmental conditions equivalent to the
inspection conditions of defect criteria.
Note2: See the following figure for discharge points.
{ {
{
{
{
{
{
{
{
DATA SHEET DOD-PP-0223 (9th edition)
21
Page 22
!
6. PRECAUTIONS
6.1 MEANING OF CAUTION SIGNS
The following caution signs have very important meaning. Be sure to read "6.2 CAUTIONS" and
"6.3 ATTENTIONS", after understanding these contents!
This sign has the meaning that customer will be injured by himself or the product will
sustain a damage, if customer has wrong operations.
This sign has the meaning that customer will get an electrical shock, if customer has
wrong operations.
This sign has the meaning that customer will be injured by himself, if customer has
wrong operations.
6.2 CAUTIONS
∗ Do not touch the working backlight. There is a danger of an electric shock.
NL10276BC20-04
∗ Do not touch the working backlight. There is a danger of burn injury.
∗ Do not shock and press the LCD panel and the backlight! There is a danger of
breaking, because they are made of glass. (Shock: To be not greater 539m/s
not greater 11ms, Pressure: To be not greater 19.6 N (φ16mm jig))
6.3 ATTENTIONS
6.3.1 Handling of the product
① Take hold of both ends without touching the circuit board when the product (LCD module) is
picked up from inner packing box to avoid broken down or misadjustment, because of stress to
mounting parts on the circuit board.
② Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage.
③ When the product is put on the table temporarily, display surface must be placed downward.
④ When handling the product, take the measures of electrostatic discharge with such as earth band,
ionic shower and so on, because the product may be damaged by electrostatic.
⑤ The torque for product mounting screws must never exceed 0.294N⋅m. Higher torque might result
in distortion of the bezel.
⑥ he product must be installed using mounting holes without undue stress such as bends or twist (See
outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends or
twist described above and undue stress to any portion may cause display mura.
⑦ Do not press or rub on the sensitive product surface. When cleaning the product surface, use of the
cloth with ethanolic liquid such as screen cleaner for LCD is recommended.
2
and to be
!
DATA SHEET DOD-PP-0223 (9th edition)
22
Page 23
⑧ Do not push nor pull the interface connectors while the product is working.
⑨ Do not bend or unbend the lamp cable at the near part of the lamp holding rubber, to avoid the
⑩ Properly connect the plug (backlight side) to adaptable socket (inverter side) without incomplete
⑪ If the lamp cable is attached on the metal part of the product directly, high frequency leak current
⑫ When not connecting FG of the LCD module to the customer's equipment ground, inverter noise
⑬ When handling the product, use of an original protection sheet on the product surface (polarizer) is
⑭ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of
6.3.2 Environment
① Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive
② In order to prevent dew condensation occurring by temperature difference, the product packing
③ Do not operate in high magnetic field. Circuit boards may be broken down by it.
④ This product is not designed as radiation hardened.
6.3.3 Characteristics
The following items are neither defects nor failures.
① Response time, luminance and color may be changed by ambient temperature.
② Display mura, flicker, vertical seam or small spot may be observed depending on display patterns.
③ Optical characteristics (e.g. luminance, display uniformity, etc.) gradually is going to change
④ Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen
⑤ The display color may be changed depending on viewing angle because of the use of condenser
⑥ Optical characteristics may be changed depending on input signal timings.
⑦ The interference noise between input signal frequency for this product's signal processing board
⑧ After the product is stored under condition of low temperature or dark place for a long time, the
NL10276BC20-04
damage for high voltage side of the lamp.
connection. After connecting, be careful not to hook the lamp cables because incomplete
connection may occur by hooking the lamp cables. This incomplete connection may cause
abnormal operation of high voltage circuit.
to the metal part may occur, then the brightness may decrease or the lamp may not be turned on.
may create video noise on the LCD screen.
recommended for protection of product surface. Adhesive type protection sheet may change color
or characteristics of the polarizer.
thin layer and the construction of LCD panel. But, if you contact with liquid crystal for the worst,
please wash it out with soap.
gases. Keep the product in packing box with antistatic pouch in room temperature to avoid dusts
and sunlight, when storing the product.
box should be opened after enough time being left under the environment of an unpacking room.
Evaluate the leaving time sufficiently because a situation of dew condensation occurring is
changed by the environmental temperature and humidity. (Recommended leaving time: 6 hours or
more with packing state)
depending on operating time, and especially low temperature, because the LCD has cold cathode
fluorescent lamps.
saver, if the fixed pattern is displayed on the screen.
sheet in the backlight.
and luminance control frequency of the inverter may appear on a display. Set up luminance control
frequency of the inverter so that the interference noise does not appear.
cold cathode fluorescent lamp may not be turned on under the same condition because of the
general characteristic of cold cathode fluorescent lamp. In addition, when Luminance control ratio
is low in pulse width modulation method inverter, the lamp may not be turned on. In this case,
power should be supplied again.
DATA SHEET DOD-PP-0223 (9th edition)
23
Page 24
NL10276BC20-04
6.3.4 Other
① All GND and VCC terminals should be used without any non-connected lines.
② Do not disassemble a product or adjust variable resistors.
③ See "REPLACEMENT MANUAL FOR LAMP HOLDER SET", when replacing backlight lamps.
④ Pay attention not to insert foreign materials inside of the product, when using tapping screws.
⑤ Pack the product with original shipping package, in order to avoid any damages during
transportation, when returning the product to NEC for repair and so on.
DATA SHEET DOD-PP-0223 (9th edition)
24
Page 25
7. OUTLINE DRAWINGS
7.1 FRONT VIEW
Note1: The values in parentheses are for reference.
Note2: Distance between center of CN1 and surface of front shield.
Note3: The torque for product mounting screws must never exceed 0.294 N⋅m.
Note4: Mounting hole portions (4 pieces)
NL10276BC20-04
Unit: mm
DATA SHEET DOD-PP-0223 (9th edition)
25
Page 26
7.2 REAR VIEW
Note1: The values in parentheses are for reference.
Note2: The torque for product mounting screws must never exceed 0.294 N⋅m.
NL10276BC20-04
Unit: mm
DATA SHEET DOD-PD-0836 (7th edition)
26
Loading...
