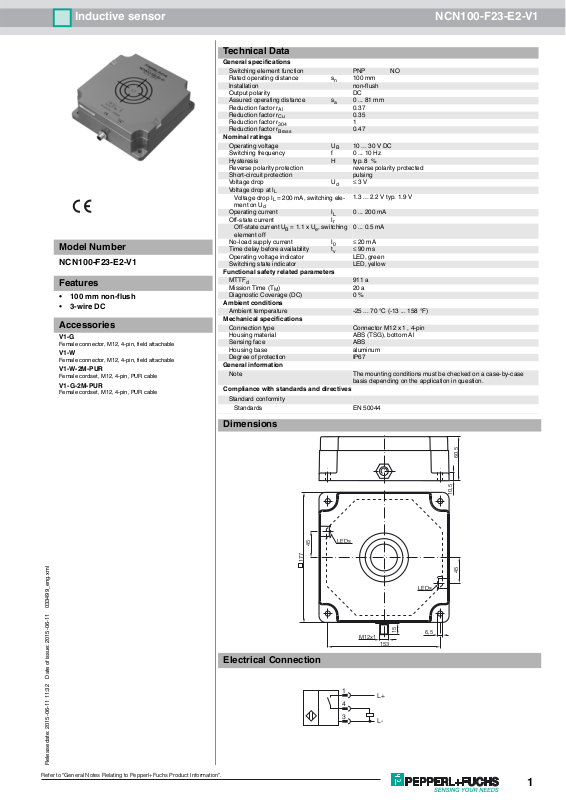

Page 1
Inductive sensor NCN100-F23-E2-V1
Technical Data
General specifications
Switching element function PNP NO
Model Number
NCN100-F23-E2-V1
Features
• 100 mm non-flush
•3-wire DC
Accessories
V1-G
Female connector, M12, 4-pin, field attachable
V1-W
Female connector, M12, 4-pin, field attachable
V1-W-2M-PUR
Female cordset, M12, 4-pin, PUR cable
V1-G-2M-PUR
Female cordset, M12, 4-pin, PUR cable
Rated operating distance s
Installation non-flush
Output polarity DC
Assured operating distance sa0 ... 81 mm
Reduction factor r
Reduction factor rCu 0.35
Reduction factor r
Reduction factor r
Nominal ratings
Operating voltage UB10 ... 30 V DC
Switching frequency f 0 ... 10 Hz
Hysteresis H typ. 8 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Vol tag e d rop U
Vol tag e d rop at IL
Vol tage dro p I
ment on U
Operating current I
Off-state current I
Off-state current UB = 1.1 x Ue, switching
element off
No-load supply current I
Time delay before availability t
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 911 a
Mission Time (T
Diagnostic Coverage (DC) 0 %
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type Connector M12 x 1 , 4-pin
Housing material ABS (TSG), bottom Al
Sensing face ABS
Housing base aluminum
Degree of protection IP67
General information
Note The mounting conditions must be checked on a case-by-case
Compliance with standards and directives
Stan dard conf ormit y
Sta ndar ds
0.37
Al
1
304
0.47
Brass
= 200 mA, switching ele-
L
d
) 20 a
M
100 mm
n
≤ 3 V
d
1.3 ... 2.2 V typ. 1.9 V
0 ... 200 mA
L
r
0 ... 0.5 mA
≤ 20 mA
0
≤ 90 ms
v
basis depending on the application in question.
EN 50044
Dimensions
45
177
Electrical Connection
LEDs
1
4
3
M12x1
60,5
10,5
45
LEDs
15
6,5
153
L+
L-
Release date: 2015-06-11 11:32 Date of issue: 2015-06-11 033499_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
1
Page 2
Inductive sensor NCN100-F23-E2-V1
Pinout
1
2
Wire colors in accordance with EN 60947-5-2
1 BN
2 WH
3 BU
4 BK
(brown)
(white)
(blue)
(black)
4
3
Release date: 2015-06-11 11:32 Date of issue: 2015-06-11 033499_eng.xml
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
2
