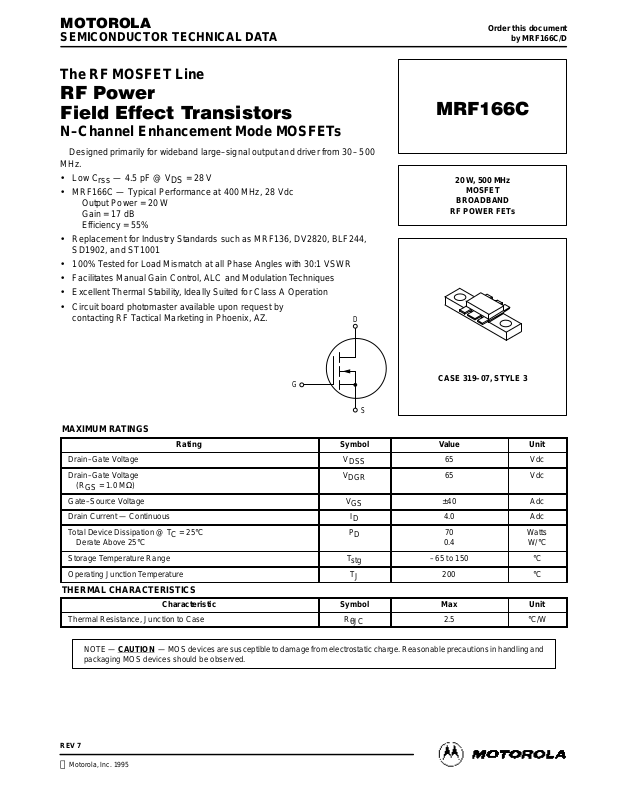

MRF166CMOTOROLA RF DEVICE DATA

The RF MOSFET Line

 
  

N–Channel Enhancement Mode MOSFETs

Designed primarily for wideband large–signal output and driver from 30–500

MHz.

• Low C

rss

— 4.5 pF @ VDS = 28 V

• MRF166C — Typical Performance at 400 MHz, 28 Vdc
Output Power = 20 W
Gain = 17 dB
Efficiency = 55%

• Replacement for Industry Standards such as MRF136, DV2820, BLF244,

SD1902, and ST1001

• 100% Tested for Load Mismatch at all Phase Angles with 30:1 VSWR

• Facilitates Manual Gain Control, ALC and Modulation Techniques

• Excellent Thermal Stability, Ideally Suited for Class A Operation

• Circuit board photomaster available upon request by

contacting RF Tactical Marketing in Phoenix, AZ.

MAXIMUM RATINGS

Rating Symbol Value Unit

Drain–Gate Voltage V

DSS

65 Vdc

Drain–Gate Voltage

(RGS = 1.0 MΩ)

V

DGR

65 Vdc

Gate–Source Voltage V

GS

±40 Adc

Drain Current — Continuous I

D

4.0 Adc

Total Device Dissipation @ TC = 25°C

Derate Above 25°C

P

D

70

0.4

Watts

W/°C

Storage Temperature Range T

stg

–65 to 150 °C

Operating Junction Temperature T

J

200 °C

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Thermal Resistance, Junction to Case R

θJC

2.5 °C/W

NOTE — CAUTION — MOS devices are susceptible to damage from electrostatic charge. Reasonable precautions in handling and
packaging MOS devices should be observed.

Order this document

by MRF166C/D



SEMICONDUCTOR TECHNICAL DATA



20 W, 500 MHz

MOSFET

BROADBAND

RF POWER FETs

CASE 319–07, STYLE 3

 Motorola, Inc. 1995

D

G

S

REV 7

MRF166C
2

MOTOROLA RF DEVICE DATA

ELECTRICAL CHARACTERISTICS (T

C

= 25°C unless otherwise noted)

Characteristic

Symbol Min Typ Max Unit

OFF CHARACTERISTICS

Drain–Source Breakdown Voltage

(VGS = 0 V, ID = 5.0 mA)

V

(BR)DSS

65 — — V

Zero Gate Voltage Drain Current

(VDS = 28 V, VGS = 0 V)

I

DSS

— — 1.0 mA

Gate–Source Leakage Current

(VGS = 40 V, VDS = 0 V)

I

GSS

— — 1.0 µA

ON CHARACTERISTICS

Gate Threshold Voltage

(VDS = 10 V, ID = 25 mA)

V

GS(th)

1.0 3.0 6.0 V

Forward Transconductance

(VDS = 10 V, ID = 1.5 A)

g

fs

600 800 — mhos

DYNAMIC CHARACTERISTICS

Input Capacitance

(VDS = 28 V, VGS = 0 V, f = 1.0 MHz)

C

iss

— 30 — pF

Output Capacitance

(VDS = 28 V, VGS = 0 V, f = 1.0 MHz)

C

oss

— 35 — pF

Reverse Transfer Capacitance

(VDS = 28 V, VGS = 0 V, f = 1.0 MHz)

C

rss

— 4.5 — pF

FUNCTIONAL CHARACTERISTICS

Noise Figure

(VDD = 28 V, f = 30 MHz, IDQ = 50 mA)

NF — 2.5 — dB

Common Source Power Gain

(VDD = 28 V, P

out

= 20 W, f = 400 MHz, IDQ = 100 mA)

G

ps

14 17 — dB

Drain Efficiency

(VDD = 28 V, P

out

= 20 W, f = 400 MHz, IDQ = 100 mA)

η 50 55 — %

Electrical Ruggedness

(VDD = 28 V, P

out

= 20 W, f = 400 MHz, IDQ = 100 mA,

Load VSWR 30:1 at All Phase Angles)

ψ No Degradation in Output Power

3

MRF166CMOTOROLA RF DEVICE DATA

Figure 1. MRF166C 400 MHz Test Circuit

C1, C7 — 270 pF Chip Capacitor
C2, C6 — Johanson Trimmer Capacitor, 2–20 pF
C3 — 21 pF Mini Unelco
C4, C8, C9 — 0.01 µF
C5 — 18 pF Mini Unelco
C10, C11 — 680 pF Feed Through
C12, C13 — 50 µF, 50 V
D1 — 1N5925A Motorola Zener

Board Material — Teflon fiberglass
2 oz. Copper clad both sides, εr = 2.55

0.060″ Dielectric Thickness

L1 — #18 AWG, 2 Turns, 0.25″ ID 0.15″ Wide
L2 — #18 AWG Hairpin 0.7″ long, bend into hairpin
RFC1 — Ferroxcube VK200–19/4B
RFC2 — 18 Turns #18 AWG Enameled, 0.3″ ID
R1 — 220 Ω 1/2 Watt
R2 — 1.8 kΩ 1/4 Watt
R3 — 10 kΩ, 10 Turns Bourns
R4 — 10 k 1/4 Watt
Z1 — Microstrip Line 0.150″ wide, 0.420″ long
Z2 — Microstrip Line 0.150″ wide, 0.350″ long
Z3 — Microstrip Line 0.150″ wide, 0.350″ long
Z4 — Microstrip Line 0.150″ wide, 0.450″ long
Z5 — Microstrip Line 0.150″ wide, 1.1″ long
Z6 — Microstrip Line 0.150″ wide, 0.650″ long
Z7 — Microstrip Line 0.150″ wide, 0.200″ long

R3

C4 C13

D1

R2

RFC2

C8

C10

RFC1

C11

C12

+
–

+

–

Vdc

+
–

R4

C9

R1

RF INPUT

C1

Z1 Z2 L1 Z3 L2

Z4

C3

C2

D.U.T.

Z5 Z6 Z7

C7

C6C5

RF OUTPUT

VDD = 28 V

100

1

2

5

10

20

50

2520151050

C

oss

C

iss

C

rss

VGS = 0 V
f = 1 MHz

VDS, DRAIN–SOURCE VOLTAGE (VOLTS)

Figure 2. Capacitance versus Drain–Source Voltage

C, CAPACITANCE (pF)

100100

VDS, DRAIN–SOURCE VOLTAGE (VOLTS)

Figure 3. DC Safe Operating Area

10

1

0.1

I

D

, DRAIN CURRENT (AMPS)

TYPICAL CHARACTERISTICS

TC = 25°C

MRF166C
4

MOTOROLA RF DEVICE DATA

VDS, DRAIN–SOURCE (VOLTS)

35
30

25

20

15

10

5
0

0.8

Pin, INPUT POWER (WATTS)

Figure 4. Output Power versus Input Power

0.70.60.50.40.30.20.10

P

o

, OUTPUT POWER (WATTS)

500 MHz

f = 400 MHz

VDS = 28 V
IDQ = 100 mA

16

14
12
10

8
6
4
2
0

0.8

Pin, INPUT POWER (WATTS)

0.70.60.50.40.30.20.10

f = 400 MHz

VDS = 13.5 V
IDQ = 100 mA

Figure 5. Output Power versus Input Power

32

28
24

20
16
12

8
4

0

28

Figure 6. Output Power versus Voltage

2624222018161412

Pin = 0.8 W

0.4 W

0.2 W

f = 400 MHz
IDQ = 100 mA

P

o

, OUTPUT POWER (WATTS)

P

o

, OUTPUT POWER (WATTS)

Figure 7. Series Equivalent Input and Output Impedance

f = 500 MHz

400

400

ZOL*

Z

in

VDD = 28 V, IDQ = 100 mA

Zo = 50

Ω

200

100

200

100

f = 500 MHz

ZOL* = Conjugate of the optimum load
impedance into which the device output
operates at a given output power, voltage and
frequency.

f

MHz

Z

in

OHMS

ZOL*

OHMS

100
200
400
500

11.0 – j21.0

4.20 – j12.6

1.90 – j5.80

1.50 – j4.10

8.50 – j10.0

6.00 – j9.00

4.50 – j6.70

4.20 – j5.40

(P

out

= 20 W)

TYPICAL CHARACTERISTICS

5

MRF166CMOTOROLA RF DEVICE DATA

PACKAGE DIMENSIONS

CASE 319–07

ISSUE M

0.965

0.355

0.230

0.115

0.102

0.075

0.160

0.004

0.090

0.225

0.125

0.985

0.375

0.260

0.125

0.114

0.085

0.170

0.006

0.110

0.241

0.135

24.52

9.02

5.85

2.93

2.59

1.91

4.07

0.11

2.29

5.72

3.18

25.01

9.52

6.60

3.17

2.90

2.15

4.31

0.15

2.79

6.12

3.42

MM

MIN MINMAX MAX

INCHES MILLIMETER

DIM

A
B
C
D
E
F
H
J
K
L
N
Q

NOTES:

1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

0.725 BSC 18.42 BSC

SEATING
PLANE

IDENTIFICATION

NOTCH

1 2 3

456

F

J

B

H

E

K

L

0.15 (0.006) T A N

M

-A-

-N-

-T-

Q 2 PL

D 2 PL

MM

0.38 (0.015) T A N

M

MM

0.38 (0.015) T A N

M

C

PIN 1. SOURCE (COMMON)

2. GATE (INPUT)

3. SOURCE (COMMON)

4. SOURCE (COMMON)

5. DRAIN (OUTPUT)

6. SOURCE (COMMON)

STYLE 3:

MRF166C
6

MOTOROLA RF DEVICE DATA
