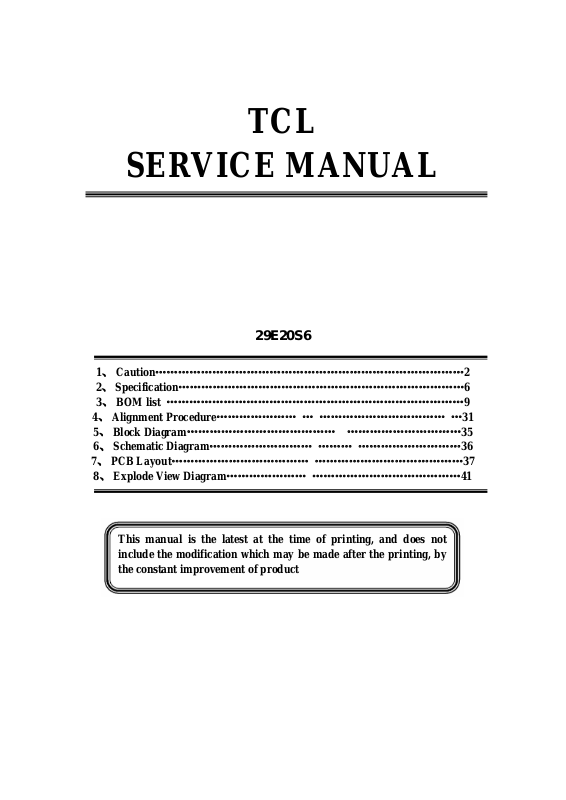

This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product
Page 2
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION: TO REDUCE THE RISK OF
CAUTION
RISK RISK OF OF ELECTRIELECTRICC
SHOCK SHOCK DO DO NOT NOT OPEN.OPEN.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
Page 3
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
Read all of these instructions. Save these instructions for later use . Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
FOR YOUR PERSONAL SAFETY
1.When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2.Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3.Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4.Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5.Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or shor t out parts that could result in a fire or electr ic shock. Never spill liquid of any kind on the television set.
6.If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7.If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8.Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9.Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a car t or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
3
Page 4
PROTECTION AND LOCATION OF YOUR SET
11.Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
a built-in
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONALELECTRICAL CODE
ANTENNA
LEAD- INWIRE
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONALELECTRICAL CODE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NECSECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PARTH)
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
installer s
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
4
Page 5
OPERATION OF YOUR SET
18.
This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
off
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25. When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the ser vice technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
Page 6
PFS REMARK
Date: 27-Sep-2005
ProductView......: TCL
Report by............: Zoumanping
Specs / Chassis
REMARK (29E10S6)
MasterData
Customer Id
Version
Status
Locked
12NC
Brand
EAN(suggested)
UPC(suggested)
Reception
+Tuning - presets/channels181 programs
+Tuning - technologyPLL FS( frequency search)
+Tuning - IndicationNUMBER
+Freq Bands
+Channels
+IF Freq45.75MHz
+TV Systems Off AirPAL M/N - NTSC M
+Add Systems Ext InPAL NTSC
+TV Systems Multi
Picture - Processing
+Scan frequency
+Scan Modes4:3
+WSS
+Combfilter
+SVM
+Picture Control(4 Picture Modes) Mild / Standard / Personal/ Dynamic
+Pict EnhancementBLACK STRETCH
+Color TemperatureCool / Warm / Normal
+Pict Noise Reduction
Picture - Display
+Display TypeCRT
+Screen Format4:3
+Size(Visual)" - size/vis. cm29"
+Deflection System (CRT only)
+Tube Technology (CRT only)
+CRT Defl
+CRT GunStand Gun
+CRT Magn field
+Resolution
+Coating (only for D.V. sets)
+White Point
Sound
+Total sound Power
+RMS Power Intern2X6W
+RMS Power Extern
+Sound Features Mute / AVL / Smart Sound (4 modes) / Balance
+Sound ControllsVolume
Sound - Speakers
+Speaker No.2
+Speakers response rangeFull Range
+Speaker Size
User Interface
+Interface Name
+Voice ControlVoice Control
+Menu control indication
+Menu ColoursBlue
+Menu LanguagesEnglish/French/Spainish/Portuguese
+Special FeaturesAuto Standby , Child Lock , Manual Skip , Add/Erase
+normal Features
+PP Features
+Tuning/Install FeaturesAuto Store, Factory Mode, Fine Tuning, Manual Search/Store
+Clock/Timer FunctionsClock , Daily On/Off Clock , On/off timer , Sleep timer
+Local Controls Top
+Indicators - screen
+Indicators - frontRC Recvd LED, SB LED
+Numb of Loc Cont (incl Mains)7
+Number of Ind. (incl Mains)1
+Local Controls
Remote Control
+Remote Control - scope
+Remote Control - type
8 M
F
+Remote Control - typenr
+Remote Control - features
Connectors Rear
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS in/out(full)
+Scart CVBS+Y/C
+Component In (Y/U/V) CinchX
+In Y/C+Cinch(CVBS+St)X
+In Y/C+Cinch(CVBS+Mo)
+In Y/C+Cinch(St)
+In BNC (CVBS)
+In Cinch(CVBS+St)X
+In Cinch(CVBS+Mo)
+Out Cinch(CVBS+St)X
+Out Cinch(CVBS+Mo)
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolby Surround
+Dig Audio Out
+Loudspeakers
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in75 Ohms (IEC type)
Guide + IR Blaster Jack
Connectors Front
+In Cinch (CVBS + St)
+In Cinch (CVBS+Mo)
+Headphone Out
Connectors Side
+In Y/C + Cinch(CVBS+St)X
+In Y/C + Cinch Stereo
+In Cinch (CVBS + St)
+IN Cinch (CVBS + Mo)
+Headphone Out
Connectors Top
Connectors Mechanical
Styling
+Cabinet Name
+Configuration
+Graphics/Logo's
+Cabinet Colour and Finish
+Mechanics
+Speaker Visibility
General
+ChassisM134
+Software Delivery Mode
+Software Version
+Mains Voltage100-240V~
+Mains Frequency50/60Hz
+Type Mains Cord
Power Consumption (P)TV in On
Page 8
PFS REMARK
Date: 27-Sep-2005
ProductView......: TCL
Report by............: Zoumanping
Specs / ChassisREMARK (29E10S6)
Power Consumption SB in Watts8~12W
Power Consumption Semi SB in W
+Power in "ON" for
+Power in Standby for
+Power in "OFF" for
Weight (P)TV (incl. Packaging)
Weight (P)TV (excl. Package)
Weight AVUnit excl Packaging
+INDICATION on BACKCOVER
+Channel
Final Equipment
+Packaging - methods
+Documents and manuals
+Languages DFU
+Cables Supplied
+Antenna Supplied
+Stand Supplied
+Aux Equipm Supplied
Packaging - width cm
Packaging - height cm
Packaging - depth cm
Miscellaneous
+EAN Indication
+Approbation
+Tests
+Local Integration
Various Perf. Param.
+Service Call-Rate
PIP/POP
+Type
+Features
Digital Reception
+Transmission
Built-in Data System
+Text Standard
+(Tele)text Features
+Nbr bckgrnd page / Mem Size
+Text Technology
+Digital Data handling
+Program Guide
Built-in Clock/Timer
+Type
+Features
Built-in Radio
+Type
Built-in PC display
+PC Synch
+PC Control
Built-in DVD drive
+Type of Medium
+Type of Deck
Phased Out Items
+Tuner/Frontend
+Sensitivity
+CRT EHT
+Lightning Protection
+Account
+XX(Radio Antenna in)
+Non Volatile Memory
+In Y/C + Cinch(CVBS+Mo)
T8-0029S6-MAY26-EBP471-JCSCAP. CER 470 PF 50V +/-5%C239
T8-0029S6-MAY27-MBC104-J0XCAP. M.P.E 0.1 UF 63V +/-5%C642
T8-0029S6-MAY27-MBC104-J0XCAP. M.P.E 0.1 UF 63V +/-5%C238
T8-0029S6-MAY27-MBC104-J0XCAP. M.P.E 0.1 UF 63V +/-5%C211
T8-0029S6-MAY27-MBC104-J0XCAP. M.P.E 0.1 UF 63V +/-5%C634
T8-0029S6-MAY27-MBC104-J0XCAP. M.P.E 0.1 UF 63V +/-5%C631
T8-0029S6-MAY27-MBC104-J0XCAP. M.P.E 0.1 UF 63V +/-5%C242
T8-0029S6-MAY27-MBC224-J0XCAP. M.P.E 0.22UF 63V +/-5%C309
T8-0029S6-MAY27-MBC684-J0XCAP. M.P.E 0.68UF 63V +/-5%C305
T8-0029S6-MAY27-MCC272-J0XCAP. M.P.E 0.0027UF 100V +/-5%C311
T8-0029S6-MAY27-PBC102-J0XCAP. P.E 0.001UF 63V +/-5%C638
T8-0029S6-MAY27-PBC102-J0XCAP. P.E 0.001UF 63V +/-5%C635
T8-0029S6-MAY27-PBC822-J0XCAP. P.E 0.0082UF 63V +/-5%C247
T8-0029S6-MAY34-A109K0-1IXCOIL CHOKE 1 UH +/-10%L102
T8-0029S6-MAY34-R100J2-0EXCOIL PL - 10 UH +/-5%L002
T8-0029S6-MAY34-R100J2-0EXCOIL PL - 10 UH +/-5%L212
T8-0029S6-MAY34-R220J2-0EXCOIL PL - 22 UH +/-5%L950
T8-0029S6-MAY34-R220J2-0EXCOIL PL - 22 UH +/-5%L208
T8-0029S6-MAY34-R220J2-0EXCOIL PL - 22 UH +/-5%L206
T8-0029S6-MAY34-R220J2-0EXCOIL PL - 22 UH +/-5%L205
T8-0029S6-MAY34-R220J2-0EXCOIL PL - 22 UH +/-5%L204
T8-0029S6-MAY34-R470J2-0EXCOIL PL - 47 UH +/-5%L101
T8-0029S6-MAY34-R829J2-0EXCOIL PL - 8.2 UH +/-5%L209
T8-0029S6-MAY40-2918T6-MAG1XP.C.B MAIN BD
T8-0029S6-MAY41-WJ0050-B00WIRE BARE JUMPER 5MML301
T8-0029S6-MAY41-WJ0050-B00WIRE BARE JUMPER 5MMJ220A
T8-0029S6-MAY41-WJ0050-B00WIRE BARE JUMPER 5MMJ026
T8-0029S6-MAY41-WJ0050-B00WIRE BARE JUMPER 5MML201
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ222
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ220
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ921
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ901
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ306
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ301
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ108
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ104
T8-0029S6-MAY41-WJ0060-B00WIRE BARE JUMPER 6MMJ107
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ103
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ039A
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ039
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ038
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ903
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ935
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ946
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMR027
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMR028
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ605
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ603
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ221
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ204
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMJ037
Page 16
T8-0029S6-MAY41-WJ0065-B00WIRE BARE JUMPER 6.5MMR226
T8-0029S6-MAY41-WJ0070-B00WIRE BARE JUMPER 7MMJ205
T8-0029S6-MAY41-WJ0070-B00WIRE BARE JUMPER 7MMJ904
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ035
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ229
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMD311
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ027
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ031
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ033
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ307
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ312
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ609
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ610
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ612
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ922
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ930
T8-0029S6-MAY41-WJ0075-B00WIRE BARE JUMPER 7.5MMJ937
T8-0029S6-MAY41-WJ0080-B00WIRE BARE JUMPER 8 MMJ032
T8-0029S6-MAY41-WJ0080-B00WIRE BARE JUMPER 8 MMJ303
T8-0029S6-MAY41-WJ0080-B00WIRE BARE JUMPER 8 MMJ304
T8-0029S6-MAY41-WJ0080-B00WIRE BARE JUMPER 8 MMJ623
T8-0029S6-MAY41-WJ0080-B00WIRE BARE JUMPER 8 MMJ917
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMD261
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ202
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ203
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ206
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ905
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ907
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ924
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ936
T8-0029S6-MAY41-WJ0085-B00WIRE BARE JUMPER 8.5MMJ945
T8-0029S6-MAY41-WJ0090-B00WIRE BARE JUMPER 9MMJ309
T8-0029S6-MAY41-WJ0095-B00WIRE BARE JUMPER 9.5MMJ614
T8-0029S6-MAY41-WJ0095-B00WIRE BARE JUMPER 9.5MMJ106
T8-0029S6-MAY41-WJ0095-B00WIRE BARE JUMPER 9.5MMJ105
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ001
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ002
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ406
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ602
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ906
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ916
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ932
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ933
T8-0029S6-MAY41-WJ0100-B00WIRE BARE JUMPER 10MMJ934
T8-0029S6-MAY41-WJ0105-B00WIRE BARE JUMPER 10.5MMJ608
T8-0029S6-MAY41-WJ0105-B00WIRE BARE JUMPER 10.5MMJ607
T8-0029S6-MAY41-WJ0105-B00WIRE BARE JUMPER 10.5MMJ214A
T8-0029S6-MAY41-WJ0105-B00WIRE BARE JUMPER 10.5MMJ018
T8-0029S6-MAY41-WJ0110-B00WIRE BARE JUMPER 11MMJ228
T8-0029S6-MAY41-WJ0110-B00WIRE BARE JUMPER 11MMJ042
T8-0029S6-MAY41-WJ0110-B00WIRE BARE JUMPER 11MMJ028
Page 17
T8-0029S6-MAY41-WJ0110-B00WIRE BARE JUMPER 11MMJ024
T8-0029S6-MAY41-WJ0110-B00WIRE BARE JUMPER 11MMJ927
T8-0029S6-MAY41-WJ0110-B00WIRE BARE JUMPER 11MMJ919
T8-0029S6-MAY41-WJ0110-B00WIRE BARE JUMPER 11MMJ613
T8-0029S6-MAY41-WJ0115-B00WIRE BARE JUMPER 11.5MMJ034
T8-0029S6-MAY41-WJ0115-B00WIRE BARE JUMPER 11.5MMJ912
T8-0029S6-MAY41-WJ0115-B00WIRE BARE JUMPER 11.5MMJ939
T8-0029S6-MAY41-WJ0120-B00WIRE BARE JUMPER 12MMJ023
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ213
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ212
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMR308
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ929
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ618
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ617
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ004
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ109
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ601
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ404
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ305
T8-0029S6-MAY41-WJ0125-B00WIRE BARE JUMPER 12.5MMJ231
T8-0029S6-MAY41-WJ0130-B00WIRE BARE JUMPER 13MMJ615
T8-0029S6-MAY41-WJ0130-B00WIRE BARE JUMPER 13MMJ616
T8-0029S6-MAY41-WJ0130-B00WIRE BARE JUMPER 13MMJ918
T8-0029S6-MAY41-WJ0130-B00WIRE BARE JUMPER 13MMJ005
T8-0029S6-MAY41-WJ0130-B00WIRE BARE JUMPER 13MMJ931
T8-0029S6-MAY41-WJ0130-B00WIRE BARE JUMPER 13MMJ920
T8-0029S6-MAY41-WJ0135-B00WIRE BARE JUMPER 13.5MMJ909
T8-0029S6-MAY41-WJ0135-B00WIRE BARE JUMPER 13.5MMJ030
T8-0029S6-MAY41-WJ0135-B00WIRE BARE JUMPER 13.5MMJ910
T8-0029S6-MAY41-WJ0140-B00WIRE BARE JUMPER 14MMJ226
T8-0029S6-MAY41-WJ0140-B00WIRE BARE JUMPER 14MMJ302
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MML412
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MML411
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ938
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ621
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ620
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ619
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ019
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ020
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ613A
T8-0029S6-MAY41-WJ0150-B00WIRE BARE JUMPER 15MMJ224
T8-0029S6-MAY41-WJ0160-B00WIRE BARE JUMPER 16MMJ214
T8-0029S6-MAY41-WJ0160-B00WIRE BARE JUMPER 16MMJ208
T8-0029S6-MAY41-WJ0165-B00WIRE BARE JUMPER 16.5MMJ225
T8-0029S6-MAY41-WJ0165-B00WIRE BARE JUMPER 16.5MMJ029
T8-0029S6-MAY41-WJ0165-B00WIRE BARE JUMPER 16.5MMJ009
T8-0029S6-MAY41-WJ0175-B00WIRE BARE JUMPER 17.5MMJ915
T8-0029S6-MAY41-WJ0185-B00WIRE BARE JUMPER 18.5MMJ606
T8-0029S6-MAY41-WJ0190-B00WIRE BARE JUMPER 19MMJ926
T8-0029S6-MAY41-WJ0190-B00WIRE BARE JUMPER 19MMJ914
T8-0029S6-MAY41-WJ0190-B00WIRE BARE JUMPER 19MMJ218
Page 18
T8-0029S6-MAY41-WJ0190-B00WIRE BARE JUMPER 19MMJ219
T8-0029S6-MAY41-WJ0190-B00WIRE BARE JUMPER 19MMJ913
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ217
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ230
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ604
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ010
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ011
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ012
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ013
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ014
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ216
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ215
T8-0029S6-MAY41-WJ0200-B00WIRE BARE JUMPER 20MMJ211
T8-BE20S6-FCY57-10654X-00FTWIST TIE NY66
T8-BE20S6-FCY59-130460-00XRUBBER PAD (25MMX7MM)
STICK ON
T8-BE20S6-FCY59-130460-00XRUBBER PAD (25MMX7MM)
T8-BE20S6-FCY59-312160-000SPEAKER RUBBER CUSHIONFOR SPK
T8-BE20S6-FCY62-321780-0HGCRT COIL MTG 25"/29"
T8-BE20S6-FCY62-389500-1CNCRT SUPPORT
T8-BE20S6-FCY63-S30100-AB4S/T SCREW S 3 X 10 AB
F.CAB.
(FOOTING)
MTG PWR
SW. BD
T8-BE20S6-FCY63-W30080-AB4S/T SCREW W 3 X 8 AB
T8-BE20S6-FCY63-W30100-AB4S/T SCREW W 3 X 10 AB
T8-BE20S6-FCY63-W30100-AB4S/T SCREW W 3 X 10 AB
T8-BE20S6-FCY63-W30140-HS4S/T SCREW W 3 X 14 HSMTG SPK
T8-BE20S6-FCY63-Z60300-AB4S/T SCREW HA 6X30
T8-BE20S6-FCY67-2960LG-6A09ALOGO
T8-BE20S6-FCY67-X21679-0E0SPRING CRT 6MMX50MMX0.6MM
T8-BE20S6-FCY67-X34577-0E2SPRING POWER KNOB
T8-BE20S6-FCY70-TCLSOC-WAR9AWARRANTY CARD
T8-BE20S6-FCY71-EBG600-057G3LABEL SERIAL NO.
T8-BE20S6-FCY71-TCLSOC-BAR9HLABEL SERIAL NO.
T8-BE20S6-FCY71-TCLSOC-CUS9GLABEL
T8-BE20S6-FCY71-TCLSOC-VOI9ACRISPNESS LABEL
T8-BE20S6-OT151-DC0243-0CH01POWER CORD VDE PLUG W/HOUSING
T8-BE20S6-OT162-227680-1UAFBT BRACKET
T8-BE20S6-PA136-141390-00XAntenna converter FYM-1
T8-BE20S6-PA147-300770-000ASS'Y - TWO ROD ANT.W/RIB.75CM
T8-BE20S6-PA149-382380-BATBATTERY 7# (R03P AAA SUM-4)
T8-BE20S6-PA172-BE20S6-X489AOPERATION MANUAL
T8-BE20S6-PA174-022032-6WE1APOLYBAG
T8-BE20S6-PA174-130130-80H1APOLYBAG
T8-BE20S6-PA175-BE09LL-CC0POLYFOAM LL
T8-BE20S6-PA175-BE09LR-CC0POLYFOAM LR
T8-BE20S6-PA175-BE09UL-CC0POLYFOAM UL
T8-BE20S6-PA175-BE09UR-CC0POLYFOAM UR
T8-BE20S6-PA176-421010-0AT8KCARTON BOX
T8-BE20S6-RC255-B189RC-4CN5F29189REARCABINET
T8-BE20S6-RC258-B189RI-AUI9DINLAY REAR AV
T8-BE20S6-RC258-BE20MP-JKT9APLATE MODEL NO.
T8-BE20S6-RC258-D106SI-0UI9DINLAY SIDE AV
T8-BE20S6-RC262-389620-0UDPOWER LINE BLOCK
T8-0029S6-MAY57-10654X-00FTWIST TIE NY66
T8-0029S6-MAY64-P30080-104M/C SCREW P 3 X 8FOR Q414
T8-0029S6-MAY64-P30080-104M/C SCREW P 3 X 8FOR Q411
T8-0029S6-MAY64-P30080-104M/C SCREW P 3 X 8FOR IC301
T8-0029S6-MAY64-P30100-104M/C SCREW P 3 X 10FOR IC602
Simply press the “SERVICE” key on the factory remote handset.
Press““““1,,,,2,,,,3,,,,4,,,,5,,,,6,,,,7,,,,8,,,,9,,,,0,,,,NOTEBOOK,CAPS, DISPLAY ,SLEEP, CALENDAR ,COLOR/INS,,,,
FAVORITE,RECALL””””, you can switch in the sub-menus of ““““FAC01~~~~FAC18””””in turns.
Press ““““P+”“
Press““““V+”“
Press ““““OK”””” and ““““P+”“
Exit Factory Mode:
Press the “SERVICE” key on the factory remote handset. All changes in factory data will be saved in
EEPROM automatically.
Some special modes:
Aging Mode ———— Be used for aging before adjustment in Factory Mode.
Vertical doesn’t Work ———— Be used for Screen & Focus voltage adjustment. In Factory
White balance adjustment Mode ———— Be used for White balance adjustment. In Factory
Default Value OK mode ———— Be used for default value setting before TV leaves Factory. In
”“ P-””””to choose the items.
”“”“
”“ V-””””to adjust the data.
”“”“
”“ P-””””to switch in the sub-menus of ““““FAC19~~~~FAC23””””.
”“”“
Mode, press ““““TV/AV””””to enter and exit.
Mode, press““““BUS OFF”””” to enter and exit.
Factory Mode, press “S. EFFECT” to enter default value.
“Wait” will be displayed in screen, when it is finished,
“OK” will be displayed. It will exit factory mode
automatically.
Note: Now press “SERVICE” cannot enter factory mode, you
have to take the following steps to enter:
1. Setting Volume to Zero.
2. Press “V-” in cabinet and Press “Display” in RC
simultaneously.
B. Adjustment Way
1. B++++Adjustment::::
Apply Philips Test pattern signal in normal status, adjusting VR821 to make B+=
2. RF AGC adjustment:
Observe monitor the collector waveform of Q101 with the probe of Oscilloscope as illustration
below. Select channel 2 (>70dB) from the antenna input. Enter D-mode, select menu6 to adjust
RFAGC item until the monitor peak value to 0.8Vp-p.
+=130V±±±±0.5V.
+=+=
Page 32
3Pf
输入
INPUT
3. Sound Amplifier Adjustment:
1) Apply 45.75 IF signal which is >60dB from P1101
IN60
OUTPUT
输出
2) Adjusting T1101 to make the voltage of Pin 15 in IC1101 is 2.5+
4. Screen & Focus voltage adjustment:
1) Apply pattern signal in normal status, enter D-mode, press “TV/AV” button to turn off the vertical
output. (Note: The default value of RC/GC/BC is 80, and GD/BD is 40)
2) Adjust the SCRREEN switch on the flyback transformer to make a horizontal shining line just visible
on the screen.
3) Turn on the vertical output, adjust the “FOCUS” on the flyback transformer to obtain the optimum
focus.
5. White balance adjustment (NORMAL)
1) Apply Black and White Signal in normal status, enter into Factory Mode and select Menu 1.
2) Using analyzer to test the black signal part, adjust RCUT, GCUT, BCUT to make X=284, Y=299.
3) Using analyzer to test the white signal part, adjust BDRV, GDRV to make X=284, Y=299.
4) Adjusting Brightness and Contrast from Min to Max, repeat step 2)~3) to make X=284, Y=299.
Note: M134 chassis can adjust white balance automatically. In factory mode, press “I2C BUS” to enter in.
The white balance in the other two colors temperature is Warm (296, 296), Cool (279, 265).
6. Adjustment of Sub-brightness:
1) Apply the Grey-scale/Color bar (NTSC signal) to the AV input, in normal status.
2) Enter into Factory Mode and select Menu 5, select BRTC to adjust the sub-brightness, until that the
2nd dark bar of 8 level Grey scale just can be seen.
7. Picture geometric adjustment:
1) Apply the Philips standard testing pattern in normal status, then enter menu 3, adjusting the
following data to get the min-distortion.
HPOS5/6(
HSIZE5/6
2) Apply the Philips standard testing pattern in normal status, then enter menu 3, adjusting the
following data to get the min-distortion.
HIGH5/6 (Height) VP50/60
VLIN5/6
8. BTSC/SAP Function checking:
It needn’t to adjust the BTSC/SAP, but you have to check where it does work.
