MR27V1602E

Preliminary

1,048,576–Word ×××× 16–Bit or 2,097,152–Word ×××× 8–Bit One Time PROM

1/11

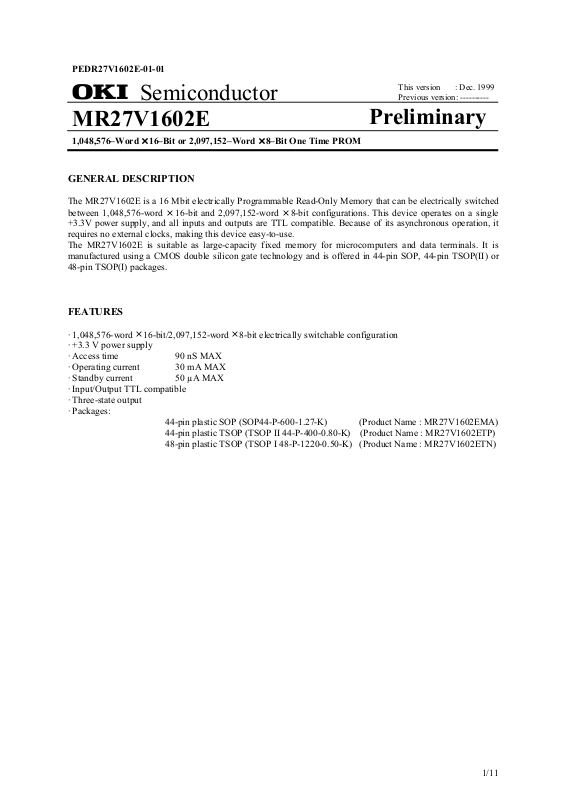

GENERAL DESCRIPTION

The MR27V1602E is a 16 Mbit electrically Programmable Read-Only Memory that can be electrically switched
between 1,048,576-word × 16-bit and 2,097,152-word × 8-bit configurations. This device operates on a single
+3.3V power supply, and all inputs and outputs are TTL compatible. Because of its asynchronous operation, it
requires no external clocks, making this device easy-to-use.
The MR27V1602E is suitable as large-capacity fixed memory for microcomputers and data terminals. It is
manufactured using a CMOS double silicon gate technology and is offered in 44-pin SOP, 44-pin TSOP(II) or
48-pin TSOP(I) packages.

FEATURES

∙ 1,048,576-word × 16-bit/2,097,152-word × 8-bit electrically switchable configuration
∙ +3.3 V power supply
∙ Access time 90 nS MAX
∙ Operating current 30 mA MAX
∙ Standby current 50 µA MAX
∙ Input/Output TTL compatible
∙ Three-state output
∙ Packages:

44-pin plastic SOP (SOP44-P-600-1.27-K) (Product Name : MR27V1602EMA)
44-pin plastic TSOP (TSOP II 44-P-400-0.80-K) (Product Name : MR27V1602ETP)
48-pin plastic TSOP (TSOP I 48-P-1220-0.50-K) (Product Name : MR27V1602ETN)

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

2/11

PIN CONFIGURATION (TOP VIEW)

Pin name Functions

D15/A–1 Data output/Address input

A0 to A19 Address input

D0 to D14 Data output

CE Chip enable
OE Output enable

BYTE/V

PP

Mode switch/Program power supply voltage

V

CC

Power supply voltage

V

SS

GND

NC Non connection

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

NC

A19

A8

A9

A10

A11

A12

A13

A14

A15

A16
BYTE/V

PP

V

SS

D15/A–1

D7

D14

D6

D13

D5

D12

D4

V

CC

NC

A18

A17

A7

A6

A5

A4

A3

A2

A1

A0

CE

V

SS

OE

D0

D8

D1

D9

D2

D10

D3

D11

44-pin SOP, TSOP(II

)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

A15

A14

A13

A12

A11

A10

A9

A8

A19

NC

NC

NC

NC

NC

NC

A18

A17

A7

A6

A5

A4

A3

A2

A1

A16

BYTE/V

PP

V

SS

D15/A–1

D7

D14

D6

D13

D5

D12

D4

V

CC

D11

D3

D10

D2

D9

D1

D8

D0

OE

V

SS

CE

A0

48-pin TSOP(I

)

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

3/11

BLOCK DIAGRAM

FUNCTION TABLE

Mode CE OE BYTE/V

PP

V

CC

D0 to D7 D8 to D14 D15/A–1

Read (16-Bit) L L H D

OUT

Read (8-Bit) L L L D

OUT

Hi–Z L/H

H

Output disable L H

L

Hi–Z

∗

H

Standby H ∗

L

3.3 V

Hi–Z

∗

Program L H D

IN

Program inhibit H H Hi–Z

Program verify H L

9.75 V 4.0 V

D

OUT

∗

: Don’t Care (H or L)

A0

A1
A2
A3
A4
A5
A6
A7
A8

A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

CE BYTE/V

PP

OE

CE PGMOE

× 8/× 16 Switch

D0 D2 D4 D6 D8 D10 D12 D14

D1 D3 D5 D7 D9 D11 D13 D15

Memory Cell Matrix

1,048,576 × 16-Bit or 2,097,152 × 8-Bit

Multiplexer

Output Buffer

Row Decoder

Column Decoder

Address Buffer

In 8-bit output mode, these pins

are three-stated and pin D15

functions as the A-1 address pin.

A–1

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

4/11

ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Condition Value Unit

Operating temperature under bias Ta 0 to 70 °C

Storage temperature Tstg

—

–55 to 125 °C

Input voltage V

I

–0.5 to VCC+0.5 V

Output voltage V

O

–0.5 to VCC+0.5 V

Power supply voltage V

CC

–0.5 to 5 V

Program power supply voltage V

PP

relative to V

SS

–0.5 to 11.5 V

Power dissipation per package P

D

—1.0W

RECOMMENDED OPERATING CONDITIONS

(Ta = 0 to 70°C)

Parameter Symbol Condition Min. Typ. Max. Unit

VCC power supply voltage V

CC

3.0 — 3.6 V

VPP power supply voltage V

PP

–0.5 — VCC+0.5 V

Input “H” level V

IH

2.2 — V

CC

+0.5∗ V

Input “L” level V

IL

VCC = 3.0 to 3.6 V

–0.5∗∗ —0.6 V

Voltage is relative to VSS.

∗

: Vcc+1.5V(Max.) when pulse width of overshoot is less than 10ns.

∗∗

: -1.5V(Min.) when pulse width of undershoot is less than 10ns.

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

5/11

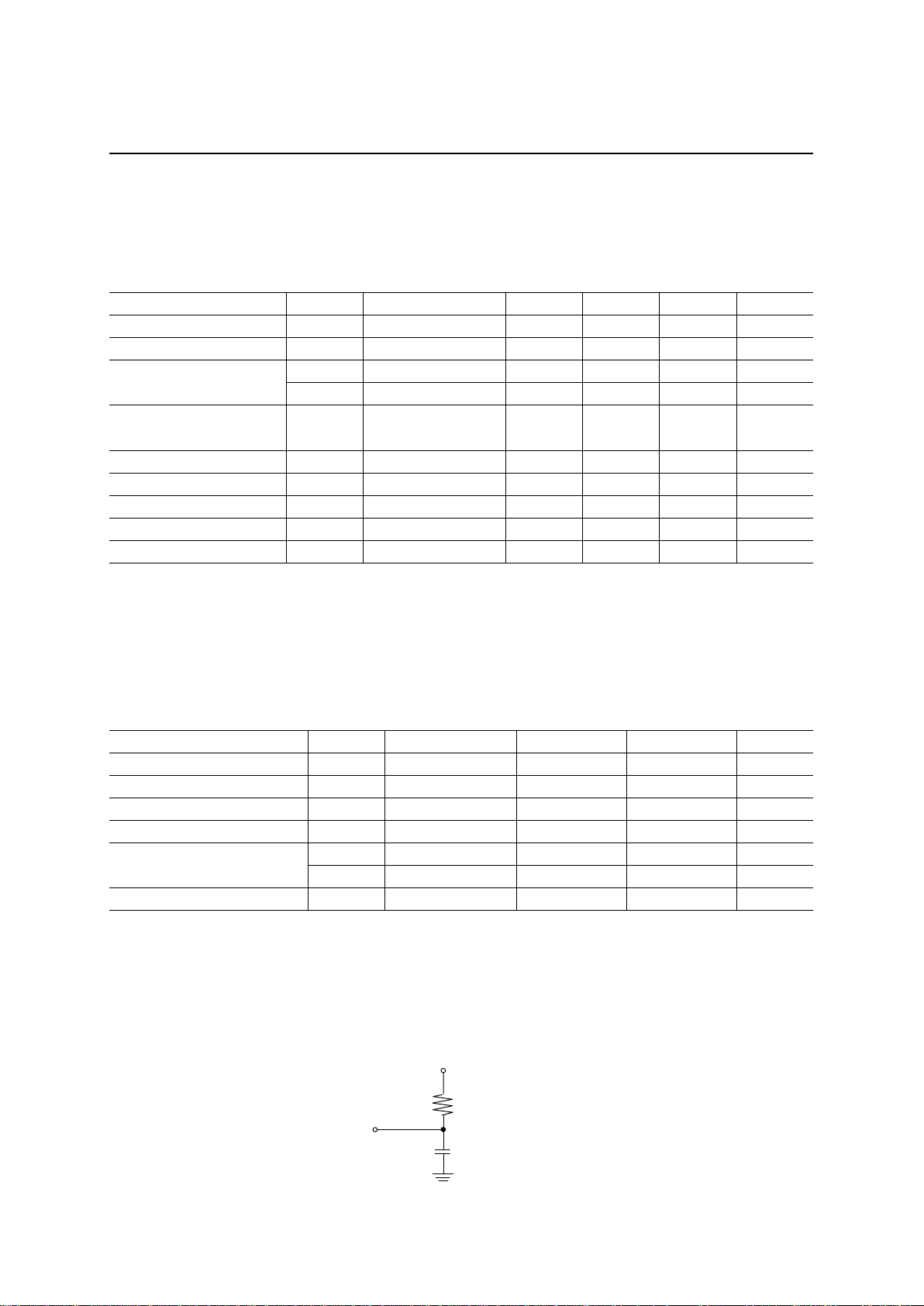

ELECTRICAL CHARACTERISTICS

DC Characteristics

(VCC = 3.3 V ± 0.3 V, Ta = 0 to 70°C)

parameter Symbol Condition Min. Typ. Max. Unit

Input leakage current I

LI

VI = 0 to V

CC

——10µA

Output leakage current I

LO

VO = 0 to V

CC

——10µA

I

CCSC

CE = V

CC

——50µA

VCC power supply current

(Standby)

I

CCST

CE = V

IH

—— 1mΑ

V

CC

power supply current

(Read)

I

CCA

CE = VIL, OE = V

IH

tc = 90 ns

——30mA

VPP power supply current I

PP

VPP = V

CC

——10µA

Input “H” level V

IH

—2.2—V

CC

+0.5∗ V

Input “L” level V

IL

— –0.5∗∗ —0.6V

Output “H” level V

OH

IOH = –2 mA 2.4 — — V

Output “L” level V

OL

IOL = 4 mA — — 0.4 V

Voltage is relative to VSS.

∗

: Vcc+1.5V(Max.) when pulse width of overshoot is less than 10ns.

∗∗

: -1.5V(Min.) when pulse width of undershoot is less than 10ns.

AC Characteristics

(VCC = 3.3 V ± 0.3 V, Ta = 0 to 70°C)

Parameter Symbol Condition Min. Max. Unit

Address cycle time t

C

—90—ns

Address access time t

ACC

CE = OE = V

IL

—90ns

CE access time t

CE

OE = V

IL

—90ns

OE access time t

OE

CE = V

IL

—45ns

t

CHZ

OE = V

IL

030ns

Output disable time

t

OHZ

CE = V

IL

025ns

Output hold time t

OH

CE = OE = V

IL

0—ns

Measurement conditions

Input signal level -------------------------------- 0 V/3 V
Input timing reference level ------------------ 0.8 V/2.0 V
Output load--------------------------------------- 100 pF
Output timing reference level---------------- 0.8 V/2.0 V

Output

1.73 V

330 Ω

100 pF
(Including scope and jig)

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

6/11

TIMING CHART (READ CYCLE)

16-Bit Read Mode (BYTE = V

IH

)

A0 to A19

CE

OE

D0 to D15

t

C

t

CE

t

OE

t

ACC

t

OH

t

CHZ

t

OHZ

Valid Data

Hi-Z

Hi-Z

8-Bit Read Mode (BYTE = VIL)

A–1 to A19

CE

OE

D0 to D7

t

C

t

CE

t

OE

t

ACC

t

OH

t

CHZ

t

OHZ

Valid Data

Hi-Z Hi-Z

D8 to D14

Hi-Z

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

7/11

ELECTRICAL CHARACTERISTICS (PROGRAMMING OPERATION)

DC Characteristics

(Ta = 25°C ± 5°C)

Parameter Symbol Condition Min. Typ. Max. Unit

Input leakage current I

LI

VI = V

CC

+0.5 V — — 10 µA

VPP power supply current (Program) I

PP2

CE = V

IL

——50mA

VCC power supply current I

CC

———50mA

Input “H” level V

IH

—3.0—V

CC

+0.5 V

Input “L” level V

IL

— –0.5 — 0.8 V

Output “H” level V

OH

I

OH

= –400 µA2.4 — — V

Output “L” level V

OL

IOL = 2.1 mA — — 0.45 V

Program voltage V

PP

— 9.5 9.75 10.0 V

VCC power supply voltage V

CC

— 3.9 4.0 4.1 V

Voltage is relative to VSS.

AC Characteristics

(VCC = 4.0 V ± 0.1 V, BYTE/VPP = 9.75 V ± 0.25 V, Ta = 25°C ± 5°C)

Parameter Symbol Condition Min. Typ. Max. Unit

Address set-up time t

AS

— 100 — — ns

OE set-up time t

OES

—2——µs

Data set-up time t

DS

— 100 — — ns

Address hold time t

AH

—2——µs

Data hold time t

DH

— 100 — — ns

Output float delay time from OE t

OHZ

— 0 — 100 ns

V

PP

voltage set-up time t

VS

—2——µs

Program pulse width t

PW

— 9 10 11 µs

Data valid from OE t

OE

— — — 100 ns

Address hold from OE high t

AOH

—0——ns

Pin Check Function

Pin Check Function is to check contact between each device-pin and each socket-lead with EPROM programmer.
Setting up address as following condition call the preprogrammed codes on device outputs.

(VCC = 3.3 V ± 0.3 V, CE = VIL, OE = VIL, BYTE/VPP = VIH, Ta = 25°C ± 5°C)

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9

A10 A11 A12 A13 A14 A15 A16 A17 A18 A19

DATA

010101010

VH

∗

0101010011FF00

101010101

VH

∗

101010110000FF

Other conditions

FFFF

∗: VH = 8 V ± 0.25 V

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

8/11

Consecutive Programming Waveforms

Consecutive Program Verify Waveforms

t

AS

A0 to A19

CE

OE

D0 to D15

t

AH

t

PW

Din

High

BYTE/Vpp

t

DH

t

DS

t

VS

Din

t

OHZ

t

AHO

t

ACC

A0 to A19

CE

OE

D0 to D15

High

BYTE/Vpp

Dout

t

OE

Dout

9.75 V

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

9/11

Program and Program Verify Cycle Waveforms

Pin Capacitance

(VCC = 3.3 V, Ta = 25°C, f = 1 MHz)

Parameter Symbol Condition Min. Typ. Max. Unit

Input C

IN1

—— 8

BYTE/V

PP

C

IN2

VI = 0 V

— — 120

Output C

OUT

VO = 0 V — — 10

pF

t

OHZ

t

DS

t

OE

t

AS

A0 to A19

CE

OE

D0 to D15

t

AHO

t

PW

Dout

BYTE/Vpp

t

DH

Din

t

OES

t

OHZ

9.75 V

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

10/11

Programming/Verify Flow Chart

NG

YES

NO

NO

VCC = 3.0 V/VPP = 3.0 V

Device Passed

Start

Last Address?

X = 0

Verify(One Byte)

Last Address?

NG

X = 2?

X = X+1

Increment Address

Program 10 µs

Programming

Pin Check

NG

PASS

Verify(One Byte)

Verify(One Byte)

Start

Verify

Pin Check

Bad Insertion

Device Passed

YES

YES

PASS

PASS

NG

PASS

NG

PASS

NG

PASS

NO

V

CC

= 3.6 V/VPP = 3.6 V

Device Failed

Bad Insertion

Address = First Location

V

CC

= 4.0 V

V

PP

= 9.75 V

Program 10 µs

Verify(One Byte)

Device Failed

V

CC

= 3.0 V/VPP = 3.0 V

Address = First Location

Increment Address

Address = First Location

PEDR27V1602E-01-01

1

Semiconductor

MR27V1602E

11/11

NOTICE

1. The information contained herein can change without notice owing to product and/or technical improvements.
Before using the product, please make sure that the information being referred to is up-to-date.

2. The outline of action and examples for application circuits described herein have been chosen as an
explanation for the standard action and performance of the product. When planning to use the product, please
ensure that the external conditions are reflected in the actual circuit, assembly, and program designs.

3. When designing your product, please use our product below the specified maximum ratings and within the
specified operating ranges including, but not limited to, operating voltage, power dissipation, and operating
temperature.

4. Oki assumes no responsibility or liability whatsoever for any failure or unusual or unexpected operation
resulting from misuse, neglect, improper installation, repair, alteration or accident, improper handling, or
unusual physical or electrical stress including, but not limited to, exposure to parameters beyond the specified
maximum ratings or operation outside the specified operating range.

5. Neither indemnity against nor license of a third party’s industrial and intellectual property right, etc. is
granted by us in connection with the use of the product and/or the information and drawings contained herein.
No responsibility is assumed by us for any infringement of a third party’s right which may result from the use
thereof.

6. The products listed in this document are intended for use in general electronics equipment for commercial
applications (e.g., office automation, communication equipment, measurement equipment, consumer
electronics, etc.). These products are not authorized for use in any system or application that requires special
or enhanced quality and reliability characteristics nor in any system or application where the failure of such
system or application may result in the loss or damage of property, or death or injury to humans.
Such applications include, but are not limited to, traffic and automotive equipment, safety devices, aerospace
equipment, nuclear power control, medical equipment, and life-support systems.

7. Certain products in this document may need government approval before they can be exported to particular
countries. The purchaser assumes the responsibility of determining the legality of export of these products
and will take appropriate and necessary steps at their own expense for these.

8. No part of the contents contained herein may be reprinted or reproduced without our prior permission.

Copyright 1999 Oki Electric Industry Co., Ltd.
