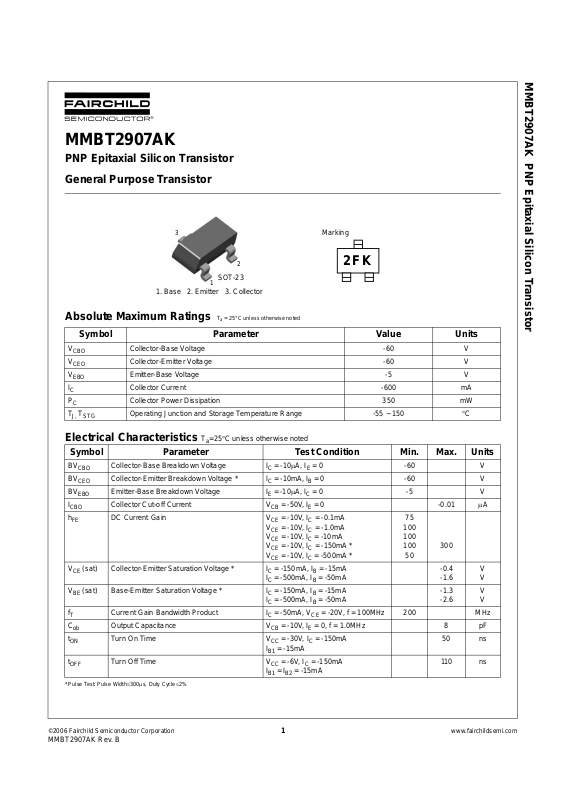

Page 1
MMBT2907AK
PNP Epitaxial Silicon Transistor
General Purpose Transistor
MMBT2907AK PNP Epitaxial Silicon Transistor
3
2
SOT-23
1
Marking
2FK
1. Base 2. Emitter 3. Collector
Absolute Maximum Ratings T
= 25°C unless otherwise noted
a
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J, TSTG
Electrical Characteristics T
Collector-Base Voltage -60 V Collector-Emitter Voltage -60 V Emitter-Base Voltage -5 V Collector Current -600 mA Collector Power Dissipation 350 mW Operating Junction and Storage Temperature Range -55 ~ 150 °C
=25°C unless otherwise noted
a
Symbol Parameter Test Condition Min. Max. Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
h
FE
V
CE
V
(sat) Base-Emitter Saturation Voltage * IC = -150mA, IB = -15mA
BE
f
T
C
ob
t
ON
t
OFF
* Pulse Test: Pulse Width≤300µs, Duty Cycle≤2%
Collector-Base Breakdown Voltage IC = -10µA, IE = 0 -60 V
Collector-Emitter Breakdown Voltage * IC = -10mA, IB = 0 -60 V
Emitter-Base Breakdown Voltage IE = -10µA, IC = 0 -5 V
Collector Cut-off Current V
DC Current Gain V
= -50V, IE = 0 -0.01 µA
CB
= -10V, IC = -0.1mA
CE
V
= -10V, IC = -1.0mA
CE
V
= -10V, IC = -10mA
CE
V
= -10V, IC = -150mA *
CE
V
= -10V, IC = -500mA *
CE
75
100
100
100
50
(sat) Collector-Emitter Saturation Voltage * IC = -150mA, IB = -15mA
IC = -500mA, IB = -50mA
IC = -500mA, IB = -50mA
Current Gain Bandwidth Product IC = -50mA, V
Output Capacitance V
Turn On Time V
Turn Off Time V
= -10V, IE = 0, f = 1.0MHz 8 pF
CB
= -30V, IC = -150mA
CC
I
= -15mA
B1
= -6V, IC = -150mA
CC
I
= I
B1
B2
= -20V, f = 100MHz 200 MHz
CE
= -15mA
300
-0.4
-1.6
-1.3
-2.6
50 ns
110 ns
V
V
V
V
©2006 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com
MMBT2907AK Rev. B
Page 2
Typical Performance Characteristics
Figure 1. DC current Gain Figure 2. Collector-Emitter Saturation Voltage
MMBT2907AK PNP Epitaxial Silicon Transistor
400
350
300
250
200
hfe, Current Gain
150
100
50
0.1 1 10 100
125C
75C
25C
Collector Current, [mA]
Vce=5V
0.7
0.6
0.5
0.4
0.3
0.2
0.1
Vce(sat), Saturation Current,[V]
1 10 100
Collector Current, [mA]
B=10
125C
75C
25C
Figure 3. Base-Emitter Saturation Voltage Figure 4. Collector - Base Leakage Current
1.0
0.9
0.8
0.7
0.6
0.5
0.4
Vbe(sat), Saturation Current,[V]
0.3
0.1 1 10 100
25C
75C
125C
Collector Current, [mA]
B=10
100
VCB = 35V
10
1
Leakage current of Collector - Base(nA)
0.1
25 50 75 100 125 150
Temperature, ['C]
Figure 5. Output Capacitance Figure 6. Power Dissipation vs
Ambient Temperature
12
10
8
6
4
[pF], Capacitance
ob
C
2
0
-1 -10 -100
MMBT2907AK Rev. B
VCB [V], C ollecto r-Base V oltage
IE = 0
f = 1MHz
0.4
0.3
0.2
- Power Dissipation (W)
0.1
D
P
0.0
0 25 50 75 100 125 150
Temperature, [ OC]
2 www.fairchildsemi.com
Page 3
Mechanical Dimensions
0
F
3
N
0.40
±0.03
MMBT2907AK PNP Epitaxial Silicon Transistor
SOT-23
0.20 MI
0.45~0.60
0.95
2.90
±0.03
1.90
±0.10
0.95
±0.03
±0.03
±0.10
0.40
±0.03
0.97REF 1.30
0.508REF
±0.10
2.40
0.96~1.14
0.03~0.1
0.38 RE
+0.05
0.12
–0.02
MMBT2907AK Rev. B
Dimensions in Millimeters
