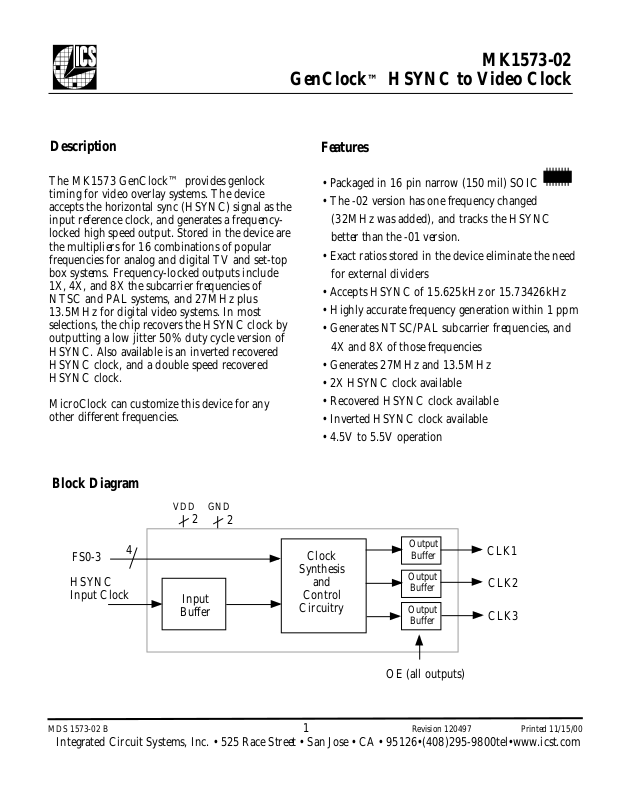

MK1573-02

GenClock ™ HSYNC to Video Clock

Description

The MK1573 GenClock™ provides genlock
timing for video overlay systems. The device
accepts the horizontal sync (HSYNC) signal as the
input reference clock, and generates a frequency­locked high speed output. Stored in the device are
the multipliers for 16 combinations of popular
frequencies for analog and digital TV and set-top
box systems. Frequency-locked outputs include
1X, 4X, and 8X the subcarrier frequencies of
NTSC and PAL systems, and 27MHz plus

13.5MHz for digital video systems. In most
selections, the chip recovers the HSYNC clock by
outputting a low jitter 50% duty cycle version of
HSYNC. Also available is an inverted recovered
HSYNC clock, and a double speed recovered
HSYNC clock.

MicroClock can customize this device for any
other different frequencies.

Features

• Packaged in 16 pin narrow (150 mil) SOIC

• The -02 version has one frequency changed
(32MHz was added), and tracks the HSYNC
better than the -01 version.

• Exact ratios stored in the device eliminate the need
for external dividers

• Accepts HSYNC of 15.625kHz or 15.73426kHz

• Highly accurate frequency generation within 1 ppm

• Generates NTSC/PAL subcarrier frequencies, and
4X and 8X of those frequencies

• Generates 27MHz and 13.5MHz

• 2X HSYNC clock available

• Recovered HSYNC clock available

• Inverted HSYNC clock available

• 4.5V to 5.5V operation

Block Diagram

VDD GND

2

FS0-3

HSYNC
Input Clock

MDS 1573-02 B 1 Revision 120497 Printed 11/15/00

Integrated Circuit Systems, Inc. • 525 Race Street • San Jose • CA • 95126•[phone]tel•www.icst.com

4

Input

Buffer

2

Clock

Synthesis

and

Control

Circuitry

Output

Buffer

Output

Buffer

Output

Buffer

OE (all outputs)

CLK1

CLK2

CLK3

MK1573-02

GenClock ™ HSYNC to Video Clock

Pin Assignment Output Clocks Decoding Table MK1573-02 (MHz)

HSYNC

VDD

VDD
CAP1
GND

CAP2

GND

16 pin (150 mil) SOIC

1

2

3
4

5

6
7
8

16
15

14
13

12

11

10

FS3

N/C

FS2
FS1

CLK2

OE

CLK1

9FS0

CLK3

Decode Address HSYNC Multiplier CLK 1 CLK 2 CLK 3

FS3:0 (Hex) pin 1 On-chip pin 10 pin 12 pin 9

0 15.625k 1536 24M 12M 15.625k

0000

1 15.734264k 1525 1/3 24M 12M 15.734264k

0001

2 15.625k 1728 27M 13.5M 15.625k

0010

3 15.734264k 1716 27M 13.5M 15.734264k

0011

4 15.625k 960 15M 7.5M 15.625k

0100

5 15.734264k 953 1/3 15M 7.5M 15.734264k

0101

6 15.625k 3840 60M 30M 15.625k

0110

7 15.734264k 3840 60.41957M 30.20979M 15.734264k

0111

8 15.625k 2270 35.46875M 17.734375M 4.433594M

1000

9 15.734264k 1820 28.63636M 14.31818M 3.579545M

1001

A 15.625k 2270 35.46875M 15.625k 15.625k

1010

B 15.734264k 1820 28.63636M 15.734264k 15.734264k

1011

C 15.625k 2048 32M 16M 15.625k

1100

D 15.734264k 808 12.71329M 15.734264k 31.4685k

1101

E 15.625k 2270 35.46875M 15.625k 31.25k

1110

F 15.734264k 1820 28.63636M 15.734264k 31.4685k

1111

• 0 = connect directly to ground, 1 = connect directly to VDD.

• CLK2 is a recovered HSYNC (with 50% duty cycle) on selections in italic.

• HSYNC reference outputs on CLK3 (in italic) are inverted, recovered HSYNC.

Pin Descriptions

Number Name Type Description

1 HSYNC I HSYNC clock input. The output clocks are synchronized to the HSYNC falling edge.
2 VDD P Connect to +5V.
3 VDD P Connect to +5V.
4 CAP1 I Connect a 0.01µF ceramic capacitor and a 39kΩ resistor in series between this pin and CAP2.
5 GND P Connect to ground.
6 CAP2 I Connect a 0.01µF ceramic capacitor and a 39kΩ resistor in series between this pin and CAP1.
7 GND P Connect to ground.
8 FS0 I Frequency Select 0. Determines CLK outputs (with given input) per table above.

9 CLK3 O Clock 3 determined by status of FS3:0 per table above.
10 CLK1 O Clock 1 determined by status of FS3:0 per table above.
11 OE I Output Enable. Tri-states the three output clocks when low.
12 CLK2 O Clock 2 determined by status of FS3:0 per table above.
13 FS1 I Frequency Select 1. Determines CLK outputs (with given input) per table above.
14 FS2 I Frequency Select 2. Determines CLK outputs (with given input) per table above.
15 N/C - No Connect. Nothing is connected to this pin.
16 FS3 I Frequency Select 3. Determines CLK outputs (with given input) per table above.

Type: I = Input, O = output, P = power supply connection

MDS 1573-02 B 2 Revision 120497 Printed 11/15/00

Integrated Circuit Systems, Inc. • 525 Race Street • San Jose • CA • 95126•[phone]tel•www.icst.com

MK1573-02

ABSOLUTE MAXIMUM RATINGS (Note 1)

DC CHARACTERISTICS (VDD = 5V unless noted)

AC CHARACTERISTICS (VDD = 5V unless noted)

GenClock ™ HSYNC to Video Clock

External Components/Crystal Selection

The MK1573 requires a minimum number of external components for proper operation. A 0.1µF low
leakage capacitor (see Capacitor Selection on following page) should be connected between CAP1 and
CAP2 as close to the chip as possible. A high quality ceramic capacitor is recommended. A decoupling
capacitor of 0.1µF must be connected between VDD and GND pins (pins 2 and 3, 5 and 7) close to the
chip, and 33Ω terminating resistors can be used on clock outputs with traces longer than 1 inch.

Electrical Specifications

Parameter Conditions Minimum Typical Maximum Units

Supply Voltage, VDD Referenced to GND 7 V
Inputs and Clock Outputs -0.5 VDD+0.5 V
Ambient Operating Temperature 0 70 °C
Soldering Temperature Max of 10 seconds 250 °C
Storage Temperature -65 150 °C

Operating Voltage, VDD 4.5 5.5 V
Input High Voltage, VIH 2 V
Input Low Voltage, VIL 0.8 V
Output High Voltage IOH=-4mA VDD-0.4 V
Output High Voltage IOH=-25mA 2.4 V
Output Low Voltage IOL=25mA 0.4 V
Operating Supply Current, IDD No Load, VDD=5.0V 15 mA
Short Circuit Current Each output ±100 mA
Input Capacitance 7 pF
Actual mean frequency error versus target, note 2 Any clock selection 0 1 ppm

Input Frequency, NTSC 15.734264 kHz
Input Frequency, PAL 15.625 kHz
Output Clock Rise Time 0.8 to 2.0V 1.5 ns
Output Clock Fall Time 2.0 to 0.8V 1.5 ns
Output Clock Duty Cycle, High Time At VDD/2 40 49 to 51 60 %
Absolute Clock Period Jitter TBD ps
Output Enable Time, OE high to outputs on 50 ns
Output Disable Time, OE low to tri-state 3 µs

Notes:

1. Stresses beyond those listed under Absolute Maximum Ratings could cause permanent damage to the device. Prolonged exposure
to levels above the operating limits but below the Absolute Maximums may affect device reliability.

2. Most selections have zero ppm error. Some selections have a maximum of 1 ppm synthesis error .

MDS 1573-02 B 3 Revision 120497 Printed 11/15/00

Integrated Circuit Systems, Inc. • 525 Race Street • San Jose • CA • 95126•[phone]tel•www.icst.com

MK1573-02

GenClock ™ HSYNC to Video Clock

Loop Bandwidth and Loop Filter Component Selection

The series connected capacitor and resistor between CAP1 and CAP2 (pins 4 and 6) determine the dynamic
characteristics of the phase-locked loop. The capacitor must have very low leakage, therefor a high quality
ceramic capacitor is recommended. DO NOT use any type of polarized or electrolytic capacitor. The values
of the RC network determine the bandwidth of the PLL.

The tracking of the jitter on the HSYNC input improves with increasing values of R and decreasing values of
C, until a point is reached where the loop starts becoming unstable. At that point, HSYNC tracking becomes
unreliable. Loop filter values between 470pF and 0.01µF, and 18kΩ and 120kΩ will work for most
application where the PLL must track HSYNC jitter with minimum error. A good starting point is 680pF
and 82kΩ. The optimum values should be determined by the spectral characteristics of the HSYNC jitter.

The following formula gives the approximate loop bandwidth for the MK1573:

537

fbw =

For example, if CLK1 is running at 24MHz and C=1000pF, then

fbw =

If minimum absolute jitter is required, the RC network should be replaced by a single capacitor with a value
between 0.01µF and 2µF. Larger values will cause the PLL to start more slowly. For example, if C=2µF, the
loop may take several seconds to start.

fclk1 • C

537

24x106 • 1x10-9

PC Board Layout

A proper board layout is critical to the successful
use of the MK1573. In particular, the CAP1 and
CAP2 pins are very sensitive to noise and leakage
(CAP1 at pin 4 is the most sensitive). Traces
must be as short as possible and the capacitor
and resistor must be mounted next to the device
as shown to the right. The capacitor connected
between pins 3 and 5 is the power supply
decoupling capacitor.

where: fbw is the loop bandwidth in Hertz

fclk1 is the frequency of CLK1 in Hertz
C is the value of capacitor in Farads

= 3.47kHz

1

16

2

15

3

14

4

13
12

5

11

6

10

7
8

9

cap

V

cap

G

resist.

=connect to VDD

V

=connect to GND

G

The high frequency output clocks on CLK1 and
CLK2 may benefit from a series 33Ω resistor
connected close to the pin (not shown).

Video Clock Multipliers/Accuracies

In the table on page 2 are the actual multipliers stored in the MK1573-02 ROM, which shows that the
accuracies are within one ppm for the output clocks.

MDS 1573-02 B 4 Revision 120497 Printed 11/15/00

Integrated Circuit Systems, Inc. • 525 Race Street • San Jose • CA • 95126•[phone]tel•www.icst.com

MK1573-02

GenClock ™ HSYNC to Video Clock

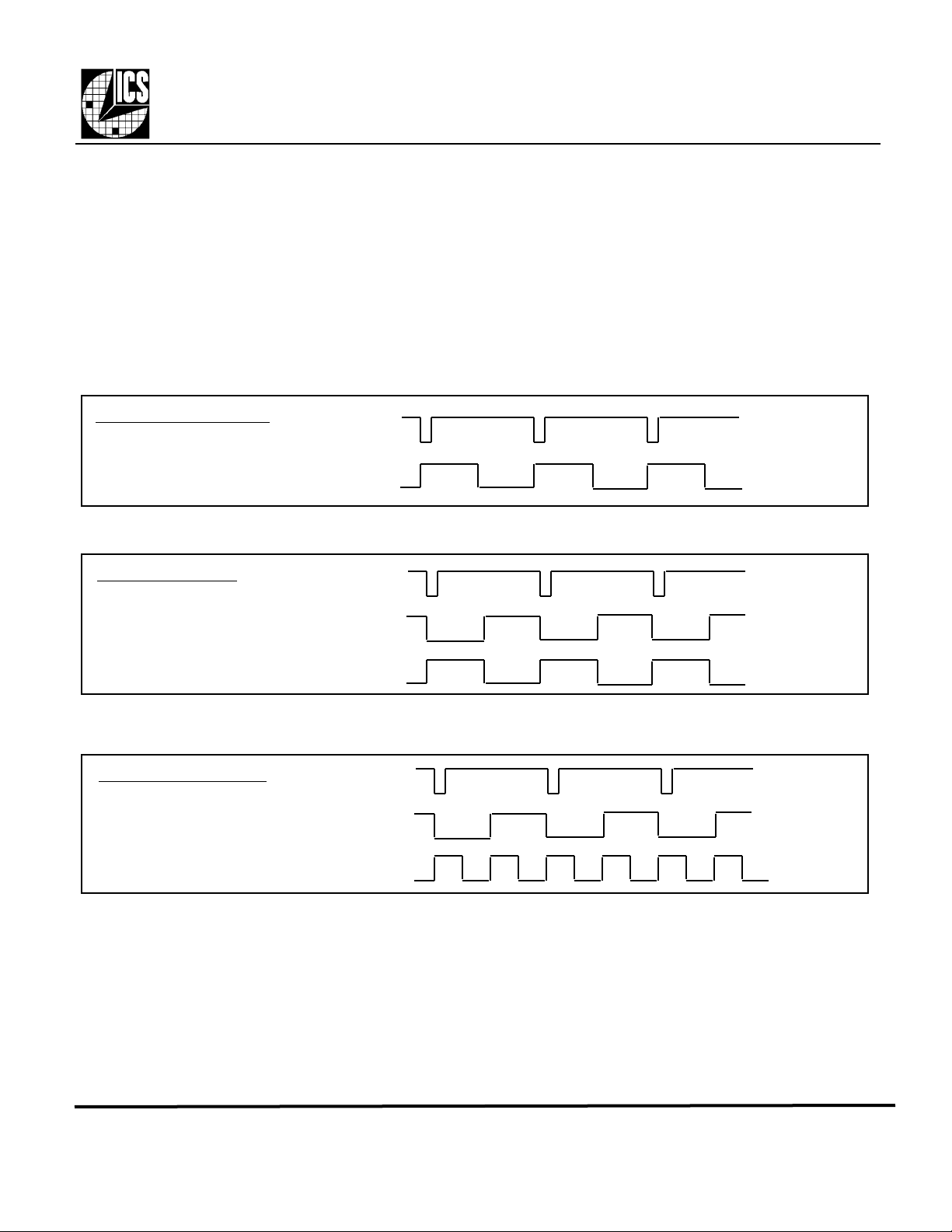

Clock Waveforms

In addition to generating the video clock on CLK1 (pin 10), the MK1573 also outputs the recovered
HSYNC clocks. On certain selections, a double speed recovered HSYNC clock is also available. These
recovered clocks will have lower jitter than the HSYNC input due to the filtering action of the PLL. The
jitter spectrum of the recovered clocks will be reduced at frequencies higher than the loop bandwidth. The
above section describes how to calculate the approximate loop bandwidth. The waveforms of the
recovered clocks fall into one of three different groups depending on the address selection:

Addresses 0 to 7 and C

Addresses A and B

Addresses D, E, and F

HSYNC

input

CLK3

HSYNC

input

CLK2

CLK3

HSYNC

input

CLK2

CLK3

The recovered clocks are triggered by the falling edge of HSYNC and are delayed by about 100ns.

MDS 1573-02 B 5 Revision 120497 Printed 11/15/00

Integrated Circuit Systems, Inc. • 525 Race Street • San Jose • CA • 95126•[phone]tel•www.icst.com

MK1573-02

Inches

Millimeters

GenClock ™ HSYNC to Video Clock

Package Outline and Package Dimensions

E H

h x 45°

D

Q

e

b

c

16 pin SOIC narrow

Symbol Min Max Min Max

A 0.055 0.070 1.397 1.778
b 0.013 0.019 0.330 0.483

c 0.007 0.010 0.191 0.254

D 0.385 0.400 9.779 10.160

E 0.150 0.160 3.810 4.064

H 0.225 0.245 5.715 6.223

e

h 0.016 0.406

Q 0.004 0.01 0.102 0.254

A

Ordering Information

Part/Order Number Marking Package Temperature

MK1573-02S MK1573-02S 16 pin narrow SOIC 0-70°C

MK1573-02STR MK1573-02S Add Tape & Reel 0-70°C

While the information presented herein has been checked for both accuracy and reliability, MicroClock Incorporated assumes no responsibility for either its use or for the
infringement of any patents or other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in
normal commercial applications. Any other applications such as those requiring extended temperature range, high reliability, or other extraordinary environmental requirements
are not recommended without additional processing by MicroClock. MicroClock reserves the right to change any circuitry or specifications without notice. MicroClock does not
authorize or warrant any MicroClock product for use in life support devices or critical medical instruments.

CHANGE HISTORY
Version Date first published Comments
A 10/18/96 Original
B 12/4/97 Final version

GenClock is a trademark of MicroClock Incorporated

©1996 MicroClock Incorporated
