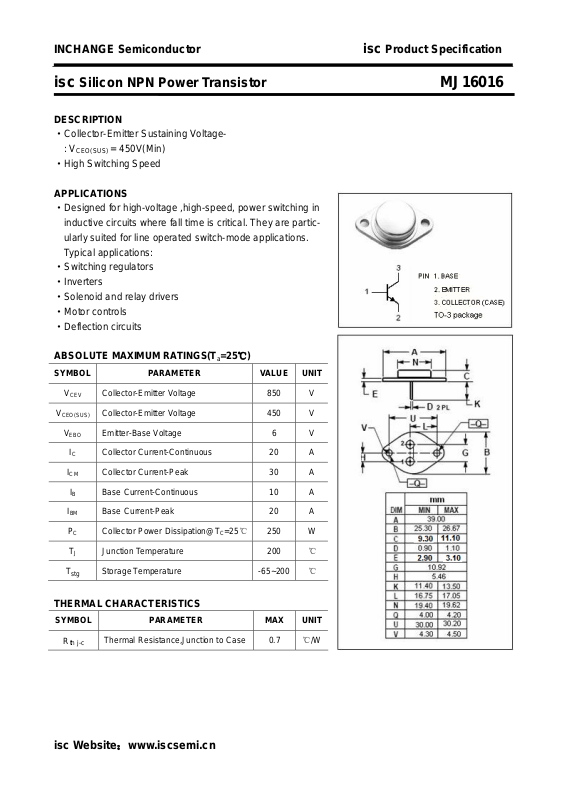

INCHANGE Semiconductor isc Product Specification
isc Silicon NPN Power Transistor MJ16016
DESCRIPTION
·Collector-Emitter Sustaining Voltage : V
CEO(SUS)
·High Switching Speed
APPLICATIONS
·Designed for high-voltage ,high-speed, power switching in
inductive circuits where fall time is critical. They are particularly suited for line operated switch-mode applications.
Typical applications:
·Switching regulators
·Inverters
·Solenoid and relay drivers
·Motor controls
·Deflection circuits
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL PARAMETER VALUE UNIT
= 450V(Min)
V
CEV
V
CEO(SUS)
V
EBO
I
I
CM
I
I
BM
P
T
T
C
B
stg
Collector-Emitter Voltage 850 V
Collector-Emitter Voltage 450 V
Emitter-Base Voltage 6 V
Collector Current-Continuous 20 A
Collector Current-Peak 30 A
B Base Curr ent-Continuous 10 A
Base Current-Peak 20 A
Collector Power Dissipation@TC=25℃
C
Junction Temperature 200
J
Storage Temperature -65~200
250 W
℃
℃
THERMAL CHARACTERISTICS
SYMBOL PARAMETER MAX UNIT
R
th j-c
Thermal Resistance,Junction to Case 0.7
℃/W
isc Website：www.iscsemi.cn
Page 2
INCHANGE Semiconductor isc Product Specification
isc Silicon NPN Power Transistor MJ16016
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
CEO(SUS)
V
CE
(sat)-
V
CE
(sat)-
V
BE
I
CEV
I
CER
I
EBO
h
FE
C
(sat)
OB
Collector-Emitter Sustaining Voltage IC=100mA ; IB=0 450 V
Collector-Emitter Saturation Voltage IC= 10A; IB= 1A 2.5 V
1
Collector-Emitter Saturation Voltage
2
Base-Emitter Saturation Voltage
Collector Cutoff Current
Collector Cutoff Current VCE= 850V; RBE= 50Ω,TC= 100℃ 2.5 mA
Emitter Cutoff Current VEB= 6V; IC=0 1.0 mA
DC Current Gain IC= 20A ; VCE= 5V 7
Output Capacitance
Switching times;Resistive Load
t
d
Delay Time 20 50 ns
I
= 15A; IB= 1.5A
C
= 15A; IB= 1.5A,TC=100℃
I
C
I
= 15A; IB= 1.5A
C
IC= 15A; IB= 1.5A,TC=100℃
V
=850V;V
CEV
V
=850V;V
CEV
I
= 0; VCB= 10V; f
E
=1.5V
BE
(off)
=1.5V;TC=100℃
BE
(off)
=1.0kHz
test
3.0
3.0
1.5
1.5
0.25
1.5
V
V
mA
500 pF
t
r
t
s
t
f
Rise Time 200 500 ns
Storage Time 900 2200 ns
Fall Time
IC= 15A , VCC= 250V, RB2= 1.6Ω
= 1.5A;IB2= -3A, PW= 30μs
I
B1
Duty Cycle≤2.0%
100 250 ns
isc Website：www.iscsemi.cn
2
