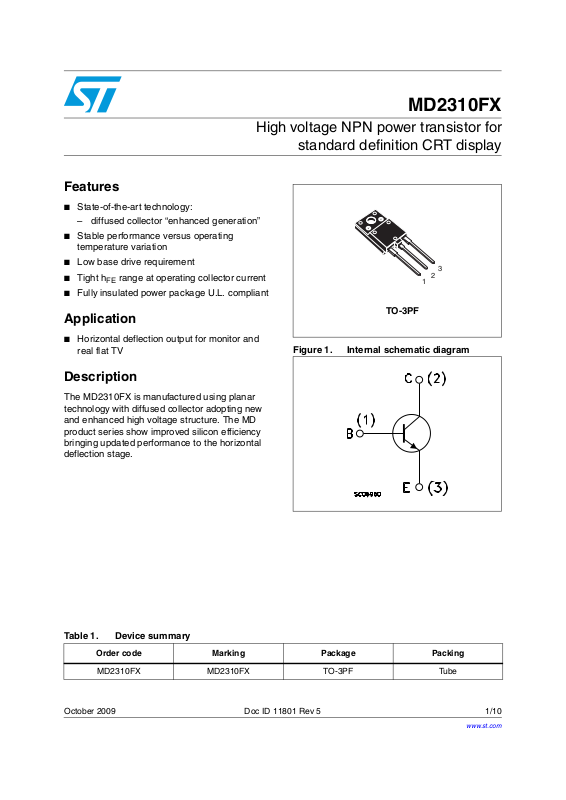

Page 1
MD2310FX
High voltage NPN power transistor for
standard definition CRT display
Features
■ State-of-the-art technology:
– diffused collector “enhanced generation”
■ Stable performance versus operating
temperature variation
■ Low base drive requirement
■ Tight h
■ Fully insulated power package U.L. compliant
range at operating collector current
FE
Application
■ Horizontal deflection output for monitor and
real flat TV
Description
The MD2310FX is manufactured using planar
technology with diffused collector adopting new
and enhanced high voltage structure. The MD
product series show improved silicon efficiency
bringing updated performance to the horizontal
deflection stage.
3
2
1
TO-3PF
Figure 1. Internal schematic diagram
Table 1. Device summary
Order code Marking Package Packing
MD2310FX MD2310FX TO-3PF Tube
October 2009 Doc ID 11801 Rev 5 1/10
www.st.com
10
Page 2
Electrical ratings MD2310FX
1 Electrical ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
V
V
V
P
T
I
V
CES
CEO
EBO
I
CM
I
TOT
INS
STG
T
Collector-emitter voltage (VBE = 0) 1500 V
Collector-emitter voltage (IB = 0) 700 V
Emitter-base voltage (IC = 0) 9 V
Collector current 14 A
C
Collector peak current (tP < 5 ms) 21 A
Base current 7 A
B
Total dissipation at Tc = 25 °C 62 W
Insulation withstand voltage (RMS) from all three leads to external
heatsink
2500 V
Storage temperature -65 to 150
Max. operating junction temperature 150
J
Table 3. Thermal data
Symbol Parameter Value Unit
R
thJC
Thermal resistance junction-case ____________________Max 2 °C/W
°C
2/10 Doc ID 11801 Rev 5
Page 3
MD2310FX Electrical characteristics
2 Electrical characteristics
T
= 25 °C; unless otherwise specified.
CASE
Table 4. Electrical characteristics
Symbol Parameter Test conditions Min. Typ. Max. Unit
I
CES
I
EBO
V
CEO(sus)
V
CE(sat)
V
BE(sat)
h
FE
Collector cut-off current
= 0)
(V
BE
Emitter cut-off current
= 0)
(I
C
Collector-emitter sustaining
voltage (IB = 0)
Collector-emitter saturation
(1)
voltage
(1)
Base-emitter saturation voltage IC = 7 A IB = 1.75 A 1.1 V
(1)
DC current gain
V
V
V
I
C
I
C
I
C
I
C
IC = 7 A V
INDUCTIVE LOAD
t
1. Pulse test: pulse duration ≤ 300 µs, duty cycle ≤ 2 %.
s
t
f
Storage time
Fall time
IC = 6 A ___ _ _ fh = 64 kHz
I
B(on)
L
BB(off)
= 1500 V
CE
= 1500 V Tc= 125 °C
CE
= 9 V 1 mA
EB
0.2
2
= 100 mA 700 V
= 7 A IB = 1.75 A 2.5 V
= 1 A V
= 7 A V
= 0.9 A__ V
= 1.6 µH
= 5 V
CE
= 1 V
CE
= 5 V 6
CE
= - 2.7 V
BE(off)
28
5.5
2.3
0.12
8.5
2.8
0.25
mA
mA
µs
µs
Doc ID 11801 Rev 5 3/10
Page 4
Electrical characteristics MD2310FX
2.1 Typical characteristics

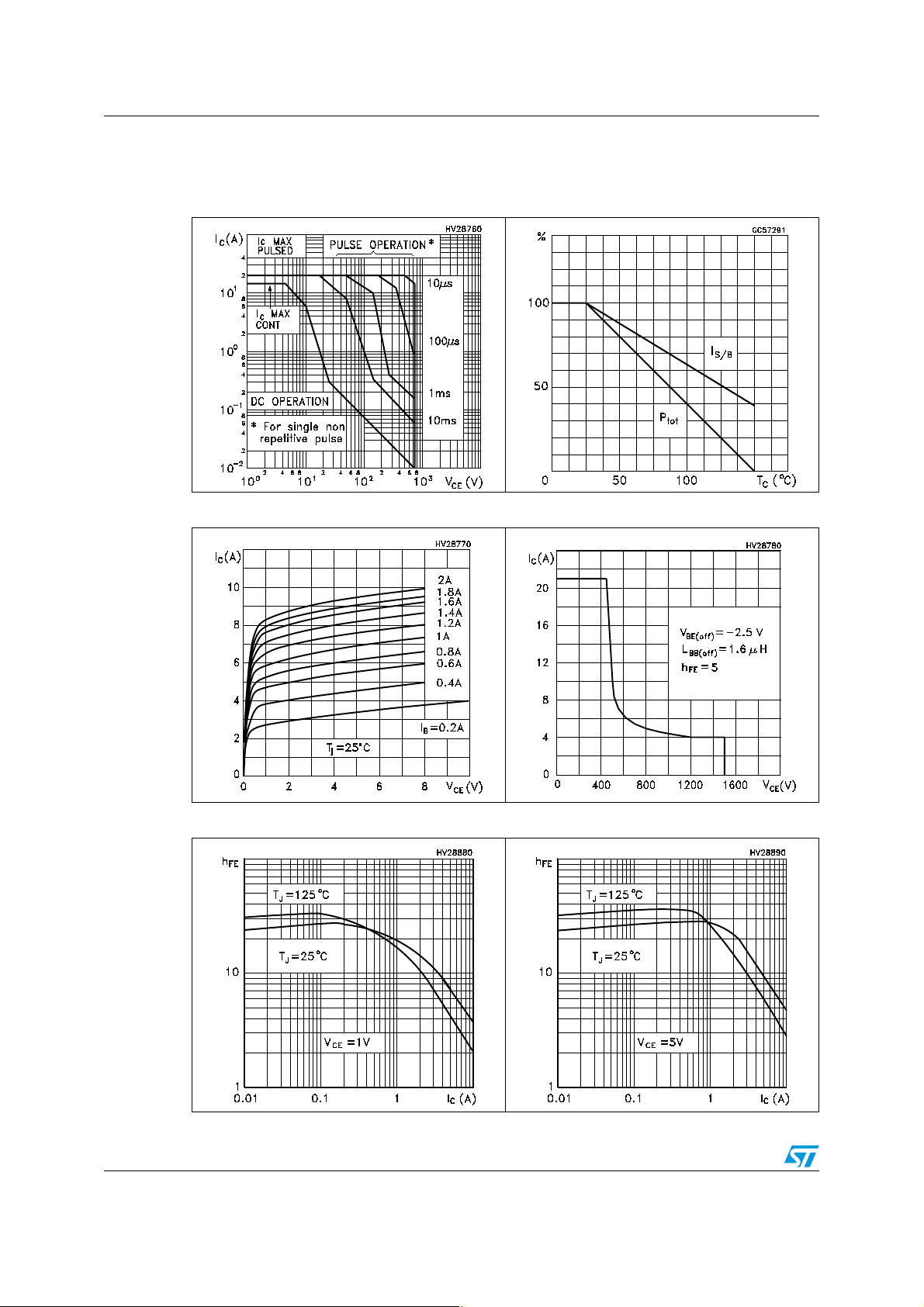

Figure 2. Safe operating area Figure 3. Derating curve
Figure 4. Output characteristics Figure 5. Reverse biased SOA
Figure 6. DC current gain (VCE = 1 V) Figure 7. DC current gain (VCE = 5 V)
4/10 Doc ID 11801 Rev 5
Page 5
MD2310FX Electrical characteristics

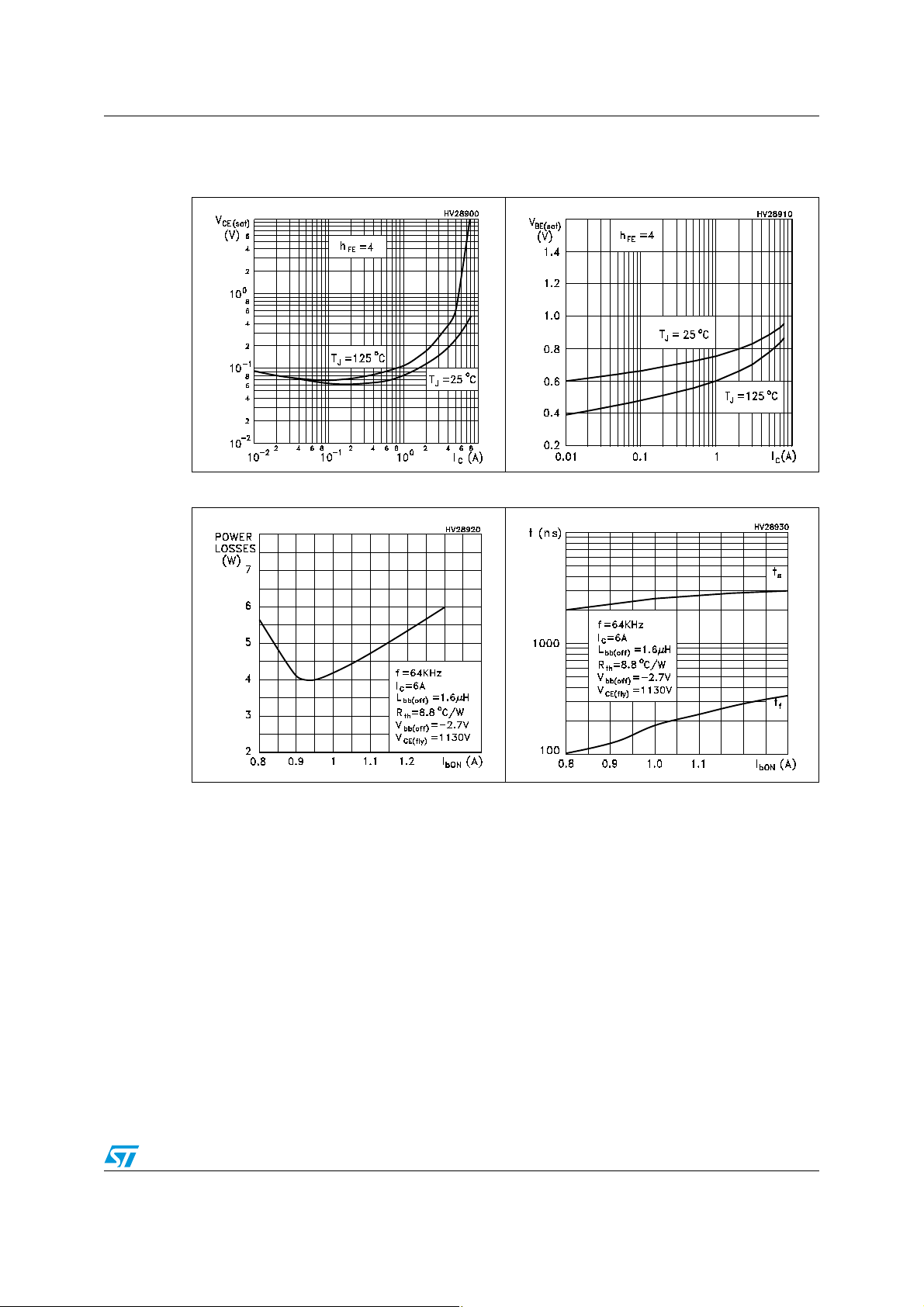

Figure 8. Collector-emitter saturation
Figure 10. Power losses Figure 11. Inductive load switching time
voltage
Figure 9. Base-emitter saturation
voltage
Doc ID 11801 Rev 5 5/10
Page 6
Test circuits MD2310FX
3 Test circuits

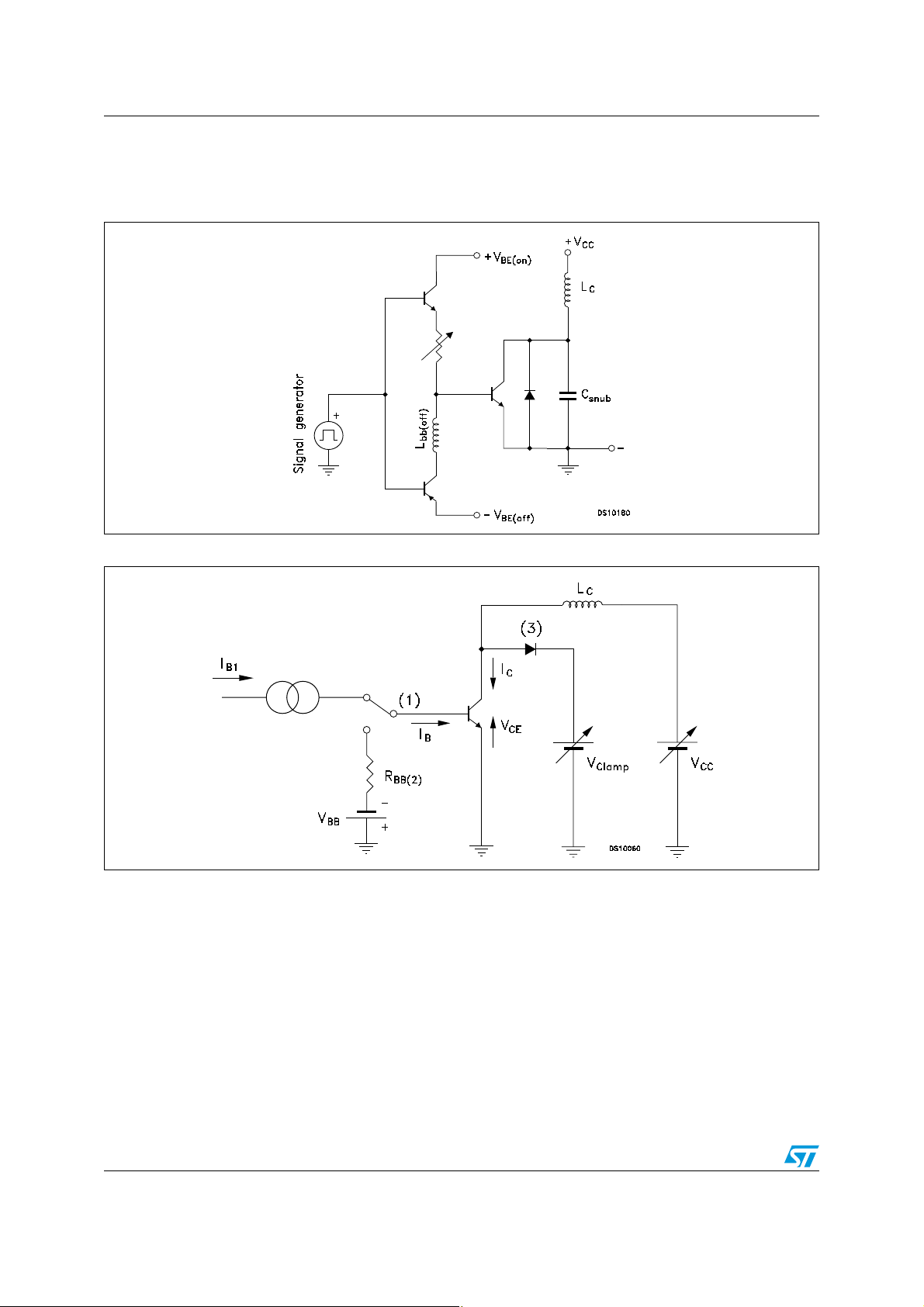

Figure 12. Power losses and inductive load switching test circuit
Figure 13. Reverse biased safe operating area test circuit
6/10 Doc ID 11801 Rev 5
Page 7
MD2310FX Package mechanical data
4 Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
®
packages, depending on their level of environmental compliance. ECOPACK®
®
is an ST trademark.
Doc ID 11801 Rev 5 7/10
Page 8
Package mechanical data MD2310FX
TO-3PF mechanical data
DIM.
min. typ max.
mm.
A5.30 5.70
C2.80 3.20
D 3.10 3.50
D1 1.80 2.20
E0.80 1.10
F 0.65 0.95
F2 1.80 2.20
G 10.30 11.50
G1 5.45
H 15.30 15.70
L 9.80 10 10.20
L2 22.8023.20
L3 26.30 26.70
L4 43.20 44.40
L5 4.30 4.70
L6 24.30 24.70
L7 14.60 15
N1.80 2.20
R 3.80 4.20
Dia3.40 3.80
8/10 Doc ID 11801 Rev 5
7627132_C
Page 9
MD2310FX Revision history
5 Revision history
Table 5. Document revision history
Date Revision Changes
18-Oct-2005 1 First release
25-Nov-2005 2 Complete datasheet
15-Dec-2005 3 Legal page inserted
29-Sep-2006 4 New hFE limit
27-Oct-2009 5 Updated TO-3PF package mechanical data
Doc ID 11801 Rev 5 9/10
