Page 1
MC 1,5/ 2-STF-3,5
Order No.: 1847055

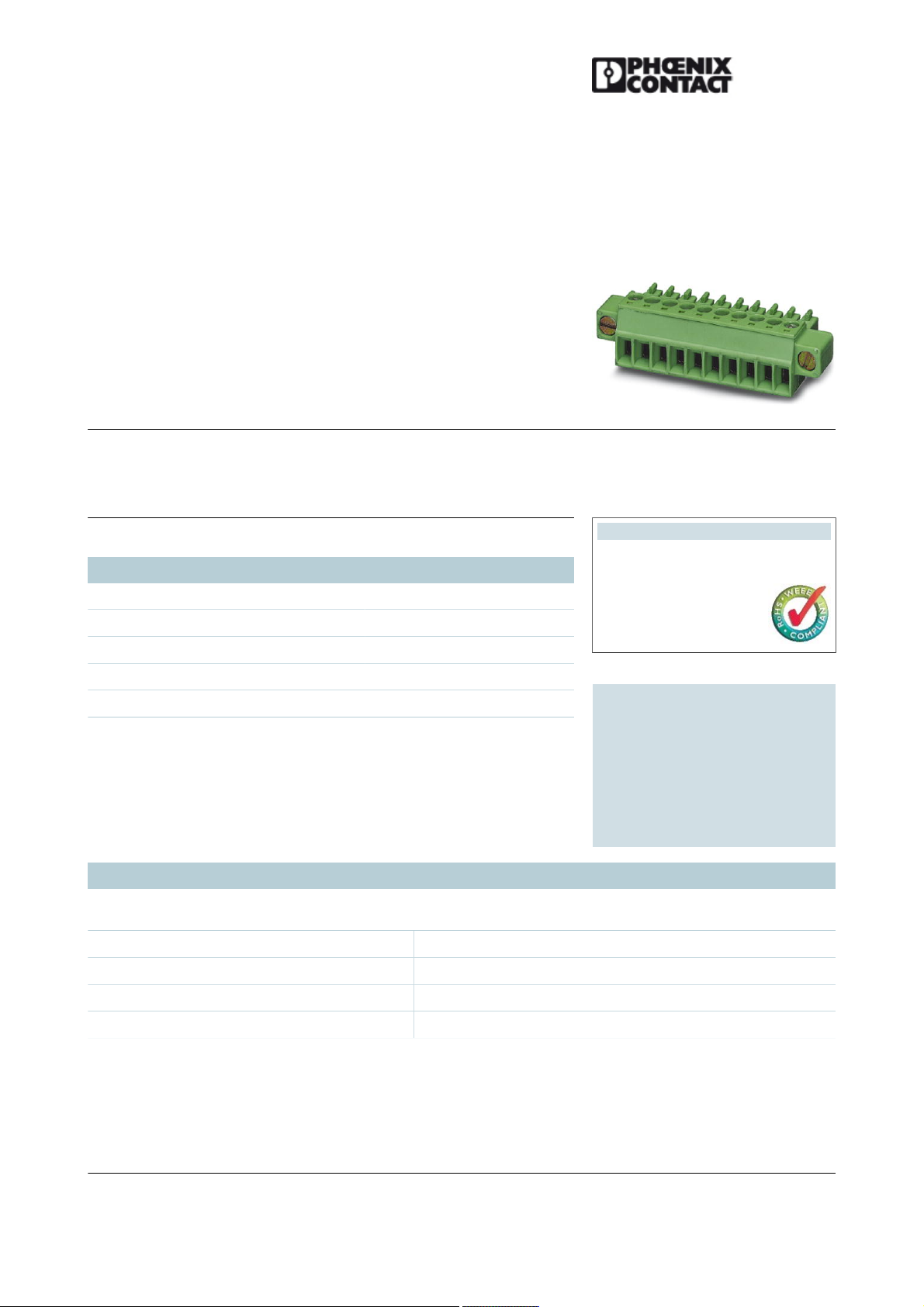

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1847055
Extract from the online
catalog
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch:
3.5 mm, Number of positions: 2, Connection type: Screw connection,
Color: green
Commercial data
EAN 4017918113445
Pack 50 pcs.
Customs tariff 85366990
Weight/Piece 0.002582 KG
Catalog page information Page 143 (CC-2009)
Technical data
Product notes
WEEE/RoHS-compliant since:
01/01/2003
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Dimensions / positions
Pitch 3.5 mm
Dimension a 3.5 mm
Number of positions 2
Screw thread M2
PHOENIX CONTACT GmbH & Co. KG Page 1 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 2
MC 1,5/ 2-STF-3,5 Order No.: 1847055
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1847055
Tightening torque, min 0.22 Nm
Tightening torque max 0.25 Nm
Technical data
Insulating material group I
Rated surge voltage (III/3) 2.5 kV
Rated surge voltage (III/2) 2.5 kV
Rated surge voltage (II/2) 2.5 kV
Rated voltage (III/2) 160 V
Rated voltage (II/2) 320 V
Connection in acc. with standard EN-VDE
Nominal current I
Nominal voltage U
N
N
8 A
160 V
Nominal cross section 1.5 mm²
Maximum load current
8 A (with 1.5 mm2 conductor cross section)
Insulating material PA
Inflammability class acc. to UL 94 V0
Internal cylindrical gage A1
Stripping length 7 mm
Connection data
Conductor cross section solid min. 0.14 mm²
Conductor cross section solid max. 1.5 mm²
Conductor cross section stranded min. 0.14 mm²
Conductor cross section stranded max. 1.5 mm²
Conductor cross section stranded, with ferrule
0.25 mm²
without plastic sleeve min.
Conductor cross section stranded, with ferrule
1.5 mm²
without plastic sleeve max.
Conductor cross section stranded, with ferrule
0.25 mm²
with plastic sleeve min.
Conductor cross section stranded, with ferrule
0.5 mm²
with plastic sleeve max.
Conductor cross section AWG/kcmil min. 28
Conductor cross section AWG/kcmil max 16
2 conductors with same cross section, solid min. 0.08 mm²
2 conductors with same cross section, solid max. 0.5 mm²
PHOENIX CONTACT GmbH & Co. KG Page 2 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 3
MC 1,5/ 2-STF-3,5 Order No.: 1847055
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1847055
2 conductors with same cross section, stranded
0.08 mm²
min.
2 conductors with same cross section, stranded
0.75 mm²
max.
2 conductors with same cross section, stranded,
0.25 mm²
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
0.34 mm²
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
0.5 mm²
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
0.5 mm²
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
Certification CB, CSA, CUL, GOST, UL, VDE-PZI
CSA
Nominal voltage U
Nominal current I
N
N
300 V
8 A
AWG/kcmil 28-16
CUL
Nominal voltage U
Nominal current I
N
N
300 V
8 A
AWG/kcmil 30-14
UL
Nominal voltage U
Nominal current I
N
N
300 V
8 A
AWG/kcmil 30-14
Accessories
Item Designation Description
General
1834343 KGG-MC 1,5/ 2 Cable housing, Pitch: 3.81 mm, Number of positions: 2,
Dimension a: 10.01 mm, Color: green
PHOENIX CONTACT GmbH & Co. KG Page 3 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 4
MC 1,5/ 2-STF-3,5 Order No.: 1847055
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1847055
Marking
0804073 SK 3,5/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100,
sufficient for 140 terminal blocks
0803883 SK U/2,8 WH:UNBEDRUCKT Unprinted marker cards, DIN A4 format, pitch as desired, self-
adhesive, with 50 stamped marker strips, 185 mm strip length, can
be labeled with the CMS system or manually with the M-PEN
1051980 ZB 6:DIGITAL Digital Zack marker strip, 10-section, with 7-segment negative
print, the desired numbers can be produced by going over the
segments with the marker pen
Tools
1205037 SZS 0,4X2,5 Screwdriver, bladed, matches all screw terminal blocks up to 1.5
mm² connection cross section, blade: 0.4 x 2.5 mm
Additional products
Item Designation Description
General
1897241 EMC 1,5/ 2-GF-3,5 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Press-in
1911169 EMCV 1,5/ 2-GF-3,5 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Press-in
1843790 MC 1,5/ 2-GF-3,5 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Soldering
1843224 MCV 1,5/ 2-GF-3,5 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Soldering

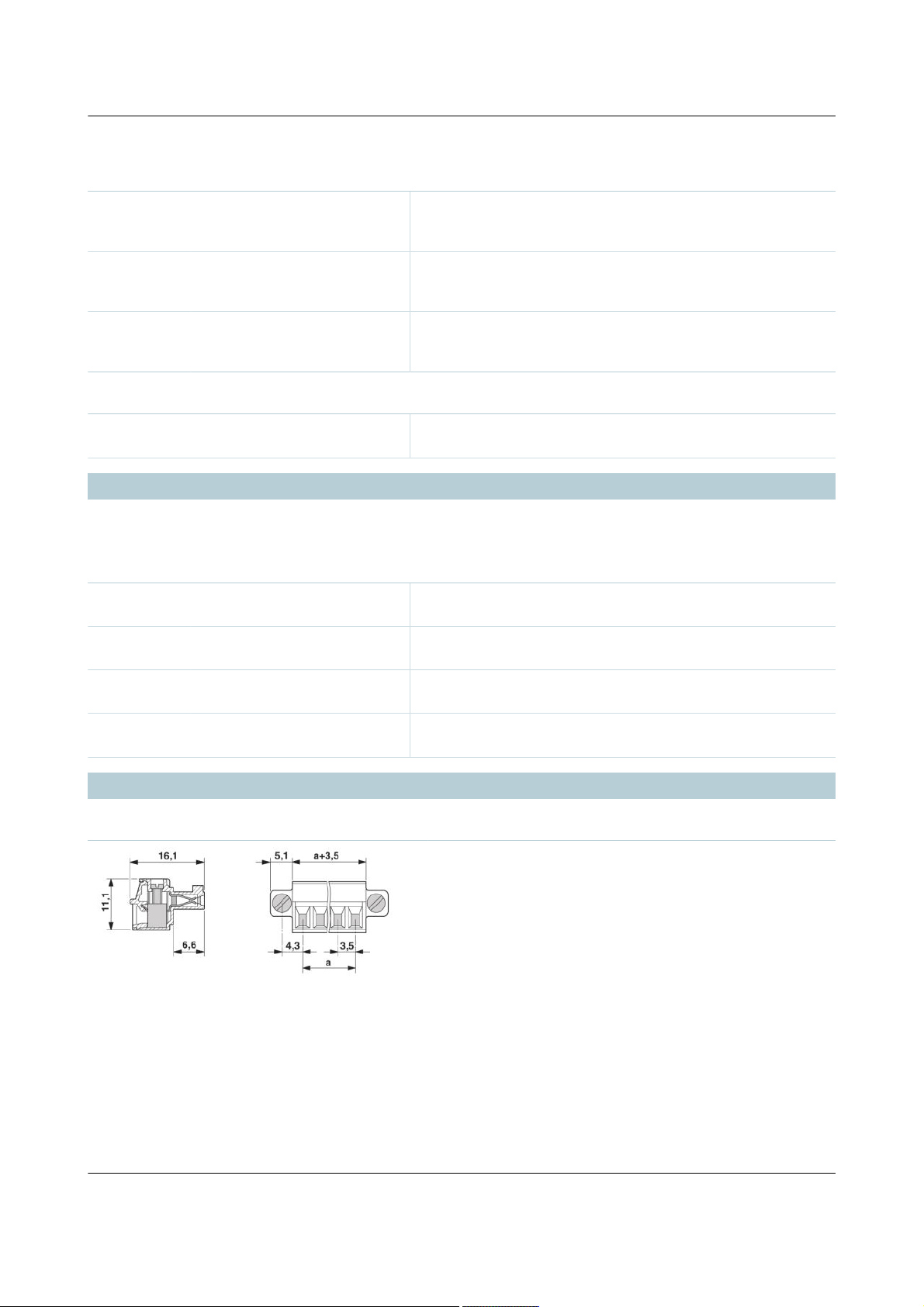

Diagrams/Drawings
Dimensioned drawing
PHOENIX CONTACT GmbH & Co. KG Page 4 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 5
MC 1,5/ 2-STF-3,5 Order No.: 1847055
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1847055
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2010 Phoenix Contact
Technical modifications reserved;
