Page 1

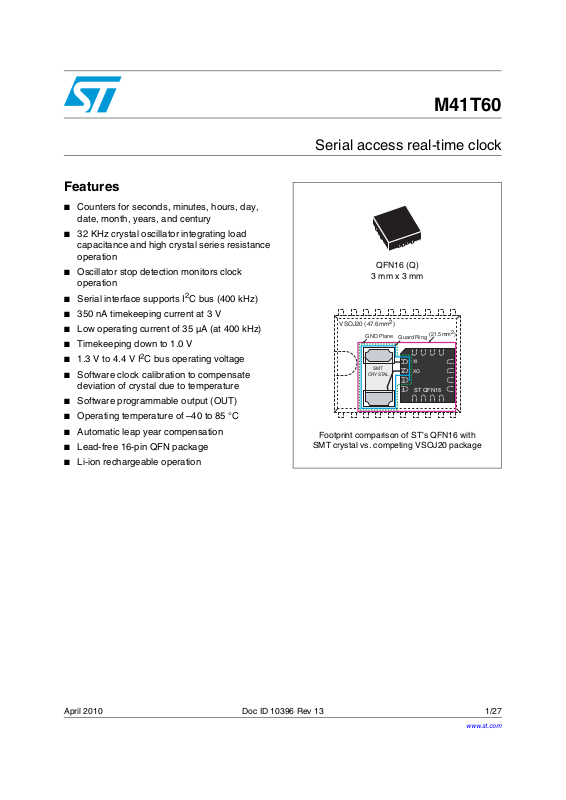

Features

■ Counters for seconds, minutes, hours, day,

date, month, years, and century

■ 32 KHz crystal oscillator integrating load

capacitance and high crystal series resistance operation

■ Oscillator stop detection monitors clock

operation

■ Serial interface supports I

■ 350 nA timekeeping current at 3 V

■ Low operating current of 35 µA (at 400 kHz)

■ Timekeeping down to 1.0 V

■ 1.3 V to 4.4 V I

■ Software clock calibration to compensate

C bus operating voltage

deviation of crystal due to temperature

■ Software programmable output (OUT)

■ Operating temperature of –40 to 85 °C

■ Automatic leap year compensation

■ Lead-free 16-pin QFN package

■ Li-ion rechargeable operation

C bus (400 kHz)

M41T60

Serial access real-time clock

QFN16 (Q)

3 mm x 3 mm

VSOJ20 (47.6mm2)

(21.5mm2)

ST QFN16

GND Plane

CRYSTAL

Guard Ring

SMT

Footprint comparison of ST’s QFN16 with

SMT crystal vs. competing VSOJ20 package

April 2010 Doc ID 10396 Rev 13 1/27

www.st.com

Page 2

Contents M41T60

Contents

1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 2-wire bus characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.1 Bus not busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.2 Start data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.3 Stop data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.4 Data valid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.5 Acknowledge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 READ mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 WRITE mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3 Clock operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1 Calibrating the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2 Century bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.3 Output driver pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.4 Oscillator stop detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.5 Initial power-on defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5 DC and AC parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7 Part numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

8 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2/27 Doc ID 10396 Rev 13

Page 3

M41T60 List of tables

List of tables

Table 1. Signal names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Table 2. Register map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 3. Century bits examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 4. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 5. Operating and AC measurement conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 6. Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 7. DC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 8. Crystal electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 9. Crystals suitable for use with M41T6x series RTCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 10. Oscillator characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 11. AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 12. QFN16 – 16-lead, quad, flat package, no lead, 3 x 3 mm body size, mechanical data . . . 23

Table 13. Ordering information scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 14. Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Doc ID 10396 Rev 13 3/27

Page 4

List of figures M41T60

List of figures

Figure 1. Logic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 2. 16-pin QFN connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 3. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 4. Hardware hookup for SuperCap™ backup operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 5. Serial bus data transfer sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 6. Acknowledgement sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 7. Slave address location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 8. READ mode sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 9. Alternate READ mode sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 10. WRITE mode sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

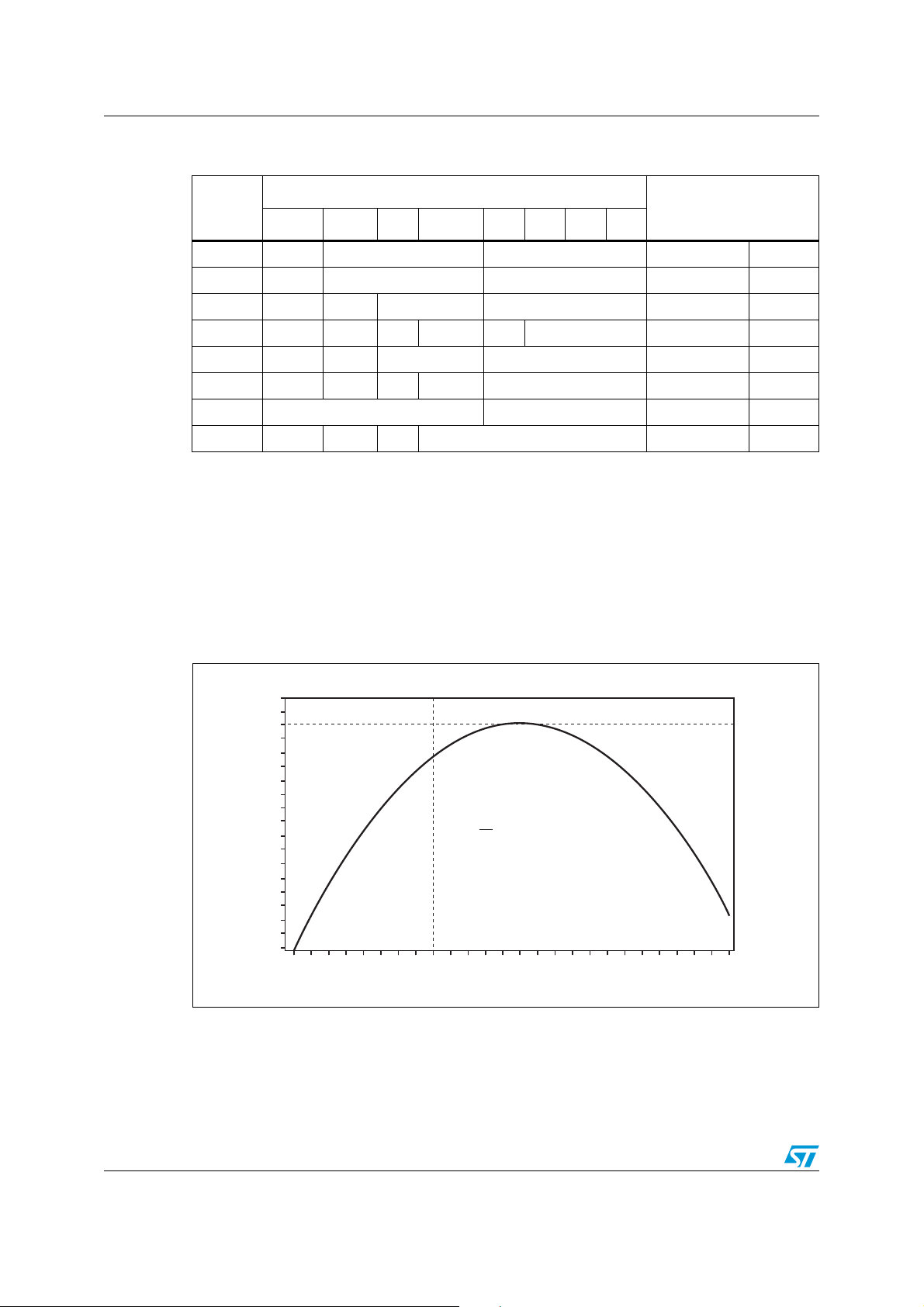

Figure 11. Crystal accuracy across temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

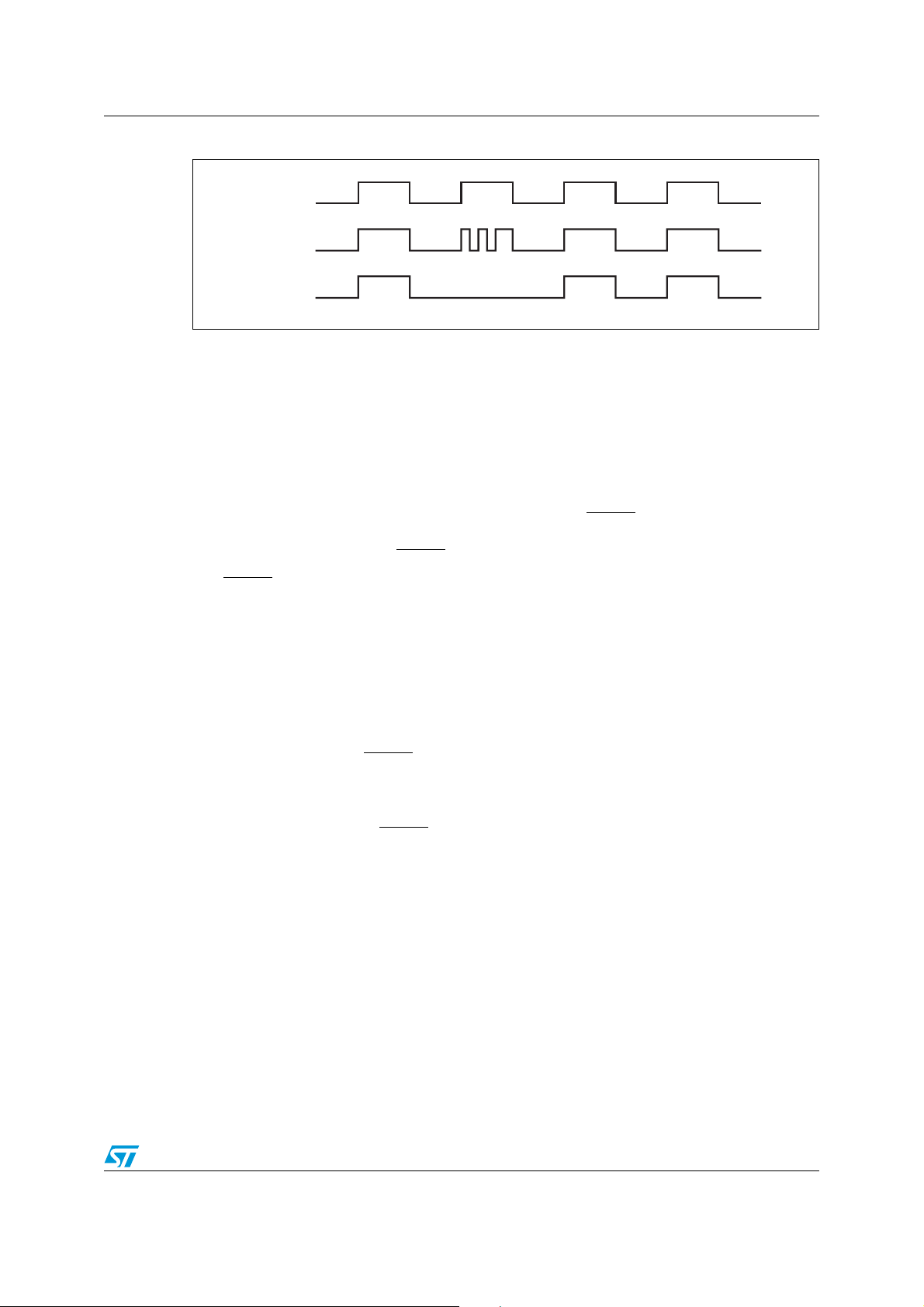

Figure 12. Calibration waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 13. AC testing I/O waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

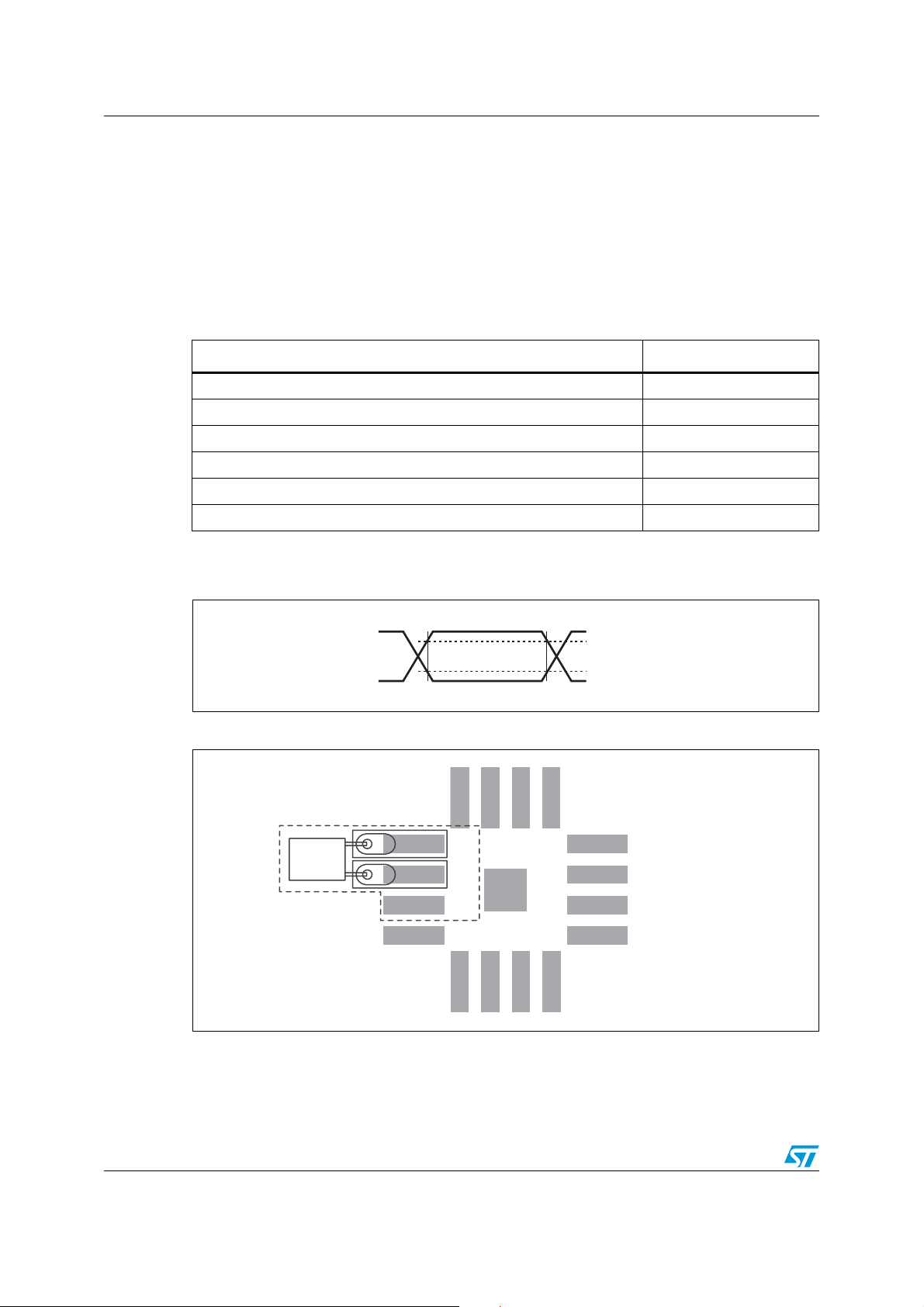

Figure 14. Crystal isolation example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

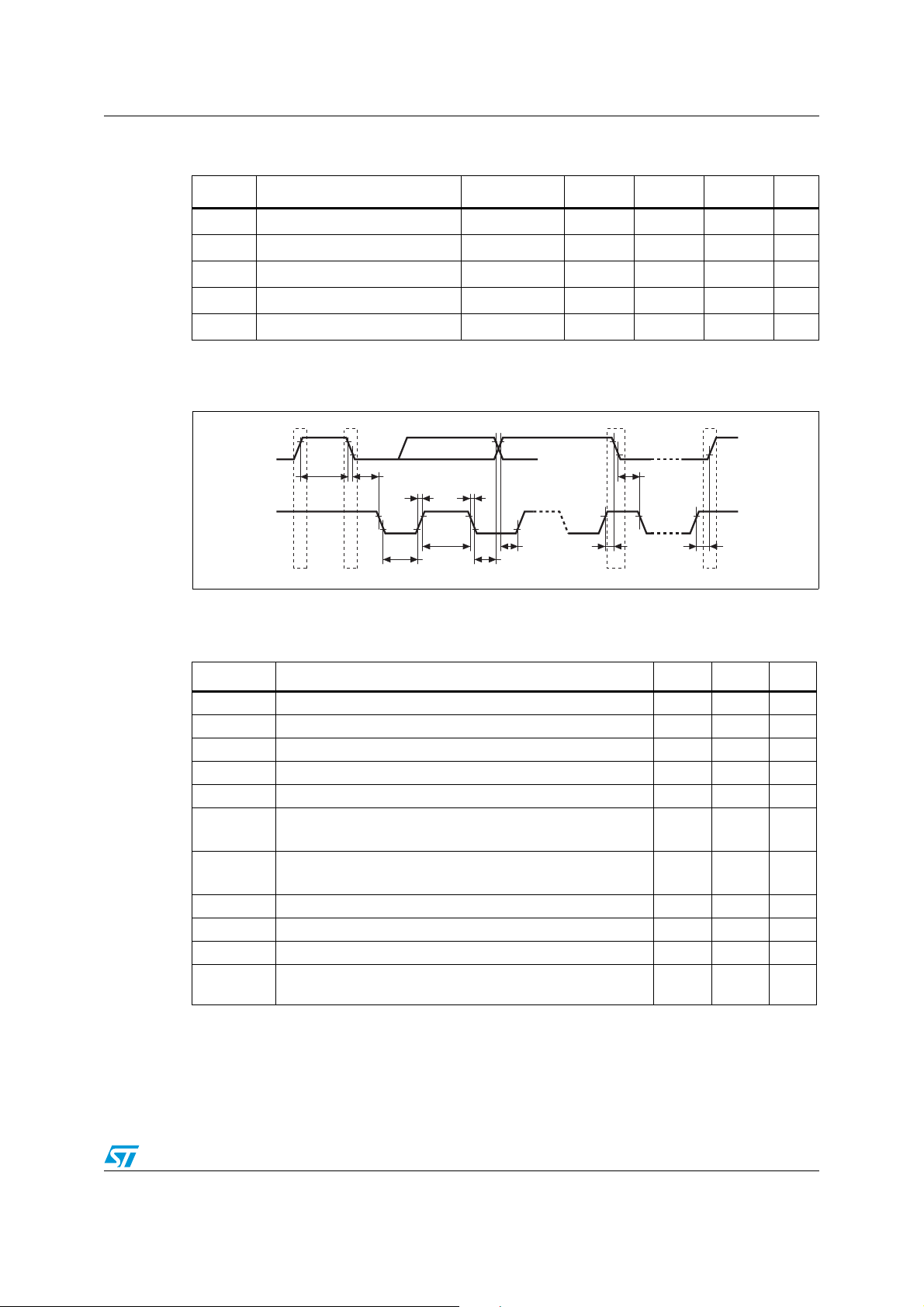

Figure 15. Bus timing requirements sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

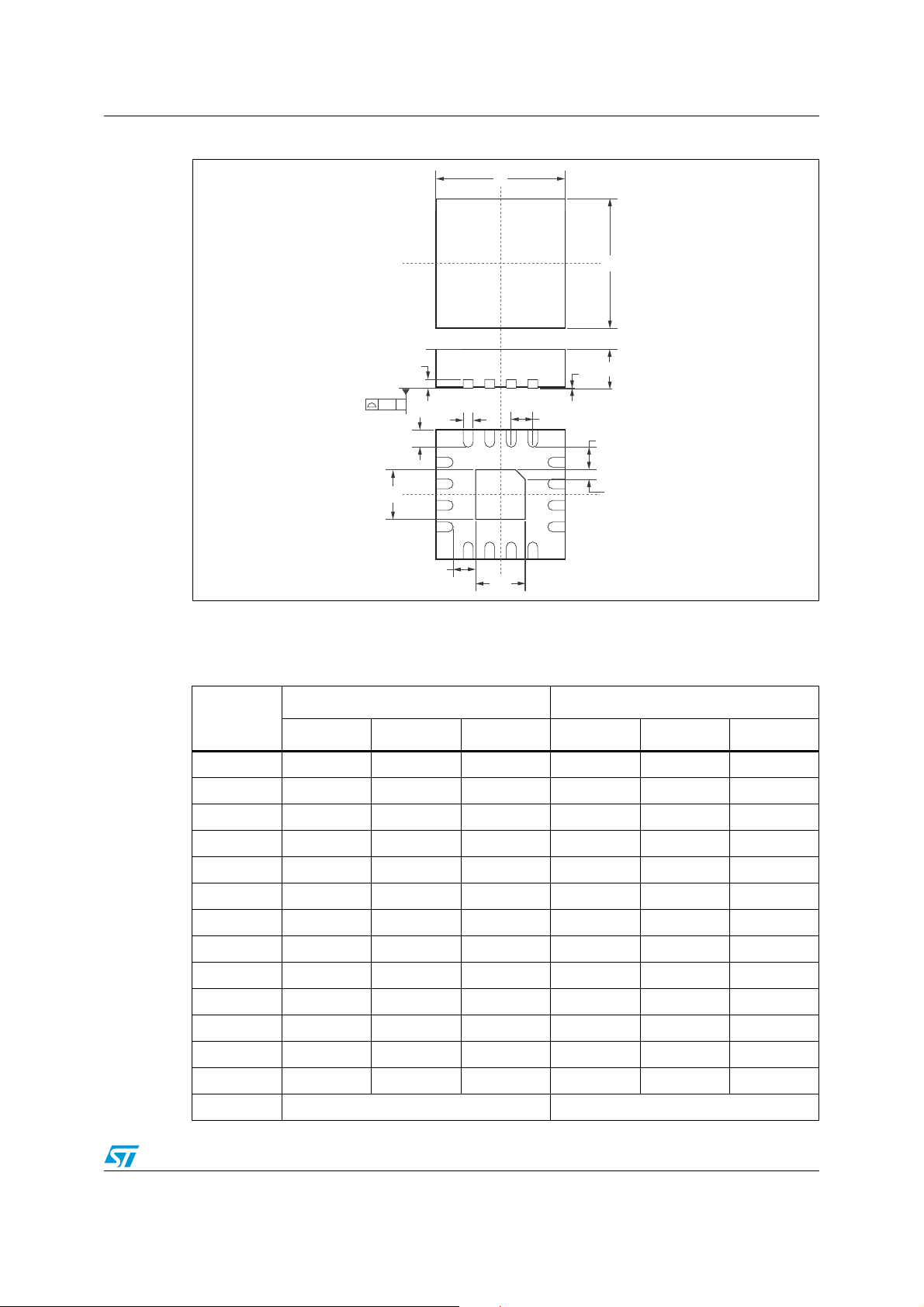

Figure 16. QFN16 – 16-lead, quad, flat package, no lead, 3 x 3 mm body size, outline . . . . . . . . . . . 23

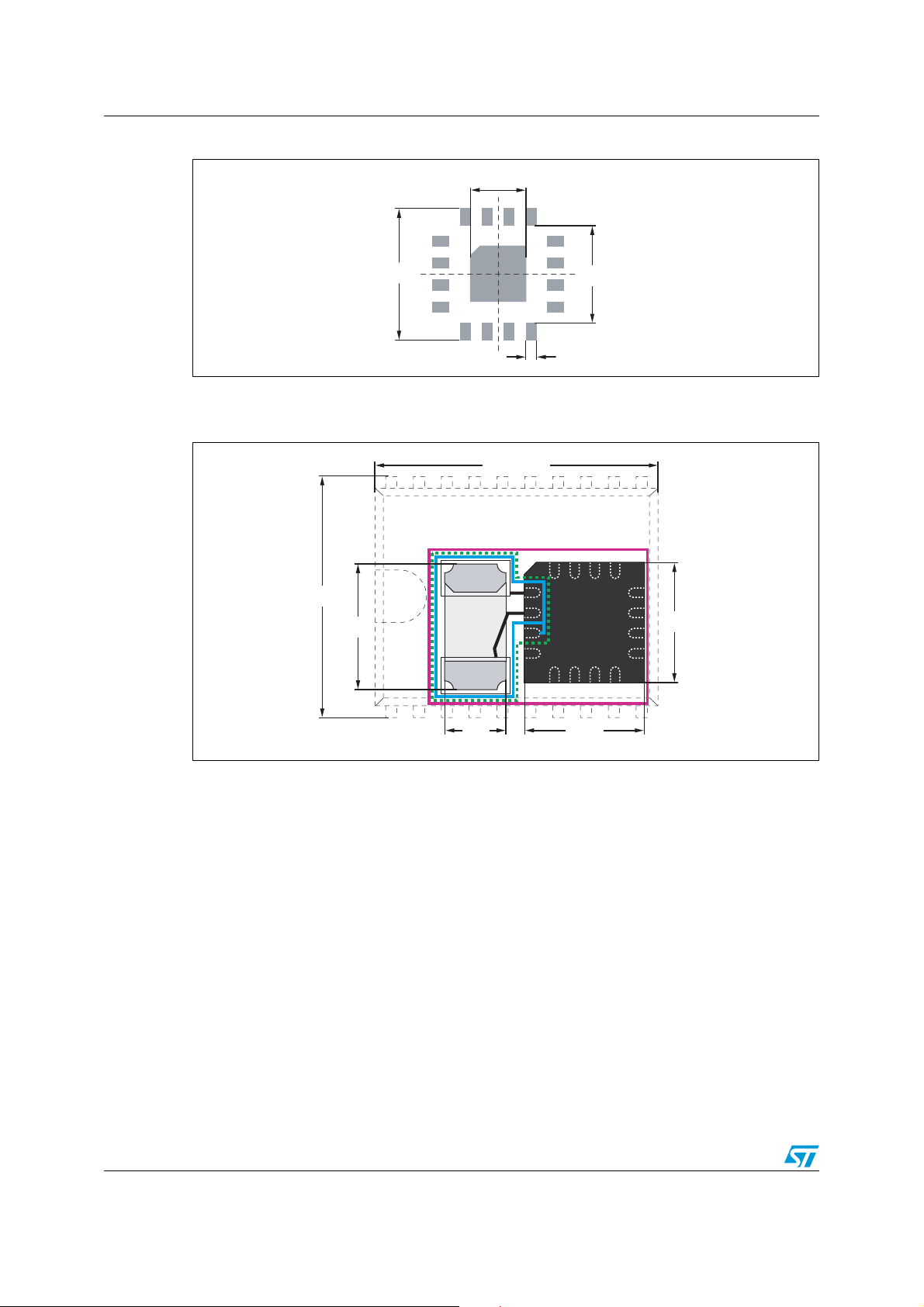

Figure 17. QFN16, quad, flat package, no lead, 3 x 3 mm, recommended footprint . . . . . . . . . . . . . . 24

Figure 18. 32 KHz crystal + QFN16 vs. VSOJ20 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4/27 Doc ID 10396 Rev 13

Page 5

M41T60 Description

1 Description

The M41T60 is a low power serial RTC with a built-in 32.768 kHz oscillator (external crystal controlled). Eight registers are used for the clock/calendar function and are configured in binary coded decimal (BCD) format. Addresses and data are transferred serially via a twoline bi-directional bus. The built-in address register is increased automatically after each WRITE or READ data byte.

The eight clock address locations contain the century, year, month, date, day, hour, minute, and second in 24-hour BCD format. Corrections for 28-, 29- (leap year), 30-, and 31-day months are made automatically.

The M41T60 is supplied in 16-lead QFN package.

Figure 1. Logic diagram

SCL

SDA

M41T60

(1)

OFIRQ/OUT

(1)

1. Open drain

Table 1. Signal names

XI Oscillator input

XO Oscillator output

FT Frequency test output (open drain)

SDA Serial data address input/output

SCL Serial clock

/OUT Oscillator fail interrupt/out output (open drain)

OFIRQ

Supply voltage

Ground

Figure 2. 16-pin QFN connections

(1)

OFIRQ/OUT

SCL

SDA

(1)

AI08869

AI08870

Doc ID 10396 Rev 13 5/27

Page 6

Description M41T60

Figure 3. Block diagram

(1)

OFIRQ/OUT

(1)

SCL

SDA

OSCILLATOR

32.768 kHz

SERIAL

BUS

INTERFACE

DIVIDER

CONTROL

LOGIC

ADDRESS

1 Hz

FAIL DETECT

SECONDS

MINUTES

HOURS

DAY

DATE

CENTURY/

MONTH

YEAR

CALIBRATION

OUT

OFIE

1. Open drain output.

Figure 4. Hardware hookup for SuperCap™ backup operation

M41T60

1. Open drain output.

OFIRQ/OUT

(1)

SCL

SDA

Por t

Serial Clock Line

Serial Data Line

AI08871

MCU

AI10476b

6/27 Doc ID 10396 Rev 13

Page 7

M41T60 Operation

2 Operation

The M41T60 clock operates as a slave device on the serial bus. Access is obtained by implementing a start condition followed by the correct slave address (D0h). The 8 bytes contained in the device can then be accessed sequentially in the following order:

1. Seconds register

2. Minutes register

3. Hours register

4. Day register

5. Date register

6. Century/month register

7. Years register

8. Calibration register

2.1 2-wire bus characteristics

This bus is intended for communication between different ICs. It consists of two lines: one bi-directional for data signals (SDA) and one for clock signals (SCL). Both the SDA and the SCL lines must be connected to a positive supply voltage via a pull-up resistor.

The following protocol has been defined:

● Data transfer may be initiated only when the bus is not busy.

● During data transfer, the data line must remain stable whenever the clock line is high.

Changes in the data line while the clock line is high will be interpreted as control signals.

Accordingly, the following bus conditions have been defined:

2.1.1 Bus not busy

Both data and clock lines remain high.

2.1.2 Start data transfer

A change in the state of the data line, from high to low, while the clock is high, defines the START condition.

2.1.3 Stop data transfer

A change in the state of the data line, from low to high, while the clock is high, defines the STOP condition.

2.1.4 Data valid

The state of the data line represents valid data when after a start condition, the data line is stable for the duration of the high period of the clock signal. The data on the line may be changed during the low period of the clock signal. There is one clock pulse per bit of data.

Doc ID 10396 Rev 13 7/27

Page 8

Operation M41T60

Each data transfer is initiated with a start condition and terminated with a stop condition. The number of data bytes transferred between the start and stop conditions is not limited. The information is transmitted byte-wide and each receiver acknowledges with a ninth bit.

By definition, a device that gives out a message is called “transmitter”, the receiving device that gets the message is called “receiver”. The device that controls the message is called “master”. The devices that are controlled by the master are called “slaves”.

2.1.5 Acknowledge

Each byte of eight bits is followed by one acknowledge bit. This acknowledge bit is a low level put on the bus by the receiver, whereas the master generates an extra acknowledge related clock pulse.

A slave receiver which is addressed is obliged to generate an acknowledge after the reception of each byte. Also, a master receiver must generate an acknowledge after the reception of each byte that has been clocked out of the slave transmitter.

The device that acknowledges has to pull down the SDA line during the acknowledge clock pulse in such a way that the SDA line is a stable low during the high period of the acknowledge related clock pulse. Of course, setup and hold times must be taken into account. A master receiver must signal an end-of-data to the slave transmitter by not generating an acknowledge on the last byte that has been clocked out of the slave. In this case, the transmitter must leave the data line high to enable the master to generate the STOP condition.

Figure 5. Serial bus data transfer sequence

DATA LINE

STABLE

DATA VALID

CLOCK

DATA

STA RT

CONDITION

CHANGE OF

DATA ALLOWED

STOP

CONDITION

AI00587

8/27 Doc ID 10396 Rev 13

Page 9

M41T60 Operation

Figure 6. Acknowledgement sequence

CLOCK PULSE FOR

ACKNOWLEDGEMENT

SCL FROM MASTER

STA RT

12 8 9

DATA OUTPUT BY TRANSMITTER

DATA OUTPUT BY RECEIVER

2.2 READ mode

In this mode, the master reads the M41T60 slave after setting the slave address (see Figure 7). Following the WRITE mode control bit (R/W the word address An is written to the on-chip address pointer. Next the START condition and slave address are repeated, followed by the READ mode control bit (R/W point, the master transmitter becomes the master receiver. The data byte which was addressed will be transmitted and the master receiver will send an acknowledge bit to the slave transmitter. The address pointer is only increased on reception of an acknowledge bit. The M41T60 slave transmitter will now place the data byte at address A master receiver reads and acknowledges the new byte and the address pointer is increased to A

This cycle of reading consecutive addresses will continue until the master receiver sends a STOP condition to the slave transmitter.

The system-to-user transfer of clock data will be halted whenever the address being read is a clock address (0h to 6h). The update will resume due to a stop condition or when the pointer increments to any non-clock address (7h).

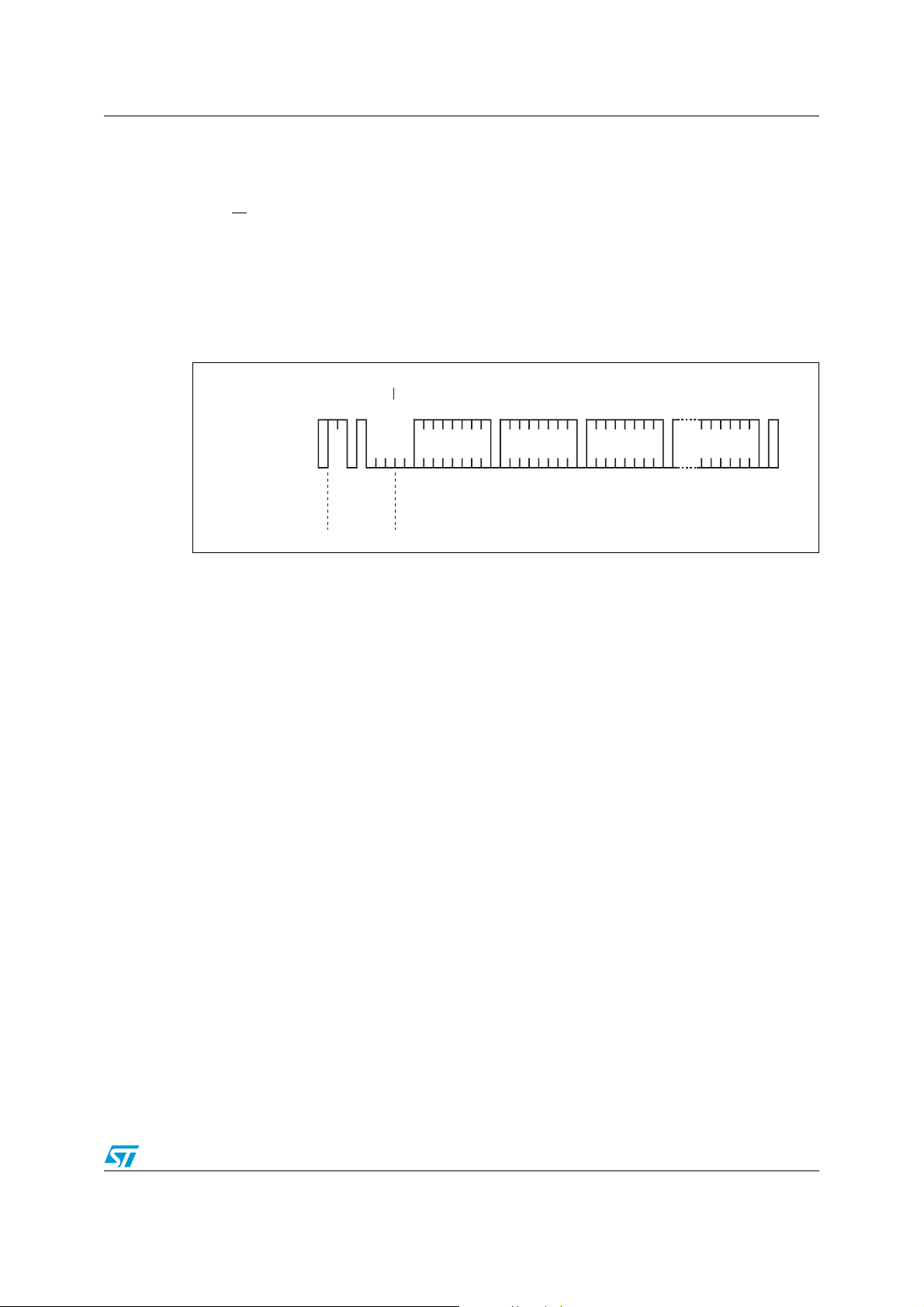

n+2

MSBLSB

= 0) and the acknowledge bit,

= 1). At this

on the bus. The

n+1

AI00601

An alternate READ mode may also be implemented, whereby the master reads the M41T60 slave without first writing to the (volatile) address pointer. The first address that is read is the last one stored in the pointer (see Figure 9 on page 10).

Figure 7. Slave address location

R/W

STA RT A

Doc ID 10396 Rev 13 9/27

SLAVE ADDRESS

MSB

0100 011

LSB

AI00602

Page 10

Operation M41T60

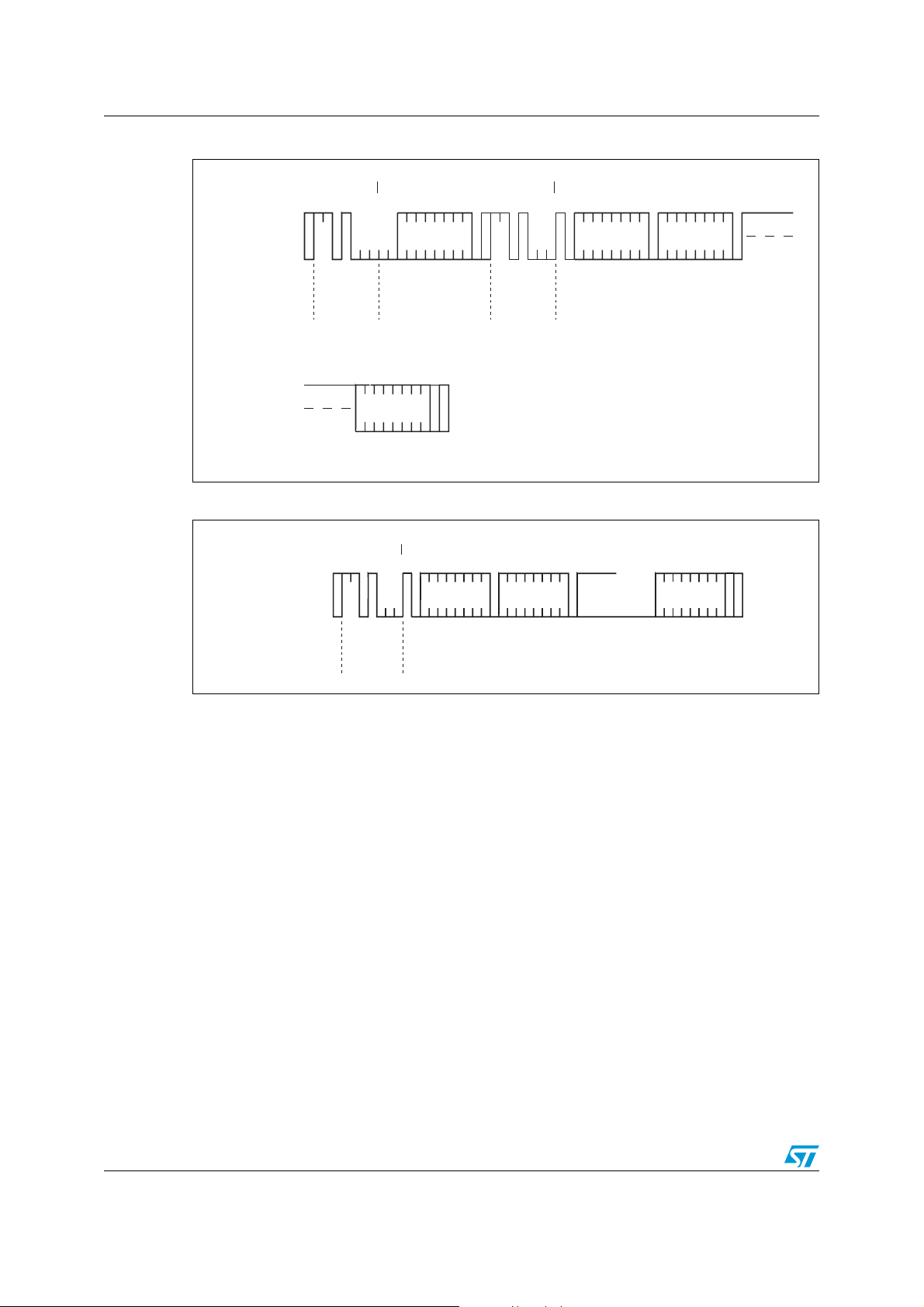

Figure 8. READ mode sequence

BUS ACTIVITY: MASTER

SDA LINE

BUS ACTIVITY:

START

ADDRESS

SLAVE

R/W

ADDRESS (An)

ACK

DATA n+X

WORD

START

ACK

ADDRESS

STOP

NO ACK

Figure 9. Alternate READ mode sequence

BUS ACTIVITY: MASTER

BUS ACTIVITY:

STA RT

SLAVE

ADDRESS

R/W

DATA n DATA n+ 1 DATA n+ X

ACK

SLAVE

R/W

DATA n DATA n+ 1

ACK

AI00899

STOP

PSDA LINE

NO ACK

AI00895

10/27 Doc ID 10396 Rev 13

Page 11

M41T60 Operation

2.3 WRITE mode

In this mode the master transmitter transmits to the M41T60 slave receiver. Bus protocol is shown in Figure 10 on page 11. Following the START condition and slave address, a logic '0' (R/W An will follow and is to be written to the on-chip address pointer. The data word to be written to the memory is strobed in next and the internal address pointer is increased to the next address location on the reception of an acknowledge clock. The M41T60 slave receiver will send an acknowledge clock to the master transmitter after it has received the slave address and again after it has received the word address and each data byte.

Figure 10. WRITE mode sequence

= 0) is placed on the bus and indicates to the addressed device that word address

BUS ACTIVITY: MASTER

BUS ACTIVITY:

START

ADDRESS

SLAVE

R/W

WORD

ADDRESS (An)

ACK

DATA n DATA n+ 1 DATA n+ X

ACK

STOP

PSDA LINE

ACK

AI00591

Doc ID 10396 Rev 13 11/27

Page 12

Clock operation M41T60

3 Clock operation

The M41T60 is driven by a quartz-controlled oscillator with a nominal frequency of

32.768 kHz. The accuracy of the real-time clock depends on the frequency of the quartz crystal that is used as the time-base for the RTC. The eight-byte clock register (see Tab l e 2

on page 14) is used to both set the clock and to read the date and time from the clock, in a

binary coded decimal format. Seconds, minutes, and hours are contained within the first three registers.

Bits D6 and D7 of clock register 05h (century/month register) contain the century bit 0 (CB0) and the century bit 1 (CB1). See Table 3 on page 16 for additional explanation. Bits D0 through D2 of register 03h contain the day (day of the week). Registers 04h, 05h, and 06h contain the date (day of the month), century/month, and years. The eighth clock register is the calibration register (this is described in the clock calibration section). Bit D7 of register 00h contains the stop bit (ST). Setting this bit to a '1' will cause the oscillator to stop. When reset to a '0,' the oscillator restarts within one second (typical).

Note: Upon initial power-up, the user should set the ST bit to a '1,' then immediately reset the ST

bit to '0.' This provides an additional “kick-start” to the oscillator circuit.

Bit D7 of register 01h contains the oscillator fail interrupt enable bit (OFIE - see the description in the oscillator fail detection section).

Note: A WRITE to ANY location within the first seven bytes of the clock register (0h-6h), including

the OFIE and ST bit, will result in an update of the system clock and a reset of the divider chain. This could result in an inadvertent change of the current time. These non-clock related bits should be written prior to setting the clock, and remain unchanged until such time as a new clock time is also written.

The seven clock registers may be read one byte at a time, or in a sequential block. The calibration register (address location 7h) may be accessed independently. A provision has been made to ensure that a clock update does not occur while any of the clock addresses are being read. If a clock address is being read, an update of the clock registers will be halted. this will prevent a transition of data during the READ.

3.1 Calibrating the clock

The M41T60 is driven by a quartz-controlled oscillator with a nominal frequency of 32,768 Hz. The accuracy of the clock is dependent upon the accuracy of the crystal, and the match between the capacitive load of the oscillator circuit and the capacitive load for which the crystal was trimmed. The M41T60 oscillator is designed for use with a 6 - 7 pF crystal load capacitance. When the calibration circuit is properly employed, accuracy improves to better than ±2 ppm at 25 °C.

The oscillation rate of crystals changes with temperature (see Figure 11 on page 14). The M41T60 design employs periodic counter correction. The calibration circuit adds or subtracts counts from the oscillator divider circuit at the divide by 256 stage, as shown in

Figure 12 on page 15. The number of times pulses are blanked (subtracted, negative

calibration) or split (added, positive calibration) depends upon the value loaded into the five calibration bits found in the calibration register. Adding counts speeds the clock up, subtracting counts slows the clock down. The calibration bits occupy the five lower-order bits (D4-D0) in the calibration register 07h.

12/27 Doc ID 10396 Rev 13

Page 13

M41T60 Clock operation

These bits can be set to represent any value between 0 and 31 in binary format. Bit D5 is a sign bit; '1' indicates positive calibration, '0' indicates negative calibration.

Calibration occurs within a 64-minute cycle. The first 62 minutes in the cycle may, once per minute, have one second either shortened by 128 or lengthened by 256 oscillator cycles. If a binary '1' is loaded into the register, only the first 2 minutes in the 64-minute cycle will be modified; if a binary 6 is loaded, the first 12 will be affected, and so on. Therefore, each calibration step has the effect of adding 512 or subtracting 256 oscillator cycles for every 125,829,120 actual oscillator cycles. That is, +4.068 or –2.034 ppm of adjustment per calibration step in the calibration register. Assuming that the oscillator is running at exactly 32,768 Hz, each of the 31 increments in the calibration byte would represent +10.7 or –5.35 seconds per day which corresponds to a total range of +5.5 or –2.75 minutes per month.

Two methods are available for ascertaining how much calibration a given M41T60 may require:

● The first involves setting the clock, letting it run for a month and comparing it to a

known accurate reference and recording deviation over a fixed period of time. Calibration values, including the number of seconds lost or gained in a given period, can be found in application note AN934, “TIMEKEEPER

calibration.” This allows the designer to give the end user the ability to calibrate the clock as the environment requires, even if the final product is packaged in a non-user serviceable enclosure. The designer could provide a simple utility that accesses the calibration byte.

● The second approach is better suited to a manufacturing environment, and involves the

use of the frequency test (FT) pin. The FT pin will toggle at 512 Hz when the ST bit is set to '0,' and the OUT bit and FT bit are set to '1.' Any measured deviation from the 512 Hz frequency indicates the degree and direction of oscillator frequency shift at the test temperature. For example, a reading of 512.010124 Hz would indicate a +20 ppm oscillator frequency error, requiring a –10 (XX001010) to be loaded into the calibration byte for correction.

Note: Setting or changing the calibration byte does not affect the frequency test output frequency.

the FT pin is an open drain pin which requires a pull-up resistor to V

for proper operation.

A 500-10 k resistor is recommended in order to control the rise time.

Doc ID 10396 Rev 13 13/27

Page 14

Clock operation M41T60

Table 2. Register map

Data

Address

D7 D6 D5 D4 D3 D2 D1 D0

Function/range

BCD format

0 ST 10 seconds Seconds Seconds 00-59

1 OFIE 10 minutes Minutes Minutes 00-59

2 0 0 10 hours Hours Hours 00-23

3 0 0 0 0 0 Day Day 01-07

4 0 0 10 date Date Date 01-31

5 CB1 CB0 0 10 M. Month Century/month 0-3/01-12

6 10 Years Years Year 00-99

7 OUT FT S Calibration Calibration

● 0 = Must be set to '0.'

● CB0, CB1 = century bits

● FT = frequency test bits

● OFIE = oscillator fail interrupt enable bit

● OUT = output level

● S = sign bit

● ST = stop bit

Figure 11. Crystal accuracy across temperature

Frequency (ppm)

–20

–40

–60

ΔF

= K x (T – T

–80

–100

–120

–140

–160

0 10203040506070

= –0.036 ppm/°C2 ± 0.006 ppm/°C

Temperature °C

)

= 25°C ± 5°C

80–10–20–30–40

AI07888

14/27 Doc ID 10396 Rev 13

Page 15

M41T60 Clock operation

Figure 12. Calibration waveform

NORMAL

POSITIVE CALIBRATION

NEGATIVE CALIBRATION

AI00594b

3.2 Century bits

These two bits will increment in a binary fashion at the turn of the century, and handle leap years correctly. See Table 3 on page 16 for additional explanation.

3.3 Output driver pin

When the OFIE bit is not set to generate an interrupt, the OFIRQ/OUT pin becomes an output driver that reflects the contents of D7 of the calibration register. In other words, when D7 (OUT bit) is a '0,' then the OFIRQ

/OUT pin will be driven low.

Note: The OFIRQ

/OUT pin is an open drain which requires an external pull-up resistor.

3.4 Oscillator stop detection

In the event that the oscillator has either stopped, or was stopped for some period of time, and if the oscillator fail interrupt enable (OFIE) bit is set to a '1,' an interrupt will be generated. This interrupt can be used to judge the validity of the clock and date data.

The interrupt will be active any time the oscillator stops while V conditions will cause the OFIRQ

● the ST bit is set to '1.'

● external interference or removal of the crystal.

The oscillator fail interrupt (OFIRQ oscillator restarts.

The oscillator must start and have run for at least 4 seconds before attempting to set the OFIE bit to '1.'

pin to be active:

) will remain active until the OFIE bit is reset to '0,' or the

is ≥ 1.0V. The following

Doc ID 10396 Rev 13 15/27

Page 16

Clock operation M41T60

3.5 Initial power-on defaults

Upon initial application of power to the device, the OUT bit will be set to a '1,' while the ST, OFIE, and FT bits will be set to '0.' All other register bits will initially power-on in a random state.

Table 3. Century bits examples

CB0 CB1 Leap year? Example

00Yes2000

0 1 No 2100

1 0 No 2200

1 1 No 2300

1. Leap year occurs every four years (for years evenly divisible by four), except for years evenly divisible by

100. The only exceptions are those years evenly divisible by 400 (the year 2000 was a leap year, year 2100 is not).

(1)

16/27 Doc ID 10396 Rev 13

Page 17

M41T60 Maximum ratings

4 Maximum ratings

Stressing the device above the rating listed in the absolute maximum ratings table may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Table 4. Absolute maximum ratings

Symbol Parameter Conditions

(1)

Val ue

(2)

Unit

STG

SLD

ESD(HBM)

ESD(RCDM)

1. Test conforms to JEDEC standard

2. Data based on characterization results, not tested in production

3. Reflow at peak temperature of 260 °C. The time above 255 °C must not exceed 30 seconds.

Storage temperature (VCC off, oscillator off) –55 to 125 °C

Supply voltage –0.3 to 5.0 V

(3)

Lead solder temperature for 10 seconds 260 °C

Input or output voltages

–0.2 to

Vcc+0.3

Output current 20 mA

Power dissipation 1 W

Electro-static discharge voltage (Human Body Model)

Electro-static discharge voltage (Robotic Charged Device Model)

= 25°C >1500 V

= 25°C >1000 V

Doc ID 10396 Rev 13 17/27

Page 18

DC and AC parameters M41T60

5 DC and AC parameters

This section summarizes the operating and measurement conditions, as well as the DC and AC characteristics of the device. The parameters in the following DC and AC characteristic tables are derived from tests performed under the measurement conditions listed in the relevant tables. Designers should check that the operating conditions in their projects match the measurement conditions when using the quoted parameters.

Table 5. Operating and AC measurement conditions

Parameter M41T60

Supply voltage (V

Ambient operating temperature (T

Load capacitance (C

) 1.3 V to 4.4 V

) –40 to 85 °C

) 50 pF

Input rise and fall times ≤ 5 ns

Input pulse voltages 0.2 VCC to 0.8 V

Input and output timing ref. voltages 0.3 VCC to 0.7 V

Note: Output Hi-Z is defined as the point where data is no longer driven.

Figure 13. AC testing I/O waveform

0.8V

0.2V

0.7V

0.3V

Figure 14. Crystal isolation example

Local Grounding Plane (Layer 2)

AI02568

Crystal

GND

Note: Substrate pad should be tied to V

18/27 Doc ID 10396 Rev 13

AI09127

Page 19

M41T60 DC and AC parameters

Table 6. Capacitance

Symbol Parameter

(1)(2)

Min Max Unit

OUT

1. Effective capacitance measured with power supply at 3.6 V; sampled only, not 100% tested.

2. At 25 °C, f = 1 MHz.

3. Outputs deselected.

Input capacitance (SCL) - 7 pF

(3)

Output capacitance (SDA, OUT) - 10 pF

Low-pass filter input time constant (SDA and SCL) - 50 ns

Table 7. DC characteristics

(3)

(1)

= 4.4 V 100 µA

= 3.6 V 50 70 µA

= 3.0 V 35 µA

= 2.5 V 30 µA

= 2.0 V 20 µA

Min Typ Max Unit

1.0 4.4 V

4.4 V 950 nA

3.6 V 375 700 nA

3.0 V at 25 °C 350 nA

2.0 V at 25 °C 310 nA

/OUT 4.4 V

–1.0 +1.0 µA

≤ V

Symbol Parameter Test condition

CC1

(2)

Operating voltage

Supply current

SCL = 400 kHz

(No load)

Clock

C bus (400 kHz) 1.3 4.4 V

SCL = 0 Hz

CC2

Supply current (Standby)

All inputs

≥ V

– 0.2 V

≤ VSS + 0.2 V

Input low voltage –0.2 0.3 V

Input high voltage 0.7 V

= 4.4 V, IOL = 3 mA (SDA) 0.4 V

Output low voltage

Pull-up supply voltage (open drain)

Input leakage current 0 V ≤ VIN ≤ V

Output leakage

current

= 4.4 V, IOL = 1 mA (OFIRQ/OUT) 0.4 V

FT, OFIRQ

0 V ≤ V

OUT

VCC + 0.3 V

1. Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 1.3 to 4.4 V (except where noted).

2. When using battery backup, V

3. Oscillator startup guaranteed at 1.5 V only.

fall time should not exceed 10 mV/µs.

Doc ID 10396 Rev 13 19/27

Page 20

DC and AC parameters M41T60

Table 8. Crystal electrical characteristics

Symbol Parameter

Resonant frequency - 32.768 kHz

1. For the QFN16 package, user-supplied, external crystals are required. The 6 and 7 pF crystals listed in Table 9 below have been evaluated by ST and have been found to be satisfactory for use with the M41T6x series RTCs.

2. Load capacitors are integrated within the M41T60. Circuit board layout considerations for the 32.768 kHz crystal of minimum trace lengths and isolation from RF generating signals should be taken into account.

3. Guaranteed by design.

4. R

Series resistance

(TA = –40 to 70°C, oscillator startup at 2.0 V)

Load capacitance - 6 pF

= 65 kΩ for TA = –40 to 85 °C and oscillator startup at 1.5 V.

S (max)

(1)(2)

Min Typ Max Unit

-75

(3)(4)

kΩ

Table 9. Crystals suitable for use with M41T6x series RTCs

Manufacturer’s specifications

Vendor Order number Package

Citizen CMJ206T-32.768KDZB-UB

8.3 x 2.5 mm leaded SMT

ESR

max

Temp. range

(°C)

50 kΩ –40/+85 ±20 ppm 6 pF

Rated

tolerance

at 25 °C

Rated

load cap.

Citizen CM315-32.768KDZY-UB 3.2 x 1.5 x 0.9 mm SMT 70 kΩ –40/+85 ±20 ppm 7 pF

Ecliptek E4WCDA06-32.768K 2.0 x 6.0 mm thru-hole 50 kΩ –10/+60 ±20 ppm 6 pF

Ecliptek E5WSDC 07 - 32.768K 7 x 1.5 x 1.4 mm SMT 65 kΩ –40/+85 ±20 ppm 7 pF

ECS ECS-.327-6-17X-TR 3.8 x 8.5 x 2.5 mm SMT 50 kΩ –10/+60 ±20 ppm 6 pF

ECS ECS-.327-7-34B-TR 3.2 x 1.5 x 0.9 mm SMT 70 kΩ –40/+85 ±20 ppm 7 pF

ECS ECS-.327-7-38-TR 7 x 1.5 x 1.4 mm SMT 65 kΩ –40/+85 ±20 ppm 7 pF

(1)

Epson MC-146 32.7680KA-AG: ROHS

7 x 1.5 x 1.4 mm SMT 65 kΩ –40/+85 ±20 ppm 7 pF

Fox 298LF-0.032768-19 1.5 x 5.0 mm thru-hole 50 kΩ –20/+60 ±20 ppm 6 pF

Fox 299LF-0.032768-37 2.0 x 6.0 mm thru-hole 50 kΩ –20/+60 ±20 ppm 6 pF

Fox 414LF-0.032768-12 3.8 x 8.5 x 2.5 mm SMT 50 kΩ –40/+85 ±20 ppm 6 pF

Fox 501LF-0.032768-5 7 x 1.5 x 1.4 mm SMT 65 kΩ –40/+85 ±20 ppm 7 pF

Micro Crystal

MS3V-T1R 32.768KHZ 7PF 20PPM

6.7 x 1.4 mm leaded SMT

65 kΩ –40/+85 ±20 ppm 7 pF

Pletronics SM20S - 32.768K - 6pF 3.8 x 8.5 x 2.5 mm SMT 50 kΩ –40/+85 ±20 ppm 6 pF

Seiko SSPT7F-7PF20PPM 7 x 1.5 x 1.4 mm SMT 65 kΩ –40/+85 ±20 ppm 7 pF

Seiko VT200F-6PF20PPM 2.0 x 6.0 mm thru-hole 50 kΩ –10/+60 ±20 ppm 6 pF

1. Epson MC-146 32.7680KA-E: ROHS is 6 pF version.

20/27 Doc ID 10396 Rev 13

Page 21

M41T60 DC and AC parameters

Table 10. Oscillator characteristics

Symbol Parameter Conditions Min Typ Max Unit

Oscillator start voltage ≤ 10 seconds 1.5 V

STA

Oscillator start time VCC = 3.0 V 1 s

STA

XIN capacitance 12 pF

XOUT capacitance 12 pF

IC-to-IC frequency variation

1. Reference value. TA = 25 °C, VCC = 3.0 V, CMJ-145 (CL = 6 pF, 32,768 Hz) manufactured by Citizen, CL = Cg • Cd / (Cg + Cd)

Figure 15. Bus timing requirements sequence

SDA

BUF

SCL

Note: P = STOP and S = START

Table 11. AC characteristics

Symbol Parameter

SCL

LOW

HIGH

HD:STA

SU:STA

SU:DAT

HD:DAT

SU:STO

BUF

SCL clock frequency 0 400 kHz

Clock low period 1.3 µs

Clock high period 600 ns

SDA and SCL rise time 300 ns

SDA and SCL fall time 300 ns

START condition hold time (after this period the first clock pulse is generated)

START condition setup time (only relevant for a repeated start condition)

Data setup time 100 ns

(2)

Data hold time 0 µs

STOP condition setup time 600 ns

Time the bus must be free before a new transmission can start

HD:STA

LOW

(1)

HIGH

(1)

HD:DAT

SU:DAT

–10 +10 ppm

HD:STA

SU:STA

SU:STO

AI00589

Min Max Unit

600 ns

1.3 µs

1. Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 1.3 to 4.4 V (except where noted).

2. Transmitter must internally provide a hold time to bridge the undefined region (300 ns max.) of the falling edge of SCL.

Doc ID 10396 Rev 13 21/27

Page 22

Package mechanical data M41T60

6 Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK

packages, depending on their level of environmental compliance. ECOPACK®

is an ST trademark.

22/27 Doc ID 10396 Rev 13

Page 23

M41T60 Package mechanical data

Figure 16. QFN16 – 16-lead, quad, flat package, no lead, 3 x 3 mm body size, outline

Note: Drawing is not to scale.

Table 12. QFN16 – 16-lead, quad, flat package, no lead, 3 x 3 mm body size,

mechanical data

Dim

Typ Min Max Typ Min Max

A 0.90 0.80 1.00 0.035 0.032 0.039

A1 0.02 0.00 0.05 0.001 0.000 0.002

A3 0.20 – – 0.008 – –

b 0.25 0.18 0.30 0.010 0.007 0.012

ddd

mm inches

QFN16-A

D 3.00 2.90 3.10 0.118 0.114 0.122

D2 1.70 1.55 1.80 0.067 0.061 0.071

E 3.00 2.90 3.10 0.118 0.114 0.122

E2 1.70 1.55 1.80 0.067 0.061 0.071

e0.50– –0.020– –

K0.20– –0.008– –

L 0.40 0.30 0.50 0.016 0.012 0.020

ddd – 0.08 – – 0.003 –

Ch – 0.33 – – 0.013 –

N16 16

Doc ID 10396 Rev 13 23/27

Page 24

Package mechanical data M41T60

Figure 17. QFN16, quad, flat package, no lead, 3 x 3 mm, recommended footprint

1.60

3.55

Note: Substrate pad should be tied to V

Figure 18. 32 KHz crystal + QFN16 vs. VSOJ20 mechanical data

VSOJ20

6.0 ± 0.2

3.2

SMT

CRYSTAL

7.0 ± 0.3

2.0

0.28

ST QFN16

AI09126

2.9

1.5

Note: Dimensions shown are in millimeters (mm).

24/27 Doc ID 10396 Rev 13

2.9

AI11146

Page 25

M41T60 Part numbering

7 Part numbering

Table 13. Ordering information scheme

Example: M41T 60 Q 6 F

Device family

M41T

Device type and supply voltage

60 = VCC = 1.3 to 4.4 V

Package

Q = QFN16 (3 mm x 3 mm)

Temperature range

6 = –40 to 85 °C

Shipping method

F = ECOPACK

package, tape & reel

For other options, or for more information on any aspect of this device, please contact the ST sales office nearest you.

Doc ID 10396 Rev 13 25/27

Page 26

Revision history M41T60

8 Revision history

Table 14. Revision history

Date Revision Changes

13-Nov-2003 1 First issue

20-Nov-2003 1.1 Update characteristics (Figure 2, 3, 4; Ta b le 1 , 2, 5, 7, 11)

25-Dec-2003 2 Reformatted; add crystal isolation, footprint (Figure 12)

13-Jan-2004 2.1 Update characteristics (Figure 9, 10, 12; Ta bl e 7 , 13)

26-Feb-2004 2.2

02-Mar-2004 2.3 Update characteristics (Ta bl e 7 )

26-Apr-2004 3 Reformat and republish

13-May-2004 4 Update characteristics (Ta b le 7 , 8; Figure 14 , 17)

06-Aug-2004 5 Update characteristics (Figure 2; Ta b le 7 , 10)

25-Oct-2004 6

20-Dec-2004 7 Corrected footprint; update characteristics (Figure 4, 17; Ta b le 7 )

05-May-2005 8 Add package comparison and mechanical data (Figure 18)

Update characteristics and mechanical dimensions (Figure 14, 17;

Ta bl e 4 , 7, 12)

Document status promotion; update characteristics (Figure 1;

Ta bl e 4 ,7, 8, 10, 12)

31-Oct-2005 9

30-Nov-2005 10 Update ESD:HBM rating, crystal characteristics (Ta b le 4 , 8)

06-Jul-2006 11 New template

26-Jan-2010 12

29-Apr-2010 13 Updated Ta b le 9 ; minor textual change in Section 4.

Update: bus operating voltage, characteristics (Figure 4;

Ta bl e 4 ,

Minor textual changes; updated footnote 3 of Ta bl e 4 ; updated footnote

1 of Ta bl e 8 ; added Ta bl e 9 ; updated Tab l e 1 0 , 11, Section 3.1; added

text to Section 6: Package mechanical data.

7, 11, 13)

26/27 Doc ID 10396 Rev 13

Page 27

M41T60

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 10396 Rev 13 27/27
