Datasheet M41T56 Datasheet (ST)

M41T56

Serial real-time clock (RTC) with 56 bytes NVRAM

Features

■ Counters for seconds, minutes, hours, day,

date, month, years, and century

■ 32 KHz crystal oscillator integrating load

capacitance (12.5 pF) providing exceptional
oscillator stability and high crystal series
resistance operation

■ Serial interface supports I

protocol)

■ Ultra-low battery supply current of 450 nA

(typ at 3 V)

■ 5 V ±10% supply voltage

■ Timekeeping down to 2.5 V

■ Automatic power-fail detect and switch circuitry

■ 56 bytes of general purpose RAM

■ Software clock calibration to compensate

crystal deviation due to temperature

■ Automatic leap year compensation

■ Operating temperature of –40 °C to 85 °C

■ Available in an 8-lead, 150-mil, plastic SOIC

(SO8)

■ RoHS compliant

– Lead-free second level interconnect

2

C bus (100 kHz

8

1

SO8

150-mil width

December 2011 Doc ID 6104 Rev 9 1/27

www.st.com

1

Contents M41T56

Contents

1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 2-wire bus characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.1 Bus not busy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.2 Start data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1.3 Stop data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.4 Data valid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1.5 Acknowledge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Read mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3 Write mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4 Data retention mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3 Clock operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Clock calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.2 Output driver pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.3 Initial power-on defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5 DC and AC parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

6 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7 Part numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

8 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2/27 Doc ID 6104 Rev 9

M41T56 List of tables

List of tables

Table 1. Signal names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Table 2. AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 3. Register map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 4. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 5. Operating and AC measurement conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 6. Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 7. DC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 8. Crystal electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 9. Power down/up mode AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 10. Power down/up trip points DC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 11. SO8 – 8-pin plastic small outline, package mechanical data . . . . . . . . . . . . . . . . . . . . . . . 21

Table 12. Carrier tape dimensions for SO8 package (150-mil body width) . . . . . . . . . . . . . . . . . . . . 22

Table 13. Reel dimensions for 12 mm carrier tape - SO8 package (150-mil body width). . . . . . . . . . 23

Table 14. Ordering information scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 15. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Doc ID 6104 Rev 9 3/27

List of figures M41T56

List of figures

Figure 1. Logic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Figure 2. 8-pin SOIC connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 3. M41T56 block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 4. Serial bus data transfer sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 5. Acknowledge sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 6. Bus timing requirements sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 7. Slave address location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 8. Read mode sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 9. Alternative read mode sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 10. Write mode sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 11. Crystal accuracy across temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 12. Clock calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 13. AC measurement I/O waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 14. Power down/up mode AC waveforms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 15. SO8 – 8-pin plastic small package outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 16. Carrier tape for SO8 package (150-mil body width) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 17. Reel schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4/27 Doc ID 6104 Rev 9

M41T56 Description

1 Description

The M41T56 is a low-power, serial real-time clock (RTC) with 56 bytes of NVRAM. A built-in
32,768 Hz oscillator (external crystal controlled) and the first 8 bytes of the RAM are used
for the clock/calendar function and are configured in binary coded decimal (BCD) format.
Addresses and data are transferred serially via a two-line, bidirectional bus. The built-in
address register is incremented automatically after each WRITE or READ data byte.

The M41T56 clock has a built-in power sense circuit which detects power failures and
automatically switches to the battery supply during power failures. The energy needed to
sustain the RAM and clock operations can be supplied from a small lithium coin cell.

Typical data retention time is in excess of 10 years with a 50 mAh, 3 V lithium cell. The
M41T56 is supplied in an 8-lead plastic SOIC package.

Figure 1. Logic diagram

OSCI

SCL

V

CC

M41T56

V

SS

V

BAT

OSCO

SDA

FT/OUT

AI02304B

Doc ID 6104 Rev 9 5/27

Description M41T56

Table 1. Signal names

OSCI Oscillator input

OCSO Oscillator output

FT/OUT Frequency test / output driver (open drain)

SDA Serial data address input / output

SCL Serial clock

V

BAT

V

CC

V

SS

Battery supply voltage

Supply voltage

Ground

Figure 2. 8-pin SOIC connections

M41T56

OSCI V

V

BAT

SS

Figure 3. M41T56 block diagram

OSCI

OSCO

FT/OUT

V

CC

V

SS

V

BAT

SCL

SDA

OSCILLATOR

32.768 kHz

VOLTAGE

SENSE

and

SWITCH

CIRCUITRY

SERIAL

BUS

INTERFACE

1
2

3

4

8

7
6
5

DIVIDER

CONTROL

LOGIC

ADDRESS

REGISTER

CC

FT/OUTOSCO

SCL
SDAV

1 Hz

AI02306B

SECONDS

MINUTES

CENTURY/HOURS

DAY

DATE

MONTH

YEAR

CONTROL

RAM

(56 x 8)

6/27 Doc ID 6104 Rev 9

AI02566

M41T56 Operation

2 Operation

The M41T56 clock operates as a slave device on the serial bus. Access is obtained by
implementing a start condition followed by the correct slave address (D0h). The 64 bytes
contained in the device can then be accessed sequentially in the following order:

1. Seconds register

2. Minutes register

3. Century/hours register

4. Day register

5. Date register

6. Month register

7. Years register

8. Control register

9. RAM

The clock continually monitors V
V

, the device terminates an access in progress and resets the device address counter.

PFD

for an out of tolerance condition. Should VCC fall below

CC

Inputs to the device will not be recognized at this time to prevent erroneous data from being
written to the device from an out of tolerance system. When V
automatically switches over to the battery and powers down into an ultra low current mode
of operation to conserve battery life. Upon power-up, the device switches from battery to
V

CC

at V

and recognizes inputs when VCC goes above V

BAT

2.1 2-wire bus characteristics

This bus is intended for communication between different ICs. It consists of two lines: one
bidirectional for data signals (SDA) and one for clock signals (SCL). Both the SDA and the
SCL lines must be connected to a positive supply voltage via a pull-up resistor.

The following protocol has been defined:

● Data transfer may be initiated only when the bus is not busy.

● During data transfer, the data line must remain stable whenever the clock line is high.

● Changes in the data line while the clock line is high will be interpreted as control

signals.

Accordingly, the following bus conditions have been defined:

2.1.1 Bus not busy

falls below V

CC

volts.

PFD

, the device

BAT

Both data and clock lines remain high.

2.1.2 Start data transfer

A change in the state of the data line, from high to low, while the clock is high, defines the
START condition.

Doc ID 6104 Rev 9 7/27

Operation M41T56

2.1.3 Stop data transfer

A change in the state of the data line, from low to high, while the clock is high, defines the
STOP condition.

2.1.4 Data valid

The state of the data line represents valid data when after a start condition, the data line is
stable for the duration of the high period of the clock signal. The data on the line may be
changed during the low period of the clock signal. There is one clock pulse per bit of data.

Each data transfer is initiated with a start condition and terminated with a stop condition.
The number of data bytes transferred between the start and stop conditions is not limited.
The information is transmitted byte-wide and each receiver acknowledges with a ninth bit.

By definition, a device that gives out a message is called “transmitter,” the receiving device
that gets the message is called “receiver.” The device that controls the message is called
“master.” The devices that are controlled by the master are called “slaves.”

2.1.5 Acknowledge

Each byte of eight bits is followed by one acknowledge bit. This acknowledge bit is a low
level put on the bus by the receiver, whereas the master generates an extra acknowledge
related clock pulse.

A slave receiver which is addressed is obliged to generate an acknowledge after the
reception of each byte. Also, a master receiver must generate an acknowledge after the
reception of each byte that has been clocked out of the slave transmitter.

The device that acknowledges has to pull down the SDA line during the acknowledge clock
pulse in such a way that the SDA line is a stable low during the high period of the
acknowledge related clock pulse. Of course, setup and hold times must be taken into
account. A master receiver must signal an end-of-data to the slave transmitter by not
generating an acknowledge on the last byte that has been clocked out of the slave. In this
case, the transmitter must leave the data line high to enable the master to generate the
STOP condition.

Figure 4. Serial bus data transfer sequence

DATA LINE

STABLE

DATA VALID

CLOCK

DATA

START

CONDITION

CHANGE OF

DATA ALLOWED

STOP

CONDITION

8/27 Doc ID 6104 Rev 9

AI00587

M41T56 Operation

Figure 5. Acknowledge sequence

CLOCK PULSE FOR

ACKNOWLEDGEMENT

SCLK FROM
MASTER

START

12 89

DATA OUTPUT
BY TRANSMITTER

DATA OUTPUT
BY RECEIVER

MSB LSB

Figure 6. Bus timing requirements sequence

SDA

tHD:STAtBUF

tR

SCL

SP

tHIGH

tLOW

tF

tHD:DAT

tSU:DAT

SR

AI00601

tHD:STA

tSU:STOtSU:STA

P

AI00589

Doc ID 6104 Rev 9 9/27

Operation M41T56

Table 2. AC characteristics

Symbol Parameter

(1)

Min Max Unit

f

SCL

t

LOW

t

HIGH

t

R

t

F

t

HD:STA

t

SU:STA

t

SU:DAT

t

HD:DAT

t

SU:STO

t

BUF

1. Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 4.5 to 5.5 V (except where noted).

2. Transmitter must internally provide a hold time to bridge the undefined region (300 ns max.) of the falling
edge of SCL.

SCL clock frequency 0 100 kHz

Clock low period 4.7 µs

Clock high period 4 µs

SDA and SCL rise time 1 µs

SDA and SCL fall time 300 ns

START condition hold time
(after this period the first clock pulse is generated)

START condition setup time
(only relevant for a repeated start condition)

Data setup time 250 ns

(2)

Data hold time 0 µs

STOP condition setup time 4.7 µs

Time the bus must be free before a new
transmission can start

2.2 Read mode

4µs

4.7 µs

4.7 µs

In this mode, the master reads the M41T56 slave after setting the slave address (see

Figure 7 on page 11 and Figure 8 on page 11). Following the WRITE mode control bit

(R/W

= 0) and the acknowledge bit, the word address An is written to the on-chip address
pointer. Next the START condition and slave address are repeated, followed by the READ
mode control bit (R/W

= 1). At this point, the master transmitter becomes the master
receiver. The data byte which was addressed will be transmitted and the master receiver will
send an acknowledge bit to the slave transmitter. The address pointer is only incremented
on reception of an acknowledge bit. The M41T56 slave transmitter will now place the data
byte at address A
byte and the address pointer is incremented to A

+ 1 on the bus. The master receiver reads and acknowledges the new

n

+ 2. This cycle of reading consecutive

n

addresses will continue until the master receiver sends a STOP condition to the slave
transmitter.

An alternate READ mode may also be implemented, whereby the master reads the M41T56
slave without first writing to the (volatile) address pointer. The first address that is read is the
last one stored in the pointer, see Figure 9 on page 11.

10/27 Doc ID 6104 Rev 9

M41T56 Operation

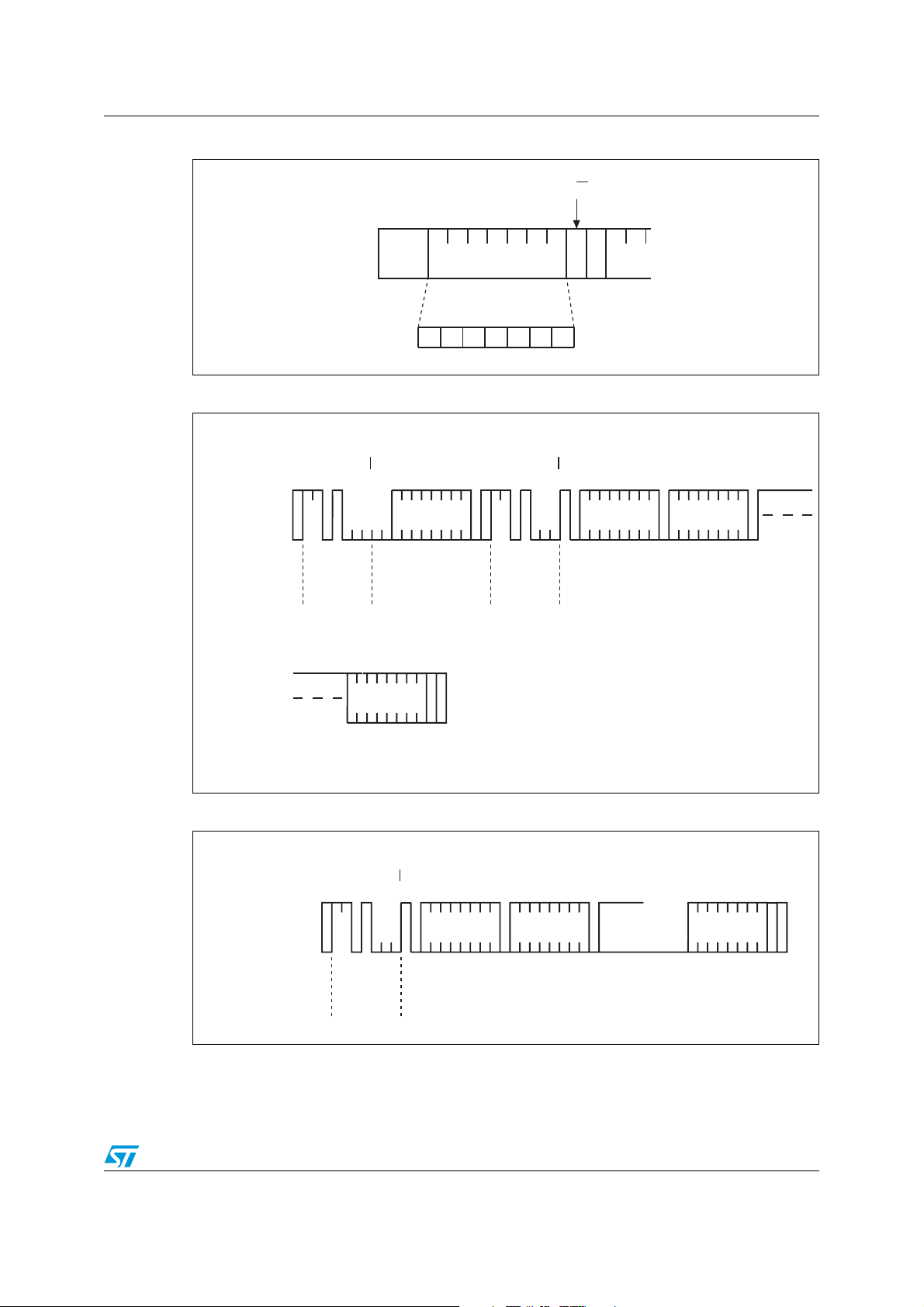

Figure 7. Slave address location

R/W

STA RT A

Figure 8. Read mode sequence

BUS ACTIVITY:
MASTER

SDA LINE

BUS ACTIVITY:

START

S

SLAVE

ADDRESS

R/W

ADDRESS (n)

ACK

DATA n+X

WORD

SLAVE ADDRESS

MSB

0100 011

START

S

ACK

ADDRESS

STOP

P

SLAVE

LSB

R/W

DATA n DATA n+1

ACK

AI00602

ACK

ACK

NO ACK

Figure 9. Alternative read mode sequence

BUS ACTIVITY:
MASTER

BUS ACTIVITY:

START

S

SLAVE

ADDRESS

R/W

DATA n DATA n+1 DATA n+X

ACK

Doc ID 6104 Rev 9 11/27

AI00899

STOP

PSDA LINE

ACK

ACK

ACK

NO ACK

AI00895

Operation M41T56

2.3 Write mode

In this mode the master transmitter transmits to the M41T56 slave receiver. Bus protocol is
shown in Figure 10 on page 12. Following the START condition and slave address, a logic '0'
(R/W

= 0) is placed on the bus and indicates to the addressed device that word address An
will follow and is to be written to the on-chip address pointer. The data word to be written to
the memory is strobed in next and the internal address pointer is incremented to the next
memory location within the RAM on the reception of an acknowledge clock. The M41T56
slave receiver will send an acknowledge clock to the master transmitter after it has received
the slave address and again after it has received the word address and each data byte (see

Figure 7 on page 11).

2.4 Data retention mode

With valid VCC applied, the M41T56 can be accessed as described above with READ or
WRITE cycles. Should the supply voltage decay, the M41T56 will automatically deselect,
write protecting itself when V
accomplished by internally inhibiting access to the clock registers and SRAM. When V
falls below the battery backup switchover voltage (V
V

pin to the battery and the clock registers and SRAM are maintained from the attached

CC

battery supply.

falls between V

CC

(max) and V

PFD

), power input is switched from the

SO

(min). This is

PFD

CC

All outputs become high impedance. On power up, when V
write protection continues for t

REC

.

returns to a nominal value,

CC

For a further more detailed review of battery lifetime calculations, please see application
note AN1012.

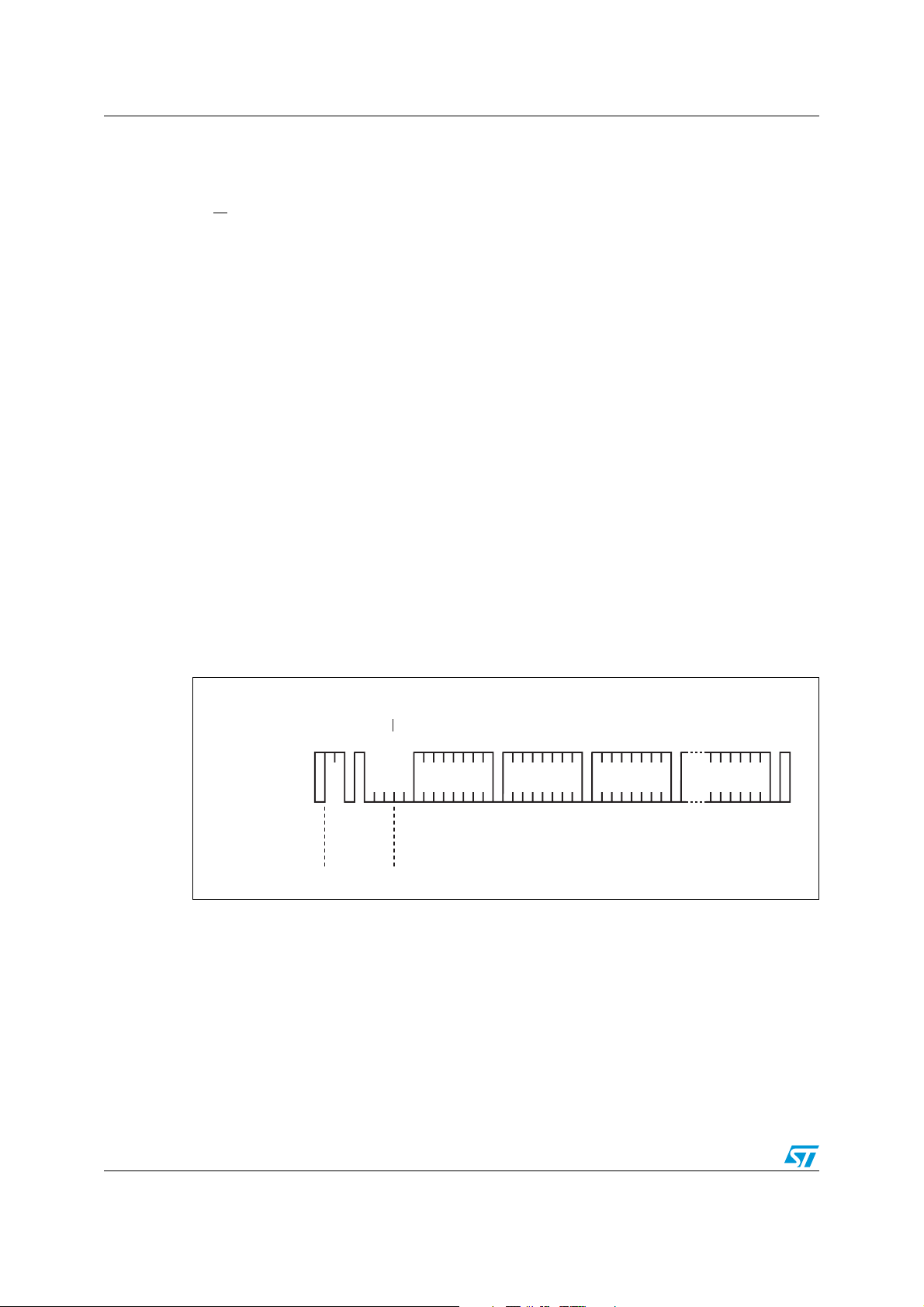

Figure 10. Write mode sequence

BUS ACTIVITY:
MASTER

BUS ACTIVITY:

START

S

SLAVE

ADDRESS

R/W

WORD

ADDRESS (n)

ACK

DATA n DATA n+1 DATA n+X

ACK

ACK

ACK

PSDA LINE

ACK

AI00591

STOP

12/27 Doc ID 6104 Rev 9

M41T56 Clock operation

3 Clock operation

The eight byte clock register (see Ta bl e 3 ) is used to both set the clock and to read the date
and time from the clock, in a binary coded decimal format. Seconds, minutes, and hours are
contained within the first three registers. Bits D6 and D7 of clock register 2 (hours register)
contain the century enable bit (CEB) and the century bit (CB). Setting CEB to a '1' will cause
CB to toggle, either from '0' to '1' or from '1' to '0' at the turn of the century (depending upon
its initial state). If CEB is set to a '0,' CB will not toggle. Bits D0 through D2 of register 3
contain the day (day of week). Registers 4, 5, and 6 contain the date (day of month), month,
and years. The final register is the control register (this is described in the clock calibration
section). Bit D7 of register 0 contains the stop bit (ST). Setting this bit to a '1' will cause the
oscillator to stop.

If the device is expected to spend a significant amount of time on the shelf, the oscillator
may be stopped to reduce current drain. When reset to a '0' the oscillator restarts within one
second.

The seven clock registers may be read one byte at a time, or in a sequential block. The
control register (address location 7) may be accessed independently. Provision has been
made to assure that a clock update does not occur while any of the seven clock addresses
are being read. If a clock address is being read, an update of the clock registers will be
delayed by 250 ms to allow the READ to be completed before the update occurs. This will
prevent a transition of data during the READ.

Note: This 250 ms delay affects only the clock register update and does not alter the actual clock

time.

Table 3. Register map

Address

D7 D6 D5 D4 D3 D2 D1 D0

0 ST 10 Seconds Seconds Seconds 00-59

1 X 10 Minutes Minutes Minutes 00-59

2CEB

3XXXXX Day Day01-07

4 X X 10 date Date Date 01-31

5 X X X 10 M. Month Month 01-12

6 10 years Years Year 00-99

7 OUT FT S Calibration Control

1. Keys:

S = Sign bit
FT = Frequency test bit
ST = Stop bit
OUT = Output level
X = Don't care
CEB = Century enable bit
CB = Century bit

2. When CEB is set to '1,' CB toggles from '0' to '1' or from '1' to '0' every 100 years (dependent upon the

initial value set). When CEB is set to '0,' CB does not toggle.

(2)

(1)

Data

CB 10 hours Hours Century/hours 0-1/00-23

Function/range

BCD format

Doc ID 6104 Rev 9 13/27

Clock operation M41T56

3.1 Clock calibration

The M41T56 is driven by a quartz-controlled oscillator with a nominal frequency of
32,768 Hz. The devices are tested not to exceed 35 ppm (parts per million) oscillator
frequency error at 25 °C, which equates to about ±1.53 minutes per month. With the
calibration bits properly set, the accuracy of each M41T56 improves to better than ±2 ppm
at 25 °C.

The oscillation rate of any crystal changes with temperature (see Figure 11 on page 15).
Most clock chips compensate for crystal frequency and temperature shift error with
cumbersome “trim” capacitors. The M41T56 design, however, employs periodic counter
correction. The calibration circuit adds or subtracts counts from the oscillator divider circuit
at the divide by 256 stage, as shown in Figure 11 on page 15. The number of times pulses
are blanked (subtracted, negative calibration) or split (added, positive calibration) depends
upon the value loaded into the five-bit calibration byte found in the control register. Adding
counts speeds the clock up, subtracting counts slows the clock down.

The calibration byte occupies the five lower order bits (D4-D0) in the control register (addr

7). This byte can be set to represent any value between 0 and 31 in binary form. Bit D5 is
the sign bit; '1' indicates positive calibration, '0' indicates negative calibration. Calibration
occurs within a 64 minute cycle. The first 62 minutes in the cycle may, once per minute, have
one second either shortened by 128 or lengthened by 256 oscillator cycles. If a binary '1' is
loaded into the register, only the first 2 minutes in the 64 minutes cycle will be modified; if a
binary 6 is loaded, the first 12 will be affected, and so on.

Therefore, each calibration step has the effect of adding 512 or subtracting 256 oscillator
cycles for every 125,829,120 actual oscillator cycles, that is +4.068 or –2.034 ppm of
adjustment per calibration step in the calibration register. Assuming that the oscillator is in
fact running at exactly 32,768Hz, each of the 31 increments in the calibration byte would
represent +10.7 or –5.35 seconds per month which corresponds to a total range of +5.5 or –

2.75 minutes per month.

Two methods are available for ascertaining how much calibration a given M41T56 may
require. The first involves simply setting the clock, letting it run for a month and comparing it
to a known accurate reference (like WWV broadcasts). While that may seem crude, it allows
the designer to give the end user the ability to calibrate his clock as his environment may
require, even after the final product is packaged in a non-user serviceable enclosure. All the
designer has to do is provide a simple utility that accessed the calibration byte.

The second approach is better suited to a manufacturing environment, and involves the use
of some test equipment. When the frequency test (FT) bit, the seventh-most significant bit in
the control register, is set to a '1,' and the oscillator is running at 32,768 Hz, the FT/OUT pin
of the device will toggle at 512 Hz. Any deviation from 512 Hz indicates the degree and
direction of oscillator frequency shift at the test temperature.

For example, a reading of 512.01024 Hz would indicate a +20 ppm oscillator frequency
error, requiring a –10(XX001010) to be loaded into the calibration byte for correction.

Note: Setting or changing the calibration byte does not affect the frequency test output frequency.

14/27 Doc ID 6104 Rev 9

M41T56 Clock operation

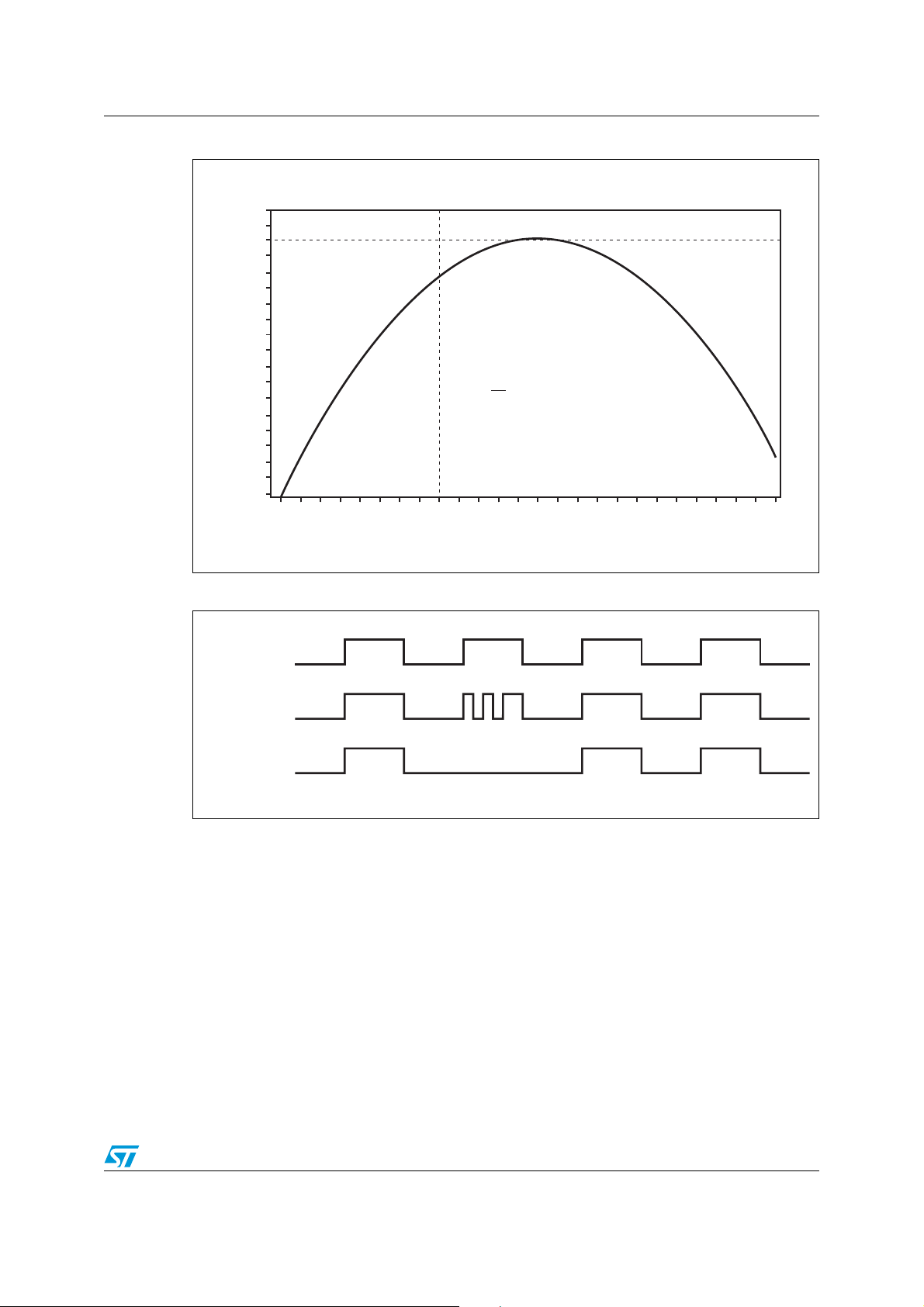

Figure 11. Crystal accuracy across temperature

Frequency (ppm)

20

0

–20

–40

–60

–80

–100

–120

–140

–160

ΔF

= K x (T –T

F

K = –0.036 ppm/°C2 ± 0.006 ppm/°C

TO = 25°C ± 5°C

0 10203040506070

Temperature °C

2

)

O

2

80–10–20–30–40

AI00999b

Figure 12. Clock calibration

NORMAL

POSITIVE
CALIBRATION

NEGATIVE
CALIBRATION

3.2 Output driver pin

When the FT bit is not set, the FT/OUT pin becomes an output driver that reflects the
contents of D7 of the control register. In other words, when D6 of location 7 is a '0' and D7 of
location 7 is a '0' and then the FT/OUT pin will be driven low.

Note: The FT/OUT pin is open drain which requires an external pull-up resistor.

3.3 Initial power-on defaults

AI00594B

Upon initial application of power to the device, the FT bit will be set to a '0' and the OUT bit
will be set to a '1.' All other register bits will initially power-on in a random state.

Doc ID 6104 Rev 9 15/27

Maximum ratings M41T56

4 Maximum ratings

Stressing the device above the rating listed in the “absolute maximum ratings” table may
cause permanent damage to the device. These are stress ratings only and operation of the
device at these or any other conditions above those indicated in the operating sections of
this specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.

Table 4. Absolute maximum ratings

Symbol Parameter Value Unit

T

A

T

STG

T

SLD

V

IO

V

CC

I

O

P

D

1. For SO package, Lead-free (Pb-free) lead finish: Reflow at peak temperature of 260 °C. The time above

255 °C must not exceed 30 seconds.

Ambient operating temperature –40 to 85 °C

Storage temperature (VCC off, oscillator off) –55 to 125 °C

(1)

Lead solder temperature for 10 seconds 260 °C

Input or output voltages –0.3 to 7 V

Supply voltage –0.3 to 7 V

Output current 20 mA

Power dissipation 0.25 W

Caution: Negative undershoots below –0.3 V are not allowed on any pin while in the battery backup

mode.

16/27 Doc ID 6104 Rev 9

M41T56 DC and AC parameters

5 DC and AC parameters

This section summarizes the operating and measurement conditions, as well as the DC and
AC characteristics of the device. The parameters in the following DC and AC characteristics
tables are derived from tests performed under the measurement conditions listed in Ta bl e 5 :

Operating and AC measurement conditions. Designers should check that the operating

conditions in their projects match the measurement conditions when using the quoted
parameters.

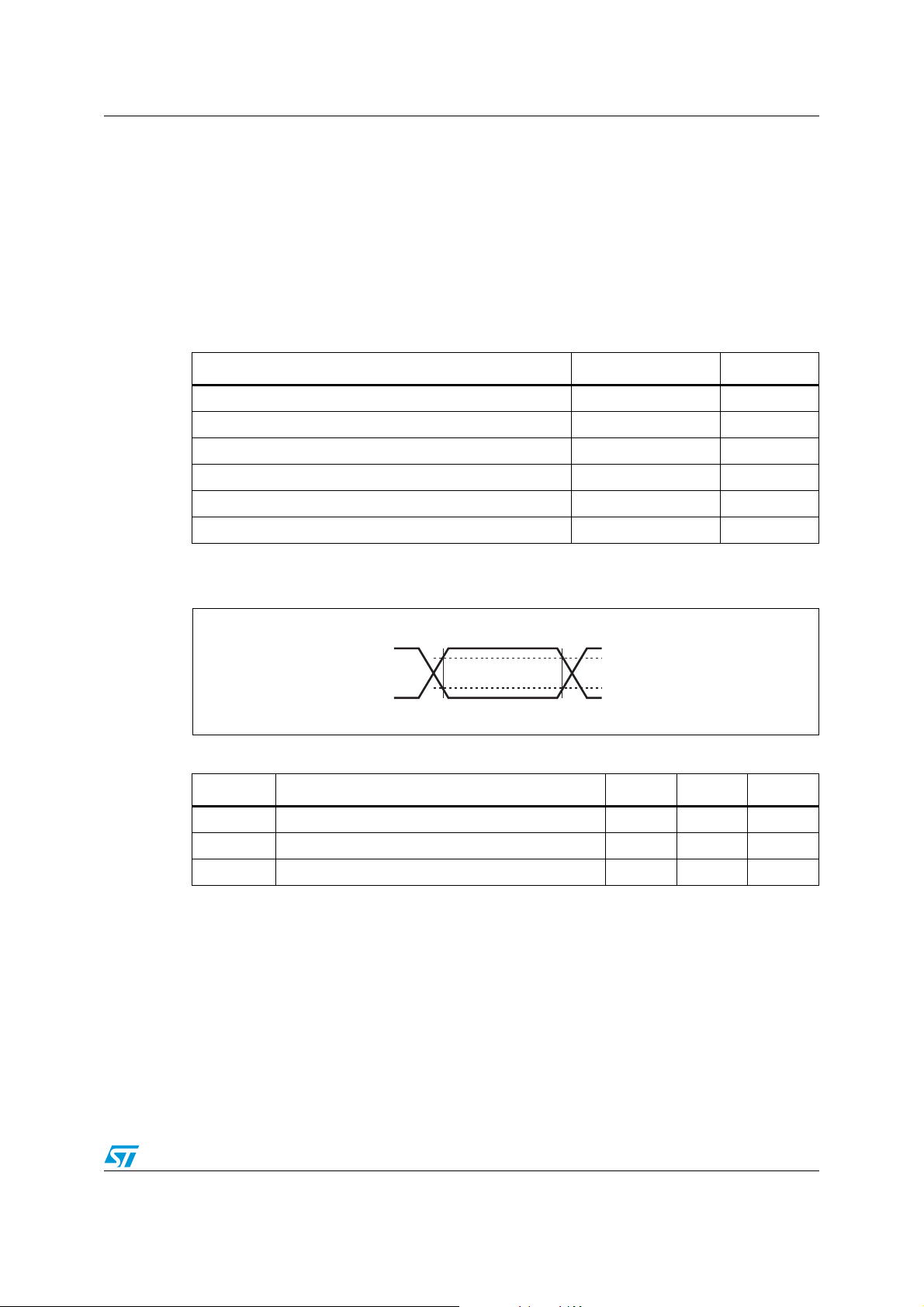

Table 5. Operating and AC measurement conditions

Parameter Value Unit

(1)

Supply voltage (V

Ambient operating temperature (T

Load capacitance (C

) 4.5 to 5.5 V

CC

) –40 to 85 °C

A

) 100 pF

L

Input rise and fall times ≤ 5ns

Input pulse voltages 0 to 3 V

Input and output timing ref. voltages 1.5 V

1. Output Hi-Z is defined as the point where data is no longer driven.

Figure 13. AC measurement I/O waveform

0.8V

CC

0.2V

CC

Table 6. Capacitance

Symbol Parameter

C

IN

C

OUT

t

LP

1. Effective capacitance measured with power supply at 5V; sampled, not 100% tested.

2. At 25 °C, f = 1 MHz.

3. Outputs deselected.

Input capacitance (SCL) 7 pF

(3)

Output capacitance (SDA, FT/OUT) 10 pF

Low-pass filter input time constant (SDA and SCL) 0.25 1 µs

(1)(2)

0.7V

CC

0.3V

CC

Min Max Unit

AI02568

Doc ID 6104 Rev 9 17/27

DC and AC parameters M41T56

Table 7. DC characteristics

≤ V

BAT

(1)

CC

CC

= 3 V

Min Typ Max Unit

±1 µA

±1 µA

450 550 nA

Min Typ Max Unit

Symbol Parameter Test condition

I

Input leakage current 0V ≤ VIN ≤ V

LI

Output leakage current 0V ≤ V

I

LO

I

I

V

V

BAT

I

1. Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 4.5 to 5.5 V (except where noted).

2. STMicroelectronics recommends the RAYOVAC BR1225 or BR1632 (or equivalent) as the battery supply.

Table 8. Crystal electrical characteristics

Symbol Parameter

Supply current Switch frequency = 100 kHz 300 µA

CC1

Supply current (standby) SCL, SDA = VCC – 0.3 V 100 µA

CC2

Input low voltage –0.3 1.5 V

V

IL

Input high voltage 3 VCC + 0.8 V

V

IH

Output low voltage IOL = 5mA, VCC = 4.5 V 0.4 V

OL

(2)

Battery supply voltage 2.5 3 3.5 V

T

Battery supply current

BAT

A

oscillator ON, V

(1)(2)

OUT

= 25 °C, VCC = 0 V,

f

R

C

1. These values are externally supplied for the SO8 package. STMicroelectronics recommends the KDS DT-

38: 1TA/1TC252E127, Tuning Fork Type (thru-hole) or the DMX-26S: 1TJS125FH2A212, (SMD) quartz
crystal for industrial temperature operations. For contact information on this crystal type, see Section 8:

References on page 25.

2. Load capacitors are integrated within the M41T56. Circuit board layout considerations for the 32.768 kHz

crystal of minimum trace lengths and isolation from RF generating signals should be taken into account.

Resonant frequency 32.768 kHz

O

Series resistance 60 kΩ

S

Load capacitance 12.5 pF

L

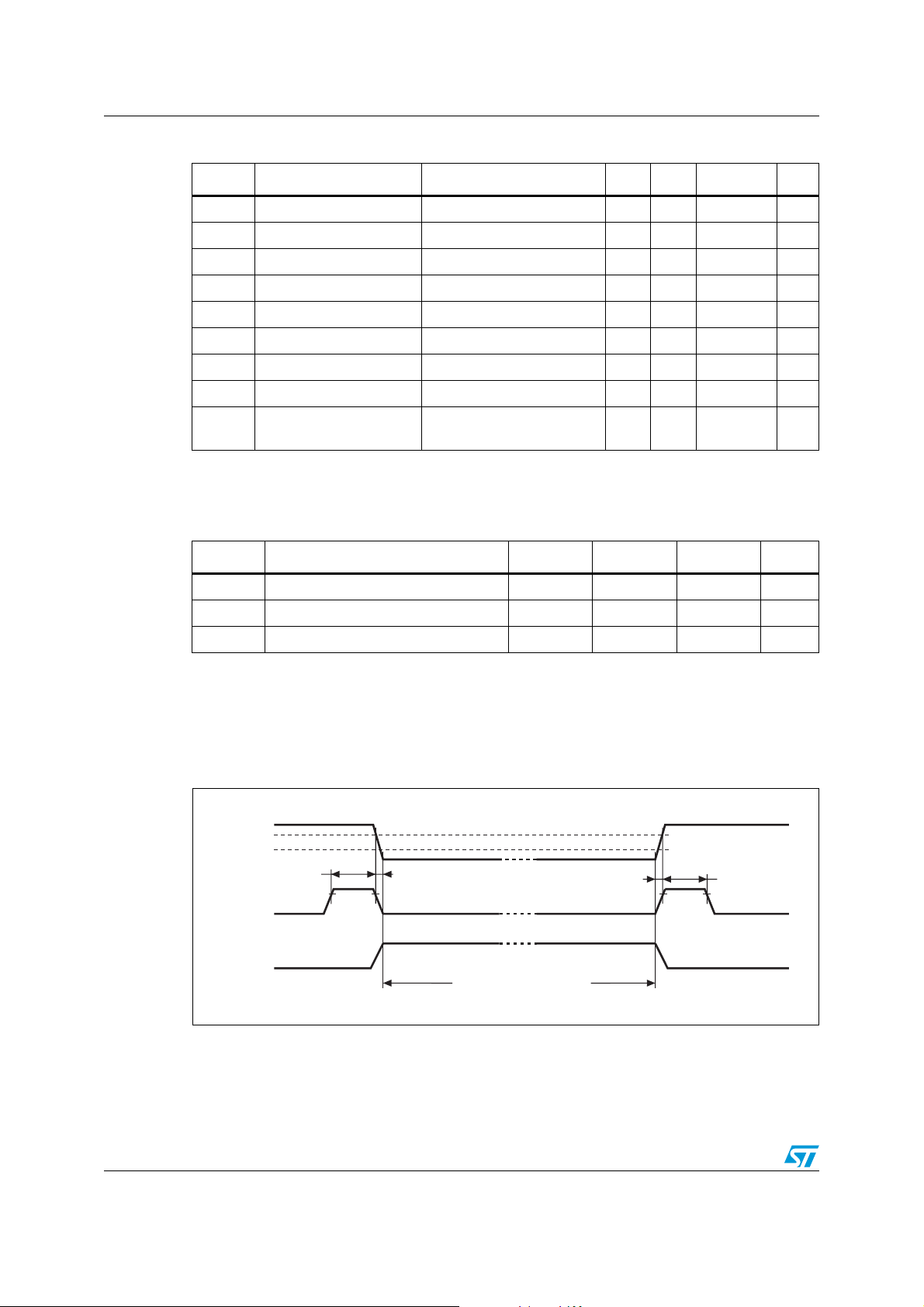

Figure 14. Power down/up mode AC waveforms

V

CC

V

PFD

VSO

SDA
SCL

I

BAT

t

PD

t

FB

DATA RETENTION TIME

t

RB

t

REC

AI00595

18/27 Doc ID 6104 Rev 9

M41T56 DC and AC parameters

Table 9. Power down/up mode AC characteristics

Symbol Parameter

(1)

Min Max Unit

t

PD

t

FB

t

RB

t

REC

1. Valid for ambient operating temperature: TA = –40 to 85 °C; VCC = 4.5 to 5.5 V (except where noted).

Table 10. Power down/up trip points DC characteristics

Symbol Parameter

V

PFD

V

1. All voltages referenced to VSS.

2. Valid for ambient operating temperature: T

SCL and SDA at VIH before power-down 0 ns

V

(min) to VSS VCC fall time 300 µs

PFD

VSS to V

(min) VCC rise time 100 µs

PFD

SCL and SDA at VIH after power-up 10 µs

(1)(2)

Power-fail deselect voltage 1.2 V

Battery back-up switchover voltage V

SO

= –40 to 85 °C; VCC = 4.5 to 5.5 V (except where noted).

A

Min Typ Max Unit

BAT

1.25 V

BAT

BAT

1.285 V

BAT

V

V

Doc ID 6104 Rev 9 19/27

Package mechanical data M41T56

6 Package mechanical data

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK

®

packages, depending on their level of environmental compliance. ECOPACK®

®

is an ST trademark.

20/27 Doc ID 6104 Rev 9

M41T56 Package mechanical data

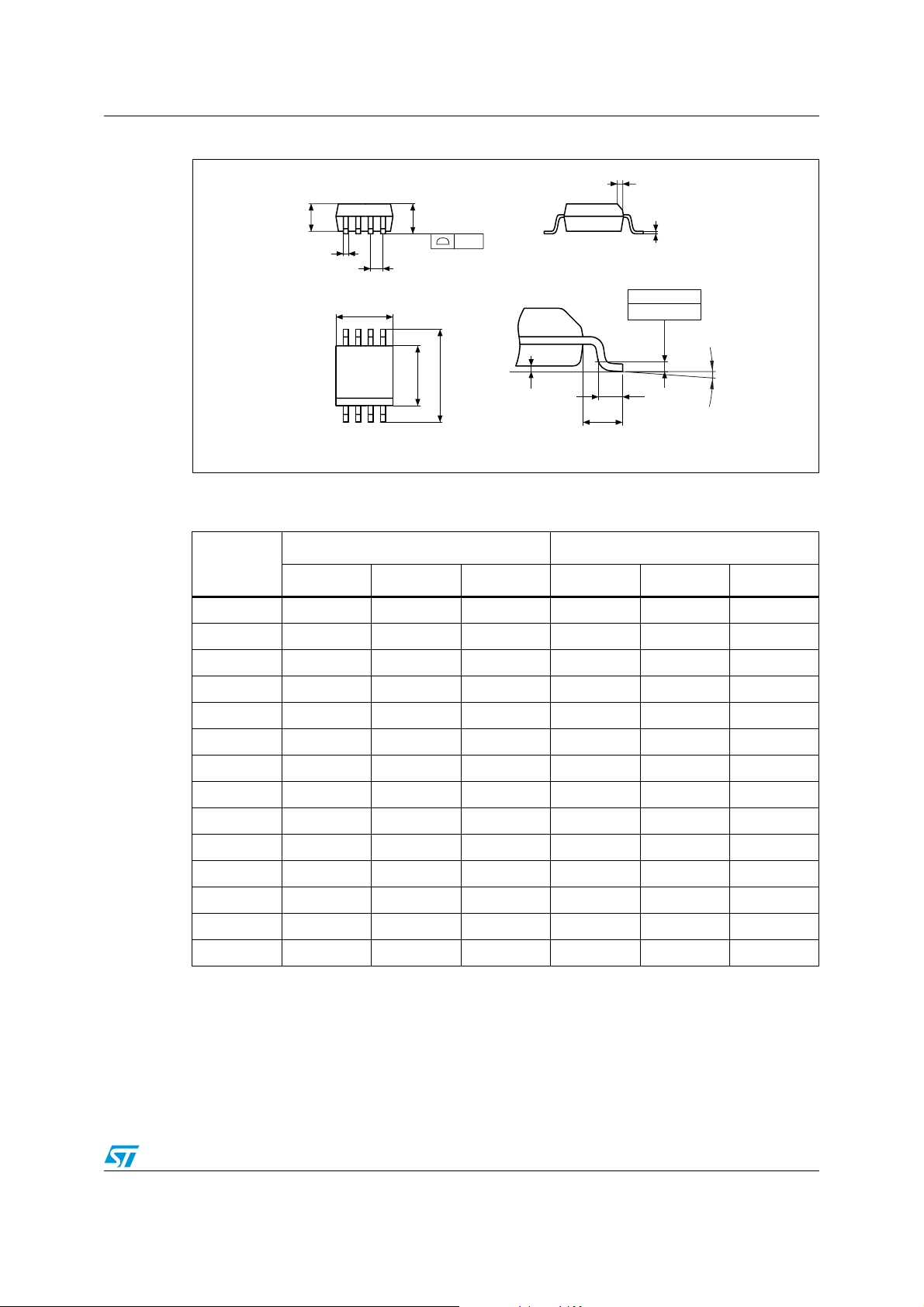

Figure 15. SO8 – 8-pin plastic small package outline

h x 45˚

A2

b

e

D

8

1

1. Drawing is not to scale.

Table 11. SO8 – 8-pin plastic small outline, package mechanical data

E1

A

ccc

E

A1

L

L1

c

0.25 mm

GAUGE PLANE

k

SO-A

millimetres inches

Symbol

Typ Min Max Typ Min Max

A1.750.069

A1 0.10 0.25 0.004 0.010

A2 1.25 0.049

b 0.28 0.48 0.011 0.019

c 0.17 0.23 0.007 0.009

ccc 0.10 0.004

D 4.90 4.80 5.00 0.193 0.189 0.197

E 6.00 5.80 6.20 0.236 0.228 0.244

E1 3.90 3.80 4.00 0.154 0.150 0.157

e1.27– –0.050– –

h 0.25 0.50 0.010 0.020

k 0°8° 0°8°

L 0.40 1.27 0.016 0.050

L1 1.04 0.041

1. Drawing is not to scale.

Doc ID 6104 Rev 9 21/27

Package mechanical data M41T56

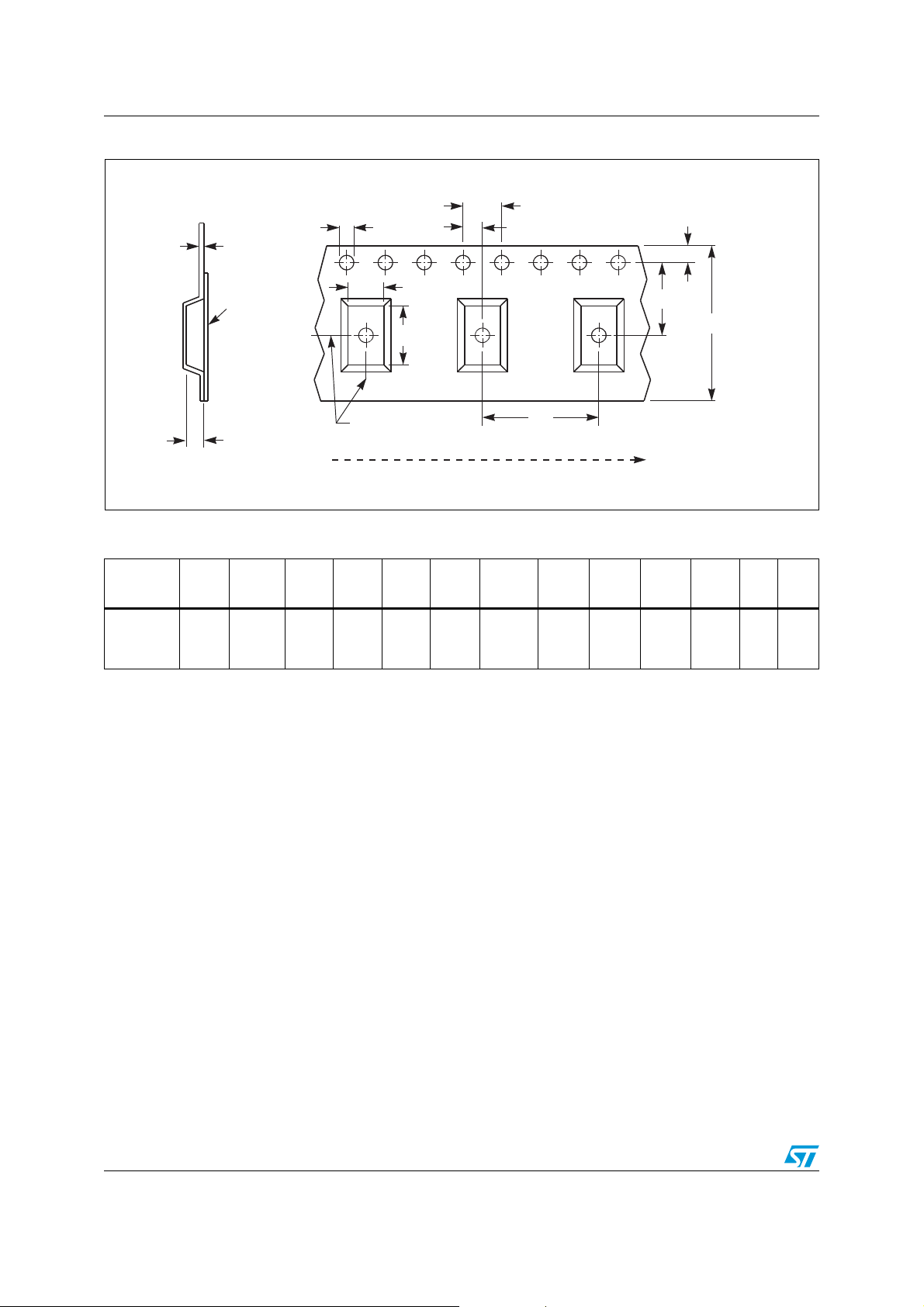

Figure 16. Carrier tape for SO8 package (150-mil body width)

P

D

T

A

TOP COVER

TAPE

K

0

0

CENTER LINES
OF CAVITY

P

2

B

0

0

P

1

E

F

W

USER DIRECTION OF FEED

Table 12. Carrier tape dimensions for SO8 package (150-mil body width)

Package W D E P

1.50

+0.10/

–0.00

1.75

±0.10

4.00

±0.10

SO8

12.00
±0.30

P

0

2.00

±0.10

FA0B

2

5.50

±0.05

6.50

±0.10

0

5.30

±0.10

K

0

2.20

±0.10

P

1

8.00

±0.10

AM03073v1

TUnit

0.30

±0.05

mm 2500

Bulk

Qty

22/27 Doc ID 6104 Rev 9

M41T56 Package mechanical data

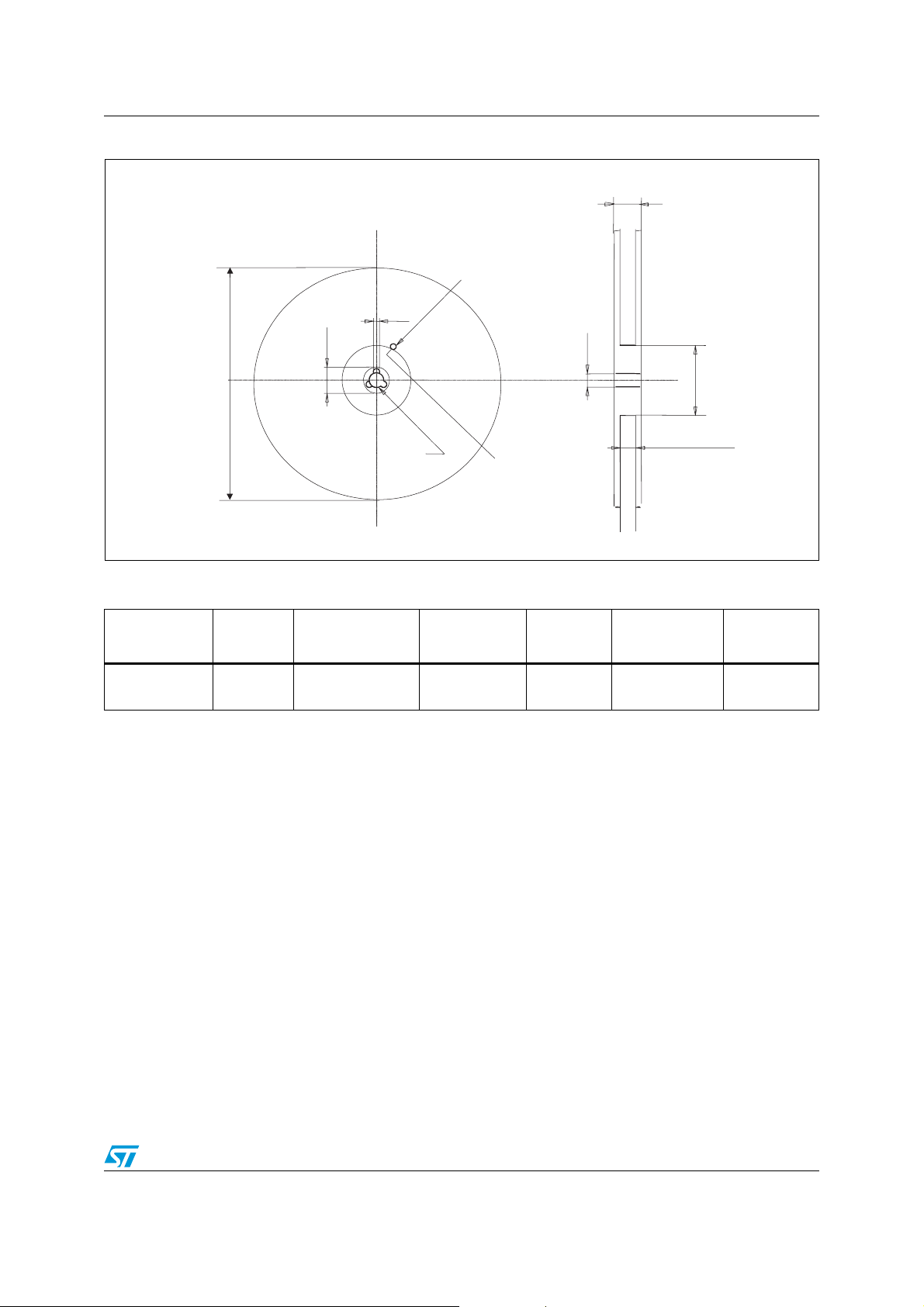

Figure 17. Reel schematic

T

40mm min.

Access hole

At slot location

B

D

C

A

Tape slot

Full ra dius

In core for

Tape s tart

2.5mm min.width

N

G measured

At hub

AM04928v1

Table 13. Reel dimensions for 12 mm carrier tape - SO8 package (150-mil body width)

A

(max)

330 mm

(13-inch)

B

(min)

1.5 mm

C

13 mm

± 0.2 mm

D

(min)

N

(min)

20.2 mm 60 mm

G

12.4 mm

+ 2/–0 mm

T

(max)

18.4 mm

Note: The dimensions given in Tab le 13 incorporate tolerances that cover all variations on critical

parameters.

Doc ID 6104 Rev 9 23/27

Part numbering M41T56

7 Part numbering

Table 14. Ordering information scheme

Example: M41T 56 M 6 E

Device type

M41T

Supply voltage and write protect voltage

56 = V

Package

M = SO8

Temperature range

= 4.5 to 5.5 V

CC

6 = –40 °C to 85 °C

Shipping method

E = Lead-free package (ECOPACK

®

), tubes

(1)

F = Lead-free package (ECOPACK®), tape & reel

1. Not recommended for new design. Contact local ST sales office for availability.

24/27 Doc ID 6104 Rev 9

M41T56 References

8 References

● The crystal component supplier KDS as cited in Table 8: Crystal electrical

characteristics on page 18 can be contacted at http://www.kds.info/index_en.htm

Doc ID 6104 Rev 9 25/27

Revision history M41T56

9 Revision history

Table 15. Document revision history

Date Revision Changes

Mar-1999 1.0 First issue

23-Dec-1999 1.1 SOH28 package added

21-Mar-2000 1.2 Series resistance max value changed (Ta b le 8 )

30-Nov-2000 1.3 Added PSDIP8 package

25-Jan-2001 1.4 Corrected graphic, measurements of PSDIP8 (Figure 18, Table 14)

16-Feb-2001 2.0 Reformatted, table added (Tab l e 1 6).

06-Apr-2001 2.1

Add temp./voltage information to characteristics (Ta bl e 7 , Ta b l e 2 ); correct series
resistance (Ta bl e 8 )

17-Jul-2001 2.2 Basic formatting changes

02-Aug-2002 2.3

Modify reflow time and temperature footnote (Ta bl e 4 ); modify crystal electrical
characteristics table footnotes (Tab l e 8 ); removed PSDIP8 package

07-Nov-2002 2.4 Correct figure name (Features on page 1)

15-Jun-2004 3.0

Reformatted; add lead-free information; update characteristics (Figure 11; Ta bl e 4 ,

Ta bl e 1 4 )

Changed document to new template; amalgamated diagrams in Features on page 1;

11-Sep-2006 4

amended footnotes in Table 3: Register map; updated Package mechanical data in

Section 6: Package mechanical data; small text changes for entire document, removed

lead packages from Ta bl e 1 4 , ECOPACK compliant

09-Oct-2006 5

10-Apr-2007 6

Updated package mechanical data in Figure 15: SO8 – 8-pin plastic small package

outline.

Updated package information references that only SO8 available (cover page, Section 1,

Section 4, Ta b le 4 , Ta bl e 8 , and Ta bl e 1 4 ).

Added lead-free second level interconnect information to cover page and Section 6:

06-Nov-2007 7

Package mechanical data; updated Ta bl e 4 , footnote 1 in Ta bl e 8 ; addition of Section 8:
References.

13-Dec-2007 8 Updated cover page and Section 8: References.

Updated footnote 1 of Table 4: Absolute maximum ratings; updated ECOPACK

06-Dec-2011 9

Section 6: Package mechanical data; added footnote 1 to Table 14: Ordering information
scheme; added Figure 16, 17, Ta b le 1 2 , 13; updated title; minor textual updates.

®

text in

26/27 Doc ID 6104 Rev 9

M41T56

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2011 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 6104 Rev 9 27/27
