Low Voltage Single Supply Flash Memory

M29W040is replacedby the M29W040B

2.7Vto 3.6V SUPPLYVOLTAGEfor PROGRAM,ERASE and READ OPERATIONS

FASTACCESSTIME:100ns BYTEPROGRAMMINGTIME: 12µs typical ERASETIME – Block:1.5 sec typical – Chip: 2.5 sec typical PROGRAM/ERASECONTROLLER(P/E.C.) – ProgramByte-by-Byte – Data Polling and Togglebits Protocolfor

P/E.C.Status MEMORYERASEin BLOCKS – 8 UniformBlocksof 64 KBytes each – BlockProtection – MultiblockErase ERASESUSPENDand RESUME MODES LOWPOWER CONSUMPTION – Readmode: 8mAtypical (at 12MHz) – Stand-bymode: 20µAtypical – AutomaticStand-by mode POWERDOWN SOFTWARECOMMAND – Power-downmode: 1µAtypical 100,000PROGRAM/ERASECYCLES per

BLOCK 20YEARSDATARETENTION – Defectivitybelow 1ppm/year ELECTRONICSIGNATURE – ManufacturerCode: 20h – DeviceCode: E3h

Table1. SignalNames

M29W040

4 Mbit(512Kb x8, Uniform Block)

NOT FOR NEW DESIGN

PLCC32 (K) TSOP32 (N)

TSOP32 (NZ)

8 x 14mm

Figure 1. LogicDiagram

A0-A18

M29W040

8 x 20mm

DQ0-DQ7

A0-A18 Address Inputs DQ0-DQ7 Data Input / Outputs E Chip Enable G Output Enable W Write Enable V

November 1999 1/31

This is information ona product still in productionbutnot recommendedfor new designs.

Supply Voltage Ground

AI02074

Page 2

M29W040

Figure 2A. LCC Pin Connections

A18

DQ3

DQ4

DQ5

A7 A6 A5 A4 A3 A2 A1 A0

DQ0

A16

A12

A15

M29W040

DQ1

DQ2

A17

DQ6

A14 A13 A8 A9 A11 G A10 E DQ7

AI02075

Figure 2B. TSOP Pin Connections

A11 G

A13 A14 A17

A18 A16 A15 A12

1 A9 A8

M29W040

(Normal)

A7 A6 A5 A4 A3

16 17

25 24

AI02076

A10 E DQ7 DQ6 DQ5 DQ4 DQ3 V

DQ2 DQ1 DQ0 A0 A1 A2

Figure 2C. TSOP Reverse Pin Connections DESCRIPTION

The M29W040is a non-volatilememory that may be erased electrically at the block level, and programmed Byte-by-Byte.

The interface is directly compatible with most microprocessors. PLCC32,TSOP32(8x 20mm)and TSOP32(8 x 14mm)packagesare available.Both normal and reverse pin outs are available for the TSOP32(8 x 20mm) package.

Organisation

TheFlashMemoryorganisationis512Kx8 bitswith Address lines A0-A18 and Data Inputs/Outputs DQ0-DQ7. Memory control is provided by Chip Enable,Output EnableandWrite Enable Inputs.

Erase and Program are performed through the internal Program/EraseController(P/E.C.).

DataOutputsbits DQ7 and DQ6 provide pollingor togglesignals duringAutomaticProgram or Erase to indicate the Ready/Busy state of the internal Program/EraseController.

MemoryBlocks

Erasure of the memory is in blocks. There are 8 uniform blocks of 64 Kbytes each in the memory

A10

DQ7 DQ6 DQ5 DQ4 DQ3 V

DQ2 DQ1 DQ0

A0 A1 A2

8 9

16 17

M29W040

(Reverse)

25 24

AI02077

A11G A9 A8 A13 A14 A17 W V

A18 A16 A15 A12 A7 A6 A5 A4A3

address space. Each block can be programmed and erased over 100,000 cycles. Each uniform

2/31

Page 3

M29W040

Table2. AbsoluteMaximum Ratings

Symbol Parameter Value Unit

BIAS

STG

(2)

Notes:

1. Except for the rating ”Operating TemperatureRange”, stresses above those listed in theTable ”Absolute Maximum Ratings” may cause permanent damage to the device. These are stressratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.Refer also to the STMicroelectronicsSURE Program and other relevant quality documents.

2. Minimum Voltage may undershoot to–2V during transition and for less than 20ns.

3. Depends on range.

Ambient Operating Temperature TemperatureUnder Bias –50 to 125 °C Storage Temperature –65 to 150 Input or OutputVoltages –0.6 to 5 V Supply Voltage –0.6 to 5 V A9 Voltage –0.6 to 13.5 V

block may separately be protected and unprotected against program and erase. Block erasure may be suspended, while data is read from other blocks of the memory,and then resumed.

Bus Operations

Seven operationscan be performed by the appropriate bus cycles, Read Array, Read Electronic Signature,OutputDisable, Standby,ProtectBlock, Unprotect Block, and Write the Command of an Instruction.

Command Interface

Command Bytes can be written to a Command Interface(C.I.) latch to perform Reading (from the Array or Electronic Signature), Erasure or Programming. For added data protection, command executionstarts after 4 or 6 commandcycles. The first, second, fourth and fifth cycles are used to input a code sequenceto the CommandInterface (C.I.).Thissequenceis equal for allP/E.C. instructions. Command itself and its confirmation - if it applies - are given on the third and fourth or sixth cycles.

Instructions

Eight instructions are defined to perform Reset, Read Electronic Signature, Auto Program, Block Auto Erase, Chip Auto Erase, Block Erase Suspend, BlockErase Resumeand Power Down. The internalProgram/EraseController(P/E.C.)handles

(1)

(3)

–40 to 85

instructionsandprovidesDataPolling,Toggle,and Statusdata to indicatecompletionof Programand EraseOperations.

Instructionsare composed of up to six cycles.The firsttwocycles input a code sequenceto theCommand Interface which is common to all P/E.C. instructions (see Table 7 for Command Descriptions). The third cycleinputs the instruction set up command instruction to the Command Interface. SubsequentcyclesoutputSignature,BlockProtection or the addressed data for Read operations. For addeddataprotection,the instructionsfor program,and blockor chiperase require further commandinputs. Fora Programinstruction,the fourth commandcycleinputsthe addressand data to be programmed. For an Erase instruction (block or chip),the fourthand fifthcyclesinputa furthercode sequence before the Erase confirm command on the sixth cycle. Byte programming takes typically 12µs while erase is performed in typically1.5 second.

Erasureof a memory block may be suspended,in order to read data from another block, and then resumed.Data Polling,Toggleand Errordata may be read at any time,includingduring the programming or erase cycles, to monitor the progress of the operation.When poweris firstapplied or ifV fallsbelow V

,thecommandinterfaceis resetto

LKO

ReadArray.

all timingandverificationof theProgramandErase

3/31

Page 4

M29W040

Table3. Operations

Operation E G W DQ0 - DQ7

Read V Write V Output Disable V Standby V

Note:

X=V

or V

Table4. ElectronicSignature

X X Hi-Z

Data Output

Data Input

Hi-Z

Code E G W A0 A1 A6 A9

Manufact. Code V Device Code V

Table5. BlockProtectionStatus

Code E G W A0 A1 A6 A16 A17 A18

Protected Block V Unprotected Block V

Note: SA = Address of block being checked

DEVICEOPERATION Signal Descriptions AddressInputs (A0-A18). Theaddress inputs for

the memoryarrayare latchedduring awrite operation. The A9 address input is used also for the Electronic Signature read and BlockProtect verification. When A9 is raised to V Manufacturer Code, Read Device Code or Verify BlockProtectionisenableddependingon thecombinationof levelson A0, A1 and A6. WhenA0, A1 and A6areLow,the ElectronicSignatureManufacturer codeis read,when A0is Highand A1 and A6 are Low,the Device code is read, and when A1 is High and A0 and A6 are low, the Block Protection Status with protect/unprotectalgorithm is read for the blockaddressedbyA16, A17, A18.

Data Input/Outputs(DQ0-DQ7).Thedata inputis a byteto be programmedor a commandwrittento the C.I. Both are latched when ChipEnable E and WriteEnable W areactive.The dataoutput isfrom the memory Array, the Electronic Signature, the Data Polling bit (DQ7), the Toggle Bit (DQ6), the Error bit (DQ5) or the Erase Timer bit (DQ3). Ouputs are valid when Chip Enable E and Output EnableG are active.The outputis highimpedance

when the chip is deselected or the outputs are disabled.

Chip Enable (E). The Chip Enable activates the memorycontrol logic, input buffers, decoders and senseamplifiers.EHighdeselectsthememoryand reduces the power consumption to the standby

, either a Read

level. E can also be used to control writing to the command registerand tothe memoryarray,while W remains at a low level. Addresses are then latchedon thefallingedgeofEwhiledataislatched on the rising edge of E. The Chip Enable must be forcedto V

OutputEnable (G). The OutputEnable gates the outputs through the data buffers during a read operation. G must be forced to V BlockProtect and Block Unprotectoperations.

WriteEnable(W).This inputcontrolswritingto the CommandRegisterandAddressandDatalatches. Addressesare latchedon thefallingedgeofW, and DataInputs are latched on the rising edgeof W.

operations(Read, Program and Erase).

measurements.

Other

Addresses

V V

Don’t Care 20h Don’t Care E3h

Other

Addresses

DQ0 - DQ7

SA SA SA Don’t Care 01h SA SA SA Don’t Care 00h

during Block Unprotectoperations.

level during

Supply Voltage. The power supply for all

Ground. VSSis the reference for all voltage

4/31

Page 5

M29W040

Table6. Instructions

(1)

Mne. Instr. Cyc. 1st Cyc. 2nd Cyc. 3rd Cyc. 4th Cyc. 5th Cyc. 6th Cyc. 7th Cyc.

RST

Read Array/

(3,9)

Reset

Addr.

Data F0h

Addr.

(2,6)

Read Memory Array until a new write cycle is initiated.

5555h 2AAAh 5555h

Read Memory Array until a new write cycle is initiated.

Data AAh 55h F0h

(2,6)

Addr.

5555h 2AAAh 5555h

Data AAh 55h 90h

(2,6)

Addr.

5555h 2AAAh 5555h

Read Electronic Signature until a new write cycle is initiated. See Note 4.

Read Block Protection untila new write cycle is initiated. See Note 5.

RSIG

RBP

Read

(3)

Electronic Signature

Read Block

(3)

Protection

Data AAh 55h 90h

Program

Address

Program

Data

Read Data Pollingor Toggle Bit until Program completes.

Block

Address

Additional

Block

PG Program 4

BE Block Erase 6

(2,6)

Addr.

5555h 2AAAh 5555h

Data AAh 55h A0h

(2,6)

Addr.

5555h 2AAAh 5555h 5555h 2AAAh

(7)

Data AAh 55h 80h AAh 55h 30h 30h

(2,6)

CE Chip Erase 6

Addr.

5555h 2AAAh 5555h 5555h 2AAAh 5555h

Data AAh 55h 80h AAh 55h 10h

(2,6)

Erase Suspend

Addr.

Read until Togglestops, then read all the data needed from any uniform block(s) not being erased then Resume Erase.

Data B0h

(2,6)

Erase Resume

Addr.

Read Data Pollingor ToggleBit until Erase completes or Erase is suspended another time

Data 30h

(2,6)

(10)

Power Down

Addr.

5555h

Puts the memory in Power Down mode where power consumption is reduced to typically less than 1µA

Data 20h

Notes:

1. Command not interpreted in this table will default to read array mode.

2. X = Don’tCare.

3. The first cycle ofthe RST,RBP or RSIG instruction is followed by read operations to read memory array,Status Register or Electronic Signature codes. Any number of read cycles can occur after one command cycle.

4. Signature Addressbits A0,A1, A6 at V Device code.

5. Protection Address: A0, A6 at V Block Protectionstatus.

6. Address bits A15-A18are don’tcare for coded address inputs.

7. Optional, additional blocks addresses must be enteredwithin a 80µs delay afterlast write entry, timeout status can be verified through DQ3 value. When full command is entered, read Data Polling or Toggle bit until Erase is completed or suspended.

8. Read Data Polling or Togglebit until Erase completes.

9. Await time of 5µs is necessary after a Reset command, if the memory is in a Block Erase or Power Down status, before starting any operation.

10. Writing an RST command to theP/E.C. is mandatory prior to any new operation when the memory is in Power Down mode.

will output Manufacturer code (20h). Addressbits A0 at VIHandA1, A6 atVILwill output

,A1atVIHand A16,A17, A18 within the uniform block tobe checked,will output the

Note 8

5/31

Page 6

M29W040

MemoryBlocks

The memoryblocks of the M29W040are shownin Figure3. Thememory array is dividedin 8 uniform blocks of 64 Kbytes. Each block can be erased separately or any combination of blocks can be erased simultaneously.The BlockEraseoperation ismanagedautomaticallyby theP/E.C.Theoperation can be suspended in order to read from any other block, and thenresumed.

Block Protectionprovides additionaldata security. Each uniformblock can be separatelyprotectedor unprotectedagainst ProgramorErase.BringingA9 and G to V G and E to V

initiatesprotection,whilebringing A9,

cancels the protection. The block

affected during protection is addressed by the inputs on A16, A17, and A18. Unprotect operation affectsall blocks.

Operations

Operationsare defined as specific bus cyclesand signals which allow Memory Read, Command Write,Output Disable, Standby,Read Status Bits, Block Protect/Unprotect, Block Protection Check and ElectronicSignatureRead.Theyare shownin Tables 3, 4, 5.

Read. Read operations are used to output the contents of the Memory Array,the Status Register or the Electronic Signature. Both Chip Enable E and OutputEnable G must be low in order to read the output of the memory. The Chip Enable input alsoprovidespowercontroland shouldbe usedfor deviceselection.OutputEnable shouldbe usedto gatedataontothe outputindependentof thedevice selection.The data read dependson the previous commandwritten to the memory (see instructions RST and RSIG, and StatusBits).

Write.Writeoperationsare usedtogiveInstruction Commandsto thememoryor to latchinput data to be programmed.Awrite operationis initiatedwhen Chip Enable E is Low and Write Enable W is Low with OutputEnableG High.Addressesare latched

onthefallingedge ofWor Ewhicheveroccurslast. CommandsandInputDataarelatchedon therising edge of W or E whicheveroccurs first.

OutputDisable. Thedataoutputsare highimpedance whenthe OutputEnable G is High withWrite EnableW High.

Standby. The memory is in standby when Chip Enable E is High and Program/Erase Controller P/E.C. is Idle. The power consumptionis reduced to the standby level and the outputs are high impedance, independent of the Output Enable G or WriteEnable W inputs.

AutomaticStandby. After 150ns of inactivity and when CMOS levels are driving the addresses,the chip automaticallyenters a pseudo standbymode where consumption is reduced to the CMOS standby value, while outputs are still driving the bus.

Power Down. When the PD command is written to the P/E.C. the memory enters a power down statuswhere the power consumptionis reducedto

(typicallyless than 1.0µA).

CC6

Electronic Signature. Two codes identifying the manufacturer andthe devicecanbe read fromthe memory,themanufacturer’scodefor STMicroelectronics is 20h, and the device code is E3h for the M29W040. These codes allow programming equipment or applicationsto automatically match theirinterfaceto thecharacteristicsof theparticular manufacturer’s product. TheElectronicSignature is output by a Read operation when the voltage applied to A9 is at V

and address inputs A1 and

A6 are at Low. The manufacturer code is output when the Address input A0 is Low and the device codewhen thisinputis High.Other Addressinputs are ignored. The codes are outputon DQ0-DQ7. This is shown in Table4.

The ElectronicSignature can alsobe read, without raisingA9 to V

by givingthe memory the instruc-

tion RSIG (see below).

6/31

Page 7

Figure 3. MemoryMap and Block AddressTable

M29W040

A18

AI01362B

A17

1 64K Bytes Block

001

000

A16

Block Protection. Each uniform block can be separately protected against Program or Erase. Block Protectionprovides additionaldata security, as it disablesall programoreraseoperations.This mode is activated when both A9 and G are set to

and the block address is applied on A16-A18.

Block Protection is programmed using a Presto F programlike algorithm.Protectionisinitiatedon the edgeofWfallingtoV the edge of W rising to V

.Thenafteradelayof 100µs,

ends the protection

operation.Protectionverify is achievedby bringing G, E andA6 to V

while W is at VIHand A9 at VID.

Undertheseconditions,readingthedataoutputwill yield 01h if the block defined by the inputs on A16-A18 is protected. Any attempt to program or erase a protected block will be ignored by the device.

Any protected block can be unprotected to allow updating of bit contents. All blocks must be protected before an unprotect operation. Block Unprotect is activatedwhen A9, G and E are at V

The addressesinputs A6,A12, A16 mustbe maintainedatV

.BlockUnprotectis performedthrough

a Presto F Erase like algorithm. Unprotect is initiated by the edgeof W falling to V of 10ms, the edge of W rising to V

. After a delay

will end the

unprotection operation. Unprotect verify is achieved by bringing G and E to V

while A6 and

64K Bytes Block

TOP

ADDRESS

7FFFFh

6FFFFh

5FFFFh

4FFFFh

3FFFFh

2FFFFh

1FFFFh

0FFFFh

BOTTOM

ADDRESS

70000h

60000h

50000h

40000h

30000h

20000h

10000h

00000h

Table7. Commands

Hex Code Command

10h Chip Erase Confirm 20h Power Down 30h Block Erase Resume/Confirm 50h Reserved 80h Set-up Erase

Read Electronic Signature/ Block Protection Status

and A9 at VID. In these conditions,

90h

A0h Program B0h Erase Suspend

F0h Read Array/Reset

W are at V reading the output data will yield 00h if the block defined by the inputs on A16-A18has been successfullyunprotected.AllcombinationsofA16-A18 mustbe addressedin orderto ensurethatallof the 8 uniform blocks have been unprotected. Block ProtectionStatus is shownin Table5.

7/31

Page 8

M29W040

Table8. Status Register

DQ Name Logic Level Definition Note

’1’ Erase Complete

Data

Polling

’0’ Erase on going DQ Program Complete DQ Program on going

Indicates the P/E.C. status, check during Program or Erase, and on completion before checking bits DQ5 for Program or Erase Success.

’-1-0-1-0-1-0-1-’ Erase or Program ongoing Successive read output complementary

6 ToggleBit

5 ErrorBit

Erase

TimeBit

2 Reserved 1 Reserved 0 Reserved

Note:

Logic level ’1’ is High, ’0’ is Low.-0-1-0-0-0-1-1-1-0- represent bitvalue in successive Read operations.

’-0-0-0-0-0-0-0-’

’-1-1-1-1-1-1-1-’

’1’ Program or Erase Error

’0’ Program or Erase on going

’1’

’0’

’1’ Erase TimeoutPeriod Expired P/E.C. Erase operation has started. Only

’0’

Instructionsand Commands

The Command Interface (C.I.) latches commands written to the memory. Instructions are made up from one or more commands to perform Read Array/Reset, Read Electronic Signature, Power Down, Block Erase, Chip Erase, Program, Block Erase Suspend and Erase Resume. Commands are made of address and data sequences. Addresses are latched on the falling edge of W or E and data is latched on the rising of W or E. The instructionsrequire from 1 to 6 cycles, the first or first three of which are always write operations used toinitiatethecommand.Theyarefollowed by either further write cyclesto confirmthe first command orexecutethecommandimmediately.Command sequencing must be followed exactly. Any invalid combination of commands will reset the device to Read Array. The increased number of cycles has been chosen to assure maximum data security.Commands are initialised by two precedingcoded cycleswhich unlocktheCommandInterface.In addition,forErase,command confirmation is again preceededby the two codedcycles.

P/E.C. statusis indicatedduringcommandexecutionby DataPolling onDQ7, detectionof Toggleon

Program (’0’ on DQ6) Complete

Erase or Program (’1’ on DQ6) Complete

Erase Timeout Period on going

DQ6, or Error on DQ5 and Erase TimerDQ3 bits. Any read attempt during Program or Erase commandexecutionwillautomaticallyoutputthosefour bits.TheP/E.C. automaticallysetsbitsDQ3,DQ5, DQ6 and DQ7. Other bits (DQ0, DQ1, DQ2 and DQ4) are reserved for future use and should be masked.

Data Polling bit (DQ7). When Programmingoperations are in progress, this bit outputs the complement of the bit being programmed on DQ7. DuringErase operation,it outputsa ’0’. After completionof the operation,DQ7 will output the bit last programmed or a ’1’ after erasing. Data Polling is valid only effective duringP/E.C. operation,that is after the fourth W pulse for programming or after the sixth W pulse for Erase. It mustbe performed at theaddressbeing programmedor at an address within the block being erased. If the byte to be programmedbelongsto aprotectedblock thecommand is ignored. If all the blocks selected for erasure are protected, DQ7 will set to ’0’ for about 100µs, and then return to previous addressed memory data. See Figure 9 for the Data Polling flowchartandFigure10 for the Data Polling waveforms.

data on DQ6 while Programming or Erase operations are going on. DQ6 remain at constant level when P/E.C. operations are completed or Erase Suspend is acknowledged.

This bit is set to ’1’ if P/E.C. has exceded the specified time limits.

possible command entry is Erase Suspend (ES). An additionalblock to be erased in parallel can be entered to the P/E.C.

8/31

Page 9

M29W040

Table9. ACMeasurement Conditions

Input Rise and Fall Times

≤

10ns

Figure5. AC TestingLoad Circuit

0.8V

Input Pulse Voltages 0 to 3V Input and Output Timing Ref. Voltages 1.5V

Figure 4. AC TestingInputOutput Waveform

1.5V

AI01417

Table10. Capacitance

(1)

(TA=25°C, f = 1 MHz)

DEVICE UNDER

TEST

CLincludes JIG capacitance

1N914

3.3kΩ

CL= 30pF or 100pF

Symbol Parameter Test Condition Min Max Unit

OUT

Note:

1. Sampled only,not 100% tested.

Input Capacitance VIN=0V 6 pF Output Capacitance V

=0V 12 pF

OUT

AI01968

Table11. DC Characteristics

=0 to 70°C, –20 to 85°C or –40 to85°C; VCC= 2.7V to 3.6V)

Symbol Parameter Test Condition Min Max Unit

I I I

I I

CC1

CC2

CC3

CC4

CC5

CC6

V V

LKO

Input Leakage Current 0V ≤ VIN≤ V Output LeakageCurrent 0V ≤ V

OUT

≤ V

Supply Current (Read) E= VIL,G=VIH, f = 6MHz 20 mA Supply Current (Standby) TTL E = V Supply Current (Standby) CMOS E = V

Supply Current (Program or Erase)

Byte Program,

Block Erase

0.2V 50

Supply Current Chip Erase in progress 40 mA Power Down Current E = V Input Low Voltage –0.5 0.8 V

Input High Voltage 0.7 V

0.2V 5

Output Low Voltage IOL= 2mA 0.45 V

= –100µAV

Output High Voltage CMOS

A9 Voltage (Electronic Signature) 11.5 12.5 V

A9 Current (Electronic Signature) A9 = V

= –2.0mA 0.85 V

Supply Voltage (Erase and Program lock-out)

–0.4 V

1.9 2.2 V

±1 µA ±1 µA

0.2 mA

20 mA

VCC+ 0.5 V

50 µA

9/31

Page 10

M29W040

Table12A. Read AC Characteristics

=0 to 70°C, –20 to 85°C or –40 to85°C)

Symbol Alt Parameter Test Condition

AVAV

AVQVtACC

(1)

ELQX

(2)

ELQV

(1)

GLQX

(2)

GLQV

EHQX

(1)

EHQZ

GHQX

(1)

GHQZ

AXQX

Notes: 1. Sampled only,not 100% tested.

2. G may be delayed by up to t

Address Validto Next Address Valid E = VIL,G=V

Address Validto Output Valid E = VIL,G=V

tLZChip Enable Low toOutput Transition G = V

Chip Enable Low to Output Valid G = V

Output Enable Low to Output

OLZ

Transition

Output Enable Low to OutputValid E = V

Chip Enable High to Output

Transition

E=V

G=V

tHZChip Enable High to Output Hi-Z G = V

Output Enable High to Output

Transition

E=V

tDFOutput Enable High to Output Hi-Z E = V

Address Transition to Output

Transition

ELQV-tGLQV

afterthe falling edge of E without increasing t

E=V

,G=V

M29W040

-100 -120

= 3.3V±0.3V

= 30pF

= 3.3V±0.3V

Unit

Min Max Min Max

100 120 ns

00ns

100 120 ns

00ns

40 50 ns

00ns

20 30 ns

00ns

20 30 ns

00ns

ELQV

Toggle bit (DQ6). When Programmingoperations are in progress, successiveattempts to read DQ6 will output complementary data. DQ6 will toggle following toggling of either G or E when G is low. The operation is completed when two successive reads yield the same output data. The next read will output the bit last programmed or a ’1’ after erasing. Thetogglebit is validonlyeffectiveduring P/E.C. operations, that is after the fourth W pulse for programming or after the sixth W pulse for Erase. If the byte to be programmed belongs to a protectedblockthe commandwill beignored.If the blocksselectedfor erasureare protected,DQ6will toggle for about 100µs and then return back to Read. See Figure 11 for ToggleBit flowchart and Figure 12 for ToggleBit waveforms.

Error bit (DQ5). This bit is set to ’1’ by the P/E.C when there is a failure ofbyte programming,block erase, or chip erase that results in invalid data being programmedin thememory block.In caseof error in block erase or byte program, the block in which the error occured or to which the pro-

10/31

grammedbyte belongs,must be discarded. Other blocksmaystillbeused.Errorbitresetsafter Reset (RST) instruction. In case of success, the error bit will set to ’0’ during Program or Erase and to valid data afterwrite operation is completed.

Erase Timer bit (DQ3). Thisbit is set to ’0’by the P/E.C. when the last Block Erase command has been entered to the Command Interface and it is awaiting the Erase start. When the erase timeout period is finished, after 80 to 120µs, DQ3 returns backto ’1’.

Coded Cycles. The two coded cycles unlock the Command Interface. They are followed by a command input or a comand confirmation.The coded cycles consist of writing the data AAh at address 5555hduringthefirstcycleanddata55hat address 2AAAh during the second cycle. Addresses are latched on the fallingedge of W or E while data is latched on the rising edge of W or E. The coded cycles happen on first and second cycles of the commandwrite or on the fourth and fifth cycles.

Page 11

Table12B. Read AC Characteristics

=0 to 70°C, –20 to 85°C or –40 to85°C)

Symbol Alt Parameter TestCondition

Address Validto Next Address

AVAV

Valid

E=V

,G=V

M29W040

-150 -200

= 2.7V to 3.6V VCC= 2.7V to 3.6V

Min Max Min Max

150 200 ns

M29W040

Unit

AVQVtACC

(1)

ELQX

(2)

ELQV

(1)

GLQX

(2)

GLQV

EHQX

(1)

EHQZ

GHQX

(1)

GHQZ

AXQX

Notes: 1. Sampled only,not 100% tested.

2. G may be delayed by up to t

Address Validto Output Valid E = VIL,G=V Chip Enable Low to Output

Transition

Chip Enable Low to Output Valid G = V

Output Enable Low to Output

OLZ

Transition Output Enable Low to Output

Valid Chip Enable High to Output

Transition

tHZChip Enable High to Output Hi-Z G = V

Output Enable High to Output

Transition Output Enable High to Output

Hi-Z Address Transition to Output

Transition

ELQV-tGLQV

afterthe falling edge of E without increasing t

E=V

Read Array/Reset(RST) instruction. The Reset instruction consists of one write operation giving the command F0h. It can be optionally preceded by the two codedcycles.A wait stateof 5µs before readoperationsisnecessaryif theResetcommand is applied during an Erase or Power Down operation.

Read Electronic Signature (RSIG) instruction.

Thisinstructionusesthetwocodedcyclesfollowed by one write cycle giving the command 90h to address5555h for commandsetup. Asubsequent read will output the manufacturercode,the device code or the Block Protection status depending on the levels of A0, A1, A6, A16, A17 and A18. The manufacturer code, 20h, is output when the addresses lines A0, A1 and A6 are Low, the device code, E2h is output when A0 is High with A1 and A6 Low.

150 200 ns

55 70 ns

40 50 ns

ELQV

G=V

E=V

G=V

E=V

,G=V

00ns

Read Block Protection (RBP) instruction. The useofReadElectronicSignature(RSIG)command also allows access to the Block Protection status verify. Aftergivingthe RSIGcommand, A0 and A6 are set to V

with A1 at VIH, while A16, A17 and

A18 define the block of the block to be verified. A readintheseconditionswilloutputa 01h if blockis protectedand a 00hif block is not protected.

ThisRead BlockProtectionis the onlyvalid way to check the protection status of a block. Nevertheless,it mustnot beusedduringthe blockprotection phase as a method to verify the Block Protection. Please refer to Block Protection paragraph.

PowerDown (PD) instruction. ThePower Down instructionuses one write cycle to put thememory into a power down mode where currentconsumption is typically reduced to less than 1.0µA. Once in this state, a Reset (RST) command must be written to the P/E.C. prior to any operation.

11/31

Page 12

M29W040

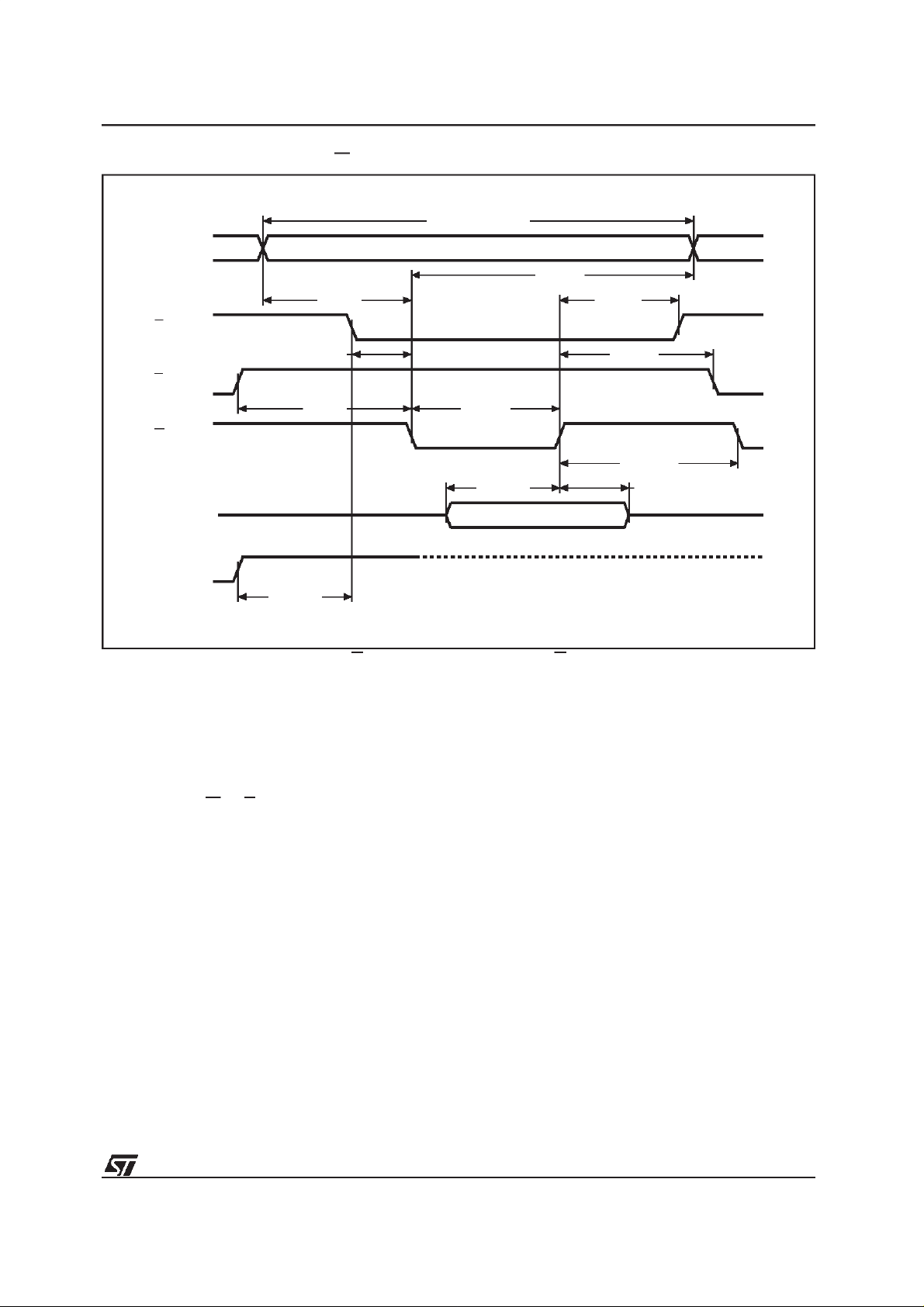

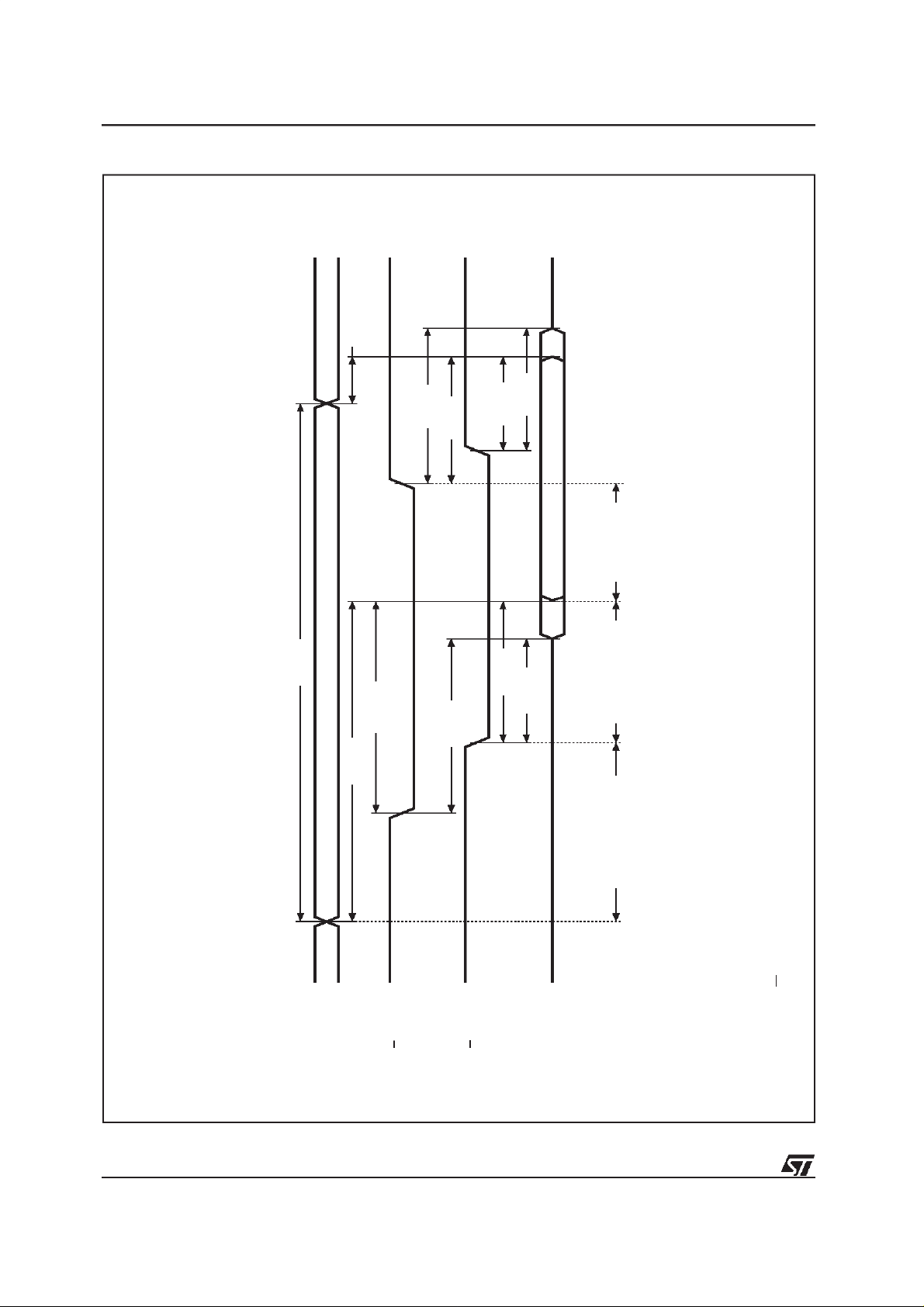

Figure 6. ReadMode AC Waveforms

tEHQZ

tEHQX

tGHQX

AI01363B

tGHQZ

VALID

tAVAV

VALID

A0-A18

tAVQV tAXQX

tELQV

tGLQV

tGLQX

tELQX

DQ0-DQ7

OUTPUT ENABLE DATA VALID

ADDRESS VALID

AND CHIP ENABLE

Note: Write Enable(W) = High

12/31

Page 13

Table13A. Write AC Characteristics,WriteEnable Controlled

=0 to 70°C, –20 to 85°C or –40 to85°C)

Symbol Alt Parameter

Min Max Min Max

AVAV

ELWL

WLWH

DVWH

WHDX

WHEH

WHWL

AVWL

WLAX

GHWL

VCHEL

WHQV1

WHQV2

(1)

Address Valid to Next Address Valid 100 120 ns

Chip Enable Low to Write Enable Low 0 0 ns

Write Enable Low to Write Enable High 45 50 ns

Input Validto Write Enable High 45 50 ns

Write Enable High to Input Transition 0 0 ns

Write Enable High to Chip Enable High 0 0 ns

Write Enable High to Write Enable Low 25 30 ns

WPH

Address Valid to WriteEnable Low 0 0 ns

WriteEnable Low to Address Transition 45 50 ns

Output Enable High to Write Enable Low 0 0 ns

VCSVCC

High to Chip Enable Low 50 50 Write Enable High to Output Valid(Program) 12 12 µs Write Enable High to Output Valid

(Block Erase)

1.5 30 1.5 30 sec

M29W040

-100 -120

= 3.3V±0.3V

= 30pF

= 3.3V±0.3V

M29W040

Unit

WHGL

Note: 1. Time is measured to Data Polling or Toggle Bit, t

Write Enable High to Output Enable Low 0 0 ns

OEH

WHQV=tWHQ7V+tQ7VQV

ChipErase(CE) instruction.Thisinstructionuses six writecycles. The EraseSet-up command 80h is written to address5555h on thirdcycle after the two coded cycles. The Chip Erase Confirm command10hiswrittenat address5555honsixthcycle afteranothertwo coded cycles.If the secondcommand given is not an eraseconfirm or if thecoded cycles are wrong, the instruction aborts and the deviceisreset to ReadArray.It isnot necessaryto program the array with 00h first as the P/E.C.will automaticallydo this before erasing to FFh. Read operations after the sixth rising edge of W or E

output the status register bits. During the executionof the erase by the P/E.C. the memorywill not acceptany instruction.

Readof DataPolling bit DQ7returns’0’, then’1’ on completion. The Toggle Bit DQ6 toggles during erase operation and stops when erase is completed. After completion the Status Register bit DQ5 returns’1’ if therehas been an Erase Failure because the erasure has not been verified even after the maximum number of erase cycles have been executed.

13/31

Page 14

M29W040

Table13B. Write AC Characteristics,Write Enable Controlled

= 0 to 70°C, –20 to 85°C or –40 to 85°C)

Symbol Alt Parameter

Min Max Min Max

AVAV

ELWL

WLWH

DVWH

WHDX

WHEH

WHWL

AVWL

WLAX

GHWL

VCHEL

WHQV1

WHQV2

WHGL

Note: 1. Time is measured to Data Polling or ToggleBit, t

Address Validto Next Address Valid 150 200 ns

Chip Enable Low to Write Enable Low 0 0 ns

Write Enable Low to Write Enable High 65 80 ns

Input Validto Write Enable High 65 80 ns

Write Enable High to Input Transition 0 0 ns

Write Enable High to Chip EnableHigh 0 0 ns

Write Enable High to Write Enable Low 35 35 ns

WPH

tASAddress Validto WriteEnable Low 0 0 ns

Write Enable Low to Address Transition 65 65 ns

Output Enable High to WriteEnable Low 0 0 ns

(1)

VCSVCC

OEH

High to Chip Enable Low 50 50 µs Write Enable High to Output Valid(Program) 12 12 µs Write Enable High to Output Valid

(Block Erase)

1.5 30 1.5 30 sec

Write Enable High to Output Enable Low 0 0 ns

WHQV=tWHQ7V+tQ7VQV

M29W040

-150 -200

= 2.7V to 3.6V VCC= 2.7V to 3.6V

Unit

Block Erase (BE) instruction. This instruction

uses a minimum of six write cycles. The Erase Set-up command 80h is written to address 5555h onthirdcycleafterthe twocodedcycles.The Block Erase Confirm command 30h is written on sixth cycle after another two coded cycles. During the input of the second command an address within the blockto beerasedis givenand latchedinto the memory. Additional Block Erase confirm commands and block addresses can be written subsequentlyto erase other blocks in parallel,without further coded cycles. The erase will start after the Erase timeout period (see Erase Timer Bit DQ3 description). Thus, additional Block Erase commandsmustbe givenwithin this delay.Theinputof a newBlockErasecommandwillrestartthetimeout period. The status of the internal timer can be monitoredthroughthe levelofDQ3, ifDQ3 is’0’the Block Erase Command has been given and the timeout is running, if DQ3 is ’1’, the timeout has expired and the P/E.Cis erasing the block(s).

14/31

DuringErasetimeout, anycommanddifferentfrom 30h will abort the instruction and reset the device to read array mode. It is notnecessary to program the block with 00h as the P/E.C. will do this automatically before erasing to FFh. Readoperations after the sixth rising edge of W or E output the statusregister bits.

Duringtheexecutionof theeraseby theP/E.C.,the memoryaccepts onlythe ES(EraseSuspend)and RST (Reset) instructions. Data Polling bit DQ7 returns’0’ while the erasure is in progress and ’1’ whenit hascompleted.TheToggleBitDQ6 toggles during the erase operation. It stops when erase is completed. After completion the Status Register bit DQ5 returns ’1’ if there has been an Erase Failure because erasure has not completedeven after the maximum number of erase cycles have beenexecuted.In this case,it will be necessaryto input a Reset (RST) to the command interface in order to reset the P/E.C.

Page 15

Figure 7. WriteAC Waveforms,W Controlled

M29W040

WRITE CYCLE

A0-A18

tAVWL

tELWL

DQ0-DQ7

tVCHEL

Note: Address are latched on the fallingedge of W, Data is latched on the rising edge of W.

VALID

tWLAX

tWLWHtGHWL

tDVWH

VALID

tWHEH

tWHGL

tWHWL

tWHDX

AI01365B

Program (PG) instruction. The memory can be programmed Byte-by-Byte. This instruction uses four write cycles. The Program command A0h is writtenon thethirdcycle aftertwo codedcycles. A fourth write operation latches the Address on the falling edge of W or E and the Data to be written on its rising edge and startsthe P/E.C. Duringthe executionof the programby theP/E.C., the memory willnot acceptany instruction.Readoperations output the status bits after the programming has started. The status bits DQ5, DQ6 and DQ7 allow a checkof thestatusof theprogrammingoperation. Memoryprogrammingis madeonly by writing’0’ in place of ’1’in a Byte.

Erase Suspend (ES) instruction. The Block Eraseoperationmaybe suspended bythisinstruction which consists of writing the command B0h withoutanyspecificaddresscode.No codedcycles are required.It allowsreading of datafromanother block while erase is in progress.Erasesuspend is accepted only during the Block Erase instruction executionand defaultsto read arraymode. Writing

thiscommandduringErasetimeoutwill, inaddition to suspending the erase, terminate the timeout. TheToggleBitDQ6stopstogglingwhentheP/E.C. issuspended. ToggleBitstatusmust bemonitored at anaddressout oftheblockbeingerased.Toggle Bit will stoptoggling between 0.1µs and15µsafter the Erase Suspend (ES) command has beenwritten.

The M29W040 will then automaticallyset to Read Memory Array mode. When erase is suspended, Read from blocks being erased will output invalid data, Read from block not being erased is valid. During the suspension the memory will respond only to Erase Resume (ER) and Reset (RST) instructions. RST command will definitively abort erasure and result in the invaliddata in the blocks being erased.

EraseResume(ER)instruction. Ifan EraseSuspend instruction was previously executed, the erase operation may be resumed by giving the command 30h, at any address, and without any codedcycles.

15/31

Page 16

M29W040

Table14A. Write AC Characteristics,Chip Enable Controlled

= 0 to 70°C, –20 to 85°C or –40 to 85°C)

Symbol Alt Parameter

WLEL

DVEH

EHDX

EHWH

t t t

GHEL

VCHWL

EHQV1

EHQV2

AVAV

ELEH

EHEL

AVEL

ELAX

(1)

Address Validto Next Address Valid 100 120 ns

Write Enable Low to Chip Enable Low 0 0 ns

Chip Enable Low to Chip Enable High 45 50 ns

Input Validto Chip Enable High 45 50 ns

Chip Enable High to Input Transition 0 0 ns

Chip Enable High to Write Enable High 0 0 ns

Chip Enable High to Chip Enable Low 25 30 ns

CPH

Address Validto Chip Enable Low 0 0 ns

Chip Enable Low toAddress Transition 45 50 ns

Output Enable High Chip Enable Low 0 0 ns

VCCHighto WriteEnable Low 50 50

VCS

Chip Enable High to Output Valid(Program) 12 12 µs Chip Enable High to Output Valid

(Block Erase)

M29W040

-100 -120

= 3.3V±0.3V

= 30pF

= 3.3V±0.3V

Unit

Min Max Min Max

1.5 30 1.5 30 sec

EHGL

Note: 1. Time is measured to Data Polling or ToggleBit, t

Chip Enable High to Output Enable Low 0 0 ns

OEH

WHQV=tWHQ7V+tQ7VQV

PowerUp

ThememoryCommandInterfaceis reseton power upto ReadArray. EitherE or W must be tiedto V during Power-up to allow maximum security and the possibilityto writea commandonthe firstrising adgeofE or W. Anywrite cycleinitiationis blocked when V

is below V

LKO

SupplyRails

Normalprecautionsmust be takenfor supplyvoltage decoupling, each device in a system should

havethe V close to the V

rail decoupledwith a1.0µFcapacitor

and VSSpins. The PCB trace

widths should be sufficient to carry the V gramand erase currents required.

pro-

16/31

Page 17

Table14B. Write AC Characteristics,Chip EnableControlled

=0 to 70°C, –20 to 85°C or –40 to 85°C)

Symbol Alt Parameter

AVAV

WLEL

ELEH

DVEH

EHDX

EHWH

EHEL

AVEL

ELAX

GHEL

VCHWL

EHQV1

EHQV2

EHGL

Note: 1. Time is measured to Data Polling or Toggle Bit, t

Address Validto Next Address Valid 150 200 ns

Write Enable Low to Chip EnableLow 0 0 ns

Chip Enable Low to Chip Enable High 65 80 ns

Input Valid to Chip Enable High 65 80 ns

Chip Enable High to Input Transition 0 0 ns

Chip Enable High to Write Enable High 0 0 ns

Chip Enable High to Chip Enable Low 35 35 ns

CPH

Address Validto Chip Enable Low 0 0 ns

Chip Enable Low to Address Transition 65 65 ns

Output Enable High Chip Enable Low 0 0 ns

VCCHigh to Write Enable Low 50 50 µs

VCS

(1)

Chip Enable High to Output Valid (Program) 12 12 µs Chip Enable High to Output Valid

(Block Erase)

Chip Enable High to Output Enable Low 0 0 ns

OEH

WHQV=tWHQ7V+tQ7VQV

M29W040

-150 -200

= 2.7V to 3.6V VCC= 2.7V to 3.6V

Min Max Min Max

1.5 30 1.5 30 sec

Unit

17/31

Page 18

M29W040

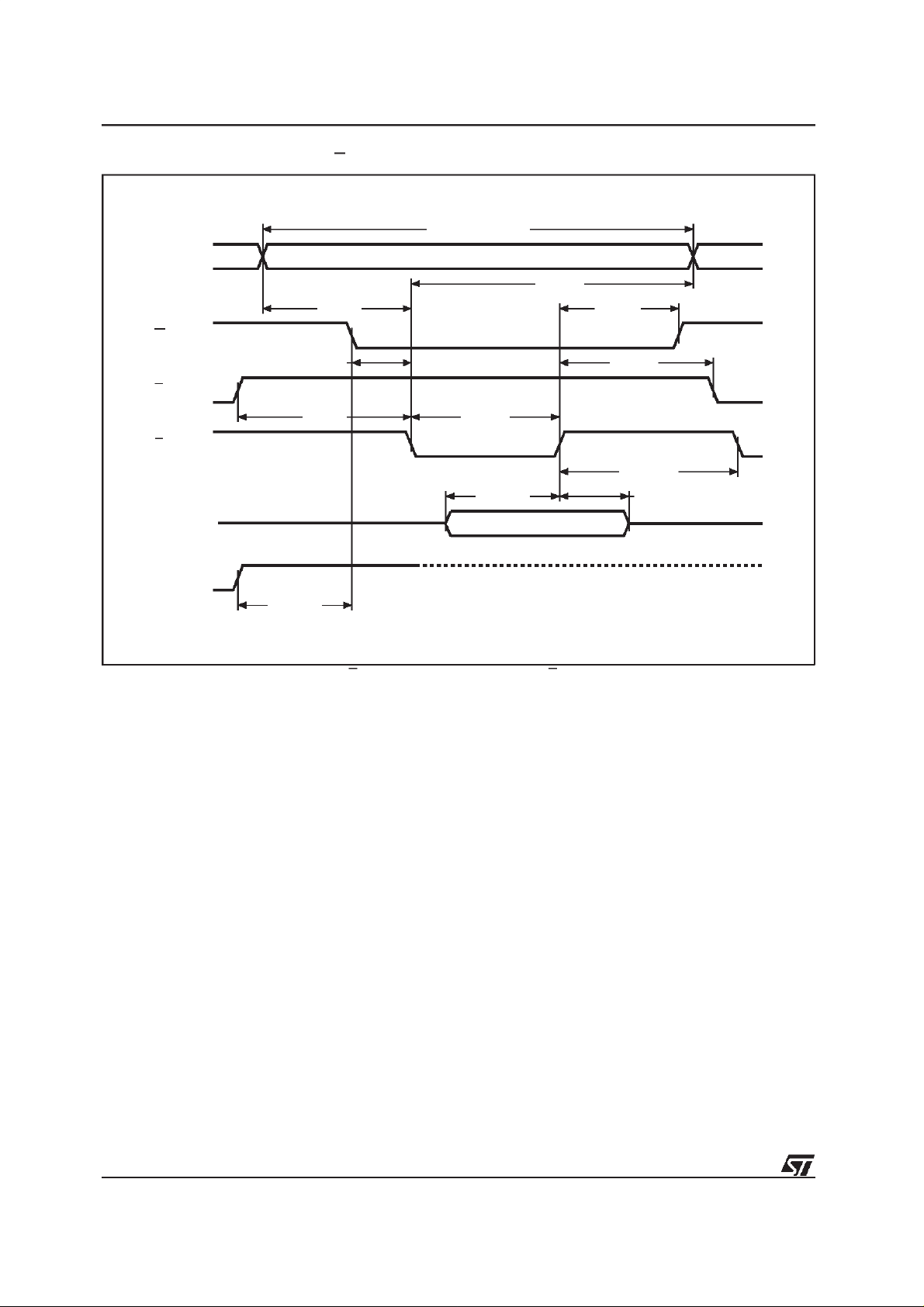

Figure 8. WriteAC Waveforms,E Controlled

WRITE CYCLE

A0-A18

tAVEL

tWLEL

DQ0-DQ7

tVCHWL

Note:

Address are latched on the falling edgeof E, Data is latched on the rising edge of E.

VALID

tELEHtGHEL

tDVEH

tELAX

tEHWH

tEHGL

tEHEL

tEHDX

VALID

AI01366B

18/31

Page 19

M29W040

Table15A. Data Pollingand ToggleBit AC Characteristics

(TA=0 to 70°C, –20 to 85°C or –40 to 85°C)

Symbol Alt Parameter

WHQ7V1

WHQ7V2

EHQ7V1

EHQ7V2

Q7VQV

WHQV1

WHQV2

EHQV1

EHQV2

2. t

(2)

is the Program or Erase time.

WHQ7V

Notes: 1. All other timings are defined in Read AC Characteristics table.

Write Enable Highto DQ7 Valid (Program, W Controlled)

Write Enable Highto DQ7 Valid (Block Erase, W Controlled)

Chip Enable High to DQ7 Valid (Program, E Controlled)

Chip Enable High to DQ7 Valid (Block Erase, E Controlled)

Q7 Validto Output Valid(Data Polling) 45 50 ns Write Enable Highto Output Valid

(Program) Write Enable Highto Output Valid

(Block Erase) Chip Enable High to Output Valid

(Program) Chip Enable High to Output Valid

(Block Erase)

(1)

M29W040

-100 -120

= 3.3V±0.3V

= 30pF

= 3.3V±0.3V

Min Max Min Max

12 12

1.5 30 1.5 30 sec

12 12 µs

1.5 30 1.5 30 sec

12 12

1.5 30 1.5 30 sec

12 12

1.5 30 1.5 30 sec

Unit

19/31

Page 20

M29W040

Table15B. Data Polling and ToggleBit AC Characteristics

(TA= 0 to 70°C, –20 to 85°C or –40 to 85°C)

Symbol Alt Parameter

Min Max Min Max

WHQ7V1

WHQ7V2

EHQ7V1

EHQ7V2

Q7VQV

WHQV1

WHQV2

EHQV1

EHQV2

2. t

(2)

is the Program or Erase time.

WHQ7V

Notes: 1. All other timingsare defined in Read AC Characteristics table.

Write Enable High to DQ7 Valid (Program, W Controlled)

Write Enable High to DQ7 Valid (Block Erase, W Controlled)

Chip Enable High to DQ7 Valid (Program, E Controlled)

Chip Enable High to DQ7 Valid (Block Erase, E Controlled)

12 12

1.5 30 1.5 30 sec

12 12

1.5 30 1.5 30 sec

Q7 Validto Output Valid(Data Polling) 55 70 ns Write Enable High to Output Valid

(Program) Write Enable High to Output Valid

(Block Erase) Chip Enable High to Output Valid

(Program) Chip Enable High to Output Valid

(Block Erase)

12 12 µs

1.5 30 1.5 30 sec

12 12

1.5 30 1.5 30 sec

(1)

M29W040

-150 -200

= 2.7V to 3.6V VCC= 2.7V to 3.6V

Unit

20/31

Page 21

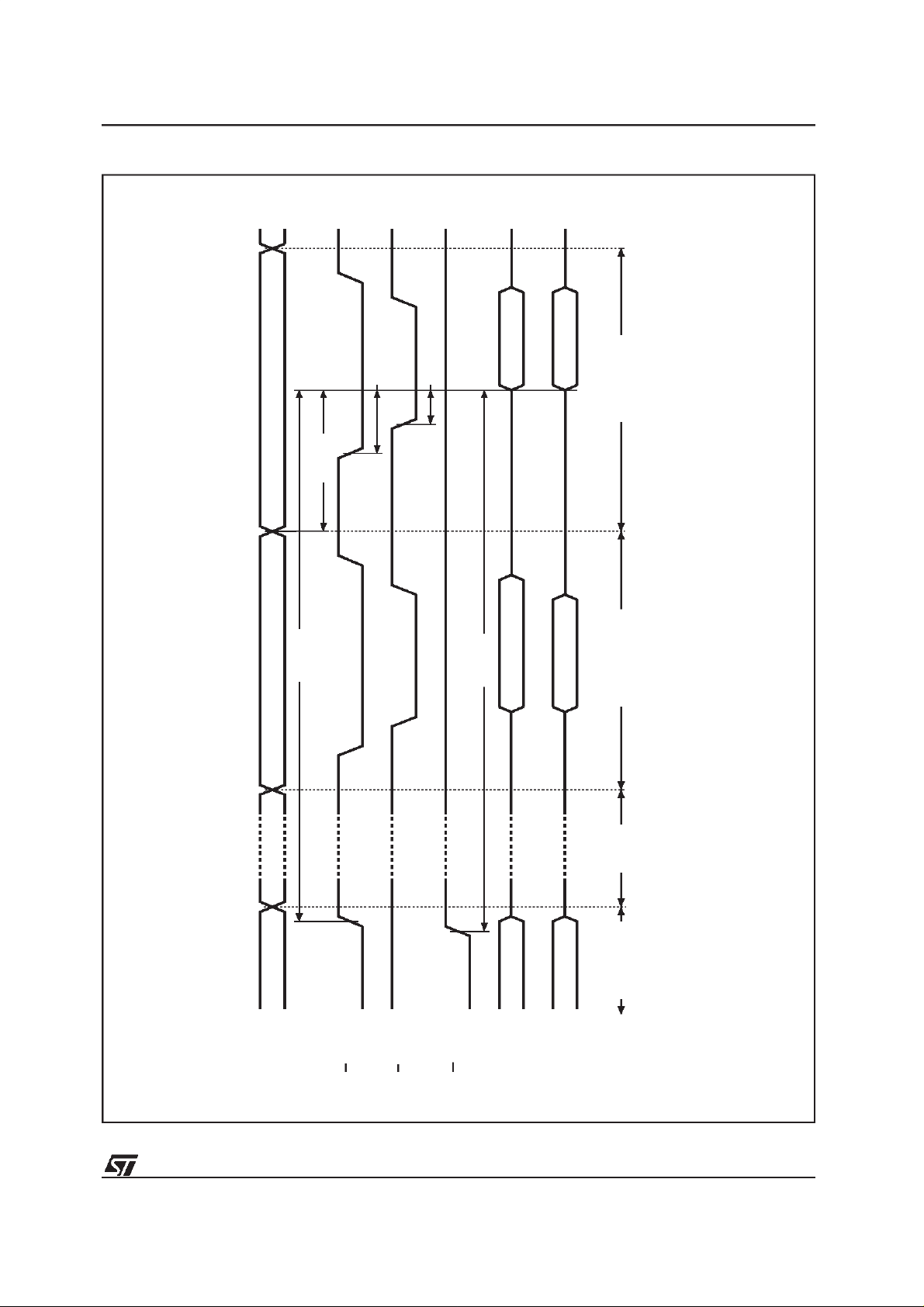

Figure 9. DataPolling DQ7 AC Waveforms

M29W040

AI01364B

READ CYCLE

DATA OUTPUT VALID

BYTE ADDRESS (WITHIN BLOCKS)

tAVQV

tELQV

tEHQ7V

tGLQV

VALID

DQ7

tWHQ7V

VALID

tQ7VQV

IGNORE

DATA POLLING (LAST) CYCLE DATA VERIFY

READ CYCLES

DATA POLLING

A0-A18

OR ERASE

LAST CYCLE

OF PROGRAM

DQ7

DQ0-DQ6

2. DQ7 and DQ0-DQ6 can transmit to valid at any point during the data output valid period.

3. tWHQ7Vis the Programor Erase time.

4. During erasing operation Byte address must be within Block being erased.

Notes: 1. All other timings are as a normal Read cycle.

21/31

Page 22

M29W040

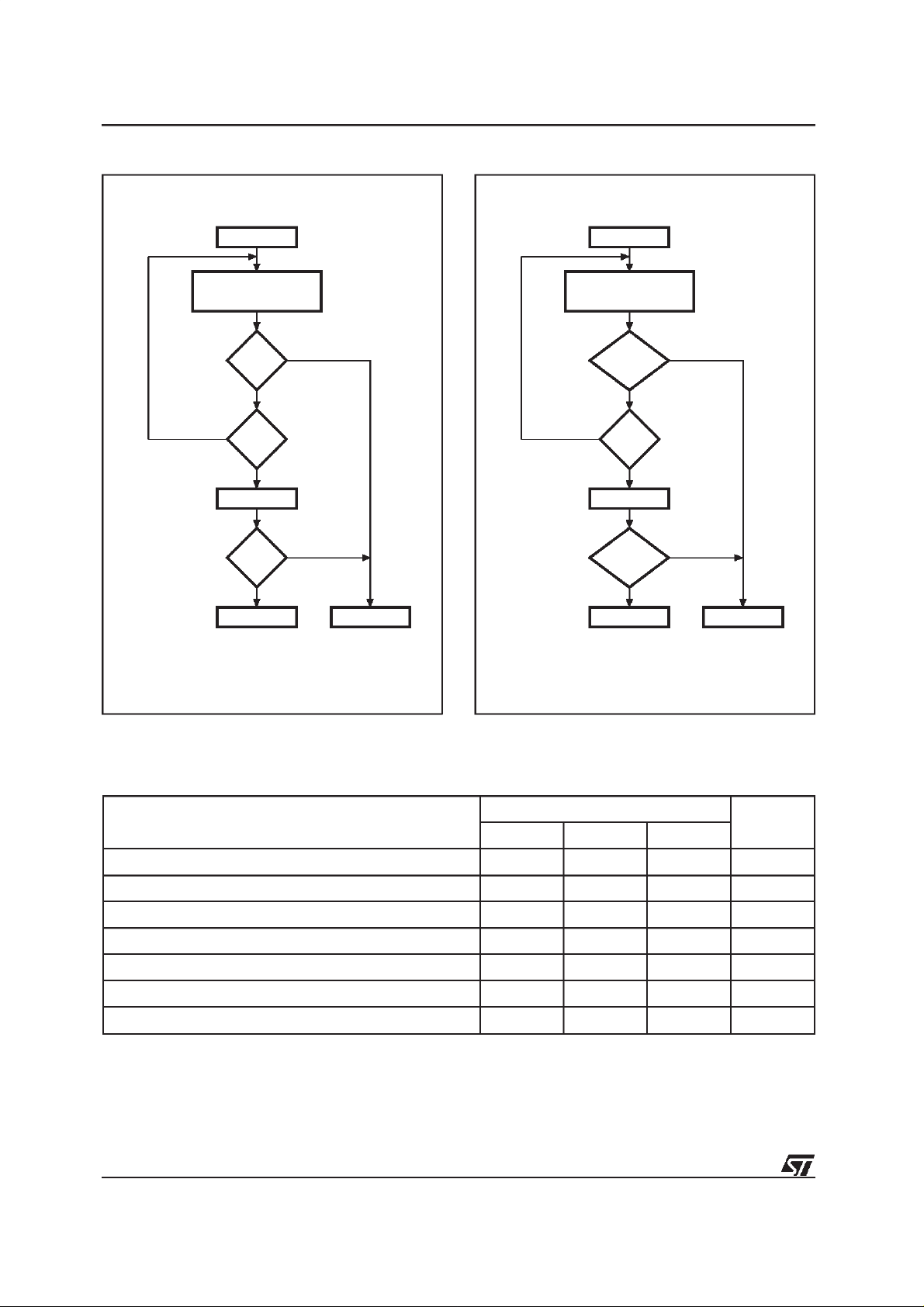

Figure 10. Data Polling Flowchart

START

READ DQ5 &

at VALID ADDRESS

READ DQ7

DQ7

DATA

DQ5

DQ7

DATA

YES

DQ7

YES

Figure 11. Data Toggle Flowchart

START

READ

DQ5 & DQ6

TOGGLE

READ DQ6

TOGGLE

DQ6

DQ5

DQ6

YES

FAIL PASS

AI01369

FAIL PASS

AI01370

Table16. Program, Erase Times and Program,Erase Endurance Cycles

= 0 to 70°C; VCC= 2.7V to 3.6V)

Parameter

Min Typ Max

Chip Program (Byte) 6 sec Chip Erase (Preprogrammed) 2.5 30 sec Chip Erase 8.5 sec Block Erase (Preprogrammed) 1.5 30 sec Block Erase 2 sec Byte Program 12 2200 µs Program/Erase Cycles (per Block) 100,000 cycles

M29W040

Unit

22/31

Page 23

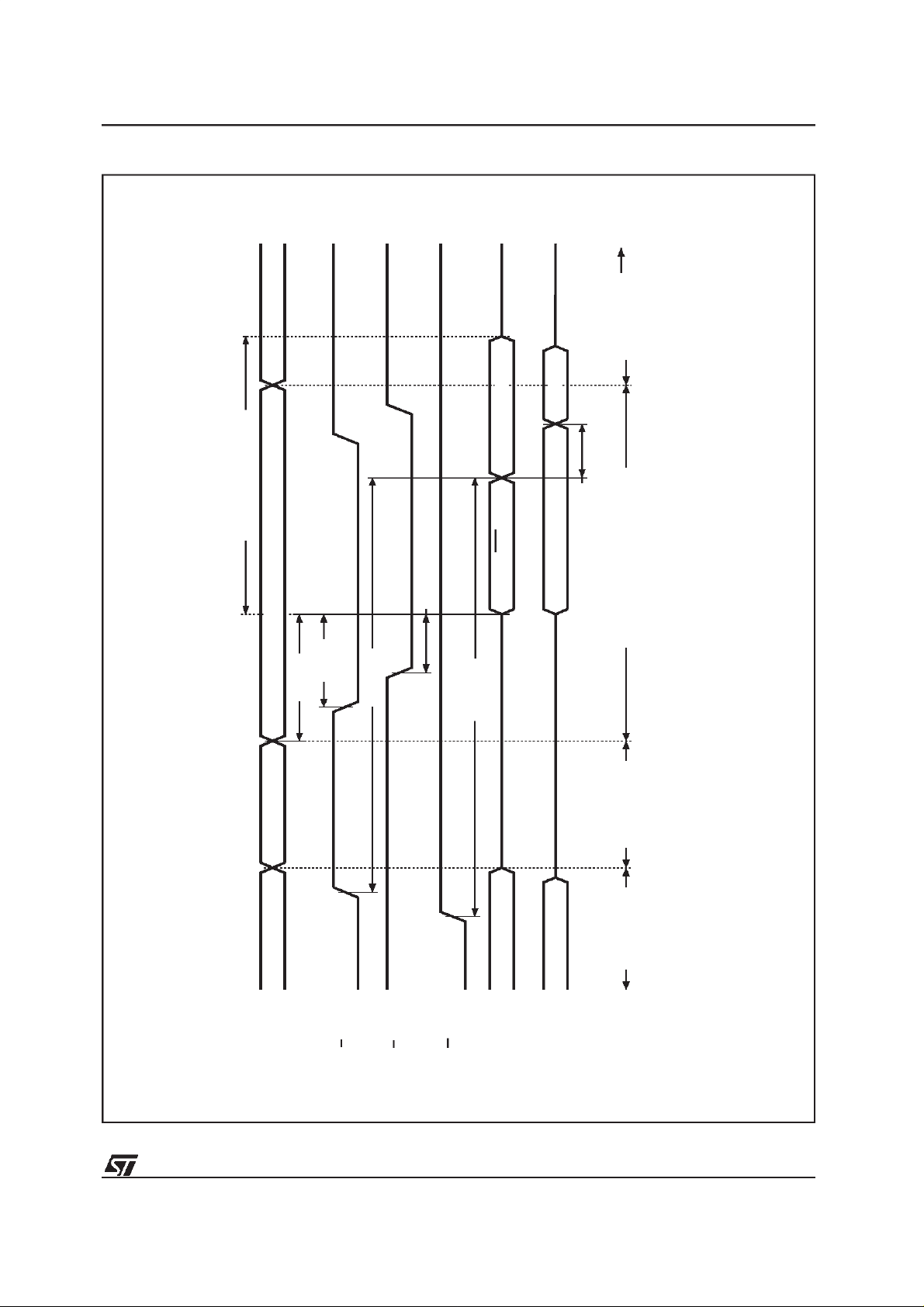

Figure 12. Data Toggle DQ6 AC Waveforms

M29W040

AI01367

VALID

tEHQV

tAVQV

tELQV

tGLQV

VALID

tWHQV

STOP TOGGLE

VALIDIGNORE

READ CYCLE

DATA TOGGLE

A0-A18

DATA

TOGGLE

READ CYCLE

OF ERASE

LAST CYCLE

OF PROGRAM

DQ6

DQ0-DQ5,

DQ7

Note: All other timings are as a normal Read cycle.

23/31

Page 24

M29W040

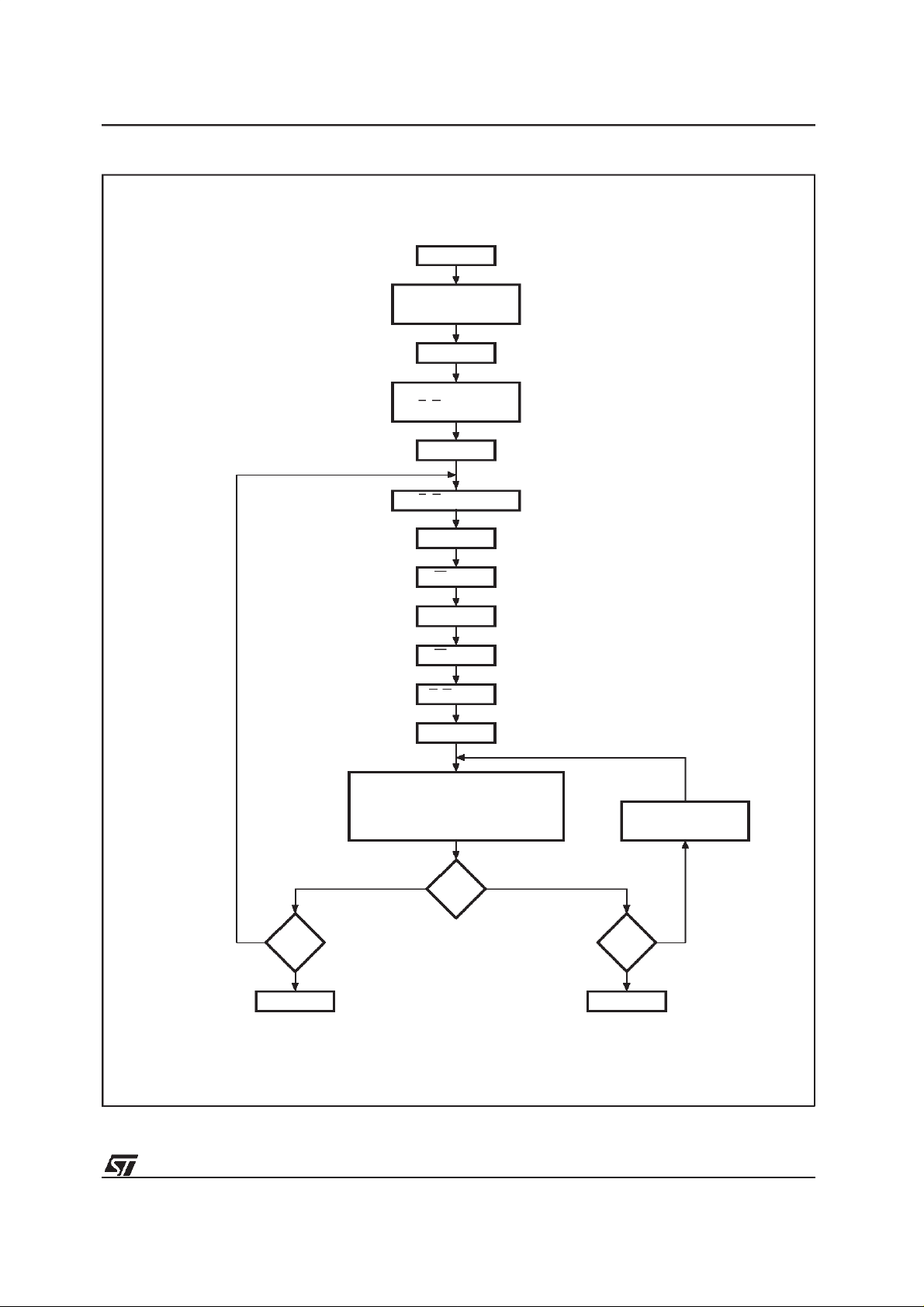

Figure 13. Block ProtectionFlowchart

BLOCK ADDRESS

on A16, A17, A18

START

n=0

G, A9 = VID,

E=V

Wait 4µs

W=V

Wait 100µs

W=V

G=V

Wait 4µs

READ DQ0 at PROTECTION

ADDRESS: A0, A6 = VIL,A1=V

A16, A17, A18 DEFINING BLOCK

DQ0

YES

A9 = V

PASS

and

++n

=25

YES

A9 = V

FAIL

AI01368D

24/31

Page 25

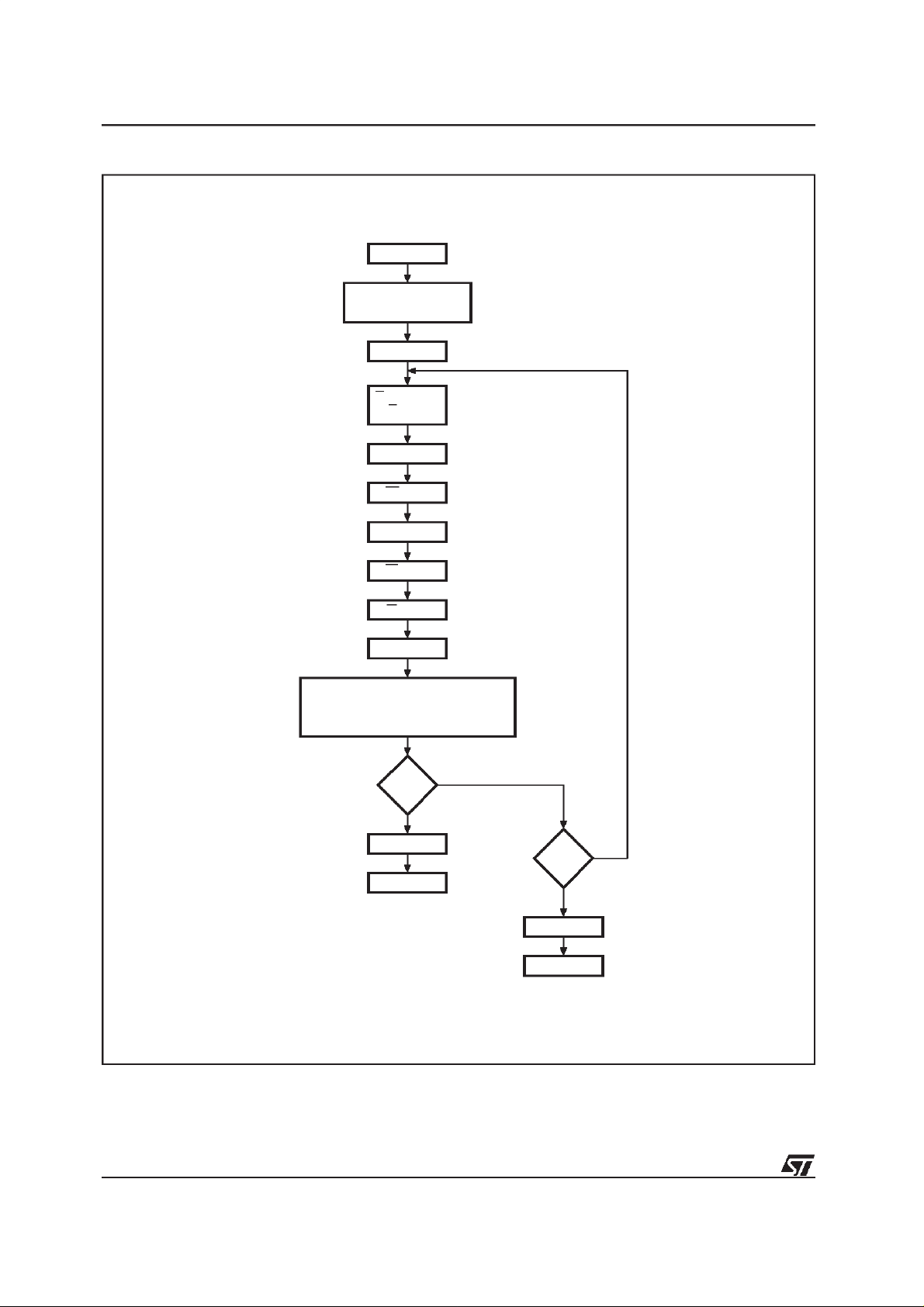

Figure 14. Block Unprotecting Flowchart

M29W040

START

PROTECT

ALL BLOCKS

n=0

A6, A12, A16 = VIH

E, G, A9= V

Wait 4µs

E, G, A9= V

Wait 4µs

Wait 10ms

W=V

Note:

NO LAST

1. A6 is kept atV reads, A6 must be kept atV

during unprotection algorithm in order tosecure best unprotection verification. During all otherprotection status

++n

= 1000

YES

FAIL

E, G = V

Wait 4µs

READ at UNPROTECTION

ADDRESS: A1, A6 = VIH,A0=V

A16, A17, A18 DEFINING BLOCK

(see Note 1)

DATA

00h

YESNO

and

INCREMENT

BLOCK

SECT.

YES

PASS

AI01371E

25/31

Page 26

M29W040

ORDERINGINFORMATION SCHEME

Example: M29W040 -120 N 1 TR

Operating Voltage

W 2.7V to 3.6V

Note: 1. This speed is obtainedwith a supplyvoltage rangeof VCC= 3.3V ± 0.3Vand a load capacitance at 30pF.

Speed

(1)

-100

-120 120ns

-150 150ns

-200 200ns

100ns

Package

K PLCC32 N TSOP32

8 x 20mm

NZ TSOP32

8 x 14mm

Temp.Range

1 0 to 70 °C 5 –20 to 85°C 6 –40 to 85°C

Option

R Reverse

Pinout

TR Tape & Reel

Packing

M29W040 is replaced by the newversion M29W040B

Device are shipped from the factorywith the memory content erased(to FFh).

Fora list ofavailableoptions(Speed,Package,etc...)orfor furtherinformationon anyaspect ofthisdevice, please contactthe STMicroelectronicsSales Office nearest to you.

26/31

Page 27

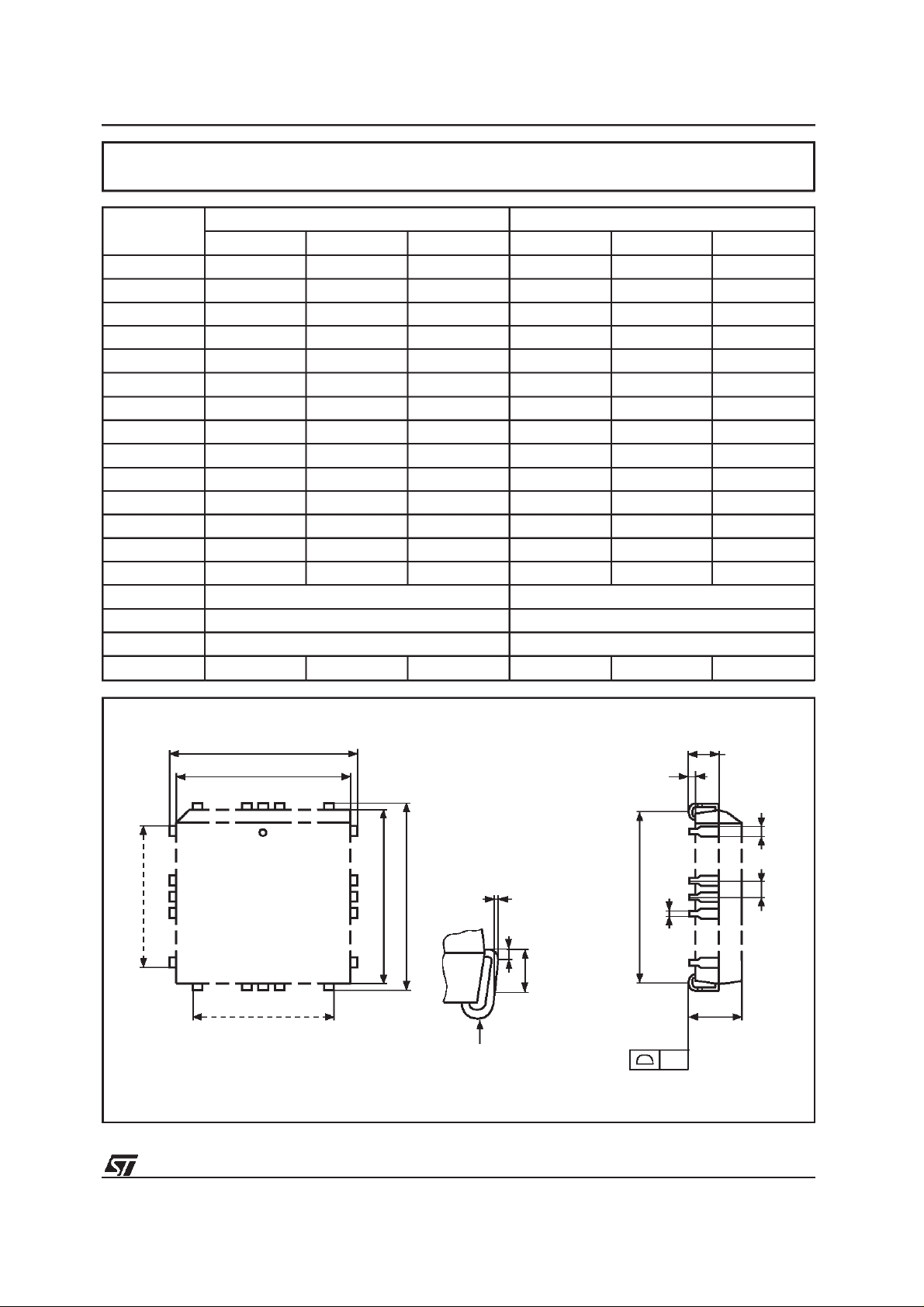

PLCC32 - 32 lead Plastic Leaded Chip Carrier,rectangular

M29W040

Symb

Typ Min Max Typ Min Max

A 2.54 3.56 0.100 0.140 A1 1.52 2.41 0.060 0.095 A2 – 0.38 – 0.015

B 0.33 0.53 0.013 0.021 B1 0.66 0.81 0.026 0.032

D 12.32 12.57 0.485 0.495 D1 11.35 11.56 0.447 0.455 D2 9.91 10.92 0.390 0.430

E 14.86 15.11 0.585 0.595 E1 13.89 14.10 0.547 0.555 E2 12.45 13.46 0.490 0.530

e 1.27 – – 0.050 – –

F 0.00 0.25 0.000 0.010 R 0.89 – – 0.035 – – N32 32

Nd 7 7 Ne 9 9

CP 0.10 0.004

mm inches

Ne E1 E

PLCC

Drawing is not toscale.

0.51 (.020)

1.14 (.045)

D2/E2

27/31

Page 28

M29W040

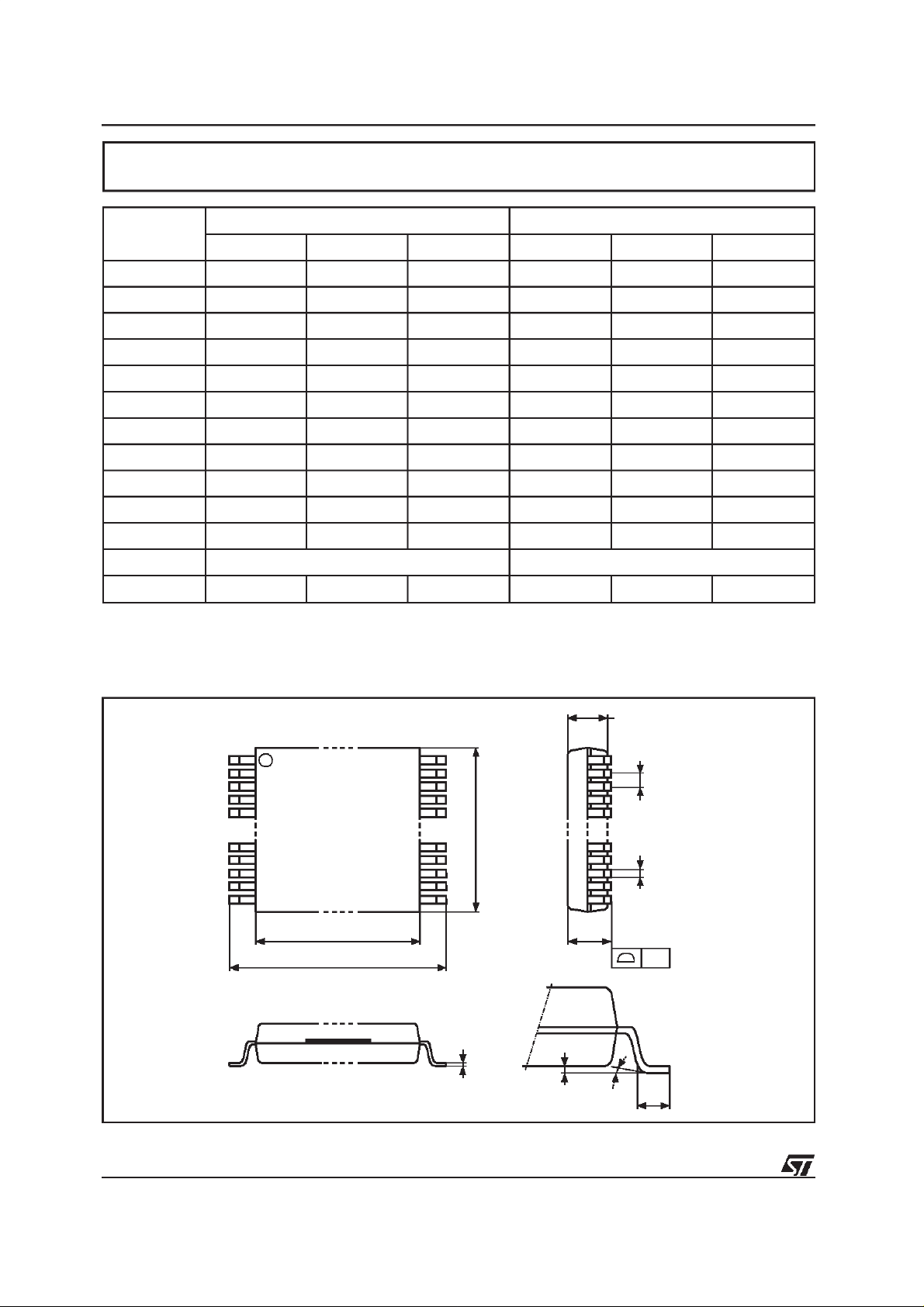

TSOP32 Normal Pinout - 32 lead Plastic Thin Small Outline, 8 x 20mm

Symb

Typ Min Max Typ Min Max

A 1.20 0.047

A1 0.05 0.15 0.002 0.007 A2 0.95 1.05 0.037 0.041

B 0.15 0.27 0.006 0.011 C 0.10 0.21 0.004 0.008 D 19.80 20.20 0.780 0.795

D1 18.30 18.50 0.720 0.728

E 7.90 8.10 0.311 0.319

e 0.50 - - 0.020 - -

L 0.50 0.70 0.020 0.028

N32 32

CP 0.10 0.004

mm inches

Drawing is not toscale.

N/2

DIE

TSOP-a

LA1 α

28/31

Page 29

M29W040

TSOP32 Reverse Pinout - 32 lead Plastic Thin Small Outline, 8 x 20mm

Symb

Typ Min Max Typ Min Max

A 1.20 0.047

A1 0.05 0.17 0.002 0.006 A2 0.95 1.05 0.037 0.041

B 0.15 0.27 0.006 0.011 C 0.10 0.21 0.004 0.008 D 19.80 20.20 0.780 0.795

D1 18.30 18.50 0.720 0.728

E 7.90 8.10 0.311 0.319

e 0.50 – – 0.020 – –

L 0.50 0.70 0.020 0.028

α 0° 5° 0° 5° N32 32

CP 0.10 0.004

mm inches

Drawing is not toscale.

N/2

DIE

TSOP-b

LA1 α

29/31

Page 30

M29W040

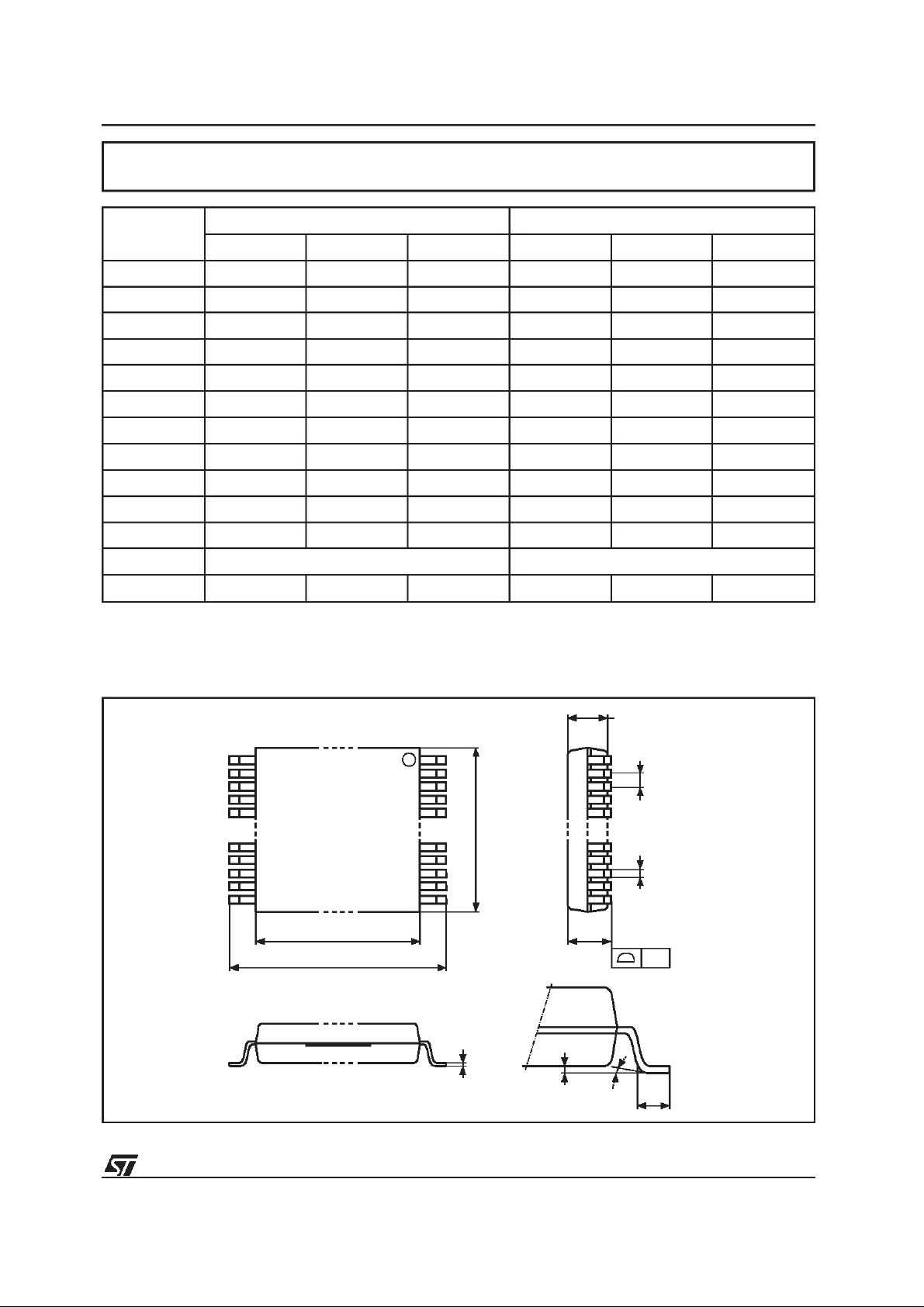

TSOP32 - 32 lead Plastic Thin Small Outline, 8 x 14mm

Symb

Typ Min Max Typ Min Max

A 1.20 0.047

A1 0.05 0.15 0.002 0.006 A2 0.95 1.05 0.037 0.041

B 0.17 0.27 0.007 0.011 C 0.10 0.21 0.004 0.008 D 13.80 14.20 0.543 0.559

D1 12.30 12.50 0.484 0.492

E 7.90 8.10 0.311 0.319

e 0.50 - - 0.020 - -

L 0.50 0.70 0.020 0.028

N32 32

CP 0.10 0.004

mm inches

Drawing is not toscale.

N/2

DIE

TSOP-a

LA1 α

30/31

Page 31

M29W040

Information furnished is believed to be accurate and reliable. However,STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringementof patentsor other rightsof third parties which mayresult fromits use. No license is granted by implication or otherwise under any patent orpatent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval ofSTMicroelectronics.

The ST logo is a registered trademark of STMicroelectronics

 1999 STMicroelectronics - AllRights Reserved

All other names are the propertyof their respective owners.

Australia - Brazil - China - Finland- France - Germany - Hong Kong - India - Italy - Japan - Malaysia - Malta - Morocco -

Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.

STMicroelectronics GROUP OF COMPANIES

http://www.st.com

31/31

Datasheet M29W040 Datasheet (SGS Thomson Microelectronics)

Specifications and Main Features

Frequently Asked Questions

User Manual
