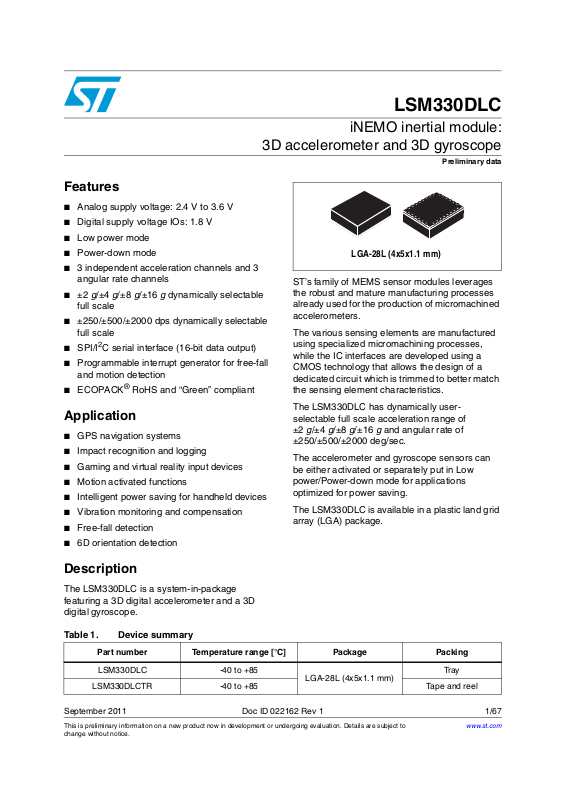

Page 1

3D accelerometer and 3D gyroscope

Features

■ Analog supply voltage: 2.4 V to 3.6 V

■ Digital supply voltage IOs: 1.8 V

■ Low power mode

■ Power-down mode

■ 3 independent acceleration channels and 3

angular rate channels

■ ±2 g/±4 g/±8 g/±16 g dynamically selectable

full scale

■ ±250/±500/±2000 dps dynamically selectable

full scale

■ SPI/I

■ Programmable interrupt generator for free-fall

■ ECOPACK

C serial interface (16-bit data output)

and motion detection

RoHS and “Green” compliant

LSM330DLC

iNEMO inertial module:

Preliminary data

LGA-28L (4x5x1.1 mm)

ST’s family of MEMS sensor modules leverages the robust and mature manufacturing processes already used for the production of micromachined accelerometers.

The various sensing elements are manufactured using specialized micromachining processes, while the IC interfaces are developed using a CMOS technology that allows the design of a dedicated circuit which is trimmed to better match the sensing element characteristics.

The LSM330DLC has dynamically user-

Application

■ GPS navigation systems

■ Impact recognition and logging

■ Gaming and virtual reality input devices

■ Motion activated functions

■ Intelligent power saving for handheld devices

■ Vibration monitoring and compensation

■ Free-fall detection

■ 6D orientation detection

selectable full scale acceleration range of ±2 g/±4 g/±8 g/±16 g and angular rate of ±250/±500/±2000 deg/sec.

The accelerometer and gyroscope sensors can be either activated or separately put in Low power/Power-down mode for applications optimized for power saving.

The LSM330DLC is available in a plastic land grid array (LGA) package.

Description

The LSM330DLC is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope.

Table 1. Device summary

Part number Temperature range [°C] Package Packing

LSM330DLC -40 to +85

LSM330DLCTR -40 to +85 Tape and reel

LGA-28L (4x5x1.1 mm)

Tr ay

September 2011 Doc ID 022162 Rev 1 1/67

This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.

www.st.com

Page 2

Contents LSM330DLC

Contents

1 Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 Module specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.1 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.3 Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.4 Communication interface characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.4.1 SPI - serial peripheral interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2.4.2 I2C - inter IC control interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.5 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.1 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2 Zero-g level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1 Normal mode, Low power mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1.1 Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1.2 6D/4D orientation detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1.3 “Sleep-to-wake” and “Return to sleep” . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2 Linear acceleration digital main blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2.1 FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2.2 Bypass mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

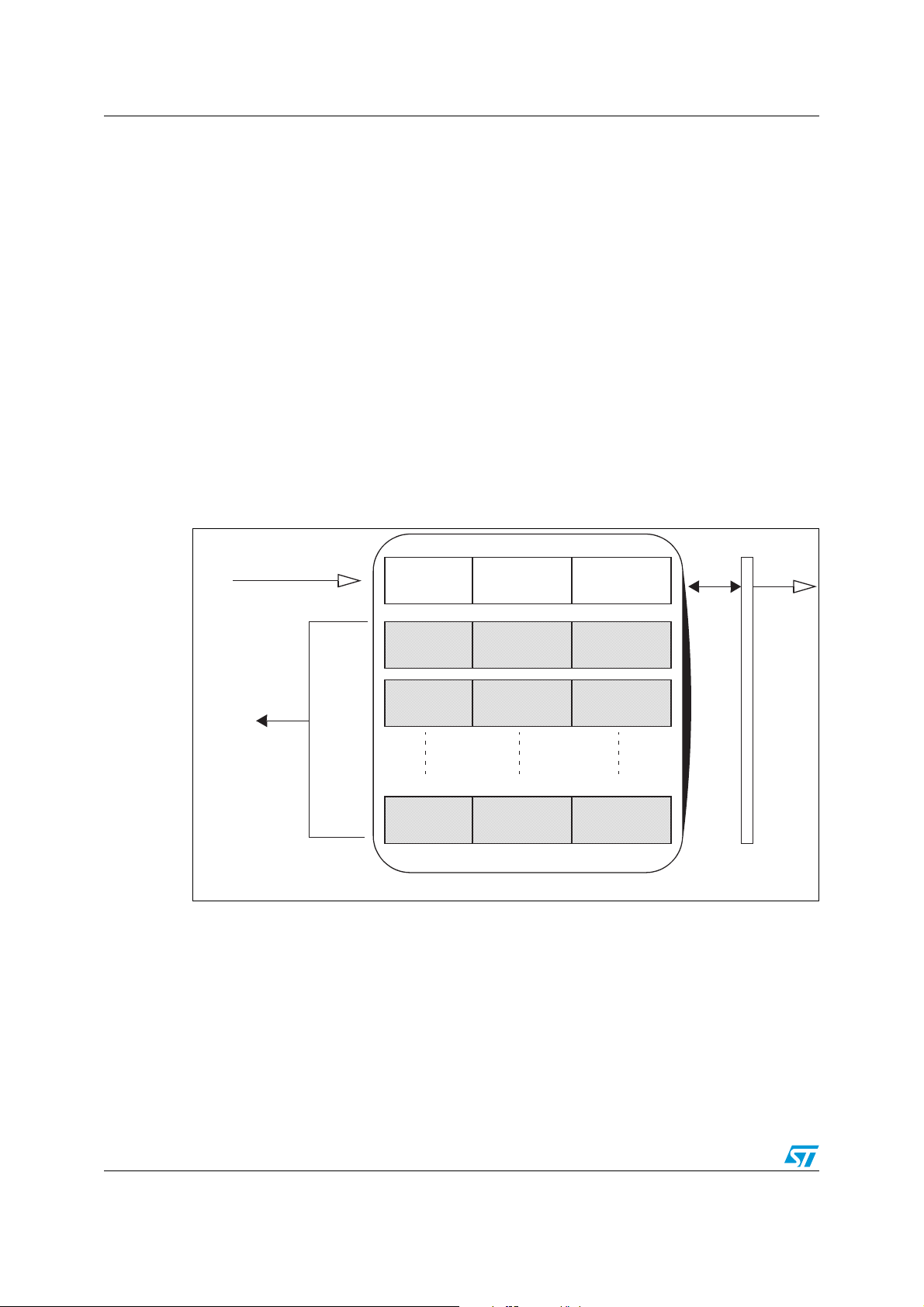

4.2.3 FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2.4 Stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

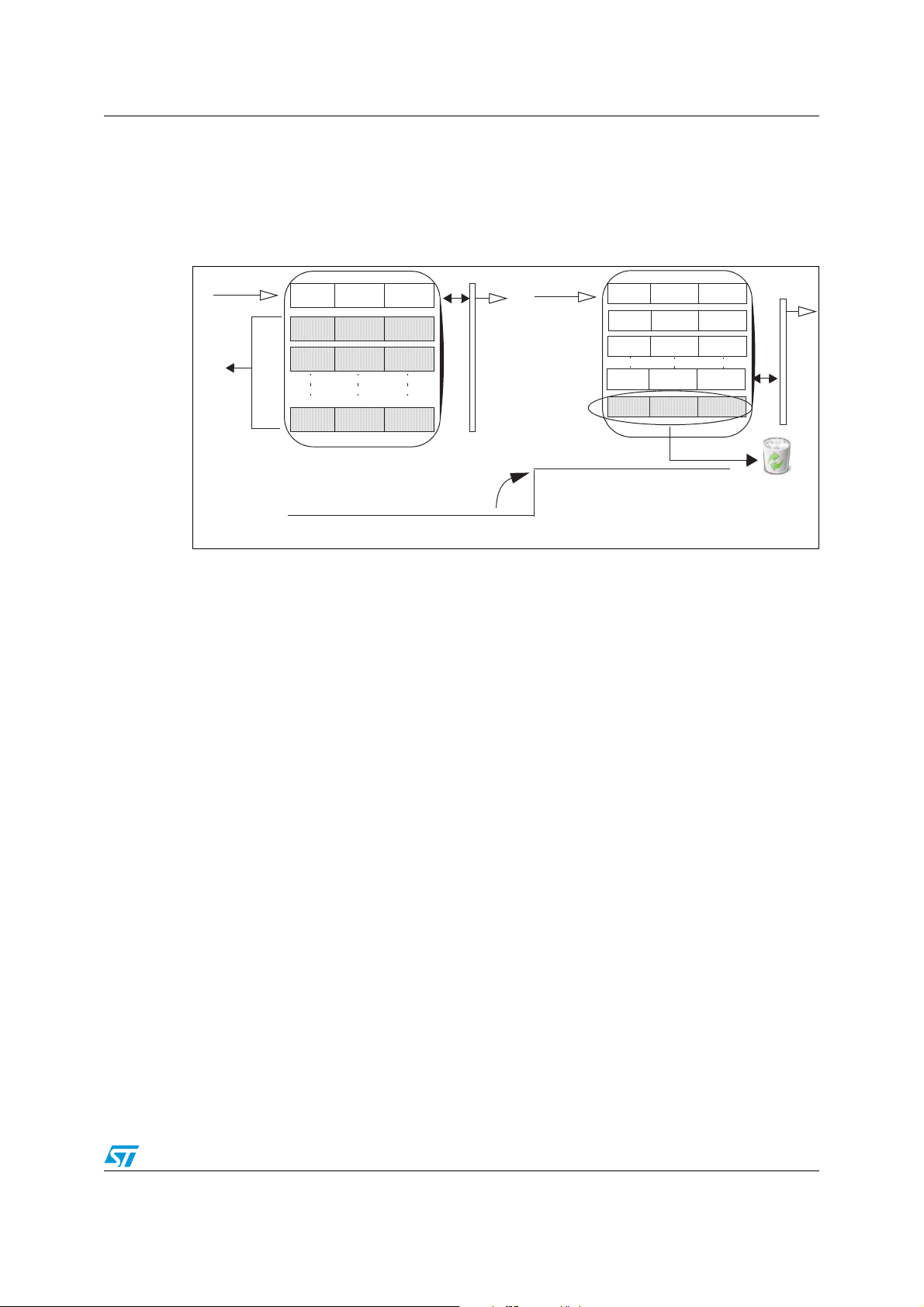

4.2.5 Stream-to-FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.2.6 Retrieve data from FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.3 Gyroscope digital main blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4 FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.4.1 Bypass mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.4.2 FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2/67 Doc ID 022162 Rev 1

Page 3

LSM330DLC Contents

4.4.3 Stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.4.4 Bypass-to-stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.4.5 Stream-to-FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.4.6 Retrieve data from FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.5 Level-sensitive / Edge-sensitive data enable . . . . . . . . . . . . . . . . . . . . . . 25

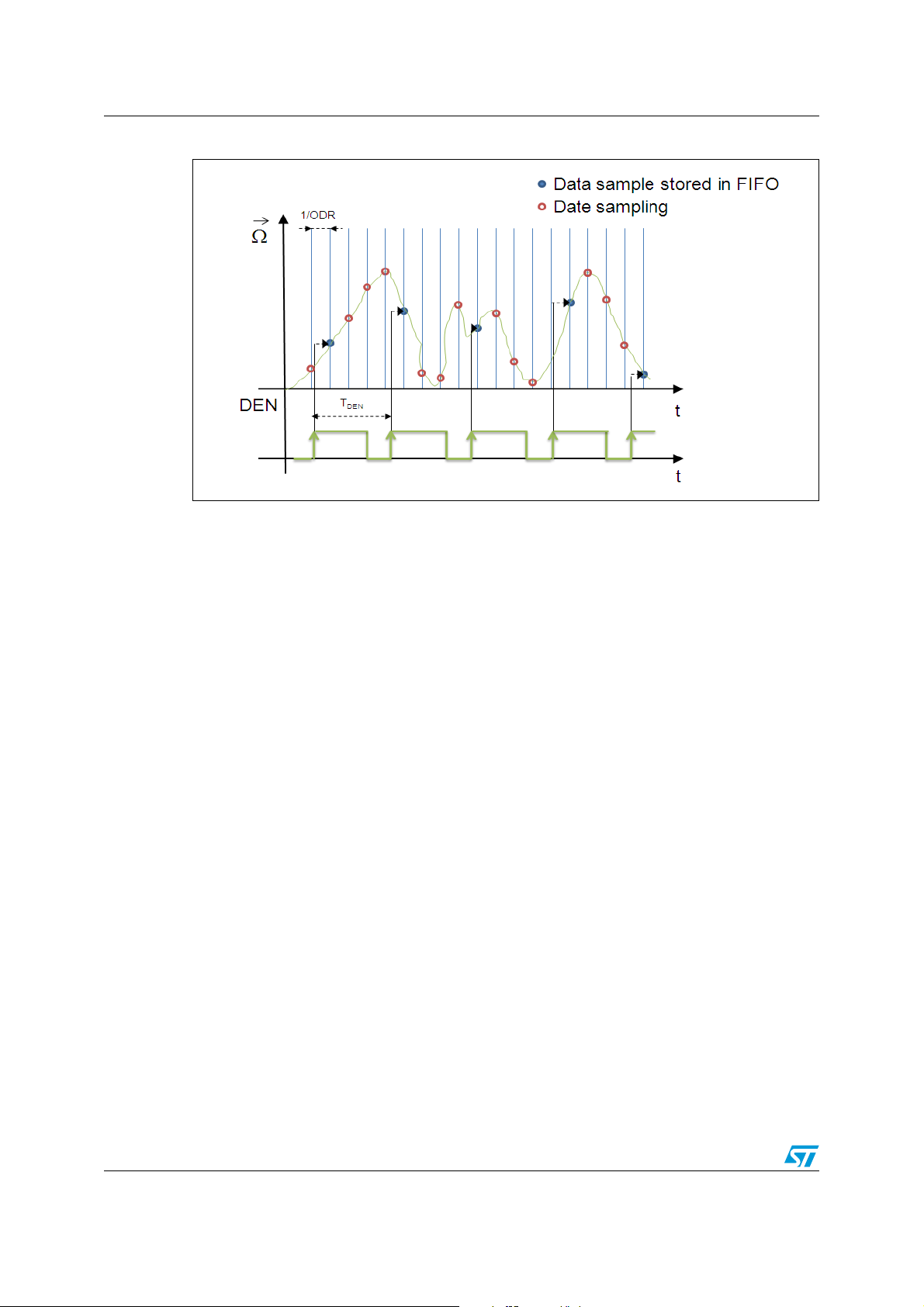

4.5.1 Level-sensitive trigger stamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.5.2 Edge-sensitive trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.6 Factory calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5 Application hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

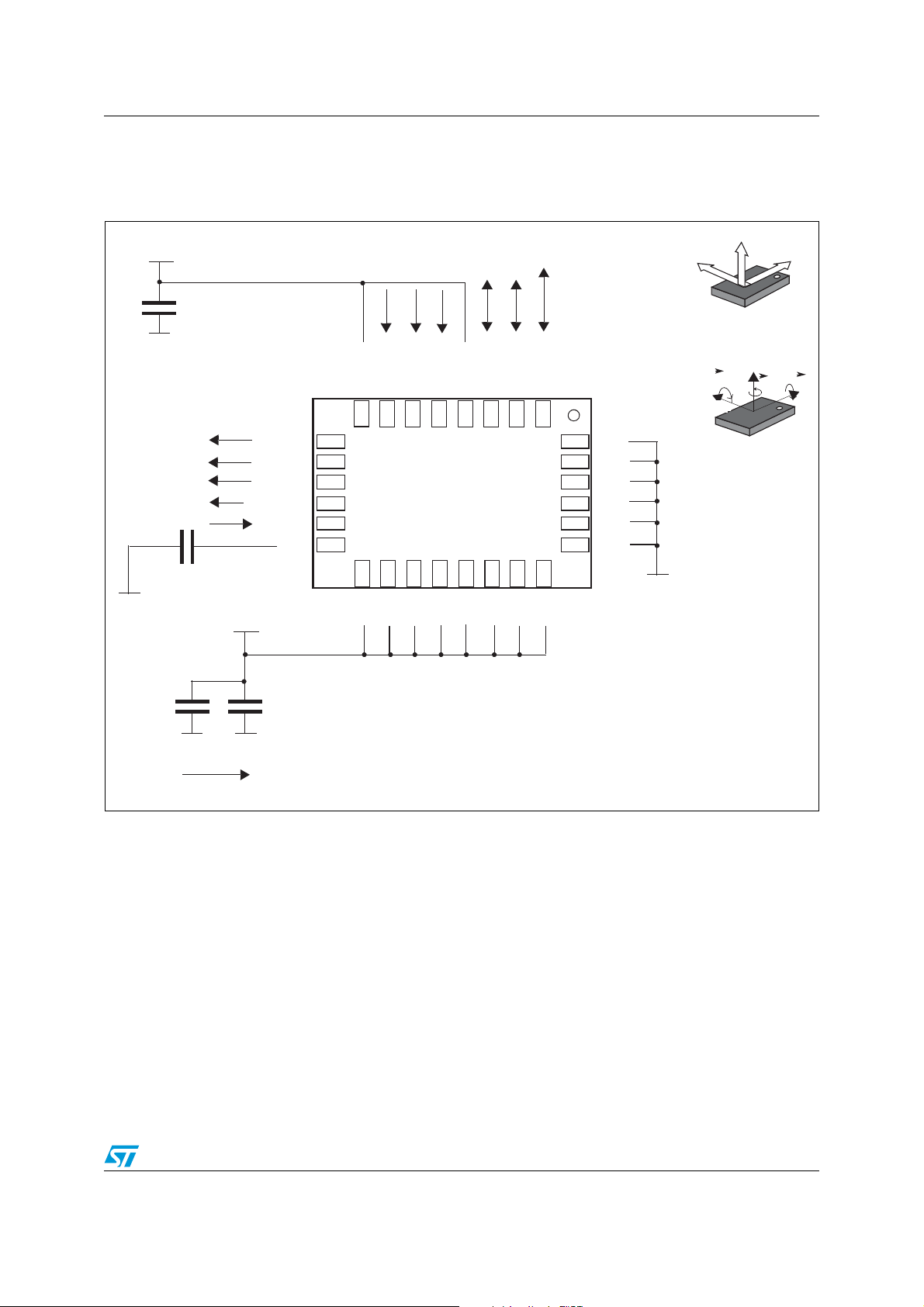

5.1 External capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5.2 Soldering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6 Digital interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.1 I2C serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.1.1 I2C operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6.2 SPI bus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

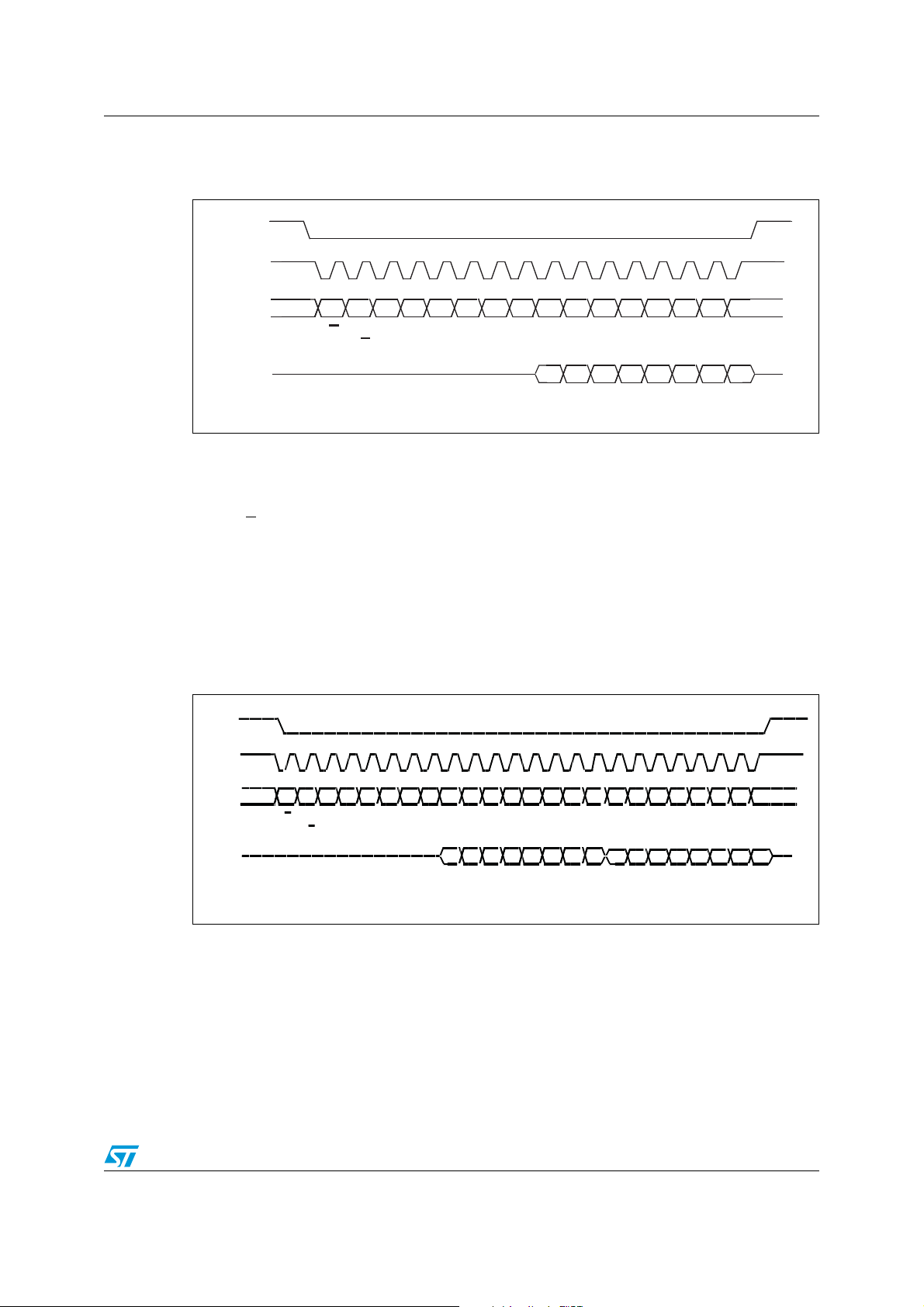

6.2.1 SPI read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.2.2 SPI write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.2.3 SPI read in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7 Register mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

8 Register descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

8.1 CTRL_REG1_A (20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

8.2 CTRL_REG2_A (21h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

8.3 CTRL_REG3_A (22h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

8.4 CTRL_REG4_A (23h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

8.5 CTRL_REG5_A (24h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

8.6 CTRL_REG6_A (25h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.7 REFERENCE/DATACAPTURE_A (26h) . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.8 STATUS_REG_A (27h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.9 OUT_X_L_A (28h), OUT_X_H_A (29h) . . . . . . . . . . . . . . . . . . . . . . . . . . 44

8.10 OUT_Y_L_A (2Ah), OUT_Y_H_A (2Bh) . . . . . . . . . . . . . . . . . . . . . . . . . 44

8.11 OUT_Z_L _A (2Ch), OUT_Z_H_A (2Dh) . . . . . . . . . . . . . . . . . . . . . . . . . 44

Doc ID 022162 Rev 1 3/67

Page 4

Contents LSM330DLC

8.12 FIFO_CTRL_REG_A (2Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

8.13 FIFO_SRC_REG_A (2Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

8.14 INT1_CFG_A (30h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

8.15 INT1_SRC_A (31h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

8.16 INT1_THS_A (32h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

8.17 INT1_DURATION_A (33h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

8.18 CLICK_CFG _A (38h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

8.19 CLICK_SRC_A (39h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

8.20 CLICK_THS_A (3Ah) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.21 TIME_LIMIT_A (3Bh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.22 TIME_LATENCY_A (3Ch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.23 TIME WINDOW_A (3Dh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

8.24 Act_THS (3Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.25 Act_DUR (3Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.26 WHO_AM_I_G (0Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.27 CTRL_REG1_G (20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8.28 CTRL_REG2_G (21h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

8.29 CTRL_REG3_G (22h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

8.30 CTRL_REG4_G (23h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

8.31 CTRL_REG5_G (24h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

8.32 REFERENCE_G (25h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

8.33 OUT_TEMP_G (26h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.34 STATUS_REG_G (27h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.35 OUT_X_L_G (28h), OUT_X_H_G (29h) . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.36 OUT_Y_L_G (2Ah), OUT_Y_H_G (2Bh) . . . . . . . . . . . . . . . . . . . . . . . . . 55

8.37 OUT_Z_L_G (2Ch), OUT_Z_H_G (2Dh) . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.38 FIFO_CTRL_REG_G (2Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.39 FIFO_SRC_REG_G (2Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8.40 INT1_CFG_G (30h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.41 INT1_SRC_G (31h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

8.42 INT1_THS_XH_G (32h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

8.43 INT1_THS_XL_G (33h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

8.44 INT1_THS_YH _G (34h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

4/67 Doc ID 022162 Rev 1

Page 5

LSM330DLC Contents

8.45 INT1_THS_YL_G (35h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

8.46 INT1_THS_ZH_G (36h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

8.47 INT1_THS_ZL_G (37h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

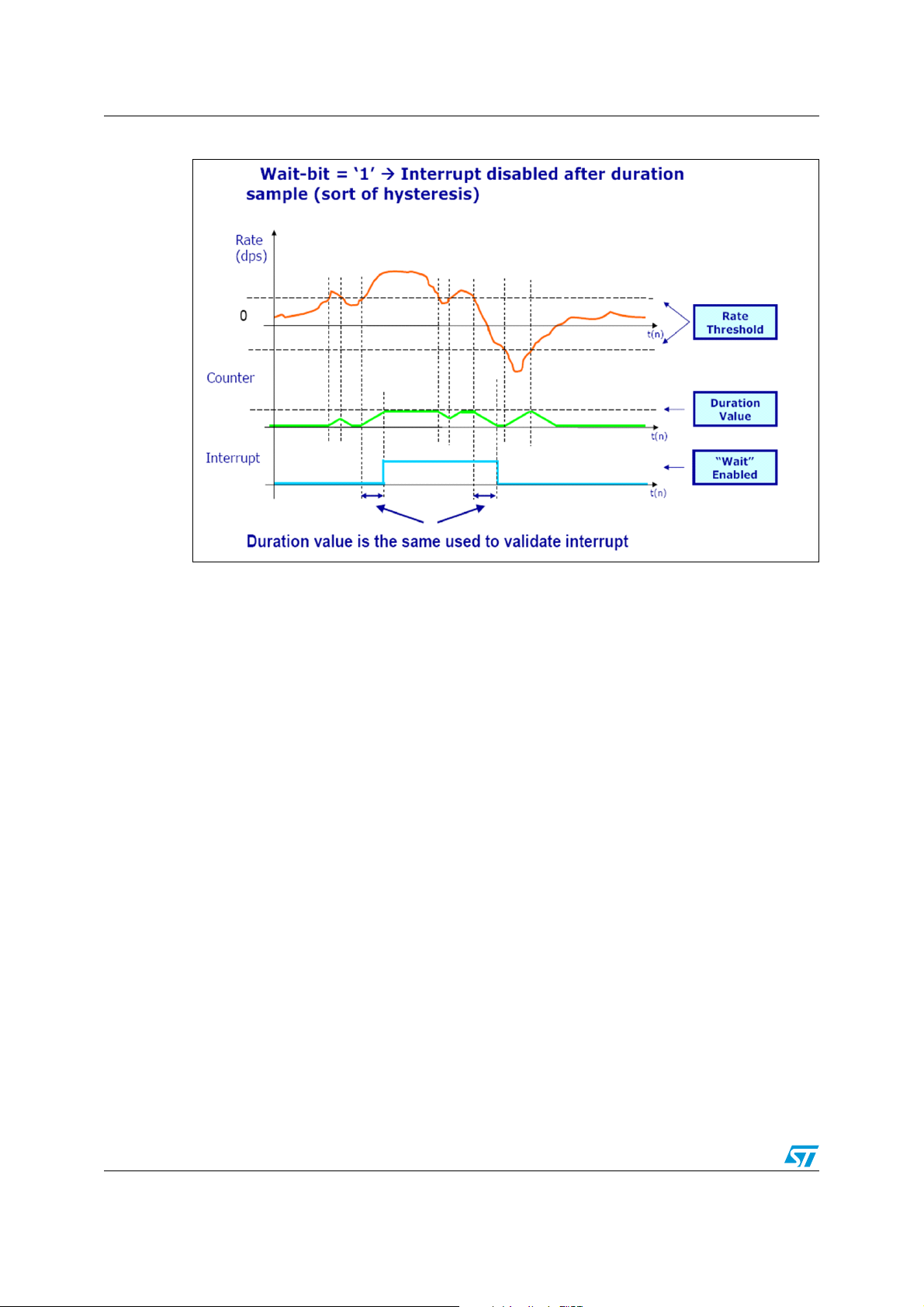

8.48 INT1_DURATION_G (38h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Doc ID 022162 Rev 1 5/67

Page 6

List of tables LSM330DLC

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 3. Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 4. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 5. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 6. SPI slave timing values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 7. I2C slave timing values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 8. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 9. Operating mode selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 10. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 11. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 12. Transfer when master is writing one byte to slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 13. Transfer when master is writing multiple bytes to slave . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 14. Transfer when master is receiving (reading) one byte of data from slave . . . . . . . . . . . . . 32

Table 15. Transfer when master is receiving (reading) multiple bytes of data from slave . . . . . . . . . 32

Table 16. Linear acceleration SAD+Read/Write patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 17. Angular rate SAD+Read/Write patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 18. Register address map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 19. CTRL_REG1_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 20. CTRL_REG1_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 21. Data rate configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 22. CTRL_REG2_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 23. CTRL_REG2_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 24. High-pass filter mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 25. CTRL_REG3_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 26. CTRL_REG3_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 27. CTRL_REG4_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 28. CTRL_REG4_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 29. CTRL_REG5_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 30. CTRL_REG5_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 31. CTRL_REG6_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 32. CTRL_REG6 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 33. REFERENCE_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 34. REFERENCE register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 35. STATUS_REG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 36. STATUS_REG_A register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 37. FIFO_CTRL_REG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 38. FIFO_CTRL_REG_A register description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 39. FIFO mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 40. FIFO_SRC_REG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 41. FIFO_SRC_REG_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 42. INT1_CFG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 43. INT1_CFG_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 44. Interrupt mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 45. INT1_SRC_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 46. INT1_SRC_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 47. INT1_THS_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 48. INT1_THS_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

6/67 Doc ID 022162 Rev 1

Page 7

LSM330DLC List of tables

Table 49. INT1_DURATION_Aregister . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 50. INT1_DURATION_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 51. CLICK_CFG_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Table 52. CLICK_CFG_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Table 53. CLICK_SRC_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Table 54. CLICK_SRC_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Table 55. CLICK_THS_A register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 56. CLICK_SRC_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 57. TIME_LIMIT_A register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 58. TIME_LIMIT_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 59. TIME_LATENCY_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 60. TIME_LATENCY_A description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 61. TIME_WINDOW_A register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 62. TIME_WINDOW_A description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 63. Act_THS register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 64. Act_THS description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 65. Act_DUR register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 66. Act_DUR description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 67. WHO_AM_I_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 68. CTRL_REG1_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 69. CTRL_REG1_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Table 70. DR and BW configuration setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Table 71. Power mode selection configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Table 72. CTRL_REG2_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Table 73. CTRL_REG2_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Table 74. High-pass filter mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Table 75. High-pass filter cut-off frequency configuration [Hz] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Table 76. CTRL_REG3_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 77. CTRL_REG3_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 78. CTRL_REG4_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 79. CTRL_REG4_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 80. CTRL_REG5_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 81. CTRL_REG5_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 82. REFERENCE_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 83. REFERENCE_G register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 84. OUT_TEMP_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 85. OUT_TEMP_G register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 86. STATUS_REG_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 87. STATUS_REG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 88. FIFO_CTRL_REG_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 89. FIFO_CTRL_REG_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 90. FIFO mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 91. FIFO_SRC_REG_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 92. FIFO_SRC_REG_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 93. INT1_CFG_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Table 94. INT1_CFG_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Table 95. INT1_SRC_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Table 96. INT1_SRC_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Table 97. INT1_THS_XH_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Table 98. INT1_THS_XH_G description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Table 99. INT1_THS_XL_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Table 100. INT1_THS_XL_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Doc ID 022162 Rev 1 7/67

Page 8

List of tables LSM330DLC

Table 101. INT1_THS_YH_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Table 102. INT1_THS_YH_G description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Table 103. INT1_THS_YL_G register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 104. INT1_THS_YL_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 105. INT1_THS_ZH_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 106. INT1_THS_ZH_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 107. INT1_THS_ZL_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 108. INT1_THS_ZL_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 109. INT1_DURATION_G register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 110. INT1_DURATION_G description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Table 111. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

8/67 Doc ID 022162 Rev 1

Page 9

LSM330DLC List of figures

List of figures

Figure 1. LSM330DLC block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 2. Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Figure 3. SPI slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 4. I2C slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

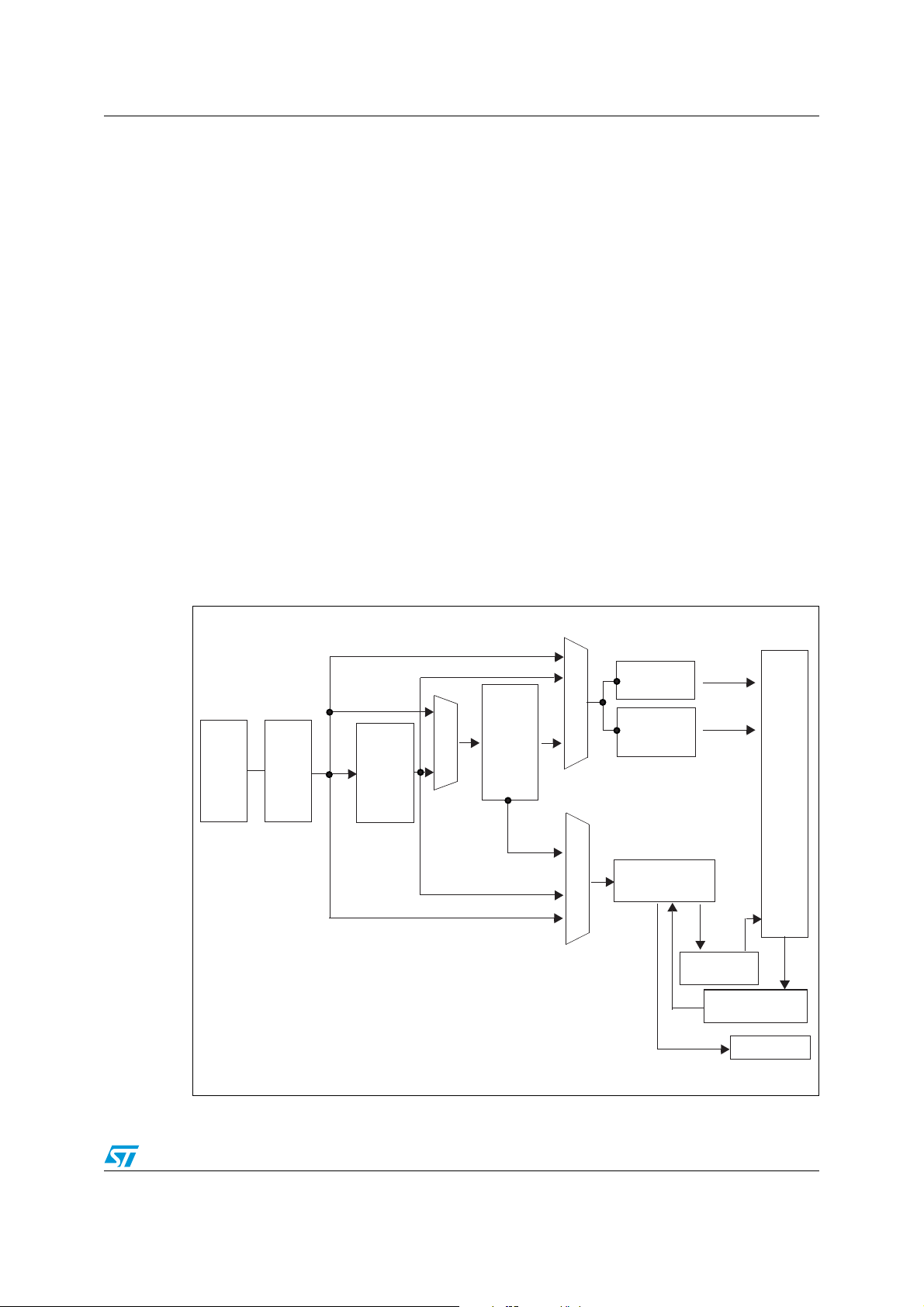

Figure 5. Gyroscope block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 6. Bypass mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 7. FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 8. Stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 9. Bypass-to-stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 10. Trigger stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 11. Level-sensitive trigger stamping (LVLen = 1; EXTRen = 0) . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 12. Edge-sensitive trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 13. LSM330DLC electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 14. Read and write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

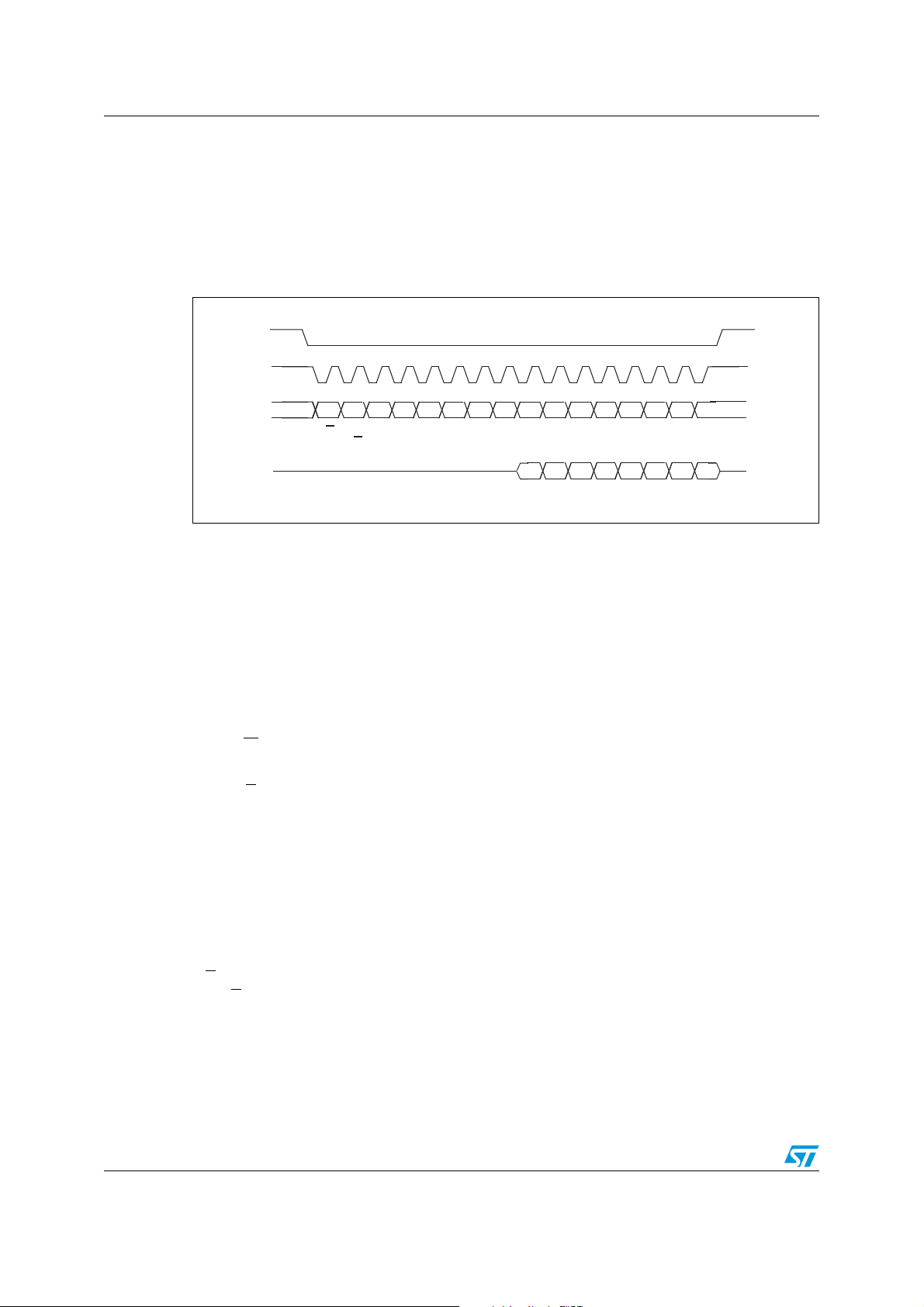

Figure 15. SPI read protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 16. Multiple-byte SPI read protocol (2-byte example). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

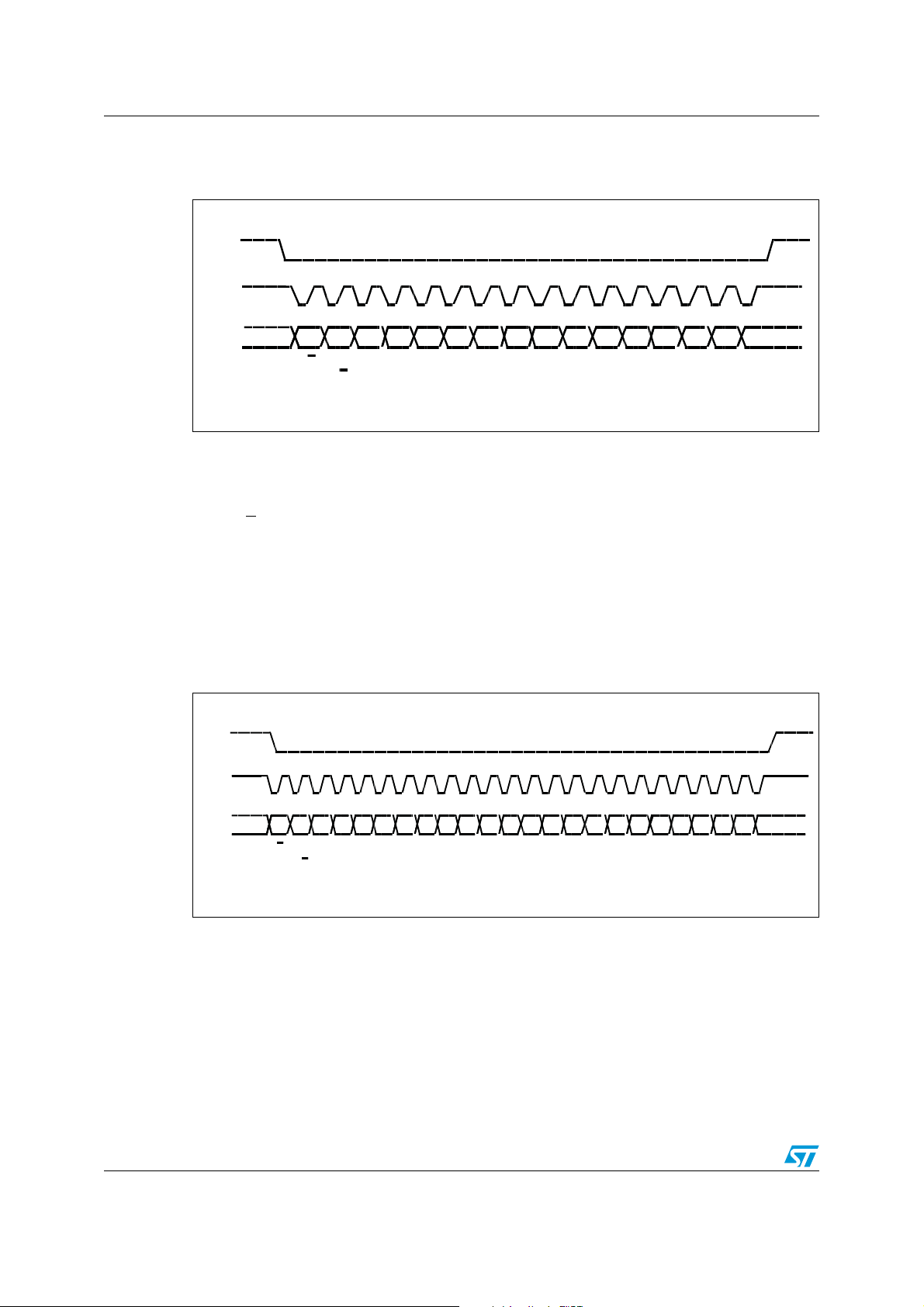

Figure 17. SPI write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Figure 18. Multiple bytes SPI write protocol (2 bytes example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Figure 19. SPI read protocol in 3-wire mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

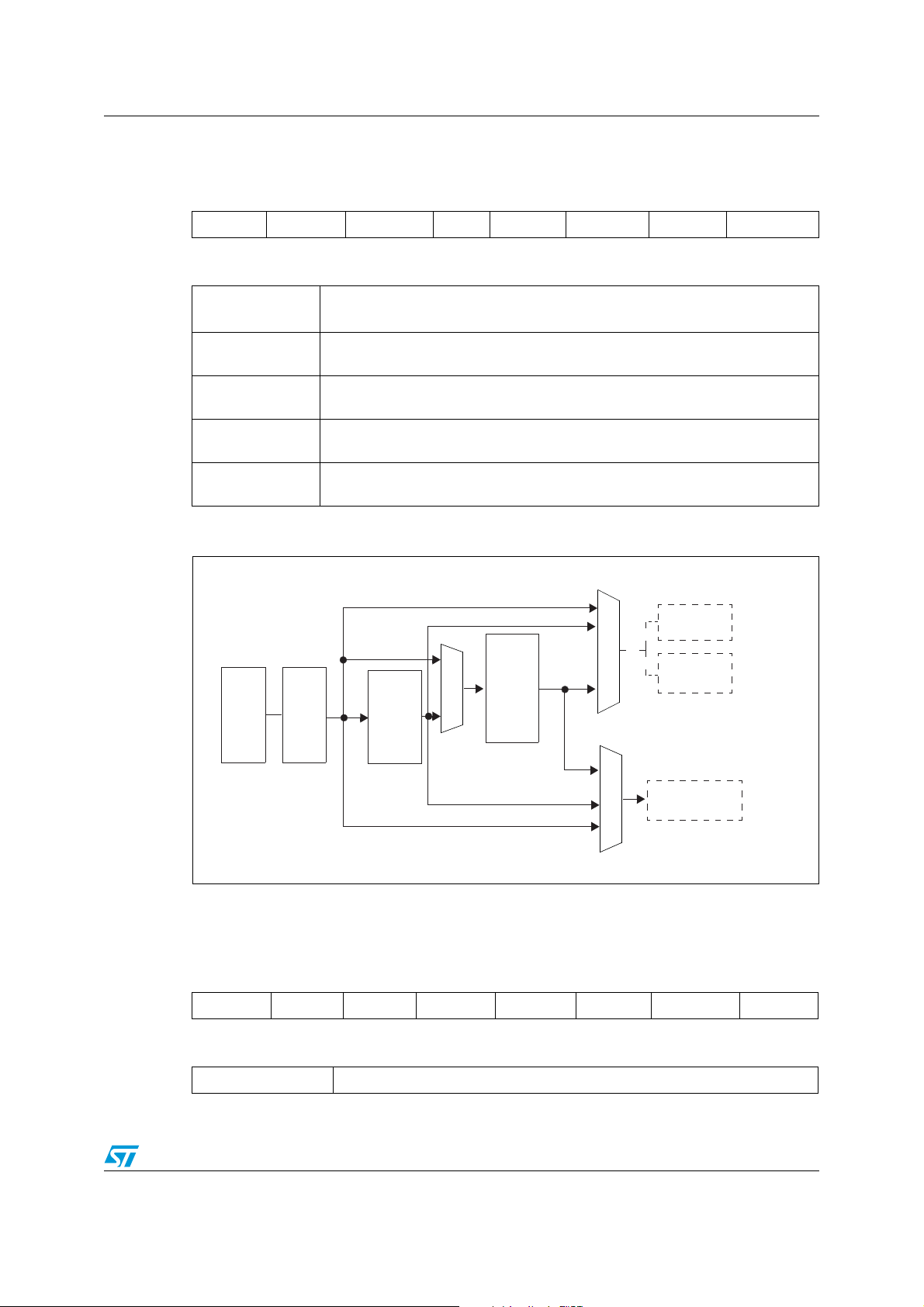

Figure 20. INT1_Sel and Out_Sel configuration block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

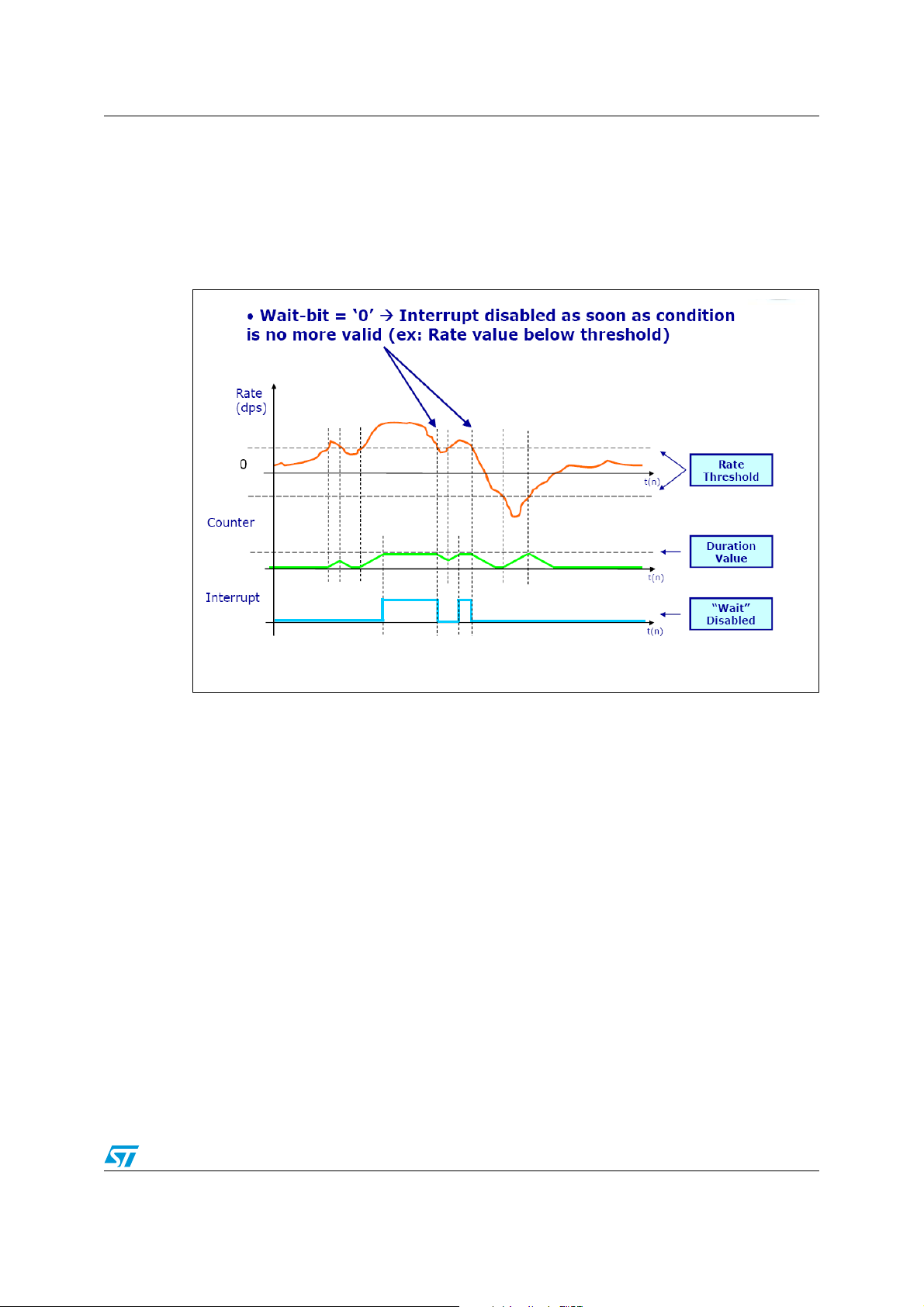

Figure 21. Wait disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 22. Wait enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

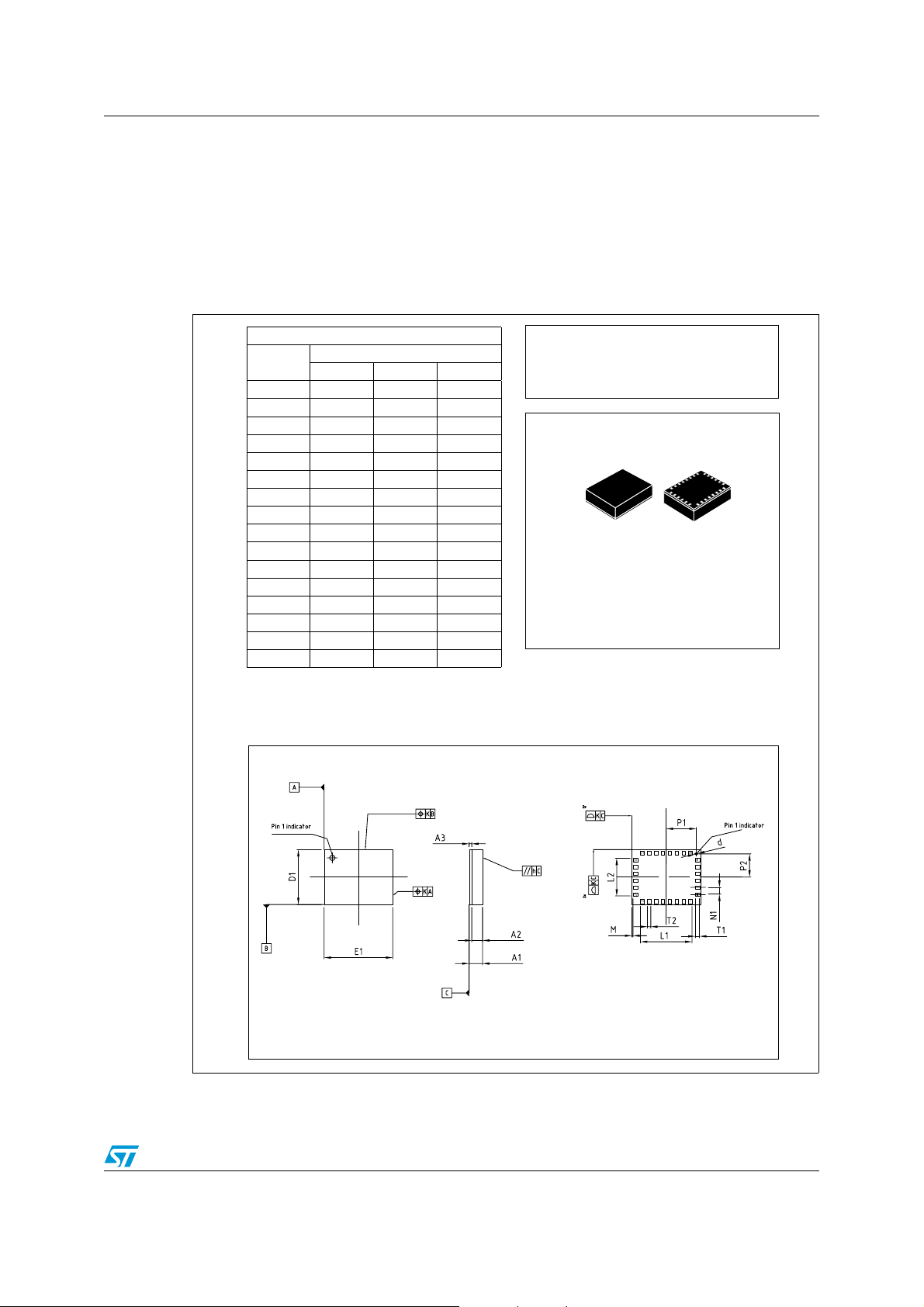

Figure 23. LGA-28 (4x5x1.1 mm): mechanical data and package dimensions . . . . . . . . . . . . . . . . . . 65

Doc ID 022162 Rev 1 9/67

Page 10

Block diagram and pin description LSM330DLC

1 Block diagram and pin description

1.1 Block diagram

Figure 1. LSM330DLC block diagram

I (a)

I (

Ω)

Sensing Block

Feedback+

Feedback-

Drive-

Drive+

X+

Sensing Interface

Y+

Z+

Z-

Y-

X-

X+

Y+

Z+

Z-

Y-

X-

MUX

VOLTAGE

GAIN

AMPLIFIER

CHARGE AMPLIFIER

DEMODULATOR

ANALOG CONDITIONING

A/D Control

LOW-PASS

FILTER

AUTOMATIC

GAIN

CONTROL

Logicconverter

I2C/SPI

CS_A/G

SDA/SDI_A/G

SDO_A/G

INT1_A

INT2_A

INT1_G

DRDY_G\INT2_

SCL_A/G

REFERENCE

CONTROL LOGIC

INTERRUPT GEN.

TRIMMING

CIRCUITS

PHASE

GENERATOR

10/67 Doc ID 022162 Rev 1

CLOCK

AM10160V1

Page 11

LSM330DLC Block diagram and pin description

1.2 Pin description

Figure 2. Pin connection

+Ω

DIRECTION OF DETECTABLE ACCELERATIONS

+Ω

INT1_A

INT2_A

INT1_G

DRDY_G/INT2_G

DEN_G

CAP

DIRECTION OF DETECTABLE

VDD_IO

CS_A

SCL_A/G

CS_G

(BOTTOM VIEW)

SDO_A

VDD_IO

SDO_G

FILTVDD

FILTIN Y

FILTOUT Y/ OUT Y

SDA_A/G

GND

RES

GND

ANGULAR RATES

RES

VDD

AM10161V1

Table 2. Pin description

Pin# Name Function

1 GND 0 V supply

2 Res Reserved. Connect to GND

3 Res Reserved. Connect to GND

4 Res Reserved. Connect to GND

5 Res Reserved. Connect to GND

6 GND 0 V supply

7VddPower supply

8VddPower supply

9VddPower supply

10 Res Reserved. Connect to Vdd

11 Res Reserved. Connect to Vdd

12 Res Reserved. Connect to Vdd

13 Res Reserved. Connect to Vdd

14 Res Reserved. Connect to Vdd

15 Cap Connect to GND with ceramic capacitor, 10 nF (+/-10%), 25 V

16 DEN_G Gyroscope data enable

DRDY_G/

INT2_G

Gyroscope data ready/interrupt signal 2

18 INT1_G Gyroscope interrupt signal

Doc ID 022162 Rev 1 11/67

Page 12

Block diagram and pin description LSM330DLC

Table 2. Pin description (continued)

Pin# Name Function

19 INT2_A Accelerometer interrupt signal

20 INT1_A Accelerometer interrupt signal

21 Vdd_IO Power supply for IO pins

Gyroscope: SPI enable

22 CS_G

23 CS_A

24 SCL_A/G I

25 Vdd_IO Power supply for IO pins

26 SDO_G

27 SDO_A

28 SDA_A/G

C/SPI mode selection (1: SPI idle mode / I2C communication

I enabled; 0: SPI communication mode / I2C disabled)

Accelerometer: SPI enable

C/SPI mode selection (1: SPI idle mode / I2C communication

I enabled; 0: SPI communication mode / I

C serial clock (SCL)/SPI serial port clock (SPC)

C disabled)

Gyroscope: SPI serial data output (SDO)

C least significant bit of the device address (SA0)

Accelerometer: SPI serial data output (SDO) I2C least significant bit of the device address (SA0)

C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

12/67 Doc ID 022162 Rev 1

Page 13

LSM330DLC Module specifications

2 Module specifications

2.1 Mechanical characteristics

@ Vdd = 3V, T = 25 °C unless otherwise noted

Table 3. Mechanical characteristics

Symbol Parameter Test conditions Min. Typ.

LA_FS

G_FS

LA_So Linear acceleration sensitivity

G_So Angular rate sensitivity

LA_So

G_SoDr

LA_TyOff

G_TyOff

LA_TCOff

G_TCOff

An Acceleration noise density

Linear acceleration measurement

(2)

range

Angular rate measurement range

Linear acceleration sensitivity change vs. temperature

Angular rate sensitivity change vs. temperature

Linear acceleration typical zero-g level offset accuracy

Angular rate typical zero-rate

(4)

level

Linear acceleration zero-g level change vs. temperature

Zero-rate level change vs. temperature

(3)

User-selectable

FS = ±2 g 1

FS = ±4 g 2

FS = ±8 g 4

FS = ±16 g 12

FS = ±250 dps 8.75

FS = ±500 dps 17.50

FS = ±2000 dps 70

FS = ±2 g ±0.05 %/°C

From -40 °C to +85 °C ±2 %

FS bit set to 00 ±60 mg

FS = 250 dps ±10

FS = 2000 dps ±25

Max delta from 25 °C ±0.5 mg/°C

FS = ±2 g, Normal mode

Ta bl e 9 , ODR bit set to

1001 Ta b le 1 9

(a)

(1)

Max. Unit

±2

±4

±8

±16

±250

±2000

±0.2 dps/°C

220 µg/

dps±500

mg/digit

mdps/

digit

dpsFS = 500 dps ±15

a. The product is factory calibrated at 3.0 V. The operational power supply range is from 2.4 V to 3.6 V.

Doc ID 022162 Rev 1 13/67

Page 14

Module specifications LSM330DLC

Table 3. Mechanical characteristics (continued)

Symbol Parameter Test conditions Min. Typ.

(1)

Max. Unit

Rn Rate noise density FS = ±250 dps, BW = 50 Hz 0.03 dps/

Top Operating temperature range -40 +85 °C

1. Typical specifications are not guaranteed.

2. Verified by wafer level test and measurement of initial offset and sensitivity.

3. Typical zero-g level offset value after MSL3 preconditioning.

4. Offset can be eliminated by enabling the built-in high-pass filter.

14/67 Doc ID 022162 Rev 1

Page 15

LSM330DLC Module specifications

2.2 Electrical characteristics

@ Vdd = 3 V, T = 25 °C unless otherwise noted

Table 4. Electrical characteristics

Symbol Parameter Test conditions Min. Typ.

Vdd Supply voltage 2.4 3.6 V

Vdd_IO Power supply for I/O 1.71 Vdd+0.1 V

LA_Idd

LA_IddLowP

LA_IddPdn

G_Idd

Accelerometer current consumption in Normal mode

Accelerometer current consumption in Low power mode

Accelerometer current consumption in Power-down mode

Gyroscope current consumption in Normal mode

ODR = 50 Hz 11

ODR = 1 Hz 2

ODR = 50 Hz 6 µA

(1)

0.5 µA

6.1 mA

Max. Unit

µA

G_IddLowP

G_IddPdn

VIH Digital high level input voltage 0.8*Vdd_IO V

VIL Digital low level input voltage 0.2*Vdd_IO V

VOH High level output voltage 0.9*Vdd_IO V

VOL Low level output voltage 0.1*Vdd_IO V

Top Operating temperature range -40 +85

1. Typical specifications are not guaranteed.

2. Sleep mode introduces a faster turn-on time compared to Power-down mode.

Gyroscope supply current in Sleep mode

Gyroscope current consumption in Power-down mode

(2)

2mA

5µA

°C

Doc ID 022162 Rev 1 15/67

Page 16

Module specifications LSM330DLC

2.3 Temperature sensor characteristics

@ Vdd = 3V, T = 25 °C unless otherwise noted

Table 5. Electrical characteristics

Symbol Parameter Test condition Min. Typ.

(b)

(1)

Max. Unit

TSDr

TODR Temperature refresh rate 1 Hz

Top Operating temperature range -40 +85 °C

1. Typical specifications are not guaranteed.

Temperature sensor output change vs. temperature

-1 °C/digit

b. The product is factory calibrated at 3.0 V.

16/67 Doc ID 022162 Rev 1

Page 17

LSM330DLC Module specifications

2.4 Communication interface characteristics

2.4.1 SPI - serial peripheral interface

Subject to general operating conditions for Vdd and TOP.

Table 6. SPI slave timing values

(1)

Val u e

Symbol Parameter

Min Max

tc(SPC) SPI clock cycle 100 ns

fc(SPC) SPI clock frequency 10 MHz

tsu(CS) CS setup time 6

th(CS) CS hold time 8

tsu(SI) SDI input setup time 5

th(SI) SDI input hold time 15

tv(SO) SDO valid output time 50

th(SO) SDO output hold time 9

tdis(SO) SDO output disable time 50

Unit

1. Values are guaranteed at 10 MHz clock frequency for SPI with both 4 and 3 wires, based on characterization results. Not tested in production.

(c)(d)

Figure 3. SPI slave timing diagram

(3)

su(CS)

SPC

(3)

h(SI)

MSB IN

MSB OUT

SDI

SDO

su(SI)

(3)

v(SO)

c(SPC)

h(SO)

h(CS)

LSB IN

LSB OUT

dis(SO)

3. Data on CS, SPC, SDI and SDO refer to pins: CS_A, CS_G, SCL_A/G, SDA_A/G, SDO_A / SDO_G.

(3)

c. The SDO output line features an internal pull-up.

d. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both input and output ports.

Doc ID 022162 Rev 1 17/67

Page 18

Module specifications LSM330DLC

2.4.2 I2C - inter IC control interface

Subject to general operating conditions for Vdd and TOP.

Table 7. I2C slave timing values

Symbol Parameter

(1)

I2C standard mode

(1)

I2C fast mode

Min Max Min Max

(1)

Unit

(SCL)

w(SCLL)

w(SCLH)

su(SDA)

h(SDA)

r(SDA) tr(SCL)

f(SDA) tf(SCL)

h(ST)

su(SR)

su(SP)

w(SP:SR)

1. SCL (SCL_A/G pin), SDA (SDA_A/G pin)

2. Cb = total capacitance of one bus line, in pF

Figure 4. I

SCL clock frequency 0 100 0 400 KHz

SCL clock low time 4.7 1.3

SCL clock high time 4.0 0.6

SDA setup time 250 100 ns

SDA data hold time 0.01 3.45 0 0.9 µs

SDA and SCL rise time 1000

SDA and SCL fall time 300

START condition hold time 4 0.6

Repeated START condition setup time

STOP condition setup time 4 0.6

Bus free time between STOP and START condition

C slave timing diagram

67$57

(e)

20 + 0.1C

4.7 0.6

4.7 1.3

µs

(2)

300

µs

5(3($7('

67$57

6'$

I6'$

U6'$

VX6'$

K6'$

6&/

Z6&//

K67

e. Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both ports

Z6&/+

U6&/

I6&/

18/67 Doc ID 022162 Rev 1

VX65

VX63

Z6365

67$57

6723

!-V

Page 19

LSM330DLC Module specifications

2.5 Absolute maximum ratings

Stresses above those listed as “absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 8. Absolute maximum ratings

Symbol Ratings Maximum value Unit

Vdd Supply voltage -0.3 to 4.8 V

Vdd_IO I/O pins supply voltage -0.3 to 4.8 V

Input voltage on any control pin (SCL_A/G, SDA_A/G, SDO_A, SDO_G, CS_A, CS_G, DEN_G)

Acceleration (any axis, powered, Vdd = 3 V)

Acceleration (any axis, unpowered)

Operating temperature range -40 to +85 °C

Storage temperature range -40 to +125 °C

Vin

POW

UNP

STG

ESD Electrostatic discharge protection 2 (HBM) kV

1. Supply voltage on any pin should never exceed 4.8 V.

(1)

-0.3 to Vdd_IO +0.3 V

3000 g for 0.5 ms

10000 g for 0.1 ms

3000 g for 0.5 ms

10000 g for 0.1 ms

This is a mechanical shock sensitive device, improper handling can cause permanent damage to the part.

This is an ESD sensitive device, improper handling can cause permanent damage to the part.

Doc ID 022162 Rev 1 19/67

Page 20

Terminology LSM330DLC

3 Terminology

3.1 Sensitivity

Linear acceleration sensitivity can be determined e.g. by applying 1 g acceleration to the device. Because the sensor can measure DC accelerations, this can be done easily by pointing the selected axis towards the ground, noting the output value, rotating the sensor 180 degrees (pointing towards the sky) and noting the output value again. By doing so, ±1 g acceleration is applied to the sensor. Subtracting the larger output value from the smaller one, and dividing the result by 2, leads to the actual sensitivity of the sensor. This value changes very little over temperature and over time. The sensitivity tolerance describes the range of sensitivities of a large number of sensors.

Angular Rate Sensitivity describes the angular rate gain of the sensor and can be determined by applying a defined angular velocity to it. This value changes very little over temperature and also very little over time.

3.2 Zero-g level

Linear acceleration zero-g level offset (TyOff) describes the deviation of an actual output signal from the ideal output signal if no acceleration is present. A sensor in a steady state on a horizontal surface will measure 0 g on both the X axis and Y axes, whereas the Z axis will measure 1 g. Ideally, the output is in the middle of the dynamic range of the sensor (content of OUT registers 00h, data expressed as 2’s complement number). A deviation from the ideal value in this case is called zero-g offset.

Offset is to some extent a result of stress to MEMS sensor and therefore the offset can slightly change after mounting the sensor onto a printed circuit board or exposing it to extensive mechanical stress. Offset changes little over temperature, see “Linear acceleration zero-g level change vs. temperature” in Ta bl e 3 . The zero-g level tolerance (TyOff) describes the standard deviation of the range of zero-g levels of a group of sensors.

Angular rate zero-rate level describes the actual output value if there is no angular rate present. zero-rate level of precise MEMS sensors is, to some extent, a result of stress to the sensor and therefore zero-rate level can slightly change after mounting the sensor onto a printed circuit board or after exposing it to extensive mechanical stress. This value changes very little over temperature and over time.

20/67 Doc ID 022162 Rev 1

Page 21

LSM330DLC Functionality

4 Functionality

The LSM330DLC is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope.

The device includes specific sensing elements and two IC interfaces capable to measuring both the acceleration and angular rate applied to the module and to provide a signal to external applications through an SPI/I

The LSM330DLC may also be configured to generate an inertial wakeup and free-fall interrupt signal according to a programmed acceleration event along the enabled axes.

4.1 Normal mode, Low power mode

The LSM330DLC provides two different operating modes: Normal mode and Low power mode. Normal mode guarantees high resolution, while Low power mode further reduces

current consumption.

C serial interface.

The table below summarizes how to select the operating mode and the corresponding characteristics.

Table 9. Operating mode selection

Operating mode

Low power mode (8-bit) 1 0 ODR/2 1

Normal mode (12-bit) 0 1 ODR/9 7/ODR(kHz)

CTRL_REG1[3]

(LPen bit)

4.1.1 Self-test

Self-test allows the checking of sensor functionality without moving it. The self-test function is off when the self-test bit (ST) is programmed to ‘0’. When the self-test bit is programmed to ‘1’ an actuation force is applied to the sensor, simulating a definite input acceleration. In this case, the sensor outputs exhibit a change in their DC levels which are related to the selected full scale through the device sensitivity. When self-test is activated, the device output level is given by the algebraic sum of the signals produced by the acceleration acting on the sensor and by the electrostatic test-force. If the output signals change within the amplitude specified in Ta bl e 3 , then the sensor is working properly and the parameters of the interface chip are within the defined specifications.

4.1.2 6D/4D orientation detection

CTRL_REG4[3]

(HR bit)

BW [Hz] Turn-on time [ms]

The LSM330DLC includes 6D/4D orientation detection. In this configuration the interrupt is generated when the device is stable in a known direction. In 4D configuration, Z axis position detection is disabled.

Doc ID 022162 Rev 1 21/67

Page 22

Functionality LSM330DLC

4.1.3 “Sleep-to-wake” and “Return to sleep”

The LSM330DLC can be programmed to automatically switch to Low power mode upon recognition of a determined event. Once the event condition is over, the device returns to the preset Normal mode.

To enable this function, the desired threshold value must be stored in the Act_THS register, while the duration value is written in the Act_DUR register.

When the internally high-pass filtered acceleration becomes lower than the threshold value on all the three axes, the device automatically switches to Low power mode (10Hz ODR). During this condition, the ODRx bits and LPen bit in the CTRL_REG1_G register and the HR bit in the CTRL_REG3_G register are not considered.

When the acceleration goes back over the threshold (on at least one axis), the system restores the operating mode and ODRs as per the CTRL_REG1_G register and

CTRL_REG3_G register settings.

4.2 Linear acceleration digital main blocks

4.2.1 FIFO

The LSM330DLC embeds 32 slots of data FIFO for each of the three output channels: X, Y and Z. This allows consistent power saving for the system, since the host processor does not need to continuously poll data from the sensor, but it can wake up only when needed and burst the significant data out from the FIFO. This buffer can work accordingly in four different modes: Bypass mode, FIFO mode, Stream mode and Stream-to-FIFO mode. Each mode is selected by the FIFO_MODE bits in the FIFO_CTRL_REG_A register. Programmable watermark level, FIFO_empty or FIFO_Full events can be enabled to generate dedicated interrupts on the INT1_A/INT2_A pin (configured through the

FIFO_CTRL_REG_A register).

4.2.2 Bypass mode

In Bypass mode, the FIFO is not operational and for this reason it remains empty. For each channel only the first address is used. The remaining FIFO slots are empty.

4.2.3 FIFO mode

In FIFO mode, data from the X, Y and Z channels are stored into the FIFO. A watermark interrupt can be enabled (FIFO_WTMK_EN bit in the FIFO_CTRL_REG_A register in order to be raised when the FIFO is filled to the level specified into the FIFO_WTMK_LEVEL bits of the FIFO_CTRL_REG_A register. The FIFO continues filling until it is full (32 slots of data for X, Y and Z). When full, the FIFO stops collecting data from the input channels.

4.2.4 Stream mode

In Stream mode, data from X, Y and Z measurement are stored into the FIFO. A watermark interrupt can be enabled and set as in FIFO mode.The FIFO continues filling until it is full (32 slots of data for X, Y and Z). When full, the FIFO discards the older data as the new data arrives.

22/67 Doc ID 022162 Rev 1

Page 23

LSM330DLC Functionality

4.2.5 Stream-to-FIFO mode

In Stream-to-FIFO mode, data from X, Y and Z measurement is stored in the FIFO. A watermark interrupt can be enabled (FIFO_WTMK_EN bit in the FIFO_CTRL_REG_A

FIFO_WTMK_LEVEL bits of the FIFO_CTRL_REG_A register. The FIFO continues filling until it is full (32 slots of 8 -bit data for X, Y and Z). When full, the FIFO discards the older data as the data new arrives. Once trigger event occurs, the FIFO starts operating in FIFO mode.

4.2.6 Retrieve data from FIFO

FIFO data is read through OUT_X_L_A (28h), OUT_X_H_A (29h), OUT_Y_L_A (2Ah),

OUT_Y_H_A (2Bh) and OUT_Z_L _A (2Ch), OUT_Z_H_A (2Dh). When the FIFO is in

Stream, Trigger or FIFO mode, a read operation to the OUT_X_L_A (28h), OUT_X_H_A

(29h), OUT_Y_L_A (2Ah), OUT_Y_H_A (2Bh) or OUT_Z_L _A (2Ch), OUT_Z_H_A (2Dh)

registers provides the data stored in the FIFO. Each time data is read from the FIFO, the oldest X, Y and Z data are placed in the OUT_X_L_A (28h), OUT_X_H_A (29h),

OUT_Y_L_A (2Ah), OUT_Y_H_A (2Bh) and OUT_Z_L _A (2Ch), OUT_Z_H_A (2Dh)

registers and both single read and read_burst operations can be used.

4.3 Gyroscope digital main blocks

Figure 5. Gyroscope block diagram

LPF2

ADC

LPF1

HPF

HPen

Out_Sel

00 01

10 11

INT_Sel

10 11

DataReg

FIFO

32x16x3

Interrupt

generator

I2C

SPI

SCR REG

CONF REG

INT1

AM07230v1

Doc ID 022162 Rev 1 23/67

Page 24

Functionality LSM330DLC

4.4 FIFO

The LSM330DLC embeds 32 slots of 16-bit data FIFO for each of the three output channels: yaw, pitch and roll. This allows consistent power saving for the system, since the host processor does not need to continuously poll data from the sensor, but can wake up only when needed and burst the significant data out from the FIFO. This buffer can work accordingly in five different modes: Bypass mode, FIFO mode, Stream mode, Bypass-toStream mode and Stream-to-FIFO mode. Each mode is selected by the FIFO_MODE bits in the FIFO_CTRL_REG_G register. Programmable watermark level, FIFO_empty or FIFO_Full events can be enabled to generate dedicated interrupts on the DRDY_G/INT2_G pin (configured through the CTRL_REG3_G register and event detection information is available in the FIFO_SRC_REG_G register. Watermark level can be configured to WTM4:0 in the FIFO_CTRL_REG_G register.

4.4.1 Bypass mode

In Bypass mode, the FIFO is not operational and for this reason it remains empty. As described in Figure 6 below, for each channel only the first address is used. The remaining FIFO slots are empty. When new data is available the old data is overwritten.

Figure 6. Bypass mode

xi,yi,z

empty

4.4.2 FIFO mode

In FIFO mode, data from the yaw, pitch and roll channels is stored in the FIFO. A watermark interrupt can be enabled (I2_WMK bit in the CTRL_REG3_G register) in order to be raised when the FIFO is filled to the level specified in the WTM 4:0 bits of the FIFO_CTRL_REG_G

roll). When full, the FIFO stops collecting data from the input channels. To restart data collection, the FIFO_CTRL_REG_G register must be written back to Bypass mode.

AM07231v1

FIFO mode is represented in Figure 7: FIFO mode.

24/67 Doc ID 022162 Rev 1

Page 25

LSM330DLC Functionality

Figure 7. FIFO mode

xi,yi,z

4.4.3 Stream mode

In Stream mode, data from yaw, pitch and roll measurement is stored in the FIFO. A watermark interrupt can be enabled and set as in FIFO mode.The FIFO continues filling until it is full (32 slots of 16-bit data for yaw, pitch and roll). When full, the FIFO discards the older data as the new data arrives. Programmable watermark level events can be enabled to generate dedicated interrupts on the DRDY_G/INT2_G pin (configured through the

CTRL_REG3_G register.

AM07232v1

Stream mode is represented in Figure 8: Stream mode.

Doc ID 022162 Rev 1 25/67

Page 26

Functionality LSM330DLC

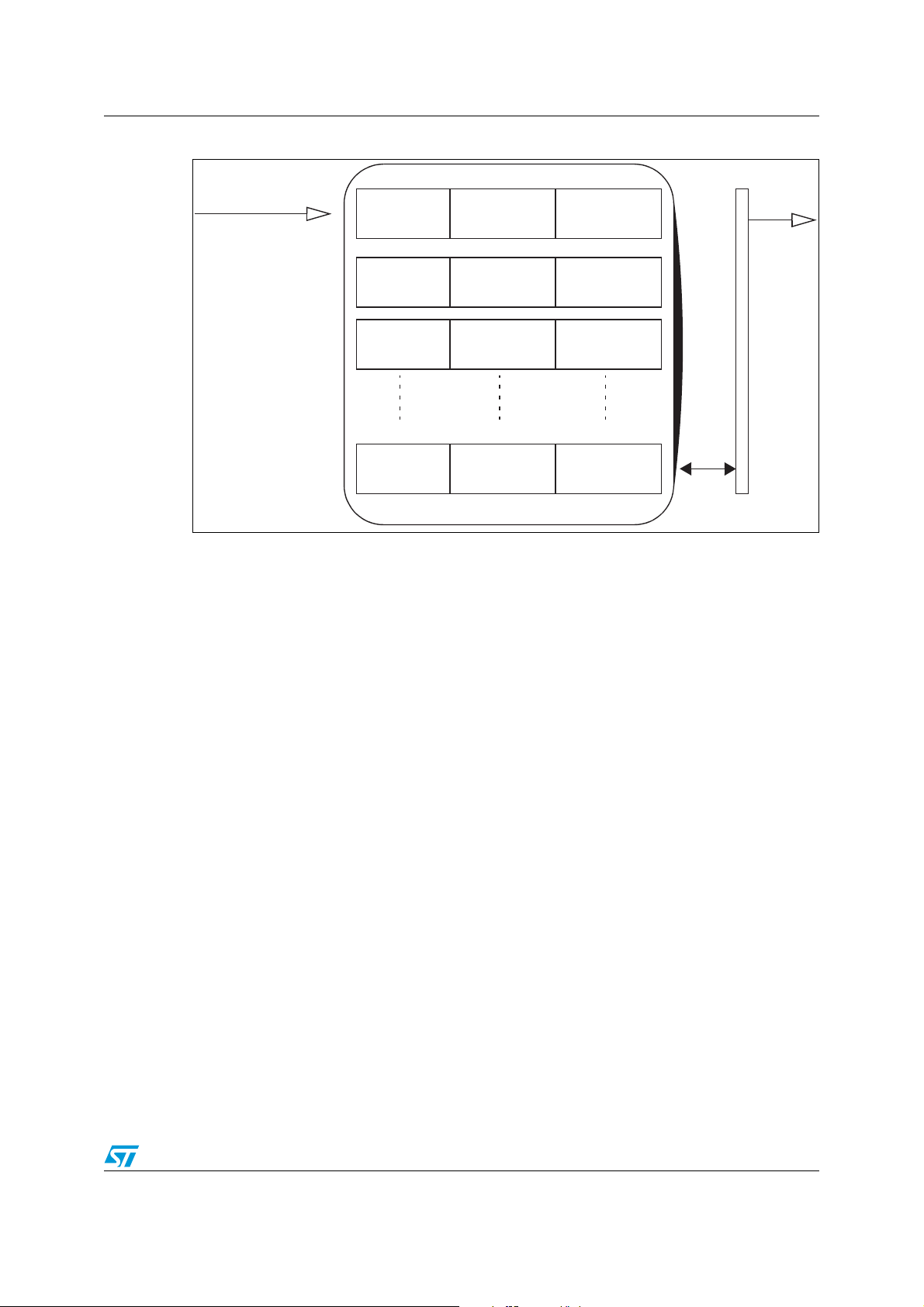

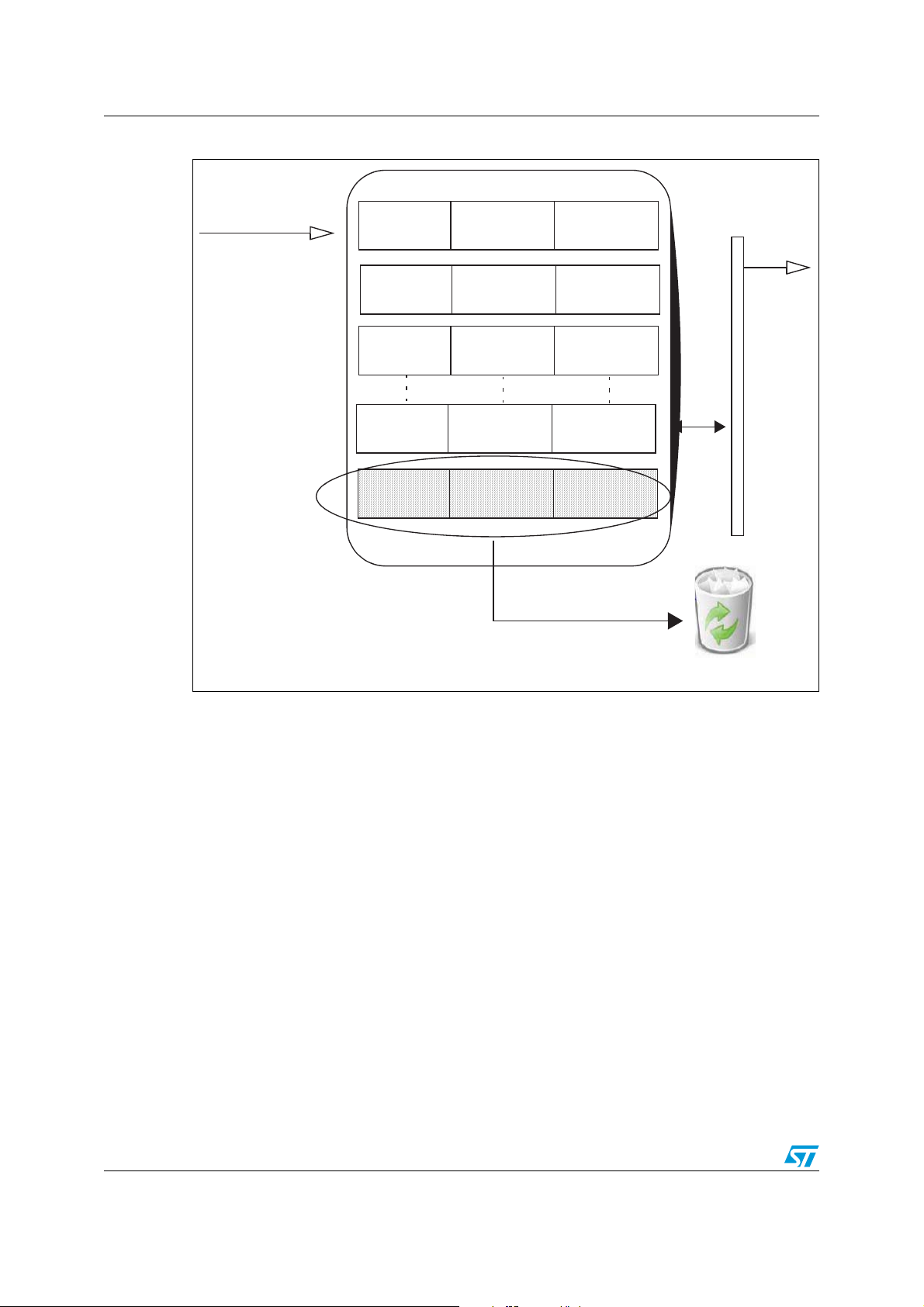

Figure 8. Stream mode

xi,yi,z

AM07234v1

26/67 Doc ID 022162 Rev 1

Page 27

LSM330DLC Functionality

4.4.4 Bypass-to-stream mode

In Bypass-to-stream mode, the FIFO starts operating in Bypass mode and once a trigger event occurs (related to INT1_CFG_G register events) the FIFO starts operating in Stream mode. Refer to Figure 9 below.

Figure 9. Bypass-to-stream mode

xi,yi,z

Empty

xi,yi,z

Bypass mode

4.4.5 Stream-to-FIFO mode

In Stream-to-FIFO mode, data from yaw, pitch and roll measurement is stored in the FIFO. A watermark interrupt can be enabled on pin DRDY/INT2 by setting the I2_WTM bit in

CTRL_REG3_G register to be raised when the FIFO is filled to the level specified in the

WTM4:0 bits of the FIFO_CTRL_REG_G register. The FIFO continues filling until it is full (32 slots of 16-bit data for yaw, pitch and roll). When full, the FIFO discards the older data as the new data arrives. Once a trigger event occurs (related to INT1_CFG_G register events), the FIFO starts operating in FIFO mode. Refer to Figure 10: Trigger stream mode.

Trigger ev e nt

Stream mode

AM07235v1

Doc ID 022162 Rev 1 27/67

Page 28

Functionality LSM330DLC

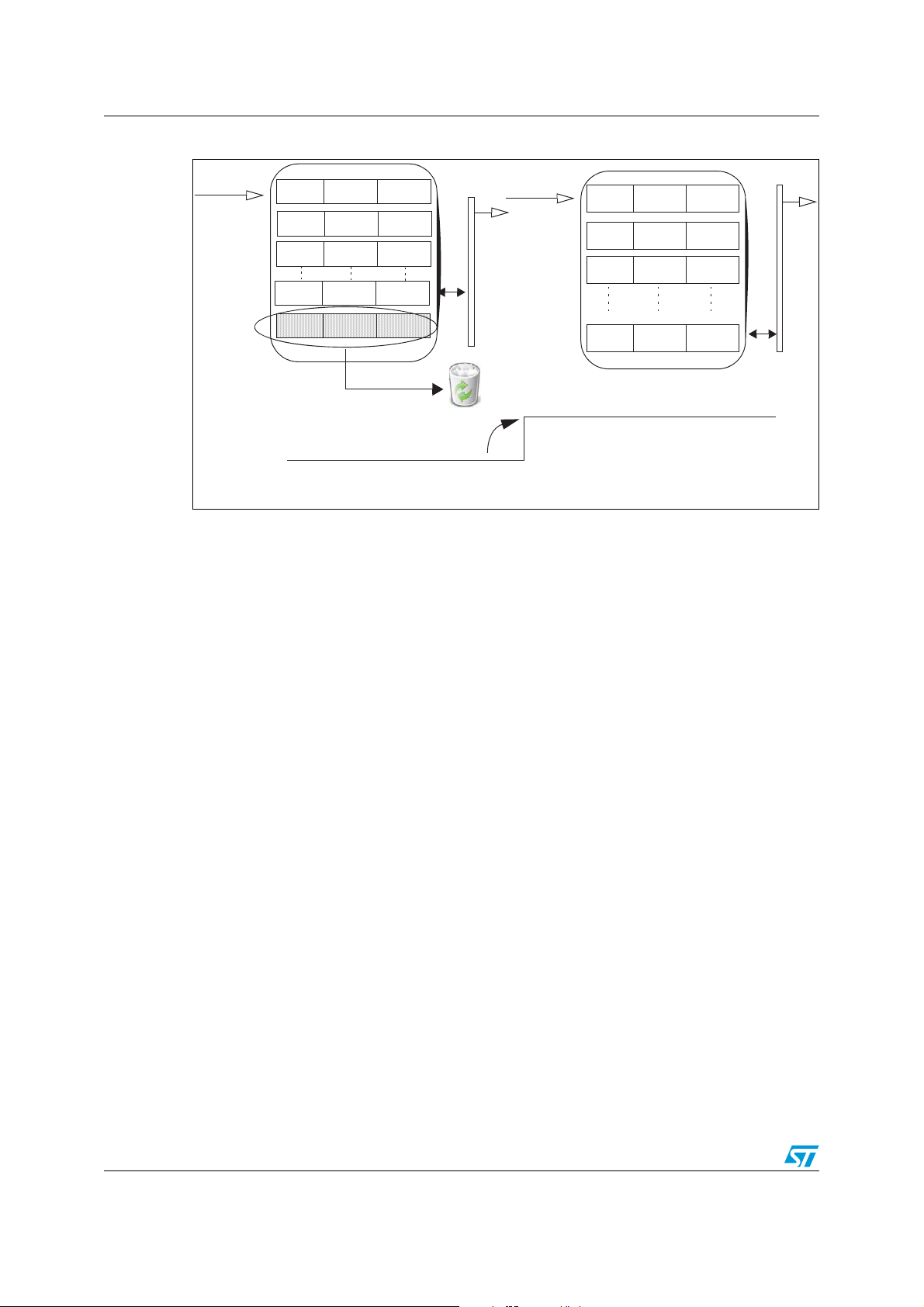

Figure 10. Trigger stream mode

xi,yi,z

Stream Mode

4.4.6 Retrieve data from FIFO

FIFO data is read through OUT_X_L_G (28h), OUT_X_H_G (29h), OUT_Y_L_G (2Ah),

OUT_Y_H_G (2Bh) and OUT_Z_L_G (2Ch), OUT_Z_H_G (2Dh). When the FIFO is in

Stream, Trigger or FIFO mode, a read operation to the OUT_X_L_G (28h), OUT_X_H_G

(29h), OUT_Y_L_G (2Ah), OUT_Y_H_G (2Bh) or OUT_Z_L_G (2Ch), OUT_Z_H_G (2Dh)

registers provides the data stored in the FIFO. Each time data is read from the FIFO, the oldest pitch, roll and yaw data are placed in the OUT_X_L_G (28h), OUT_X_H_G (29h),

OUT_Y_L_G (2Ah), OUT_Y_H_G (2Bh) and OUT_Z_L_G (2Ch), OUT_Z_H_G (2Dh)

registers and both single read and read_burst (X,Y & Z with autoincremental address) operations can be used. When data included in OUT_Z_H_G is read, the system again starts to read information from addr OUT_X_L _G.

xi,yi,z

FIFO Mode

Trigger event

AM07236v1

4.5 Level-sensitive / Edge-sensitive data enable

The LSM330DLC allows external trigger level recognition through the enabling of the EXTRen and LVLen bits in the CTRL_REG2_G register. Two different modes can be used: Level-sensitive or Edge-sensitive trigger.

28/67 Doc ID 022162 Rev 1

Page 29

LSM330DLC Functionality

Figure 11. Level-sensitive trigger stamping (LVLen = 1; EXTRen = 0)

Level-sensitive Trigger enabled

xi,yi,z

on X-Axis Xen=1,Yen=Zen=0

Level-sensitive Trigger enabled

xi,yi,z

on Y-axis Yen=1, Xen=Zen=0

Level-sensitive Trigger enabled

xi,yi,z

on Z-axis

Zen=1,

Xen=Yen=0

4.5.1 Level-sensitive trigger stamping

xi(15-1)

i-N+1

(15-1)

xi(15-0)

i-N+1

(15-0)

xi(15-0)

i-N+1

(15-0)

D E

(15-0)

i-N+1

(15-0)

(15-1)

i-N+1

(15-1)

(15-0)

i-N+1

(15-0)

i-N+1

(15-0)

D E

(15-0)

i-N+1

(15-0)

i-N+1

E N

D E N

AM10162V1

(15-1)

Once enabled, DEN level replaces the LSb of the X, Y or Z axes, configurable through the Xen, Yen, Zen bits in the CTRL_REG1_G register. Data is stored in the FIFO with the internally-selected ODR.

4.5.2 Edge-sensitive trigger

Once enabled by setting EXTRen = 1, FIFO is filled with the pitch, roll and yaw data on the rising edge of the DEN input signal. When selected ODR is 800 Hz, the maximum DEN sample frequency is f

DEN

= 1/T

DEN

= 400 Hz.

Doc ID 022162 Rev 1 29/67

Page 30

Functionality LSM330DLC

Figure 12. Edge-sensitive trigger

4.6 Factory calibration

The IC interface is factory calibrated for sensitivity and zero level. The trimming values are stored in the device in non volatile memory. Any time the device is turned on, the trimming parameters are downloaded to the registers to be used during normal operation. This allows use of the device without further calibration.

30/67 Doc ID 022162 Rev 1

Page 31

LSM330DLC Application hints

5 Application hints

Figure 13. LSM330DLC electrical connection

Vdd_IO

GND

10nF(25V)

*C1

GND

100 nF

DRDY_G

Vdd

C3 C4

10 µF

GND

INT1_A

INT2_A

INT1_G

DEN_G

CAP

VDD_IO

CS_G

CS_A

SCL_A/G

(BOTTOM VIEW)

RES

SDO_G

VDD_IO

SDO_A

SDA_A/G

8212

GND

RES

FILTVDD

FILTIN Y

FILTOUT Y/ OUT Y

RES

GND

RES

VDD

* C1 must guarantee 1 nF value under 11 V bias condition

DIRECTION OF DETECTABLE ACCELERATIONS

+Ω

DIRECTION OF DETECTABLE ANGULAR RATE

+Ω

Digital signal from/to signal controller. Signals levels are defined by proper selection of Vdd

5.1 External capacitors

The device core is supplied through the Vdd line. Power supply decoupling capacitors (C2, C3=100 nF ceramic, C4=10 µF Al) should be placed as near as possible to the supply pin of the device (common design practice).

All voltage and ground supplies must be present at the same time to achieve proper behavior of the IC (refer to Figure 13).

The functionality of the device and the measured acceleration/angular rate data is selectable and accessible through the SPI/I

The functions, the threshold and the timing of the two interrupt pins for each sensor can be completely programmed by the user through the SPI/I

AM10163V1

C interface.

Doc ID 022162 Rev 1 31/67

Page 32

Application hints LSM330DLC

5.2 Soldering information

The LGA package is compliant with ECOPACK®, RoHS and “Green” standards. It is qualified for soldering heat resistance according to JEDEC J-STD-020D.

Leave “Pin 1 Indicator” unconnected during soldering.

Land pattern and soldering recommendations are available at www.st.com/mems

32/67 Doc ID 022162 Rev 1

Page 33

LSM330DLC Digital interfaces

6 Digital interfaces

The registers embedded in the LSM330DLC may be accessed through both the I2C and SPI serial interfaces. The latter may be SW configured to operate either in 3-wire or 4-wire interface mode.

To select/exploit the I

Table 10. Serial interface pin description

Pin name Pin description

C interface, the CS line must be tied high (i.e. connected to Vdd_IO).

CS_A

CS_G

SCL_A/G

SDA_A/G

SDO_A SDO_G

Linear acceleration SPI enable Linear acceleration I2C/SPI mode selection (1: I2C mode; 0: SPI enabled)

Angular rate SPI enable Angular rate I

C serial clock (SCL)

I SPI serial port clock (SPC)

C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

C least significant bit of the device address (SA0)

I SPI serial data output (SDO)

6.1 I2C serial interface

The LSM330DLC I2C is a bus slave. The I2C is employed to write the data to the registers, whose content can also be read back.

The relevant I

Table 11. Serial interface pin description

C terminology is provided in the table below.

Term Description

C/SPI mode selection (1: I2C mode; 0: SPI enabled)

Transmitter The device which sends data to the bus

Receiver The device which receives data from the bus

Master

Slave The device addressed by the master

The device which initiates a transfer, generates clock signals and terminates a transfer

There are two signals associated with the I2C bus: the Serial Clock Line (SCL) and the Serial DAta line (SDA). The latter is a bidirectional line used for sending and receiving the data to/from the interface.

Doc ID 022162 Rev 1 33/67

Page 34

Digital interfaces LSM330DLC

6.1.1 I2C operation

The transaction on the bus is started through a START (ST) signal. A START condition is defined as a HIGH to LOW transition on the data line while the SCL line is held HIGH. After this has been transmitted by the master, the bus is considered busy. The next byte of data transmitted after the start condition contains the address of the slave in the first 7 bits, and the eighth bit tells whether the master is receiving data from the slave or transmitting data to the slave. When an address is sent, each device in the system compares the first seven bits after a start condition with its address. If they match, the device considers itself addressed by the master.

Data transfer with acknowledge is mandatory. The transmitter must release the SDA line during the acknowledge pulse. The receiver must then pull the data line LOW so that it remains stable low during the HIGH period of the acknowledge clock pulse. A receiver which has been addressed is obliged to generate an acknowledge after each byte of data received.

The I

C embedded in the LSM330DLC behaves like a slave device and the following protocol must be adhered to. After the start condition (ST), a slave address is sent. Once a slave acknowledge (SAK) has been returned, an 8-bit sub-address (SUB) is transmitted: the 7 LSb represent the actual register address while the MSb enables address auto increment. If the MSb of the SUB field is ‘1’, the SUB (register address) will be automatically increased to allow multiple data read/write.

Table 12. Transfer when master is writing one byte to slave

Master ST SAD + W SUB DATA SP

Slave SAK SAK SAK

Table 13. Transfer when master is writing multiple bytes to slave

Master ST SAD + W SUB DATA DATA SP

Slave SAK SAK SAK SAK

Table 14. Transfer when master is receiving (reading) one byte of data from slave

Master ST SAD + W SUB SR SAD + R NMAK SP

Slave SAK SAK SAK DATA

Table 15. Transfer when master is receiving (reading) multiple bytes of data from slave

Master ST SAD+W SUB SR SAD+R MAK MAK NMAK SP

Slave SAK SAK SAK DATA DATA DATA

Data is transmitted in byte format (DATA). Each data transfer contains 8 bits. The number of bytes sent per transfer is unlimited. Data is transferred with the most significant bit (MSb) first. If a receiver cannot receive another complete byte of data until it has performed some other function, it can hold the clock line, SCL, LOW to force the transmitter into a wait state.

34/67 Doc ID 022162 Rev 1

Page 35

LSM330DLC Digital interfaces

Data transfer only continues when the receiver is ready for another byte and releases the data line. If a slave receiver does not acknowledge the slave address (i.e. it is not able to receive because it is performing some real-time function) the data line must be left HIGH by the slave. The master can then abort the transfer. A LOW to HIGH transition on the SDA line while the SCL line is HIGH is defined as a STOP condition. Each data transfer must be terminated by the generation of a STOP (SP) condition.

In order to read multiple bytes, it is necessary to assert the most significant bit of the subaddress field. In other words, SUB(7) must be equal to 1 while SUB(6-0) represents the address of first register to be read.

In the communication format presented, MAK is Master Acknowledge and NMAK is No Master Acknowledge.

Default address:

The SDO/SA0 pin (SDO_A / SDO_G) can be used to modify the least significant bit of the device address. If the SA0 pad is connected to voltage supply, the LSb is ‘1’ (ex. address 0011001b), otherwise if the SA0 pad is connected to ground, the LSb value is ‘0’ (ex address 0011000b).

The slave address is completed with a Read/Write bit. If the bit was ‘1’ (Read), a repeated START (SR) condition will have to be issued after the two sub-address bytes; if the bit is ‘0’ (Write) the master will transmit to the slave with direction unchanged. Tab le 1 6 and 17 explain how the SAD+Read/Write bit pattern is composed, listing all the possible configurations.

Linear acceleration address: the default (factory) 7-bit slave address is 001100xb.

Table 16. Linear acceleration SAD+Read/Write patterns

Command SAD[6:1] SAD[0] = SDO_A pin R/W SAD+R/W

Read 001100 0 1 00110001 (31h)

Write 001100 0 0 00110000 (30h)

Read 001100 1 1 00110011 (33h)

Write 001100 1 0 00110010 (32h)

Angular rate sensor: the default (factory) 7-bit slave address is 110101xb.

Table 17. Angular rate SAD+Read/Write patterns

Command SAD[6:1] SAD[0] = SDO_G pin R/W SAD+R/W

Read 110101 0 1 11010101 (D5h)

Write 110101 0 0 11010100 (D4h)

Read 110101 1 1 11010111 (D7h)

Write 110101 1 0 11010110 (D6h)

Doc ID 022162 Rev 1 35/67

Page 36

Digital interfaces LSM330DLC

6.2 SPI bus interface

The LSM330DLC SPI is a bus slave. The SPI allows writing and reading the registers of the device.

The serial interface interacts with the outside world through 4 wires: CS, SPC, SDI and SDO (SPC, SDI, SD0 are common).

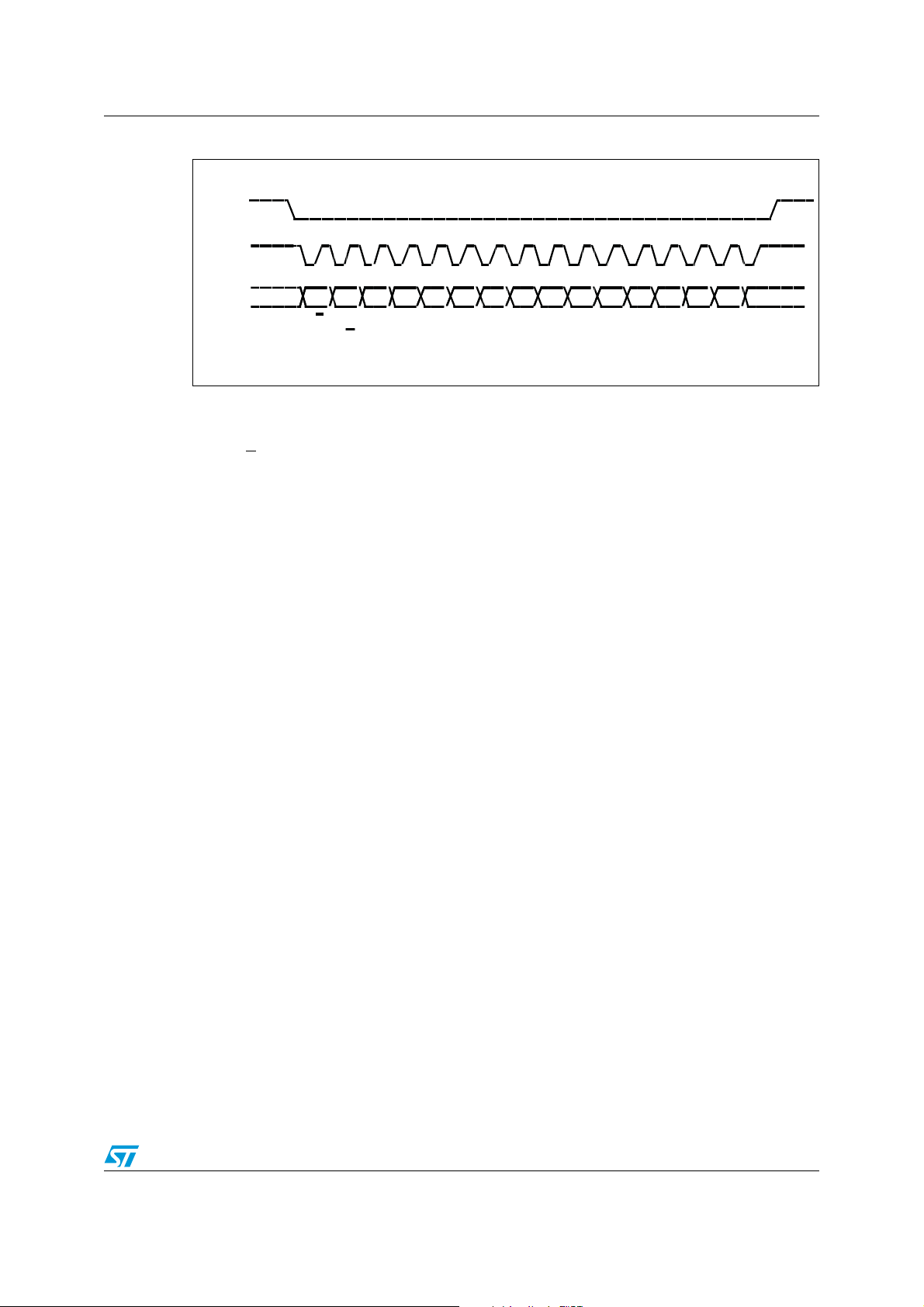

Figure 14. Read and write protocol

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

SDO

CS is the serial port enable and is controlled by the SPI master. It goes low at the start of the transmission and returns high at the end. SPC is the serial port clock and is controlled by the SPI master. It is stopped high when CS is high (no transmission). SDI and SDO are respectively the serial port data input and output. These lines are driven at the falling edge of SPC and should be captured at the rising edge of SPC.

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

AM10129V1

Both the read register and write register commands are completed in 16 clock pulses or in multiples of 8 in case of multiple-byte read/write. Bit duration is the time between two falling edges of SPC. The first bit (bit 0) starts at the first falling edge of SPC after the falling edge of CS, while the last bit (bit 15, bit 23, ...) starts at the last falling edge of SPC just before the rising edge of CS.

bit 0: RW

bit. When 0, the data DI(7:0) is written to the device. When 1, the data DO(7:0)

from the device is read. In the latter case, the chip drives SDO at the start of bit 8.

bit 1: MS

bit. When 0, the address remains unchanged in multiple read/write commands.

When 1, the address is auto-incremented in multiple read/write commands.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (Write mode). This is the data that will be written to the device (MSb

first).

bit 8-15: data DO(7:0) (Read mode). This is the data that will be read from the device (MSb first).

In multiple read/write commands, further blocks of 8 clock periods will be added. When the MS

bit is ‘0’, the address used to read/write data remains the same for every block. When

the MS

bit is ‘1’, the address used to read/write data is increased at every block.

The function and the behavior of SDI and SDO remain unchanged.

36/67 Doc ID 022162 Rev 1

Page 37

LSM330DLC Digital interfaces

6.2.1 SPI read

Figure 15. SPI read protocol

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

SDO

DO7 DO6 DO5 DO4 DO3DO2 DO1 DO0

AM10130V1

The SPI read command is performed with 16 clock pulses. A multiple-byte read command is performed by adding blocks of 8 clock pulses to the previous one.

bit 0: READ bit. The value is 1.

bit 1: MS

bit. When 0, do not increment address; when 1, increment address in multiple

reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (Read mode). This is the data that will be read from the device (MSb

first).

bit 16-... : data DO(...-8). Further data in multiple-byte reading.

Figure 16. Multiple-byte SPI read protocol (2-byte example)

C S

SPC

SDI

AD5 AD4AD3 AD2 AD1 AD0

M S

SDO

DO7DO6DO5DO4DO3 DO 2 DO 1 DO0

DO15 DO 14 DO 13 DO 12 DO11 DO 10 D O9 DO8

AM10131V1

Doc ID 022162 Rev 1 37/67

Page 38

Digital interfaces LSM330DLC

6.2.2 SPI write

Figure 17. SPI write protocol

SPC

SDI

AD5 AD 4 AD 3 AD2 AD1 AD0MS

The SPI write command is performed with 16 clock pulses. A multiple-byte write command is performed by adding blocks of 8 clock pulses to the previous one.

bit 0: WRITE bit. The value is 0.

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

AM10132V1

bit 1: MS

bit. When 0, do not increment address; when 1, increment address in multiple

writing.

bit 2 -7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (Write mode). This is the data that will be written to the device (MSb

first).

bit 16-... : data DI(...-8). Further data in multiple-byte writing.

Figure 18. Multiple bytes SPI write protocol (2 bytes example)

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD 0

6.2.3 SPI read in 3-wire mode

DI7 DI6 DI 5 D I4 DI 3 DI 2 DI1 DI0 DI15 D I1 4 DI13 DI12 DI 11 DI10 DI 9 DI8

AM10133V1

3-wire mode is entered by setting the SIM bit to ‘1’ (SPI serial interface mode selection) in the CTRL_REG4_G register.

38/67 Doc ID 022162 Rev 1

Page 39

LSM330DLC Digital interfaces

Figure 19. SPI read protocol in 3-wire mode

SPC

SDI/O

AD5 AD 4 AD3 AD2 AD1 AD 0MS

The SPI read command is performed with 16 clock pulses:

bit 0: READ bit. The value is 1.

DO7 DO6 DO5 DO4 DO3 DO 2 DO 1 DO0

AM10134V1

bit 1: MS

bit. When 0, do not increment address; when 1, increment address in multiple

reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (Read mode). This is the data that will be read from the device (MSb

first).

Multiple read command is also available in 3-wire mode.

Doc ID 022162 Rev 1 39/67

Page 40

7 Register mapping

The table below provides a listing of the 8-bit registers embedded in the device, and their related addresses:

Table 18. Register address map

Name

Reserved (do not modify) Ta b le 1 6 00 - 1F Reserved

CTRL_REG1_A Ta b l e 16 rw 20 010 0000 00000111

CTRL_REG2_A Ta b l e 16 rw 21 010 0001 00000000

CTRL_REG3_A Ta b l e 16 rw 22 010 0010 00000000

CTRL_REG4_A Ta b l e 16 rw 23 010 0011 00000000

CTRL_REG5_A Ta b l e 16 rw 24 010 0100 00000000

CTRL_REG6_A Ta b l e 16 rw 25 010 0101 00000000

REFERENCE_A Ta b le 1 6 rw 26 010 0110 00000000

STATUS_REG_A Ta b le 1 6 r 27 010 0111 00000000

OUT_X_L_A Ta bl e 1 6 r 28 010 1000 output

OUT_X_H_A Ta b le 1 6 r 29 010 1001 output

OUT_Y_L_A Ta bl e 1 6 r 2A 010 1010 output

OUT_Y_H_A Ta b le 1 6 r 2B 010 1011 output

OUT_Z_L_A Ta b le 1 6 r 2C 010 1100 output

OUT_Z_H_A Ta b l e 1 6 r 2D 010 1101 output

FIFO_CTRL_REG Ta bl e 1 6 rw 2E 010 1110 00000000

Slave

address

Typ e

Default Comment

Hex Binary

FIFO_SRC_REG Ta b l e 1 6 r 2F 010 1111

INT1_CFG_A Ta bl e 1 6 rw 30 011 0000 00000000

INT1_SOURCE_A Ta b le 1 6 r 31 011 0001 00000000

INT1_THS_A Ta b l e 16 rw 32 011 0010 00000000

INT1_DURATION_A Ta b l e 1 6 rw 33 011 0011 00000000

INT2_CFG_A Ta bl e 1 6 rw 34 011 0100 00000000

INT2_SOURCE_A Ta b le 1 6 r 35 011 0101 00000000

INT2_THS_A Ta b l e 16 rw 36 011 0110 00000000

INT2_DURATION_A Ta b l e 1 6 rw 37 011 0111 00000000

CLICK_CFG_A Ta b l e 16 rw 38 011 1000 00000000

CLICK_SRC_A Ta b l e 16 rw 39 011 1001 00000000

CLICK_THS_A Ta bl e 1 6 rw 3A 011 1010 00000000

TIME_LIMIT_A Ta b le 1 6 rw 3B 011 1011 00000000

40/67 Doc ID 022162 Rev 1

Page 41

LSM330DLC Register mapping

Table 18. Register address map (continued)

Name

TIME_LATENCY_A Ta b l e 1 6 rw 3C 011 1100 00000000

TIME_WINDOW_A Ta b le 1 6 rw 3D 011 1101 00000000

Act_THS Ta b le 1 6 rw 3E 011 1110 00000000

Act_DUR Tab l e 1 6 rw 3F 011 1111 00000000

Reserved Ta b l e 17 - 00-1E - - Reserved

WHO_AM_I_G Ta bl e 1 7 rw 0F 0001111 11010100

Reserved Ta b l e 17 rw 10-1F - -

CTRL_REG1_G Ta bl e 1 7 rw 20 010 0000 00000111

CTRL_REG2_G Ta bl e 1 7 rw 21 010 0001 00000000

CTRL_REG3_G Ta bl e 1 7 rw 22 010 0010 00000000

CTRL_REG4_G Ta bl e 1 7 rw 23 010 0011 00000000

CTRL_REG5_G Ta bl e 1 7 r 24 010 0100 00000000

REFERENCE_G Ta b l e 1 7 r 25 010 0101 00000000

OUT_TEMP_G Ta bl e 1 7 r 26 010 0110 output

STATUS_REG_G Ta b le 1 7 r 27 010 0111 output

Slave

address

Typ e

Default Comment

Hex Binary

OUT_X_L_G Ta b l e 1 7 r 28 010 1000 output

OUT_X_H_G Ta b l e 17 r 29 010 1001 output

OUT_Y_L_G Ta b l e 1 7 r 2A 010 1010 output

OUT_Y_H_G Ta b l e 17 r 2B 010 1011 output

OUT_Z_L_G Ta bl e 1 7 rw 2C 010 1100 output

OUT_Z_H_G Ta bl e 1 7 r 2D 010 1101 output

FIFO_CTRL_REG_G Ta b le 1 7 rw 2E 010 1110 00000000

FIFO_SRC_REG_G Ta b le 1 7 r 2F 010 1111 output

INT1_CFG_G Ta bl e 1 7 rw 30 011 0001 output

INT1_SRC_G Ta b l e 1 7 rw 31 011 0001 output

INT1_TSH_XH_G Ta bl e 1 7 rw 32 011 0010 00000000

INT1_TSH_XL_G Ta b le 1 7 rw 33 011 0011 00000000

INT1_TSH_YH_G Ta bl e 1 7 rw 34 011 0100 00000000

INT1_TSH_YL_G Ta b le 1 7 rw 35 011 0101 00000000

INT1_TSH_ZH_G Ta b le 1 7 rw 36 011 0110 00000000

INT1_TSH_ZL_G Ta b le 1 7 rw 37 011 0111 00000000

INT1_DURATION_G Ta b le 1 7 rw 38 011 1000 00000000

Doc ID 022162 Rev 1 41/67

Page 42

Registers marked as Reserved must not be changed. Writing to those registers may cause permanent damage to the device.

The content of the registers that are loaded at boot should not be changed. They contain the factory calibration values. Their content is automatically restored when the device is powered up.

42/67 Doc ID 022162 Rev 1

Page 43

LSM330DLC Register descriptions

8 Register descriptions

The device contains a set of registers which are used to control its behavior and to retrieve acceleration, angular rate and temperature data. The register addresses, made up of 7 bits, are used to identify them and to write the data through the serial interface.

8.1 CTRL_REG1_A (20h)

Table 19. CTRL_REG1_A register

ODR3 ODR2 ODR1 ODR0 LPen Zen Yen Xen

Table 20. CTRL_REG1_A description

ODR3-0

LPen

Zen

Ye n

Xen

Data rate selection. Default value: 0 (0000: Power-down; Others: refer to Ta bl e 2 1, “Data rate configuration”)

Low power mode enable. Default value: 0 (0: Normal mode, 1: Low power mode)

Z axis enable. Default value: 1 (0: Z axis disabled; 1: Z axis enabled)

Y axis enable. Default value: 1 (0: Y axis disabled; 1: Y axis enabled)

X axis enable. Default value: 1 (0: X axis disabled; 1: X axis enabled)

ODR<3:0> is used to set the power mode and ODR selection. Ta bl e 2 1 below provides all the frequencies resulting from the ODR<3:0> combinations.

Table 21. Data rate configuration

ODR3 ODR2 ODR1 ODR0 Power mode selection

0000Power-down mode

0001Normal / Low power mode (1 Hz)

0010Normal / Low power mode (10 Hz)

0011Normal / Low power mode (25 Hz)

0100Normal / Low power mode (50 Hz)

0101Normal / Low power mode (100 Hz)

0110Normal / Low power mode (200 Hz)

0111Normal / Low power mode (400 Hz)

1000Low power mode (1.620 kHz)

1001Normal (1.344 kHz) / Low power mode (5.376 kHz)

Doc ID 022162 Rev 1 43/67

Page 44

8.2 CTRL_REG2_A (21h)

Table 22. CTRL_REG2_A register

HPM1 HPM0 HPCF2 HPCF1 FDS HPCLICK HPIS2 HPIS1

Table 23. CTRL_REG2_A description

HPM1 -HPM0 High-pass filter mode selection. Default value: 00

Refer to Ta bl e 2 4 ,

HPCF2 HPCF1

FDS

HPCLICK

HPIS2 High-pass filter enabled for AOI function on interrupt 2,

HPIS1 High-pass filter enabled for AOI function on interrupt 1,

High-pass filter cut-off frequency selection

Filtered data selection. Default value: 0 (0: internal filter bypassed; 1: data from internal filter sent to output register and FIFO)

High-pass filter enabled for CLICK function. (0: filter bypassed; 1: filter enabled)

(0: filter bypassed; 1: filter enabled)

“High pass filter mode configuration”

Table 24. High-pass filter mode configuration

HPM1 HPM0 High-pass filter mode

0 0 Normal mode (reset reading HP_RESET_FILTER)

0 1 Reference signal for filtering

1 0 Normal mode

1 1 Autoreset on interrupt event

8.3 CTRL_REG3_A (22h)

Table 25. CTRL_REG3_A register

I1_CLICK I1_AOI1 0

1. This bit has to be set ‘0’ for correct operation

Table 26. CTRL_REG3_A description

I1_CLICK CLICK interrupt on INT1_A. Default value 0.

I1_AOI1 AOI1 interrupt on INT1_A. Default value 0.

(1)

(0: Disable; 1: Enable)

I1_DRDY1 I1_DRDY2 I1_WTM I1_OVERRUN --

44/67 Doc ID 022162 Rev 1

Page 45

LSM330DLC Register descriptions

Table 26. CTRL_REG3_A description (continued)

I1_DRDY1 DRDY1 interrupt on INT1_A. Default value 0.

(0: Disable; 1: Enable)

I1_DRDY2 DRDY2 interrupt on INT1_A. Default value 0.

(0: Disable; 1: Enable)

I1_WTM FIFO watermark interrupt on INT1_A. Default value 0.

(0: Disable; 1: Enable)

I1_OVERRUN FIFO Overrun interrupt on INT1_A. Default value 0.

(0: Disable; 1: Enable)

8.4 CTRL_REG4_A (23h)

Table 27. CTRL_REG4_A register

(1)

1. This bit must be set to ‘0’ for correct operation.

BLE FS1 FS0 HR 0

Table 28. CTRL_REG4_A description

BLE Big/little endian data selection. Default value 0.

(0: Data LSb @ lower address; 1: Data MSb @ lower address)

FS1-FS0 Full Scale selection. default value: 00

(00: +/- 2G; 01: +/- 4G; 10: +/- 8G; 11: +/- 16G)

HR High resolution output mode: Default value: 0

(0: High resolution disable; 1: High resolution enable)

(1)

SIM

SIM SPI serial interface mode selection. Default value: 0

(0: 4-wire interface; 1: 3-wire interface).

8.5 CTRL_REG5_A (24h)

Table 29. CTRL_REG5_A register

BOOT FIFO_EN -- -- LIR_INT1 D4D_INT1 0

1. This bit must be set to ‘0’ for correct operation.

Table 30. CTRL_REG5_A description

BOOT Reboot memory content. Default value: 0

(0: Normal mode; 1: reboot memory content)

FIFO_EN FIFO enable. Default value: 0

(0: FIFO disable; 1: FIFO Enable)

(1)

Doc ID 022162 Rev 1 45/67

Page 46

Table 30. CTRL_REG5_A description (continued)

LIR_INT1 Latch interrupt request on INT1_SRC register, with INT1_SRC register

cleared by reading INT1_SRC itself. Default value: 0. (0: interrupt request not latched; 1: interrupt request latched)

D4D_INT1 4D enable: 4D detection is enabled on INT1 when 6D bit on INT1_CFG is set

to 1.

8.6 CTRL_REG6_A (25h)

Table 31. CTRL_REG6_A register

I2_CLICKen I2_INT1 0

1. This bit must be set to ‘0’ for correct operation.

(1)

BOOT_I2 0

Table 32. CTRL_REG6 description

I2_CLICKen Click interrupt on INT2_A. Default value 0.

I2_INT1 Interrupt 1 function enabled on INT2_A. Default 0.

(1)

-- H_LACTIVE --

BOOT_I2 Boot on INT2_A.

H_LACTIVE 0: interrupt active high; 1: interrupt active low.

8.7 REFERENCE/DATACAPTURE_A (26h)

Table 33. REFERENCE_A register

Ref7 Ref6 Ref5 Ref4 Ref3 Ref2 Ref1 Ref0

Table 34. REFERENCE register description

Ref 7-Ref0 Reference value for interrupt generation. Default value: 0

8.8 STATUS_REG_A (27h)

Table 35. STATUS_REG_A register

ZYXOR ZOR YOR XOR ZYXDA ZDA YDA XDA

Table 36. STATUS_REG_A register description

ZYXOR X, Y and Z axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new set of data has overwritten the previous data)

ZOR Z axis data overrun. Default value: 0

(0: no overrun has occurred; 1: new data for the Z-axis has overwritten the previous data)

46/67 Doc ID 022162 Rev 1

Page 47

LSM330DLC Register descriptions

Table 36. STATUS_REG_A register description (continued)

YOR Y axis data overrun. Default value: 0

(0: no overrun has occurred; 1: new data for the Y-axis has overwritten the previous data)

XOR X axis data overrun. Default value: 0

(0: no overrun has occurred; 1: new data for the X-axis has overwritten the previous data)

ZYXDA X, Y and Z axis new data available. Default value: 0

(0: a new set of data is not yet available; 1: a new set of data is available)

ZDA Z axis new data available. Default value: 0

(0: new data for the Z-axis is not yet available; 1: new data for the Z-axis is available)

YDA Y axis new data available. Default value: 0

(0: new data for the Y-axis is not yet available; 1: new data for the Y-axis is available)

8.9 OUT_X_L_A (28h), OUT_X_H_A (29h)

X-axis acceleration data. The value is expressed in two’s complement.

8.10 OUT_Y_L_A (2Ah), OUT_Y_H_A (2Bh)

Y-axis acceleration data. The value is expressed in two’s complement.

8.11 OUT_Z_L _A (2Ch), OUT_Z_H_A (2Dh)

Z-axis acceleration data. The value is expressed in two’s complement.

8.12 FIFO_CTRL_REG_A (2Eh)

Table 37. FIFO_CTRL_REG_A register

FM1 FM0 TR FTH4 FTH3 FTH2 FTH1 FTH0

Table 38. FIFO_CTRL_REG_A register description

FM1-FM0

TR Trigger selection. Default value: 0

FTH4:0 Default value: 0

FIFO mode selection. Default value: 00 (see Table 39: FIFO mode configuration)

0: Trigger event linked to trigger signal on INT1_A 1: Trigger event linked to trigger signal on INT2_A

Doc ID 022162 Rev 1 47/67

Page 48

Table 39. FIFO mode configuration

FM1 FM0 FIFO mode

0 0 Bypass mode

0 1 FIFO mode

1 0 Stream mode

1 1 Trigger mode

8.13 FIFO_SRC_REG_A (2Fh)

Table 40. FIFO_SRC_REG_A register

WTM OVRN_FIFO EMPTY FSS4 FSS3 FSS2 FSS1 FSS0

Table 41. FIFO_SRC_REG_A description

WTM WTM bit is set high when FIFO content exceeds watermark level

OVRN_FIFO OVRN bit is set high when FIFO buffer is full, this means that the FIFO buffer

contains 32 unread samples. At the following ODR a new sample set replaces the oldest FIFO value. The OVRN bit is reset when the first sample set has been read

EMPTY EMPTY flag is set high when all FIFO samples have been read and FIFO is empty

FSS4-0 FSS[4:0] field always contains the current number of unread samples stored in the

FIFO buffer. When FIFO is enabled, this value increases at ODR frequency until the buffer is full, whereas, it decreases every time that one sample set is retrieved from FIFO

8.14 INT1_CFG_A (30h)

Table 42. INT1_CFG_A register

AOI 6D ZHIE/

ZUPE

Table 43. INT1_CFG_A description

AOI And/Or combination of interrupt events. Default value: 0. Refer to Table 44: Inter-

rupt mode, “Interrupt mode”

6D 6 direction detection function enabled. Default value: 0. Refer to Table 44: Interrupt

mode

ZLIE/ ZDOWNE

YHIE/ YUPE

YLIE/ YDOWNE

XHIE/ XUPE

XLIE/ XDOWNE

ZHIE/ ZUPE

ZLIE/ ZDOWNE

48/67 Doc ID 022162 Rev 1

Enable interrupt generation on Z high event or on direction recognition. Default value: 0 (0: disable interrupt request;1: enable interrupt request)

Enable interrupt generation on Z low event or on direction recognition. Default value: 0 (0: disable interrupt request;1: enable interrupt request)

Page 49

LSM330DLC Register descriptions

Table 43. INT1_CFG_A description (continued)

YHIE/ YUPE

YLIE/ YDOWNE

Enable interrupt generation on Y high event or on direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

Enable interrupt generation on Y low event or on direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

XHIE/ XUPE

XLIE/XDOWNE Enable interrupt generation on X low event or on direction recognition. Default

Enable interrupt generation on X high event or on direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

value: 0 (0: disable interrupt request; 1: enable interrupt request.)

The content of this register is loaded at boot.

A write operation at this address is possible only after system boot.

Table 44. Interrupt mode

AOI 6D Interrupt mode

0 0 OR combination of interrupt events

0 1 6 direction movement recognition

1 0 AND combination of interrupt events

1 1 6 direction position recognition

The difference between AOI-6D = ‘01’ and AOI-6D = ‘11’.

AOI-6D = ‘01’ is movement recognition. An interrupt is generated when the orientation moves from “unknown zone” to “known zone”. The interrupt signal remains for an ODR duration.

AOI-6D = ‘11’ is direction recognition. An interrupt is generated when the orientation is inside a “known zone”. The interrupt signal remains until orientation is within the zone.

8.15 INT1_SRC_A (31h)

Table 45. INT1_SRC_A register

(1)

1. This bit must be set to ‘0’ for correct operation.

Table 46. INT1_SRC_A description

IA ZH ZL YH YL XH XL

Interrupt active. Default value: 0 (0: no interrupt has been generated; 1: one or more interrupts have been generated)

Z high. Default value: 0 (0: no interrupt, 1: Z High event has occurred)

Z low. Default value: 0 (0: no interrupt; 1: Z Low event has occurred)

Doc ID 022162 Rev 1 49/67

Page 50

Table 46. INT1_SRC_A description (continued)

Y high. Default value: 0

(0: no interrupt, 1: Y High event has occurred)

Y low. Default value: 0

(0: no interrupt, 1: Y Low event has occurred)

X high. Default value: 0

(0: no interrupt, 1: X High event has occurred)

X low. Default value: 0

(0: no interrupt, 1: X Low event has occurred)

Interrupt 1 source register. Read only register.

Reading at this address clears INT1_SRC_A IA bit (and the interrupt signal on INT 1 pin) and allows the refreshing of the data in the INT1_SRC_A register if the latched option was chosen.

8.16 INT1_THS_A (32h)

Table 47. INT1_THS_A register

(1)

THS6 THS5 THS4 THS3 THS2 THS1 THS0

1. This bit has to be set ‘0’ for correct operation.

Table 48. INT1_THS_A description

THS6 - THS0 Interrupt 1 threshold. Default value: 000 0000

8.17 INT1_DURATION_A (33h)

Table 49. INT1_DURATION_Aregister

(1)

1. This bit must be set ‘0’ for correct operation.

Table 50. INT1_DURATION_A description

D6 - D0 Duration value. Default value: 000 0000

D6 - D0 bits set the minimum duration of the Interrupt 1 event to be recognized. Duration steps and maximum values depend on the ODR chosen.

D6 D5 D4 D3 D2 D1 D0

50/67 Doc ID 022162 Rev 1

Page 51

LSM330DLC Register descriptions

8.18 CLICK_CFG _A (38h)

Table 51. CLICK_CFG_A register

-- -- ZD ZS YD YS XD XS

Table 52. CLICK_CFG_A description

ZD Enable interrupt double CLICK on Z axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

ZS Enable interrupt single CLICK on Z axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

YD Enable interrupt double CLICK on Y axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

YS Enable interrupt single CLICK on Y axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

XD Enable interrupt double CLICK on X axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

XS Enable interrupt single CLICK on X axis. Default value: 0

(0: disable interrupt request; 1: enable interrupt request on measured accel. value higher than preset threshold)

8.19 CLICK_SRC_A (39h)

Table 53. CLICK_SRC_A register

-- IA DCLICK SCLICK Sign Z Y X

Table 54. CLICK_SRC_A description

IA Interrupt active. Default value: 0

(0: no interrupt has been generated; 1: one or more interrupts have been generated)

DCLICK Double CLICK-CLICK enable. Default value: 0 (0:double CLICK-CLICK detection dis-

able, 1: double CLICK-CLICK detection enable)

SCLICK Single CLICK-CLICK enable. Default value: 0 (0:Single CLICK-CLICK detection dis-

able, 1: single CLICK-CLICK detection enable)

Sign CLICK-CLICK Sign. 0: positive detection, 1: negative detection

Z Z CLICK-CLICK detection. Default value: 0

(0: no interrupt, 1: Z High event has occurred)

Doc ID 022162 Rev 1 51/67

Page 52

Table 54. CLICK_SRC_A description

Y Y CLICK-CLICK detection. Default value: 0

(0: no interrupt, 1: Y High event has occurred)

X X CLICK-CLICK detection. Default value: 0

(0: no interrupt, 1: X High event has occurred)

8.20 CLICK_THS_A (3Ah)

Table 55. CLICK_THS_A register

-- Ths6 Ths5 Ths4 Ths3 Ths2 Ths1 Ths0

Table 56. CLICK_SRC_A description

Ths6-Ths0 CLICK-CLICK threshold. Default value: 000 0000

8.21 TIME_LIMIT_A (3Bh)

Table 57. TIME_LIMIT_A register

-- TLI6 TLI5 TLI4 TLI3 TLI2 TLI1 TLI0

Table 58. TIME_LIMIT_A description

TLI7-TLI0 CLICK-CLICK Time limit. Default value: 000 0000

8.22 TIME_LATENCY_A (3Ch)

Table 59. TIME_LATENCY_A register

TLA7 TLA6 TLA5 TLA4 TLA3 TLA2 TLA1 TLA0

Table 60. TIME_LATENCY_A description

TLA7-TLA0 CLICK-CLICK time latency. Default value: 000 0000

8.23 TIME WINDOW_A (3Dh)

Table 61. TIME_WINDOW_A register

TW7TW6TW5TW4TW3TW2TW1TW0

52/67 Doc ID 022162 Rev 1

Page 53

LSM330DLC Register descriptions

Table 62. TIME_WINDOW_A description

TW7-TW0 CLICK-CLICK time window

8.24 Act_THS (3Eh)

Table 63. Act_THS register

-- Acth6 Acth5 Acth4 Acth3 Acth2 Acth1 Acth0

Table 64. Act_THS description

Acth[6-0] Sleep-to-Wake, Return to Sleep activation threshold

1LSb = 16mg

8.25 Act_DUR (3Fh)

Table 65. Act_DUR register

ActD7 ActD6 ActD5 ActD4 ActD3 ActD2 ActD1 ActD0

Table 66. Act_DUR description

ActD[7-0] Sleep-to-Wake, Return to Sleep duration

DUR = (Act_DUR + 1)*8/ODR

8.26 WHO_AM_I_G (0Fh)

Table 67. WHO_AM_I_G register

11010100

Device identification register.

8.27 CTRL_REG1_G (20h)

Table 68. CTRL_REG1_G register

DR1 DR0 BW1 BW0 PD Zen Xen Yen

Table 69. CTRL_REG1_G description

DR1-DR0 Output data rate selection. Refer to Ta bl e 7 0

BW1-BW0 Bandwidth selection. Refer to Ta bl e 7 0

Doc ID 022162 Rev 1 53/67

Page 54

Table 69. CTRL_REG1_G description

Zen Z axis enable. Default value: 1

Yen Y axis enable. Default value: 1

Xen X axis enable. Default value: 1

Power-down mode enable. Default value: 0 (0: Power-down mode, 1: Normal mode or Sleep mode)

(0: Z axis disabled; 1: Z axis enabled)

(0: Y axis disabled; 1: Y axis enabled)

(0: X axis disabled; 1: X axis enabled)

DR<1:0> is used to set ODR selection. BW <1:0> is used to set bandwidth selection.

Ta bl e 7 0 below provides all the frequencies resulting from the DR / BW bit combinations.

Table 70. DR and BW configuration setting

DR <1:0> BW <1:0> ODR [Hz] Cut-off

00 00 95 12.5

00 01 95 25

00 10 95 25

00 11 95 25

01 00 190 12.5

01 01 190 25

01 10 190 50

01 11 190 70

10 00 380 20

10 01 380 25

10 10 380 50

10 11 380 100

11 00 760 30

11 01 760 35

11 10 760 50

11 11 760 100

The combination of PD, Zen, Yen, Xen is used to set the device in different modes (Power- down / Normal / Sleep mode) according to the following table:

Table 71. Power mode selection configuration

Mode PD Zen Yen Xen

Power-down 0 - - -

54/67 Doc ID 022162 Rev 1

Page 55

LSM330DLC Register descriptions

Table 71. Power mode selection configuration

Sleep1000

Normal 1 - - -

8.28 CTRL_REG2_G (21h)

Table 72. CTRL_REG2_G register

EXTRen LVLen HPM1 HPM1 HPCF3 HPCF2 HPCF1 HPCF0

Table 73. CTRL_REG2_G description

EXTRen

Edge-sensitive trigger Enable: Default value: 0 (0: external trigger disabled; 1: External trigger enabled)

LV Le n

HPM1HPM0

HPCF3HPCF0

Level-sensitive trigger Enable: Default value: 0 (0: level sensitive trigger disabled; 1: level sensitive trigger enabled)

High-pass filter mode selection. Default value: 00 Refer to Ta bl e 7 4

High-pass filter cut-off frequency selection Refer to Ta bl e 7 5

Table 74. High-pass filter mode configuration

HPM1 HPM0 High-pass filter mode

0 0 Normal mode (reset reading HP_RESET_FILTER)

0 1 Reference signal for filtering

1 0 Normal mode

1 1 Autoreset on interrupt event

Table 75. High-pass filter cut-off frequency configuration [Hz]

HPCF3-0 ODR=95 Hz ODR=190 Hz ODR=380 Hz ODR=760 Hz

0000 7.2 13.5 27 51.4

0001 3.5 7.2 13.5 27

0010 1.8 3.5 7.2 13.5

0011 0.9 1.8 3.5 7.2

0100 0.45 0.9 1.8 3.5

0101 0.18 0.45 0.9 1.8

0110 0.09 0.18 0.45 0.9

0111 0.045 0.09 0.18 0.45

Doc ID 022162 Rev 1 55/67

Page 56

Table 75. High-pass filter cut-off frequency configuration [Hz] (continued)

1000 0.018 0.045 0.09 0.18

1001 0.009 0.018 0.045 0.09

8.29 CTRL_REG3_G (22h)

Table 76. CTRL_REG3_G register

I1_Int1 I1_Boot H_Lactive PP_OD I2_DRDY I2_WTM I2_ORun I2_Empty

Table 77. CTRL_REG3_G description

I1_Int1 Interrupt enable on INT1_G pin. Default value 0. (0: Disable; 1: Enable)

I1_Boot Boot status available on INT1_G. Default value 0. (0: Disable; 1: Enable)

H_Lactive Interrupt active configuration on INT1_G. Default value 0. (0: High; 1:Low)

PP_OD Push-pull / Open drain. Default value: 0. (0: Push-pull; 1: Open drain)

I2_DRDY Date ready on DRDY_G/INT2_G. Default value 0. (0: Disable; 1: Enable)

I2_WTM FIFO watermark interrupt on DRDY_G/INT2_G. Default value: 0. (0: Disable; 1: Ena-

ble)

I2_ORun FIFO overrun interrupt on DRDY_G/INT2_G Default value: 0. (0: Disable; 1: Enable)

I2_Empty FIFO empty interrupt on DRDY_G/INT2_G. Default value: 0. (0: Disable; 1: Enable)

8.30 CTRL_REG4_G (23h)

Table 78. CTRL_REG4_G register

BDU BLE FS1 FS0 - 0 0 SIM

Table 79. CTRL_REG4_G description

BDU Block data update. Default value: 0

(0: continuous update; 1: output registers not updated until MSb and LSb reading)

BLE Big/little endian data selection. Default value 0.

(0: Data LSb @ lower address; 1: Data MSb @ lower address)

FS1-FS0 Full scale selection. Default value: 00

(00: 250 dps; 01: 500 dps; 10: 2000 dps; 11: 2000 dps)

SIM 3-wire SPI Serial interface read mode enable. Default value: 0

(0: 3-wire Read mode disabled; 1: 3-wire read enabled).

56/67 Doc ID 022162 Rev 1

Page 57

LSM330DLC Register descriptions

8.31 CTRL_REG5_G (24h)

Table 80. CTRL_REG5_G register

BOOT FIFO_EN -- HPen INT1_Sel1 INT1_Sel0 Out_Sel1 Out_Sel0

Table 81. CTRL_REG5_G description

BOOT Reboot memory content. Default value: 0

(0: Normal mode; 1: reboot memory content)

FIFO_EN FIFO enable. Default value: 0

(0: FIFO disable; 1: FIFO Enable)

HPen High-pass filter Enable. Default value: 0

(0: HPF disabled; 1: HPF enabled, see Figure 20)

INT1_Sel1INT1_Sel0

Out_Sel1Out_Sel1

INT1 selection configuration. Default value: 0 (see Figure 20)

Out selection configuration. Default value: 0 (see Figure 20)

Figure 20. INT1_Sel and Out_Sel configuration block diagram

Out_Sel <1:0>

00 01

10 11

INT1_Sel <1:0>

10 11

ADC

LPF1

HPF

LPF2

HPen

DataReg

FIFO

32x16x3

Interrupt

generator

AM07949V2

8.32 REFERENCE_G (25h)

Table 82. REFERENCE_G register

Ref7 Ref6 Ref5 Ref4 Ref3 Ref2 Ref1 Ref0

Table 83. REFERENCE_G register description

Ref 7-Ref0 Reference value for interrupt generation. Default value: 0

Doc ID 022162 Rev 1 57/67

Page 58

8.33 OUT_TEMP_G (26h)

Table 84. OUT_TEMP_G register

Temp7 Temp6 Temp5 Temp4 Temp3 Temp2 Temp1 Temp0

Table 85. OUT_TEMP_G register description

Temp7-Temp0 Temperature data (1LSb/deg - 8-bit resolution). The value is expressed as

two’s complement.

8.34 STATUS_REG_G (27h)

Table 86. STATUS_REG_G register

ZYXOR ZOR YOR XOR ZYXDA ZDA YDA XDA

Table 87. STATUS_REG description

X, Y, Z-axis data overrun. Default value: 0

ZYXOR

ZOR

YOR

XOR

ZYXDA X, Y, Z -axis new data available. Default value: 0

ZDA Z axis new data available. Default value: 0

(0: no overrun has occurred; 1: new data has overwritten the previous data before it was read)

Z axis data overrun. Default value: 0 (0: no overrun has occurred; 1: new data for the Z-axis has overwritten the previous data)

Y axis data overrun. Default value: 0 (0: no overrun has occurred; 1: new data for the Y-axis has overwritten the previous data)

X axis data overrun. Default value: 0 (0: no overrun has occurred; 1: new data for the X-axis has overwritten the previous data)

(0: a new set of data is not yet available; 1: a new set of data is available)

(0: new data for the Z-axis is not yet available; 1: new data for the Z-axis is available)

YDA Y axis new data available. Default value: 0

(0: new data for the Y-axis is not yet available;1: new data for the Y-axis is available)

XDA X axis new data available. Default value: 0

(0: new data for the X-axis is not yet available; 1: new data for the X-axis is available)

8.35 OUT_X_L_G (28h), OUT_X_H_G (29h)

X-axis angular rate data. The value is expressed as two’s complement.

8.36 OUT_Y_L_G (2Ah), OUT_Y_H_G (2Bh)

Y-axis angular rate data. The value is expressed as two’s complement.

58/67 Doc ID 022162 Rev 1

Page 59

LSM330DLC Register descriptions

8.37 OUT_Z_L_G (2Ch), OUT_Z_H_G (2Dh)

Z-axis angular rate data. The value is expressed as two’s complement.

8.38 FIFO_CTRL_REG_G (2Eh)

Table 88. FIFO_CTRL_REG_G register

FM2 FM1 FM0 WTM4 WTM3 WTM2 WTM1 WTM0

Table 89. FIFO_CTRL_REG_G description

FM2-FM0 FIFO mode selection. Default value: 00 (see Ta b le 9 0 )

WTM4-WTM0 FIFO threshold. Watermark level setting

Table 90. FIFO mode configuration

FM2 FM1 FM0 FIFO mode

0 0 0 Bypass mode

0 0 1 FIFO mode

0 1 0 Stream mode

0 1 1 Stream-to-FIFO mode

1 0 0 Bypass-to-stream mode

8.39 FIFO_SRC_REG_G (2Fh)

Table 91. FIFO_SRC_REG_G register

WTM OVRN EMPTY FSS4 FSS3 FSS2 FSS1 FSS0

Table 92. FIFO_SRC_REG_G description

WTM Watermark status. (0: FIFO filling is lower than WTM level; 1: FIFO filling is equal

or higher than WTM level)

OVRN Overrun bit status.

(0: FIFO is not completely filled; 1:FIFO is completely filled)

EMPTY FIFO empty bit.

(0: FIFO not empty; 1: FIFO empty)

FSS4-FSS1 FIFO stored data level

Doc ID 022162 Rev 1 59/67

Page 60

8.40 INT1_CFG_G (30h)

Table 93. INT1_CFG_G register

AND/OR LIR ZHIE ZLIE YHIE YLIE XHIE XLIE

Table 94. INT1_CFG_G description

AND/OR

AND/OR combination of interrupt events. Default value: 0 (0: OR combination of interrupt events 1: AND combination of interrupt events

LIR

ZHIE

ZLIE

YHIE

YLIE

XHIE

XLIE

Latch Interrupt request. Default value: 0 (0: interrupt request not latched; 1: interrupt request latched) Cleared by reading INT1_SRC_G reg.

Enable interrupt generation on Z high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured value higher

than preset threshold)

Enable interrupt generation on Z low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured value lower than

preset threshold)

Enable interrupt generation on Y high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured value higher

than preset threshold)

Enable interrupt generation on Y low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured value lower than

preset threshold)

Enable interrupt generation on X high event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured value higher

than preset threshold)

Enable interrupt generation on X low event. Default value: 0 (0: disable interrupt request; 1: enable interrupt request on measured value lower than

preset threshold)

Configuration register for interrupt source.

8.41 INT1_SRC_G (31h)

Table 95. INT1_SRC_G register

0 IA ZHZLYHYLXHXL

Table 96. INT1_SRC_G description

ZH Z high. Default value: 0 (0: no interrupt, 1: Z High event has occurred)

60/67 Doc ID 022162 Rev 1

Interrupt active. Default value: 0 (0: no interrupt has been generated; 1: one or more interrupts have been generated)

Page 61

LSM330DLC Register descriptions

Table 96. INT1_SRC_G description

ZL Z low. Default value: 0 (0: no interrupt; 1: Z Low event has occurred)

YH Y high. Default value: 0 (0: no interrupt, 1: Y High event has occurred)

YL Y low. Default value: 0 (0: no interrupt, 1: Y Low event has occurred)

XH X high. Default value: 0 (0: no interrupt, 1: X High event has occurred)

XL X low. Default value: 0 (0: no interrupt, 1: X Low event has occurred)

Interrupt source register. Read only register.

Reading at this address clears the INT1_SRC_G IA bit (and eventually the interrupt signal on the INT1_G pin) and allows the refreshing of data in the INT1_SRC_G register if the latched option was chosen.

8.42 INT1_THS_XH_G (32h)

Table 97. INT1_THS_XH_G register

- THSX14 THSX13 THSX12 THSX11 THSX10 THSX9 THSX8

Table 98. INT1_THS_XH_G description

THSX14 - THSX9 Interrupt threshold. Default value: 0000 0000

8.43 INT1_THS_XL_G (33h)

Table 99. INT1_THS_XL_G register

THSX7 THSX6 THSX5 THSX4 THSX3 THSX2 THSX1 THSX0

Table 100. INT1_THS_XL_G description

THSX7 - THSX0 Interrupt threshold. Default value: 0000 0000

8.44 INT1_THS_YH _G (34h)

Table 101. INT1_THS_YH_G register

- THSY14 THSY13 THSY12 THSY11 THSY10 THSY9 THSY8

Table 102. INT1_THS_YH_G description

THSY14 - THSY9 Interrupt threshold. Default value: 0000 0000

Doc ID 022162 Rev 1 61/67

Page 62

8.45 INT1_THS_YL_G (35h)

Table 103. INT1_THS_YL_G register

THSR7 THSY6 THSY5 THSY4 THSY3 THSY2 THSY1 THSY0

Table 104. INT1_THS_YL_G description

THSY7 - THSY0 Interrupt threshold. Default value: 0000 0000

8.46 INT1_THS_ZH_G (36h)

Table 105. INT1_THS_ZH_G register

- THSZ14 THSZ13 THSZ12 THSZ11 THSZ10 THSZ9 THSZ8

Table 106. INT1_THS_ZH_G description

THSZ14 - THSZ9 Interrupt threshold. Default value: 0000 0000

8.47 INT1_THS_ZL_G (37h)

Table 107. INT1_THS_ZL_G register

THSZ7 THSZ6 THSZ5 THSZ4 THSZ3 THSZ2 THSZ1 THSZ0

Table 108. INT1_THS_ZL_G description

THSZ7 - THSZ0 Interrupt threshold. Default value: 0000 0000

8.48 INT1_DURATION_G (38h)

Table 109. INT1_DURATION_G register

WAIT D6 D5 D4 D3 D2 D1 D0

Table 110. INT1_DURATION_G description

WAIT WAIT enable. Default value: 0 (0: disable; 1: enable)

D6 - D0 Duration value. Default value: 000 0000

D6 - D0 bits set the minimum duration of the interrupt event to be recognized. Duration steps and maximum values depend on the ODR chosen.

62/67 Doc ID 022162 Rev 1

Page 63

LSM330DLC Register descriptions

WAI T bit has the following meaning:

Wait =’0’: the interrupt falls immediately if signal crosses the selected threshold

Wait =’1’: if the signal crosses the selected threshold, the interrupt falls only after the duration has counted the number of samples at the selected data rate, written into the duration counter register.

Figure 21. Wait disabled

Doc ID 022162 Rev 1 63/67

Page 64

Figure 22. Wait enabled

64/67 Doc ID 022162 Rev 1

Page 65

LSM330DLC Package information

9 Package information

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK

packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.

Figure 23. LGA-28 (4x5x1.1 mm): mechanical data and package dimensions

Dimensions

Ref.

A1 1.1

A2 0.855

A3 0.200

D1 3.850 4.000 4.150

E1 4.850 5.000 5.150

L1 3.75

L2 2.75

N1 0.500

M0.075

P1 2.200

P2 1.700

T1 0.265 0.325 0.385

T2 0.19 0.250 0.310

d0.200

k0.050

h0.100

Min. Typ. Max.

Land Grid Array Package

Outline and

mechanical data

LGA-28 (4x5x1.1mm)

8181393A

Doc ID 022162 Rev 1 65/67

Page 66

Revision history LSM330DLC

10 Revision history

Table 111. Document revision history

Date Revision Changes

2-Sep-2011 1 Initial release.

66/67 Doc ID 022162 Rev 1

Page 67

LSM330DLC

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Doc ID 022162 Rev 1 67/67
